Effect of Lactic Acid Bacteria on Bacterial Community Structure and Characteristics of Sugarcane Juice
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials and Main Equipment
2.2. Seed Liquid Preparation
2.3. Sample Preparation of Fermented Sugarcane Juice
2.4. Determination of Organic Acid Content in Fermented Sugarcane Juice
2.4.1. Sample Preparation
2.4.2. Chromatographic Conditions
2.5. Determination of Antibacterial Ability of Fermented Sugarcane Juice
2.6. Sensory Analysis
2.7. Statistical Analysis
3. Results and Discussion

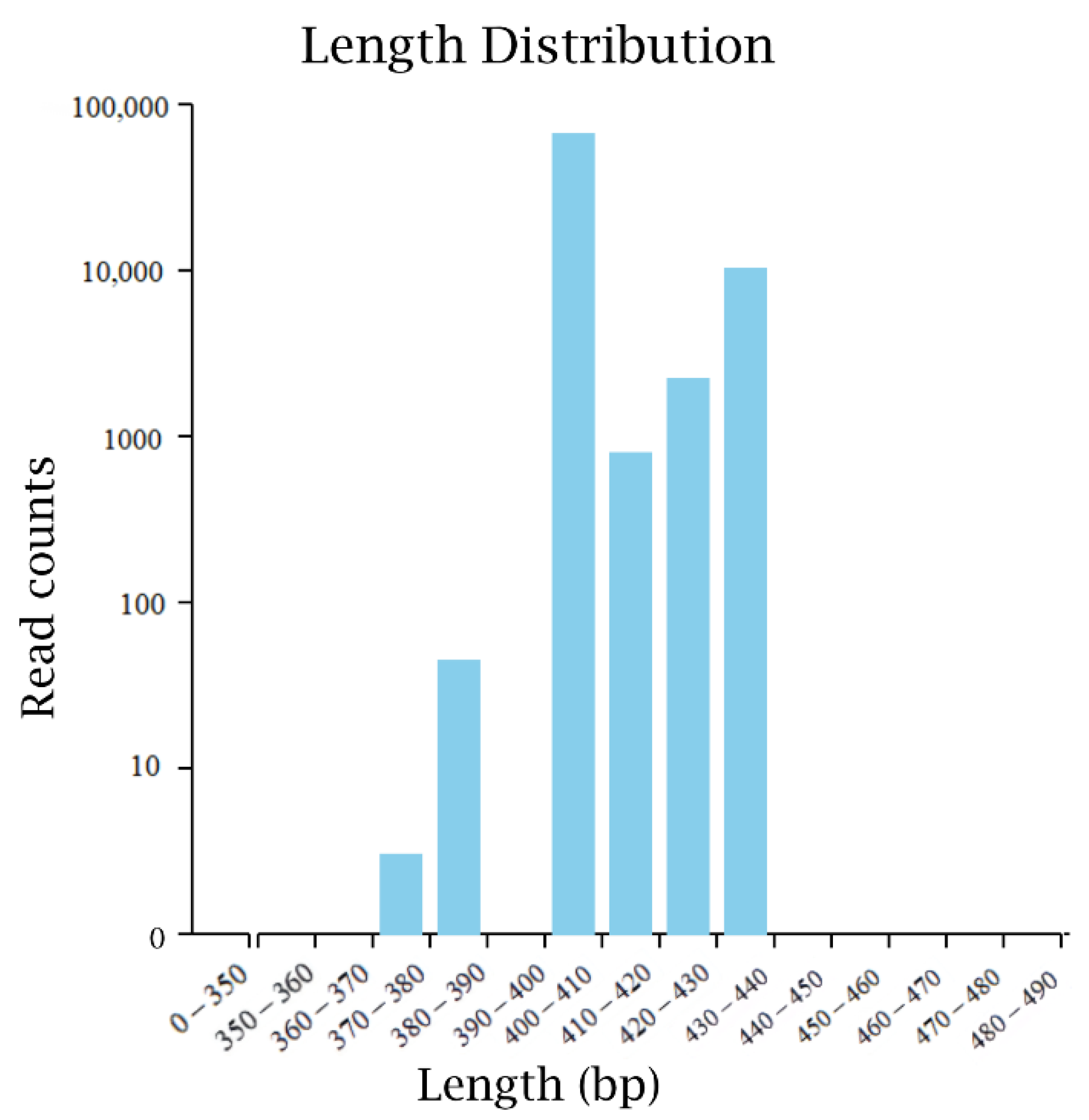

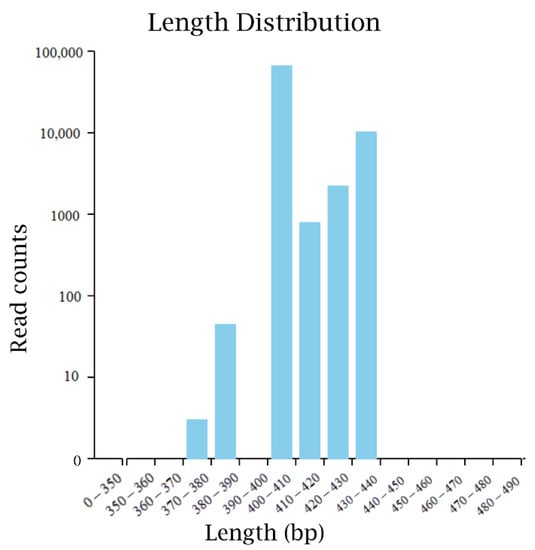

3.1. Sequencing Results of Fermented Sugarcane Juice
3.2. Alpha Diversity Analysis

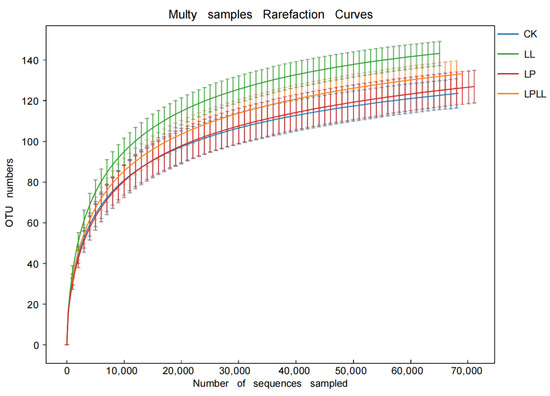

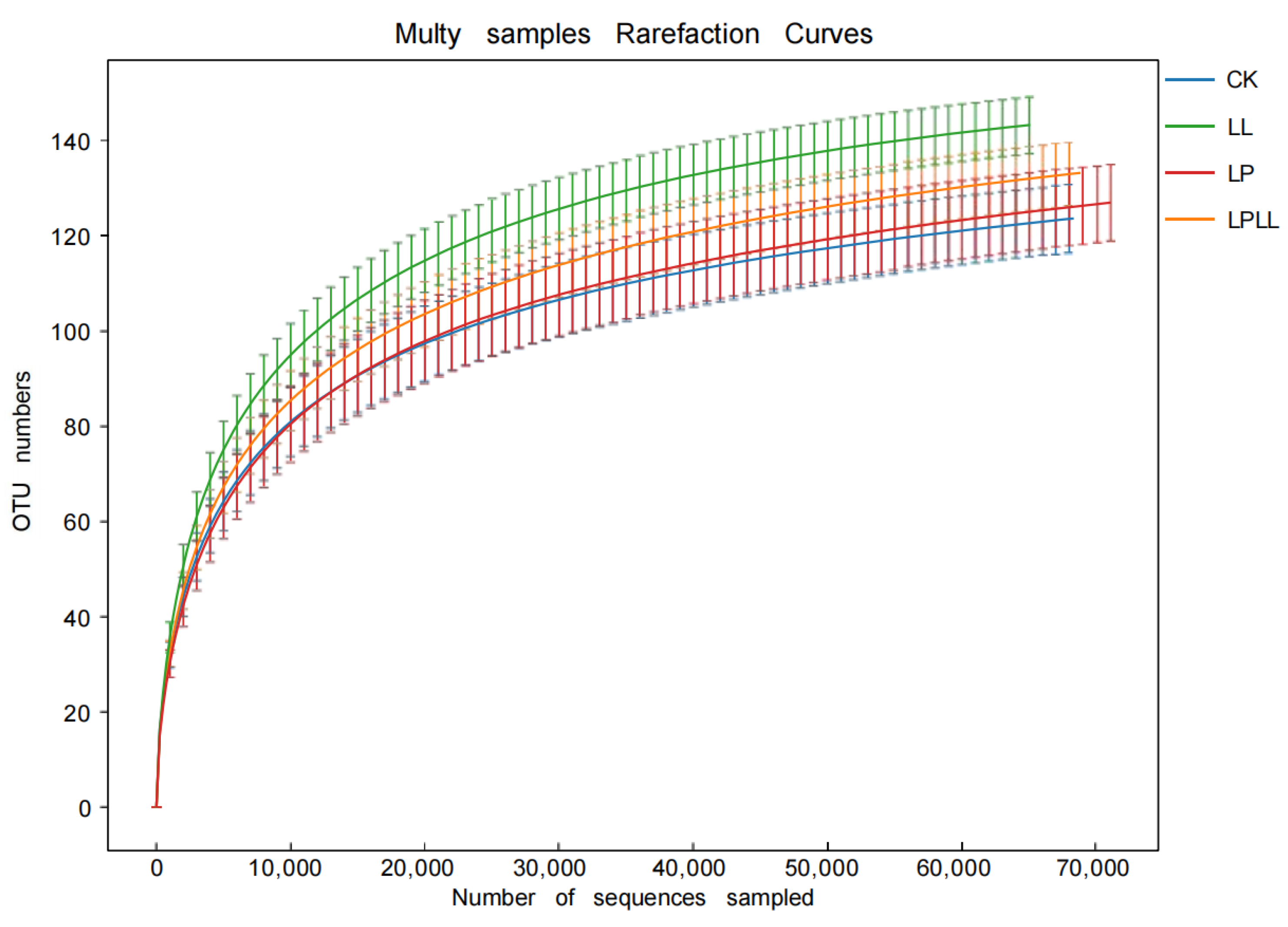

3.2.1. Dilution Curve

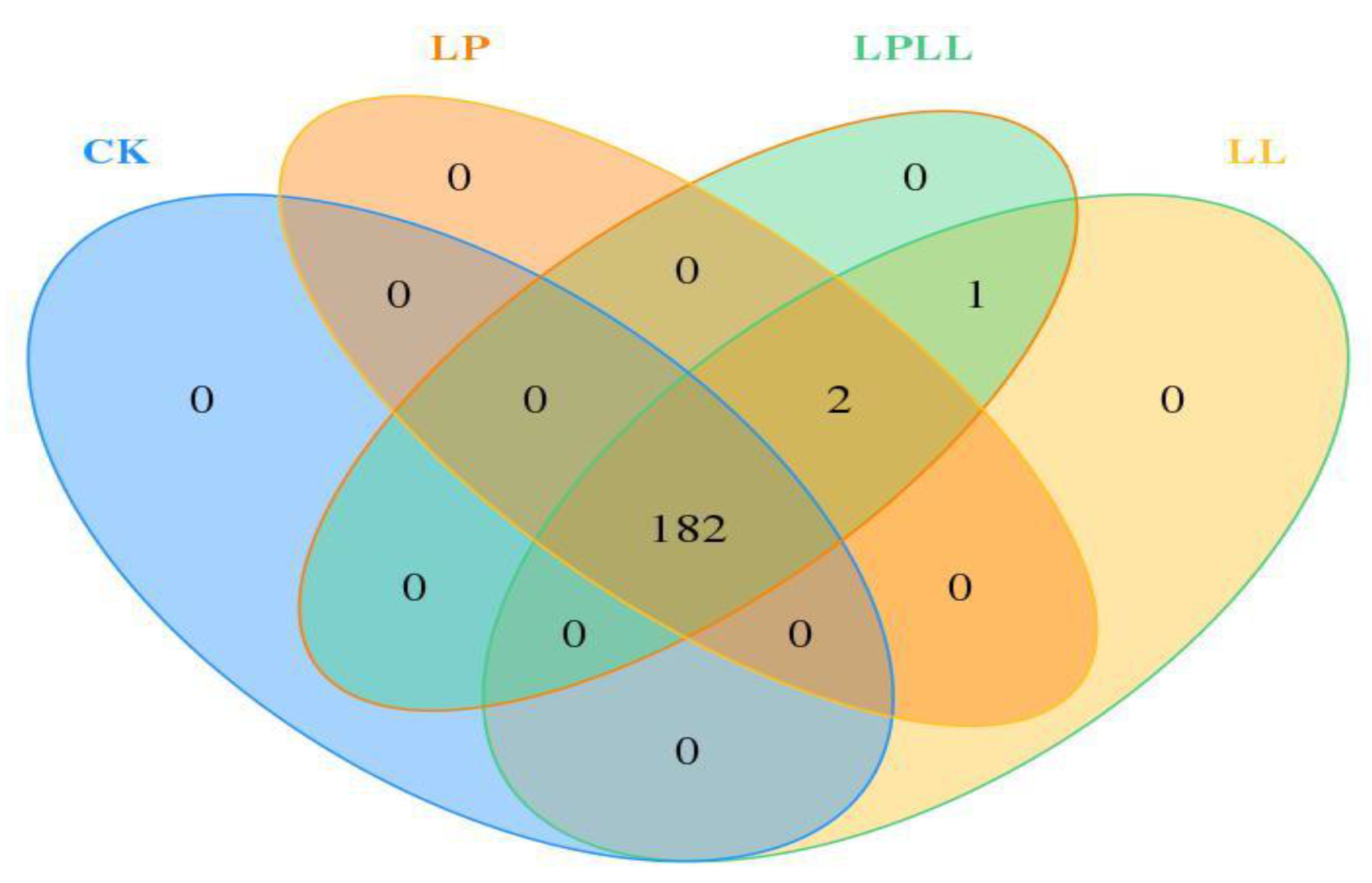

3.2.2. Veen Diagram
3.2.3. Alpha Diversity Index Analysis
3.3. Species Composition Analysis

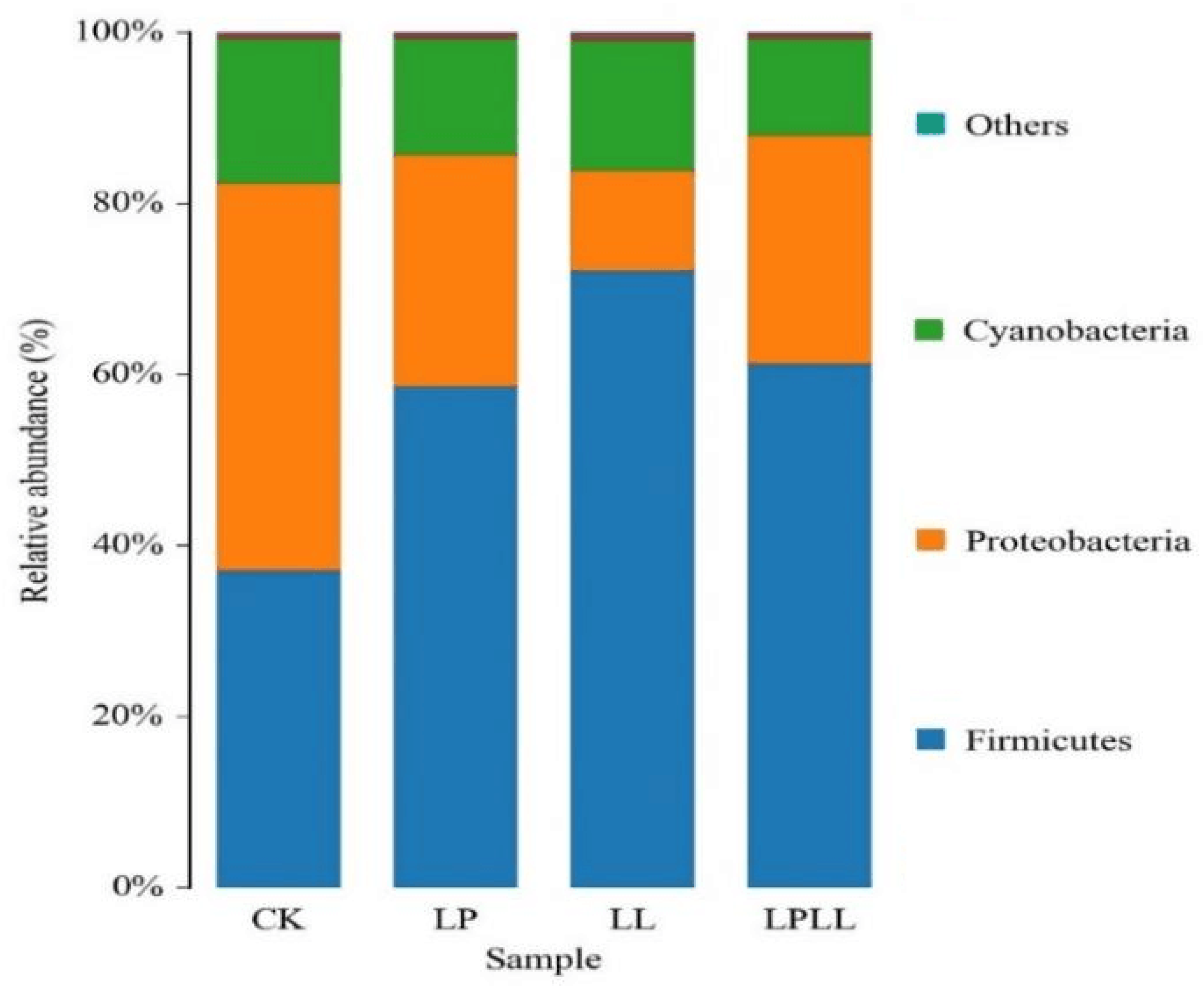

3.3.1. Analysis of Flora Structure of Fermented Sugarcane Juice Based on Phylum Level

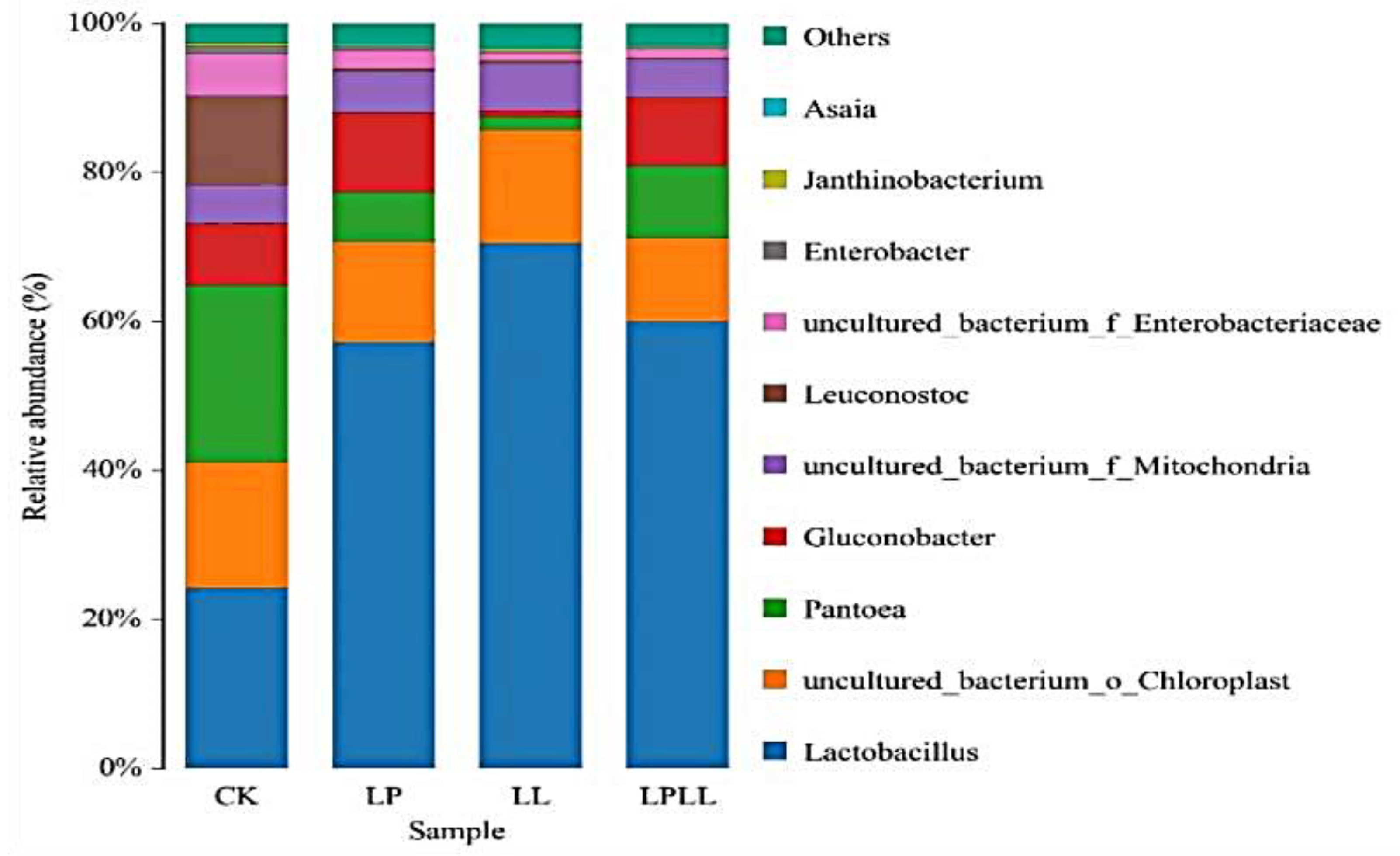

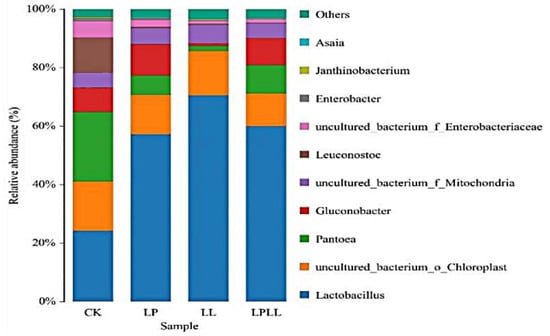

3.3.2. Analysis of the Microbial Community Structure of Fermented Sugarcane Juice Based on the Genus Level

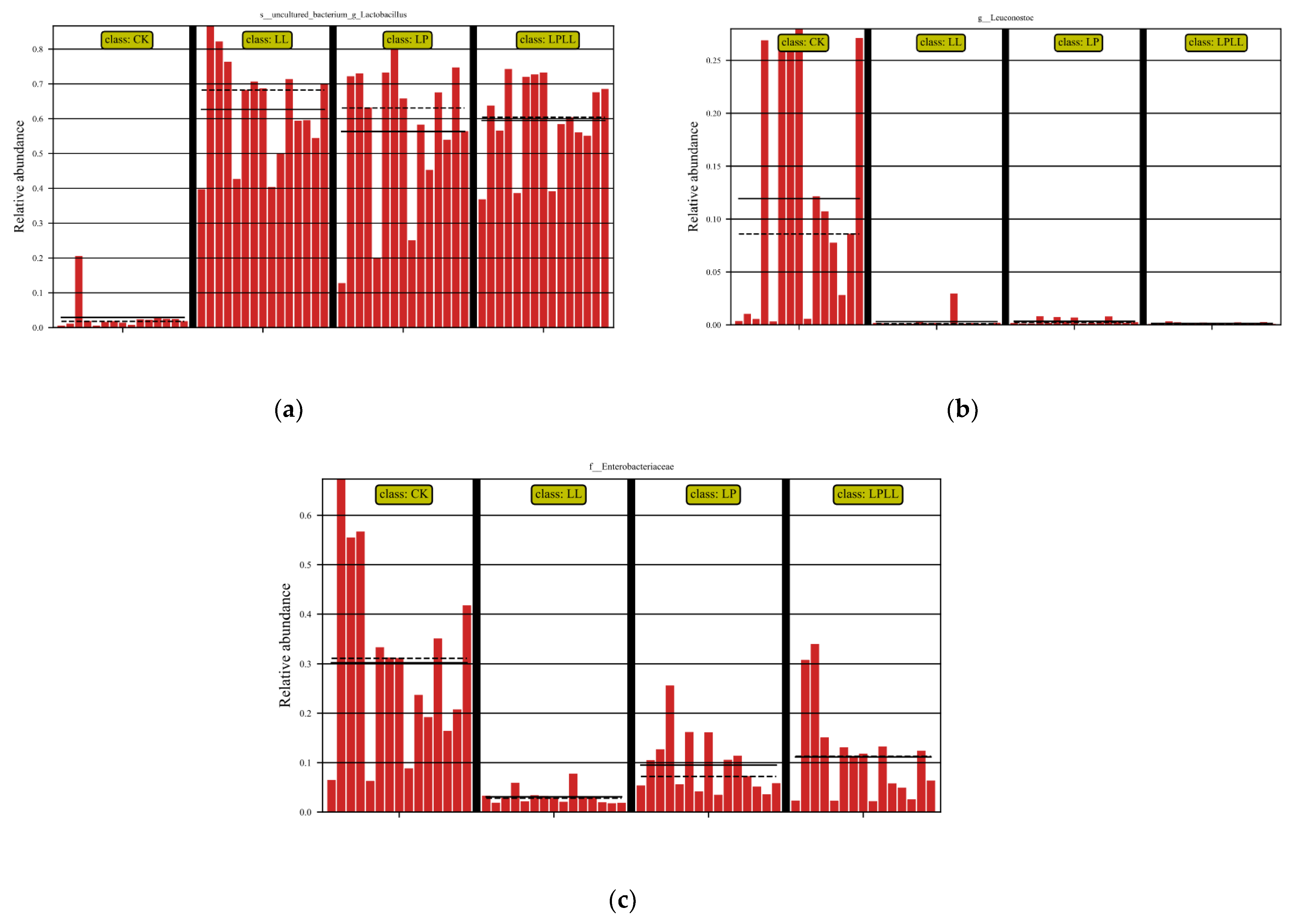

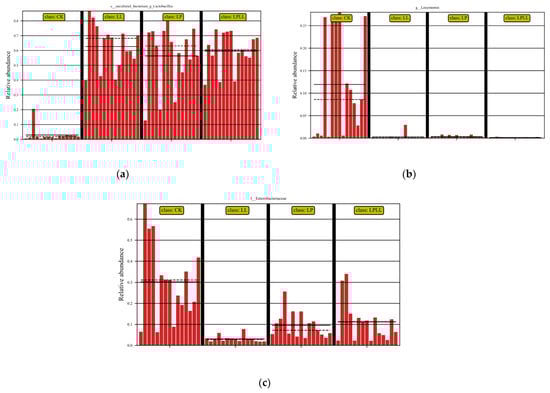

3.4. Significant Difference Analysis between Groups

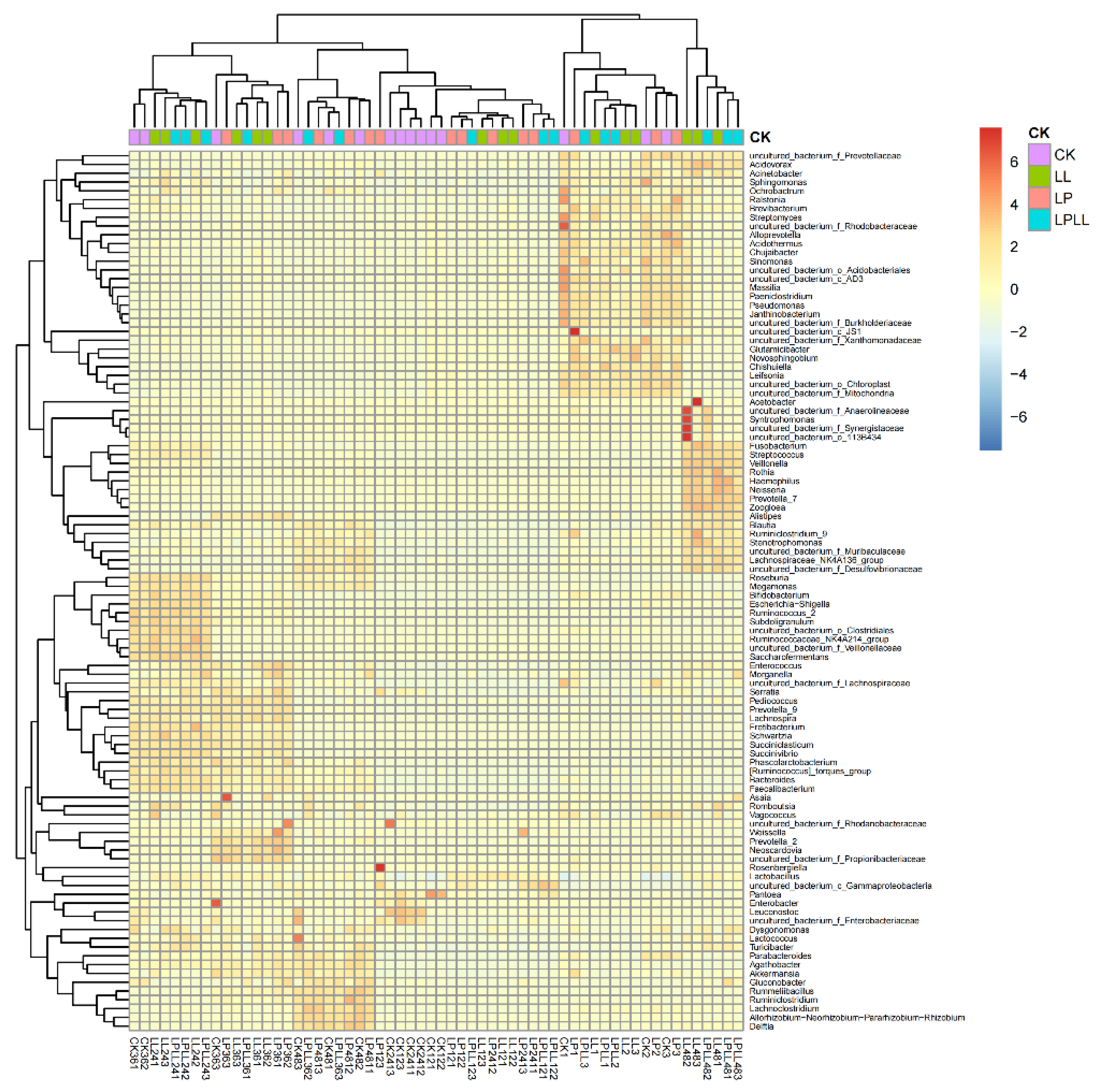

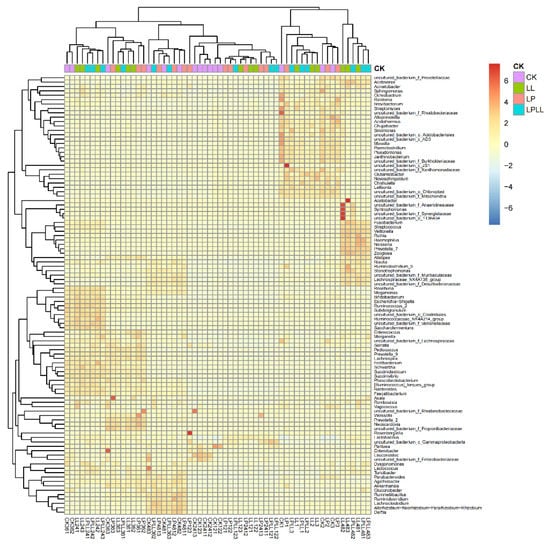

3.5. Similarity Cluster Analysis
3.6. Principal Component Analysis

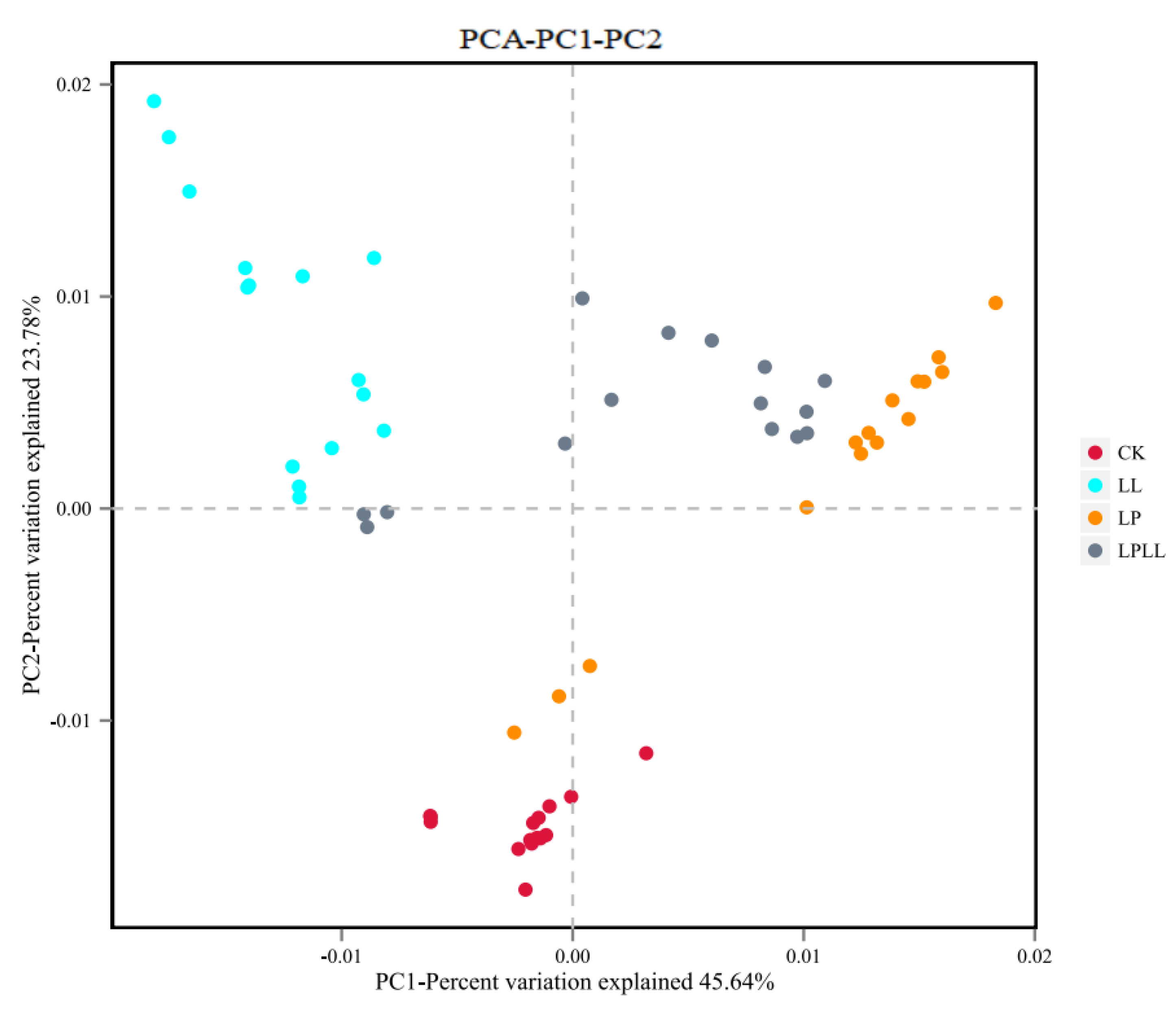

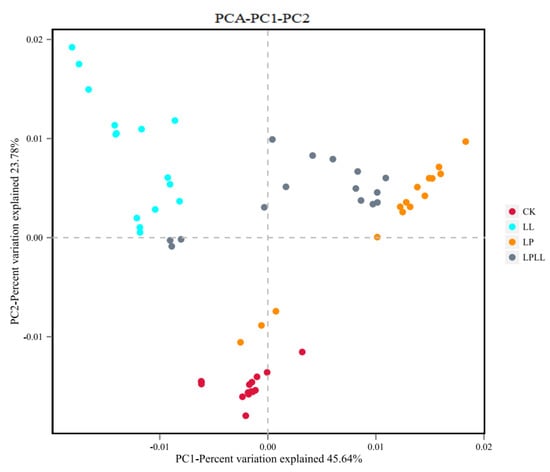

3.6.1. PCA

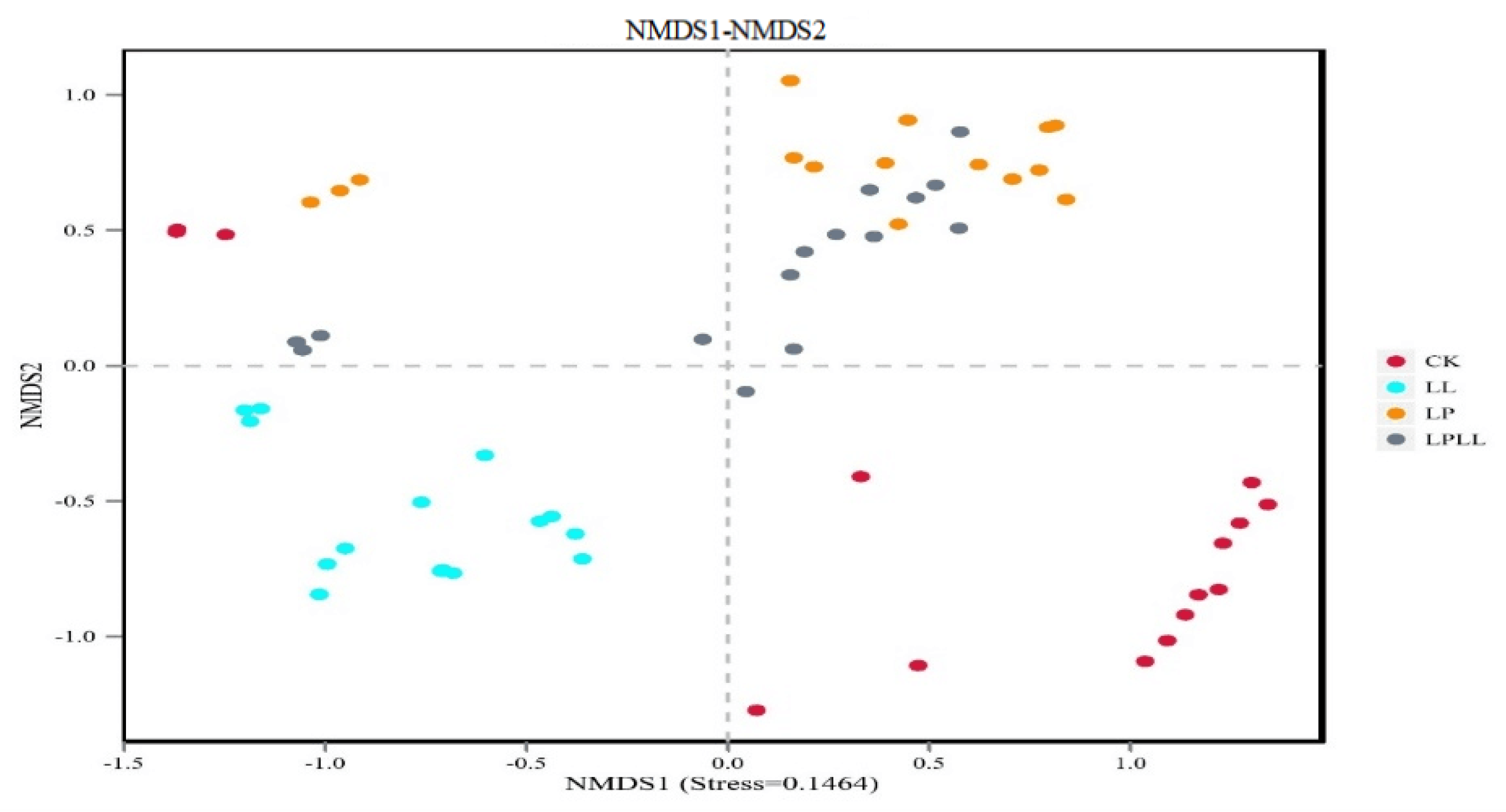

3.6.2. Non-Metric Multidimensional Scaling
3.7. Changes in pH and Organic Acids in Sugarcane Juice Fermentation
3.8. Changes in Bacteriostatic Ability during Fermentation of Sugarcane Juice
3.9. Sensory Analysis
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Kaavya, R.; Pandiselvam, R.; Kothakota, A.; Priya, E.P.B.; Prasath, V.A. Sugarcane Juice Preservation: A Critical Review of the State of the Art and Way Forward. Sugar Tech 2019, 21, 9–19. [Google Scholar] [CrossRef]
- Multari, S.; Carafa, I.; Barp, L.; Caruso, M.; Licciardello, C.; Larcher, R.; Tuohy, K.; Martens, S. Effects of Lactobacillus spp. on the phytochemical composition of juices from two varieties of Citrus sinensis L. Osbeck: ‘Tarocco’ and ‘Washington navel’. LWT 2020, 125, 109205. [Google Scholar] [CrossRef]
- Kunitake, M.; Ditchfield, C.; Silva, C.; Petrus, R. Effect of Pasteurization Temperature on Stability of an Acidified Sugarcane Juice Beverage. Cienc. Agrotec. 2014, 38, 554–561. [Google Scholar] [CrossRef] [Green Version]
- Rodrigues, N.P.; Brochier, B.; de Medeiros, J.K.; Marczak, L.D.F.; Mercali, G.D. Phenolic profile of sugarcane juice: Effects of harvest season and processing by ohmic heating and ultrasound. Food Chem. 2021, 347, 129058. [Google Scholar] [CrossRef] [PubMed]
- Zapasnik, A.; Sokolowska, B.; Bryla, M. Role of Lactic Acid Bacteria in Food Preservation and Safety. Foods 2022, 11, 1283. [Google Scholar] [CrossRef] [PubMed]
- Mora-Villalobos, J.A.; Montero-Zamora, J.; Barboza, N.; Rojas-Garbanzo, C.; Usaga, J.; Redondo-Solano, M.; Schroedter, L.; Olszewska-Widdrat, A.; Lopez-Gomez, J.P. Multi-Product Lactic Acid Bacteria Fermentations: A Review. Fermentation 2020, 6, 23. [Google Scholar] [CrossRef] [Green Version]
- Abbasiliasi, S.; Tan, J.S.; Ibrahim, T.A.T.; Bashokouh, F.; Ramakrishnan, N.R.; Mustafa, S.; Ariff, A.B. Fermentation factors influencing the production of bacteriocins by lactic acid bacteria: A review. Rsc. Adv. 2017, 7, 29395–29420. [Google Scholar] [CrossRef]
- Cleveland, J.; Montville, T.J.; Nes, I.F.; Chikindas, M.L. Bacteriocins: Safe, natural antimicrobials for food preservation. Food Microbiol. 2001, 71, 1–20. [Google Scholar] [CrossRef]
- Yang, J.S.; Tan, H.S.; Zhai, H.R.; Wang, Q.; Zhao, N.; Cai, Y.M.; Li, M.; Zhou, H.L. Research on Chemical Composition and Ensiling Characteristics of Banana Stems and Leaves. Adv. Mater. Res. 2011, 347–353, 1647–1651. [Google Scholar] [CrossRef]
- Yang, J.S.; Tan, H.S.; Cai, Y.M. Characteristics of lactic acid bacteria isolates and their effect on silage fermentation of fruit residues. J. Dairy Sci. 2016, 99, 5325–5334. [Google Scholar] [CrossRef]
- Madsen, S.K.; Thulesen, E.T.; Mohammadifar, M.A.; Bang-Berthelsen, C.H. Chufa Drink: Potential in Developing a New Plant-Based Fermented Dessert. Foods 2021, 10, 3010. [Google Scholar] [CrossRef] [PubMed]
- Liu, T.J.; Li, Y.; Chen, J.C.; Sadiq, F.A.; Zhang, G.H.; Li, Y.; He, G.Q. Prevalence and diversity of lactic acid bacteria in Chinese traditional sourdough revealed by culture dependent and pyrosequencing approaches. Lwt-Food Sci. Technol. 2016, 68, 91–97. [Google Scholar] [CrossRef]
- Wang, L.; Wang, Y.Y.; Wang, D.Q.; Xu, J.; Yang, F.; Liu, G.; Zhang, D.Y.; Feng, Q.; Xiao, L.; Xue, W.B.; et al. Dynamic changes in the bacterial community in Moutai liquor fermentation process characterized by deep sequencing. J. Inst. Brew. 2015, 121, 603–608. [Google Scholar] [CrossRef]
- Xu, D.M.; Wang, N.; Rinne, M.; Ke, W.C.; Weinberg, Z.G.; Da, M.; Bai, J.; Zhang, Y.X.; Li, F.H.; Guo, X.S. The bacterial community and metabolome dynamics and their interactions modulate fermentation process of whole crop corn silage prepared with or without inoculants. Microb. Biotechnol. 2021, 14, 561–576. [Google Scholar] [CrossRef]
- Li, Y.; Chen, W.; Zheng, X.Y.; Liu, Q.; Xiang, W.; Qu, J.X.; Yang, C.F. Microbial community structure analysis in a hybrid membrane bioreactor via high-throughput sequencing. Chemosphere 2021, 282, 130989. [Google Scholar] [CrossRef]
- Ren, H.; Feng, Y.; Pei, J.; Li, J.; Wang, Z.; Fu, S.; Zheng, Y.; Li, Z.; Peng, Z. Effects of Lactobacillus plantarum additive and temperature on the ensiling quality and microbial community dynamics of cauliflower leaf silages. Bioresour. Technol. 2020, 307, 123238. [Google Scholar] [CrossRef]
- Di Bella, J.M.; Bao, Y.G.; Gloor, G.B.; Burton, J.P.; Reid, G. High throughput sequencing methods and analysis for microbiome research. J. Microbiol. Meth. 2013, 95, 401–414. [Google Scholar] [CrossRef]
- Korlach, J.; Bjornson, K.P.; Chaudhuri, B.P.; Cicero, R.L.; Flusberg, B.A.; Gray, J.J.; Holden, D.; Saxena, R.; Wegener, J.; Turner, S.W. Real-Time DNA Sequencing from Single Polymerase Molecules. Method Enzym. 2010, 472, 431–455. [Google Scholar]
- Tang, J.; Tang, X.X.; Tang, M.; Zhang, X.M.; Xu, X.R.; Yi, Y. Analysis of the Bacterial Communities in Two Liquors of Soy Sauce Aroma as Revealed by High-Throughput Sequencing of the 16S rRNA V4 Hypervariable Region. Biomed Res. Int. 2017, 2017, 6271358. [Google Scholar] [CrossRef] [Green Version]
- Li, M.; Zi, X.J.; Tang, J.; Zhou, H.L.; Cai, Y.M. Silage fermentation, chemical composition and ruminal degradation of king grass, cassava foliage and their mixture. Grassl. Sci. 2019, 65, 210–215. [Google Scholar] [CrossRef]
- Muhialdin, B.J.; Kadum, H.; Hussin, A.S.M. Metabolomics profiling of fermented cantaloupe juice and the potential application to extend the shelf life of fresh cantaloupe juice for six months at 8 degrees C. Food Control 2021, 120, 107555. [Google Scholar] [CrossRef]
- Saito, D.; Nakaji, S.; Fukuda, S.; Shimoyama, T.; Sakamoto, J.; Sugawara, K. Comparison of the amount of pectin in the human terminal ileum with the amount of orally administered pectin. Nutrition 2005, 21, 914–919. [Google Scholar] [CrossRef] [PubMed]
- Matsubara, V.H.; Wang, Y.; Bandara, H.M.H.N.; Mayer, M.P.A.; Samaranayake, L.P. Probiotic lactobacilli inhibit early stages of Candida albicans biofilm development by reducing their growth, cell adhesion, and filamentation. Appl. Microbiol. Biot. 2016, 100, 6415–6426. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Aung, T.; Eun, J.B. Production and characterization of a novel beverage from laver (Porphyra dentata) through fermentation with kombucha consortium. Food Chem. 2021, 350, 129274. [Google Scholar] [CrossRef]
- Hashemi, S.M.B.; Mousavi Khaneghah, A.; Barba, F.J.; Nemati, Z.; Sohrabi Shokofti, S.; Alizadeh, F. Fermented sweet lemon juice (Citrus limetta) using Lactobacillus plantarum LS5: Chemical composition, antioxidant and antibacterial activities. J. Funct. Foods 2017, 38, 409–414. [Google Scholar] [CrossRef]
- Castellano, P.; Ibarreche, M.P.; Massani, M.B.; Fontana, C.; Vignolo, G.M. Strategies for Pathogen Biocontrol Using Lactic Acid Bacteria and Their Metabolites: A Focus on Meat Ecosystems and Industrial Environments. Microorganisms 2017, 5, 38. [Google Scholar] [CrossRef] [Green Version]
- Masood, M.I.; Qadir, M.I.; Shirazi, J.H.; Khan, I.U. Beneficial effects of lactic acid bacteria on human beings. Crit. Rev. Microbiol. 2011, 37, 91–98. [Google Scholar] [CrossRef]
Fermentation Method | Fermentation Time | Shannon | Simpson | ACE | Chao 1 | Coverage |
---|---|---|---|---|---|---|
Fresh sugarcane juice | 0 h | 1.9394 | 0.5361 | 146.6979 | 146.0889 | 0.9999 |
12 h | 1.9963 | 0.6249 | 147.1516 | 147.1516 | 0.9997 | |
24 h | 2.5556 | 0.7778 | 149.5131 | 148.9484 | 0.9998 | |
36 h | 2.7124 | 0.7456 | 156.9436 | 154.4762 | 0.9999 | |
48 h | 2.6063 | 0.7422 | 152.1198 | 153.7333 | 0.9999 | |
Fresh sugarcane juice + HNK10 | 0 h | 2.0431 | 0.6712 | 146.9601 | 151.4889 | 0.9999 |
12 h | 1.1348 | 0.3352 | 123.1293 | 117.1402 | 0.9999 | |
24 h | 2.0618 | 0.5220 | 171.0971 | 173.7381 | 0.9998 | |
36 h | 2.4813 | 0.6830 | 173.4629 | 174.6033 | 0.9999 | |
48 h | 2.4406 | 0.6662 | 165.8255 | 165.9692 | 0.9999 | |
Fresh sugarcane juice + HNK21 | 0 h | 2.3088 | 0.6744 | 154.4233 | 155.7787 | 0.9999 |
12 h | 1.6568 | 0.5055 | 137.4734 | 124.3867 | 0.9997 | |
24 h | 1.478 | 0.4279 | 139.1534 | 125.3903 | 0.9999 | |
36 h | 2.2562 | 0.6101 | 168.8637 | 169.4510 | 0.9999 | |
48 h | 1.8172 | 0.5355 | 162.1182 | 164.6531 | 0.9999 | |
Fresh sugarcane juice + HNK10 + HNK21 | 0 h | 2.3131 | 0.7228 | 145.1451 | 144.6062 | 0.9997 |
12 h | 1.1980 | 0.4131 | 136.0097 | 117.2084 | 0.9999 | |
24 h | 2.5116 | 0.7772 | 170.7681 | 171.4101 | 0.9999 | |
36 h | 2.5926 | 0.7726 | 179.3964 | 172.0490 | 0.9999 | |
48 h | 2.3103 | 0.6430 | 153.6262 | 160.1191 | 0.9999 |
Time/h | Fresh Sugarcane Juice | Fresh Sugarcane Juice + HNK10 | Fresh Sugarcane Juice + HNK21 | Fresh Sugarcane Juice + HNK10 + HNK21 | |
---|---|---|---|---|---|
pH | 0 | 4.82 ± 0.01 a | 4.76 ± 0.01 b | 4.46 ± 0.04 c | 4.83 ± 0.00 a |
12 | 4.51 ± 0.02 a | 3.86 ± 0.01 b | 3.75 ± 0.01 c | 3.56 ± 0.01 d | |
24 | 3.58 ± 0.02 a | 3.37 ± 0.01 b | 3.48 ± 0.01 c | 3.35 ± 0.00 d | |
36 | 3.23 ± 0.01 a | 3.15 ± 0.02 a | 3.25 ± 0.28 a | 3.15 ± 0.01 a | |
48 | 3.4 ± 0.00 a | 3.10 ± 0.01 bd | 3.25 ± 0.00 cd | 3.13 ± 0.00 bcd | |
Lactic acid (mg/mL) | 0 | 0 ± 0.00 a | 0.06 ± 0.00 a | 0.09 ± 0.00 a | 0.07 ± 0.00 a |
12 | 0.57 ± 0.02 ab | 0.36 ± 0.01 c | 0.45 ± 0.01 b | 0.55 ± 0.01 a | |
24 | 0.61 ± 0.01 a | 0.47 ± 0.01 b | 0.61 ± 0.07 a | 0.57 ± 0.03 a | |
36 | 0.51 ± 0.02 ab | 0.53 ± 0.00 ab | 0.60 ± 0.00 c | 0.63 ± 0.00 d | |
48 | 0.11 ± 0.01 a | 0.54 ± 0.02 b | 0.27 ± 0.02 c | 0.71 ± 0.01 d | |
Malic acid (mg/mL) | 0 | 2.9 ± 0.01 a | 2.48 ± 0.01 b | 2.48 ± 0.03 b | 2.79 ± 0.01 c |
12 | 4.15 ± 0.06 a | 5.31 ± 0.02 b | 3.39 ± 0.21 c | 5.39 ± 0.11 b | |
24 | 5.47 ± 0.13 a | 6.78 ± 0.00 b | 4.94 ± 0.09 c | 7.20 ± 0.06 d | |
36 | 6.11 ± 0.01 a | 7.84 ± 0.04 b | 4.94 ± 0.00 c | 8.41 ± 0.02 d | |
48 | 7.76 ± 0.00 a | 8.42 ± 0.01 b | 6.48 ± 0.04 c | 8.94 ± 0.07 d | |
Oxalic acid (mg/mL) | 0 | 0.03 ± 0.01 a | 0.06 ± 0.01 b | 0.07 ± 0.01 b | 0.06 ± 0.00 b |
12 | 0.19 ± 0.00 a | 0.15 ± 0.13 a | 0.17 ± 0.02 a | 0.20 ± 0.02 a | |
24 | 0.15 ± 0.01 a | 0.14 ± 0.02 a | 0.15 ± 0.00 a | 0.20 ± 0.02 a | |
36 | 0.12 ± 0.01 a | 0.12 ± 0.01 a | 0.14 ± 0.00 a | 0.08 ± 0.01 a | |
48 | 0.11 ± 0.02 a | 0.03 ± 0.00 b | 0.03 ± 0.01 b | 0.06 ± 0.00 c | |
Galacturonic acid (mg/mL) | 0 | 0.89 ± 0.01 a | 0.77 ± 0.06 b | 0.60 ± 0.01 c | 0.94 ± 0.01 a |
12 | 0.91 ± 0.31 a | 0.89 ± 0.01 a | 0.81 ± 0.00 b | 0.90 ± 0.07 a | |
24 | 0.84 ± 0.00 a | 0.89 ± 0.01 a | 0.87 ± 0.05 a | 0.82 ± 0.01 a | |
36 | 0.68 ± 0.01 a | 0.79 ± 0.01 b | 0.83 ± 0.02 c | 0.82 ± 0.00 c | |
48 | 0.03 ± 0.00 a | 0.60 ± 0.01 a | 0.94 ± 0.01 a | 0.73 ± 0.06 a |
Treatment Method | Fermentation Time | Salmonella | E. coli | Staphylococcus aureus |
---|---|---|---|---|
Fresh sugarcane juice | 0 h | 11.1 a | 0 a | 0 a |
48 h | 12.0 a | 13.1 a | 11.1 a | |
Fresh sugarcane juice + HNK10 | 0 h | 11.6 b | 0 a | 12.0 b |
48 h | 13.2 b | 14.2 b | 17.2 b | |
Fresh sugarcane juice + HNK21 | 0 h | 11.0 a | 0 a | 0 a |
48 h | 11.5 a | 16.1c | 17.0 b | |
Fresh sugarcane juice + Compound treatment (HNK10 + HNK21) | 0 h | 12.1 c | 0 a | 12.0 b |
48 h | 13.0 b | 14.9 d | 17.3 b |
Treatment Method | Average Rating | Comments |
---|---|---|
Fresh sugarcane juice | 1 | The appearance is pale yellow, the color is uneven, there is a small amount of precipitation, there is a peculiar smell, and the taste of sugarcane is too light. |
Fresh sugarcane juice + HNK10 | 5 | The appearance is yellow, the color is uniform, and there is no peculiar smell. In addition to retaining the fragrant smell of sugarcane, there is a light flavor of lactic acid, sweet, and sour. |
Fresh sugarcane juice + HNK21 | 3 | |
Fresh sugarcane juice + Compound treatment (HNK10 + HNK21) | 4 |
