Physicochemical Characteristics and Flavor Properties of Texturized Dual-Proteins Extrudates: Effect of Surimi to Soybean Flour Ratio
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Rheological Properties of Raw Mixtures
2.3. Preparation of Texturized Extrudates
2.4. Color and Thickness
2.5. Tensile Properties
2.6. Microstructure
2.7. Low−Field Nuclear Magnetic (LF−NMR) Resonance Measurements
2.8. Fourier Transform Infrared Spectroscopy (FT−IR) Determination
2.9. Sensory Evaluation of Flavor
2.10. E—Tongue Analysis
2.11. E—Nose Analysis
2.12. Statistical Analysis
3. Results and Discussion
3.1. Rheological Properties of Raw Materials

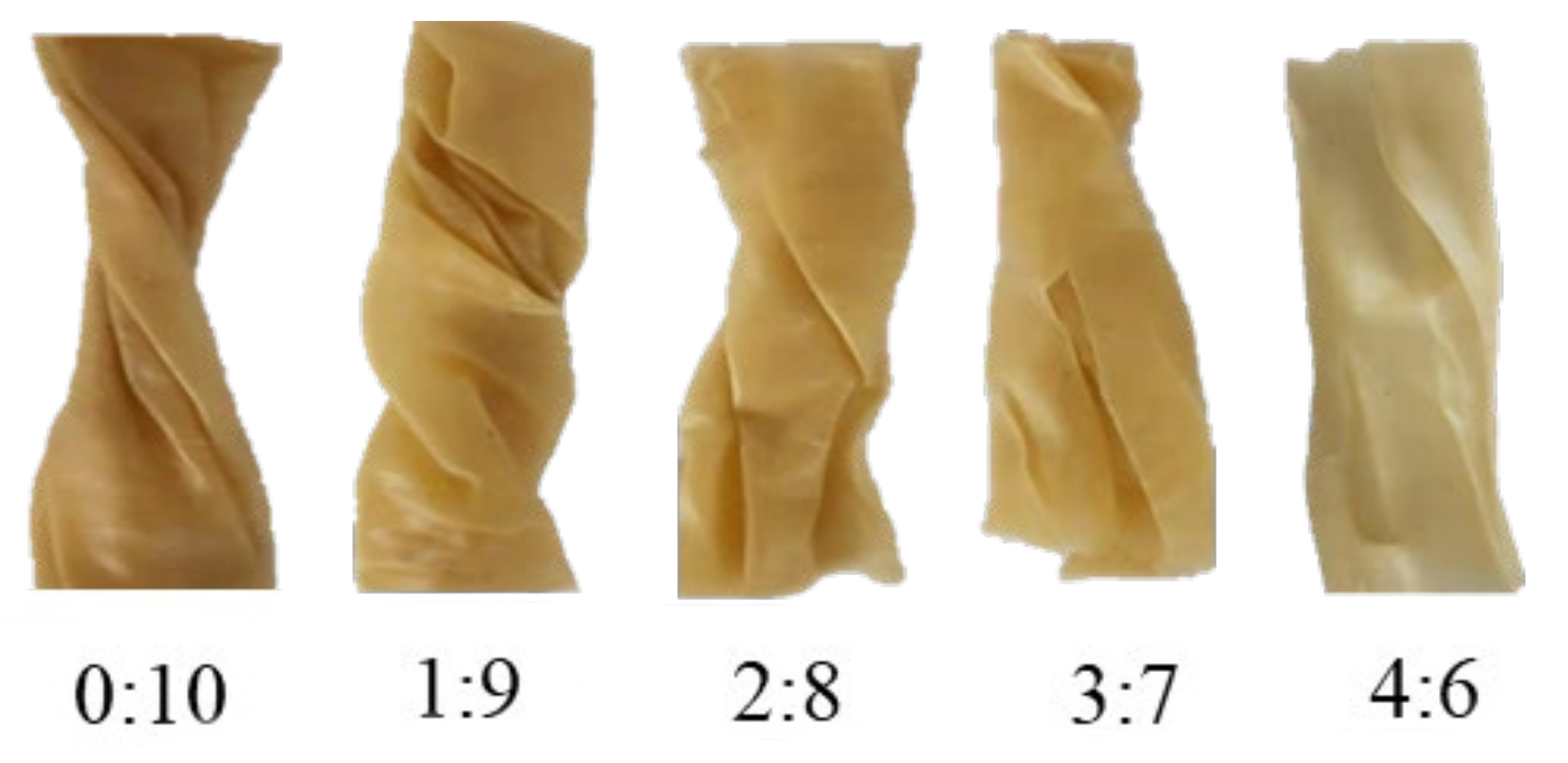

3.2. Appearances, Color and Thickness

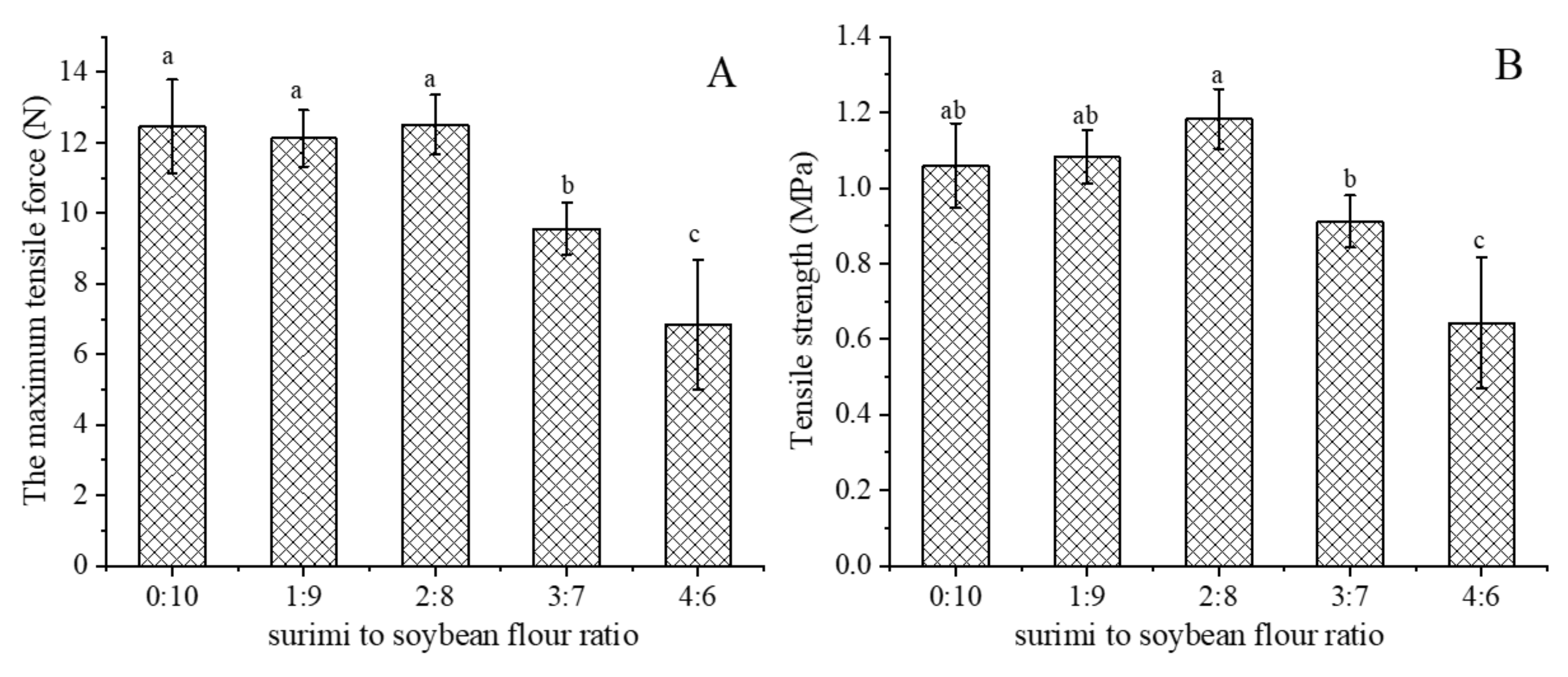

3.3. Tensile Properties
3.4. Microstructure
3.5. Analysis of Water Status
3.6. Analysis of Protein Secondary Structure by FT-IR

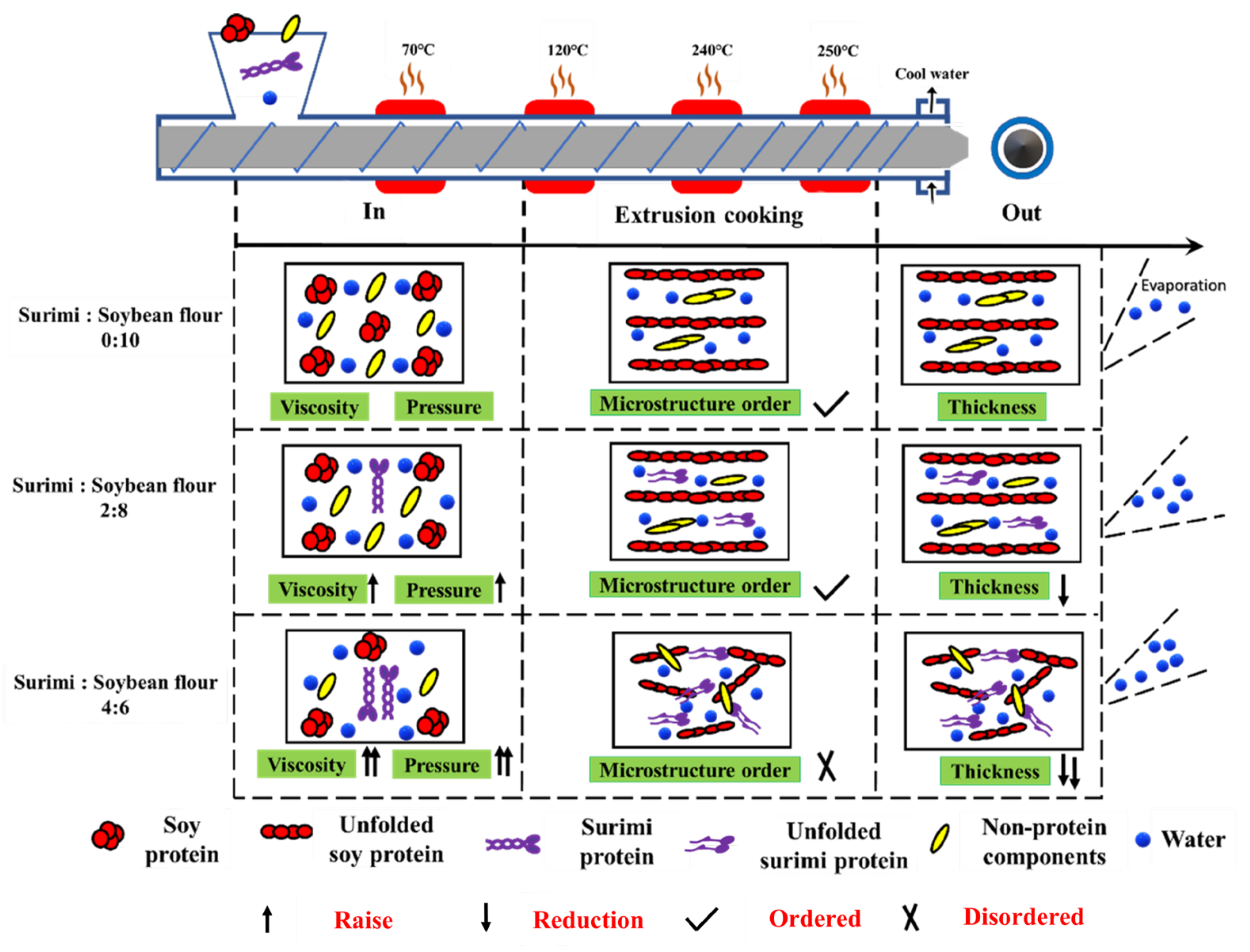

3.7. Mechanism Explanation on the Structural Properties of Extrudates
3.8. Sensory Evaluation of Flavor

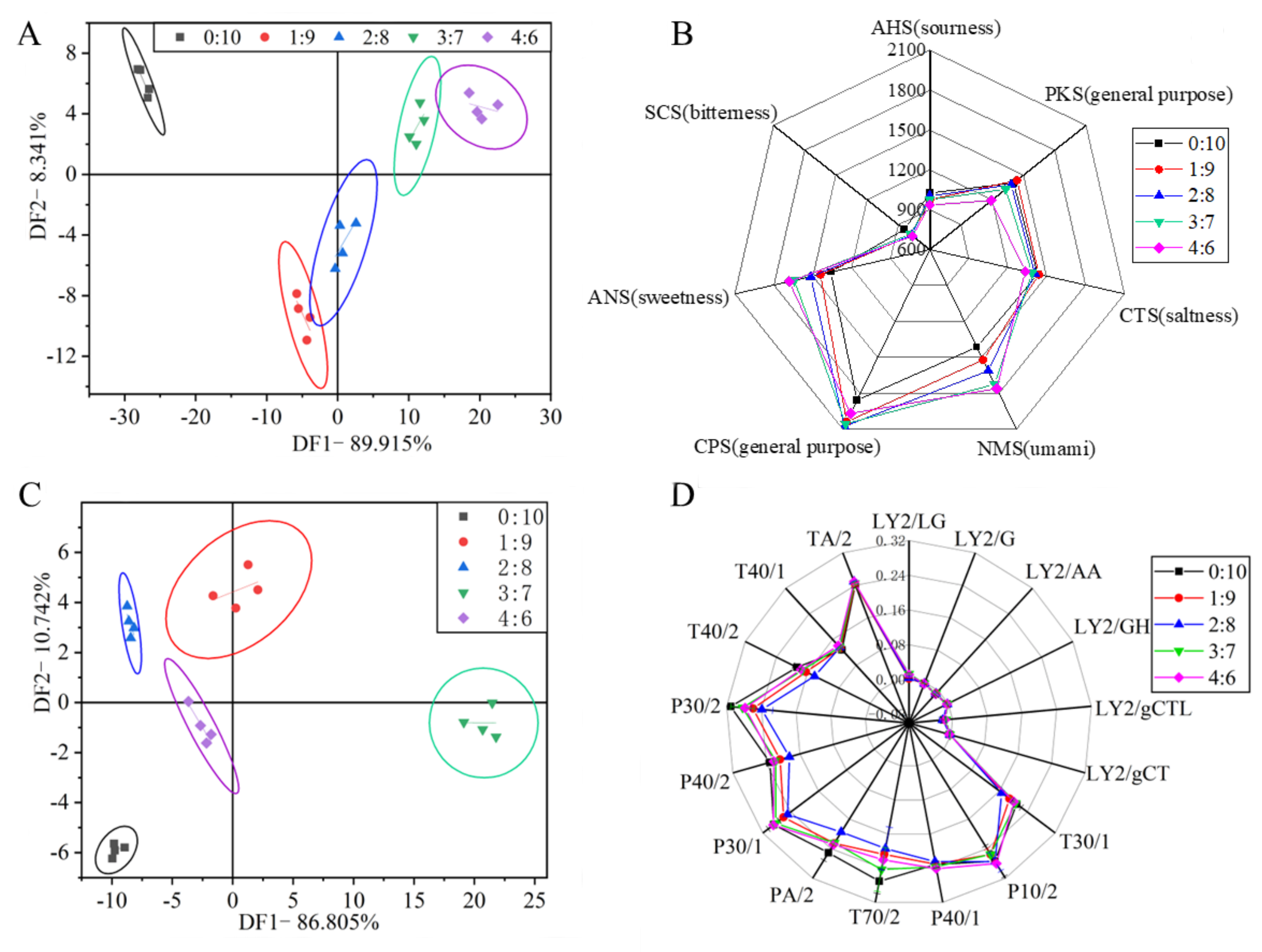

3.9. E—Tongue Analysis
3.10. E—Nose Analysis
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Guyomarc’H, F.; Arvisenet, G.; Bouhallab, S.; Canon, F.; Deutsch, S.-M.; Drigon, V.; Dupont, D.; Famelart, M.-H.; Garric, G.; Guédon, E.; et al. Mixing milk, egg and plant resources to obtain safe and tasty foods with environmental and health benefits. Trends Food Sci. Technol. 2021, 108, 119–132. [Google Scholar] [CrossRef]
- Notice of the General Office of the State Council on Issuing the National Nutrition Plan (2017–2030). Available online: http://www.gov.cn/zhengce/content/2017-07/13/content_5210134.htm (accessed on 30 September 2022).
- Ismail, B.P.; Senaratne-Lenagala, L.; Stube, A.; Brackenridge, A. Protein demand: Review of plant and animal proteins used in alternative protein product development and production. Anim. Front. 2020, 10, 53–63. [Google Scholar] [CrossRef] [PubMed]
- Kyriakopoulou, K.; Dekkers, B.; van der Goot, A.J. Chapter 6—Plant-Based Meat Analogues. In Sustainable Meat Production and Processing; Galanakis, C.M., Ed.; Elsevier Inc.: San Diego, CA, USA, 2019; pp. 103–126. [Google Scholar] [CrossRef]
- Mosibo, O.K.; Ferrentino, G.; Alam, M.R.; Morozova, K.; Scampicchio, M. Extrusion cooking of protein-based products: Potentials and challenges. Crit. Rev. Food Sci. Nutr. 2020, 62, 2526–2547. [Google Scholar] [CrossRef] [PubMed]
- Offiah, V.; Kontogiorgos, V.; Falade, K.O. Extrusion processing of raw food materials and by-products: A review. Crit. Rev. Food Sci. Nutr. 2019, 59, 2979–2998. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Borderías, A.J.; Tovar, C.A.; Domínguez-Timón, F.; Díaz, M.T.; Pedrosa, M.M.; Moreno, H.M. Characterization of healthier mixed surimi gels obtained through partial substitution of myofibrillar proteins by pea protein isolates. Food Hydrocoll. 2020, 107, 105976. [Google Scholar] [CrossRef]
- Surasani, V.K.R. Application of food extrusion process to develop fish meat-based extruded products. Food Eng. Rev. 2016, 8, 448–456. [Google Scholar] [CrossRef]
- Wang, S.; Liu, J.; Fu, R.; Xue, C. Effects of process parameters on fish protein texturization under high moisture. J. Fish China. 2012, 36, 1776–1784. [Google Scholar] [CrossRef]
- Zhang, Y.; Zhang, J.; Chen, Q.; He, N.; Wang, Q. High-moisture extrusion of mixed proteins from soy and surimi: Effect of protein gelling properties on the product quality. Foods 2022, 11, 1397. [Google Scholar] [CrossRef]
- Rhee, K.S.; Kim, E.S.; Kim, B.K.; Jung, B.M.; Rhee, K.C. Extrusion of minced catfish with corn and defatted soy flours for snack foods. J. Food Process. Preserv. 2004, 28, 288–301. [Google Scholar] [CrossRef]
- Kitagawa, M.; Iida, T.; Nobuta, S.; Kishimura, H.; Saeki, H. Fibrous texturization and amino acid/fatty acid changes with the extrusion cooking of fish meat containing skin and bone. Nippon Suisan. Gakkaishi. 2008, 74, 55–60. [Google Scholar] [CrossRef] [Green Version]
- Nisov, A.; Aisala, H.; Holopainen-Mantila, U.; Alakomi, H.-L.; Nordlund, E.; Honkapaa, K. Comparison of whole and gutted Baltic Herring as a raw material for restructured fish product produced by high-moisture extrusion cooking. Foods 2020, 9, 1541. [Google Scholar] [CrossRef]
- Wang, Y.; Tuccillo, F.; Lampi, A.-M.; Knaapila, A.; Pulkkinen, M.; Kariluoto, S.; Coda, R.; Edelmann, M.; Jouppila, K.; Sandell, M.; et al. Flavor challenges in extruded plant-based meat alternatives: A review. Compr. Rev. Food Sci. Food Saf. 2022, 21, 2898–2929. [Google Scholar] [CrossRef] [PubMed]
- Wang, H.; van den Berg, F.W.J.; Zhang, W.; Czaja, T.P.; Zhang, L.; Jespersen, B.M.; Lametsch, M. Differences in physicochemical properties of high-moisture extrudates prepared from soy and pea protein isolates. Food Hydrocoll. 2022, 128, 107540. [Google Scholar] [CrossRef]
- Chen, Q.; Zhang, J.; Zhang, Y.; Meng, S.; Wang, Q. Rheological properties of pea protein isolate-amylose/amylopectin mixtures and the application in the high-moisture extruded meat substitutes. Food Hydrocoll. 2021, 117, 106732. [Google Scholar] [CrossRef]
- Zhang, W.; Li, S.; Zhang, B.; Drago, S.R.; Zhang, J. Relationships between the gelatinization of starches and the textural properties of extruded texturized soybean protein-starch systems. J. Food Eng. 2016, 174, 29–36. [Google Scholar] [CrossRef]
- Li, J.; Kang, J.; Wang, L.; Li, Z.; Wang, R.; Chen, Z.X.; Hou, G.G. Effect of water migration between arabinoxylans and gluten on baking quality of whole wheat bread detected by magnetic resonance imaging (MRI). J. Agric. Food Chem. 2012, 60, 6507–6514. [Google Scholar] [CrossRef]
- Luo, X.; Xiao, S.; Ruan, Q.; Gao, Q.; An, Y.; Hu, Y.; Xiong, S. Differences in flavor characteristics of frozen surimi products reheated by microwave, water boiling, steaming, and frying. Food Chem. 2022, 372, 131260. [Google Scholar] [CrossRef]
- Huang, J.; Zeng, S.; Xiong, S.; Huang, Q. Steady, dynamic, and creep-recovery rheological properties of myofibrillar protein from grass carp muscle. Food Hydrocoll. 2016, 61, 48–56. [Google Scholar] [CrossRef]
- Niu, H.L.; Xia, X.F.; Wang, C.; Kong, B.H.; Liu, Q. Thermal stability and gel quality of myofibrillar protein as affected by soy protein isolates subjected to an acidic pH and mild heating. Food Chem. 2018, 242, 188–195. [Google Scholar] [CrossRef]
- Alam, M.S.; Kaur, J.; Khaira, H.; Gupta, K. Extrusion and extruded products: Changes in quality attributes as affected by extrusion process parameters: A Review. Crit. Rev. Food Sci. Nutr. 2016, 56, 445–473. [Google Scholar] [CrossRef]
- Verbeek, C.J.R.; van den Berg, L.E. Extrusion processing and properties of protein-based thermoplastics. Macromol. Mater Eng. 2010, 295, 10–21. [Google Scholar] [CrossRef]
- Grabowska, K.J.; Zhu, S.; Dekkers, B.L.; de Ruijter, N.C.A.; Gieteling, J.; van der Goot, A.J. Shear-induced structuring as a tool to make anisotropic materials using soy protein concentrate. J. Food Eng. 2016, 188, 77–86. [Google Scholar] [CrossRef]
- Xia, S.; Xue, Y.; Xue, C.; Jiang, X.; Li, J. Structural and rheological properties of meat analogues from Haematococcus pluvialis residue-pea protein by high moisture extrusion. LWT Food Sci. Technol. 2022, 154, 112756. [Google Scholar] [CrossRef]
- Wu, C.; Yan, X.Y.; Wang, T.; Ma, W.C.; Xu, X.B.; Du, M. A self-sorted gel network formed by heating a mixture of soy and cod proteins. Food Funct. 2019, 10, 5140–5151. [Google Scholar] [CrossRef] [PubMed]
- Srikaeo, K.; Rahman, M.S. Proton relaxation of waxy and non-waxy rice by low field nuclear magnetic resonance (LF-NMR) to their glassy and rubbery states. J. Cereal Sci. 2018, 82, 94–98. [Google Scholar] [CrossRef]
- Li, T.; Tu, C.; Rui, X.; Gao, Y.; Li, W.; Wang, K.; Xiao, Y.; Dong, M. Study of water dynamics in the soaking, steaming, and solid-state fermentation of glutinous rice by LF-NMR: A Novel Monitoring Approach. J. Agric. Food Chem. 2015, 63, 3261–3270. [Google Scholar] [CrossRef]
- Wang, Y.; Chen, Y.; Zhou, Y.; Nirasawa, S.; Tatsumi, E.; Li, X.; Cheng, Y. Effects of konjac glucomannan on heat-induced changes of wheat gluten structure. Food Chem. 2017, 229, 409–416. [Google Scholar] [CrossRef] [Green Version]
- Guo, Z.; Teng, F.; Huang, Z.; Lv, B.; Lv, X.; Babich, O.; Yu, W.; Li, Y.; Wang, Z.; Jiang, L. Effects of material characteristics on the structural characteristics and flavor substances retention of meat analogs. Food Hydrocoll. 2020, 105, 105752. [Google Scholar] [CrossRef]
- Carbonaro, M.; Nucara, A. Secondary structure of food proteins by Fourier transform spectroscopy in the mid-infrared region. Amino Acids 2010, 38, 679–690. [Google Scholar] [CrossRef]
- Jiang, R.; Xiao, Z.; Huo, J.; Wang, H.; Li, H.; Su, S.; Duan, Y.; Gao, Y. Effects of rice bran content on plant-based simulated meat: From the aspects of apparent properties and structural characteristics. Food Chem. 2022, 380, 131842. [Google Scholar] [CrossRef]
- Yan, B.; Jiao, X.; Zhu, H.; Wang, Q.; Huang, J.; Zhao, J.; Cao, H.; Zhou, W.; Zhang, W.; Ye, W.; et al. Chemical interactions involved in microwave heat-induced surimi gel fortified with fish oil and its formation mechanism. Food Hydrocoll. 2020, 105, 105779. [Google Scholar] [CrossRef]
- An, Y.; You, J.; Xiong, S.; Yin, T. Short-term frozen storage enhances cross-linking that was induced by transglutaminase in surimi gels from silver carp (Hypophthalmichthys molitrix). Food Chem. 2018, 257, 216–222. [Google Scholar] [CrossRef] [PubMed]
- Wang, K.; Li, C.; Wang, B.; Yang, W.; Luo, S.; Zhao, Y.; Jiang, S.; Mu, D.; Zheng, Z. Formation of macromolecules in wheat gluten/starch mixtures during twin-screw extrusion: Effect of different additives. J. Sci. Food Agri. 2017, 97, 5131–5138. [Google Scholar] [CrossRef] [PubMed]
- Choi, S.M.; Ma, C.Y. Structural characterization of globulin from common buckwheat (Fagopyrum esculentum Moench) using circular dichroism and Raman spectroscopy. Food Chem. 2007, 102, 150–160. [Google Scholar] [CrossRef]
- Gu, D.; Liu, W.; Yan, Y.; Wei, W.; Gan, J.; Lu, Y.; Jiang, Z.L.; Wang, X.C.; Xu, C.H. A novel method for rapid quantitative evaluating formaldehyde in squid based on electronic nose. LWT Food Sci. Technol. 2019, 101, 382–388. [Google Scholar] [CrossRef]
- Wang, B.; Zhang, Q.; Zhang, N.; Bak, K.H.; Soladoye, O.P.; Aluko, R.E.; Fu, Y.; Zhang, Y. Insights into formation, detection and removal of the beany flavor in soybean protein. Trends Food Sci. Technol. 2021, 112, 336–347. [Google Scholar] [CrossRef]
- Zhou, X.; Chong, Y.; Ding, Y.; Gu, S.; Liu, L. Determination of the effects of different washing processes on aroma characteristics in silver carp mince by MMSE-GC-MS, e-nose and sensory evaluation. Food Chem. 2016, 207, 205–213. [Google Scholar] [CrossRef]
Surimi to Soybean Flour Ratio | L* | a* | b* | W* | Thickness (mm) |
---|---|---|---|---|---|
0:10 | 75.40 ± 0.01 d | 1.53 ± 0.29 a | 39.36 ± 0.33 a | 53.56 ± 0.16 e | 0.415 ± 0.009 a |
1:9 | 77.45 ± 0.26 c | −0.47 ± 0.22 b | 39.23 ± 0.27 a | 54.75 ± 0.11 d | 0.405 ± 0.017 a |
2:8 | 78.34 ± 0.16 b | −1.31 ± 0.05 c | 38.01 ± 0.11 b | 56.24 ± 0.01 c | 0.375 ± 0.017 b |
3:7 | 80.26 ± 0.18 a | −2.04 ± 0.13 d | 36.60 ± 0.09 c | 58.35 ± 0.02 b | 0.355 ± 0.009 b |
4:6 | 79.94 ± 0.16 a | −1.95 ± 0.12 cd | 35.33 ± 0.50 d | 59.32 ± 0.52 a | 0.325 ± 0.009 c |
Surimi to Soybean Flour Ratio | T2/(ms) | A2/(%) | ||||
---|---|---|---|---|---|---|
T2b | T21 | T22 | A2b | A21 | A22 | |
0:10 | 0.26 ± 0.01 bc | 4.92 ± 0.01 c | 125.26 ± 2.17 ab | 9.78 ± 0.48 a | 83.30 ± 0.16 bc | 6.92 ± 0.08 a |
1:9 | 0.27 ± 0.02 b | 5.21 ± 0.06 b | 129.67 ± 2.24 ab | 9.22 ± 0.64 ab | 83.65 ± 0.51 b | 7.14 ± 0.04 a |
2:8 | 0.30 ± 0.01 ab | 5.74 ± 0.13 ab | 132.65 ± 0.73 a | 8.84 ± 0.17 ab | 84.26 ± 0.14 ab | 6.90 ± 0.17 ab |
3:7 | 0.32 ± 0.02 a | 6.33 ± 0.18 a | 130.92 ± 2.02 a | 8.42 ± 0.34 b | 84.53 ± 0.69 ab | 6.05 ± 0.07 c |
4:6 | 0.32 ± 0.01 a | 6.59 ± 0.12 a | 131.20 ± 0.72 a | 8.34 ± 0.11 b | 85.52 ± 0.28 a | 6.14 ± 0.21 c |
Sample | Surimi to Soybean Flour Ratio | Secondary Structure/(%) | |||||
---|---|---|---|---|---|---|---|
β1 | β-Sheet | Random Coil | α-Helix | β-Turns | β2 | ||
Raw materials | Surimi | 8.06 ± 0.10 c | 18.22 ± 0.03 bc | 23.46 ± 0.30 a | 23.22 ± 0.10 a | 16.57 ± 0.11 ab | 10.46 ± 0.16 ab |
Soybean flour | 8.76 ± 0.03 b | 18.62 ± 0.05 b | 22.10 ± 0.07 b | 21.93 ± 0.03 b | 17.13 ± 0.05 a | 11.46 ± 0.07 a | |
Extrudates | 0:10 | 12.41 ± 0.01 ab | 20.03 ± 0.11 a | 21.36 ± 0.21 c | 20.32 ± 0.15 c | 15.64 ± 0.07 bc | 10.24 ± 0.02 ab |
1:9 | 13.33 ± 0.10 a | 20.54 ± 0.03 a | 21.65 ± 0.01 bc | 20.25 ± 0.15 c | 14.85 ± 0.14 c | 9.38 ± 0.13 bc | |
2:8 | 12.85 ± 0.17 a | 19.94 ± 0.21 a | 21.50 ± 0.25 bc | 20.37 ± 0.02 c | 15.45 ± 0.25 bc | 9.89 ± 0.39 b | |
3:7 | 12.81 ± 0.14 a | 20.13 ± 0.13 a | 21.59 ± 0.06 bc | 20.39 ± 0.02 c | 15.26 ± 0.16 bc | 9.83 ± 0.03 b | |
4:6 | 12.94 ± 0.08 a | 20.35 ± 0.13 a | 21.74 ± 0.11 bc | 20.37 ± 0.15 c | 15.12 ± 0.01 bc | 9.47 ± 0.17 bc |
Surimi to Soybean Flour Ratio | 0:10 | 1:9 | 2:8 | 3:7 | 4:6 |
---|---|---|---|---|---|
Taste | 3.85 ± 0.76 cd | 4.68 ± 1.06 c | 5.70 ± 0.85 b | 6.14 ± 1.62 ab | 6.67 ± 1.14 a |
Odor | 3.64 ± 1.21 c | 5.43 ± 1.34 b | 6.78 ± 1.12 a | 6.35 ± 1.25 ab | 5.82 ± 0.84 b |
