Establishment of a Rapid Detection Method for Cadmium Ions via a Specific Cadmium Chelator N-(2-Acetamido)-Iminodiacetic Acid Screened by a Novel Biological Method
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Yeast Strains, Culture Media, Chelators, Growth Assays, and FTIR
2.3. Toxicological Testing of ADA
2.4. Optimization of the Detection System
2.5. Preparation of the Standard Curve
2.6. Sample Preparation for Color Reaction and ICP-MS Measurement
2.7. Statistical Analysis
2.8. Guidelines for Animal Experimentation
3. Results

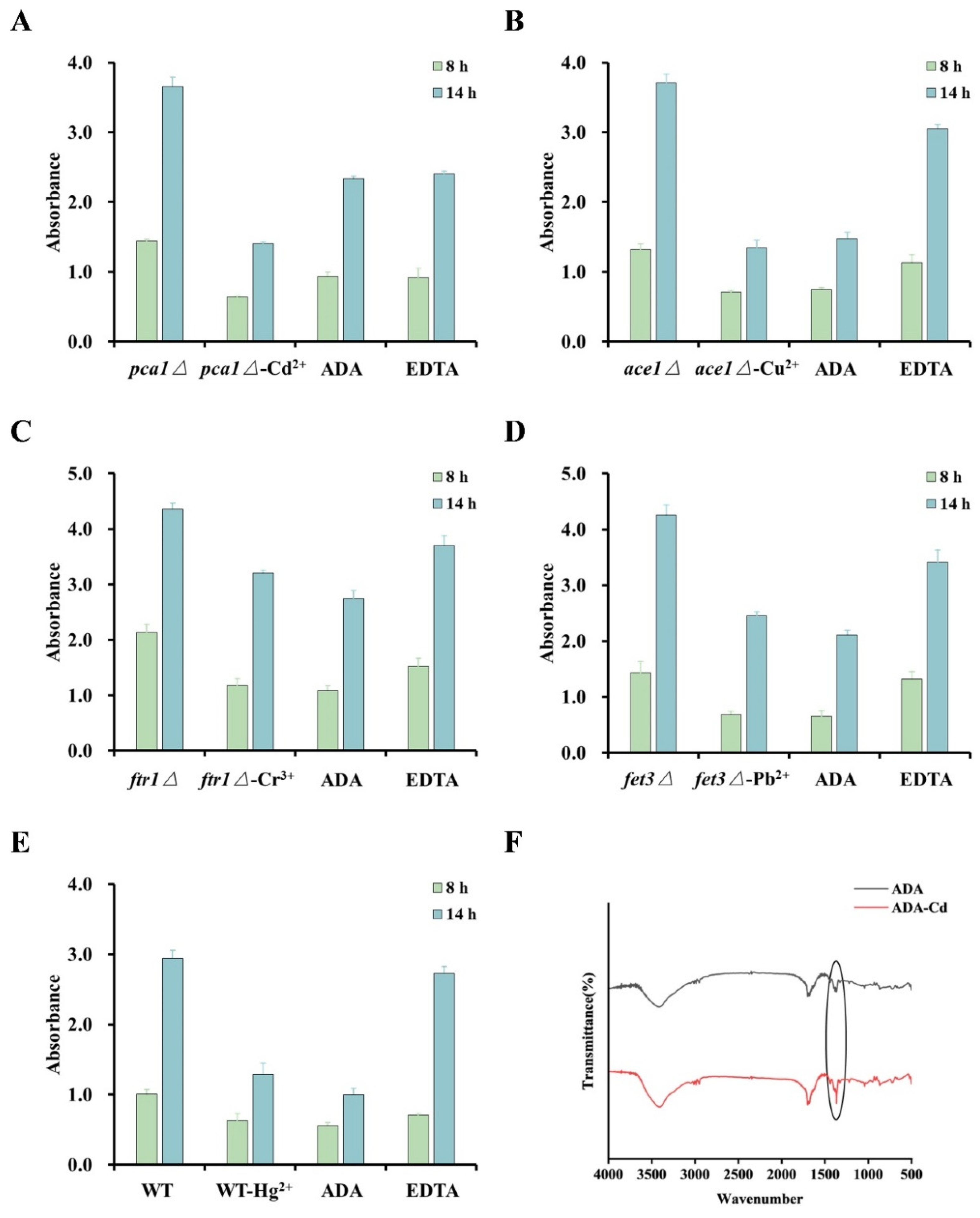

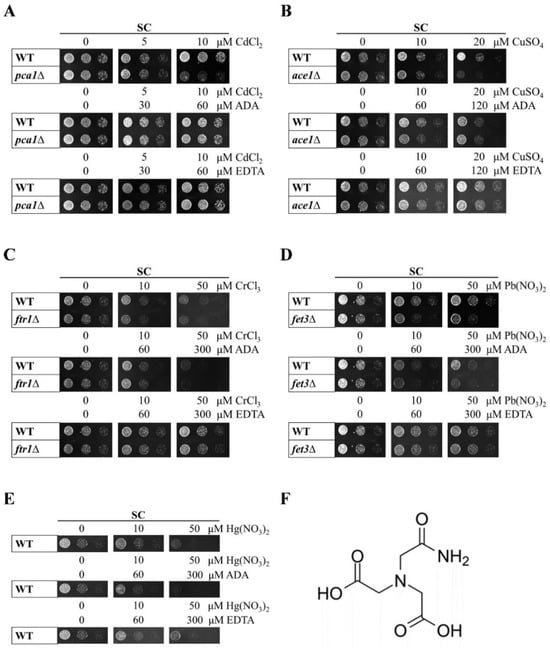

3.1. A Novel Biological Assay to Test ADA Binding Specificity

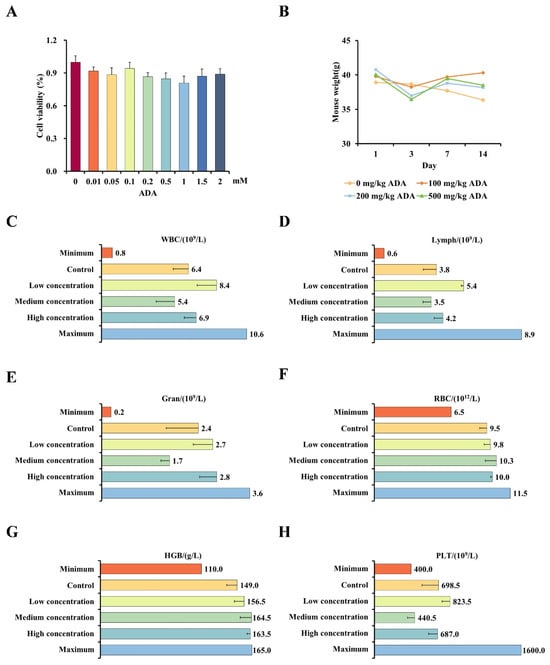

3.2. Safety Assessment of ADA

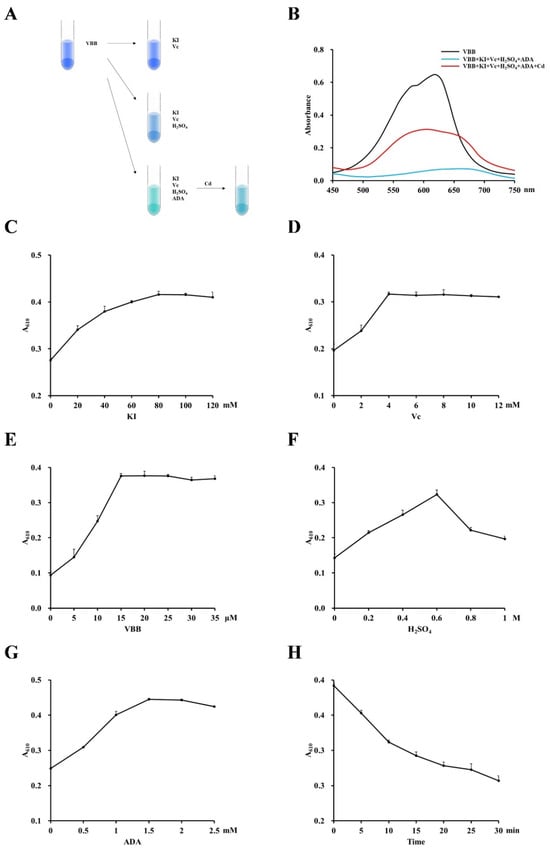

3.3. Identification of Optimal Reaction Conditions

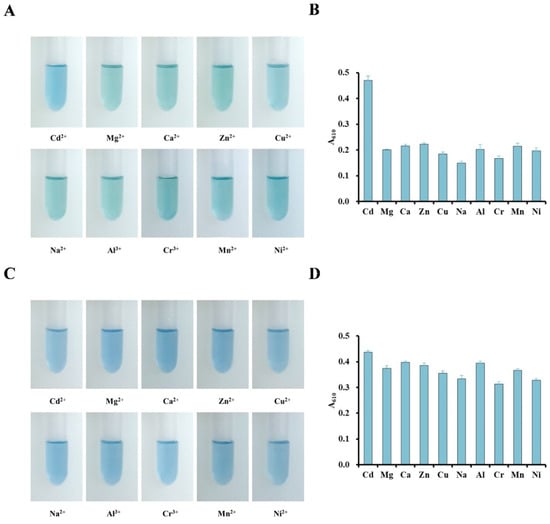

3.4. Spectrum Method for the Detection of Cadmium

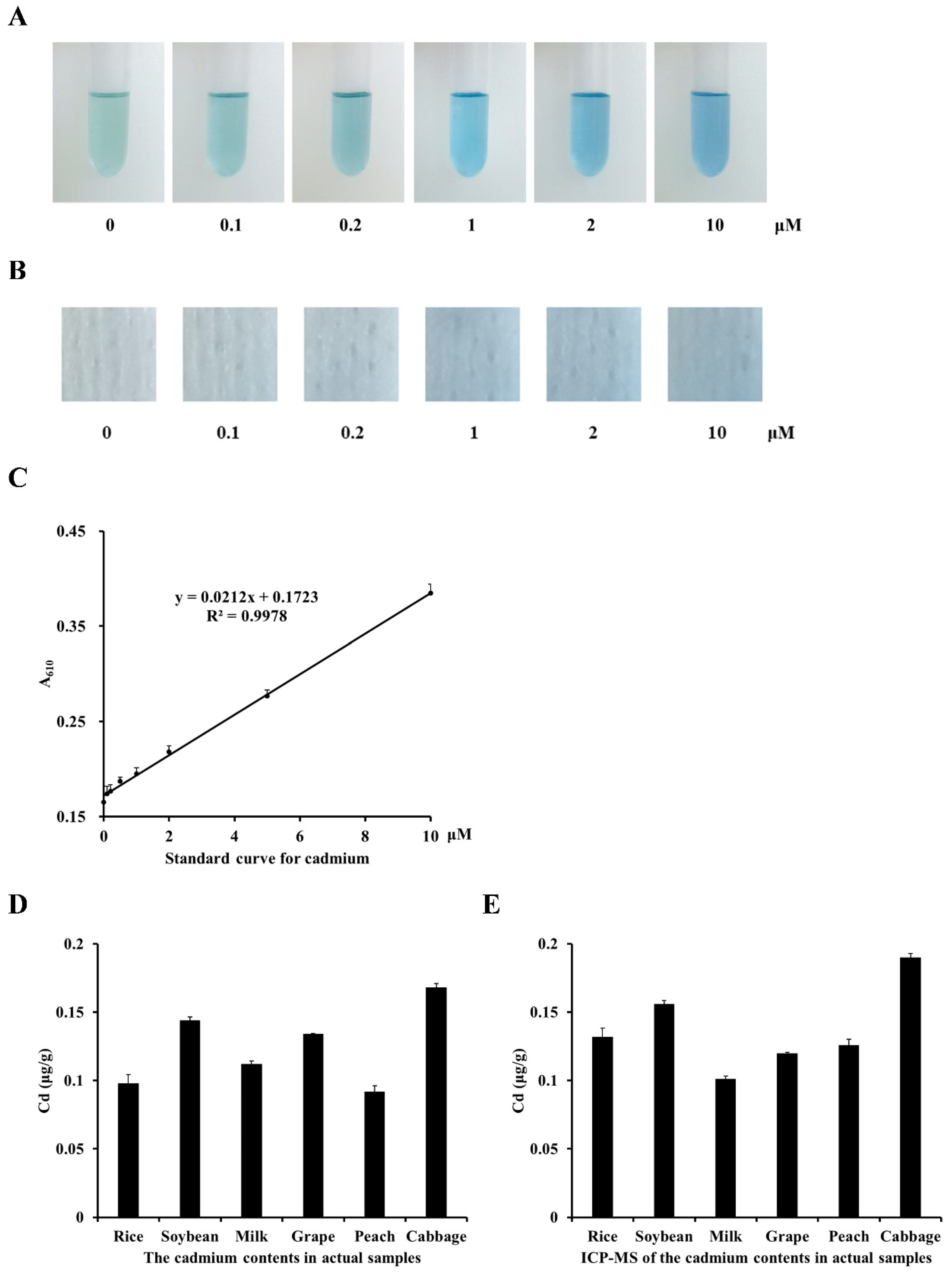

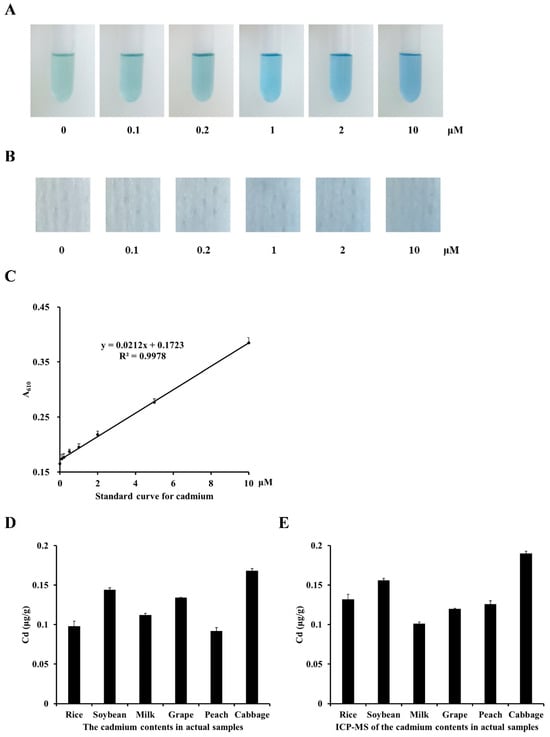

3.5. Cadmium Measurements of Agricultural Products by Optimized Spectrum Method
4. Discussion
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Abbreviations
ADA | N-(2-Acetamido)-iminodiacetic acid |
VBB | Victoria blue B |
ICP-MS | inductively coupled plasma–mass spectrometry |
MT | metallothionein |
PADs | paper-based analysis devices |
WBC | white blood cells |
Lymph | lymphocytes |
Gran | neutrophils |
RBC | red blood cells |
HGB | hemoglobin |
PLT | platelets |
References
- Peana, M.; Pelucelli, A.; Chasapis, C.T.; Perlepes, S.P.; Bekiari, V.; Medici, S.; Zoroddu, M.A. Biological Effects of Human Exposure to Environmental Cadmium. Biomolecules 2022, 13, 36. [Google Scholar] [CrossRef] [PubMed]
- Cullen, J.T.; Maldonado, M.T. Biogeochemistry of cadmium and its release to the environment. Met. Ions Life Sci. 2013, 11, 31–62. [Google Scholar]
- Satarug, S.; Garrett, S.H.; Sens, M.A.; Sens, D.A. Cadmium, environmental exposure, and health outcomes. Environ. Health Perspect. 2010, 118, 182–190. [Google Scholar] [CrossRef]
- Genchi, G.; Sinicropi, M.S.; Lauria, G.; Carocci, A.; Catalano, A. The Effects of Cadmium Toxicity. Int. J. Environ. Res. Public Health 2020, 17, 3782. [Google Scholar] [CrossRef]
- GB 2762-2022; National Standards for Food Safety Limits of Contaminants in Food. Standardization Administration of China: Beijing, China, 2022.
- Sharma, S.; Ali, M.; Kumar, A.; Rawat, N. Combined Thermodynamic, Theoretical, and Biological Study for Investigating N-(2-Acetamido) iminodiacetic Acid as a Potential Thorium Decorporation Agent. Inorg. Chem. 2023, 62, 18887–18900. [Google Scholar] [CrossRef] [PubMed]
- Trzcinka-Ochocka, M.; Brodzka, R.; Janasik, B. Useful and Fast Method for Blood Lead and Cadmium Determination Using ICP-MS and GF-AAS; Validation Parameters. J. Clin. Lab. Anal. 2016, 30, 130–139. [Google Scholar] [CrossRef]
- Yuan, Y.; Jia, H.; Wang, J. A microfluidic electrochemical sensing platform for in situ detection of trace cadmium ions. Anal. Methods 2022, 14, 3802–3813. [Google Scholar] [CrossRef] [PubMed]
- Chen, S.; Zheng, Y.; Zhang, B.; Huang, Z.; Xu, G.; Chen, J.; Qian, M.; Sun, H.; Chen, J.; Liu, J.; et al. Cadmium ions mediated turn-on electrogenerated chemiluminescence of ZnS nanoparticles for highly se-lective cadmium detection in seafood. Anal. Chim. Acta 2023, 1266, 341363. [Google Scholar] [CrossRef]
- Hui, C.Y.; Guo, Y.; Li, H.; Gao, C.X.; Yi, J. Detection of environmental pollutant cadmium in water using a visual bacterial biosensor. Sci. Rep. 2022, 12, 6898. [Google Scholar] [CrossRef]
- Kong, T.; Hao, X.-Q.; Li, X.-B.; Liu, G.-W.; Zhang, Z.-G.; Yang, Z.-J.; Wang, Z.; Tang, J.; Yang, W.; Sun, J. Preparation of novel monoclonal antibodies against chelated cadmium ions. Biol. Trace Elem. Res. 2013, 152, 117–124. [Google Scholar] [CrossRef]
- Alberti, G.; Magnaghi, L.R.; Iurato, M.; Zanoni, C.; Biesuz, R. Colorimetric Paper-Based Analytical Devices (PADs) Backed by Chemometrics for Pd (II) Detection. Sensors 2023, 23, 7425. [Google Scholar] [CrossRef] [PubMed]
- Kuswandi, B.; Hidayat, M.A.; Noviana, E. Paper-Based Electrochemical Biosensors for Food Safety Analysis. Biosensors 2022, 12, 1088. [Google Scholar] [CrossRef]
- Lance, E.A.; Rhodes, C.W., 3rd; Nakon, R. Free metal ion depletion by “Good’s” buffers. III. N-(2-acetamido) imino-diacetic acid, 2:1 complex with zinc (II), cobalt (II), nickel (II), and copper (II); amide deprotonation by Zn (II), Co (II), and Cu (II). Anal. Biochem. 1983, 133, 492–501. [Google Scholar] [CrossRef] [PubMed]
- Gillespie, E.; Connolly, D.; Nesterenko, P.N.; Paull, B. On-column titration and investigation of metal complex formation for aminopolycarboxylate functionalised monoliths using scanning contactless conductivity detection. J. Sep. Sci. 2009, 32, 2659–2667. [Google Scholar] [CrossRef] [PubMed]
- Du, J.; Cao, C.; Jiang, L. Genome-scale genetic screen of lead ion-sensitive gene deletion mutations in Saccharomyces cere-visiae. Gene 2015, 563, 155–159. [Google Scholar] [CrossRef]
- Tun, N.M.; O’Doherty, P.J.; Chen, Z.H.; Wu, X.Y.; Bailey, T.D.; Kersaitis, C.; Wu, M.J. Identification of aluminium transport-related genes via genome-wide phenotypic screening of Saccharomyces cerevisiae. Metallomics 2014, 6, 1558–1564. [Google Scholar] [CrossRef]
- Adle, D.J.; Lee, J. Expressional control of a cadmium-transporting P1B-type ATPase by a metal sensing degradation signal. J. Biol. Chem. 2008, 283, 31460–31468. [Google Scholar] [CrossRef]
- Wu, X.B.; Kim, H.; Seravalli, J.; Barycki, J.J.; Hart, P.J.; Gohara, D.W.; Di Cera, E.; Jung, W.H.; Kosman, D.L.; Lee, J. Potassium and the K+/H+ Exchanger Kha1p Promote Binding of Copper to ApoFet3p Multi-copper Fer-roxidase. J. Biol. Chem. 2016, 291, 9796–9806. [Google Scholar] [CrossRef] [PubMed]
- Wang, Y.; Ma, T.; Brake, J.; Sun, Z.; Huang, J.; Li, J.; Wu, X. A novel method of rapid detection for heavy metal copper ion via a specific copper chelator bathocu-proinedisulfonic acid disodium salt. Sci. Rep. 2023, 13, 10761. [Google Scholar]
- Schulte, E.; Wittekind, D.; Kretschmer, V. Victoria blue B--a nuclear stain for cytology. A cytophotometric study. Histochemistry 1988, 88, 427–433. [Google Scholar] [CrossRef]
- Lillie, R.D.; Reynolds, C.; Pizzolato, P. Phosphomolybdic and phosphotungstic acid—Victoria Blue R stains two histo-chemically distinct collagens: Dense dark blue and loose areolar pale green. J. Histochem. Cytochem. Off. J. Histochem. Soc. 1979, 27, 1092–1094. [Google Scholar] [CrossRef]
- Winzeler, E.A.; Shoemaker, D.D.; Astromoff, A.; Liang, H.; Anderson, K.; Andre, B.; Davis, R.W. Functional characterization of the S. cerevisiae genome by gene deletion and parallel analysis. Science 1999, 285, 901–906. [Google Scholar] [CrossRef]
- Bian, J.; Wang, L.; Wu, J.; Simth, N.; Zhang, L.; Wang, Y.; Wu, X. MTM1 plays an important role in the regulation of zinc tolerance in Saccharomyces cerevisiae. J. Trace Elem. Med. Biol. Organ Soc. Miner. Trace Elem. 2021, 66, 126759. [Google Scholar] [CrossRef] [PubMed]
- Xu, N.; Xu, Y.; Smith, N.; Chen, H.; Guo, Z.; Lee, J.; Wu, X. MTM1 displays a new function in the regulation of nickel resistance in Saccharomyces cerevisiae. Met. Integr. Biometal Sci. 2022, 14, mfac074. [Google Scholar] [CrossRef] [PubMed]
- GBZ/T204.2-2011; Procedures and Test Methods for Toxicological Evaluation of Chemicals—Part 2: Acute Oral Toxicity Test: China. Ministry of Health of the People’s Republic of China: Beijing, China, 2011.
- Jiang, X.; Xia, J.; Luo, X.J. Simple, rapid, and highly sensitive colorimetric sensor strips from a porous cellulose membrane stained with Victoria blue B for efficient detection of trace Cd (II) in water. ACS Sustain. Chem. Eng. 2020, 8, 5184–5191. [Google Scholar] [CrossRef]
- GB 5009.268-2016; Determination of Multi-Element in Food under National Food Safety Standard. Standardization Administration of China: Beijing, China, 2016.
- Bian, J.; Shi, X.; Li, Q.; Zhao, M.; Wang, L.; Lee, J.; Tao, M.; Wu, X. A novel functional role of nickel in sperm motility and eukaryotic cell growth. J. Trace Elem. Med. Biol. Organ Soc. Miner. Trace Elem. 2019, 54, 142–149. [Google Scholar] [CrossRef] [PubMed]
- Zhang, F.; Bian, J.; Chen, X.; Huang, J.; Smith, N.; Lu, W.; Xu, Y.; Lee, J.; Wu, X. Roles for intracellular cation transporters in respiratory growth of yeast. Met. Integr. Biometal Sci. 2019, 11, 1667–1678. [Google Scholar] [CrossRef]
- Lei, Z.; Chen, L.; Hu, K.; Yang, S.; Wen, X. Non-aqueous phase cold vapor generation and determination of trace cad-mium by atomic fluorescence spectrometry. Spectrochim. Acta. Part A Mol. Biomol. Spectrosc. 2018, 203, 522–527. [Google Scholar] [CrossRef]
- Yang, X.A.; Chi, M.B.; Wang, Q.Q.; Zhang, W.B. Efficient generation of volatile species for cadmium analysis in seafood and rice samples by a modified chemical vapor generation system coupled with atomic fluorescence spectrometry. Anal. Chim. Acta 2015, 869, 11–20. [Google Scholar] [CrossRef]
- Yu, H.; Ai, X.; Xu, K.; Zheng, C.; Hou, X. UV-assisted Fenton digestion of rice for the determination of trace cadmium by hydride generation atomic fluorescence spectrometry. Analyst 2015, 141, 1512–1518. [Google Scholar] [CrossRef]
- Jia, H.; Li, X.; Lan, G.; Wang, Z.; Feng, L.; Mao, X. Fast Detection of Cadmium in Chocolate by Solid Sampling Electrothermal Vaporization Atomic Absorption Spectrometry and Its Application on Dietary Exposure Risk Assessment. Molecules 2022, 27, 6197. [Google Scholar] [CrossRef] [PubMed]
- Liu, X.; Yin, L.; Wang, S.; Zhang, Z. Detection of Cadmium Toxicity in Plant. Methods Mol. Biol. 2021, 2326, 267–271. [Google Scholar] [PubMed]
- Han, X.; Meng, Z.; Zhang, H.; Zheng, J. Fullerene-based anodic stripping voltammetry for simultaneous determination of Hg (II), Cu (II), Pb (II) and Cd (II) in foodstuff. Mikrochim. Acta 2018, 185, 274. [Google Scholar] [CrossRef] [PubMed]
- Rusinek, C.A.; Bange, A.; Papautsky, I.; Heineman, W.R. Cloud Point Extraction for Electroanalysis: Anodic Stripping Voltammetry of Cadmium. Anal. Chem. 2015, 87, 6133–6140. [Google Scholar] [CrossRef]
- Anandhakumar, S.; Mathiyarasu, J.; Phani, K.L. Anodic stripping voltammetric determination of cadmium using a “mercury free” indium film electrode. Analyst 2013, 138, 5674–5678. [Google Scholar] [CrossRef] [PubMed]
- Zhang, Y.; Chen, L.; Yang, J.; Zhang, Y.; Yuan, M.S. An “OR-AND” logic gate based multifunctional colorimetric sensor for the discrimination of Pb (2+) and Cd (2). Spectrochim. Acta. Part A Mol. Biomol. Spectrosc. 2020, 232, 118163. [Google Scholar] [CrossRef]
- Chen, N.; Chen, J.; Yang, J.H.; Bai, L.Y.; Zhang, Y.P. Colorimetric Detection of Cadmium Ions Using DL-Mercaptosuccinic Acid-Modified Gold Nanoparticles. J. Nanosci. Nanotechnol. 2016, 16, 840–843. [Google Scholar] [CrossRef]
- Namitha, P.P.; Saji, A.; Francis, S.; Rajith, L. Water Soluble Porphyrin for the Fluorescent Determination of Cadmium Ions. J. Fluoresc. 2020, 30, 527–535. [Google Scholar] [CrossRef]
- Varriale, A.; Staiano, M.; Rossi, M.; D’Auria, S. High-affinity binding of cadmium ions by mouse metallothionein prompting the design of a reversed-displacement protein-based fluorescence biosensor for cadmium detection. Anal. Chem. 2007, 79, 5760–5762. [Google Scholar] [CrossRef]
- Dong, Y.; Ding, L.; Jin, X.; Zhu, N. Silver nanoparticles capped with chalcon carboxylic acid as a probe for colorimetric determination of cadmium (II). Microchim. Acta 2017, 184, 3357–3362. [Google Scholar] [CrossRef]
- Li, H.; Yao, Y.; Han, C.; Zhan, J. Triazole-ester modified silver nanoparticles: Click synthesis and Cd2+ colorimetric sensing. Chem. Commun. 2009, 4812–4814. [Google Scholar] [CrossRef] [PubMed]
- Wang, A.J.; Guo, H.; Zhang, M.; Zhou, D.L.; Wang, R.Z.; Feng, J.J. Sensitive and selective colorimetric detection of cadmium (II) using gold nanoparticles modified with 4-amino-3-hydrazino-5-mercapto-1, 2, 4-triazole. Microchim. Acta 2013, 180, 1051–1057. [Google Scholar] [CrossRef]
- Li, Z.; He, C.; Zhou, X.; Wang, L.; Zhang, Y.; Feng, G.; Fang, J. FeOOH nanosheet assisted metal ion coordination with porphyrins for rapid detection and removal of cadmium ions in water. Anal. Methods Adv. Methods Appl. 2022, 14, 4947–4955. [Google Scholar] [CrossRef] [PubMed]
- Guo, Y.; Zhang, Y.; Shao, H.; Wang, Z.; Wang, X.; Jiang, X. Label-free colorimetric detection of cadmium ions in rice samples using gold nanoparticles. Anal. Chem. 2014, 86, 8530–8534. [Google Scholar] [CrossRef] [PubMed]
- Dong, X.; Xiong, Y.; Wang, N.; Song, Z.; Yang, J.; Qiu, X.; Zhu, L. Determination of trace elements in high-purity quartz samples by ICP-OES and ICP-MS: A normal-pressure digestion pretreatment method for eliminating unfavorable substrate Si. Anal. Chim. Acta 2020, 1110, 11–18. [Google Scholar] [CrossRef] [PubMed]
- Vincevica-Gaile, Z.; Klavins, M.; Rudovica, V.; Viksna, A. Research review trends of food analysis in Latvia: Major and trace element content. Environ. Geochem. Health 2013, 35, 693–703. [Google Scholar] [CrossRef]
- Gallardo, K.; Valdivia, D.; Jara, A.; Castillo, R. The importance of the pretreatment of samples in Nd quantification from NdFeB magnets through inductively coupled plasma atomic emission spectroscopy (ICP-OES)—A rapid and streamlined methodology. J. Environ. Sci. Health Part A 2023, 58, 935–941. [Google Scholar] [CrossRef]
- Li, F.; Gong, A.; Qiu, L.; Zhang, W.; Li, J.; Liu, Y.; Liu, Y.; Yuan, H. Simultaneous determination of trace rare-earth elements in simulated water samples using ICP-OES with TODGA extraction/back-extraction. PLoS ONE 2017, 12, e0185302. [Google Scholar] [CrossRef]
- Lee, J.; Park, Y.S.; Lee, H.J.; Koo, Y.E. Microwave-assisted digestion method using diluted nitric acid and hydrogen peroxide for the determination of major and minor elements in milk samples by ICP-OES and ICP-MS. Food Chem. 2022, 373, 131483. [Google Scholar] [CrossRef]
- Noh, Y.; Jo, E.J.; Mun, H.; Ahn, Y.D.; Kim, M.G. Homogeneous and selective detection of cadmium ions by forming fluorescent cadmium-protein nanoclusters. Chemosphere 2017, 174, 524–530. [Google Scholar] [CrossRef]
- Tao, Z.; Wei, L.; Wu, S.; Duan, N.; Li, X.; Wang, Z. A colorimetric aptamer-based method for detection of cadmium using the enhanced peroxidase-like activity of Au-MoS (2) nanocomposites. Anal. Biochem. 2020, 608, 113844. [Google Scholar] [CrossRef] [PubMed]
- Gan, Y.; Liang, T.; Hu, Q.; Zhong, L.; Wang, X.; Wan, H.; Wang, P. In-situ detection of cadmium with aptamer functionalized gold nanoparticles based on smartphone-based colorimetric system. Talanta 2020, 208, 120231. [Google Scholar] [CrossRef] [PubMed]
- Wang, H.; Da, L.; Yang, L.; Chu, S.; Yang, F.; Yu, S.; Jiang, C. Colorimetric fluorescent paper strip with smartphone platform for quantitative detection of cadmium ions in real samples. J. Hazard. Mater. 2020, 392, 122506. [Google Scholar] [CrossRef]
- Li, W.; Zhang, X.; Hu, X.; Shi, Y.; Li, Z.; Huang, X.; Zhang, W.; Zhang, D.; Zou, X.; Shi, J. A smartphone-integrated ratiometric fluorescence sensor for visual detection of cadmium ions. J. Hazard. Mater. 2021, 408, 124872. [Google Scholar] [CrossRef] [PubMed]
Method | Concentration (μg/g) | RSD (%) | Adding Standard Recovery (%) | |
---|---|---|---|---|
Rice | OSM | 0.098 | 4.8 | 70 |
ICP-MS | 0.132 | 4.7 | 98 | |
Bean | OSM | 0.144 | 2.5 | 103 |
ICP-MS | 0.156 | 1.6 | 113 | |
Milk | OSM | 0.112 | 3.3 | 90 |
ICP-MS | 0.101 | 2.2 | 81 | |
Grape | OSM | 0.134 | 1.3 | 106 |
ICP-MS | 0.12 | 0.5 | 94 | |
Peach | OSM | 0.092 | 3.8 | 72 |
ICP-MS | 0.126 | 3.2 | 100 | |
Cabbage | OSM | 0.168 | 1.1 | 120 |
ICP-MS | 0.19 | 1.5 | 138 |
Method | Sensitivity | Specificity | Detection Time | Instrument Aids | Detection Object | Cost | Reference |
---|---|---|---|---|---|---|---|
This method | 0.2 μM | high | 1 min | No | fruits, vegetables, agricultural products | Lower | |
Colorimetric | 0.53 μM | high | 2 min | No | water | Low | [39] |
Nanomaterial | 70 μM | good | Not given | No | aqueous solutions | Low | [40] |
Fluorescence | 0.15 μM | good | 90 min | Yes | aqueous solutions | Medium | [41] |
biosensor | 0.5 μM | medium | Not given | Yes | water | Medium | [42] |
Nanomaterial | 0.23 μM | high | 10 min | No | water | Low | [43] |
Nanomaterial | 20 μM | good | 30 min | No | aqueous solutions | Low | [44] |
Nanomaterial | 0.24 μM | high | 15 min | No | water | Low | [45] |
Nanomaterial | 0.24 μM | high | 70 min | Yes | water | Medium | [46] |
Nanomaterial | 10 μM | high | 10 min | No | rice | Low | [47] |
