Emerging Marine Biotoxins in Seafood from European Coasts: Incidence and Analytical Challenges

by
Pablo Estevez
1,
David Castro
1,
Ana Pequeño-Valtierra
1,
Jorge Giraldez
1 and
Ana Gago-Martinez
1,2,*
1
Department of Analytical and Food Chemistry, University of Vigo, Campus Universitario de Vigo, 36310 Vigo, Spain
2
EU Reference Laboratory for marine biotoxins, Campus Universitario de Vigo, 36310 Vigo, Spain
*
Author to whom correspondence should be addressed.
Foods 2019, 8(5), 149; https://doi.org/10.3390/foods8050149
Submission received: 1 April 2019 / Revised: 16 April 2019 / Accepted: 25 April 2019 / Published: 1 May 2019
(This article belongs to the Special Issue Toxicity, Detection and Prevention of Food Contaminants)
Browse Figures
Versions Notes

Abstract

:
The presence of emerging contaminants in food and the sources of the contamination are relevant issues in food safety. The impact of climate change on these contaminations is a topic widely debated; however, the consequences of climate change for the food system is not as deeply studied as other human and animal health and welfare issues. Projections of climate change in Europe have been evaluated through the EU Commission, and the impact on the marine environment is considered a priority issue. Marine biotoxins are produced by toxic microalgae and are natural contaminants of the marine environment. They are considered to be an important contaminant that needs to be evaluated. Their source is affected by oceanographic and environmental conditions; water temperature, sunlight, salinity, competing microorganisms, nutrients, and wind and current directions affect the growth and proliferation of microalgae. Although climate change should not be the only reason for this increase and other factors such as eutrophication, tourism, fishery activities, etc. could be considered, the influence of climate change has been observed through increased growth of dinoflagellates in areas where they have not been previously detected. An example of this is the recent emergence of ciguatera fish poisoning toxins, typically found in tropical or subtropical areas from the Pacific and Caribbean and in certain areas of the Atlantic Sea such as the Canary Islands (Spain) and Madeira (Portugal). In addition, the recent findings of the presence of tetrodotoxins, typically found in certain areas of the Pacific, are emerging in the EU and contaminating not only the fish species where these toxins had been found before but also bivalve mollusks. The emergence of these marine biotoxins in the EU is a reason for concern in the EU, and for this reason, the risk evaluation and characterization of these toxins are considered a priority for the European Food Safety Authorities (EFSA), which also emphasize the search for occurrence data using reliable and efficient analytical methods.

1. Introduction

Marine biotoxins are natural contaminants of the marine environment, the incidence of which could be related to the proliferation of phytoplankton and associated with harmful algal blooms (HABs). The occurrence of HABs can also be linked to the presence of high nutrients (nitrogen, phosphorus), CO2 concentration, temperature, and specific climatic conditions. The ingestion of marine biotoxins can cause illness and even death to both aquatic organisms and humans [1]. Marine biotoxins accumulate in marine organisms, mainly in filter-feeding bivalve mollusks, and are becoming an important concern for public health.
Marine biotoxins can be classified depending on their solubility as hydrophilic and lipophilic. The hydrophilic toxins involve the regulated amnesic shellfish poisoning (ASP) and paralytic shellfish poisoning (PSP) and the emerging pufferfish poisoning (PFP). The regulated lipophilic toxins are associated with diarrhetic shellfish poisoning (DSP) and azaspiracid poisoning (AZP) whereas the unregulated ciguatera fish poisoning (CFP), cyclic imines (CIs), and neurotoxic shellfish poisoning (NSP) are considered emerging toxins. CFP toxins and CIs have been reported in fish and shellfish from EU waters while NSP toxins have not been reported [2,3,4,5]. Regulatory limits have been set for some groups of marine biotoxins according to European Union legislation in order to protect consumers and producers (Table 1). In spite of the increasing occurrence of HABs due to factors such as global ocean warming and anthropogenic changes, effective seafood monitoring programs have reduced the documented poisonings related to marine biotoxins and limit human exposure to contaminated products [6].
Climate change has profound implications for marine ecosystems [7] and non-indigenous species invasions are being recognized as an important element [8]. The impact on marine HABs is fraught with difficulties, but the range expansion of warm-water species and species-specific changes in the abundance and seasonal window of growth of HAB taxa is expected [9]. Regulated phycotoxins are monitored regularly with validated methodologies based on multianalyte methods, thereby decreasing human’s risk of intoxication [10,11]. On the other hand, emerging toxins are being reported, and new guidelines are needed about how to manage them.
As a consequence, the European Food Safety Authority (EFSA), at the request of the European Commission (EC) in 2006, has developed a series of scientific opinions concerning marine biotoxins. These opinions include groups currently regulated in the European Union (EU) legislation and emerging toxins that could be a future concern, as well as new global health risks due to the spread and prevalence in new geographical regions of groups already reported in the past as palytoxins (PTXs), ciguatoxins (CTXs), and tetrodotoxins (TTXs) [12,13,14].
Species of the genus Ostreopsis associated with PTXs were first reported in Hawaii and Japan but are currently distributed worldwide, and blooms have recently been reported in four European countries: France, Greece, Italy, and Spain [15].
Ciguatera fish poisoning (CFP) is endemic in certain tropical regions of the world but no indigenous cases had been described in Europe until the first occurrence in the Canary Islands (Spain) in 2004. Epidemiological surveillance activities reported nine outbreaks with a total number of 68 cases between 2008 and 2012. Therefore, CFP is an emergent risk in the Canary Islands with a persistent incidence and impact on public health [16]. In addition, recent reports of CTXs and primary causative species of the genus Gambierdiscus and Fukuyoa in regions of the Mediterranean Sea [17] and the Canary Islands [18] suggest a possible future concern about CFP in finfish originating from Europe.
The presence of tropical species such as Gambierdiscus, Fukuyoa, and Ostreopsis in temperate regions accords with suggestions of several researchers regarding climate change impact on the geographical expansion of tropical microalgae. This fact constitutes a serious threat to human health by ciguatera and PTXs intoxications in the future.
TTX has been associated with contaminations of pufferfish in Japan, but the incidence of TTX in bivalves from other geographical areas outside Europe has not been extensively evaluated; therefore, not much knowledge can be shared on this specific issue. The occurrence of TTX in bivalve mollusks was reported mainly in Japan [19] and New Zealand [20], although the recent emergence of tetrodotoxin in bivalve mollusks in different locations across Europe, such as UK [21], Greece [22], Netherlands [23], Italy [24], and Spain [25], has generated the necessity to explore other areas in Europe in order to investigate the presence of TTX. Furthermore, the Health Authorities in the EU Commission, in agreement with the Competent Authorities from the different EU Member States, requested advice from the EFSA regarding risk evaluation and characterization of TTX in bivalves from the EU. An EFSA opinion was published in March 2017 [14] in which the recommendation of the evaluation of more occurrence data on TTX and its analogs in edible parts of marine bivalves and gastropods from different EU waters was included. The occurrence data should be obtained using EU approved methods.
The spread and increase of HABs worldwide are affecting European coasts where new emerging toxins are being detected and, therefore, causing concern to the EU Health Authorities. As a consequence, the EFSA has been requested to evaluate the risk of the presence of different groups of marine biotoxins and particularly CTXs and TTXs since both are responsible for the contamination of fish and bivalves in different EU coastal areas.
The aim of this work is to show some results obtained in the characterization of the risk of CTX and TTX in seafood from EU coastal areas. To accomplish this aim, results obtained using different methodologies for the screening and confirmation of these toxins—in particular, neuroblastoma cell assay (N2a) and liquid chromatography coupled to tandem mass spectrometry, respectively—are presented and discussed.

2. Ciguatoxins (CTXs)

CTXs are lipophilic toxins produced by dinoflagellates of the genus Gambierdiscus spp. and Fukuyoa spp. [26,27]. These toxins are the cause of CFP following the ingestion of contaminated fish, and can lead to neurological, gastrointestinal, and cardiovascular disorders [28]. CTXs are found in the Pacific (P) and Indian (I) Oceans, the Caribbean Sea (C), and, more recently, in temperate waters of the Eastern Atlantic, mainly in the Canary Islands (Spain) and Madeira (Portugal), are are named P-CTXs, I-CTXs, and C-CTXs [2,29,30]. CTX1B and CTX3C are responsible for CFP in the Pacific and Indian Ocean [31,32], I-CTXs has not yet been elucidated [33], and C-CTX1 is the main CTX analog in the Caribbean Sea and seems to be the emerging analog in EU waters [34,35,36] (Figure 1).
The main limitation in CTX research is the lack of reference materials or standards [37]. This limitation together with the lower concentration of CTXs present in toxic fish makes advancements in the development of reliable analytical methods difficult. The US Food and Drug Administration (FDA) proposed a guidance level based on mouse bioassay results and applying a 10-fold threshold security factor, establishing 0.01 ng/g for the most toxic congener CTX1B and 0.1 ng/g for C-CTX1 [38,39].
There are different approaches to determining CTXs in fish samples. As with many other marine biotoxins, the mouse bioassay (MBA) was first used due to the above-mentioned unavailability of reference material. However, the lack of specificity of this assay as well as its other multiple drawbacks, including animal protection and welfare, has led to the development of alternative detection methods [40].
In the monitoring of CTXs, two different approaches are recognized that are considered complementary. First, samples are screened through highly sensitive methods such as the cytotoxicity assay neuroblastoma 2-a (N2a), receptor binding assay (RBA), or an immunochemical assay Enzyme-Linked ImmunoSorbent Assay (ELISA) [41,42,43]. Sample screening is followed by liquid chromatography coupled to low- or high-resolution mass spectrometry (LC-LRMS or LC-HRMS) analysis, which is the most widespread method used for CTX confirmation [44].
The most successful screening method seems to be N2a, which was initially described by Manger et al. [45]. This method allows the identification of a sample contaminated with CTX-like compounds with high sensitivity and evaluates the contribution of all the toxic analogs present in the sample. This method is based on the action mode of CTXs, which activates Na channels to induce cell death. The addition of ouabain (O) and veratridine (V) is required for this purpose, respectively blocking the Na+/K+ pump and the voltage-gated Na+ channel to increase the intracellular Na+ obtaining CTX-like specificity [46] (Figure 2). Immunochemical methods, such as the ELISA developed by Tsumuraya et al. [43], are rapid and sensitive but at present they are limited to a few P-CTXs.
Different LC-HRMS methods were recently developed for confirming CTXs based on their exact mass. These methods have the advantage of confirming the different CTXs without the availability of standards being necessary. On the other hand, sensitivity is not adequate and needs to be further optimized in order to detect levels around the guidance level [44,48,49]. Concerning LC-MS/MS (LRMS), two different approaches for CTXs confirmation are possible. The multiple reaction monitoring (MRM) of different water losses typical of cyclic polyether compounds is favored by the use of acetonitrile mobile phases [50]. On the other hand, MRM of the highly stable sodium adduct [M + Na]+ favors using methanol as a mobile phase [51]. The first approach has a lower sensitivity than the second and is more extended when the samples have a higher concentration of CTXs. The monitoring of [M + Na]+, despite having increased sensitivity, is limited by the availability of reference materials. It also requires adequate sample pretreatment due to the lack of specificity provided by the monitoring of a single [M + Na]+ and matrix interference can be easily misidentified with CTXs congeners.
Regarding P-CTXs, MBA for toxin evaluation followed by the method proposed by Yogi et al. [52] based on the above-mentioned monitoring of [M + Na]+ is the most extended approach. This approach allows the monitoring of up to 15 different CTXs and also gambierol and gambieric acids A and B, meeting the US FDA guidance level. A different approach was followed for C-CTX1 monitored in the Caribbean Sea. N2a was used to obtain a semi-quantitative value of the total toxicity whereas LC-MS/MS was used to further confirm C-CTX1 monitoring three water losses [53].
Different optimizations were done to improve the sensitivity, such as optimizing the electrospray ionization parameters through the design of experiments [54]. An LC-MS method was developed for maitotoxin (MTX) and CTXs monitoring in algal and fish samples [55].
More recently, Estevez et al. developed a method for CTXs monitoring in EU waters in the absence of reference materials [56]. This method combines first identification and quantitation based on the monitoring of the sodium adduct [M + Na]+ of different P-CTXs and C-CTX1 according to the guidance levels established by US FDA (Figure 3). This is followed by a confirmatory analysis of the main toxin responsible for the contamination, C-CTX1. This confirmatory analysis allows unambiguous confirmation of C-CTX1 not only by monitoring water losses but also two specific fragments of the molecule formed at high collision energies, which are useful markers to detect new C-CTXs analogs.
Further advancements in monitoring CTX in EU waters was done by [47] by developing a sample fractionation method coupled to N2a toxin evaluation of the different fractions to identify further the different C-CTXs analogs contributing to the total toxicity (Figure 4). Following this approach, C-CTX1 was detected and isolated as the main agent responsible for the toxicity and three putative C-CTXs were described by Pottier et al. in contaminated fish samples from the Caribbean Sea [57,58]. This approach also helped in the characterization of CTX profiles from Macaronesia, an emerging region in Europe, and gives evidence that the CTX profiles in this geographical region seem to be similar to those detected in the Caribbean Sea.

3. Tetrodotoxins (TTXs)

TTX is a non-protein, low molecular weight neurotoxin. It is a heterocyclic compound that consists of a guanidinium moiety connected to an oxygenated backbone that possesses a 2,4-dioxaadamantane structure with six hydroxyl groups [59]. Altogether, 25 naturally occurring analogs of TTX have been detected [60], and many of these have also been shown to have toxicity potential (Figure 5). TTX analogs found in pufferfish, as well as in gastropods and bivalves, can be classified into four groups [61]: (1) analogs chemically equivalent to TTX (4-epiTTX and 4,9-anhydroTTX), (2) deoxy analogs (5-deoxyTTX, 11-deoxyTTX, 6,11-dideoxyTTX, and 5,6,11-trideoxyTTX), (3) 11-CH2OH oxidized analog (11-oxoTTX), and (4) C11 lacking analogs (11-norTTX-6(S)-ol and 11-norTTX-6(R)-ol).
The first detection method used with TTX was the mouse bioassay, a toxic assay based on the toxic effects shown by mice after intraperitoneal injection [62]. However, like with other toxins, these methods have several limitations (low specificity, low accuracy because of individual variability, ethical issues, etc.).
Several methods based on immunological approaches have been used: surface plasmon resonance (SPR) [63,64] and ELISA [65,66,67]. These methodologies are potentially useful for qualitative identification. Nevertheless, at this moment, these methods are not suitable for routine screening due to the lack of cross-reactivity for all TTX analogs, and, as such, may not identify all the analogs of TTX [14].
The best methodology for qualitative identification is the N2a cell assay, as for CTXs, proposed by [41,68,69,70], since TTX blocks the sodium channels, acting as an antagonist of O/V. Cell survival is related to the concentration of TTX in a directly proportional way; the higher the analyte concentration, the more cell survival will be observed.
This cell assay provides information on the total toxicity related to the sodium channels of the different samples (Figure 6). The main limitations of the cell assay are the lack of specificity; nevertheless, it is a good approach for screening toxicity based on similar mechanisms of action, such as the blocking of sodium channels. Matrix effects must also be considered to avoid false positives.
Regarding physicochemical methods, the most widely used are the chromatographic methods (both gas and liquid chromatography) coupled to different detection modes, in particular to mass spectrometry due to its potential for confirmation. Hydrophilic interaction liquid chromatography (HILIC-LC) has been widely recommended for chemical structures like TTXs [25,71,72,73] due to its ability to effectively separate small polar compounds on polar stationary phases. Therefore, this chromatographic approach has been selected as the separation method of choice for these particular compounds while its coupling to mass spectrometry (MS) also plays an important role for confirmation purposes. HILIC–LC-MS/MS is, therefore, the method recommended by the European Union Reference Laboratory for Marine Biotoxins (EURLMB) for the determination of TTXs. The method has been interlaboratory validated [74] and transferred to the EU National Reference Laboratories (NRLs) to help with the evaluation of the occurrence data of TTX in mollusks from their production areas (Figure 7).

4. Conclusions

The characterization of the risk of the presence of emerging marine biotoxins in European coastal areas is a priority concern for the EU Health Authorities. Occurrence data are necessary to characterize the risk, and the development of analytical methods for screening and confirmation is strictly required for this purpose. The development of reference materials is still a pending issue that is hampering the advance of both risk evaluation and characterization.

Author Contributions

A.G.-M. conceived and designed the project. P.E., D.C., A.P.-V., J.G. and A.G.-M. were involved in the preparation of the manuscript. A.G.-M. as the corresponding author carried out the final revision of this manuscript.

Funding

This research was funded by the project EUROCIGUA: Risk characterization of ciguatera food poisoning in Europe, framework partnership agreement GP/EFSA/AFSCO/2015/03. P.E. acknowledges the financial support for the Ph.D. studies from Xunta de Galicia (Regional Government, Spain) under grant ED481A-2018/207. J.G. acknowledges financial support from the Xunta de Galicia (Centro singular de investigación de Galicia accreditation 2016–2019) and the European Union (European Regional Development Fund—ERDF).

Acknowledgments

Takeshi Yasumoto (Japan Food Research Laboratories) kindly provided the standards of Pacific ciguatoxins. Robert Dickey (previously, U.S. Food and Drug Administration) via Ronald Manger (Fred Hutchinson Cancer Research Center, Seattle, USA) kindly provided the standard of C-CTX1.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Visciano, P.; Schirone, M.; Berti, M.; Milandri, A.; Tofalo, R.; Suzzi, G. Marine biotoxins: Occurrence, toxicity, regulatory limits and reference methods. Front. Microbiol. 2016, 7, 1051. [Google Scholar] [CrossRef]
  2. Otero, P.; Pérez, S.; Alfonso, A.; Vale, C.; Rodríguez, P.; Gouveia, N.N.; Gouveia, N.; Delgado, J.; Vale, P.; Hirama, M.; et al. First toxin profile of ciguateric fish in Madeira arquipelago (Europe). Anal. Chem. 2010, 82, 6032–6039. [Google Scholar] [CrossRef]
  3. García-Altares, M.; Casanova, A.; Bane, V.; Diogène, J.; Furey, A.; la Iglesia, P. Confirmation of pinnatoxins and spirolides in shellfish and passive samplers from Catalonia (Spain) by liquid chromatography coupled with triple quadrupole and high-resolution hybrid tandem mass spectrometry. Mar. Drugs 2014, 12, 3706–3732. [Google Scholar] [CrossRef] [PubMed]
  4. Rambla-Alegre, M.; Miles, C.O.; de la Iglesia, P.; Fernandez-Tejedor, M.; Jacobs, S.; Sioen, I.; Verbeke, W.; Samdal, I.A.; Sandvik, M.; Barbosa, V.; et al. Occurrence of cyclic imines in European commercial seafood and consumers risk assessment. Environ. Res. 2018, 161, 392–398. [Google Scholar] [CrossRef] [PubMed]
  5. EFSA Pannel on Contaminants in the Food Chain (CONTAM). Scientific opinion on marine biotoxins in shellfish—Emerging toxins: Brevetoxin group. EFSA J. 2010, 8, 1677. [Google Scholar] [CrossRef]
  6. James, K.J.; Carey, B.; O’Halloran, J.; van Pelt, F.N.A.M.; Škrabáková, Z. Shellfish toxicity: Human health implications of marine algal toxins. Epidemiol. Infect. 2010, 138, 927–940. [Google Scholar] [CrossRef] [PubMed]
  7. Harley, C.D.G.; Randall Hughes, A.; Hultgren, K.M.; Miner, B.G.; Sorte, C.J.B.; Thornber, C.S.; Rodriguez, L.F.; Tomanek, L.; Williams, S.L. The impacts of climate change in coastal marine systems. Ecol. Lett. 2006, 9, 228–241. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Occhipinti-Ambrogi, A. Global change and marine communities: Alien species and climate change. Mar. Pollut. Bull. 2007, 55, 342–352. [Google Scholar] [CrossRef] [PubMed]
  9. Hallegraeff, G.M. Ocean climate change, phytoplankton community responses, and harmful algal blooms: A formidable predictive challenge. J. Phycol. 2010, 46, 220–235. [Google Scholar] [CrossRef]
  10. McNabb, P.; Selwood, A.I.; Holland, P.T. Multiresidue method for determination of algal toxins in shellfish: Single-laboratory validation and interlaboratory study. J. AOAC Int. 2005, 88, 761–772. [Google Scholar] [PubMed]
  11. Lawrence, J.F.; Niedzwiadek, B.; Menard, C.; De Rojas Astudillo, L.; Biré, R.; Burdaspal, P.A.; Ceredi, A.; Davis, B.; Dias, E.; Eaglesham, G.; et al. Quantitative determination of paralytic shellfish poisoning toxins in shellfish using prechromatographic oxidation and liquid chromatography with fluorescence detection: Collaborative study. J. AOAC Int. 2005, 88, 1714–1732. [Google Scholar]
  12. EFSA Pannel on Contaminants in the Food Chain (CONTAM). Scientific opinion on marine biotoxins in shellfish—Palytoxin group. EFSA J. 2009, 7, 1393. [Google Scholar] [CrossRef]
  13. EFSA Pannel on Contaminants in the Food Chain. Scientific opinion on marine biotoxins in shellfish—Emerging toxins: Ciguatoxin group. EFSA J. 2010, 8, 1627. [Google Scholar] [CrossRef]
  14. EFSA Pannel on Contaminants in the Food Chain (CONTAM); Knutsen, H.K.; Alexander, J.; Barregård, L.; Bignami, M.; Brüschweiler, B.; Ceccatelli, S.; Cottrill, B.; Dinovi, M.; Edler, L.; et al. Risks for public health related to the presence of tetrodotoxin (TTX) and TTX analogues in marine bivalves and gastropods. EFSA J. 2017, 15, e04752. [Google Scholar]
  15. Rhodes, L.; Munday, R.; Briggs, L. Ostreopsis siamensis and palytoxin-related compounds in New Zealand: A risk to human health? In Proceedings of the 12th International Conference on Harmful Algae, Copenhagen, Denamrk, 4–8 September 2006; ISSHA and Intergovernmental Oceanographic Commision of UNESCO: Copenhagen, Denamrk; pp. 326–329. [Google Scholar]
  16. Nuñez, D.; Matute, P.; Garcia, A.; Garcia, P.; Abadía, N. Outbreak of ciguatera food poisoning by consumption of amberjack (Seriola spp.) in the Canary Islands, May 2012. Eurosurveillance 2012, 17, 20188. [Google Scholar] [PubMed]
  17. Laza-Martínez, A.; David, H.; Riobó, P.; Miguel, I.; Orive, E. Characterization of a strain of Fukuyoa paulensis (Dinophyceae) from the Western Mediterranean sea. J. Eukaryot. Microbiol. 2016, 63, 481–497. [Google Scholar] [CrossRef] [PubMed]
  18. Fraga, S.; Rodríguez, F. Genus Gambierdiscus in the Canary Islands (NE Atlantic Ocean) with description of Gambierdiscus silvae sp. nov., a new potentially toxic epiphytic benthic dinoflagellate. Protist 2014, 165, 839–853. [Google Scholar] [CrossRef]
  19. Kodama, M.; Sato, S.; Sakamoto, S.; Ogata, T. Occurrence of tetrodotoxin in Alexandrium tamarense, a causative dinoflagellate of paralytic shellfish poisoning. Toxicon 1996, 34, 1101–1105. [Google Scholar] [CrossRef]
  20. McNabb, P.S.; Taylor, D.I.; Ogilvie, S.C.; Wilkinson, L.; Anderson, A.; Hamon, D.; Wood, S.A.; Peake, B.M. First detection of tetrodotoxin in the bivalve Paphies australis by liquid chromatography coupled to triple quadrupole mass spectrometry with and without precolumn reaction. J. AOAC Int. 2014, 97, 325–333. [Google Scholar] [CrossRef]
  21. Turner, A.D.; Powell, A.; Schofield, A.; Lees, D.N.; Baker-Austin, C. Detection of the pufferfish toxin tetrodotoxin in European bivalves, England, 2013 to 2014. Eurosurveillance 2015, 20, 21099. [Google Scholar] [CrossRef]
  22. Vlamis, A.; Katikou, P.; Rodriguez, I.; Rey, V.; Alfonso, A.; Papazachariou, A.; Zacharaki, T.; Botana, A.M.; Botana, L.M. First detection of tetrodotoxin in Greek shellfish by UPLC-MS/MS potentially linked to the presence of the Dinoflagellate prorocentrum minimum. Toxins 2015, 7, 1779–1807. [Google Scholar] [CrossRef] [PubMed]
  23. Gerssen, A.; Bovee, T.H.F.; Klijnstra, M.D.; Poelman, M.; Portier, L.; Hoogenboom, R.L.A.P. First report on the occurrence of tetrodotoxins in Bivalve Mollusks in The Netherlands. Toxins 2018, 10, 450. [Google Scholar] [CrossRef] [PubMed]
  24. Dell’Aversano, C.; Tartaglione, L.; Polito, G.; Dean, K.; Giacobbe, M.; Casabianca, S.; Capellacci, S.; Penna, A.; Turner, A.D. First detection of tetrodotoxin and high levels of paralytic shellfish poisoning toxins in shellfish from Sicily (Italy) by three different analytical methods. Chemosfere 2019, 215, 881–892. [Google Scholar] [CrossRef]
  25. Leão, J.M.; Lozano-Leon, A.; Giráldez, J.; Vilariño, Ó.; Gago-Martínez, A. Preliminary results on the evaluation of the occurrence of tetrodotoxin associated to Marine vibrio spp. in Bivalves from the Galician Rias (Northwest of Spain). Mar. Drugs 2018, 16, 81. [Google Scholar] [CrossRef] [PubMed]
  26. Scheuer, P.J.; Takahashi, W.; Tsutsumi, J.; Yoshida, T. Ciguatoxin: Isolation and chemical nature. Science 1967, 155, 1267–1268. [Google Scholar] [CrossRef]
  27. Yasumoto, T.; Nakajima, I.; Bagnis, R.; Adachi, R. Finding of a dinoflagellate as a likely culprit of ciguatera. Nippon Suisan Gakk. 1977, 43, 1021–1026. [Google Scholar] [CrossRef]
  28. Yasumoto, T.; Murata, M. Marine toxins. Chem. Rev. 1993, 93, 1897–1909. [Google Scholar] [CrossRef]
  29. Lewis, R.J.; Holmes, M.J. Origin and transfer of toxins involved in ciguatera. Comp. Biochem. Physiol. C. 1993, 106, 615–628. [Google Scholar] [CrossRef]
  30. Dickey, R.W. Ciguatera toxins: Chemistry, toxicology, and detection. In Seafood and Freshwater Toxins; CRC Press: Boca Raton, FL, USA, 2008. [Google Scholar]
  31. Oshiro, N.; Yogi, K.; Asato, S.; Sasaki, T.; Tamanaha, K.; Hirama, M.; Yasumoto, T.; Inafuku, Y. Ciguatera incidence and fish toxicity in Okinawa, Japan. Toxicon 2010, 56, 656–661. [Google Scholar] [CrossRef]
  32. Ha, D.V.; Uesugi, A.; Uchida, H.; Ky, P.X.; Minh, D.Q.; Watanabe, R.; Matsushima, R.; Oikawa, H.; Nagai, S.; Iwataki, M.; et al. Identification of causative ciguatoxins in red snappers Lutjanus bohar implicated in ciguatera fish poisonings in Vietnam. Toxins 2018, 10, 420. [Google Scholar] [CrossRef]
  33. Hamilton, B.; Hurbungs, M.; Vernoux, J.-P.; Jones, A.; Lewis, R.J. Isolation and characterisation of Indian Ocean ciguatoxin. Toxicon 2002, 40, 685–693. [Google Scholar] [CrossRef]
  34. Pottier, I.; Vernoux, J.-P.; Lewis, R.J. Ciguatera fish poisoning in the Caribbean Islands and Western Atlantic. In Reviews of Environmental Contamination and Toxicology: Continuation of Residue Reviews; Ware, G.W., Ed.; Springer: New York, NY, USA, 2001; pp. 99–141. [Google Scholar]
  35. Boada, L.D.; Zumbado, M.; Luzardo, O.P.; Almeida-González, M.; Plakas, S.M.; Granade, H.R.; Abraham, A.; Jester, E.L.E.; Dickey, R.W. Ciguatera fish poisoning on the West Africa Coast: An emerging risk in the Canary Islands (Spain). Toxicon 2010, 56, 1516–1519. [Google Scholar] [CrossRef] [PubMed]
  36. Costa, P.R.; Estevez, P.; Castro, D.; Soliño, L.; Gouveia, N.; Santos, C.; Rodrigues, S.M.; Leao, J.M.; Gago-Martínez, A. New insights into the occurrence and toxin profile of ciguatoxins in Selvagens Islands (Madeira, Portugal). Toxins 2018, 10, 524. [Google Scholar] [CrossRef]
  37. Suzuki, T.; Ha, D.V.; Uesugi, A.; Uchida, H. Analytical challenges to ciguatoxins. Curr. Opin. Food Sci. 2017, 18, 37–42. [Google Scholar] [CrossRef]
  38. Vernoux, J.P.; Lewis, R.J. Isolation and characterisation of Caribbean ciguatoxins from the horse-eye jack (Caranx latus). Toxicon 1997, 35, 889–900. [Google Scholar] [CrossRef]
  39. Dickey, R.W.; Plakas, S.M. Ciguatera: A public health perspective. Toxicon 2010, 56, 123–136. [Google Scholar] [CrossRef]
  40. Yasumoto, T.; Fukui, M.; Sasaki, K.; Sugiyama, K. Determinations of marine toxins in foods. J. AOAC Int. 1995, 78, 574–582. [Google Scholar]
  41. Manger, R.L.; Leja, L.S.; Lee, S.Y.; Hungerford, J.M.; Wekell, M.M. Tetrazolium-based cell bioassay for neurotoxins active on voltage-sensitive sodium channels: Semiautomated assay for saxitoxins, brevetoxins, and ciguatoxins. Anal. Biochem. 1993, 214, 190–194. [Google Scholar] [CrossRef]
  42. Hardison, D.R.; Holland, W.C.; McCall, J.R.; Bourdelais, A.J.; Baden, D.G.; Darius, H.T.; Chinain, M.; Tester, P.A.; Shea, D.; Flores Quintana, H.A.; et al. Fluorescent receptor binding assay for detecting ciguatoxins in fish. PLoS ONE 2016, 11, 1–19. [Google Scholar] [CrossRef]
  43. Tsumuraya, T.; Sato, T.; Hirama, M.; Fujii, I. Highly sensitive and practical fluorescent sandwich ELISA for ciguatoxins. Anal. Chem. 2018, 90, 7318–7324. [Google Scholar] [CrossRef]
  44. Sibat, M.; Herrenknecht, C.; Darius, H.T.; Roué, M.; Chinain, M.; Hess, P. Detection of pacific ciguatoxins using liquid chromatography coupled to either low or high resolution mass spectrometry (LC-MS/MS). J. Chromatogr. A 2018, 1571, 16–28. [Google Scholar] [CrossRef]
  45. Manger, R.L.; Leja, L.S.; Lee, S.Y.; Hungerford, J.M.; Hokama, Y.; Dickey, R.W.; Granade, H.R.; Lewis, R.; Yasumoto, T.; Wekell, M.M. Detection of sodium channel toxins: Directed cytotoxicity assays of purified ciguatoxins, brevetoxins, saxitoxins, and seafood extracts. J. AOAC Int. 1995, 78, 521–527. [Google Scholar]
  46. Caillaud, A.; Eixarch, H.; de la Iglesia, P.; Rodriguez, M.; Dominguez, L.; Andree, K.B.; Diogène, J. Towards the standardisation of the neuroblastoma (neuro-2a) cell-based assay for ciguatoxin-like toxicity detection in fish: Application to fish caught in the Canary Islands. Food Addit. Contam. Part A 2012, 29, 1000–1010. [Google Scholar] [CrossRef] [PubMed]
  47. Estevez, P.; Castro, D.; Pequeño-Valtierra, A.; Leao, J.M.; Vilariño, O.; Diogène, J.; Gago-Martínez, A. An Attempt to Characterize the Ciguatoxin Profile in Seriola fasciata Causing Ciguatera Fish Poisoning in Macaronesia. Toxins 2019, 11, 221. [Google Scholar] [CrossRef] [PubMed]
  48. Diogène, J.; Reverté, L.; Rambla-Alegre, M.; Del Rió, V.; De La Iglesia, P.; Campàs, M.; Palacios, O.; Flores, C.; Caixach, J.; Ralijaona, C.; et al. Identification of ciguatoxins in a shark involved in a fatal food poisoning in the Indian Ocean. Sci. Rep. 2017, 7. [Google Scholar] [CrossRef] [PubMed]
  49. Silva, M.; Rodriguez, I.; Barreiro, A.; Kaufmann, M.; Neto, A.I.; Hassouani, M.; Sabour, B.; Alfonso, A.; Botana, L.M.; Vasconcelos, V. First report of ciguatoxins in two starfish species: Ophidiaster ophidianus and Marthasterias glacialis. Toxins 2015, 7, 3740–3757. [Google Scholar] [CrossRef]
  50. Lewis, R.J.; Jones, A.; Vernoux, J.-P. HPLC/Tandem electrospray mass spectrometry for the determination of sub-ppb levels of Pacific and Caribbean ciguatoxins in crude extracts of fish. Anal. Chem. 1999, 71, 247–250. [Google Scholar] [CrossRef]
  51. Yogi, K.; Sakugawa, S.; Oshiro, N.; Ikehara, T.; Sugiyama, K.; Yasumoto, T. Determination of toxins involved in ciguatera fish poisoning in the pacific by LC/MS. J. AOAC Int. 2014, 97, 398–402. [Google Scholar] [CrossRef] [PubMed]
  52. Yogi, K.; Oshiro, N.; Inafuku, Y.; Hirama, M.; Yasumoto, T. Detailed LC-MS/MS analysis of ciguatoxins revealing distinct regional and species characteristics in fish and causative alga from the Pacific. Anal. Chem. 2011, 83, 8886–8891. [Google Scholar] [CrossRef] [PubMed]
  53. Abraham, A.; Jester, E.L.E.; Granade, H.R.; Plakas, S.M.; Dickey, R.W. Caribbean ciguatoxin profile in raw and cooked fish implicated in ciguatera. Food Chem. 2012, 131, 192–198. [Google Scholar] [CrossRef]
  54. Moreiras, G.; Leão, J.M.; Gago-Martínez, A. Design of experiments for the optimization of electrospray ionization in the LC-MS/MS analysis of ciguatoxins. J. Mass Spectrom. 2018, 53, 1059–1069. [Google Scholar] [CrossRef]
  55. Murray, J.S.; Boundy, M.J.; Selwood, A.I.; Harwood, D.T. Development of an LC–MS/MS method to simultaneously monitor maitotoxins and selected ciguatoxins in algal cultures and P-CTX-1B in fish. Harmful Algae 2018, 80, 80–87. [Google Scholar] [CrossRef]
  56. Estevez, P.; Castro, D.; Leao, J.M.; Yasumoto, T.; Dickey, R.; Gago-Martinez, A. Implementation of liquid chromatography tandem mass spectrometry for the analysis of ciguatera fish poisoning in contaminated fish samples from Atlantic coasts. Food Chem. 2019, 280, 8–14. [Google Scholar] [CrossRef] [PubMed]
  57. Pottier, I.; Vernoux, J.-P.; Jones, A.; Lewis, R.J. Characterisation of multiple Caribbean ciguatoxins and congeners in individual specimens of horse-eye jack (Caranx latus) by high-performance liquid chromatography/mass spectrometry. Toxicon 2002, 40, 929–939. [Google Scholar] [CrossRef]
  58. Pottier, I.; Hamilton, B.; Jones, A.; Lewis, R.J.; Vernoux, J.P. Identification of slow and fast-acting toxins in a highly ciguatoxic barracuda (Sphyraena barracuda) by HPLC/MS and radiolabelled ligand binding. Toxicon 2003, 42, 663–672. [Google Scholar] [CrossRef] [PubMed]
  59. Chau, R.; Kalaitzis, J.A.; Neilan, B.A. On the origins and biosynthesis of tetrodotoxin. Aquat Toxicol 2011, 104, 61–72. [Google Scholar] [CrossRef] [PubMed]
  60. Bane, V.; Lehane, M.; Dikshit, M.; O’Riordan, A.; Furey, A. Tetrodotoxin: Chemistry, toxicity, source, distribution and detection. Toxins 2014, 6, 693–755. [Google Scholar] [CrossRef]
  61. Yotsu-Yamashita, M.; Abe, Y.; Kudo, Y.; Ritson-Williams, R.; Paul, V.J.; Konoki, K.; Cho, Y.; Adachi, M.; Imazu, T.; Nishikawa, T.; et al. First identification of 5,11-dideoxytetrodotoxin in marine animals, and characterization of major fragment ions of tetrodotoxin and its analogs by high resolution ESI-MS/MS. Mar. Drugs 2013, 11, 2799–2813. [Google Scholar] [CrossRef] [PubMed]
  62. Hashimoto, Y.; Migita, M. On the assay method of puffer poison. Nippon Suisan Gakk. 1951, 16, 341–345. [Google Scholar] [CrossRef]
  63. Yakes, B.J.; Deeds, J.; White, K.; DeGrasse, S.L. Evaluation of surface plasmon resonance biosensors for detection of tetrodotoxin in food matrices and comparison to analytical methods. J. Agric. Food Chem. 2011, 59, 839–846. [Google Scholar] [CrossRef]
  64. Campbell, K.; Barnes, P.; Haughey, S.A.; Higgins, C.; Kawatsu, K.; Vasconcelos, V.; Elliott, C.T. Development and single laboratory validation of an optical biosensor assay for tetrodotoxin detection as a tool to combat emerging risks in European seafood. Anal. Bioanal. Chem. 2013, 405, 7753–7763. [Google Scholar] [CrossRef]
  65. Raybould, T.J.G.; Bignami, G.S.; Inouye, L.K.; Simpson, S.B.; Byrnes, J.B.; Grothaus, P.G.; Vann, D.C. A monoclonal antibody-based immunoassay for detecting tetrodotoxin in biological samples. J. Clin. Lab. Anal. 1992, 6, 65–72. [Google Scholar] [CrossRef] [PubMed]
  66. Neagu, D.; Micheli, L.; Palleschi, G. Study of a toxin-alkaline phosphatase conjugate for the development of an immunosensor for tetrodotoxin determination. Anal. Bioanal. Chem. 2006, 385, 1068–1074. [Google Scholar] [CrossRef]
  67. Stokes, A.N.; Williams, B.L.; French, S.S. An improved competitive inhibition enzymatic immunoassay method for tetrodotoxin quantification. Bio. Proced. Online 2012, 14, 3. [Google Scholar] [CrossRef]
  68. Kogure, K.; Tamplin, M.L.; Simidu, U.; Colwell, R.R. A tissue culture assay for tetrodotoxin, saxitoxin and related toxins. Toxicon 1988, 26, 191–197. [Google Scholar] [CrossRef]
  69. Manger, R.L.; Leja, L.S.; Lee, S.Y.; Hungerford, J.M.; Kirkpatrick, M.A.; Yasumoto, T.; Wekell, M.M. Detection of paralytic shellfish poison by rapid cell bioassay: Antagonism of voltage-gated sodium channel active toxins in vitro. J. AOAC Int. 2003, 86, 540–543. [Google Scholar]
  70. Hamasaki, K.; Kogure, K.; Ohwada, K. An improved method of tissue culture bioassay for tetrodotoxin. Fish Sci. 1996, 62, 825–829. [Google Scholar] [CrossRef]
  71. Yotsu-Yamashita, M.; Jang, J.H.; Cho, Y.; Konoki, K. Optimization of simultaneous analysis of tetrodotoxin, 4-epitetrodotoxin, 4,9-anhydrotetrodotoxin, and 5,6,11-trideoxytetrodotoxin by hydrophilic interaction liquid chromatography-tandem mass spectrometry. Forensic. Toxicol. 2011, 29, 61–64. [Google Scholar] [CrossRef]
  72. Turner, A.D.; McNabb, P.S.; Harwood, D.T.; Selwood, A.I.; Boundy, M.J. Single-laboratory validation of a multitoxin ultra-performance LC-hydrophilic interaction LC-MS/MS method for quantitation of paralytic shellfish toxins in bivalve shellfish. J. AOAC Int. 2015, 98, 609–621. [Google Scholar] [CrossRef]
  73. Bane, V.; Hutchinson, S.; Sheehan, A.; Brosnan, B.; Barnes, P.; Lehane, M.; Furey, A. LC-MS/MS method for the determination of tetrodotoxin (TTX) on a triple quadruple mass spectrometer. Food Addit. Contam. Part A 2016, 33, 1728–1740. [Google Scholar] [CrossRef]
  74. Determination of Tetrodotoxin by HILIC-MS/MS. European Union Reference Laboratory for Marine Biotoxins. Available online: http://www.aecosan.msssi.gob.es/en/CRLMB/docs/docs/metodos_analiticos_de_desarrollo/HILIC-LCMSMS_SOP_for_TTX_in_mussels.pdf (accessed on 20 March 2019).
Foods 08 00149 g001 550

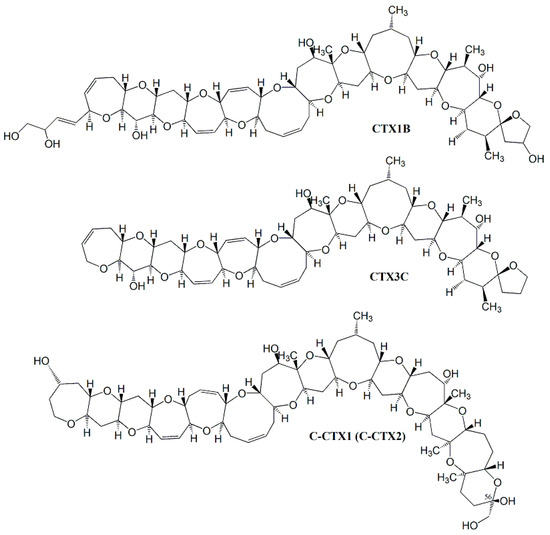

Figure 1. Chemical structures of the mayor ciguatoxins: CTX1B and CTX3C and C-CTX1 and its epimer C-CTX2 in C-56.
Figure 1. Chemical structures of the mayor ciguatoxins: CTX1B and CTX3C and C-CTX1 and its epimer C-CTX2 in C-56.
Foods 08 00149 g001
Foods 08 00149 g002 550

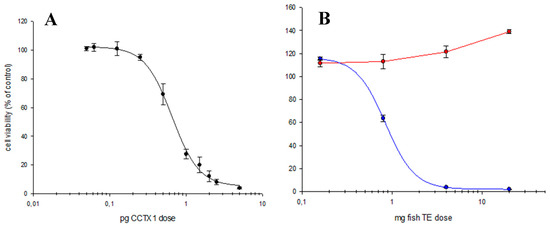

Figure 2. Example of N2a cytotoxicity results. (A) The C-CTX1 standard with the addition of ouabain/veratridine (O/V); (B) The amberjack (Seriola fasciata): red line, sample without the addition of O/V; blue line, toxic response in the sample with the addition of O/V. Data from [47]. N2a, neuroblastoma 2-a.
Figure 2. Example of N2a cytotoxicity results. (A) The C-CTX1 standard with the addition of ouabain/veratridine (O/V); (B) The amberjack (Seriola fasciata): red line, sample without the addition of O/V; blue line, toxic response in the sample with the addition of O/V. Data from [47]. N2a, neuroblastoma 2-a.
Foods 08 00149 g002
Foods 08 00149 g003 550

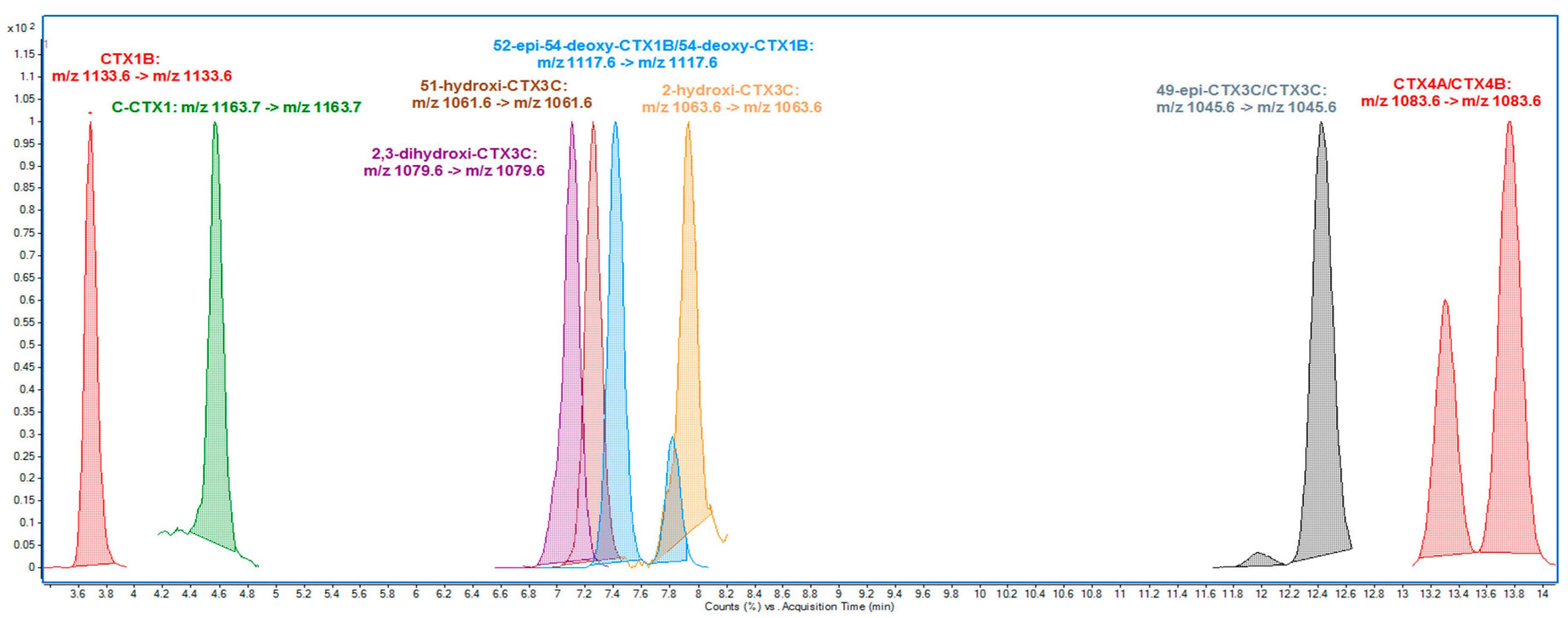

Figure 3. Example of LC-MS/MS (MRM) analysis monitoring the sodium adduct as a precursor and product ion in a qualitative mixture of P-CTXs and a C-CTX1 standard following the conditions described by [56]. Data from [47].
Figure 3. Example of LC-MS/MS (MRM) analysis monitoring the sodium adduct as a precursor and product ion in a qualitative mixture of P-CTXs and a C-CTX1 standard following the conditions described by [56]. Data from [47].
Foods 08 00149 g003
Foods 08 00149 g004 550

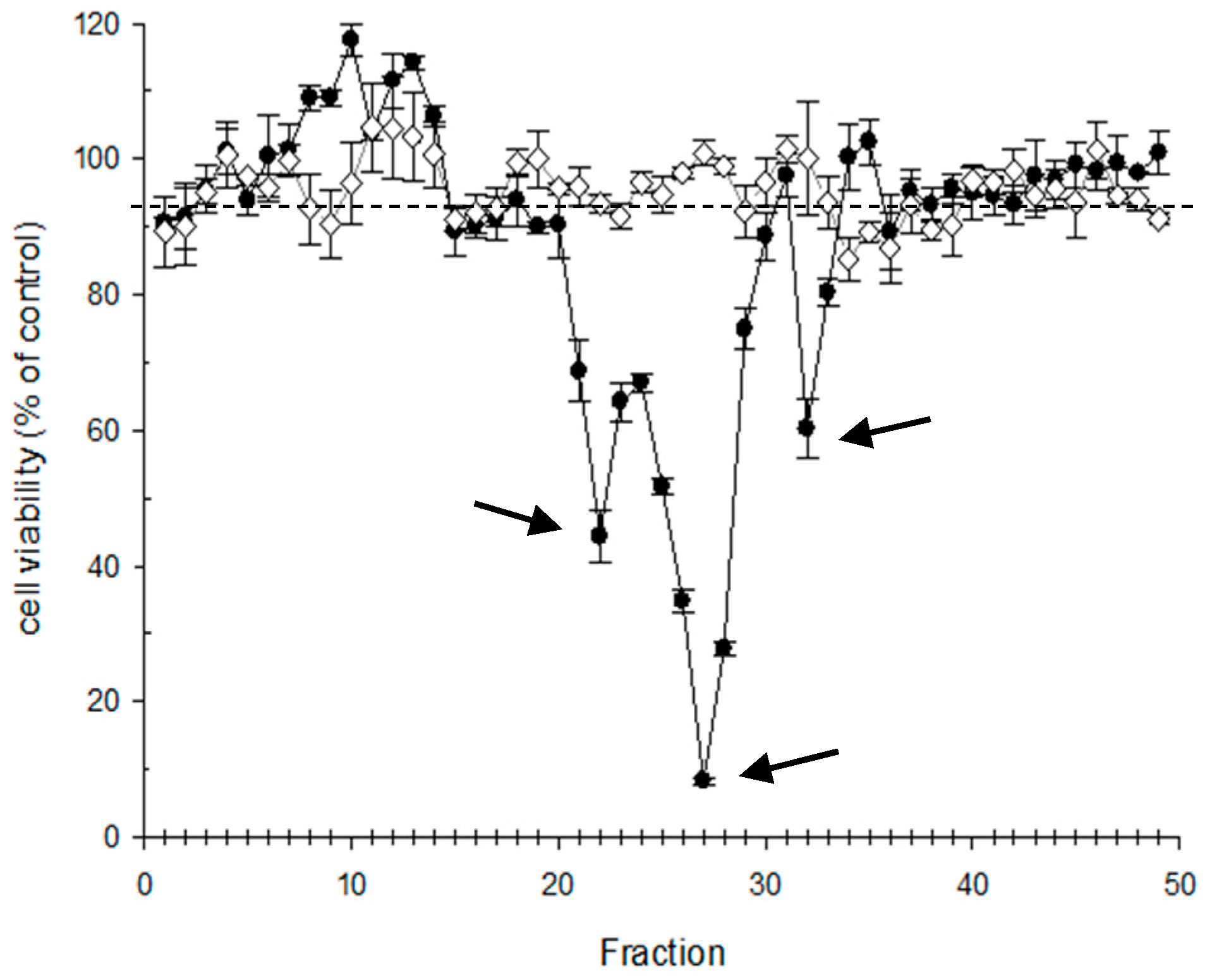

Figure 4. Example of N2a cytotoxicity profile of HPLC fractionated amberjack sample. Three prominent cytotoxic peaks can be observed corresponding to different C-CTXs analogs. White dots: sample without ouabain/veratridine treatment; black dots: sample with ouabain/veratridine treatment. Data from [47].
Figure 4. Example of N2a cytotoxicity profile of HPLC fractionated amberjack sample. Three prominent cytotoxic peaks can be observed corresponding to different C-CTXs analogs. White dots: sample without ouabain/veratridine treatment; black dots: sample with ouabain/veratridine treatment. Data from [47].
Foods 08 00149 g004
Foods 08 00149 g005 550

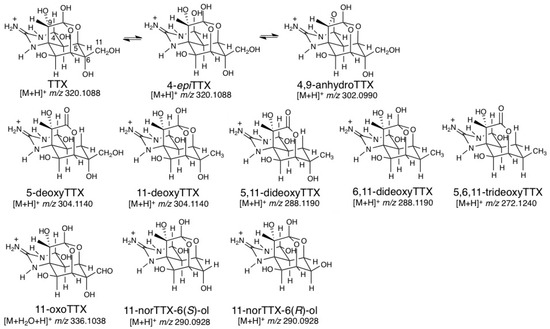

Figure 5. Structures of natural tetrodotoxin (TTX) analogs and the calculated masses for their [M + H]+ or [M + H2O + H]+ [61].
Figure 5. Structures of natural tetrodotoxin (TTX) analogs and the calculated masses for their [M + H]+ or [M + H2O + H]+ [61].
Foods 08 00149 g005
Foods 08 00149 g006 550

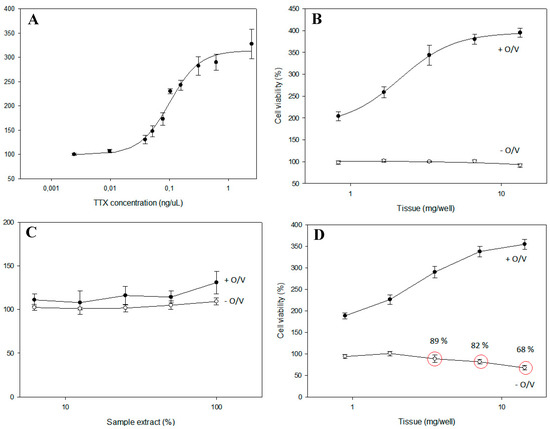

Figure 6. Example of different situations present in the N2a assay. (A) TTX standard; (B) toxic sample; (C) non-toxic sample; (D) matrix effect.
Figure 6. Example of different situations present in the N2a assay. (A) TTX standard; (B) toxic sample; (C) non-toxic sample; (D) matrix effect.
Foods 08 00149 g006
Foods 08 00149 g007 550

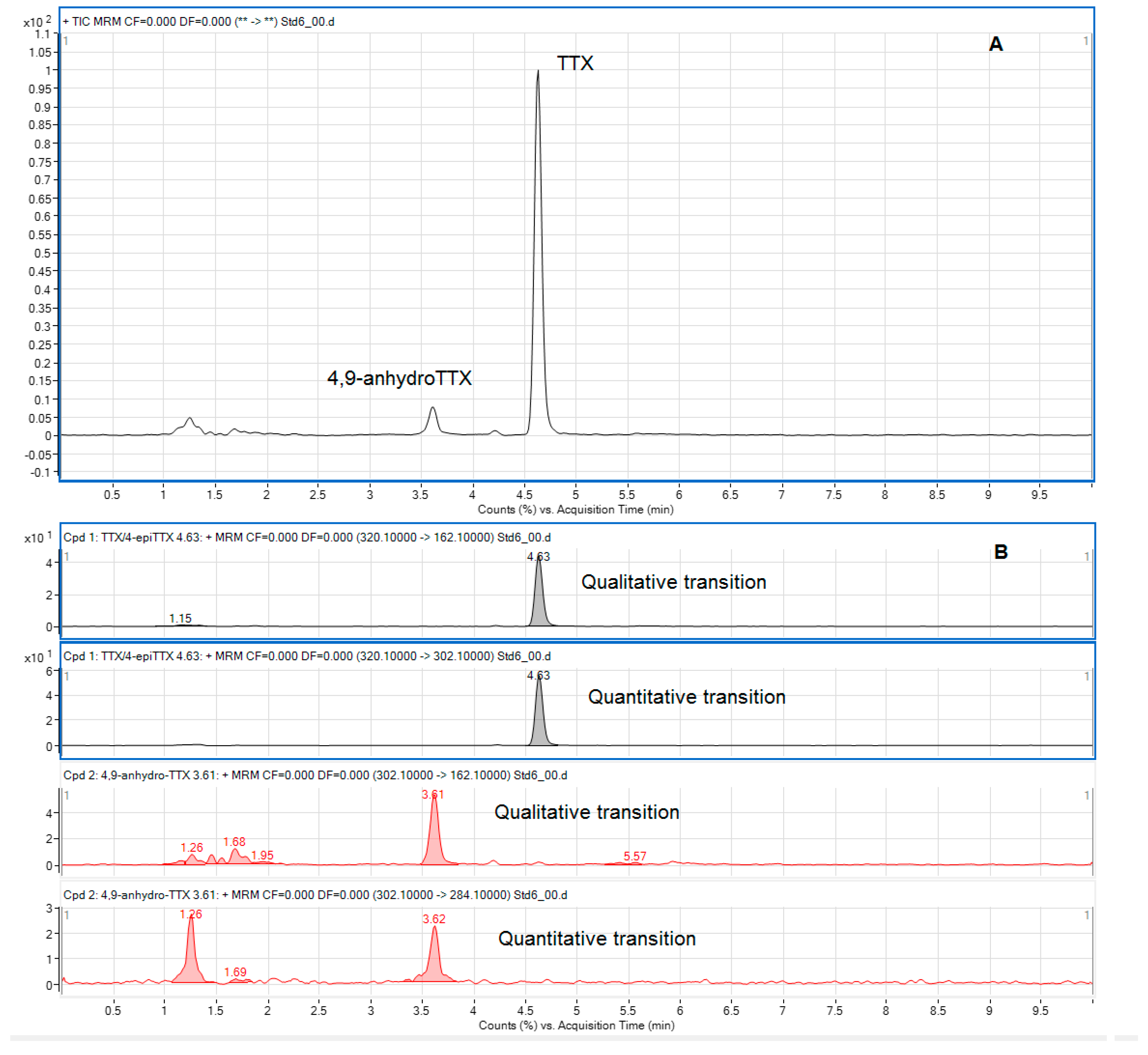

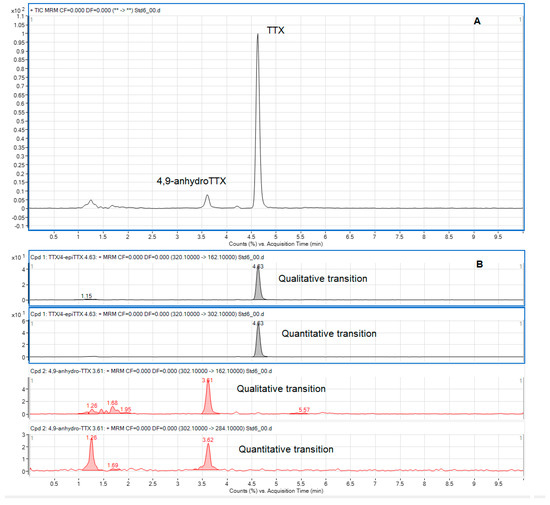

Figure 7. Example of LC-MS/MS (MRM) analysis of a TTX and 4,9-anhidroTTX standard following the EURLMB TTX SOP 2017 [74]. (A) Total ion chromatogram; (B) Qualitative and quantitative transitions for TTX (in gray) and 4,9-anhidroTTX (in red).
Figure 7. Example of LC-MS/MS (MRM) analysis of a TTX and 4,9-anhidroTTX standard following the EURLMB TTX SOP 2017 [74]. (A) Total ion chromatogram; (B) Qualitative and quantitative transitions for TTX (in gray) and 4,9-anhidroTTX (in red).
Foods 08 00149 g007
Table
Table 1. Main marine biotoxins in seafood, the syndromes, and the legal limits in the EU. Regulation (EC) No. 853/2004; 854/2004; 15/2011, 786/2013.
Table 1. Main marine biotoxins in seafood, the syndromes, and the legal limits in the EU. Regulation (EC) No. 853/2004; 854/2004; 15/2011, 786/2013.
SyndromeReference CompoundMain Toxins in SyndromeSeafood AffectedEU Limits
Lipophilic Toxins
Diarrhetic Shellfish PoisoningOkadaic acidOA, DTX-1,2shellfish160 µg OA-eq/kg
-YessotoxinsYTX and analogsshellfish3.75 mg YTX-eq/kg shellfish
Azaspiracid PoisoningAzaspiracidsAZA 1–3shellfish160 µg AZA1-eq/kg
“Fast-acting toxins”Cyclic IminesSPX, GymnodiminesshellfishNot regulated
Ciguatera Fish PoisoningCiguatoxinsC-CTX, P-CTX, I-CTX, Gambiertoxins, Gambierolfish*
Neurotoxic Shellfish PoisoningBrevetoxinPbTx-1,2,3,6,7,9,10, Cysteine, glycine metabolitesshellfishNot regulated
Hydrophilic Toxins
Amnesic Shellfish PoisoningDomoic acidIsodomoic and epidomoic acidsshellfish, fish20 mg DA/kg
Paralytic Shellfish PoisoningSaxitoxinCarbamate, N-sulfocarbamoyl, Decarbamoylshellfish800 µg STX-eq 2-HCl/kg
Pufferfish PoisoningTetrodotoxinTTX and analogsshellfish, fish**
* Fishery products containing ciguatoxins must not be placed in the market (in accordance with Regulation (EC) No. 853/2004). ** Fishery products derived from the following families must not be placed on the market: Tetraodontidae, Molidae, Diodontidae, and Canthigasteridae. Recommended level proposed by EFSA: 44 µg TTX/kg. OA, Okadaic acid; DTX, dinophysistoxin; YTX, yessotoxin; AZA, azaspiracid; SPX, spirolide; CTX, ciguatoxin; PbTx, brevetoxin; DA, domoic acid; STX, saxitoxin; TTX, tetrodotoxin.

Share and Cite

MDPI and ACS Style

Estevez, P.; Castro, D.; Pequeño-Valtierra, A.; Giraldez, J.; Gago-Martinez, A. Emerging Marine Biotoxins in Seafood from European Coasts: Incidence and Analytical Challenges. Foods 2019, 8, 149. https://doi.org/10.3390/foods8050149

AMA Style

Estevez P, Castro D, Pequeño-Valtierra A, Giraldez J, Gago-Martinez A. Emerging Marine Biotoxins in Seafood from European Coasts: Incidence and Analytical Challenges. Foods. 2019; 8(5):149. https://doi.org/10.3390/foods8050149

Chicago/Turabian Style

Estevez, Pablo, David Castro, Ana Pequeño-Valtierra, Jorge Giraldez, and Ana Gago-Martinez. 2019. "Emerging Marine Biotoxins in Seafood from European Coasts: Incidence and Analytical Challenges" Foods 8, no. 5: 149. https://doi.org/10.3390/foods8050149

APA Style

Estevez, P., Castro, D., Pequeño-Valtierra, A., Giraldez, J., & Gago-Martinez, A. (2019). Emerging Marine Biotoxins in Seafood from European Coasts: Incidence and Analytical Challenges. Foods, 8(5), 149. https://doi.org/10.3390/foods8050149

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
