Towards Whole Health Toxicology: In-Silico Prediction of Diseases Sensitive to Multi-Chemical Exposures

by
Olatunbosun Arowolo
1,
Victoria Salemme
2 and
Alexander Suvorov
1,*
1
Department of Environmental Health Sciences, School of Public Health and Health Sciences, University of Massachusetts, 686 North Pleasant Street, Amherst, MA 01003, USA
2
Department of Pharmacology, University of California, 1275 Med Science, Davis, CA 95616, USA
*
Author to whom correspondence should be addressed.
Toxics 2022, 10(12), 764; https://doi.org/10.3390/toxics10120764
Submission received: 12 October 2022 / Revised: 15 November 2022 / Accepted: 7 December 2022 / Published: 8 December 2022
(This article belongs to the Special Issue Computational Toxicology: Expanding Frontiers in Risk Assessment)
Browse Figures
Review Reports Versions Notes

Abstract

:
Chemical exposures from diverse sources merge on a limited number of molecular pathways described as toxicity pathways. Changes in the same set of molecular pathways in different cell and tissue types may generate seemingly unrelated health conditions. Today, no approaches are available to predict in an unbiased way sensitivities of different disease states and their combinations to multi-chemical exposures across the exposome. We propose an inductive in-silico workflow where sensitivities of genes to chemical exposures are identified based on the overlap of existing genomic datasets, and data on sensitivities of individual genes is further used to sequentially derive predictions on sensitivities of molecular pathways, disease states, and groups of disease states (syndromes). Our analysis predicts that conditions representing the most significant public health problems are among the most sensitive to cumulative chemical exposures. These conditions include six leading types of cancer in the world (prostatic, breast, stomach, lung, colorectal neoplasms, and hepatocellular carcinoma), obesity, type 2 diabetes, non-alcoholic fatty liver disease, autistic disorder, Alzheimer’s disease, hypertension, heart failure, brain and myocardial ischemia, and myocardial infarction. Overall, our predictions suggest that environmental risk factors may be underestimated for the most significant public health problems.

1. Introduction

Traditional approach to healthcare is based on a reductionist ideology that divides a person into smaller components that are then used individually as subjects of diagnostics and therapeutic interventions [1,2]. This approach contradicts the modern understanding of the integrated nature of biological systems and health. The concept of whole-person health was suggested recently to overcome the drawbacks of prevailing reductionism [3]. This concept suggests that global health problems are not independent of each other and calls for a multidimensional and integrated approach to care to encompass internal (body) and external factors that play a role in the general well-being of an individual [1,3].
The whole person health concept builds a fruitful framework for toxicological research (Figure 1A). Indeed, humans are exposed to hundreds of environmental chemicals daily [4,5]. In one day, exposure may include pesticides, preservatives, and persistent organic pollutants from contaminated foods, stabilizers and solvents from care products and cosmetics, inhaled toxic products of combustion of organic matter from car exhaust gases, flame retardants from furniture, plasticizers from household polymers, a broad range of additives in prescription drugs and other [6,7,8,9]. Over the years, many research studies have demonstrated the impacts of exposures to individual environmental chemicals on human health [5,10,11]. However, these studies do not provide sufficient knowledge to predict the effects of multi-chemical exposures on human health [5,12]. A combination of two or more environmental chemicals may have a significant impact on health either through synergistic, potentiating, or antagonistic effects [5]. For instance, cumulative exposure to 15 pesticides and phthalates, when each of these chemicals was present at no observable adverse effect levels (NOAEL) caused an adverse effect on the male reproductive development in pups of exposed rats [13].
Chemical exposures from diverse and numerous sources merge on a limited number of molecular pathways [4], which in recent years were described as toxicity pathways or adverse outcome pathways (AOP) [14,15,16,17,18]. Changes in the same set of molecular pathways in different cell and tissue types may generate seemingly unrelated health conditions. For example, activation of the aryl hydrocarbon receptor (AhR) pathway may contribute to the development of skin lesions (chloracne) [19], atherosclerosis [20], chronic kidney disease [21], tumor promotion [22], pathological immune response [23], disruption of spermatogenesis [24] and others. Today, the healthcare system will likely treat all these conditions as completely unrelated even if they all are found in the same patient; while recognition of these conditions as a syndrome may facilitate the identification of a causal route of the health problems to inform the most efficient therapeutic interventions.
The number of patients suffering from multimorbidity is increasing globally [2,25,26,27,28]. Some studies developed complex networks between multiple human diseases but with no relation to environmental chemical exposures [26,29,30,31,32,33]. The approach to understanding the complex interactions between different diseases caused by exposure to multiple environmental chemicals is mostly unknown today. The development of this approach is complicated by the fact, that syndromes resulting from the disruption of individual molecular pathways are not well characterized and by a lack of approaches that may integrate information on the disruption of multiple pathways.
In this study, we propose an in-silico approach (Figure 1B) to predict disease states caused by exposures to multiple chemicals using chemical-gene interaction data from the Comparative Toxicogenomic Database (CTD) [34].

2. Results

The results of the identification of genes’ and pathways’ sensitivity to chemical exposures were reported in our previous study [4]. Therefore, here we focus on disease-level findings. In total 86 KEGG pathways and 194 Reactome pathways matched our selection criteria (FDR q > 0.01 and NES > 1.9) for the identification of associated diseases. After filtering, 1850 diseases were associated with KEGG pathways, and 2481 diseases were associated with Reactome pathways. Following dimension reduction, 21 non-neoplastic diseases and 19 neoplastic diseases associated with chemically sensitive Reactome pathways, as well as 51 non-neoplastic diseases associated with chemically sensitive KEGG pathways were selected for further analysis, see Mendeley data [35].

2.1. Disease Categories Associated with Chemically Sensitive Pathways

The lists of the top-ranking diseases based on both the number of inferred pathways (Figure 2 A,C) and the number of inference genes (Figure 2B,D) were highly similar and/or overlapping for both KEGG (Figure 2A,B) and Reactome (Figure 2C,D) curations. In all four analyses, the lists of the top-ranking diseases were dominated by various neoplasms including breast, stomach, prostatic, lung, colorectal neoplasms, hepatocellular carcinoma, and others. Among non-neoplastic conditions, the top-ranking diseases included metabolic disorders (obesity, type 2 diabetes, non-alcoholic fatty liver disease), neurodevelopmental and psychiatric disorders (autistic disorder, schizophrenia, Alzheimer’s disease, hyperalgesia), cardiovascular (hypertension, heart failure, cardiomyopathies, cardiomegaly, brain and myocardial ischemia, myocardial infarction, and reperfusion injury), and immune pathology (contact dermatitis, arthritis juvenile and rheumatoid and HIV infection). Among these, type 2 diabetes, hypertension, and autistic disorder were among the top conditions in all 4 types of analysis (Figure 2).

2.2. Clusters of Disease Categories Sharing Similar Chemically Sensitive Pathways

For this analysis, only these diseases were taken which were strongly associated with big numbers of chemically sensitive pathways. In other words, these are conditions that are most likely to be induced or exacerbated by cumulative chemical exposures. The results of Self Organizing Map (SOM) and hierarchical clustering are shown in Figure 3 for diseases clustering together based on the similarity of overlapping chemically sensitive Reactome pathways. The same results for non-neoplastic disease grouping based on KEGG pathways are shown in the supplemental file, Figures S1 and S2.
As illustrated in Figure 3A,B, in both SOM and hierarchical clustering the mechanistic similarity of many non-neoplastic diseases clustering together is not obvious at a first glance. However deeper analysis of existing literature reveals common molecular etiology or other associations between many conditions that cluster together. For example, Type 2 Diabetes and hypertension are common comorbidities and they share many common mechanisms including upregulation of the renin-angiotensin-aldosterone system, oxidative stress, and inflammation [36]. Autism, rheumatoid arthritis, and inflammation are all connected via the pathological response of the immune system. Maternal inflammation is a significant risk factor for autistic disorder in offspring [37,38] and rheumatoid arthritis in parents is positively associated with the risk of autistic disorder in offspring [39]. Obesity is associated with excessive accumulation of lipids in the liver (non-alcoholic fatty liver disease—NAFLD) and NAFLD is a leading cause of liver cirrhosis, where the latter is the terminal stage of disease progression [40]. Links between some other diseases are more obvious. Some examples of such groups of diseases associated with chemically sensitive KEGG pathways include RASopathies: Noonan Syndrome, Costello Syndrome, and Cardiofaciocutaneous Syndrome; diseases of lungs: asthma and pneumonia; conditions associated with the use of drugs of abuse: cocaine-related disorders and substance withdrawal syndrome, diseases associated with fibrotic scarring: fibrosis, pulmonary fibrosis and NAFLD and others (Figures S1 and S2). The links between some other conditions that are stably grouped across different comparisons are not obvious. One such example is the clustering together of obesity and liver conditions (NAFLD, cirrhosis) with endometriosis and spontaneous abortion.
Hierarchical clustering of neoplastic diseases is more difficult to interpret as different forms of cancer are associated with perturbations of a similar set of mechanisms, ‘cancer hallmarks’ [41,42,43] while differences between molecular pathways affected in different forms of cancer may be subtle. Importantly, close to synonymic terms—neoplasm metastasis and neoplasm invasiveness—clustered together in both SOM and hierarchical clustering. Additionally prostatic and breast neoplasms clustered together. Both conditions are known to be sex steroid-dependent cancers with the same genetic and environmental risk factors [44].

3. Discussion

The current study is an attempt to identify in an unbiased way individual diseases and disease groups highly sensitive to cumulative chemical exposures. The approach used in this study is based on the in-silico inductive workflow where first genes sensitive to chemical exposures are identified based on the overlap of existing genomic studies. In the next step, molecular pathways enriched with highly sensitive genes are identified. Then sensitivity of diseases to chemical exposures is quantified based on their overlap with sensitive pathways. And finally, sensitive diseases are grouped based on the similarity of overlapping sensitive pathways. The initial steps of this analysis including the identification of the sensitive genes and pathways were published in a separate study [4]. The current study reports the results of the prediction of diseases and disease clusters sensitive to cumulative chemical exposures. Using our unbiased approach, we predict that conditions most sensitive to cumulative chemical exposures include different neoplasms, metabolic disorders, neurodevelopmental and psychiatric disorders, and cardiovascular and immune pathology.
Our analysis suggests that leading neoplasms with environmental etiology include prostatic, breast, stomach, lung, colorectal neoplasms, and hepatocellular carcinoma. The importance of these findings is determined by the fact that these neoplasms are the six leading types of cancer with the highest incidence worldwide [45]. The environmental etiology of these forms of cancer is supported by extensive previous research,—see for example recent reviews [46,47,48,49,50,51]. Among non-neoplastic conditions, the top-ranking predicted diseases represent the major public health problems, such as obesity, type 2 diabetes, non-alcoholic fatty liver disease, autistic disorder, Alzheimer’s disease, hypertension, heart failure, brain and myocardial ischemia, and myocardial infarction. Along with cancer, four of these conditions (heart disease, stroke, Alzheimer’s disease, and diabetes) are the major causes of death in the USA [52] and the world [53].
Other conditions have high importance for the public health system due to their prevalence and upward trends in their incidence. For example, over 1 billion people are obese today [54,55] and if this trajectory continues, 38% of the world’s adult population will be overweight and another 20% will be obese by 2030 [56]. Although, association between exposures to some individual xenobiotics and obesity was shown before [57], our study is first to predict that obesity is sensitive outcome to cumulative exposure across the exposome. Around 462 million individuals are suffering from type-2 diabetes, accounting for 6.3% of the world’s population [58]. NAFLD is the most common liver disease in the world [59], with about 24% of Americans diagnosed with NAFLD [60]. The Center for Diseases and Prevention (CDC) reported that 1 in every 44 eight years old children are diagnosed with autistic disorder in 2018 [61].
Overall, our predictions suggest that environmental risk factors may be underestimated for the most significant public health problems. These findings provide grounds for optimism, assuming that significant progress may be achieved in mitigation of the major public health problems, including major causes of death in the world, by merely better management of chemical exposures.
Chemical exposures from diverse sources merge their effects on a limited number of molecular pathways [4]. Changes in the same set of molecular pathways in different cell and tissue types may generate seemingly unrelated health conditions [62]. Today, the healthcare system will likely treat these conditions as unrelated, focusing mostly on the symptoms of each condition rather than the common root causes [2,63]. This approach does not match modern global reality, where both multiple exposures [64] and multimorbidity [65,66] are becoming a new norm. For example, 81% of Americans ≥ 65 years and 50% of those between 45-and 65 years were reported to have multiple chronic conditions [67]. It was also projected that by 2035, 17% of the UK population would suffer from four or more chronic conditions [68].
Thus, for toxicology, there is an urgent need to identify approaches to predict clusters of health conditions that can be induced by multi-chemical exposures. To our knowledge, this paper is the first attempt to predict syndromes generated from exposure to multiple chemicals in an unbiased manner. This approach may provide a useful framework for the whole person health concept which can inspire translational research driven toward better health care interventions.
Analysis of effects of mixed exposures in human population studies is a significant challenge due to the infinite number of mixtures compositions and their heterogenicity in terms of biological activities of individual components. The widely used approach to study effects of mixed exposures consists in the reduction of the number of individual compounds based on the similarity of their mode of action (MOA), where cumulative toxicity of xenobiotics with a similar MOA in a mixture is expressed as a single number [69,70]. This approach is limited however only to these compounds for which molecular mechanisms of toxicity are well understood and are highly similar. Our study suggests that an alternative approach for the analysis of health effects of mixed exposures in human populations may focuse on these health outcomes, which are known to be the most sensitive to cumulative chemical exposures regardless of the composition of mixtures. Feasibility of this approach is supported by our observation, that identification of sensitive genes and pathways using differtent sets of chemical-gene interaction datasets with non-overlapping lists of chemical compounds produce almost same results [4]. In other words, our data suggest, that as soon as there is a big number of chemicals in the mixture, the same genes, pathways and health outcomes will be affected regardless of the mixture composition.
Our study predicted clusters of health conditions that may result from perturbations of similar molecular pathways sensitive to chemical exposures. Even though in most instances our approach provides information concordant with existing scientific findings, it is difficult to evaluate the quality of our prediction as no independent method is available. For instance, our model predictably identified clusters of diseases with known shared pathology (e.g., asthma and pneumonia), but also it identified some clusters which are difficult to explain (e.g., liver cirrhosis and cleft palate). In addition, at the step of identification of chemoically-sensitive genes we did not consider doses of chemicals used in the original studies [4]. We assume that the value of our effort to identify syndromes induced by chemical exposures will be tested in the future when other in-silico, in-vitro, in-vivo, and epidemiological/clinical studies will be done to target the same research question.

4. Materials and Methods

4.1. Identification of Genes Sensitive to Chemical Exposures

Our previous studies developed an unbiased approach to identify genes sensitive to chemical exposures [4,71,72]. In short, data on chemical-gene interaction (CGI) was collected from the CTD using the following criteria. Firstly, gene expression data were extracted from toxicological experiments in which transcriptomic responses to chemical compounds were analyzed using high-throughput techniques. In total data from 2169 individual sources were extracted, covering experiments with 1239 chemical compounds. We selected only in vivo and in-vitro studies that used human, rat, or mouse cells or tissue for their gene expression analysis. All genes that were not present in the genomes of all three species (human, rat, and mouse) were excluded from the analysis. This extraction criterion resulted in a database of 591,084 CGI. The number of CGI was calculated for each of 17,338 genes in the database to represent its sensitivity to chemical exposures. It is important to note that ranked sensitivities of genes to chemical exposures do not depend on the composition of chemicals used in original studies—sources of transcriptomic data [4]. The full list of genes with their corresponding CGI numbers is available through Mendeley Data [35].

4.2. Identification of Molecular Pathways Enriched with Chemically Sensitive Genes

Gene Set Enrichment Analysis (GSEA) was used to identify molecular pathways sensitive to chemical exposures. For this analysis, the list of genes with their corresponding CGI numbers was analyzed against two independent open-access databases for pathway curation: KEGG [73] and Reactome [74,75]. The details of this analysis are described elsewhere [72]. GSEA is an efficient method for the identification of changes in biological pathways as it captures cumulative changes of multiple members of a pathway [76]. The details of the methods and statistical approaches used by GSEA are described elsewhere [76,77,78,79]. The following stringent criteria were used to identify significant molecular pathways sensitive to chemical exposures: false discovery rate (FDR) q > 0.01 and normalized enrichment score (NES) > 1.9. The results of the GSEA analysis are available through Mendeley Data [35].

4.3. Identification of Disease States Sensitive to Chemical Exposures

To identify disease categories that are sensitive to chemical exposures, the lists of significantly enriched KEGG and Reactome pathways were submitted to the CTD to run pathway-disease association analysis. This analysis retrieves disease associations inferred based on shared genes among CTD-curated gene-disease associations and gene-pathway associations established by KEGG and Reactome curation [34]. This step resulted in a matrix of shared gene numbers between chemically sensitive pathways and disease states. All disease states identified from experimental or animal models (e.g., experimental liver cirrhosis, animal muscular dystrophy, experimental melanoma), as well as very general disease categories lacking specificity (e.g., neoplasms, wounds and injuries, drug-related side effects, and adverse reactions) and non-human diseases (Q-fever), were excluded from further analysis. The filtered pathway-disease matrices for KEGG and Reactome pathways are shown in Mendeley data [35].
Two numeric values were used to quantify the sensitivity of disease states to chemical exposures (Figure 4): the number of inferred pathways associated with the disease state and the sum of genes from every pathway overlapping with the disease (number of inference genes). One disadvantage of this second metric is that some genes, members of multiple pathways, may be counted more than one time. The lists of disease categories with their corresponding numbers of inferred pathways and inference genes are shown in Mendeley data [35].

4.4. Dimension Reduction of the Pathway-Disease Matrix

The disease-pathway matrices for KEGG and Reactome pathways were split into neoplastic and non-neoplastic diseases. For each of the resulting matrices, we then identified the top sensitive diseases that have the highest numbers of inference genes, using a method for the identification of cut-off points in descriptive high-throughput omics studies [80]. This approach assumes that only a small number of diseases with high numbers of inference genes in the disease-pathways interactions are the dominating conditions induced/exacerbated by multi-chemical exposures in the general population. The ranked distribution of the inference gene numbers for the KEGG neoplastic diseases matrix was not biphasic (exponential/super-exponential), a requirement of the method for a cutoff point identification. Therefore, this dataset was excluded from further analysis.

4.5. Prediction of Syndromes Induced by Multi-Chemical Exposures

Following dimension reduction, diseases with the highest overlap with chemically sensitive pathways were used to predict disease groups (syndromes) that may be induced/exacerbated due to the perturbation of similar sets of molecular pathways by multi-chemical exposures. The self-organizing map (SOM) approach was used to map each disease category into a 2D plot [81]. SOM is a powerful statistical tool used for visualizing high-dimensional data, and exploring and clustering samples while preserving their distances [81,82,83]. Since the map is self-organized, the method determines the maximum number of dimensions that may be used based on the data. We further reduced dimensions to minimize the numbers of empty cells/nodes [84,85,86]. In this analysis diseases associated with similar molecular pathways are clustered into a single cell. The SOM distant neighbor plot (U-matrix) was used to identify the relatedness of each cell to another cell. To validate our predictions using an alternative approach, hierarchical clustering of the pathway-disease matrices was also done to identify groups of diseases associated with similar chemically sensitive pathways. All analyses were done in RStudio (2022.02.3 + 492 “Prairie Trillium”) using the Kohonen package for SOM, factoextra, and cluster package for hierarchical clustering (codes are provided in the supplemental file).

5. Conclusions

In this study, we developed an unbiased approach to predict diseases sensitive to multi-chemical exposures and clusters of such diseases (syndromes) resulting from chemical perturbation of the same sets of molecular pathways. Our analysis indicates that diseases representing major public health problems today may be among the most sensitive to chemical exposures. Today it is difficult to test the biological relevance of syndromes predicted by our analysis as no alternative methods are available.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/toxics10120764/s1. SOM neighbor distant plot (Figure S1) and hierarchical clustering (Figure S2) of non-neoplastic diseases based on the similarity of their overlap with chemically sensitive KEGG pathways.

Author Contributions

O.A.—methodology, validation, formal analysis, investigation, resources, data curation, writing—original draft preparation, writing—review and editing, visualization. V.S.—formal analysis, investigation, resources, data cura-tion, visualization. A.S.—conceptualization, methodology, validation, formal analysis, investigation, resources, data curation, writing—original draft preparation, writing—review and editing, visualization, supervision, project ad-ministration. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the US National Institute of Health (R21 ES029686-01A1).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data used in this study are available through Mendeley Data [35].

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jonas, W.B.; Rosenbaum, E. The Case for Whole-Person Integrative Care. Medicina 2021, 57, 677. [Google Scholar] [CrossRef] [PubMed]
  2. Thomas, H.; Mitchell, G.; Rich, J.; Best, M. Definition of Whole Person Care in General Practice in the English Language Literature: A Systematic Review. BMJ Open 2018, 8, e023758. [Google Scholar] [CrossRef]
  3. Langevin, H.M. Moving the Complementary and Integrative Health Research Field Toward Whole Person Health. J. Altern. Complement. Med. 2021, 27, 623–626. [Google Scholar] [CrossRef] [PubMed]
  4. Suvorov, A.; Salemme, V.; McGaunn, J.; Poluyanoff, A.; Teffera, M.; Amir, S. Unbiased Approach for the Identification of Molecular Mechanisms Sensitive to Chemical Exposures. Chemosphere 2021, 262, 128362. [Google Scholar] [CrossRef] [PubMed]
  5. Tsatsakis, A.M.; Docea, A.O.; Tsitsimpikou, C. New Challenges in Risk Assessment of Chemicals When Simulating Real Exposure Scenarios; Simultaneous Multi-Chemicals’ Low Dose Exposure. Food Chem. Toxicol. 2016, 96, 174–176. [Google Scholar] [CrossRef]
  6. Barrett, J.R. Chemical Exposures: The Ugly Side of Beauty Products. Environ. Health Perspect. 2005, 113, A24. [Google Scholar] [CrossRef] [Green Version]
  7. Margina, D.; Nițulescu, G.M.; Ungurianu, A.; Mesnage, R.; Goumenou, M.; Sarigiannis, D.A.; Aschner, M.; Spandidos, D.A.; Renieri, E.A.; Hernández, A.F.; et al. Overview of the Effects of Chemical Mixtures with Endocrine Disrupting Activity in the Context of Real-life Risk Simulation (RLRS): An Integrative Approach (Review). World Acad. Sci. J. 2019, 1, 157–164. [Google Scholar] [CrossRef] [Green Version]
  8. Nasreddine, L.; Rehaime, M.; Kassaify, Z.; Rechmany, R.; Jaber, F. Dietary Exposure to Pesticide Residues from Foods of Plant Origin and Drinks in Lebanon. Environ. Monit. Assess. 2016, 188, 485. [Google Scholar] [CrossRef] [Green Version]
  9. Whitehead, H.D.; Venier, M.; Wu, Y.; Eastman, E.; Urbanik, S.; Diamond, M.L.; Shalin, A.; Schwartz-Narbonne, H.; Bruton, T.A.; Blum, A.; et al. Fluorinated Compounds in North American Cosmetics. Environ. Sci. Technol. Lett. 2021, 8, 538–544. [Google Scholar] [CrossRef]
  10. Kelley, A.S.; Banker, M.; Goodrich, J.M.; Dolinoy, D.C.; Burant, C.; Domino, S.E.; Smith, Y.R.; Song, P.X.K.; Padmanabhan, V. Early Pregnancy Exposure to Endocrine Disrupting Chemical Mixtures Are Associated with Inflammatory Changes in Maternal and Neonatal Circulation. Sci. Rep. 2019, 9, 5422. [Google Scholar] [CrossRef]
  11. Willey, J.B.; Pollock, T.; Thomson, E.M.; Liang, C.L.; Maquiling, A.; Walker, M.; St-Amand, A. Exposure Load: Using Biomonitoring Data to Quantify Multi-Chemical Exposure Burden in a Population. Int. J. Hyg. Environ. Health 2021, 234, 113704. [Google Scholar] [CrossRef]
  12. Braun, J.M.; Gennings, C.; Hauser, R.; Webster, T.F. What Can Epidemiological Studies Tell Us about the Impact of Chemical Mixtures on Human Health? Environ. Health Perspect. 2016, 124, A6–A9. [Google Scholar] [CrossRef] [Green Version]
  13. Conley, J.M.; Lambright, C.S.; Evans, N.; Cardon, M.; Medlock-Kakaley, E.; Wilson, V.S.; Gray, L.E. A Mixture of 15 Phthalates and Pesticides below Individual Chemical No Observed Adverse Effect Levels (NOAELs) Produces Reproductive Tract Malformations in the Male Rat. Environ. Int. 2021, 156, 106615. [Google Scholar] [CrossRef]
  14. Ankley, G.T.; Bennett, R.S.; Erickson, R.J.; Hoff, D.J.; Hornung, M.W.; Johnson, R.D.; Mount, D.R.; Nichols, J.W.; Russom, C.L.; Schmieder, P.K.; et al. Adverse Outcome Pathways: A Conceptual Framework to Support Ecotoxicology Research and Risk Assessment. Environ. Toxicol. Chem. 2010, 29, 730–741. [Google Scholar] [CrossRef]
  15. Haynes, R.C. ToxCast on Target: In Vitro Assays and Computer Modeling Show Promise for Screening Chemicals. Environ. Health Perspect. 2010, 118, A172. [Google Scholar] [CrossRef] [Green Version]
  16. NRC. Toxicity Testing in the 21st Century: A Vision and a Strategy; NRC: Washington, DC, USA, 2007; ISBN 978-0-309-15173-3. [Google Scholar]
  17. OECD. Guidance Document for the Use of Adverse Outcome Pathways in Developing Integrated Approaches to Testing and Assessment (IATA); Organisation for Economic Co-operation and Development: Paris, France, 2017. [Google Scholar]
  18. Vinken, M. The Adverse Outcome Pathway Concept: A Pragmatic Tool in Toxicology. Toxicology 2013, 312, 158–165. [Google Scholar] [CrossRef]
  19. Bock, K.W. Toward Elucidation of Dioxin-Mediated Chloracne and Ah Receptor Functions. Biochem. Pharmacol. 2016, 112, 1–5. [Google Scholar] [CrossRef]
  20. Zhu, K.; Meng, Q.; Zhang, Z.; Yi, T.; He, Y.; Zheng, J.; Lei, W. Aryl Hydrocarbon Receptor Pathway: Role, Regulation and Intervention in Atherosclerosis Therapy (Review). Mol. Med. Rep. 2019, 20, 4763–4773. [Google Scholar] [CrossRef] [Green Version]
  21. Zhao, H.; Chen, L.; Yang, T.; Feng, Y.-L.; Vaziri, N.D.; Liu, B.-L.; Liu, Q.-Q.; Guo, Y.; Zhao, Y.-Y. Aryl Hydrocarbon Receptor Activation Mediates Kidney Disease and Renal Cell Carcinoma. J. Transl. Med. 2019, 17, 302. [Google Scholar] [CrossRef]
  22. Murray, I.A.; Patterson, A.D.; Perdew, G.H. Aryl Hydrocarbon Receptor Ligands in Cancer: Friend and Foe. Nat. Rev. Cancer 2014, 14, 801–814. [Google Scholar] [CrossRef]
  23. Neavin, D.R.; Liu, D.; Ray, B.; Weinshilboum, R.M. The Role of the Aryl Hydrocarbon Receptor (AHR) in Immune and Inflammatory Diseases. Int. J. Mol. Sci. 2018, 19, 3851. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Pilsner, J.R.; Parker, M.; Sergeyev, O.; Suvorov, A. Spermatogenesis Disruption by Dioxins: Epigenetic Reprograming and Windows of Susceptibility. Reprod. Toxicol. 2017, 69, 221–229. [Google Scholar] [CrossRef] [PubMed]
  25. Hajat, C.; Stein, E. The Global Burden of Multiple Chronic Conditions: A Narrative Review. Prev. Med. Rep. 2018, 12, 284–293. [Google Scholar] [CrossRef] [PubMed]
  26. Hernández, B.; Reilly, R.B.; Kenny, R.A. Investigation of Multimorbidity and Prevalent Disease Combinations in Older Irish Adults Using Network Analysis and Association Rules. Sci. Rep. 2019, 9, 14567. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. World Health Organization. Multimorbidity; Technical Series on Safer Primary Care; World Health Organization: Geneva, Switzerland, 2016; ISBN 978-92-4-151165-0.
  28. Zhang, R.; Lu, Y.; Shi, L.; Zhang, S.; Chang, F. Prevalence and Patterns of Multimorbidity among the Elderly in China: A Cross-Sectional Study Using National Survey Data. BMJ Open 2019, 9, e024268. [Google Scholar] [CrossRef] [Green Version]
  29. Chan, S.Y.; Loscalzo, J. The Emerging Paradigm of Network Medicine in the Study of Human Disease. Circ. Res. 2012, 111, 359–374. [Google Scholar] [CrossRef] [Green Version]
  30. Halu, A.; De Domenico, M.; Arenas, A.; Sharma, A. The Multiplex Network of Human Diseases. NPJ Syst. Biol. Appl. 2019, 5, 15. [Google Scholar] [CrossRef] [Green Version]
  31. Lakiotaki, K.; Georgakopoulos, G.; Castanas, E.; Røe, O.D.; Borboudakis, G.; Tsamardinos, I. A Data Driven Approach Reveals Disease Similarity on a Molecular Level. NPJ Syst. Biol. Appl. 2019, 5, 39. [Google Scholar] [CrossRef] [Green Version]
  32. Park, J.; Hescott, B.J.; Slonim, D.K. Towards a More Molecular Taxonomy of Disease. J. Biomed. Semant. 2017, 8, 25. [Google Scholar] [CrossRef] [Green Version]
  33. Zhou, X.; Lei, L.; Liu, J.; Halu, A.; Zhang, Y.; Li, B.; Guo, Z.; Liu, G.; Sun, C.; Loscalzo, J.; et al. A Systems Approach to Refine Disease Taxonomy by Integrating Phenotypic and Molecular Networks. EBioMedicine 2018, 31, 79–91. [Google Scholar] [CrossRef]
  34. Davis, A.P.; Grondin, C.J.; Johnson, R.J.; Sciaky, D.; McMorran, R.; Wiegers, J.; Wiegers, T.C.; Mattingly, C.J. The Comparative Toxicogenomics Database: Update 2019. Nucleic Acids Res. 2019, 47, D948–D954. [Google Scholar] [CrossRef] [Green Version]
  35. Suvorov, A.; Salemme, V.; McGaunn, J.; Poluyanoff, A.; Amir, S.; Arowolo, O. Sensitivity of Genes, Molecular Pathways and Disease Related Categories to Chemical Exposures. Mendeley Data 2022, 3. [Google Scholar] [CrossRef]
  36. Petrie, J.R.; Guzik, T.J.; Touyz, R.M. Diabetes, Hypertension, and Cardiovascular Disease: Clinical Insights and Vascular Mechanisms. Can. J. Cardiol. 2018, 34, 575–584. [Google Scholar] [CrossRef] [Green Version]
  37. Brown, A.S.; Sourander, A.; Hinkka-Yli-Salomäki, S.; McKeague, I.W.; Sundvall, J.; Surcel, H.-M. Elevated Maternal C-Reactive Protein and Autism in a National Birth Cohort. Mol. Psychiatry 2014, 19, 259–264. [Google Scholar] [CrossRef]
  38. Turbé, H.; Waeckel, L.; Dechelotte, B. Overview of Prospects for Inflammation Pathways in Autism Spectrum Disorders. L’Encephale 2020, 46, 404–407. [Google Scholar] [CrossRef]
  39. Rom, A.L.; Wu, C.S.; Olsen, J.; Jawaheer, D.; Hetland, M.L.; Mørch, L.S. Parental Rheumatoid Arthritis and Autism Spectrum Disorders in Offspring: A Danish Nationwide Cohort Study. J. Am. Acad. Child Adolesc. Psychiatry 2018, 57, 28–32.e1. [Google Scholar] [CrossRef]
  40. Li, B.; Zhang, C.; Zhan, Y.-T. Nonalcoholic Fatty Liver Disease Cirrhosis: A Review of Its Epidemiology, Risk Factors, Clinical Presentation, Diagnosis, Management, and Prognosis. Can. J. Gastroenterol. Hepatol. 2018, 2018, 2784537. [Google Scholar] [CrossRef]
  41. Hanahan, D. Hallmarks of Cancer: New Dimensions. Cancer Discov. 2022, 12, 31–46. [Google Scholar] [CrossRef] [PubMed]
  42. Hanahan, D.; Weinberg, R.A. Hallmarks of Cancer: The Next Generation. Cell 2011, 144, 646–674. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Hanahan, D.; Weinberg, R.A. The Hallmarks of Cancer. Cell 2000, 100, 57–70. [Google Scholar] [CrossRef] [PubMed]
  44. Risbridger, G.P.; Davis, I.D.; Birrell, S.N.; Tilley, W.D. Breast and Prostate Cancer: More Similar than Different. Nat. Rev. Cancer 2010, 10, 205–212. [Google Scholar] [CrossRef]
  45. Gentry, M. Worldwide Cancer Data|World Cancer Research Fund International. Impact 2017, 2017, 32–33. [Google Scholar] [CrossRef]
  46. Erkekoglu, P.; Oral, D.; Chao, M.-W.; Kocer-Gumusel, B. Hepatocellular Carcinoma and Possible Chemical and Biological Causes: A Review. J. Environ. Pathol. Toxicol. Oncol. 2017, 36, 171–190. [Google Scholar] [CrossRef]
  47. Karimi, P.; Islami, F.; Anandasabapathy, S.; Freedman, N.D.; Kamangar, F. Gastric Cancer: Descriptive Epidemiology, Risk Factors, Screening, and Prevention. Cancer Epidemiol. Biomark. Prev. 2014, 23, 700–713. [Google Scholar] [CrossRef] [Green Version]
  48. Koual, M.; Tomkiewicz, C.; Cano-Sancho, G.; Antignac, J.-P.; Bats, A.-S.; Coumoul, X. Environmental Chemicals, Breast Cancer Progression and Drug Resistance. Environ. Health A Glob. Access Sci. Source 2020, 19, 117. [Google Scholar] [CrossRef]
  49. Nogacka, A.M.; Gómez-Martín, M.; Suárez, A.; González-Bernardo, O.; de los Reyes-Gavilán, C.G.; González, S. Xenobiotics Formed during Food Processing: Their Relation with the Intestinal Microbiota and Colorectal Cancer. Int. J. Mol. Sci. 2019, 20, 2051. [Google Scholar] [CrossRef] [Green Version]
  50. Perdana, N.R.; Mochtar, C.A.; Umbas, R.; Hamid, A.R.A. The Risk Factors of Prostate Cancer and Its Prevention: A Literature Review. Acta Med. Indones. 2017, 48, 228–238. [Google Scholar]
  51. Thandra, K.C.; Barsouk, A.; Saginala, K.; Aluru, J.S.; Barsouk, A. Epidemiology of Lung Cancer. Contemp. Oncol. Onkol. 2021, 25, 45–52. [Google Scholar] [CrossRef]
  52. FastStats. Available online: https://www.cdc.gov/nchs/fastats/leading-causes-of-death.htm (accessed on 28 September 2022).
  53. The Top 10 Causes of Death. Available online: https://www.who.int/news-room/fact-sheets/detail/the-top-10-causes-of-death (accessed on 28 September 2022).
  54. WHO. Available online: https://www.who.int/health-topics/obesity (accessed on 28 April 2022).
  55. Yamani, D.I.A.J.; Khattaba, D.Y.M.S.; Meiri, D.E.L.W.A.F. Disruption Tired Food Habits during Pandemic (Covid-19) and Its Relationship to Self-Regulation Strategies, Psychological and Behavioral Responses Overweight Women. J. Posit. Sch. Psychol. 2022, 6, 6034–6061. [Google Scholar]
  56. Hruby, A.; Hu, F.B. The Epidemiology of Obesity: A Big Picture. PharmacoEconomics 2015, 33, 673–689. [Google Scholar] [CrossRef]
  57. Kim, K.Y.; Lee, E.; Kim, Y. The Association between Bisphenol A Exposure and Obesity in Children-A Systematic Review with Meta-Analysis. Int. J. Environ. Res. Public. Health 2019, 16, 2521. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Khan, M.A.B.; Hashim, M.J.; King, J.K.; Govender, R.D.; Mustafa, H.; Al Kaabi, J. Epidemiology of Type 2 Diabetes–Global Burden of Disease and Forecasted Trends. J. Epidemiol. Glob. Health 2020, 10, 107–111. [Google Scholar] [CrossRef] [PubMed]
  59. Alexander, M.; Loomis, A.K.; Fairburn-Beech, J.; van der Lei, J.; Duarte-Salles, T.; Prieto-Alhambra, D.; Ansell, D.; Pasqua, A.; Lapi, F.; Rijnbeek, P.; et al. Real-World Data Reveal a Diagnostic Gap in Non-Alcoholic Fatty Liver Disease. BMC Med. 2018, 16, 130. [Google Scholar] [CrossRef] [PubMed]
  60. Arshad, T.; Golabi, P.; Henry, L.; Younossi, Z.M. Epidemiology of Non-Alcoholic Fatty Liver Disease in North America. Curr. Pharm. Des. 2020, 26, 993–997. [Google Scholar] [CrossRef] [PubMed]
  61. Maenner, M.J. Prevalence and Characteristics of Autism Spectrum Disorder Among Children Aged 8 Years—Autism and Developmental Disabilities Monitoring Network, 11 Sites, United States, 2018. MMWR Surveill. Summ. 2021, 70. [Google Scholar] [CrossRef] [PubMed]
  62. Berwick, D.C.; Heaton, G.R.; Azeggagh, S.; Harvey, K. LRRK2 Biology from Structure to Dysfunction: Research Progresses, but the Themes Remain the Same. Mol. Neurodegener. 2019, 14, 49. [Google Scholar] [CrossRef]
  63. Valderas, J.M.; Starfield, B.; Sibbald, B.; Salisbury, C.; Roland, M. Defining Comorbidity: Implications for Understanding Health and Health Services. Ann. Fam. Med. 2009, 7, 357–363. [Google Scholar] [CrossRef]
  64. Vineis, P.; Robinson, O.; Chadeau-Hyam, M.; Dehghan, A.; Mudway, I.; Dagnino, S. What Is New in the Exposome? Environ. Int. 2020, 143, 105887. [Google Scholar] [CrossRef]
  65. Koné Pefoyo, A.J.; Bronskill, S.E.; Gruneir, A.; Calzavara, A.; Thavorn, K.; Petrosyan, Y.; Maxwell, C.J.; Bai, Y.; Wodchis, W.P. The Increasing Burden and Complexity of Multimorbidity. BMC Public Health 2015, 15, 415. [Google Scholar] [CrossRef] [Green Version]
  66. Lancet, T. Making More of Multimorbidity: An Emerging Priority. Lancet 2018, 391, 1637. [Google Scholar] [CrossRef]
  67. Zheng, D.D.; Loewenstein, D.A.; Christ, S.L.; Feaster, D.J.; Lam, B.L.; McCollister, K.E.; Curiel-Cid, R.E.; Lee, D.J. Multimorbidity Patterns and Their Relationship to Mortality in the US Older Adult Population. PLoS ONE 2021, 16, e0245053. [Google Scholar] [CrossRef]
  68. Pearson-Stuttard, J.; Ezzati, M.; Gregg, E.W. Multimorbidity—A Defining Challenge for Health Systems. Lancet Public Health 2019, 4, e599–e600. [Google Scholar] [CrossRef]
  69. Ahlborg, U.G.; Hanberg, A. Toxic Equivalency Factors for Dioxin-like PCBs. Environ. Sci. Pollut. Res. 1994, 1, 67–68. [Google Scholar] [CrossRef]
  70. Van den Berg, M.; Birnbaum, L.S.; Denison, M.; De Vito, M.; Farland, W.; Feeley, M.; Fiedler, H.; Hakansson, H.; Hanberg, A.; Haws, L.; et al. The 2005 World Health Organization Reevaluation of Human and Mammalian Toxic Equivalency Factors for Dioxins and Dioxin-like Compounds. Toxicol. Sci. 2006, 93, 223–241. [Google Scholar] [CrossRef] [Green Version]
  71. Arowolo, O.; Pobezinsky, L.; Suvorov, A. Chemical Exposures Affect Innate Immune Response to SARS-CoV-2. Int. J. Mol. Sci. 2021, 22, 12474. [Google Scholar] [CrossRef]
  72. Suvorov, A.; Salemme, V.; McGaunn, J.; Poluyanoff, A.; Amir, S. Data on Chemical-Gene Interactions and Biological Categories Enriched with Genes Sensitive to Chemical Exposures. Data Brief 2020, 33, 106398. [Google Scholar] [CrossRef]
  73. Kanehisa, M.; Goto, S. KEGG: Kyoto Encyclopedia of Genes and Genomes. Nucleic Acids Res. 2000, 28, 27–30. [Google Scholar] [CrossRef]
  74. Fabregat, A.; Jupe, S.; Matthews, L.; Sidiropoulos, K.; Gillespie, M.; Garapati, P.; Haw, R.; Jassal, B.; Korninger, F.; May, B.; et al. The Reactome Pathway Knowledgebase. Nucleic Acids Res. 2018, 46, D649–D655. [Google Scholar] [CrossRef]
  75. Jassal, B.; Matthews, L.; Viteri, G.; Gong, C.; Lorente, P.; Fabregat, A.; Sidiropoulos, K.; Cook, J.; Gillespie, M.; Haw, R.; et al. The Reactome Pathway Knowledgebase. Nucleic Acids Res. 2020, 48, D498–D503. [Google Scholar] [CrossRef]
  76. Reimand, J.; Isserlin, R.; Voisin, V.; Kucera, M.; Tannus-Lopes, C.; Rostamianfar, A.; Wadi, L.; Meyer, M.; Wong, J.; Xu, C.; et al. Pathway Enrichment Analysis and Visualization of Omics Data Using g:Profiler, GSEA, Cytoscape and EnrichmentMap. Nat. Protoc. 2019, 14, 482–517. [Google Scholar] [CrossRef]
  77. Mathur, R.; Rotroff, D.; Ma, J.; Shojaie, A.; Motsinger-Reif, A. Gene Set Analysis Methods: A Systematic Comparison. BioData Min. 2018, 11, 8. [Google Scholar] [CrossRef] [PubMed]
  78. Mootha, V.K.; Lindgren, C.M.; Eriksson, K.-F.; Subramanian, A.; Sihag, S.; Lehar, J.; Puigserver, P.; Carlsson, E.; Ridderstråle, M.; Laurila, E.; et al. PGC-1α-Responsive Genes Involved in Oxidative Phosphorylation Are Coordinately Downregulated in Human Diabetes. Nat. Genet. 2003, 34, 267–273. [Google Scholar] [CrossRef] [PubMed]
  79. Subramanian, A.; Tamayo, P.; Mootha, V.K.; Mukherjee, S.; Ebert, B.L.; Gillette, M.A.; Paulovich, A.; Pomeroy, S.L.; Golub, T.R.; Lander, E.S.; et al. Gene Set Enrichment Analysis: A Knowledge-Based Approach for Interpreting Genome-Wide Expression Profiles. Proc. Natl. Acad. Sci. USA 2005, 102, 15545–15550. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  80. Suvorov, A. Simple Method for Cutoff Point Identification in Descriptive High-Throughput Biological Studies. BMC Genom. 2022, 23, 204. [Google Scholar] [CrossRef] [PubMed]
  81. Galkin, F.; Kochetov, K.; Keller, M.; Zhavoronkov, A.; Etcoff, N. Optimizing Future Well-Being with Artificial Intelligence: Self-Organizing Maps (SOMs) for the Identification of Islands of Emotional Stability. Aging 2022, 14, 4935–4958. [Google Scholar] [CrossRef] [PubMed]
  82. Galvan, D.; Effting, L.; Cremasco, H.; Conte-Junior, C.A. The Spread of the COVID-19 Outbreak in Brazil: An Overview by Kohonen Self-Organizing Map Networks. Medicina 2021, 57, 235. [Google Scholar] [CrossRef]
  83. Kohonen, T.; Oja, E.; Simula, O.; Visa, A.; Kangas, J. Engineering Applications of the Self-Organizing Map. Proc. IEEE 1996, 84, 1358–1384. [Google Scholar] [CrossRef]
  84. Daszykowski, M.; Walczak, B.; Massart, D.L. Projection Methods in Chemistry. Chemom. Intell. Lab. Syst. 2003, 65, 97–112. [Google Scholar] [CrossRef]
  85. Kohonen, T. Essentials of the Self-Organizing Map. Neural Netw. 2013, 37, 52–65. [Google Scholar] [CrossRef]
  86. Lin, G.-F.; Wu, M.-C. A SOM-Based Approach to Estimating Design Hyetographs of Ungauged Sites. J. Hydrol. 2007, 339, 216–226. [Google Scholar] [CrossRef]
Toxics 10 00764 g001 550

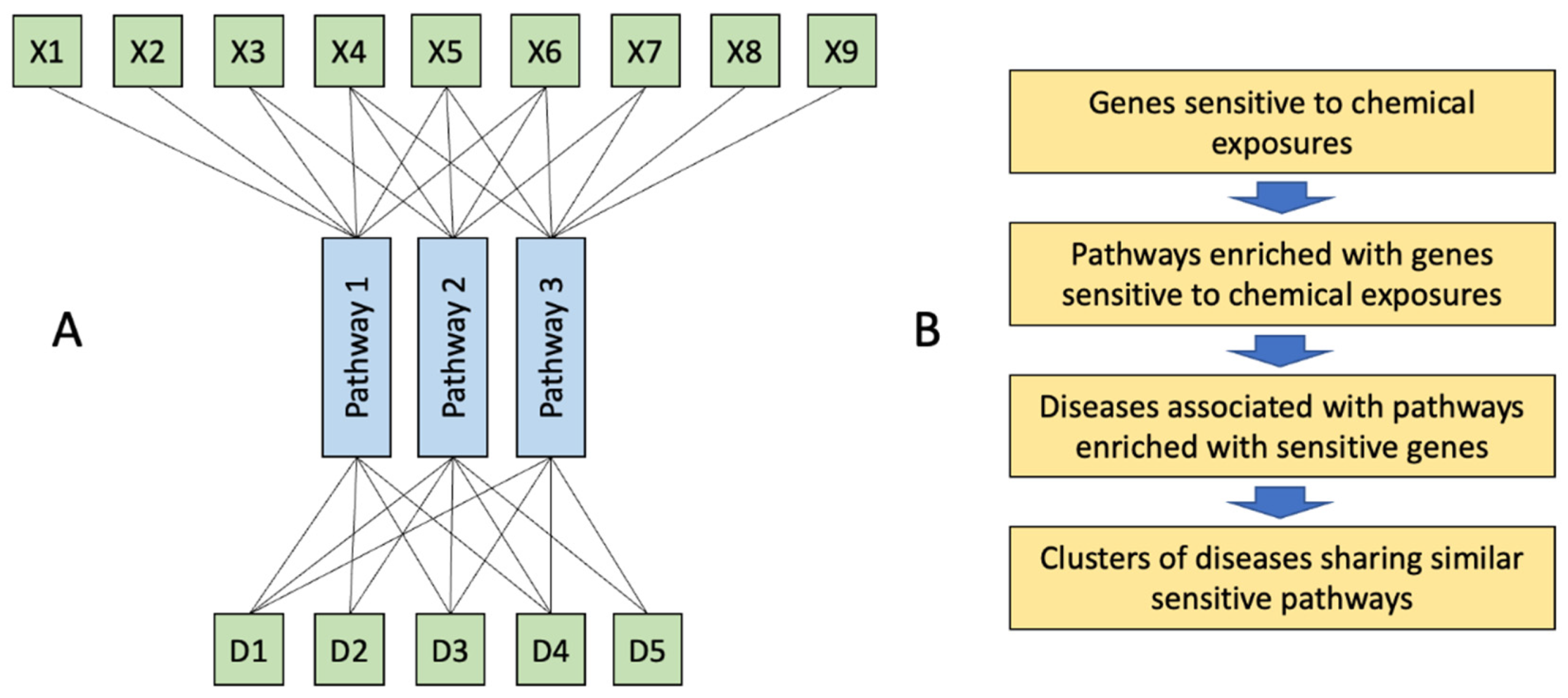

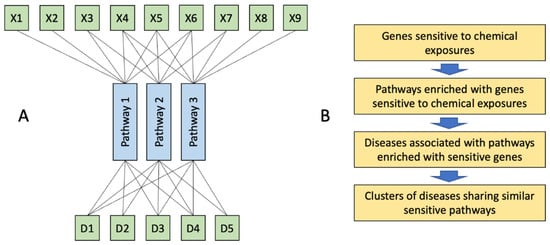

Figure 1. The whole person approach in toxicology. (A), Multiple xenobiotics (X) affect limited number of molecular pathways. Disruption of these pathways in different cells across the organisms may result in the development of seemingly unrelated diseases (D) which represent a syndrome of chemical exposure. (B), Outline of this study: genes sensitive to chemical exposures, identified by overlaying transcriptomic datasets from toxicological studies were used to identify pathways sensitive to chemical exposures. These pathways were further used to identify associated diseases. Finally, clusters of diseases sharing similar pathways were identified to predict syndromes of chemical exposures.
Figure 1. The whole person approach in toxicology. (A), Multiple xenobiotics (X) affect limited number of molecular pathways. Disruption of these pathways in different cells across the organisms may result in the development of seemingly unrelated diseases (D) which represent a syndrome of chemical exposure. (B), Outline of this study: genes sensitive to chemical exposures, identified by overlaying transcriptomic datasets from toxicological studies were used to identify pathways sensitive to chemical exposures. These pathways were further used to identify associated diseases. Finally, clusters of diseases sharing similar pathways were identified to predict syndromes of chemical exposures.
Toxics 10 00764 g001
Toxics 10 00764 g002 550

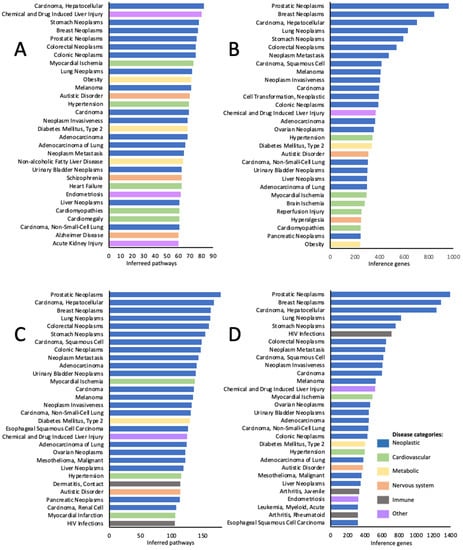

Figure 2. Top 30 disease categories out of 1850 associated with KEGG pathways (A,B), and out of 2481 associated with Reactome pathways (C,D) sensitive to chemical exposures. A and C—top ranking diseases identified based on the number of inferred pathways; B and D—top ranking diseases identified based on the number of inference genes.
Figure 2. Top 30 disease categories out of 1850 associated with KEGG pathways (A,B), and out of 2481 associated with Reactome pathways (C,D) sensitive to chemical exposures. A and C—top ranking diseases identified based on the number of inferred pathways; B and D—top ranking diseases identified based on the number of inference genes.
Toxics 10 00764 g002
Toxics 10 00764 g003 550
Figure 3. SOM neighbor distant plots (A,C) and hierarchical clustering (B,D) of non-neoplastic (A,B) and neoplastic (C,D) diseases based on the similarity of their overlap with chemically sensitive Reactome pathways. In SOM plots, cells of similar color contain related diseases.
Figure 3. SOM neighbor distant plots (A,C) and hierarchical clustering (B,D) of non-neoplastic (A,B) and neoplastic (C,D) diseases based on the similarity of their overlap with chemically sensitive Reactome pathways. In SOM plots, cells of similar color contain related diseases.
Toxics 10 00764 g003
Toxics 10 00764 g004 550

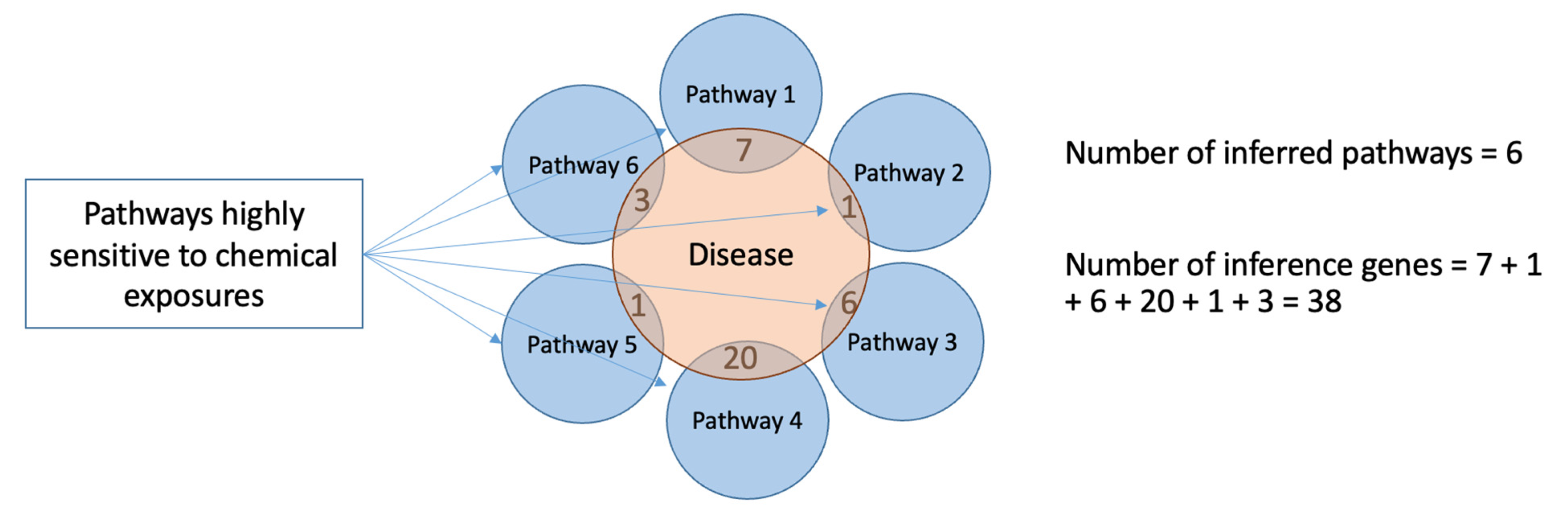

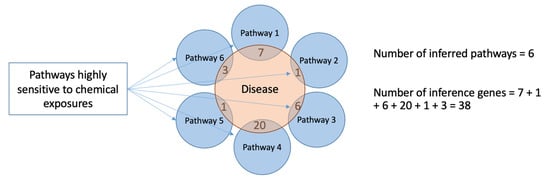

Figure 4. Two approaches for quantification of diseases’ sensitivity to chemical exposures. The first approach is based on the quantification of chemically sensitive pathways associated with the disease state—the number of inferred pathways. The figure illustrates an example, where a disease (testaceous circle) is associated with six inferred pathways (blue circles). The second approach counts the sum of genes from every pathway overlapping with the disease genes (number of inference genes).
Figure 4. Two approaches for quantification of diseases’ sensitivity to chemical exposures. The first approach is based on the quantification of chemically sensitive pathways associated with the disease state—the number of inferred pathways. The figure illustrates an example, where a disease (testaceous circle) is associated with six inferred pathways (blue circles). The second approach counts the sum of genes from every pathway overlapping with the disease genes (number of inference genes).
Toxics 10 00764 g004
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Arowolo, O.; Salemme, V.; Suvorov, A. Towards Whole Health Toxicology: In-Silico Prediction of Diseases Sensitive to Multi-Chemical Exposures. Toxics 2022, 10, 764. https://doi.org/10.3390/toxics10120764

AMA Style

Arowolo O, Salemme V, Suvorov A. Towards Whole Health Toxicology: In-Silico Prediction of Diseases Sensitive to Multi-Chemical Exposures. Toxics. 2022; 10(12):764. https://doi.org/10.3390/toxics10120764

Chicago/Turabian Style

Arowolo, Olatunbosun, Victoria Salemme, and Alexander Suvorov. 2022. "Towards Whole Health Toxicology: In-Silico Prediction of Diseases Sensitive to Multi-Chemical Exposures" Toxics 10, no. 12: 764. https://doi.org/10.3390/toxics10120764

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
