Article

First Report on Microplastics Quantification in Poultry Chicken and Potential Human Health Risks in Pakistan

1
Department of Zoology, Government College University Lahore, Lahore 54000, Pakistan
2
Department of Environmental Sciences, Government Degree College Gulabad, Adenzai 24461, Pakistan
3
Department of Zoology (MRCC), University of Karachi, Karachi 75270, Pakistan
4
Fisheries Development Board, Ministry of National Food Security and Research, Government of Pakistan, Islamabad 44000, Pakistan
5
Department of Chemistry, Abdul Wali Khan University Mardan, Mardan 23200, Pakistan
6
Department of Biology, Government Postgraduate College Sahiwal, Sahiwal 40210, Pakistan
7
Department of Zoology, Abdul Wali Khan University Mardan, Mardan 23200, Pakistan
8
Department of Bioscience and Biotechnology, College of Biological Systems, Chungnam National University, Daejeon 34134, Republic of Korea
9
Department of Zoology, Quaid-i- Azam University, Islamabad, Islamabad 44000, Pakistan
10
Dr. A. Q. Khan Institute of Biotechnology and Genetic Engineering, University of Karachi, Karachi 75270, Pakistan
11
Environmental and Life Sciences Programme, Faculty of Science, Universiti Brunei Darussalam, Gadong BE 1410, Brunei
*
Author to whom correspondence should be addressed.
Toxics 2023, 11(7), 612; https://doi.org/10.3390/toxics11070612
Submission received: 2 March 2023 / Revised: 2 April 2023 / Accepted: 3 April 2023 / Published: 14 July 2023
(This article belongs to the Section Ecotoxicology)

Abstract

:
Microplastics (MPs) are an emerging environmental health concern due to their widespread occurrence in food sources such as fish, meat, chicken, honey, sugar, salt, tea and drinking water, thereby posing possible risks to human health. This study aimed to observe the existence of MPs in the crop and gizzard of the farm chicken, a significant food source in Pakistan. Twenty-four chicken samples were taken from eight poultry farms across Punjab, Pakistan. A total of 1227 MP particles were found from 24 samples (crop and gizzards) originating from the 8 poultry farms. In all, 429 MP particles were found in 24 chicken crops, with a mean of 17.8 ± 12.1 MPs/crop. In contrast, 798 MP particles were found in 24 chicken gizzards, with a mean of 33.25 ± 17.8 MPs/gizzard. Comparatively larger particles, ranging between 300–500 µm, were more abundant (63%) than other considered sizes (300–150 µm [21%] and 150–50 µm [16%]). Additionally, fragments were the dominant type of shape in both sample types (crop [64%] and gizzard [53%]). The predominant colours of particles extracted from gizzards and crops were yellow (32%) and red (32%), respectively. Chemical characterisation of these particles detected four types of polymers: polyvinyl chloride (PVC) at 51.2%, followed by low-density polyethylene (LDPE) at 30.7%, polystyrene (PS) at 13.6% and polypropylene homopolymer (PPH) at 4.5%. In conclusion, we provide evidence for MPs in the gizzards and crops of farmed chickens which may originate from contaminated poultry feed. Only a few studies have been reported globally to assess MPs ingestion in chickens. The current study is the first report from Pakistan. It could be a valuable addition to support MPs literature to establish a relationship between MPs contamination and intake through the food chain.

1. Introduction

Production of plastic polymers began in the middle of the 19th century and had exponential expansion in the 1950s [1]. Between 1950 and 2019, the yearly global production of plastic expanded from 1.5 million tonnes to 370 million tonnes, an almost 310-fold increase [2]. Due to their inherent non-biodegradability and ease of transmission by water and air currents, plastics are a pollution concern worldwide [1]. Due to their remarkable resilience and extended stability, most plastic products are not biodegradable and break down into small plastic particles called macroplastics, with a diameter > 5 mm, that can be easily distributed to other ecosystems by the action of wind and waves [3]. Nevertheless, the story does not end here, as these macroplastic particles further transform into smaller particles with a diameter < 5 mm, called microplastics, due to mechanical degradation, photodegradation or oxidation [4]. An updated definition of microplastics according to their size limit was presented by Koehler [5]: plastic particles larger than 5 mm are classified as macroplastics, those between 1 and 5 mm as mesoplastics, those between 0.1 µm and 1 mm as microplastics and those smaller than 0.1 µm as nanoplastics. Depending on the source, these microplastics can be classified as primary or secondary. Plastics used in cosmetics like microbeads and pellets, known as nurdles, which are raw materials for making plastic, are regarded as primary MPs because they are released into the environment in their micro size due to their manufacturing process [6,7]. Secondary MPs are produced when larger polymers undergo degradation due to various environmental causes [8,9,10]. Particle MPs have been divided into the following categories based on their shape geometry: fragment, film, pellet/granule, sheet, line/fibre and foam.
When MPs are introduced to an ecosystem, they bioaccumulate, circulate in the food chain and may negatively impact organisms [11,12]. If ingested, toxicological impacts may reduce chicken quality, which is of considerable attention for humans who eat chicken as a significant part of their meals. Numerous studies have documented the diverse toxicity of MPs in organisms, with altered behaviour, reduced survival and reproduction rates, a decline in body size, reduced motility, increased inflammation including intestinal defects, neurotoxicity, oxidative stress, genotoxicity and altered fat and energy metabolism being just a few of the significant adverse effects on animal development and health [13,14,15,16,17]. These are determined from laboratory exposures—often to extremely high levels of MPs. However, they signify that harm is possible if levels of MPs are allowed to increase in food and wildlife. Therefore, a precautionary approach is needed to ensure that food and the environment are plastic contamination-free.
Birds are used to evaluate the harmful impacts of environmental pollution since they are sensitive to and increasingly vulnerable to external environments. Hundreds of terrestrial and aquatic bird species have accumulated plastic waste and detritus, significantly increasing toxicity risk. Terrestrial birds have a variety of ecological roles in the food web, making them a crucial part of terrestrial ecosystems [18]. According to Zhao [19], MPs were found in the digestive systems of 16 out of 17 terrestrial bird species. The presence of macroplastic and microplastics have been observed in some raptors [18,20]. Since many seabirds eat aquatic species as their primary food source, they are frequently exposed to plastic when they consume aquatic species with bioaccumulated microplastics [21]. Up to 78% of seabird species have had MPs discovered in their digestive systems since the 1960s [22,23]. Furthermore, by 2050, nearly 99% of the more than 300 species of aquatic birds are anticipated to have eaten plastic particles [22].
According to research, consuming MPs is potentially harmful to birds’ reproductive systems [24,25]. For instance, Japanese quail chicks with observed plastic consumption had male epididymis intraepithelial cysts more frequently than those without plastic consumption [25]. Adult short-tailed shearwaters (Ardenna tenuirostris) can pass plastics or microplastics to their young, according to Carey [26]. The toxic effects of MPs in both chickens and humans are largely unknown. There is less research on terrestrial birds than aquatic ones; however, terrestrial birds play a vital role in the food web in the terrestrial ecosystem. Moreover, their study can evaluate and assess the environmental contamination of microplastics. Only a few studies report assessments on MPs ingestion in chickens around the globe. The current study is the first report from Pakistan. It could be a valuable addition to existing MP literature to establish a relationship between MPs’ pollution level and their intake through the food chain. It can also be significant to indicate potential sources of microplastics intake through consuming contaminated food in humans. Therefore, the present study aimed to highlight and report microplastic quantification from gizzards and crops of farmed chickens across Punjab, Pakistan.

2. Materials and Methods

2.1. Sample Collection and Chicken Dissection

In all, 24 chicken samples were collected from 8 different poultry farms in Punjab, Pakistan, with average age of 42.52 ± 3.8 days and weight of 1.6 ± 0.4 kg. All samples were killed and dissected immediately with no food administered outside the farms; crops and gizzards were transferred to pre-labelled beakers and then stored in a freezer for further analysis.

2.2. Sample Analysis

2.2.1. Digestion

A 10% solution of potassium hydroxide (KOH), combined in a 5:1 ratio with the sample (v/v), was poured into the beaker containing sample matter for digestion and kept in a water bath at 55 °C for 36 h. KOH was recommended for digestion because it is reported to have little impact on microplastic degradation during digestion [27,28].

2.2.2. Density Separation

The purpose of the density separation was to separate microplastic particles. After digestion, NaCl (3:1 v/v) was added and the mixture was stirred for 20 min before a 24 h settlement [29].

2.2.3. Filtration

After the 24 h settlement, the supernatant layer of the sample was collected and passed through sieves of different pore sizes (500 µm, 300 µm, 150 µm and 50 µm) to obtain 3 different size fractions and each fraction was then filtered through filter paper using a filtration assembly. After filtration, the walls of the filtration assembly cup were washed twice and the filter paper containing solids was kept in a petri dish to dry for one day before detection [29].

2.2.4. Microplastics Observation, Identification and Quantification

Inspections of dried filter papers containing particle content were carried out using a light binocular microscope (at 16 × 4 and 16 × 10 magnification, Labomed, model: CXL-110446002, 9135002, New York, NY, USA). Zeiss stereomicroscope stemi 508 microscopes at 2.5× magnification and a 1600X USB 8 LEDs electronic digital microscope camera were used to image identified particles. Any particle less than 50 µm was not measured in the current study. The physical shape, size, geometry and colour were considered for category identification. Polymer identification via FTIR spectroscopy (IRTracer-100, Shimadzu, Columbia, MD, USA) was carried out using the polymer spectral library of Omnic Spectra (Thermo Fisher Scientific Inc., Waltham, MA, USA) software.

2.3. Laboratory Contamination Control

All possible precautions were taken to prevent air contamination of samples. All laboratory equipment, including glassware and chemicals, was covered with aluminium foil when not used, because the samples were processed there. Reagents and distilled water were also filtered and wrapped in aluminium foil to protect them from environmental contamination. A few filter papers were positioned throughout the lab for 72 h in various positions to measure the suspended load of MPs from the environment. After that, these filter sheets were examined with a stereomicroscope. Six filter sheets and procedural blanks were reviewed during the analysis and kept as a control, no particles were detected in the procedural blanks.

2.4. Data Analysis

The data obtained during this study were subjected to analysis of variance (ANOVA) to compare the means.

3. Results and Discussion

3.1. Abundance of Extracted MPs

A total of 1227 particles were collected from 24 chicken samples (crop and gizzard for each) belonging to 8 different farms. A total of 429 MP particles were collected from 24 chickens crops, with a mean of 17.8 ± 12.1 MPs/crop. The highest abundance was detected in samples from farm 6, with a mean of 26.6 ± 15.5 MPs/crop, and the lowest concentrations were detected in farms 1 and 3 with mean values of 11.6 ± 5.5 MPs/crop and 11.6 ± 3.05 MPs/crop, respectively. A total of 798 MP particles were collected from 24 chicken gizzards with a mean of 33.25 ± 17.8 MPs/gizzard. The highest abundance of MPs was collected from the gizzards of farm 4, with a mean of 44.6 ± 18.7 MPs/gizzard, and the lowest from farm 3, with a mean of 18.6 ± 12.4 MPs/gizzard (Figure 1 and Figure 2). No statistically significant differences in the mean number of MPs recovered from the crop and gizzard were observed across all groups (p = 0.786, p = 0.842 for crop and gizzard, respectively).
Our findings for the microplastic content in crops and gizzards fall in the range of globally reported values such as Oliveri Conti et al. [30], who found 303 microplastic particles in 5 chickens with a mean of 60.5 MPs/bird. Huerta [31] extracted microplastics from a chicken’s gizzard (57 ± 41.1 MPs/gizzard) and crop (32.4 ± 15.1 MPs/crop). Another study reported MP particles in chicken gizzards with a concentration of 10.2 ± 13.8 MPs/g when no microplastic was found in crops and 45.82 ± 42.6 macroplastic particles per gizzard when they found 11 ± 15.3 macroplastic particles per crop [32]. Another study extracted 29 microplastic particles from 28 samples of birds’ gizzards [33]. In all, 643 particles were extracted from 44 gizzard samples from different bird species. The mean number of particles removed from each species was 29.9 ± 20.1 MPs/gizzard for brown pelicans, 7.6 ± 4.6 MPs/gizzard for laughing gulls and 9.6 ± 8.1 MPs/gizzard for double-crested cormorants [34].
Two bird species were analyzed by Deoniziak [35], where they extracted a total of 1073 MPs with a mean value of 31.56 ± 32.5 MPs per individual; 722 MPs were collected from gizzards of blackbirds and song thrushes. Collard et al. [36] collected 442 particles from 43 bird samples, with an average of 10.3 ± 1.8 MPs per individual, where the highest number of particles (198 particles out of 442) were found in gizzards (4.60 MPs/gizzard). Zhao et al. [19] found 364 particles in the gastrointestinal tract (GIT) of 16 birds, with a mean of 22.7/GIT. Apart from GIT, microplastic is also evident through inhalation in birds, such as a study by Takunaga [37], which found six microplastic particles in the lung tissue of wild birds from Japan. Three-hundred twenty particles/birds were extracted from GIT of the little black cormorant (Phalacrocorax sulcirostris) in Pulau Rambut Sanctuary, Indonesia [38]. Microplastics with an overall mean concentration of 11.9 ± 2.8 MPs/GIT were recovered from 8 species of birds in Florida, USA [18]. Generally, the concentration of MPs detected depends on the contamination of feeds, as these particles are potentially ingested through feed by the chickens (Table 1).

3.2. Size

In terms of sizes of the particles extracted from crops, relatively larger particles (500–300 µm) were abundant with a percentage of 63%, followed by medium-size particles (300–150 µm) with a percentage of 21% and small particles (150–50 µm) with 16% of the total particles. In the gizzard, the detected particles were primarily large (500–300 µm) at 47%, followed by relatively smaller particles (150–50 µm) at 39%, while medium size (300–150 µm) was lowest at 14% (Figure 3). Different studies across the globe have reported an abundance of comparatively larger particles. Bessa [39] extracted 19 microplastic particles from the scat of penguins—majority of the identified particles were larger than 500 µm—where the mean size of the particles was 1266 ± 1378 µm. Liu et al. [40] have reported microplastics where the abundant particles were in the range of 500–1000 µm. Zhu et al. [41] collected particles from the GIT of birds with 92.9% consisting of particles > 5 mm and more than 90% were this size from Zhao et al. [19]. However, Deoniziak et al. [35] collected particles from the GIT of birds with sizes less than 1000 µm. A significant fraction (68.7%) of the extracted particles from GIT of the little black cormorant (Phalacrocorax sulcirostris) was in the range of 100–1000 μm [38] (Table 1). The potential reason for relatively larger particles may be that larger particles are less movable in the GIT tract and hence trapped particles sink in different parts of the GIT, including crops, gizzards and intestines. The smaller particles are more moveable through the GIT and tend to pass through faeces.

3.3. Shapes

Based on the shape and geometry of the particles, five different types of shapes (fibres, fragments, foams, sheets and beads) were detected. Among these, fragments were the dominant type of shapes in both sample types (crop and gizzard). The abundance percentages of these different types of shapes in crops were, in decreasing order, fragments (64%), fibres (30%), sheets (3%), foams (2%) and beads (1%), while in gizzards they were fragments (53%), fibres (37%), sheets (7%) and foams (3%) (Figure 4).
Many studies have reported fragments to be the dominant shape of microplastic particles extracted from bird gizzards, such as Collard [42], who found 72.9% of particles as fragments. Takunaga [37] reported fragments as a dominant type of microplastics in their study on wild birds in Japan. Zhao [19] also reported that fragment is a significant type of particle shape of the extracted microplastics in their findings. The fragment percentage was 54.9% and the fibres were 37.4%. Unlike the current study, Deoniziak [35] reported fibre as a dominant shape (84%) of the particles in their finding and fragment as a minor fraction (10%). Weitzel [43] found fibres as a great shape in their results for seaside sparrows (Ammospiza maritima) in the Mississippi Gulf, where the percentage of fibre was noted to be 98%, followed by fragment (2%). Susanti [38] reported film as a dominant shape (75.0%) extracted from GIT of the little black cormorant (Phalacrocorax sulcirostris), followed by fibre (18.7%) and fragment (6.3%). Carlin [18] recovered microplastic particles from the GIT tract consisting of 86% fibres and 13% fragments, while beads were 0.3% in their findings (Table 1). The potential reason for dominance of fragment-type particles in crops and gizzards might be due to less mobility in the GIT tract and difficulty in excretion through faeces. Another possibility may be that chickens mistake the brightly coloured plastic pieces on the ground as food and selectively ingest them.

3.4. Colour

The particles extracted from crops and gizzards were noticed in six colours (red, yellow, white, blue, transparent and black). Among these, red colour was prominent in particles extracted from the crop, while yellow was dominant in particles extracted from gizzards. The abundance percentages of the particles in the crop were, in decreasing order, red (32%), yellow (23%), white (12%), blue (13%), transparent (6%) and black (14%), while in the gizzard, the percentages of different colours of the particles were red (19%), yellow (32%), white (8%), blue (9%), transparent (10%) and black (22%) (Figure 5).
Deoniziak [35] found transparent colour as dominant, followed by brown, with percentages of 74% and 14%, respectively. Another study [37] collected microplastics from the GIT of the little black cormorant (Phalacrocorax sulcirostris), where the dominant colours they noticed were transparent (56.2%), followed by red (18.7%) and black (12.5%), while blue and yellow colour were the same percentage (6.2%). Carlin [18] recovered microplastic particles from the GIT tract that were majority clear or royal blue. A study from Bustamante [33] reported that the most dominant colour of the extracted particles in the gizzards of Virginia waterfowl was blue (41.4%), followed by red (20.7%) and black (20.7%). These two dominant colours (red and yellow) may be due to their colourful nature and chickens mistake brightly coloured plastic pieces for food (Table 1).

3.5. Detected Polymer Types

For the chemical composition of the polymer type of these MPs, many studies have been carried out with Fourier transform infrared spectroscopy (FTIR). This is the most popular approach for chemical identification nowadays and works on a species-specific frequency absorbance of IR radiation. FTIR spectroscopy (IRTracer-100, Shimadzu, NYC, USA, Thermo Fisher Scientific Inc., USA software, New York City, NY, USA) made it possible to confirm the chemical composition of the kind of polymer [44]. The ATR sensor measured the MP particles and noted the absorbance peaks. Additionally, the peak similarity index was used to assess the composition of the particles by comparing recorded and standard peaks. Four types of polymer were detected: polyvinyl chloride (PVC), low-density polyethylene (LDPE), polystyrene (PS) and polypropylene homopolymer (PPH). The highest percentage of polymer detected was polyvinyl chloride (PVC) at 51.2%, followed by low-density polyethylene (LDPE) at 30.7%, while polystyrene (PS) was at 13.6% and polypropylene homopolymer (PPH) was at 4.5% (Figure 6). Different studies have reported different polymer types in their finding. However, some polymer types overlap throughout the globe in microplastic particles. Collard [42] also found that most of their microplastic particles were polypropylene, polystyrene and polyethylene. Among these, the dominant type of polymer was noted to be polyethylene. Another study has reported polyethylene terephthalate (16%), ethylene-co-polypropylene (11%) and cellulose, which was more abundant than the former two types of polymers, comprising 37% of the total particles [18]. Bessa [39] has identified different polymers in their study, including polypropylene, polyethylene, polyacrylonitrile and polyacrylate. These polymers were also mentioned as one of the primary forms of MPs in other research [44]. Most packaging includes foils, milk bottles, shampoo bottles, oil and soap bottles, while household items include trays, plates, cups, cables and PVC in electrical and electronic equipment. Tour tents and water pipes use LDPE and HDPE polymers [45]. PPH is used in packaging for several products, including structural tanks, battery covers and pump components [46] (Table 1).

3.6. Potential Human Health Risk

Human beings are the ultimate target of these MPs and NPs. Recently, many studies have evidently detected MP particles in human blood. Humans are exposed to inhaling or ingesting these microplastics or are exposed through the food chain because foodstuffs are contaminated with microplastic particles. Many reports have been published that quantify human materials, including blood, such as Leslie et al. [47], who have quantified nanoplastics with a size of 700 nm from human blood samples. In their study, the most abundant polymers they have identified in human blood are polyethylene, styrene and polyethylene terephthalate. Ragusa [48] found clear evidence of MPs in six human placentas taken from consenting women having healthy pregnancies and examined using Raman microspectroscopy to determine whether microplastics were present.
A study was designed to check for MPs larger than 50 µm in placental tissue and meconium samples taken during two breech births by cesarean section. The presence of 10 prevalent forms of microplastics was examined using Fourier transform infrared (FTIR) microspectroscopy in placenta and stool samples following the chemical digestion of non-plastic material. Their study found polyurethane, polyethylene, polypropylene and polystyrene [49]. Recently, MPs have been quantified in human breast milk; in their study, they extracted MPs from 26 out of 34 samples. The significant polymers extracted were PVC, PET and PP, with a size range of 2–12 μm [50].
Microplastics (MPs) are considered a global problem due to their toxicity in biota; however, their toxicity in chickens and humans is still unknown. This comprehensive study has the potential to add to existing knowledge regarding the ecotoxicity consequences of MPs in chickens and humans, which will be valuable for upcoming investigation. Swelling and blockages are caused due to the buildup of MPs and nanoplastics in tissues [51]. Microorganisms and pollutants have also been shown to be transported by these MPs and the intensity of exposure and sensitivity of the individual largely dictated adverse effects [52].
Oxidative stress has also been connected to MP exposure [53], cytotoxicity and spread to other tissues. In the ecosystem and among living things, MPs persist for a very long time. Since the animals are exposed to MPs for a long time, there is a chance that they will have chronic pain, swelling, cell proliferation and death, as well as immune cell impairment [54]. Patients with MPs had significantly greater inflammatory bowel disease rates than healthy individuals. Over time, PS MPs slowed the development of Caco-2 cells [55]. PS MPs, according to Wu et al. [55], perturbed the mitochondrial membrane potential. MPs could also act as vectors for bacteria [56]. They can absorb things from their environment or eject substances from their matrixes [4,57,58,59]. However, microplastic bioaccumulation and toxicity research, especially in humans, still needs improvement. There are few research reports, limited knowledge and little exploration due to ethical, social and other issues.

4. Conclusions

The present study found evident MP particles in the gizzard and crop of chickens; comparatively larger particles with a range of 300–500 µm were more abundant than other considered sizes of the particles (300–150 µm and 150–50 µm). Fragment-type particles were dominant based on the shape and geometry of the ingested particles. Collected particles were of six colours (red, yellow, white, blue, transparent and black), wherein the most particles were yellow and red extracted from gizzard and crops, respectively. Chemical characterisation of these particles has detected four types of polymers: polyvinyl chloride (PVC), low-density polyethylene (LDPE), polystyrene (PS) and polypropylene homopolymer (PPH). The highest percentage of polymer detected was polyvinyl chloride (PVC), followed by low-density polyethylene (LDPE). The present study showed that chickens we use as food sources contain MPs contamination and could be a potential risk for human consumption. The possible sources of this particle ingestion by the chickens are the feeds given and the farm’s environment. Future comprehensive studies are recommended to assess potential sources of microplastic intake in chicken and their transfer and bioaccumulation in the food chain.

Author Contributions

M.B. and H.U.H. designed the study, executed the experimental work and wrote the article. M.T. and S.S. helped in data analysis. A.Y. and M.I.A.S. participated in chemical analysis. M.S. and U.A. (Umaiya Abdali) helped in the literature search. U.A. (Usman Atiqueand), M.A. and N.R. also revised the manuscript. T.A. conceived the concept of the review and edited the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This study was partially funded by Universiti Brunei Darussalam under the FOS Allied Fund (UBD/RSCH/1.4/FICBF(a)/2023).

Institutional Review Board Statement

This study was carried out per the recommendations of the Local Ethical Committee of the Biological science of the Government College University, Lahore, Pakistan.

Informed Consent Statement

All authors read and approved the final manuscript.

Data Availability Statement

All data generated or analyzed during this study were included in this published article. All the raw and analyzed data will be available from the corresponding author based on reasonable demand.

Acknowledgments

The authors are grateful to the laboratory staff of the College of Earth and Environmental Sciences University of the Punjab, Lahore, Pakistan for their assistance during this study.The authors are grateful for the support received from Department of Clinical Psychology, Ziauddin University Karachi Pakistan explicitly gratitude for Zeenat Bibi for providing necessary technical guidance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kavya, A.N.L.; Sundarrajan, S.; Ramakrishna, S. Identification and Characterization of Micro-Plastics in the Marine Environment: A Mini Review. Mar. Pollut. Bull. 2020, 160, 111704. [Google Scholar] [CrossRef] [PubMed]
  2. Plastics Europe. Plastics—The Facts An Analysis of European Plastics Production, Demand and Waste Data; Plastics Europe 2020: Frankfurt, Germany, 2020. [Google Scholar]
  3. Susanti, N.K.Y.; Mardiastuti, A.; Wardiatno, Y. Microplastics and the impact of plastic on wildlife: A literature review. In IOP Conference Series: Earth and Environmental Science; IOP Publishing: Bristol, UK, 2020; Volume 528, p. 012013. [Google Scholar]
  4. Bilal, M.; Qadir, A.; Yaqub, A.; Hassan, H.U.; Irfan, M.; Aslam, M. Microplastics in water, sediments, and fish at Alpine River, originating from the Hindu Kush Mountain, Pakistan: Implications for conservation. Environ. Sci. Pollut. Res. 2022, 30, 727–738. [Google Scholar] [CrossRef] [PubMed]
  5. Koehler, A.; Alison, A.; Anthony, A.; Courtney, A.; Joel, B.; Hindrik, B.; Sarah, G.; Valeria, H.; Angela, K.; Kara, L. Source, Fate and Effect of Microplastics in the Marine Environment: A Global Assessment, 1st ed.; International Maritime Organization: London, UK, 2015; Available online: https://ec.europa.eu/environment/marine/good-environmental-status/descriptor-10/pdf/GESAMP_microplastics%20full%20study.pdf (accessed on 18 January 2023).
  6. Napper, I.E.; Bakir, A.; Rowland, S.J.; Thompson, R.C. Characterization quantity and sorptive properties of microplastics extracted from cosmetics. Mar. Pollut. Bull. 2015, 99, 178–185. [Google Scholar] [CrossRef] [Green Version]
  7. Van Wijnen, J.; Ragas, A.M.; Kroeze, C. Modelling global river export of microplastics to the marine environment: Sources and future trends. Sci. Total Environ. 2019, 673, 392–401. [Google Scholar] [CrossRef]
  8. Peng, G.; Bellerby, R.; Zhang, F.; Sun, X.; Li, D. The ocean’s ultimate trashcan: Hadal trenches as major depositories for plastic pollution. Water Res. 2020, 168, 115121. [Google Scholar] [CrossRef]
  9. Hanslik, L. Microplastics in Limnic Ecosystems-Investigation of Biological Fate and Effects of Microplastic Particles and Associated Contaminants in Zebrafish (Danio rerio). Ph.D. Thesis, Heidelberg University, Heidelberg, Germany, 2020. [Google Scholar]
  10. Ross, P.S.; Chastain, S.; Vassilenko, E.; Etemadifar, A.; Zimmermann, S.; Quesnel, S.-A.; Eert, J.; Solomon, E.; Patankar, S.; Posacka, A.M.; et al. Pervasive distribution of polyester fibres in the Arctic Ocean is driven by Atlantic inputs. Nat. Commun. 2021, 12, 106. [Google Scholar] [CrossRef]
  11. Yong, C.Q.Y.; Valiyaveettil, S.; Tang, B.L. Toxicity of microplastics and nanoplastics in mammalian systems. Int. J. Environ. Res. Public Health 2020, 17, 1509. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Ross, P.S.; Chastain, S.; Vassilenko, E.; Etemadifar, A.; Zimmermann, S.; Quesnel, S.-A.; Eert, J.; Solomon, E.; Patankar, S.; Posacka, A.M.; et al. Polystyrene microplastics induce blood–testis barrier disruption regulated by the MAPK-Nrf2 signaling pathway in rats. Environ. Sci. Pollut. Res. 2021, 28, 47921–47931. [Google Scholar]
  13. Crump, A.; Mullens, C.; Bethell, E.J.; Cunningham, E.M.; Arnott, G. Microplastics disrupt hermit crab shell selection. Biol. Lett. 2020, 16, 20200030. [Google Scholar] [CrossRef]
  14. Prüst, M.; Meijer, J.; Westerink, R.H. The plastic brain: Neurotoxicity of micro-and nanoplastics. Part. Fibre Toxicol. 2020, 17, 1–16. [Google Scholar] [CrossRef]
  15. Solleiro-Villavicencio, H.; Gomez-De León, C.T.; Del Río-Araiza, V.H.; Morales-Montor, J. The detrimental effect of microplastics on critical periods of development in the neuroendocrine system. Birth Defects Res. 2020, 112, 1326–1340. [Google Scholar] [CrossRef]
  16. Lear, G.; Kingsbury, J.M.; Franchini, S.; Gambarini, V.; Maday, S.D.M.; Wallbank, J.A.; Weaver, L.; Pantos, O. Plastics and the microbiome: Impacts and solutions. Environ. Microbiome 2021, 16, 1–19. [Google Scholar] [CrossRef] [PubMed]
  17. Tagorti, G.; Kaya, B. Genotoxic effect of microplastics and COVID-19: The hidden threat. Chemosphere 2022, 286, 131898. [Google Scholar] [CrossRef]
  18. Carlin, J.; Craig, C.; Little, S.; Donnelly, M.; Fox, D.; Zhai, L.; Walters, L. Microplastic accumulation in the gastrointestinal tracts in birds of prey in central Florida, USA. Environ. Pollut. 2020, 264, 114633. [Google Scholar] [CrossRef] [PubMed]
  19. Zhao, S.; Zhu, L.; Li, D. Microscopic anthropogenic litter in terrestrial birds from Shanghai, China: Not only plastics but also natural fibers. Sci. Total Environ. 2016, 550, 1110–1115. [Google Scholar] [CrossRef] [PubMed]
  20. Ballejo, F.; Plaza, P.; Speziale, K.L.; Lambertucci, A.P.; Lambertucci, S.A. Plastic ingestion and dispersion by vultures may produce plastic islands in natural areas. Sci. Total Environ. 2021, 755, 142421. [Google Scholar] [CrossRef]
  21. Barbieri, E.; Passos, E.D.A.; Filippini, A.; dos Santos, I.S.; Garcia, C.A.B. Assessment of trace metal concentration in feathers of seabird (Larus dominicanus) sampled in the Florianópolis, SC, Brazilian coast. Environ. Monit. Assess. 2010, 169, 631–638. [Google Scholar] [CrossRef]
  22. Wilcox, C.; Van Sebille, E.; Hardesty, B.D. Threat of plastic pollution to seabirds is global, pervasive, and increasing. Proc. Nat. Acad. Sci. USA 2015, 112, 11899–11904. [Google Scholar] [CrossRef]
  23. Basto, M.N.; Nicastro, K.R.; Tavares, A.I.; McQuaid, C.D.; Casero, M.; Azevedo, F.; Zardi, G.I. Plastic ingestion in aquatic birds in Portugal. Mar. Pollu. Bull. 2019, 138, 19–24. [Google Scholar] [CrossRef]
  24. de Souza, S.S.; Freitas, N.; Gonçalves, S.D.O.; da Luz, T.M.; Araújo, A.P.D.C.; Rajagopal, R.; Balasubramani, G.; Rahman, M.; Malafaia, G. Toxicity induced via ingestion of naturally-aged polystyrene microplastics by a small-sized terrestrial bird and its potential role as vectors for the dispersion of these pollutants. J. Hazard. Mater. 2022, 434, 128814. [Google Scholar] [CrossRef]
  25. Roman, L.; Lowenstine, L.; Parsley, L.M.; Wilcox, C.; Hardesty, B.D.; Gilardi, K.; Hindell, M. Is plastic ingestion in birds as toxic as we think? Insights from a plastic feeding experiment. Sci. Total Environ. 2019, 665, 660–667. [Google Scholar] [CrossRef]
  26. Carey, M.J. Intergenerational transfer of plastic debris by Short-tailed Shearwaters (Ardenna tenuirostris). Emu-Austral Ornithol. 2011, 111, 229–234. [Google Scholar] [CrossRef] [Green Version]
  27. Lusher, A.L.; Hernandez-Milian, G. Microplastic Extraction from Marine Vertebrate Digestive Tracts, Regurgitates and Scats: A Protocol for Researchers from AllExperience Levels. Bio-Protocol 2018, 8, e3087. [Google Scholar] [CrossRef]
  28. Provencher, J.F.; Borrelle, S.B.; Bond, A.L.; Lavers, J.L.; van Franeker, J.A.; Kühn, S.; Hammer, S.; Avery-Gomm, S.; Mallory, M.L. Recommended best practices for plastic and litter ingestion studies in marine birds: Collection, processing, and reporting. Facets 2019, 4, 111–130. [Google Scholar] [CrossRef] [Green Version]
  29. Pellini, G.; Gomiero, A.; Fortibuoni, T.; Ferrà, C.; Grati, F.; Tassetti, A.; Polidori, P.; Fabi, G.; Scarcella, G. Characterization of microplastic litter in the gastrointestinal tract of Solea solea from the Adriatic Sea. Environ. Pollut. 2018, 234, 943–952. [Google Scholar] [CrossRef] [PubMed]
  30. Oliveri Conti, G.; Ferrante, M.; Banni, M.; Favara, C.; Nicolosi, I.; Cristaldi, A. Micro- and nano-plastics in edible fruit and vegetables. The first diet risks assessment for the generalpopulation. Environ. Res. 2020, 187, 109677. [Google Scholar] [CrossRef]
  31. Lwanga, E.H.; Vega, J.M.; Quej, V.K.; Chi, J.D.L.A.; del Cid, L.S.; Chi, C.; Segura, G.E.; Gertsen, H.; Salánki, T.; van der Ploeg, M.; et al. Field evidence for transfer of plastic debris along a terrestrial food chain. Sci. Rep. 2017, 7, 14071. [Google Scholar] [CrossRef] [Green Version]
  32. Huerta, E.; Mendoza Vega, J.; Quej, V.K.; Chi, J.D.L.A.; Sanchez del Cid, L.; Quijano, C.; Geissen, V. Bioaccumulation of microplastics in the terrestrial food chain: An example from home gardens in SE Mexico. In EGU General Assembly Conference Abstracts; Geophysical Research Abstract: Munich, Germany, 2017; p. 15847. [Google Scholar]
  33. Bustamante, T. Assessing the Presence and Concentration of Microplastics in the Gizzards of Virginia Waterfowl. Docterate Thesis, University of Mary Washington, Washington, VA, USA, 2021. [Google Scholar]
  34. Jonathan, J.; Clark. Microplastic Quantifiation of the Proventriculus and Gizzard of Florida Seabirds. Capstone 2021. Nova Southeastern University. Retrieved from NSUWorks. Available online: https://nsuworks.nova.edu/hcas_etd_all/37 (accessed on 18 January 2023).
  35. Deoniziak, K.; Cichowska, A.; Niedźwiecki, S.; Pol, W. Thrushes (Aves: Passeriformes) as indicators of microplastic pollution in terrestrial environments. Sci. Total Environ. 2022, 853, 158621. [Google Scholar] [CrossRef] [PubMed]
  36. Collard, F.; Bangjord, G.; Herzke, D.; Gabrielsen, G.W. Plastic burdens in northern fulmars from Svalbard: Looking back 25 years. Mar. Pollut. Bull. 2022, 185, 114333. [Google Scholar] [CrossRef]
  37. Tokunaga, Y.; Okochi, H.; Tani, Y.; Niida, Y.; Tachibana, T.; Saigawa, K.; Katayama, K.; Moriguchi, S.; Kato, T.; Hayama, S.-I. Airborne Microplastics Detected in the Lungs of Wild Birds in Japan. Chemosphere 2022, 321, 4276259. [Google Scholar]
  38. Susanti, N.K.Y.; Mardiastuti, A.; Hariyadi, S. Microplastics in Digestive System of Little-black cormorant (Phalacrocorax sulcirostris) in Pulau Rambut Sanctuary. In IOP Conference Series: Earth and Environmental Science; IOP Publishing: Bristol, UK, 2022; Volume 950, p. 012003. [Google Scholar]
  39. Bessa, F.; Ratcliffe, N.; Otero, V.; Sobral, P.; Marques, J.C.; Waluda, C.M.; Trathan, P.N.; Xavier, J.C. Microplastics in gentoo penguins from the Antarctic region. Sci. Rep. 2019, 9, 14191. [Google Scholar] [CrossRef] [Green Version]
  40. Liu, S.L.; Jian, M.F.; Zhou, L.Y.; Li, W.H.; Wu, X.E.; Rao, D. Pollution characteristics of microplastics in migratory bird habitats located within Poyang Lake wetlands. Huan Jing Ke Xue = Huanjing Kexue 2019, 40, 2639–2646. [Google Scholar] [PubMed]
  41. Zhu, C.; Li, D.; Sun, Y.; Zheng, X.; Peng, X.; Zheng, K.; Hu, B.; Luo, X.; Mai, B. Plastic debris in marine birds from an island located in the South China Sea. Mar. Pollut. Bull. 2019, 149, 110566. [Google Scholar] [CrossRef] [PubMed]
  42. Collard, F.; Husum, K.; Eppe, G.; Malherbe, C.; Hallanger, I.G.; Divine, D.V.; Gabrielsen, G.W. Anthropogenic particles in sediment from an Arctic fjord. Sci. Total Environ. 2021, 772, 145575. [Google Scholar] [CrossRef] [PubMed]
  43. Weitzel, S.L.; Feura, J.M.; Rush, S.A.; Iglay, R.B.; Woodrey, M.S. Availability and assessment of microplastic ingestion by marsh birds in Mississippi Gulf Coast tidal marshes. Mar. Pollut. Bull. 2021, 166, 112187. [Google Scholar] [CrossRef]
  44. Zhao, S.; Wang, T.; Zhu, L.; Xu, P.; Wang, X.; Gao, L.; Li, D. Analysis of suspended microplastics in the Changjiang Estuary:Implications for riverine plastic load to the ocean. Water Res. 2019, 161, 560–569. [Google Scholar] [CrossRef]
  45. Irfan, M.; Qadir, A.; Mumtaz, M.; Ahmad, S.R. An unintended challenge of microplastic pollution in the urban surface water system of Lahore, Pakistan. Environ. Sci. Pollut. Res. 2020, 27, 16718–16730. [Google Scholar] [CrossRef]
  46. Allahvaisi, S. Polypropylene in the Industry of Food Packaging; Dogan, F., Ed.; IntechOpen: London, UK, 2012; pp. 3–22. [Google Scholar]
  47. Leslie, H.A.; Van Velzen, M.J.; Brandsma, S.H.; Vethaak, A.D.; Garcia-Vallejo, J.J.; Lamoree, M.H. Discovery and quantification of plastic particle pollution in human blood. Environ. Int. 2022, 163, 107199. [Google Scholar] [CrossRef]
  48. Ragusa, A.; Svelato, A.; Santacroce, C.; Catalano, P.; Notarstefano, V.; Carnevali, O.; Papa, F.; Rongioletti, M.C.A.; Baiocco, F.; Draghi, S.; et al. Plasticenta: First evidence of microplastics in human placenta. Environ. Int. 2021, 146, 106274. [Google Scholar] [CrossRef]
  49. Braun, T.; Ehrlich, L.; Henrich, W.; Koeppel, S.; Lomako, I.; Schwabl, P.; Liebmann, B. Detection of microplastic in human placenta and meconium in a clinical setting. Pharmaceutics 2021, 13, 921. [Google Scholar] [CrossRef]
  50. Ragusa, A.; Notarstefano, V.; Svelato, A.; Belloni, A.; Gioacchini, G.; Blondeel, C.; Giorgini, E. Raman Microspectroscopy Detection and Characterisation of Microplastics in Human Breastmilk. Polymers 2022, 14, 2700. [Google Scholar] [CrossRef] [PubMed]
  51. Wang, W.; Ndungu, A.W.; Li, Z.; Wang, J. Microplastics pollution in inland freshwaters of China: A case study in urban surface waters of Wuhan, China. Sci. Total Environ. 2017, 575, 1369–1374. [Google Scholar] [CrossRef] [PubMed]
  52. Bilal, M.; Ul Hassan, H.; Siddique, M.A.M.; Khan, W.; Gabol, K.; Ullah, I.; Arai, T. Microplastics in the Surface Water and Gastrointestinal Tract of Salmo trutta from the Mahodand Lake, Kalam Swat in Pakistan. Toxics 2023, 11, 3. [Google Scholar] [CrossRef] [PubMed]
  53. Galloway, T.S. Micro- and Nano-Plastics and Human Health. Mar. Anthropog. Litter 2015, 1, 343–366. [Google Scholar] [CrossRef] [Green Version]
  54. Hassan, H.U.; Mawa, Z.; Ahmad, N.; Zulfiqar, T.; Sohail, M.; Ahmad, H.; Yaqoob, H.; Bilal, M.; Rahman, A.; Ullah, N.; et al. Size at sexual maturity estimation for 36 species captured by bottom and mid-water trawls from the marine habitat of Balochistan and Sindh in the Arabian Sea, Pakistan, using maximum length (Lmax) and logistic (L50) models. Braz. J. Biol. 2022, 84, e262603. [Google Scholar] [CrossRef] [PubMed]
  55. Wu, S.; Wu, M.; Tian, D.; Qiu, L.; Li, T. Effects of Polystyrene Microbeads on Cytotoxicity and Transcriptomic Profiles in Human Caco-2 Cells. Environ. Toxicol. 2020, 35, 495–506. [Google Scholar] [CrossRef]
  56. Kirstein, I.V.; Kirmizi, S.; Wichels, A.; Garin-Fernandez, A.; Erler, R.; Löder, M. Dangerous Hitchhikers? Evidence for Potentially Pathogenic Vibrio Spp. On Microplastic Particles. Mar. Environ. Res. 2016, 120, 1–8. [Google Scholar] [CrossRef] [Green Version]
  57. Khan, W.; Hassan, H.U.; Gabol, K.; Khan, S.; Gul, Y.; Ahmed, A.E.; Swelum, A.A.; Khooharo, A.; Ahmad, J.; Shafeeq, P.; et al. Biodiversity, distributions and isolation of microplastics pollution in finfish species in the Panjkora River at Lower and Upper Dir districts of Khyber Pakhtunkhwa province of Pakistan. Braz. J. Biol. 2022, 84, e256817. [Google Scholar] [CrossRef]
  58. Hassan, H.U.; Razzaq, W.; Masood, Z. Elemental composition of three-spot swimming crab Portunus sanguinolentus (Herbst, 1783) shell from the coasts of Sindh and Balochistan Pakistan. Environ. Sci. Pollut. Res. 2022, 29, 25679–25684. [Google Scholar] [CrossRef]
  59. Hassan, H.U.; Ali, Q.M.; Khan, W.; Masood, Z.; Abdel-Aziz, M.F.A.; Shah, M.I.A.; Gabo, K.; Wattoo, I.; Chatta, A.M.; Kamal, M.; et al. Effect of Feeding Frequency as a rearing system on Biological Performance, Survival, Body Chemical Composition and Economic Efficiency of Asian Seabass Lates calcarifer (Bloch, 1790) Reared under Controlled Environmental Conditions. Saudi J. Biol. Sci. 2021, 28, 7360–7366. [Google Scholar] [CrossRef]
Figure 1. Microscopic images (at 16 × 4 and 16 × 10 magnification) of some of the extracted MPs representing different particle shapes: (a) sheet, (b,c) fragments and (d) fibres.
Figure 1. Microscopic images (at 16 × 4 and 16 × 10 magnification) of some of the extracted MPs representing different particle shapes: (a) sheet, (b,c) fragments and (d) fibres.
Toxics 11 00612 g001

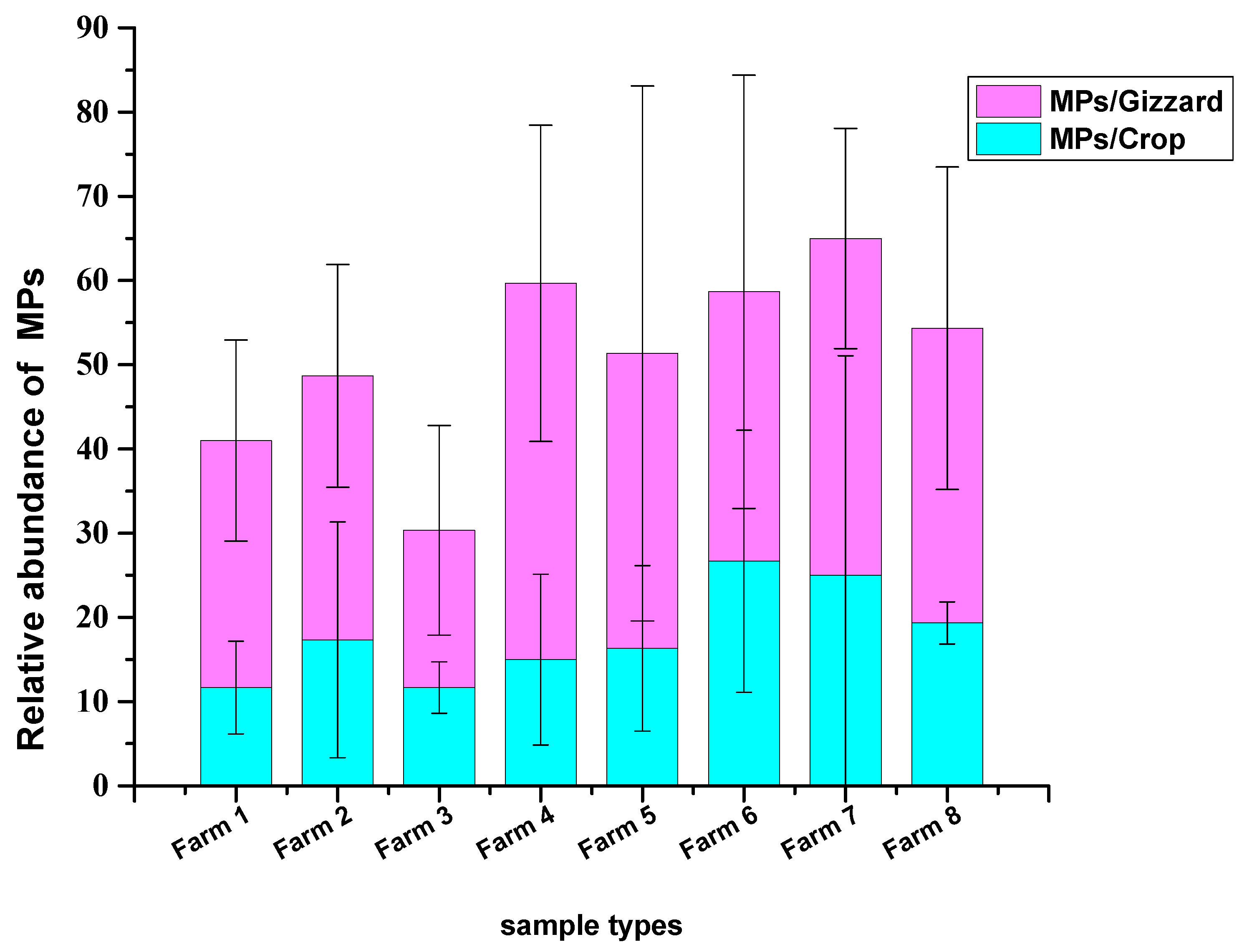

Figure 2. MPs number recovered from crops and gizzards of the chickens.
Figure 2. MPs number recovered from crops and gizzards of the chickens.
Toxics 11 00612 g002

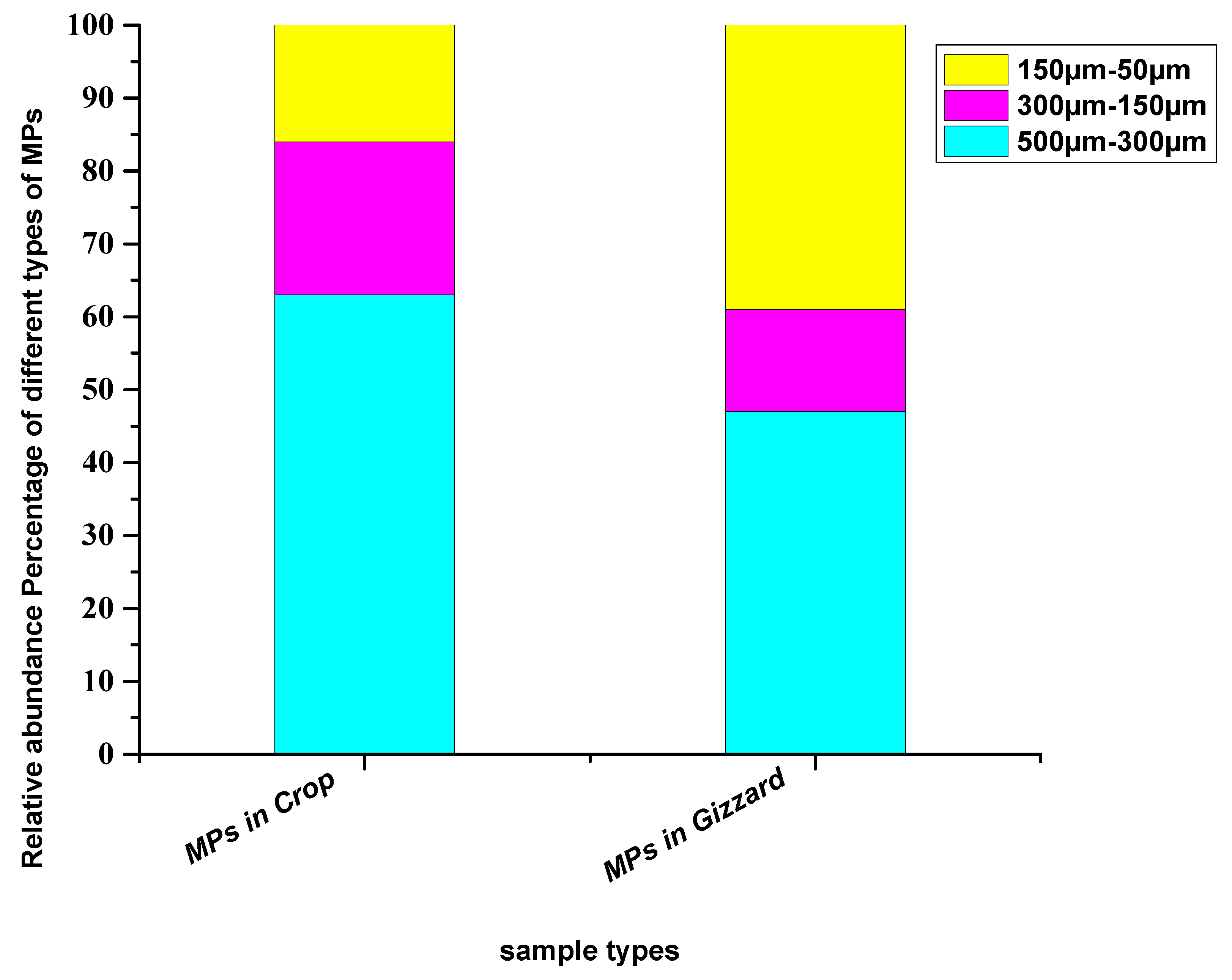

Figure 3. Relative abundance percentage of different sizes of particles extracted from chickens from all eight farms.
Figure 3. Relative abundance percentage of different sizes of particles extracted from chickens from all eight farms.
Toxics 11 00612 g003

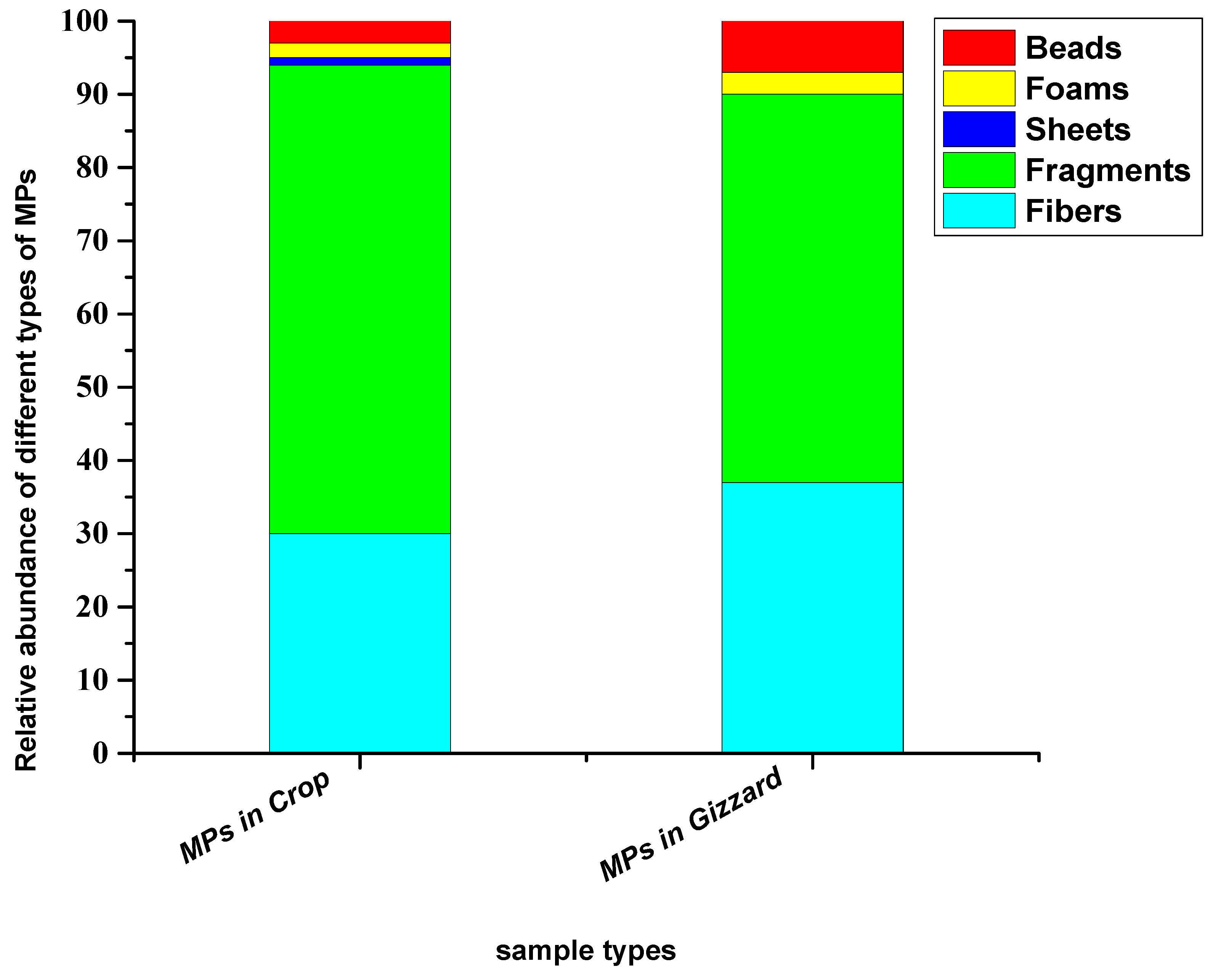

Figure 4. Relative abundance percentage of different types of shapes of particles extracted from chickens from all eight farms.
Figure 4. Relative abundance percentage of different types of shapes of particles extracted from chickens from all eight farms.
Toxics 11 00612 g004

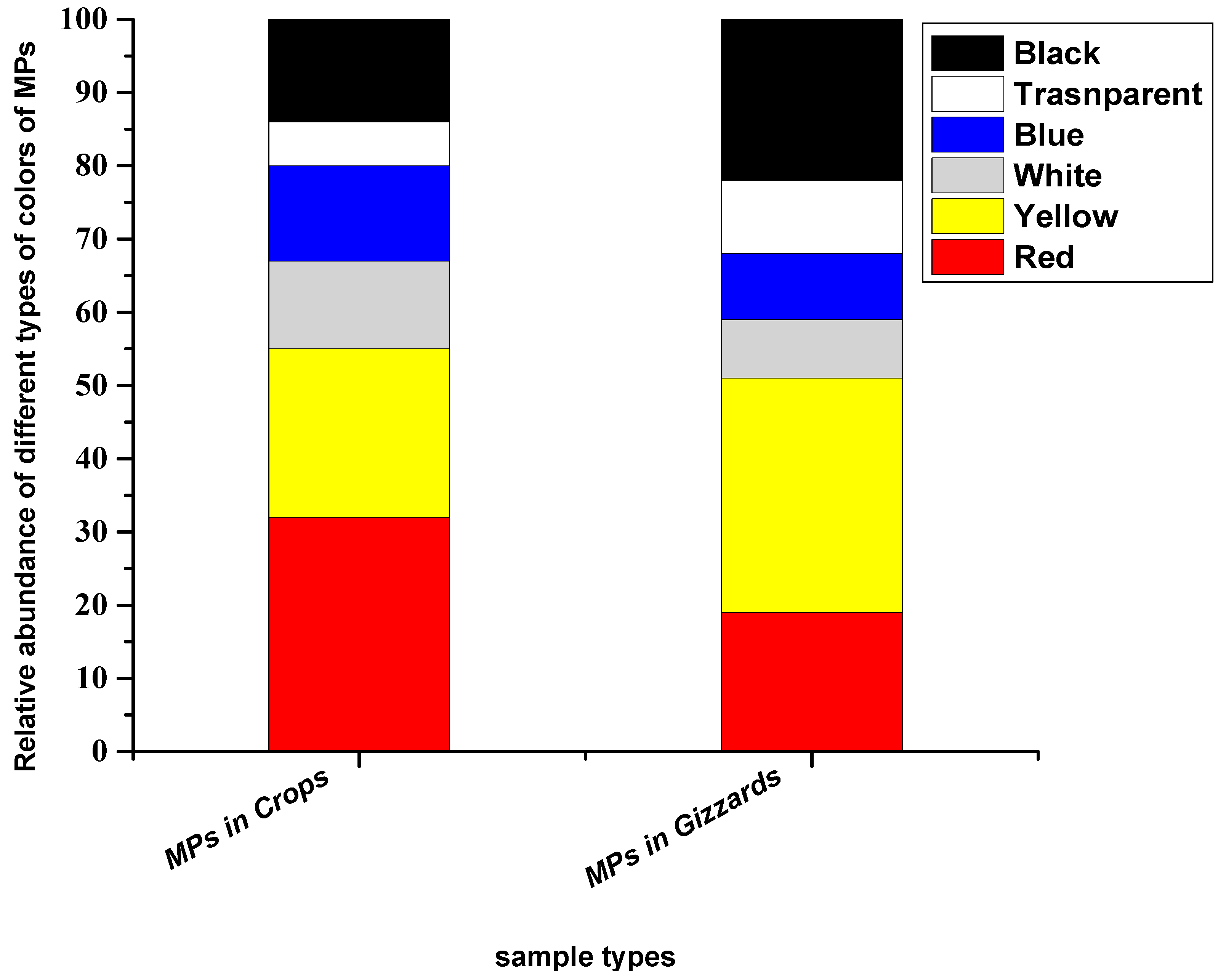

Figure 5. Colours of the MP particles recovered from chickens from all eight farms.
Figure 5. Colours of the MP particles recovered from chickens from all eight farms.
Toxics 11 00612 g005

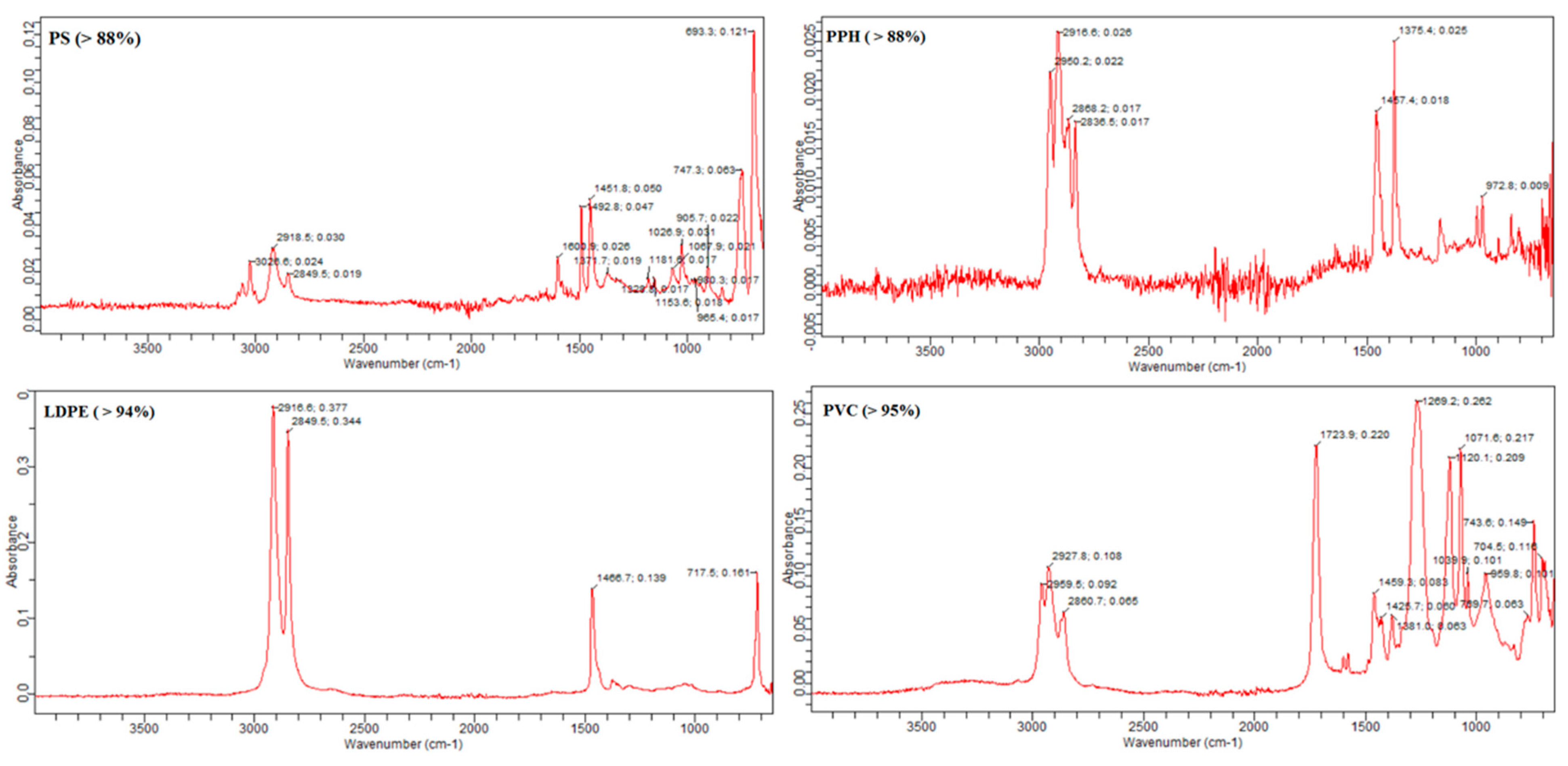

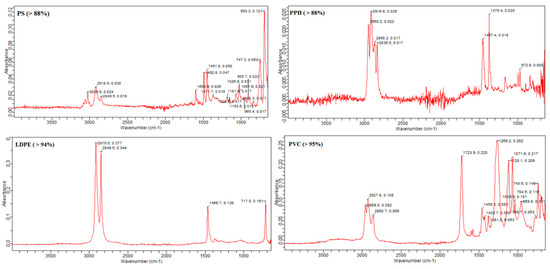

Figure 6. Detected polymer types in the current study.
Figure 6. Detected polymer types in the current study.
Toxics 11 00612 g006
Table 1. Relative comparison of the current study to previous reports.
Table 1. Relative comparison of the current study to previous reports.
ParticlesRegionMean Number of MPsReference
Pakistan33.25 ± 17.8 MPs/gizzard,
17.8 ± 12.1 MPs/crop
Present Study
Mexico57 ± 41.1 MPs/gizzard,
32.4 ± 15.1 MPs/crop
[31]
Mexico45.82 ± 42.6 MPs/gizzard,
11 ± 15.3 MPs/crop
[32]
Virginia, USA1.03 MPs/gizzard[33]
Florida, USA29.9 ± 20.1 MPs/gizzard[34]
Poland31.56 ± 32.5 MPs/GIT[35]
Norway4.60 MPs/gizzard[36]
Shanghai, China22.7 MPs/GIT[19]
Indonesia320 MPs/GIT[38]
Florida, USA11.9 ± 2.8 MPs/GIT[18]
RegionDominant size range detectedReference
SizePakistan300–500 µmPresent Study
Antarctic region>500 µm[39]
China500–1000 µm[40]
South China<5 mm[41]
Shanghai, China>5 mm[19]
Poland1000 µm[35]
Indonesia100–1000 μm[38]
RegionDominant shape type detectedReference
ShapePakistanFragments (64%) in the gizzard
Fragments (53%) in crop
Present Study
Japan.Fragments[37]
NorwayFragments (72.9%)[42]
Shanghai, ChinaFragments (54.9%)[19]
PolandFibres (84%)[35]
Mississippi GulfFibres (98%)[43]
IndonesiaFilm (75.0%)[38]
Florida, USAFibres (86%)[18]
RegionDominant colour detectedReference
ColourPakistanRed (crop), yellow (gizzard)Present study
IndonesiaTransparent (56.2%)[38]
Florida, USAClear or royal blue[18]
PolandTransparent (74%)[35]
Virginia, USABlue (41.4%)[33]
NorwayYellow[42]
RegionPolymer types detectedReference
PolymerPakistan(PVC) with 51.2%, low-density polyethylene (LDPE) (30.7%), polystyrene (PS) (13.6%) and polypropylene homopolymer (PPH) (4.5%)Present study
NorwayPolypropylene, polystyrene and polyethylene[42]
Florida, USAPolyethylene terephthalate (16%), ethylene-co-polypropylene (11%) and cellulose (37%)[18]
Antarctic regionPolyacrylonitrile, polypropylene, polyethylene and polyacrylate[39]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Bilal, M.; Taj, M.; Ul Hassan, H.; Yaqub, A.; Shah, M.I.A.; Sohail, M.; Rafiq, N.; Atique, U.; Abbas, M.; Sultana, S.; et al. First Report on Microplastics Quantification in Poultry Chicken and Potential Human Health Risks in Pakistan. Toxics 2023, 11, 612. https://doi.org/10.3390/toxics11070612

AMA Style

Bilal M, Taj M, Ul Hassan H, Yaqub A, Shah MIA, Sohail M, Rafiq N, Atique U, Abbas M, Sultana S, et al. First Report on Microplastics Quantification in Poultry Chicken and Potential Human Health Risks in Pakistan. Toxics. 2023; 11(7):612. https://doi.org/10.3390/toxics11070612

Chicago/Turabian Style

Bilal, Muhammad, Madiha Taj, Habib Ul Hassan, Atif Yaqub, Muhammad Ishaq Ali Shah, Muhammad Sohail, Naseem Rafiq, Usman Atique, Mohammad Abbas, Saira Sultana, and et al. 2023. "First Report on Microplastics Quantification in Poultry Chicken and Potential Human Health Risks in Pakistan" Toxics 11, no. 7: 612. https://doi.org/10.3390/toxics11070612

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
