Data Descriptor

Overview of German Additive Manufacturing Companies

1
Institut für Rechnergestützte Ingenieursysteme,Universität Stuttgart, 70569 Stuttgart, Germany
2
TWT GmbH Science & Innovation, 70565 Stuttgart, Germany
*
Author to whom correspondence should be addressed.
Submission received: 14 July 2017 / Revised: 25 July 2017 / Accepted: 26 July 2017 / Published: 31 July 2017

Abstract

:
This dataset is the description of a curated list of companies involved in additive manufacturing in Germany. The companies included are of various categories, such as 3D printing providers, hardware manufacturers, software developers and vendors. The list was compiled through literature and Internet-based research, resulting in the compilation of information from a number of resources, such as the Bundesanzeiger (Federal Gazette), the Registergerichte (Register Courts), the respective websites themselves and a B2B marketplace (Wer liefert Was?). The aim of compiling this list is to provide information to researchers on the current situation of 3D printing in Germany.
Data Set: available as the supplementary files
Data Set License: CC-BY-NC-SA

1. Introduction

3D printing and additive manufacturing (AM) are techniques and technologies to manufacture or create physical objects out of a number of materials such as plastics, metals or ceramics from digital model files generatively without requiring special tools besides a 3D printer. This technology is currently highly researched, and developments have been made by public institutions and private entities. Data on the prevalence of certain technologies in general or the market value in individual countries is sparse. This dataset is compiled to provide a basis for further research, such as market analysis and capitalization analysis, in Germany. The list contains information about 284 companies, ranging from individual persons, acting as legal entities, to internationally-active corporations. Information on such entities can also be used to incorporate external services in cloud manufacturing systems or connected 3D printing services, as described in Baumann et al. [1]. Furthermore, this information can be used to help to identify stakeholders in resource description endeavors as described in Baumann and Roller [2]. This dataset enables research on company structure and historical development in the domain of AM. Furthermore, with this dataset, collaboration initiation and the opportunity for industrial interested parties are facilitated. Functioning as a basis for extension, the dataset can also be used to assess the impact of this technology on the national economy of Germany.
This work is structured as follows: Following Section 1 and Section 2 provides information on the method and sources used in this research for the data acquisition and compilation. Section 3 provides information on various sources used for the generation of this overview, on the motivation for the respective source selection and provides information on the scripts employed for automatic data acquisition in Section 3.2. Section 4 contains information on the dataset provided with this research as supplemental data, and Section 4.1 provides detailed information on the structure of the overview document containing all of the information on the companies, excluding the downloaded html files.

2. Data Acquisition

The compilation was performed via literature (see Fastermann [3]) and Internet-based research for certain keywords and phrases. As sources for the Internet research, the search engines Google [4] and Bing [5] were utilized. The search phrases include, as well as combinations thereof:
  • +“3D Druck” + Firma (engl.translation: 3D print + company)
  • +“3D Drucker” + Firma (engl. translation: 3D printer + company)
  • +“Additive Fertigung” + Unternehmen (engl. translation: additive manufacturing + company)
  • +“Generative Fertigung” + Unternehmen (engl. translation: generative manufacturing + company)
  • +“Rapid Manufacturing” + Unternehmen (engl. translation: rapid manufacturing + company)
The search phrases and keywords are presented here in their original German language, as the research is focused on Germany and the justification is that the companies sought address the German market in German. It was also argued that searching in this language will eliminate a large number of businesses that are out of scope, i.e., from other countries than Germany.
Furthermore, information was acquired indirectly via websites of federations or unions on AM-related topics.
For each company found, the respective website was visited, and the information of this site was extracted both manually and automatically, with the support of custom scripts (see Section 3.2). The German law dictates that every business operating in Germany and having a website must provide certain information in their imprint, such as the name, address and routing information. International companies with only German subsidiaries, such as Makerbot Deutschland, were not considered for this compilation. Furthermore, companies with only limited involvement in AM, such as Verbatim, who sells 3D printer filament, where apparent, were also excluded from consideration. Companies listed in association information, as described below, with apparent limited involvement in AM, such as companies offering photography services for 3D printing projects, were also excluded.
The list of excluded companies from the neighboring European and overseas American companies include:
These companies are either subsidiaries of foreign companies, operate in Germany from abroad or are located in neighboring countries and are of similar legal standing as German companies, e.g., a GmbH, Gesellschaft mit beschränkter Haftung, engl. company with limited liability.
Companies were further identified from the following associations, unions and exhibition websites:

3. Results

For the compilation of the information on the companies, information from the following online sources was used. The relevance and information acquired is described after the list.
Information on the company was acquired primarily from the company website, which was identified by the means described herein. The Bundesanzeiger website was used to retrieve the latest balance sheets for the company where available. The latest balance sheets available were from the fiscal year 2015 for most companies. The information from Archive.org was used to assess the first and last archival dates for the website to estimate the popularity of the website (more popular websites are archived more often than less popular websites) and estimate the first appearance of the website on the Internet, which might coincide with the inception date of the company. Xing was used to acquire information on the company owner and might be used in later research to assess the company structure and employee qualification. Information from Kununu was used to assess a rating on the company from the viewpoint of its current and former employees and might be used in later research for qualitative dissemination. Geocode was used to map location information such as city to geo-information for display in digital maps; see Figure 1 for an example. The B2B marketplace Wer liefert was? (WLW) was used to provide additional information on the company such as inception date, categorization, description and contact information. Information on this website is provided by the company itself. The search engine Bing was used to provide information on the number of entries in the cache from the search engine with the motivation to assess the popularity of the website, with more popular websites having more entries in the search engine cache. Information from the registry courts was used to provide official information on the company address and status, as well as initiation documents, which are provided separately.
After probing fifteen randomly-selected companies from the dataset without a single result, it was deemed that the LEI (legal entity identifier) from the Legal Entity Register, https://www.leireg.de, is insufficient to provide meaningful information to the data in its current state.
The list of all companies queried for and included in this study follows in Table 1:

3.1. Classification

The companies contained in the overview are first categorised into two categories describing the perceived orientation towards 3D printing. The first category is partial (PART, in the overview document) for companies that are involved in 3D printing, but also cater to some other forms of business, e.g., selling other kinds of machinery or providing other services than 3D printing. The second category is complete (COMPLETE, in the overview document), denoting businesses that are solely focused on 3D printing.
Further categorization is performed on the mode of business, with:
  • Sale or production of hardware, i.e., 3D printers (indicated as HW(P), in the overview document)
  • Sale or development of software, e.g., 3D printing simulation or other tools (indicated as SW, in the overview document)
  • Sale of supplementary material for 3D printers, e.g., filament, powder, or resin (indicated as HW(MAT), in the overview document); also development of 3D printing material
  • 3D printing service and other services, such as 3D printer rental, 3D model preparation or training (indicated as SERVICE, in the overview document)

3.2. Script-Based Information Retrieval

To facilitate efficient data acquisition and enrichment, a number of scripts were employed. The scripts are written in BASH [13] for the Linux platform. These scripts are detailed in the following Section 3.2.1, Section 3.2.2, Section 3.2.3, Section 3.2.4, Section 3.2.5, Section 3.2.6 and Section 3.2.7.

3.2.1. Registry Court Information

See Supplementary Material reg-ger-search.sh for the script that was used to acquire data from the central registry court information website. This script scrapes the website for the search term that is the company’s name and then downloads all associated publications and information for the respective company. A number of publications, such as historical records, must be purchased from the registry court website, and these publications are excluded from the download. The results were manually checked to eliminate false-positive results for companies with similar names.

3.2.2. Information from B2B Marketplace WLW

The script wlw-search.sh scrapes the B2B-marketplace Wer liefert was? (WLW) for information on the company in question. The script utilizes the central search function of the website and acquires the details present for the first company by the searched for name. Furthermore, this script extracts the html title of the associated company website to provide an automated way of capturing this information. The WLW website contains information provided by the businesses themselves. On this website, all registered companies are identified by an integer identifier.

3.2.3. Information on the Results from the Search Engine Bing

With the script bing-info.sh, information on the number of results in the search engine Bing’s cache is extracted, as well as information on how often the company URL is linked on other websites.

3.2.4. Information from the Internet Archive

The script archive-info.sh parses the information from the Internet Archive at https://www.archive.org for a specific URL, the company URL. Information is extracted on the first and last occurrence of the archival process, with the motivation that popular websites are being archived more often and, furthermore, to provide information on a possible company inception date. Information on the number of archival requests is also retrieved.

3.2.5. Wordcloud Generation from Website Data

The script website2wordcloud.sh extracts all visible and invisible links from the company website’s base URL and downloads every document linked to a temporary folder. From the downloaded files, only files that are html are further analyzed. The resulting files are parsed from html to text and aggregated in one single file for wordcloud processing. The wordcloud processing is performed with the software word_cloud [14] from https://github.com/amueller/word_cloud, and the most common words are placed on a digital canvas according to their occurrence and scaled accordingly. For further processing, the aggregated text file is separated into words and stored separately. An example for such a wordcloud is presented in Figure 2 from the company StaeGi GmbH with the URL http://www.staegi.de. A number of websites was not suitable for automatic parsing and acquisition due to heavy reliance on JavaScript, Flash or other technology that is not readily accessible with text-based tools. These websites are unfriendly to screen readers and other assistive technology and were excluded from further automated analysis.

3.2.6. Most Common Words on Website

The script most-common-words.sh analyzes the aggregated textual website data generated by the website2wordcloud.sh script for the ten most used words. The words are compared against a list of stop words (see Appendix A A1 Stop Word List), which are excluded from further consideration. The script produced a list of these common words, separated by commas, and each word prefixed with the number of occurrences. Furthermore, the script presents the total number of words (including the words contained on the stop word list) in the analyzed text file.

3.2.7. Overview Document

The script company-info-aggregate.sh was used to aggregate all information, both manually and automatically acquired, on the respective company and parse this information into a CSV (comma-separated value) file. The resulting overview file contains information on each of the companies identified, with information from the B2B-marketplace WLW, the registry court general information, the Internet Archive, the search engine Bing, geo-coded information on company location and information on the most common words from the company website, as described in Section 4.1. The geo-coded information is primarily based on the official address registered with the registry court and retrieved for the complete address, i.e., street name, number, zip code and city. As a compensation strategy, the address available on the respective website was used for the retrieval of the geo-coded information.

4. Dataset

The dataset presented in this work is composed of the following:
  • Documents from the registry court in supplemental data file reg_court.zip, with the files sorted into directories. Every directory is named after the md5 hash of the company name, present in Column 1 of the overview document. Files in each directory with the suffix “_vo_pub_X.htm” and “_vo_pub_X.txt” contain publications from the registry court where X is a number starting from zero; all publications available on the registry court website are presented in ascending order. The file with the ending txt is derived from the html version by parsing the information and is the textual representation. Files with the suffix “_ut.htm” contain the registry court information on the company, such as the official name and legal status.
  • Documents containing the latest balance sheets from the official Federal Gazette in ba.zip, with html documents for each company available. The files are named “BA_NUMBER_NAME_YEAR.htm”, where NUMBER is identical to the number in Column 2 of the overview document. NAME is an abbreviated name of the company, and YEAR identifies the year of the balance sheet. This information was acquired manually, as the Federal Gazette website uses captchas, which could not be circumvented.
  • Overview document as described in Section 4.1 as an Excel document. Automatically acquired data were manually checked for coherency and manually adapted where necessary.
  • Website information and complete, textual, websites for the respective company in file web.zip, with the individual files named “URL_accumulated.txt”, where URL is identical to the company’s URL.
  • Wordclouds for each respective company in the file wordclouds.zip with files named URL_wordcloud.png, where URL is the company’s URL with the prefix http:// or https:// removed.
A complete wordcloud of every downloaded website is depicted in Figure 3.

4.1. Structure of Data

The following list explains the data structure that is present in the company list. One example each, description or name, is provided for every column, starting from the first:
  • Cryptographic hash (md5) of the company name: “a6f2c37b03eb17751bdb1f03f4df581a”
  • Company number in list: “1”
  • Website title acquired from the respective website: “prontotype: 3D-Druck I 3D-Modeling I Rapid Prototyping I Hamburg”
  • URL of company website: “http://prontotype.de/
  • Company name as presented on the company website: “prontotype e.K.”
  • Owner or chief executive of the company with the gender present in brackets: “Marc Zimmerer(m)”
  • Zip code and city of the company as presented on the company website: “22525 Hamburg”
  • Register court number: “HRA 116517”
  • VAT Id: “DE 295817576”
  • URL of Xing [8] profile of each executive, separated by comma; Order is identical to the ordering of the persons 5 columns prior with missing profiles identified by N/A: “https://www.xing.com/profile/Marc_Zimmerer
  • URL of Kununu [9] of company: “https://www.kununu.com/de/trindo
  • Kununu rating of the company where present: “3.82”
  • Indication if company is completely or partially focused on 3D printing: “COMPLETE”
  • Indication/classification on business area of company: “HW(MAT),SW”
  • Number of results from Bing search engine for the company URL: “51”
  • Number of results from Bing search engine for documents from the company’s domain: “43”
  • Date of the first entry for an archived version of the website in archive.org: “2014-Mar-09 19:31:07”
  • Date of the last entry for an archived version of the website in archive.org: “2017-Jan-10 13:22:02”
  • Number of archived versions of the website in archive.org: 27
  • Company name from WLW marketplace: “prontotype e.K.”
  • URL of company from WLW marketplace: “http://www.prontotype.de
  • Zip code and city of company from WLW marketplace: “22525 Hamburg”
  • WLW internal ID for company: “1744235”
  • URL of company in WLW marketplace: “https://www.wlw.de/de/firma/prontotype-ek-1744235
  • Number of employees from WLW marketplace: “1–4”
  • Contact email from WLW marketplace: “[email protected]
  • Name of executive from WLW marketplace, gender present in brackets: “Malte Fuchs(m)”
  • Inception year according to WLW marketplace: “2011”
  • Company description present in WLW marketplace: “3D Druck und Rapid Prototyping Service. Wir erstellen 3D Modelle für Modellbau, Architektur, Bildung, Medizin, Kunst und Unterhaltung.”
  • Categories listed for the company in WLW marketplace, separated by comma: “3-D Druck, Rapid Prototyping”
  • Title of the website, extracted automatically: textbfprontotype: 3D-Druck
  • Register court for the company: “Amtsgericht Hamburg HRA 116517”
  • Legal form of company according to the register court: “Einzelkaufmann”
  • Initial capital entered into the company per information from the register court, value with denomination: “27000 EUR”
  • Date of entry into the registry court: “2013-10-30”
  • Date of deletion from the registry court, not present for active companies: “2014-10-30”
  • Company balance sheet from the registry court, data field is present in information from the registry court but none of the queried companies has any value set: “N/A”
  • Official name and address of company from the register court: “prontotype e.K., Kleine Bahnstr. 6, 22525 Hamburg”
  • Geo-coded city name of company: “Hamburg”
  • Geo-coded country name of company: “DE”
  • Latitude of company address: “53.56451”
  • Longitude of company address: “10.00739”
  • Confidence value for geo mapping of company address: “0.9”
  • Number of words found on website by web scraping: “1247”
  • And the following 10 columns contain the ten most common words from the website with the number of occurrences concatenated with the respective word: “41:prontotype”

5. Conclusions

The information presented in this study is intended to enable further research in the structure, distribution and nature of companies working in the area of AM in Germany. The companies in this dataset are of various natures and range from small, one-person companies to large corporations with a diverse business focus, ranging from hardware, to software, to 3D printing services.

Supplementary Materials

The following items are available online at www.mdpi.com/2306-5729/2/3/23/s1 as Supplemental Information and described in Section 3.2 for the supplemental scripts and Section 4 for the aggregated data.

Acknowledgments

This study is not funded by any third party.

Author Contributions

Felix W. Baumann conceived of the idea for this work and performed the data acquisition and compilation. Furthermore, Felix W. Baumann wrote the paper. Dieter Roller provided support in writing this paper.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
AMAdditive manufacturing
CSVComma-separated value (file format)
IDIdentifier
LEILegal entity identifier
MD5Message-digest hashing algorithm
URLUniform resource locator
VATValue-added tax
WLWWer liefert was? (B2B-marketplace)

Appendix A. A1 Stop Word List

These words are excluded from counting towards the most common words on the respective website as they are identified as containing no valuable information for the purpose of this study.
und der die das ein man kann soll mehr oder auf bei diese dieses kein sollte auf info sich im newsletter impressum imprint hrb hra tmg Sie mit wie was wer wo login alle bei ist sei zum amp AGB in Widerrufsbelehrung Bitte Hinweis www return function var this for typeof url onload Mehr Cookies für über the zur and dabei besser siehe hier Anmelden Login den wir Wir von aus wird ein eine zu Gerne gerne button html HTML um sind sollten sollen mail en de FAQ uns dem com aus von vom gt lt als durch werden auch an ab nach per ihr ihre gegen des nicht einen bis einem http more unser unsere we on or what can to of is you any once that this be with have like will yes your when from iframe unserer unser dass browser java javascript wurde mit überspringen navigation unternehmen logo einer eine eines kontakt titel warenkorb sofort deine anfrage weiter senden referenzen angebot rufen zzgl sein download welt ihnen jetzt anzeigen ihrem startseite fax tel website webseite dieser ihrer ihres google twitter facebook deiner dein deine deinem analytics cookie cookies suche suchen email immer haben by willkommen inhalte inhalt anmeldung copyright links instagram etsy versandkosten mwst wieder neu neue neues neuer content schließen möchten möchte können weiterlesen inkl exkl lesen kommentare linkedin datenschutzerklärung seiten seite zurück wenn dann hauptmenü menü welche nur unseres unserem googleplus xing vor passwort kg

References

  1. Baumann, F.W.; Kopp, O.; Roller, D. Universal API for 3D Printers. In INFORMATIK 2016; Mayr, H.C., Pinzger, M., Eds.; Lecture Notes in Informatics (LNI); Gesellschaft für Informatik: Bonn, Germany, 2016; Volume P-259, pp. 1611–1622. [Google Scholar]
  2. Baumann, F.W.; Roller, D. Resource Description for Additive Manufacturing—Supporting Scheduling and Provisioning. In Proceedings of the Ninth International Conferences on Advanced Service Computing (ADASERC), Athens, Greece, 19–23 February 2017; IARIA: Wilmington, DE, USA, 2017; pp. 41–47. [Google Scholar]
  3. Fastermann, P. Rapid-Prototyping-Maschinen: Herstellerverzeichnis. In 3D-Druck/Rapid Prototyping: Eine Zukunftstechnologie—Kompakt Erklärt; Springer: Berlin/Heidelberg, Germany, 2012; pp. 151–165. [Google Scholar]
  4. Google Inc. Google. Available online: https://www.google.com (accessed on 19 June 2017).
  5. Microsoft. Bing. Available online: https://www.bing.com (accessed on 19 June 2017).
  6. Bundesministerium der Justiz und für Verbraucherschutz. Bundesanzeiger. Available online: https://www.bundesanzeiger.de (accessed on 19 June 2017).
  7. Internet Archive. Wayback Machine. Available online: http://archive.org (accessed on 19 June 2017).
  8. XING AG. Home | Xing. Available online: https://xing.com (accessed on 19 June 2017).
  9. Kununu GmbH. Kununu—Finde den Arbeitgeber, der zu Dir Passt. Available online: https://www.kununu.com (accessed on 19 June 2017).
  10. Geocode.xyz. Geocode.xyz: Geoparse, Geocode and Map Your Geo Data. Available online: http://geocode.xyz (accessed on 19 June 2017).
  11. Wer Liefert Was? GmbH. “Wer Liefert Was”—Der Führende B2B-Marktplatz. Available online: https://www.wlw.de (accessed on 19 June 2017).
  12. Land Nordrhein-Westfalen. Common Register Portal of the German Federal States. Available online: https://www.handelsregister.de (accessed on 19 June 2017).
  13. Free Software Foundation. GNU Bash. Available online: https://www.gnu.org/software/bash (accessed on 19 June 2017).
  14. Mueller, A. Word_ Cloud. Available online: https://github.com/amueller/word_cloud (accessed on 19 June 2017).

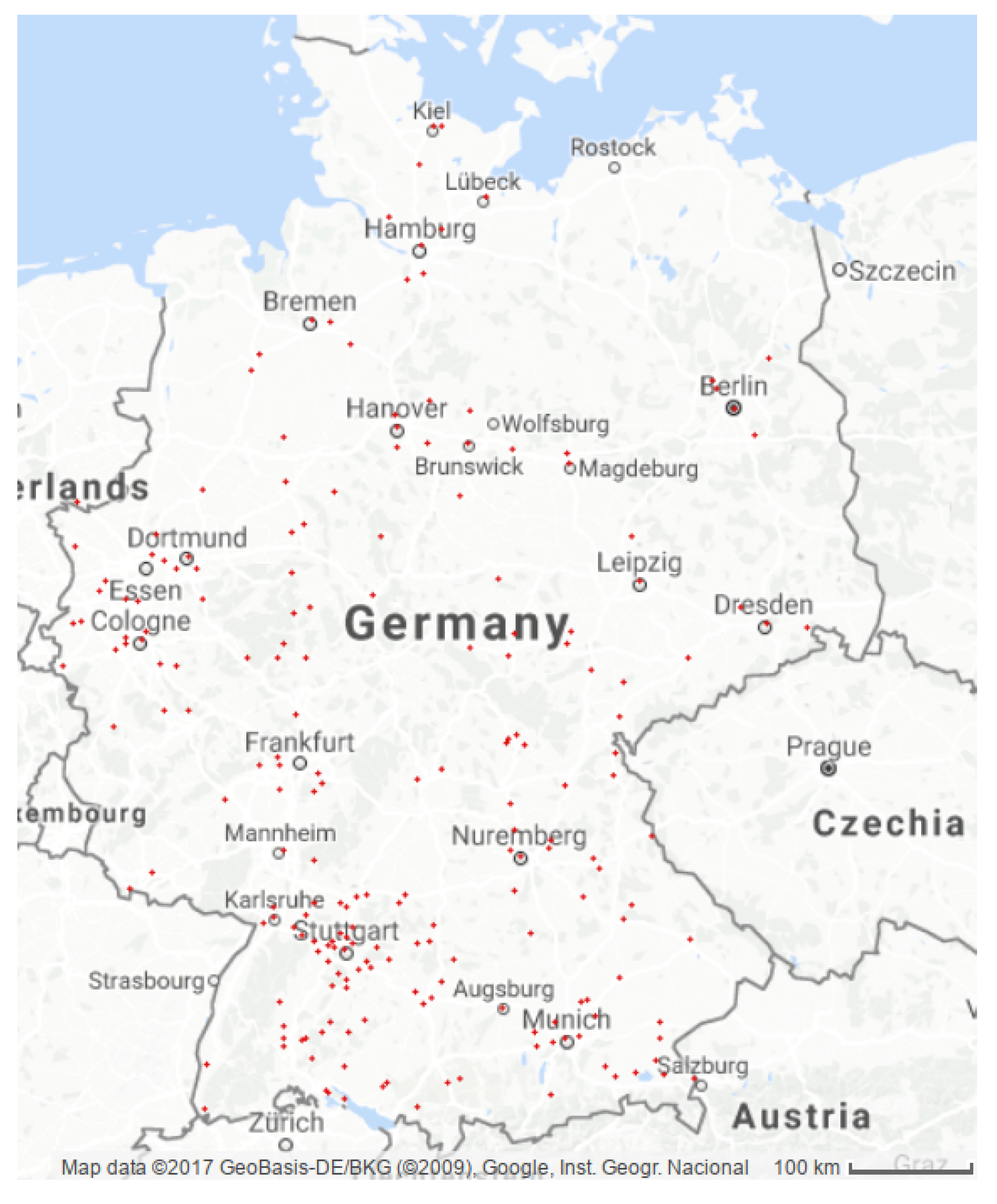

Figure 1. Geographical distribution of identified companies; created with https://geocode.xyz/batch.
Figure 1. Geographical distribution of identified companies; created with https://geocode.xyz/batch.
Data 02 00023 g001

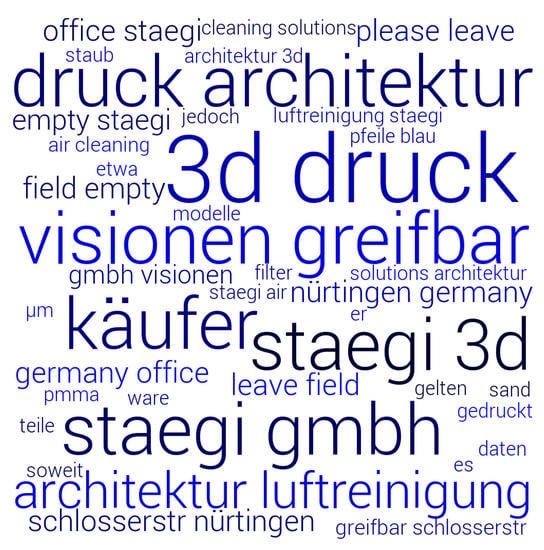

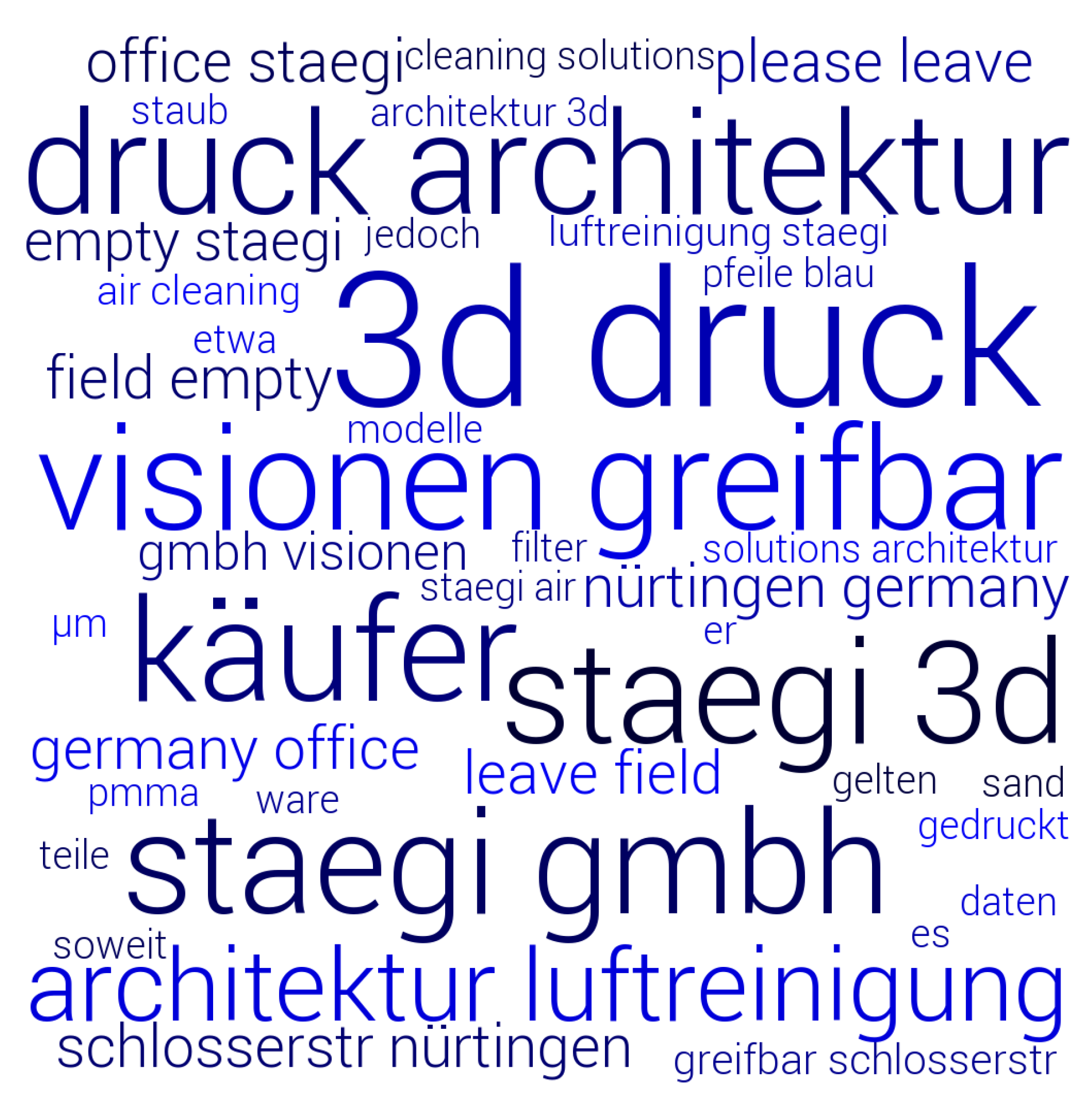

Figure 2. Example Wordcloud for StaeGi GmbH.
Figure 2. Example Wordcloud for StaeGi GmbH.
Data 02 00023 g002

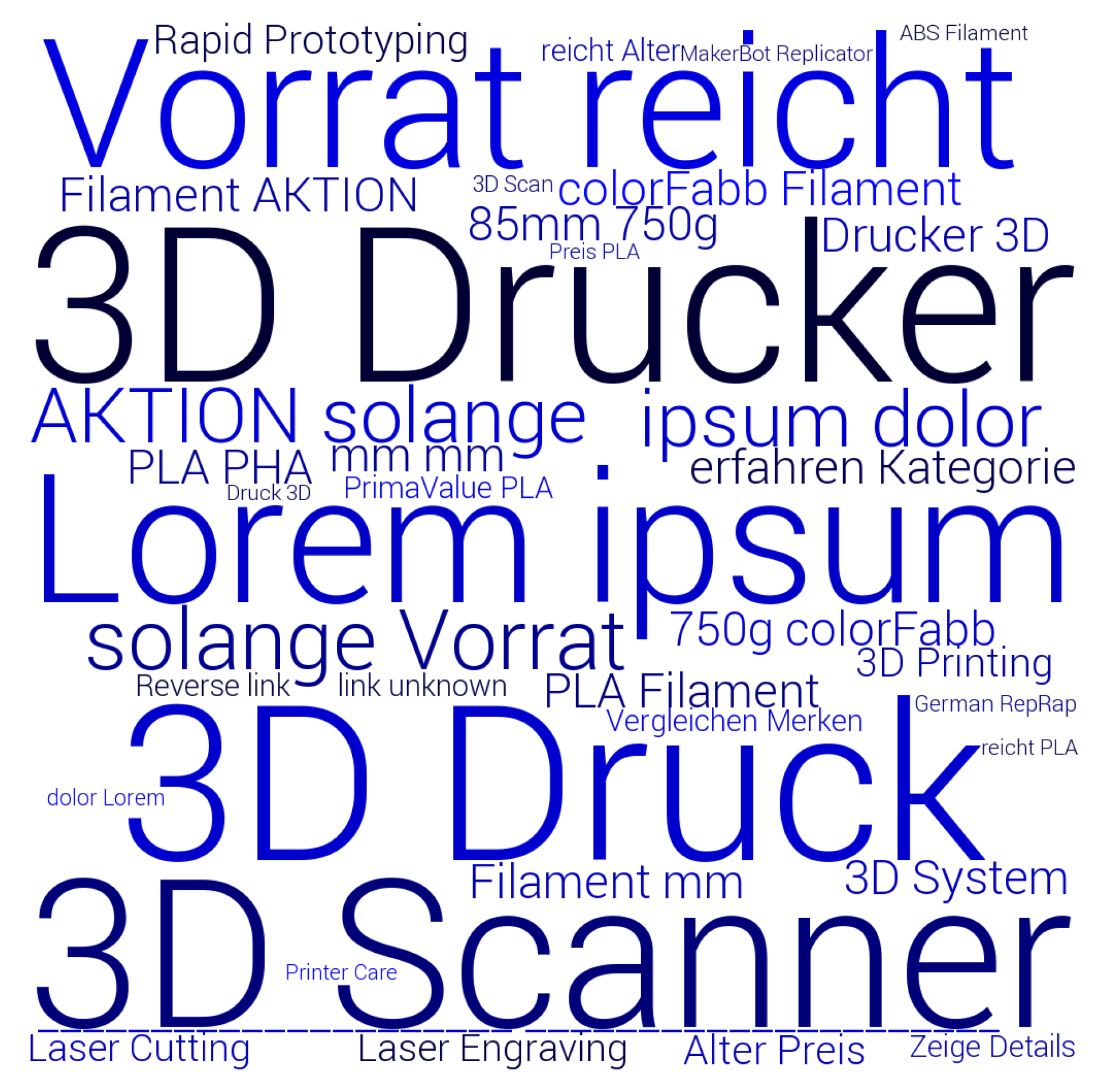

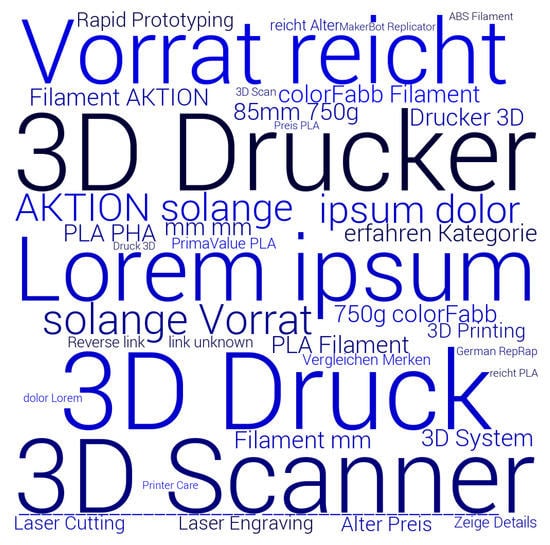

Figure 3. Wordcloud on all downloaded and aggregated websites.
Figure 3. Wordcloud on all downloaded and aggregated websites.
Data 02 00023 g003
Table 1. List of all additive manufacturing (AM) Companies in Germany included in this study.
Table 1. List of all additive manufacturing (AM) Companies in Germany included in this study.
#Company NameCompany Website URL
1prontotype e.K.prontotype.de
2ALL.RAPID 3D-Druck & Designwww.allrapid.de
3RAYLASE AGwww.raylase.de
4Membino GmbHwww.membino.de
5Multec GmbHwww.multec.de
6digitectum, marc bescher digitaltechnikwww.digitectum.de
7Freeform4U GmbHwww.freeform4u.de
8topmodellfabrik GmbHwww.topmodellfabrik.de
9Fabrica GmbHwww.fabrica3d.de
10alphacam GmbHwww.alphacam.de
11tobaTEC GmbH & Co. KGwww.tobatec.net
12Trindo Digitalmanufaktur GmbHtrin.do
13Additive Elements GmbHwww.additive-elements.de
14Rapidobject GmbHwww.rapidobject.com
15Fabb-It UGwww.fabb-it.de
16rw-3d Druckwerk GmbHwww.rw-3d.de
17Speedpart GmbHwww.speedpart.de
183D Manufaktur Seevetalwww.3d-manufaktur-seevetal.com
19CHH IT Solutions GmbHwww.3d-drucker-vertrieb.com
20Konrad Rauhwww.3d-rauh.de
21Kühling & Kühling GmbHkuehlingkuehling.de
22BigRep GmbHbigrep.com
23Construcion Zone GmbH Co. KGconstruction-zone.de
24electronic things GmbHwww.electronic-things.de
25F & B rapid production GmbHrapidproduction.org
26German RepRap GmbHwww.germanreprap.com
27NEXTDynamics Ldt.next-dynamics.com
28Copynet Innovationsgesellschaft mbHwww.copynet.de
29WDS Software & Service GmbHwww.wds.de
30voxeljet AGwww.voxeljet.com
31ayxesis GmbHayxesis.de
32PICCOś 3D World GmbHwww.piccos-3d-world.com
334D Concepts GmbHwww.4dconcepts.de
34Lothar Galgenmüllerwww.logatec-3d.de
35Wenger & Krautwasser GbRwww.2printbeta.de
36Apium Additive Technologies GmbHapiumtec.com
37ArcTron 3D Vermessungstechnik & Softwareentwicklungs GmbHwww.arctron.de
38ABOUT 3D UGwww.about3d.de
39encee CAD/CAM Systeme GmbHencee.de
40Sandhelden GmbH & Co. KG.www.sandhelden.de
41CADCOMMUNICATION. EKwww.cadplace.de
42VisioTech GmbHwww.visiotech-gmbh.de
43Printer Care Service GmbHwww.printer-care.de
44KISTERS AGwww.projet-3d-drucker.de
45Herz GmbHshop.filamentonline.de
46CINTEG AGwww.cinteg.de
47Kevin Neugebauer3ddruckkaufhaus.de
48Stefan Reinsprecht—stebdesignddd-filament.com
49filamentworldwww.filamentworld.de
50metallpulver24www.metallpulver24.de
51Materials Consulting Dr.-Ing. Beate Heisterkampwww.dr-heisterkamp.de
52Rolf Lenk Werkzeug- und Maschinenbau GmbHwww.rolf-lenk.de
53Fr. Aussieker Metallverarbeitung GmbH & Co. KGwww.fr-aussieker.de
54CAST SOLUT Sales and Service GmbHvioproto.de
55C.F.K. CNC-Fertigungstechnik Kriftel GmbHwww.cfk-online.de
56bkl-lasertechnikwww.bkl-lasertechnik.de
57TLS Technik GmbH & Co Spezialpulver KGwww.tls-technik.de
58ENGINEERING FOR YOU GmbHwww.engineering-for-you.com
59PyroPowders.dewww.pyropowders.de
60Reinhold Bürosysteme GmbHwww.reinhold-kopiersysteme.de
613D-Laserdruck GbRwww.3d-laserdruck.de
62Lapro GmbHwww.druckt3d.de
63Material 4 Print GmbH & Co. KGwww.material4print.de
64Office- und Kopiermanagement 2000 Schramm & Städtl OHGwww.3d-drucker-bayreuth.de
65MediaCom-IT Distribution GmbHwww.mediacom-it.de
66BERNHARDT Kunststoffverarbeitungs GmbH3dk.berlin
67DAS FILAMENTwww.dasfilament.de
68Prototec GmbH & Co. KGwww.prototec.de
69MBFZ toolcraft GmbHwww.toolcraft.de
70Hawener 3D GmbHwww.hawener.de
71Mark3d GmbHwww.mark3d.de
72pro3D GmbH & Co. KGwww.pro3d.website
73Solling-CADsolling-cad.de
74ReaLizer GmbHwww.realizer.com
75CRDREI GmbHwww.crdrei.de
76fabtoryfabtory.de
77CP—Centrum für Prototypenbau GmbHcp-gmbh.de
78Makerlounge 3D-Studiomakerlounge.com
79simufact engineering gmbhwww.simufact.de
80Kevin Neugebauerwww.myprintoo.de
81iGo3D GmbHwww.igo3d.com
82rioprinto UGwww.rioprinto.com
833DXXLwww.3dxxl.net
84Napoli-Designwww.napoli-design.com
85marhellabswww.marhellabs.com
86ArchiKonstruktwww.3d-druck-dienst.de
87Project 3D GmbHproject3d.net
88Roman Hölzwww.creativ3dprint.de
893D4real 3D Druckwww.3d4real.net
90XTRUDR UG (haftungsbeschränkt)www.xtrudr.de
91Marin Mihatovprintit-3d.de
92MüSys 3D Druckmuesys-3d-druck.de
93Jens Hevikemannheim-3d-druck.de
943D Activation GmbHwww.3d-activation.de
95ProTec3Dwww.protec3d.de
96Riesen Consultingriesen-consulting.de
97MakeBoxmakebox.de
98On wire e-business GmbHwww.fabbermania.de
99Andreas Einsiedel und Philipp Hofmann GbRwww.3dzentrum.de
100CUBER 3D-Druckerwww.cuber3d.de
1013D-Printwerkwww.3dprintwerk.de
1023D4you 3D-Druck Service Matthias Laschwww.3d4you.de
103Pryo3Dwww.pryo3d.com
104contura Modellbau Friedje Feldtwww.contura-modellbau.de
105TrigonArt—Bauer & Praus GbRwww.objectplot.de
106YOUin3D.com GmbHwww.youin3d.com
107ULFTELLER 3D-Druckschnelle-modelle.com
1083D Druck-Coburg GmbHwww.3d-druck-coburg.de
109Christian Etzold und Stefan Seifert GbRwww.third-layer.com
1103Faktur GmbH3faktur.com
111TMV Anlagenbau GmbH3d-druck-dresden.de
112IFA3D Medical Solutions GmbHwww.ifa3d.com
113Kramper 3D—Druck Designkramper-3d.de
114Malte Fürstenberg & Ansgar Heuser GbRrichtig-druck.de
115grubster GmbHwww.grubster.de
116CEV 3D Druckcev-3d-druck.de
117URBANMAKER UGwww.urbanmaker.de
118rw-3d Druckwerk GmbHwww.rw-3d.de
1193D GENERATION GmbHwww.3dgeneration.com
1203D Make me smallwww.3dmakemesmall.de
121Effectiv 3D Druck GmbHeffektiv-3d-druck.de
122Eberle Printing3d-drucken-lassen.com
1233D-Druck Servicewww.touch-the-bits.de
124ZmartPart GmbHwww.zmartpart.de
1253D CONTECH GmbH & Co. KG3dcontech.com
126CNC-Technik MACK GmbH & Co. KGwww.cnc-mack.de
127Modell- und Formenbau Blasius Gerg GmbHwww.gerg.de
128ifp—Prof. Dr.-Ing. Joachim Milberg Institut für Produktion und Logistik GmbH & Co. KGwww.ifpconsulting.de
129Kegelmann Technik GmbHwww.ktechnik.de
130Smart Media Products UGwww.toolhubs.com
1313D Manufakturwww.3ddm.eu
132Dooblex GmbHwww.dooblex.de
133Reiser AG Maschinenbauwww.reiser.ag
134MFD—Kunststofftech GmbHwww.mfd-gmbh.de
135M3DP UGwww.m3dp.de
136Mack Technik GbRwww.mack-technik.com
137FKM Sintertechnik GmbHfkm-lasersintering.de
138W.Hafner GmbH & Co.KGhafner-gmbh.com
139Web TV Berater GmbHdddprintservice.de
140Litechnologylitechnology.de
141Techno-Grafica GmbHtechno-grafica.de
142Ingenieurbüro Hampe GmbHwww.ingenieurbuero-hampe.de
143CADITS GmbHwww.3d-printparts.de
1443YOURMIND GmbHwww.3yourmind.com
145Proto Labs GmbHwww.protolabs.de
146Creabis GmbHcreabis.de
147Your own Products—YoPyop3d.de
148MPS Rapid Prototyping GmbHwww.mps-prototypen.de
149PrivatePrints3Dwww.privateprints3d.com
1503D Fabrik Oliver Weschwww.3d-fabrik.eu
151Formicum 3D-Service GmbHwww.formicum.de
1523D-Picture.net3d-picture.net
153cirp GmbHcirp.de
154REKON 3D GmbHwww.rekon3d.de
155Holocreators UGholocreators.com
156EUGENIOeugenio3d.com
157JELL GmbH & Co. KGwww.jell-werkzeugelemente.de
158Reil und Gillert GbRwww.druckwege.com
159TIME TOOL Rapid Prototypingwww.timetool-technology.de
160DICK & DICK Laserschneid- und Systemtechnik GmbHwww.dick-dick.de
161iPUNKT engineering & design UGwww.ipunkt-engineering.de
1623D für Alle3dfüralle.de
163Blue Production GmbHwww.blue-production.de
164WDV GmbHwww.wdv-services.de
165vividesign 3Dvividesign.de
166CAD Constructioncadconstruction.de
167NordWest GmbHwww.3dokuteam.de
168Formfabwww.formfab.de
169IMT Systeme und Services GmbHwww.imt-lasersintern.de
170MS-Creare GbRwww.ms-creare.com
171SCHMOLZ + BICKENBACH GUSS GmbH3d.sbguss.de
172tbko Thomas Bengel Konstruktion + Prototypentbko.de
173topmodellfabrik GmbHwww.topmodellfabrik.de
174WEIHBRECHT Lasertechnik GmbHwww.weihbrecht.de
175Art Shapes GmbHwww.artshapes.de
1763D Fabwww.3dfab.net
177Elektrotechnik Röckwww.elektrotechnik-roeck.de
1783D4you 3D-Druck Service Matthias Laschwww.3d4you.de
179FREEFORMA AM GmbHwww.freeforma.am
180voxelwerk GmbHwww.voxelwerk.de
181ScanyME GmbHwww.3d-colorprint.de
182FORMRISE GmbHformrise.com
183Fasterpoly GmbHwww.fasterpoly.de
184Vokal + Partnervokal.de
185H & H Gesellschaft für Engineering und Prototypenbau mbHwww.huh.de
186Renishaw GmbHwww.lbc-engineering.de
187ideas2touchwww.ideas2touch.com
188CADSPEED GmbHwww.cad-speed.de
189Rosswag GmbHwww.rosswag-engineering.de
190kA4 > Crew < Video- und Multimediaproduktionwww.figur3d.de
191Q-4 GmbHwww.3ddinge.de
192TinkerToys GmbHwww.3ddrucken24.de
193Find-a-Fabwww.findafab.com
1943D Schilling GmbH3d-schilling.de
195scope for design GmbHwww.scopefordesign.de
196*Plottwerkwww.plottwerk.com
197Kuhn Stoff GmbH & Co. KGwww.kuhn-stoff.de
198MMM Medizinische Modellbau Manufaktur GmbHmyhumanx.com
199Trautter Modell & Guss GmbH & Co. KGmodellbau-trautter.de
200delbramed e.K.www.delbramed.de
201optiplan GmbHdatenunddruck.de
2023D-TEC e.K.www.3dtec-ek.de
203Stone, Bludins & Ochsendorf Prototyping GbRwww.sbo-prototyping.de
2043D Module GmbH3d-module.de
205saarpri.comwww.saarpri.com
206Altair Engineering GmbHwww.altair.de
207HAMUEL Maschinenbau GmbH & Co. KGwww.hamuel.de
208ARBURG GmbH + Co. KGwww.arburg.com
209FIT AGfit.technology
210AMR UGwww.amresearch.de
211citim GmbHwww.citim.de
212Uwe Brickwww.burms.de
213Additive Works GmbHadditive.works
214Hasenauer & Hesser GmbHwww.hasenauer-hesser.de
215Hermle Maschinenbau GmbHwww.hermle-generativ-fertigen.de
216JOMATIK GmbHjomatik.de
217LIGHTWAY GmbH & Co. KGlightway-3d.de
218LMD GmbH & Co. KG aAwww.lmd-innovation.de
219Murtfeldt Kunststoffe GmbH & Co. KGwww.murtfeldt.de
220DREIGEIST GbRwww.dreigeist.com
221O.R. Lasertechnologie GmbHwww.or-laser.com
222NANOVAL GmbH & Co. KGwww.nanoval.de
223Proto Labs GmbHwww.protolabs.de
224RILE Management und Vertriebs GmbHwww.rile-group.com
225Schneider International Holding GmbHwww.si-smart.net
226H.C. Starck GmbHwww.hcstarck.com
227trinckle 3D GmbHwww.trinckle.com
228PROTIQ GmbHwww.protiq.com
229Schunk GmbHwww.schunk-carbontechnology.com
230Krause DiMaTec GmbHwww.krause-dimatec.de
231CAE Innovative Engineering GmbHwww.produktentwicklung.de
232RUHRSOURCE GmbHwww.ruhrsource.com
233enders Ingenieure GmbHenders-ing.de
234PONTIALIS GmbH & Co. KGwww.3dmensionals.de
235Uwe Könneker3d-solution-store.de
2363D-LABS GmbH3d-labs.de
237medacom GmbHwww.medacom.de
238Nanoscribe GmbHwww.nanoscribe.de
239NanoScale Systems, Nanoss GmbHnanoss.de
240TETRA Gesellschaft für Sensorik, Robotik und Automation mbHwww.tetra-ilmenau.de
241Print2Taste GmbHwww.Print2Taste.de
242BioInspiration GbRbioinspiration.eu
243Concept Laser GmbHwww.concept-laser.de
244TRUMPF GmbH + Co. KGwww.trumpf.com
2453D MicroPrint GmbH3dmicroprint.com
246rapid product manufacturing GmbHwww.rpm-factories.de
247PTZ-Prototypenzentrum GmbHwww.ptz-prototypen.de
248PTS Jena GmbHwww.pts-jena.de
249Präzisionsmodellbau Rudolf Heinrichwww.praezisionsmodellbau-heinrich.de
250prokon Engineering & Services GmbHwww.prokon.de
251PORTEC GmbHwww.portec-gmbh.de
252Stefan Pfaff—Werkzeug- und Formenbau GmbH & Co. KGwww.pfaff-mold.de
253nobitec Prototypen-Service GmbHwww.nobitec.de
254ModellTechnik Rapid Prototyping GmbHwww.modelltechnik.de
255Wehl & Partner Muster und Prototypen GmbHwww.wehl-partner.de
256Triyaz UGwww.triyaz.com
257StaeGi GmbHwww.staegi.de
258TEUFEL Prototypen GmbHwww.teufel-prototypen.de
259Schübel GmbH primepartswww.primeparts.de
260RPT Rapid Prototyping Technologie GmbHwww.rpt.de
261Hering & Schneider GmbHwww.hering-schneider.de
262Hördler rapid engineeringwww.hoerdler.de
263Leotech Rapid Prototyping und Werkzeugbau GmbHwww.leotech.de
264Josef Gördes oHGwww.modellbau-goerdes.de
265MegaPrototyping GmbH & Co. KGwww.megaprototypen.de
266LZN Laser Zentrum Nord GmbHwww.lzn-hamburg.de
267LaserTeck GmbHlaserteck.de
268LAC Laser Add Center GmbHwww.laser-add-center.de
269KHP-Prototypingkhp-prototyping.de
270KerCon GmbH & Co. KGwww.kercon.eu
271Robert Hofmann GmbHwww.hofmann-innovation.com
272FUNK MASCHINENBAUwww.funk-maschinenbau.de
273GRATZ Engineering GmbHwww.gratz.de
274FKT Formenbau und Kunststofftechnik GmbHwww.fkttriptis.de
275INDIA-DREUSICKE Berlinwww.freeformer.berlin
276CIPRES Technology Systemswww.cipres.de
277canto Ing. GmbHprototypen.de
278Bionic Production GmbHbionicproduction.com
279Bartz & Schalk GmbHwww.bartz-schalk.de
280apppex Product Development Prototypes Parts GmbHwww.apppex.com
2813D-Metall Theobald e.K.www.3d-metall-theobald.de
282igus GmbHwww.igus.de
2833D-PrintShopwww.3d-printshop.biz
284Hot-World GmbH & Co. KGrepetier.com

Share and Cite

MDPI and ACS Style

Baumann, F.W.; Roller, D. Overview of German Additive Manufacturing Companies. Data 2017, 2, 23. https://doi.org/10.3390/data2030023

AMA Style

Baumann FW, Roller D. Overview of German Additive Manufacturing Companies. Data. 2017; 2(3):23. https://doi.org/10.3390/data2030023

Chicago/Turabian Style

Baumann, Felix W., and Dieter Roller. 2017. "Overview of German Additive Manufacturing Companies" Data 2, no. 3: 23. https://doi.org/10.3390/data2030023

APA Style

Baumann, F. W., & Roller, D. (2017). Overview of German Additive Manufacturing Companies. Data, 2(3), 23. https://doi.org/10.3390/data2030023

Article Metrics

Back to TopTop
