Can Metarhizium anisopliae Reduce the Feeding of the Neotropical Brown Stink Bug, Euschistus heros (Fabricius, 1798), and Its Damage to Soybean Seeds?

by
André Cirilo de Sousa Almeida
1,*,
Mayara Alves Rodrigues
1,
Heloiza Alves Boaventura
2,
Angélica Siqueira Vieira
2,
José Francisco Arruda e Silva
2,
Flávio Gonçalves de Jesus
1 and
Eliane Dias Quintela
2,3
1
Instituto Federal Goiano—Campus Urutaí, Rodovia Professor Geraldo Silva Nascimento, Km 2,5, Urutaí 75790-000, GO, Brazil
2
Embrapa Arroz e Feijão, Rodovia GO-462, Km 12, Fazenda Capivara, Zona Rural, CP 179, Santo Antônio de Goiás 75375-000, GO, Brazil
3
Escola de Agronomia, Universidade Federal de Goiás, Goiânia 74690-900, GO, Brazil
*
Author to whom correspondence should be addressed.
J. Fungi 2025, 11(4), 247; https://doi.org/10.3390/jof11040247
Submission received: 27 December 2024 / Revised: 11 March 2025 / Accepted: 12 March 2025 / Published: 25 March 2025
(This article belongs to the Special Issue Fungi and Insect Interactions: Pathogenicity, Immune Defenses and Biocontrol)
Browse Figures
Versions Notes

Abstract

:
The fungus Metarhizium anisopliae is under development as a bioinsecticide for Euschistus heros. To further elucidate the effect of this fungus on E. heros behavior, we monitored the feeding activities of adults treated with the fungus at 1 × 108 conidia mL−1 on soybean in the pod-filling stage (R5) through electropenetrography (EPG) AC-DC. We also determined the virulence of M. anisopliae to adults and its damage to soybean seeds. M. anisopliae displayed high levels of virulence to adults even at low concentrations of 5 × 106 conidia mL−1 (98% mortality). E. heros females were more susceptible to M. anisopliae than males, exhibiting a lower LT50 for mycosed adults (7.1 and 9.7 days, respectively). The EPG experiment showed that fungus-treated adults spent significantly less time on probing activities (reduced by 86% at day four and ceased at day five) than untreated insects, and the number of waveform events per insect significantly decreased. This information is valuable for managing stink bugs at the field level, as it shows that even though the insect is alive, its feeding is compromised, consequently minimizing the damage inflicted to the crop. This study paves the way for further research employing entomopathogenic fungi in pest control.

1. Introduction

The Neotropical brown stink bug Euschistus heros (Fabricius, 1798) (Hemiptera: Pentatomidae) can seriously damage commodity crops, including soybean [Glycine max (L.) Merr.], corn (Zea mays L.), and cotton (Gossypium spp.) in Brazil [1,2]. This sucking species is also widely distributed in Argentina, Paraguay, and Uruguay [3,4].
On average, it develops from egg to adult in 25 to 32 days (5 to 7 days in the egg stage and 20 to 25 days in the nymphal stage), with the adult lifespan ranging from 75 to 116 days [5,6]. The Neotropical brown stink bug begins feeding from the second instar, and significant damage to soybean seeds occurs only after the third instar. The nymphal stages exhibit feeding behaviors similar to those of adult E. heros, but with some differences, particularly in the shorter duration of feeding activities compared to adults [7].
The stink bug initiates the colonization of soybean during the vegetative phase and is harmful in the reproductive phase as a pod feeder. Therefore, their feeding can directly affect yield and/or other grain-quality parameters during pod development and seed filling [1,5]. The damage results from their probing activities in soybean plants or pods when the stylet penetrates the plant tissues and injects saliva [8]. The digestive enzymes in their salivary secretions facilitate digestion, degrade tissues, and cause darkening. Feeding on pods and immature seeds can lead to malformation and abscission of pods and seeds, wrinkled or empty seeds, and darkening, with delayed maturation and reduced seed vigor [4]. In addition, the holes left by the stylets can facilitate infection by pathogenic microorganisms [9,10].
The most common method of controlling E. heros is application of synthetic insecticides [11]. The insecticides used to reduce stink bugs populations on soybean belong mostly to three chemical groups (neonicotinoids, organophosphates, and pyrethroids), which can be used alone or in formulated mixtures [12]. The limited number of available insecticides, combined with the frequent use of the same mode of action (often requiring 33–34 spray applications per season), has led to the selection of resistant strains [1,13,14,15,16]. Moreover, the overuse of synthetic insecticides can be detrimental to the environment, reducing natural biocontrol agents and pollinators [16,17].
Reducing synthetic chemical use in agriculture has become a global goal. Therefore, efficient and environmentally friendly multiple control strategies are needed [18,19]. Biological control [20] is a practical and ecologically friendly strategy for pest control. Entomopathogenic fungi, a proven biocontrol agent for managing stink bugs, can directly infect their host by contact through the integument, making them an important bioinsecticide for sap-sucking insects [21]. The research on stink bug management has mainly involved the fungus Metarhizium anisopliae (Metsch.) Sorok. (Hypocreales: Clavicipitaceae) [21,22,23].
The isolate BRM 2335 of M. anisopliae selected for this study has already been shown to be highly virulent against several key stink bug pests [21,23] and is under development as a mycoinsecticide for E. heros. Although the mode of action, virulence, and efficiency of M. anisopliae in managing E. heros have been studied, the probing behavior of this stink bug after infection with entomopathogenic fungi has yet to be elucidated.
The electropenetrography (EPG) technique is used to observe and quantify feeding behaviors otherwise hidden in the opaque food substrate [24]. EPG is an accurate and comprehensive method to evaluate the probing behavior of hemipterans [25,26] and has been employed to evaluate the probing behavior of E. heros [8,27]. This technique operates using an electrical circuit connecting the sucking insect to its host plant. The low electrical current flowing through the system generates waveforms that represent different probing activities (stylet penetration, salivation, and ingestion), non-probing activities, and the insect standing still or walking on the plant surface [25,26,27,28].
As fungal infection can influence host behavior [22], this technique could improve understanding of the probing behavior of piercing–sucking insects infected by an entomopathogenic fungus. The fungi take a considerable amount of time to kill their hosts—typically ranging from 2 to 10 days—depending on factors such as inoculum concentration, host species, and age. This slow process is adaptive for the pathogen, as it allows ample time to maximize nutrient extraction from the host [27]. Therefore, the probing behavior, as well as when feeding is ceased after infection, are important information for managing stink bugs, as disruptions in stylet activities can reduce the damage to productive structures of the plants. Recently, Maluta et al. [29] reported a significant disruption of the probing activities of Dalbulus maidis (DeLong & Wolcott) (Hemiptera: Cicadellidae) on corn after spraying Cordyceps javanica (Frieder. & Bally) (Hypocreales: Cordycipitaceae). The stylet activities were altered within 30 h, and these changes lasted until about 96 h.
The probing behavior of E. heros after entomopathogenic fungus application is not known. This pioneering study aimed to (1) determine the virulence of different M. anisopliae conidia concentrations to E. heros adults; (2) monitor the probing behavior of infected E. heros adults during the soybean pod-filling stage (R5) through EPG AC-DC; and (3) determine the damage to soybean pods caused by E. heros.

2. Materials and Methods

2.1. Stink Bug Rearing

Adult E. heros were collected from a soybean field at Embrapa Rice and Beans (Santo Antônio de Goiás, GO, Brazil), (16°28′00″ S, 49°17′00″ W; 823 m.a.s.l), taken to the Laboratory of Entomology, and placed in a plastic box (25 × 17 × 17 cm) lined with moistened filter paper (T 25 ± 2 °C, RH 70 ± 10%, 14-h photoperiod). Fresh green bean pods (Phaseolus vulgaris L.), okra fruits (Abelmoschus esculentus L.), mature soybean seeds (Glycine max L.), and raw shelled peanuts (Arachis hypogaea L.) were provided as food source according to Silva et al. [30].

2.2. Fungal Strain and Preparations

The M. anisopliae BRM 2335 was obtained from infected adult Tibraca limbativentris Stål (Hemiptera: Pentatomidae) collected from rice in a screenhouse at Embrapa Rice and Beans in 1985. The BRM 2335 isolate was identified through the sequence analysis of the elongation factor 1-alpha gene, following the protocol described in Bischoff et al. [31]. The isolate was preserved at −80 °C in the Invertebrate Fungal Collection at Embrapa Genetic Resources and Biotechnology, Brasília, DF, Brazil.
Conidia were grown on parboiled rice for 7–10 days, according to Mascarin and Quintela [32]. The conidial suspension was prepared by washing the colonized rice grains in 10 mL of sterile aqueous solution of 0.01% (v/v) Tween 80, using 50 mL plastic centrifuge tubes. The suspension was vigorously agitated on a vortex mixer for 1 min and filtered through two layers of 30 μm pore-sized nylon cheesecloth. The filtered suspension (10 mL) was vortexed again for 1 min before application, and conidial concentrations were enumerated by hemocytometer (Brightline Improved Neubauer, New Optik®, São Paulo, SP, Brazil) at 400× magnification. Conidial germination exceeded 98% on potato dextrose agar (PDA) after 18 h at 26 °C. Only conidia with germ tubes greater than conidial diameter were considered germinated.

2.3. Virulence of M. anisopliae to Adult E. heros

The fungus was tested using a control (sterile aqueous solution of 0.01% (v/v) Tween 80), as well as concentrations of 5.0 × 106, 1.0 × 107, 5.0 × 107, and 1.0 × 108 conidia mL−1. Carbon dioxide gas (CO2) was used to anesthetize adults for 15 s before fungal spraying. One milliliter of the fungal suspension was applied to 10 insects placed together in a single 60 mm Petri dish in a Potter tower calibrated at 20 psi of working pressure. After spraying, adults were kept in Gerbox-type boxes (110 × 110 × 35 mm) lined with moistened filter paper and two green bean pods. The pods were previously surface-sterilized with a sterile aqueous solution of 5% (v/v) sodium hypochlorite (2.5% NaClO) for 15 min and rinsed twice with distilled water. Assessments of live and dead insects were performed daily for 12 days. To confirm mortality resulting from fungal infection (cadavers with fungal sporulation), dead adults were transferred to Petri dishes (60 mm) with a wet cotton and maintained at room temperature. Insects were considered infected by the fungus when mycelial and conidial growth was observed on the insect cadaver.
The experiments were conducted in a completely randomized design with five replicates, each consisting of 10 insects, totaling 50 per treatment. The experiment was repeated three times. The experiments were maintained at room temperature and with a 14 h photoperiod. The temperature and relative humidity in the laboratory were monitored at 1 h intervals by two dataloggers (Hobo® U12-012, Onset Computer Corp., Ltd., Bourne, MA, USA). Small variations were observed for the datalogger measurements, with an average of 25 ± 2 °C and 57 ± 15% RH.

2.4. Damage of E. heros Adults Treated with M. anisopliae on Soybean Seeds

Groups of five females or males of E. heros aged 4 to 6 days were sprayed with M. anisopliae at 1 × 108 conidia mL−1 in a Potter Tower, similarly to the methodology described above. The control groups were sprayed with a sterile aqueous solution containing 0.01% (v/v) Tween 80. After spraying, each insect was transferred to a Petri dish (60 × 15 mm) with moistened filter paper and a soybean pod containing two seeds. Mortality was assessed daily for 11 days, and dead insects were transferred to Petri dishes with a wet cotton to confirm fungal infection. At 2, 4, 7, 9, and 11 days after spraying, the pod of each repetition was replaced and transferred to paper bags to dry for 7 days at room temperature. After drying, the number of feeding punctures and the damage in soybean seeds were determined by tetrazolium test, according to the methodology described in França-Neto et al. [33]. The experimental design was randomized blocks, with 15 treated males or females and untreated (control). The experiment was repeated three times.

2.5. Electropenetrography Studies

Soybean BRS 7470 IPRO seeds were sown weekly in soil (5 L plastic pots) and kept in a greenhouse (T 32 ± 10 °C, RH 60 ± 20%, 12 h photoperiod). After reaching the R5 stage (pod filling), stems containing pods were collected (the entire plants were too large for the Faraday cages) with a razor and placed into a small pot (0.2 L) filled with substrate [1:1–1 soil (red dystrophic oxisol), 1 sand]. The plant electrode was introduced into the substrate.
EPG data were collected using a four-channel AC/DC monitor [23] (EPG Technologies, Inc., Gainesville, FL, USA), which was connected to a computer. The recordings were made using an input impedance of 107 Ohms for each of the four channels, a voltage of 50 mV alternating current (AC) via the plant electrode, and a gain set to 400× (actual gain 400 with 1× multiplier) [34]. An offset control was used to avoid rectifier fold-over and retain native waveform polarity after rectification [24]. Voltage outputs were amplified and captured at a rate of 100 Hz per channel using WinDaq DI-710 equipment (Dataq Instruments, Akron, OH, USA) and recorded on a computer with WinDaq Lite software version 3.11 (Dataq Instruments, Akron, OH, USA). The amplifiers, plants, and insects were kept inside a Faraday cage during the recordings to reduce external electrical noise.
Adults were treated with a concentration of 1 × 108 conidia mL−1, and the control group with 0.01% v/v Tween 80, as described above. Afterward, the insects were kept in the Petri dish with two green bean pods for 48 h. Then, the insects were fasted for 5 h (without water or food) before being submitted to EPG recordings. Adhesive tape was employed to immobilize adults in a Petri dish, and dental sandpaper was used to remove the lipid layer of the insect pronotum [35]. The insects were wired by gluing one end of a gold wire (0.127 mm in diameter and 3.5 cm in length) (Sigma Aldrich, Barueri, SP, Brazil) to a copper wire (3 cm in length) soldered to a brass nail. A small loop was made at the other end of the gold wire to increase the contact area with the insect and improve electrical conductivity [36]. The gold wire was attached to the surface of the insect using a silver glue made with silver flake (Sigma Aldrich, St. Louis, MO, USA), water, and white glue (Cascorez, Jundiai, SP, Brazil) (1:1:1 wt/vol/vol) [36]. The glue dried for approximately 40 min before recording. Each stink bug was placed on a soybean pod inside the Faraday cage (as described above) and EPG-recorded for 72 h under laboratory conditions (25 ± 2 °C) and constant light [37]. Twenty adults were successfully recorded per treatment in a completely randomized design.
Waveforms were identified and named according to the nomenclature proposed by Lucini and Panizzi [6], who characterized an EPG waveform library produced by E. heros adult females feeding on soybean pods. The recorded waves and their biological significance are presented in Table 1. Six behaviors represented by waveforms were assessed using the variables non-probing, pathway, xylem ingestion, cell rupture, short ingestion of macerated tissues, and probable phloem sap ingestion. The five variables evaluated were waveform duration per insect (WDI), number of waveform events per insect (NWEI), waveform duration per event per insect (WDEI), percentage of recording time spent in probing (PRTP) [37,38,39,40], and final time at the last probe (FTLP).

2.6. Statistical Analysis

The virulence of Metarhizium was expressed and compared for percent of mortality, cadavers with fungal sporulation (% mycosis), and mean lethal time (LT50). Overall mortality and confirmed mortality curves were adjusted according to non-linear models and compared using the Chi-Square test (p < 0.05). To estimate the LT50, Gompertz and Weibull non-linear models were fitted, and values were compared by the overlap of their 95% confidence intervals (95% CI) using the Package ‘drc’ version 3.0-1 [41] in statistical software R version 4.2.2 (R Core Team 2023, available at https://www.r-project.org/ (accessed on 11 November 2024.)). Data on feeding punctures were analyzed using the Student’s t-test to identify statistically significant differences between groups (p < 0.05).
The EPG data were entered in INFEST–Insect Feeding Behavior Statistics software (available at https://arsilva.shinyapps.io/infest/ (accessed on 20 July 2024.)), which provided spreadsheets. Next, a generalized linear model (GLM) for Poisson fitted to the count data (NWEI) and GLM for Gamma were fitted for the duration variables (WDI, WDEI, PRTP, and FTLP). Differences were considered significant at α = 0.05. All analyses were performed in INFEST.

3. Results

3.1. Virulence of M. anisopliae to Adult E. heros

The four concentrations of M. anisopliae BRM 2335 caused overall and confirmed mortalities (cadavers with fungal sporulation) of adults that were statistically different from the control (Figure 1A,B; Table 2). At the lowest concentration (5 × 106 conidia mL−1), adult mortalities were similar to those of the other concentrations (Figure 1A,B; Table 2). The fungus at 1 × 108 conidia mL−1 killed more adults only when compared with 1 × 107 conidia mL−1. Cadavers with fungal sporulation at 1 × 108 conidia mL−1 were significantly higher in number than those at 1 × 107 and 5 × 107 conidia mL−1. The median lethal times (LT50) ranged from 5.8 to 7.6 days for all concentrations, and no differences were observed among them (Table 3).

3.2. Damage of E. heros Adults Treated with M. anisopliae on Soybean Seeds

Female adult cadavers with fungal sporulation (mycosis) were significantly higher in number than those of males at 11 days after spraying (p < 0.001) (Figure 2). No infected adults were observed in the controls, and the counts differed between male and female groups (p = 0.005, p < 0.0001, respectively) (Figure 2). The LT50 was lower for females (7.1 days) than for males (9.7 days) (Table 4).
The number of feeding punctures by E. heros females treated with M. anisopliae was significantly reduced compared to untreated females (t = 2.28, p = 0.03) at 11 days after spraying (Figure 3). However, the number of feeding punctures was similar for treated and untreated males (t = 1.25, p = 0.22) (Figure 3).

3.3. Electropenetrography

Metarhizium anisopliae influenced the probing behavior of E. heros adults on soybean pods. The NWEI was significantly reduced on treated stink bugs compared to control (Table 5). We found that E. heros treated with M. anisopliae spent significantly less time on probing activity. The WDI was shorter in xylem ingestion (waveform Eh2), laceration and maceration of endosperm (CLE–waveform Eh3a), and the short periods of ingestion of macerated tissues of endosperm (SIE–waveform Eh3b). Overall, non-probing duration (Z-Np waveform) was significantly longer in treated than in control insects.
The durations of waveform events per insect (WDEI) (Table 6) were reduced for adults infected with M. anisopliae. This was pronounced in non-probing (Z-Np), laceration and maceration of endosperm (CLE–waveform Eh3a), and the short periods of ingestion of macerated tissues of endosperm (SIE–waveform Eh3b). Thus, E. heros performed longer Z-Np, CLE, and SIE in control compared to treated insects. The PRTP was also influenced by M. anisopliae. The control spent more time on non-probing activities. On the other hand, the recording times in probing activities (Eh2, Eh3a, Eh3b waveforms) were lower in control compared with treated stink bugs.
Insects treated with M. anisopliae showed a reduction in WDI in probing activities (Eh1, Eh2, Eh3a, Eh3b, Eh4 waveforms) (86%) (F = 24.43, p < 0.001) at 48 h and (98%) (F = 10.68, p < 0.001) at 72 h after recording started (Figure 4).
There was a 45% reduction in the FTLP of treated stink bug adults compared to the control (Figure 5). In E. heros treated with M. anisopliae, the FTLP was 31.1 h, while in the control insects, the final time was 55.1 h (F = 18.35, p < 0.001).

4. Discussion

Among all stink bug species that damage soybean, the Neotropical brown stink bug E. heros is considered the most relevant pest species in all Brazil production regions [1,5], and this species is the main target of insecticide applications [42]. A soybean area of approximately 135 million ha was treated with chemical insecticides for stink bug control in the 2023/24 season [43]. Despite the large treated area, control failures or low control efficiencies have become more common [42,43,44].
The search for sustainable strategies to manage stink bug is underway with biologicals because they are host and prey of several natural enemies [1]. The most abundant egg parasitoid in soybean, Telenomus podisi Ashmead, 1893 (Hymenoptera, Platygastridae) is the species most commonly associated with E. heros in Brazil [45]. Ten commercial products containing T. podisi are available in Brazil for E. heros management [12]. Management strategies that favor the beneficial potential of parasitism must be adopted to allow more efficient natural and applied biological control. Entomopathogenic fungi, such as M. anisopliae, can be used to complement the egg parasitoid T. podisi [46].
Stink bugs, including E. heros, are notoriously difficult to control with entomopathogenic fungi due to the deployment of biochemical barriers, such as aldehyde production, that are quite efficient [47,48,49,50]. Despite the biochemical defenses against fungal infections, the BRM 2335 isolate of M. anisopliae showed high virulence against several stink bug species (Hemiptera: Pentatomidae), E. heros, Oebalus poecilus (Dallas, 1851), Oebalus ypsilongriseus (De Geer, 1773) (Hemiptera: Pentatomidae), Thyanta perditor (Fabricius, 1794) (Hemiptera: Pentatomidae), and Tibraca limbativentris, when compared to other M. anisopliae isolates, as well as Beauveria bassiana (Bals.) Vuill. and Cordyceps javanica (Hypocreales: Cordycipitaceae) [23,51]. This is supported by several studies showing that variation in host susceptibility to fungal infections depends on both species and genetic variability among isolates [52,53,54,55]
Confirming the findings of previous research, the BRM 2335 isolate of M. anisopliae tested in our study also displayed high levels of virulence to E. heros adults even at low concentrations of 5 × 106 conidia mL−1 (98% adult mortality after 10 days). This isolate was also tested for E. heros under laboratory, screenhouse, and field conditions [23,56]. A limitation of Metarhizium for E. heros control is that it requires a long time to kill this pod feeder. The LT50 for the isolate BRM 2335 tested at 1 × 108 conidia mL−1 (the concentration used in the EPG experiment) was 5.8 days. Despite the longer time to kill the host, the EPG experiment showed that adults treated with M. anisopliae spent significantly less time on probing activities than untreated insects. Furthermore, the NWEI was significantly reduced for feeding activities. Probing activities by infected adults were reduced by 86% on day 4 and ceased on day 5 (98%). EPG is an accurate method to evaluate the probing behavior of hemipterans that feed on the host’s opaque tissue [25,26]. This tool may also be useful in the applied field of stink bug management, such as to evaluate the action of insecticides affecting their feeding and survivorship [27].
Our results showed that female E. heros were more susceptible to M. anisopliae than males, exhibiting a lower LT50 (7.1 versus 9.7 days, respectively). This may be attributed to the fecundity of females, which drains their energy and nutrients [57]. Studies also showed that female stink bug adults accumulate more lipids than male adults, indicating higher metabolic demands and possibly longer feeding times [58,59]. This behavior explains why EPG experiments are mostly being conducted with female stink bugs. Nevertheless, additional studies are required to elucidate the physiological mechanisms underlying the susceptibility of female E. heros to fungal infection.
In our study, M. anisopliae reduced female feeding on soybean seeds, resulting in fewer punctures compared to the untreated control. These results confirmed that fungal infection can influence the damage caused by stink bugs in soybean seeds. In addition to the reduction in probing, upon penetration into the host hemocoel, Metarhizium fungal cells absorb nutrients and destroy host cells [60]. The fungus also secretes toxic compounds known as secondary metabolites [61]. These substances can facilitate fungal invasion [62,63] or act as immunosuppressants, compounds that resist the host’s defense [64].
Several studies have proven that Metarhizium can efficiently kill these insects [28]; however, little information is available about what happens to the probing behavior from the time of insect infection until death. Chen et al. [65] showed that infection by the fungus Pandora neoaphidis (Entomophthoromycotina: Entomophthorales) decreased stylet pathway activity and increased the time spent in non-probing activities compared with uninfected aphids. The corn leafhopper, Dalbulus maidis, treated with the fungus Cordyceps javanica, also exhibited disruption of the stylet activities in phloem and non-phloem phases 48 h after spraying [29].
Stink bugs treated with M. anisopliae showed a reduction (45%) in the FTLP compared with non-treated insects, i.e., treated stink bugs stopped their feeding activities earlier. This information is valuable for managing stink bugs at the field level, as it shows that even though the insect is still alive, its feeding is compromised, and consequently, the damage caused to the crop is reduced. Therefore, the slower lethal effect of the entomopathogenic fungus compared to synthetic insecticides can be minimized by changing the probing behavior of the insect treated with M. anisopliae. Despite the reduced time spent on probing activities by treated Metarhizium adults, the insect can still damage soybean seeds. One strategy to reduce the time to kill the host is mixing the entomopathogenic fungi with chemical insecticides. Sublethal or full concentrations of an insecticide can be mixed with Metarhizium to avoid damage to soybean by stink bugs. This strategy has proven to enhance the efficiency of entomopathogenic fungi for the control of several insect pests, in addition to reducing the selection of insects resistant to chemical insecticides [66,67,68]. Currently, this strategy (chemical + EPF) has been widely used by Brazilian producers to manage pests that are difficult to control, such as the corn leafhopper (D. maidis) and the whitefly Bemisia tabaci (Gennadius) (Hemiptera: Aleyrodidae) [69,70]. The quick action of the chemical insecticide combined with the long-lasting action of the fungi enhances the control efficiency, resulting in fewer field spraying applications [69]. Important aspects such as the compatibility between each species of fungus and the concentration of the synthetic insecticides must be taken into account.

5. Conclusions

In conclusion, our studies showed that Neotropical brown stink bug treated with M. anisopliae reduced its feeding activities by 86% at 4 days and ceased at 5 days after spraying; consequently, its damage to soybean seeds was reduced. EPG is a promising technique to evaluate the feeding behavior of stink bugs treated with entomopathogenic fungi. To further support the findings of our research, studies are underway to address the following questions: Can other fungal species and M. anisopliae isolates perform similarly to the highly adapted BRM 2335 isolate in reducing feeding and damage to soybean seeds by stink bugs? How do different concentrations of BRM 2335 affect the feeding activities of E. heros? Furthermore, this study paves the way for the further use of entomopathogenic fungi for pest control.

Author Contributions

Conceived and designed the experiments: A.C.d.S.A., E.D.Q., F.G.d.J. and H.A.B. Performed the experiments: M.A.R., A.S.V. and H.A.B. Analyzed the data: A.C.d.S.A. and J.F.A.e.S. Wrote the paper: A.C.d.S.A., E.D.Q., M.A.R., H.A.B., A.S.V. and F.G.d.J. All authors have read and agreed to the published version of the manuscript.

Funding

This work was made possible through financial support from the: FAPED/EMBRAPA/TED grant n° SEG 20.23.10.002.00.00, under the project “Generation of biological inputs and study of the bio-inputs production chain as strategies for the sustainable development of agriculture in Goiás”, and Centro de Excelência em Bioinsumos (CEBIO) and Fundação de Amparo a Pesquisa de Goiás, grant n° FAPEG 202117647003995.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article, further inquiries can be directed to the corresponding author.

Conflicts of Interest

Author Heloiza Alves Boaventura, Angélica Siqueira Vieira, José Francisco Arruda e Silva and Eliane Dias Quintela were employed by the company Embrapa Arroz e Feijão. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Sosa-Gómez, D.R.; Corrêa-Ferreira, B.S.; Kraemer, B.; Pasini, A.; Husch, P.E.; Delfino Vieira, C.E.; Martinez, C.B.R.; Negrao Lopes, I.O. Prevalence, damage, management and insecticide resistance of stink bug populations (Hemiptera: Pentatomidae) in commodity crops. Agric. For. Entomol. 2020, 22, 99–118. [Google Scholar] [CrossRef]
  2. Hickmann, F.; Cordeiro, E.M.G.; Aurélio, M.S.L.; Saldanha, A.V.; Corrêa, A.S. Host preference and survivorship of Euschistus heros strains on cotton and soybean. Entomol. Exp. Appl. 2023, 171, 564–571. [Google Scholar] [CrossRef]
  3. Saluso, A.; Xavier, L.; Silva, F.A.C.; Panizzi, A.R. An invasive pentatomid pest in Argentina: Neotropical brown stink bug, Euschistus heros (F.) (Hemiptera: Pentatomidae). Neotrop. Entomol. 2011, 40, 704–705. [Google Scholar] [PubMed]
  4. Panizzi, A.R. Growing problems with stink bugs (Hemiptera: Heteroptera: Pentatomidae): Species invasive to the US and potential Neotropical invaders. Am. Entomol. 2015, 61, 223–233. [Google Scholar] [CrossRef]
  5. Panizzi, A.R.; de Freitas Bueno, A.; Silva, F.A.C. Insetos que atacam vagens e grãos. In Soja: Manejo Integrado de Insetos e Outros Artrópodes-Praga; Hoffmann-Campo, C.B., Corrêa-Ferreira, B.S., Moscardi, F., Eds.; Embrapa: Londrina, Brazil, 2012; pp. 335–420. [Google Scholar]
  6. Costa, M.L.; Borges, M.; Vilela, E.F. Biologia reprodutivade Euschistus heros (F.) (Heteroptera: Pentatomidae). An. Soc. Entomol. Bras. 1998, 27, 559–568. [Google Scholar] [CrossRef]
  7. Lucini, T.; Panizzi, A.R. Electropenetrography monitoring of the neotropical brown-stink bug (Hemiptera: Pentatomidae) on soybean pods: An Electrical Penetration Graph-histology analysis. J. Insect Sci. 2018, 18, 5. [Google Scholar] [CrossRef]
  8. Lucini, T.; Panizzi, A.R.; Semeão, A.A. Electropenetrography study of Euschistus heros (F.) (Heteroptera: Pentatomidae) nymphs feeding at different sites of the soybean pod. Environ. Entomol. 2023, 52, 546–554. [Google Scholar] [CrossRef]
  9. Silva, F.A.C.; da Silva, J.J.; Depieri, R.A.; Panizzi, A.R. Feeding activity, salivary amylase activity, and superficial damage to soybean seed by adult Edessa meditabunda (F.) and Euschistus heros (F.) (Hemiptera: Pentatomidae). Neotrop. Entomol. 2012, 41, 386–390. [Google Scholar] [CrossRef]
  10. Tessmer, M.A.; Kuhn, T.M.A.; Appezzato-da-Gloria, B.; Lopes, J.R.S.; Erler, G.; Bonani, J.P. Histology of damage caused by Euschistus heros (F.) nymphs in soybean pods and seeds. Neotrop. Entomol. 2022, 52, 112–121. [Google Scholar] [CrossRef]
  11. Ecco, M.; Borella Junior, C.; Miranda, D.S.; Araújo, M.S.; Almeida, A.C.d.S.; Jesus, F.G. Stink bug control at different stages of soybean development. Arq. Inst. Biol. 2020, 87, e1132018. [Google Scholar] [CrossRef]
  12. AGROFIT. Sistema de Agrotóxicos Fitossanitários. Available online: http://agrofit.agricultura.gov.br/agrofit_cons/principal_agrofit_cons/ (accessed on 2 June 2024).
  13. Guedes, R.N.C. Insecticide resistance, control failure likelihood and the First Law of Geography. Pest Manag. Sci. 2017, 73, 479–484. [Google Scholar] [CrossRef] [PubMed]
  14. Tuelher, E.; Silva, E.H.; Rodrigues, H.S.; Hirose, E.; Guedes, R.N.C.; Oliveira, E.E. Area-wide spatial survey of the likelihood of insecticide control failure in the neotropical brown stink bug Euschistus heros. J. Pest Sci. 2017, 91, 849–859. [Google Scholar] [CrossRef]
  15. Tibola, C.M.; Silva, L.; Sgubin, F.; Omoto, C. Monitoring resistance of Euschistus heros (Fabricius) (Hemiptera: Pentatomidae) to insecticides by using encapsulated artificial diet bioassay. Insects 2021, 12, 599. [Google Scholar] [CrossRef]
  16. Woodcock, B.A.; Bullock, J.M.; Shore, R.F.; Heard, M.S.; Pereira, M.G.; Redhead, J.; Ridding, L.; Dean, H.; Sleep, D.; Henrys, P.; et al. Country-specific effects of neonicotinoid pesticides on honey bees and wild bees. Science 2017, 356, 1393–1395. [Google Scholar] [CrossRef]
  17. Torres, J.B.; Bueno, A.F. Conservation biological control using selective insecticides: A valuable tool for IPM. Biol. Control 2018, 126, 53–64. [Google Scholar] [CrossRef]
  18. Lee, R.; den Uyl, R.; Runhaar, H. Assessment of policy instruments for pesticide use reduction in Europe; learning from a systematic literature review. Crop Prot. 2019, 126, 104929. [Google Scholar] [CrossRef]
  19. Maciel, R.M.A.; Bueno, A.F. The Role of Integrated Pest Management for Sustainable Food Production: The Soybean Example. In Biodiversity, Functional Ecosystems and Sustainable Food Production; Galanakis, C.M., Ed.; Springer Nature: Cham, Switzerland, 2022; pp. 117–139. [Google Scholar]
  20. van Lenteren, J.C.; Bolckmans, K.; Köhl, J.; Ravensberg, W.J.; Urbaneja, A. Biological control using invertebrates and microorganisms: Plenty of new opportunities. BioControl 2018, 63, 39–59. [Google Scholar] [CrossRef]
  21. Quintela, E.D.; Mascarin, G.M.; Silva, R.A.; Barrigossi, J.A.F.; Martins, J.F.S. Enhanced susceptibility of Tibraca limbativentris (Heteroptera: Pentatomidae) to Metarhizium anisopliae with sublethal doses of chemical insecticides. Biol. Control 2013, 66, 56–64. [Google Scholar] [CrossRef]
  22. Boaventura, H.B.; Quintela, E.D. The multifunctionality of the fungus Metarhizium spp. and its use in Brazilian agriculture. Bragantia 2025, in press. [Google Scholar]
  23. Sousa, L.M.; Quintela, E.D.; Boaventura, H.A.; Silva, J.F.A.; Tripode, B.M.D.; Miranda, J.E. Selection of entomopathogenic fungi to control stink bugs and cotton boll weevil. Pesqui. Agropecu. Trop. 2023, 53, e76316. [Google Scholar] [CrossRef]
  24. Backus, E.A.; Bennett, W.H. The AC–DC Correlation Monitor: New EPG design with flexible input resistors to detect both R and emf components for any piercing-sucking hemipteran. J. Insect Physiol. 2009, 55, 869–884. [Google Scholar] [CrossRef] [PubMed]
  25. Walker, G.P. A beginner’s guide to electronic monitoring of homopteran probing behavior. In Principles and Applications of Electronic Monitoring and Other Techniques in the Study of Homopteran Feeding Behavior; Walker, G.P., Backus, E.A., Eds.; Entomological Society of America: Lanham, MD, USA, 2000; pp. 14–40. [Google Scholar]
  26. Lucini, T.; Panizzi, A.R. Behavioral comparisons of ingestion and excretion by selected species of pentatomids: Evidence of feeding on different food sources supports pest status. Neotrop. Entomol. 2017, 46, 361–367. [Google Scholar] [CrossRef] [PubMed]
  27. Lucini, T.; Panizzi, A.R. Electropenetrography (EPG): A breakthrough tool unveiling stink bug (Pentatomidae) feeding on plants. Neotrop. Entomol. 2018, 47, 6–18. [Google Scholar] [CrossRef] [PubMed]
  28. Tjallingii, W.F. Electronic recording of penetration behaviour by aphids. Entomol. Exp. Appl. 1978, 24, 721–730. [Google Scholar] [CrossRef]
  29. Maluta, N.; Castro, T.; Spotti Lopes, J.R. DC-electrical penetration graph waveforms for Dalbulus maidis (Hemiptera: Cicadellidae) and the effects of entomopathogenic fungi on its probing behavior. Sci. Rep. 2023, 13, 22033. [Google Scholar] [CrossRef]
  30. Silva, C.C.; Laumann, R.A.; Blassioli, M.C.; Pareja, M.; Borges, M. Euschistus heros mass rearing technique for the multiplication of Telenomus podisi. Pesqui. Agropecuária Bras. 2008, 43, 575–580. [Google Scholar] [CrossRef]
  31. Bischoff, J.F.; Rehner, S.A.; Humber, R.A. A multilocus phylogeny of the Metarhizium anisopliae lineage. Mycologia 2009, 101, 508–528. [Google Scholar] [CrossRef]
  32. Mascarin, G.M.; Quintela, E.D. Técnica de produção do fungo entomopatogênico Metarhizium anisopliae para uso em controle biológico. In Embrapa Arroz e Feijão-Documentos (INFOTECA-E); Embrapa: Brasília, Brazil, 2013; Available online: https://www.embrapa.br/busca-de-publicacoes/-/publicacao/968726/tecnica-de-producao-do-fungo-entomopatogenico-metarhizium-anisopliae-para-uso-em-controle-biologico (accessed on 17 November 2024).
  33. França-Neto, J.B.; Krzyzanowski, F.C.; Costa, N.P. O Teste de Tetrazólio em Sementes de Soja; Embrapa Soja: Brasília, Brazil, 1998; Available online: https://www.embrapa.br/busca-de-publicacoes/-/publicacao/461306/o-teste-de-tetrazolio-em-sementes-de-soja (accessed on 17 November 2024).
  34. Almeida, A.C.d.S.; de Jesus, F.G.; Barrigossi, J.A.F. Unveiling the feeding behavior of Tibraca limbativentris (Hemiptera: Pentatomidae) on rice using an electropenetrography waveform library. J. Insect Sci. 2020, 20, 14. [Google Scholar] [CrossRef]
  35. Lucini, T.; Panizzi, A.R. Waveform characterization of the soybean stem feeder Edessa meditabunda (F.) (Hemiptera: Heteroptera: Pentatomidae): Overcoming the challenge of wiring pentatomids for EPG. Entomol. Exp. Appl. 2016, 158, 118–132. [Google Scholar] [CrossRef]
  36. Cervantes, F.A.; Backus, E.A.; Perring, T.M. EPG waveform library for Graphocephala atropunctata (Hemiptera: Cicadellidae): Effect of adhesive, input resistor, and voltage levels on waveform appearance and probing behaviors. J. Insect Physiol. 2018, 109, 21–40. [Google Scholar] [CrossRef]
  37. Backus, E.A.; Cline, A.R.; Ellerseick, M.R.; Serrano, M.S. Lygus hesperus (Hemiptera: Miridae) feeding on cotton: New methods and parameters for analysis of nonsequential electrical penetration graph data. Ann. Entomol. Soc. Am. 2007, 100, 296–310. [Google Scholar] [CrossRef]
  38. Sarria, E.; Cid, M.; Garzo, E.; Fereres, A. Excel workbook for automatic parameter calculation of EPG data. Comput. Electron. Agric. 2009, 67, 35–42. [Google Scholar] [CrossRef]
  39. Ebert, T.A.; Backus, E.A.; Cid, M.; Fereres, A.; Rogers, M.E. A new SAS program for behavioral analysis of electrical penetration graph data. Comput. Electron. Agric. 2015, 116, 80–87. [Google Scholar] [CrossRef]
  40. Cervantes, F.A.; Backus, E.A.; Godfray, L.; Akbar, W.; Clark, T.L. Characterization of an EPG waveform library for adult Lygus lineolaris and Lygus hesperus (Hemiptera: Miridae) feeding on cotton squares. Ann. Entomol. Soc. Am. 2016, 109, 684–697. [Google Scholar] [CrossRef]
  41. Gottschalk, P.G.; Dunn, J.R. Measuring parallelism, linearity, and relative potency in bioassay and immunoassay data. J. Biopharm. Stat. 2005, 15, 437–463. [Google Scholar] [CrossRef]
  42. Sosa-Gómez, D.R.; Silva, J.J.d. Neotropical brown stink bug (Euschistus heros) resistance to methamidophos in Paraná, Brazil. Pesqui. Agropecu. Bras. 2010, 45, 767–769. [Google Scholar] [CrossRef]
  43. Kynetec. Available online: https://www.kynetec.com/agriculture (accessed on 20 December 2024).
  44. Roggia, S.; Utiamada, C.M.; Hirose, E.; Stoetzer, A.; Avila, C.J.; Kischel, E.; Marzarotto, F.O.; Tomquelski, G.V.; Guedes, J.V.C.; Arnemann, J.A.; et al. Eficiência de inseticidas no controle do percevejo-marrom (Euschistus heros) em soja, na safra 2013/14: Resultados sumarizados de ensaios cooperativos. Rev. Bras. Entomol. 2018, 62, 45–58. [Google Scholar]
  45. Pacheco, D.J.P.; Corrêa-Ferreira, B.S. Parasitismo de Telenomus podisi Ashmead (Hymenoptera: Scelionidae) em populações de percevejos pragas da soja. An. Soc. Entomol. Bras. 2000, 29, 295–302. [Google Scholar] [CrossRef]
  46. Battisti, L.; Warmling, J.V.; de Freitas Vieira, C.; de Oliveira, D.H.R.; de Lima, Y.R.A.; de Freitas Bueno, A.; Lozano, E.R. Seletividade de Metarhizium anisopliae e Beauveria bassiana para adultos de Telenomus podisi (Hymenoptera: Scelionidae). Semina Ciênc. Agrar. 2022, 43, 727–738. [Google Scholar] [CrossRef]
  47. Sosa-Gómez, D.R.; Boucias, D.G.; Nation, J.L. Attachment of Metarhizium anisopliae to the southern green stink bug Nezara viridula cuticle and fungistatic effect of cuticular lipids and aldehydes. J. Invertebr. Pathol. 1997, 69, 31–39. [Google Scholar] [CrossRef]
  48. Sosa-Gómez, D.R.; Moscardi, F. Laboratory and f ield studies on the infection of stink bugs, Nezara viridula, Piezodorus guildinii and Euschistus heros (Hemiptera: Pentatomidae) with Metarhizium anisopliae and Beauveria bassiana in Brazil. J. Invertebr. Pathol. 1998, 71, 115–120. [Google Scholar] [CrossRef] [PubMed]
  49. Pike, T.J. Interactions Between the Invasive Brown Marmorated Stink Bug, Halyomorpha halys (Hemiptera: Pentatomidae), and Entomopathogenic fungi. Master’s Dissertation, University of Maryland: College Park, MD, USA, 2014. [Google Scholar]
  50. Silva, R.A.; Quintela, E.D.; Mascarin, G.M.; Pedrini, N.; Lião, L.M.; Ferri, P.H. Unveiling chemical defense in the rice stalk stink bug against the entomopathogenic fungus Metarhizium anisopliae. J. Invertebr. Pathol. 2015, 127, 93–100. [Google Scholar] [CrossRef] [PubMed]
  51. Martins, J.F.S.; Lima, M.G.A.; Botton, M.; Carbonari, J.J.; Quintela, E.D. Efeito de isolados de Metarhizium anisopliae (Metsch.) Sorok. e Beauveria bassiana (Bals.) Vuill. sobre o percervejo-do-colmo do arroz, Tibraca limbativentris Stal. Ana. Soc. Entomol. Bras. 1997, 26, 277–283. [Google Scholar] [CrossRef]
  52. Hajek, A.E.; St. Leger, R.J. Interactions between fungal pathogens and insect hosts. Annu. Rev. Entomol. 1994, 39, 293–322. [Google Scholar] [CrossRef]
  53. St. Leger, R.J.; Wang, J.B. Metarhizium: Jack of all trades, master of many. Open Biol. 2020, 10, 200307. [Google Scholar] [CrossRef]
  54. Castrillo, L.A.; Roberts, D.W.; Vandenberg, J.D. The fungal past, present, and future: Germination, ramification, and reproduction. J. Invertebr. Pathol. 2005, 89, 46–56. [Google Scholar] [CrossRef]
  55. Islam, W.; Adnan, M.; Shabbir, A.; Naveed, H.; Abubakar, Y.S.; Qasim, M.; Tayyab, M.; Noman, A.; Nisar, M.S.; Khan, K.A.; et al. Insect-fungal-interactions: A detailed review on entomopathogenic fungi pathogenicity to combat insect pests. Microb. Pathog. 2021, 159, e105122. [Google Scholar] [CrossRef]
  56. Vieira, A.S. Fatores relacionados a Euschistus heros (Hemiptera: Pentatomidae) que Afetam a Virulência de Metarhizium anisopliae (Hypocreales: Clavicipitaceae). Master’s Dissertation, Universidade Federal de Goiás, Goiânia, Brazil, 2023. [Google Scholar]
  57. Panizzi, A.R.; Oliveira, E.D. Performance and seasonal abundance of the neotropical brown stink bug, Euschistus heros nymphs and adults on a novel food plant (pigeonpea) and soybean. Entomol. Exp. App. 1998, 88, 169–175. [Google Scholar] [CrossRef]
  58. Panizzi, A.R. Ecologia nutricional de insetos sugadores de sementes. In Ecologia Nutricional de Insetos e Suas Implicações no Manejo de Pragas; Panizzi, A.R., Parra, J.R.P., Eds.; Editora Manole Ltda: São Paulo, Brazil, 1991; pp. 253–287. [Google Scholar]
  59. Piubelli, G.C.; Hoffmann-Campo, C.B.; Arruda, I.C.D.; Lara, F.M. Nymphal development, lipid content, growth and weight gain of Nezara viridula (L.) (Heteroptera: Pentatomidae) fed on soybean genotypes. Neotrop. Entomol. 2003, 32, 127–132. [Google Scholar] [CrossRef]
  60. Qu, S.; Wang, S. Interaction of entomopathogenic fungi with the host immune system. Dev. Comp. Immunol. 2018, 83, 96–103. [Google Scholar] [CrossRef]
  61. Boucias, D.G.; Pendland, J.C. Entomopathogenic fungi: Fungi imperfecti. In Principles of Insect Pathology; Springer: Boston, MA, USA, 1998; pp. 321–364. [Google Scholar]
  62. Ferron, P. Fungal control. In Comparative Insect Physiology, Biochemistry and Pharmacology; Kerkut, G.A., Gilbert, L.I., Eds.; Pergamon Press: Oxford, UK, 1985; Volume 12, pp. 313–346. [Google Scholar]
  63. Roberts, D.W.; Hajek, A.E. Entomopathogenic fungi as bioinsecticides. In Frontiers in Industrial Mycology; Springer US: Boston, MA, USA, 1992; pp. 144–159. [Google Scholar]
  64. Trienens, M.; Rohlfs, M. Insect–fungus interference competition–the potential role of global secondary metabolite regulation, pathway-specific mycotoxin expression and formation of oxylipins. Fungal Ecol. 2012, 5, 191–199. [Google Scholar] [CrossRef]
  65. Chen, C.; Ye, S.; Hu, H.; Xue, C.; Yu, X. Use of electrical penetration graphs (EPG) and quantitative PCR to evaluate the relationship between feeding behaviour and Pandora neoaphidis infection levels in green peach aphid, Myzus persicae. J. Insect Physiol. 2018, 104, 9–14. [Google Scholar] [CrossRef] [PubMed]
  66. Quintela, E.D.; McCoy, C.W. Pathogenicity enhancement of Metarhizium anisopliae and Beauveria bassiana to first instars of Diaprepes abbreviatus (Coleoptera: Curculionidae) with sublethal doses of imidacloprid. Environ. Entomol. 1997, 26, 1173–1182. [Google Scholar] [CrossRef]
  67. Quintela, E.D.; McCoy, C.W. Synergistic effect of imidacloprid and two entomopathogenic fungi on the behavior and survival of larvae of Diaprepes abbreviatus (Coleoptera: Curculionidae) in soil. J. Econ. Entomol. 1998, 91, 110–122. [Google Scholar] [CrossRef]
  68. Quintela, E.D.; McCoy, C.W. Conidial attachment of Metarhizium anisopliae and Beauveria bassiana to the larval cuticle of Diaprepes abbreviatus (Coleoptera: Curculionidae) treated with imidacloprid. J. Invertebr. Pathol. 1998, 72, 220–230. [Google Scholar] [CrossRef]
  69. Boaventura, H.A. Eficácia de Cordyceps javanica Sozinho ou em Combinação com Inseticidas Químicos no Controle de Bemisia tabaci MEAM1 e Persistência em Folhas de Soja. Master’s Dissertation, Universidade Federal de Goiás, Goiânia, Brazil, 2019. [Google Scholar]
  70. Poletto, T.B. Enhancing Dalbulus maidis (Hemiptera: Cicadellidae) Control: Na Integrated Approach Combining Cordyceps javanica (Ascomycota: Hypocreales) and Insecticides. Ph.D. Thesis, Universidade de São Paulo, São Paulo, Brazil, 2024. [Google Scholar]
Jof 11 00247 g001

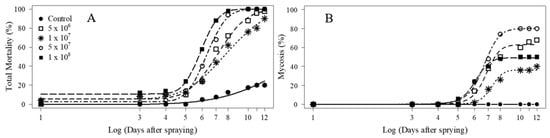

Figure 1. Overall (total) and confirmed mortalities (cadavers with fungal sporulation) means on different days for Euschistus heros adults treated with Metarhizium anisopliae at different concentrations. Curves were adjusted according to Logistic (A) and Brain–Cousens (B) non-linear models.
Figure 1. Overall (total) and confirmed mortalities (cadavers with fungal sporulation) means on different days for Euschistus heros adults treated with Metarhizium anisopliae at different concentrations. Curves were adjusted according to Logistic (A) and Brain–Cousens (B) non-linear models.
Jof 11 00247 g001
Jof 11 00247 g002

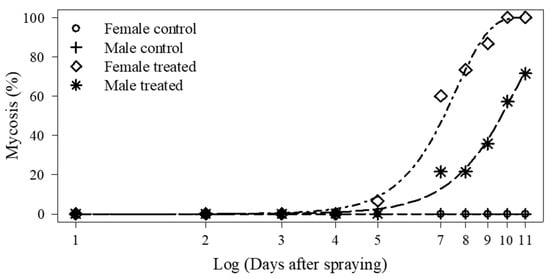

Figure 2. Confirmed mortality (cadavers with fungal sporulation) of female and male adult Euschistus heros on different days after treatment with Metarhizium anisopliae. Curves were adjusted according to non-linear Weibull model.
Figure 2. Confirmed mortality (cadavers with fungal sporulation) of female and male adult Euschistus heros on different days after treatment with Metarhizium anisopliae. Curves were adjusted according to non-linear Weibull model.
Jof 11 00247 g002
Jof 11 00247 g003

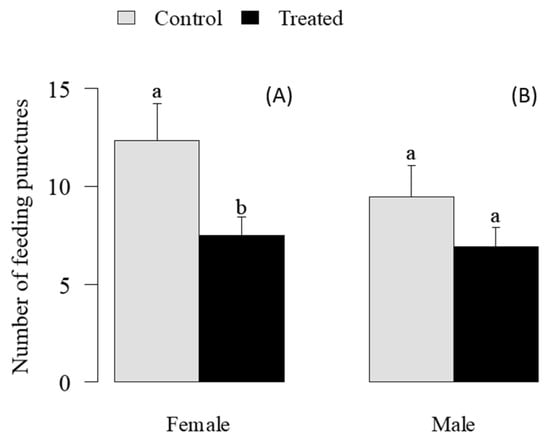

Figure 3. Number of feeding punctures by female (A) and male (B) adults of Euschistus heros in soybean seeds at 11 days after spraying of Metarhizium anisopliae at 1 × 10⁸ conidia mL−1. Different letters indicate significant differences (p < 0.05) by Student’s t-test.
Figure 3. Number of feeding punctures by female (A) and male (B) adults of Euschistus heros in soybean seeds at 11 days after spraying of Metarhizium anisopliae at 1 × 10⁸ conidia mL−1. Different letters indicate significant differences (p < 0.05) by Student’s t-test.
Jof 11 00247 g003
Jof 11 00247 g004

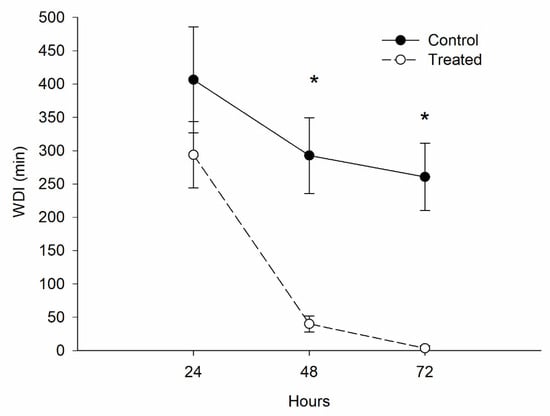

Figure 4. Waveform duration per insect (WDI–min) (mean ± SE) of probing activates (Eh1, Eh2, Eh3a, Eh3b, Eh4 waveforms) of Euschistus heros untreated (control) and treated with Metarhizium anisopliae feeding on soybean plants 24, 48, and 72 h after the start of recording (corresponding to 72, 96, and 120 h after fungus application, respectively). Treatments within each post-recording start time with an asterisk (*) were statistically different by F-test (p < 0.05) within each post-recording time.
Figure 4. Waveform duration per insect (WDI–min) (mean ± SE) of probing activates (Eh1, Eh2, Eh3a, Eh3b, Eh4 waveforms) of Euschistus heros untreated (control) and treated with Metarhizium anisopliae feeding on soybean plants 24, 48, and 72 h after the start of recording (corresponding to 72, 96, and 120 h after fungus application, respectively). Treatments within each post-recording start time with an asterisk (*) were statistically different by F-test (p < 0.05) within each post-recording time.
Jof 11 00247 g004
Jof 11 00247 g005

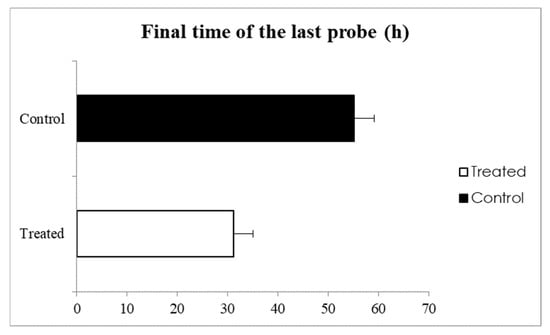

Figure 5. The final time of the last probe (%) of Euschistus heros untreated (control) and treated with M. anisopliae feeding on soybean plants. p < 0.05 is considered different by F-test.
Figure 5. The final time of the last probe (%) of Euschistus heros untreated (control) and treated with M. anisopliae feeding on soybean plants. p < 0.05 is considered different by F-test.
Jof 11 00247 g005
Table 1. Waveforms recorded using electropenetrography (EPG) of Euschistus heros treated and untreated (control) with Metarhizium anisopliae fed on soybean pod and their biological significance.
Table 1. Waveforms recorded using electropenetrography (EPG) of Euschistus heros treated and untreated (control) with Metarhizium anisopliae fed on soybean pod and their biological significance.
PhaseFamilyType/SubtypeEuschistus heros Biological Meaning
Non-probing-ZInsect immobile on plant surface/walking on plant surface
PathwayPEh1Penetration of stylets and salivary sheath secretion
IngestionIEh2Xylem sap ingestion
SalivationIEh3aCellular laceration and enzymatic maceration of seed endosperm
IngestionIEh3bShort ingestion of macerated tissues of seed endosperm
IngestionIEh4Short ingestion from an unknown site (probable phloem sap ingestion)
Source: Adapted from Lucini and Panizzi [7].
Table 2. p-values of the comparisons of overall (total) and confirmed mortalities (cadavers with fungal sporulation) curves for Euschistus heros adults after treatment with Metarhizium anisopliae at different concentrations. The Chi-Square test was used for p value calculation. Curves were considered significantly different at p ≤ 0.05.
Table 2. p-values of the comparisons of overall (total) and confirmed mortalities (cadavers with fungal sporulation) curves for Euschistus heros adults after treatment with Metarhizium anisopliae at different concentrations. The Chi-Square test was used for p value calculation. Curves were considered significantly different at p ≤ 0.05.
Mortality
Treatments5.0 × 1061.0 × 1075.0 × 1071.0 × 108
Control<0.001<0.001<0.001<0.001
5.0 × 106-0.35650.24010.0663
1.0 × 107--0.04600.0114
5.0 × 107---0.3482
Confirmed Mortalities
Treatments5.0 × 1061.0 × 1075.0 × 1071.0 × 108
Control<0.001<0.001<0.001<0.001
5.0 × 106-0.01960.13980.2713
1.0 × 107--0.00010.0754
5.0 × 107---0.0224
Table 3. Estimates of parameters of non-linear models and median lethal time (LT50) of Euschistus heros adults treated with Metarhizium anisopliae at different concentrations (conidia mL−1).
Table 3. Estimates of parameters of non-linear models and median lethal time (LT50) of Euschistus heros adults treated with Metarhizium anisopliae at different concentrations (conidia mL−1).
Treatments
(Conidia mL−1)		Model ParametersLT50 (d) (CI95%)
BCE
5.0 × 1063.900.057.117.0 (5.8–8.2)
1.0 × 1072.770.057.807.6 (5.9–9.2)
5.0 × 1075.670.026.296.3 (5.4–7.1)
1.0 × 1086.420.105.895.8 (4.9–6.7)
Gompertz model parameters: B is the slope factor around the “E” parameter; C is the lower limit of the curve; E is the inflection point of the curve.
Table 4. Estimates of parameters of non-linear Weibull model and median lethal time (LT50) of female and male adult Euschistus heros treated with Metarhizium anisopliae at 1 × 108 conidia mL−1.
Table 4. Estimates of parameters of non-linear Weibull model and median lethal time (LT50) of female and male adult Euschistus heros treated with Metarhizium anisopliae at 1 × 108 conidia mL−1.
TreatmentsModel ParametersLT50 (d) (CI95%)
bcde
Female treated5.70.01.07.67.1 (6.5–7.7)
Male treated5.00.01.010.49.7 (8.6–10.7)
Weibull model parameters: b is the is the slope of the curve; c is the lower limit of the curve; d is the upper limit of the curve; e is the inflection point of the curve.
Table 5. Number of waveform events for (NWEI) (mean ± SE) and waveform duration per insect (WDI–min) of Euschistus heros treated and untreated (control) with Metarhizium anisopliae at 1 × 108 conidia mL−1 feeding on soybean pod-filling stage (R5) plants.
Table 5. Number of waveform events for (NWEI) (mean ± SE) and waveform duration per insect (WDI–min) of Euschistus heros treated and untreated (control) with Metarhizium anisopliae at 1 × 108 conidia mL−1 feeding on soybean pod-filling stage (R5) plants.
WaveformNWEI WDI
ControlTreatedFp ValueControlTreatedFp Value
Z + Np-non-probing15.9 ± 0.912.5 ± 0.86.660.0093488 ± 1153924 ± 1226.650.015
Eh1-pathway19.1 ± 0.812.9 ± 1.019.6<0.00177.6 ± 10.749.6 ± 10.33.510.065
Eh2-xylem sap ingestion5.9 ± 0.61.0 ± 0.262.3<0.001189.6 ± 46.124.8 ± 11.711.930.016
Eh4-unknown site ingestion2.7 ± 0.40.9 ± 0.414.8<0.0019.07 ± 4.94.23 ± 2.70.7810.399
Eh3a-CLE26.5 ± 1.214.9 ± 0.952.3<0.001550.2 ± 106.4239.4 ± 50.48.200.007
Eh3b-SIE13.6 ± 0.94.6 ± 0.574.2<0.0015.42 ± 1.601.26 ± 0.48.080.007
CLE–cellular laceration of seed endosperm, SIE–short ingestion of macerated tissues of seed endosperm. p < 0.05 is considered different by F-test.
Table 6. Waveform duration per event per insect (WDEI-min) (mean ± SE) and percentage of recording time spent in probing (PRTP-%) of Euschistus heros untreated (control) and treated with Metarhizium anisopliae at 1 × 108 conidia mL−1 feeding on soybean pod-filling stage (R5) plants.
Table 6. Waveform duration per event per insect (WDEI-min) (mean ± SE) and percentage of recording time spent in probing (PRTP-%) of Euschistus heros untreated (control) and treated with Metarhizium anisopliae at 1 × 108 conidia mL−1 feeding on soybean pod-filling stage (R5) plants.
Waveform WDEI PRTP
ControlTreatedFp ValueControlTreatedFp Value
Z + Np-non-probing356.1 ± 81.21115.2 ± 401.86.800.01480.8 ± 2.890.3 ± 2.66.550.015
Eh1-pathway4.44 ± 0.43.23 ± 0.43.730.6281.8 ± 0.21.2 ± 0.23.220.082
Eh2-xylem sap ingestion34.5 ± 10.215.0 ± 7.81.290.2634.4 ± 1.00.6 ± 0.214.70.007
Eh4-Phloem ingestion2.0 ± 0.41.0 ± 0.61.290.2640.3 ± 0.10.1 ± 0.00.8250.370
Eh3a-CLE21.4 ± 2.613.7 ± 2.24.550.04112.8 ± 2.45.6 ± 1.18.230.004
Eh3b-SIE0.5 ± 0.10.2 ± 0.04.680.0380.2 ± 0.00.1 ± 0.08.770.005
CLE—cellular laceration of seed endosperm, SIE—short ingestion of macerated tissues of seed endosperm. p < 0.05 is considered different by F-test.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Almeida, A.C.d.S.; Rodrigues, M.A.; Boaventura, H.A.; Vieira, A.S.; e Silva, J.F.A.; de Jesus, F.G.; Quintela, E.D. Can Metarhizium anisopliae Reduce the Feeding of the Neotropical Brown Stink Bug, Euschistus heros (Fabricius, 1798), and Its Damage to Soybean Seeds? J. Fungi 2025, 11, 247. https://doi.org/10.3390/jof11040247

AMA Style

Almeida ACdS, Rodrigues MA, Boaventura HA, Vieira AS, e Silva JFA, de Jesus FG, Quintela ED. Can Metarhizium anisopliae Reduce the Feeding of the Neotropical Brown Stink Bug, Euschistus heros (Fabricius, 1798), and Its Damage to Soybean Seeds? Journal of Fungi. 2025; 11(4):247. https://doi.org/10.3390/jof11040247

Chicago/Turabian Style

Almeida, André Cirilo de Sousa, Mayara Alves Rodrigues, Heloiza Alves Boaventura, Angélica Siqueira Vieira, José Francisco Arruda e Silva, Flávio Gonçalves de Jesus, and Eliane Dias Quintela. 2025. "Can Metarhizium anisopliae Reduce the Feeding of the Neotropical Brown Stink Bug, Euschistus heros (Fabricius, 1798), and Its Damage to Soybean Seeds?" Journal of Fungi 11, no. 4: 247. https://doi.org/10.3390/jof11040247

APA Style

Almeida, A. C. d. S., Rodrigues, M. A., Boaventura, H. A., Vieira, A. S., e Silva, J. F. A., de Jesus, F. G., & Quintela, E. D. (2025). Can Metarhizium anisopliae Reduce the Feeding of the Neotropical Brown Stink Bug, Euschistus heros (Fabricius, 1798), and Its Damage to Soybean Seeds? Journal of Fungi, 11(4), 247. https://doi.org/10.3390/jof11040247

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
