Article

Resistance to Aflatoxin Accumulation in Maize Mediated by Host-Induced Silencing of the Aspergillus flavus Alkaline Protease (alk) Gene

by
Olanike Omolehin
1,
Yenjit Raruang
1,
Dongfang Hu
1,
Zhu-Qiang Han
2,
Qijian Wei
3,
Kan Wang
4,
Kanniah Rajasekaran
3,
Jeffrey W. Cary
3 and
Zhi-Yuan Chen
1,*
1
Department of Plant Pathology and Crop Physiology, Louisiana State University Agricultural Center, Baton Rouge, LA 70803, USA
2
Cash Crops Research Institute, Guangxi Academy of Agricultural Sciences, Nanning 530007, China
3
Food and Feed Safety Research Unit, Southern Regional Research Center, United States Department of Agriculture—Agricultural Research Service, New Orleans, LA 70124, USA
4
Department of Agronomy, Iowa State University, Ames, IA 50011, USA
*
Author to whom correspondence should be addressed.
J. Fungi 2021, 7(11), 904; https://doi.org/10.3390/jof7110904
Submission received: 25 September 2021 / Revised: 21 October 2021 / Accepted: 23 October 2021 / Published: 26 October 2021
(This article belongs to the Special Issue Aspergillus flavus, Aflatoxins, and Their Effects on Crop Production and Food Safety)
Browse Figures
Review Reports Versions Notes

Abstract

:
Aspergillus flavus is a fungal pathogen that infects maize and produces aflatoxins. Host-Induced Gene Silencing (HIGS) has been shown to reduce host infection by various fungal pathogens. Here, the A. flavus alkaline protease (alk) gene was targeted for silencing through HIGS. An RNAi vector carrying a portion of the alk gene was incorporated into the B104 maize genome. Four out of eight transformation events containing the alk gene, Alk-3, Alk-4, Alk-7 and Alk-9, were self-pollinated to T4/T6 generations. At T3, the Alk-transgenic lines showed up to 87% reduction in aflatoxin accumulation under laboratory conditions. T4 transgenic Alk-3 and Alk-7 lines, and T5 and T6 Alk-4 and Alk-9 showed an average of 84% reduction in aflatoxin accumulation compared to their null controls under field inoculations (p < 0.05). F1 hybrids of three elite maize inbred lines and the transgenic lines also showed significant improvement in aflatoxin resistance (p < 0.006 to p < 0.045). Reduced A. flavus growth and levels of fungal ß-tubulin DNA were observed in transgenic kernels during in vitro inoculation. Alk-4 transgenic leaf and immature kernel tissues also contained about 1000-fold higher levels of alk-specific small RNAs compared to null controls, indicating that the enhanced aflatoxin resistance in the transgenic maize kernels is due to suppression of A. flavus infection through HIGS of alk gene.

1. Introduction

Aspergillus flavus is an opportunistic plant pathogen that resides in the soil and has a global distribution. It reproduces predominately asexually through the release of a large number of conidia under natural conditions [1,2]. Major economically important crops including maize, peanut and cotton are highly susceptible to both A. flavus infection and subsequent contamination with carcinogenic secondary metabolites known as aflatoxins [3,4,5]. The annual economic loss of maize due to aflatoxin contamination was estimated to be in the hundreds of millions of dollars and has been predicted to reach as high as USD 1.68 billion due to global climate change [6], making aflatoxin contamination a serious economic threat to world trade of aflatoxin-susceptible crops. In addition to direct economic-related losses associated with aflatoxin contamination in maize, consumption of aflatoxin-contaminated maize products resulted in vulnerability to illnesses, hundreds of hospitalizations and deaths of humans and animals in various occasions across different countries [7,8,9,10].
The options available to manage aflatoxin contamination in maize include biological control through field application of atoxigenic A. flavus strains, such as NRRL30797, AF36 and NRRL21882, which are capable of reducing aflatoxin accumulation up to 94.8% in maize by competitively displacing native A. flavus strains that produce aflatoxin [11,12,13]. However, the adoption of biological control agents relies on resource availability among growers. In addition, the efficacy of biological control strains is affected by abiotic factors, which often lead to questions on the resilience and stability of these biological control agents under diverse environmental conditions [14,15]. Therefore, alternative strategies that provide a consistent protection of maize against A. flavus infection and aflatoxin contamination without extra costs, such as seed-based host resistance, are highly desired.
Plant microRNAs (miRNA), a type of small RNAs (21–22 nucleotides), have been found in several studies to play important role in crop resistance by interfering with pathogen gene expression through a natural phenomenon known as RNA interference (RNAi) or gene silencing [16,17,18], by triggering the cleavage of target transcripts or repressing translation [19,20]. Some recent studies further demonstrate that small RNA communication is bidirectional and that small RNAs produced by pathogens can also suppress host immune/defense responses during the pathogen infection [21,22,23]. For example, Botrytis cinerea was able to deliver small RNAs into Arabidopsis and tomato to suppress the expression of their resistance genes [22]. Along the same idea, small RNAs of pathogen origin expressed in the hosts have been successfully employed to enhance crop resistance to various diseases [24,25,26,27]. This approach is called Host-Induced Gene Silencing (HIGS). HIGS was first reported when an effector gene of root-knot nematode was suppressed by expressing dsRNA in an Arabidopsis host [28]. HIGS has since been used to enhance host resistance to pathogens by targeting genes important for virulence or infection in HIGS vectors designed to initiate specific disruption of pathogen mRNA during infection of plants [26,29,30]. For example, reduced wheat leaf rust infection was observed in wheat by targeting three pathogenicity genes that encode a Pt MAP-kinase (PtMAPK1), a cyclophilin (PtCYC1) and a calcineurin B (PtCNB1) [29].
HIGS has also been shown effective in enhancing maize resistance to A. flavus infection/aflatoxin contamination. Masanga et al. [31] transformed maize with a hairpin construct targeting the A. flavus transcription factor, aflR, and reported a 14-fold reduction in aflatoxin accumulation in the transgenic lines under greenhouse conditions but also reported off target effect of RNAi that caused undesirable phenotypic appearance of the newly generated transgenic lines. In a separate study, an RNAi-cassette containing the A. flavus aflC gene was selected as a target for silencing by Thakare et al. [32]. Another study silenced the amylase-1 gene (amy1) of A. flavus and observed that reduced expression of the amy1 gene correlated with decrease in fungal growth and reduced level of aflatoxin under laboratory condition. However, none of these three studies evaluated their transgenic lines under field conditions. A recent study that targeted the aflatoxin biosynthesis pathway gene aflM for silencing successfully reduced aflatoxin accumulation up to 76% under three consecutive years of field evaluations [33]. This study clearly demonstrated the full potential of HIGS as a reliable and sustainable approach to manage aflatoxin accumulation in maize by silencing the A. flavus aflM gene.
The objective of this study was to target a different gene that is related to A. flavus virulence instead of aflatoxin biosynthesis for silencing to reduce the infection and subsequent aflatoxin production. The gene encoding the alkaline protease (alk) protein was selected based on its role previously reported in Aspergilli. The alk gene was initially cloned in A. nidulans and A. oryzae [34,35]. Chen et al. [36] clearly showed that a 33 kDa protein with a 95% homology with the A. flavus alkaline protease was produced at a higher level during infection of maize embryos compared to the control.
In order to determine if silencing alk in A. flavus has a potential to enhance maize resistance to A. flavus, a stable transformation of a maize line (B104) with a HIGS construct designed to carry a partial fragment of the alk gene for silencing was carried out. Of the eight transformants, four were characterized for the presence of the target gene RNAi cassette (Alk-RNAi). Evaluation of these four events under artificial A. flavus inoculation reduced up to 87% and 84% aflatoxin accumulation in the transgenic lines, under laboratory and field conditions, respectively. No undesirable phenotypic changes were observed when compared to their null controls under field condition. In addition, reduced A. flavus biomass was observed in transgenic kernels compared to their null controls based on PCR quantification of A. flavus β-tubulin DNA. F1 crosses between the homozygous transgenic Alk-4 and Alk-9 lines with elite inbred lines PHN46, LH195 and PHG39 also showed enhanced aflatoxin resistance. Further investigation through RNA sequencing detected significantly higher levels of gene specific small interfering RNAs comprising of sense and anti-sense strands of 21–24 nucleotides in the transgenic leaf and kernel tissues. These small RNAs may have served as precursors for silencing the alk gene thereby reducing the infection and aflatoxin accumulation. This is the first reported study in targeting A. flavus alkaline protease gene for aflatoxin management with an emphasis on field evaluation and the potential development of aflatoxin resistant transgenic maize lines in elite backgrounds.

2. Materials and Methods

2.1. Construction of Alk-RNAi Vector

An alkaline protease gene (alk) from A. flavus AF13 (GenBank accession number AF324246) was selected as the target for suppression. The construct used in this study was a Gateway-based vector constructed in a similar manner as previously reported [37]. The 5′ and 3′ arms of the alk coding region were PCR amplified using specific primers (Forward GCG TTA CCG TTG TAG GCA AG and Reverse TCC AGA AGA GCA ACA ACC GC) (Table S1) and cloned into pDONR P4-P1R and pDONR P2RP3 (Invitrogen, Carlsbad, CA, USA), respectively, using BP clonase as previously described [37]. The derived vectors, namely, pENTR-L4-5′alk-R1 and pENTR-R2-3′alk-L3 were confirmed by sequencing. The pDONR221-PR10-intron-CmR containing a PR10 intron was constructed previously [37]. pENTR-L4-5′alk-R1, pENTR-R2-3′alk-L3 and the pDONR221-PR10 intron-CmR vectors were combined with the pBS-d35S-R4-R3 vector to produce pBS-d35S-attB4-5′alk-attB1-PR10 intron-CmR-attB2-3′alk-attB3 vector using LR clonase (Invitrogen, Carlsbad, CA, United States). EcoRI and SacI were used to digest the vector and the resulting d35S-attB4-5′alk-attB1-PR10 intron-CmR-attB2-3′alk-attB3 cassette was cloned into pTF102 at the corresponding restriction sites [38]. The resulting maize RNAi transformation vector (pTF102-d35S-alk RNAi vector) (Figure S1) was sequenced to verify the assembly.

2.2. Maize Transformation with Alk-RNA Interference Vector and Regeneration

The final Alk-RNAi construct described above was transformed into Agrobacterium strain EHA101 and then into immature B104 maize embryos. Transformation was carried out at the Plant Transformation Facility (PTF), Iowa State University (ISU) following the protocol of maize transformation as detailed by Raji et al. [39]. The resulting transgenic plants regenerated from stable calli were recovered using the bialaphos-containing media. Plants regenerated from transgenic events were pollinated using B104 pollen and harvested at maturity between April and June 2013.

2.3. Confirmation of Transformation and Target Gene Expression

An initial confirmation of target alk gene and its expression in all the transformation events was carried out using genomic DNA and RNA isolated from T0 leaf tissues. DNA was extracted using a modified CTAB method as described by Doyle and Doyle [40]. The quality and quantity of isolated total DNA was determined using a Nano-Drop ND-1000 Spectrophotometer (Thermo Scientific, Wilmington, DE, USA). DNA was diluted to 50 ng/µL and used as the template for PCR with specific primers corresponding to the alk gene (Forward primer: GCG TTA CCG TTG TAG GCA AG and Reverse primer: TCC AGA AGA GCA ACA ACC GC) (Table S1). Conventional PCR was conducted in a 20 μL volume containing 0.2 µL of Taq polymerase (5 unit/µL), 2 µL 1xdNTP (1 mM), 2 µL of 10× PCR buffer and 1 µL each primer (0.4 μM). The PCR was performed under the following conditions: initialization was at 95 °C for 3 min, followed by denaturation at 95 °C for 50 s, annealing at 56.4 °C for 60 s, elongation for 1 min 30 s for 35 cycles with a final elongation at 72 °C for 10 min and followed by holding at 12 °C. The plasmid containing the Alk-RNAi construct was used as the positive control while DNA extracted from B104 was used as a negative control. The PCR products were visualized using 1% agarose gel after mixing with 3.3 µL of 6× DNA loading dye (containing bromophenol blue and xylene cyanol FF). The expression level of target gene in young transgenic T0 leaves was determined using qRT-PCR with cDNA from RNA isolated from leaf tissues as a template and the specific alk primers: forward primer, CTCGCTGCCCTTGAGAAC and reverse primer, GCTGCCCTTAACATCCTTGA, and a TaqMan probe, FAM/CAA CTC CTT/ZEN/GAT GCG CTT GGTCAC/3IABkFQ (Table S1). The qRT-PCR was performed using Bio-Rad CFX Connect TM Real-Time System (Bio-Rad, Hercules, CA, USA) under the following conditions: initial denaturing at 95 °C for 3 min, followed by 40 cycles of denaturing at 95 °C for 15 s, annealing and elongating at 55 °C for 30 s. The expression level of 18S rRNA was used as an internal control to normalize the level of target gene expression. The amplification efficiency of each primer pair used in this study was determined through serial dilutions and was taken into account in calculating target gene expression. Four of the positive transformants, namely, Alk-3, Alk-4, Alk-7 and Alk-9 were selected for further evaluation studies.

2.4. Genotyping, Zygosity and Transgene Copy Number Assessment Using Real-Time and Droplet Digital PCR

Conventional PCR analysis was done to determine the segregation for the alk gene at T2. Maize lines transformed with Alk-RNAi construct but are absent for alk gene are considered non-transgenic controls or “null” line for the same event and referred to as negative control alongside the B104 (transformation background line) for all field and laboratory studies. Those segregating lines containing the alk gene were heterozygous/homozygous transgenic lines. These lines were self-pollinated for several generations in order to attain homozygosity for the alk gene. qRT-PCR was conducted to verify the zygosity of the alk-positive, segregating maize lines after each selfing. Zygosity test was performed using the Bio-Rad CFX Connect TM Real-Time System in a final volume of 25 µL containing 1× TaqMan Universal PCR Master Mix, 200 nM of each primer, 100 nM of probe (Table S1) and 150 ng of genomic DNA from leaf tissue under the following conditions: 95 °C for 3 min, 40 amplification cycles of 95 °C for 15 s and annealing and amplifying at 55 °C for 60 s. Three technical replicates were included for each sample. The alcohol dehydrogenase (adh1) gene (a single copy gene in maize) was used as a normalizer. The alk/adh ratio in the leaf tissue of T0 transgenic plants, which is expected to be heterozygous for the target gene (alk), was used as the basis of comparison to determine the zygosity. Zygosity was calculated using an equation based on the threshold cycle (Ct) values of the alk gene and the adh1 normalizer: Z = 2[T4 Ct (adh) − T4 Ct (alk)] − [T0 Ct (adh) − T0 Ct (alk)]. The primers for alk are expected to detect both 5′ and 3′ arms of the alk in the transgenic lines, and therefore, the expected Z value for the T0 transgenic lines, which are heterozygous, is 1. Samples doubling the value of Z calculated in the heterozygous were considered homozygous for the target gene.
In addition, DNA isolated from the following leaf tissues of events, Alk-3 (T0), Alk-4 (T0), Alk-7 (T0), Alk-9 (T0), Alk-3 (T4), Alk-4 (T4), Alk-7 (T4) and Alk-9 (T4), were sent to the Interdisciplinary Center for Biotechnology Research (ICBR), University of Florida (Gainesville, FL, USA), for precise assessment of transgene copy number using droplet digital PCR (ddPCR) [41,42,43,44]. ddPCR reactions were prepared using 100 nM of forward and reverse primers specific to alk transgene and maize adh1 gene (Table S1), 12.5 μL of a Bio Rad ddPCR Supermix including an intercalating fluorescent dye, polymerase, Mg2+ and dNTPs and MilliQ autoclaved water in a total reaction of volume of 25 μL. Droplet mix was cycled through a PCR program (denaturing at 95 °C for 10 min, followed by 40 cycles of 94 °C 30 s, 56 °C 30 s and 60 °C 30 s, with a final inactivation at 98 °C for 10 min before holding the reactions at 4 °C) using a deep-well thermal cycler (C1000 Touch, 185-1196, Bio-Rad, Hercules, CA, USA). The reactions were immediately analyzed in a droplet reader (QX200, 186-4003, Bio-Rad, Hercules, CA, USA).

2.5. Seed Increase of Selected Transgenic Lines by Self-Pollination and Generation of Crosses with Elite Maize Lines

Four cycles of self-pollination were carried out using the Alk-RNAi T2 lines between 2016 and 2019 to ensure homozygosity for the alk target gene in the transgenic maize lines. T2 seeds were increased to T3 in the spring of 2016 and from T3 to T6 from 2017 to 2019 in the Burden Farm and Museum in Baton Rouge, Louisiana. In addition, pollen grains from homozygous Alk-4 and null-4 plants were used to pollinate the silk of the LH195, PHN46, and PHG39 elite inbred lines to incorporate the alk transgene into elite maize backgrounds to produce F1 hybrids in 2018. In 2019, pollens from homozygous transgenic Alk-9 and null-9 lines were used to cross with the above elite lines to produce F1 hybrids. The information on the number of seeds used, seedlings planted, plants pollinated and ears inoculated and harvested from T3 to T6 and for the production of F1 crosses was summarized in Table 1. Phenotypic evaluation of maize lines was carried out by selecting 10 to 12 representative maize plants at the reproductive growth stage. Plant height was measured from the base of the plant to the flag leaves (cm). Dates at 50% tasseling and silking were recorded for selected plants (number of days). After harvest, the cob length was measured from the tip to the base. After shelling the kernels, total number of kernels from each cob and weight (g) of 100 kernels were recorded.

2.6. Evaluation of Transgenic Maize Lines for Changes in Aflatoxin Resistance under Laboratory Assay and Field Inoculation Conditions

T3 generation homozygous kernels from Alk-3, Alk-4, Alk-7 and Alk-9 events were evaluated for their changes in resistance to aflatoxin in comparison to B104 and non-transgenic null kernels using the Kernel Screening Assay (KSA) as described by Brown et al. [45]. Twenty kernels from each transformation event and non-transgenic controls (null) were first surface-sterilized in 70% ethanol for 5 min with constant stirring and rinsed with distilled water for 5 min for three times and allowed to dry. Sterilized and dried seeds were inoculated by dipping in newly prepared A. flavus inoculum (10 mL of 4 × 106 conidia/mL) that was prepared using toxigenic A. flavus AF13 (ATCC 96044, SRRC 1273) strain maintained on V8 medium (5% V8 juice, 2% agar and pH 5.2). Spores were freshly harvested from 7-day-old PDA plates grown at 30 °C and suspended in 0.01% SDS solution. The initial concentration was determined with a hemocytometer and diluted to 4 × 106 conidia/mL. Each inoculated seed was placed in a 35 × 10 mm petri-dish and incubated at 30 °C under 100% humidity in the dark for seven days, after which kernels were dried at 65 °C for 72 h to stop A. flavus growth. Dried individual kernels were then pulverized to powder using a coffee blender (Mr. Coffee®, Boca Raton, FL, USA).
For field evaluation of aflatoxin resistance from T4 (2017) to T6 (2019), 7–15 immature ears from each line were inoculated 14 days after pollination at four points in the middle of the ear with approximately 0.5 mL/site of the A. flavus AF13 inoculum using the side-needle method with an Indico tree-marking gun (Forestry Suppliers, Jackson, MS, United States) and a 15-gauge hypodermic needle as described by Williams et al. [46]. Inoculated ears were harvested after maturity (about 60 days after pollination). Four kernels surrounding each inoculation point were retrieved and ground using a coffee blender (Mr. Coffee®, Boca Raton, FL, USA) as one sample. In 2017, the aflatoxin production analysis was carried out using 48 replicates (12 ears) of Alk-4 homozygous, 44 (12 ears) of Alk-4 null and 20 (5 ears) of the B104 control and 36 (9 ears) of Alk-9 homozygous, 27 (7 ears) of Alk-9 null. In 2018, two lines each from the Alk-4 (B4-33 and B4-37) and Alk-9 (B9-15 and B9-19) events were re-evaluated under field inoculation conditions. The inoculum concentration that was used in the 2017 field study was 4 × 106 conidia/mL, which was reduced to 1 × 105 conidia/mL in the following two years to better simulate natural infection.
The homozygous lines of Alk-4 and Alk-9 events that showed lower aflatoxin accumulation among the two transgenic lines used in this study (i.e., B4-37 and B9-19) were evaluated again under field conditions in 2019 using kernels from T6 generation with the same inoculation treatment as in 2018. In addition, kernels from two additional events, Alk-3 and Alk-7, at T4 generation were evaluated under the same field conditions. Three to four replicated samples per ear with each containing four intact kernels that surrounded each inoculation site with 10–14 inoculated ears per events were analyzed for changes in aflatoxin levels.
For evaluation of aflatoxin resistance in F1 crosses, 9–15 immature ears were inoculated two weeks after cross-pollination as above; however, kernels from the lower half of the mature ears were collected, ground into powder using a GRINDOMIX knife mill GM 200 milling machine (Retsch USA, Newtown, PA, USA) at 50 Hz speed for 10 s per sample under room temperature, and three subsamples of 2 g each were used for aflatoxin extractions as described by Sobolev and Dorner [47], and the levels of aflatoxin accumulation were analyzed using the High-Performance Liquid Chromatography (HPLC) as described below.

2.7. Aflatoxin Extraction and Quantification

Ground kernel samples were weighed before aflatoxin extraction using 20 mL of 80% methanol at room temperature in 50 mL flasks under continuous shaking at 60 rpm for 1 h. The extract was then filtered through a funnel with 100 mm No. 1 Whatman filter paper into a 50 mL glass beaker. The initial stock filtrate (100 µL) from each sample was diluted 10-fold with 80% methanol in a 1.5 mL tube before filtering through a 1.5 mL alumina-basic column containing about 0.5 g of alumina silica (CAT 1344-28-1, Fisher Chemical, Switzerland) [47]. The final filtrate was collected into properly labelled vials for aflatoxin quantification.
Aflatoxin was quantified using a reversed-phase HPLC as described by Sweany et al. [48]. A Waters e2695 HPLC (Waters Corporation, Milford, MA, USA), and the accompanying Empower software was used for the detection and analysis of aflatoxin B1 peak. Each extracted aflatoxin sample (10 μL) in methanol was then injected into HPLC using an auto sampler and separated with a Nova-Pak C18 4 µm 3.9 × 150 mm column at 38 °C. The mobile phase was 37.5% methanol and 62.5% water at a 0.8 mL/min flow rate. Each sample was run for 16 min with the B1 peak emerging at approximately 13.5 min. Aflatoxin detection was achieved using an in-line post-column derivatization by engaging a UV light in a Photochemical Reactor for Enhanced Detection (Aura Industries Inc., New York, NY, USA). This was followed by an excitation at 365 nm wavelength and detection of emission at 440 nm with a Waters 2475 FLR Detector (Waters Corp., Milford, MA, USA) [49]. Aflatoxin standard obtained from Sigma Aldrich (St. Louis, MO, USA) was serially diluted and used for the standard curve construction.

2.8. Evaluation of Aspergillus flavus Biomass in Maize Kernels

Mature transgenic and non-transgenic (null) maize kernels were inoculated and incubated as described above for the KSA. After 72 h of inoculation, kernels were photographed and observed for A. flavus infection under a dissecting scope. Kernels were then dried at 65 °C for four hours to stop A. flavus growth before grinding into powder for genomic DNA isolation. DNA were diluted to 100 ng/µL and used as template for PCR with primer pairs targeting the A. flavus β-tubulin and maize membrane protein (MEP) genes (Table S1). DNA from inoculated and non-inoculated B104 control kernels were used as controls. PCR analyses were carried out under the following conditions: 95 °C for 3 min; 35 cycles of 95 °C for 15 s, 64 °C for 30 s, 72 °C for 60 s for the MEP primers and 62 °C for annealing of the β-tub primers. The amount of fungal DNA was calculated by the Ct value for β-tub divided by the amount of maize kernel DNA (as calculated by the MEP Ct values). The ∆∆Cq method was used to calculate the normalized β-tubulin levels relative to the maize MEP gene, with its level in B104 control set as 1.

2.9. Total RNA Isolation, Small RNA Library Construction, Sequencing and Bioinformatics the Detection of Alk-specific Small RNA

Total RNAs were isolated from T3 leaf tissues of Alk-4 and the B104 non-transgenic line. At T4, total RNAs were also isolated from immature maize kernel tissues of Alk-4 homozygous and their null controls 14 days after self-pollination. After grinding kernel or leaf tissue to a fine powder, total RNA was extracted from 200 mg of kernel or leaf tissue using the TRIzol reagent according to the manufacturer’s instructions and then cleaned with RNeasy Plant Mini Kit (QIAGEN, Hilden, Germany). The quality and quantity of isolated total RNAs was determined using a Nanodrop. Indexed sRNA libraries were constructed from the enriched sRNA fractions with the TruSeq Small RNA Library Preparation Kits (RS-200-0012, Illumina, San Diego, CA, USA) according to the manufacturer’s instructions. Indexed sRNA libraries were sequenced on the Illumina HiSeq 2500 platform at the Genomic Science Laboratory of the NC State University (Raleigh, NC, USA) in 2016 (T3 leaf tissue) and on Illumina HiSeq 4000 at the Genomic Sequencing Core at UC Davis (Davis, CA, USA) in 2017 (T4 kernels), respectively. The adapters and indexes were trimmed using Cutadapt [50] version 1.12, and the reads were mapped to the maize and A. flavus genome sequences using Bowtie2 [51] version 2.1.0. to identify sRNAs with a perfect match. The Awk command lines were used to extract small RNA specific to the targeted alk gene. R [52] was used to generate read counts. The sRNA sequence locus position and read length was illustrated using Microsoft Excel (Microsoft Corp., Seattle, WA, USA).

2.10. Statistical Analyses

Statistical analysis was conducted using SAS version 9.4 (Statistical Analysis System, SAS Institute, Cary, NC, USA). Analyses of variance (ANOVAs) were calculated using Proc Mixed. Post hoc comparison of means was calculated using Turkey’s LSD means [53]. Significance in this study was defined by a confidence interval ≥95% (α = 0.05).

3. Results

3.1. Construction and Transformation of HIGS Vector into Maize and Confirmation of alk Target Gene

The HIGS vector was constructed as shown in Figure S1. After inserting the alk 5′ and 3′ arm and the intron containing chloramphenicol selection marker (CmR) into pBS-d35S-attR4- attR4 through LR recombination, the resulting construct was verified through digestions with EcoR V and EcoR I/Kpn I restriction enzymes, and the resulting fragment sizes were in agreement with expected sizes. The T-DNA portion of the above vector was then excised with BamH I and Sac I, which was inserted into the corresponding site of pTF102. The final construct (Figure S1) with inverted repeats of the alk fragment was verified through digestions with EcoR V and Kpn I restriction enzymes (Figure S2). The fragment sizes were in agreement with the expected 0.2, 1.7 and 8.9 kb and 0.2, 1.1, 1.3 and 8.7 kb sizes (Figure S2). This construct was capable of producing a 290-bp alk dsRNA transcript in the host plant.
The construct was transformed into immature embryo of maize B104 line using the Agrobacterium infection method. Among twelve independent transformation events, eight were confirmed positive, and four (Alk-1, 5, 8 and 12) were negative for the alk target gene when the genomic DNA from the T0 leaf tissue was analyzed through PCR (Figure 1A). Two of the positive transformation events (Alk-7 and Alk-10) showed the highest target gene expression and the negative events (such as Alk-1, Alk-8 and Alk-12) showed no detectable level of target gene expression as in B104 control (Figure 1B).

3.2. Variation in Gene Copy Number and Zygosity

The number of alk gene integration was determined based on PCR genotyping of seedlings generated from T3 generation kernels using chi-square analysis. The number of integration was estimated based on the probability of chi-square value Χ2 = ∑ (observed-expected)2/(expected) exceeding the critical value (3.841, p < 0.05) to either reject or accept the null hypothesis of being one or two integrations. Segregation of seedlings with transgene and without (null) is expected to be 3:1 (transgene: null) for a single integration. The results indicated a single integration of alk gene for the four events under study (Alk-3, Alk-4, Alk-7 and Alk-9) (Table 2). All four events were further quantified for alk copy number using the droplet digital PCR (ddPCR). The ratio of gene copy number of alk/adh1 for genomic DNA samples from T0 and T4 generation leaves revealed the presence of a single copy of alk for Alk-3, 4, 6 and 11 and two copies of the transgene in Alk-7, 9 and 10 events (Table 3).

3.3. Aflatoxin Production in T3 kernels of Alk-3, Alk-4, Alk-7 and Alk-9 Events under Laboratory Kernel Screening Assay (KSA) Conditions

The KSA assay was used to assess the aflatoxin resistance of T3 transgenic kernels. A significant reduction in aflatoxin production was observed in the kernels of homozygous lines of Alk-3, Alk-4, Alk-7 and Alk-9 events compared with their null controls (p < 0.02, p < 0.016, p < 0.003 and p < 0.042, respectively) (Figure 2). Reduction in aflatoxin levels achieved under in vitro conditions varied among the transgenic lines. The highest percentage of reduction in aflatoxin accumulation was observed in Alk-7 transgenic with 87% lower aflatoxin production compared to its null control. Alk-9 transgenic had the lowest percent reduction with 65% decrease in aflatoxin accumulation compared to the null.

3.4. Phenotypic Assessment of Alk-RNAi Homozygous Transgenic and Null Control Plants

Ten representative T4 plants of the selected lines grown in the field were evaluated for phenotypic performance. Plant height at flowering ranged from 132 to 142 cm across transgenic Alk-RNAi homozygous lines and the null controls (Table 4). Average ear length ranging from 13 to 14.9 cm was observed for homozygous lines and the null controls (Table 4). Likewise, the 100-kernel weight was similar for homozygous lines and the null controls. However, there was a significant difference in plant height between transgenic and null for the Alk-9 event. Delayed tasseling and shorter plant height were observed in the transgenic plants of Alk-9. One hundred kernel weight of the Alk-9 homozygous line was also significantly lower than that of the null control (Table 4). However, this difference is not always associated with the presence of the transgene, such as in the case of Alk-3, which had significantly higher 100-kernel weight than the null. The variation in plant height, days to tasseling, ear length and kernel weight did not significantly affect the morphology of the Alk-9 transgenic line (Figure S3). These field evaluations suggest that there are no clear detrimental morphological changes that may be associated with the presence of the Alk-RNAi silencing construct or its possible off-target effect in the selected lines.

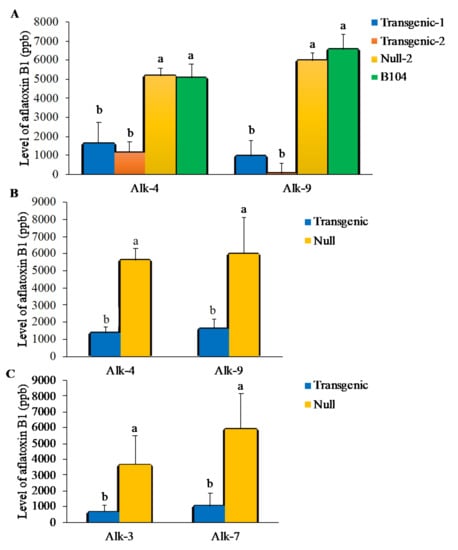

3.5. Aflatoxin Production of Alk-4 and Alk-9 Events at T4 to T6 Generations and Alk-3 and Alk-7 at T4 Generation under Field Inoculation Conditions

For aflatoxin production in T4 generation kernels of Alk-4 and Alk-9 conducted in 2017, only a border-line significant difference was observed between Alk-4 homozygous line and its null control (p < 0.058) but not between the Alk-9 homozygous line and its null control (p < 0.27) (Figure S4) due to the presence of severe Fusarium spp. infection of maize ears in the field, which greatly reduced the overall aflatoxin production. In 2018, two lines from each of the T5 generation Alk-4 and Alk-9 transgenic events were evaluated through field inoculation, and all showed significantly lower aflatoxin production ranging from 66–73% and 80–96% compared to their null and B104 controls (p < 0.0017 to p < 0.003) (Figure 3A). In 2019, significantly lower aflatoxin production was again observed in the homozygous transgenic kernels of these two events (Alk-4 and Alk-9) at T6 compared with null controls (p < 0.04, 0.002, respectively) (Figure 3B). Aflatoxin production was reduced by 73–83% in the homozygous transgenic lines compared to their null controls. Moreover, in 2019, two more events (Alk-3 and Alk-7) of T4 generation kernels were evaluated, and they showed up to 83% reduction in aflatoxin (p < 0.032 and 0.006, respectively) (Figure 3C).

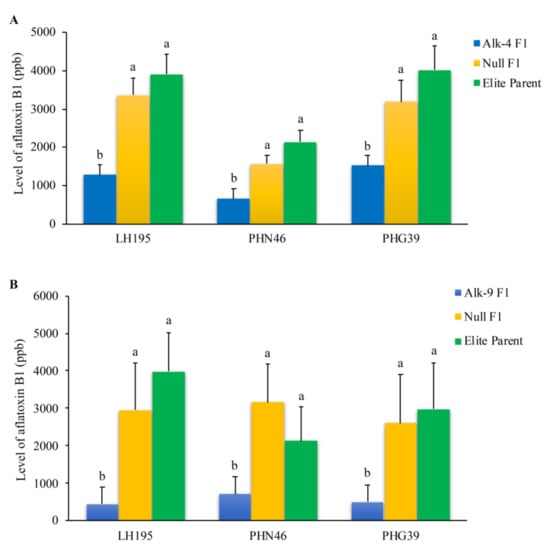

3.6. Reduced Aflatoxin Accumulation in Field Inoculated F1 Crosses between Homozygous T5 Generation of Alk-4 and T6 Generation of Alk-9 with Three Elite Inbred Lines

In order to determine whether the enhanced aflatoxin resistance observed in the homozygous transgenic lines was due to the presence of alk transgene, the homozygous Alk-4 and Alk-9 lines were crossed with three elite inbred lines. Significantly less aflatoxin production was observed in the kernels of F1 crosses with the presence of the transgene than that in the control kernels without the transgene (Figure 4) in all three different crosses (p < 0.006 to p < 0.045). The Alk-4 F1 and Alk-9 F1 hybrids accumulated 67% to 89%, 66% to 68% and 61% to 86% less aflatoxin compared to the elite lines LH195, PHN46 and PHG39, respectively. On an average, 67% (for crosses with PHN46) to 78% (for crosses with LH195) reduction in aflatoxin accumulation was achieved in the hybrid lines. These results demonstrate that the presence of the transgene is the cause of reduced aflatoxin production in the F1 crosses between the homozygous Alk-4 or Alk-9 line and the elite inbred lines.

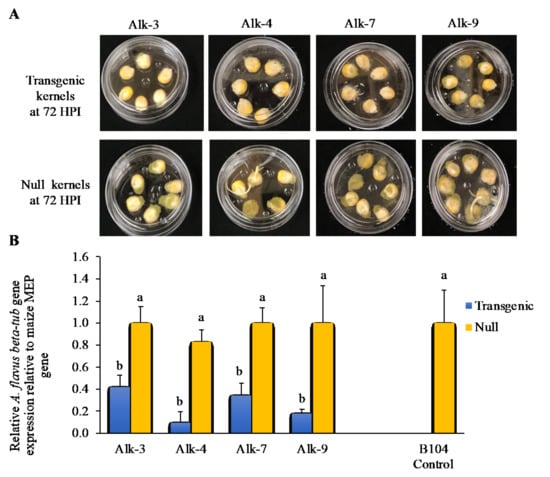

3.7. A. flavus Growth in Alk Lines and Null Controls

A separate study was conducted to determine whether the presence of the transgene in the kernels affects the A. flavus infection/growth. Although the fungus was visible on both transgenic and null kernels at 72 hpi, the rate of A. flavus growth in the transgenic kernels for the four Alk events was slower compared to the fungal growth on the null and B104 kernels based on visual observation (Figure 5A). Differential A. flavus growth rate in the transgenic kernels was confirmed using qRT-PCR. The inoculated transgenic kernels contained significantly lower levels of A. flavus β-tub DNA than those in the inoculated null and B104 controls (Figure 5B). Reduction in β-tub DNA ranged from 60 to 85% in the transgenic kernels compared to null control kernels.

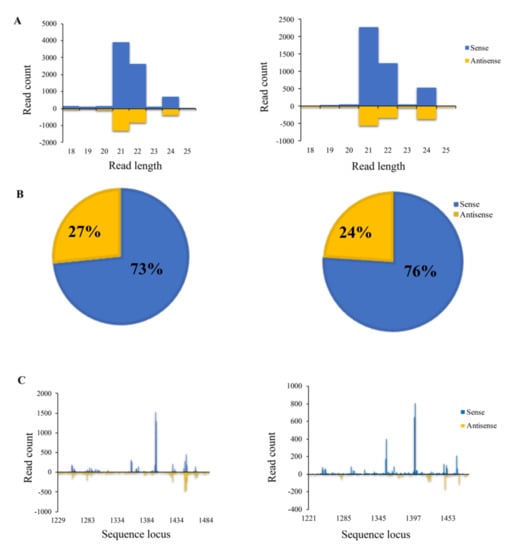

3.8. Small RNA Production in Alk-RNAi Homozygous Transgenic and Null Controls

In order to determine whether the enhanced aflatoxin resistance observed in the Alk-RNAi homozygous transgenic T4 kernels was due to the presence of alk-specific small RNA produced from the introduced Alk-RNAi cassette, small RNAs from transgenic and null leaves and kernel tissues were sequenced and analyzed (Table 5). When the small RNA libraries from the leaf tissue of homozygous Alk-4 and B104 lines were sequenced, 13,699 and 6238 small RNA reads were aligned to A. flavus genome. Among them, 9574 (70%) and 7 (0.11%) reads were specifically aligned to alk, respectively. The total number of small RNA reads aligned to A. flavus was 52,476 in Alk-4 homozygous kernel tissue and 64,291 in the null line, respectively. Among them, 6606 read counts (11%) and 8 read counts (0.12‰) of small RNA from Alk-4 homozygous and null kernel tissues were specifically aligned to alk, respectively. The alignment of the small RNA sequences from homozygous transgenic plants to other random non-target A. flavus genes yielded a similar number of reads of small RNAs to that of the null and B104 control plants that were aligned to alk (Table 5). The most abundant small RNAs were 21, 22 and 24 bp in length in the transgenic lines (Figure 6A). In addition, both alk-specific anti-sense and sense small RNAs, which are the critical components of gene-specific RNA silencing, were observed. The majority of the sequenced small RNAs were from the antisense strand (Figure 6B). The small RNA profiling also showed high read counts in the 290 bp region that coincides with the size of the alk transgene inserted into the transgenic lines (Figure 6C).

4. Discussion

The overall goal of this study was to determine if targeting the alkaline protease (alk) gene in the filamentous A. flavus pathogen using HIGS could reduce its infection of maize, and subsequent aflatoxin contamination. The decision to target alk gene for suppression was based on a previous study that showed the ALK protein was dominantly produced in A. flavus infected maize kernels and the reduction of alk by phenylmethylsulfonyl fluoride led to significantly lower aflatoxin production in specific growth medium [36]. The present study hypothesized that since alk plays a significant role in A. flavus virulence, silencing the gene using HIGS may have a great potential in enhancing maize resistance to A. flavus infection and aflatoxin accumulation.
Out of the 12 independent events produced, eight were positive for containing the alk gene. During evaluation, the T1 transgenic kernels were observed to have lower levels of aflatoxin accumulation in comparison to the non-transgenic kernels (Table S2). After seed increase through self-pollination to T3 generation, the kernels of four selected events showed significantly lower aflatoxin accumulation compared to the kernels that segregated for no alk gene (null) under artificial inoculation in the laboratory KSA assay (Figure 2). Their enhanced aflatoxin resistance was further verified under artificial inoculations in field trials from 2017 to 2019 (kernels of T4, T5 and T6 Alk-4 and Alk-9 and T4 Alk-3 and Alk-7) with a reduction in aflatoxin production as high as 96%. The results from these repeated evaluations of multiple Alk transformation lines at different generations demonstrated that the introduced RNAi vector targeting the A. flavus alk gene resulted in the observed enhanced aflatoxin resistance in the transgenic maize lines (Figure 3). These maize lines could be useful germplasms for breeding commercial maize varieties with aflatoxin resistance. In an attempt to determine the usefulness of these transgenic lines in developing aflatoxin-resistant commercial maize lines, Alk-4 and Alk-9 transgenic plants were crossed with three elite inbred maize lines in 2018 and 2019, respectively. The resulting hybrids also showed significantly reduced aflatoxin accumulation confirming that the enhanced aflatoxin resistance in the newly developed transgenic lines is due to the presence of the alk transgene (Figure 4). Some of these lines will be further evaluated at different locations to determine the reliability of their aflatoxin resistance status and yield potentials.
Furthermore, a significant reduction in fungal biomass in the transgenic kernels at 72 hpi compared with null kernels was observed under laboratory conditions (Figure 5), confirming that alk plays a major role in A. flavus infection of maize since the β-tub gene is a key constitutive gene in fungi [54], and its level of DNA correlates to the level of A. flavus growth in the kernels, thereby suggesting that the level of A. flavus biomass in maize kernels was significantly higher in null compared to the transgenic kernels. This result suggests that the reduction in the overall aflatoxin accumulation may be attributed to the reduction in A. flavus infection and growth in the maize kernels. In order to verify that our observed reduction in aflatoxin and lower growth of A. flavus in the transgenic maize was due to the RNAi construct introduced through transformation, small RNA libraries were constructed from kernel and leaf tissues of Alk-4 transgenic and the null controls and sequenced. The presence of significantly higher levels of the alk-specific sense and anti-sense strands of small RNAs in the transgenic compared to the null and B104 controls were also observed (Figure 6; Table 5). In line with previous studies on the role of 22 nt sRNAs in transitive and systemic spread of RNAi [55,56,57], significantly high amounts of the 22 nt long sRNA were observed in the transgenic Alk-4 line (Figure 6A). It may be interesting to examine the levels of 22 nt sRNA in different events and determine whether they correlate with changes in aflatoxin resistance in future studies.
Varying levels of aflatoxin reduction in the transgenic lines compared to null lines from different events were observed (Figure 3). This variation may be due to difference in target gene copy numbers among different events. The influence of location of integration and copy number on transgene expression is well documented in earlier transgenic studies [58,59,60]. In these studies, integration and copy number of the transgene were found to have either positive or non-significant influence on resistance to virus in transgenic lines. Several other studies also found that multiple transgene copy numbers improved the resistance [61,62,63]. Based on our analyses through digital droplet PCR (ddPCR), conventional PCR and chi-square evaluation, the four events used in the present study had gene copies ranging from one to two but segregated as a single integration of the target gene since the transgenic lines followed the Mendelian segregation pattern of a single gene. The presence of two copies of the transgene leads to another concern: impact on phenotypical changes and non-target gene expression. Similar plant height, kernel weight, flowering time and pollen shed were observed between transgenic and non-transgenic null controls with the exception of few cases that may be attributed to soil variations in parts of the field where the different lines were grown, rather than genetic factors of the lines. The transgenic Alk-9 line showed delay in flowering time compared to the null control; however, the resulting transgenic ears and kernel sets were not negatively affected (Table 3; Figure S3). In addition, sustained aflatoxin resistance was observed in subsequent evaluation of the Alk-9 in T5 and T6 generations (Figure 3).
Another point worthy of mention is that although the levels of aflatoxin accumulation inside kernels vary greatly depending on the inoculum concentration used, the method of inoculation and the test conditions, the percentage of aflatoxin reduction in the transgenic lines compared to their null controls was fairly consistent across the board. Under the laboratory assay, kernels were dipped into inoculum, thereby allowing for penetrations of fungal inoculum and the initiation of infection through various kernel parts. In the field, the inoculum concentration of 4 × 106 spores/mL in 2017 was lowered to 1 × 105 spores/mL in subsequent years to better mimic natural infections. However, this inoculum concentration is still thousands of folds higher than what maize ears are normally exposed to under natural conditions. The use of such a high concentration is to examine the aflatoxin resistance of our transgenic lines under extreme conditions. Our transgenic lines have repeatedly produced significantly less aflatoxin than their controls and demonstrated the reliability of the resistance offered by HIGS. This is also the reason for the extremely higher levels of aflatoxin being detected in our KSA assays compared to those in inoculated field studies or those seen under natural infections.
Different inoculation methods have been used historically to evaluate aflatoxin resistance, such as dipping inoculation for evaluation of mature kernels under laboratory KSA conditions, spraying on silk and side-needle or pin-bar inoculation on immature kernels under field condition to assess maize lines for resistance to A. flavus infection or aflatoxin production. In the present study, the dipping method was used for the laboratory evaluation of mature kernels at T1 and T3 without wounding the kernels. This should allow the expression of resistance that could be associated with kernel pericarp that is circumvented by wounding when the side-needle inoculation method was used in the evaluation of immature kernels under field conditions. In addition, the side-needle inoculation method has been shown to be more effective for infection of developing maize kernels compared to the silk channel inoculation method [46,64,65,66]. Reduced aflatoxin production at an average of 84% was observed during field evaluation of the transgenic lines using the side-needle inoculation method. Similar reduction in aflatoxin production was observed (up to 87%) in the kernels of transgenic lines under KSA assays. This suggests that even in the case of seed injury or damage caused by insect vector under field condition, aflatoxin accumulation could still be significantly lower in the transgenic lines.

5. Conclusions

The RNAi vector was introduced into maize to target the sequence homologous to the A. flavus alkaline protease (alk) gene for silencing enhanced aflatoxin resistance in transgenic maize lines. The resistance to aflatoxin mediated by HIGS varies among the transformation events and the hybrids developed and was consistently observed over multiple evaluation trials across multiple transformation events. This research demonstrates that HIGS has great potential in developing aflatoxin resistant maize genotypes and/or improving already existing aflatoxin susceptible commercial maize germplasms. Future efforts to combine multiple key fungal infection or aflatoxin biosynthesis-related genes in a single RNAi construct may provide a more durable and potent suppression of A. flavus infection and subsequent aflatoxin contamination in maize.

Supplementary Materials

The following are to be available online at https://www.mdpi.com/article/10.3390/jof7110904/s1. Figure S1: Construction scheme of alkaline protease (alk) gene silencing vector. The pBS-d35S- R4-R3 vector containing a double 35S promoter, followed by an attR4-ccdB-CmR-attR3 cassette amplified from pDESTTM R4-R3 (Invitrogen, Carlsbad, CA, USA) in the pBluescript SK- was constructed in an earlier study [37]. The DNA regions corresponding to the Alk 5′arm and 3′ arm were amplified by PCR with primers containing unique homologous recombination sites cloned into their corresponding entry vectors. They were recombined with pDONR221-PR 10-intron-CmR containing a chloramphenicol resistance gene (CmR) selection marker in the middle of the PR10 intron through the LR clonase reaction to assemble the RNAi cassette into the pBluescript vector to produce the pBS-d35S-attB4-5′arm-attB1-PR10 intron-CmR-attB2-3′arm-attB3 vector (named pBS-II-Alk-RNAi). The RNAi cassette was then cloned into the pTF102 vector through ligation to produce the final pTF102-Alk-RNAi vector. Figure S2: Restriction digestion of the pTF102-Alk-RNAi construct to confirm its correct assembly. Lanes 1 and 3 are the original pTF102 vector digested with EcoR V and Kpn I, which resulted in the expected sizes of 8.9, 1.7, 0.88, 0.23 kb and 7.7, 2.5 and 1.3 kb, respectively; lanes 2, 4 and 5 are two independent clones of pTF102-Alk-RNAi vector digested with EcoR V and Kpn I, which resulted in the expected sizes of 8.7, 1.3, 1.1, 0.29 kb; and 1.28, 1.35kb, respectively. Figure S3: Representative appearance of plant morphology and kernel s of Alk-RNAi transgenic and null of plants at flowering and T4 generation ears at harvest. Figure S4: Aflatoxin production in the T4 generation transgenic and null kernels of Alk-4 and Alk-9 events and B104 in 2017 under field inoculation conditions. Table S1: List of primers used for constructing the Ti vector for suppressing the Alk for zygosity and droplet digital PCR. Table S2: Variations in the number and average weight of T1 kernels among lines from of RNAi-Alk in B104 that were produced at Iowa State University. Table S3: Aflatoxin production in the kernels of selected T1 Alk events using the kernel screening assay.

Author Contributions

Conceptualization, O.O., Y.R., Q.W. and Z.-Y.C.; data curation, O.O. and Y.R.; formal analysis, O.O., Y.R. and D.H.; methodology, O.O., Y.R., Z.-Q.H., Q.W., K.W., K.R., J.W.C. and Z.-Y.C.; writing—original draft, O.O. and Z.-Y.C.; writing—review and editing, O.O., Y.R. and Z.-Y.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Aflatoxin Mitigation Center of Excellence (AMCOE) of National Corn Growers Association from 2012 to 2020; USDA HATCH grant #: CT0303; and by the U. S. Department of Agriculture, Agricultural Research Service under the Cooperative Agreement No. 58-6436-1-576 and 58-6054-6-015.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets generated in this study are available in the NCBI SRA database under the accession number: PRJNA759324.

Acknowledgments

The authors would like to thank Deniel Debona, Lidiya Samuel and Busayo Olukunle for their contributions to this work. Published with the approval of the Director of the Louisiana State University Agricultural Center Agricultural Experiment Station as manuscript number: 2021-240-35067.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Geiser, D.M.; Timberlake, W.E.; Arnold, M.L. Loss of meiosis in Aspergillus. Mol. Biol. Evol. 1996, 13, 809–817. [Google Scholar] [CrossRef]
  2. Horn, B.W.; Gell, R.M.; Singh, R.; Sorensen, R.B.; Carbone, I. Sexual reproduction in Aspergillus flavus sclerotia: Acquisition of novel alleles from soil populations and uniparental mitochondrial inheritance. PLoS ONE 2016, 11, e0146169. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Moradi, S.; Azari, H.; Jafari Anarkooli, I.; Qasemi-Panahi, B.; Elhami, S.; Forouharmehr, A. Effect of aflatoxin B1 on BRCA1 and BRCA2 genes expression under in vitro cultured cell line of normal Human Mammary Epithelial Cells (HMEC). J. Police Med. 2015, 3, 211–220. [Google Scholar]
  4. Robens, J.; Richard, J. Aflatoxins in Animal and Human Health. Rev. Environ. Contam. Toxicol. 1992, 127, 69–94. [Google Scholar]
  5. Squire, R.A. Ranking Animal Carcinogens: A Proposed Regulatory Approach. Science 1981, 214, 877–880. [Google Scholar] [CrossRef]
  6. Mitchell, N.J.; Bowers, E.; Hurburgh, C.; Wu, F. Potential economic losses to the US corn industry from aflatoxin contamination. Food Addit. Contam: Part A 2016, 33, 540–550. [Google Scholar] [CrossRef] [PubMed]
  7. Mutegi, C.; Cotty, P.; Bandyopadhyay, R. Prevalence and mitigation of aflatoxins in Kenya (1960-to date). World Mycotoxin J. 2018, 11, 341–357. [Google Scholar] [CrossRef] [Green Version]
  8. Egal, S.; Hounsa, A.; Gong, Y.; Turner, P.; Wild, C.; Hall, A.; Hell, K.; Cardwell, K. Dietary exposure to aflatoxin from maize and groundnut in young children from Benin and Togo, West Africa. Int. J. Food Microbiol. 2005, 104, 215–224. [Google Scholar] [CrossRef] [PubMed]
  9. Gong, Y.Y.; Cardwell, K.; Hounsa, A.; Egal, S.; Turner, P.C.; Hall, A.J.; Wild, C.P. Dietary aflatoxin exposure and impaired growth in young children from Benin and Togo: Cross sectional study. BMJ Glob. Health 2002, 325, 20–21. [Google Scholar] [CrossRef] [Green Version]
  10. Castelino, J.M.; Routledge, M.N.; Wilson, S.; Dunne, D.W.; Mwatha, J.K.; Gachuhi, K.; Wild, C.P.; Gong, Y.Y. Aflatoxin exposure is inversely associated with IGF1 and IGFBP3 levels in vitro and in Kenyan school children. Mol. Nutr. Food Res. 2015, 59, 574–581. [Google Scholar] [CrossRef] [Green Version]
  11. Accinelli, C.; Abbas, H.K.; Little, N.S.; Kotowicz, J.K.; Shier, W.T. Biological control of aflatoxin production in corn using non-aflatoxigenic Aspergillus flavus administered as a bioplastic-based seed coating. Crop Prot. 2018, 107, 87–92. [Google Scholar] [CrossRef]
  12. Abbas, H.K.; Accinelli, C.; Shier, W.T. Biological control of aflatoxin contamination in US crops and the use of bioplastic formulations of Aspergillus flavus biocontrol strains to optimize application strategies. J. Agric. Food Chem. 2017, 65, 7081–7087. [Google Scholar] [CrossRef]
  13. Cotty, P.J.; Bhatnagar, D. Variability among atoxigenic Aspergillus flavus strains in ability to prevent aflatoxin contamination and production of aflatoxin biosynthetic pathway enzymes. Appl. Environ. Microbiol. 1994, 60, 2248–2251. [Google Scholar] [CrossRef] [Green Version]
  14. Medina, A.; Akbar, A.; Baazeem, A.; Rodriguez, A.; Magan, N. Climate change, food security and mycotoxins: Do we know enough? Fungal Biol. Rev. 2017, 31, 143–154. [Google Scholar] [CrossRef] [Green Version]
  15. Ojiambo, P.S.; Battilani, P.; Cary, J.W.; Blum, B.H.; Carbone, I. Cultural and genetic approaches to manage aflatoxin contamination: Recent insights provide opportunities for improved control. Phytopathology 2018, 108, 1024–1037. [Google Scholar] [CrossRef] [Green Version]
  16. Rose, L.E.; Overdijk, E.J.; van Damme, M. Small RNA molecules and their role in plant disease. Eur. J. Plant Pathol. 2019, 154, 115–128. [Google Scholar] [CrossRef] [Green Version]
  17. Xie, Z.; Johansen, L.K.; Gustafson, A.M.; Kasschau, K.D.; Lellis, A.D.; Zilberman, D.; Jacobsen, S.E.; Carrington, J.C. Genetic and functional diversification of small RNA pathways in plants. PLoS Biol. 2004, 2, e104. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Baulcombe, D. RNA silencing in plants. Nature 2004, 431, 356–363. [Google Scholar] [CrossRef]
  19. Brodersen, P.; Sakvarelidze-Achard, L.; Bruun-Rasmussen, M.; Dunoyer, P.; Yamamoto, Y.Y.; Sieburth, L.; Voinnet, O. Widespread translational inhibition by plant miRNAs and siRNAs. Science 2008, 320, 1185–1190. [Google Scholar] [CrossRef] [PubMed]
  20. Llave, C.; Xie, Z.; Kasschau, K.D.; Carrington, J.C. Cleavage of Scarecrow-like mRNA targets directed by a class of Arabidopsis miRNA. Science 2002, 297, 2053–2056. [Google Scholar] [CrossRef] [Green Version]
  21. Weiberg, A.; Jin, H. Small RNAs—The secret agents in the plant–pathogen interactions. Curr. Opin. Plant Biol. 2015, 26, 87–94. [Google Scholar] [CrossRef] [Green Version]
  22. Weiberg, A.; Wang, M.; Lin, F.-M.; Zhao, H.; Zhang, Z.; Kaloshian, I.; Huang, H.-D.; Jin, H. Fungal small RNAs suppress plant immunity by hijacking host RNA interference pathways. Science 2013, 342, 118–123. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Buck, A.H.; Coakley, G.; Simbari, F.; McSorley, H.J.; Quintana, J.F.; Le Bihan, T.; Kumar, S.; Abreu-Goodger, C.; Lear, M.; Harcus, Y. Exosomes secreted by nematode parasites transfer small RNAs to mammalian cells and modulate innate immunity. Nat. Commun. 2014, 5, 1–12. [Google Scholar] [CrossRef]
  24. Baulcombe, D.C. VIGS, HIGS and FIGS: Small RNA silencing in the interactions of viruses or filamentous organisms with their plant hosts. Curr. Opin. Plant Biol. 2015, 26, 141–146. [Google Scholar] [CrossRef]
  25. Cheng, W.; Song, X.S.; Li, H.P.; Cao, L.H.; Sun, K.; Qiu, X.L.; Xu, Y.B.; Yang, P.; Huang, T.; Zhang, J.B. Host-induced gene silencing of an essential chitin synthase gene confers durable resistance to Fusarium head blight and seedling blight in wheat. Plant Biotechnol. J. 2015, 13, 1335–1345. [Google Scholar] [CrossRef] [PubMed]
  26. Ghag, S.B.; Shekhawat, U.K.; Ganapathi, T.R. Host-induced post-transcriptional hairpin RNA-mediated gene silencing of vital fungal genes confers efficient resistance against Fusarium wilt in banana. Plant Biotechnol. J. 2014, 12, 541–553. [Google Scholar] [CrossRef] [PubMed]
  27. Govindarajulu, M.; Epstein, L.; Wroblewski, T.; Michelmore, R.W. Host-induced gene silencing inhibits the biotrophic pathogen causing downy mildew of lettuce. Plant Biotechnol. J. 2015, 13, 875–883. [Google Scholar] [CrossRef] [Green Version]
  28. Huang, G.; Allen, R.; Davis, E.L.; Baum, T.J.; Hussey, R.S. Engineering broad root-knot resistance in transgenic plants by RNAi silencing of a conserved and essential root-knot nematode parasitism gene. Proc. Natl. Acad. Sci. USA 2006, 103, 14302–14306. [Google Scholar] [CrossRef] [Green Version]
  29. Panwar, V.; Jordan, M.; McCallum, B.; Bakkeren, G. Host-induced silencing of essential genes in Puccinia triticina through transgenic expression of RNA i sequences reduces severity of leaf rust infection in wheat. Plant Biotechnol. J. 2018, 16, 1013–1023. [Google Scholar] [CrossRef] [Green Version]
  30. Wang, M.-B.; Abbott, D.C.; Upadhyaya, N.M.; Jacobsen, J.V.; Waterhouse, P.M. Agrobacterium tumefaciens-mediated transformation of an elite Australian barley cultivar with virus resistance and reporter genes. Funct. Plant Biol. 2001, 28, 149–156. [Google Scholar] [CrossRef]
  31. Masanga, J.O.; Matheka, J.M.; Omer, R.A.; Ommeh, S.C.; Monda, E.O.; Alakonya, A.E. Downregulation of transcription factor aflR in Aspergillus flavus confers reduction to aflatoxin accumulation in transgenic maize with alteration of host plant architecture. Plant Cell Rep. 2015, 34, 1379–1387. [Google Scholar] [CrossRef] [PubMed]
  32. Thakare, D.; Zhang, J.; Wing, R.A.; Cotty, P.J.; Schmidt, M.A. Aflatoxin-free transgenic maize using host-induced gene silencing. Sci. Adv. 2017, 3, e1602382. [Google Scholar] [CrossRef] [Green Version]
  33. Raruang, Y.; Omolehin, O.; Hu, D.; Wei, Q.; Han, Z.-Q.; Rajasekaran, K.; Cary, J.W.; Wang, K.; Chen, Z.-Y. Host Induced Gene Silencing Targeting Aspergillus flavus aflM Reduced Aflatoxin Contamination in Transgenic Maize under Field Conditions. Front. Microbiol. 2020, 11, 754. [Google Scholar] [CrossRef]
  34. Katz, M.E.; Ricea, R.N.; Cheetham, B.F. Isolation and characterization of an Aspergillus nidulans gene encoding an alkaline protease. Gene 1994, 150, 287–292. [Google Scholar] [CrossRef]
  35. Cheetham, B.F.; Katz, M.E. Analysis of two Aspergillus nidulans genes encoding extracellular proteases. Fungal Genet. Biol. 2000, 29, 201–210. [Google Scholar]
  36. Chen, Z.-Y.; Brown, R.L.; Cary, J.W.; Damann, K.E.; Cleveland, T.E. Characterization of an Aspergillus flavus alkaline protease and its role in the infection of maize kernels. Toxin Rev. 2009, 28, 187–197. [Google Scholar] [CrossRef]
  37. Chen, Z.-Y.; Brown, R.L.; Damann, K.E.; Cleveland, T.E. PR10 expression in maize and its effect on host resistance against Aspergillus flavus infection and aflatoxin production. Mol. Plant Pathol. 2010, 11, 69–81. [Google Scholar] [CrossRef]
  38. Frame, B.R.; Shou, H.; Chikwamba, R.K.; Zhang, Z.; Xiang, C.; Fonger, T.M.; Pegg, S.E.K.; Li, B.; Nettleton, D.S.; Pei, D. Agrobacterium tumefaciens-mediated transformation of maize embryos using a standard binary vector system. Plant Physiol. 2002, 129, 13–22. [Google Scholar] [CrossRef] [Green Version]
  39. Raji, J.A.; Frame, B.; Little, D.; Santoso, T.J.; Wang, K. Agrobacterium-and biolistic-mediated transformation of maize B104 inbred. In Maize: Methods and Protocols; Lagrimini, L.M., Ed.; Springer: New York, NY, USA, 2018; pp. 15–40. [Google Scholar]
  40. Doyle, J.J.; Doyle, J.L. Isolation of plant DNA from fresh tissue. Focus 1990, 12, 39–40. [Google Scholar]
  41. Hindson, B.J.; Ness, K.D.; Masquelier, D.A.; Belgrader, P.; Heredia, N.J.; Makarewicz, A.J.; Bright, I.J.; Lucero, M.Y.; Hiddessen, A.L.; Legler, T.C. High-throughput droplet digital PCR system for absolute quantitation of DNA copy number. Anal. Chem. 2011, 83, 8604–8610. [Google Scholar] [CrossRef]
  42. Głowacka, K.; Kromdijk, J.; Leonelli, L.; Niyogi, K.K.; Clemente, T.E.; Long, S.P. An evaluation of new and established methods to determine T-DNA copy number and homozygosity in transgenic plants. Plant Cell Environ. 2016, 39, 908–917. [Google Scholar] [CrossRef] [PubMed]
  43. Xu, X.; Peng, C.; Wang, X.; Chen, X.; Wang, Q.; Xu, J. Comparison of droplet digital PCR with quantitative real-time PCR for determination of zygosity in transgenic maize. Transgenic Res. 2016, 25, 855–864. [Google Scholar] [CrossRef]
  44. Collier, R.; Dasgupta, K.; Xing, Y.; Hernandez, B.; Shao, M.; Rohozinski, D.; Kovak, E.; Lin, J.; De Oliveira, M.; Stover, E. Accurate measurement of transgene copy number in crop plants using droplet digital PCR. Plant J. 2017, 90, 1014–1025. [Google Scholar] [CrossRef] [Green Version]
  45. Brown, R.; Cleveland, T.; Payne, G.; Woloshuk, C.; Campbell, K.; White, D. Determination of resistance to aflatoxin production in maize kernels and detection of fungal colonization using an Aspergillus flavus transformant expressing Escherichia coli β-glucuronidase. Phytopathology 1995, 85, 983–989. [Google Scholar] [CrossRef]
  46. Williams, W.P.; Alpe, M.N.; Windham, G.L.; Ozkan, S.; Mylroie, J.E. Comparison of two inoculation methods for evaluating maize for resistance to Aspergillus flavus infection and aflatoxin accumulation. Int. J. Agron. 2013, 2013, 6. [Google Scholar] [CrossRef] [Green Version]
  47. Sobolev, V.S.; Dorner, J.W. Cleanup procedure for determination of aflatoxins in major agricultural commodities by liquid chromatography. J. AOAC Int. 2002, 85, 642–645. [Google Scholar] [CrossRef] [Green Version]
  48. Sweany, R.R.; Damann Jr, K.E.; Kaller, M.D. Comparison of soil and corn kernel Aspergillus flavus populations: Evidence for niche specialization. Phytopathology 2011, 101, 952–959. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Joshua, H. Determination of aflatoxins by reversed-phase high-performance liquid chromatography with post-column in-line photochemical derivatization and fluorescence detection. J. Chromatogr. A 1993, 654, 247–254. [Google Scholar] [CrossRef]
  50. Martin, M. Cutadapt removes adapter sequences from high-throughput sequencing reads. EMBnet J. 2011, 17, 10–12. [Google Scholar] [CrossRef]
  51. Langmead, B.; Trapnell, C.; Pop, M.; Salzberg, S.L. Ultrafast and memory-efficient alignment of short DNA sequences to the human genome. Genome Biol. 2009, 10, R25. [Google Scholar] [CrossRef] [Green Version]
  52. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2013; Available online: http://www.R-project.org/ (accessed on 19 October 2021).
  53. Saxton, A. A macro for converting mean separation output to letter groupings in Proc Mixed. In Proceedings of the 23rd SAS Users Group International, Nashville, TN, USA, 22–25 March 1998; pp. 1243–1246. [Google Scholar]
  54. Glass, N.L.; Donaldson, G.C. Development of primer sets designed for use with the PCR to amplify conserved genes from filamentous ascomycetes. Appl. Environ. Microbiol. 1995, 61, 1323–1330. [Google Scholar] [CrossRef] [Green Version]
  55. Dalakouras, A.; Wassenegger, M.; Dadami, E.; Ganopoulos, I.; Pappas, M.L.; Papadopoulou, K. Genetically modified organism-free RNA interference: Exogenous application of RNA molecules in plants. Plant Physiol. 2020, 182, 38–50. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Dalakouras, A.; Jarausch, W.; Buchholz, G.; Bassler, A.; Braun, M.; Manthey, T.; Krczal, G.; Wassenegger, M. Delivery of hairpin RNAs and small RNAs into woody and herbaceous plants by trunk injection and petiole absorption. Front. Plant Sci. 2018, 9, 1253. [Google Scholar] [CrossRef] [Green Version]
  57. McHale, M.; Eamens, A.L.; Finnegan, E.J.; Waterhouse, P.M. A 22-nt artificial micro RNA mediates widespread RNA silencing in Arabidopsis. Plant J. 2013, 76, 519–529. [Google Scholar] [CrossRef] [Green Version]
  58. Travella, S.; Ross, S.; Harden, J.; Everett, C.; Snape, J.; Harwood, W. A comparison of transgenic barley lines produced by particle bombardment and Agrobacterium-mediated techniques. Plant Cell Rep. 2005, 23, 780–789. [Google Scholar] [CrossRef] [PubMed]
  59. Clarke, J.L.; Spetz, C.; Haugslien, S.; Xing, S.; Dees, M.W.; Moe, R.; Blystad, D.-R. Agrobacterium tumefaciens-mediated transformation of poinsettia, Euphorbia pulcherrima, with virus-derived hairpin RNA constructs confers resistance to Poinsettia mosaic virus. Plant Cell Rep. 2008, 27, 1027–1038. [Google Scholar] [CrossRef] [Green Version]
  60. Zhu, C.-X.; Liu, H.-M.; Song, Y.-Z.; Wen, F.-J. Genetic analysis of RNA-mediated virus resistance in transgenic tobacco. Acta Genet. Sin. 2005, 32, 94–103. [Google Scholar]
  61. Guo, X.; Li, H.; Zhang, J.; Zhu, X.; Wang, H. Evidence for RNA-mediated resistance to PVYn in tobacco plants transformed with the viral coat protein gene. Chin. J. Appl. Environ. Biol. 2003, 9, 372–376. [Google Scholar]
  62. Liu, H.; Zhu, C.; Zhu, X.; Guo, X.; Song, Y.; Wen, F. A link between PVYN CP gene-mediated virus resistance and transgene arrangement. J. Phytopathol. 2007, 155, 676–682. [Google Scholar] [CrossRef]
  63. Van den Boogaart, T.; Wen, F.; Davies, J.W.; Lomonossoff, G.P. Replicase-derived resistance against Pea early browning virus in Nicotiana benthamiana is an unstable resistance based upon posttranscriptional gene silencing. Mol. Plant Microbe Interact. 2001, 14, 196–203. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Windham, G.; Williams, W. Comparison of different inoculating methods to evaluate the pathogenicity and virulence of Aspergillus niger on two maize hybrids. Phytoparasitica 2012, 40, 305–310. [Google Scholar] [CrossRef]
  65. Windham, G.; Williams, W. A comparison of inoculation techniques for inducing aflatoxin contamination and Aspergillus flavus kernel infection on corn hybrids in the field. Phytoparasitica 2007, 35, 244. [Google Scholar] [CrossRef]
  66. Windham, G.L.; Williams, W.P.; Buckley, P.M.; Abbas, H.K. Inoculation techniques used to quantify aflatoxin resistance in corn. J. Toxicol. Toxin Rev. 2003, 22, 313–325. [Google Scholar] [CrossRef]
Jof 07 00904 g001 550

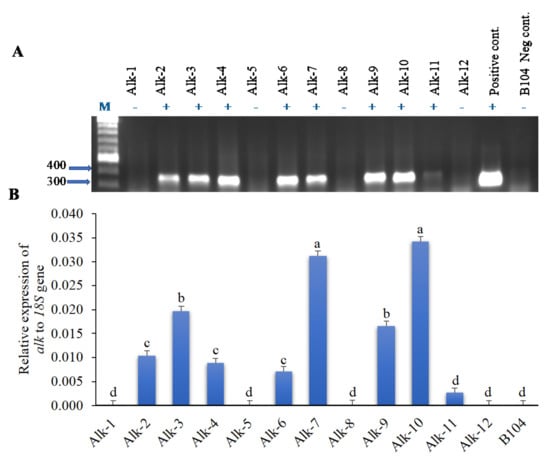

Figure 1. The presence (or absence) and the level of expression of the alkaline protease gene in T0 transgenic leaf tissues. (A) PCR confirmation of the presence (+) or absence (−) of the alkaline protease gene (alk) in pTF102-Alk-RNAi vector transformed T0 leaf tissues. pTF102-Alk-RNAi plasmid DNA was used as a positive control, and the genomic DNA from maize line B104 was used as a negative (−) control. (B) Expression of the alk transgene in the T0 leaf tissue of various transformation events relative to the maize 18S rRNA using real time PCR. Alk-1, Alk-5, Alk-8 and Alk-12 are negative for the transgene. Events labelled with the same letters are not significantly different at p ≤ 0.05.
Figure 1. The presence (or absence) and the level of expression of the alkaline protease gene in T0 transgenic leaf tissues. (A) PCR confirmation of the presence (+) or absence (−) of the alkaline protease gene (alk) in pTF102-Alk-RNAi vector transformed T0 leaf tissues. pTF102-Alk-RNAi plasmid DNA was used as a positive control, and the genomic DNA from maize line B104 was used as a negative (−) control. (B) Expression of the alk transgene in the T0 leaf tissue of various transformation events relative to the maize 18S rRNA using real time PCR. Alk-1, Alk-5, Alk-8 and Alk-12 are negative for the transgene. Events labelled with the same letters are not significantly different at p ≤ 0.05.
Jof 07 00904 g001
Jof 07 00904 g002 550

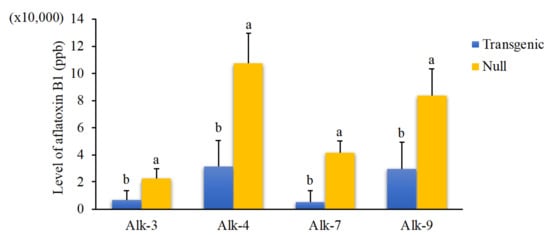

Figure 2. Aflatoxin production in the Alk-RNAi homozygous transgenic and null kernels of Alk-3, Alk-4 Alk-7 and Alk-9 events at T3 generation under in vitro Kernel Screening Assay (KSA) conditions. Analysis was carried out using 20 replicates (one kernel/replicate) each of homozygous and null controls. Bars with different letters are significantly different at p ≤ 0.05. A. flavus inoculum concentration of 4 × 106 conidia/mL was used for this experiment.
Figure 2. Aflatoxin production in the Alk-RNAi homozygous transgenic and null kernels of Alk-3, Alk-4 Alk-7 and Alk-9 events at T3 generation under in vitro Kernel Screening Assay (KSA) conditions. Analysis was carried out using 20 replicates (one kernel/replicate) each of homozygous and null controls. Bars with different letters are significantly different at p ≤ 0.05. A. flavus inoculum concentration of 4 × 106 conidia/mL was used for this experiment.
Jof 07 00904 g002
Jof 07 00904 g003 550
Figure 3. Evaluation of homozygous Alk transgenic lines under field inoculation conditions. (A) Aflatoxin production in T5 generation mature kernels of transgenic Alk lines and their null controls under field inoculation conditions. (B) Aflatoxin production in the T6 generation mature kernels of transgenic Alk-4 and Alk-9 lines and their null controls under field inoculation conditions. (C) Aflatoxin production in the T4 generation mature kernels of transgenic Alk-3 and Alk-7 lines and their null controls under field inoculation conditions. The inoculum concentration of 1 × 105 conidia/mL was used for these experiments. Bars with different letters are significantly different at p ≤ 0.05. Analysis was carried out using 10–14 ears with 3–4 samples per ear for each of homozygous, null and B104 lines. Transgenic represents the kernels from ears that contain alk. Null refers to kernels from ears of the same transformation events without the alk gene.
Figure 3. Evaluation of homozygous Alk transgenic lines under field inoculation conditions. (A) Aflatoxin production in T5 generation mature kernels of transgenic Alk lines and their null controls under field inoculation conditions. (B) Aflatoxin production in the T6 generation mature kernels of transgenic Alk-4 and Alk-9 lines and their null controls under field inoculation conditions. (C) Aflatoxin production in the T4 generation mature kernels of transgenic Alk-3 and Alk-7 lines and their null controls under field inoculation conditions. The inoculum concentration of 1 × 105 conidia/mL was used for these experiments. Bars with different letters are significantly different at p ≤ 0.05. Analysis was carried out using 10–14 ears with 3–4 samples per ear for each of homozygous, null and B104 lines. Transgenic represents the kernels from ears that contain alk. Null refers to kernels from ears of the same transformation events without the alk gene.
Jof 07 00904 g003
Jof 07 00904 g004 550
Figure 4. Aflatoxin production in mature kernels of the F1 crosses between Alk-4 (A) and Alk-9 (B) transgenic and null plants with three elite inbred lines (LH195, PHN46 and PHG39) under field inoculation conditions. Significant differences were observed in aflatoxin accumulation (p < 0.006 to p < 0.045) of F1 crosses between Alk-4/Alk-9 homozygous transgenic line and elite inbred lines compared with control F1 crosses between Alk-4/Alk-9 null and elite inbred lines as well as self-pollinated elite lines. Inoculum concentration of 1 × 105 conidia/mL was used for this experiment. Four different points were inoculated on each ear. Lower half of each ear with the four inoculation points was ground and 3 subsamples per ear were used for aflatoxin extraction. This analysis was carried out using 27–45 sub-samples from 9–15 ears for each cross.
Figure 4. Aflatoxin production in mature kernels of the F1 crosses between Alk-4 (A) and Alk-9 (B) transgenic and null plants with three elite inbred lines (LH195, PHN46 and PHG39) under field inoculation conditions. Significant differences were observed in aflatoxin accumulation (p < 0.006 to p < 0.045) of F1 crosses between Alk-4/Alk-9 homozygous transgenic line and elite inbred lines compared with control F1 crosses between Alk-4/Alk-9 null and elite inbred lines as well as self-pollinated elite lines. Inoculum concentration of 1 × 105 conidia/mL was used for this experiment. Four different points were inoculated on each ear. Lower half of each ear with the four inoculation points was ground and 3 subsamples per ear were used for aflatoxin extraction. This analysis was carried out using 27–45 sub-samples from 9–15 ears for each cross.
Jof 07 00904 g004
Jof 07 00904 g005 550
Figure 5. A. flavus growth inside inoculated Alk-RNAi and null maize kernels. (A) Transgenic maize kernels (top) and the null kernels (bottom) from the respective events 72 h after A. flavus inoculation. (B) The levels of βeta-tubulin DNA in the inoculated transgenic and null kernels relative to the DNA of maize membrane protein (MEP) gene. Significantly lower A. flavus biomass (based on the level of A. flavus β-tub DNA) were detected in the transgenic compared to the null kernels in all four events. Each of the bars represents the mean value ± standard deviation of three replicates per sample. Bars with different letters are significantly different (p < 0.05).
Figure 5. A. flavus growth inside inoculated Alk-RNAi and null maize kernels. (A) Transgenic maize kernels (top) and the null kernels (bottom) from the respective events 72 h after A. flavus inoculation. (B) The levels of βeta-tubulin DNA in the inoculated transgenic and null kernels relative to the DNA of maize membrane protein (MEP) gene. Significantly lower A. flavus biomass (based on the level of A. flavus β-tub DNA) were detected in the transgenic compared to the null kernels in all four events. Each of the bars represents the mean value ± standard deviation of three replicates per sample. Bars with different letters are significantly different (p < 0.05).
Jof 07 00904 g005
Jof 07 00904 g006 550
Figure 6. Distribution and frequency of small RNAs aligned to alk target gene in transgenic maize immature kernel and leaves tissues. (A) High levels of 21, 22 and 24 bp alk-specific small RNA were detected in transgenic leaves (left) and kernels (right) of the Alk-4 maize. (B) Both anti-sense and sense small RNA were detected in the transgenic tissues. A higher percentage of the alk-specific sense strand than that of the anti-sense strand was detected. (C) The region where the highest alk-specific read counts were found is between the 290 bp, which coincides with the size of the alk gene. The horizontal axis represents the relative position along the alk gene, and the vertical axis represents the number of alk-small RNAs reads mapped to alk.
Figure 6. Distribution and frequency of small RNAs aligned to alk target gene in transgenic maize immature kernel and leaves tissues. (A) High levels of 21, 22 and 24 bp alk-specific small RNA were detected in transgenic leaves (left) and kernels (right) of the Alk-4 maize. (B) Both anti-sense and sense small RNA were detected in the transgenic tissues. A higher percentage of the alk-specific sense strand than that of the anti-sense strand was detected. (C) The region where the highest alk-specific read counts were found is between the 290 bp, which coincides with the size of the alk gene. The horizontal axis represents the relative position along the alk gene, and the vertical axis represents the number of alk-small RNAs reads mapped to alk.
Jof 07 00904 g006
Table
Table 1. Information on the self-pollination of Alk lines from 2017 to 2019 and crosses produced with three elite inbred lines in 2018 and 2019.
Table 1. Information on the self-pollination of Alk lines from 2017 to 2019 and crosses produced with three elite inbred lines in 2018 and 2019.
YearLines# of Seeds# of Transplant# of Transgenic# of Plants Pollinated# of Ears Inoculated $Total # of Ears Harvested
2017
selfing
(T3 to T4)		Alk-415010367451243
Null-47058N/A471247
Alk-914812246361436
Null-97058N/A451039
B104-1310061N/A54723
2018
selfing
(T4 to T5 and
F1 crossing		Alk-4240180180952373
Null-4200190N/A611561
Alk-91208080772673
Null-9120100N/A601342
B104-910087N/A571444
LH195206169N/A33 *2930
PHN46197174N/A37 *2932
PHG39210180N/A31 *2429
Alk-4 50
Null-4 50
2019
selfing
T5 to T6 (Alk-4, 9) and
T3 to T4
(alk-3, 7)
and crossing		Alk-4755252≥401535
Null-47555N/A≥401535
Alk-9754545≥401536
Null-97548N/A≥401538
Alk-316015035351230
Null-37060N/A591257
Alk-716015037371531
Null-77057N/A501242
LH195150131N/A35 *2533
PHN46150140N/A38 *3235
PHG39150137N/A36 *2432
Alk-96054
Null-96056
$ Number of ears inoculated at 2 weeks after pollination. N/A: Not Applicable. *Among these number of inbred plants, 1/3 were crossed with homozygous Alk-4 or Alk-9, 1/3 of them were with null Alk-4 or Alk-9, and the remaining 1/3 were self-pollinated as control.
Table
Table 2. Alk gene copy number analysis based on genotyping of seedlings developed from self-pollinated T3 generation ears and chi-square analysis.
Table 2. Alk gene copy number analysis based on genotyping of seedlings developed from self-pollinated T3 generation ears and chi-square analysis.
Line# of SeedlingsSeedlings Containing Transgene (O/E) *Seedlings without Transgene (O/E)X2# of Integration
Alk-310074/7526/250.051
Alk-48764/6523/220.11
Alk-79677/7219/241.41
Alk-98970/6719/220.51
* The observed (O) and expected (E) number of seedlings with or without the transgene were determined through genotyping and calculated based on an expected ratio of 3:1 for single integration, respectively. Number of transgene integrations was estimated based on the whether the calculated chi-square Χ2 value exceeds the critical value of 3.841 to reject or accept the null hypothesis of being one or more integrations.
Table
Table 3. Determination of transgene copy numbers of T0 and T4 leaf tissues using droplet digital PCR.
Table 3. Determination of transgene copy numbers of T0 and T4 leaf tissues using droplet digital PCR.
EventAlk
Copy/µL		Adh1
Copy/µL		Alk/Adh1Copy Number *
Alk-3 (T0)3303021.091 (hemi)
Alk-4 (T0)5636030.931(hemi)
Alk-6 (T0)2382450.971 (hemi)
Alk-7 (T0)85.948.61.762 (hemi)
Alk-9 (T0)5402492.172 (hemi)
Alk-10 (T0)5932742.162 (hemi)
Alk-11 (T0)1871811.031 (hemi)
Alk-3 (T4)342153.72.231 (homo)
Alk-4 (T4)5292901.821 (homo)
Alk-7 (T4)144.436.74.202 (homo)
Alk-9 (T4)256.854.94.682 (homo)
* The target gene copy number was calculated based on the ratio between number of molecules of target alk gene and maize single copy reference alcohol dehydrogenase gene (adh1) in the genomic DNA samples. The primers for alk gene used in the ddPCR has one target in each of two alk arms in the construct.
Table
Table 4. Phenotypic assessment of homozygous Alk-RNAi lines in comparison to the controls.
Table 4. Phenotypic assessment of homozygous Alk-RNAi lines in comparison to the controls.
Line
T4 Plants		Mean
Plant Height (cm)		Days to TasselingDays to SilkingMean
Cob Length (cm)		Mean
100 Seed
Weight (g)
Alk-3 (Transgenic)138.2ab69.0b72.0b13.5d23.4c *
Alk-3 (Null)136.8b68.1bc71.0bc13.1d21.5d *
Alk-4 (Transgenic)138.9ab67.0bc70.0c13.3cd22.1d *
Alk-4 (Null)140.2ab67.2bc68.2d13.7cd22.1d *
Alk-7 (Transgenic)137.9ab66.1cd68.9cd15.1a *24.1bc
Alk-7 (Null)141.2ab68.0bc71.0bc15.0a *25.4a
Alk-9 (Transgenic)132.3c *71.0a *74.0a *13.3d23.8c *
Alk-9 (Null)142.0a67.0c70.0c14.6bc24.3ab
B104139.4ab68.0bc70.0c14.3bd24.8ab
** Std. dev.2.91.51.70.71.3
* Transformation event that showed significant differences in plant height, days to tasseling/silking, ear length and kernel weight when compared to its null and the B104 line at p < 0.05. The different letters represent lines that are significantly different from the B104 line at p < 0.05. ** Standard deviation values for each phenotypic trait.
Table
Table 5. Number of small RNA reads in leaf and immature kernels tissues of transgenic and non-transgenic maize lines.
Table 5. Number of small RNA reads in leaf and immature kernels tissues of transgenic and non-transgenic maize lines.
Tissue TypeEventTotal ReadReads Aligned to A. flavusReads Aligned to Alk
LeafAlk-4 (Homo)36,025,47113,6999574
B104 (Null)60,780,74262387
kernelsAlk-4 (Homo)30,112,81252,4766606
Alk-4 (Null)35,988,18364,2918
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Omolehin, O.; Raruang, Y.; Hu, D.; Han, Z.-Q.; Wei, Q.; Wang, K.; Rajasekaran, K.; Cary, J.W.; Chen, Z.-Y. Resistance to Aflatoxin Accumulation in Maize Mediated by Host-Induced Silencing of the Aspergillus flavus Alkaline Protease (alk) Gene. J. Fungi 2021, 7, 904. https://doi.org/10.3390/jof7110904

AMA Style

Omolehin O, Raruang Y, Hu D, Han Z-Q, Wei Q, Wang K, Rajasekaran K, Cary JW, Chen Z-Y. Resistance to Aflatoxin Accumulation in Maize Mediated by Host-Induced Silencing of the Aspergillus flavus Alkaline Protease (alk) Gene. Journal of Fungi. 2021; 7(11):904. https://doi.org/10.3390/jof7110904

Chicago/Turabian Style

Omolehin, Olanike, Yenjit Raruang, Dongfang Hu, Zhu-Qiang Han, Qijian Wei, Kan Wang, Kanniah Rajasekaran, Jeffrey W. Cary, and Zhi-Yuan Chen. 2021. "Resistance to Aflatoxin Accumulation in Maize Mediated by Host-Induced Silencing of the Aspergillus flavus Alkaline Protease (alk) Gene" Journal of Fungi 7, no. 11: 904. https://doi.org/10.3390/jof7110904

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
