Isolation of Main Pathogens Causing Postharvest Disease in Fresh Codonopsis pilosula during Different Storage Stages and Ozone Control against Disease and Mycotoxin Accumulation

by
Bingyu Lv
1,†,
Xi Yang
1,†,
Huali Xue
1,*,
Mina Nan
1,
Yuan Zhang
1,
Zhiguang Liu
1,
Yang Bi
2 and
Suqin Shang
3
1
College of Science, Gansu Agricultural University, Lanzhou 730070, China
2
College of Food Science and Engineering, Gansu Agricultural University, Lanzhou 730070, China
3
College of Plant Protection, Gansu Agricultural University, Lanzhou 730070, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
J. Fungi 2023, 9(2), 146; https://doi.org/10.3390/jof9020146
Submission received: 26 December 2022 / Revised: 17 January 2023 / Accepted: 18 January 2023 / Published: 21 January 2023
(This article belongs to the Special Issue Isolation and Control of Fruit and Vegetable Rot Fungi)
Browse Figures
Review Reports Versions Notes

Abstract

:
Codonopsis pilosula is an important Chinese herbal medicine. However, fresh C. pilosula is prone to decay during storage due to microorganism infections, seriously affecting the medicinal value and even causing mycotoxin accumulation. Therefore, it is necessary to study the pathogens present and develop efficient control strategies to mitigate their detrimental effects on the herbs during storage. In this study, fresh C. pilosula was collected from Min County in Gansu Province, China. The natural disease symptoms were observed during different storage stages, and the pathogens causing C. pilosula postharvest decay were isolated from the infected fresh C. pilosula. Morphological and molecular identification were performed, and pathogenicity was tested using Koch’s postulates. In addition, the control of ozone was examined against the isolates and mycotoxin accumulation. The results indicated that the naturally occurring symptom increased progressively with the extension of storage time. The mucor rot caused by Mucor was first observed on day 7, followed by root rot caused by Fusarium on day 14. Blue mold disease caused by Penicillum expansum was detected as the most serious postharvest disease on day 28. Pink rot disease caused by Trichothecium roseum was observed on day 56. Moreover, ozone treatment significantly decreased the development of postharvest disease and inhibited the accumulations of patulin, deoxynivalenol, 15-Acetyl-deoxynivalenol, and HT-2 toxin.

1. Introduction

Codonopsis pilosula, a perennial herb of the Campanulaceae family, is a traditional Chinese herb that is rich in bioactive compounds including polyacetylene, polyene, flavonoids, lignans, alkaloids, coumarins, terpenes, steroids, organic acids, and polysaccharides [1]. C. pilosula is widely used in the therapy of hyperlipidemia, asthma, bronchitis, tuberculosis, and dyspepsia [2], and also plays a key role in boosting the body’s immunity [3], reducing blood glucose [4], promoting hematopoiesis [5], protecting the cardiovascular system [6], repairing damaged nerve cells, and regulating gastrointestinal function [7].
Owing to its unique climate, Gansu Province in China has more than 2000 years of history in cultivating C. pilosula. With its high commercial value and profitability, the cultivation of C. pilosula is continuously expanding. However, some soil-borne fungi, bacteria, and nematodes have adapted to the local host plants and natural environment in the region, thus, resulting in serious diseases that severely affect the yield and quality of C. pilosula. Research to date has focused on field disease of C. pilosula. For instance, Zhao et al. [8] suggested that Fusarium oxysporum is the predominant pathogen causing root rot of C. pilosula in Dingxi County, Gansu Province. Using molecular technology, Yu et al. [9] isolated and identified five pathogens in China: Puccinia Campanumoeae Pat causing rust disease, Helicobasidium mompa Tanaka causing violet root rot, Sphaerotheca Codonopisi (Golov.) Z.Y. Zhao causing powdery mildew, Fusarium oxysporum Schl. causing root rot, and Septoria codonopsidis Ziling causing blight of Codonopsis tangshen in Chongqing. Based on morphology and molecular characteristics, Wang et al. [10] isolated and identified Septoria codonopsidis Ziling causing leaf spot of C. pilosula in Gansu Province, while Chen et al. [11] proposed that Botrytis cinerea is the typical fungus causing gray mold in C. pilosula.
Modern research indicates that fresh Chinese herbs have higher active ingredients and pharmacological activities than those of dry products [12]. For instance, the contents of flavonoids, saponins, and polysaccharides in fresh Astragalus were 1.5 times more than those in dry products [13]. Because of this, the market for freshly harvested Chinese herbs has grown rapidly and is today more significant and well known than before. Unfortunately, the postharvest losses due to the disease of fresh Chinese herbs are quite severe. Nevertheless, no reports are available regarding the prevalence of pathogens during this period. In general, the herb is usually harvested in late autumn and allowed to dry naturally on the field for more than two months before being transported to the traders. The freshly harvested C. pilosula must be sufficiently dried (about 16% of water content), then stored for 3–6 years. If C. pilosula does not reach an optimum level of dry matter, its abundance storage of fat, starch, protein, sugar, and other organic substances may favor the development of some latent pathogens and ultimately result in serious postharvest disease. Fungal infections are thought to result in yearly losses of 15% to 25% [14]. Such postharvest losses cause enormous economic damage to C. pilosula processing industries, and more importantly, the product may completely lose its medicinal value, becoming contaminated with mycotoxins that have carcinogenic, teratogenic, and mutagenic toxicity [15]. It is therefore important to systematically study the postharvest diseases of freshly harvested C. pilosula, identify the pathogens present at various storage stages, and develop an efficient control strategy to mitigate their effects.
Ozone, an antioxidant compound, has been widely applied to manage the postharvest decay of fruits and vegetables. The efficacy of ozone in controlling postharvest disease is mainly ascribed to its strong inhibitory activity on pathogenic fungi. However, there are no reports on the influence of ozone on fresh Chinese herb medicine postharvest disease and mycotoxin production.
In this study, we collected fresh C. pilosula from Min County in Gansu Province, China, investigated the disease development of freshly harvested C. pilosula during storage, then isolated and identified pathogens causing C. pilosula postharvest disease based on morphological and molecular biological techniques during different storage stages. Finally, we examined the influence of ozone on fresh C. pilosula postharvest disease and mycotoxin production.

2. Materials and Methods

2.1. Sample

Samples of freshly harvested C. pilosula (cv. Mindang) were obtained from Min County (location 35° N and 104° E) in Gansu Province, China. Sample roots of similar size and without obvious pest or mechanical damage were selected in October 2020, and transported to the Chemical Biology Laboratory, College of Science, Gansu Agricultural University within 24 h after bagging, and stored at room temperature for further analysis.

2.2. Disease Development of Freshly Harvested C. pilosula during Different Storage Stages

Freshly harvested C. pilosula samples (without any processing treatment such as washing and drying) were placed directly in plastic bags (20 °C, 50% RH) in darkness for 7, 14, 21, 28, 42, and 56 days. Subsequently, the naturally occurring symptoms were observed and described. Different pathogens cause different disease symptoms, for example, in the early stages of root rot, small brown spots appear on the surface of the lower fibrous or lateral roots, with mild decay. As the disease expands, it gradually spreads to the main roots. The roots gradually decay from the bottom upwards and become dark brown and waterlogged [9]. Three replicates were included in each treatment, each treatment consisted of 50 samples of C. pilosulas, with a total of 900 samples being included in the whole experiment (50 samples × 3 replicates × 6 time points).

2.3. Isolation and Purification of Pathogens Causing Disease of Freshly Harvested C. pilosula during Different Storage Stages

Pathogens were isolated and purified from C. pilosula based on typical decay symptoms (the appearance of mycelium and spores on the surface of C. pilosula) [16]. Fragments (5 mm × 5 mm) showing typical disease symptoms during different storage stages were excised with sterilized scalpels from the junction of the healthy and diseased tissue, and the fragments were disinfected using 1% NaClO for 3 min, and then rinsed with sterile water three times to remove any NaClO residue. The treated fragments were placed onto potato dextrose agar (PDA) medium and cultured in darkness at 25 °C for 5 to 7 d. Single colonies were picked and transferred to a new PDA medium with a puncher. After 4 to 5 cycles of purification, a single purified colony was obtained.

2.4. Identification of Pathogens Causing Disease in Freshly Harvested C. pilosula during Different Storage Stages

2.4.1. Morphological Identification

The preliminary identification was conducted based on colony morphology and macro and microconidia characteristics [17]. The spore suspension (1 × 106 spores/mL) was inoculated on a PDA plate, and after drying, a cover glass was inserted into the PDA medium at an angle of 45°, and then cultured at 25 °C for 2 to 5 d. Subsequently, to observe colony morphology and pigment production, a 2 μL spore suspension was inoculated centrally in the PDA medium at 25 °C for 7 to 9 d. Colony morphology and pigment production were recorded on day 9. Mycelia were transferred using the copper pick-in method [18]. All samples were sprayed gold with an ion sputtering apparatus (MSP-1S, Shenzhen Research Precision Instrument Co., Ltd., Shenzhen, China) under 220 V and 40 mA, then the morphology of the spores was observed using a scanning electron microscope (SEM) (JSM-5910LV, Japanese electronics company, Tokyo, Japan).

2.4.2. Molecular Identification

The morphologically identified pathogens were further subjected to molecular confirmation according to a previously used method [19] with some modifications. The pathogens were grown on PDA medium for 3 to 9 d, then the DNA of pathogenic mycelia was extracted using the CTAB method [20], and PCR amplification was performed using the primers ITS1 (5′-TCCGTAGGTGAACCTGCGG-3′) and ITS4 (5′-TCCTCCGCTTATTGATATGC-3′) for the 9 isolates. For isolates 21-1, 28-1, 28-2, and 56-1, the primers Bt2a (5′-GGTAACCAAATCGGTGCTGCTTTC-3′) and Bt2b (5′-ACCCTCAGTGTAGTGACCCTTGGC-3′) were employed for further PCR amplification. For the Fusarium strains (14-1, 14-2, 14-3), the special primers of EF1(5′-ATGGGTAAGGA(A/G)GACAAGAC-3) and EF2(5′-GGA(G/A)GTACCAGT(G/C)ATCATGTT-3′) were adopted [21,22]. Subsequently, the amplified products were detected using 2% agarose gel electrophoresis and clear bands were obtained.
The PCR amplification procedure was as follows: pre-denaturation at 94 °C for 5 min, denaturation at 94 °C for 10 s, annealing at 53 °C for 10 s, extension at 72 °C for 30 s, 3 cycles, and holding at 72 °C for 5 min. The amplified products were subject to electrophoresis with 2% agarose gel. The amplified fragments were sequenced by Beijing Bomede Biotechnology Co., Ltd., and the sequences were aligned to the NCBI (https://www.ncbi.nlm.nih.gov/ (accessed on 8 July 2021)) using BLAST for homology analysis. A phylogenetic tree was constructed by MEGA7.0 software (Molecular Evolutionary Genomics Analysis Version 7) using the neighbor-joining method.

2.5. Pathogenicity Test

The healthy and freshly harvested C. pilosula was thoroughly washed with tap water to remove any adhering soil and air dried. The herbs were surface disinfected with 0.1% NaClO for 15 min, rinsed with sterile water three times to remove excessive NaClO, and air dried again. Spore suspensions (1 × 106 spores/mL) of the above isolated pathogens were prepared [18] and artificially inoculated by spraying onto the surface of the fresh and healthy C. pilosula. The control group was inoculated with sterile water. After natural drying, the inoculated C. pilosula were kept in darkness (20 °C, 50% RH). After an incubation period of 28 days, the disease symptoms were recorded, and different pathogens led to different disease symptoms [23]. The pathogens were re-isolated again from the C. pilosula’s infected roots and stem, and their similarity to the original isolates’ morphological characteristics was verified. The casual isolates that obeyed the criteria specified by Koch’s postulates were conducted for further study.

2.6. Effect of Ozone Treatment on the Development of C. pilosula Postharvest Disease

Healthy C. pilosula were treated and inoculated according to the above Section 2.5. Sterile water spraying inoculation was regarded as control. Gaseous ozone was generated by the OSAN ozone generator (Aoshan Huanbao Technology Industry Co., Ltd., Dalian, China). The concentration of ozone (2 mg L−1) was adjusted using an ozone detector [18]. Ozone fumigation was performed in a closed transparent bag (80 cm long × 60 cm wide) (25 °C, relative humidity 75%), and the inoculated samples were subjected to ozone treatment for 1 and 2 h each day, respectively. The treatment continued for 7 days. Subsequently, the treated tissue was stored for 56 days in plastic bags (22 ± 2 °C, 75–80%). The disease development was evaluated by statistically determining the disease index and natural incidence according to the report by Sha et al. [24] with minor modifications (Table 1). Each treatment contained three replicates, and one replicate included 50 samples.
Disease Index = [sum (class frequency × score of rating class)/[(Total number of plants) × (maximal disease index)] × 100;
Disease incidence = (Number of the infected plants/the number of plants sampled) × 100;
Class frequency: the number of diseased plants at each rate;
Score of rating class: the diseased value for each rate.

2.7. Effect of Ozone Treatment on the Mycotoxin Accumulation in the Rotten Tissue

For mycotoxins analysis, the samples treated by ozone fumigation were collected and the rotten tissue was excised from the diseased root and immediately kept in liquid nitrogen and stored at −80 °C until mycotoxin analysis. Each treatment contained three replicates, and one replicate included 50 samples.
A 5.0 g frozen sample was ground in liquid nitrogen, then was transferred to a 50 mL centrifuge tube with extraction solvent to extract mycotoxin. For different kinds of mycotoxin, various purification and detection methods were employed, patulin (PAT) purification and detection was carried out as described by the method [25]; trichothecene purification and detection was performed according to the method [26].

2.8. Statistical Analysis

The data of disease index, disease incidence, and mycotoxin accumulation were expressed as the means [standard error (±SE)] using Duncan’s multiple range tests. The experiment of the effect of ozone on postharvest disease and mycotoxin accumulation of C. pilosula was performed at least three times. Statistical analyses were performed using SPSS v.17.0 (SPSS, Inc., Chicago, IL, USA), and Duncan’s multiple range test (p < 0.05) was employed in this study.

3. Results

3.1. Disease Development of Freshly Harvested C. pilosula during Different Storage Stages

With the extension of storage time, the disease development of freshly harvested C. pilosula was more severe (Figure 1). When stored for 7 days, mild symptoms of disease were observed, and a small number of white hyphae and moldy spores were found on the main root and lateral root of C. pilosula. When stored for 14 days, hyphae were gradually diffused, and more white hyphae and moldy spores covered the root of C. pilosula. After 21 days of storage, colonies expanded and their color changed slightly from white to light green, with vigorous mycelium growth. When stored for 28 days, some yellow, red, and green hyphae appeared on the surface of the C. pilosula. When stored for 42 days, multiple colonies were distributed over the surface of C. pilosula and the tissue was damaged. After 56 days of storage, C. pilosula was seriously diseased, and the tissue was wrinkled, soft, and even rotten.

3.2. The Isolation of Pathogen from C. pilosula with Postharvest Disease during Different Storage Stages

During the whole storage period, a total of nine isolates of pathogenic fungi were isolated and purified. The nine different fungi were obtained using repeated plate streaking during different storage stages. For example, on the 7th day of storage, 2 isolates were obtained, which were named 7-1 and 7-2, respectively; on the 14th day of storage, 5 isolates were obtained, among them, 3 isolates were newly obtained, which were named 14-1, 14-2, and 14-3, respectively; on the 21st day of storage, 6 isolates were obtained, among them, a new isolate was named 21-1; on the 28th day of storage, 8 isolates were obtained, and two of them were newly isolated, named 28-1 and 28-2. There were no new isolates on the 42nd and 49th day. On the 56th day of storage, 9 isolates were obtained, and there was a new isolate named 56-1.

3.3. Morphological Identification of Pathogens at Different Storage Stages

After isolation and purification, the pathogens were cultivated on a PDA medium. Colony morphology, spore morphology, and sporangiophore morphology of the nine isolates of pathogenic fungi were observed.
For isolate 7-1, the mycelia grew fast at a rate of 24.57 mm/d on the PDA plate. The colony texture was flocculent with a white color, irregular edge, and no pigment (Figure 2A). Spores were spherical or nearly spherical in size at 4.8–5.6 μm × 5.0–6.2 μm (Figure 3A); sporangia were spherical with a diameter of 78–81 μm (Figure 4A). For isolate 7-2, the mycelia grew fast at a rate of 21.5 mm/d on the PDA plate. The colony texture was flocculent and white or gray-white with dense mycelia, a neat edge, and no pigment (Figure 2B); spores were spherical or subspherical and approximately 3.9–4.5 μm × 4.3–5.9 μm in size (Figure 3B); sporangia located at the end of hyphae were spherical, with a diameter of 59–63 μm (Figure 4B) (Table 2).
For isolate 14-1, the mycelia grew at a rate of 7.39 mm/d on the PDA plate. The colony was round or nearly round with a fluffy texture, neat or wavy edges, and a thick and dense mycelium; the secreted pigment was cinnamon colored, the surface and back of the edge were rose-red (Figure 2C). The number of conidia was small, the shape was oval or fusiform with a size of 2.4–3.0 μm × 3.0–3.6 μm (Figure 3C); 2 to 4 septa were observed, and the conidiophores had branches (Figure 4C). For isolate 14-2, the mycelia grew at a speed of 4.75 mm/d on the PDA plate. The colony texture was villous or cotton floc, with a light pink color, and the colony edge was light pink or white, with dense mycelia in the middle of the colony and sparse mycelia at the border of the colony (Figure 2D); conidia were oblong or fusiform and 2.1–3.2 μm × 2.8–3.5 μm in size (Figure 3D); conidiophores were erect and branched (Figure 4D). For isolate 14-3, the mycelia grew at a speed of 4.57 mm/d on the PDA plate. The colony was round with neat edges, pale purple or dark purple in color, and the edges were white or grayish-white with flocculent or fluffy hyphae (Figure 2E). The conidia with 3 to 4 septa were elongated oval, oval, or slightly curved, measuring 2.2–3.3 μm × 2.8–3.5 μm (Figure 3E); conidiophores had branches (Figure 4E).
For isolate 21-1, the mycelia grew at a speed of 4.29 mm/d on the PDA plate. The colony’s front color was white, while the back was pale yellow; mycelia were creeping and looser with a neat edge (Figure 2F); conidia were spherical or nearly spherical with a size of 2.3–3.2 μm × 2.8–3.5 μm (Figure 3F), and the conidiophores had branches (Figure 4F).
For isolate 28-1, the mycelia grew at a rate of 8.71 mm/d on the PDA plate. The front color of the colony was gray-green with dense granular texture, and the reverse was white (Figure 2G); conidia were striate, with colorless monospores, globose or oblate, with a size of 2.1–3.4 μm × 3.4–4.2 μm (Figure 3G); conidiophores were erect, septate, colorless, apex branched, and broom shaped (Figure 4G). For isolate 28-2, the mycelia grew with a speed of 6.50 mm/d on the PDA plate. A blue-green, and yellowish-brown with white areas were observed at the front and back of the colony, respectively. The center of the colony had protrusions and was slightly flocculent at the central surface and the texture was fluffy and powdery, forming several granular concentric rings (Figure 2H); Conidia were striate, spherical or ellipsoidal, with a size of 2.4–2.8 μm × 2.8–3.6 μm (Figure 3H); conidiophores were erect, septate, colorless, apex branched, and broom shaped (Figure 4H).
For isolate 56-1, the mycelia grew with a speed of 10.14 mm/d on the PDA plate. An orange-pink, and pink with annual rings was observed on the front and back of the colony (Figure 2I); the conidia were loosely gathered at the top of the mycelium, and were obovate or pear shaped, colorless, bicellular, with a size of 5.8–7.0 μm × 10–14 μm (Figure 3I); conidiophores were erect, colorless, with an ultimate swelling, and 2.0–3.5 μm × 100–160 μm in size (Figure 4I).

3.4. Molecular Identification of Pathogens at Different Storage Stages

Based on the above morphological observation during different storage stages, the nine isolates were further characterized by molecular biological technology based on the method of Gloria et al. [27]. The length of ITS primer amplified sequences were: 638 base pair (bp) of 7-1, 625 bp of 7-2, 538 bp of 14-1, 516 bp of 14-2, 533 bp of 14-3, 545 bp and 563 bp of 28-1, 761 bp of 28-2, and 589 bp of 56-1 (Figure 5A). The lengths of the sequences amplified by TEF primers were 695 bp for 14-1, 686 bp for 14-2, and 685 bp for 14-3 (Figure 5B). The lengths of the sequences amplified by Bt primers were 331 bp for 21-1, 448 bp for 28-1, 452 bp for 28-2, and 332 bp for 56-1 (Figure 5C). The sequences of the nine pathogens were searched using BLAST in NCBI, and the appropriate sequences were selected. The phylogenetic trees of ITS, TUB, and TEF were, respectively, constructed by MEGA7 (Figure 6).
The phylogenetic tree of ITS analysis (Figure 6A) revealed that isolate 7-1 was closely related to the strains of JN943000.1, AM745431.1, and JN887460.1, which were in the same branch, with a homology of 100%. The combination of the morphology and biological characters, isolate 7-1, was identified as Actinomucor elegans. Isolate 7-2 shared 100% homology with the strains of MT626048.1, MT573485.1, and GU566234.1, which were located in the same branch; therefore, based on morphology and biological characters, isolate 7-2 was identified as Mucor hiemalis. The phylogenetic tree of ITS analysis showed that 14-1 shared 100% homology with MT525360.1, LC543657.1, and MK764994.1 in the same branch; thus, 14-1 was preliminarily identified as Fusarium acuminatum. Isolate 14-2 shared 100% homology with KY365589.1, KY365574.1, and KY365564.1 in the same branch; therefore, 14-2 was preliminarily identified as Fusarium equiseti. Isolate 14-3 was closely related to the strains of MT420651.1, MT420633.1, and MT420627.1, which were located in the same branch, with a homology of 100%; thus, 14-3 was preliminarily identified as Fusarium oxysporum. Isolate 21-1 was identified as Clonostachys rosea on the same branch as KX058045.1, KT921200.1, and KY365580.1, with a homology of 100%. Isolate 28-1 and KX243329.1, KT243328.1, MK578895.1 were in the same branch, with a homology of 98%; therefore, combination morphology and biological characters, 28-1, was identified as Penicillium expansum. Isolate 28-2 and GU566234.1, FR670308.1, AY380455.1, and MG228409.1 were in the same branch, with a homology of 98%; therefore, based on the morphology and biological characters, isolate 28-2 was identified as Penicillium aurantiogriseum. Isolate 56-1 and MN372207.1, MN882763.1, and KY610499.1 were in the same branch, with a homology of 100%; therefore, based on the morphology and biological features, isolate 56-1 was identified as Trichothecium roseum (Figure 6A).
Based on ITS phylogenetic tree analysis, 14-1, 14-2, and 14-3 were the Fusarium species. In order to more correctly characterize the Fusarium species, the special primer of TEF for Fusarium was employed, and the TEF phylogenetic tree was constructed (Figure 6B). TEF phylogenetic tree analysis suggested that isolate 14-1 was closely related to JX397842.1, KR108750.1, and JX397863.1, which were in the same branch, with a homology of 100%. Isolate 14-2 was related to KP639701.0, KT224199.1, and KT213298.1, which were located in the same branch, with a homology of 100%. Isolate 14-3 was related with MN417191.1, MN417185.1, MN417182.1, and MN417165.1, which were in the same branch, with a homology of 100%. With the combined analyses of ITS and TEF phylogenetic trees and morphology feature, isolates 14-1, 14-2, and 14-3 were, respectively, identified as Fusarium acuminatum, Fusarium equiseti, and Fusarium oxysporum (Figure 6A,B). According to the results of the ITS and TUB phylogenetic tree, isolates 21-1, 28-1, 28-2, and 56-1 were identified as Clonostachys rosea, Penicillium expansum, Penicillium aurantiogriseum, and Trichothecium roseum, respectively (Figure 6A,C).

3.5. Pathogenicity Test

Pathogenicity tests were used to verify the pathogenicity of the isolates causing postharvest disease according to Koch’s postulates. During the whole incubation, for C. pilosula inoculated with 7-1 (Actinomucor elegans), dense white flocculent hyphae covered the main root on the 7th day, grew rapidly with time, and the expansion of colonies on the 28th day led to the decay of the epidermis of C. pilosula and leakage of sap (Figure 7A). For C. pilosula inoculated with 7-2 (Mucor hiemalis), gray flocculent hyphae appeared on the 7th day, grew rapidly on the 14th day, covering the whole tissue rotted on the 28th day (Figure 7B). For C. pilosula inoculated with 14-1 (Fusarium acuminatum): white dense mycelia were observed on the 7th day, the color of the dense mycelia gradually became rose-red on the 14th day; a rose-red glue was secreted and leaked from the C. pilosula tissue on 28th day (Figure 7C). For C. pilosula inoculated with 14-2 (Fusarium equiseti), there was less white velvet mycelial growth in the early stage, the colony became larger on the 14th day, and the color of C. pilosula epidermis turned pale pink or light yellow on the 28th day (Figure 7D). For C. pilosula inoculated with 14-3 (Fusarium oxysporum), there were white velvet colonies on the main root and lateral root on the 7th day, the color became light purple on the 14th day, and the color of C. pilosula epidermis turned dark purple on 28th day (Figure 7E). For C. pilosula inoculated with 21-1 (Clonostachys rosea), small white villous colonies were found on the surface of the tissue on the 7th day, the colony gradually expanded on the 14th day, and turned yellow and the tissue of C. pilosula produced yellowish glue on the 28th day (Figure 7F); For C. pilosula inoculated with 28-1 (Penicillium expansum), granular mold spots (2 to 3 mm in diameter) were observed on the surface of C. pilosula at the initial stage, a cluster of colonies gradually formed on the 14th day with a layer of blue powder on the surface; the plaque spread continuously, and the color of C. pilosula epidermis became gray and green, the tissue at the lesion developed soft rot and mildew on the 28th day (Figure 7G). For C. pilosula inoculated with 28-2 (Penicillium aurantiogriseum), small white granular mold spots appeared on the 7th day; the plaque expanded, and the number of colonies increased on the 14th day; the color of colonies turned blue and green, and C. pilosula developed serious mildew on the 28th day (Figure 7H).
For C. pilosula inoculated with 56-1 (Trichothecium roseum), white plaque with a diameter of 2 to 3 mm was initially observed on the 7th day; the orange-pink plaque expanded irregularly on the 14th day; the tissue was wrinkled with soft collapses and a dark color on the 28th day (Figure 7I). C. pilosula inoculated with the nine isolates had typical symptoms that were similar to the original natural symptoms. Based on the above typical and similar symptoms, the nine isolates were again identified through isolation, purification, and cultivation on PDA culture, and the same morphological and molecular biological characteristics were observed.

3.6. Ozone Fumigation Inhibited the Development of C. pilosula Postharvest Disease

The development of postharvest disease was effectively suppressed in C. pilosula inoculated with nine isolates after ozone fumigation treatment, and there was an ozone- exposure-time-dependent relationship with the inhibitory effect. For instance, the disease indexes in C. pilosula inoculated with Actinomucor elegans (7-1) after 1 and 2 h of ozone exposure were, respectively, 70% and 37% higher than those in control (Figure 8A). The disease incidences in C. pilosula inoculated with F. acuminatum (14-1) after 1 and 2 h ozone exposure were, respectively, 69% and 36% higher than those in control (Figure 8B). Similar results were obtained in the other isolates inoculated with C. pilosula after 1 and 2 h ozone exposure for 56 days of storage (Figure 8). It was obvious that with prolonged ozone treatment, the disease index and disease incidence dropped sharply.

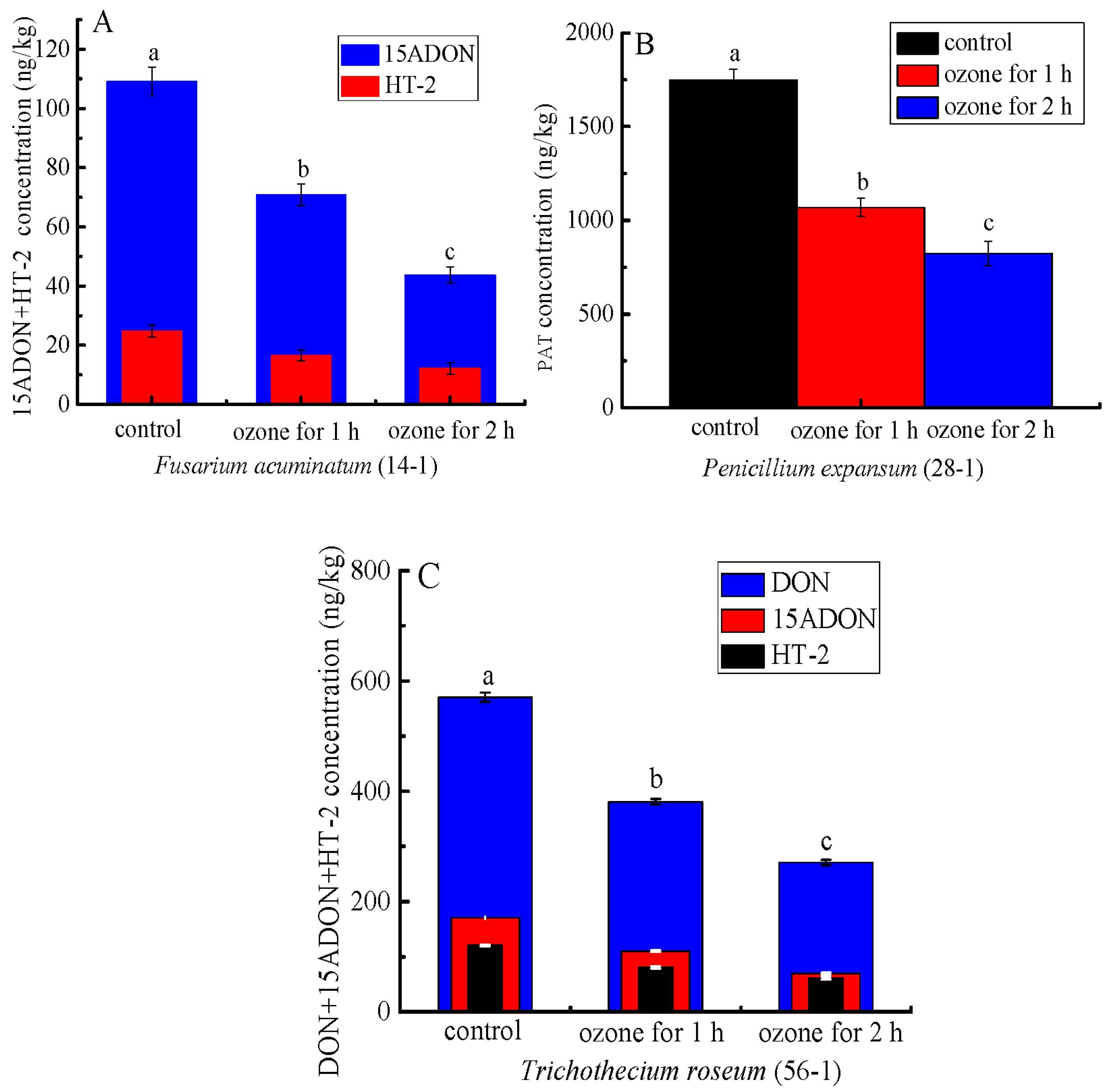

3.7. Ozone Fumigation Inhibited the Mycotoxin Accumulation in the Rotten Tissue

More importantly, ozone treatment significantly inhibited mycotoxin accumulation in the rotten tissue of the inoculated C. pilosula. For instance, the content of patulin (PAT) of the rotten tissue in C. pilosula inoculated with P. expansum (28-1) was significantly (p < 0.05) inhibited by 38.9% and 53.0%, respectively, after 1 and 2 h of ozone exposure (Figure 9B). Similarly, the concentrations of 15-ADON and HT-2 of the rotten tissue in C. pilosula inoculated with F. acuminatum (14-1) were markedly decreased by 35.1% and 59.9% (15ADON), respectively, and 33.2% and 50.8 (HT-2), respectively, after 1 and 2 h ozone exposure (Figure 9A). Similar results were also found in C. pilosula inoculated with T. roseum (56-1) after ozone application (Figure 9C). For the control group and other pathogens infected with fresh C. pilosula, no mycotoxins were found (Figure 9).

4. Discussion

At present, numerous studies have addressed the pathogens causing preharvest disease in Chinese herbs, these reports indicated that Fusarium species are the dominant pathogens that cause preharvest disease in the various regions [28,29,30,31]. However, there are limited reports on postharvest diseases of freshly harvested Chinese herbal medicines during storage. Of relevance, Chen et al. [32] isolated and identified P. crustosum, P. viridicatum, P. aurantiogriseum, and P. brevicompactum from Angelica sinensis and C. pilosula decoction pieces during storage. Nevertheless, there are significant differences between Chinese medicinal decoction pieces and freshly harvested Chinese herbs as experimental materials. Chinese medicinal decoction pieces are mostly obtained from the Chinese herbal medicine market, and these products are available in dry or dehydrated forms. On the other hand, freshly harvested Chinese herbs come from the field, without any processing and treatments after harvest such as drying or dehydration. Therefore, fresh C. pilosula is more susceptible to molds and decay, owing to the higher water content and the abundance of nourishing substances that allow the growth of pathogens.
To our knowledge, this is the first report to isolate and characterize the pathogens causing postharvest disease of C. pilosula during different storage periods. The results indicated that, with the extension of storage time, the symptoms of the disease were more severe. Moreover, a total of 9 isolates were isolated and characterized based on the morphology and biological characters during storage for 56 days. All the nine isolates could cause different postharvest disease by Koch’s postulate. However, the results went beyond Koch’s postulate because Koch’s postulate is mainly applied to one pathogen. However, we initially observed in the postharvest disease that many pathogens were interacting for disease, and we isolated and identified the different pathogens, then inoculated the healthy C. pilosula with the obtained pathogen. Finally, we observed the different disease symptoms caused by different pathogens. Therefore, we thought Koch’s postulate had limitations for the results of this study.
A. elegans and M. hiemalis were the main pathogens causing mucor rot of freshly harvested C. pilosula on the 7th day of storage. After 14 days of storage, Fusarium species of F. acuminatum, F. equiseti, and F. oxysporum were the major pathogenic fungi causing root rot in C. pilosula. After 21 days of storage, besides the above-isolated pathogens, a new pathogen of C. rosea was isolated and characterized. On the 28th day of storage, blue mold caused by Penicillum spp. was the typical postharvest disease, and two new pathogens of P. expansum and P. aurantiogriseum were isolated and identified. On the 56th day of storage, a new pathogen T. roseum was isolated and characterized.
From the above results, the first postharvest disease was caused by Mucor infection on the 7th day of storage, and the main pathogens were A. elegans and M. hiemalis. A. elegans grew rapidly on PDA plates, and it took around 3 days to cover the whole petri dish. The morphology of colonies, spores and sporangiophores were similar to those isolated from necrotic skin lesions in humans, and the predominant fungal pathogen causing invasive mucormycosis for humans [33]. In addition, A. elegans, which can result in sufu’s white flake, was discovered in the sufu [34]. Mucor hiemalis had a fast growth speed on PDA medium, with a white colony initial color, which changed gradually to grayish brown (Figure 3B). The spore sacs were ellipsoid, and sporangiophores were erect and branched (Figure 4B), This observation was similar to the morphology of M. hiemalis causing mucor rot of mandarin fruit in California reported by Saito et al. [35]. The spores of the two Mucor species can survive in the air and infect hosts mainly through the air.
During storage of 14 days, Fusarium spp. were the main pathogens causing postharvest root rot of C. pilosula; among them, F. acuminatum had the strongest pathogenicity, and also produced mycotoxins, with nearly round colonies, neat edges, vigorous mycelia, flocculent, and dense (Figure 2C). Most conidia were fusiform and septate (Figure 3C), whose morphology was similar to F. acuminatum from garlic bulb rot in Serbia [36]. Moreover, F. acuminatum also metabolizes 15ADON and HT-2 toxins (Figure 9). The toxins 15-ADON and HT-2 are attributed to trichothecene with detrimental effects, including cytotoxicity, acute toxicity, immunotoxicity, and chronic toxicity, and pose a serious threat to human health. Tan et al. [37] suggested that DON and 3-ADON were detected in Fusarium head blight (FHB) of wheat infected by F. acuminatum. The colony of F. equiseti was white, and the mycelium had cotton-like flocculence (Figure 2D). Conidia were oval (Figure 3D), and the morphology was consistent with the observation by Afroz et al. [22], who mentioned that F. equiseti isolated from cabbage Fusarium wilt in Korea had a morphology of loosely floccose and whitish-brown aerial mycelia, and the pigmentation of pale orange on PDA medium; moreover, the size and morphology of macroconidia and chlamydospores were also in accordance with our observation. The F. oxysporum colony was initially white, then turned off-white later, to light purple-dark purple pigment. Hyphae were flocculent or villous and denser (Figure 2E), the conidia were elongated oval and slightly pointed at both ends (Figure 3E), which was consistent with the morphology of F. oxysporum isolated from sesame plants. Previous study revealed that Fusarium species is attributed to “latent infected pathogen” [38], the infection of Fusarium usually occur in the field (growth stage of plants) during the blooming or heading of plants. The spores adhere to the surface of the leaf, then transported into the calyx, finally colonize on the root of plants, and remain in a latent status until there are favorable environmental conditions (such as high temperature and humidity) [39]. Therefore, it is possible to manage plant disease more effectively during the pathogen infection time.
After 21 days of storage, C. rosea was isolated and identified, but its disease infection was not severe. The hyphae were white with neat edges, mycelium was creeping and loose (Figure 2F), and the morphology was similar to that isolated from root rot of Astragalus membranaceus in China [40]. C. rosea has been regarded as a typical biocontrol fungus to inhibit pathogenic fungal growth. The most serious postharvest disease was blue mold caused by Penicillium spp., including P. expansum and P. aurantiogriseum. P. expansum is a typical postharvest pathogen of pome fruits (such as apples and pears) causing blue mold and patulin contamination. The isolated P. expansum colony was grayish-green, and the edge was white, with a granular or velvet dense texture (Figure 2G). The microconidia were colorless with monospores that were globose or oblate. The number of conidia was high, and the conidiophores were erect, separated, and colorless (Figure 3G), whose morphology was consistent with the blue mold of apple fruits as reported by Bahri et al. [41]. In the present study, patulin (PAT) was detected in C. pilosula infected by P. expansum. Patulin is a secondary metabolite generated by Aspergillus and Penicillium species under favorable conditions, and usually found in blue mold disease of pome fruits and their corresponding products. The maximum limit of PAT in fruit juice was set as 50 μg/kg by the European Union [42]; however, no standard of PAT level limits is established in Chinese herbal medicines. P. aurantiogriseum, a kind of plant endophytic fungi, is also a casual pathogen causing fruit postharvest decay. Shim et al. [43] isolated the pathogen from pear fruit infected with blue mold in Korea, and Liu et al. [44] isolated P. aurantiogriseum from fresh-cut lettuce corruption. The cultivation characters and microscopic examination (Figure 2H, Figure 3H and Figure 4H) in our study were very similar to the above reports’ morphological characteristics. Penicillium species are attributed to “wound pathogens” [38] that mainly infect host plants through wounds sustained by fruit cracking or mechanical damage during harvesting, transportation, handling, and storage. Therefore, to avoid pathogen infection, delicate operations should be recommended during packing and handling.
T. roseum was identified on the 56th day of storage, as the predominant fungus causing C. pilosula disease. T. roseum is a typical necuotrophic fungal pathogen that can infect various postharvest fruits and vegetables, leading to trichothecenes contamination. Sharma et al. [45] isolated T. roseum from postharvest pink rot of avocado in Israel. T. roseum is also known to cause pink rot in muskmelon and apple fruit. The cultivation characters and microscopic examination of the pathogen from the pink rot of fruit were consistent with our observation. Moreover, 15-ADON, DON, and HT-2 toxins were found in the rotten tissue of C. pilosula pink rot caused by T. roseum, which were trichothecenes. Tang et al. [46] also suggested T-2 toxin and neosolaniol (NEO) were detected in the core rot of apple fruit infected by T. roseum. T. roseum is attributed to “wound pathogen”, which mainly infects host plants through wounds; however, it can also carry out latent infection when the plant grows in the field, then end its colonization and development, without showing any symptoms until the plant is harvested. Therefore, it is a challenging job to manage the disease caused by T. roseum. The combination application of preharvest spray and postharvest treatment is proposed.
Ozone, a strong oxidant compound, is widely used to control postharvest decay. In the present study, ozone treatment significantly reduced the development of postharvest disease of freshly harvested C. pilosula, especially, when the herbs were exposed to 2 h treatment compared to 1 h. The result was in accordance with the report that ozone exposure for 10 min was more effective than 5 min in controlling pear disease [47]. The inhibitory effect of ozone was attributed to oxidation. Ozone can attack the cell plasma of plant pathogenic fungus, leading to membrane lipid peroxidation, and cell membrane integrity destruction, and loss of pathogenicity to the plant host [18]. In addition, we found that, as the ozone exposure time increased, the control effect became more visible. The reason is maybe that there is a cumulative effect for ozone exposure, the cumulative effect of 2 h ozone exposure was more than that of 1 h ozone exposure.
More importantly, we found that ozone treatment greatly suppressed the mycotoxin accumulation in the rotten tissue of the infected C. pilosula (Figure 9). A similar result was documented by Xue et al. [48], who indicated ozone application significantly reduced NEO accumulation. Considering the two reasons, ozone treatment controlled postharvest disease by inhibiting fungi growth; on the other hand, ozone can act directly with the chemical structure of mycotoxin, thus destroying the structure of mycotoxin [48].

5. Conclusions

A total of nine isolates were identified and characterized by morphology and molecular technology from postharvest diseases of C. pilosula during different storage stages. The nine isolates, with varying morphologies of colony, spore, and conidiophore, could cause several symptomatic postharvest diseases during different storage stages. Postharvest diseases of C. pilosula during storage can also metabolize and produce mycotoxins, which pose health threats to humans. Ozone application not only controlled postharvest diseases of C. pilosula during storage but also reduced mycotoxin accumulation. Therefore, in order to effectively control postharvest decay, with different pathogens having various infection modes and infection periods, the incorporation application of preharvest spray and postharvest treatment should be proposed; on the other hand, ozone application needs to be widely recommended and the mechanism of ozone action on disease and mycotoxins suppression should be further studied.

Author Contributions

Conceptualization, B.L., X.Y. and H.X.; methodology, B.L.; software, X.Y.; validation, Y.Z., Z.L. and S.S.; formal analysis, Y.Z.; investigation, M.N.; resources, H.X. and Y.B.; data curation, B.L.; writing—original draft preparation, B.L. and X.Y.; writing—review and editing, H.X.; visualization, M.N.; supervision, Y.B.; project administration, H.X.; funding acquisition, H.X. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Project of Enterprise Supporting Plan (2022CYZC-45, Education Department of Gansu Province), the Natural Science Foundation of China (32060566, National Natural Science Foundation of China), and the Science and Technology Project of Gansu Province (21JR7RA834, Science and Technology Department of Gansu Province) and the Universities of Gansu Province Foundation for Young Doctors (2022QB-078, Education Department of Gansu Province).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are included in the article; further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Du, Y.E.; Lee, J.S.; Kim, H.M.; Ahn, J.; Jung, I.H.; Ryu, J.H.; Choi, J.; Jang, D.S. Chemical constituents of the roots of Codonopsis lanceolata. Arch. Pharm. Res. 2018, 41, 1082–1091. [Google Scholar] [CrossRef] [PubMed]
  2. Gao, S.M.; Liu, J.S.; Wang, M.; Cao, T.T.; Qi, Y.D.; Zhang, B.G.; Sun, X.B.; Liu, H.T.; Xiao, P.G. Traditional uses, phytochemistry, pharmacology and toxicology of Codonopsis: A review. J. Ethnopharmacol. 2018, 219, 50–70. [Google Scholar] [CrossRef] [PubMed]
  3. Gao, Z.Z.; Zhang, C.; Jing, L.R.; Feng, M.; Li, R.; Yang, Y. The structural characterization and immune modulation activities comparison of Codonopsis pilosula polysaccharide (CPPS) and Selenizing cpps (sCPPS) on mouse in vitro and vivo. Int. J. Biol. Macromol. 2020, 160, 814–822. [Google Scholar] [CrossRef] [PubMed]
  4. Jia, W.J.; Bi, Q.M.; Jiang, S.R.; Tao, J.H.; Liu, L.Y.; Yue, H.L.; Zhao, X.H. Hypoglycemic activity of Codonopsis pilosula (Franch.) Nannf. in vitro and in vivo and its chemical composition identification by UPLC-Triple-TOF-MS/MS. Food Funct. 2022, 13, 2456–2464. [Google Scholar] [CrossRef] [PubMed]
  5. Guo, L.Z. Study on the pharmacological effects and clinical application of Dangshen Tonic. China Health Stand. Manag. 2015, 22, 130–131. [Google Scholar]
  6. Zhong, Y.G.; Chen, L.Y.; Li, M.F.; Chen, L.; Qian, Y.F.; Chen, C.F.; Wang, Y.; Xu, Y.Z. Dangshen Erling decoction ameliorates myocardial hypertrophy via inhibiting myocardial inflammation. Front. Pharmacol. 2022, 12, 725816. [Google Scholar] [CrossRef]
  7. Tang, L.J.; Chen, J.H.; Yin, J.; Fang, M.L. Screening of active components and key targets of radix Codonopsis in the treatment of gastric cancer. J. Chem. 2021, 2021, 6056636. [Google Scholar] [CrossRef]
  8. Zhao, X.; Liang, Y.; Constantine, U.; Yang, L.; Yuan, T.; Zhao, H.J.; Zhou, Q.; Zhang, Y.B.; Wang, R.Y. First report of root rot caused by the Fusarium oxysporum species complex on Codonopsis pilosula in China. Plant Dis. 2021, 105, 3742. [Google Scholar] [CrossRef]
  9. Yu, Z.L.; Lei, M.Y.; Pu, S.C.; Xiao, Z.; Cao, H.Q.; Yang, C.Q. Fungal disease survey and pathogen identification on Codonopsis tangshen in Chongqing. J. Chin. Med. Mater. 2015, 38, 1119–1122. [Google Scholar]
  10. Wang, Y.; Zeng, C.Y.; Cheng, H.G.; Zhu, T.T.; Chen, X.R. Pathogenic fungi and biological characteristics of Codonopsis pilosula spot blight. J. Plant Prot. 2016, 43, 928–934. [Google Scholar] [CrossRef]
  11. Chen, S.Z. Investigation on Botrytis cinerea of Codonopsis pilosula and its field control in Dingxi, Gansu Province. Grassl. Lawn 2017, 37, 94–97. [Google Scholar] [CrossRef]
  12. Zhang, R.; Miao, M.S. Application characteristics of fresh traditional Chinese medicine. In Proceedings of the 2017 2nd International Conference on Biological Sciences and Technology (BST 2017), Zhuhai City, China, 17–19 November 2017; Atlantis Press: Dordrecht, The Netherlands, 2017; pp. 287–291. [Google Scholar]
  13. Xu, H.; Zhou, Y.; Lei, T. Comparative analysis of volatile chemical constituents of fresh Astragalus and dried Astragalus. Food Sci. 2011, 32, 171–174. [Google Scholar]
  14. Wang, X.; Yuan, Q.; Sun, K.; Guo, Z.X.; Chi, X.; Huang, L.Q. Population characteristics and threatened of wild Angelica sinensis in Gansu province. Chin. J. Med. 2019, 44, 2987–2995. [Google Scholar]
  15. Han, Z.; Ren, Y.P.; Zhou, H.L.; Luan, L.J.; Cai, Z.X.; Wu, Y.J. A rapid method for simultaneous determination of zearalenone, α-zearalenol, β-zearalenol, zearalanone, α-zearalanol and β-zearalanol in traditional Chinese medicines by ultra-high-performance liquid chromatography-tandem mass spectrometry. J. Chromatogr. B 2011, 879, 411–420. [Google Scholar] [CrossRef]
  16. Oh, S.Y.; Nam, K.W.; Yoon, D.H. Identification of Acremonium acutatum and Trichothecium roseum isolated from grape with white stain symptom in Korea. Mycobiology 2015, 42, 269–273. [Google Scholar] [CrossRef] [PubMed]
  17. Gibert, S.; Edel-Hermann, V.; Gautheron, E.; Gautheron, N.; Sol, J.M.; Capelle, G.; Galland, R.; Bardon-Debats, A.; Lambert, C.; Steinberg, C. First report of Fusarium avenaceum, Fusarium oxysporum, Fusarium redolens and Fusarium solani causing root rot in pea in France. Plant Dis. 2022, 106, 1297. [Google Scholar] [CrossRef]
  18. Li, L.; Xue, H.L.; Bi, Y.; Zhang, R.; Kouasseu, C.J.; Liu, Q.L.; Nan, M.N.; Pu, L.M.; Prusky, D. Ozone treatment inhibits dry rot development and diacetoxyscirpenol accumulation in inoculated potato tuber by influencing growth of Fusarium sulphureum and ergosterol biosynthesis. Postharvest Biol. Technol. 2022, 2022. 185, 111796. [Google Scholar] [CrossRef]
  19. Qin, P.W.; Xu, J.; Jiang, Y.; Hu, L.; van der Lee, T.; Waalwijk, C.; Zhang, W.M.; Xu, X.D. Survey for toxigenic Fusarium species on maize kernels in China. World Mycotoxin J. 2020, 13, 213–223. [Google Scholar] [CrossRef]
  20. Edwards, K.; Johnstone, C.; Thompson, C. A simple and rapid method for the preparation of plant genomic DNA for PCR analysis. Nucleic Acids Res. 1991, 19, 1349. [Google Scholar] [CrossRef]
  21. Duan, Y.H.; Qu, W.W.; Chang, S.X.; Li, C.; Xu, F.F.; Ju, M.; Zhao, R.H.; Wang, H.L.; Zhang, H.Y.; Miao, H.M. Identification of pathogenicity groups and pathogenic molecular characterization of Fusarium oxysporum f. sp. sesami in China. Phytopathology 2020, 110, 1093–1104. [Google Scholar] [CrossRef] [PubMed]
  22. Afroz, T.; Je, S.; Choi, H.W.; Kim, J.H.; Assefa, A.D.; Aktaruzzaman, M.; Hahn, B.S.; Lee, H.S. First report of Fusarium wilt caused by Fusarium equiseti on cabbage (Brassica oleracea var. capitate) in Korea. Plant. Dis. 2020, 105, 1198. [Google Scholar] [CrossRef] [PubMed]
  23. Wang, C.C.; Tang, Y.H.; Qiao, N.; Zhang, D.Z.; Chi, W.J.; Liu, J.; Pan, H.Q.; Li, J.T. First report of Colletotrichum black leaf spot on strawberry caused by Colletotrichum siamense in China. J. Phytopathol. 2022, 170, 279–281. [Google Scholar] [CrossRef]
  24. Sha, C.; Yang, N.; Zhao, C.; Liu, J.; Han, C.; Wu, X. Diversity of Fusarium species associated with root rot of sugar beet in China. J. Gen. Plant Pathol. 2018, 84, 321–329. [Google Scholar] [CrossRef]
  25. Jimdjio, C.K.; Xue, H.L.; Bi, Y.; Nan, M.N.; Li, L.; Zhang, R.; Liu, Q.L.; Pu, L.M. Effect of ambient pH on growth, pathogenicity, and patulin production of Penicillium expansum. Toxins 2021, 13, 550. [Google Scholar] [CrossRef] [PubMed]
  26. Xue, H.L.; Bi, Y.; Wei, J.M.; Tang, Y.M.; Zhao, Y.; Wang, Y. New Method for the simultaneous analysis of types A and B trichothecenes by ultrahigh-performance liquid chromatography coupled with tandem mass spectrometry in potato tubers inoculated with Fusarium sulphureum. J. Agric. Food Chem. 2013, 61, 9333–9338. [Google Scholar] [CrossRef] [PubMed]
  27. Vidal, G.S.; Hahn, M.H.; Pereira, W.V.; Pinho, D.B.; May-De-Mio, L.L.; Duarte, H.D.S.S. A molecular approach reveals Tranzschelia discolor as the causal agent of rust on plum and peach in Brazil. Plant Dis. 2021, 6, 1855. [Google Scholar] [CrossRef]
  28. Li, J.S.; Yan, Z.Y.; Lan, Y.; Shen, X.F.; Wang, H.; He, D.M. Identification of pathogens causing root rot disease on Ligusticum chuanxiong in Sichuan. J. Chin. Med. Mater. 2015, 38, 443–446. [Google Scholar] [CrossRef]
  29. Zhou, M.; Bai, R.Q. Isolation and identification of root rot pathogen of Astragalus membranaceus in Moqi, Inner Mongolia. J. Northeast Agric. Sci. 2021, 46, 52–55. [Google Scholar] [CrossRef]
  30. Wu, X.L.; Wang, Y.; Liu, F.; Chen, D.X.; Li, L.Y. Identification of Coptis Chinensis root rot disease pathogenic Fusarium spp. fungi. Chin. J. Med. 2020, 45, 1323–1328. [Google Scholar] [CrossRef]
  31. Chen, Y.P.; Chen, X.M.; Liu, X.; Xiao, R.F.; Liu, B. Pathogen identification of the new disease of Pseudostellariae Radix sour rot. Acta Phytopathol. Sin. 2021, 51, 464–468. [Google Scholar] [CrossRef]
  32. Chen, J.; Gao, W.W.; Tang, D.; Cai, F.; Yang, M.H. Analysis of fungi in seven kinds of root medicines contaminated by Ochratoxin A. Chin. Med. J. 2010, 35, 2647–2651. [Google Scholar] [CrossRef]
  33. Mahmud, A.; Lee, R.; Munfus-McCray, D.; Kwiatkowski, N.; Subramanian, A.; Neofytos, D.; Carroll, K.; Zhang, S.X. Actinomucor elegans as an emerging cause of mucormycosis. J. Clin. Microbiol. 2012, 50, 1092–1095. [Google Scholar] [CrossRef]
  34. Yao, D.; Xu, L.; Wu, M.N.; Wang, X.Y.; Wang, K.; Li, Z.J.; Zhang, D.J. Microbial Community succession and metabolite changes during fermentation of BS Sufu, the fermented black soybean curd by Rhizopus microsporus, Rhizopus oryzae, and Actinomucor elegans. Front. Microbiol. 2021, 12, 665826. [Google Scholar] [CrossRef] [PubMed]
  35. Saito, S.; Michailides, T.J.; Xiao, C.L. Mucor rot-an emerging postharvest disease of mandarin fruit caused by Mucor piriformis and other Mucor spp. in California. Plant Dis. 2016, 100, 1054–1063. [Google Scholar] [CrossRef] [PubMed]
  36. Ignjatov, M.; Bjelic, D.; Nikolic, Z.; Milosevic, D.; Gvozdanovic-Varga, J.; Marinkovic, J.; Ivanovic, Z. First report of Fusarium acuminatum causing garlic bulb rot in Serbia. Plant Dis. 2017, 101, 1047–1048. [Google Scholar] [CrossRef]
  37. Tan, D.C.; Flematti, G.R.; Ghisalberti, E.L.; Sivasithamparam, K.; Chakraborty, S.; Obanor, F.; Jayasena, K.; Barbetti, M.J. Mycotoxins produced by Fusarium spp. associated with Fusarium head blight of wheat in Western Australia. Mycotoxin Res. 2012, 28, 89–96. [Google Scholar] [CrossRef]
  38. Mincuzzi, A.; Sanzani, S.M.; Palou, L.; Ragni, M.; Ippolito, A. Postharvest rot of pomegranate fruit in Southern Italy: Characterization of the main pathogens. J. Fungi 2022, 8, 475. [Google Scholar] [CrossRef]
  39. Alisaac, E.; Behmann, J.; Rathgeb, A.; Karlovsky, P.; Dehne, H.; Mahlein, A. Assessment of Fusarium infection and mycotoxin contamination of wheat kernels and flour using hyperspectral imaging. Toxins 2019, 11, 556. [Google Scholar] [CrossRef]
  40. Qi, H.X.; Duan, X.M.; Xu, W.H.; Zhou, Y.T.; Ma, H.X.; Ma, W.L.; Ma, G.H. First report disease of Clonostachys rosea causing root rot on Astragalus membranaceus in China. Plant Dis. 2022, 106, 1752. [Google Scholar] [CrossRef]
  41. Bahri, B.A.; Mechichi, G.; Rouissi, W.; Ben Haj, J.I.; Ghrabi-Gammar, Z. Effects of cold-storage facility characteristics on the virulence and sporulation of Penicillium expansum and the efficacy of essential oils against blue mold rot of apples. Folia Hortic. 2019, 31, 301–317. [Google Scholar] [CrossRef]
  42. Mahunu, G.K.; Zhang, H.Y.; Yang, Q.Y.; Li, C.L.; Zheng, X.F. Biological control of patulin by antagonistic yeast: A case study and possible model. Crit. Rev. Microbiol. 2016, 42, 643–655. [Google Scholar] [CrossRef] [PubMed]
  43. Shim, J.O.; Choi, K.D.; Hahn, K.D.; Lee, J.H.; Hyun, I.H.; Lee, T.S.; Ko, K.; Lee, H.P.; Lee, M.W. Blue mold of pear caused by Penicillium aurantiogriseum in Korea. Mycobiology 2002, 30, 105–106. [Google Scholar] [CrossRef]
  44. Liu, C.H.; Hu, W.Z.; Wang, Y.Y.; Tian, M.X.; Sun, L. Isolation and identification of spoilage molds from fresh-cut lettuce. Sci. Technol. Food Ind. 2016, 37, 135–138. [Google Scholar] [CrossRef]
  45. Sharma, G.; Maymon, M.; Freeman, S. First detailed report of Trichothecium roseum causing post-harvest pink rot of avocado in Israel. Plant Dis. 2016, 100, 856. [Google Scholar] [CrossRef]
  46. Tang, Y.M.; Xue, H.L.; Bi, Y.; Li, Y.C.; Wang, Y.; Zhao, Y.; Shen, K.P. A method of analysis for T-2 toxin and neosolaniol by UPLC-MS/MS in apple fruit inoculated with Trichothecium roseum. Food Addit. Contam. Part A 2015, 32, 480–487. [Google Scholar] [CrossRef]
  47. Al-Haq, M.I.; Seo, Y.; Oshita, S.; Kawagoe, Y. Disinfection effects of electrolyzed oxidizing water on suppressing fruit rot of pear caused by Botryosphaeria be-rengeriana. Food Res. Int. 2002, 35, 657–666. [Google Scholar] [CrossRef]
  48. Xue, H.L.; Bi, Y.; Hussain, R.; Wang, H.J.; Pu, L.M.; Nan, M.N.; Cheng, X.Y.; Wang, Y.; Li, Y.C. Detection of NEO in muskmelon fruits inoculated with Fusarium sulphureum and its control by postharvest ozone treatment. Food Chem. 2018, 254, 193–200. [Google Scholar] [CrossRef]
Jof 09 00146 g001

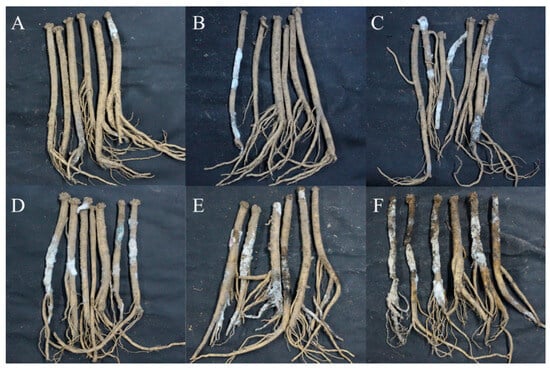

Figure 1. Disease development and naturally occurring symptoms of the fresh C. pilosula during different storage stages after harvest. (A) 7 d; (B) 14 d; (C) 21 d; (D) 28 d; (E) 42 d; (F) 56 d.
Figure 1. Disease development and naturally occurring symptoms of the fresh C. pilosula during different storage stages after harvest. (A) 7 d; (B) 14 d; (C) 21 d; (D) 28 d; (E) 42 d; (F) 56 d.
Jof 09 00146 g001
Jof 09 00146 g002
Figure 2. Colony morphology of isolates from fresh C. pilosula with postharvest disease during different storage stages. (A) Actinomucor elegans; (B) Mucor hiemalis; (C) Fusarium acuminatum; (D) Fusarium equiseti; (E) Fusarium oxysporum; (F) Clonostachys rosea; (G) Penicillium expansum; (H) Penicillium aurantiogriseum; (I) Trichothecium roseum.
Figure 2. Colony morphology of isolates from fresh C. pilosula with postharvest disease during different storage stages. (A) Actinomucor elegans; (B) Mucor hiemalis; (C) Fusarium acuminatum; (D) Fusarium equiseti; (E) Fusarium oxysporum; (F) Clonostachys rosea; (G) Penicillium expansum; (H) Penicillium aurantiogriseum; (I) Trichothecium roseum.
Jof 09 00146 g002
Jof 09 00146 g003
Figure 3. Morphology of conidium of isolates from fresh C. pilosula with postharvest disease during different storage stages. (A) Actinomucor elegans; (B) Mucor hiemalis; (C) Fusarium acuminatum; (D) Fusarium equiseti; (E) Fusarium oxysporum; (F) Clonostachys rosea; (G) Penicillium expansum; (H) Penicillium aurantiogriseum; (I) Trichothecium roseum.
Figure 3. Morphology of conidium of isolates from fresh C. pilosula with postharvest disease during different storage stages. (A) Actinomucor elegans; (B) Mucor hiemalis; (C) Fusarium acuminatum; (D) Fusarium equiseti; (E) Fusarium oxysporum; (F) Clonostachys rosea; (G) Penicillium expansum; (H) Penicillium aurantiogriseum; (I) Trichothecium roseum.
Jof 09 00146 g003
Jof 09 00146 g004
Figure 4. Morphology of conidiophore of isolates from C. pilosula with postharvest disease during different storage stages. (A) Actinomucor elegans; (B) Mucor hiemalis; (C) Fusarium acuminatum; (D) Fusarium equiseti; (E) Fusarium oxysporum; (F) Clonostachys rosea; (G) Penicillium expansum; (H) Penicillium aurantiogriseum; (I) Trichothecium roseum.
Figure 4. Morphology of conidiophore of isolates from C. pilosula with postharvest disease during different storage stages. (A) Actinomucor elegans; (B) Mucor hiemalis; (C) Fusarium acuminatum; (D) Fusarium equiseti; (E) Fusarium oxysporum; (F) Clonostachys rosea; (G) Penicillium expansum; (H) Penicillium aurantiogriseum; (I) Trichothecium roseum.
Jof 09 00146 g004
Jof 09 00146 g005

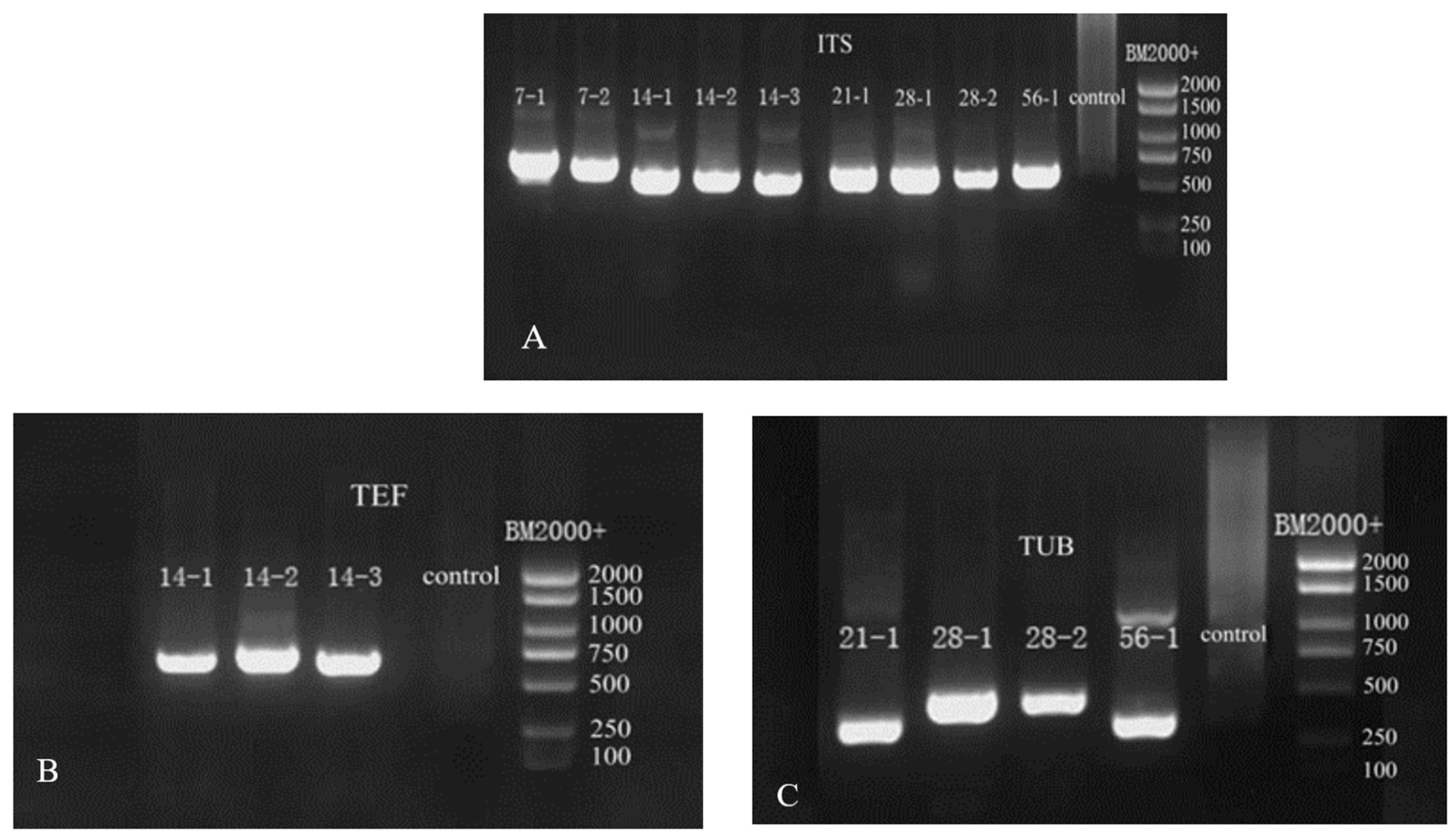

Figure 5. Gel electrophoresis images of PCR amplification products. (A) ITS gel electrophoresis images; (B) TEF gel electrophoresis images; (C) TUB gel electrophoresis images.
Figure 5. Gel electrophoresis images of PCR amplification products. (A) ITS gel electrophoresis images; (B) TEF gel electrophoresis images; (C) TUB gel electrophoresis images.
Jof 09 00146 g005
Jof 09 00146 g006aJof 09 00146 g006b

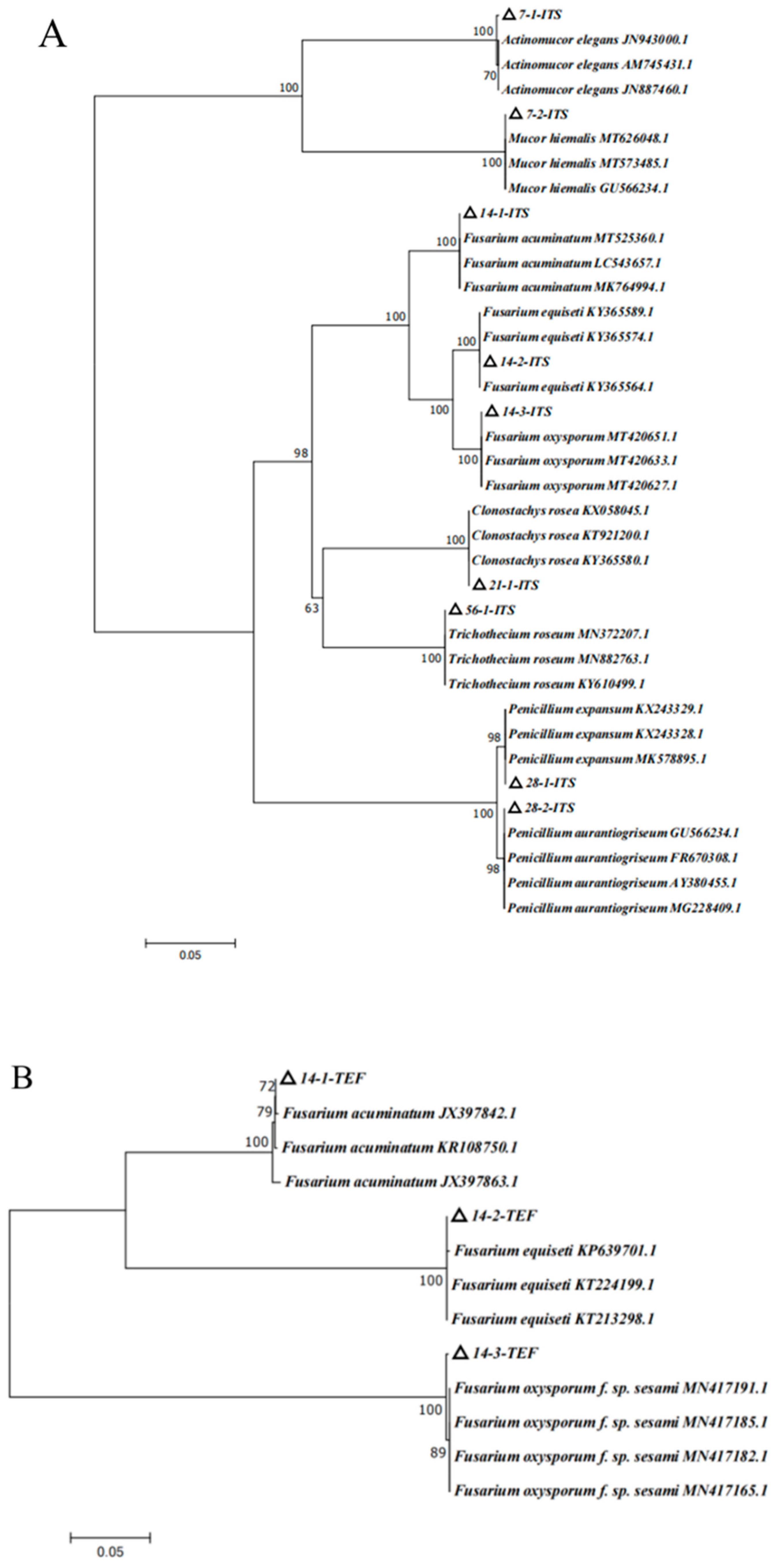

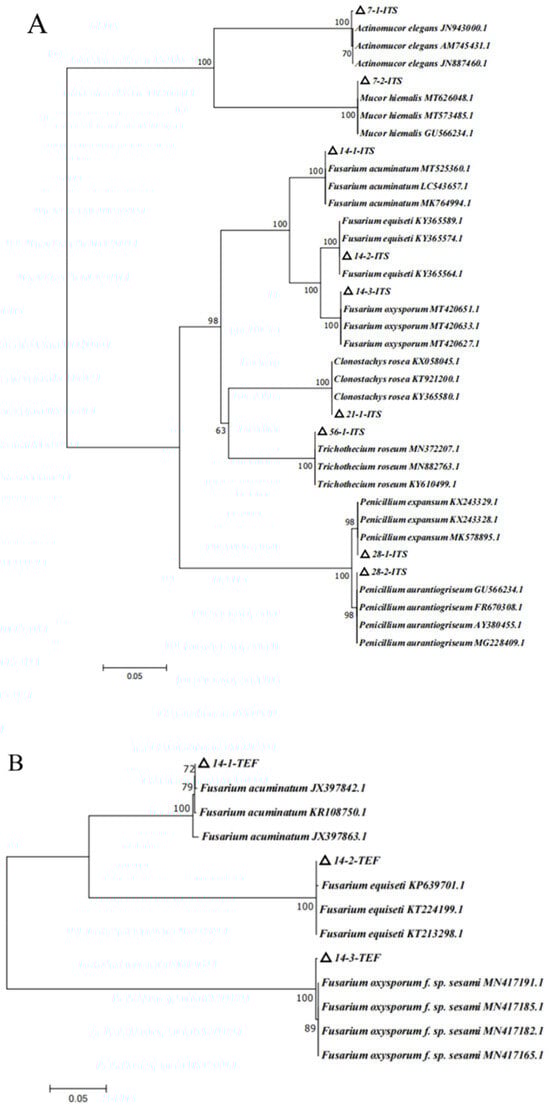

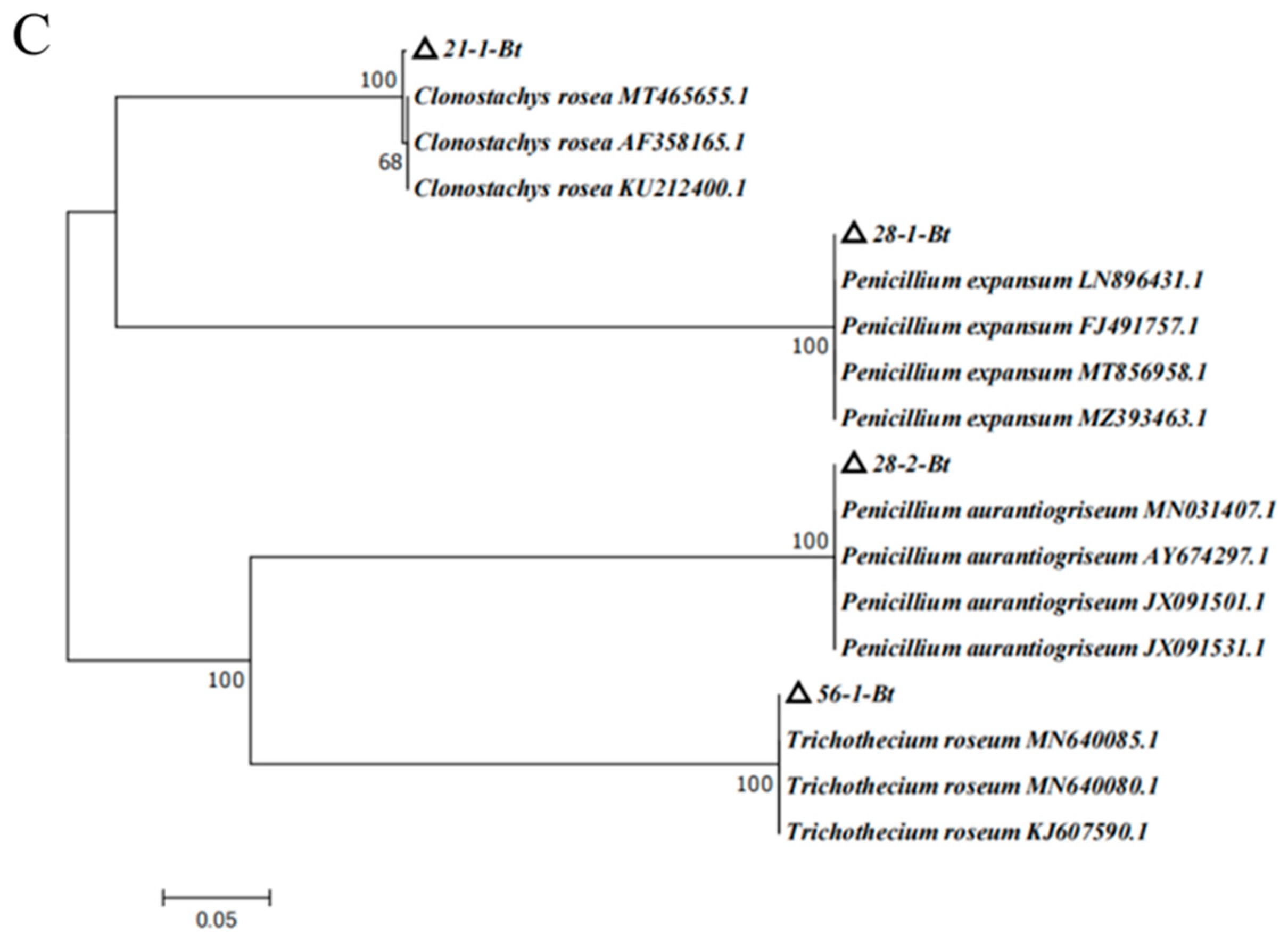

Figure 6. Phylogenetic tree of isolates based on analysis of different fungal genes. (A) ITS phylogenetic tree; (B) TEF phylogenetic tree; (C) TUB phylogenetic tree.
Figure 6. Phylogenetic tree of isolates based on analysis of different fungal genes. (A) ITS phylogenetic tree; (B) TEF phylogenetic tree; (C) TUB phylogenetic tree.
Jof 09 00146 g006aJof 09 00146 g006b
Jof 09 00146 g007

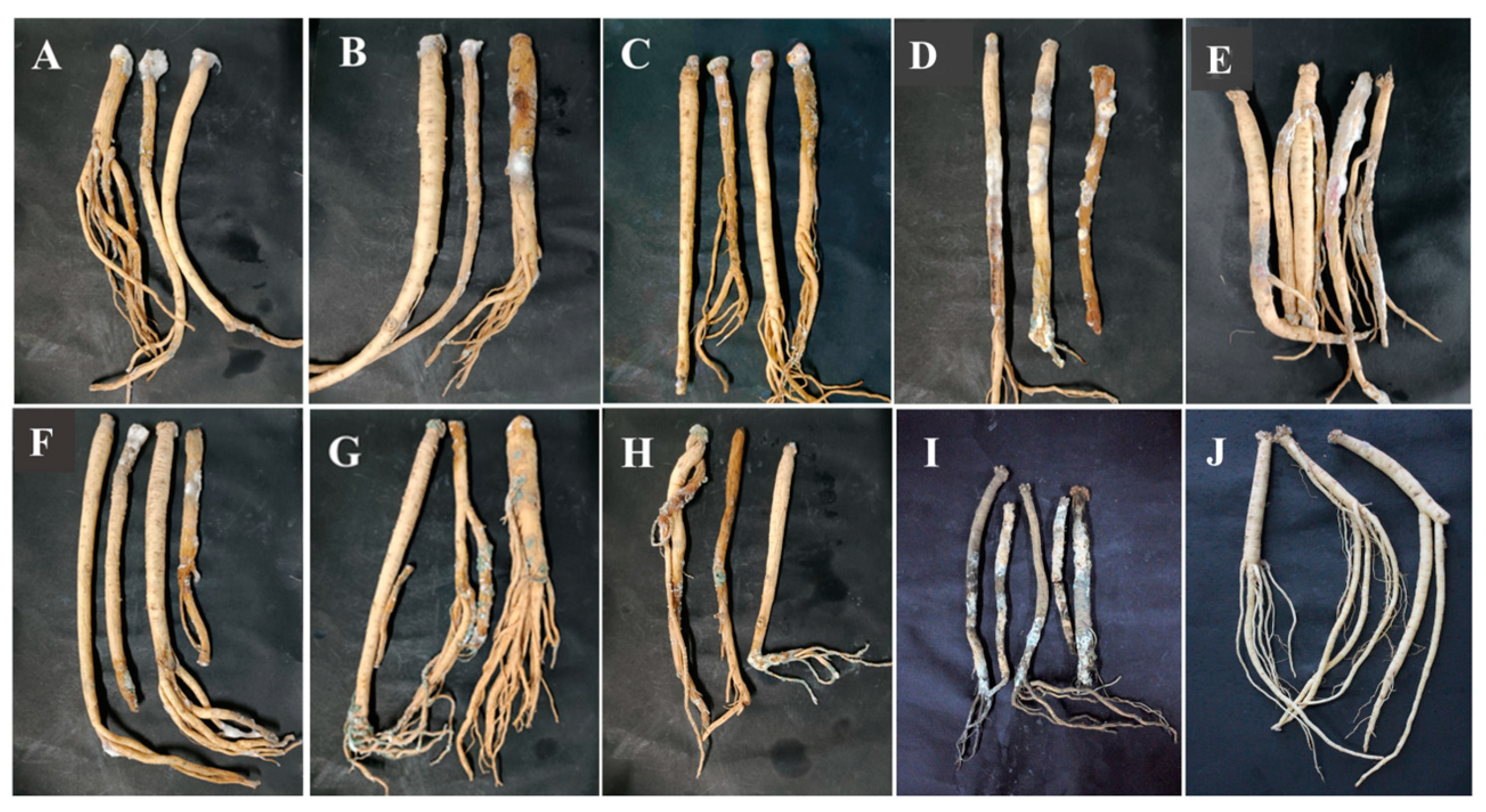

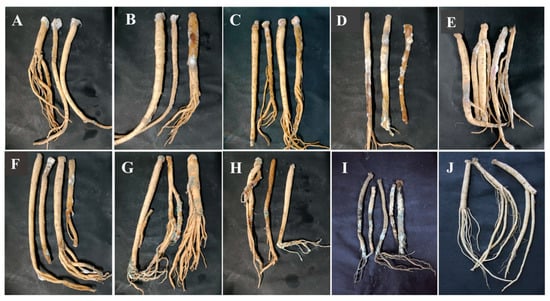

Figure 7. Pathogenicity testing of isolates from fresh C. pilosula with postharvest disease during different storage stages. (A) Actinomucor elegans; (B) Mucor hiemalis; (C) Fusarium acuminatum; (D) Fusarium equiseti; (E) Fusarium oxysporum; (F) Clonostachys rosea; (G) Penicillium expansum; (H) Penicillium aurantiogriseum; (I) Trichothecium roseum. (J) Control (no inoculation).
Figure 7. Pathogenicity testing of isolates from fresh C. pilosula with postharvest disease during different storage stages. (A) Actinomucor elegans; (B) Mucor hiemalis; (C) Fusarium acuminatum; (D) Fusarium equiseti; (E) Fusarium oxysporum; (F) Clonostachys rosea; (G) Penicillium expansum; (H) Penicillium aurantiogriseum; (I) Trichothecium roseum. (J) Control (no inoculation).
Jof 09 00146 g007
Jof 09 00146 g008

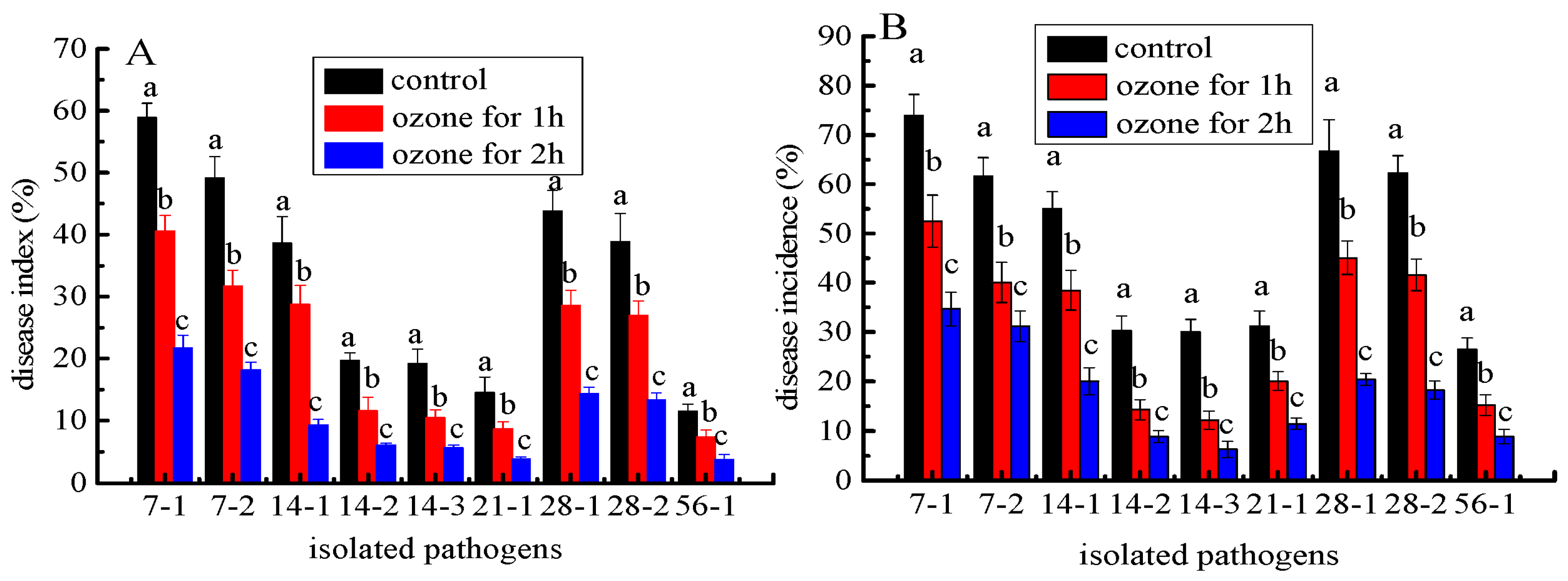

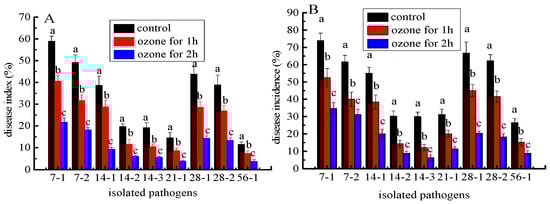

Figure 8. The effect of ozone treatment on disease index (A) and disease incidence (B) of fresh C. pilosula infected by the 9 isolates at 56 days of storage. (7-1: Actinomucor elegans; 7-2: Mucor hiemalis; 14-1: Fusarium acuminatum; 14-2: Fusarium equiseti; 14-3: Fusarium oxysporum; 21-1: Clonostachys rosea; 28-1: Penicillium expansum; 28-2: Penicillium aurantiogriseum; 56-1: Trichothecium roseum). The different letters indicate significant differences during the same storage period (p < 0.05).
Figure 8. The effect of ozone treatment on disease index (A) and disease incidence (B) of fresh C. pilosula infected by the 9 isolates at 56 days of storage. (7-1: Actinomucor elegans; 7-2: Mucor hiemalis; 14-1: Fusarium acuminatum; 14-2: Fusarium equiseti; 14-3: Fusarium oxysporum; 21-1: Clonostachys rosea; 28-1: Penicillium expansum; 28-2: Penicillium aurantiogriseum; 56-1: Trichothecium roseum). The different letters indicate significant differences during the same storage period (p < 0.05).
Jof 09 00146 g008
Jof 09 00146 g009
Figure 9. The effect of ozone treatment on mycotoxin accumulation of fresh C. pilosula infected by the isolates at 56 days of storage. (A) 15ADON and HT-2 toxin for Fusarium acuminatum (14-1); (B) Patulin (PAT) for Penicillum expansum (28-1); (C) DON, 15ADON, and HT-2 toxin for Trichothecium roseum (56-1); The different letters indicate significant differences during the same storage period (p < 0.05).
Figure 9. The effect of ozone treatment on mycotoxin accumulation of fresh C. pilosula infected by the isolates at 56 days of storage. (A) 15ADON and HT-2 toxin for Fusarium acuminatum (14-1); (B) Patulin (PAT) for Penicillum expansum (28-1); (C) DON, 15ADON, and HT-2 toxin for Trichothecium roseum (56-1); The different letters indicate significant differences during the same storage period (p < 0.05).
Jof 09 00146 g009
Table 1. Disease classification standard.
Table 1. Disease classification standard.
Disease RateSymptom
0No disease
1The diseased area accounts for 1–5% of the total area of C. pilosula
2The diseased area accounts for 6–25% of the total area of C. pilosula
3The diseased area accounts for 25–50% of the total area of C. pilosula
4The diseased area accounts for 51–75% of the total area of C. pilosula
5The diseased area accounts for 76–100% of the total area of C. pilosula
Table 2. Morphological characteristics of pathogens isolated at different storage periods.
Table 2. Morphological characteristics of pathogens isolated at different storage periods.
Colony MorphologyMicroscopic Morphology
Strain NumberFront ColorBack ColorTextureGrowth
Speed (mm/d)		ConidiumConidiophore
7-1WhiteWhiteFlocculent24.57Spherical or
near spherical		Sporangium
7-2Off-whiteWhiteFlocculent21.5Spherical or
near spherical		Sporangium
14-1Rose-redRose-redFluffiness7.39Spindle shapedErect and branch
14-2Light pinkLight pinkFluffiness4.75Spindle shapedErect and branch
14-3Dark purpleDark purpleFluffiness4.57Spindle shapedErect and branch
21-1WhiteLight yellowFluffiness4.29Spherical or
near spherical		Erect and branch
28-1Grey-greenWhitePowdery or grainy8.71Spherical or
flat spherical		Erect, broom
28-2Blue-greenTanGrainy6.50Spherical or
flat spherical
Pear shaped or obovate		Erect, broom
56-1OrangeOrangeGrainy10.14Erect
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lv, B.; Yang, X.; Xue, H.; Nan, M.; Zhang, Y.; Liu, Z.; Bi, Y.; Shang, S. Isolation of Main Pathogens Causing Postharvest Disease in Fresh Codonopsis pilosula during Different Storage Stages and Ozone Control against Disease and Mycotoxin Accumulation. J. Fungi 2023, 9, 146. https://doi.org/10.3390/jof9020146

AMA Style

Lv B, Yang X, Xue H, Nan M, Zhang Y, Liu Z, Bi Y, Shang S. Isolation of Main Pathogens Causing Postharvest Disease in Fresh Codonopsis pilosula during Different Storage Stages and Ozone Control against Disease and Mycotoxin Accumulation. Journal of Fungi. 2023; 9(2):146. https://doi.org/10.3390/jof9020146

Chicago/Turabian Style

Lv, Bingyu, Xi Yang, Huali Xue, Mina Nan, Yuan Zhang, Zhiguang Liu, Yang Bi, and Suqin Shang. 2023. "Isolation of Main Pathogens Causing Postharvest Disease in Fresh Codonopsis pilosula during Different Storage Stages and Ozone Control against Disease and Mycotoxin Accumulation" Journal of Fungi 9, no. 2: 146. https://doi.org/10.3390/jof9020146

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
