Investigation on In Situ Carbon-Coated ZnFe2O4 as Advanced Anode Material for Li-Ion Batteries

by
Mir Waqas Alam
1,*,
Amal BaQais
2,*,
Mohammed M. Rahman
3,
Muhammad Aamir
4,
Alaaedeen Abuzir
1,
Shehla Mushtaq
5,
Muhammad Nasir Amin
6 and
Muhammad Shuaib Khan
7
1
Department of Physics, College of Science, King Faisal University, Al Ahsa 31982, Saudi Arabia
2
Department of Chemistry, College of Science, Princess Nourah Bint Abdulrahman University, Riyadh 11671, Saudi Arabia
3
Department of Chemistry & CEAMR, King Abdulaziz University, Jeddah 21589, Saudi Arabia
4
Department of Basic Science, Preparatory Year Deanship, King Faisal University, Al Ahsa 31982, Saudi Arabia
5
School of Natural Sciences, National University of Sciences & Technology, Islamabad 44000, Pakistan
6
Department of Civil and Environmental Engineering, College of Engineering, King Faisal University, Al Ahsa 31982, Saudi Arabia
7
International Research Center for Renewable Energy (IRCRE), State Key Laboratory of Multiphase Flow in Power Engineering (MPFE), Xi’an Jiaotong University, 28 West Xianning Road, Xi’an 710049, China
*
Authors to whom correspondence should be addressed.
Gels 2022, 8(5), 305; https://doi.org/10.3390/gels8050305
Submission received: 16 April 2022 / Revised: 8 May 2022 / Accepted: 13 May 2022 / Published: 16 May 2022
(This article belongs to the Special Issue Gels for Flexible Electronics and Energy Devices)
Browse Figures
Versions Notes

Abstract

:
ZnFe2O4 as an anode that is believed to attractive. Due to its large theoretical capacity, this electrode is ideal for Lithium-ion batteries. However, the performance of ZnFe2O4 while charging and discharging is limited by its volume growth. In the present study, carbon-coated ZnFe2O4 is synthesized by the sol–gel method. Carbon is coated on the spherical surface of ZnFe2O4 by in situ coating. In situ carbon coating alleviates volume expansion during electrochemical performance and Lithium-ion mobility is accelerated, and electron transit is accelerated; thus, carbon-coated ZnFe2O4 show good electrochemical performance. After 50 cycles at a current density of 0.1 A·g−1, the battery had a discharge capacity of 1312 mAh·g−1 and a capacity of roughly 1220 mAh·g−1. The performance of carbon-coated ZnFe2O4 as an improved anode is electrochemically used for Li-ion energy storage applications.

1. Introduction

Based on their high specific capacity, lightweight feature and small volumes, Li-ion batteries are observed as promising energy storage devices. Since it was commercially introduced by Sony in 1990, it received explosive development in the field of portable electronics such as smart-phones, laptops and other wearable electronic devices. The design of high-energy electrode materials should be the primary focus of researchers in order to extend its application to the field of electric car and large-scale energy grid storage. Graphite is a commercially available anode material for Li-ion batteries due to their low cost, long cycle life and environmental friendliness. In spite of these advantages, the lower theoretical capacity of 372 mAh·g−1 along with potential safety concerns of dendrite formation and short-circuiting forced researchers to find alternative anode materials to satisfy the growing demand of LIBs [1,2,3,4,5,6,7,8,9,10].
Transition metal oxides of the form MxOy [11,12,13,14,15] (M = Mn, Co, Ni, Fe, etc.) are studied as alternative anode materials due to their larger theoretical capacity and higher Li intercalation potential than commercial graphite. The pioneering work of Poizot et al. in 2000 provided the impetus for the application of 3d TMOs as anode material. Currently, binary and ternary transition metal oxides combining different 3D transition metals are studied due to their higher theoretical capacity that is greater than commercial graphite electrodes. Moreover, a suitable combination of transition metal oxides results in better electrochemical performance and electronic conductivity [16,17,18]. Li storage capacity in this material is achieved through a reversible reaction between the Li-ion and metal oxide, which forms nanocrystals of metals scattered in the Li2O matrix. Continuous Li insertion and exertion cause large volume change, resulting in the pulverization of the anode. As a consequence, the electrical connectivity between the active anode materials breaks down, causing severe capacity fade over prolonged cycles. Two different techniques are adopted by the researchers to overcome this drawback. One is to synthesize nanoparticles with different morphologies such as nanoparticles, nanorods [19,20], nanosphere [21,22], nanospindles [23,24], nanowires [25,26], TiO2-B [27] and ZnAl2O4 [28]. These nanostructured materials could better accommodate strains caused by Li insertion and extraction by reducing the transport path of ions and electrons. This high surface area could induce Solid Electrolyte Interface (SEI) thick-layer formation, which consumes more Li ions resulting in irreversible capacity loss during initial cycles [27,28,29,30]. Shashan Yao et al. reported CoFe2O4 as an electrocatalyst for Li batteries [29,30].
Secondly, carbon coating is the most widely used technique to protect the inner active material from side reactions and maintains its high capacity. This layer acts as a buffer medium to volume changes and provides better electrical conductivity for good stability. Iron-based transition metal oxides are receiving more attention because of their natural abundance, non-toxicity low cost and environmental friendliness. Specifically, ZnFe2O4 is studied more widely studied, in which divalent and trivalent ions occupy tetrahedral A and octahedral B sites. It has a high theoretical capacity (1072 mAh·g−1) arising from both conversion and alloying reactions. Its lower working voltage of 1.5 V for Li insertion and extraction is useful in achieving high energy density. In addition to these advantages, it still suffers from severe capacity fade, poor electronic conductivity and large volume changes during Li insertion and extraction. Different approaches were used by researchers to mitigate these problems [31,32,33].
Here, ZnFe2O4 is synthesized using the facile sol–gel method. The sol–gel method is considered effective for modifying the surface of substrates. Obtaining a high surface area and stable surfaces is the most important advantage of the sol–gel method. As a source of both carbon and chelating agents, citric acid is used. The presence of carbon content is effectively controlled by varying the concentration of citric acid, and its impact on the electrochemical performance is studied. The optimized sample is studied by cyclic, galvanostatic and electrical impedances. The results are impressive with a high capacity at a current density of 100 mA·g−1.The capacity is still maintained above 1100 after 50 cycles with very good stability. The results show that carbon-coated ZnFe2O4 will be a cost effective and highly stable anode for Li ion batteries.

2. Results and Discussion

The XRD patterns of in situ carbon-coated ZnFe2O4 are shown in Figure 1 As shown in Figure 1a, all peaks are well indexed and the diffraction peaks at angles of 17.98°, 29.6°, 35.14°, 36°, 42.72°, 52.78°, 56.32°, 61.96°, 70.61° and 73.57°, which corresponds to the hkl plane of (111), (220), (311), (222), (400), (422), (511), (440), (620) and (533), respectively. The XRD patterns show that the sample possesses a cubic spinel structure. All indexed peaks and intensity wells match with the standard ICSD 98-006-6128 [34,35]. The well-indexed highest point shows that the prepared sample has a good crystalline nature. The carbon peak is not observed and remains in an amorphous nature. Thus, in situ carbon coated ZnFe2O4 was successfully synthesized without affecting the basic nature of ZnFe2O4. The simulated structure of ZnFeO4 is shown in Figure 1b.
Figure 2 shows FESEM and HRTEM images of in situ carbon-coated ZnFe2O4. Morphological analysis was performed to study the structural nature of the prepared samples. Figure 2a–c show the FESEM images of the in situ carbon-coated ZnFe2O4. An agglomeration with unevenly distributed particles was formed. The range of the particle size is about 100–200 nm. Upon observing Figure 2b, irregular particles have been formed with various sizes, accumulation and uneven spread due to the combustion process produced by carbon agglomeration. Carbon was coated on the sample by adding citric acid as a chelating agent for the combustion method. The carbon source itself acted as a carbon source for the prepared samples. Figure 2c shows the uneven spherical structure. The uneven nature may be due to the presence of carbon on the sample. Figure 2d shows that in situ carbon was coated on the surface of ZnFe2O4, which indicates that the carbon-coated ZnFe2O4 was successfully synthesized. The conductive carbon on the outer surface greatly increases the performance of the electrode during electrochemical analysis. The SAED model for the prepared samples is shown in Figure 2e. The clear points show that the sample was purely crystalline, without any contamination particles. Figure 2f demonstrates the EDAX spectra of the prepared samples to confirm the presence of the elements. The thickness of the carbon coating is about 2–3 nm.
Raman spectroscopy is a quick and easy method for finding more information about carbon. Carbon, ZnFe2O4 nanoparticles and ZnFe2O4@C nanohybrids are shown in Figure 3. Carbon and ZnFe2O4@C nanohybrids have G and D bands. The G band at about 1580 cm−1, which corresponds to an E2g mode of graphite, comes from the vibration of sp2-bonded carbon atoms. The D band at about 1345 cm−1, which corresponds to a point mode of A1g symmetry, comes from the defects and disorder of carbon materials. The ID/IG of ZnFe2O4@C is higher than that of carbon, which is due to the smaller average size of sp2 domains and more disordered degrees and defects. This is because sp2 domains are smaller, and there are more defects. The increase in ID/IG also shows that GO is turned into RGO during the reaction process. There are a lot of Raman bonds in ZnFe2O4 and ZnFe2O4@C that look a lot like the bonds in ZnFe2O4 particles and ZnFe2O4@C nanocomposites that have been reported before. The Raman spectra of ZnFe2O4 and graphene show that the properties of ZnFe2O4@C stay the same even after they are made into nanohybrids [36,37].
XPS spectra were used to understand the chemical composition. Figure 4a shows an in situ carbon ZnFe2O4-coated survey spectrum that represents Zn, Fe, O and C characteristics, respectively. As represented in Figure 4b, the spectrum of Zn 2p is shown. The peaks at 1022.5 and 1045.4 eV correspond to Zn 2p3/2 and Zn 3p1/2, respectively. The XPS spectrum of Fe 2p was shown in Figure 4c. The orbital pairs Fe 2p1/2 and Fe 2p3/2 are characterized as peaks of 724 and 711 eV. Figure 4d shows the XPS spectrum of O 1s. The top at 530 eV, from left to right, indicates that the functional oxygen group and the peak at 536 are associated with large oxygen molecules on the surface of samples. Figure 4e shows that the peak of C1s spectra was observed. The maximum of 285 eV is C=C; the maximum of 285 eV is C=H and the maximum fitness is C=N and C–OH. The successful preparation of in situ carbon-coated ZnFe2O4 has been proven once more.
Nuli et al. found that Li+ was reversibly embedded and eliminated in ZnFe2O4 [36]. In 2010, Guo et al. discussed the Li storage mechanism of ZnFe2O4 as follows [35,37].
ZnFe2O4 + xLi+ + xe− → LixZnFe2O4
LixZnFe2O4 + (8 − x)Li+ + (8 − x)e− → Zn0 + 4Li2O + 2Fe0
Zn0 + Li+ + e− Gels 08 00305 i001LiZn (3) Zn0 + Li2O → ZnO + 2Li + 2e−
2Fe0 + 3Li2O → Fe2O3 + 2Li + + 2e−
In order investigate the electrochemical mechanism during charging and discharging, CV analysis was performed to characterize the sample’s electrochemical characteristics. The CV curves of carbon-coated ZnFe2O4 for the first 10 cycles was shown in Figure 5a. The voltage range is 0.05–3 V at a rate of 0.1 mV s−1. As seen in Figure 5a, in the first cycle of cathodic scanning, carbon-coated ZnFe2O4 shows a sharp reduction peak at 0.5–0.6 V. This was largely attributable to decreases in Fe3+ and Zn2+ to Fe and Zn and Li-Zn and Li2O, the mechanism of Li-ion intercalation in accordance with Equations (1)–(4) [38]. After subsequent cycles of scanning, the reduction peaks of carbon-coated ZnFe2O4 shifted to 1.0 V, which is due to changes in the internal structure of carbon coated ZnFe2O4. When the first cycle was observed, a wide reduction peak of 1.6 V was observed due to the oxidation of Zinc to Zn2+ and iron oxide to Fe3+, the mechanism for Li intercalation/de-intercalation [39]. Previous results of ZnFe2O4 [40] show that the peak area and current of carbon-coated ZnFe2O4 possess enhanced kinetics and faster ion and faster transport of electrons, which results in better electrochemical performance. The CV curve of pure ZnFe2O4 is shown in Figure 5b.
For further investigation, the prepared samples are assembled into a coin cell and tested at a 0.05–3 V range of constant current load/discharge (0.1 Ag−1). Figure 5c shows the charge/discharge curves of carbon-coated ZnFe2O4 for 50 cycles. During the process of charging/discharging, the voltage plateau was observed, which corresponds to a redox reaction of the sample. On the first discharge curve observation of carbon-coated ZnFe2O4, an obvious working plateau at 0.8 V was observed. After a few cycles, the plateau disappears and starts slopping, which matches with the results of CV in Figure 5a. Due to the oxidation of Zn to Zn2+ and Fe to Fe3+, a plateau was observed at 1.6 V. As per the charge/discharge curves (Figure 5b), the 25th and 50th cycles coincide with another, which shows the enhanced stability of the carbon-coated ZnFe2O4 electrode. The first discharge capacity of the sample reaches 2267 mAh·g−1 at 0.1 Ag−1 and The capacity for the first load is 1221 mAh·g−1. The charge/discharge curves of different current densities (100–8000 mA·g−1) are shown in Figure 5c. The initial capacity loss may be due to lithiation, which consumes irreversible Li ion and results in the formation of solid electrolyte interphases [41]. The sample attained an efficiency of about 96% after a few cycles, indicating carbon-coated ZnFe2O4 with good electrochemical performances. The charge/discharge profile of pure ZnFe2O4 is shown in Figure 5d.
Figure 5e represents the cyclic curves of carbon-coated ZnFe2O4 tested at a current density of 100 mA·g−1. The sample is tested in the same voltage window (0.05–3 V) for all electrochemical analyses. Wang et al. [42] reported that pure ZnFe2O4 has a 1312 mAh·g−1 reversible capacity and 100 cycles have reduced the discharge capacity toward 361 mAh·g−1. The reason for capacity loss is due to the poor electronic conductivity of ZnFe2O4. Comparing carbon-coated ZnFe2O4 with pure ones, the electrochemical performance of the carbon-coated sample was greatly improved. The discharge capacity of ZnFe2O4 carbon coated reaches 1312 mAh·g−1 in the first cycle and maintained 1228 mAh·g−1 after 50 cycles. The high capacity is due to (i) carbon as a conducting layer in a composite that enhances electron transport and (ii) in situ carbon-coated defects on ZnFe2O4 surface are present in chemical oxidation, where more Li ions are stored. Thus, the contact area between electrode/electrolyte increases, and during intercalation/de-intercalation, Li ion/electron movements accelerate. (iii) Carbon has a mechanical resilience in the exterior layer, reducing the expansion in volume during electrical processes. The reversible capacities of carbon-coated ZnFe2O4 increases with the number of cycles. This is a common critical feature of LIBs anode transition metal oxides. The reason is due to the gradual activation of metal oxides and electrolytes and the reversible mechanism [35,43].
In order to further observe the cycling performance of carbon-coated ZnFe2O4 at different current densities, electrode tests were conducted for rate performance. Current density increased from 100 to 8000 mAh·g−1 and then back to 500 mA·g−1 respectively. As shown in Figure 5f,g, at the current densities of 100, 200, 500, 2000, 4000 and 8000 mA·g−1, the discharge capacity is about 1312, 1059, 806, 471, 207 and 119 mAh·g−1. It then return to 500 mA·g−1, and the discharge capacity still reaches 645 mAh·g−1, which shows the good reversibility nature of carbon-coated ZnFe2O4. Compared with pure ZnFe2O4 [44] without carbon coating, the performance of carbon-coated ZnFe2O4 is greatly improved. The previous reported studies [45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63] are shown in Table 1.
Figure 6 shows the EIS spectra of carbon-coated ZnFe2O4 and displays anode materials’ load transmission resistance. The spectrum consists of half of the circle and an inclining line, as illustrated in Figure 6a,b. The half circle in the high frequency region features resistance toward the charge transfer of the electrode to the electrolyte. The low frequency slope shows an impedance in Warburg, which is the diffusion of lithium ion in electrodes [64,65,66,67]. Compared with pure ZnFe2O4 (Figure 6a), the resistance of carbon-coated ZnFe2O4 is smaller. Carbon-coated ZnFe2O4 shows faster ion transfer because the addition of carbon increases the electronic conductivity of carbon-coated ZnFe2O4, thus improveing electrochemical performances. Electrochemical and the impedance results show that carbon-coated ZnFe2O4 have enhanced electrochemical performance compared to anode materials.

3. Conclusions

In the present study, an electrochemical investigation was conducted on carbon-coated ZnFe2O4 as an anode for energy storage applications. The in situ carbon-coated ZnFe2O4 with spherical structure was prepared by using the sol–gel technique. Based on previous reports on ZnFe2O4’s poor stability, electronic conductivity and electrochemical performances have been improved on the surface of ZnFe2O4’s sphere structure with carbon coating. As a result, it is observed that the discharge capacity of ZnFe2O4 is 1312 mAh·g−1 at 100 mA·g−1, and the capacity retention is 95% after 50 cycles. The above results show that cycling and the rate performance of ZnFe2O4 carbon-coated was enhanced by the addition of carbon. The electrochemical performance of carbon-coated ZnFe2O4 is suitable for enhanced anode materials for Li-ion batteries.

4. Experimental

The nanocrystalline powders of ZnFe2O4 are synthesized by means of the conventional sol–gel assisted combustion method. This is carried out in two stages in which the xerogel is initially prepared using the sol–gel method, followed by the combustion method at high temperatures. The calculated amounts of zinc acetate, iron acetate and citric acid are mixed together in 100 mL of distilled water. After that, the pH of the solution is carefully controlled at 7 by using ammonia water. Here, citric acid is used as both a chelating agent and carbon source. The resulting solution is constantly maintained at 80 °C in a stirrer until the water molecules evaporated. The resulting xerogel transforms into a fluffy powder while drying at 120 °C for 12 h. Finally, the sample is calcinated at 600 °C for 4 h to obtain the final sample. The preparation procedures are shown in Figure 7

4.1. The Electrochemical Studies

The battery tests are performed using CR2032 coin cells in an argon atmosphere inside a glove box. The cathode was the prepared sample, the anode comprised Li metal and the separator was polypropylene. The electrolyte was constructed by combining LiPF6 with EC and DEC (1:1 v/v). The cathodes were made by combining 2.5 g of prepared active material with 0.5 g of ketjen black and 0.5 mg of teflonized acetylene black (TAB-2). Before fabricating coin cells, the prepared mixture was pasted on a stainless-steel current collector and dried in a vacuum oven at 160 °C. The charge–discharge cycle was carried out using the Arbin BT–2000 battery tester system. An electrochemical workstation was used to conduct EIS analyses (SP-150, Biologic, Seyssinet-Pariset, France).

4.2. Characterization Details

Full-Prof software is used to calculate crystal values and structural analysis by X-ray diffraction (Cu K radiation, Rigaku, Tokyo, Japan). A scanning electron microscope (Hitachi, Tokyo, Japan) coupled with an EDX module and a high-resolution transmission electron microscope were used to examine surface morphology and elemental composition (HRTEM, JEOL, Tokyo, Japan). The molecular structures of the material were analyzed by using Nuclear Magnetic Resonance Spectrometer (NMR; HWB NMR, Birmingham, UK).

Author Contributions

Conceptualization, M.W.A. and M.S.K.; formal analysis, S.M.; funding acquisition, M.W.A. and A.B.; investigation, A.B., M.M.R. and M.N.A.; methodology, A.B., M.M.R., M.A., A.A. and S.M.; project administration, M.W.A. and A.B.; resources, M.W.A. and M.N.A.; software, M.M.R. and A.A.; supervision. M.W.A.; writing—original draft, M.W.A., A.B., M.M.R. and A.A.; writing—review and editing M.A., S.M., M.N.A. and M.S.K. All authors will be informed about each step of manuscript processing including submission, revision, revision reminder, etc., via emails from our system or the assigned assistant editor. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Deanship of Scientific Research, Vice Presidency for Graduate Studies and Scientific Research, King Faisal University, Saudi Arabia (Project No. GRANT586).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This work was supported by the Deanship of Scientific Research, Vice Presidency for Graduate Studies and Scientific Research, King Faisal University, Saudi Arabia (Project No. GRANT586). The authors would like to acknowledge Princess Nourah bint Abdulrahman University Researchers Supporting Project number (PNURSP2022R230), Princess Nourah bint Abdulrahman University, Riyadh, Saudi Arabia.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Goodenough, J.B.; Kim,, Y. Challenges for Rechargeable Li Batteries. Chem. Mater. 2010, 22, 587–603. [Google Scholar] [CrossRef]
  2. Joshua, J.R.; Maiyalagan, T.; Lee, Y.S.; Sivakumar, N. Advanced High Voltage Cathode Materials for Rechargeable Li Ion batteries; CRC Press: Boca Raton, FL, USA, 2020; Volume 171. [Google Scholar]
  3. Armand, M.; Tarascon, J.M. Lithium Storage Mechanism in Purpurin based Organic Lithium ion Battery Electrodes. Nature 2008, 451, 637–652. [Google Scholar]
  4. Bruce, P.G.; Scrosati, B.; Tarascon, J.M. Nanomaterials for Rechargeable Lithium Batteries. Angew. Chem. Int. Ed. 2008, 47, 2930–2946. [Google Scholar] [CrossRef] [PubMed]
  5. Chen, G.Y.; Wei, Z.Y.; Jin, B.; Zhong, X.B.; Wang, H.; Zhang, W.X.; Liang, J.C.; Jiang, Q. One-Pot Synthesis and High Electrochemical Performance of CuS/Cu1.8S Nanocomposites as Anodes for Lithium-Ion Batteries. Pubmed. Cent. 2013, 277, 268–271. [Google Scholar]
  6. Hou, L.R.; Lian, L.; Zhang, L.H.; Pang, G.; Yuan, C.Z.; Zhang, X.G. Ultrahigh-performance mesoporous ZnMn2O4 microspheres as anode materials for lithium-ion batteries and their in situ Raman investigation. Adv. Funct. Mater. 2015, 25, 238–246. [Google Scholar] [CrossRef]
  7. Yao, J.H.; Zhang, Y.F.; Yan, J.; Bin, H.; Li, Y.W.; Xiao, S.H. Nanoparticles-constructed spinel ZnFe2O4 anode material with superior lithium storage performance boosted by pseudocapacitance. Mater. Res. Bull. 2018, 104, 188–193. [Google Scholar] [CrossRef]
  8. Yang, T.B.; Zhang, W.X.; Li, L.L.; Jin, B.; Jin, E.M.; Jeong, S.; Jiang, Q. In-situ synthesized ZnFe2O4 firmly anchored to the surface of MWCNTs as a long-life anode material with high lithium storage performance. Appl. Sur. Sci. 2017, 425, 978–987. [Google Scholar] [CrossRef]
  9. Wang, N.N.; Xu, H.Y.; Chen, L.; Gu, X.; Yang, J.; Qian, Y.T. A general approach for MFe2O4 (M = Zn, Co, Ni) nanorods and their high performance as anode materials for lithium ion batteries. J. Power Source 2014, 247, 163–169. [Google Scholar] [CrossRef]
  10. Zhang, W.; Zu, L.H.; Kong, B.; Chen, B.J.; He, H.L.; Lan, K.; Liu, Y.; Yang, J.H.; Zhao, D.Y. Mesoporous TiO2/TiC@ C composite membranes with stable TiO2-C interface for robust lithium storage. Science 2018, 3, 149–160. [Google Scholar] [CrossRef]
  11. Reddy, A.L.M.; Shaijumon, M.M.; Gowda, S.R.; Ajayan, P.M. Coaxial MnO2/Carbon Nanotube Array Electrodes for High-Performance Lithium Batteries. Nano Lett. 2009, 9, 1002–1006. [Google Scholar] [CrossRef]
  12. Joshua, J.R.; Lee, Y.S.; Maiyalagan, T.; Nallamuthu, N.; Sivakumar, N. Na0.4(Mn0.33Co0.33Ni0.33)O2 surface grafted with SnO nanorods: A cathode materials for rechargeable sodium ion batteries. J. Electroanal. Chem. 2020, 856, 113633. [Google Scholar] [CrossRef]
  13. Jayachitra, J.; Balamurugan, A.; Joshua, J.R.; Sharmila, V. Enhancing the electrochemical performance by structural evolution in O3-NaFe1-xMgxO2 cathodes for sodium ion batteries. Inorg. Chem. Commun. 2021, 129, 108528. [Google Scholar] [CrossRef]
  14. Sharmila, V.; Parthibavarman, M. Lithium manganese phosphate associated with MWCNT: Enhanced positive electrode for lithium hybrid batteries. J. Alloys Compd. 2021, 858, 157715. [Google Scholar] [CrossRef]
  15. Jiao, F.; Bruce, P.G. Mesoporous Crystalline β-MnO2—A Reversible Positive Electrode for Rechargeable Lithium Batteries. Adv. Mater. 2007, 19, 657–660. [Google Scholar] [CrossRef]
  16. Park, J.C.; Kim, J.; Kwon, H.; Song, H. Gram-Scale Synthesis of Cu2O Nanocubes and Subsequent Oxidation to CuO Hollow Nanostructures for Lithium-Ion Battery Anode Materials. Adv. Mater. 2009, 21, 803–807. [Google Scholar] [CrossRef]
  17. Gao, X.P.; Bao, J.L.; Pan, G.L.; Zhu, H.Y.; Huang, P.X.; Wu, F.; Song, D.Y. Preparation and electrochemical performance of polycrystalline and single crystalline CuO nanorods as anode materials for Li ion battery. J. Phys. Chem. B 2004, 108, 5547–5551. [Google Scholar] [CrossRef]
  18. Wang, B.; Wu, X.L.; Shu, C.Y.; Guo, Y.G.; Wang, C.R. Synthesis of CuO/graphene nanocomposite as a high-performance anode material for lithium-ion batteries. J. Mater. Chem. 2010, 20, 10661–10664. [Google Scholar] [CrossRef]
  19. Zhang, W.M.; Wu, X.L.; Hu, J.S.; Guo, Y.G.; Wan, L.J. Carbon Coated Fe3O4 Nanospindles as a Superior Anode Material for Lithium-Ion Batteries. Adv. Funct. Mater. 2008, 18, 3941–3946. [Google Scholar] [CrossRef]
  20. Luo, J.S.; Liu, J.L.; Zeng, Z.Y.; Ng, C.F.; Ma, L.J.; Zhang, H.; Lin, J.Y.; Shen, Z.X.; Fan, H.J. Three-Dimensional Graphene Foam Supported Fe3O4 Lithium Battery Anodes with Long Cycle Life and High Rate Capability. Nano Lett. 2013, 13, 6136–6143. [Google Scholar] [CrossRef]
  21. Jin, B.; Liu, A.H.; Liu, G.Y.; Yang, Z.Z.; Zhong, X.B.; Ma, X.Z.; Yang, M.; Wang, H.Y. Fe3O4–pyrolytic graphite oxide composite as an anode material for lithium secondary batteries. Electrochim. Acta 2013, 90, 426–432. [Google Scholar] [CrossRef]
  22. Zhou, G.M.; Wang, D.W.; Yin, L.C.; Li, N.; Li, F.; Cheng, H.M. Oxygen bridges between NiO nanosheets and graphene for improvement of lithium storage. ACS Nano 2012, 6, 3214–3223. [Google Scholar] [CrossRef] [PubMed]
  23. Varghese, B.; Reddy, M.V.; Yanwu, Z.; Lit, C.S.; Hoong, T.C.; Rao, G.V.S.; Chowdari, B.V.R.; Wee, A.T.S.; Lim, C.T.; Sow, C.H. Fabrication of NiO nanowall electrodes for high performance lithium ion battery. Chem. Mater. 2008, 20, 3360–3367. [Google Scholar] [CrossRef]
  24. Liu, H.; Wang, G.X.; Liu, J.; Qiao, S.Z.; Ahn, H.J. Highly ordered mesoporous NiO anode material for lithium ion batteries with an excellent electrochemical performance. Mater. Chem. 2011, 21, 3046–3052. [Google Scholar] [CrossRef]
  25. Xing, Z.; Ju, Z.C.; Yang, J.; Xu, H.Y.; Qian, Y.T. Spin-coated silicon nanoparticle/graphene electrode as a binder-free anode for high-performance lithium-ion batteries. Nano Res. 2012, 5, 477–485. [Google Scholar] [CrossRef]
  26. Teh, P.F.; Pramana, S.S.; Sharma, Y.; Ko, Y.W.; Madhavi, S. Electrospun Zn1–xMnxFe2O4 Nanofibers As Anodes for Lithium-Ion Batteries and the Impact of Mixed Transition Metallic Oxides on Battery Performance. ACS Appl. Mater. Interfaces 2013, 5, 5461–5467. [Google Scholar] [CrossRef] [PubMed]
  27. Zhang, C.; He, Y.; Wang, Y.; Liang, Y.; Majeed, A.; Yang, Z.; Yao, S.; Shen, X.; Li, T.; Qin, S. Porous N-doped carbon nanofibers assembled with nickel ferrite nanoparticles as efficient chemical anchors and polysulfide conversion catalyst for lithium-sulfur batteries. J. Colloid Interface Sci. 2021, 601, 209–219. [Google Scholar]
  28. Yao, S.; He, Y.; Wang, Y.; Bi, M.; Liang, Y.; Majeed, A.; Yang, Z.; Shen, X. CoFe2O4 nanoparticles loaded N-doped carbon nanofibers networks as electrocatalyst for enhancing redox kinetics in Li-S batteries. Appl. Surf. Sci. 2021, 560, 1449908. [Google Scholar]
  29. Moustafa, M.G.; Moustafa, M.S.S. Green fabrication of ZnAl2O4-coated LiFePO4 nanoparticles for enhanced electrochemical performance in Li-ion batteries. J. Alloys Compd. 2022, 903, 163910. [Google Scholar] [CrossRef]
  30. Sanad, M.M.S.; Rashad, K.M.M. Enhancement of the electrochemical performance of hydrothermally prepared anatase nanoparticles for optimal use as high capacity anode materials in lithium ion. Powers Appl. Phys. A 2015, 118, 665–674. [Google Scholar] [CrossRef]
  31. Ding, Y.; Yang, Y.F.; Shao, H.X. High Capacity ZnFe2O4 Anode. Material for Lithium Ion Batteries. Electrochim. Acta 2011, 56, 9433–9438. [Google Scholar] [CrossRef]
  32. Zhong, X.B.; Yang, Z.Z.; Wang, H.Y.; Lu, L.; Jin, B.; Zha, M.; Jiang, Q.C. A novel approach to facilely synthesize mesoporous ZnFe2O4 nanorods for lithium ion batteries. J. Power Source 2016, 306, 718–723. [Google Scholar] [CrossRef]
  33. Yao, X.Y.; Kong, J.H.; Zhao, C.Y.; Zhou, D.; Zhou, R.; Lu, X.H. Zinc ferrite nanorods coated with polydopamine-derived carbon for high-rate lithium ion batteries. Electrochim. Acta 2014, 146, 464–471. [Google Scholar] [CrossRef]
  34. Wang, M.Y.; Huang, Y.; Chen, X.F.; Wang, K.; Wu, H.W.; Zhang, N.; Fu, H.T. Synthesis of nitrogen and sulfur co-doped graphene supported hollow ZnFe2O4 nanosphere composites for application in lithium-ion batteries. J. Alloys Compd. 2017, 691, 407–415. [Google Scholar] [CrossRef]
  35. Shi, J.J.; Zhou, X.Y.; Liu, Y.; Su, Q.M.; Zhang, J.; Du, G.H. One-pot solvothermal synthesis of ZnFe2O4 nanospheres/graphene composites with improved lithium-storage performance. Mater. Res. Bull. 2015, 65, 204–209. [Google Scholar] [CrossRef]
  36. Teh, P.F.; Sharma, Y.; Pramanac, S.S.; Srinivasan, M. Nanoweb anodes composed of one-dimensional, high aspect ratio, size tunable electrospun ZnFe2O4 nanofibers for lithium ion batteries. J. Mater. Chem. 2011, 21, 14999–15008. [Google Scholar] [CrossRef]
  37. Qiao, H.; Li, R.R.; Yu, Y.T.; Xia, Z.K.; Wang, L.J.; Wei, Q.F.; Chen, K.; Qiao, Q.Q. Fabrication of PANI-coated ZnFe2O4 nanofibers with enhanced electrochemical performance for energy storage. Electrochim. Acta 2018, 273, 282–288. [Google Scholar] [CrossRef]
  38. Dou, Q.Q.; Wong, K.W.; Li, Y.; Ng, K.M. Novel nanosheets of ferrite nanoparticle arrays in carbon matrix from single source precursors: An anode material for lithium-ion batteries. J. Mater. Sci. 2018, 53, 4456–4466. [Google Scholar] [CrossRef]
  39. Jiang, L.; Dong, C.; Jin, B.; Wen, Z.; Jiang, Q. ZnFe2O4@ PPy core-shell structure for high-rate lithium-ion storage. J. Electroanal. Chem. 2019, 851, 113442. [Google Scholar] [CrossRef]
  40. NuLi, Y.N.; Chu, Y.Q.; Qin, Q.Z. Nanocrystalline ZnFe2O4 and Ag-Doped ZnFe2O4 Films Used as New Anode Materials for Li-Ion Batteries. J. Electrochem. Soc. 2004, 151, 1077–1083. [Google Scholar] [CrossRef]
  41. Guo, X.W.; Lu, X.; Fang, X.P.; Mao, Y.; Wang, Z.X.; Chen, L.Q.; Xu, X.X.; Yang, H.; Liu, Y.N. Lithium storage in hollow spherical ZnFe2O4 as anode materials for lithium ion batteries. Electrochem. Commun. 2010, 12, 847–850. [Google Scholar]
  42. Wang, Y.; Jin, Y.H.; Zhang, R.P.; Jia, M.Q. Facile synthesis of ZnFe2O4-graphene aerogels composites as high-performance anode materials for lithium ion batteries. Appl. Surf. Sci. 2017, 413, 50–55. [Google Scholar] [CrossRef]
  43. Mao, W.; Hou, X.H.; Wang, X.Y.; He, G.N.; Shao, Z.P.; Hu, S.J. Corncob-shaped ZnFe2O4/C nanostructures for improved anode rate and cycle performance in lithium-ion batteries. RSC Adv. 2015, 5, 31807–31814. [Google Scholar] [CrossRef]
  44. Jiang, B.B.; Han, C.P.; Li, B.; He, Y.J.; Lin, Z.Q. In-situ crafting of ZnFe2O4 Nanoparticles impregnated within continuous carbon network as advanced anode materials. ACS Nano 2016, 10, 2728–2735. [Google Scholar] [CrossRef]
  45. Mo, R.W.; Rooney, D.; Sun, K.N. Yolk-shell germanium@ polypyrrole architecture with precision expansion void control for lithium ion batteries. iScience 2018, 9, 521–531. [Google Scholar] [CrossRef] [Green Version]
  46. Zou, F.; Hu, X.L.; Li, Z.; Qie, L.; Hu, C.C.; Zeng, R.; Jiang, Y.; Huang, Y.H. MOF-derived porous ZnO/ZnFe₂O₄/C octahedra with hollow interiors for high-rate lithium-ion batteries. Adv. Mater. 2014, 26, 6622–6628. [Google Scholar] [CrossRef] [PubMed]
  47. Han, F.; Li, D.; Li, W.C.; Lei, C.; Sun, Q.; Lu, A.H. Nanoengineered polypyrrole-coated Fe2O3@C multifunctional composites with an improved cycle stability as lithium-ion anodes. Adv. Funct. Mater. 2013, 23, 1692–1700. [Google Scholar] [CrossRef]
  48. Nie, L.Y.; Wang, H.J.; Ma, J.J.; Liu, S.; Yuan, R. Sulfur-doped ZnFe2O4 nanoparticles with enhanced lithium storage capabilities. J. Mater. Sci. 2017, 52, 3566–3575. [Google Scholar] [CrossRef]
  49. Feng, D.; Yang, H.; Guo, X. 3-Dimensional hierarchically porous ZnFe2O4/C composites with stable performance as anode materials for Li-ion batteries 3-Dimensional hierarchically porous ZnFe2O4/C composites with stable performance as anode materials for Li-ion batteries. Chem. Eng. J. 2019, 355, 687–696. [Google Scholar] [CrossRef]
  50. Sun, R.; Zhang, H.W.; Zhou, L.; Huang, X.D.; Yu, C.Z. Polypyrrole-coated zinc ferrite hollow spheres with improved cycling stability for lithium-ion batteries. Small 2016, 12, 3732–3737. [Google Scholar] [CrossRef]
  51. Bao, R.Q.; Zhang, Y.R.; Wang, Z.L.; Liu, Y.; Hou, L.R.; Yuan, C.Z. Core-shell N-doped carbon coated zinc ferrite nanofibers with enhanced Li-storage behaviors: A promising anode for Li-ion batteries. Mater. Lett. 2018, 224, 89–91. [Google Scholar] [CrossRef]
  52. Yao, L.; Deng, H.; Huang, Q.; Su, Q.; Du, G. Three-dimensional carbon-coated ZnFe2O4 nanospheres/nitrogen-doped graphene aerogels as anode for lithiumion batteries. Ceram. Int. 2017, 43, 1022–1028. [Google Scholar] [CrossRef]
  53. Zhang, L.; Wei, T.; Yue, J.; Sheng, L.; Jiang, Z.; Yang, D.; Yuan, L.; Fan, Z. Ultra-small and highly crystallized ZnFe2O4 nanoparticles within double graphene networks for super-long life lithium-ion batteries. J. Mater. Chem. A 2017, 5, 11188–11196. [Google Scholar] [CrossRef]
  54. Qu, Y.; Zhang, D.; Wang, X.; Qiu, H.; Zhang, T.; Zhang, M.; Tian, G.; Yue, H.; Feng, S.; Chen, G. Porous ZnFe2O4 nanospheres as anode materials for Li-ion battery with high performance. J. Alloys Compd. 2017, 721, 697–704. [Google Scholar] [CrossRef]
  55. Jia, H.; Kloepsch, R.; He, X.; Evertz, M.; Nowak, S.; Li, J.; Winter, M.; Placke, T. Nanostructured ZnFe2O4 as anode material for lithium ion batteries: Ionic liquid-assisted synthesis and performance evaluation with special emphasis on comparative. Acta Chim. Slov. 2016, 63, 470–483. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Cai, J.; Wu, C.; Zhu, Y.; Shen, P.K.; Zhang, K. Hierarchical porous acetylene black/ZnFe2O4@ carbon hybrid materials with high capacity and robust cycling performance for Li-ion batteries. Electrochim. Acta 2016, 187, 584–592. [Google Scholar] [CrossRef]
  57. Wang, J.; Yang, G.; Wang, L.; Yan, W. Fabrication of the ZnFe2O4 Fiber-in-Tube and Tubular Mesoporous Nanostructures via Single-spinneret Electrospinning: Characterization, Mechanism and Performance as Anodes for Li-ion Batteries. Electrochim. Acta 2016, 222, 1176–1185. [Google Scholar] [CrossRef]
  58. Lin, L.; Pan, Q. ZnFe2O4@ C/graphene nanocomposites as excellent anode materials for lithium batteries. J. Mater. Chem. A 2015, 3, 1724–1729. [Google Scholar] [CrossRef]
  59. Dong, Y.; Xia, Y.; Chui, Y.; Cao, C.; Zapien, J.A. Self-assembled three-dimensional mesoporous ZnFe2O4-graphene composites for lithium ion batteries with significantly enhanced rate capability and cycling stability. J. Power Source 2015, 275, 769–776. [Google Scholar] [CrossRef]
  60. Wang, B.; Li, S.; Li, B.; Liu, J.; Yu, M. Facile and large-scale fabrication of hierarchical ZnFe2O4/graphene hybrid films as advanced binder-free anodes for lithium-ion batteries. New J. Chem. 2015, 39, 1725–1733. [Google Scholar] [CrossRef]
  61. Yao, L.; Hou, X.; Hu, S.; Tang, X.; Liu, X.; Ru, Q. An excellent performance anode of ZnFe2O4/flake graphite composite for lithium ion battery. J. Alloys Compd. 2014, 585, 398–403. [Google Scholar] [CrossRef]
  62. Kim, J.G.; Kim, Y.; Noh, Y.; Kim, W.B. Formation of carbon-coated ZnFe2O4 nanowires and their highly reversible lithium storage properties. RSC Adv. 2014, 4, 27714. [Google Scholar] [CrossRef]
  63. Mueller, F.; Bresser, D.; Paillard, E.; Winter, M.; Passerini, S. Influence of the carbonaceous conductive network on the electrochemical performance of ZnFe2O4 nanoparticles. J. Power Source 2013, 236, 87–94. [Google Scholar] [CrossRef]
  64. Xia, H.; Qian, Y.; Fu, Y.; Wang, X. Graphene anchored with ZnFe2O4 nanoparticles as a high-capacity anode material for lithium-ion batteries. Solid State Sci. 2013, 17, 67–71. [Google Scholar] [CrossRef]
  65. Bresser, D.; Paillard, E.; Kloepsch, R.; Krueger, S.; Fiedler, M.; Schmitz, R.; Baither, D.; Winter, M.; Passerini, S. Carbon Coated ZnFe2O4 Nanoparticles for Advanced Lithium-Ion Anodes. Adv. Energy Mater. 2013, 3, 513–523. [Google Scholar] [CrossRef]
  66. Sui, J.; Zhang, C.; Hong, D.; Li, J.; Cheng, Q.; Li, Z.; Cai, W. Facile synthesis of MWCNT–ZnFe2O4 nanocomposites as anode materials for lithium ion batteries. J. Mater. Chem. 2012, 22, 13674. [Google Scholar] [CrossRef]
  67. Song, W.; Xie, J.; Liu, S.; Cao, G.; Zhu, T.; Zhao, X. Self-assembly of a ZnFe2O4/graphene hybrid and its application as a high-performance anode material for Li-ion batteries. New J. Chem. 2012, 36, 2236. [Google Scholar] [CrossRef]
Gels 08 00305 g001 550
Figure 1. (a) The XRD patterns of Carbon coated ZnFe2O. (b) The simulated structure of ZnFe2O4.
Figure 1. (a) The XRD patterns of Carbon coated ZnFe2O. (b) The simulated structure of ZnFe2O4.
Gels 08 00305 g001
Gels 08 00305 g002 550
Figure 2. FESEM images of in situ carbon-coated ZnFe2O4 (a) with 5 µm, (b) with 2 µm and (c) with 1 µm. (d,e) HRTEM and SAED images of ZnFe2O4. (f) EDAX. (g) SEM images of ZnFe2O4 without carbon coatings.
Figure 2. FESEM images of in situ carbon-coated ZnFe2O4 (a) with 5 µm, (b) with 2 µm and (c) with 1 µm. (d,e) HRTEM and SAED images of ZnFe2O4. (f) EDAX. (g) SEM images of ZnFe2O4 without carbon coatings.
Gels 08 00305 g002
Gels 08 00305 g003 550

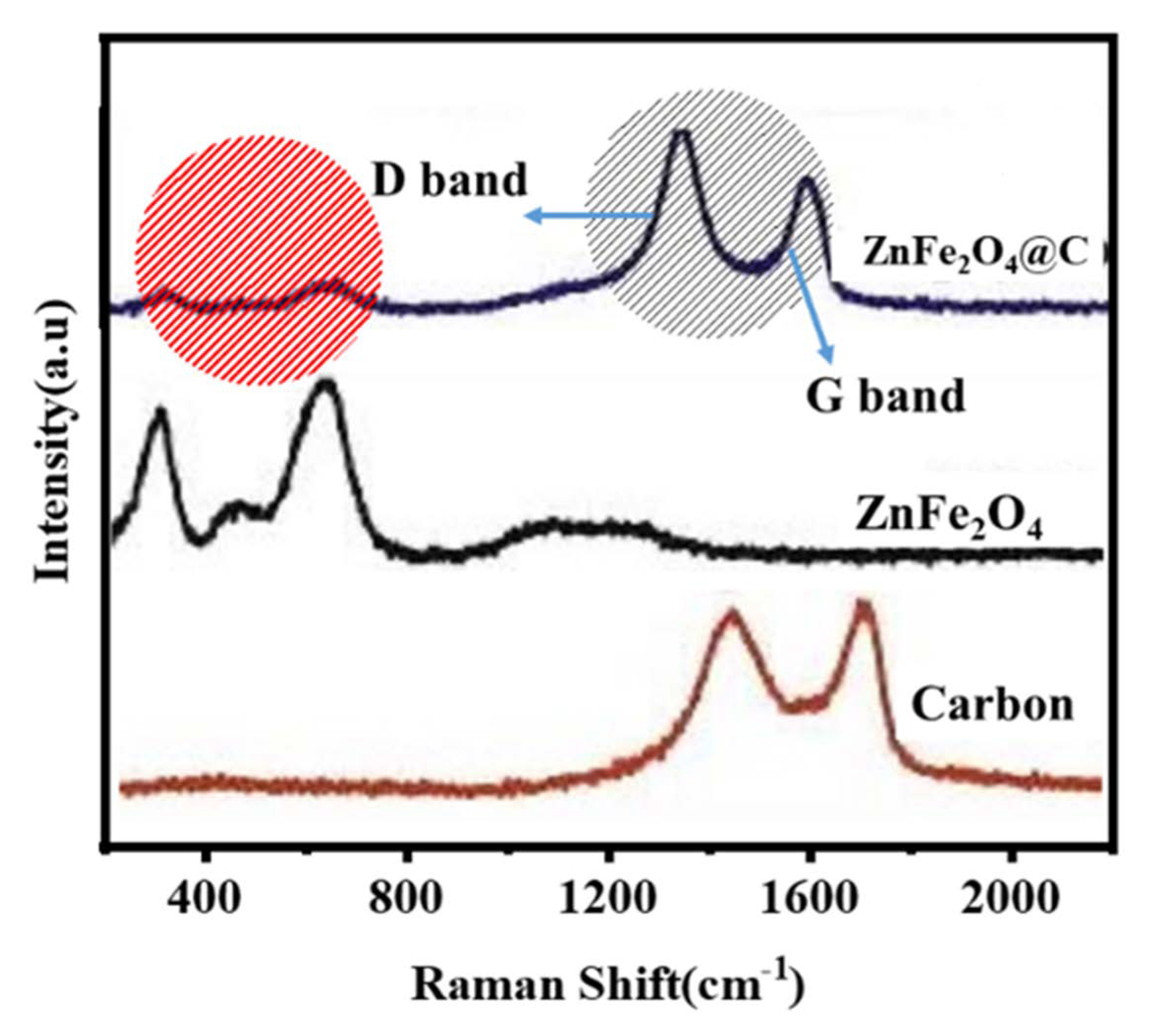

Figure 3. The Raman spectra of carbon, ZnFe2O4 and ZnFe2O4@C.
Figure 3. The Raman spectra of carbon, ZnFe2O4 and ZnFe2O4@C.
Gels 08 00305 g003
Gels 08 00305 g004 550

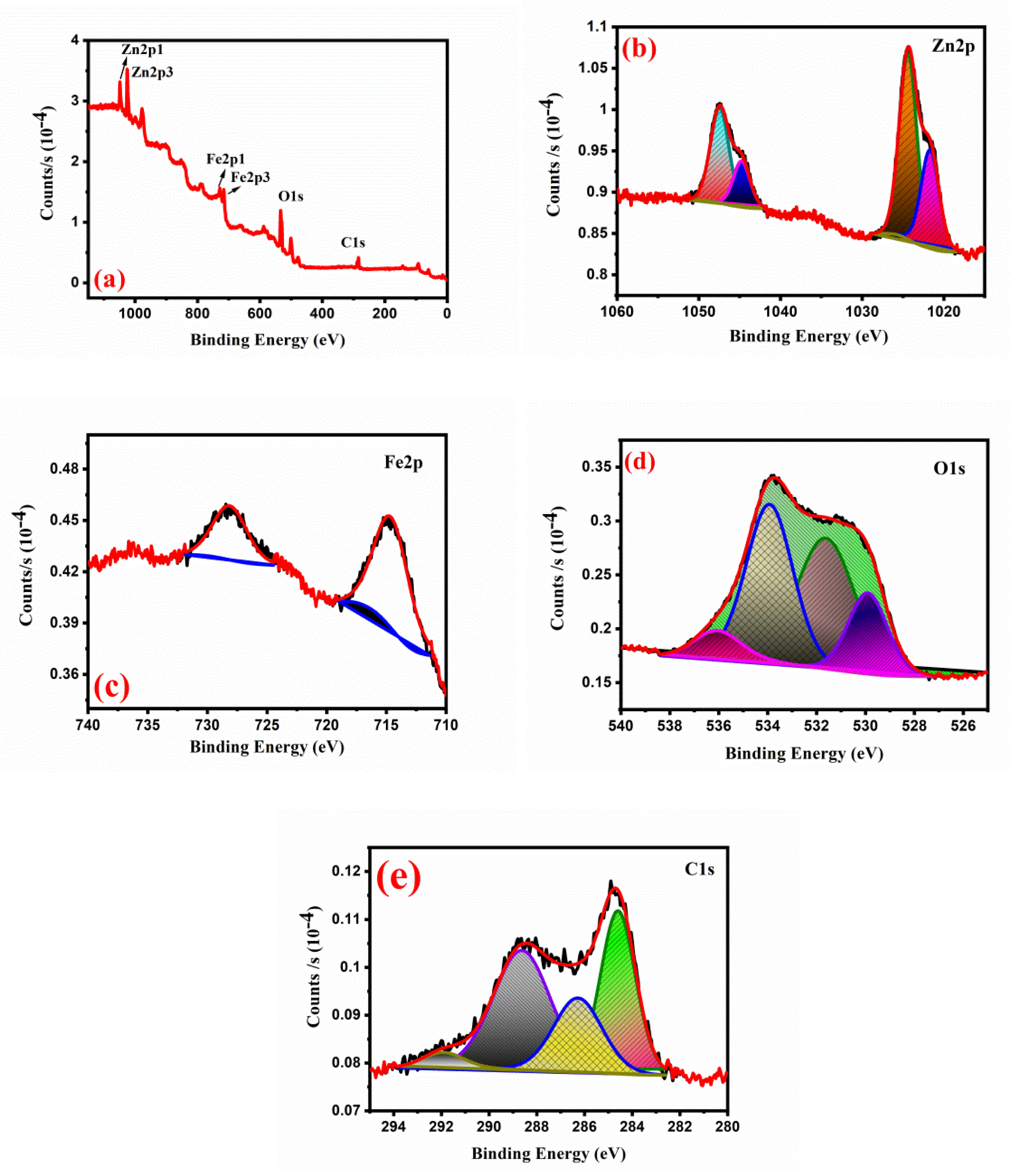

Figure 4. The XPS spectra of ZnFe2O4: (a) survey spectrum; (b) Zn 2p spectrum (c); Fe 2p spectrum; (d) O1s spectrum; (e) C 1s spectrum.
Figure 4. The XPS spectra of ZnFe2O4: (a) survey spectrum; (b) Zn 2p spectrum (c); Fe 2p spectrum; (d) O1s spectrum; (e) C 1s spectrum.
Gels 08 00305 g004
Gels 08 00305 g005 550

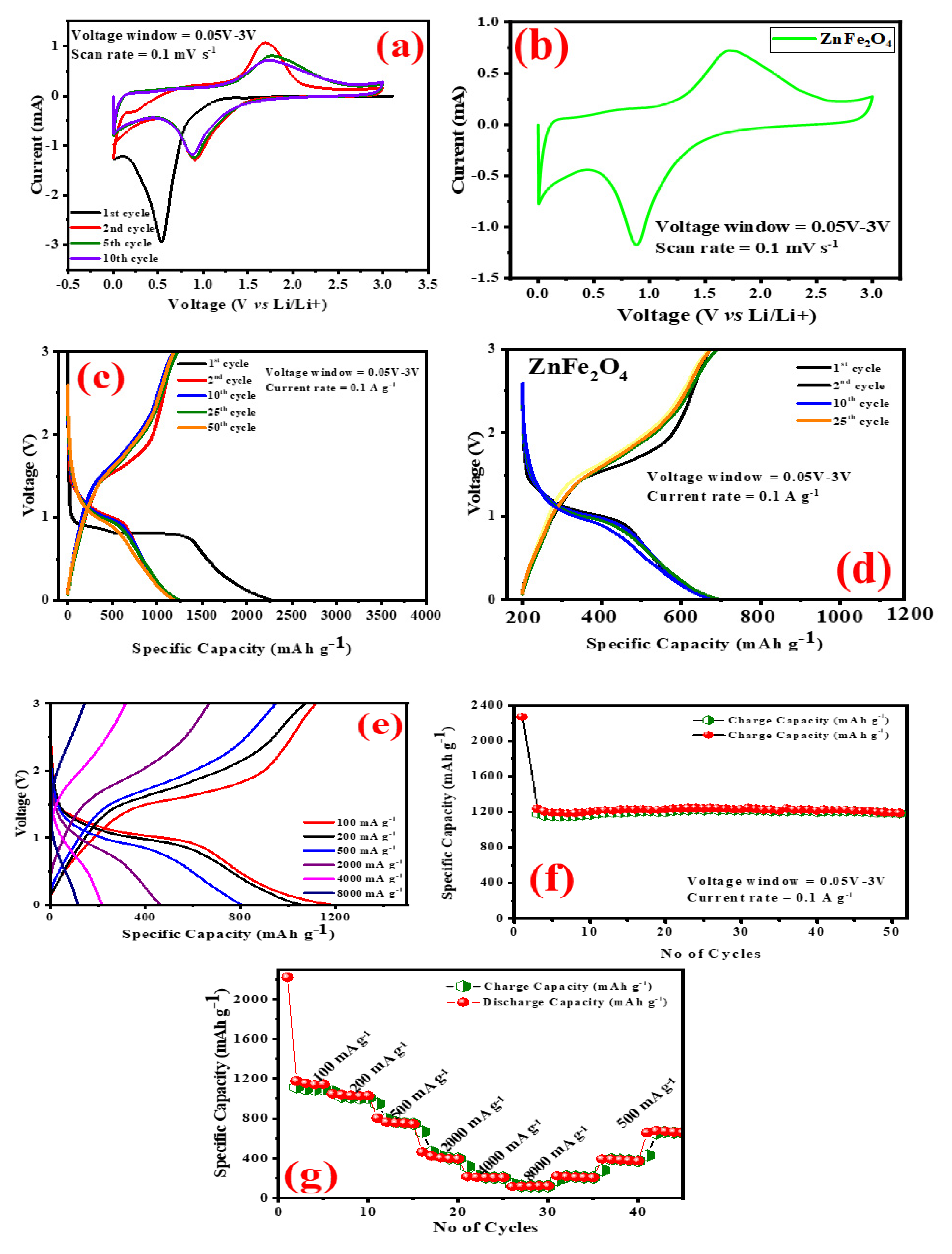

Figure 5. The electrochemical performance. (a) Cyclic Voltametry of carbon coated ZnFe2O4. (b) Cyclic Voltametry of pure ZnFe2O4; (c) charge/discharge profile of carbon coated ZnFe2O4; (d) charge/discharge profile of pure ZnFe2O4; (e) charge/discharge profile of carbon coated ZnFe2O4 at different current densities; (f) the cyclic performance; (g) rate performance of the electrode.
Figure 5. The electrochemical performance. (a) Cyclic Voltametry of carbon coated ZnFe2O4. (b) Cyclic Voltametry of pure ZnFe2O4; (c) charge/discharge profile of carbon coated ZnFe2O4; (d) charge/discharge profile of pure ZnFe2O4; (e) charge/discharge profile of carbon coated ZnFe2O4 at different current densities; (f) the cyclic performance; (g) rate performance of the electrode.
Gels 08 00305 g005
Gels 08 00305 g006 550
Figure 6. The impedance spectra of (a)ZnFe2O4. (b) Carbon-coated ZnFe2O4.
Figure 6. The impedance spectra of (a)ZnFe2O4. (b) Carbon-coated ZnFe2O4.
Gels 08 00305 g006
Gels 08 00305 g007 550

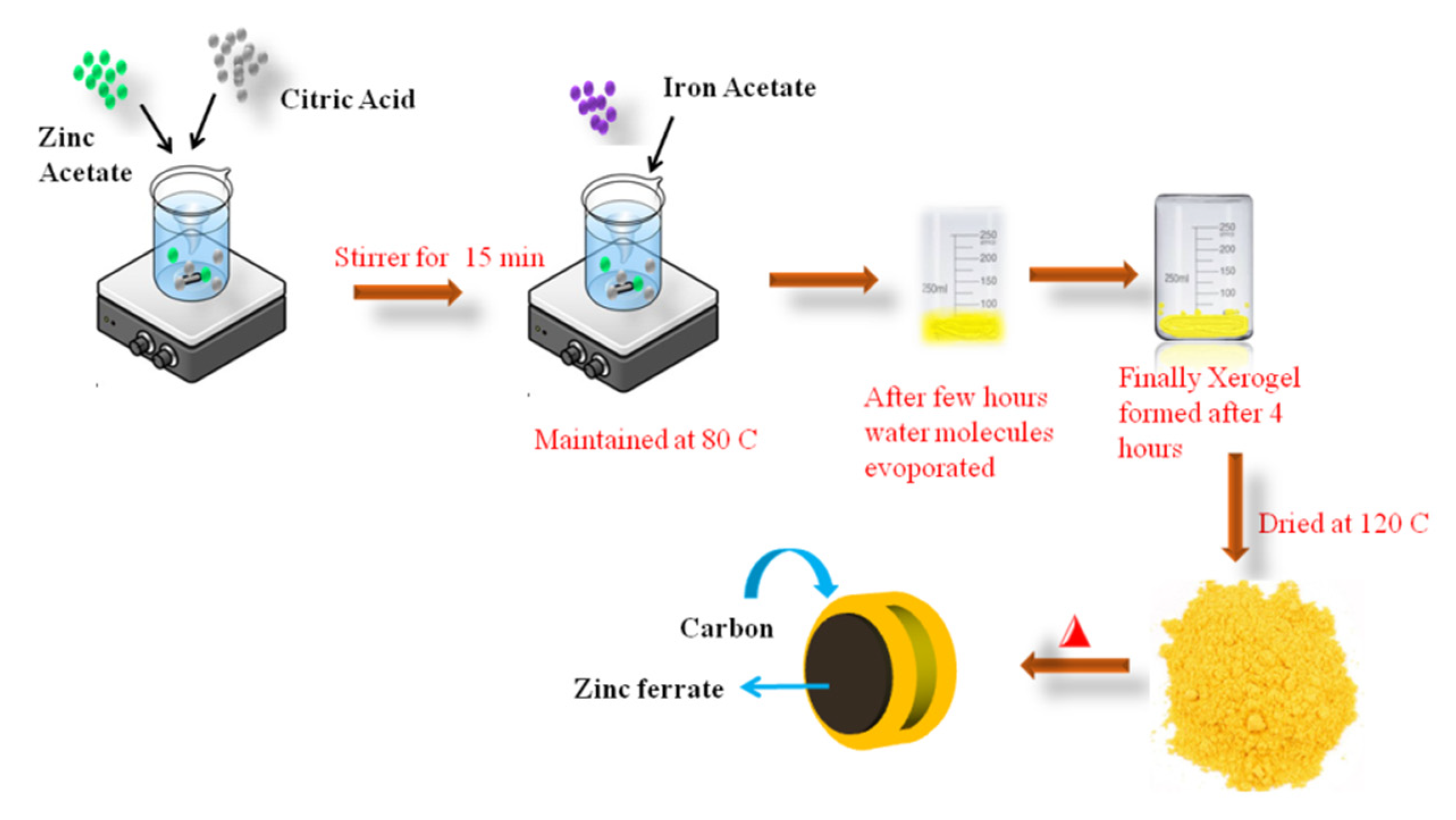

Figure 7. The preparation of in situ carbon-coated ZnFe2O4 by the sol–gel method.
Figure 7. The preparation of in situ carbon-coated ZnFe2O4 by the sol–gel method.
Gels 08 00305 g007
Table
Table 1. Comparison of cycling performance with different ZnFe2O4-based electrodes by synthesis methods.
Table 1. Comparison of cycling performance with different ZnFe2O4-based electrodes by synthesis methods.
Electrode MaterialsSynthesis MethodCurrent mA·g−1CycleDischarge Capacity mAh·g−1
3D Porous ZnFe2O4Sol–Gel1000400711 [45]
ZnFe2O4 NanofibersElectro Spinning50501142 [46]
N-doped Carbon coated ZnFe2O4Electro Spinning200200881 [47]
ZnFe2O4 C/N
Doped graphene		Hydrothermal Method100100952 [48]
ZnFe2O4/double grapheneMicrowave irradiation1000200475 [49]
Porous ZnFe2O4Hydrothermal Method20080868 [50]
ZnFe2O4/CIonic Liquid5001901091 [51]
Acetylene Black/ZnFe2O4/CThermal Decomposition1000200430 [52]
ZnFe2O4/hollow fiberElectro spinning2002601026 [53]
ZnFe2O4 NanorodsCo-Precipitation10050983 [28]
ZnFe2O4@C/grapheneHydrothermal Method250180705 [54]
3D- ZnFe2O4/GrapheneHydrothermal Method10050770 [55]
ZnFe2O4 Nanosphere/GSolvothermal10050704 [31]
ZnFe2O4/GrapheneCathodic Deposition200200881 [56]
ZnFe2O4/Nanoflake/gHydrothermal Method100100730 [57]
Carbon Coated ZnFe2O4 NanowiresMicro-Emulsion1001001292 [58]
ZnFe2O4/CPlanetary Ball-Mill100601100 [59]
ZnFe2O4/GrapheneHydrothermal Method10050956 [60]
ZnFe2O4/CPlanetary Ball-Mill4001601300 [61]
MWCNT/ZnFe2O4High-Temperature60501152 [62]
ZnFe2O4 Nano-OctahedralHydrothermal Method1000300730 [25]
ZnFe2O4/GrapheneSolvothermal40090398 [63]
ZnFe2O4 NanofibersElectro spinning6030733 [32]
In situ ZnFe2O4/CSol–Gel100501312 (This Work)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Alam, M.W.; BaQais, A.; Rahman, M.M.; Aamir, M.; Abuzir, A.; Mushtaq, S.; Amin, M.N.; Khan, M.S. Investigation on In Situ Carbon-Coated ZnFe2O4 as Advanced Anode Material for Li-Ion Batteries. Gels 2022, 8, 305. https://doi.org/10.3390/gels8050305

AMA Style

Alam MW, BaQais A, Rahman MM, Aamir M, Abuzir A, Mushtaq S, Amin MN, Khan MS. Investigation on In Situ Carbon-Coated ZnFe2O4 as Advanced Anode Material for Li-Ion Batteries. Gels. 2022; 8(5):305. https://doi.org/10.3390/gels8050305

Chicago/Turabian Style

Alam, Mir Waqas, Amal BaQais, Mohammed M. Rahman, Muhammad Aamir, Alaaedeen Abuzir, Shehla Mushtaq, Muhammad Nasir Amin, and Muhammad Shuaib Khan. 2022. "Investigation on In Situ Carbon-Coated ZnFe2O4 as Advanced Anode Material for Li-Ion Batteries" Gels 8, no. 5: 305. https://doi.org/10.3390/gels8050305

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
