NaAlg-g-AA Hydrogels: Candidates in Sustainable Agriculture Applications
Abstract
:1. Introduction
2. Results and Discussion
2.1. Gel Fraction and Network Parameters

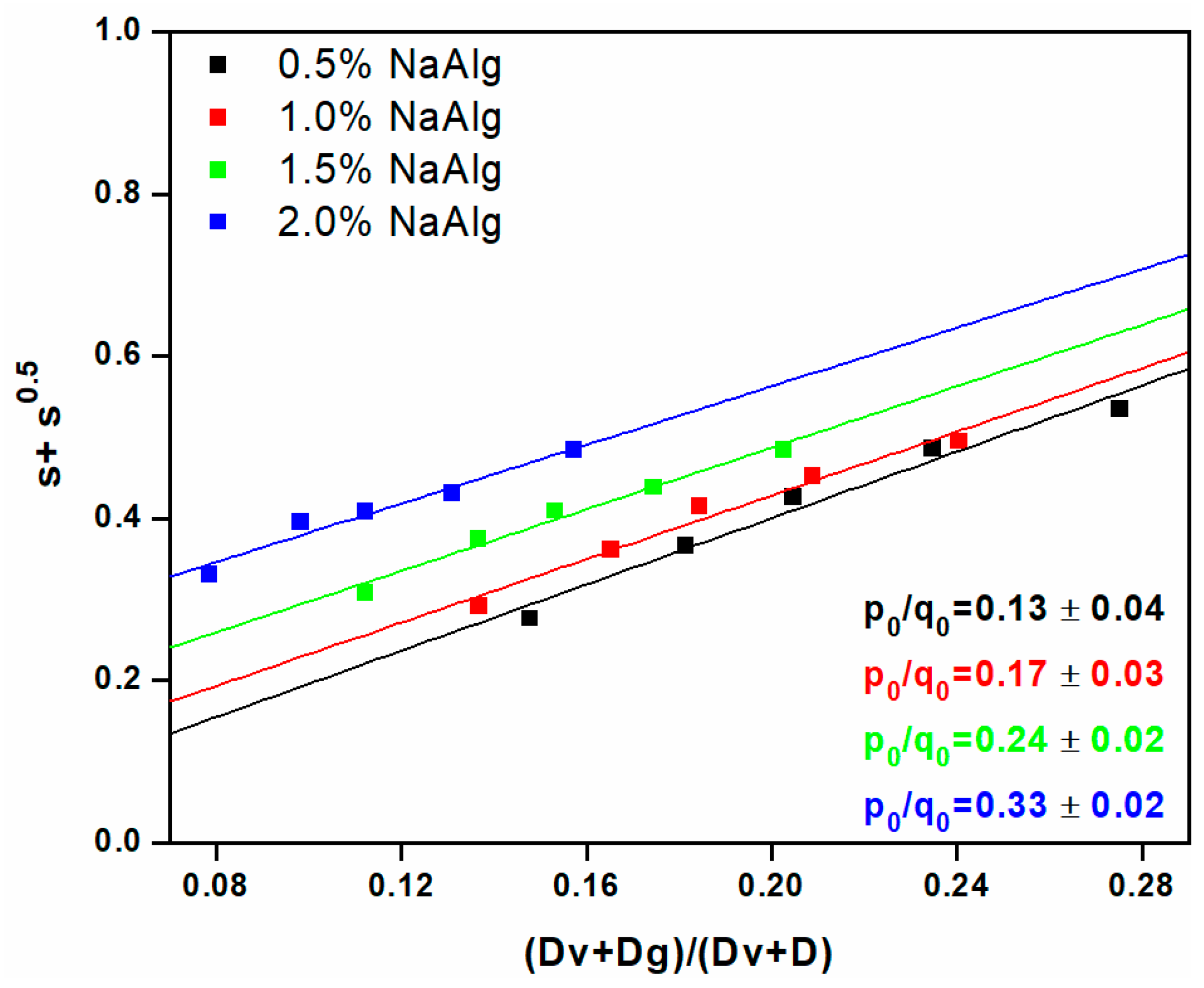

2.2. Sol–Gel Analysis

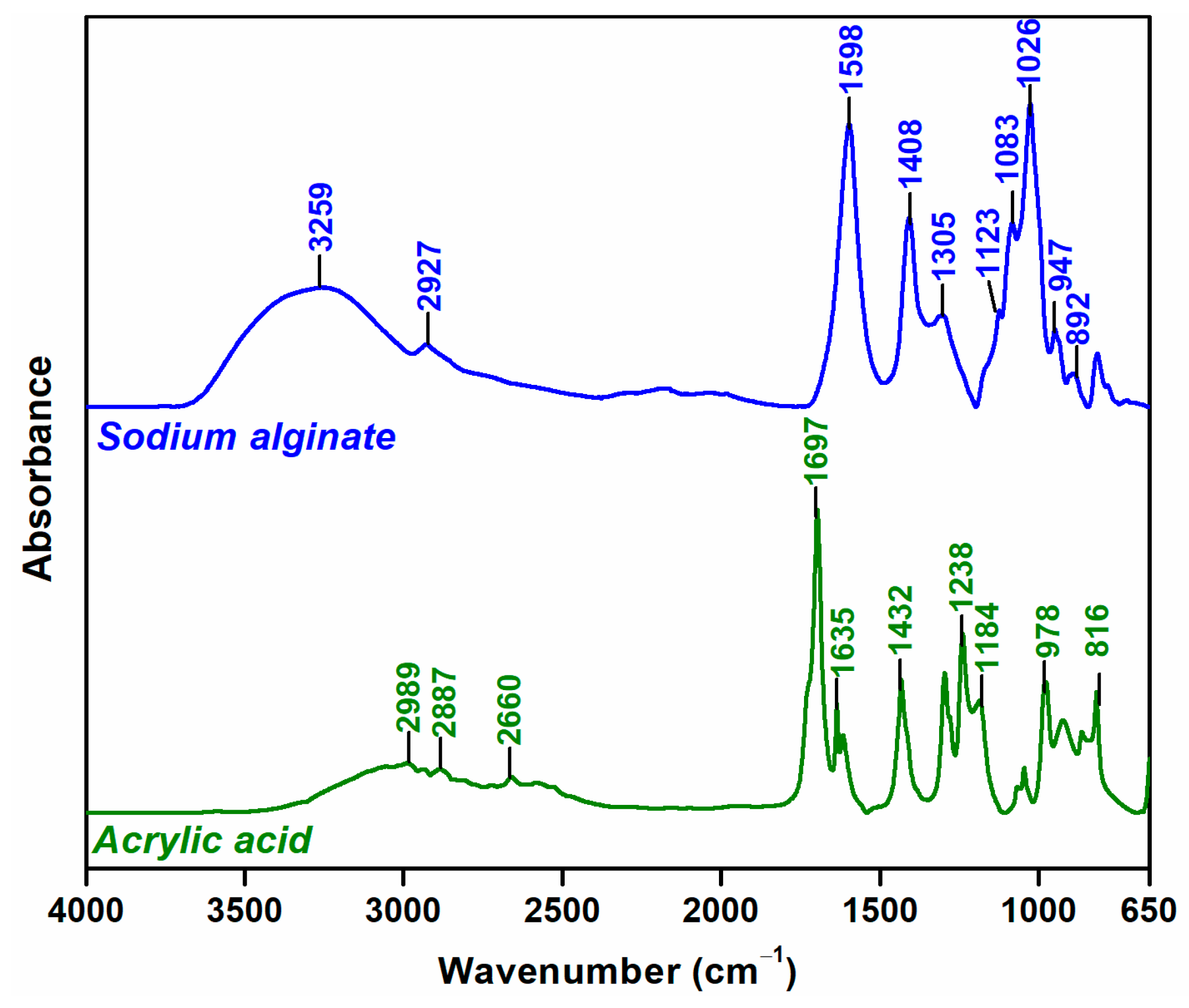

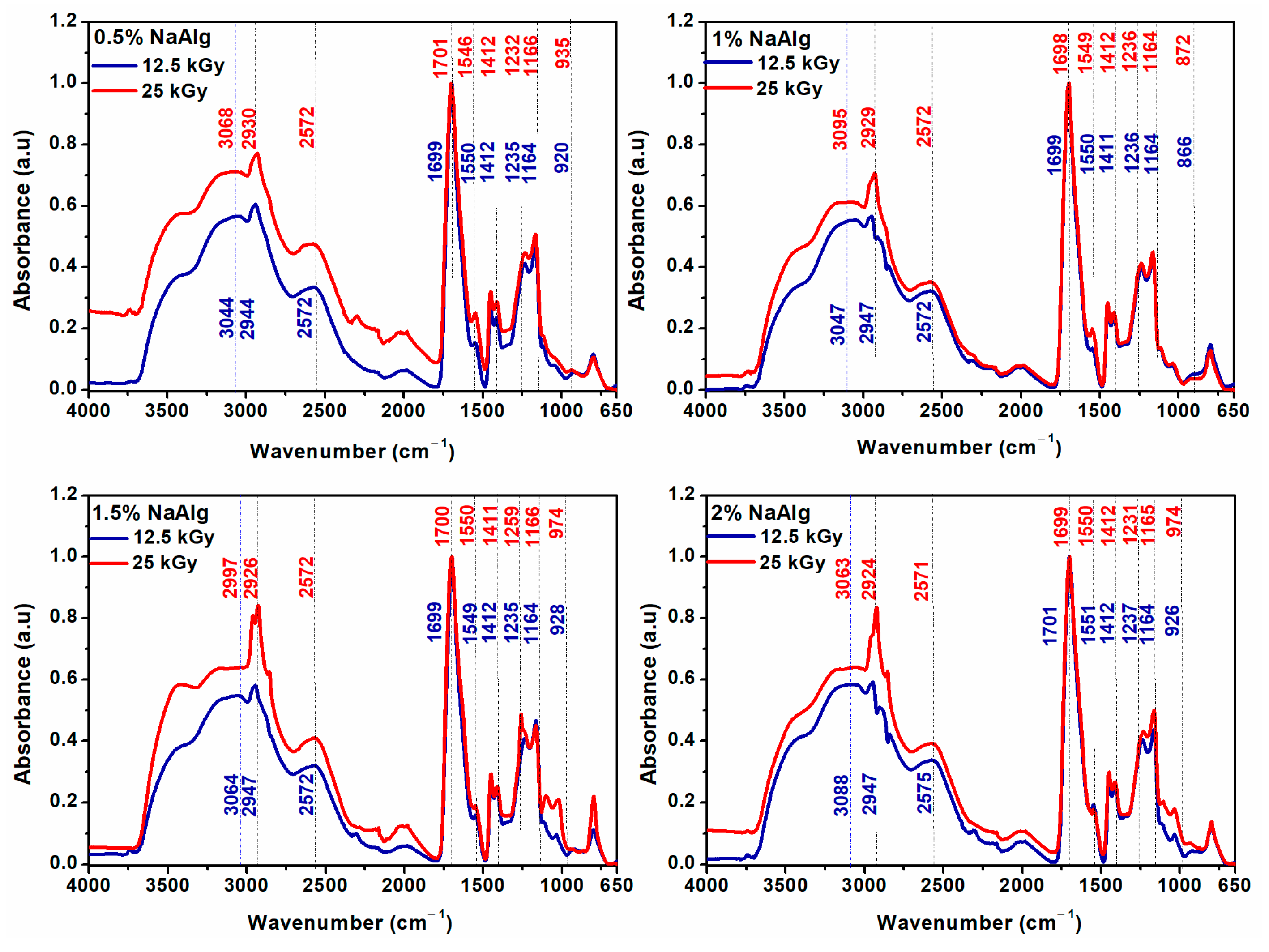

2.3. ATR-FTIR Analysis

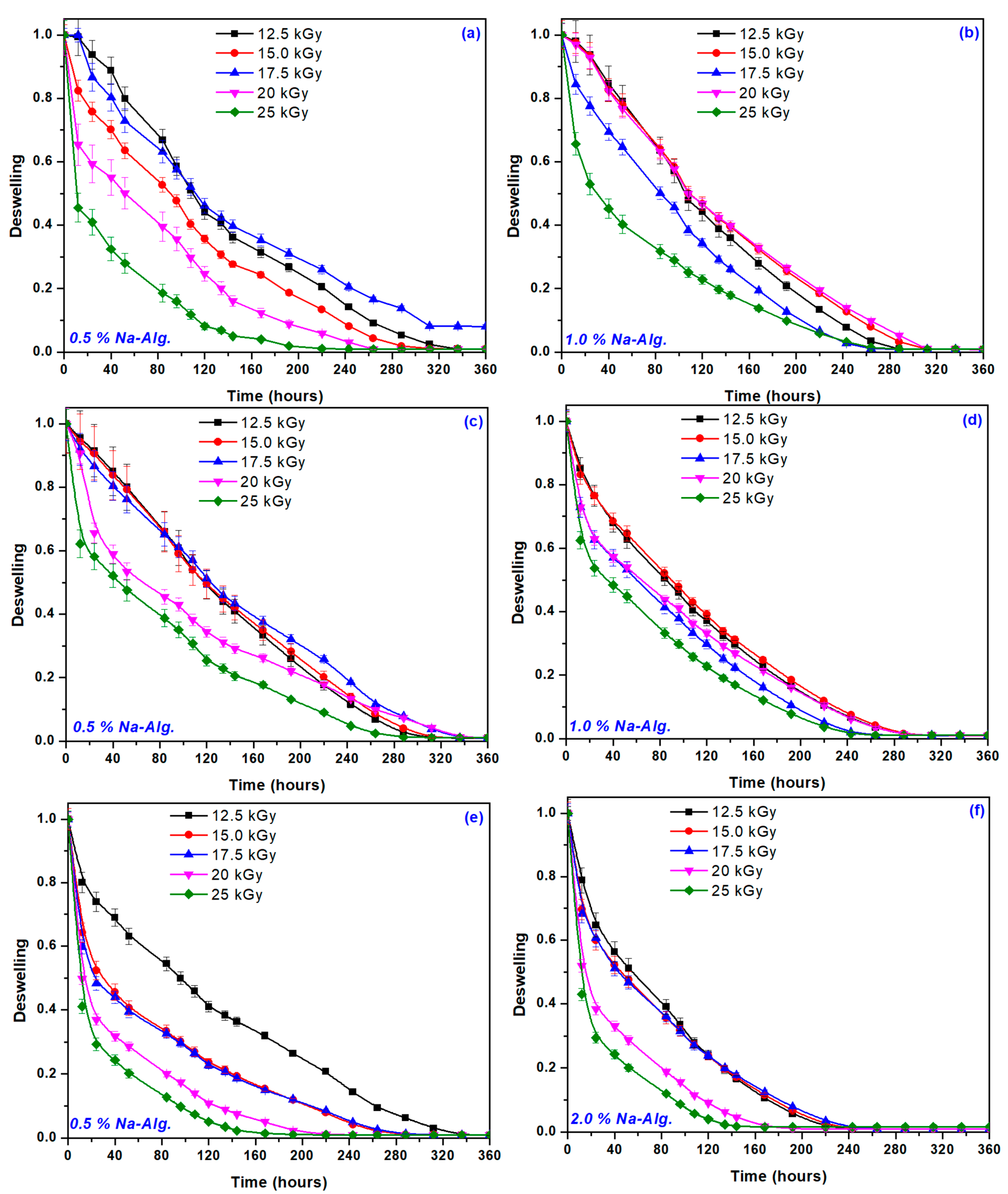

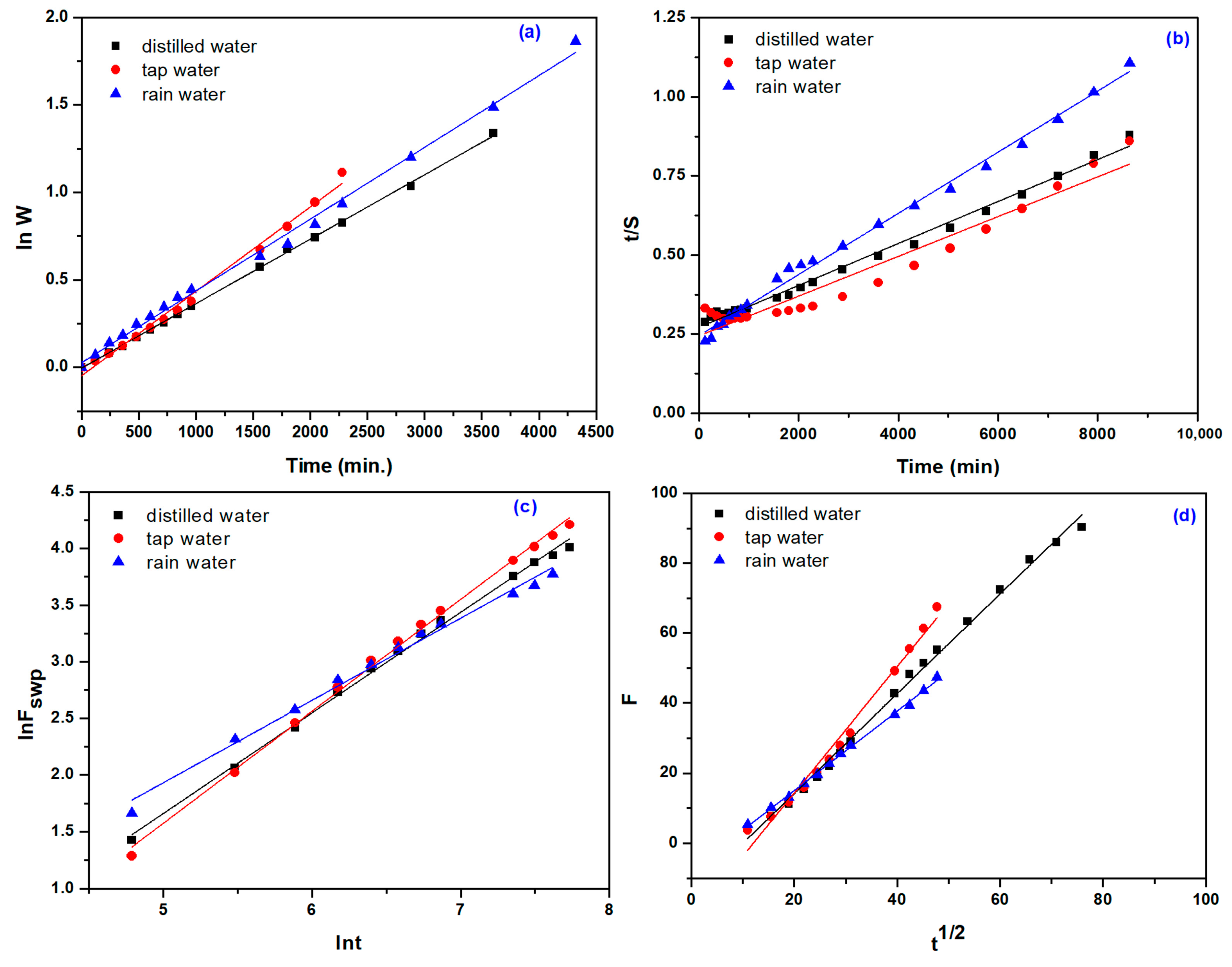

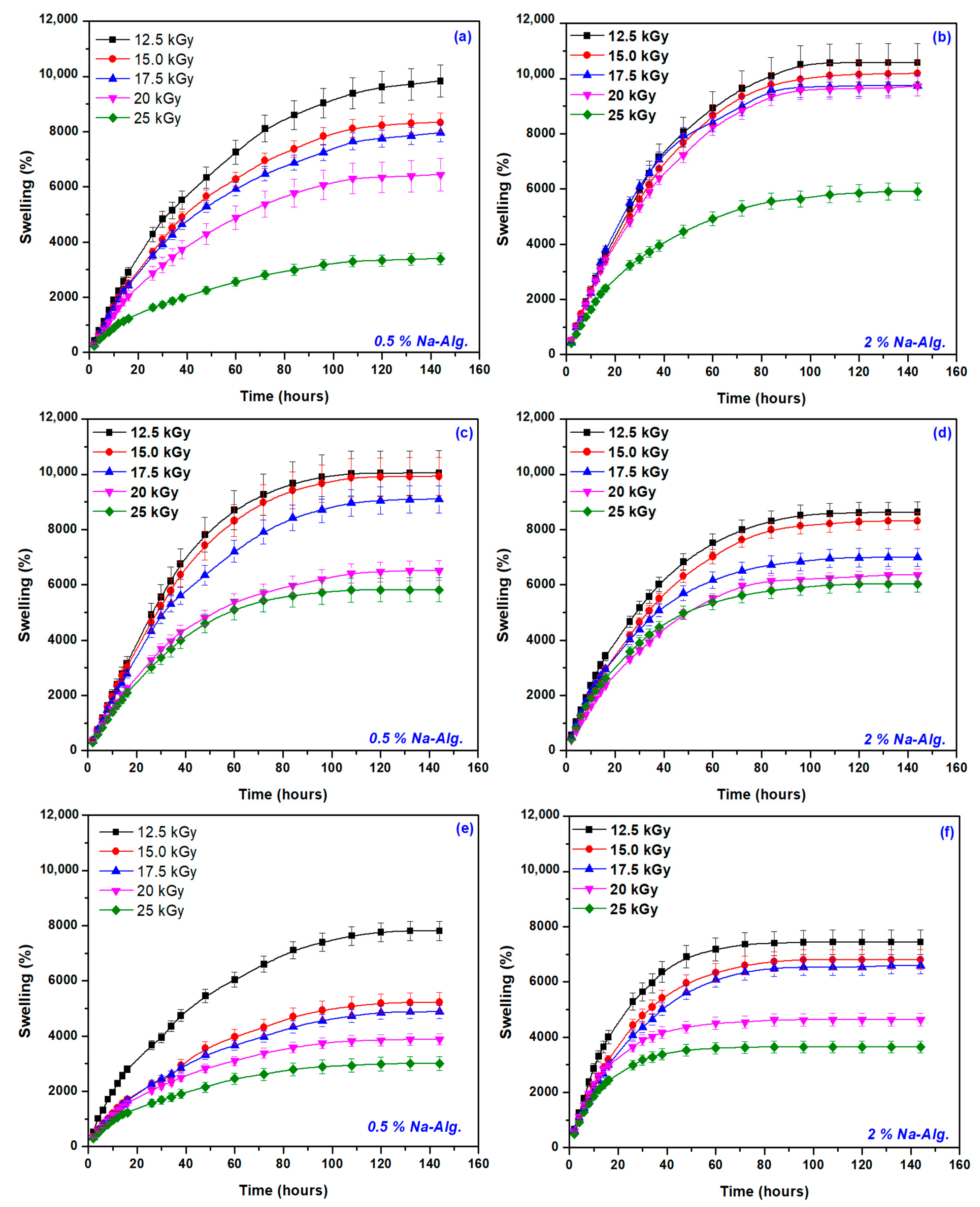

2.4. Swelling Kinetics and Swelling Power
3. Conclusions
4. Materials and Methods
4.1. Materials
4.2. Experimental Installation and Samples Preparation
4.3. Sodium Alginate-g-Acrylic Acid Hydrogels Characterization
4.3.1. Gel Fraction and Swelling
4.3.2. Network Parameters
4.3.3. Sol–Gel Analysis
4.3.4. ATR-FTIR Analysis
4.3.5. Swelling Kinetics and Swelling Power
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Song, B.; Liang, H.; Sun, R.; Peng, P.; Jiang, Y.; She, D. Hydrogel synthesis based on lignin/sodium alginate and application in agriculture. Int. J. Biol. Macromol. 2020, 144, 219–230. [Google Scholar] [CrossRef] [PubMed]
- Patra, S.K.; Poddar, R.; Brestic, M.; Acharjee, P.U.; Bhattacharya, P.; Sengupta, S.; Pal, P.; Bam, N.; Biswas, B.; Barek, V.; et al. Prospects of Hydrogels in Agriculture for Enhancing Crop and Water Productivity under Water Deficit Condition. Int. J. Polym. Sci. 2022, 2022, 4914836. [Google Scholar] [CrossRef]
- Pereira, J.W.L.; MeloFilho, P.A.; Albuquerque, M.B.; Nogueira, R.J.M.C.; Santos, R.C. Biochemical changes in peanut genotypes submitted to moderate water stress. Rev. Cienc. Agron. 2012, 43, 766–773. [Google Scholar] [CrossRef] [Green Version]
- Ferrari, E.; Paz, A.; Silva, A.C. Déficit Hídrico No Metabolismo da Soja em Semeaduras Antecipadas No Mato Grosso. Nativa Sinop 2015, 3, 67–77. Available online: https://periodicoscientificos.ufmt.br/ojs/index.php/nativa/article/view/1855 (accessed on 27 February 2023). [CrossRef] [Green Version]
- Thakur, V.K.; Thakur, M.K. Recent advances in green hydrogels from lignin: A review. Int. J. Biol. Macromol. 2015, 72, 834–847. [Google Scholar] [CrossRef] [PubMed]
- du Toit van der Merwe, R.; Goosen, N.J.; McClelland Pott, R.W. Macroalgal-Derived Alginate Soil Amendments for Water Retention, Nutrient Release Rate Reduction, and Soil pH Control. Gels 2022, 8, 548. [Google Scholar] [CrossRef] [PubMed]
- Seetapan, N.; Wongsawaeng, J.; Kiatkamjornwong, S. Gel strength and swelling of acrylamide-protic acid superabsorbent copolymers. Polym. Adv. Technol. 2011, 22, 1685–1695. [Google Scholar] [CrossRef]
- Sharma, R.; Bajpai, J.; Bajpai, A.K.; Acharya, S.; Shrivastava, R.B.; Shukla, S.K. Designing slow water-releasing alginate nanoreserviors for sustained irrigation in scanty rainfall areas. Carbohydr. Polym. 2014, 102, 513–520. [Google Scholar] [CrossRef]
- Chang, L.; Xu, L.; Liu, Y.; Qui, D. Superabsorbent polymers used for agricultural water retention. Polym. Test. 2021, 94, 107021. [Google Scholar] [CrossRef]
- Elshafie, H.S.; Camele, I. Applications of absorbent polymers for sustainable plant protection and crop yield. Sustainability 2021, 13, 3253. [Google Scholar] [CrossRef]
- Godavari, S.; Gaikwad, G.S.; Vilhekar, S.C.; Mane, P.N.; Vaidya, E.R. Impact of organic manures and hydrophilic polymer hydrogel on conservation of moisture and sunflower production under rainfed condition. Adv. Res. J. Crop Improv. 2017, 8, 31–35. Available online: https://www.ipindexing.com/article/9150 (accessed on 27 February 2023).
- Kalhapure, A.; Kumar, R.; Singh, V.P.; Pandey, D.S. Hydrogels: A boon for increasing agricultural productivity in water-stressed environment. Curr. Sci. India 2016, 111, 1773–1779. [Google Scholar]
- Adjuik, T.A.; Nokes, S.E.; Montross, M.D.; Wendroth, O. The Impacts of Bio-Based and Synthetic Hydrogels on Soil Hydraulic Properties: A Review. Polymers 2022, 14, 4721. Available online: https://www.jstor.org/stable/24911537 (accessed on 27 February 2023). [CrossRef] [PubMed]
- Sahu, B.K.; Sharma, S.; Kaur, K.; Chandel, M.; Sood, P.; Singh, M.; Shanmugham, V. Farm waste-eggshell nanoparticles constitute gel for safe navigation of probiotic across the stomach. Mater. Today Commun. 2023, 34, 104876. [Google Scholar] [CrossRef]
- Sharma, S.; Sahu, B.K.; Cao, L.; Bindra, P.; Kaur, K.; Chandel, M.; Koratkar, N.; Huang, Q.; Shanmugam, V. Porous nanomaterials: Main vein of agricultural nanotechnology. Prog. Mater. Sci. 2021, 121, 100812. [Google Scholar] [CrossRef]
- Abd El-Rehim, H.A. Characterization and possible agricultural application of polyacrylamide/sodium alginate crosslinked hydrogels prepared by ionizing radiation. J. Appl. Polym. Sci. 2006, 101, 3572–3580. [Google Scholar] [CrossRef]
- Palanivelu, S.D.; Armir, N.A.Z.; Zulkifli, A.; Hair, A.H.A.; Salleh, K.M.; Lindsey, K.; Che-Othman, M.H.; Zakaria, S. Hydrogel Application in Urban Farming: Potentials and Limitations—A Review. Polymers 2022, 14, 2590. [Google Scholar] [CrossRef] [PubMed]
- Sudhakar, C.K.; Upadhyay, N.; Jain, A.; Verma, A.; Narayana Charyulu, R.; Jain, S. Chapter 5—Hydrogels-Promising Candidates for Tissue Engineering. In Nanotechnology Applications for Tissue Engineering, 1st ed.; Elsevier Inc.: Amsterdam, The Netherlands, 2015; pp. 77–94. [Google Scholar] [CrossRef]
- Ahmed, E.M. Hydrogel: Preparation, Characterization, and Applications: A Review. J. Adv. Res. 2015, 6, 105–121. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Bashir, S.; Hina, M.; Iqbal, J.; Rajpar, A.H.; Mujtaba, M.A.; Alghamdi, N.A.; Wageh, S.; Ramesh, K.; Ramesh, S. Fundamental Concepts of Hydrogels: Synthesis, Properties, and Their Applications. Polymers 2020, 12, 2702. [Google Scholar] [CrossRef] [PubMed]
- Pathak, V.; Ambrose, K.R.P. Starch-based biodegradable hydrogel as seed coating for corn to improve early growth under water shortage. J. Appl. Polym. Sci. 2020, 137, 48523. [Google Scholar] [CrossRef]
- Oksinska, M.P.; Magnucka, E.G.; Lejcu’s, K.; Pietr, S.J. Biodegradation of the cross-linked copolymer of acrylamide and potassium acrylate by soil bacteria. Environ. Sci. Pollut. Res. 2016, 23, 5969–5977. [Google Scholar] [CrossRef] [PubMed]
- Hüttermann, A.; Orikiriza, L.J.B.; Agaba, H. Application of superabsorbent polymers for improving the ecological chemistry of degraded or polluted Lands. Clean Soil Air Water 2009, 37, 517–526. [Google Scholar] [CrossRef]
- Stegmann, R.; Lotter, S.; King, L.; Hopping, W. Fate of an Absorbent Gelling Material for Hygiene Paper Products in Landfill and Composting. Waste Manag. Res. 1993, 11, 155–170. [Google Scholar] [CrossRef] [Green Version]
- Wilske, B.; Bai, M.; Lindenstruth, B.; Bach, M.; Rezaie, Z.; Frede, H.G.; Breuer, L. Biodegradability of a polyacrylate superabsorbent in agricultural soil. Environ. Sci. Pollut. Res. 2014, 21, 9453–9460. Available online: https://link.springer.com/article/10.1007/s11356-013-2103-1 (accessed on 27 February 2023). [CrossRef] [PubMed]
- Mai, C.; Schormann, W.; Majcherczyk, A.; Hüttermann, A. Degradation of acrylic copolymers by white-rot fungi. Appl. Microbiol. Biotechnol. 2004, 65, 479–487. Available online: https://link.springer.com/article/10.1007/s00253-004-1668-5 (accessed on 27 February 2023). [CrossRef] [PubMed]
- Mittal, H.; Maity, A.; Ray, S.S. Gum ghatti and poly(acrylamide-co-acrylic acid) based biodegradable hydrogel-evaluation of the flocculation and adsorption properties. Polym. Degrad. Stab. 2015, 120, 42–52. [Google Scholar] [CrossRef]
- Islam, A.; Yasin, T.; Bano, I.; Riaz, M. Controlled release of aspirin from pH-sensitive chitosan/poly (vinyl alcohol) hydrogel. J. Appl. Polym. Sci. 2012, 124, 4184–4192. Available online: https://onlinelibrary.wiley.com/doi/10.1002/app.35392 (accessed on 27 February 2023). [CrossRef]
- Martínez-Cano, B.; Mendoza-Meneses, C.J.; García-Trejo, J.F.; Macías-Bobadilla, G.; Aguirre-Becerra, H.; Soto-Zarazúa, G.M.; Feregrino-Pérez, A.A. Review and Perspectives of the Use of Alginate as a Polymer Matrix for Microorganisms Applied in Agro-Industry. Molecules 2022, 27, 4248. [Google Scholar] [CrossRef] [PubMed]
- Szczech, M.; Maciorowski, R. Microencapsulation technique with organic additives for biocontrol agents. J. Hortic. Res. 2016, 24, 111–122. [Google Scholar] [CrossRef] [Green Version]
- El-Naggar, A.A. Radiation synthesis of superabsorbent hydrogels based on carboxymethyl cellulose/sodium alginate for absorbent of heavy metal ions from waste water. J. Thermoplast. Compos. Mater. 2016, 29, 16–27. [Google Scholar] [CrossRef]
- Calina, I.; Demeter, M.; Scaarisoreanu, A.; Micutz, M. Development of Novel Superabsorbent Hybrid Hydrogels by E-Beam Crosslinking. Gels 2021, 7, 189. [Google Scholar] [CrossRef] [PubMed]
- Sudirman, E.; Budianto, E.; Mahendra, A.; Yudianti, R. Radiation Synthesis of Superabsorbent Poly(acrylamide-co-acrylic acid)-Sodium Alginate Hydrogels. Adv. Matter. Res. 2013, 746, 88–96. Available online: https://www.scientific.net/AMR.746.88 (accessed on 27 February 2023).
- Nagasawa, N.; Mitomo, H.; Yoshii, F.; Kume, T. Radiation-induced degradation of sodium alginate. Polym. Degrad. Stab. 2000, 69, 279–285. [Google Scholar] [CrossRef]
- Jing, R.; Yanqun, Z.; Jiuqiang, L.; Hongfei, H. Radiation synthesis and characteristic of IPN hydrogels composed of poly(diallyldimethylammonium chloride) and Kappa-Carrageenan. Radiat. Phys. Chem. 2001, 62, 277–281. [Google Scholar] [CrossRef]
- Abd El-Mohdy, H.L. Radiation-induced degradation of sodium alginate and its plant growth promotion effect. Arab. J. Chem. 2017, 10, S431–S438. [Google Scholar] [CrossRef] [Green Version]
- Erceg, T.; Brakus, G.; Stupar, A.; Cvetinov, M.; Hadnadev, M.; Ristic, I. Synthesis and Characterization of Chitosan-Acrylic Acid Based Hydrogels and Investigation the Properties of Bilayered Design with Incorporated Alginate Beads. J. Polym. Environ. 2022, 30, 3737–3760. [Google Scholar] [CrossRef]
- Rosiak, J.M. Gel/Sol Analysis of Irradiated Polymers. Radiat. Phys. Chem. 1998, 51, 13–17. [Google Scholar] [CrossRef]
- Olejniczak, J.; Rosiak, J.; Charlesby, A. Gel/Dose Curves for Polymers Undergoing Simultaneous Crosslinking and Scission. Int. J. Radiat. Appl. Instrum. Part C Radiat. Phys. Chem. 1991, 37, 499–504. [Google Scholar] [CrossRef]
- Kadłubowski, S.; Henke, A.; Ulański, P.; Rosiak, J.M. Hydrogels of Polyvinylpyrrolidone (PVP) and Poly(Acrylic Acid) (PAA) Synthesized by Radiation-Induced Crosslinking of Homopolymers. Radiat. Phys. Chem. 2010, 79, 261–266. [Google Scholar] [CrossRef]
- Mozalewska, W.; Czechowska-Biskup, R.; Olejnik, A.K.; Wach, R.A.; Ulański, P.; Rosiak, J.M. Chitosan-Containing Hydrogel Wound Dressings Prepared by Radiation Technique. Radiat. Phys. Chem. 2017, 134, 1–7. [Google Scholar] [CrossRef]
- Wasikiewicz, J.M.; Yoshii, F.; Nagasawa, N.; Wach, R.A.; Mitomo, H. Degradation of Chitosan and Sodium Alginate by Gamma Radiation, Sonochemical and Ultraviolet Methods. Radiat. Phys. Chem. 2005, 73, 287–295. [Google Scholar] [CrossRef]
- Şen, M.; Atik, H. The Antioxidant Properties of Oligo Sodium Alginates Prepared by Radiation-Induced Degradation in Aqueous and Hydrogen Peroxide Solutions. Radiat. Phys. Chem. 2012, 81, 816–822. [Google Scholar] [CrossRef]
- Sadeghi, M.; Godarzi, A.; Khani, F.; Mirdarikvande, S.; Sadeghi, H.; Shasavari, H. Synthesis of a Novel Biopolymer-Based Alginate Superabsorbent Hydrogel. Bull. Environ. Pharmacol. Life Sci. 2014, 3, 169–174. [Google Scholar]
- Yi, X.; Xu, Z.; Liu, Y.; Guo, X.; Minrui, O.; Xu, X. Highly Efficient Removal of Uranium(VI) from Wastewater by Polyacrylic Acid Hydrogels. RSC Adv. 2017, 7, 6278–6287. Available online: https://pubs.rsc.org/en/content/articlelanding/2017/ra/c6ra26846c (accessed on 27 February 2023). [CrossRef] [Green Version]
- Available online: https://svalbardi.com/blogs/water/distilled (accessed on 27 February 2023).
- Available online: https://sanatatea.com/pub/mediu/1605-compozitia-chimica-a-apei-partea-i.html (accessed on 27 February 2023).
- Szép, R.; Mateescu, E.; Nechifor, A.C.; Keresztesi, A. Chemical characteristics and source analysis on ionic composition of rainwater collected in the Carpathians “Cold Pole”, Ciuc basin, Eastern Carpathians, Romania. Environ. Sci. Pollut. Res. 2017, 24, 27288–27302. Available online: https://link.springer.com/article/10.1007/s11356-017-0318-2 (accessed on 27 February 2023). [CrossRef] [PubMed]
- Keresztesi, A.; Korodi, A.; Boga, R.; Petres, S.; Ghita, G.; Ilie, M. Chemical characteristics of wet precipitation in the Eastern Carpathians, Romania. Ecoterra J. Environ. Res. Prot. 2017, 14, 52–59. Available online: https://www.researchgate.net/publication/318457222_Chemical_characteristics_of_wet_precipitation_in_the_Eastern_Carpathians_Romania (accessed on 27 February 2023).
- Pu, W.; Quan, W.; Ma, Z.; Shi, X.; Zhao, X.; Zhang, L.; Wang, Z.; Wang, W. Long-term trend of chemical composition of atmospheric precipitation at a regional background station in Northern China. Sci. Total Environ. 2017, 580, 1340–1350. Available online: https://pubmed.ncbi.nlm.nih.gov/28011029/ (accessed on 27 February 2023).
- Sakihama, H.; Ishiki, M.; Tokuyama, A. Chemical characteristics of precipitation in Okinawa Island, Japan. Atmos. Environ. 2008, 42, 2320–2335. [Google Scholar] [CrossRef]
- Mahon, R.; Balogun, Y.; Oluyemi, G.; Njuguna, J. Swelling performance of sodium polyacrylate and poly(acrylamide-co-acrylic acid) potassium salt. SN Appl. Sci. 2020, 2, 117. [Google Scholar] [CrossRef] [Green Version]
- ALSamman, M.T.; Sánchez, J. Chitosan- and Alginate-Based Hydrogels for the Adsorption of Anionic and Cationic Dyes from Water. Polymers 2022, 14, 1498. [Google Scholar] [CrossRef] [PubMed]
- Lin, H.; Zhou, J.; Yingde, C.; Gunasekaran, S. Synthesis and Characterization of pH- and Salt-Responsive Hydrogels Based on Etherificated Sodium Alginate. J. Appl. Polym. Sci. 2010, 115, 3161–3167. [Google Scholar] [CrossRef]
- Hajime, M.; Masato, M.; Mitsuru, S. Ion-specific swelling of hydrophilic polymer gels. Polymer 2001, 42, 6313–6316. [Google Scholar] [CrossRef]
- Ismail, O. Modelling of AAm-co-Alginate Hydrogels Swelling Kinetics. Rev. Roum. Chim. 2019, 64, 577–583. Available online: https://avesis.yildiz.edu.tr/yayin/bfa27b48-1556-4051-a0fc-3c22845d7a4b/modelling-of-aam-co-alginate-hydrogels-swelling-kinetics (accessed on 27 February 2023). [CrossRef]
- Solomon, K.W. Hydration Kinetics of Lupin (Lupinus albus) Seeds. J. Food Process Eng. 2007, 30, 119–130. Available online: https://onlinelibrary.wiley.com/doi/epdf/10.1111/j.1745-4530.2007.00098 (accessed on 27 February 2023). [CrossRef]
- Karadag, E.; Saraydin, D.; Sahiner, N.; Güven, O. Radiation induced acrylamide/citric acid hydrogelas and their swelling behaviors. J. Macromol. Sci. Pure 2001, 38, 1105–1121. Available online: https://www.researchgate.net/publication/233016775 (accessed on 27 February 2023). [CrossRef]
- Ritger, P.L.; Peppas, N.A. A simple equation for description of solute release II. Fickian and anomalous release from swellable devices. J. Control Release 1987, 5, 237–242. [Google Scholar] [CrossRef]
- Reis, A.V.; Guilherme, M.R.; Cavalcanti, O.A.; Rubira, A.F.; Muniz, E.C. Synthesis and characterization of pH-responsive hydrogels based on chemically modified Arabic gum polysaccharide. Polymer 2006, 47, 2023–2029. [Google Scholar] [CrossRef]
- Bajpai, S.K.; Johnson, S. Superabsorbent hydrogels for removal of divalent toxic ions. Part I: Synthesis and swelling characterization. React. Funct. Polym. 2005, 62, 271–283. [Google Scholar] [CrossRef]
- Jastram, A.; Lindner, T.; Luebbert, C.; Sadowski, G.; Kragl, U. Swelling and Diffusion in Polymerized Ionic Liquids-Based Hydrogels. Polymers 2021, 13, 1834. [Google Scholar] [CrossRef]
- Zhao, Z.; Li, Z.; Xia, Q.; Bajalis, E.; Xi, H.; Lin, Y. Swelling/Deswelling Kinetics of PNIPAAm Hydrogels Synthesized by Microwave Irradiation. Chem. Eng. J. 2008, 142, 263–270. [Google Scholar] [CrossRef]
- Sultana, S.; Islam, M.R.; Dafader, N.C.; Haque, M.E. Preparation Of Carboxymethyl Cellulose/Acrylamide Copoly-Mer Hydrogel Using Gamma Radiation And Investigation Of Its Swelling Behavior. J. Bangladesh Chem. Soc. 2012, 25, 132–138. [Google Scholar] [CrossRef]
- Karadag, E.; Saraydin, D. Swelling studies of super water retainer acrylamide/crotonic acid hydrogels crosslinked by trimethylolpropane triacrylate and 1,4-butanediol dimethacrylate. Polym. Bull. 2002, 48, 299–307. Available online: https://www.researchgate.net/publication/225822946 (accessed on 27 February 2023). [CrossRef]
- James, J.D.; Ludwick, J.M.; Wheeler, M.L.; Oyen, M.L. Compressive failure of hydrogel spheres. J. Mater. Res. 2020, 35, 1227–1235. [Google Scholar] [CrossRef]
- Pourjavadi, A.; Kurdtabar, M. Collagen-based highly porous hydrogel without any porogen: Synthesis and characteristics. Eur. Polym. J. 2007, 43, 877–889. [Google Scholar] [CrossRef]
- Yiamsawas, D.; Kangwansupamonkon, W.; Chailapakul, O.; Kiatkamjornwong, S. Synthesis and swelling properties of poly[acrylamide-co-(crotonic acid)] superabsorbents. React. Funct. Polym. 2007, 67, 865–882. [Google Scholar] [CrossRef]
- Ding, Z.Y.; Aklonis, J.J.; Salovey, R. Model filled polymers. VI. Determination of the crosslink density of polymeric beads by swelling. J. Polym. Sci. B 1991, 29, 1035–1038. [Google Scholar] [CrossRef]
- Karadag, E.; Saraydin, D.; Güven, O. Influence of some crosslinkers on the swelling of acrylamide-crotonic acid hydrogels. Turk. J. Chem. 1997, 21, 151–161. Available online: https://www.researchgate.net/publication/282285864 (accessed on 27 February 2023).
- Thakur, A.; Wanchoo, R.K.; Singh, P. Structural Parameters and Swelling Behavior of pHSensitive Poly(acrylamide-co-acrylic acid) Hydrogels. Chem. Biochem. Eng. Q. 2011, 25, 181–194. Available online: https://www.researchgate.net/publication/266502664 (accessed on 27 February 2023).
- Manaila, E.; Craciun, G.; Ighigeanu, D.; Campeanu, C.; Barna, C.; Fugaru, V. Hydrogels synthesized by electron beam irradiation for heavy metal adsorption. Materials 2017, 10, 540. [Google Scholar] [CrossRef] [Green Version]
- Lee, B.H.; Li, B.; Guelcher, S.A. Gel Microstructure Regulates Proliferation and Differentiation of MC3T3-E1 Cells Encapsulated in Alginate Beads. Acta Biomater. 2012, 8, 1693–1702. [Google Scholar] [CrossRef] [Green Version]
- Karadag, E.; Uzum, O.B.; Saraydin, D. Swelling equilibria and dye adsorption studies of chemically crosslinked superabsorbent acrylamide/maleic acid hydrogels. Eur. Polym. J. 2002, 38, 2133–2141. [Google Scholar] [CrossRef]
- Jabbari, E.; Nozari, S. Swelling behaviour of acrylic acid hydrogels prepared by c-radiation crosslinking of polyacrylic acid in aqueous solution. Eur. Polym. J. 2000, 36, 2685–2692. [Google Scholar] [CrossRef]
Dose | NaAlg | Gel Fraction | Mc | q × 104 | ξ | P |
---|---|---|---|---|---|---|
(kGy) | (%) | (%) | (g/mol) | (nm) | (%) | |
12.5 | 0.5 | 85.09 ± 0.47 | 1,280,778 ± 9185 | 0.61 ± 0.01 | 197 ± 5.20 | 99.03 ± 0.01 |
1.0 | 86.81 ± 2.41 | 1,104,867 ± 209,444 | 0.73 ± 0.21 | 180 ± 10.58 | 98.93 ± 0.16 | |
1.5 | 87.23 ± 0.71 | 760,629 ± 87,288 | 1.10 ± 0.16 | 141 ± 11.55 | 98.74 ± 0.10 | |
2.0 | 87.26 ± 1.99 | 978,774 ± 366,273 | 0.89 ± 0.19 | 169 ± 13.61 | 98.93 ± 0.15 | |
15 | 0.5 | 87.16 ± 0.82 | 1,259,597 ± 171,879 | 0.62 ± 0.10 | 195 ± 19.00 | 99.02 ± 0.09 |
1.0 | 88.57 ± 1.42 | 1,034,249 ± 141,578 | 0.78 ± 0.14 | 172 ± 17.01 | 98.89 ± 0.11 | |
1.5 | 89.12 ± 1.81 | 675,868 ± 251,093 | 1.24 ± 0.28 | 130 ± 10.15 | 98.65 ± 0.20 | |
2.0 | 89.41 ± 3.71 | 912,866 ± 386,402 | 0.95 ± 0.22 | 161 ± 15.53 | 98.89 ± 0.17 | |
17.5 | 0.5 | 89.59 ± 0.62 | 942,176 ± 69,847 | 0.82 ± 0.07 | 158 ± 8.08 | 98.80 ± 0.06 |
1.0 | 90.06 ± 0.53 | 971,382 ± 127,415 | 0.83 ± 0.15 | 163 ± 15.14 | 98.81 ± 0.14 | |
1.5 | 90.26 ± 1.38 | 597,842 ± 135,890 | 1.40 ± 0.23 | 118 ± 15.28 | 98.51 ± 0.15 | |
2.0 | 90.30 ± 1.81 | 853,962 ± 231,492 | 1.02 ± 0.18 | 153 ± 16.17 | 98.81 ± 0.13 | |
20 | 0.5 | 91.87 ± 1.82 | 912,356 ± 110,643 | 0.85 ± 0.09 | 153 ± 12.66 | 98.74 ± 0.08 |
1.0 | 92.04 ± 1.95 | 889,683 ± 114,085 | 0.91 ± 0.10 | 152 ± 13.00 | 98.71 ± 0.08 | |
1.5 | 91.55 ± 1.93 | 566,062 ± 301,028 | 1.48 ± 0.41 | 113 ± 8.19 | 98.42 ± 0.28 | |
2.0 | 90.77 ± 2.26 | 731,308 ± 183,880 | 1.19 ± 0.21 | 136 ± 17.93 | 98.66 ± 0.14 | |
25 | 0.5 | 94.90 ± 1.47 | 661,076 ± 145,925 | 1.17 ± 0.47 | 122 ± 9.54 | 98.45 ± 0.31 |
1.0 | 94.40 ± 2.80 | 637,864 ± 96,165 | 1.27 ± 0.27 | 120 ± 13.20 | 98.40 ± 0.18 | |
1.5 | 93.88 ± 1.89 | 556,987 ± 32,206 | 1.51 ± 0.08 | 110 ± 4.62 | 98.36 ± 0.05 | |
2.0 | 93.13 ± 1.73 | 598,177 ± 5168 | 1.45 ± 0.01 | 117 ± 6.35 | 98.46 ± 0.01 |
Composition | p0/q0 | Dg (kGy) | Dv (kGy) | R2 |
---|---|---|---|---|
Sol 1 (0.5% NaAlg) | 0.13 | 1.60 | 2.50 | 0.96 |
Sol 2 (1.0% NaAlg) | 0.17 | 0.11 | 3.96 | 0.97 |
Sol 3 (1.5% NaAlg) | 0.24 | 1.10 | 2.00 | 0.97 |
Sol 4 (2.0% NaAlg) | 0.33 | 1.31 | 1.00 | 0.95 |
Dose (kGy) | Radiochemical Yields (mol/J × 10−10) | Sol 1 (0.5% NaAlg) | Sol 2 (1.0% NaAlg) | Sol 3 (1.5% NaAlg) | Sol 4 (2.0% NaAlg) |
---|---|---|---|---|---|
12.5 | GX | 4.62 | 5.44 | 6.55 | 4.96 |
GS | 1.28 | 1.92 | 3.20 | 3.27 | |
15 | GX | 3.88 | 4.86 | 5.92 | 4.17 |
GS | 1.07 | 1.71 | 2.89 | 2.75 | |
17.5 | GX | 4.47 | 4.44 | 5.49 | 4.80 |
GS | 1.24 | 1.56 | 2.68 | 3.17 | |
20 | GX | 4.07 | 4.25 | 5.51 | 4.37 |
GS | 1.13 | 1.50 | 2.69 | 2.88 | |
25 | GX | 4.43 | 4.69 | 5.28 | 4.76 |
GS | 1.23 | 1.65 | 2.58 | 3.14 |
NaAlg (%) | Dose (kGy) | Smax (%) | ||
---|---|---|---|---|
Distilled Water (Water 1) | Tap Water (Water 2) | Rainwater (Water 3) | ||
0.5% | 12.5 | 9831 ± 586 | 10,047 ± 807 | 7806 ± 345 |
15 | 8330 ± 335 | 9924 ± 695 | 5224 ± 355 | |
17.5 | 7953 ± 315 | 9093 ± 498 | 4877 ± 240 | |
20 | 6438 ± 591 | 6515 ± 360 | 3881 ± 208 | |
25 | 3396 ± 215 | 5821 ± 432 | 3011 ± 253 | |
1.0% | 12.5 | 10,117 ± 623 | 9257 ± 666 | 7556 ± 436 |
15 | 9878 ± 640 | 7960 ± 322 | 5701 ± 469 | |
17.5 | 9860 ± 428 | 7206 ± 439 | 4891 ± 209 | |
20 | 6967 ± 374 | 6879 ± 357 | 3998 ± 167 | |
25 | 4411 ± 405 | 5904 ± 217 | 2942 ± 186 | |
1.5% | 12.5 | 9129 ± 636 | 7968 ± 440 | 5552 ± 437 |
15 | 8165 ± 532 | 7534 ± 333 | 5286 ± 354 | |
17.5 | 7650 ± 283 | 7063 ± 356 | 4673 ± 297 | |
20 | 6612 ± 233 | 7054 ± 438 | 3926 ± 230 | |
25 | 4710 ± 342 | 5240 ± 249 | 3249 ± 213 | |
2.0% | 12.5 | 10,572 ± 696 | 8623 ± 375 | 7439 ± 439 |
15 | 10,182 ± 459 | 8311 ± 305 | 6805 ± 355 | |
17.5 | 9746 ± 376 | 6992 ± 334 | 6588 ± 298 | |
20 | 9726 ± 358 | 6354 ± 207 | 4636 ± 228 | |
25 | 5911 ± 306 | 6030 ± 289 | 3645 ± 218 |
Dose (kGy) | Water Type | 0.5% NaAlg | 1% NaAlg | 1.5% NaAlg | 2% NaAlg | ||||
---|---|---|---|---|---|---|---|---|---|
k1,S | R2 | k1,S | R2 | k1,S | R2 | k1,S | R2 | ||
12.5 | Water 1 | 3.68 | 0.999 | 4.42 | 1.000 | 6.39 | 0.999 | 5.14 | 0.996 |
Water 2 | 4.82 | 0.992 | 4.07 | 0.998 | 4.74 | 0.999 | 5.12 | 0.999 | |
Water 3 | 4.10 | 0.996 | 6.25 | 0.998 | 6.95 | 0.995 | 9.84 | 0.983 | |
15 | Water 1 | 3.92 | 0.999 | 4.18 | 0.999 | 6.48 | 0.998 | 5.08 | 0.991 |
Water 2 | 4.43 | 0.995 | 3.65 | 0.998 | 4.67 | 0.997 | 4.63 | 0.999 | |
Water 3 | 3.91 | 0.998 | 7.01 | 0.987 | 7.88 | 0.988 | 7.71 | 0.992 | |
17.5 | Water 1 | 3.80 | 1.000 | 3.82 | 0.998 | 6.42 | 0.997 | 5.77 | 0.997 |
Water 2 | 4.32 | 0.999 | 4.07 | 0.999 | 4.76 | 0.994 | 5.51 | 0.998 | |
Water 3 | 3.80 | 0.998 | 6.29 | 0.996 | 5.58 | 0.997 | 7.28 | 0.984 | |
20 | Water 1 | 3.85 | 0.999 | 4.53 | 0.998 | 6.26 | 0.983 | 4.99 | 0.992 |
Water 2 | 4.68 | 0.999 | 3.88 | 0.999 | 5.52 | 0.997 | 4.74 | 0.999 | |
Water 3 | 4.44 | 0.995 | 5.13 | 0.996 | 5.89 | 0.996 | 9.24 | 0.994 | |
25 | Water 1 | 3.66 | 0.994 | 5.21 | 0.996 | 6.01 | 0.998 | 4.84 | 0.999 |
Water 2 | 5.00 | 0.998 | 4.89 | 0.998 | 4.27 | 0.998 | 5.77 | 0.999 | |
Water 3 | 4.38 | 0.992 | 6.29 | 0.995 | 10.30 | 0.998 | 12.00 | 0.998 |
Dose (kGy) | Water Type | 0.5% NaAlg | 1.0% NaAlg | 1.5% NaAlg | 2.0% NaAlg | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
r0 | Smax | R2 | r0 | Smax | R2 | r0 | Smax | R2 | r0 | Smax | R2 | ||
12.5 | Water 1 | 27.08 | 150.89 | 0.992 | 22.03 | 146.22 | 0.985 | 14.72 | 159.93 | 0.989 | 20.06 | 153.55 | 0.978 |
Water 2 | 24.40 | 159.24 | 0.939 | 27.07 | 143.69 | 0.979 | 24.30 | 110.79 | 0.987 | 19.23 | 113.25 | 0.992 | |
Water 3 | 24.49 | 103.55 | 0.994 | 15.71 | 90.79 | 0.997 | 16.93 | 64.06 | 0.998 | 13.00 | 87.51 | 0.992 | |
15 | Water 1 | 31.37 | 129.18 | 0.985 | 22.32 | 140.54 | 0.998 | 15.65 | 100.44 | 0.990 | 20.41 | 145.61 | 0.983 |
Water 2 | 25.19 | 156.96 | 0.958 | 29.77 | 116.49 | 0.992 | 25.21 | 102.75 | 0.993 | 23.66 | 115.70 | 0.988 | |
Water 3 | 40.29 | 71.54 | 0.992 | 19.89 | 68.44 | 0.996 | 18.31 | 61.62 | 0.997 | 17.75 | 83.23 | 0.992 | |
17.5 | Water 1 | 32.05 | 118.82 | 0.991 | 23.39 | 141.20 | 0.996 | 16.77 | 108.24 | 0.990 | 19.72 | 137.10 | 0.967 |
Water 2 | 27.28 | 140.30 | 0.975 | 32.04 | 106.60 | 0.988 | 27.76 | 98.29 | 0.989 | 20.82 | 88.24 | 0.995 | |
Water 3 | 41.94 | 65.71 | 0.993 | 23.60 | 58.37 | 0.998 | 26.44 | 55.93 | 0.998 | 18.70 | 80.22 | 0.994 | |
20 | Water 1 | 37.80 | 95.39 | 0.992 | 26.93 | 93.33 | 0.996 | 18.68 | 113.13 | 0.992 | 21.00 | 137.29 | 0.985 |
Water 2 | 31.78 | 91.40 | 0.990 | 34.43 | 100.95 | 0.994 | 22.32 | 91.97 | 0.989 | 28.52 | 85.59 | 0.990 | |
Water 3 | 40.68 | 48.71 | 0.997 | 28.98 | 47.11 | 0.999 | 32.36 | 47.37 | 0.998 | 13.38 | 51.21 | 0.998 | |
25 | Water 1 | 54.75 | 43.75 | 0.993 | 31.57 | 54.28 | 0.998 | 25.39 | 58.26 | 0.998 | 27.71 | 75.81 | 0.997 |
Water 2 | 33.63 | 81.78 | 0.981 | 32.12 | 81.23 | 0.988 | 35.89 | 70.78 | 0.994 | 22.93 | 75.09 | 0.995 | |
Water 3 | 49.27 | 36.96 | 0.994 | 31.90 | 33.79 | 0.999 | 17.01 | 35.60 | 0.997 | 15.21 | 39.95 | 0.997 |
Dose (kGy) | Water Type | 0.5% NaAlg | 1.0% NaAlg | 1.5% NaAlg | 2.0% NaAlg | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
k | n | R2 | k | n | R2 | k | n | R2 | k | n | R2 | ||
12.5 | Water 1 | 6.17 | 0.89 | 0.997 | 6.36 | 0.91 | 0.991 | 11.35 | 0.85 | 0.973 | 7.39 | 0.90 | 0.998 |
Water 2 | 3.43 | 0.99 | 0.997 | 5.46 | 0.90 | 0.998 | 8.15 | 0.85 | 0.995 | 13.34 | 0.80 | 0.994 | |
Water 3 | 18.24 | 0.73 | 0.990 | 18.37 | 0.76 | 0.985 | 22.23 | 0.71 | 0.977 | 17.97 | 0.78 | 0.982 | |
15 | Water 1 | 4.35 | 0.92 | 0.994 | 9.75 | 0.84 | 0.993 | 11.50 | 0.84 | 0.977 | 8.75 | 0.87 | 0.996 |
Water 2 | 4.28 | 0.95 | 0.998 | 10.27 | 0.79 | 0.999 | 8.71 | 0.83 | 0.994 | 9.03 | 0.84 | 0.996 | |
Water 3 | 11.77 | 0.72 | 0.999 | 21.42 | 0.70 | 0.987 | 19.85 | 0.71 | 0.983 | 15.49 | 0.77 | 0.996 | |
17.5 | Water 1 | 4.64 | 0.90 | 0.991 | 8.33 | 0.86 | 0.993 | 10.31 | 0.84 | 0.974 | 5.38 | 0.94 | 0.993 |
Water 2 | 4.43 | 0.93 | 0.996 | 6.11 | 0.86 | 0.997 | 7.34 | 0.84 | 0.997 | 13.28 | 0.78 | 0.986 | |
Water 3 | 11.06 | 0.72 | 0.997 | 18.92 | 0.69 | 0.987 | 17.39 | 0.70 | 0.996 | 22.17 | 0.71 | 0.997 | |
20 | Water 1 | 4.81 | 0.83 | 0.991 | 8.97 | 0.82 | 0.999 | 10.13 | 0.83 | 0.983 | 9.29 | 0.85 | 0.997 |
Water 2 | 5.48 | 0.87 | 0.996 | 6.52 | 0.84 | 0.997 | 9.83 | 0.82 | 0.991 | 8.47 | 0.81 | 0.994 | |
Water 3 | 12.58 | 0.70 | 0.990 | 21.95 | 0.64 | 0.989 | 15.76 | 0.68 | 0.996 | 29.91 | 0.66 | 0.964 | |
25 | Water 1 | 10.36 | 0.68 | 0.987 | 12.02 | 0.73 | 0.979 | 12.98 | 0.74 | 0.977 | 11.22 | 0.77 | 0.990 |
Water 2 | 4.76 | 0.88 | 0.996 | 6.52 | 0.84 | 0.997 | 9.37 | 0.77 | 0.995 | 11.77 | 0.78 | 0.983 | |
Water 3 | 15.96 | 0.63 | 0.989 | 22.03 | 0.61 | 0.980 | 29.92 | 0.61 | 0.974 | 25.61 | 0.65 | 0.966 |
Dose (kGy) | Water Type | 0.5% NaAlg | 1.0% NaAlg | 1.5% NaAlg | 2.0% NaAlg | ||||
---|---|---|---|---|---|---|---|---|---|
D × 103 | R2 | D × 103 | R2 | D × 103 | R2 | D × 103 | R2 | ||
12.5 | Water 1 | 1.29 | 0.996 | 1.49 | 0.996 | 2.04 | 0.998 | 1.92 | 0.989 |
Water 2 | 1.86 | 0.984 | 1.30 | 0.989 | 1.13 | 0.996 | 1.25 | 0.998 | |
Water 3 | 0.73 | 0.998 | 1.15 | 0.995 | 0.68 | 0.990 | 1.54 | 0.996 | |
15 | Water 1 | 0.86 | 0.995 | 1.29 | 0.997 | 1.65 | 0.995 | 1.74 | 0.992 |
Water 2 | 1.52 | 0.986 | 0.72 | 0.993 | 1.04 | 0.997 | 1.07 | 0.995 | |
Water 3 | 0.31 | 0.995 | 0.61 | 0.996 | 0.60 | 0.993 | 1.08 | 0.997 | |
17.5 | Water 1 | 0.71 | 0.995 | 1.19 | 0.996 | 1.36 | 0.994 | 1.68 | 0.990 |
Water 2 | 1.28 | 0.987 | 0.75 | 0.993 | 0.91 | 0.994 | 0.89 | 0.999 | |
Water 3 | 0.26 | 0.998 | 0.44 | 0.996 | 0.41 | 0.999 | 0.85 | 0.998 | |
20 | Water 1 | 0.48 | 0.998 | 0.67 | 0.997 | 1.14 | 0.995 | 1.60 | 0.993 |
Water 2 | 0.73 | 0.993 | 0.64 | 0.993 | 0.89 | 0.998 | 0.65 | 0.997 | |
Water 3 | 0.19 | 0.997 | 0.25 | 0.995 | 0.26 | 0.999 | 0.52 | 0.976 | |
25 | Water 1 | 0.15 | 0.999 | 0.35 | 0.991 | 0.56 | 0.995 | 0.74 | 0.998 |
Water 2 | 0.76 | 0.993 | 0.73 | 0.994 | 0.49 | 0.998 | 0.95 | 1.000 | |
Water 3 | 0.13 | 0.996 | 0.19 | 0.989 | 0.33 | 0.985 | 0.45 | 0.978 |
Solutions Codes | Amount of Chemicals (g/100 mL Solution) | ||
---|---|---|---|
SA | AA | PP | |
Sol. 1 | 0.5 | 20 | 0.1 |
Sol. 2 | 1.0 | ||
Sol. 3 | 1.5 | ||
Sol. 4 | 2.0 |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Manaila, E.; Demeter, M.; Calina, I.C.; Craciun, G. NaAlg-g-AA Hydrogels: Candidates in Sustainable Agriculture Applications. Gels 2023, 9, 316. https://doi.org/10.3390/gels9040316
Manaila E, Demeter M, Calina IC, Craciun G. NaAlg-g-AA Hydrogels: Candidates in Sustainable Agriculture Applications. Gels. 2023; 9(4):316. https://doi.org/10.3390/gels9040316
Chicago/Turabian StyleManaila, Elena, Maria Demeter, Ion Cosmin Calina, and Gabriela Craciun. 2023. "NaAlg-g-AA Hydrogels: Candidates in Sustainable Agriculture Applications" Gels 9, no. 4: 316. https://doi.org/10.3390/gels9040316
