Taichi-LBM3D: A Single-Phase and Multiphase Lattice Boltzmann Solver on Cross-Platform Multicore CPU/GPUs

Abstract

The success of the lattice Boltzmann method requires efficient parallel programming and computing power. Here, we present a new lattice Boltzmann solver implemented in Taichi programming language, named Taichi-LBM3D. It can be employed on cross-platform shared-memory many-core CPUs or massively parallel GPUs (OpenGL and CUDA). Taichi-LBM3D includes the single- and two-phase porous medium flow simulation with a D3Q19 lattice model, Multi-Relaxation-Time (MRT) collision scheme and sparse data storage. It is open source, intuitive to understand, and easily extensible for scientists and researchers.

1. Introduction

The study of fluid flows is an important subject of civil, mechanical, and chemical engineering. Accurate calculation of the forces, pressure, and velocity can help us to better understand the flow and its mass/heat transport process. The lattice Boltzmann method (LBM) is a numerical method for simulating fluid dynamics introduced three decades ago [1,2]. Since then, it has quickly developed and has attracted significant attention in academia and industry. The lattice Boltzmann method is based on a special discretisation of velocity space, time, and space: An ensemble of particles, the motion and interactions of which are confined to a regular space–time lattice [3,4]. These particle groups are much larger than real fluid molecules, but they show the same behaviour in density and velocity as the real fluid at macroscopic scale. The Navier–Stokes equations can be recovered by LBM at macroscopic scale [5,6,7]. This unique mesoscale feature allows the LBM to simulate fluid/gas flow without directly solving continuum equations and distinguishes it from conventional computational fluid dynamics (CFD) methods: the conventional CFD method discretises the governing equation in a top-down approach, the LBM recovers the governing equations from the defined rules for discretised models in a bottom-up approach.

Several lattice models have been proposed for the LB method [6,8,9,10]. The most popular and widely used lattice model has been used in 2D and 3D [10] called D3Q19. The model contains 19 velocities at each lattice node. We used this lattice model as our LB solver implementation. The collision term is the key component in the LB method; it defines how particle groups exchange momentum and energy locally at lattice nodes. The simplest one that can be used for flow simulation is the Bhatnagar–Gross–Krook (BGK) operator [11]. A multiple-relaxation-time (MRT) scheme was developed to overcome the drawbacks of the BGK model, e.g., numerical instability [12]. Using various relaxation-time parameters for different moments of macroscopic quantities is the main concept behind MRT. The MRT approach can increase the numerical stability while lowering the computational time by at least one order of magnitude and keeping the same accuracy. A thorough analysis of MRT’s numerical stability was conducted in [13]. We used the MRT scheme as a collision term in our single- and two-phase solver development.

The LB method can be easily extended to multiphase multi-physics applications due to its mesoscopic nature. There have been many multiphase/multicomponent LB models proposed in the past two decades. These models generally can be grouped into four categories: the colour gradient model [14,15,16,17,18], the free energy model  [19,20,21], the pseudo-potential Shan–Chen model [22,23,24,25], and the phase-field model [26,27,28]. We implemented an optimised colour-gradient model proposed in [18], which permits improved numerical stability, a higher viscosity ratio, and a lower capillary number compared to other two-phase models.

Compared with conventional CFD techniques, the LBM has several advantages:

-

It is relatively simple to implement. LBM relies on particle group distributions. The interaction between nodes are fully linear, while the nonlinearity enters into a local collision process within each node [29]

-

The LBM algorithm is mostly local, leading to efficiency and scalability on a parallel computer [30]

-

Robust handling of complex geometries.

In the past few decades, several code packages emerged and have been well-maintained, including Palabos [31], OpenLB [32], Walbera [33], and many others [34]. Most of them were implemented in C++ on CPU architecture for its high computing efficiency and object-oriented language. However, the parallel packages require strong programming skills, e.g., CUDA and C++. To remove these barriers and allow the researcher to focus on algorithm and application development, we developed a 3D single-phase MRT LBM solver and two-phase improved colour gradient MRT solver [18] using Taichi programming languages [35], named Taichi-LBM3D. The objective of this new LBM solver is to facilitate researchers who want to focus on the LB algorithm or application but not on the programming, while guaranteeing the high computing efficiency on parallel platforms. The researchers could prototype their new algorithm rapidly and/or test their new applications on multicore CPUs or massively parallel GPUs. Interestingly enough, recent efforts were found to use PyTorch [36] to develop LBM models on GPUs, but these were limited to single-phase flow applications.

Based on the Taichi computing infrastructure, Taichi-LBM3D can be executed on a shared memory cross-platform with CPU backend (e.g., x86, ARM64) and GPUs (CUDA, Metal and OpenGL). The implementation is short: Around 400 lines for single-phase flow and 500 lines for two-phase flow. The solver is also intuitive to understand and is implemented using python-like syntax along with Taichi embedded vector/matrix operations. This unique feature allows further extension with minimum effort. In addition, the solver has a sparse storage option, which is essential for the simulation of flow over a porous medium. The sparse storage option is decoupled from the computing kernel. The computing performance is comparable with original C++ implementation on CPUs and much faster on GPUs. Researchers will be able to test new ideas and applications on Taichi-LBM3D without losing computing efficiency, and development time can be potentially reduced from days to hours. Taichi-LBM3D would enable integrating the LBM simulations with Taichi’s automatic differentiation facility [37], which will be our future work. This paper is organised as follows. Section 2 presents the overview of the LBM algorithm and its implementation. Section 3 shows three benchmark problems for the Stokes flow, Navier–Stokes flow, and the two-phase flow. Section 4 shows different numerical applications and the overall speed comparison. Section 5 presents a summary and conclusion.

2. Algorithm

The lattice Boltzmann method (LBM) uses a discrete Boltzmann equation to simulate fluid flow that divides the algorithm into a collision and a streaming step. The location of the particle distribution functions (PDFs) in space is presented on the nodes of the lattice grid, and a small set of lattice velocities are used to represent the particle velocities. Under the assumption of a low Mach number $Ma=u/c\ll 1$, the Maxwell–Boltzmann distribution can resemble the equilibrium to second-order accuracy in velocity. To implement a lattice Boltzmann simulation, four major steps should be included:

• Initialisation of the distribution function $f_i(\mathit{x},0)$
• Collision step: A time iteration takes the populations from their state at time t to the next state $t+\Delta t$, where $\Delta t$ is a constant discrete time step:

  $$\mathit{Collision\; step}:f_i(\mathit{x}+{\mathit{e}}_i\Delta t,t+\Delta t)=f_i(\mathit{x},t)+{\mathrm{\Omega }}_i,i=0,\dots ,18,$$

  (1)

We used the multi-relaxation-time scheme D3Q19 lattice Boltzmann method for the Stokes flow calculation [13], which allows independent adjust adjustment of the bulk and shear viscosity, which significantly improves the numerical stability for a low viscosity fluid. D3 represents the space dimension and Q19 indicates the number of discretised microscopic velocities, where $e_i$ is the discretised microscopic velocities:

$${\mathit{e}}_i=\left\{\begin{array}{ccccccccccccccccccc}0& c& -c& 0& 0& 0& 0& c& -c& c& -c& c& -c& c& -c& 0& 0& 0& 0\\ 0& 0& 0& c& -c& 0& 0& c& -c& -c& c& 0& 0& 0& 0& c& -c& c& -c\\ 0& 0& 0& 0& 0& c& -c& 0& 0& 0& 0& c& -c& -c& c& c& -c& -c& c\end{array}\right\}$$

(2)

where $c=\Delta x/\Delta t$, $\Delta x$ is the lattice length, and $\Delta t$ is the constant time step. The weights $w_i$ for the D3Q19 stencil are

$$w_i=1/3i=0;w_i=1/8i=1\dots 6;w_i=1/36i=7\dots 18$$

(3)

The multi-relaxation-time (MRT) collision operator is:

$$\mathrm{\Omega }={\mathit{M}}^{-1}\mathit{S}(\mathit{M}\mathit{f}-{\mathit{m}}^{eq})$$

(4)

The collision process is conducted in the momentum space, and the equilibrium moment is calculated by ${\mathit{m}}^{eq}=\mathit{M}{\mathit{f}}^{eq}$. The moments of the distribution function are expressed as

$$\mathit{m}=(\rho ,e,ϵ,j_x,q_x,j_y,q_y,j_z,q_z,3p_{xx},3{\pi }_{xx},p_{ww},{\pi }_{ww},p_{xy},p_{yz},p_{zx},m_x,m_y,m_z)$$

(5)

The physical meaning of these moments can be found in [12]. The collision diagonal matrix $\mathit{S}$ is a diagonal comprised of relaxation rates:

$$\mathit{S}=diag(0,s_e,s_{\xi },0,s_q,0,s_q,0,s_q,s_{\nu },s_{\pi },s_{\nu },s_{\pi },s_{\nu },s_{\nu },s_{\nu },s_m,s_m,s_m)$$

(6)

The relaxation rates $s_{\nu }$ and $s_{\xi }$ are associated with the kinematic viscosity $\nu$ and bulk viscosity $\xi$, respectively, that can be calculated as:

$$\nu =\frac{1}{3}(\frac{1}{s_{\nu }}-\frac{1}{2})c^2\Delta t,\xi =\frac{2}{9}(\frac{1}{s_e}-\frac{1}{2})c^2\Delta t$$

(7)

The relaxation time $\tau$ is defined as $\tau =1/s_{\nu }$. We chose the following value

$$\begin{array}{ccc}\hfill & s_e=s_{\xi }=s_{\pi }=s_{\nu },\hfill & \hfill s_q=s_m=8\frac{2-s_{\nu }}{8-s_{\nu }}.\end{array}$$

(8)

3.

Streaming step:

$$f_i(\mathit{x}+{\mathit{e}}_i\Delta t,t+\Delta t)=f_i(\mathit{x},t+\Delta t)$$

(9)

Different boundary conditions, e.g., simple bounce-back and periodic, were implemented.

4.

Computation of macroscopic hydrodynamic quantities, density, and momentum are conserved values that can be calculated from:

$$\rho (\mathit{x},t)=\sum _i{f}_i(\mathit{x},t)$$

(10)

$$\rho \mathit{u}(\mathit{x},t)=\sum _i{\mathit{e}}_i{f}_i(\mathit{x},t)$$

(11)

Multicomponent Lattice Boltzmann Models

A general colour gradient lattice Boltzmann model can be summarised in 4 steps

• Single phase collision using MRT scheme
• Surface tension perturbation to $f_i^{\prime }$ obtaining $f_i^{″}$
• Recolouring
• Streaming.

We employed an optimised colour-gradient approach [18] for the two-phase flow problem. To maintain the inbuilt parallelism of the lattice Boltzmann method, only the values of distribution functions of the nearest neighbour nodes were required. High viscosity ratios and a low capillary number problem were possible in this model, as it increased numerical stability. Velocity and pressure use only one full size distribution function. A recolouring approach was used to limit the diffusion on the interface while adding additional terms to the equilibrium moments in the MRT collision stage. Two component densities were indicated by the variables ${\rho }_r$ and ${\rho }_b$. The definition of parameter $\varphi$ is

$$\varphi =\frac{{\rho }_r-{\rho }_b}{{\rho }_r+{\rho }_b}$$

(12)

The colour gradient vector $\mathit{C}$ of the phase field can be calculated using

$$\mathit{C}(t,x)=\frac{3}{c^2\Delta t}\sum _t{\omega }_i{\mathit{e}}_i\varphi (t,x+e_i\Delta t)$$

(13)

The orientation of the interface can be obtained by a normalised gradient:

$$n_{\alpha }=\frac{{\mathit{C}}_{\alpha }}{\left|\mathit{C}\right|}$$

(14)

The two separate LB equations will compute the convection of density field ${\rho }_r$, ${\rho }_b$. Take ${\rho }_r$ for example,

$$g_i(\mathit{x}+{\mathit{e}}_i\Delta t,t+\Delta t)=g_i^{eq}({\rho }_r(\mathit{x},t),\mathit{u}(\mathit{x},t))$$

(15)

The equilibrium distribution function $g_i^{eq}$ is

$$g_i^{eq}=w_i{\rho }_r(1+\frac{3}{c^2}{\mathit{e}}_i·\mathit{u})$$

(16)

Only the local equilibrium distribution function is required in the collision step. Thus, only the summation ${\rho }_r={\sum }_0^{18}{g}_i$ needs to be recorded rather than all the values.

The gradient of the phase field is required to calculate the surface tension term. The extra terms for the surface tension are

$$\begin{array}{c}\hfill m_1=-\sigma \left|\mathit{C}\right|(n_x^2+n_y^2+n_z^2)=\sigma \left|\mathit{C}\right|\\ \hfill m_9=\frac{1}{2}\sigma \left|\mathit{C}\right|(2n_x^2-n_y^2-n_z^2)\\ \hfill m_{11}=\frac{1}{2}\sigma \left|\mathit{C}\right|(n_y^2-n_z^2)\\ \hfill m_{13}=\frac{1}{2}\sigma \left|\mathit{C}\right|\left(n_x{n}_y\right)\\ \hfill m_{14}=\frac{1}{2}\sigma \left|\mathit{C}\right|\left(n_y{n}_z\right)\\ \hfill m_{15}=\frac{1}{2}\sigma \left|\mathit{C}\right|\left(n_x{n}_z\right)\end{array}$$

(17)

The relaxation matrix, kinematic, and bulk viscosity calculation are the same as a standard MRT–LBM.

The Taichi-LBM3D scripts are easy to understand and can be easily modified by the users. For example, the collision operator in Equation (4) is the most computation intensive task in the LBM algorithm. The reader could easily refer to Listing 1 and Equation (4). Another benefit is the sparse data structure that has been built in Taichi. Listing 2 shows the dense and sparse memory allocation in Taichi.

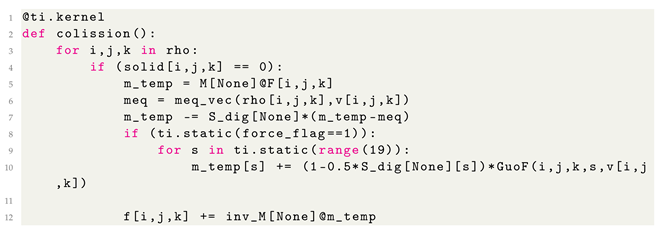

Listing 1. Example of collision operator in Taichi-LBM3D for single phase flow problem.

Listing 2. Examples of dense and sparse memory allocation in Taichi-LBM3D.

3. Numerical Benchmark

In this section, the implementation of the Taichi-LBM3D is benchmarked by comparison with well-known numerical test cases. We started with the viscous-driven to inertia-driven flow; finally, we benchmarked the two-phase capillary fingering.

3.1. Stokes Flow

Here, we considered a Plane Poiseuille flow problem. The flow was created between two infinitely long parallel plates. A constant pressure gradient was applied in the direction of flow. The analytical velocity profile $u\left(x\right)$ is described by the Poiseuille equation

$$u\left(x\right)=\frac{f}{2\nu }(a^2-x^2)$$

(18)

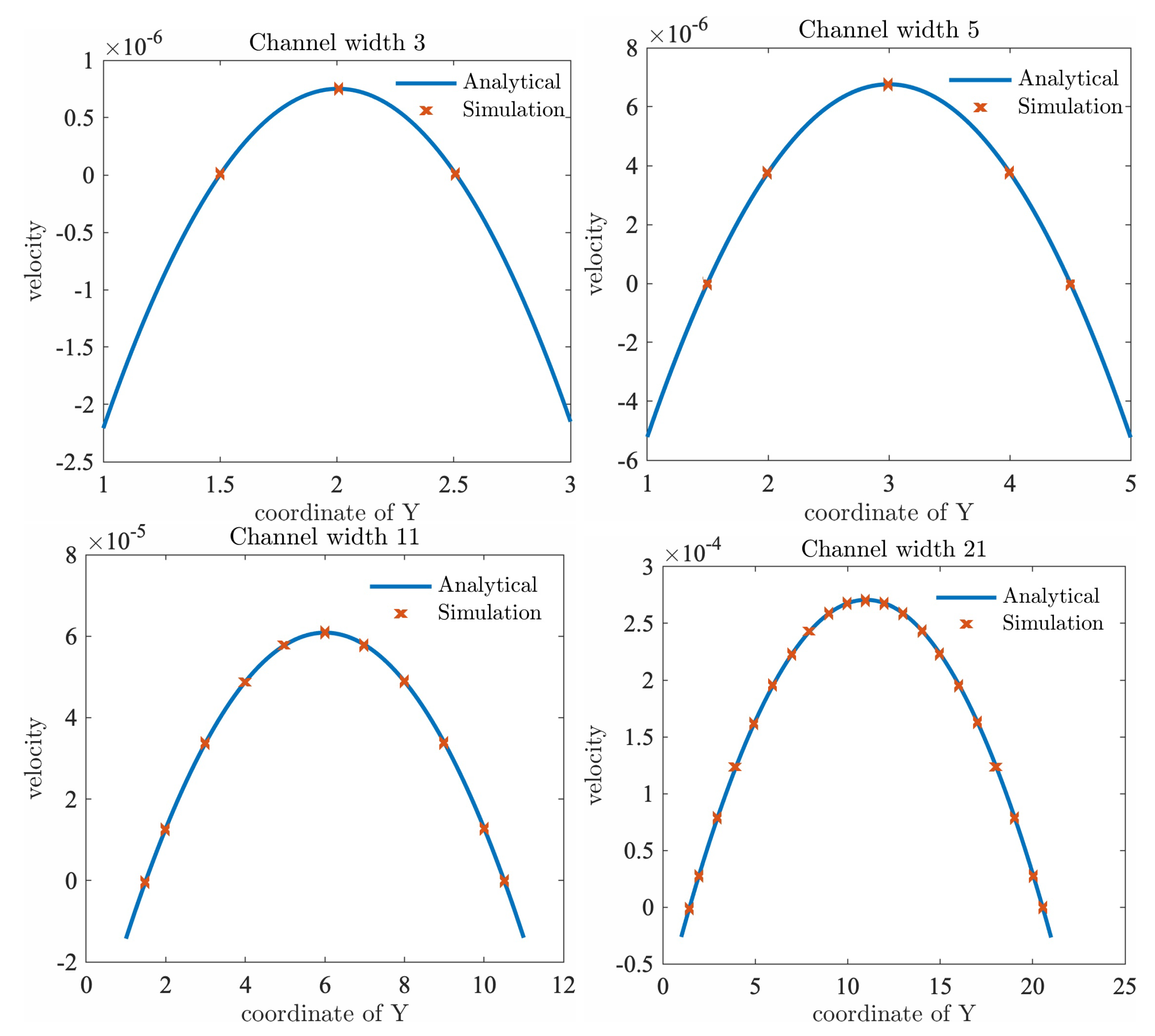

where f is the pressure gradient or a body force, x is the coordinate, $\nu$ is the viscosity, and $2a$ is the distance between two plates. We chose four different widths 3, 5, 11, and 21 lattice points. The comparison of the simulated results and analytical results are shown in Figure 1. Excellent agreement was achieved for all widths, due to the use of halfway bounce-back boundary conditions for the walls along the flow direction and the usage of the multiple-relaxation-time scheme.

3.2. Lid-Driven Flow

The 3D lid-driven flow is a classic benchmark problem and has been extensively validated [38,39], especially for laminar flow cases. The flow in a cube chamber was driven by a constant velocity at the top lid. The domain was $[0,1]\times [0,1]\times [0,1]$. The top wall had a velocity (1,0,0). The laminar flow with Reynolds number $Re=1000$ was considered for our benchmark. The flow will become steady state at $Re=1000$, and the simulation was performed until the relative residual reached the tolerance. Figure 2 shows a comparison of velocity profiles through the centre of the cavity with a lattice refinement of ${25}^3$, ${50}^3$, ${100}^3$, and ${200}^3$. It can be observed that the simulated results agreed with the references with mesh refinement [38]. The iso-surfaces of the Q-criterion of the velocity field for the lattice size ${50}^3$ are shown in Figure 2.

3.3. Capillary Fingering

Capillary fingering is a well-known hydrodynamic instability problem, and it was used to validate the LBM multicomponent model. Two fluids had different viscosities. One fluid was displaced by a second phase of fluid along a non-slip channel. A growing finger of the driving fluid was observed if the capillary number $Ca$ was large enough. The $Ca$ is defined as

$$Ca=\frac{u_t{\nu }_2}{\sigma }$$

(19)

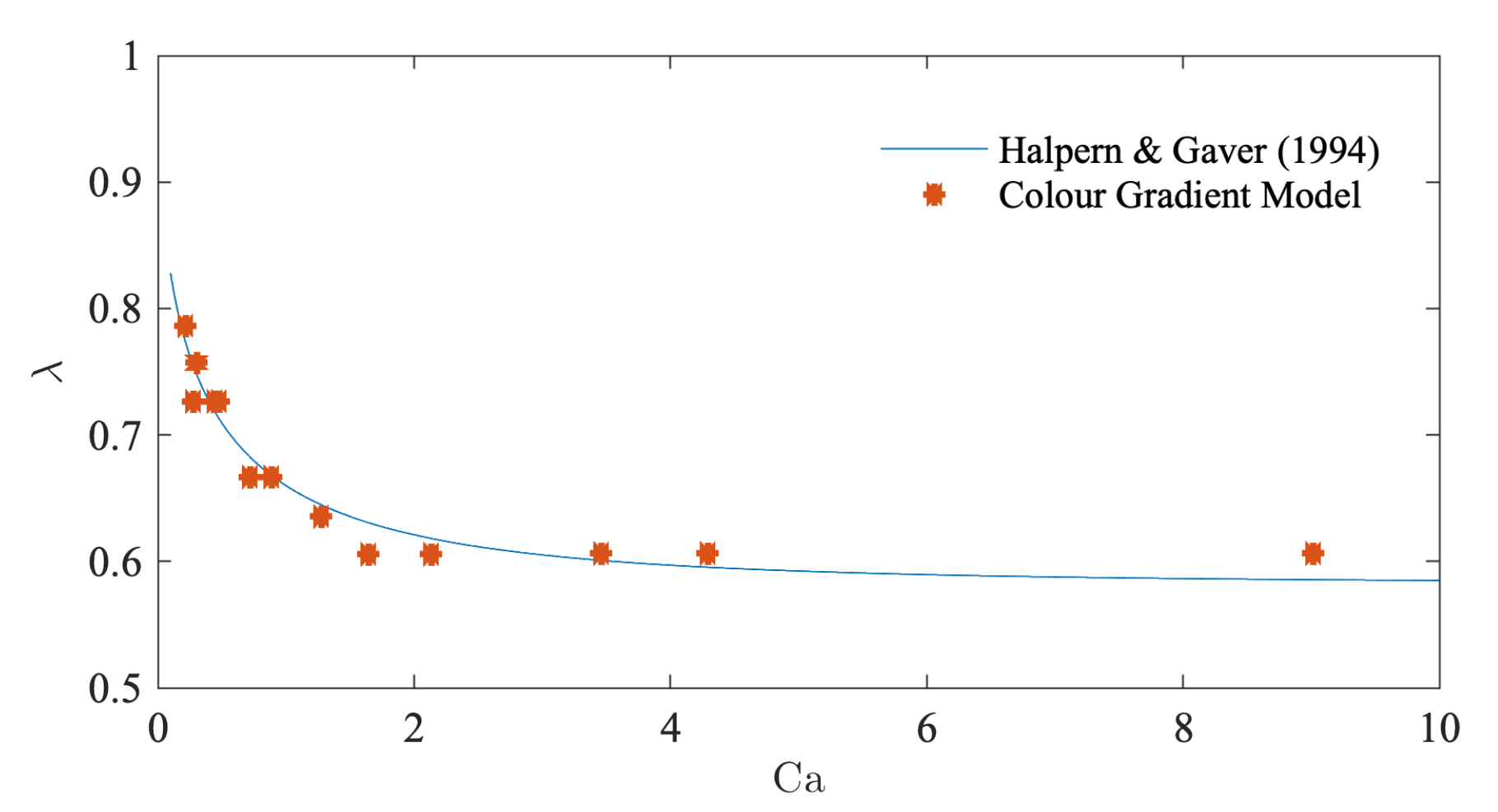

where $u_t$ is the velocity of the tip of finger, ${\nu }_2$ is the kinematic viscosity of the driving fluids, and $\sigma$ is the surface tension. The colour gradient model was used to study the capillary fingering. A lattice size 512 × 32 was used. The first half of the domain contained substance 0, and the rest was occupied by phase 1. Periodic boundary conditions were used in the x direction and bounded with non-slip boundaries. A pressure gradient was imposed by applying a body force in the x direction. Figure 3 shows the evolution of fingers for binary fluids with a viscosity ratio of 20 and a tip velocity of 0.05 simulated by the colour gradient model. Halpern and Gaver [40] studied the fingering phenomenon in a channel, by measuring the width of the fingers as a function of the capillary number $Ca$. The simulated results with the colour gradient models were compared with reference [40], as shown in Figure 4. A good agreement with the experimental data can be seen. These numerical examples show that the fingering phenomena can be captured and properly modelled in Taichi-LBM3D.

4. Engineering Applications

This section presents a list of numerical applications from inertia dominated flow to viscous dominated flow and from single phase to two phase to illustrate the wide range of Taichi-LBM3D capability.

4.1. Single Phase Flow

In this section, an inertia-dominated external flow problem with direct numerical simulation is presented. The geometry is from a car and an urban building model. The 3D CAD models were first converted into voxel-based images, by a binary matrix with 0 and 1 that represented pore nodes and solids, respectively. There are many voxelisation tools available [41,42]. A uniform flow condition was imposed with a grid of $200\times 600\times 200$ and $300\times 400\times 200$ for these two cases. The streamlines were plotted in Figure 5. The second order accurate halfway bounce-back boundary condition was used. There was no turbulence model for all the simulations.

4.2. Simulation of Single-Phase Flow in Porous Media with Sparse Data Storage

Here, we validated the Taichi-LBM3D solver for porous media application and compared the permeability with the standard CPU implementation. A porous medium with a Fontainebleau sandstone was extracted from the image of a cylindrical core [43,44]. Here, we tested the Fontainebleau sandstone sample with a resolution of 7.5 (μm/pixel) with porosity 13%. The flow was driven only by a body force. The flow field of porous medium flow is shown in Figure 6. The permeability of a porous medium can be calculated from the empirical Darcy’s law. We reached the same permeability value with 789 (mD) with the flow resolution ${131}^3$, with a sparse storage scheme, which significantly reduced the memory requirement in proportion to the porosity.

4.3. Two-Phase Flow with Sparse Data Storage for Porous Medium

A two-phase flow through the same Fontainebleau sandstone is presented in this case. To simulate the drainage and imbibition processes, two buffer layers were added at the inlet and outlet of the sample to allow fluid to be injected and flow out. The contact angle of the solid surface was specified as ${\psi }_s$ = 0.7; this value is the cosine of the desired contact angle, and the value is between −1 and 1. The interfacial tension of the two phases was set at ${Cap}_A=0.005$.

Figure 7 shows the snapshots of the Bentheimer sandstone drainage process. Excluding the inlet layer, which was saturated with oil initially, the sample was completely saturated with water (wetting phase) (non-wetting phase). To drive the non-wetting fluid into the sample, the uniform body force was added in the x-direction. Before entering the inlet, the fluid that was moving out changed colour and entered a non-wetting phase. This simulated a pure injection drainage process with a non-wetting phase. Given the high capillary pressure, some small holes and throats were not filled with a non-wetting phase.

4.4. Performance Tests on Parallel Platforms

Taichi programming languages provide good performance on different platforms. The adopted computing platforms were an NVIDIA A100, AMD Radeon Pro 5300 4 GB in Metal backend, and 3.3 GHz 6-Core Intel Core i5 with 12 threads. A modified performance metric for LBM codes is Million Lattice Updates per Second (MLUPs) considering the porosity for flow over porous media. This metric is calculated by

$$MLUP=\frac{n_x{n}_y{n}_z}{\mathit{Compute}\mathit{Time}\left(s\right)\times {10}^6}\times porosity$$

(20)

where $n_x$, $n_y$, and $n_z$ are the dimensions of the simulations. CPUs and NVIDIA A100 support both double and single precision. The AMD Radeon Pro 5300 4 GB in metal backend supports single precision only, so all the cases were shown in single precision for comparison purposes. Three flow problems were run under mesh refinement from single phase to multiphase. The details of computation speed are reported in

Table 1. Performance report for different hardware.

Test Cases	NVIDIA A100	AMD Radeon Pro 5300	3.3 GHz 6-Core Intel i5 12 Threads
Memory	40 GB	4 GB	64 GB
${50}^3$	662	189	13.6
${100}^3$	870	192	13.5
${150}^3$	861	∖	13.5
${200}^3$	900	∖	13.5
${250}^3$	890	∖	13.5
1-phase ${100}^3$	449	110	12.1
1-phase ${200}^3$	550	115	14.5
1-phase ${300}^3$	550	∖	14.5
1-phase ${400}^3$	550	∖	14.5
2-phase ${100}^3$	250	70	$6.9$
2-phase ${200}^3$	283	∖	7.7
2-phase ${250}^3$	310	∖	7.7

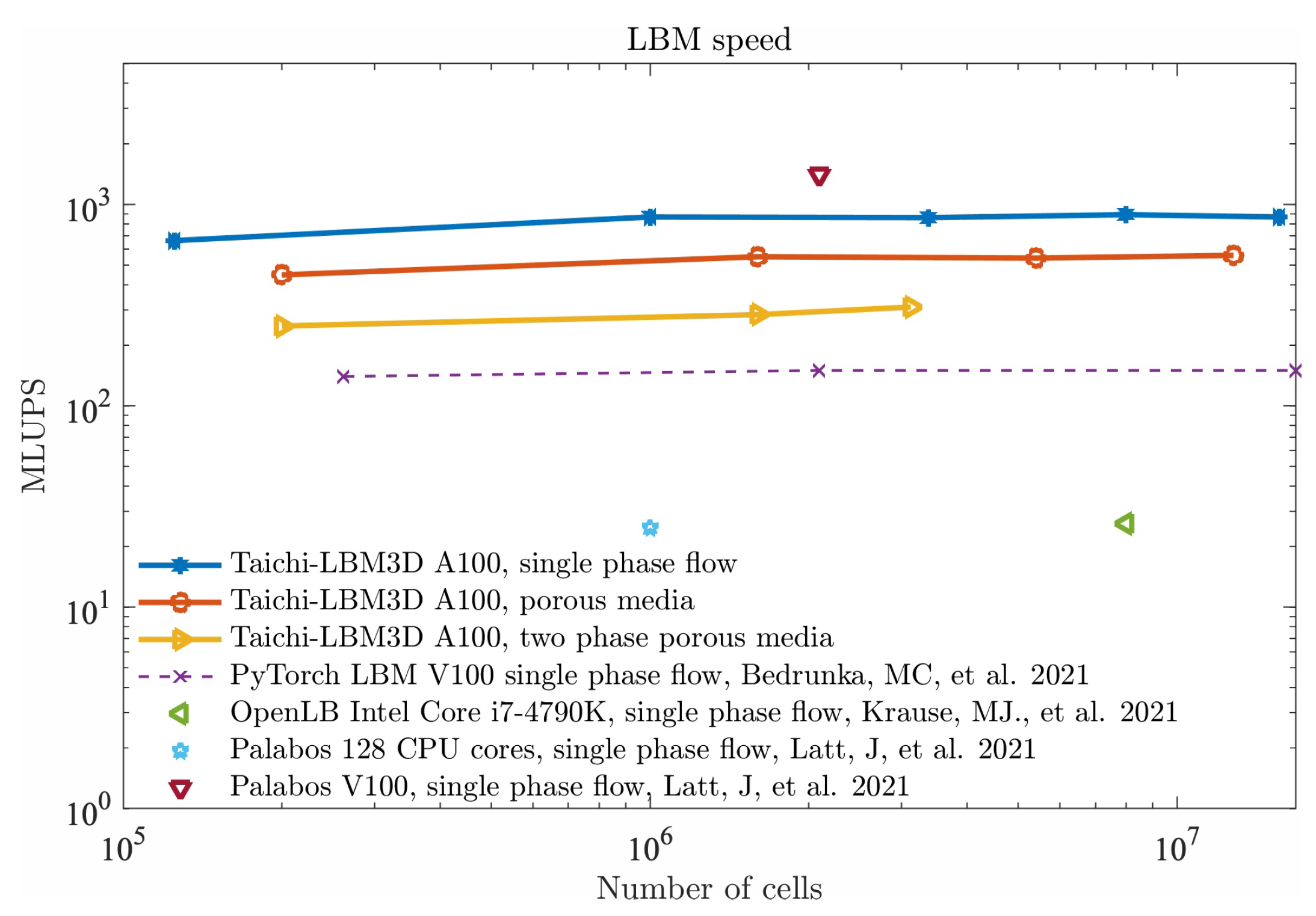

.The computation speeds reached over 900 MLUPs using an NVIDIA A100 with D3Q19 and MRT. The performance was much better than the PyTorch implementation with 150 MLUPs reported in [36]. Other popular LBM codes, e.g., the latest version of OpenLB [32], require over 200 cores CPUs to reach the same speed. Palabos showed 24.8 MLUPS at 128 cores and required over 4000 cores to reach 900 MLUPs [31]. The current version of implementation shows that the NVIDIA A100 was 60 times faster than its CPU counterpart. Figure 8 shows the overall comparison of performance of Taichi-LBM3D with other codes reported in the literature. The implementation will require further optimisation. A well-optimised LBM algorithm could reach over 1000 MLUPs using V100 GPU [31].

5. Conclusions

In this work, we presented Taichi-LBM3D, a novel cross-platform 3D single-phase and two-phase LBM solver on shared-memory many-core CPUs or GPUs implemented in Taichi programming language. We were able to produce an LBM solver under 500 lines of code for a complex two-phase problem with surface tension. Scientists and engineers could easily prototype their LBM models and employ them on GPU-accelerated workstations. Numerical implementation was benchmarked with three well-known problems with convergence studies. A wide range of applications from viscous and capillary to inertia dominated flow was shown. In the last, the MLUPS were employed to measure the speed of LBM under different platforms. The performance of the NVIDIA A100 GPU reached over 900 MLUPS for single-phase flow and 500 for two-phase flow with surface tension. It is approximately 60 times faster than the 3.3 GHz 6-Core Intel Core i5. The code is available under MIT Licence on GitHub.
