Kinetic Modeling of an Enzyme Membrane Reactor for the Selective Production of Oligosaccharides

Abstract

An enzyme membrane reactor is an attractive tool for producing oligosaccharides from biomass-based polysaccharides. However, kinetic modeling and reactor design based on the rate equations have rarely been reported for enzyme membrane reactors because of the difficulty in tracing the depolymerization process. In this study, a simplified reaction model based on Michaelis–Menten-type kinetics has been built to simulate the enzyme membrane reactor. Ramping various species into reactant, target, and byproduct worked well for discussing reactor performance. The use of a membrane with a molecular weight cut-off (MWCO) of 10 kDa with continuous feeding of the reactant was suggested for the efficient production of chitosan hexamer and pentamer by enzymatic hydrolysis of chitosan.

1. Introduction

An enzyme membrane reactor uses an ultrafiltration membrane with an enzyme. An ultrafiltration membrane has two synergetic benefits for oligosaccharides production by enzymes. First, the membrane enables the separation of the product and enzyme. Second, the molecular weight distribution of the product can be controlled by the membrane, which rejects undesirable larger molecules to permeate. Thus, enzyme membrane reactors have been intensively studied for the production of oligosaccharides [1]. Target products are usually biomass-based oligomers, such as cello-oligosaccharides [2], galactooligosaccharides [3,4], chitosan oligosaccharides [5], oligodextrans [6], fructooligosaccharides [7,8], and pectin [9]. These oligosaccharides have various applications in the food and feed industry [10,11,12].

Previous studies on the enzyme membrane reactor often featured optimizing enzyme properties or operating parameters. For example, Qin et al. investigated the gene cloning and expression of a novel chitosanase from Bacillus amyloliquefaciens to produce chitosan oligosaccharides in a membrane reactor [13]. Su et al. immobilized dextranase on a polyethersulfone membrane surface and discussed its effect on molecular weight distribution of the product [6]. The influence of the operating conditions, such as flow rate, reactant concentration, enzyme loading, pH, and temperature, have been intensively studied for each reaction system [3,5,9].

Regarding scale-up for industrial production, modeling and simulation of the reaction system are very important [14,15,16]. However, such modeling study is rarely reported for enzyme membrane reactors [17,18]. One possible reason is the difficulty in simulating the depolymerization of biomass-based polysaccharides. They show a wide variety in molecular weight, chain branching, composition variations, and different crystallinity. Even if a strict characterization of a particular feedstock and mechanistic analysis of its hydrolysis process were achieved, such a fine-tuned model lacks generality and practicality for industrial usage.

In this study, we have built a kinetic model for chitosan oligosaccharide production with a simplified reaction scheme. The reaction model was built as simply as possible, focusing on the reaction profile regarding the target oligomers of hexamer and pentamers. Chitosan hexamer and pentamer production using enzyme membrane reactors have been intensively studied [5,13,19] because these oligomers have attractive antibacterial activities, antitumor activities, and immunoenhancing effects. Based on the reaction and permeation model, we achieved quantitative performance comparison of enzyme membrane reactors.

2. Methodology

2.1. Materials

Chitosanase, Streptomyces sp. N174, was obtained from EMD Millipore Corp (Burlington, MA, USA). The molecular weight of the chitosanase is 95 kDa [19]. Chitosan from Chionoecetes opilio (Chitosan 100, over 80 mol% deacetylated) was purchased from Wako Pure Chemical Industries (Tokyo, Japan). Chitosan oligosaccharides were obtained from TCI (Tokyo, Japan). Acetic acid, sodium hydroxide, and sodium acetate were purchased from Wako and used as received. Ultra-purified water was prepared using a Milli-Q water purification system and was used throughout the experiment. Commercial membrane modules (Minimate™ Tangential Flow Filtration Capsule, Pall, MA, USA) with an effective membrane area of 50 cm² were used. They contain ultrafiltration membranes made of polyethersulfone with a molecular weight cut-off (MWCO) of 1 k, 3 k, 10 k, or 30 k. Polyethersulfone is exclusively employed for the ultrafiltration of chitosan due to its high fouling resistance and durability [5,20,21].

2.2. Batch Hydrolysis

Buffer solution (pH 6.0) was prepared from acetic acid and sodium hydroxide. Chitosan was dissolved in the buffer solution by a vigorous stirring of 8 h. The concentration of chitosan was adjusted to 10 g/L. A total of 5 mL of the chitosan solution was mixed with 0.036 mL of chitosanase solution containing 1 U of the enzyme. Soon after the mixing, the reaction was carried out at 40 °C with stirring by a magnetic stirrer (KPI, Itami, Japan). After a reaction time of 0.5–24 h, the solution was boiled to terminate the enzymatic reaction. The concentrations of chitosan oligosaccharides from dimer to hexamer were measured by high-performance liquid chromatography (HPLC, Shimadzu). A refractive index detector (RID-10A) was employed. A CAPCELL PAK NH₂ SG80 column (Shiseido, Tokyo, Japan) was used at 45 °C. The mobile phase was an acetonitrile/water mixture (75/25 in volume). The flow rate was 1 mL/min. The concentration of each oligosaccharide was calculated from each peak area. Chitosan oligosaccharide reagent was used as the standard. The chitosan sample was diluted with the mobile phase, and precipitated chitosan polymer was filtered out before analysis. One experiment and analysis were performed for each condition in this study, following the relevant studies [3,5,22].

2.3. Membrane Permeation

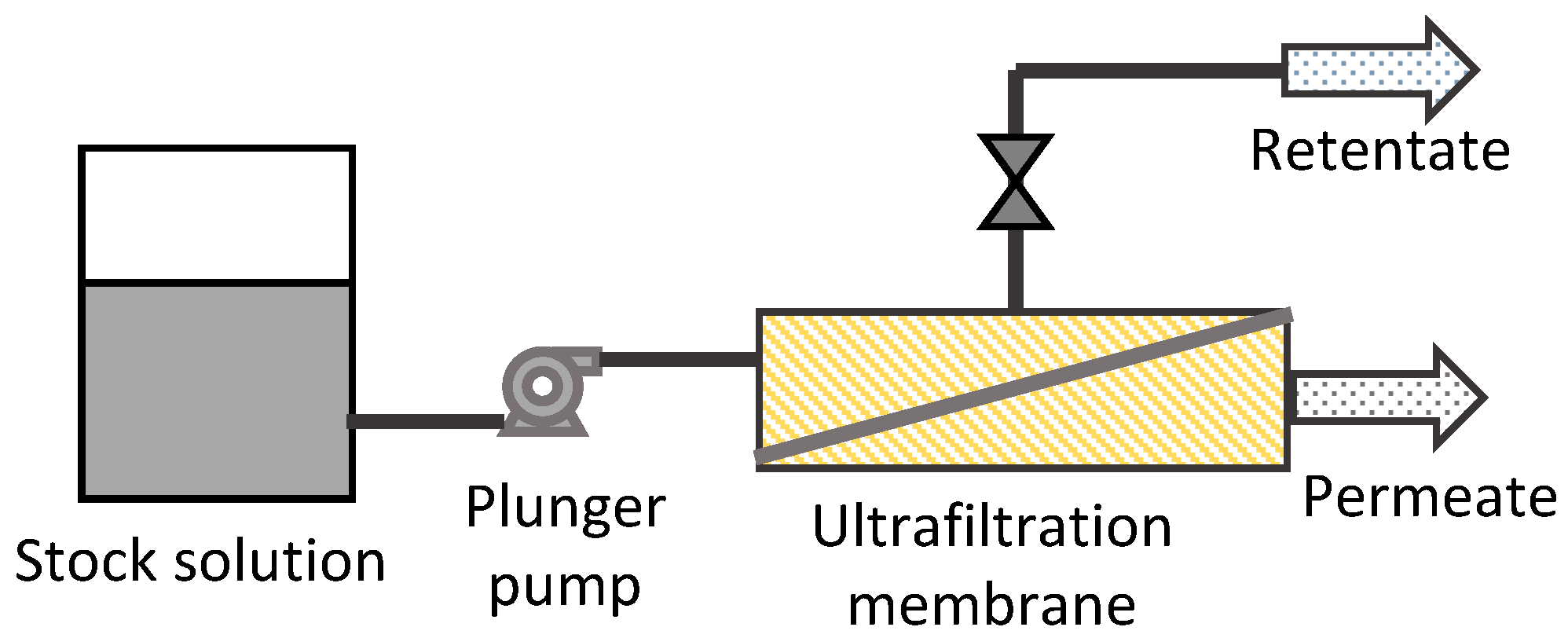

The fundamental permeation property of the membrane against chitosan oligosaccharides and chitosan polymers was evaluated in a filtration process without a chemical reaction (Figure 1). Stock solution of chitosan oligosaccharide (1, 5, or 10 g/L) or chitosan polymer solution after 1 h batch hydrolysis was fed to the ultrafiltration membrane modules. The permeate flow rate was set at 10, 25, or 100 mL/h. The retentate flow rate was adjusted to be the same as the permeate flow rate by using the back pressure regulator. The permeate solution was analyzed by HPLC. The permeation of chitosan polymer was quantified by precipitating out the polymer from the permeate solution with HPLC mobile phase. Rejection rate R was calculated as follows:

$$R=1-\frac{\mathrm{permeate} \mathrm{concentration}}{\mathrm{stock} \mathrm{solution} \mathrm{concentration}}$$

2.4. Continuous Hydrolysis with Membrane Reactor

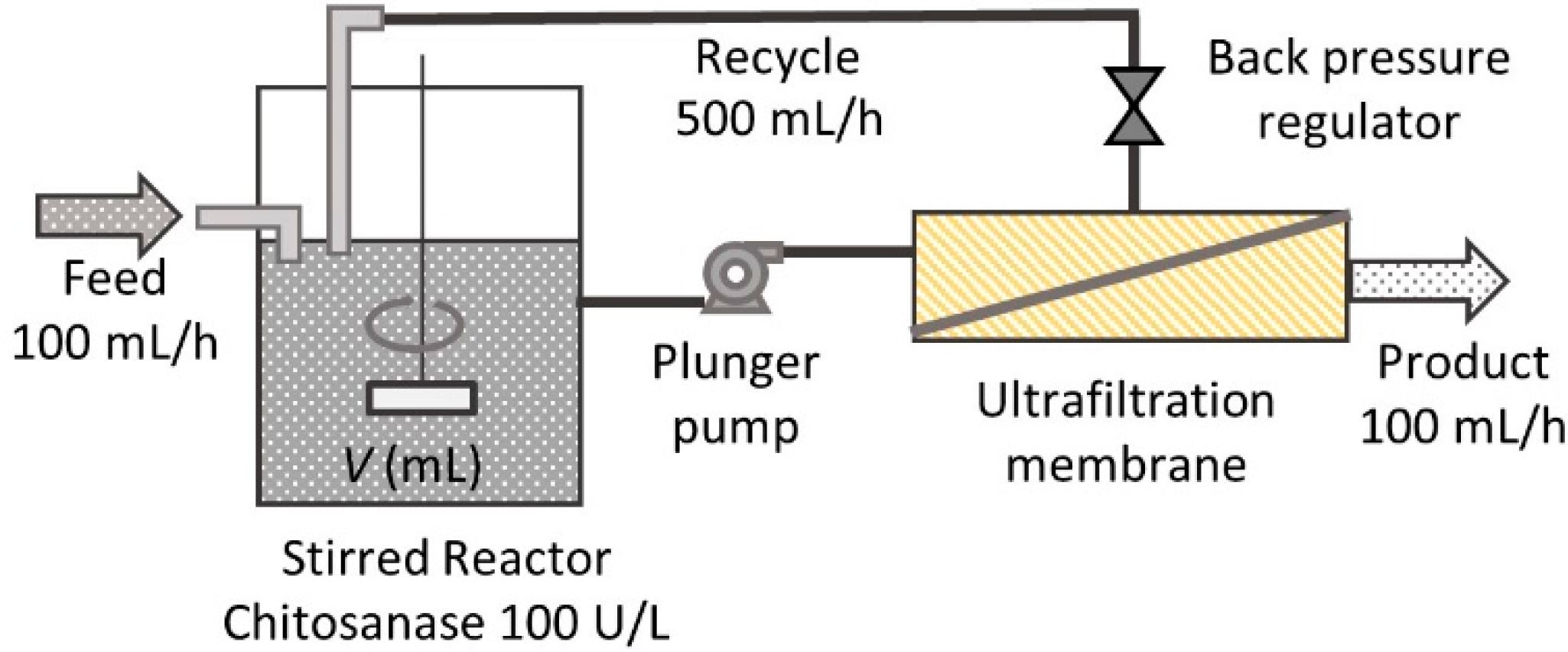

An enzyme membrane reactor was composed, as shown in Figure 2. A total of 10 g/L of chitosan solution containing chitosanase with a concentration of 100 U/L was charged in a beaker. The charging volume was 100–600 mL. A plunger pump carried the reacting solution to the membrane module at the flow rate of 600 mL/h. A back pressure regulator adjusted the product stream flow rate at 100 mL/h. The pressure at the pump head was less than the pressure limit of the membrane module of 4 bar in all conditions. The retentate solution was recycled into the reactor. Chitosan 10 g/L solution without chitosanase was continuously fed to the reactor at the flow rate of 100 mL/h to realize the continuous operation. Throughout the operation, the reaction mixture was stirred by a magnetic stirrer, and the reactor temperature was kept at 40 °C. A steady state was typically reached after three times the mean residence time had passed.

3. Results and Discussion

3.1. Reaction Modeling and Permeation Evaluation

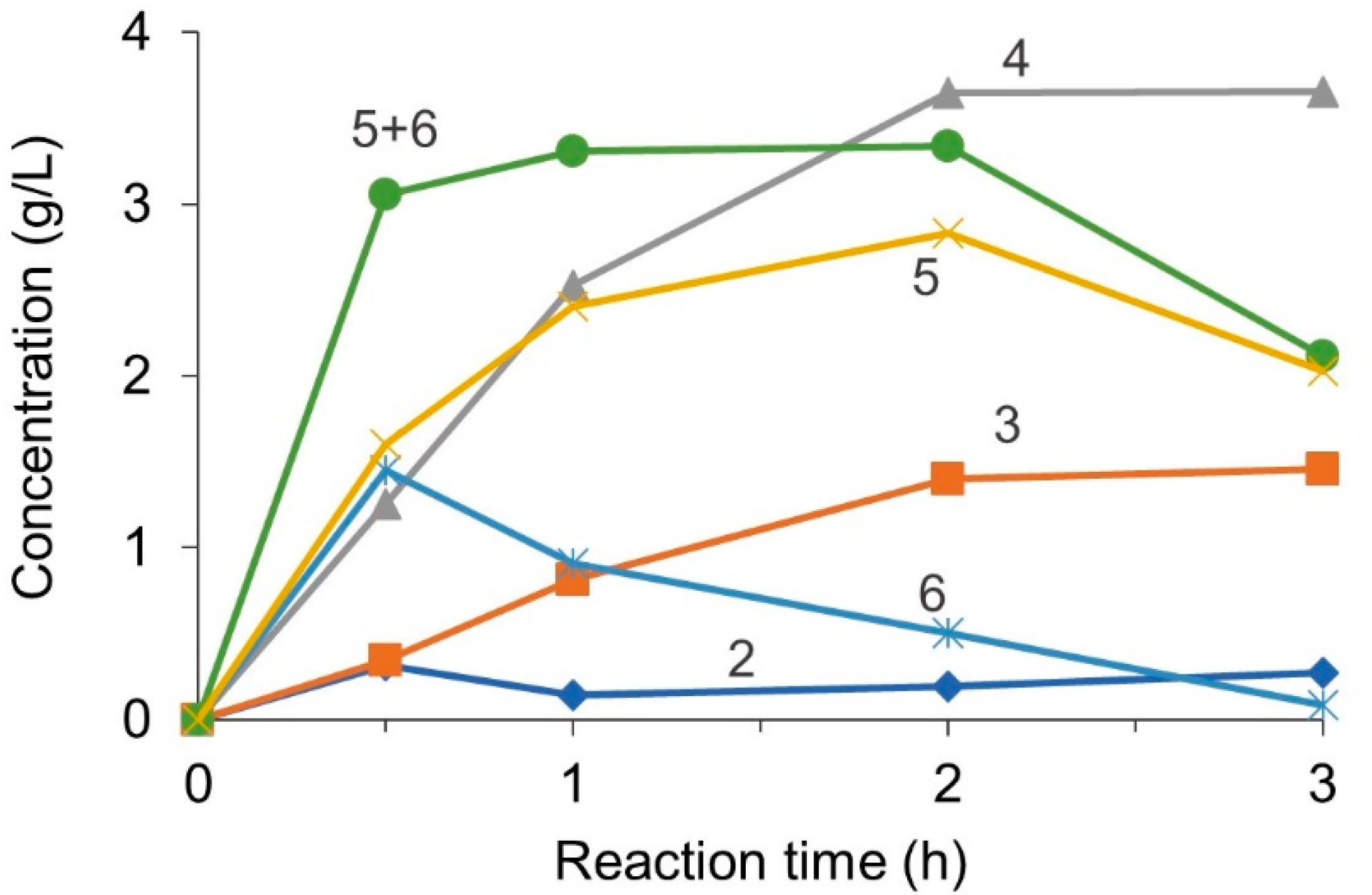

Figure 3 presents the reaction profile in a batch reactor. Streptomyces sp. N174 hydrolyzes chitosan in an endo-splitting manner [23]. It has no ability to produce a monomer. Thus, dimers and trimers are not hydrolyzable by chitosanase. In contrast, the target product of hexamers and pentamers can be further hydrolyzed to dimers, trimers, and tetramers. The concentration of the hexamers and pentamers increased and then decreased after peaking by the overreaction. The concentration of dimer and trimer, the final products of the enzymatic hydrolysis, increased monotonically. The overall tendency agrees well with the previous report [5]. An ultrafiltration membrane is attractive for the selective separation of the intermediate hexamer and pentamer from the reaction mixture containing the chitosanase to avoid further degradation of the target products.

Even after 24 h of reaction, the total concentration of chitosan oligomers was 8.5 g/L, indicating that 15 wt% of the input chitosan was unconvertable to oligomers. The deacetylation ratio of the chitosan reagent was over 80 mol%. Because the chitosanase cannot split GlcNAc-GlcNAc linkages [23], the remaining 15 wt% component can be attributed to the N-acetyl-D-glucosamine units. The yield of each oligosaccharide is, thus, defined as follows:

$$\mathrm{oligomer} \mathrm{yield}=\frac{\mathrm{obtained} \mathrm{oligomer} \mathrm{amount}}{\mathrm{total} \mathrm{amount} \mathrm{of} \mathrm{hydrolyzable} \mathrm{unit} }=\frac{\mathrm{obtained} \mathrm{oligomer} \mathrm{amount}}{\mathrm{input} \mathrm{chitosan} \mathrm{amount}\times \left(1-0.15\right)}$$

With the definition above, the sum of the hexamer and pentamer yield was around 39 wt% after 1 h reaction.

We considered a simplified chitosan hydrolysis reaction model shown in Figure 4. Because our focus was the selective production of a specific range of oligomers, the hydrolysis products were ramped into desired oligomers (B) and undesired smaller oligomers (C). Oligomers and polymers larger than desired oligomers were ramped into the reactant (A). A series-parallel type reaction was considered. Additionally, C generation pathways from A and B were considered.

For the reaction rate expression, the Michaelis–Menten-type equations were used. Because chitosanase can bind not only to digestible chitosan but also to undigestible chitosan trimer and dimer [24], all the reactants and products were included in the denominator.

$$r_1=\frac{v_{\max ,1}\left[\mathrm{A}\right]}{K_{\mathrm{m}1}+\left(\left[\mathrm{A}\right]+\left[\mathrm{B}\right]+\left[\mathrm{C}\right]\right)}$$

$$r_2=\frac{v_{\max ,2}\left[\mathrm{B}\right]}{K_{\mathrm{m}2}+\left(\left[\mathrm{A}\right]+\left[\mathrm{B}\right]+\left[\mathrm{C}\right]\right)}$$

$$r_3=\frac{v_{\max ,3}\left[\mathrm{A}\right]}{K_{\mathrm{m}3}+\left(\left[\mathrm{A}\right]+\left[\mathrm{B}\right]+\left[\mathrm{C}\right]\right)}$$

Boucher et al. reported the Michaelis constant K_m of the chitosanase Streptomyces sp. N174 for chitosan hydrolysis as 0.0293 g/L [25]. This value is employed for K_m1, K_m2, and K_m3 in this study. Although the actual values of the above Michaelis constants would differ for each reaction, the reactant concentration in this study is 10 g/L. Industrial applications would also employ the same range or even higher reactant concentrations. Thus, errors in the Michaelis constants are unimportant for the kinetic modelling of our interests. Values of v_max,1, v_max,2, and v_max,3 were obtained (

Table 1. Kinetic parameters for the enzymatic hydrolysis of chitosan.

	Value (h−1)	Standard Error		Correlation Coefficient
		(h−1)	(%)	${\mathit{v}}_{\mathbf{max},1}$	${\mathit{v}}_{\mathbf{max},2}$	${\mathit{v}}_{\mathbf{max},3}$
$v_{\max ,1}$	9.64	0.502	5.2	1	-	-
$v_{\max ,2}$	2.91	0.273	9.4	0.49	1	-
$v_{\max ,3}$	4.78	0.436	9.1	−0.318	−0.797	1

), by parameter fitting with the Levenberg–Marquardt method. For the parameter fitting, the following ordinary differential equations were solved with the backward differentiation formula:

$$\frac{\mathrm{d}\left[\mathrm{A}\right]}{\mathrm{d}t}=-r_1-r_3$$

$$\frac{\mathrm{d}\left[\mathrm{B}\right]}{\mathrm{d}t}=r_1-r_2$$

$$\frac{\mathrm{d}\left[\mathrm{C}\right]}{\mathrm{d}t}=r_2+r_3$$

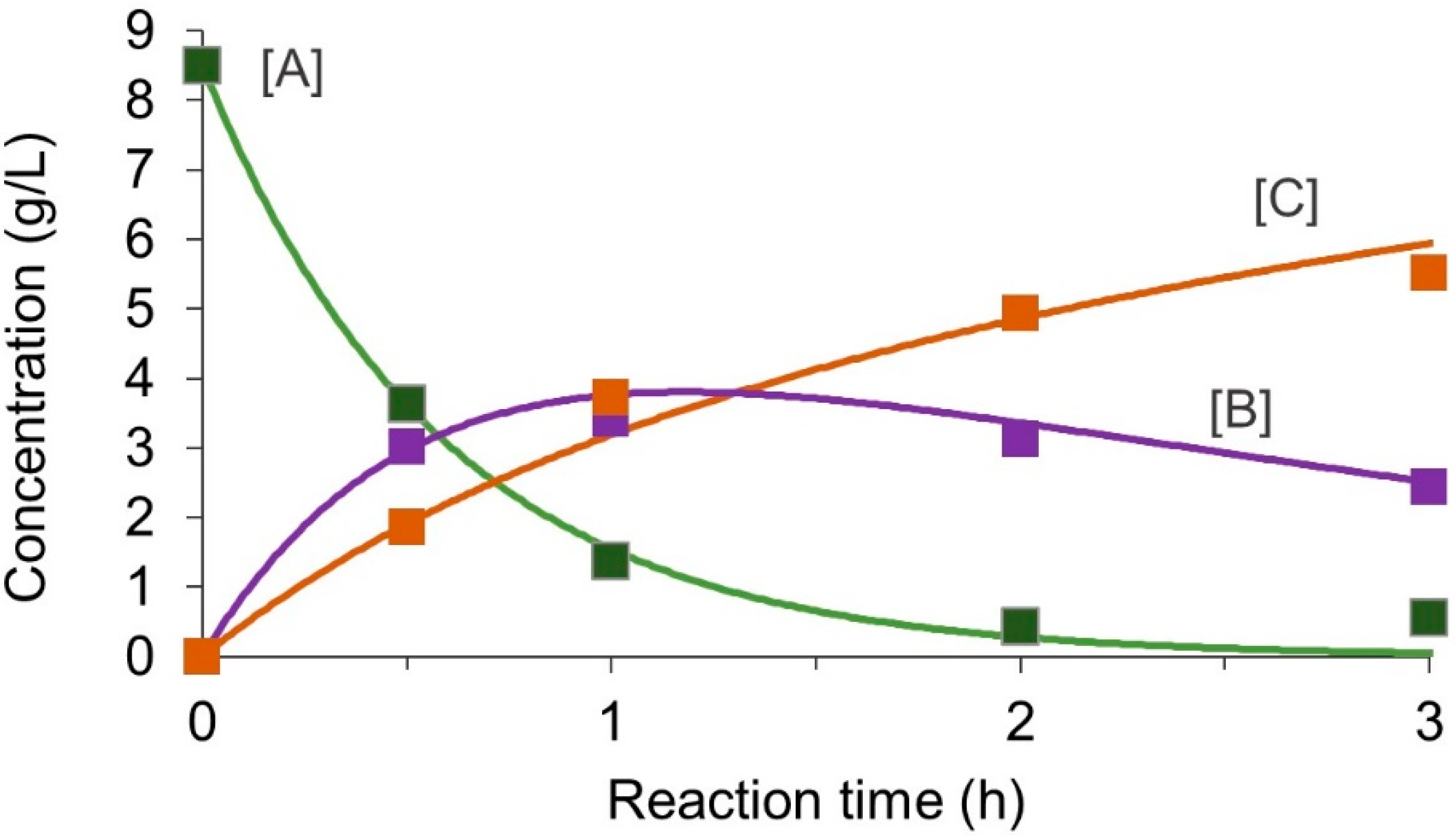

Figure 5 shows the fitted curves with the experimental results. Note that [A] was based on the D-glucosamine unit (85 wt% of the initial amount). The fitting curve matched well with the experimental results.

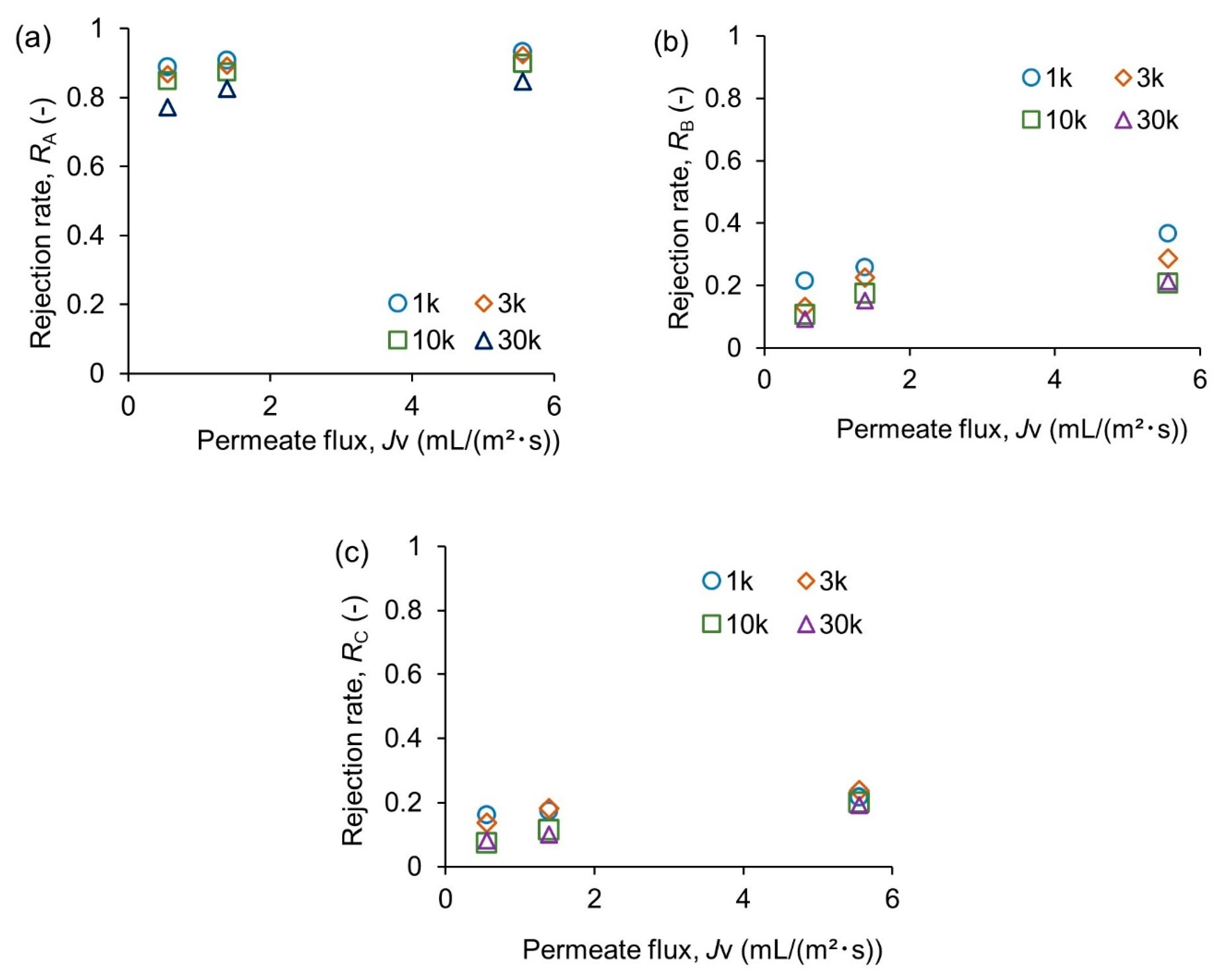

Next, the permeation performance of the membrane was evaluated. Figure 6 summarizes the results. In all cases, increased permeate flux resulted in higher rejection due to the concentration polarization effect [26]. The hexamer and pentamer have molecular weights of 823.8 and 985.0, respectively. A MWCO of 1k is the best for rejecting the permeation of the polymers larger than the target range based on the molecular weight. However, the rejection of chitosan was 89–93% with 1k MWCO (Figure 6a). These values differed only 1% from those with 3 k MWCO. Slight permeation of molecules with much higher molecular weights than MWCO was commonly reported [27,28]. The membrane pore size distribution or dynamic behavior of polymer molecules might be responsible for the permeation. In contrast, the permeation of the target oligomers was significantly affected by MWCO (Figure 6b). Rejection of target oligomers with 1 k MWCO reached 36% at the highest permeate flux of 5.6 mL/(m² s). A MWCO of 10k achieved a 15% smaller rejection at the same flux than a MWCO of 1 k. Enlargement of MWCO to 30 k did not further improve the permeability. Permeation resistance would shift from the membrane’s pore to the boundary layer in the solution [29]. According to these results, it is expected that neither 1k MWCO nor 30 k MWCO is suitable for a membrane reactor. High resistance to the product permeation or leaching of a large polymer will cause troubles with these membranes. Since enzyme activity can be affected by pressure applied for the membrane permeation [17], using a 10 k membrane might be the best choice to retain the reactant and separate the products.

3.2. Reactor Modeling and Comparison

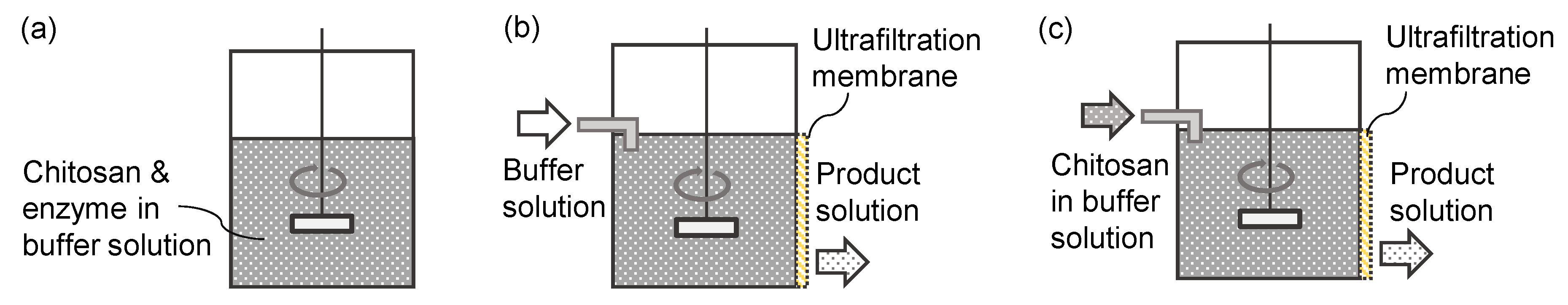

Based on the established reaction model and permeation performance, we have simulated reactors with different operation modes and membrane MWCOs. Figure 7 illustrates the operation modes. A membrane reactor can be operated in a semi-batch mode [13,18] (Figure 7b) or a continuous mode [3,5] (Figure 7c). In the semi-batch mode, the product solution flows out continuously. Buffer solution without reactant flows in at the same flow rate as the product so that the reaction volume is constant. The operation continues until only a small amount of reactants and products are in the reactor. In the continuous mode, the reactant solution without enzyme flows in. If the membrane performance and the enzyme activity are constant, the reactor can be in a steady state. Mean residence time (reactor volume/reactant flow rate) is crucial for continuous operation.

The mass balance equations for a semi-batch reactor are as follows:

$$\frac{\mathrm{d}\left[\mathrm{A}\right]}{\mathrm{d}t}V=-r_{1}V-r_{3}V-\left(1-R_{\mathrm{A}}\right)\left[\mathrm{A}\right]F$$

$$\frac{\mathrm{d}\left[\mathrm{B}\right]}{\mathrm{d}t}V=r_{1}V-r_{2}V-\left(1-R_{\mathrm{B}}\right)\left[\mathrm{B}\right]F$$

$$\frac{\mathrm{d}\left[\mathrm{C}\right]}{\mathrm{d}t}V=r_{2}V+r_{3}V-\left(1-R_{\mathrm{C}}\right)\left[\mathrm{C}\right]F$$

where R_i is the rejection rate of species i, V is the reactor volume, and F is the product flow rate. These equations were solved numerically.

Concentrations of the continuous membrane reactor can be solved analytically from the following mass balance equations:

$$F{\left[\mathrm{A}\right]}_{\mathrm{in}}=F{\left[\mathrm{A}\right]}_{\mathrm{out}}+F{\left[\mathrm{B}\right]}_{\mathrm{out}}+F{\left[\mathrm{C}\right]}_{\mathrm{out}}$$

$$F{\left[\mathrm{A}\right]}_{\mathrm{out}}-F{\left[\mathrm{A}\right]}_{\mathrm{in}}=-r_{1}V-r_{3}V$$

$$F{\left[\mathrm{B}\right]}_{\mathrm{out}}=r_{1}V-r_{2}V$$

$$F{\left[\mathrm{C}\right]}_{\mathrm{out}}=r_{2}V+r_{3}V$$

where [i]_in is the concentration of species i in the feed flow, and [i]_out is the concentration of species I in the product flow. Furthermore, [i]_out can be calculated from the concentration in the reactor as follows:

$${\left[i\right]}_{\mathrm{out}}=\left(1-R_i\right)\left[i\right]$$

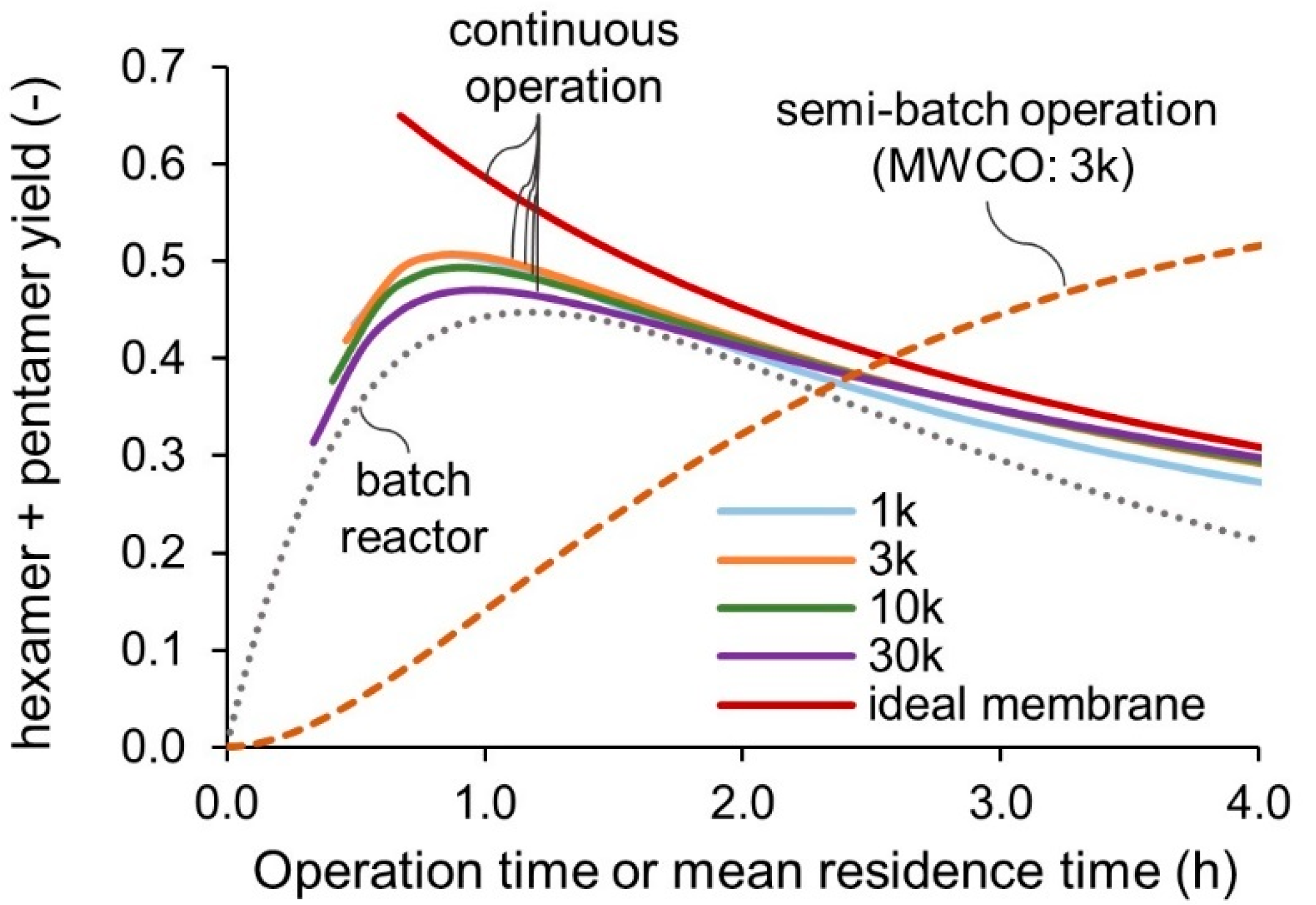

Figure 8 presents the simulated yield against the operation time or the mean residence time. The initial concentration and the feeding concentration of chitosan was 1 wt%. The product flow rate was 100 mL/h for semi-batch and continuous operations. In the batch reactor, the B yield reaches the maximum at around 1.2 h and then decreases due to the overreaction. In the simulation of a semi-batch operation, the reactor volume was 100 mL, and the product flow rate was 100 mL/h. The yield was defined from the total amount of the target product recovered from the permeate solution. It increased monotonically with the operation time and approaches the plateau. In the simulated case, the final yield was 60% at around 12 h of operation. The semi-batch mode improved the yield by 15% compared to the batch reactor. However, productivity per reactor volume per operation time decreased significantly due to the permeation resistance of the product. Increasing the product flow rate would help to shorten the operation time but would result in a diluted product solution. The continuous mode achieved a higher yield than the batch reactor with enhanced productivity. A larger MWCO value resulted in a lower yield due to reactant loss. In the case of an ideal membrane with 100% rejection of A and 0% rejection of B and C, yield and productivity can be further improved, as shown in the red line in Figure 8. Continuous feeding of the chitosan and recycling of the retentate results in the accumulation of the chitosan in the reactor. If the residence time is too short, it ends up with the chitosan concentration higher than the solubility limit of 5 wt%. The left ends of the curves in the Figure 8 indicate that the chitosan concentration in the reactor reaches 5 wt% at the steady state.

3.3. Experimental Validation

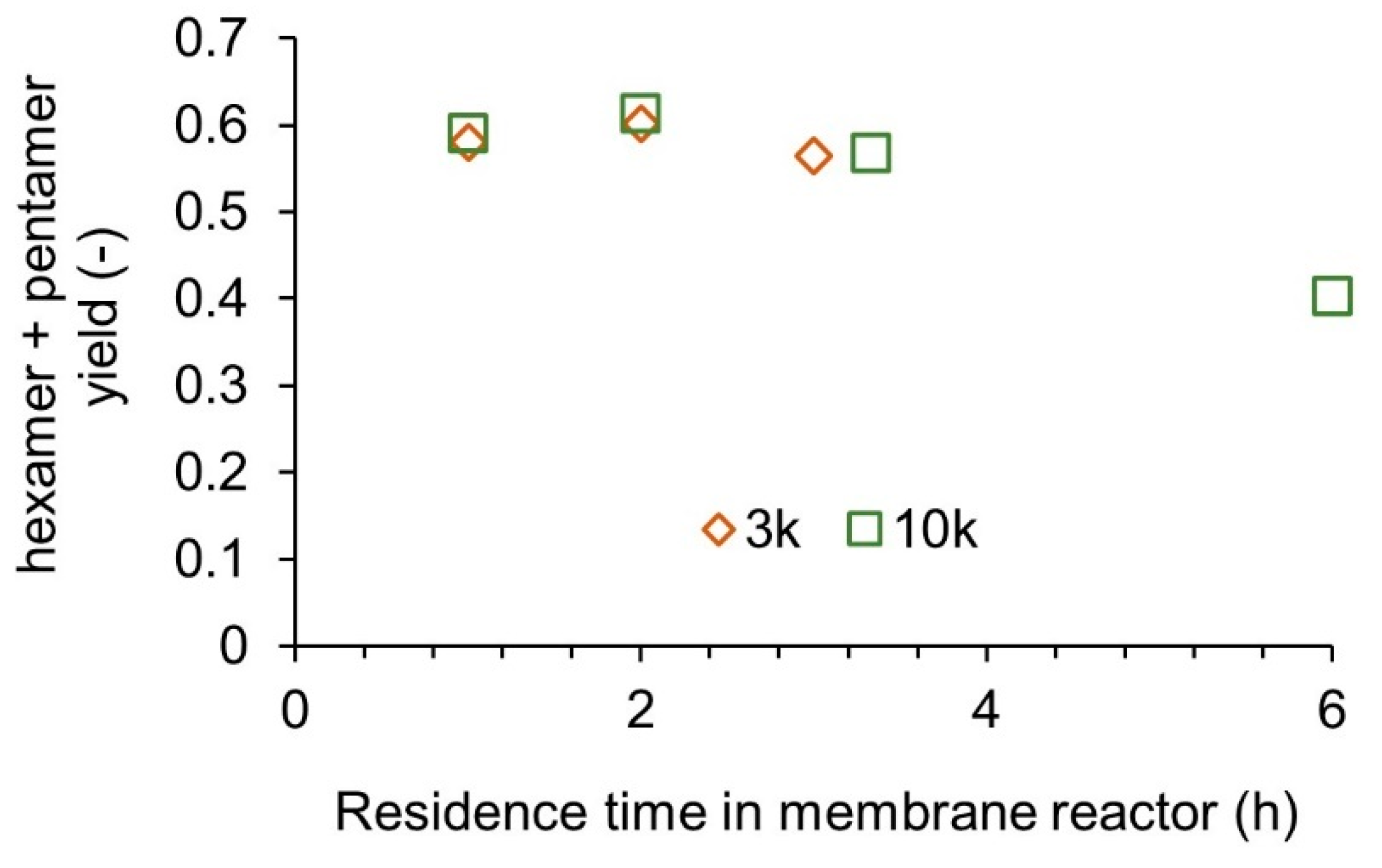

According to the simulations, continuous operation with a membrane of 3 k or 10 k MWCO would be desirable. Continuous operation of the membrane reactor was conducted, as shown in Figure 2. The mean residence time was adjusted by changing the reactor volume from 100 mL to 600 mL while keeping the feed flow rate. The results are shown in Figure 9. As in the model calculation, MWCOs of 3 k and 10 k resulted in a similar yield. Previous studies on chitosan oligosaccharide production with enzyme membrane reactors employed MWCOs of 2–5 k [5,13,19]. No significant difference in the selectivity by MWCO is expected in these ranges. However, regarding scale-up for industrial production, a larger MWCO of 10 k might be better for pressure reduction and fouling prevention.

Although the overall tendency against the residence time was similar, the maximum yield and optimum residence time differed vastly from the model prediction—a 10% higher yield than the model prediction was obtained. The rejection rate of chitosan was obtained using the semi-hydrolyzed solution for 1 h in the batch reactor. The actual rejection of the chitosan would be much higher at the initial stage of the hydrolysis. The longer residence time for the maximum yield might be attributed to the binding inhibition by chitin components. Although GlcNAc-GlcNAc bonding cannot be hydrolyzed, it can interact with chitosanases [24].

4. Conclusions

Simplified reaction rate equations and membrane permeation performances were combined to simulate membrane reactors. The optimal operation mode and MWCO value for selective and efficient production of chitosan oligosaccharides were discussed based on the simulation and validated experimentally. The following conclusions were drawn:

(1)

A tight membrane with a small MWCO value close to the target oligomer does not necessarily improve the reactor performance. Complete rejection of larger oligomers is difficult, even with the smallest MWCO. A coarse membrane with a larger MWCO is recommended to reduce the fouling risks and operating pressure;

(2)

Rejection of the membrane permeation concentrates the reacting medium at the residue side. Thus, a membrane reactor with continuous feeding of the reactant and recycling of the retentate solution can produce a higher yield in a shorter residence time than the batch reactor;

(3)

A membrane reactor with the semi-batch operation mode can obtain the target oligomer in a higher yield than with the continuous operation mode. However, the productivity is lower than the batch reactor because the permeation rate and concentration of the product are in a trade-off relationship;

(4)

Experimental results have an acceptable agreement with the model prediction. The membrane reactor model with the simplified reaction rate equations helps in designing the reactor blueprint. The discrepancy in the optimum residence time and yield will be reduced by considering the binding inhibition effect.

We employed commercial polyethersulfone membranes in this study. Considering the difficulty of completely rejecting large molecular weight components (Figure 6a), the development of novel polyethersulfone-based membranes [30,31,32] is essential for future studies further to increase the performance of the enzyme membrane reactors.
