Production of Phenylpropanoids, Naphthodianthrones and Antioxidant Status of Hypericum perforatum L. Transgenic Shoots

Abstract

Fifteen transgenic shoot clones (TS A-TS O) regenerated from Hypericum perforatum hairy roots were evaluated for growth characteristics, phenylpropanoid, and naphthodianthrone production, as well as non-enzymatic and enzymatic antioxidant status. Transgenic shoots displayed higher biomass production and non-altered phenotypes compared to control shoots. Phenylpropanoid production in TS was not related to phenylalanine ammonia lyase activity indicating that alternative enzymes could be involved in the regulation of phenylpropanoid/flavonoid biosynthesis. The positive correlation between phenylpropanoids (phenolic acids, flavonoids, flavan-3-ols, tannins) and non-enzymatic antioxidant assays suggested that these compounds are the main contributors to the redox state and radical scavenging properties of TS clones. More importantly, enhanced naphthodianthrone production (hypericin, pseudohypericin and protopseudohypericin) in TS was associated with the number of leaf dark glands. Concerning the enzymatic antioxidant status of TS, guaiacol peroxidase was shown as the main enzyme that turns down H₂O₂ levels, while the upregulation of superoxide dismutase coincided with decreased O₂^•− production. The efficiency of antioxidant enzymes for O₂^•− and H₂O₂ neutralization decreased the level of MDA and consequently delayed lipid peroxidation in TS clones. Altogether, H. perforatum transgenic shoots could be proposed as a prospective biotechnological system for scale-up production of naphthodianthrones and phenylpropanoids with antioxidant properties.

1. Introduction

Hypericum perforatum L. (St. John’s wort) is the most popular medicinal plant worldwide due to a broad diversity of phenolic compounds with pharmacological properties [1]. The aerial parts of H. perforatum wild-growing plants represented the main source of naphthodiathrones, acyl-phloroglucinols, flavonol glycosides, flavan-3-ols, and phenolic acids, while roots synthesized significant amounts of xanthones [2,3]. The naphthodianthrone hypericin commonly distributed into dark glands on the leaf and petal margins has been shown as a powerful photosensitizer used in photodynamic therapy of cancer and virus diseases [4]. In addition, prenylated phloroglucinols and flavonoids possessed antidepressant, anti-inflammatory, antimicrobial, antioxidant, and wound-healing activities [1,2]. The xanthones have been proposed as promising compounds with antibacterial, antifungal, and antidiabetic properties [5,6]. Despite these valuable medicinal properties, several studies indicated that the co-administration of H. perforatum products with other pharmaceuticals requires caution due to the occurrence of herb–drug interactions [7,8]. Namely, H. perforatum extracts activate cytochrome P450 and P-glycoprotein enzymes involved in conventional drug metabolism and these interactions might induce loss of therapeutic effect or toxicity [8]. Therefore, it is of great importance to monitor potential herbal–drug interactions and the appropriate adjusting of therapies consisting of H. perforatum extracts.

Taking into account the continuous demand of the pharmaceutical industry for H. perforatum raw material, many studies have been focused on the evaluation of various factors that influence the chemical composition of Hyperici herba. In this context, phytochemical variability of field-grown plants has been related to the geographical origin, abiotic and biotic environmental factors, contamination issues, as well the genotype, time of harvest, plant development, and physiological stage [5,9,10]. This heterogeneity of bioactive compound contents represents a major issue to the standardization of plant biomass from wild-growing plants [10]. Thus, cultivation of selected genotypes of H. perforatum (Topas, Anthos, Elixir, Hyperimed) is considered as the most reliable approach to maximize biomass yield and quantity of bioactive compounds for the industrial supply [11]. Even though H. perforatum has been widely cultivated at appropriate cropping protocols, plant metabolite alterations cannot be excluded due to the variations in climatic conditions occurring in different years [10]. To overcome these confounding factors, various biotechnological techniques have been applied to obtain H. perforatum raw material with stable amounts of secondary metabolites [12,13].

Plant cell and tissue culture technology represents a promising approach for the sustainable production of bioactive metabolites in controlled and aseptic conditions. Recently, optimization of culture conditions, bioreactor technology, elicitation, and genetic transformation have been established as attractive in vitro strategies to increase the quantity and quality of H. perforatum secondary metabolites [13,14,15]. Since the biological activity of plant extracts is greatly influenced by phenylpropanoid and naphthodianthrone contents, the enhancement of their production has been suggested as an important target for the genetic transformation of H. perofratum [14].

In the last two decades, Agrobacterium-mediated transformation has emerged as a novel approach for the modulation of secondary metabolite production in Hypericum in vitro cultures [14]. Agrobacterium rhizogenes-mediated transformation of H. perforatum represents a reliable method to obtain hairy root (HR) cultures characterized by fast growth on an auxin-free medium, as well as genetic and biochemical stability [16]. The rol and aux genes from the T-DNA of A. rhizogenes root-inducing (Ri) plasmid have been successfully integrated into the genome of H. perforatum [17,18,19] and other Hypericum species [20,21]. Those studies revealed that phenotypic characteristics, bioactive metabolites production, and antioxidant status of Hypericum HR clones depend on rol and aux gene expression and their copy numbers in the plant genome. Our previous studies revealed that the integration of A. rhizogenes T-DNA genes into transformed cells suppresses reactive oxygen species (ROS) production in H. perforatum HR cultures through the activation of antioxidant enzyme machinery and up-regulation of phenylpropanoid metabolism [22,23,24]. In this context, H. perforatum HR cultures were proposed as a perspective system for enhanced production of root-specific compounds, such as phenolic acids, flavonoids, and xanthones [19,22,24,25,26]. However, Hypericum HR cultures did not show capability for hypericins production, since the accumulation of these bioactive compounds is related to the development of dark glands in plant aerial parts [4].

To the best of our knowledge, H. perforatum HR cultures have a great potential for spontaneous regeneration into transgenic shoots upon exposure to light or photoperiod [22,27,28]. More importantly, the high regenerative potential of H. perforatum HR represents a valuable approach to obtain transgenic shoots as a sustainable culture system for the production of hypericins usually distributed in the aerial parts of the plant. The expression of rol gene loci from A. rhizogenes Ri-plasmid into plant genomes has been related to the unique morphological characteristics of transgenic plants such as dwarfism and increased branching [29]. Several studies pointed out that rol gene copy number is the main determinant for phenotypic alterations in H. perforatum transgenic plants including the number and density of dark glands as the multicellular reservoirs of hypericins [30,31]. The production of hypericins in Hypericum transgenic shoots has been observed to be comparable [22,30] or even higher [18,28,31] than non-transgenic shoots. In this context, we have previously observed considerable enhancement of hypericins content in one randomly selected H. perforatum transgenic shoot clone compared to non-transgenic shoots [28]. Koperdakova et al. [18] have also reported an increased production of hypericin in H. perforatum transgenic plantlets during several years of cultivation in in vitro conditions compared to those in control cultures. Furthermore, Bertoli et al. [27] have found a great variability in the contents of hypericin among twelve H. perforatum HR regenerated lines and selected only one transgenic line with superior production of hypericin. All these observations suggested that the screening of various H. perforatum transgenic shoot clones could be a promising strategy for the selection of elite lines with enhanced production of bioactive metabolites with antioxidant properties.

In this study, fifteen H. perforatum transgenic shoot clones (TS A-TS O) regenerated from the corresponding HR lines (HR A-HR O) were evaluated for the biomass production and phenotypic characteristics, production of phenylpropanoids and naphthodianthrones, as well antioxidant status.

2. Materials and Methods

2.1. Establishment of Hypericum perforatum Transgenic Shoots

The protocol for the establishment of fifteen H. perforatum TS clones (TS A-TS O) from corresponding HR lines (HR A-HR O) was described in our previous study [28]. Seeds were collected from H. perforatum plants growing in Pelister National Park, Republic of North Macedonia. A voucher specimen of the plant was deposited in the Herbarium (MKNH) at the Faculty of Natural Sciences and Mathematics, Ss. Cyril and Methodius University in Skopje. Collected seeds were surface sterilized with 70% C₂H₅OH, 1% NaOCl, rinsed several times in autoclaved water and inoculated on MS/B5 nutrient medium. Germinated in vitro seedlings were used for transformation experiments. Briefly, HR cultures were induced from wounded root explants of seedlings by infection with Agrobacterium rhizogenes strain A4. Single transformed roots induced from the explants were excised and cultured separately as individual clones. The transgenic nature of HR clones was previously confirmed by PCR amplification of the rolB gene [19]. The segments from all HR lines along with non-transformed roots (NTR) were inoculated on solid hormone-free MS/B₅ medium and exposed to photoperiod conditions of 16-h light and irradiance at 50 μmol·m²·s⁻¹. The NTR and HR A-HR O lines exhibited a potential for spontaneous shoot differentiation into corresponding non-transgenic shoots (NTS) and transgenic shoot clones (TS A-TS O). After the determination of regeneration frequency (RF), NTS and TS clones were multiplied on a solid MS/B₅ medium supplemented with 0.2 mg·L⁻¹ N⁶-benzyladenine (BA).

2.2. Growth and Phenotypic Characteristics

The NTS and TS clones were used for the determination of fresh weight (FW), dry weight (DW), FW/DW ratio, and dry weight yield (DWY). The morphology of shoot cultures was evaluated by measurement of shoot length (SL) and number of leaves per shoot (NLS). These parameters were used to calculate the index of compactness (IC = SL/NLS) of shoot cultures. Fully developed apical leaf couples were used for the determination of the number of dark glands per leaf (NDG).

2.3. Phenylpropanoid Production

The H. perforatum control (NTS) and transgenic shoot lines (TS A-TS O) were harvested, frozen in liquid nitrogen or lyophilized, and then stored at −80 °C, until phytochemical analyses. Briefly, phenolic compounds were extracted from powdered dry plant material with 80% (v/v) CH₃OH in an ultrasonic bath for 30 min at 4 °C [32,33]. Thereafter, methanolic extracts were centrifuged at 12,000 rpm for 15 min and the supernatants were used for the determination of total contents of phenolics (TP), flavonoids (TF), flavan-3-ols (TFA), condensed tannins (TCT), and phenolic acids (TPA). The protocols for quantification of TP, TF, TFA, TCT, and TPA in shoot extracts were described in our recent studies [23,24]. Spectrophotometric analyses were performed on SpectraMax 190 Microplate Reader (Molecular Devices Corp., Sunnyvale, CA, USA) supported with SoftMax Pro (v. 5.4.1) software.

2.4. UPLC-TUV Analysis of Naphthodianthrones

Extract preparation. The extracts were prepared by homogenization of 0.05 g lyophilized shoot cultures with 1 mL 80% (v/v) CH₃OH in an ultrasonic bath for 30 min. The homogenates were vortexed and centrifuged at 12,000 rpm for 15 min at 4 °C. The supernatants were filtered through 0.2 µm filters (Ministart RC 25, Sartorius Stedim Biotech, Germany) prior to the chromatographic analysis. The light was excluded as much as possible during all procedures for extract preparation.

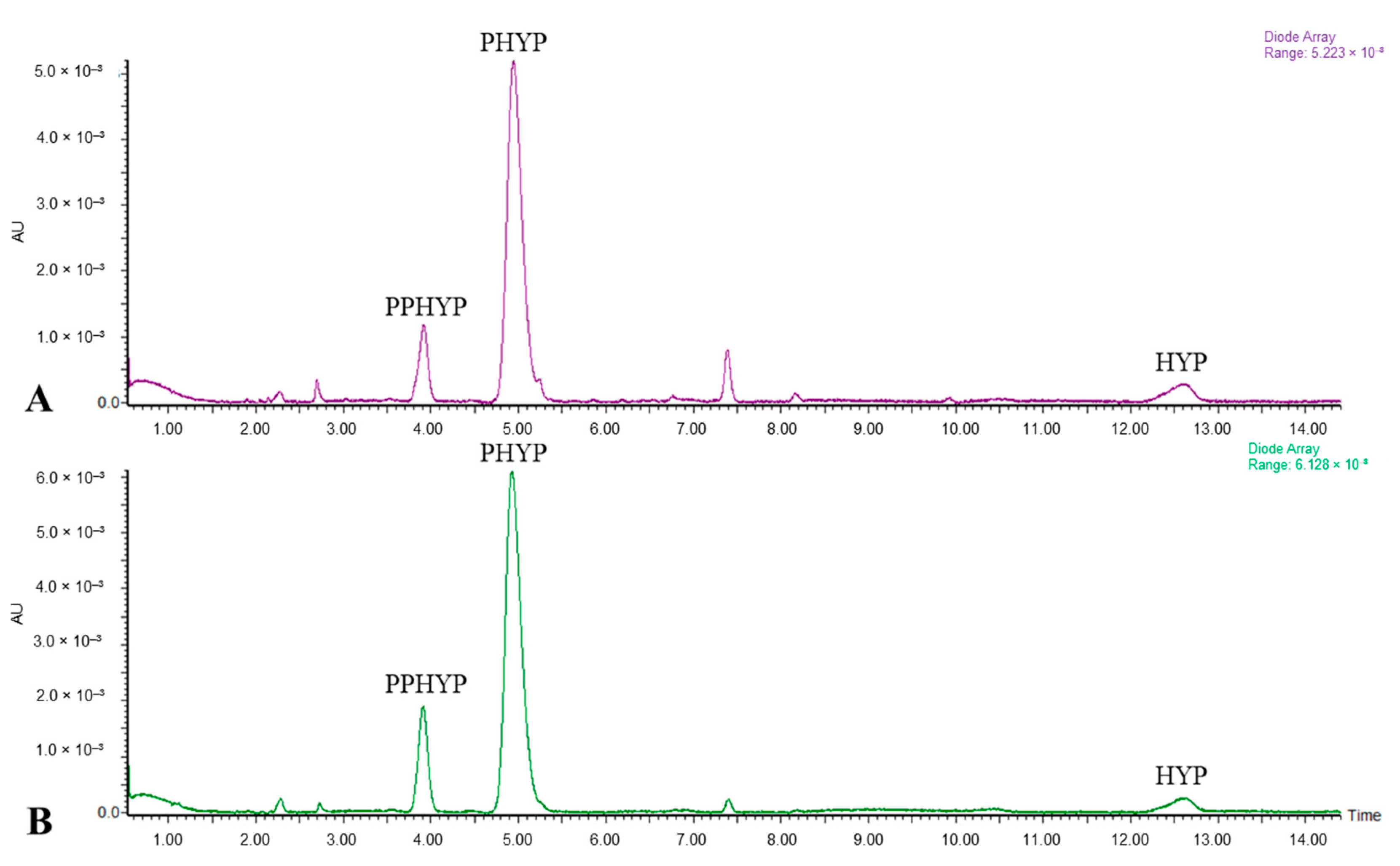

UPLC-TUV system. The identification and quantification of naphthodianthrones in shoot extracts were performed on ACQUITY ultra-performance liquid chromatography (UPLC) system (H-class, Waters, Milford, MA, USA) with dual-wavelength tunable UV/Vis (TUV) detector. The instrument was equipped with a quaternary solvent manager (QSM), sample manager-flow through the needle (SM-FTN), degassing system, and CH-A column heater controlled by ACQUITY UPLC Console and MassLynx v4.1 software (Waters). Chromatographic separation of naphthodianthrones was performed using ACQUITY UPLC HSS T3 column (100 × 2.1 mm, 1.8 μm; Waters) thermostated at 38 °C. The mobile phase consisted of two solvents A: 0.1% formic acid (v/v) and B: acetonitrile. The gradient program was as follows: from 10% to 50% B (0.0–1.0 min), from 50% to 100% B (1.0–14 min), 100% B (14–19 min), and from 100% to 10% B (19–25 min). The flow rate was set at 0.571 mL·min⁻¹ and the injection volume was 10 μL. Total run time was 25 min. Retention time (t_R) for protopseudohypericin (PPHYP), pseudohypericin (PHYP), and hypericin (HYP) were 3.9, 4.9, and 12.6 min, respectively.

The peak assignment of naphthodianthrones was based on the comparison of their retention time to those of reference standards. The reference standards of hypericin (HYP) and pseudohypericin (PHYP) were HPLC grade with >99% and >98% purity, respectively (PLANTA Naturstoffe Vertriebs GmbH, Vienna, Austria). The stock solutions of reference standards (1 mg·mL⁻¹) were prepared in 80% (v/v) CH₃OH and were stored at 4 °C. The external standard method was used for quantification of all identified naphthodianthrones in shoot samples at 590 nm according to their peak area.

The identification of naphthodianthrones in shoot extracts was additionally confirmed using the HPLC system connected to the Agilent G2445A ion-trap mass spectrometer equipped with an electrospray ionization (ESI) system and controlled by LCMSD software (Agilent, v.6.1.) as previously reported [22,28,34]. The UV/Vis, MS, and MS² spectra of the component peaks are presented in

Table 1. The UV and mass spectral data of naphthodianthrones in Hypericum perforatum shoot extracts.

Compounds	UV (nm)	[M–H]− (m/z)	–MS2 [M–H]− (m/z)
PPHYP	285, 375, 550	521	423
PHYP	288, 325, 465, 580	519	487, 421
HYP	288, 325, 465, 580	503	405

Note: PHYP: pseudohypericin; HYP: hypericin; PPHYP: protopseudohypericin; [M–H]⁻: deprotonated molecular ion; –MS² [M–H]⁻: collision fragment ions. MS² ions in bold indicate the base peak.

.

Method validation. The UPLC-TUV method was validated for linearity, sensitivity, accuracy and precision. To determine the linearity and range of the analytical method, the standard stock solutions (1 mg·mL⁻¹) for HYP and PHYP were diluted in concentration ranges of 0.02–0.1 μg·mL⁻¹ and 0.1–3 μg·mL⁻¹, respectively. Calibration curves of HYP and PHYP revealed a good linearity, as shown by the correlation coefficients above 0.99 in tested ranges (

Table 2. Linear regression equation, correlation coefficient and sensitivity of hypericin (HYP) and pseudohypericin (PHYP) by UPLC analysis.

Compound	Test Range (μg·mL−1)	Linear Regression Equation	R2	LOD (μg·mL−1)	LOQ (μg·mL−1)
PHYP	0.1–3	y = 334.76x − 26.28	0.997	0.0086	0.0260
HYP	0.02–0.1	y = 788x − 7.96	0.998	0.0005	0.0016

Note: PHYP: pseudohypericin; HYP: hypericin; R²: correlation coefficient, LOD: limit of detection, LOQ: limit of quantification.

). The sensitivity of the method was evaluated by determination of the limit of detection (LOD) and limit of quantification (LOQ). The LOD and LOQ values (Table 2) were calculated using the following formulas: LOD = 3.3 × σ/S and LOQ = 10 × σ/S, where σ is the standard deviation of the y-intercept and S is the slope of the calibration curve in the low concentration level (0.001–0.01 μg·mL⁻¹ for HYP and 0.01–0.2 μg·mL⁻¹ for PHYP). The accuracy of the method was assessed through a recovery test. The contents of HYP and PHYP in shoot samples were 0.027 and 1.918 μg·mL⁻¹, respectively. Then, three different concentration levels (high, medium, and low) of a standard mixture were added to this sample (Table S1).

The spiked samples were then analyzed with the previously established method. The recovery was calculated according to the following formula: Recovery = (found concentration-original concentration)/spiked concentration × 100%. The recoveries for HYP and PHYP are presented in Table S1. To determine the repeatability of the method, six replicates of mixed standard solutions containing PHYP and HYP at three different concentrations within the concentration range were injected and analyzed (Table S2). The relative standard deviation (RSD) of the components peak area was <1.5% (Table S2). These data demonstrated that the established UPLC method had satisfactory precision, accuracy, and repeatability for simultaneous analysis of HYP and PHYP in H. perforatum shoot culture extracts.

2.5. Phenylalanine Ammonia Lyase (PAL) and Polyphenol Oxidase (PPO) Activities

The extracts for the determination of phenylalanine ammonia lyase (PAL) and polyphenol oxidase (PPO) activities were prepared by homogenization of frozen shoot tissue (about 0.3 g) in the appropriate buffer solution. For the PAL assay 1 mL 100 mM sodium borate (Na₂B₄O₇, pH 8.8) was used, while for the PPO assay 50 mM K₂HPO₄/KH₂PO₄ (pH 7.0) buffer was used [24]. The enzyme extracts were also used for the determination of protein content by Bradford assay using bovine serum albumin as a standard [35].

The PAL assay was performed in a reaction mixture consisting of shoot extract and 20 mM L-phenylalanine [32,33]. The molar extinction coefficient of trans-cinnamic acid (ε₂₉₀ = 9630 L·mol⁻¹·cm⁻¹) was used to express PAL activity in pkat·mg⁻¹ proteins.

The PPO assay was conducted by mixing the shoot extract and 40 mM pyrocatechol [24]. The molar extinction coefficient of ortho-benzoquinone (ε₃₉₀ = 1417 L·mol⁻¹·cm⁻¹) was used to express PPO activity in nkat·mg⁻¹ proteins.

2.6. Antioxidant Activities

The antioxidant activity was determined in methanolic shoot extracts by the following methods: cupric ion-reducing antioxidant capacity (CUPRAC), ferric ion-reducing antioxidant power (FRAP), ABTS radical scavenging activity and lipid peroxidation inhibition (LPI). The CUPRAC and LPI assays were performed according to the protocols described in our previous studies [23,24].

The FRAP assay was determined in a reaction mixture including shoot extract and FRAP reagent [36]. The FRAP reagent consisted of 300 mM CH₃COONa buffer (pH 3.6), 10 mM TPTZ (2,4,6-tri(2-pyridyl)-s-triazine) in 40 mM HCl and 20 mM FeCl₃ (10:1:1, v/v/v). After incubation of the reaction mixture for 30 min at 37 °C in the dark, the sample absorbance was measured at 593 nm. The FRAP values were calculated with FeSO₄·7H₂O as a standard (0–10 mM). Results were expressed as micromoles of Fe²⁺ equivalents per gram of dry weight (μM Fe²⁺·g⁻¹ DW).

The ABTS radical scavenging activity was determined by the method of Re et al. [37]. The ABTS radical cation (ABTS^•+) was generated by a reaction of 7 mM ABTS [2.2′-azinobis(3-ethylbenzothiazoline-6-sulphonic acid) diammonium salt] with 2.45 mM K₂S₂O₈ (1:1, v/v). The mixture was incubated in the dark (12–16 h) at room temperature and the generated blue-green ABTS^•+ solution was diluted with CH₃OH to obtain an absorbance of 0.70 (±0.05) at 734 nm. All shoot extracts were diluted to give a 20–80% absorbance decrease in the ABTS^•+ solution. The reaction was initiated by the addition of ABTS^•+ solution to shoot extract and thoroughly mixed. The control samples contained CH₃OH instead of plant extract. The samples were allowed to stand for 6 min and the absorbance was recorded at 734 nm. The ABTS radical scavenging activity was calculated with trolox as a standard (0–1000 μM). Results were expressed as micromoles of Trolox equivalents (T) per gram of dry weight (μM T·g⁻¹ DM).

2.7. Radical Scavenging Activities

The scavenging activity (SA) of shoot extracts was determined for the hydrogen peroxide (H₂O₂), superoxide radical (O₂^•−), and hydroxyl radical (OH^•).

The H₂O₂ SA and O₂^•− SA were performed in shoot methanolic extracts as previously described in our studies [23,24], while OH^• SA was evaluated in water extracts with the method described by [38].

The protocol for OH^• SA was performed in the reaction mixture consisted of shoot extract, 28 mM 2-deoxy-2-D-ribose (in 20 mM KH₂PO₄/KOH buffer, pH 7.4), 0.1 mM EDTA, 0.1 mM FeCl₃, 1 mM ascorbic acid (AA) and 1 mM H₂O₂. After incubation at 37 °C for 1 h, 1% trichloroacetic acid (TCA) and 2.8% thiobarbituric acid (TBA) were added and the mixture was incubated at 95 °C for 30 min. The absorbance of pink colored complex was measured at 532 nm. The OH^• SA of shoot extracts was calculated with mannitol as a standard (0–10 mM). Results were expressed as millimoles of mannitol equivalents (M) per gram of dry weight (mM M·g⁻¹ DW).

2.8. Antioxidant Enzymes

Antioxidant enzymes such as guaiacol peroxidase (PX), ascorbate peroxidase (APX), catalase (CAT), and superoxide dismutase (SOD) were determined in shoot extracts. The procedure for enzyme extraction was performed by the method described in our previous study [24].

The PX activity was measured in a reaction mixture consisting of enzyme extract, 2% guaiacol, and 0.3% H₂O₂ [39]. The rate of absorbance increase due to tetraguaiacol formation was monitored for a period of 5 min at 470 nm. The molar extinction coefficient of tetraguaiacol (ε₄₇₀ = 26.6 L·mol⁻¹·cm⁻¹) was used to express PX activity in nkat·mg⁻¹ proteins.

The APX activity was determined by mixing enzyme extract with 0.5 mM AA and 1 mM H₂O₂ [40]. The rate of absorbance decrease due to AA oxidation was monitored for a period of 10 min at 290 nm. The molar extinction coefficient of AA (ε₂₉₀ = 2.8 L·mol⁻¹·cm⁻¹) was used to express APX activity in pkat·mg⁻¹ proteins.

The CAT activity was performed in a reaction mixture consisting of enzyme extract, 0.1% H₂O_2, and 50 mM potassium phosphate buffer [41]. The rate of absorbance decrease due to H₂O₂ consumption was monitored for a period of 1 min at 240 nm. The molar extinction coefficient of H₂O₂ (ε₂₄₀ = 43.6 L·mol⁻¹·cm⁻¹) was used to express CAT activity in nkat·mg⁻¹ proteins.

The SOD activity was measured through the determination of the sample’s ability to inhibit photochemical reduction of NBT [42]. The reaction mixture consisting of enzyme extract, 130 mM methionine, 750 μM NBT, and 20 μM riboflavin was illuminated for 15 min. The absorbance of the illuminated reaction mixture was recorded at 560 nm and compared with that of the non-illuminated reaction mixture that served as a control. One unit (U) of SOD activity was defined as the amount of enzyme required to cause 50% inhibition of NBT photoreduction rate. The SOD activity was expressed as U·mg⁻¹ protein.

2.9. Oxidative Stress Markers

The shoot extracts for quantification of oxidative stress markers H₂O₂ and malondialdehyde (MDA) were prepared from fresh tissue using 5% TCA, while O₂^•− production rate was assessed in the extracts for determination of antioxidant enzymes.

The endogenous H₂O₂ level was determined in the reaction mixture consisting of shoot extract, 10 mM K₂HPO₄/KH₂PO₄ buffer (pH 7.0), and 1 M KI [43]. After incubation at room temperature for 1 h, the sample absorbance was measured at 390 nm. The H₂O₂ content was calculated using H₂O₂ as a standard (0–1000 μM). The results were expressed as micromoles of H₂O₂ per gram of fresh weight (μM H₂O₂·g⁻¹ FW).

The O₂^•− production rate was measured in a mixture containing shoot extract, 50 mM potassium phosphate buffer (pH 7.0), and 10 mM hydroxylamine hydrochloride [44]. Thereafter, an aliquot of Griess reagent was added to the reaction mixture and the absorbance was measured at 530 nm. The O₂^•− production rate was calculated with NaNO₂ as a standard (0–1000 μM). The results were expressed as nanomoles of generated O₂^•− per min and gram of fresh weight (nM O₂^•− ·min⁻¹·g⁻¹ FW).

The MDA content was determined by mixing shoot extracts with 0.5% TBA in 20% TCA and further heating of the reaction mixture at 95 °C for 30 min [45]. After cooling to room temperature, the sample absorbance was monitored at 532 nm and at 600 nm to subtract the non-specific absorbance. The MDA content was calculated using the molar extinction coefficient of MDA (155 mM⁻¹·cm⁻¹) and the results were expressed as nanomoles MDA per gram of fresh weight (nM MDA·g⁻¹ FW).

2.10. Statistical Analysis

In this study, we have evaluated statistical significances between fifteen transgenic shoot clones including non-transgenic shoots (independent variables) on the analyzed parameters that were related to growth and morphological characteristics, phenylpropanoid and naphthodianthrone production, non-enzymatic and enzymatic antioxidant status, as well oxidative stress marker contents (dependent variables). The experiments with transgenic shoot clones were independently repeated two times under the same conditions and all analyses were performed in triplicate. All data were presented as mean values with standard deviation (±SD). The data were analyzed by one-way ANOVA (version 5.0; StatSoft Inc., Tulsa, OK, USA) to detect significant differences between shoot samples. A post hoc separation of means between different shoot clones was performed by Duncan’s test (p < 0.05). The data for growth and morphological characteristics, phenylpropanoid and naphthodianthrone contents, as well for the antioxidant status were subjected to principal component analysis (PCA) and hierarchical agglomerative clustering (HAC) using the statistical software XLSTAT 2014.5.03 (Addinsoft, New York, NY, USA). The HAC was performed using the Ward method as an amalgamation rule and squared Euclidean distance as a measure of the proximity between shoot samples. Pearson’s correlation coefficients between the analyzed parameters were obtained by R software v. 4.2.1 (R Core Team, Vienna, Austria).

3. Results

3.1. Establishment of Hypericum perforatum Transgenic Shoots

Transgenic shoot clones (TS A-TS O) of H. perforatum were regenerated from corresponding hairy root clones (HR A-HR O) grown on hormone-free MS/B₅ medium under photoperiod (Figure 1A). Non-transgenic shoots (NTS) that served as a control were regenerated from non-transgenic root cultures (NTR). The regenerated shoots were isolated from root tissues and then cultivated on a medium supplemented with 0.2 mg·L⁻¹ BA for incessant growth. After 1 month of cultivation, shoot clones were successfully multiplied (Figure 1B) and were evaluated for differences in morphological and growth characteristics, production of phenylpropanoids and naphthodianthrones, as well antioxidant status.

3.2. Morphological and Growth Characteristics of Transgenic Shoots

The cultivation of HR and NTR explants on hormone-free MS/B₅ solid medium resulted in spontaneous regeneration into corresponding TS clones and NTS. The RF of HR and NTR explants was evaluated after 1 month of cultivation (

Table 3. Morphological and growth characteristics of Hypericum perforatum transgenic shoots.

Root Cultures	RF (%)	Shoot Cultures	FW (g)	DW (g)	FW/DW	DWY (%)	IC (NLS/SL)	NDG
NTR	20.00 ± 1.50 b–e	NTS	5.28 ± 0.59 bc	0.34 ± 0.02 d	15.48 ± 1.24 e	6.46 ± 0.32 de	3.73 ± 0.33 cdg	9.00 ± 1.83 bc
HR A	26.60 ± 0.80 g	TS A	2.41 ± 0.33 a	0.27 ± 0.03 bc	8.83 ± 0.38 a	11.33 ± 1.00 n	3.43 ± 0.39 bd	9.75 ± 0.50 be
HR B	20.00 ± 2.00 b–df	TS B	13.70 ± 1.23 e	0.63 ± 0.01 fg	21.81 ± 1.57 gh	4.58 ± 0.20 ac	2.40 ± 0.11 a	15.67 ± 3.21 lm
HR C	12.50 ± 1.20 a	TS C	17.47 ± 2.51 f	0.70 ± 0.04 i	25.06 ± 1.45 h	3.99 ± 0.11 a	3.31 ± 0.14 bc	10.75 ± 1.50 bh
HR D	45.00 ± 2.10 hi	TS D	18.60 ± 3.45 f	0.77 ± 0.05 j	24.10 ± 1.31 h	4.15 ± 0.30 ab	3.11 ± 0.16 be	10.67 ± 1.15 bg
HR E	50.00 ± 3.80 i	TS E	14.17 ± 1.66 e	0.76 ± 0.02 j	18.58 ± 1.29 f	5.38 ± 0.19 cd	3.68 ± 0.17 cd	12.50 ± 2.08 c–k
HR F	15.00 ± 0.70 ac	TS F	2.16 ± 0.22 a	0.21 ± 0.01 a	10.31 ± 1.04 ab	9.69 ± 0.09 lm	4.23 ± 0.41 f–k	6.00 ± 1.00 a
HR G	78.00 ± 5.60 k	TS G	8.57 ± 0.14 d	0.59 ± 0.03 f	14.61 ± 1.23 de	6.85 ± 0.50 eh	4.72 ± 0.03 kl	14.00 ± 1.63 i–km
HR H	44.00 ± 2.40 h	TS H	4.05 ± 0.28 ab	0.32 ± 0.01 d	12.78 ± 0.73 cd	7.82 ± 0.31 f–jl	3.93 ± 0.20 dj	8.60 ± 0.89 ab
HR I	16.70 ± 0.90 ad	TS I	10.03 ± 1.10 d	0.68 ± 0.02 g–i	14.71 ± 1.13 de	6.80 ± 0.49 eg	5.11 ± 0.68 lm	12.00 ± 2.45 c–k
HR J	12.50 ± 0.40 a	TS J	9.17 ± 0.56 d	0.63 ± 0.02 fh	14.56 ± 1.27 de	6.87 ± 0.62 ei	3.83 ± 0.18 cdi	11.40 ± 0.89 bj
HR K	65.00 ± 4.40 j	TS K	18.68 ± 2.20 f	0.98 ± 0.07 k	19.10 ± 1.86 fg	5.24 ± 0.10 bc	3.00 ± 0.10 b	13.33 ± 1.15 g–l
HR L	82.00 ± 7.90 k	TS L	4.06 ± 0.88 ac	0.27 ± 0.01 bc	14.86 ± 1.33 de	6.73 ± 0.42 ef	3.81 ± 0.29 cdh	11.67 ± 0.58 bk
HR M	22.20 ± 3.40 dg	TS M	5.17 ± 0.19 bc	0.42 ± 0.02 e	12.28 ± 1.21 cd	8.14 ± 0.81 jk	5.27 ± 0.15 m	9.75 ± 0.96 bf
HR N	23.30 ± 1.60 e–g	TS N	2.19 ± 0.10 a	0.23 ± 0.01 ac	9.53 ± 0.75 ab	10.49 ± 1.20 mn	3.62 ± 0.05 c–e	11.00 ± 2.31 bi
HR O	14.80 ± 2.20 ab	TS O	2.59 ± 0.21 a	0.23 ± 0.01 ab	11.38 ± 0.94 bc	8.79 ± 0.97 kl	3.71 ± 0.56 cdf	9.40 ± 1.14 bd

Note: NTR: non-transgenic roots; HR A-HR O: hairy root clones; NTS: non-transgenic shoots; TS A-TS O: transgenic shoot clones; RF: regeneration frequency; FW: fresh weight; DW: dry weight; FW/DW ratio: fresh weight/dry weight ratio; DWY: dry weight yield; IC: index of compactness; NLS: number of leaves per shoot; SL: shoot length; NDG: number of dark glands. The values in one column marked with different lower-case letters denoted significant differences at p < 0.05 between clones (Duncan’s multiple range test).

). The HR clones showed significant differences in RF from 12.5% to 82%. A maximum RF was observed for HR G and HR L clones, which was about 4-fold higher in comparison to NTR. In contrast, HR C and HR J clones showed significantly lower RF (1.6-fold) compared to NTR. Multiplied TS clones and NTS cultures of H. perforatum were used for the evaluation of biomass accumulation FW, DW, FW/DW ratio, and DWY, as well as morphological characteristics including the IC and NDG (Table 2).

The FW production among TS clones varied from 2.16 to 18.68 g. The FW accumulation in TS D and TS K was markedly higher (about 3.5-fold) than that found in NTS. Results also showed variability in DW production among TS clones from 0.21 to 0.98 g. The highest DW production was noticed in TS K, which was about 2.9-fold of that observed in NTS. The FW/DW ratio of TS clones ranged from 8.83 to 25.06. The TS C and TS D clones showed a significantly higher FW/DW ratio (about 1.6-fold) than that observed in NTS. With respect to DWY in TS clones, the values varied from 3.99% to 11.33%. The TS A and TS N clones displayed about 1.7-fold higher DWY than that noticed in NTS. The IC in TS clones varied from 2.40 to 5.27, while NTS had a value of 3.73. Only three clones (TS G, TS I, and TS M) showed significantly higher IC values (up to 1.4-fold) compared to NTS. The NDG in TS clones ranged from 6.00 to 15.67, while NTS showed a value of 9.00. Three clones denoted as TS B, TS G, and TS K exhibited the highest NDG value (from 1.5- to 1.7-fold) than that found in control shoots.

3.3. Phenylpropanoid Production in Transgenic Shoots

The results for phenylpropanoid contents, as well as for phenylalanine ammonia lyase (PAL) and polyphenol oxidase (PPO) activities in H. perforatum shoot cultures are presented in

Table 4. Phenylpropanoid production in Hypericum perforatum transgenic shoots.

	TP (mg GA·g−1 DW)	TF (mg C·g−1 DW)	TFA (mg C·g−1 DW)	TPA (mg Py·g−1 DW)	TCT (mg CG·g−1 DW)	PAL (pkat·mg−1 P)	PPO (nkat·mg−1 P)
NTS	45.06 ± 1.40 f	19.77 ± 2.00 eg	5.16 ± 0.21 f	3.60 ± 0.02 h	3.30 ± 0.02 hj	0.72 ± 0.10 fg	5.60 ± 0.26 a
TS A	38.95 ± 2.30 e	22.26 ± 0.91 h	4.14 ± 0.25 d	2.44 ± 0.08 ef	2.85 ± 0.14 g	2.80 ± 0.30 i	51.39 ± 3.01 l
TS B	42.13 ± 1.63 ef	18.09 ± 1.09 de	4.64 ± 0.01 e	2.38 ± 0.18 ef	2.41 ± 0.03 cf	0.63 ± 0.25 eg	24.45 ± 1.60 j
TS C	61.05 ± 3.29 h	26.14 ± 1.38 i	5.80 ± 0.20 g	3.61 ± 0.16 h	3.17 ± 0.16 i–k	0.30 ± 0.11 b–d	51.17 ± 2.44 l
TS D	51.69 ± 0.90 g	26.32 ± 1.53 i	7.08 ± 0.13 h	3.64 ± 0.03 h	3.35 ± 0.13 hk	0.70 ± 0.19 fg	27.74 ± 1.02 k
TS E	62.03 ± 0.74 h	22.86 ± 1.03 h	7.56 ± 0.11 i	3.85 ± 0.28 i	3.47 ± 0.23 h	0.16 ± 0.01 ab	17.65 ± 1.85 gh
TS F	61.63 ± 4.28 h	27.82 ± 0.45 i	10.44 ± 0.37 j	4.35 ± 0.13 j	4.20 ± 0.13 l	1.00 ± 0.10 h	23.13 ± 2.60 ij
TS G	40.70 ± 1.57 e	22.80 ± 1.84 h	4.18 ± 0.16 d	3.22 ± 0.07 g	2.82 ± 0.20 fg	0.24 ± 0.00 ac	14.26 ± 2.14 bf
TS H	35.12 ± 1.48 bd	19.26 ± 0.97 ef	4.13 ± 0.11 d	2.30 ± 0.14 df	2.51 ± 0.04 cd	0.35 ± 0.02 b–d	13.61 ± 0.42 bd
TS I	32.09 ± 0.16 b	16.95 ± 1.03 cd	2.50 ± 0.16 b	2.42 ± 0.05 ef	2.06 ± 0.09 b	0.59 ± 0.06 ef	20.57 ± 3.27 i
TS J	54.22 ± 3.44 g	23.53 ± 1.89 h	5.42 ± 0.22 f	3.49 ± 0.02 h	3.28 ± 0.11 hi	0.77 ± 0.09 fg	11.89 ± 0.06 b
TS K	35.62 ± 1.23 cd	15.18 ± 0.19 bc	3.30 ± 0.26 c	2.27 ± 0.06 de	2.72 ± 0.25 d–g	0.29 ± 0.14 ad	15.32 ± 0.76 c–fh
TS L	39.36 ± 4.03 e	20.64 ± 1.48 fg	3.53 ± 0.24 c	1.88 ± 0.09 c	2.53 ± 0.18 ce	0.10 ± 0.01 a	15.18 ± 0.37 c–g
TS M	32.13 ± 2.34 b	14.80 ± 0.78 b	2.48 ± 0.14 b	1.53 ± 0.01 b	2.03 ± 0.03 b	0.31 ± 0.05 b–d	11.49 ± 3.14 b
TS N	35.17 ± 0.08 bc	8.73 ± 0.19 a	2.61 ± 0.16 b	2.20 ± 0.10 d	1.92 ± 0.06 b	0.97 ± 0.07 h	13.50 ± 1.10 bc
TS O	23.26 ± 0.99 a	7.36 ± 0.96 a	1.85 ± 0.03 a	1.29 ± 0.18 a	1.37 ± 0.08 a	0.45 ± 0.04 de	14.22 ± 0.01 be

Note: NTS: non-transgenic shoots; TS A-TS O: transgenic shoot clones; TP: phenolics; TF: flavonoids; TFA: flavan-3-ols; TCT: condensed tannins; TPA: phenolic acids; GA: gallic acid; Py: pyrocatechol; C: catechin; CG: cyanidin-3-glucoside; PAL: phenylalanine ammonia-lyase; PPO: polyphenol oxidase; P: proteins; DW: dry weight. The values in one column marked with different lower-case letters denoted significant differences at p < 0.05 between clones (Duncan’s multiple range test).

. The contents of phenolics (TP) in TS clones ranged from 23.26 to 62.03 mg GA·g⁻¹ DW. Five clones denoted as TS C-TS F and TS J showed significantly higher TP amounts (up to 1.4-fold) compared to NTS. Total flavonoid (TF) contents in TS clones showed values from 7.36 to 27.82 mg C·g⁻¹ DW. Three clones TS C, TS D, and TS F exhibited the highest TF production (about 1.4-fold) than that found in NTS. The amounts of flavan-3-ols (TFA) in TS clones varied from 1.85 to 10.44 mg C·g⁻¹ DW. The TS F clone showed 2-fold elevated TFA production compared to NTS. The TS clones displayed a variation in condensed tannins (TCT) contents (1.37–4.2 mg CG·g⁻¹ DW). The highest TCT production (1.3-fold) was noticed for the TS F clone in comparison to NTS. Total phenolic acids (TPA) content in TS clones varied from 1.29 to 4.35 mg Py·g⁻¹ DW. Two clones TS E and TS F showed slightly higher TPA contents than that found in NTS.

The PAL activity in TS clones varied from 0.1 to 2.8 pkat·mg⁻¹ P. Three clones denoted as TS A, TS F, and TS N showed significantly higher enzyme activity (from 1.3- to 3.9-fold) compared to NTS. Present results demonstrated that all tested TS clones had markedly enhanced PPO activity (11.49–51.39 nkat·mg⁻¹ P) compared to NTS (5.6 nkat·mg⁻¹ P). A maximum increase in PPO activity was noticed in TS A and TS C clones which was about 9.2-fold higher than that found in NTS cultures.

3.4. Naphthodianthrone Production in Transgenic Shoots

Among the group of naphthodianthrones, hypericin (HYP), pseudohypericin (PHYP), and protopseudohypericin (PPHYP) were identified and quantified in all tested TS clones, as well in NTS (

Table 5. Naphthodianthrone production in Hypericum perforatum transgenic shoots.

	HYP (µg·g−1 DW)	PHYP (µg·g−1 DW)	PPHYP (µg·g−1 DW)
NTS	28.55 ± 1.45 g	660.64 ± 35.33 b	91.92 ± 1.12 a
TS A	24.33 ± 1.19 f	1101.39 ± 20.57 e	366.51 ± 11.85 f
TS B	69.41 ± 2.54 i	1915.34 ± 56.88 g	477.90 ± 3.41 h
TS C	24.14 ± 1.01 f	755.99 ± 19.09 c	356.37 ± 5.67 ef
TS D	21.15 ± 1.35 e	1096.43 ± 35.96 de	364.90 ± 10.08 f
TS E	27.13 ± 1.09 g	1543.25 ± 43.12 f	441.51 ± 8.61 g
TS F	19.18 ± 1.27 e	758.68 ± 62.04 c	348.99 ± 3.32 e
TS G	23.98 ± 0.95 f	1495.50 ± 26.04 f	511.09 ± 9.89 i
TS H	34.63 ± 1.11 h	1178.44 ± 64.78 e	578.80 ± 12.22 j
TS I	13.25 ± 0.56 b	626.12± 21.77 b	142.61 ± 7.54 b
TS J	14.16 ± 1.22 bc	1062.12 ± 9.88 d	220.77 ± 3.12 d
TS K	23.53 ± 1.85 f	1074.68 ± 12.99 de	198.98 ± 6.09 c
TS L	26.67 ± 1.18	1463.86 ± 38.31 f	506.73 ± 12.49 i
TS M	16.97 ± 0.72 d	652.18 ± 8.76 b	147.43 ± 2.67 b
TS N	11.11 ± 0.86 a	537.09 ± 18.71 a	190.03 ± 7.91 c
TS O	15.87 ± 0.58 cd	647.69 ± 11.67 b	146.94 ± 1.20 b

Note: NTS: non-transgenic shoots; TS A-TS O: transgenic shoot clones; HYP: hypericin; PHYP: pseudohypericin; PPHYP: protopseudohypericin; DW: dry weight. Protopseudohypericin content was expressed as pseudohypericin equivalents. The values in one column marked with different lower-case letters denoted significant differences at p < 0.05 between clones (Duncan’s multiple range test).

). Particularly, PHYP was found as a pre-eminent compound from the class of naphthodianthrones in shoot extracts (Figure 2).

The HYP contents in TS clones ranged from 11.11 to 69.41 µg·g⁻¹ DW. From the selected clones, only TS B showed markedly higher HYP amounts (2.4-fold) compared to NTS. The amounts of PHYP in TS clones varied from 537.09 to 1915.34 µg·g⁻¹ DW. The most of TS clones exhibited significantly higher or comparable PHYP contents than in NTS. A maximum PHYP production was observed in the TS B clone that was almost 3-fold enhanced than NTS. The PPHYP contents in TS clones varied from 142.61 to 578.80 µg·g⁻¹ DW. It is interesting to note that all tested TS clones displayed significantly increased PPHYP amounts compared to NTS cultures. The highest PPHYP production (6.3-fold) was noticed for the TS H clone than that observed in NTS cultures.

3.5. Antioxidant and Radical Scavenging Activities in Transgenic Shoots

The H. perforatum shoot cultures were evaluated for antioxidant capacity (CUPRAC, FRAP, ABTS, and LPI) and radical scavenging activity (H₂O₂ SA, O₂^•− SA, and OH^• SA), (

Table 6. Antioxidant and radical scavenging activities in Hypericum perforatum transgenic shoots.

	CUPRAC (μM T·g−1 DW)	FRAP (μM Fe2+·g−1 DW)	ABTS (μM T·g−1 DW)	LPI (%)	H2O2 SA (%)	O2•− SA (%)	OH• SA (mM M·g−1 DW)
NTS	178.27 ± 2.90 e–g	432.11 ± 0.74 fg	123.51 ± 2.90 i	74.10 ± 2.40 dg	18.47 ± 0.92 a	34.68 ± 1.15 df	1.63 ± 0.02 i
TS A	188.20 ± 4.83 g	492.19 ± 14.87 h	113.54 ± 4.05 h	66.53 ± 1.92 c	26.36 ± 0.64 dg	30.95 ± 0.78 c	1.71 ± 0.03 i
TS B	186.66 ± 4.11 g	440.00 ± 21.21 g	100.89 ± 1.89 g	60.60 ± 0.32 b	28.87 ± 2.30 hikl	38.15 ± 0.48 gj	1.53 ± 0.05 d–h
TS C	210.44 ± 10.62 h	530.79 ± 6.39 i	123.21 ± 2.53 i	84.72 ± 0.52 ij	22.42 ± 1.50 bc	33.42 ± 1.40 d	1.44 ± 0.00 cd
TS D	212.95 ± 11.95 h	550.13 ± 28.47 i	144.42 ± 2.21 j	75.89 ± 4.12 e-g	25.56 ± 1.30 de	27.27 ± 0.80 b	1.70 ± 0.05 i
TS E	236.27 ± 10.40 i	595.79 ± 20.97 j	142.19 ± 1.58 j	71.97 ± 4.12 d	27.86 ± 0.64 dh–jmn	33.39 ± 2.43 d	1.71 ± 0.01 i
TS F	250.81 ± 14.52 i	649.91 ± 37.46 k	168.75 ± 0.00 k	63.97 ± 4.08 c	27.46 ± 1.06 e–gi	41.94 ± 2.23 k	1.85 ± 0.05 j
TS G	166.52 ± 8.81 de	431.05 ± 9.86 g	98.66 ± 2.23 e–g	84.97 ± 0.48 ij	27.11 ± 2.00 e–h	34.41 ± 0.36 de	1.27 ± 0.06 b
TS H	157.86 ± 3.44 cd	390.79 ± 14.89 ce	88.69 ± 6.70 d	82.69 ± 1.29 hi	25.58 ± 0.31 df	26.60 ± 0.10 b	1.45 ± 0.04 cf
TS I	126.78 ± 7.50 b	366.93 ± 20.15 c	78.87 ± 7.16 bc	79.97 ± 0.77 h	28.76 ± 2.19 gjk	24.20 ± 3.51 a	1.50 ± 0.00 ch
TS J	202.22 ± 4.36 h	586.18 ± 1.67 j	92.19 ± 10.00 df	51.50 ± 2.61 a	24.46 ± 1.77 cd	37.94 ± 1.52 gi	1.73 ± 0.03 i
TS K	152.95 ± 4.85 c	380.26 ± 8.66 cd	84.97 ± 5.65 cd	91.33 ± 3.01 k	33.15 ± 0.35 o	36.12 ± 0.57 e–g	1.48 ± 0.01 cg
TS L	168.69 ± 4.36 df	401.32 ± 49.87 d–f	90.63 ± 1.89 de	63.76 ± 3.13 c	21.92 ± 1.13 b	38.11 ± 0.12 gh	1.39 ± 0.10 c
TS M	131.96 ± 1.88 b	328.42 ± 11.16 b	76.12 ± 4.10 b	83.00 ± 4.73 hj	30.00 ± 0.71 k–m	40.17 ± 0.39 hjk	1.45 ± 0.03 ce
TS N	133.68 ± 9.34 b	368.68 ± 13.40 c	83.63 ± 0.68 bd	74.04 ± 1.43 df	30.10 ± 0.42 kln	57.94 ± 1.33 l	1.24 ± 0.09 b
TS O	79.56 ± 6.05 a	230.88 ± 13.41 a	48.66 ± 0.63 a	73.03 ± 1.17 de	28.81 ± 0.44 gjl	39.67 ± 2.53 h–j	1.14 ± 0.02 a

Note: NTS: non-transgenic shoots; TS A-TS O: transgenic shoot clones; CUPRAC: cupric reducing antioxidant capacity; FRAP (ferric ions reducing antioxidant power); ABTS: ABTS radical scavenging activity; LPI: lipid peroxidation inhibition; T: trolox; M: mannitol; H₂O₂ SA: hydrogen peroxide scavenging activity; O₂^•− SA: superoxide anion scavenging activity; OH^• SA: hydroxyl radical scavenging activity; DW: dry weight. The values in one column marked with different lower-case letters denoted significant differences at p < 0.05 between clones (Duncan’s multiple range test).

).

The CUPRAC values in TS clones varied from 79.56 to 250.81 μM T·g⁻¹ DW. The highest value for CUPRAC (1.4-fold) was found in TS F and TS E clones compared to NTS. The FRAP values in TS clones ranged from 230.88 to 649.91 μM Fe²⁺·g⁻¹ DW. A maximum FRAP was noticed in the TS F clone (1.5-fold) compared to NTS cultures. The ABTS values in TS cultures varied from 48.66 to 168.75 μM T·g⁻¹ DW and the TS F clone showed 1.4-fold higher activity compared to NTS. The LPI in TS clones varied from 51.50 to 91.33% and only the TS K clone exhibited a slightly higher value compared to NTS cultures.

The H₂O₂ SA in all tested TS clones (21.92–33.15%) was significantly higher compared to NTS (18.47%). A maximum H₂O₂ SA was noticed in the TS K clone (1.8-fold) than that found in NTS. The O₂^•− SA in TS clones varied from 24.20 to 57.94% and the highest value was noticed in the TS N clone (1.7-fold) in comparison to NTS (34.68%). The TS clones did not show a great variation in OH^• SA (1.14–1.85 mM M·g⁻¹ DW), and only the TS F clone displayed a slightly higher scavenging value compared to NTS cultures.

3.6. Antioxidant Enzymes and Oxidative Stress Markers in Transgenic Shoots

The enzymatic antioxidant system in H. perforatum shoot extracts was evaluated through the activity of guaiacol peroxidase (PX), ascorbate peroxidase (APX), catalase (CAT) and superoxide dismutase (SOD), while oxidative stress markers included quantification of H₂O₂, O₂^•− and malondialdehyde (MDA), (

Table 7. Antioxidant enzymes and oxidative stress markers in Hypericum perforatum transgenic shoots.

	PX (nkat·mg−1 P)	APX (pkat·mg−1 P)	CAT (nkat·mg−1 P)	SOD (U·mg−1 P)	H2O2 (μM·g−1 FW)	O2•− (nM·min−1·g−1 FW)	MDA (nM·g−1 FW)
NTS	0.03 ± 0.00 a	66.15 ± 10.54 j	0.80 ± 0.10 j	2.05 ± 0.20 j	1.34 ± 0.04 j	0.64 ± 0.10 efh	1.42 ± 0.08 j
TS A	0.14 ± 0.02 gk	104.96 ± 7.42 k	0.48 ± 0.00 h	2.44 ± 0.16 k	0.38 ± 0.06 a	0.35 ± 0.04 b	0.41 ± 0.02 a
TS B	0.29 ± 0.01 m	34.08 ± 2.71 d–h	0.55 ± 0.01 i	1.19 ± 0.23 hi	0.69 ± 0.02 b	0.67 ± 0.01 ghj	0.82 ± 0.02 bd
TS C	0.09 ± 0.02 bd	124.69 ± 12.61 l	1.02 ± 0.02 k	7.51 ± 0.47 l	0.63 ± 0.03 b	0.24 ± 0.02 a	1.18 ± 0.02 g–i
TS D	0.14 ± 0.03 fgi	28.32 ± 2.06 cg	0.87 ± 0.02 j	1.32 ± 0.32 i	0.81 ± 0.08 c	0.44 ± 0.04 c	1.07 ± 0.01 fg
TS E	0.15 ± 0.00 h–k	32.08 ± 1.45 d–g	0.51 ± 0.07 hi	0.84 ± 0.10 b–df	1.04 ± 0.08 h	0.59 ± 0.08 dfi	1.37 ± 0.14 j
TS F	0.20 ± 0.03 l	25.96 ± 3.66 cd	0.19 ± 0.03 c	1.28 ± 0.15 i	0.92 ± 0.06 d–f	0.57 ± 0.02 de	1.10 ± 0.05 fi
TS G	0.08 ± 0.01 bc	41.52 ± 5.05 hi	1.17 ± 0.10 l	0.75 ± 0.07 b–d	0.87 ± 0.08 ce	0.55 ± 0.02 d	0.74 ± 0.09 b
TS H	0.10 ± 0.03 be	17.10 ± 3.68 ab	0.33 ± 0.03 f	0.47 ± 0.15 a	0.64 ± 0.02 b	0.62 ± 0.03 e–g	0.90 ± 0.01 c–e
TS I	0.11 ± 0.00 deg	27.93 ± 0.26 cf	0.27 ± 0.02 de	0.84 ± 0.05 b–dg	0.95 ± 0.05 e–g	0.75 ± 0.06 k	1.45 ± 0.01 j
TS J	0.13 ± 0.02 f–h	20.05 ± 0.78 ac	0.11 ± 0.00 a	0.60 ± 0.04 ab	1.18 ± 0.06 i	1.22 ± 0.03 n	1.75 ± 0.10 k
TS K	0.08 ± 0.02 b	21.73 ± 3.46 bc	0.40 ± 0.01 g	0.73 ± 0.03 b–d	1.17 ± 0.01 i	0.65 ± 0.04 g–i	0.77 ± 0.03 bc
TS L	0.11 ± 0.01 c–f	26.73 ± 1.30 ce	0.18 ± 0.02 bc	0.69 ± 0.02 ad	0.88 ± 0.07 cf	0.83 ± 0.06 l	0.85 ± 0.04 be
TS M	0.05 ± 0.01 a	45.48 ± 3.36 i	0.23 ± 0.05 ce	0.80 ± 0.00 b–e	0.84 ± 0.08 cd	0.73 ± 0.03 jk	1.08 ± 0.05 fh
TS N	0.14 ± 0.01 fgj	73.75 ± 0.67 j	0.12 ± 0.01 ab	1.02 ± 0.06 e–h	1.02 ± 0.06 gh	0.45 ± 0.08 c	1.39 ± 0.10 j
TS O	0.04 ± 0.01 a	13.06 ± 2.41 a	0.22 ± 0.00 cd	0.66 ± 0.02 ac	1.06 ± 0.03 h	0.95 ± 0.07 m	0.97 ± 0.10 ef

Note: NTS: non-transgenic shoots; TS A-TS O: transgenic shoot clones; PX: guaiacol peroxidase; APX: ascorbate peroxidase; CAT: catalase; SOD: superoxide dismutase; P: proteins; H₂O₂: hydrogen peroxide; O₂^•−: superoxide anion; MDA: malondialdehyde; FW: fresh weight. The values in one column marked with different lower-case letters denoted significant differences at p < 0.05 between clones (Duncan’s multiple range test).

).

The PX activity in all tested TS clones (0.04–0.29 nkat·mg⁻¹ P) was significantly higher compared to NTS (0.03 nkat·mg⁻¹ P). The TS B clone showed markedly higher PX activity (9.7-fold) compared to NTS. The APX activity in TS clones varied from 13.06 to 124.69 pkat·mg⁻¹ P and only TS C and TS A showed significantly higher enzyme activity (1.9- and 1.6-fold, respectively) compared to NTS. The CAT activity in TS clones ranged from 0.11 to 1.17 nkat·mg⁻¹ P and TS G and TS C showed significantly elevated enzyme activity (1.5- and 1.3-fold, respectively) in comparison to NTS. The SOD activity in TS clones varied from 0.47 to 7.51 U·mg⁻¹ P and TS C and TS A exhibited significantly enhanced SOD activity (3.7- and 1.2-fold, respectively) than that in NTS.

The H₂O₂ contents in all TS clones (0.38–1.18 μM·g⁻¹ FW) were significantly decreased compared to NTS (1.34 μM·g⁻¹ FW). The TS A clone showed markedly lower H₂O₂ contents (3.5-fold) compared to NTS cultures. The O₂^•− production rate in TS clones varied from 0.24 to 1.22 nM·min⁻¹·g⁻¹ FW and five clones (TS I, TS J, TS L, TS M, and TS O) exhibited significantly higher values (up to 1.9-fold) compared to NTS. Other TS clones demonstrated comparable or lower O₂^•− production rate than NTS. The MDA contents in TS clones (0.41 to 1.75 nM·g⁻¹ FW) were similar or lower compared to NTS (1.42 nM·g⁻¹ FW).

3.7. Principal Component Analysis and Hierarchical Agglomerative Clustering

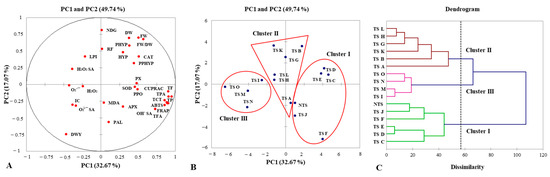

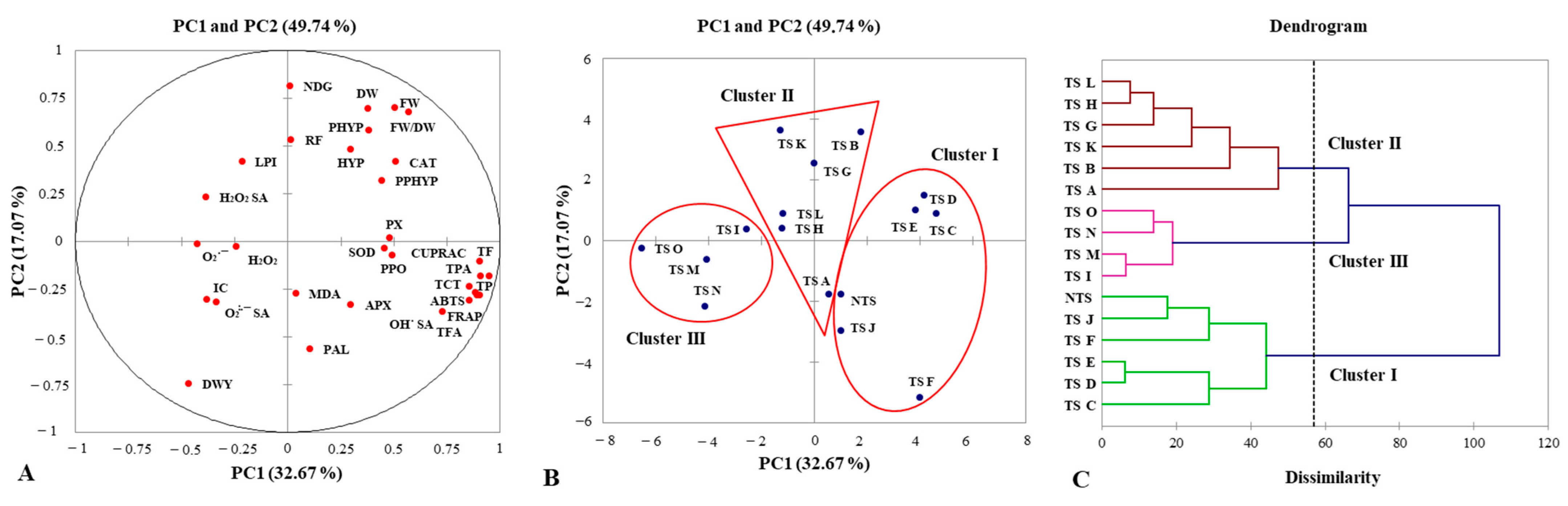

The principal component analysis (PCA) and hierarchical agglomerative clustering (HAC) were performed as statistical tools to determine the variance of analyzed parameters within fifteen H. perforatum TS clones and NTS, as well as to cluster the samples (Figure 3).

The PCA data showed that PC1 and PC2 explained 49.74% of the total variation. The loadings plot of PCA (Figure 3A) indicated that the PC1 exhibited a variance of 32.67% that was positively related to phenylpropanoid production (TP, TF, TFA, TCT, TPA), antioxidant activities (CUPRAC, FRAP, ABTS) and OH^• SA. The PC2 showed a variance of 17.07% and it was positively related to the growth and morphological characteristics (FW, DW, FW/DW, NDG), but a negative relationship was observed for DWY.

Present results for the analyzed parameters showed that control and transgenic shoots are mainly separated on PC1 (Figure 3B) and grouped into 3 clusters (Figure 3C). Cluster I was represented with five clones (TS C-TS F, TS J) along with NTS exhibiting positive scores on PC1. Those TS clones were described with intensive phenylpropanoid metabolism that resulted in the accumulation of phenolic compounds with antioxidant and OH^• scavenging capacity. Cluster II included six clones (TS A, TS B, TS G, TS H, TS K, TS L) distributed among the origin of PC1 and they were characterized by moderate production of phenylpropanoids and antioxidant activities. Cluster III was represented by four clones (TS I, TS M-TS O) displaying the strongest negative scores on PC1 and they showed weak phenylpropanoid metabolism and low non-enzymatic antioxidant status.

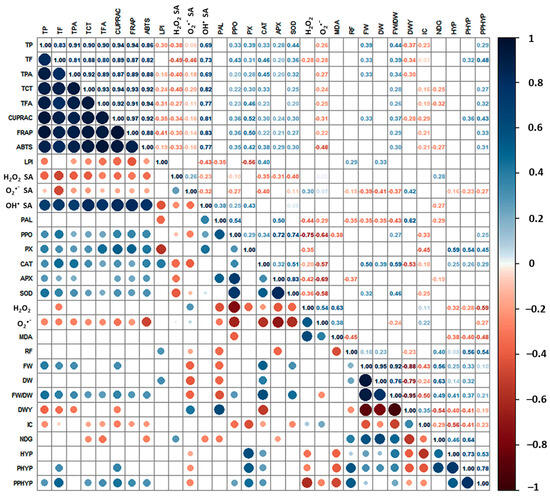

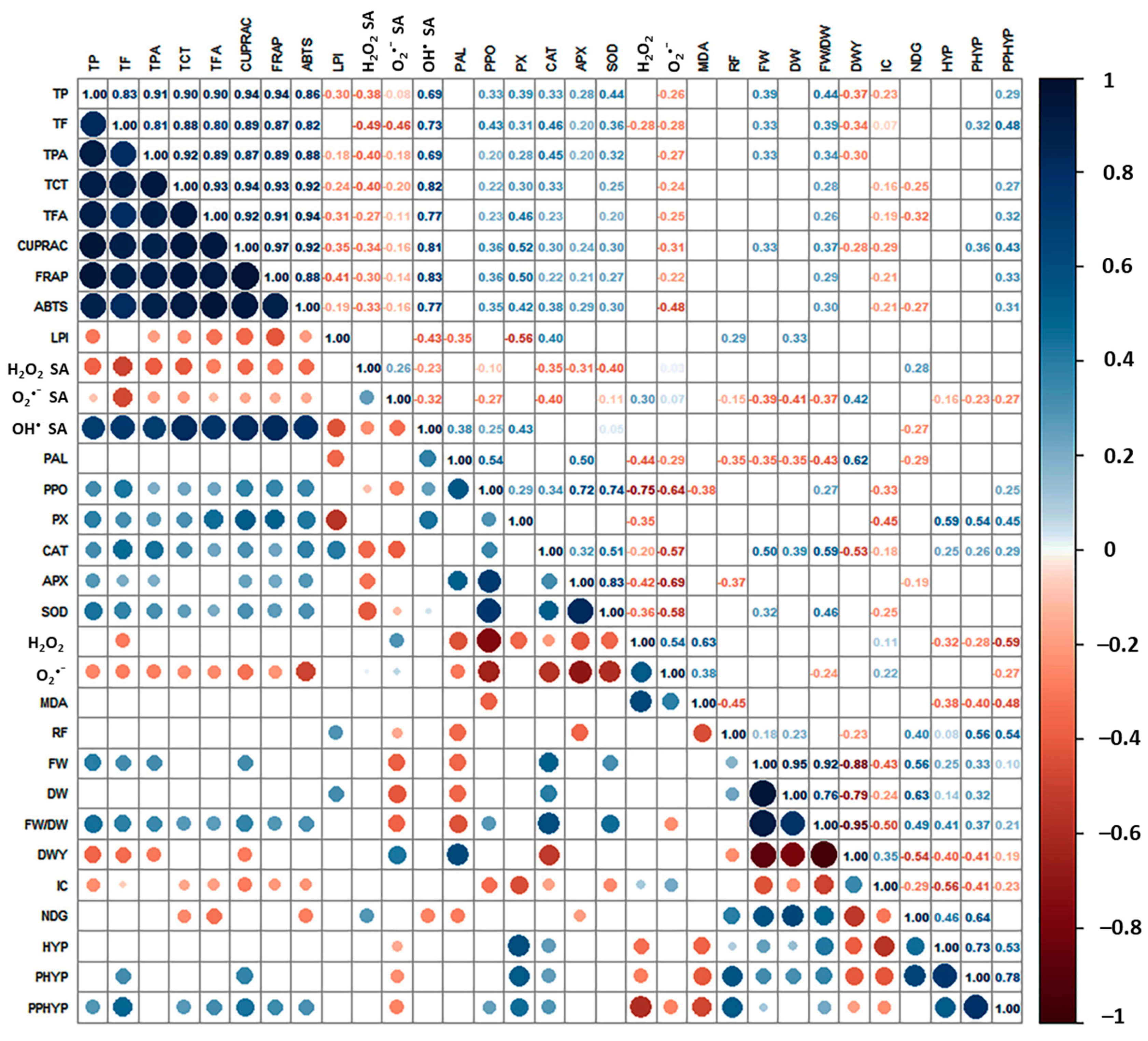

Pearson’s correlation matrix (Figure 4) demonstrated that phenylpropanoids (TP, TPA, TF, TCT, and TFA) were in significant positive correlation with growth characteristics (FW and FW/DW), antioxidant/radical scavenging activity (CUPRAC, FRAP, ABTS, and OH^• SA) and antioxidant enzymes (PX, APX, CAT, and SOD). The activities of antioxidant enzymes including PPO showed a significant negative correlation with oxidative stress markers (H₂O₂ and O₂). The H₂O₂ and MDA levels showed a significant negative correlation with naphthodianthrone production (HYP, PHYP, and PPHYP). The O₂^•− production rate was in significant negative correlation with phenylpropanoid production and antioxidant activities. The contents of identified naphthodianthrones were in significant positive correlation with growth and phenotypic characteristics (RF, FW, DW, FW/DW, and NDG), as well as with antioxidant enzymes (GPX and CAT).

4. Discussion

4.1. Growth Characteristics of Transgenic Shoots

The fifteen solid-grown H. perforatum HR clones (HR A-HR O) induced by A. rhizogenes-mediated transformation [23] were regenerated into corresponding transgenic shoot clones (TS A-TS O). It has been shown that H. perforatum root segments are the most responsive explants to photoperiod and plant growth regulators for shoot development [46,47]. The regenerative potential of H. perforatum HR has been promoted by light [28,48], but also it was reported that this process could be light-independent [49]. From our previous study, photoperiod exposition of H. perforatum HR cultures induced spontaneous shoot regeneration on a hormone-free medium [24]. Those photoperiod-exposed HR were characterized by green coloration and slow growth rate due to the usage of photosynthetically derived carbohydrates for shoot organogenesis rather than for root proliferation. In addition, Damgaard and Rasmussen [50] have reported that shoot meristem development is related to the light-induced biosynthesis of endogenous cytokinins in HR cells. These findings indicated that light-mediated phytohormonal imbalance in H. perforatum HR tissues could be considered as the main factor for spontaneous transgenic shoot regeneration.

Outgoing data showed considerable variability in the shoot regeneration frequency among fifteen HR A-HR O clones. Noteworthy, H. perforatum transgenic roots displayed higher shoot organogenic potential compared to non-transgenic roots implicating that the presence of Ri T-DNA genes additionally stimulated the formation of HR-regenerated shoots. Taking into account the unique transformation event in transgenic clones, the heterogeneity in the integration sites, copy numbers, and expression level of Ri T-DNA genes could be the reasons for the different shoot regeneration potential of HR lines. In this view, the variation in regeneration frequency of H. perforatum HR clones induced by A. rhizogenes strain A4M70GUS has been attributed to the differences in rol gene expression [17]. These authors revealed that high rol gene expression was related to fast root growth, while low amounts of rol gene transcripts induced shorter roots with shoot-directed morphogenesis. Therefore, the fast growth previously observed for HR B and HR F clones [23] may indicate that levels of rol transcripts in these lines did not favor shoot morphogenesis as evidenced here by their low regeneration frequency. Additionally, the integration of rol genes altered the endogenous auxin/cytokinin ratio in HR cells, which may affect the shoot regenerative potential of transgenic roots [51]. The differences in regeneration frequency observed here for HR clones opens a new possibility for further evaluation of hormonal and genetic background for organogenic competence of various transgenic root lines.

Present results demonstrated that most of TS clones were characterized by better biomass accumulation compared to NTS cultures. Even though H. perforatum transgenic shoots have been successfully multiplied on a hormone-free medium, their multiplication rate was comparable to control shoots cultured on a medium with kinetin [49]. The growth responses of transgenic plants have been related to the expression of rol genes that induce endogenous cytokinin biosynthesis or sensitivity to exogenously applied cytokinins [52]. Thus, an enhancement in biomass production through intensive axillary branching and multiplication of H. perforatum TS clones might be ascribed to the alteration of cytokinin metabolism caused by A. rhizogenes transformation.

In this study, H. perforatum TS clones were also evaluated for FW/DW ratio as a measure of cell size and water content, as well as DWY as an index for biosynthetic capability. The biomass accumulation of transgenic shoots was positively related to the FW/DW ratio implying their high capability for water uptake from the medium. In accordance with our data, biomass accumulation of H. perforatum HR-regenerated plants has been correlated with tissue hyperhydricity [27]. Additionally, tissue hydration of H. maculatum and H. hirsutum shoot cultures has been related to the presence of cytokinins in the medium [53]. Therefore, the growth-associated hydration of H. perforatum TS clones observed here could be attributed to the usage of cytokinin BA for shoot multiplication. Despite the great variation in DWY between TS clones and control cultures, the enhanced DWY values in some TS lines suggested that the transformation process might activate certain stress responses that lead to the activation of secondary metabolite pathways.

The H. perforatum TS clones evaluated here resembled normal phenotypes similar to non-transgenic shoots as evidenced by the determination of the index of compactness. Accordingly, H. perforatum transgenic plants transformed with A. rhizogenes A4M70GUS did not show phenotypic variations compared to non-transformed plants [49]. On the other hand, H. perforatum transgenic shoots transformed with A. rhizogenes ATCC 15834 exhibited typical “HR phenotype” characterized by dwarfism, shorter internodes, increased branching, reduced apical dominance, as well as small and wrinkled leaves [48]. Such an alteration of the phenotype in HR-regenerated plants has been attributed to the sites and copy numbers of rol genes integrated into the host cells [54]. The weak expression of transgenic phenotypes in H. perforatum plants has been related to the high copy numbers of integrated rol genes resulting in post-transcriptional silencing of transgenes [30]. The appearance of normal phenotypes in transgenic plants has already been reported for many plant species, but it could not be solely related to the rol gene integration [51,55]. In this context, transgenic plants with a HR phenotype might produce normal axillary shoots after prolonged time of in vitro propagation [55]. In favor of this hypothesis, rol gene expression induced temporary phytohormonal imbalance in transgenic plants that altered growth behavior, but further subculturing on medium with cytokinins reversed the normal plant phenotype [56,57]. Since TS clones in this study were subcultured on BA-containing medium, the wild-type shoot morphology was probably attributed to the long-term cultivation. The phenotypic stability of H. perforatum TS clones observed here was a preferable feature, since the HR phenotype still limits the usage of A. rhizogenes for routine transformation of crop plants.

4.2. Phenylpropanoid and Naphthodianthrone Production in Transgenic Shoots

The production of phenylpropanoids (total phenolics, flavonoids, flavan-3-ols, proanthocyanidins and phenolic acids) in H. perforatum TS clones was at levels comparable to or even greater than that in control shoots. In this view, various transgenic plant species have shown significantly higher production of secondary metabolites compared to non-transformed shoots [51,58,59] or intact plants [31,60,61]. As presently established, several HR-regenerated plant lines of Bacopa monnieri have been found as better producers of phenolic compounds and flavonoids in comparison to untransformed control cultures [58]. The importance of phenylpropanoids as defense compounds in H. perforatum shoots has been previously confirmed by using different strategies, such as phytohormone supplementation [62], precursor feeding [63], elicitation [32,33] and genetic transformation [22]. We have previously observed enhanced production of total phenolics, flavonoids, flavan-3-ols and phenolic acids in H. perforatum HR cultures obtained by A. rhizogenes A4 and A4M70GUS strains [22,23]. However, the literature data for total phenylpropanoid/flavonoid production in H. perforatum transgenic shoots are rather scarce.

With respect to TS clonal variation observed here, the clones TS C, TS D and TS E with high growth rate and biomass productivity exhibited strong accumulation of phenylpropanoids. However, the TS F clone with the lowest biomass yield accumulated the highest content of phenolic compounds indicating that secondary metabolite production of TS clones could not be exclusively observed on the basis of their growth performance. These findings suggested that A. rhizogenes-mediated transformation affects phenylpropanoid production in H. perforatum TS clones through stress-induced biosynthetic capacity rather than to biomass accumulation. From our previous study, H. perforatum transgenic shoots transformed with A. rhizogenes A4M70GUS accumulated high levels of phenolics, flavonoids and flavan-3-ols depending on their growth characteristics [22]. In this view, several studies pointed out that the accumulation of secondary metabolites in transformed plants is a consequence of the endogenous elicitation by Ri T-DNA genes from A. rhizogenes [64,65]. It could be assumed that Ri T-DNA genes integrated in H. perforatum TS mimic stressful conditions and phenylpropanoid production could be related to the activation of defense responses during transformation process.

Chromatographic analyses revealed that H. perforatum transgenic shoots are better producers of hypericin, pseudohypericin and protopseudohypericin compared to control shoots. In our previous report, one H. perforatum transgenic shoot clone exhibited about 12-fold increased hypericin and pseudohypericin production than that found in non-transgenic shoots [28]. Similarly, H. perforatum transgenic plantlets accumulated up to a 3-fold increased content of hypericin compared to control cultures [18]. The capability for naphthodianthrone production has also been modulated in H. tomentosum transgenic regenerants resulting in a 28- and 5-fold increase in total hypericin content in two regenerated plant clones in comparison to controls [31]. Other studies revealed a strong heterogeneity in hypericin contents among different Hypericum HR-derived transgenic plants [27,30,66]. As far as we know, rol genes expression or their copy number plays a key role in secondary metabolite production in transformed cells [64,67]. Several studies have attempted to evaluate the influence of rol genes copy number on naphthodianthrone production in Hypericum transgenic plants [30,31]. Komarovská et al. [30] have observed that H. perforatum transgenic clones with the highest copy number of integrated rol genes resulted in comparable contents of hypericins with the control plants due to the transgene silencing. On the other hand, Henzelyová and Čellárová [31] have not found a clear correlation between rol transgene integrations and hypericins amounts in H. tomentosum transformed plant clones. Similarly, we have previously found that rolABC transcript levels did not influence hypericin contents in H. perforatum A4M70GUS HR-regenerated shoot clones [17,22]. All these observations suggested that naphthodianthrone biosynthesis in H. perforatum transgenic plants cannot be solely attributed to the transgene’s expression or their copy number.

It is worth pointing out that HYP and PHYP contents in TS clones were positively related to the number of dark glands per leaf as the main sites for accumulation of hypericins. It has been shown that naphthodianthrone production strongly correlated to the number of dark glands on the leaves of transgenic shoots from H. perforatum [18,27,28,30] and H. tomentosum [31]. The modulation of naphthodianthrone production in transgenic shoots could be explained by the A. rhizogenes-mediated alteration of the plant phenotype, particularly the index of compactness and number of dark glands on the leaves. These findings could be attributed by the present data for significant negative correlation of naphthodianthrone contents and the compactness of TS clones. In this context, TS B clone with the most elongated architecture (the smallest IC value) was shown as the best performing line for naphthodianthrone production, while TS I and TS M clones with the compact morphology (the highest IC value) displayed an inferior capacity for hypericins biosynthesis. According to Koperdáková et al. [18], H. perforatum transgenic plants with alterations in the phenotype exhibited a decrease in vigor and dark glands development leading to the reduction of hypericins accumulation. Thus, the absence of phenotypic variations in H. perforatum TS clones evaluated here represents an important advantage for the establishment of an efficient in vitro system for the enhanced production of naphthodianthrones.

The activity of PAL enzyme was also monitored to estimate its contribution to the accumulation of phenylpropanoids in H. perforatum TS clones. It is interesting to point out that TS F was selected as exclusive clone with the strongest production of flavonoids, flavan-3-ols and condensed tannins along with markedly up-regulated PAL activity. These findings are in agreement with our previous studies where the H. perforatum HR F clone was promoted as a superior line for phenolic compounds production [23,24]. Present results did not show a clear correlation between PAL activity and phenylpropanoid contents in H. perforatum transgenic shoots. Such a non-significant correlation between PAL activity and phenolic compounds accumulation has been previously reported for Salvia miltiorrhiza transgenic cultures [68]. These authors found that tyrosine aminotransferase rather than PAL is a limiting step for phenylpropanoid biosynthesis. Moreover, chalcone-flavanone isomerase has been found as an essential enzyme for the flavonoid biosynthesis in H. perforatum cells, calli and shoots elicited with jasmonic acid, salicylic acid, fungal mycelia and polysaccharides [32,33,69,70]. Thus, the accumulation of phenylpropanoids in TS clones is probably mediated by the activity of alternative enzymes involved in the phenylpropanoid/flavonoid pathways. Further research is necessary to evaluate the activity of various enzymes involved in the channeling of phenylpropanoid metabolism in H. perforatum TS clones.

The PPO enzyme plays a major role in plant cell protection against various stress factors through the oxidation of phenolic compounds to semiquinones that can act as antioxidant compounds [71]. In the present study, the enhancement of PPO activity in TS clones could be related to the oxidative stress caused by interaction of Agrobacterium and H. perforatum host cells. In accordance, we have previously observed an elevation of PPO activity in solid-grown H. perforatum HR lines that were used here for regeneration of transgenic shoots [23]. Furthermore, the shoot organogenic response of H. perforatum explants has been related to oxidative stress caused by culture conditions and followed by subsequent activation of PPO as antioxidant enzyme [72]. The potential role of PPO as a ROS scavenging enzyme in TS clones tested here was additionally confirmed by its negative correlation with H₂O₂ and O₂^•− contents. These findings suggested that the up-regulation of PPO activity in H. perforatum TS clones might, at least in part, represent an antioxidant response to A. rhizogenes-mediated transformation.

4.3. Antioxidant Activity and Radical Scavenging Capacity in Transgenic Shoots

The antioxidant activities of H. perforatum TS clones measured by different assays (CUPRAC, FRAP, ABTS and LPI) were similar to or even greater than those in non-transformed shoots. Such an elevation of antioxidant capacity has been observed in transgenic plants of H. perforatum [22], Artemisia carvifolia [73], and Bacopa monnieri [58]. All these studies suggested that A. rhizogenes-mediated transformation induced defense response in transgenic plants through the accumulation of phenolic compounds with antioxidant properties. The correlation analyses in this study revealed that phenolics, flavonoids, phenolic acids, and catechins are the main contributors to the non-enzymatic antioxidant activity of H. perforatum TS clones. These correlation data are not surprising since it is well established that those phenylpropanoids have structural characteristics that make them ideal antioxidants. As presently established, antioxidant activity of H. perforatum extracts is mostly related to flavonoids and phenolic acids that act as chain-breaking antioxidants due to their hydrogen- or electron-donating properties [74]. Another antioxidant mechanism of flavonoids from Hypericum might result from their ability to chelate transition metal ions involved in the generation of free radicals [75]. In accordance, we have previously reported that flavonoids, flavan-3-ols and condensed tannins represent ferrous chelating compounds in H. perforatum dark-grown HR cultures [23]. On the other hand, the strong lipid peroxidation inhibitory property of photoperiod-exposed H. perforatum HR cultures was assigned to the accumulation of hypericins as lipophilic antioxidants [24]. These data indicated that the antioxidant activity of H. perforatum transgenic shoots was attributed to the synergistic interaction of various groups of phenolic compounds with different modes of action.

Present results showed that TS clones were superior scavengers of H₂O₂ compared to non-transgenic shoots. In our recent study, H. perforatum HR cultures have been presented as a rich source of phenolic compounds with strong H₂O₂ and O₂^•− scavenging activity [23]. We have hypothesized that the A. rhizogenes-mediated transformation of H. perforatum was followed by an oxidative burst and a strong disturbance of the antioxidant system leading to the accumulation of various classes of phenylpropanoids as ROS scavengers. Even though H₂O₂ and O₂^•− scavenging activity did not show a positive correlation with phenylpropanoids, it is worth pointing out the strong contribution of flavonoids, flavan-3-ols, tannins, and phenolic acids to the OH^• scavenging activity of TS clones. In this context, Božin et al. [76] reported that phenolic acids and flavonoids from Hypericum extracts are responsible for the OH^• scavenging capacity. These observations indicated that phenylpropanoids in H. perforatum transgenic shoots significantly contribute to the non-enzymatic antioxidant system, although other shoot-specific metabolites cannot be ruled out as efficient ROS scavengers.

The non-enzymatic antioxidant system of plant cells comprised glutathione, ascorbic acid, carotenoids, tocopherols and phenolic compounds maintains cellular redox balance in plants through neutralization or ROS. On the other hand, enzymatic antioxidant components including SOD, PX, CAT and the enzymes from the ascorbate-glutathione cycle provide a complex protective mechanism to avoid ROS-induced damages in plant cells [77]. Therefore, the coordinated function of non-enzymatic and enzymatic antioxidant systems has a major role in the regulation of physiological redox balance in plant cells upon abiotic and biotic stressful conditions.

4.4. Antioxidant Enzymes and Oxidative Stress Markers in Transgenic Shoots

The upregulation of antioxidant enzymes (PX, APX, CAT, and SOD) is a well-known mechanism for ROS neutralization in plant tissues upon abiotic and biotic stress [77]. Present results showed that strong enhancement of PX activity in TS cultures coincided with suppression of H₂O₂ levels. On the other hand, the inconsistent CAT and APX activities in TS clones might be compensated by the PX that acts concurrently to remove H₂O₂. These findings implied that the antioxidant protection of transgenic shoots against H₂O₂ production could be ascribed to PX activity rather than to CAT and APX. Curiously, we have previously shown that APX and CAT co-operatively down-regulated intracellular H₂O₂ levels in solid-grown H. perforatum HR clones that were used here for the regeneration of transgenic shoots [23]. Discrepancies in the H₂O₂ scavenging enzyme activities between H. perforatum transgenic roots and shoots might be explained by the organ-specific differences in the constitutive levels of antioxidant enzymes, as well as by variation in culture conditions. The significant positive correlation of CAT and APX activities with SOD activity in tested TS clones could be ascribed to the fact that those antioxidant enzymes share their substrates and products. The elevation of SOD activity in some TS clones (TS A and TS C) was related to a significantly declined O₂^•− production rate, which highlights the additional protective role of this antioxidant enzyme in ROS neutralization. In accordance with the current study, the upregulation of antioxidant enzymes in transgenic shoots has already been reported for various plant species [78,79]. Even the actual mechanism for the activation of antioxidant enzymes upon A. rhizogenes-mediated transformation is still unresolved, several studies [78,79] emphasized the influence of T-DNA rol and aux genes in the suppression of H₂O₂ and O₂^•− levels in transformed cells. It has been shown that the integration of aux and rol genes in HR cells resulted in higher biosynthesis and perception of auxins [80]. Taking into account the stimulatory effects of auxins on the enzymatic antioxidant state in root cultures [81], the high intrinsic amounts of auxins in TS clones might be responsible for enhanced antioxidant enzyme activities and subsequent declination of ROS contents. In addition, rol genes have been found as powerful suppressors of intracellular ROS levels in transformed cells due to their important role in the expression of genes for antioxidant enzymes [82,83]. However, the relationship between rol and aux gene expression with ROS production in transgenic plants needs further investigation. Though still preliminary, present data indicated that activation of the antioxidant defense system contributed to the improvement of oxidative stress tolerance of H. perforatum transgenic shoots.

The formation of MDA as a final product of lipid peroxidation was used as a biomarker for oxidative stress in H. perofratum transgenic shoots. As presently established, decrement of MDA formation in TS clones was correlated with the suppression of ROS levels (H₂O₂ and O₂^•−). Thus, the MDA downregulation in H. perforatum TS clones was ascribed to the antioxidant enzyme efficiency in O₂^•− and H₂O₂ scavenging that resulted in a delay of lipid peroxidation. The activation of antioxidant enzymes that suppress ROS levels and lipid peroxidation is an important prerequisite for oxidative stress tolerance in transgenic plants [84,85]. The reduction of membrane lipid peroxidation has also been reported in H. perofratum cells co-cultivated with Agrobacterium [86]. These authors revealed that the oxidative burst upon plant-pathogen interaction triggered the antioxidant defense system of plant cells to achieve redox homeostasis. In contrast, we have previously reported high MDA levels in H. perforatum HR despite the upregulation of antioxidant enzymes, which indicated that A. rhizogenes-mediated transformation triggers lipid peroxidation processes in HR cells [23]. On the other side, transgenic shoots possess non-enzymatic antioxidant compounds [22] that may additionally contribute to the suppression of oxidative stress markers at levels that are not deleterious for membrane lipids.

5. Conclusions

This is the first report on phenylpropanoid and naphthodianthrone production, as well non-enzymatic and enzymatic antioxidant status of Hypericum perforatum L. transgenic shoot clones. Transgenic shoots exhibited normal phenotypic characteristics and better growth performance compared to control shoots. Phenylpropanoid production in transgenic shoots was related to the upregulation of the non-enzymatic antioxidant defense system as a stress response upon A. rhizogenes-mediated transformation. Antioxidant enzymes significantly contributed to the suppression of H₂O₂ and O₂^•− levels that consequently delayed lipid peroxidation in transgenic shoots. One of the great achievements in this study was the increased production of naphthodianthrones in H. perforatum transgenic shoot extracts compared to control shoots. The screening of shoot clones allowed the selection of TS B with non-altered phenotype as the fast-growing and best-performing line for hypericin and pseudohypericin biosynthesis. On the other hand, slow-growing TS F clones with the most compact morphology was shown as superior line for phenylpropanoid production. Even though elite lines with respect to phenylpropanoid and naphthodianthrone production were selected, these cultures have never been the subject of detailed phenolic profiling and evaluation of their biological activities. Current investigations of our research group are focused on chromatographic identification and quantification of individual phenolic compounds, as well on in vitro inhibitory activities of selected transgenic shoot clones against target enzymes of clinical importance. The evidence from in vitro and in silico approaches may lead to understanding the potential efficacy of phenolic compounds from H. perforatum transgenic shoots as biologically active compounds.
