Genome-Wide Identification of Strawberry Metal Tolerance Proteins and Their Expression under Cadmium Toxicity

Abstract

Metal tolerance proteins (MTPs) are divalent cation transporters, known to upkeep the mineral nutrition of plants and heavy metal transport at cell, tissue, or whole plant levels. However, information related to evolutionary relationships and biological functions of MTP genes in strawberry (Fragaria vesca L.) remain elusive. Herein, we identified 12 MTP genes from the strawberry genome and divided them into three main groups (i.e., Zn-MTP, Fe/Zn MTP, and Mn-MTP), which is similar to MTP grouping in Arabidopsis and rice. The strawberry MTPs (FvMTPs) are predicted to be localized in the vacuole, while open reading frame (ORF) length ranged from 1113 to 2589 bp with 370 to 862 amino acids, and possess 4 to 6 transmembrane domains (TMDs), except for FvMTP12 that possessed 16 TMDs. All the FvMTP genes had putative cation efflux and cation diffusion facilitator domains along with a zinc dimerization (ZT-dimer) domain in Mn-MTPs. The collinear analysis suggested their conservation between strawberry and Arabidopsis MTPs. Promoter analysis also demonstrated that some of them might possibly be regulated by hormones and abiotic stress factors. Moreover, Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analysis proposed that FvMTP genes are involved in cation transport and homeostasis. The expression analysis showed that FvMTP1, FvMTP1.1, and FvMTP4 were significantly induced in leaf samples, while FvMTP1.1 and FvMTP4 were significantly regulated in roots of cadmium (Cd)-treated strawberry plants during progressive stress duration. The findings of Cd accumulation depicted that Cd contents were significantly higher in root tissues than that of leaf tissues of strawberry. These results are indicative of their response during the specific duration in Cd detoxification, while further functional studies can accurately verify their specific role.

1. Introduction

Various metal cations, such as copper (Cu²⁺), zinc (Zn²⁺), iron (Fe²⁺), manganese (Mn²⁺), nickel (Ni²⁺), and cobalt (Co²⁺) are essential trace elements for vital cellular and physiological plant functions, including photosynthesis, chloroplast and mitochondrial electron transport, protein processing, DNA replication, and other metabolic processes [1,2]. In addition, these metals also serve as structural cofactors for various enzymes and transcription factors [1]. The excessive accumulation of these metals can results in oxidative damage and cellular toxicity, which leads to impaired photosynthesis, chlorosis, and inhibited water and nutrient uptake [2,3]. Other non-essential heavy metals, such as mercury (Hg), cadmium (Cd²⁺), and lead (Pb²⁺), negatively influence plant growth and development and, when transported and accumulated in edible plant parts, can raise severe health risks for human nutrition [4,5]. However, plants can adapt the complex strategy of metal uptake and movement, extrusion, chelation, detoxification, and compartmentalization to ensure proper metal homeostasis within the cell [6]. To avoid metal toxicity, plants utilize specific transporters from multigenic protein families that play regulatory role in uptake and compartmentalization of heavy metals in different cellular organelles [7,8].

The cation diffusion facilitator (CDF) gene family have been ubiquitously characterized in yeast, bacteria, plants, and mammals, and are known to transport metals from the cytosol to either subcellular compartments or extracellular spaces [9,10]. CDFs are vital and play an important role in response to abiotic stress; however, it is debatable whether they are essential as some genetic experiments have shown that the lack of a particular CDF gene does not necessarily cause lethality [11]. The CDF is further subdivided into three subgroups (e.g., Zn-CDF, Fe/Zn-CDF, and Mn-CDF) based on phylogenetic relationship and specific substrate transport capacity [12]. Sequence analysis has revealed that mainstream CDF proteins act as homodimers and normally possess six transmembrane domains (TMDs) with the characteristic of one cytosolic histidine-rich domain. In plants, the CDF gene family is generally denominated as metal tolerance proteins (MTPs), which are further classified into seven major phylogenetic groups based on their specific metal sequestration [13]. For example, group I (MTP1-MTP4), V (MTP5), and XII (MTP12) are categorized as Zn-CDF, group VI (MTP6), VII (MTP7) are Fe/Zn-CDF, and group VIII (MTP8) and IX (MTP9-MTP11) include Mn-CDF [9,14]. Among these, Arabidopsis AtMTP1 is ubiquitously found in all types of tissues and can compartmentalize Zn into the vacuole [14]. Similarly, AtMTP3 and AtMTP8 are involved in metal tolerance against Fe deficiency and can transport Zn and Mn, whereas AtMTP11 can counter Mn severity by sequestrating it out of cytoplasm [15,16,17]. AtMTP12 with 14 TMDs forms a functional complex with AtMTP5 and transport Zn into the Golgi bodies [18]. In addition, Arabidopsis orthologs from rice (OsMTP1) and cucumber (CsMTP1 and CsMTP3) have been shown to transport Cd and Co into the vacuole of the plant cell [10,19,20]. The brief description of the MTP gene family in modulating heavy metal cations is available on Arabidopsis, but no information on strawberry (Fragaria vesca L.) FvMTPs is available yet.

Strawberries (Fragaria x ananassa Duch.) are a very popular fruit among consumers, either as fresh produce for consumption or for processing, e.g., into juices. This raw material is well aligned with the growing demand for functional foods in the market as consumers increasingly choose products of exceptional quality with added value [21,22,23,24]

The genus Fragaria is characterized by woodland [25] and cultivated [19] species, which are further subclassified by their discrete ploidy number from diploid to decaploid. F. vesca is diploid (2n = 14) and deliberated as an important model plant for gene transformation because of its smaller genome size, short life cycle, and small stature [25,26,27,28]. Recently, wastewater and sludge applications are the main reason for heavy metals accumulation in fleshy fruits [29]. Previous reports suggested that strawberry accumulate relatively more Cd in edible parts [30,31]. Cadmium enters from the roots by cation binding sites, move towards xylem and transported into source tissues in the form of complexes by various substrate-specific cation transporters [32]. However, metals are co-transported to the roots by the plasma membrane transporters (CDFs) and play vital role in metal ions uptake and homeostasis [33]. Consequently, there is a compelling need for the identification of genes that can sequestrate and transport Cd to extracellular spaces or into the cellular organelles. The comprehensive genome-wide analysis of the MTP gene family have been extensively carried out in tobacco [11], sweet orange [34], and grapes [13], but precise role of MTP in Cd homeostasis is lacking in strawberry. Therefore, we carried out genome-wide identification of MTP family in strawberry and performed phylogenetic relationship with Arabidopsis (AtMTP) and rice (OsMTP) genes. We further analyzed the sequence and structural characteristics, chromosomal locations, intron and promoter’s structure, and functional annotations of MTP proteins. Finally, we analyzed the gene expression of FvMTP genes for their putative role in mediating Cd stress. This study will help in the selection of candidate genes involved in Cd homeostasis in fleshy fruits for functional studies in the future.

2. Materials and Methods

2.1. Identification of MTP Gene from Strawberry

To identify the MTP genes, BLASTP search in Genome Database for Rosaceae (GDR) (https://www.rosaceae.org/species/fragaria/all; accessed on 11 September 2021) was carried out using the 12 Arabidopsis (e.g., AT2G46800, AT3G58810, AT2G29410, AT2G47830, AT2G04620, AT2G39450, AT1G79520, AT1G16310, AT1G51610, AT3G58060, AT3G12100, and AT3G61940) and 10 rice (e.g., Os05g38670.1, Os04g23180.1, Os02g58580.1, Os03g12530.1, Os01g62070.1, Os05g03780.1, Os02g53490.1, Os08g32650.1, Os01g03914.1, and Os03g22550.1) MTP proteins as queries [14]. The identified FvMTP proteins were filtered using an E-value ≤ e⁻¹⁰ and validated for cation_efflux domain (PF01545) acquired from Pfam database (http://pfam.xfam.org; accessed on 11 September 2021) using SMART search (http://smart.embl-heidelberg.de/; accessed on 11 September 2021) [10].

2.2. Physicochemical Properties, Sequence Alignment, and Phylogenetic Analysis

The physicochemical properties, such as molecular weight (kDa) and isoelectric point (pI) of FvMTP genes, were calculated using the online ProtParam (http://web.expas y.org/protp param; accessed on 13 September 2021) [22]. The open reading frame (ORF) values were predicted from NCBI ORF finder (https://www.ncbi.nlm.nih.gov/orffinder; accessed on 13 September 2021). FvMTP protein localization in different cellular organelles was predicted by Cell-Plock (2.0: http://www.csbio.sjtu.edu.cn/bioinf/Cell-PLoc-2/; accessed on 11 September 2021) as described by previously reported studies [13]. The multiple sequence alignment of all putative FvMTP peptides was carried out by MUSCLE using MEGA (7.0) with default options [25]. The phylogenetic tree was constructed using the consequential alignment in MEGA (7.0) following the maximum likelihood (ML) method, 1000 bootstrap replications were set for the reliability of the resultant tree [35].

2.3. Conserved Motifs, Gene Structure, and Promoter Analysis

The conserved motif scanning of FvMTP proteins was performed using MEME Suit and parameter setting was employed as 50 ≤ widths ≤ 100 with a maximum number of 3 motifs [22]. The gene structure was visualized using the GFF3 file acquired from the strawberry genome by the TBtools program [35]. Moreover, FvMTP peptides were used to identify the cis-elements of each protein from the PlantCARE database (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/; accessed on 17 September 2021) [25].

2.4. Chromosomal Positioning and Collinearity Analysis

The specific chromosomal positions of each FvMTP gene across seven (Fv01–Fv07) was performed using genome annotations and illustrated using the TBtools program. For the syntenic relationship between strawberry and Arabidopsis MTPs, and within strawberry MTPs, Multiple Collinearity Scan (MCScan) toolkit analysis was carried out and visualized using a circular diagram [10].

2.5. Gene Ontology (GO) and Kyoto-Encyclopedia of Genes and Genomes (KEGG) Analysis

For GO enrichment analysis, Arabidopsis MTP orthologs were implicated as search query in an online panther server (http://pantherdb.org/; accessed on 21 September 2021). The KEGG enrichment of FvMTP genes was performed using an online KEGG web server (https://www.genome.jp/kegg/pathway.html; accessed on 21 September 2021).

2.6. Plant Material and Cd Stress

One-year-old strawberry plants were obtained from Jiangsu Academy of Agricultural Sciences (JAAS) and kept in the medium of soil:peat:sand at 3:1:1 volume [36] in a controlled environment (25 ± 5 °C) provided with 16 h light/8 h dark, and 65% relative humidity (RH) at Nanjing Agricultural University, Nanjing-China. After 4 weeks, 60 strawberry plants were sorted for uniformity in size and health. The 60 strawberry plants were divided into 5 treatments (each with 10 replicates) and were treated with 0.1 mM CdCl₂ [37] with an interval of 12 h (h), 24 h, 48 h, 60 h, and 72 h, respectively. The remaining 10 strawberry plants irrigated with simple nutrient solution were deliberated as control (CK) plants. The root and young leaf samples were collected from CK and Cd-treated strawberry plants after 12 h, 24 h, 48 h, 60 h, and 72 h, respectively. The collected samples were immediately put in liquid nitrogen and stored at −80 °C.

2.7. RNA Extraction and qRT-PCR Analysis

Total RNA was isolated from the root and leaf tissues using the Trizol reagent (Invitrogen) method by following the manufacturer guidelines. RNA was then reverse-transcribed to prepare the cDNA using the prime script (Takara, Japan) by following the manufacturer’s instructions. The primers of 12 FvMTP genes were designed using NCBI Primer-BLAST (https://www.ncbi.nlm.nih.gov/tools/primer-blast/; accessed on 10 December 2021) and list is provided in Table S1. Furthermore, qRT-PCR (ABI-7500, Applied Biosystem, Foster City, CA, USA) was used to quantify the gene expression and the reaction for each gene was performed at three technical replicates as described previously [25]. The expression level was measured by 2^−ΔΔCT value and Fragaria MSI1 (MULTICOPYSUPPRESSOR OF IRA1) was used as an internal control [30,38].

2.8. H₂O₂ Accumulation, and Cd Quantification

The accumulation pattern of H₂O₂ was examined by following the staining method as described by [38]. The quantification of Cd contents from leaf and roots following Cd stress were performed by the method explained by [30].

2.9. Statistical Analysis

Three independent biological replicates were used for the qRT-PCR analysis and data was subjected to analysis of variance (ANOVA) using the SPSS Ver. 20 (Chicago, IL, USA). The means of gene expression values at different time points (i.e., 12 h, 24 h, 48 h, 60 h, and 72 h) were compared using Duncan’s Multiple Range (DMR) test for which the value of p < 0.05 was deliberated as statistically significant.

3. Results

3.1. Identification and Sequence Properties of FvMTP Genes

In this study, 12 genes encoding FvMTPs were identified in total from the strawberry genome (https://www.rosaceae.org/; accessed on 11 September 2021) using the MTP proteins pairs of Arabidopsis thaliana and Oryza sativa as queries. The FvMTP proteins are denominated as FvMTP1 to FvMTP12 based on sequence similarity with A. thaliana (Table S2). The open reading frame (ORF) length ranged from 1113 bp (FvMTP5) to 2589 bp (FvMTP12) along with 370 to 862 to amino acid length, respectively. Moreover, the isoelectric point (pI) and molecular weight (MW) ranged from 5.03 (FvMTP11) to 8.77 (FvMTP5) and 41.061 kDa (FvMTP5) to 96.20 kDa (FvMTP12). All the FvMTP proteins are predicted to possess 4 to 6 transmembrane domains (TMDs), except for FvMTP12 that showed 16 TMDs. Finally, the subcellular prediction analysis revealed that most of the FvMTP proteins are localized to vacuole, while only two FvMTP proteins (i.e., FvMTP9 and FvMTP10) were also localized in cell membrane (Table S2).

3.2. Phylogenetic Characterization, Motif Composition, and Gene Structure Analysis of FvMTPs

To determine the evolutionary relationship between strawberry, Arabidopsis, and rice MTPs, a phylogenetic tree was constructed using the protein sequences of FvMTPs, AtMTPs, and OsMTPs. The FvMTPs were further categorized into three major groups based on the specific-substrate group and sequence similarity with AtMTPs and OsMTPs. In our study, almost all FvMTPs were found, except FvMTP2 and FvMTP3. In addition, few of the FvMTPs showed higher sequence similarity with AtMTP1 and AtMTP6 and are named as FvMTP1 and FvMTP1.1, and FvMTP6 and FvMTP6.1, respectively (Figure 1). Previously, Montanini et al. [12] classified MTPs into three groups, such as Fe/Zn-MTPs, Mn-MTPs, and Zn-MTPs. In our results, the FvMTP1, FvMTP4, FvMTP5, FvMTP12 genes clustered in Zn-MTP group; FvMTP6 and FvMTP7 in Fe/Zn-MTP, and FvMTP8-FvMTP11 in Mn-MTP, which is similar with the grouping reported in grapevine [13] and tobacco [14].

The structural analysis of MTP further validated our analysis by showing conserved domain within the strawberry genome. Motif analysis demonstrated that motif 2 was commonly present in all FvMTP genes, while motifs 1 and 3 specifically occurred in FvMTP8-11 (Figure 2A). Gene structure analysis was performed based on CDS and UTRs using the TBtools program. Results showed slight divergence within FvMTPs, and mostly consisted conservation with motif analysis. For example, FvMTP6-6.1, FvMTP8, and FvMTP10-11 showed almost identical structure (Figure 2B). Thus, these analysis suggesting that these genes might share a common ancestor during the process of evolutionary history. Moreover, the gene structure analysis showed presence of cation_efflux and cation diffusion facilitator (CDF) domains in all FvMTP genes, suggesting that these genes retain the elementary feature of MTP family (Figure 2B). Moreover, few FvMTP proteins (i.e., FvMTP4, FvMTP6.1, FvMTP8, FvMTP10, FvMTP11, and FvMTP12) also showed ZT_dimer domain, which may be involved in the formation of homodimers during Zn transport. Similarly, CzcD and FieF domains were also found in some FvMTP proteins, signifying their role as Zn, Co, Cd, and Fe-Zn transporter proteins, respectively.

3.3. Chromosomal Orientation, Promoters and Functional Enrichment Analysis of FvMTPs

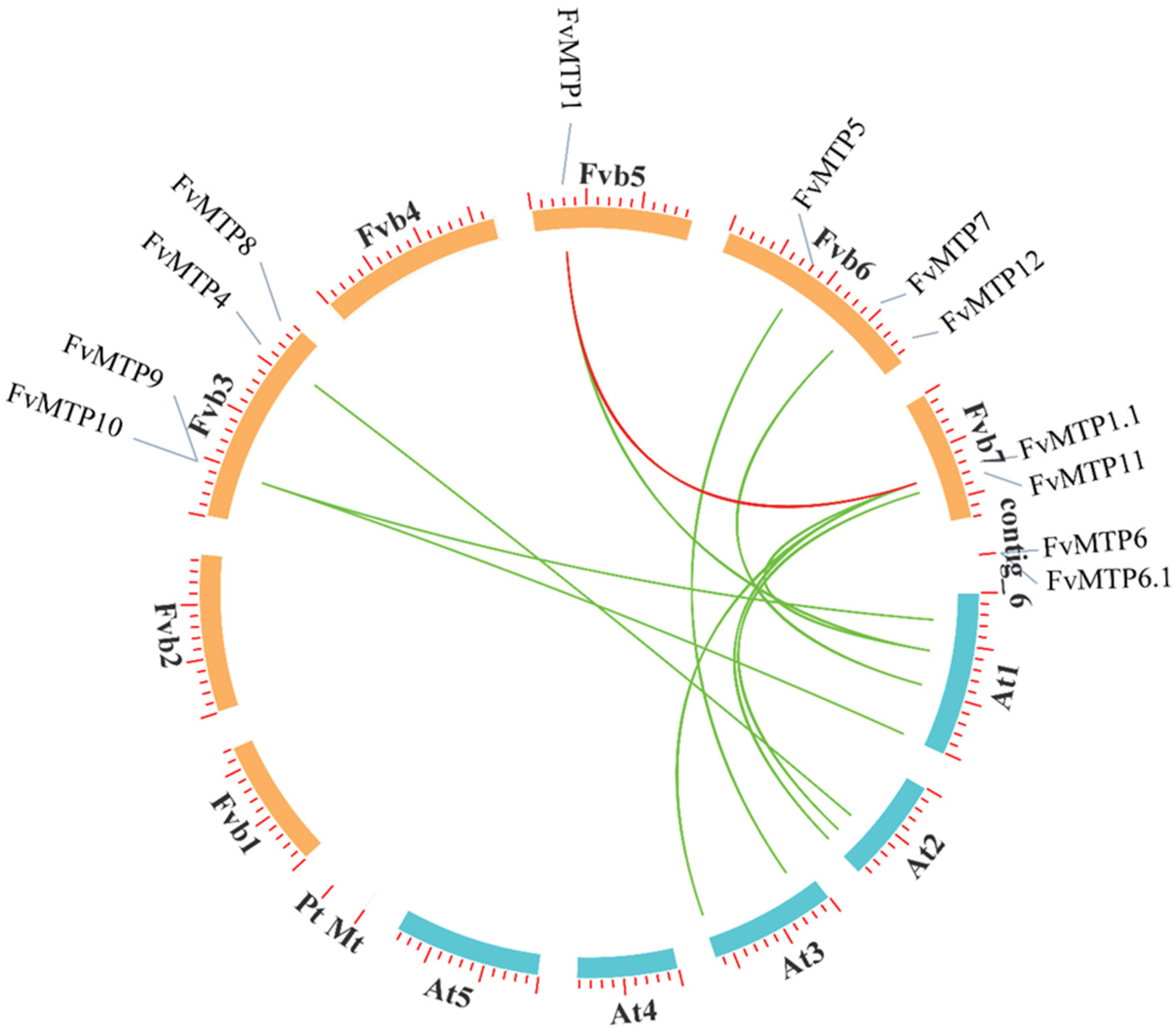

Figure 3 shows the chromosomal distribution of 12 FvMTPs on three of the seven different chromosomal locations (Fvb1-Fvb7) and on contig_6. Moreover, four FvMTPs (FvMTP4, FvMTP8, FvMTP9, and FvMTP10) are allocated to Fvb3, followed by three FvMTPs (FvMTP5, FvMTP7, and FvMTP12) on Fvb6. Two chromosomal positions, namely Fvb7 and contig_6 contain two FvMTPs each, whereas Fvb5 contains only one FvMTP1 (Figure 3). However, no FvMTP gene was allocated to Fvb1, Fvb2, and Fvb4, respectively. The collinear relationship was also determined between FvMTPs and AtMTPs (green colored), and within FvMTPs (red colored) using the circos (Figure 3). The results showed less conservation between MTP members with model plant Arabidopsis might be due to less abundance of their genes in both genomes.

We also analyzed the promoter regions of the MTP gene family using PlantCARE database. Results revealed that MTP genes show response to low-temperature, light, drought-inducibility, wound, and hormones (i.e., ABA, MeJA, GA, and auxin) (Figure 4). Taken together, the presence of stress- and hormonal-responsive promoter regions depict the complex but very vibrant regulatory role of FvMTP genes. Moreover, gene ontology (GO) functionally annotated strawberry FvMTP genes in biological process, molecular function, and cellular component. Most vital biological process, i.e., ‘cellular zinc ion homeostasis’, ‘zinc ion transport’, ‘cellular cadmium ion homeostasis’, ‘cadmium ion transmembrane transport’, ‘cellular iron ion homeostasis’, ‘iron ion transport’, and ‘zinc ion import across plasma membrane’ were mostly enriched. Likewise, ‘vacuole’, ‘plasma membrane’, and ‘Golgi apparatus’ were found in cellular component. Other GO terms, such as ‘zinc ion transmembrane transporter activity’, ‘cation transmembrane transporter activity’, ‘efflux transmembrane transporter activity’, and ‘ferrous iron transmembrane transporter activity’ are the most common terms of molecular function (Table S3). Furthermore, KEGG enrichment analysis of FvMTPs demonstrated their involvement as “Transporters” and “Protein families: signaling and cellular processes”, which verifies their main role as cation transporters (Table S4).

3.4. Cd Treatment and qRT-PCR Analysis

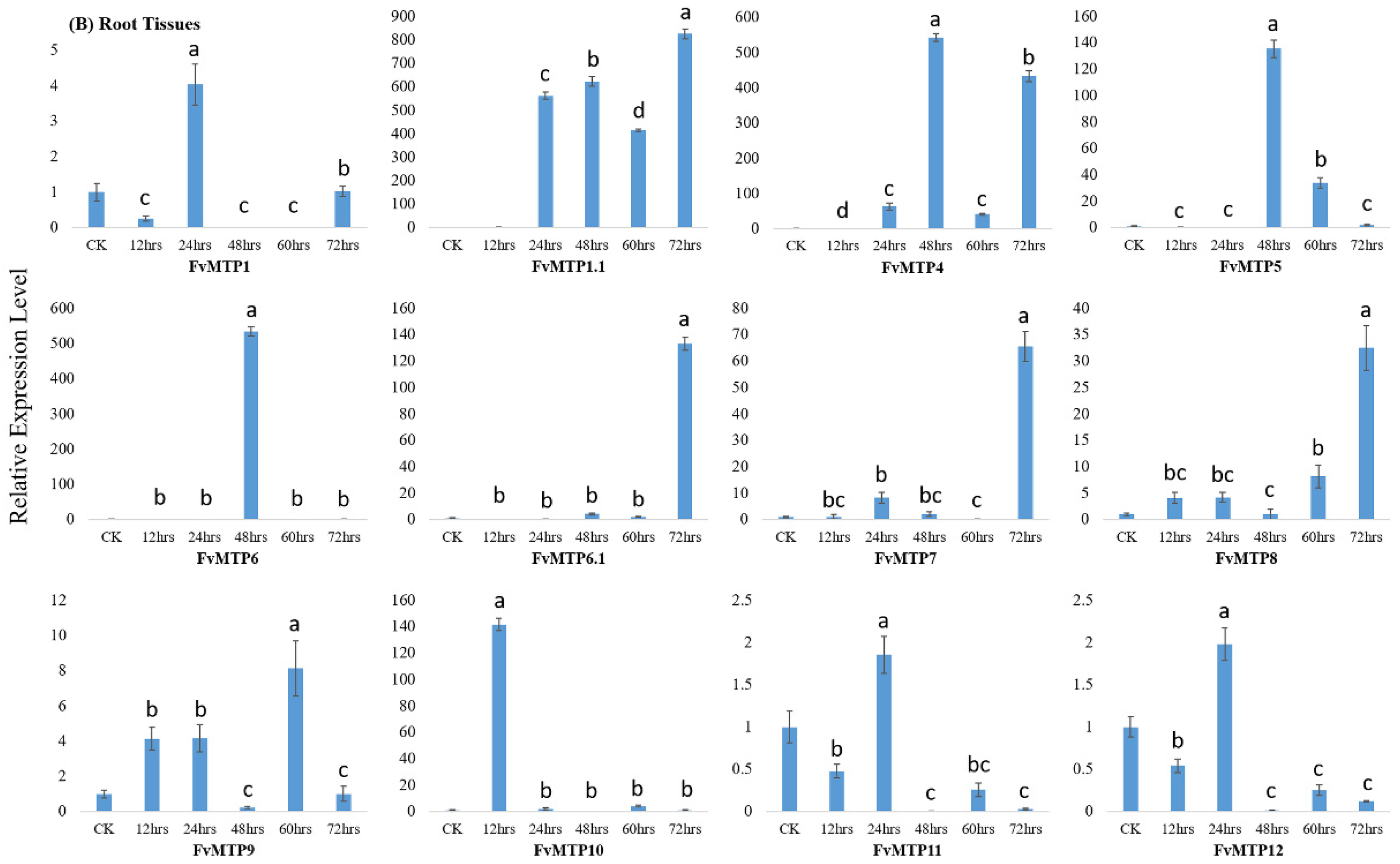

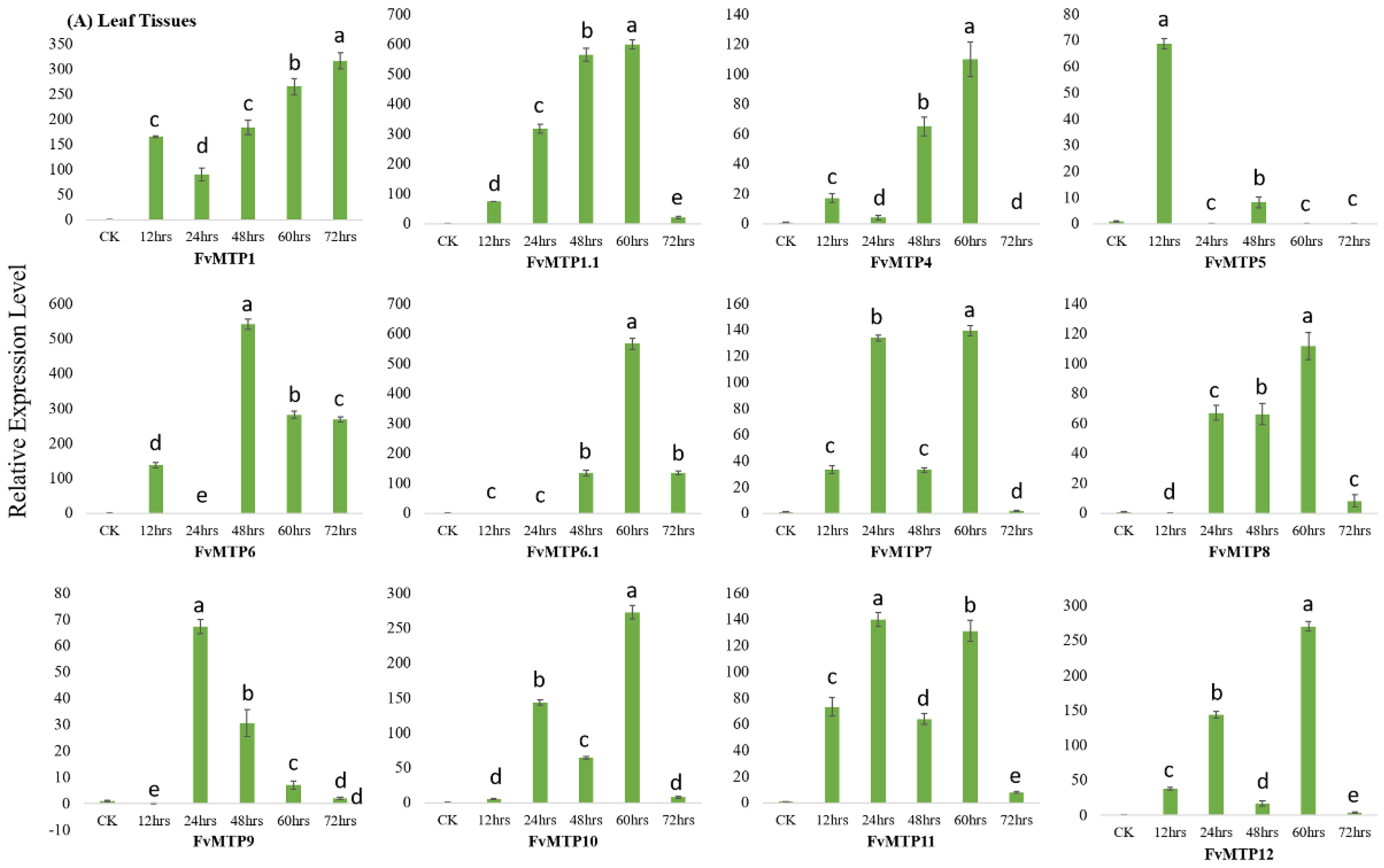

To understand the physiological role and vitality of all FvMTP genes under Cd toxicity, gene expression is quantified in strawberry leaf and root tissues by qRT-PCR analysis. Findings of the current investigations suggested significantly distinct response of MTP gene expression in both strawberry leaf and root tissues during different time points of Cd stress. In leaf tissues, several genes (such as FvMTP1, FvMTP4, FvMTP6, FvMTP8, and FvMTP11) showed a gradual increase in their expression level with respect to Cd stress period. Among these, FvMTP1, FvMTP1.1, and FvMTP6 genes exhibited higher expression values in Cd-treated strawberry leaves. However, remaining genes showed inconsistent expression behavior in leaf tissues during the Cd stress period (Figure 5A). Similarly, the expression level of genes, such as FvMTP1.1, FvMTP4, FvMTP8, and FvMTP9 was significantly induced in root tissues of Cd-treated strawberry plants when compared with CK (Figure 5B). Taken together, FvMTP1 and FvMTP6 showed significantly higher expression in leaf tissues, whereas FvMTP1.1 and FvMTP4 showed significantly higher expression in root tissues under Cd toxicity.

3.5. H₂O₂ Accumulation, and Cd Quantification

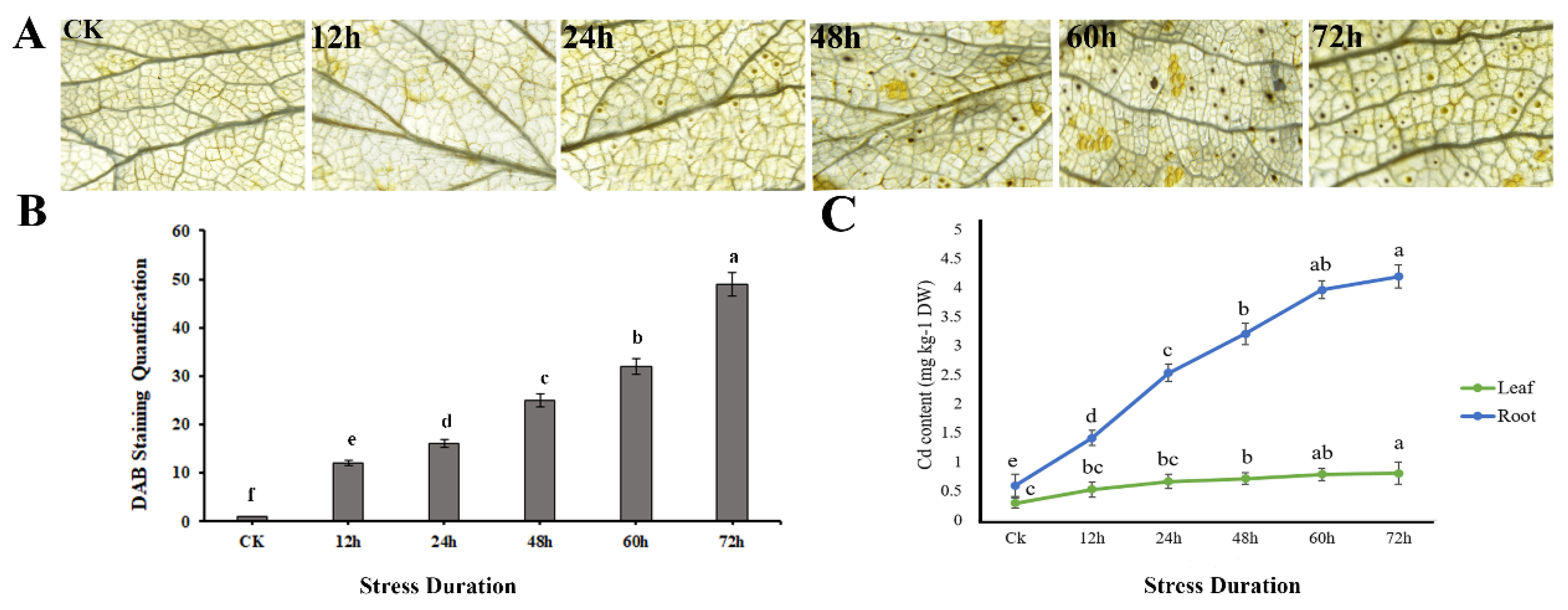

The accumulation pattern of H₂O₂ was examined using DAB staining (Figure 6A). Results indicated brown precipitates on Cd-treated strawberry leaves that showed higher accumulation with respect to treatment duration (Figure 6A). These brown precipitates were counted using the ImageJ program to represent the DAB staining quantity (Figure 6B). The quantification of Cd contents was also carried out from leaf and root tissues after different points of Cd application. Results suggested significant variability in Cd accumulation and showed higher contents in root tissues ranging from 0.6 ± 0.11 (CK) to 4.2 ± 0.2 (72 h) than that of leaf tissues ranging from 0.3 ± 0.09 (CK) to 0.81 ± 0.12 (72 h) of strawberry plants, respectively (Figure 6C).

4. Discussion

Metal tolerance proteins (MTPs) are divalent cation transporters, known to participate in transportation of various metals and may induce tolerance in plants against the stress caused by various heavy metals [13]. In this study, we identified 12 MTP proteins in the strawberry genome based on CDF and cation efflux domains in their corresponding protein sequences. The number of identified FvMTP proteins is similar to that in Arabidopsis [12], but higher than the rice [10] MTPs. The 12 FvMTP proteins are categorized into three major groups, i.e., Mn-MTP [5], Zn-MTP [4], and Fe/Zn-CDF [2], and denominated as FvMTP1-FvMTP12 based on their phylogenic position and sequence similarities with Arabidopsis (AtMTP) and rice (OsMTP) orthologs as previously reported [9]. However, no AtMTP2 and AtMTP3 orthologs were found in F. vesca genome. Moreover, two orthologs of each AtMTP1 (FvMTP1 and FvMTP1.1) and AtMTP6 (FvMTP6 and FvMTP6.1) were also identified in strawberry, while similar results have already been identified in tobacco (NtMTP1.1 and NtMTP1.2, and NtMTP6.1 and NtMTP6.2) and sweet orange (CsMTP8 and CsMTP8.1) [11,34]. This gene loss or expansion is probably due to the polyploidization events during the evolution of MTP genes and may possess diverse biological functions.

Other features of FvMTP proteins, such as MW, pI, ORF length, CDS length, intron numbers, chromosomal location, gene position, duplication type, TMDs, and subcellular positions, were analyzed using various bioinformatics resources (please see methods). The FvMTP proteins showed 4-6 TMDs, which is in-line with the same findings in other plants [35,38,39], whereas FvMTP12 showed 16 TMDs that is higher than grapevine VvMTP12 [13] and citrus CitMTP12 [34]. Gene duplication events commonly occur during the evolutionary process, thereby provide vital information about functional divergence, gene family expansion, and novel gene functions [40]. In our study, FvMTP genes did not show tandem or segmental duplication, which is similar with the grapevine MTPs [13]. Consistent with the previous findings [11,41], the FvMTP proteins are predicted to be localized to vacuole, signifying their potential role as vacuole-localized cation transporters. Sequence analysis of FvMTP proteins showed hallmark characteristics of the MTP family (i.e., cation efflux and CDF) as described [12]. The promoter analysis of the FvMTP gene family showed various light- and hormonal-responsive and tissue-specific elements that may play vital functions in strawberry growth and development, while our findings are consistent with the already identified light- and stress-responsive promoter regions of grapevine and wheat MTPs [14,33]. The functional enrichment (GO and KEGG) analysis reported that all the orthologous genes found in strawberry maintained similar function relative to AtMTP genes even after the divergence and shown to be involved in metal ion transport and homeostasis.

In addition, comprehensive functional prediction of FvMTP genes was performed by analyzing the gene expression patterns in strawberry leaf and root tissues under Cd stress. Zn-MTPs, including AtMTP1 [2], AtMTP3 [16], and AtMTP4 [40] are potential vascular Cd transporters and significantly involved in Cd sequestration. In the current investigation, FvMTP1, FvMTP1.1, and FvMTP4 genes were significantly induced in the leaf, and FvMTP1.1 and FvMTP4 were significantly expressed in root tissues under Cd stress, which is consistent with findings of previous reports demonstrating the role of these genes in Cd detoxification [11,13]. Under oxidative stress, ROS accumulation takes place by inducing the production of oxidizing components, such as H₂O₂ [22]. The accumulation pattern of H₂O₂ was examined by DAB staining in Cd exposed strawberry leaves, which showed accumulation with respect to progressive stress duration. Similar results were also found in grapevine when exposed to salt stress [25]. The quantification of Cd contents in strawberry tissues revealed significantly higher accumulation of Cd in root tissues than leaf tissues because roots are the primary absorbent of heavy metals and translocate them to sink (leaf) tissues. Generally, our results are in line with the accumulation of Cd in root and leaf tissues of strawberry in other studies [25,41]. Collectively, these results provide the valuable information for functional genomics studies on the role of MTPs in Cd homeostasis.

5. Conclusions

Herein, we identified 12 MTP genes in the strawberry genome that showed hallmark characteristics of MTP family members by containing the modified signature of cation_efflux domains. The phylogenetic analysis subdivided 12 FvMTP genes into three main groups according to their Arabidopsis and rice MTP orthologs. The FvMTP proteins appeared to undergo gene gain/loss through segmental duplication after polyploidization. The analysis of gene expression patterns speculated that FvMTP1, FvMTP1.1, FvMTP4, FvMTP6, and FvMTP11 may play a potential role in Cd detoxification. Finally, the Cd level was enhanced in root tissues compared to that of leaf tissues under Cd toxicity during different time points of treatment. Thereby, this study opens the gateway for the functional characterization of FvMTP genes in Cd homeostasis.
