Integrated SRNA-Seq and RNA-Seq Analysis Reveals the Regulatory Roles of miRNAs in the Low-Temperature Responses of Canarium album

by
Ruilian Lai
1,†,
Qingxu Guan
2,†,
Chaogui Shen
1,
Xin Feng
1,
Yongyan Zhang
3,
Yiting Chen
1,
Chunzhen Cheng
3,* and
Rujian Wu
1,*
1
Fruit Research Institute, Fujian Academy of Agricultural Sciences, Fuzhou 350013, China
2
College of Horticulture, Fujian Agriculture and Forestry University, Fuzhou 350002, China
3
College of Horticulture, Shanxi Agricultural University, Jinzhong 030801, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Horticulturae 2022, 8(7), 667; https://doi.org/10.3390/horticulturae8070667
Submission received: 16 June 2022 / Revised: 17 July 2022 / Accepted: 18 July 2022 / Published: 21 July 2022
(This article belongs to the Topic Temperature Stress and Responses in Plants)
Browse Figures
Versions Notes

Abstract

:
Chinese olive (Canarium album), a characteristic fruit tree in tropical and subtropical areas, suffers greatly from low-temperature stress (LTS). The regulatory roles of microRNA (miRNA) in plant LTS responses have been confirmed in many plant species but not in C. album. In this study, a cold-tolerant cultivar ‘Rui’an 3′ (RA) and a susceptible cultivar ‘Qinglan 1’ (QL) treated at 25 °C (control, CK) and −3 °C (cold temperature treatment, CT) were subjected to small RNA (sRNA) and transcriptome sequencing for the exploration of the cold responses of C. album. Comparative sRNA sequencing analysis identified much fewer LTS-responsive, differentially expressed miRNAs (DEMs) in RA (4 DEMs) than in QL (23 DEMs). Cal-miR482-22 was found to be specifically induced by LTS in RA. Cal-miR397-3 was upregulated, while cal-miR398_2-3 and cal-undef-190 were downregulated after LTS only in QL. However, when compared with QL, a higher basic expression of cal-miR397-3, and lower expression of cal-miR398_2-3 and cal-undef-190 were found in RA, suggesting that they may contribute to the cold tolerance of RA. Comparative transcriptome analysis showed that the number of LTS-responsive differentially expressed genes (DEGs) identified in QL was larger than that in RA, and some DEGs were also predicted as the target genes of the identified DEMs, forming multiple differentially expressed miRNA–target gene pairs, such as cal-miR397-3_laccase 2, 4, 17, cal-miR482-22_suppressor of npr1-1, etc. Quantitative real time PCR results showed that the expression changes of DEGs and DEMs in different samples were generally consistent with the sequencing results. Our study indicated that the basic expression levels of some miRNAs (especially the cal-miR397-3, cal-miR398_2-3, and cal-miR482-22), and their target genes contribute greatly to the cold-tolerance characteristics of C. album. Our study is helpful for understanding the roles of miRNAs in the cold resistance and responses of C. album.

1. Introduction

Low-temperature stress (LTS) is one of the most common abiotic stresses threatening plant growth and development. It often causes extensive damages to crops, particularly in tropical and subtropical areas in late winter and early spring. Generally, chilling and freezing injuries will be caused in plants by above 0 °C and below 0 °C LTS, respectively. The plant’s response to LTS is a complex physiological process involving in series of cellular, metabolic, transcriptional, and post-transcriptional changes, and changes in cell structure, antioxidant process, membrane structure, enzymatic activity systems and gene expression, etc., were widely studied in many plant species [1].
MicroRNA (miRNA) is a kind of endogenous non-coding single-stranded small RNA. Generally, miRNAs display regulatory functions at the post-transcriptional level as negative regulators of gene expression [2]. Accumulated evidences have shown that miRNAs are involved in LTS response of many plants. In Ipomoea batatas, miRNAs function in the LTS response by regulating the expression of coding genes, including APETALA2 (AP2), auxin response factor (ARF), CNR transcription factor (CNR), dicer-like (DCL), MYB transcription factor (MYB), SQUAMOSA promoter binding protein like (SPL), teosinte branched1/Cincinnata/Proliferating cell factor (TCP), etc., and by mediating genes involved in salicylic acid, abscisic acid signaling, and reactive oxygen species (ROS) response pathways [3,4]. The LTS responsive miRNAs of Zea mays mainly include miR160, miR319, miR395, miR396, miR408, miR528, and miR1432 [5]. Some miRNAs, such as miR156k, miR159a, miR167a, miR169a, and miR172a, have been proven to contribute to the LTS-induced dormancy of Paeonia suffruticosa [6]. A large number of LTS-esponsive miRNAs have also been identified in Solanum aculeatissimum, including miR168a, miR2652a, miR812v, miR4414a-5p, miR5813, miR167c-3p, miR9478-3p, miR4221, and miR8577 [7]. Moreover, miR159, miR164, miR168, miR172, miR393, miR397, miR529, and miR1029 were reported to function in the cold stress responses of Triticum aestivum [8], and miR159, miR166, miR472, and miR482 function in the enhancing cold tolerance of S. lycopersicum [9] by interacting with target genes. Therefore, miRNAs play important roles in the LTS responses of plants.
Chinese olive (Canarium album) is a typical tropical and subtropical fruit tree primarily distributed in southern China and Southeast Asia. Its fruit is rich in nutrients and has important edible and medicinal values with great cultivation potential [10,11,12]. LTS is a serious natural threat for the C. album industry, often leading to the reduction of fruit yield and even plant mortality. It has been generally believed that −3 °C is the lowest temperature that C. album plants could withstand. In our previous study, we obtained a cold-tolerant C. album cultivar, named ‘Rui’an 3’ (RA), which could survive well when the temperature was below −3 °C. Additionally, we investigated the transcriptomic changes of the C. album cultivar ‘Fulan 1’, a special fresh edible cultivar, in response to LTS [13]. However, up to now, there is no report about the role of miRNAs in C. album cold response. Hence, an in-depth study on the functional mechanism of miRNAs and their target genes in response to LTS would be helpful for the systematical clarification of the cold resistance mechanism of C. album. In our present study, the expression changes of miRNAs and mRNAs of C. album in a cold-tolerant cultivar RA and a cold-susceptible cultivar ‘Qinglan 1’ (QL) under LTS were compared. The results obtained in this study will be helpful for revealing the function of miRNAs in the cold resistance and responses of C. album.

2. Materials and Methods

2.1. Materials

The cold-tolerant cultivar RA and susceptible cultivar QL plants used in this study were provided by the Fuzhou Germplasm Repository of Chinese Olive (Fuzhou, CHN). Seedlings with a uniform height of about 20 cm were cultured in an incubator at 25 °C, 60–80% relative humidity and 12 h (2000 ± 200 lx) photoperiod for 1 week (CK). Then half of the seedlings were moved to −3 °C (CT) artificial climate boxes for 24 h. The QL plants treated at 25 °C and −3 °C were named as QLCK and QLCT, and the RA plants treated at 25 °C and −3 °C were recorded as RACK and RACT, respectively. After phenotype observation, the leaves of plants from the four groups, i.e., QLCK, QLCT, RACK and RACT, were collected, frozen with liquid nitrogen and stored in a −80 °C ultra-low temperature freezer for future use. For each group, three biological replicates were made.

2.2. Methods

2.2.1. RNA Extraction and Quality Determination

The total RNA was extracted from C. album leaves by E.Z.N.A.TM Plant RNA Kit (Omega bio-tek, Norcross, GA, USA). The concentration and purity of the total RNA were measured using the Thermo Scientific NanoDrop 2000 (Thermo Scientific, Waltham, MA, USA) and the integrity was detected using the Agilent 2100 Bioanalyzer (Agilent Technologies Inc., Santa Clara, CA, USA).

2.2.2. Library Construction and Sequencing

NEB Next Multiplex Small RNA Library Prep Set for Illumina and NEB Next® UltraTM RNA Library Prep Kit (NEB, Ipswich, MA, USA) was used for the construction of libraries for small RNA sequencing and mRNA sequencing. The library quality was measured using an Agilent 2100 Bioanalyzer and Agilent High Sensitivity DNA Kit (Agilent Tehcnologies Inc., Santa Clara, CA, USA). Pico green was used to detect the total library concentration (Quantifluor-ST fluorometer, Promega, Madison, WI, USA) and qPCR was used to quantitatively detect the effective library concentration. The multi-sample DNA libraries were homogenized, mixed in equal volume, diluted and quantified, and sequenced on the Illumina sequencer.

2.2.3. Small RNA Data Analysis

The quality information of raw data was calculated and then the raw data were filtered. Clean data were obtained by removing adapter and low-quality sequences. The number of clean reads with a sequence length of 18–36 nt were counted. The clean reads were combined with GenBank (https://www.ncbi.nlm.nih.gov/genbank/ (accessed on 18 October 2020)) and Rfam 14.2 (http://rfam.xfam.org/ (accessed on 18 October 2020)) databases to compare and annotate all small RNAs. The Arabidopsis database in miRBase 22.1 (http://www.miRbase.org/ (accessed on 19 October 2020)) was selected as the reference database, and the clean reads were aligned to the reference sequences. SRNAs with no match in the miRBase were further subjected to novel miRNA prediction using miREvo and miRdeep2. psRNAtarget (https://www.zhaolab.org/psRNATarget/ (accessed on 19 October 2020)) was used for target gene prediction with default parameters. For the identification of differentially expressed miRNAs (DEMs), |log2Fold change (FC)| > 1.0 and p < 0.05 were used as criteria.

2.2.4. Transcriptome Data Analysis

Trinity [14] was used for the transcriptome assembly. Gene function annotation was performed using NR, NT, Pfam, KOG, Swissprot, KEGG, and GO databases. DEGseq was used to analyze DEGs where p < 0.05 and |log2FC| > 1.0 were set as the threshold of differentially expressed genes (DEGs). Then, GO and KEGG analyses of DEGs was performed based on the GOseq R [15] package and KOBAS [16], respectively.

2.2.5. qRT-PCR Verification of DEMs and DEGs

β-Actin 7 and tubulin 5 were used as reference genes for the qRT-PCR verification of mRNAs and 18s rRNA was used as a reference gene for miRNAs. The TransScript® Uni All-in-One First-Strand cDNA Synthesis SuperMix for qPCR (One-Step gDNA Removal) and TransScript® miRNA First-Strand cDNA Synthesis SuperMix (Transgen Biotech, Beijing, China) were used for the synthesis of cDNA used for qRT-PCR verification of mRNAs and miRNAs, respectively. By using PerfectStart® Green qPCR SuperMix (Transgen Biotech, Beijing, China), qRT-PCR reactions were performed on a Roche LightCycler480 fluorescence quantitative machine (Roche, Rotkreuz, Switzerland). The primer sequences are presented in Table 1 and Table 2.

3. Results

3.1. Phenotypic Changes of Cold-Tolerant and Susceptible C. album cultivars under LTS

After treatment at −3 ℃ for 24 h, QL plants showed obvious damage symptoms, including leaf wilting, water loss, and browning of the leaf edges (Figure 1A,B). The RA plants, however, did not show obvious cold stress-related symptoms (Figure 1C,D).

3.2. Small RNA Sequencing Analysis

3.2.1. Overview of SRNA-Seq Data and Identification of Conserved miRNAs in C. album

Totally, we obtained 535,461,214 raw reads from the 12 sRNA libraries (three replicates for QLCK, QLCT, RACK, and RACT group). After removing low quality reads, 444,634,096 clean reads were retained. These sRNAs included ribosomal RNA (rRNA), small nucleolar RNA (snoRNA), small nuclear RNA (snRNA), transfer RNA (tRNA), microRNA (miRNA), non-coding RNA (ncRNA), etc. Totally, we obtained 32,598,206, 35,013,844, 38,007,345 and 38,818,663 sRNA clean reads for QLCK, QLCT, RACK, and RACT, respectively. And 547 known miRNAs and 237 undefined/novel miRNAs were identified from the twelve sRNA libraries (supplemental data Table S1).
The distribution of the first base of miRNAs with different lengths is presented in Figure 2A. The first base of miRNAs with lengths of 18 nt was mainly A and G, while that of miRNAs with lengths of 19 nt was mainly G and U. The first base of miRNAs with lengths ranging from 20 to 23 nt was mainly U. For the miRNAs with lengths from 24 to 26 nt, A was the major first base. And the first base of miRNAs with lengths of 28 nt was mainly C. The base distribution of miRNA sequences within 28 nt at positions 1–25 nt was relatively random, while U was present primarily at positions 26 and 27 nt, and G was biased at the 3′ end of miRNAs (Figure 2B).

3.2.2. Differential Expression Analysis of miRNAs

After LTS, 23 miRNAs were identified as being DEMs in QL. Among them, 14 miRNAs, belonging to seven miRNA families (miR159, miR164, miR171, miR319, miR394, miR396, and miR397), were found to be upregulated by LTS (Figure 3A). The nine downregulated DEMs included four known miRNAs from the miR1446, miR166, and miR398 families and five novel miRNAs. The fold changes of cal-miR164_2-1, cal-miR164_2-4, and cal-miR171_2-6 were all more than 7.0 and the fold change of cal-miR397-3 was more than 24.0. In RA, only four DEMs (cal-miR159-39, cal-miR164-1, cal-miR396-23, and cal-miR482-22) were identified after LTS treatment. Moreover, all these four DEMs identified in RA were upregulated by LTS with fold changes of 3.65, 2.56, 4.98, and 3.01, respectively (Figure 3B).
Among these DEMs, the expression level of cal-miR164-1 increased after LTS in both QL and RA. The expression levels of some miR159, miR164, and miR396 family members were also upregulated. When compared with CK, DEMs belonging to the miR396 and miR397 families were both upregulated in QL and RA, while miR166 family members were downregulated. Notably, cal-miR397-3 was upregulated, while cal-miR398_2-3 and cal-undef-190 were downregulated in QL after LTS. The basic expression of cal-miR397-3 was higher and the expression of cal-miR398_2-3 and cal-undef-190 was lower in RA when compared with QL.
The five novel DEMs screened in the comparison of QLCK vs. QLCT were further analyzed (supplemental data Table S2). Cal-undef-8, cal-undef-17, cal-undef-161, cal-undef-190 and cal-undef-204 were predicted to target 29, 4, 15, 29 and 5 genes, respectively. These predicted target genes included genes encoding MADS-box protein, E3 ubiquitin-protein ligase, peroxiredoxin, phosphate dikinase, zinc finger protein, 4-coumarate-coA ligase 1, beta-galactosidase, WD repeat-containing protein, and 40 genes with unknown function.

3.3. Comparative Transcriptome Analysis Results

3.3.1. RNA-Seq and De Novo Assembly of Transcriptome

Comparative transcriptome analysis of QL and RA leaves before and after LTS treatment was performed. In total, an average of 47,306,978 raw reads were obtained from the 12 cDNA libraries. After removing the low-quality reads and reads with joints, 43,631,097 clean reads (accounting for about 92.22% of raw reads) were retained. The transcriptome data size of 12 samples ranged from 6.69 to 7.56 Gb. The Q20 and Q30 values for each library were higher than 98 and 94%, respectively, while the proportion of undefined bases was less than 8.0 × 10−5. The total length of the transcripts and unigenes was 337,927,555 and 87,678,110 bp, with an average length of 1380 and 998 bp, respectively. The N50 and N90 value of contigs was 2112 and 590 bp, respectively. The N50 and N90 values of unigenes were 1549 and 415 bp, respectively. In addition, the GC content of transcripts and unigenes was 39.40 and 38.50%, respectively.
The annotation proportions of all unigenes obtained in NR, GO, KEGG, Pfam, eggNOG, and Swissprot databases were 53.43, 29.40, 21.95, 23.52, 51.19, and 37.54% respectively, and among all these annotated unigenes, 7945 (accounting for 9.04%) were annotated by all databases.

3.3.2. DEGs Identification and Enrichment Analysis Results

By using the criteria of |log2FC| > 1.0 and p < 0.05, DEGs were identified from four comparisons, including QLCK vs. QLCT, QLCK vs. RACK, QLCT vs. RACT, and RACK vs. RACT. After LTS, more DEGs were identified in QL (11,026 in total with 5991 upregulated and 5035 downregulated) when compared to RA (8548 in total with 4238 upregulated and 4310 downregulated) (Figure 4A, supplemental data Tables S3 and S4). Among these DEGs, 75 were identified as being common DEGs among all the comparisons (Figure 4B). When compared with CK, the number of common DEGs both in QL and RA after LTS was 5180, and the number of specific DEGs in QL and RA were 5846 and 3368, respectively. These results indicated that the overall transcriptome change in RA after LTS was milder than that in QL.
KEGG enrichment analysis was performed for the DEGs identified in different comparisons. When compared with CK, 126 KEGG metabolic pathways were enriched after LTS in QL (supplemental data Table S5). Of them, 15 pathways, including phenylpropanoid biosynthesis, carotenoid biosynthesis, plant hormone signal transduction, starch and sucrose metabolism, sesquiterpenoid and triterpenoid biosynthesis, plant–pathogen interaction, plant circadian rhythm, plant MAPK signaling pathway, cutin, suberin, and wax biosynthesis, biotin metabolism, glyoxylate and dicarboxylate metabolism, anthocyanin biosynthesis, glycine, serine, and threonine metabolism, flavonoid biosynthesis, and isoflavonoid biosynthesis were extremely significantly enriched (p < 0.01) (Table 3). Additionally, seven pathways including galactose metabolism, glutathione metabolism, amino sugar and nucleotide sugar metabolism, glycerolipid metabolism, steroid biosynthesis, other types of O-glycan biosynthesis, and pentose and glucuronate interconversions were significantly enriched (p < 0.05) (Table 3).
After LTS, 123 KEGG pathways were enriched in RA (supplemental data Table S6). Among these, 11 pathways, including plant hormone signal transduction, carotenoid biosynthesis, plant MAPK signaling pathway, plant circadian rhythm, starch and sucrose metabolism, glyoxylate and dicarboxylate metabolism, glycine, serine, and threonine metabolism, galactose metabolism, phenylpropanoid biosynthesis, sesquiterpenoid and triterpenoid biosynthesis, and carbon fixation in photosynthetic organisms, were extremely significantly enriched (p < 0.01) (Table 4). Moreover, six pathways, including anthocyanin biosynthesis, tyrosine metabolism, ABC transporters, alanine, aspartate, and glutamate metabolism, steroid biosynthesis, and glycerolipid metabolism, were significantly enriched (p < 0.05) (Table 4).
Phenylpropanoid biosynthesis, carotenoid biosynthesis, plant hormone signal transduction, starch and sucrose metabolism, sesquiterpenoid and triterpenoid biosynthesis, plant circadian rhythm, plant MAPK signal pathway, glyoxylate and dicarboxylate metabolism, anthocyanin biosynthesis, glycine, serine, and threonine metabolism, galactose metabolism, glyceride metabolism, steroid biosynthesis were significantly or extremely significantly enriched both in the comparisons of QLCK vs. QLCT and RACK vs. RACT, suggesting that these pathways play important roles in LTS responses in both the two C. album cultivars. Moreover, carbon fixation in photosynthetic organisms, tyrosine metabolism, ABC transporters, and alanine, aspartate, and glutamate metabolism pathways were found to be specifically enriched in the RACK vs. RACT comparison, which might contribute to the high cold tolerance of RA.
Additionally, the DEGs identified in the QLCK vs. RACK comparison and the QLCT vs. RACT comparison were found to be enriched in 98 and 99 KEGG pathways, respectively (supplemental data Tables S7 and S8), and five and four pathways were identified to be significantly enriched in the QLCK vs. RACK comparison and QLCT vs. RACT comparison, respectively (Table 5 and Table 6) (p < 0.05). Notably, the phenylpropanoid biosynthesis pathway was significantly enriched in all comparisons (QLCK vs. QLCT, RACK vs. RACT, QLCK vs. RACK and QLCT vs. RACT), indicating that this pathway contributed greatly to the cold stress responses of C. album.
In our previous study, plant hormone signal transduction was verified to be freezing-stress-responsive in C. album cv. ‘Fulan 1’ [13]. In this study, plant hormone signal transduction was significantly enriched by DEGs identified from the QLCK vs. QLCT and RACK vs. RACT comparisons. In QL, AUX1, TIR1, and AUX/IAA genes, involved in auxin signaling pathways, were identified to be upregulated DEGs by LTS, while differentially expressed ARF, GH3, and SAUR genes contained both up- and downregulated members. However, in RA, GH3 was upregulated, AUX/IAA, ARF, and SAUR DEGs both had up and downregulated members, while AUX1 and TIR1 did not display differential expression change after LTS (Figure 5A). In QL, the NPR1 and PR-1 genes involved in the salicylic acid signaling pathway were downregulated by LTS, but TGA genes had both up- and downregulated members. However, in RA, PR-1 was upregulated by LTS, and both up- and downregulated NPR1 and TGA genes members were identified (Figure 5B).

3.4. Integrated Analysis of Differnetially Expresssed MiRNAs and MRNAs

3.4.1. KEGG Enrichment Analysis of DEM Target Genes

Target gene prediction analysis using psRNAtarget identified 2743 target genes of 26 DEMs, including 48 and 4 target genes with expectation values less than 2.0 and equal to 0, respectively. Pathway enrichment analysis of these predicted DEM target genes showed that, in QL, the target genes of LTS-responsive DEMs were enriched in 26 pathways. The top ten enriched pathways included pyrimidine metabolism, amino sugar and nucleotide sugar metabolism, biotin metabolism, cutin, suberin, and wax biosynthesis, carbon fixation in photosynthetic organisms, pyruvate metabolism, carotenoid biosynthesis, plant-pathogen interaction, phenylalanine metabolism, and ubiquinone and other terpenoid-quinone biosynthesis (Table 7). Additionally, peroxisome, phenylpropane biosynthesis, RNA degradation, and others related to plant stress resistance pathways were also enriched. However, only pyrimidine metabolism was significantly enriched (p < 0.05).
When compared with CK, the predicted DEM target genes in RA were enriched in only five pathways (Table 8), including propanoate metabolism, glyoxylate and dicarboxylate metabolism, pyruvate metabolism, amino sugar and nucleotide sugar metabolism, and glycolysis/gluconeogenesis. Among them, propanoate metabolism was significantly enriched (p < 0.05). Moreover, the target genes of LTS-responsive DEMs involved in propanoate metabolism, glyoxylate and dicarboxylate metabolism, and glycolysis/gluconeogenesis were identified to be enriched in both QL and RA.

3.4.2. Expression Analysis of DEMs and Their Corresponding Target Genes

The differentially expressed target genes of DEMs included scarecrow-like protein (SCL), laccase (LAC), auxin response factor (ARF), U-box domain-containing protein (U-box protein), transketolase (TKT), heavy metal-associated isoprenylated plant protein (HIPP), resistance to uncinula necator protein (RUN), 4-coumarate-CoA ligase (4CL), suppressor of npr1-1, constitutive 1 (SNC1), E3 ubiquitin-protein ligase, and other genes with unknown functions (Table 9). According to the FPKM values, the expression of several miRNAs and their target genes varied greatly in different samples. These included cal-miR171_2-1 and SCL6, cal-miR171_2-6 and SCL6, cal-miR394-1 and U-box protein, cal-miR396-17 and TKT, cal-miR397-3 and LAC2, LAC4, LAC17, cal-miR482-22 and SNC1, cal-undef-161 and 4CL, and cal-undef-8 and E3 ubiquitin protein ligase. Noteworthily, after LTS, the expression of cal-miR482-22 (log2FC = 1.668) in RA was significantly negatively correlated with its target gene SNC1 (log2FC = −3.987). To reveal putative interactions between miRNAs and mRNA regulating LTS responses in C. album, the Pearson correlation coefficient (PCC) between DEMs and target genes was calculated based on the FPKM values and the condition of miRNAs or mRNAs where PCC ≥ 0.8 was selected to construct the regulatory network diagram (Figure 6). The DEMs and the differentially expressed target genes after LTS were verified by qRT-PCR (Figure 7). The expression patterns of miRNAs and their corresponding target genes in different samples were almost all consistent with the sequencing results, suggesting that these miRNAs jointly regulate the LTS response in C. album via target gene interaction. Additionally, the expression of cal-miR488-22 and its predicted SNC1 was confirmed to be negatively correlated in RA after LTS by using qRT-PCR.

4. Discussion

Low-temperature stress is an important environmental factor influencing plant production. The plant responses to LTS are very complex and diverse [17,18]. In our present study, we compared the expression changes of sRNAomes and transcriptomes, screened the regulatory miRNAs, and obtained several potential miRNA–mRNA pairs in cold-tolerant and -susceptible C. album cultivars under cold stress. The preliminary analysis of their interactions and potential roles in cold resistance response will provide new insights for revealing the underlying response mechanisms of C. album to LTS.

4.1. Some miRNAs Contribute to the Cold-Tolerance of C. album

MiRNAs are an important class of non-coding RNA that are commonly involved in plant responses to abiotic stress via interacting with their corresponding target mRNAs or other non-coding RNA molecules (such as long non-coding RNA) [19,20]. As a characteristic crop of tropical and subtropical areas, C. album is sensitive to low temperature. In this research, we identified 547 known miRNAs and 237 novel miRNAs from C. album leaves. Among these miRNAs, 21 known and five novel miRNAs showed differential expression in response to LTS. These differentially expressed known miRNAs belong to 11 families, most of these miRNA families, including miR159 [8], miR164 [8], miR166 [21], miR171 [22], miR319 [21,22,23], miR394 [24], miR396 [21,25,26], miR397 [8], miR398 [21], and miR482 [9], which were all reported to play roles in regulating cold or freezing stress responses in plants such as Arabidopsis thaliana, Populus simonii×, Medicago sativa, Z. mays, and so on. Consistently, some miR159, miR164, and miR396 family members were found to be upregulated after LTS in both QL and RA. Previous studies have shown that miR159 acts as a small RNA-regulating calcium-dependent protein kinase (CDPK) and is up-regulated during cold stress in S. lycopersicum and S. habrochaites [27]. MiR164 targeting NAC transcription factors and phytosulfokines play important functions in signal transduction and oxidative stress responses, and are upregulated by cold stress in T. aestivum [8]. The miR396 that targets growth-regulating factors (GRFs) is upregulated in cold stress responses in Hylocereus polyrhizus [25].
The overexpression of miR397a may modulate the lignification of plant cell walls to improve the endurance of low-temperature stresses in plants [28], whereas miR397b is slightly upregulated by cold stress treatments [29]. In response to cold stress, the expression level of miR398 decreased in T. aestivum [30]. In our study, we found that cal-miR397-3 was upregulated, whereas cal-miR398_2-3 was downregulated in QL, but both of them were not significant changed in RA after LTS. Notably, the basic expression of cal-miR397-3 was higher and the expression of cal-miR398_2-3 was lower in RA, suggesting that their basic expression levels might related with the cold tolerance of C. album cultivars. Besides, miR482 has also been reported to be closely related to plant stress resistance [9]. In our present study, cal-miR482 was identified to be specifically upregulated only in RA after LTS, suggesting that this miRNA might contribute to cold-tolerance in C. album. These results indicated that the basic expression levels of some miRNAs, including cal-miR397-3, cal-miR398_2-3, and cal-miR482-22, contribute greatly to the cold-tolerance characteristics of C. album. Additionally, we also identified several novel miRNAs that were differentially expressed in different samples, including cal-undef-8, 17, 161, 190, and 204. Further researches are needed to identify the roles of these miRNAs in the low temperature responses of C. album.

4.2. The Low Temperature Responses of C. ablum Involved Multiple Metabolic Pathways

A large number of DEGs involved in LTS responses were identified to be enriched in phenylpropanoid biosynthesis, carotenoid biosynthesis, plant hormone signal transduction, starch and sucrose metabolism, sesquiterpenoid and triterpenoid biosynthesis, and plant circadian rhythm in both QL and RA, which were also found to be enriched in cold-treated C. album cv. ‘Fulan 1’ [13]. It was thus suggested that the genes involved in these pathways may be important for LTS responses in C. album. However, sesquiterpenoid and triterpenoid biosynthesis, plant MAPK signal pathway, and glyoxylate and dicarboxylate metabolism were specifically enriched in our study. Sesquiterpenoid and triterpenoid biosynthesis could reduce the lipid oxidation under stress conditions in S. lycopersicum [31,32]. The plant MAPK signal pathway has been reported to be closely related to low-temperature stress responses in plants [33]. Brassica rapa adapted to LTS by changing protein function in the glyoxylate and dicarboxylate metabolism [34]. The significant enrichment of these pathways indicated that they were all necessary for the LTS response of C. album. Carbon fixation in photosynthetic organisms, tyrosine metabolism, ABC transporters, alanine, and aspartate and glutamate metabolism have been confirmed to participate in the LTS responses of several plant species, such as Lilium davidii [35], Oryza sativa [36], Panax ginseng [37], and Lolium perenne [38]. Noteworthily, the DEGs involved in these pathways were also found to be enriched in the cold-tolerant cultivar RA. Additionally, when compared with CK, the number of DEGs in RA was significantly lower than in QL after LTS. The enrichment of these pathways in cold-treated RA and much milder transcriptome changes of RA after LTS support well the high cold-tolerance of this cultivar.
The accumulated evidence has proved that phytohormones play important roles in plant’s low-temperature responses. In our previous study, the auxin signal pathway in C. album cv. ‘Fulan 1’ significantly changed under −3 °C stress but not under chilling stress [13]. In this study, after LTS, the auxin signaling pathway was significantly induced, many involved genes exhibited differential expression, including AUX1, TIR1, AUX/IAA, ARF, GH3, SAUR, etc. Besides, using sRNA-seq, a series of auxin signaling or induction-related DEMs, including miR159 [39], miR164 [40], miR398 [40], and miR482 [41], were also identified. These results suggest that the auxin signaling might play important role in the response to the low-temperature stress of C. album. Salicylic acid promotes cell heat production, inhibits ROS accumulation, and alleviates cell dehydration after LTS [42]; the significant enrichment of salicylic acid signal transduction after LTS in C. album in our research suggests that this might be close related with its high cold tolerance.

4.3. The Interactions of Some MiRNAs and Their Target mRNAs Might Contributed Greatly to the Cold Resistance Response of C. album

In our study, we found that the predicted target genes of some DEMs were simultaneously identified as DEGs, indicating that these miRNAs and their corresponding target genes jointly regulate the response process through interaction. The differentially expressed target genes of DEMs (i.e., SCL, LAC, ARF, U-box protein, SNC, TKT, HIPP, 4CL, E3 ubiquitin-protein ligase, etc.) were involved in plant stress-resistance, auxin, and phenylpropane and flavonoid metabolism. Previous studies have shown that the knockout of miR171i or overexpression of its target gene SCL26.1 can improve the abiotic stress resistance of Malus domestica by regulating the expression of antioxidant enzyme genes [43]. Laccase regulates cell wall synthesis [44]; miR397-3 and its several predicted target LAC genes were differentially expressed in RA after LTS in this research, indicating that these genes may be regulating cell wall formation in RA to response to low temperatures via thickening or improving the compression. ARF members respond to the induction of LTS in T. aestivum [45] and Sorghum bicolor [46]. Sixteen MtPUB members of the U-box protein family of M. sativa were reported to be LTS responsive [47]. TKT is an important enzyme in the pentose phosphate pathway that was also found to be significantly related to response to abiotic stress; the LTS tolerance of transketolase antisense transgenic cucumber plants are decreased [48]. HIPP is a key protein for the safe transport of metal ions in cells and the expression of O. sativa HIPP41 increased greatly under cold stress [49]. 4CL is a key enzyme in phenylpropane metabolism, and research on Ocimum basilicum, Amygdalus persica, and B. rapa shows that it significantly affects plants’ response to low temperature [50,51,52]. Specifically, SNC1 was very important for plants’ adaptation to anomalous temperature stress. Previous research has shown that the activities of superoxide dismutase and other enzymes of the snc1 Arabidopsis mutant increase to clear the ROS and help the plant to adapt the oxidative stress environment. In our present study, a DEG encoding SNC1 was predicted to be one of the targets of low-temperature-inducible cal-miR482-22 in C. album. It was thus predicted that the downregulation of SNC1 gene might be helpful in improving the antioxidant reductase activity to eliminate the accumulation of ROS caused by low temperature in RA and improve its cold resistance [53]. Our results provide new insights into the underlying mechanisms of cold-resistance in C. album.

5. Conclusions

In conclusion, the basic expression levels of some miRNAs (especially the high expression of cal-miR397-3, the low expression of cal-miR398_2-3, and the specifically-induced expression of cal-miR482-22) in cold-tolerant cultivar of C. album, as well as their differentially expressed target genes under low temperature stress, contribute greatly to its cold-tolerance characteristics.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/horticulturae8070667/s1. Table S1. Information of the C. album known and novel miRNAs identified in this study; Table S2. The sequences and potential target genes of differentially expressed novel miRNAs in C. album; Table S3. Differentially expressed genes identified in comparison QLCK vs. QLCT; Table S4. Differentially expressed genes identified in comparison RACK vs. RACT; Table S5. KEGG enrichment analysis results of DEGs identified in comparison QLCK vs. QLCT; Table S6. KEGG enrichment analysis results of DEGs identified in comparison RACK vs. RACT; Table S7. KEGG enrichment analysis results of DEGs identified in comparison QLCK vs. RACK; Table S8. KEGG enrichment analysis results of DEGs identified in comparison QLCT vs. RACT.

Author Contributions

R.L., Q.G., C.C. and R.W. designed experiments. R.L., Q.G., C.C., X.F., Y.Z. and Y.C. performed the analysis. R.L. and C.C. conducted the sequencing and qRT-PCR experiments. C.S. cultivated the experimental materials. R.L. and Q.G. wrote the manuscript. R.W. and C.C. revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Basic Sci-tech Project of Provincial Public Welfare Scientific Research Institution of Fujian (2022R1028003, 2018R1013-3), the Fund for High-level Talents of Shanxi Agricultural University (2021XG010), and the Project of Resource Protection of Species and Varieties (Tropical Crops) of Ministry of Agriculture and Rural Affairs of China (18220025).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Theocharis, A.; Clément, C.; Barka, E.A. Physiological and molecular changes in plants grown at low temperatures. Planta 2012, 235, 1091–1105. [Google Scholar] [CrossRef] [PubMed]
  2. Huo, C.; Zhang, B.; Wang, R. Research progress on plant noncoding RNAs in response to low-temperature stress. Plant Signal Behav. 2022, 17, 2004035. [Google Scholar] [CrossRef] [PubMed]
  3. Yu, J.; Su, D.; Yang, D.; Dong, T.; Tang, Z.; Li, H.; Han, Y.; Li, Z.; Zhang, B. Chilling and heat stress-induced physiological changes and microRNA-related mechanism in sweetpotato (Ipomoea batatas L.). Front. Plant Sci. 2020, 11, 687. [Google Scholar] [CrossRef]
  4. Xie, Z.; Wang, A.; Li, H.; Yu, J.; Jiang, J.; Tang, Z.; Ma, D.; Zhang, B.; Han, Y.; Li, Z. High throughput deep sequencing reveals the important roles of microRNAs during sweetpotato storage at chilling temperature. Sci. Rep. 2017, 7, 16578. [Google Scholar] [CrossRef] [Green Version]
  5. Aydinoglu, F. Elucidating the regulatory roles of microRNAs in maize (Zea mays L.) leaf growth response to chilling stress. Planta 2020, 251, 38. [Google Scholar] [CrossRef] [PubMed]
  6. Zhang, Y.; Wang, Y.; Gao, X.; Liu, C.; Gai, S. Identification and characterization of microRNAs in tree peony during chilling induced dormancy release by high-throughput sequencing. Sci. Rep. 2018, 8, 4537. [Google Scholar] [CrossRef] [Green Version]
  7. Yang, X.; Liu, F.; Zhang, Y.; Wang, L.; Cheng, Y.F. Cold-responsive miRNAs and their target genes in the wild eggplant species Solanum aculeatissimum. BMC Genom. 2017, 18, 1000. [Google Scholar] [CrossRef]
  8. Gupta, O.P.; Meena, N.L.; Sharma, I.; Sharma, P. Differential regulation of microRNAs in response to osmotic, salt and cold stresses in wheat. Mol. Biol. Rep. 2014, 41, 4623–4629. [Google Scholar] [CrossRef]
  9. Omidvar, V.; Mohorianu, I.; Dalmay, T.; Fellner, M. MicroRNA regulation of abiotic stress response in 7B-1 male-sterile tomato mutant. Plant Genome 2015, 8, eplantgenome2015.02.0008. [Google Scholar] [CrossRef]
  10. Yang, L.P.; Gu, X.L.; Chen, J.X.; Yang, J.; Tan, S.Y.; Duan, W.J. Chemical constituents from Canarium album Raeusch and their anti-influenza A virus activities. J. Nat. Med. 2018, 72, 808–815. [Google Scholar] [CrossRef]
  11. Kuo, Y.H.; Yeh, Y.T.; Pan, S.Y.; Hsieh, S.C. Identification and structural elucidation of anti-inflammatory compounds from Chinese olive (Canarium album L.) fruit extracts. Foods 2019, 8, 441. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Zhang, L.L.; Lin, Y.M. Tannins from Canarium album with potent antioxidant activity. J. Zhejiang Univ. Sci. B 2008, 9, 407–415. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Lai, R.; Feng, X.; Chen, J.; Zhang, Y.; Wei, X.; Chen, Y.; Cheng, C.; Wu, R. De novo transcriptome assembly and comparative transcriptomic analysis provide molecular insights into low temperature stress response of Canarium album. Sci. Rep. 2021, 11, 10561. [Google Scholar] [CrossRef] [PubMed]
  14. Grabherr, M.G.; Haas, B.J.; Yassour, M.; Levin, J.Z.; Thompson, D.A.; Amit, I.; Adiconis, X.; Fan, L.; Raychowdhury, R.; Zeng, Q.; et al. Trinity: Reconstructing a full-length transcriptome without a genome from RNA-Seq data. Nat. Biotechnol. 2013, 29, 644–652. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Young, M.D.; Wakefield, M.J.; Smyth, G.K.; Oshlack, A. Gene ontology analysis for RNA-seq: Accounting for selection bias. Genome Biol. 2010, 11, R14. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Mao, X.; Tao, C.; Olyarchuk, J.G.; Wei, L. Automated genome annotation and pathway identification using the KEGG Orthology (KO) as a controlled vocabulary. Bioinformatics 2005, 21, 3787–3793. [Google Scholar] [CrossRef]
  17. Cheng, C.; Liu, F.; Sun, X.; Wang, B.; Liu, J.; Ni, X.; Hu, C.; Deng, G.; Tong, Z.; Zhang, Y.; et al. Genome-wide identification of FAD gene family and their contributions to the temperature stresses and mutualistic and parasitic fungi colonization responses in banana. Int. J. Biol. Macromol. 2022, 204, 661–676. [Google Scholar] [CrossRef]
  18. Hussain, H.A.; Hussain, S.; Khaliq, A.; Ashraf, U.; Anjum, S.A.; Men, S.; Wang, L. Chilling and drought stresses in crop plants: Implications, cross talk, and potential management opportunities. Front. Plant Sci. 2018, 9, 393. [Google Scholar] [CrossRef]
  19. Kang, Y.; Yang, X.; Liu, Y.; Shi, M.; Zhang, W.; Fan, Y.; Yao, Y.; Zhang, J.; Qin, S. Integration of mRNA and miRNA analysis reveals the molecular mechanism of potato (Solanum tuberosum L.) response to alkali stress. Int. J. Biol. Macromol. 2021, 182, 938–949. [Google Scholar] [CrossRef]
  20. Fu, Y.; Mason, A.S.; Zhang, Y.; Lin, B.; Xiao, M.; Fu, D.; Yu, H. MicroRNA-mRNA expression profiles and their potential role in cadmium stress response in Brassica napus. BMC Plant Biol. 2019, 19, 570. [Google Scholar] [CrossRef]
  21. Zeng, X.; Xu, Y.; Jiang, J.; Zhang, F.; Ma, L.; Wu, D.; Wang, Y.; Sun, W. Identification of cold stress responsive microRNAs in two winter turnip rape (Brassica rapa L.) by high throughput sequencing. BMC Plant Biol. 2018, 18, 52. [Google Scholar] [CrossRef] [PubMed]
  22. Lv, D.K.; Xi, B.; Yong, L.; Ding, X.D.; Ge, Y.; Cai, H.; Ji, W.; Wu, N.; Zhu, Y.M. Profiling of cold-stress-responsive miRNAs in rice by microarrays. Gene 2010, 459, 39–47. [Google Scholar] [CrossRef] [PubMed]
  23. Thiebaut, F.; Rojas, C.A.; Almeida, K.L.; Grativol, C.; Domiciano, G.C.; Lamb, C.R.C.; de Almeida Engler, J.; Hemerly, A.S.; Ferreira, P.C. Regulation of miR319 during cold stress in sugarcane. Plant Cell Environ. 2012, 35, 502–512. [Google Scholar] [CrossRef] [PubMed]
  24. Ni, Z.; Hu, Z.; Jiang, Q.; Zhang, H. Overexpression of gma-MIR394a confers tolerance to drought in transgenic Arabidopsis thaliana. Biochem. Biophys. Res. Commun. 2012, 427, 330–335. [Google Scholar] [CrossRef]
  25. Li, A.L.; Wen, Z.; Yang, K.; Wen, X.P. Conserved miR396b-GRF regulation is involved in abiotic stress responses in pitaya (Hylocereus polyrhizus). Int. J. Mol. Sci. 2019, 20, 2501. [Google Scholar] [CrossRef] [Green Version]
  26. Chen, L.; Luan, Y.; Zhai, J. Sp-miR396a-5p acts as a stress-responsive genes regulator by conferring tolerance to abiotic stresses and susceptibility to Phytophthora nicotianae infection in transgenic tobacco. Plant Cell Rep. 2015, 34, 2013–2025. [Google Scholar] [CrossRef]
  27. Chen, H.; Chen, X.; Chen, D.; Li, J.; Zhang, Y.; Wang, A. A comparison of the low temperature transcriptomes of two tomato genotypes that differ in freezing tolerance: Solanum lycopersicum and Solanum habrochaites. BMC Plant Biol. 2015, 15, 132. [Google Scholar] [CrossRef] [Green Version]
  28. Dong, C.H.; Pei, H. Over-expression of miR397 improves plant tolerance to cold stress in Arabidopsis thaliana. J. Plant Biol. 2014, 57, 209–217. [Google Scholar] [CrossRef]
  29. Sunkar, R.; Zhu, J.K. Novel and stress-regulated microRNAs and other small RNAs from Arabidopsis. Plant Cell 2004, 16, 2001–2019. [Google Scholar] [CrossRef] [Green Version]
  30. Lu, Q.; Guo, F.; Xu, Q.; Jing, C. LncRNA improves cold resistance of winter wheat by interacting with miR398. Funct. Plant Biol. 2020, 47, 544–557. [Google Scholar] [CrossRef]
  31. Tchobo, F.P.; Alitonou, G.A.; Soumanou, M.M.; Barea, B.; Bayrasy, C.; Laguerre, M.; Lecomte, J.; Villeneuve, P.; Souhounhloue, K.D. Chemical composition and ability of essential oils from six aromatic plants to counteract lipid oxidation in emulsions. J. Am. Oil Chem. Soc. 2014, 91, 471–479. [Google Scholar] [CrossRef]
  32. Matthews, D.; Jones, H.; Gans, P.; Coates, S.; Smith, L. Toxic secondary metabolite production in genetically modified potatoes in response to stress. J. Agric. Food Chem. 2005, 53, 7766–7776. [Google Scholar] [CrossRef]
  33. Chen, X.; Ding, Y.; Yang, Y.; Song, C.; Wang, B.; Yang, S.; Guo, Y.; Gong, Z. Protein kinases in plant responses to drought, salt, and cold stress. J. Integr. Plant Biol. 2021, 63, 53–78. [Google Scholar] [CrossRef] [PubMed]
  34. Xu, Y.; Zeng, X.; Wu, J.; Zhang, F.; Li, C.; Jiang, J.; Wang, Y.; Sun, W. iTRAQ-based quantitative proteome revealed metabolic changes in winter turnip rape (Brassica rapa L.) under cold stress. Int. J. Mol. Sci. 2018, 19, 3346. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Tian, X.; Xie, J.; Yu, J. Physiological and transcriptomic responses of Lanzhou Lily (Lilium davidii, var. unicolor) to cold stress. PLoS ONE 2020, 15, e0227921. [Google Scholar] [CrossRef]
  36. Kim, S.I.; Andaya, V.C.; Tai, T.H. Cold sensitivity in rice (Oryza sativa L.) is strongly correlated with a naturally occurring I99V mutation in the multifunctional glutathione transferase isoenzyme GSTZ2. Biochem. J. 2011, 435, 373–380. [Google Scholar] [CrossRef] [Green Version]
  37. Zhang, R.; Zhu, J.; Cao, H.Z.; An, Y.R.; Huang, J.J.; Chen, X.H.; Mohammed, N.; Afrin, S.; Luo, Z.Y. Molecular cloning and expression analysis of PDR1-like gene in ginseng subjected to salt and cold stresses or hormonal treatment. Plant Physiol. Biochem. 2013, 71, 203–211. [Google Scholar] [CrossRef]
  38. Bocian, A.; Zwierzykowski, Z.; Rapacz, M.; Koczyk, G.; Kosmala, A. Metabolite profiling during cold acclimation of Lolium perenne genotypes distinct in the level of frost tolerance. J. Appl. Genet. 2015, 56, 439–449. [Google Scholar] [CrossRef]
  39. Da Silva, E.M.; Silva, G.F.F.E.; Bidoia, D.B.; da Silva Azevedo, M.; de Jesus, F.A.; Pino, L.E.; Peres, L.E.P.; Carrera, E.; López-Díaz, I.; Nogueira, F.T.S. microRNA159-targeted SlGAMYB transcription factors are required for fruit set in tomato. Plant J. 2017, 92, 95–109. [Google Scholar] [CrossRef] [Green Version]
  40. Shi, M.; Hu, X.; Wei, Y.; Hou, X.; Yuan, X.; Liu, J.; Liu, Y. Genome-wide profiling of small RNAs and degradome revealed conserved regulations of miRNAs on auxin-responsive genes during fruit enlargement in peaches. Int. J. Mol. Sci. 2017, 18, 2599. [Google Scholar] [CrossRef] [Green Version]
  41. Fang, Y.; Xie, K.; Xiong, L. Conserved miR164-targeted NAC genes negatively regulate drought resistance in rice. J. Exp. Bot. 2014, 65, 2119–2135. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Miura, K.; Tada, Y. Regulation of water, salinity, and cold stress responses by salicylic acid. Front. Plant Sci. 2014, 5, 4. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Wang, Y.; Feng, C.; Zhai, Z.; Peng, X.; Wang, Y.; Sun, Y.; Li, J.; Shen, X.; Xiao, Y.; Zhu, S.; et al. The apple microR171i-SCARECROW-LIKE PROTEINS26.1 module enhances drought stress tolerance by integrating ascorbic acid metabolism. Plant Physiol. 2020, 184, 194–211. [Google Scholar] [CrossRef]
  44. Mnich, E.; Bjarnholt, N.; Eudes, A.; Harholt, J.; Holland, C.; Jørgensen, B.; Larsen, F.H.; Liu, M.; Manat, R.; Meyer, A.S.; et al. Phenolic cross-links: Building and de-constructing the plant cell wall. Nat. Prod. Rep. 2020, 37, 919–961. [Google Scholar] [CrossRef] [PubMed]
  45. Xu, L.; Wang, D.; Liu, S.; Fang, Z.; Su, S.; Guo, C.; Zhao, C.; Tang, Y. Comprehensive atlas of wheat (Triticum aestivum L.) AUXIN RESPONSE FACTOR expression during male reproductive development and abiotic stress. Front. Plant Sci. 2020, 11, 1500. [Google Scholar] [CrossRef]
  46. Chen, D.; Wang, W.; Wu, Y.; Xie, H.; Zhao, L.; Zeng, Q.; Zhan, Y. Expression and distribution of the auxin response factors in Sorghum bicolor during development and temperature stress. Int. J. Mol. Sci. 2019, 20, 4816. [Google Scholar] [CrossRef] [Green Version]
  47. Song, J.; Mo, X.; Yang, H.; Yue, L.; Song, J.; Mo, B. The U-box family genes in Medicago truncatula: Key elements in response to salt, cold, and drought stresses. PLoS ONE 2017, 12, e0182402. [Google Scholar] [CrossRef] [Green Version]
  48. Bi, H.; Dong, X.; Wu, G.; Wang, M.; Ai, X. Decreased TK activity alters growth, yield and tolerance to low temperature and low light intensity in transgenic cucumber plants. Plant Cell Rep. 2015, 34, 345–354. [Google Scholar] [CrossRef]
  49. De Abreu-Neto, J.B.; Turchetto-Zolet, A.C.; de Oliveira, L.F.V.; Bodanese Zanettini, M.H.; Margis-Pinheiro, M. Heavy metal-associated isoprenylated plant protein (HIPP): Characterization of a family of proteins exclusive to plants. FEBS J. 2013, 280, 1604–1616. [Google Scholar] [CrossRef]
  50. Lauxmann, M.A.; Borsani, J.; Osorio, S.; Lombardo, V.A.; Budde, C.O.; Bustamante, C.A.; Monti, L.L.; Andreo, C.S.; Fernie, A.R.; Drincovich, M.F.; et al. Deciphering the metabolic pathways influencing heat and cold responses during post-harvest physiology of peach fruit. Plant Cell Environ. 2014, 37, 601–616. [Google Scholar] [CrossRef] [Green Version]
  51. Rezaie, R.; Mandoulakani, B.A.; Fattahi, M. Cold stress changes antioxidant defense system, phenylpropanoid contents and expression of genes involved in their biosynthesis in Ocimum basilicum L. Sci. Rep. 2020, 10, 5290. [Google Scholar] [CrossRef] [PubMed]
  52. Ma, L.; Coulter, J.A.; Liu, L.; Zhao, Y.; Chang, Y.; Pu, Y.; Zeng, X.; Xu, Y.; Wu, J.; Fang, Y.; et al. Transcriptome analysis reveals key cold-stress-responsive genes in winter rapeseed (Brassica rapa L.). Int. J. Mol. Sci. 2019, 20, 1071. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Mo, X.; Deng, D.; Qin, L.; Cai, S.; Mo, W.; Xia, S. Effects of SNC1 gene mutation on cell proliferation and antioxidation character in Arabidopsis thaliana. Crop Res. 2016, 30, 557–562. (In Chinese) [Google Scholar]
Horticulturae 08 00667 g001 550
Figure 1. Typical phenotypes of QL (A,B) and RA (C,D) seedlings before and after low temperature treatment. (A) and (C) represent plants grown at 25 ℃. (B) and (D) represent plants treated at −3℃ for 24 h.
Figure 1. Typical phenotypes of QL (A,B) and RA (C,D) seedlings before and after low temperature treatment. (A) and (C) represent plants grown at 25 ℃. (B) and (D) represent plants treated at −3℃ for 24 h.
Horticulturae 08 00667 g001
Horticulturae 08 00667 g002 550

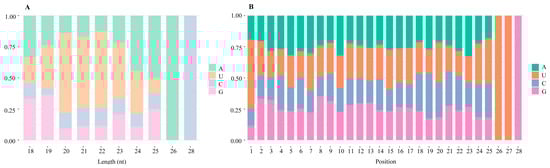

Figure 2. Base distribution of the C. album miRNAs identified in this study. (A) First nucleotide bias of C. album miRNAs. (B) miRNA nucleotide bias at each position. The A, U, C, and G bases are presented in green, orange, blue, and pink, respectively.
Figure 2. Base distribution of the C. album miRNAs identified in this study. (A) First nucleotide bias of C. album miRNAs. (B) miRNA nucleotide bias at each position. The A, U, C, and G bases are presented in green, orange, blue, and pink, respectively.
Horticulturae 08 00667 g002
Horticulturae 08 00667 g003 550

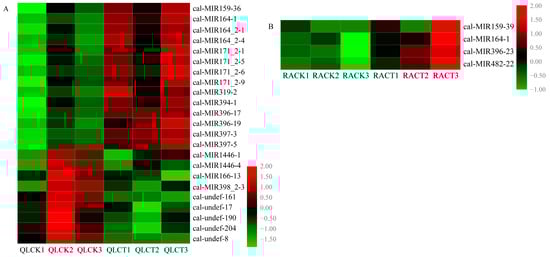

Figure 3. Heat maps for the identified LTS-responsive DEMs in QL (A) and RA (B). Each column represents a given sample and each row indicates the relative expression of the differentially expressed miRNAs.
Figure 3. Heat maps for the identified LTS-responsive DEMs in QL (A) and RA (B). Each column represents a given sample and each row indicates the relative expression of the differentially expressed miRNAs.
Horticulturae 08 00667 g003
Horticulturae 08 00667 g004 550

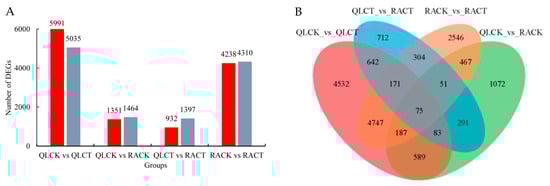

Figure 4. Differentially expressed genes in QLCK vs. QLCT, QLCK vs. RACK, QLCT vs. RACT, and RACK vs. RACT comparisons. (A) The graph represents the number of up- and downregulated genes in different comparisons. The upregulated and downregulated genes are shown in red and in grey, respectively. (B) Venn diagram for DEGs identified in different comparisons. The numbers represent the quantity of DEGs obtained in each category.
Figure 4. Differentially expressed genes in QLCK vs. QLCT, QLCK vs. RACK, QLCT vs. RACT, and RACK vs. RACT comparisons. (A) The graph represents the number of up- and downregulated genes in different comparisons. The upregulated and downregulated genes are shown in red and in grey, respectively. (B) Venn diagram for DEGs identified in different comparisons. The numbers represent the quantity of DEGs obtained in each category.
Horticulturae 08 00667 g004
Horticulturae 08 00667 g005 550

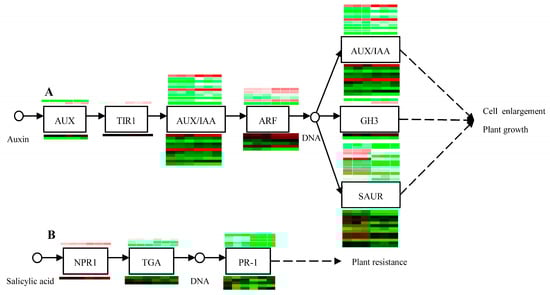

Figure 5. Regulatory network for DEGs involved in auxin and salicylic acid signal transduction. (A) Auxin signal transduction. (B) Salicylic acid signal transduction. The heat maps above and below the boxed genes are for the LTS responsive DEGs in QL and RA, respectively. The first three columns are for the three replicates of samples under normal conditions, and the later three columns are for the LTS treated three replicates. Colors represent the relative expression levels of the genes, and the redder the color, the higher the gene expression, and the greener the color, the lower the expression.
Figure 5. Regulatory network for DEGs involved in auxin and salicylic acid signal transduction. (A) Auxin signal transduction. (B) Salicylic acid signal transduction. The heat maps above and below the boxed genes are for the LTS responsive DEGs in QL and RA, respectively. The first three columns are for the three replicates of samples under normal conditions, and the later three columns are for the LTS treated three replicates. Colors represent the relative expression levels of the genes, and the redder the color, the higher the gene expression, and the greener the color, the lower the expression.
Horticulturae 08 00667 g005
Horticulturae 08 00667 g006 550

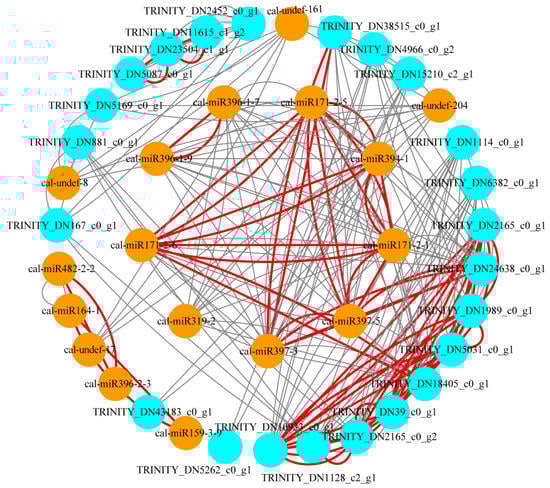

Figure 6. The miRNA–mRNA regulatory network in response to LTS in C. album. The orange circles represent miRNAs, and the blue circles represent the predicted target genes of DEMs. The red line indicates that the PCC value is more than 0.9, and the gray line indicates that the PCC value is more than 0.8. TRINITY_DN10933_c0_g1, TRINITY_DN2165_c0_g1, and TRINITY_DN2165_c0_g2: SCL. TRINITY_DN23504_c1_g1 and TRINITY_DN1989_c0_g1: SNC1. TRINITY_DN24638_c0_g1 and TRINITY_DN4966_c0_g2: LAC. TRINITY_DN1114_c0_g1: HIPP. TRINITY_DN1128_c2_g1: TKT. TRINITY_DN167_c0_g1: 3-oxoacyl-[acyl-carrier-protein] synthase I. TRINITY_DN18405_c0_g1: U-box protein. TRINITY_DN43183_c0_g1: Acetyl-coenzyme A synthetase. TRINITY_DN39_c0_g1: Cyclic dof factor. TRINITY_DN5087_c0_g1: TMV resistance protein N-like. TRINITY_DN5169_c0_g1: RNA subunit accumulation protein YCED homolog. TRINITY_DN5262_c0_g1: 4CL. TRINITY_DN6382_c0_g1: Ribosomal biogenesis protein. TRINITY_DN11615_c1_g2, TRINITY_DN15210_c2_g1, TRINITY_DN2452_c0_g1, TRINITY_DN38515_c0_g1, TRINITY_DN5031_c0_g1, and TRINITY_DN881_c0_g1: unknown genes.
Figure 6. The miRNA–mRNA regulatory network in response to LTS in C. album. The orange circles represent miRNAs, and the blue circles represent the predicted target genes of DEMs. The red line indicates that the PCC value is more than 0.9, and the gray line indicates that the PCC value is more than 0.8. TRINITY_DN10933_c0_g1, TRINITY_DN2165_c0_g1, and TRINITY_DN2165_c0_g2: SCL. TRINITY_DN23504_c1_g1 and TRINITY_DN1989_c0_g1: SNC1. TRINITY_DN24638_c0_g1 and TRINITY_DN4966_c0_g2: LAC. TRINITY_DN1114_c0_g1: HIPP. TRINITY_DN1128_c2_g1: TKT. TRINITY_DN167_c0_g1: 3-oxoacyl-[acyl-carrier-protein] synthase I. TRINITY_DN18405_c0_g1: U-box protein. TRINITY_DN43183_c0_g1: Acetyl-coenzyme A synthetase. TRINITY_DN39_c0_g1: Cyclic dof factor. TRINITY_DN5087_c0_g1: TMV resistance protein N-like. TRINITY_DN5169_c0_g1: RNA subunit accumulation protein YCED homolog. TRINITY_DN5262_c0_g1: 4CL. TRINITY_DN6382_c0_g1: Ribosomal biogenesis protein. TRINITY_DN11615_c1_g2, TRINITY_DN15210_c2_g1, TRINITY_DN2452_c0_g1, TRINITY_DN38515_c0_g1, TRINITY_DN5031_c0_g1, and TRINITY_DN881_c0_g1: unknown genes.
Horticulturae 08 00667 g006
Horticulturae 08 00667 g007 550

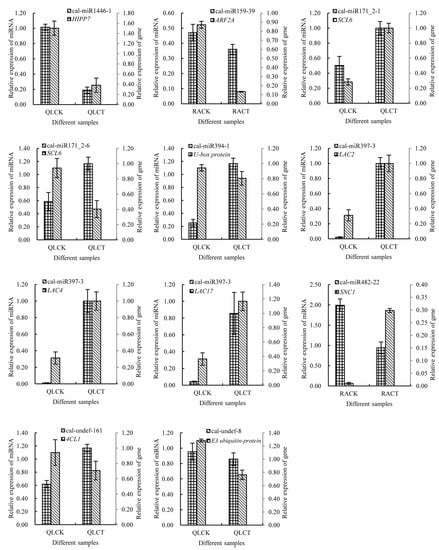

Figure 7. Quantitative real-time PCR results for DEMs and their corresponding target genes. By using PerfectStart® Green qPCR SuperMix, qRT-PCR reactions were performed on a Roche LightCycler480 machine. The amplification procedure of qRT-PCR was shown as follows: pre-denaturation at 94 °C for 30 s; denaturation at 94 °C for 5 s, annealing and extension at 60 °C for 30 s, 40 cycles. The sample was maintained at 94 °C for 15 s, at 60 °C for 15 s, and then raising the temperature to 94 °C at the rate of 0.11 °C·s−1 and kept 15 s to draw the dissolution curve. The reaction system contained 10 μL 2 ×PerfectStart® Green qPCR SuperMix, 0.2 μM each upstream and downstream primer, 0.5 μM cDNA template. Three biological replicates were made for each treatment and statistics analysis were performed using SPSS19.0 software (IBM, Armonk, NY, USA).
Figure 7. Quantitative real-time PCR results for DEMs and their corresponding target genes. By using PerfectStart® Green qPCR SuperMix, qRT-PCR reactions were performed on a Roche LightCycler480 machine. The amplification procedure of qRT-PCR was shown as follows: pre-denaturation at 94 °C for 30 s; denaturation at 94 °C for 5 s, annealing and extension at 60 °C for 30 s, 40 cycles. The sample was maintained at 94 °C for 15 s, at 60 °C for 15 s, and then raising the temperature to 94 °C at the rate of 0.11 °C·s−1 and kept 15 s to draw the dissolution curve. The reaction system contained 10 μL 2 ×PerfectStart® Green qPCR SuperMix, 0.2 μM each upstream and downstream primer, 0.5 μM cDNA template. Three biological replicates were made for each treatment and statistics analysis were performed using SPSS19.0 software (IBM, Armonk, NY, USA).
Horticulturae 08 00667 g007
Table
Table 1. The mRNA primers used in this study.
Table 1. The mRNA primers used in this study.
IDPrimer Sequence (5′-3′)Description
ForwardReverse
TRINITY_DN10933_c0_g1TCTTTCTGGATTTGGGACCTTCTTCACGCCCTTCAGTCScarecrow-like protein 6
TRINITY_DN1114_c0_g1TGTTTGGGTTCTATCGGAGAGAGAGGGTTGGTGGTATTGHeavy metal-associated isoprenylated plant protein 7
TRINITY_DN18405_c0_g1CTACACACCATTGCGGACTGAAGAAACAGGACCATCGGU-box domain-containing protein
TRINITY_DN2165_c0_g2TTGCCGCCAGAGACATTAGTACCAGAAGAAGTCCGAGCCScarecrow-like protein 6
TRINITY_DN24638_c0_g1CAAGCACCCATCTAACCTCTACTGGCTAAACTGCGAAACTLaccase-17
TRINITY_DN4966_c0_g1GCCACGAATCCTCTATCTCCTAGTGCCTTGTAACGCCTGLaccase-4
TRINITY_DN4966_c0_g2TGGTCAGGGTTTCGGTAACAATCCAAGCCATCCTCALaccase-2
TRINITY_DN5262_c0_g1ATGGAATGACAGAGGCAGGCAGAGAGGCACCAGTTTCA4-coumarate--CoA ligase 1
TRINITY_DN6730_c0_g1GGCTCACAACCGCTACTTTCACATTCCGTCTCCGTTACE3 ubiquitin-protein ligase
TRINITY_DN23504_c1_g1CAACAAGGGATAGATGCGTATTCCAAAGACAGACCTGCTSuppressor of npr1-1, constitutive1
TRINITY_DN76209_c0_g1TGCCTTCAAACCACAACCTGGAACATAAACAAGCGGACAuxin response factor 2A
Table
Table 2. The miRNA primers used in this study. The universal miRNA qRT-PCR primer (5′-GATCGCCCTTCTACGTCGTAT-3′) was provided by Transgen Biotech.
Table 2. The miRNA primers used in this study. The universal miRNA qRT-PCR primer (5′-GATCGCCCTTCTACGTCGTAT-3′) was provided by Transgen Biotech.
miRNA NameForward Primer Sequence (5′-3′)miRNA NameForward Primer Sequence (5′-3′)
cal-miR171_2-1TTGAGCCGTGCCAATATCcal-miR1446-1TTCTGAACTCTCTCCCTCAAC
cal-miR397-3TGAGTGCAGCGTTGATGTcal-miR171_2-6AGATATTGGTGCGGTTCAA
cal-miR159-39TCTTGTAGTGAAGGGAGCTCTcal-miR482-22TTTCCGACACCTCCCATT
cal-miR394-1GGCATTCTGTCCACCTCCcal-undef-8CGAAACCTGGCTCTGATACC
cal-miR397-3TGAGTGCAGCGTTGATGTTcal-undef-161TTCCCCAGTGGAGTCGC
Table
Table 3. KEGG enrichment analysis based on DEGs in the comparison of QLCK vs. QLCT.
Table 3. KEGG enrichment analysis based on DEGs in the comparison of QLCK vs. QLCT.
Pathway IDPathwayUp_NumberDown_NumberDEG_NumberTotal_Numberp
ko00940Phenylpropanoid biosynthesis5222742421.188 × 10−11
ko00906Carotenoid biosynthesis26430785.732 × 10−8
ko04075Plant hormone signal transduction53511044551.035 × 10−7
ko00500Starch and sucrose metabolism5917763335.521 × 10−6
ko00909Sesquiterpenoid and triterpenoid biosynthesis18220516.452 × 10−6
ko04626Plant-pathogen interaction38761145712.705 × 10−5
ko04712Circadian rhythm-plant332351263.005 × 10−5
ko04016MAPK signaling pathway-plant1738552421.157 × 10−4
ko00073Cutin, suberine and wax biosynthesis13114383.378 × 10−4
ko00780Biotin metabolism8513381.226 × 10−3
ko00630Glyoxylate and dicarboxylate metabolism3710472283.039 × 10−3
ko00942Anthocyanin biosynthesis31464.357 × 10−3
ko00260Glycine, serine and threonine metabolism318391854.393 × 10−3
ko00941Flavonoid biosynthesis17017667.264 × 10−3
ko00943Isoflavonoid biosynthesis03349.510 × 10−3
ko00052Galactose metabolism1811291380.013
ko00480Glutathione metabolism1527422170.015
ko00520Amino sugar and nucleotide sugar metabolism3326593230.015
ko00561Glycerolipid metabolism1815331710.029
ko00100Steroid biosynthesis8412490.032
ko00514Other types of O-glycan biosynthesis224100.039
ko00040Pentose and glucuronate interconversions166221090.042
Table
Table 4. KEGG enrichment analysis based on DEGs in the comparison of RACK vs. RACT.
Table 4. KEGG enrichment analysis based on DEGs in the comparison of RACK vs. RACT.
Pathway IDPathwayUp_NumberDown_NumberDEG_NumberTotal_Numberp
ko04075Plant hormone signal transduction4247894551.748 × 10−8
ko00906Carotenoid biosynthesis24125783.358 × 10−7
ko04016MAPK signaling pathway plant2130512422.076 × 10−6
ko04712Circadian rhythm-plant293321262.896 × 10−6
ko00500Starch and sucrose metabolism4024643333.199 × 10−6
ko00630Glyoxylate and dicarboxylate metabolism3111422283.805 × 10−4
ko00260Glycine, serine and threonine metabolism2411351856.814 × 10−4
ko00052Galactose metabolism1513281387.346 × 10−4
ko00940Phenylpropanoid biosynthesis2022422421.320 × 10−3
ko00909Sesquiterpenoid and triterpenoid biosynthesis12113512.425 × 10−3
ko00710Carbon fixation in photosynthetic organisms3010402372.847 × 10−3
ko00942Anthocyanin biosynthesis30360.020
ko00350Tyrosine metabolism513181020.025
ko02010ABC transporters137201170.025
ko00250Alanine, aspartate and glutamate metabolism615211250.027
ko00100Steroid biosynthesis7310490.034
ko00561Glycerolipid metabolism1115261710.046
Table
Table 5. KEGG enrichment analysis based on DEGs in the comparison of QLCK vs. RACK.
Table 5. KEGG enrichment analysis based on DEGs in the comparison of QLCK vs. RACK.
Pathway IDPathwayUp_NumberDown_NumberDEG_NumberTotal_Numberp
ko04626Plant-pathogen interaction2641675712.335 × 10−23
ko00380Tryptophan metabolism527960.019
ko03410Base excision repair156780.023
ko00330Arginine and proline metabolism7291560.034
ko00940Phenylpropanoid biosynthesis57122420.043
Table
Table 6. KEGG enrichment analysis based on DEGs in the comparison of QLCT vs. RACT.
Table 6. KEGG enrichment analysis based on DEGs in the comparison of QLCT vs. RACT.
Pathway IDPathwayUp_NumberDown_NumberDEG_NumberTotal_Numberp
ko04626Plant–pathogen interaction3317505717.270 × 10−14
ko00940Phenylpropanoid biosynthesis611172422.300 × 10−4
ko00909Sesquiterpenoid and triterpenoid biosynthesis426512.074 × 10−3
ko00270Cysteine and methionine metabolism75122470.030
Table
Table 7. KEGG enrichment analysis of predicted DEM target genes in the comparison of QLCK vs. QLCT.
Table 7. KEGG enrichment analysis of predicted DEM target genes in the comparison of QLCK vs. QLCT.
Pathway IDPathwayLevel2p
ko00240Pyrimidine metabolismNucleotide metabolism0.049
ko00520Amino sugar and nucleotide sugar metabolismCarbohydrate metabolism0.051
ko00780Biotin metabolismMetabolism of cofactors and vitamins0.094
ko00073Cutin, suberin and wax biosynthesisLipid metabolism0.094
ko00710Carbon fixation in photosynthetic organismsEnergy metabolism0.126
ko00620Pyruvate metabolismCarbohydrate metabolism0.182
ko00906Carotenoid biosynthesisMetabolism of terpenoids and polyketides0.184
ko04626Plant-pathogen interactionEnvironmental adaptation0.184
ko00360Phenylalanine metabolismAmino acid metabolism0.229
ko00130Ubiquinone and other terpenoid-quinone biosynthesisMetabolism of cofactors and vitamins0.235
Table
Table 8. KEGG enrichment analysis of predicted DEM target genes in the comparison of RACK vs. RACT.
Table 8. KEGG enrichment analysis of predicted DEM target genes in the comparison of RACK vs. RACT.
Pathway IDPathwayLevel2p
ko00640Propanoate metabolismCarbohydrate metabolism0.045
ko00630Glyoxylate and dicarboxylate metabolismCarbohydrate metabolism0.080
ko00620Pyruvate metabolismCarbohydrate metabolism0.104
ko00520Amino sugar and nucleotide sugar metabolismCarbohydrate metabolism0.112
ko00010Glycolysis/GluconeogenesisCarbohydrate metabolism0.121
Table
Table 9. Differentially expressed target genes of DEMs after low temperature stress treatments. *—a significant difference of gene or miRNA in these samples. Inf—the FPKM value was zero in CK.
Table 9. Differentially expressed target genes of DEMs after low temperature stress treatments. *—a significant difference of gene or miRNA in these samples. Inf—the FPKM value was zero in CK.
miRNAGene IDGene AnnotationQLCK vs. QLCTRACK vs. RACT
log2FC of miRNAlog2FC of Genelog2FC of miRNAlog2FC of Gene
cal-miR396-17TRINITY_DN16498_c0_g1Unknown1.200 *−0.8980.139−1.557 *
cal-miR1446-1TRINITY_DN881_c0_g1Unknown−1.051 *−1.179 *1.308−0.770
TRINITY_DN1114_c0_g1Heavy metal-associated isoprenylated plant protein 7−1.051 *−0.6711.308−1.356 *
cal-miR159-39TRINITY_DN76209_c0_g1Auxin response factor 2A0.6152.002 *1.992 *0.981
cal-miR171_2-1TRINITY_DN10933_c0_g1Scarecrow-like protein 61.018 *1.771 *−0.5831.436 *
cal-miR171_2-6TRINITY_DN2165_c0_g1Unknown2.825 *1.458 *0.5961.309 *
TRINITY_DN2165_c0_g2Scarecrow-like protein 62.825 *1.102 *0.5961.081 *
cal-miR394-1TRINITY_DN18405_c0_g1U-box domain-containing protein1.687 *2.940 *−0.3080.869
cal-miR396-17TRINITY_DN4681_c0_g1Unknown1.200 *0.6050.1391.156 *
TRINITY_DN1128_c2_g1Transketolase-21.226 *1.154 *0.1391.137 *
cal-miR396-23TRINITY_DN1989_c0_g1Unknown0.032−3.022 *2.322 *−1.548 *
cal-miR397-3TRINITY_DN4966_c0_g1Laccase-44.368 *5.340 *−0.5812.559
TRINITY_DN24638_c0_g1Laccase-174.368 *Inf *−0.5811.590
TRINITY_DN4966_c0_g2Laccase-24.368 *7.229 *−0.5813.786 *
cal-miR398_2-3TRINITY_DN38515_c0_g1Unknown−1.057 *Inf *0.502Inf *
cal-miR482-22TRINITY_DN23504_c1_g1Suppressor of npr1-1, constitutive 1−0.507−0.7001.668 *−3.987 *
cal-undef-161TRINITY_DN5262_c0_g14-coumarate--CoA ligase 1−1.952 *1.636 *−0.6521.250
cal-undef-8TRINITY_DN5031_c0_g1Unknown−1.471−3.372 *−0.559−3.458 *
TRINITY_DN6730_c0_g1E3 ubiquitin-protein ligase−1.471 *1.160 *−0.5590.571
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lai, R.; Guan, Q.; Shen, C.; Feng, X.; Zhang, Y.; Chen, Y.; Cheng, C.; Wu, R. Integrated SRNA-Seq and RNA-Seq Analysis Reveals the Regulatory Roles of miRNAs in the Low-Temperature Responses of Canarium album. Horticulturae 2022, 8, 667. https://doi.org/10.3390/horticulturae8070667

AMA Style

Lai R, Guan Q, Shen C, Feng X, Zhang Y, Chen Y, Cheng C, Wu R. Integrated SRNA-Seq and RNA-Seq Analysis Reveals the Regulatory Roles of miRNAs in the Low-Temperature Responses of Canarium album. Horticulturae. 2022; 8(7):667. https://doi.org/10.3390/horticulturae8070667

Chicago/Turabian Style

Lai, Ruilian, Qingxu Guan, Chaogui Shen, Xin Feng, Yongyan Zhang, Yiting Chen, Chunzhen Cheng, and Rujian Wu. 2022. "Integrated SRNA-Seq and RNA-Seq Analysis Reveals the Regulatory Roles of miRNAs in the Low-Temperature Responses of Canarium album" Horticulturae 8, no. 7: 667. https://doi.org/10.3390/horticulturae8070667

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
