Sensitive Water Ligand Observed via Gradient Spectroscopy with ¹⁹F Detection for Analysis of Fluorinated Compounds Bound to Proteins

Abstract

The water ligand observed via a gradient spectroscopy type experiment with ¹⁹F detection was applied to selectively detect fluorinated compounds with affinity to the target proteins. The ¹⁹F signals of bound and unbound compounds were observed as opposite phases, which was advantageous to distinguish the binding state. The proposed NMR method was optimized based on the ¹⁹F{¹H} saturation transfer difference pulse sequence, and various inversion pulses for the water resonance were evaluated with the aim of high sensitivity.

1. Introduction

NMR spectroscopy can be an effective method for screening compounds with affinity to target proteins. Various NMR-based screening methods to observe ¹H ligand signals were proposed, such as NOE-pumping [1], saturation transfer difference (STD) [2], water ligand observed via gradient spectroscopy (WaterLOGSY) [3,4], and reverse NOE-pumping [5] experiments. Some methods were also applied to ¹⁹F detection [6,7,8,9]. The characteristic properties of ¹⁹F are a 100% natural abundance and high sensitivity for NMR observation. In the ¹H→¹⁹F STD [9] and ¹⁹F{¹H} STD experiments [10], on-resonance ¹H frequency was set on the protein (e.g., methyl region) and off-resonance ¹H frequency was set outside the signal region for reference (e.g., −20 ppm). The ¹⁹F signals of the fluorinated compounds bound to proteins were selectively observed in the difference spectra. In the proposed NMR method, the concept of WaterLOGSY was utilized, where ¹H magnetization of water, which was transferred to the protein, was again transferred to ¹⁹F of the bound ligand via direct or indirect relay processes. The ¹⁹F signals of the bound and unbound compounds were observed as opposite phases, which is advantageous to distinguish the binding of each fluorinated compound. Because various fluorinated compounds are used in the pharmaceutical fields, the development of effective screening methods for them is essential. For the purpose of developing more sensitive NMR-based screening methods for fluorinated compounds, a WaterLOGSY type experiment with ¹⁹F detection was optimized using the complex of diflunisal (Figure 1) and human serum albumin (HSA). Diflunisal possesses anti-inflammatory, analgesic, and antipyretic activity and is used in the therapy of chronic arthritis. This model system is considered to be suitable for developing the proposed methods.

2. Results and Discussion

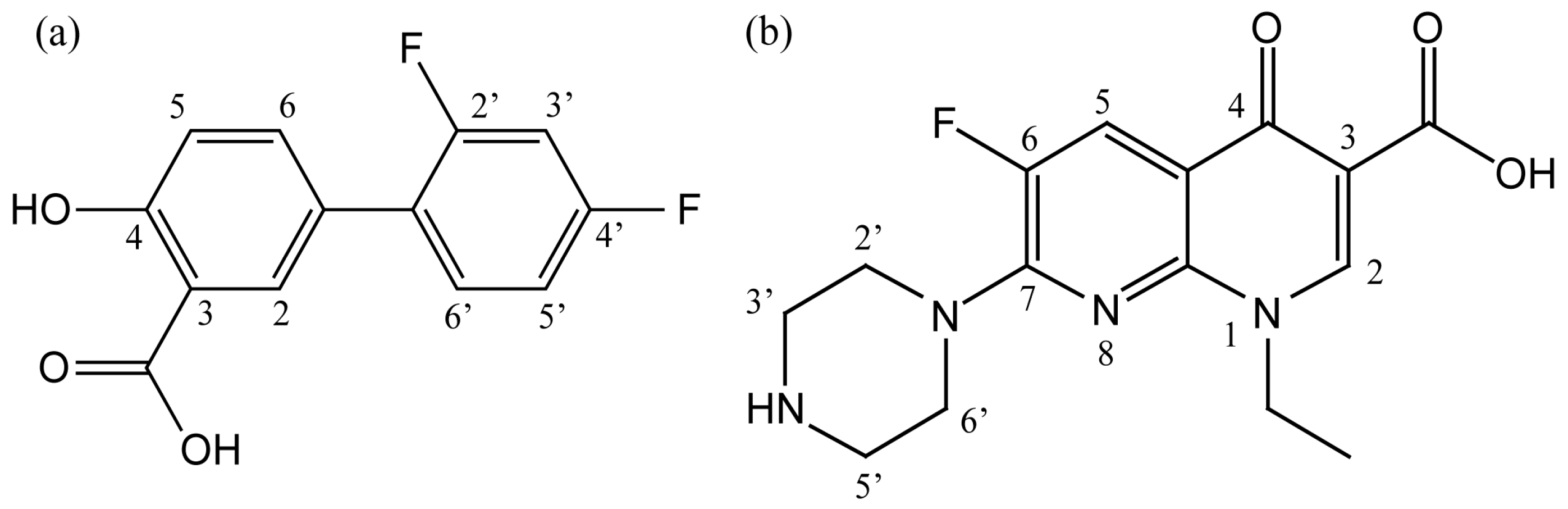

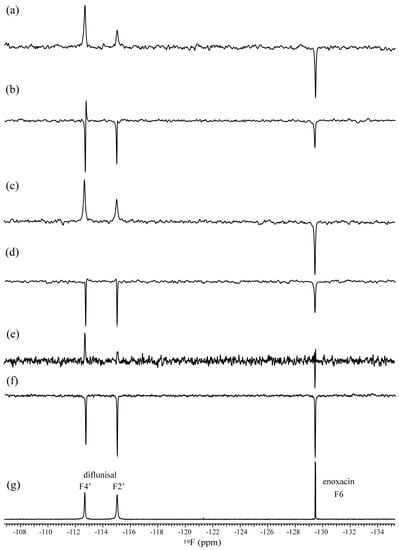

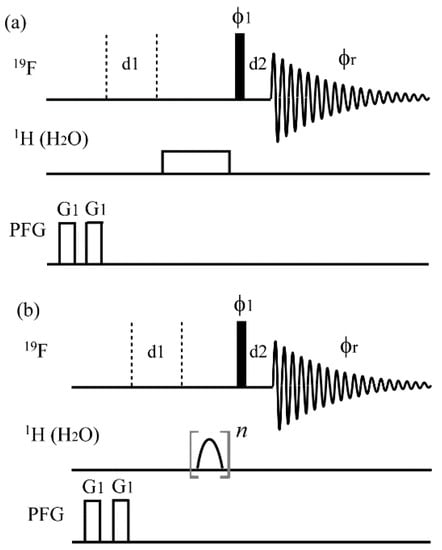

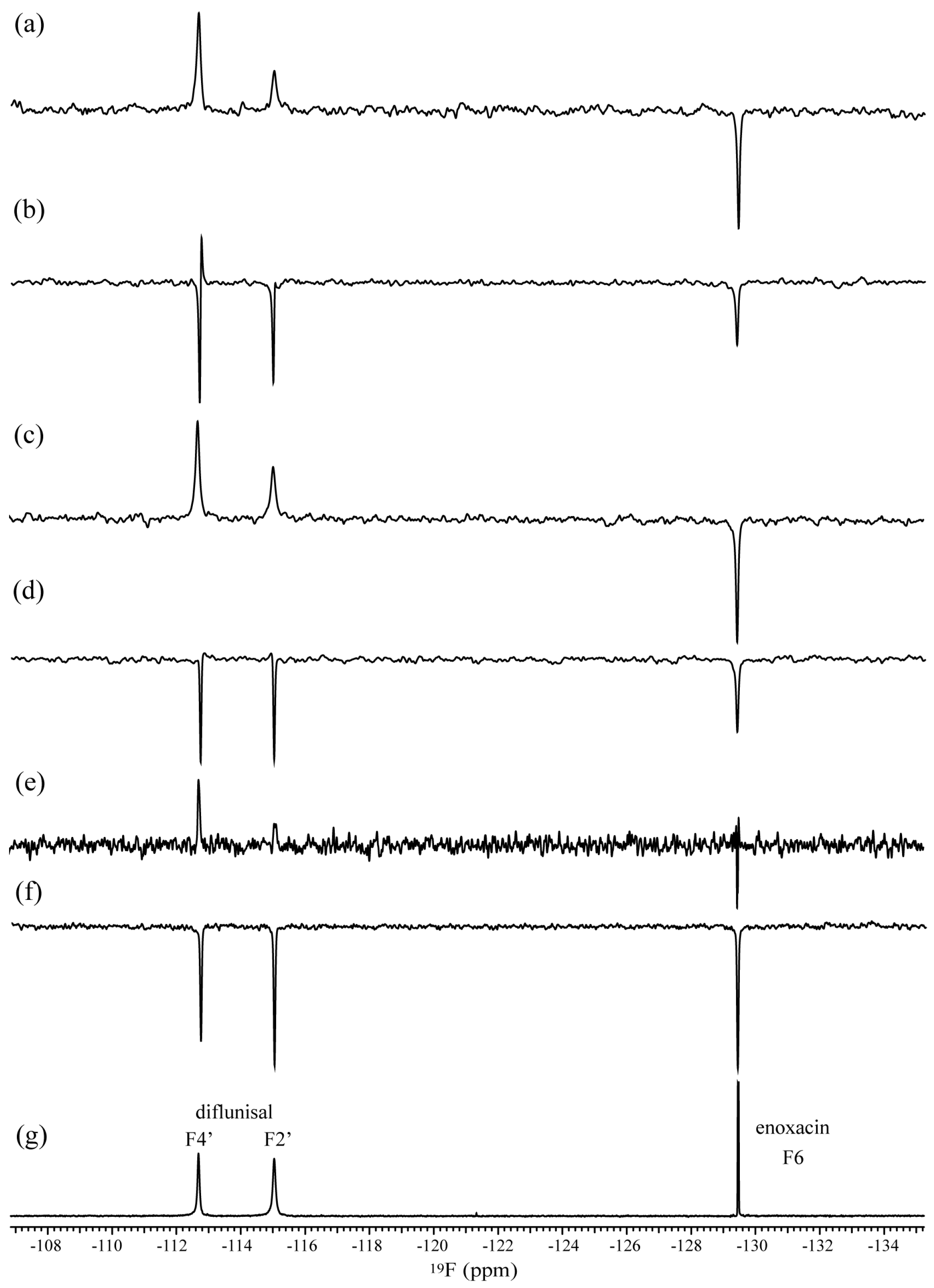

The development of the sensitive ¹⁹F-WaterLOGSY-type experiment was carried out based on the ¹⁹F{¹H} STD pulse sequence (Figure 2) used in our past study [10]. Regarding the inversion pulses of water resonance, several pulse schemes, such as a rectangular pulse and various shaped pulses, were evaluated. The irradiation time was set to 1.0 s in each experiment in consideration of measuring time. A comparison of the ¹⁹F-WaterLOGSY-type spectra is shown in Figure 3. In the initial stage of developing this method, a rectangular pulse was used for the irradiation of water resonance [11]. Through the process of implementing several pulse sequences with ¹⁹F detection, it was found that the ¹⁹F{¹H} STD pulse sequence (Figure 2), in which ¹H-offset was set to water resonance, was the most sensitive method. Although sensitivity of the spectra acquired using a rectangular pulse was unsatisfactory in this irradiation time (Figure 3e), decent NMR spectra were obtained using Gaussian- and square-shaped pulses (Figure 3a,c). The SN ratios of the spectra using Gaussian- and square-shaped pulses and a rectangular pulse were 32.7, 18.6, and 6.90, respectively, indicating that the Gaussian pulse was more suitable to acquire sensitive spectra. In the other shaped pulses, such as I-BURP-1, Q³, and G3, the SN ratios were 5.40, 5.88, and 8.66, respectively (data not shown), indicating that these shaped pulses were unfeasible for practical use due to low sensitivities. Regarding the selective inversion of water resonance, Gaussian- and square-shaped pulses were appropriate, which was different from the results of irradiating the methyl region [10]. In the spectrum shown in Figure 3b, acquired using a sample solution in the absence of HSA, a phase distortion was observed for the signal of F4′ (δ −112.6). The repetitive square pulses could be the reason for the phase distortion.

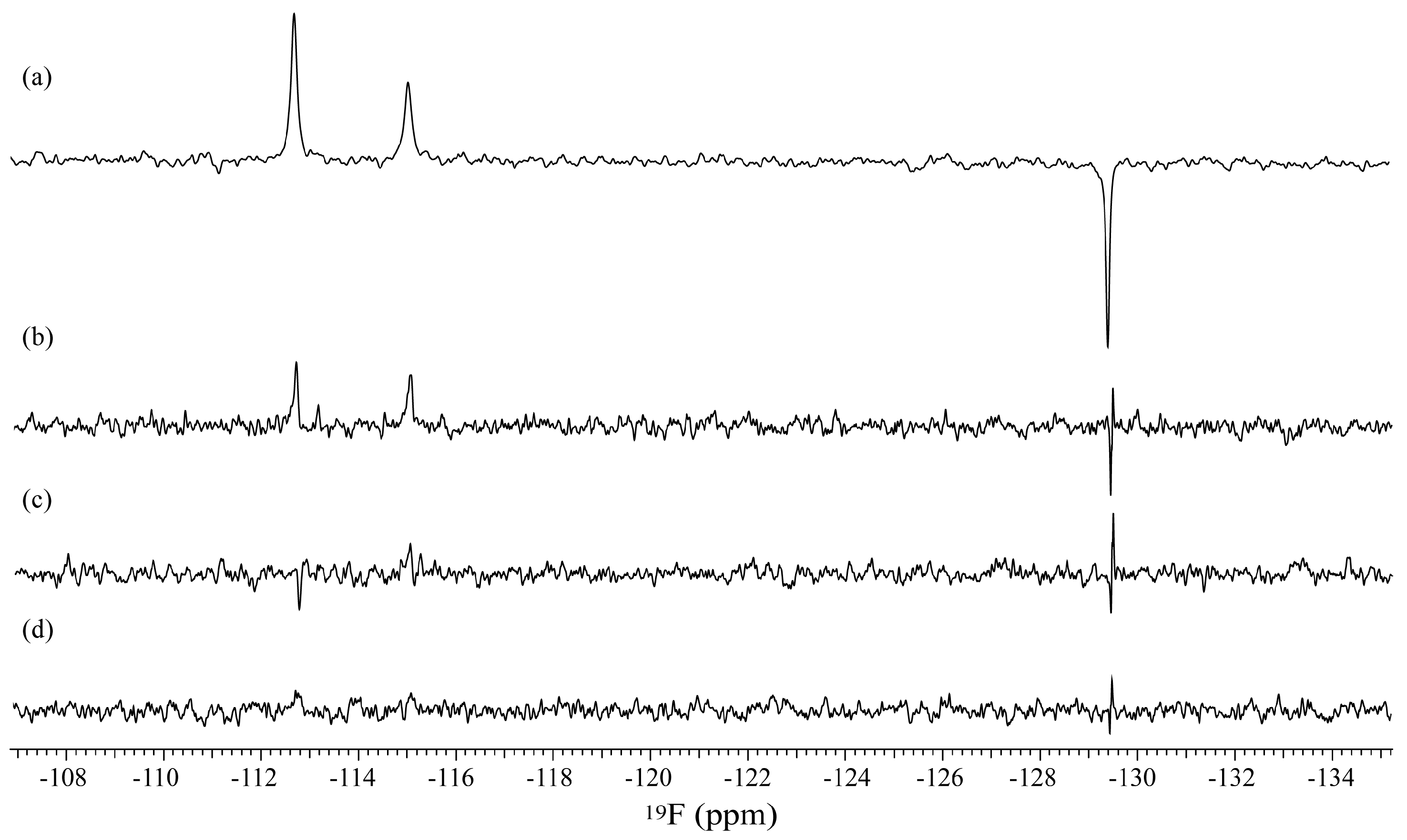

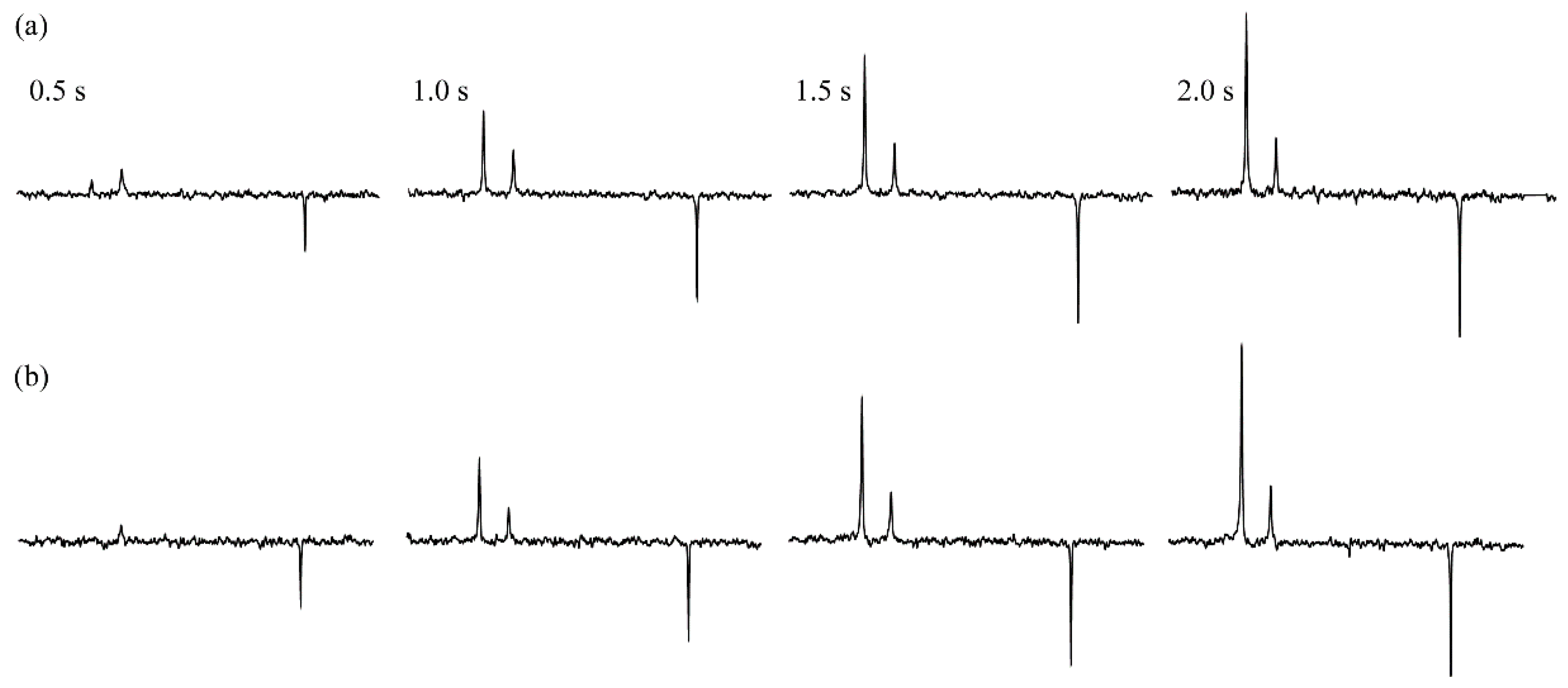

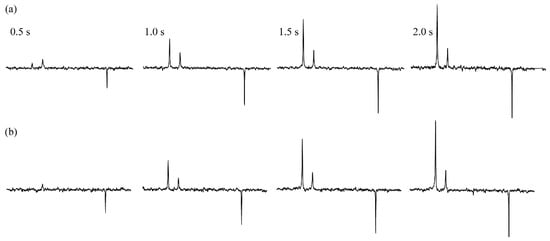

The effect of the Gaussian pulse width was evaluated in terms of sensitivity. The results of four inversion Gaussian pulses, such as 2.2 ms (γH₁/2π: 565 Hz), 7.0 ms (179 Hz), 13 ms (100 Hz), and 44 ms (63 Hz), are shown in Figure 4, indicating that the shorter Gaussian pulse width was effective for acquiring the sensitive spectra. Although the relatively wide ¹H region near the water was irradiated by the short pulse, the ¹⁹F signal of enoxacin (δ −129.5) was not affected in the presence or absence of HSA (Figure 3c,d). To investigate an effect of the irradiation times of water resonance, those using Gaussian- and square-shaped pulses were arrayed in the range of 0.5–2.0 s (Figure 5). The F4′ signal intensity of diflunisal distinctly increased till 2.0 s, while the F2′ signal intensity almost maximized at 1.0 s. The ¹⁹F-T₁ values of F4′ and F2′ in the free state were 1.98 and 0.87 s, respectively, which could be related to the intensity changes. The heteronuclear cross-relaxation from ¹H to ¹⁹F is less efficient than the homonuclear case from ¹H to ¹H, because spectral density for inducing relaxation is significantly lower for hetero- than homonuclear zero-quantum transition frequencies [9]. In consideration of these underlying properties, the proposed experiment could be acceptable for a practical screening method of fluorinated compounds.

3. Materials and Methods

3.1. Chemicals

Diflunisal, enoxacin, and HSA were purchased from Sigma-Aldrich (Tokyo, Japan). Two NMR samples were prepared; sample (i): A 600 μL solution containing 5.0 mM diflunisal and 5.0 mM enoxacin in a 5 mm tube, sample (ii): Double NMR tubes, which comprised a 3 mm tube used as an inner tube containing 10 mM enoxacin and a 5 mm tube used as an outer tube containing 10 mM diflunisal and 0.1 mM HSA. The enoxacin solution, which was prepared in the absence of HSA, was used as a negative control. Each solution contained 90% ¹H₂O and 10% ²H₂O.

3.2. NMR Spectroscopy

All of the NMR spectra were acquired at 20 °C on a Varian 600 MHz NMR system equipped with an HFX probe (Varian, Palo Alto, CA, USA). The experimental parameters of the ¹⁹F-WaterLOGSY-type experiment were as follows: Data points = 16,384, ¹⁹F spectral width = 120,618 Hz, number of scans = 512 for a sample (i) and 8192 for a sample (ii). The irradiation times for inversion of water resonance were arrayed in the range of 0.5–2.0 s. The repetitive time n (Figure 2) was set to adjust the total irradiation time. The on-resonance frequency of ¹H was set to 4.7 ppm corresponding to water, and the off-resonance frequency was set to −30 ppm. The inversion shaped pulses of I-BURP-1, square, Q³, G3, and Gaussian were made using VnmrJ software (Agilent Technologies, Santa Clara, CA, USA).

4. Conclusions

The characteristic difference between ¹⁹F{¹H} STD and ¹⁹F-WaterLOGSY experiments is the ¹H on-resonance frequency. The resonances of the methyl region and water are conventionally irradiated in the aforesaid experiments. Because the methyl region cannot always be appropriate as the ¹H on-resonance frequency for the compounds possessing methyl groups, the proposed method is expected to be applicable to a wide variety of fluorinated compounds. The sensitivity of the current spectra with ¹⁹F detection could be acceptable for practical use of screening, and the proposed method is expected to contribute to the pharmaceutical and biomedical fields.
