Basic Principles and Recent Advances in Magnetic Cell Separation

Abstract

Magnetic cell separation has become a key methodology for the isolation of target cell populations from biological suspensions, covering a wide spectrum of applications from diagnosis and therapy in biomedicine to environmental applications or fundamental research in biology. There now exists a great variety of commercially available separation instruments and reagents, which has permitted rapid dissemination of the technology. However, there is still an increasing demand for new tools and protocols which provide improved selectivity, yield and sensitivity of the separation process while reducing cost and providing a faster response. This review aims to introduce basic principles of magnetic cell separation for the neophyte, while giving an overview of recent research in the field, from the development of new cell labeling strategies to the design of integrated microfluidic cell sorters and of point-of-care platforms combining cell selection, capture, and downstream detection. Finally, we focus on clinical, industrial and environmental applications where magnetic cell separation strategies are amongst the most promising techniques to address the challenges of isolating rare cells.

1. Introduction

Cell separation is a critical step in biological and biomedical research areas as diverse as biodetection, drug testing, tissue engineering, cell-based therapies and clinical diagnostics. Isolating a cell population from a heterogeneous sample enables the identification, study, and analysis of specific cell types, while reducing contamination from others. Many criteria must be considered in the choice of a cell separation strategy, depending on the application and its requirements and constraints in terms of throughput, purity, viability of recovered cells, yield, labeling, ease of use, cost and processing time. For instance, minimizing cell loss and maximizing cell purification efficiency are often crucial aspects in cell-based therapeutics [1], where consistency of the isolated cell population is essential to ensure adapted cell transplant. Despite the variety of already existing cell purification approaches, there is a constantly increasing demand for the development of separation devices with improved performance, capable of processing large sample volumes, while enabling the accurate sub-selection of potentially rare target cell populations.

Magnetic-activated cell sorting (MACS) and fluorescent-activated cell sorting (FACS) are amongst the most widely used cell separation approaches, together with density gradient methods and methodologies based on adhesion [2]. FACS cell sorters represent powerful equipment enabling high cell-sorting rates (>50,000 cells/s) [3] and high purity (approaching 100%). Moreover, FACS is quite versatile since it allows separation of cells according to their surface markers, as well as size and granularity, based on fluorescent properties or scattered light. Multicolor staining is also possible with some instruments, which enables purification of rare populations that can only be differentiated by their combined expression of several surface markers. The autofluorescence displayed by some cells can, however, interfere with specific fluorescent probes in flow cytometric analysis [4], although it can be exploited in some cases [5].

In the case of MACS, the cell-targeting principle (which consists in attaching magnetic beads to a specific cell population) and the physical separation process (i.e., selectively retaining those cells on a column) are more intimately related, as they conjointly exploit magnetism, which facilitates sorting [6]. Consequently, MACS commercial instruments are less sophisticated, more compact, and much less expensive than FACS. There are a variety of benchtop magnetic cell sorters, either manual (e.g., BioLegend MojoSort^TM, Invitrogen DynaMag^TM) or automated (e.g., Miltenyi Biotech autoMACS^®, RoboSep^TM from STEMCELL Technologies), and, in contrast to FACS, the intervention of a trained operator is usually not required for their utilization, which is also less time consuming [7]. However, with FACS, cells are analyzed and sorted one-by-one, while MACS performs a bulk separation. Therefore, despite a lower processing time with MACS, a higher purity of the desired cell population is typically achieved by FACS [1,8]. A number of studies have attempted to compare the ability of FACS and MACS to isolate specific cell populations [7,9,10].

There exist many alternatives to FACS and MACS for cell separation, exploiting other approaches and which have reached different stages of technical maturity. In particular, the constant need for integration of more functionalities and for improved performance has led to the development of a variety of microfluidic tools exploiting different sorting mechanisms and making use of different cell phenotypic traits. Despite the fact that these new technologies face a set of challenges for their commercialization [11], they offer great promise for pushing the limits encountered with cell separation and meeting a range of needs, from debulking to rare cell isolation [12,13] and detection. Many research efforts are currently focused on building cell-sorting devices relying on microfabrication technology, because miniaturization offers many advantages, such as reduced footprint, as well as low power and reagent consumption. Moreover, working at the microscale allows amplification of actuation effects when forces involved depend on a field gradient, due to favorable scaling laws, as is the case with active separation methods, such as dielectrophoresis, acoustophoresis, optical trapping and magnetophoresis. There are several recent reviews in the literature that provide an overview of microfluidic passive [14,15] and active [16,17,18,19,20] separation methods, the former exploiting more or less complex microchannel geometries and the latter requiring the use of a field source. Passive separation methods mainly exploit differences in cell size and shape. Despite their simplicity, they offer less flexibility than active methods, which exploit more separation criteria. Compared with other active methods, such as dielectrophoresis [21,22] or acoustophoresis [23,24], those based on magnetic force offer a variety of advantages [25], including higher portability, absence of heating effects potentially detrimental to cells (except in some specific cases where electromagnets are used), this independently of the ionic strength [26], and high selectivity conferred by magnetic cell tagging whenever required. Additionally, magnetic fields can penetrate non-magnetic materials, such as plastics or glass, commonly used in cell separation experiments. Moreover, miniaturized solutions based on magnetism can be built on existing protocols and reagents already developed for MACS, while being applicable to much lower volumes of suspension. The combination of magnetism and microfluidics, also referred to as magnetofluidics, provides increased spatial and temporal control of cells, improving the resolution of separation and facilitating continuous flow processing [27]. It also enables the integration of entire analytical procedures, from sample pretreatment to downstream analysis, inside a unique device which can be used at the point of care.

The present paper aims to provide an overview of recent research in magnetic cell separation, covering various aspects, from specific cell targeting strategies to the design and fabrication of new magnetic separation platforms and related applications. The next section introduces the theoretical background required for understanding the role of the different parameters affecting the efficiency of the magnetic separation process.

2. Theoretical Background

2.1. Magnetic Behavior of Materials

This paragraph aims to briefly describe the magnetic behavior of materials at play in magnetic cell separation, namely cells, water and ions composing their immersion medium, magnetic beads attached to cells and magnetic field sources.

Faraday’s work has shown that any substance can be magnetized in the presence of a magnetic field [28]. The magnetic susceptibility of a material, denoted χ, reflects its ability to magnetize in the presence of an external magnetic excitation generated using permanent magnets or conductors carrying an electric current. It is defined as the ratio of magnetization M (magnetic dipole moment per unit volume) to the applied magnetizing field intensity H. Materials can be classified into three main categories based on the value of χ: diamagnetic (−1 < χ < 0), paramagnetic (0 < χ < ~10⁻²) or ferromagnetic (χ > 10⁻² → ~10⁵). The relation between M and H is linear in the first two groups and non-linear in the last one (Figure 1).

Most cells and other biological materials are diamagnetic and their susceptibility generally falls within a range of about ±20% from the susceptibility of water (χ= −9.05 × 10⁻⁶ in SI units) [29]. There are few exceptions, such as magnetotactic bacteria, which synthesize intracellular nanoparticles of magnetite and use them as tiny compasses to navigate in the direction of the Earth’s magnetic field [30,31,32]. Diamagnetic materials magnetize weakly in the direction opposite to the applied magnetic field. The induced magnetization cancels when the external field is removed.

Paramagnetic materials have a small, positive susceptibility. In these substances, the induced magnetization is also weak, but still hundreds to thousands of times higher than in diamagnetic materials, and points in the same direction as the applied field. On removal of the external magnetic field, paramagnetic materials also lose their magnetism. These substances include ions having unpaired electrons. For instance, manganese (Mn²⁺) and gadolinium (Gd³⁺) ions, used as MRI contrast agents, are paramagnetic.

Ferromagnetic materials exhibit a large, positive magnetic susceptibility. They are magnetized easily and, as the external field is increased, the induced magnetization reaches a limiting stage called saturation (M_sat). A part of this magnetization is retained after external field removal, which is referred to as remanent magnetization (M_r). The most common ferromagnetic materials are iron, nickel, cobalt and their alloys, and alloys of rare earth metals used for the fabrication of electromagnets or permanent magnets. Superparamagnetism is a form of magnetism which appears in ferromagnetic nanoparticles of diameter below several tens of nm [33], exhibiting a single magnetic domain. These particles present a high susceptibility at low magnetic fields, followed by saturation at a few hundreds of mT. Moreover, once the external field has been removed, they do not retain any residual magnetization. Commercial superparamagnetic microspheres used for cell separation are usually composed of superparamagnetic nanoparticles (typically Fe₃O₄ magnetite or γ-Fe₂O₃ maghemite) embedded in a polymeric matrix [34]. The resulting microbeads retain a superparamagnetic property with tunable size. The absence of remanent magnetization prevents their agglomeration and facilitates redispersion after storage. The rich possibilities of coatings combined with the ability to respond to the external magnetic field make magnetic nanoparticles a universal tool for the separation of small molecules, biomolecules and cells. The preparation and applications of magnetic micro- and nano-particles have been extensively reviewed elsewhere [35,36,37,38,39].

2.2. Magnetic Force Expression

Magnetophoresis (MAP) refers to the motion of a particle in a non-uniform magnetic field B. A particle placed in such a field can be assimilated to a magnetic dipole of moment m and of magnetic potential energy $U_{mag}=-\mathit{m}.\mathit{B}$. It then undergoes a force ${\mathit{F}}_{\mathit{m}\mathit{a}\mathit{g}}=-\mathsf{\nabla }{U}_{\mathit{m}ag}=\left(\mathit{m}.\mathsf{\nabla }\right)\mathit{B}$, where $\mathsf{\nabla }$ is the del operator. For a diamagnetic or paramagnetic particle of volume $V_p$ and susceptibility ${\chi }_{p }$immersed in a medium of susceptibility ${\chi }_{m }$, the net magnetic moment is given by: $\mathit{m}=\left({\chi }_p-{\chi }_m\right)V_{p}H$, which leads to:

$${\mathit{F}}_{\mathit{m}\mathit{a}\mathit{g}}\approx \left({\chi }_p-{\chi }_m\right)\frac{V_p}{{\mu }_0}\left(B.\mathsf{\nabla }\right)B=\frac{V_p\mathsf{\Delta }\chi }{2{\mu }_0}\mathsf{\nabla }{B}^{2 }$$

(1)

with $\Delta \chi =\left({\chi }_p-{\chi }_m\right)$ and ${\mu }_0=4\pi {10}^{-7}H/m$.

Equation (1) shows that the existence of a force acting on the particle is conditioned by use of a non-uniform field, as the term $\mathsf{\nabla }{B}^2$reflecting the spatial variation of $B^2$cancels when the field is uniform. It also indicates that the direction of particle displacement depends on the sign of the magnetic contrast factor ∆χ. If ∆χ > 0, the particle moves to regions of highest field strength. This case, referred to as positive MAP, typically occurs when a paramagnetic particle (${\chi }_p>0)$ is immersed in an aqueous medium (${\chi }_m<0)$. Conversely, if ∆χ < 0, the particle is repelled towards regions of lowest field strength. This phenomenon, called negative MAP, is, for instance, encountered when a diamagnetic cell (${\chi }_p<0)$ is placed in a medium enriched in paramagnetic ions (${\chi }_m>0)$ [40,41,42].

The linear response described by Equation (1) applies well to biological particles, which are generally diamagnetic. In the case of superparamagnetic beads, often used to label cells, this response may prove to be non-linear. Beyond a certain intensity of the excitation field, the magnetization is no longer proportional to the applied field and becomes constant ($M_{sat}$). The force is then proportional to the gradient of $B$, rather than that of $B^2$:

$${\mathit{F}}_{\mathit{m}\mathit{a}\mathit{g}}=M_{sat}{V}_p\left({\mathit{e}}_{\mathit{B}}.\mathsf{\nabla }\right)B$$

(2)

where ${\mathit{e}}_{\mathit{B}}$is a unit vector, oriented according to the direction of the applied field.

Equations (1) and (2) also show that the greater the spatial variation of the magnetic field (large value of the gradient term), the higher is the force intensity. This explains why downscaling permanent magnets can greatly increase the attraction forces generated on magnetic nanoparticles [43,44]. A permanent magnet can be assimilated to a dipole of moment m producing a magnetic field of expression:

$$\mathit{B}\left(r\right)=\left(\frac{{\mu }_0}{4\pi } \right)\frac{3\left(\mathit{m}.\mathit{u}\right)\mathit{u}-\mathit{m}}{r^3}$$

(3)

with $\mathit{m}=V\mathit{M}$ where V is the volume of the magnet and M its magnetization and u is the unit vector oriented from the dipole to the considered point, separated by a distance r. While the distance r varies in $L$, the volume V varies in $L^3.$ As the magnetization is an intrinsic property of the material, it remains constant and consequently the moment m also varies in $L^3.$ Thus, according to Equation (3), the field magnitude normalized by magnet size remains unchanged when downscaling, as illustrated in Figure 2A,B. At the same time, when the scale is reduced by a factor k, the field gradient, defined as the field variation over the distance, is multiplied by k (Figure 2C). The volume force acting on a magnetic particle is thus also multiplied by the reduction factor k, as it is proportional to the field gradient (from Equation (1) or Equation (2)). Further analysis of magnetic scale reduction effects can be found elsewhere [45].

2.3. Magnetophoretic Velocity

The magnetophoretic velocity of a magnetic bead in a fluid is determined by both the magnetic force expression and by the resistance exerted by the surrounding fluid, or viscous drag, which can be evaluated by the Stokes equation:

$${\mathit{F}}_{\mathit{d}}=6\pi \eta R\mathbf{\upsilon }$$

(4)

where $\eta$ is the dynamic viscosity of the fluid and $\upsilon$ is the particle velocity relative to the fluid.

For a spherical magnetic bead of radius R under magnetic saturation, the magnetophoretic mobility can be deduced from Equations (2) and (4) leading to $\xi =\frac{2R^{2}Msat}{9\eta }$, (by neglecting gravitational and buoyant forces and assuming a quasi-static motion of particles, the two forces equal each other ${\mathit{F}}_{\mathit{d}}+{\mathit{F}}_{\mathit{m}\mathit{a}\mathit{g}}=\mathbf{0}$). For instance, the values of ${\xi }_1$ and ${\xi }_2$ for two particles of similar magnetic saturation M_sat = 15 kA/m and respective radii $R_1$= 2 µm and $R_2$= 200 nm in water are ${\xi }_1=1.33\times {10}^{-5 }$m²/(T.s) and ${\xi }_2=1.33\times {10}^{-7 }$m²/(T.s). Consequently, magnetic field gradients of ~75 T/m and ~7500 T/m would be required, respectively, to induce a motion of these particles at 1 mm/s, relative to their suspending medium (for $\eta$ of water). To make similar estimations in the case of cells labeled with N nanoparticles of volume V_p, one should consider different expressions for ${\mathit{F}}_{\mathit{d}}$ and ${\mathit{F}}_{\mathit{m}\mathit{a}\mathit{g}}$, because in the first, the radius is that of the equivalent radius of the labeled cell $R_{eq}$, while in the second, only the (total) volume of magnetic material should be taken into account, leading to ${\mathit{F}}_{\mathit{d}}=6\pi \eta R_{eq}\mathbf{\upsilon }$ and ${\mathit{F}}_{\mathit{m}\mathit{a}\mathit{g}}=N{M}_{sat}{V}_p\left({\mathit{e}}_{\mathit{B}}.\mathsf{\nabla }\right)B$.

As shown above, the knowledge of the magnetic moment of a particle or of a magnetically labeled cell enables estimation of its magnetophoretic velocity. Conversely, the observation of particle displacement under a magnetic field can be used to determine its magnetic moment and potentially evaluate the average number of magnetic particles grafted on a cell. This can be particularly useful for magnetic force evaluation required in the process of designing new cell separators and establishing new protocols. Cell tracking velocimetry (CTV), a technique pioneered by Chalmers and colleagues [46], allows estimation of these parameters based on the velocity measurement of individual particles microscopically tracked in a nearly constant, well-defined, magnetic energy gradient. It has previously been applied to magnetic particles, polystyrene microbeads, and magnetically labeled and unlabeled cells [47,48].

In summary, the force exerted on labeled cells results from a complex interplay between several parameters, such as the particle size, magnetization, number of particles grafted on each cell, and the magnetic field gradient. The concentration of magnetic objects also has an impact on their migration through the effect of cooperative MAP (i.e., chain formation and aggregation) [49].

3. Cell Selection Strategies

This section focuses on the different approaches available to target cells, based either on magnetic tagging or on label-free strategies.

Table 1. Comparison of several cell selection strategies.

Cell Selection Strategy	Advantages		Disadvantages	References (Examples)
METHODS INVOLVING CELL LABELLING
Based on Cell Surface Markers
Antibodies	- Fast and specific - Widespread use, wide range of commercial antibody-magnetic bead conjugates/labeling kits available		- High cost of production, including purification [50] - Preparation based on animal systems - Variations between batches - Antibody-based cell labeling remains difficult to reverse, even though release approaches tend to emerge - The inherent immunogenicity of antibodies may be an obstacle for downstream therapeutic applications [51] - Undesired intracellular signaling cascades can be triggered upon binding	[52,53,54]
Aptamers	- Small size (∅: 2−3 nm), which enables accurate quantification of the cell surface markers and enhanced resolution in identifying distinct subpopulations. - Obtained by chemical synthesis, which leads to reproducible properties and facilitates modification with functional groups and different labels - Simple and cost-effective production - Aptamers are stable under various conditions (pH, temperature) [55,56] - Cells captured using aptamers can be released using nucleases or the aptamer’s complementary strand - Low to no immunogenicity - Long-shelf life		- Application of aptamer is still in development phase, due to well-established use of antibodies - Time consuming selection process - Possible endocytosis of the aptamer-magnetic particle conjugates [57] (although this is exploited for therapeutic applications).	[58,59,60,61]
Based on DNA or RNA internalization
Reporter genes	- No need to identify existing cell surface markers for antibody recognition		- Transgenic sequences remain in the target genome [1]	[62,63]
Fishing	- Applicable to unculturable cells for which antibodies are not available		- cell genetic content is preserved inside the cell but the latter is no longer viable due to treatment with chemical fixative such as paraformaldehyde.	[64,65,66,67]
Endocytosis	- Simple way to provide magnetic properties to cells, such as macrophages		- Some internalization pathways are limited to certain cells	[68]
LABEL FREE APPROACHES
Intrinsic magnetic properties of cells	- No need for magnetic labeling, which leaves the cells untouched and reduces the cost, less time consuming - Applicable in classical biological media		- Very few cells present a significant susceptibility contrast with biological media (almost exclusively applicable to blood fractionation and magnetotactic bacteria)	[69,70,71,72,73]
Adjusted properties of the medium	Paramagnetic fluids	- Applicable to "non magnetic" particles - No need for magnetic labeling (reduces cost, less time consuming) - Possible exploitation of a repulsive force - Transparent fluids	- The magnetic susceptibility χm of paramagnetic salts is relatively weak and their concentration may need to be high to induce a sufficient MAP contrast which can lead to biocompatibility issues	[74,75]
	Ferrofluids	- Applicable to "non magnetic" particles - No need for magnetic labeling (reduces cost, less time consuming) - Possible exploitation of a repulsive force - Rapid magnetic reaction - Flexible fluid properties [76]	- Possible accumulation of ferrofluid nanoparticles in areas of high magnetic flux density - The opaque nature of a ferrofluid makes visualization of the sample difficult [74]. - Nanoparticle coating required to ensure better biocompatibility and colloidal stability	[77,78,79,80,81]

summarizes their respective advantages and disadvantages.

3.1. Approches Based on Cell Surface Markers

The most popular approaches for selective purification of cells based on magnetic or fluorescence-assisted cell sorting are based on affinity. They rely on the use of ligands targeting cell-surface markers and offer the advantage of providing high target specificity [50]. In the case of magnetic cell separation, the selectivity is ensured by decorating magnetic beads with biological ligands, such as antibodies and proteins, or synthetic ligands, such as aptamers and peptides [58].

• Antibodies

The predominant approach used for magnetic cell separation exploits antibodies conjugated to magnetic beads, thereby forming a complex that selectively binds to cells expressing the corresponding epitope (direct labeling). Alternatively, cells can be labeled using a two-step procedure (indirect labeling), in which they are first labeled with a primary antibody directed against a cell surface marker. Then, a secondary antibody conjugated to a magnetic bead binds to the unconjugated primary antibody or to a molecule (e.g., biotin, fluorochrome) itself conjugated to the primary antibody. This two-step indirect labeling method may be indicated for applications involving antigens that are not expressed clearly, as greater sensitivity can be achieved due to the signal amplification resulting from the increased number of sites available for MNP attachment [82,83]. There also exists a third approach, used for instance in the EasySep^TM technology from STEMCELL, in which a tetrameric antibody simultaneously targets a cell surface marker and a magnetic particle added in a second step [47,84] (Figure 3A).

Many commercial anti-body magnetic bead conjugates are readily available for sorting cells of various species (e.g., MACS^® MicroBeads from Miltenyi Biotec), as well as kits (e.g., Dynabeads^® antibody coupling kit, Thermo Fisher) allowing coupling of antibodies, lectins, enzymes, etc., to the surface of superparamagnetic beads to enable the targeting of nearly any cell types [85].

Considerable effort has also been directed toward the development of MNP surface modifications and coatings improving cell targeting efficiency [86]. The binding capacity of the ligand can be increased using two-step [87] or multivalent binding strategies based on tentacle-like structures [83,88,89] (Figure 3B). For instance, antibody-functionalized dendrimers have been proposed as a solution to improve the hydrophilicity and increase the amount of antibodies conjugated with MNPs, thereby enhancing the magnetophoretic mobility of targeted cells [90].

Depending on the downstream application, it must be considered whether the target cells should be labeled with antibodies for subsequent positive selection (i.e., the labeled cells are retained in the isolated fraction due to attraction by the magnetic field, Figure 4A), or if a negative selection strategy should be used to instead deplete the sample of an undesired cell subset (i.e., unwanted cells are labeled, leaving the wanted cells untouched for downstream use, Figure 4B). The main advantage of a positive selection strategy is high purity, and this strategy is particularly well-suited for isolation of rare, precious cells [91]. In some situations, it may be complicated to design an antibody cocktail allowing depletion of all the non-target cells, which makes negative selection less efficient in this respect. Relying on a large panel of antibodies for depletion also tends to increase the cost. There are, however, some limitations to positive selection, especially when the expression level of target antigen is low. Moreover, the antibody-magnetic bead conjugate may cause unwanted intracellular signaling or cell activation and affect downstream use of the cells. In such cases, negative selection is the preferred strategy.

Recovery of label-free cells after sorting can also be of interest, for instance, when cell culturing is desired in the downstream [94]. Several commercial kits allow the detachment of the beads from the cells if needed, such as EasySep™ Release from STEMCELL™, Dynabeads^® FlowComp^TM or Dynabeads^® CELLection^TM. In the latter, a DNA linker between the beads and antibodies is cleaved using DNase after cell isolation, thereby detaching beads and leaving only the antibodies on the cell surface. MACS Multisort kits [95] also contain a release reagent which enzymatically removes the beads before a second labeling step with beads directed against a second marker. Lu et al. have developed a biotin-triggered decomposable immunomagnetic system, in which peptide-tagged antibodies designed by chemical conjugation are specifically immobilized on engineered protein-coated magnetic beads. The interaction between peptide and engineered protein could be competitively destroyed by biotin treatment, enabling the release of captured, circulating tumor cells (CTCs) [96].

Miltenyi Biotech has recently commercialized a technology based on releasable antibodies enabling the removal of both magnetic beads and antibody fragments after positive cell selection. In the so-called REAlease^TM technology, available both for fluorescent- [97] and magnetic- [98] based sorting, conventional antibodies are replaced by engineered antibody fragments having low affinity for surface markers in their monomeric state. When multimerized in a biotinylated REAlease complex, they bind to cell epitopes with high avidity. Upon addition of a release reagent, the complex dissociates from the cell surface due to monomerization of the antibody fragments. Antibody-magnetic bead conjugates are then released from the cell surface and previously blocked epitopes become available again for re-labeling, which allows for sequential positive selection steps based on multiple markers.

Despite their widespread use, antibody-based labeling approaches have some drawbacks, such as high cost [99], sensitivity to temperature, and complex production. Therefore, some other targeting probes, such as DNA aptamers or recognition peptides, tend to be developed for cell isolation [100].

• Aptamers

Aptamers consist of single-stranded DNA or RNA oligonucleotides (typically 20–100 nucleotides), with engineered affinity and selectivity for a specific target molecule. They are synthetic compounds selected from libraries of random oligonucleotide sequences by an iterative process called SELEX (Systematic Evolution of Ligands by EXponential Enrichment), involving incubation of oligonucleotides with the specific target for identification of high affinity sequences after several rounds of selection and amplification [101]. Through SELEX, aptamers can be practically selected against any targets, including proteins, bacteria, virus and whole cells [102]. Due to their synthetic origin, they can also be selected for toxic agents, as, unlike antibodies, they do not depend on the production of antisera in animals. Their production is cheap and fast and very reproducible properties can be obtained with low inter-batch variability [103]. During synthesis, they can be easily modified to facilitate attachment of enzymes or other functional groups (e.g., amine, thiol) or labels (e.g., biotin, fluorochromes) at defined positions within the sequence, which expands their chemical diversity and allows their immobilization on magnetic beads. Biotin-labeled aptamers can be attached to streptavidin-coated beads, for instance [104]. Aptamers present numerous advantages, including high affinity, low cost and better stability, compared to antibodies. They have matured considerably through the past two decades and many efforts have been made to enrich and detect targeted cells using them. In particular, aptamer-functionalized magnetic particles have attracted great attention in clinical diagnosis [105], for selective extraction of target CTCs [104,106,107,108,109,110,111] (Figure 5A). Chen et al. have reported undesirable endocytosis of aptamer-conjugated magnetic nanobeads during CTC separation and proposed different strategies to minimize this issue [57,112], such as the use of multimerized aptamer DNA strands, or tentacle DNA, immobilized on magnetic microparticle surface (Figure 5B). The obtained “nanooctopuses” were protected from cellular uptake and maximized capture capacity. They could be removed after cell isolation to allow cell culture through degradation of binding aptamer strands by DNase treatment.

Other approaches can be used for cell release after capture [113,114], such as temperature-mediated disruption of cell-aptamer interaction [115]. Gray et al. used magnetic beads loaded with the epidermal growth factor receptor (EGFR)-binding antagonistic aptamer E07 to specifically isolate EGFR-expressing cells. They demonstrated that E07 binding could be reversed by using an “antidote” [116] oligonucleotide complementary to the aptamer, giving a pure population of ligand-free EGFR(+) cells [51]. A similar approach was proposed by Kacherovsky et al. to isolate CD8+ T cells from PBMCs with MACS, prior to aptamer binding disruption [117].

Although great improvements have been achieved, and despite the compelling advantages of aptamers, aptamer magnetic separation still faces obstacles for its widespread use, partly due to lack of mature, standardized protocols and commercially available kits, compared to its antibody-based counterpart. Many efforts relying on multidisciplinary research are, then, still required to translate aptamer-based studies into more common practice [118].

• Other ligands

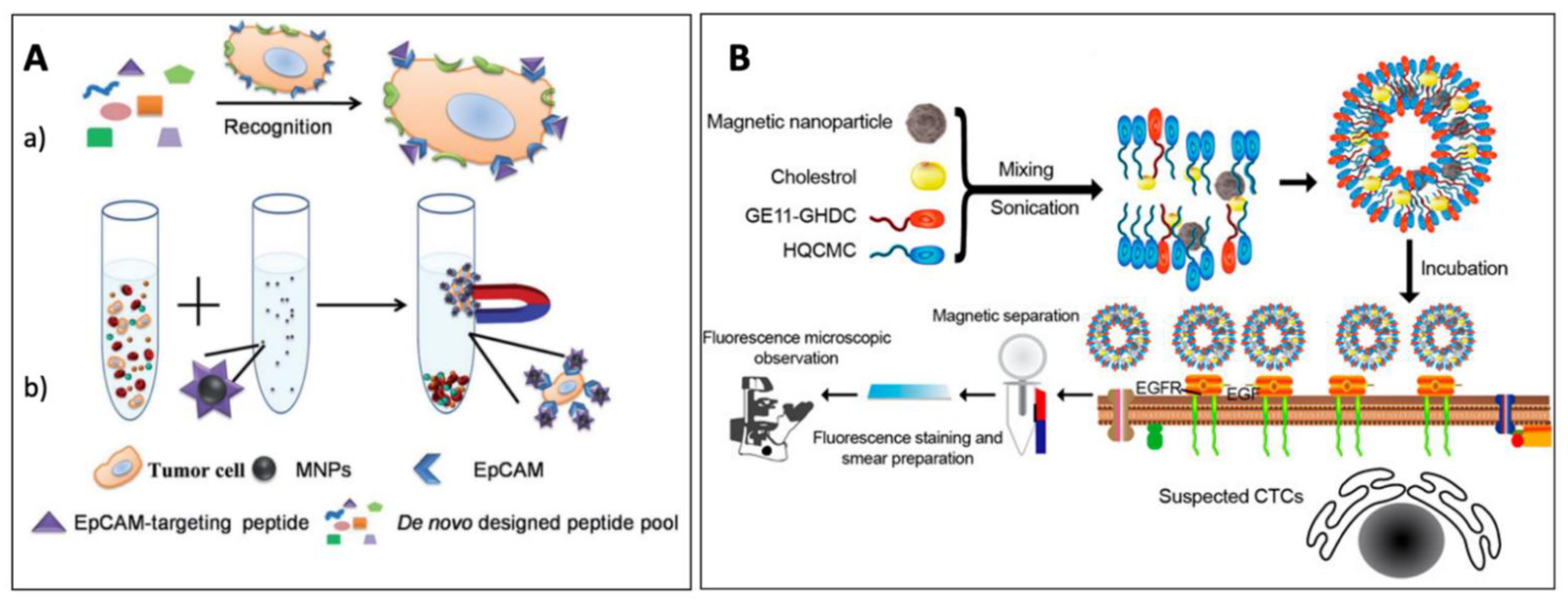

Peptides are short chains of amino acids offering great potential as synthetic affinity ligands for bioseparation, due to their small size, good chemical stability, and lower production cost, compared to antibodies. The selection of cell-specific peptides can be performed with different approaches, such as phage-display peptide-library screening [50,119,120]. Bai et al. identified a peptide with high binding affinity to the epithelial cell adhesion molecule EpCAM, a widely used biomarker for CTC detection (Figure 6A). This peptide was attached onto MNPs through biotin–streptavidin interaction and the functionalized MNPs could capture breast, prostate and liver cancers from spiked human blood with an efficiency (90%) and purity (93%) comparable to MNPs functionalized with anti-EpCAM antibodies [121]. The same group adopted a similar approach with a peptide demonstrating high affinity for human epidermal growth factor receptor 2 (HER2) [100]. Ding et al. have demonstrated the applicability of the GE11 peptide for specific targeting toward EGFR [122], a transmembrane protein overexpressed in many cancers [123]. They developed EGFR peptide magnetic nanovesicles based on a derivative of this peptide, which demonstrated high affinity for EGFR-positive cancer cells and have been used for efficient detection of CTCs (Figure 6B).

Peptide ligands can also be engineered to enable the control of their binding activity and, therefore, allow for cell release upon exposure to different stimuli [50]. For instance, Day et al. have developed azobenzene-cyclized peptide ligands with light-controlled affinity for target proteins. Light triggers a cis/trans isomerization of the azobenzene, which results in a structural rearrangement of the cyclic peptide from a non-binding to a binding configuration. Their photo-switchable peptides targeted vascular cell adhesion marker 1 (VCAM1), and the light-activated biorecognition activity of these peptides was demonstrated on brain microvascular endothelial cells expressing this marker [124].

Folic acid (FA) can also be used as a targeting ligand as folate receptors are overexpressed in various cancer cells, including breast, lung, kidney and ovarian cancers, the expression in these carcinomas being 100–300 times higher than on healthy cells [125,126]. FA is a vitamin of small size (compared to antibodies), inexpensive, and non-immunogenic. Liu et al. demonstrated ovarian cancer detection from whole blood using FA conjugated magnetic iron oxide (IO) nanoparticles, obtained by immobilizing FA conjugated to diamine PEG (polyethylene glycol) on carboxylated IO nanoparticles via ethyl (dimethylaminopropyl) carbodiimide/N-hydroxysuccinimide (EDC/NHS) coupling. The separation efficiency of spiked ovarian cancer SKOV3 cells in whole blood mixed with IO-FA nanoparticles was 61.3% for an abundance of 450 cells in 1 mL [127]. The same group demonstrated detection of ovarian cancer CTCs using BSA-coated magnetic nanoprobes modified with FA through a PEG linker [128]. To increase the labeling efficiency, they also proposed a two-step binding strategy for FA attachment on magnetic particles, exploiting multivalent binding characteristics of the biotin-streptavidin system [129]. This streptavidin-biotin mediated amplification could also be combined with FA conjugation on polyamidoamine (PAMAM) dendrimers, providing a cascade amplification system [130].

3.2. Approches Based on DNA or RNA Internalization

• Integration of reporter genes

Cell-sorting methods based on affinity rely on the identification of a target receptor on the cell of interest. However, transgenic approaches can also be used to induce expression of a surface marker which can be recognized by a ligand coupled to MNPs [62]. Mejia-Pous et al. developed a transposon-mediated gene transfer technique to transfect cells with a plasmid construct harboring both the desired transgene and a surface marker coding sequence for subsequent cell isolation using MACS [131]. The MACSelect^TM System, commercialized by Miltenyi Biotec, enables the enrichment of cells transfected with a vector encoding truncated CD4 molecules or low-affinity nerve growth factor receptor (LNGFR) surface markers, used either for cotransfection with a vector containing a gene of interest or for cloning the gene of interest. After cell transfection, cells expressing the marker are magnetically labeled with MACSelect MicroBeads for subsequent enrichment using a MACS separator. The fact that the expressed antigen lacks its intracellular domain could reduce the risk of immunogenicity [132].

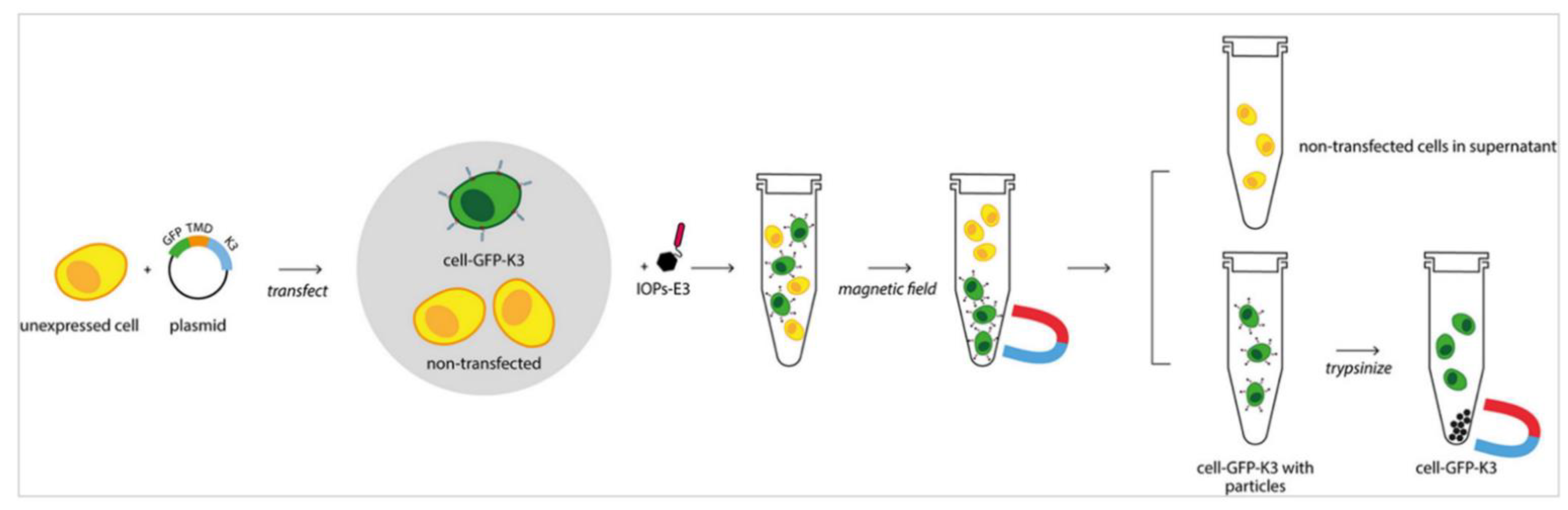

Matheson et al. developed an antibody-free magnetic cell sorting strategy, in which transfected or transduced cells co-express a gene or shRNA of interest with a cell surface affinity tag comprising a 38-amino-acid streptavidin-binding peptide. Cells could then be isolated after incubation with streptavidin-conjugated magnetic beads. Magnetic particle detachment could also be achieved through competition by incubation with excess biotin, leaving cells ready for use in downstream applications [63]. Genetically modified primary human CD4+ T cells have been enriched at a purity of 99% using this approach. Recently, Shen et al. have shown that HeLa cells could be transfected with a plasmid containing a gene encoding the K3 coiled-coil-forming peptide to induce its expression on the cell membrane and use it as a selection marker for sorting [133] (Figure 7). Cells were immobilized using iron oxide particles coupled to the E3 peptide, interacting with K3 to form a heterodimeric coiled coil system with a micromolar dissociation constant. The coiled-coil peptides could be degraded by trypsin, allowing cell detachment from the particles.

• Magnetic fishing

Other approaches based on DNA were also developed in the field of microbiology, to answer the need of cultivation-independent methods for sorting of bacterial cells. The use of antibody-based sorting techniques may be hampered by the need to recover enough antigenic molecules to produce antibodies, which limits their application to culturable bacteria, representing only a small percentage of prokaryotic cells. In this context, the combination of fluorescence in situ hybridization (FISH), using fluorescently labeled oligonucleotides that target rRNA, and flow cytometry, has become a method of choice for detection of bacteria in environmental samples [134]. A magnetic version of this approach was proposed by Stoffels et al., who introduced the concept of probe-based cell fishing [64]. This approach implies in situ hybridization of biotin-labeled polynucleotide transcript probes with specific regions of the target bacteria rRNA. Due to the probe size, it was hypothesized [135] that some probes or partial probes remain outside the cell, therefore allowing anchorage of streptavidin-coated paramagnetic beads and subsequent isolation using a magnetic field. Cells isolated using this method are not viable due to the fixation step performed with a chemical fixative (typically paraformaldehyde), aiming at denaturing the bacterial cell wall and achieving crosslinking of proteins. Nevertheless, fixed bacteria remain whole cells fully exploitable for subsequent genomic analysis. Pivetal et al. combined this approach (Figure 8A), referred to as MISH (magnetic in situ hybridization), with the use of a microfluidic cell sorter obtained by integrating a permanent micromagnet array in a PDMS microchannel. The target Escherichia coli DH10 cells were enriched from an initial concentration of 0.04% to a final concentration of 98.46% from an artificial cell mixture [136]. To enlarge the panel of possible rRNA sequences that can be targeted, Royet et al. proposed an approach inspired by HCR-FISH [137], using a combination of MISH and HCR (hybridization chain reaction) [66] (Figure 8B). The same approach was recently validated on a eucaryotic cell model by Bastian et al. [67].

3.3. Endocytosis-Mediated Labeling

Diamagnetic cells can also acquire a magnetic load through the endocytosis process, by which they internalize substances from their external environment. Based on this natural process, MNPs can be transported into cells by vesicles invaginated from the plasma membrane. The kinetics of endocytosis depends on the involved pathways [138,139] which in turn depend on both the cell type and features of the nanoparticle, such as charge/surface chemistry, shape and size. The quantity of nanoparticles internalized by cells can be adjusted by tuning their initial concentration in the solution, as well as the incubation time [140]. Robert et al. have demonstrated that monocyte-derived macrophages could be separated from their respective native monocytes in a microfluidic magnetophoresis device based on their increased endocytotic capacity. A purity of more than 88% and an efficacy higher than 60% were achieved, at a throughput of 10 to 100 cells.s⁻¹ [68].

3.4. Label-Free Magnetic Cell Sorting

Magnetic cell separation usually relies on a preliminary cell labeling step. However, this approach has some drawbacks, such as cost and difference in magnetic responses from one cell to another due, for instance, to variability in marker expression across a cell population. Label-free cell-sorting approaches based on negative MAP (or “diamagnetophoresis”) are therefore an appealing alternative to this well-established strategy. They offer the great advantage of leaving the cell unaffected, which is an asset for downstream use or analysis.

3.4.1. Adjusting Magnetic Properties of Cell Surrounding Medium

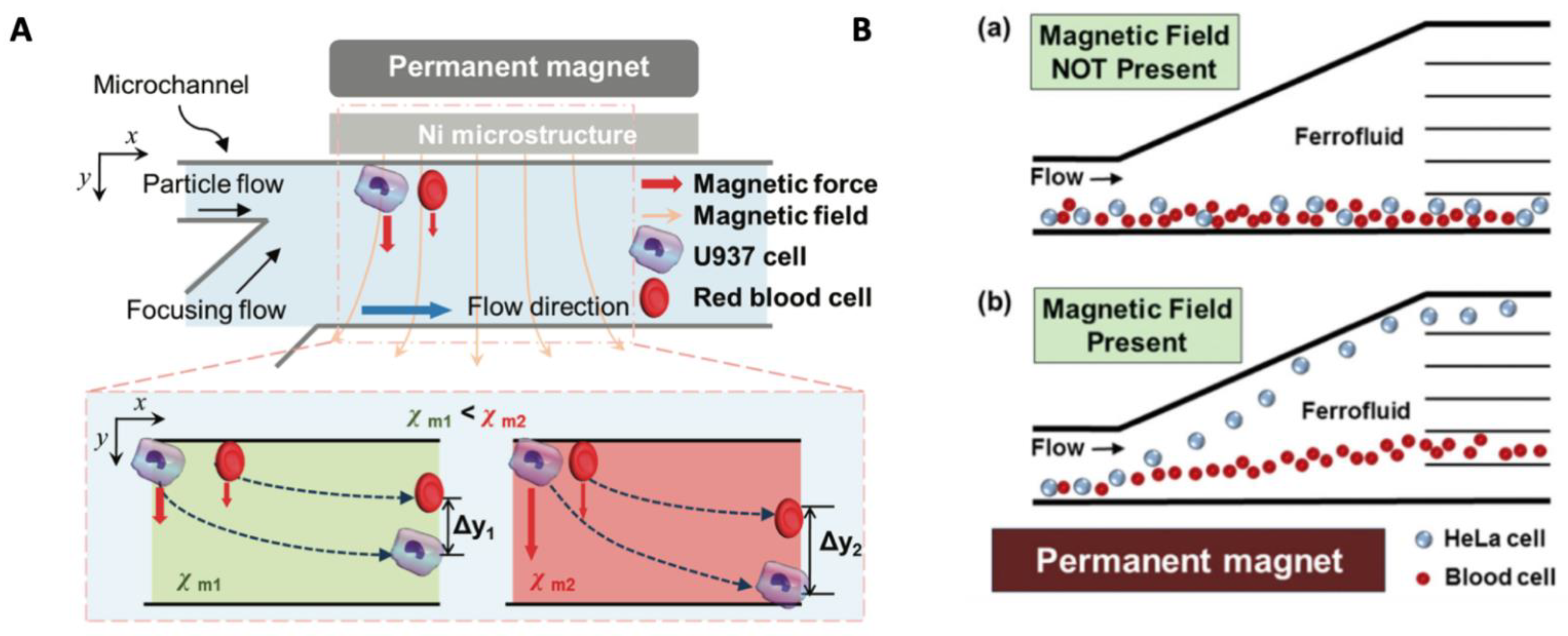

Manipulation of diamagnetic cells (often referred to as “non-magnetic”), usually requires tuning of their magnetic properties through magnetic labeling or MNP internalization to obtain significant forces, as developed in the previous section. This strategy essentially allows the application of an attractive MAP force. It is, however, possible to apply a repulsive magnetic force on cells by instead increasing the susceptibility of their surrounding medium, thereby increasing the absolute value of the susceptibility contrast factor Δχ = (χ_p − χ_m) (in Equation (1)), which becomes negative. In these conditions, unlabeled particles are pushed towards low field intensity regions. This so-called “magneto-Archimedes effect”, combined with microfluidics, offers a wide range of applications, which were recently reviewed [78,141,142]. While many studies concern trapping, focusing or separation of particles, such as polystyrene beads employed as an easy-to-use model (for calibration and optimization), we focus here on biological cell separation, which has benefited from progress made in the synthesis of biocompatible fluids. Exploitation of diamagnetic repulsion enables manipulation of cells, while avoiding the need for cell-bead conjugation and associated washing steps, and reduces the dispersion of behaviors in terms of ligand-receptor interactions or endocytotic capacity, even for the same type of cells [68]. Increasing the value of χ_m can be achieved by using a paramagnetic salt solution or a ferrofluid. Paramagnetic fluids offer the advantages of low cost and transparency, which allows visualization of suspended particles [143]. They are generally prepared by using paramagnetic metal ions, such as Mn²⁺ and Gd³⁺, and an organic chelating agent or halide, such as diethylenetriaminepentaacetic acid (DTPA), which can bind to these metal cations [40,142]. Chelation of gadolinium by organic ligands was shown to decrease its toxicity to acceptable ranges. Halide salts, such as MnCl₂ [144] or GdCl₃ [26] and MRI contrast agents, such as Gd-DTPA [26,40], have been used in experiments with cells. However, the concentration of paramagnetic solutions must be limited, as possible adverse effects on cells have been reported above a few tens of mM, such as inhibition of cell division [40]. The magnetic susceptibility of prepared solutions, and, by extension, the magnetic contrast factor value Δχ, consequently remain low. This manipulation strategy is, therefore, preferably combined with the use of integrated magnetic structures capable of producing high magnetic field gradients [41]. Using this approach, Shen et al. successfully achieved label-free separation of U937 cells from RBCs with >90% purity and 10⁵ cells/h throughput using a 40 mM Gd–DTPA solution [74] (Figure 9A). Recently, Sarigil et al. could detect adipogenic differentiated cells mixed with a stem cell population based on magnetic levitation in a paramagnetic medium containing gadolinium. Under the influence of the magnetic field, cells were pushed towards a position at which the magnetic and buoyancy force balanced, depending on their densities [145].

On their side, ferrofluids are colloidal suspensions of monodomain ferromagnetic nanoparticles in a “non-magnetic” fluid [146]. Their magnetic susceptibility is significantly greater than that of paramagnetic fluids. The nanoparticles, around 10 nm in diameter, are typically made of magnetite (Fe₃O₄) or maghemite (Fe₂O₃) and coated with a surfactant to improve biocompatibility and ensure colloidal stability [147]. Commercial ferrofluids (such as water-based Ferrotec’s EMG series [148]), as well as custom-made biocompatible ferrofluids [79] have been used for cell or bacteria manipulation. The biocompatibility of several magnetic liquids was examined by Zhao et al. [142]. Concentration of magnetic nanoparticles in ferrofluids should also be carefully adjusted as light diffraction makes it difficult to directly observe cells, unless fluorescent markers are used [32]. An overview of the ferrofluid-related designs and applications was given by Zhao et al. in a recent review [76]. The Mao group has used ferrofluid-based negative MAP to separate cancer cells from blood cells by exploiting their size difference [77,79,149] (Figure 9B). Liu et al. gave a detailed overview of fundamentals of ferrohydrodynamic cell separation in the specific case of CTCs and presented a new strategy for their efficient isolation using diamagnetic repulsion combined with magnetophoretic attraction of MNP-labeled, unwanted WBCs [80].

3.4.2. Exploiting Cell Intrinsic Magnetic Properties

As stated in Section 2.1., most biological cells are composed of water, a diamagnetic substance. However, specific cells contain paramagnetic materials and can then be separated from others based on their intrinsic susceptibility. The presence of iron atoms in hemoglobin makes the RBCs less diamagnetic than water [150,151] (Δχ > 0) in their deoxygenated state, in contrast to other blood cells, such as platelets and WBCs. These cells are therefore submitted to positive and negative MAP forces, respectively, and can be separated in microfluidic devices under continuous flow. To compensate for the low value of magnetic contrast factor Δχ, when cells are in their native state, high magnetic field gradients, as produced by integrated microstructures, are usually required [70,71,72,73]. Interestingly, Shamloo et al. have proposed reinforcing the effect of high magnetic field gradients produced by a ferromagnetic track using a sheath flow directing cells toward it, where the gradient was maximum. The negative magnetic force exerted on diamagnetic CTCs and WBCs was then sufficient to repel them efficiently from the ferromagnetic wire, where RBCs were attracted [152].

4. Cell Separation Devices

4.1. Magnetic Cell Separator Designs

As indicated by Equations (1) and (2) (for unsaturated and saturated dipole, respectively), the force exerted on a magnetically labeled cell depends on its magnetic moment and on the magnetic field gradient (see Section 2). As a result, the choice of a magnetic separator depends on the type of magnetic particles used to label cells (see Table 2).

Conventional magnetic separators, based on simple magnets producing low magnetic field gradients (<100 T/m, LGMS: low gradient magnetic cell separators [49]), are used for the separation or cells labeled with relatively large particles (size > 1 µm) with strong magnetic moments. They belong to the category of “open gradient magnetic separators” (OGMS), meaning that they do not exploit inserts of high-permeability materials [153]. They offer the advantages of simple design and compatibility with use of standard laboratory tubes, which reduces the cost compared to solutions based on dedicated columns. One of the most well-known separators of this type is the DYNAL^TM magnet from Invitrogen, used in combination with Dynabeads^TM particles. These polymer particles, embedding superparamagnetic nano-inclusions, are uniform in size, with a typical diameter of between 1 and 5 µm (Figure 10A). Even though large size magnetic beads provide a fast magnetic response, they present several drawbacks, such as reduced binding capacity compared to their nanometer-sized counterparts, potential for sedimentation and possible adverse effects on cells due to the large shear forces involved. In this respect, a negative cell selection strategy can be more appropriate. Moreover, large magnetic particles also strongly affect the light scatter signature of the cells to which they are bound when analyzed by FACS [154].

High gradient magnetic separators (HGMS) enable circumvention of some of these limitations. They exploit matrices of ferromagnetic material to locally distort the magnetic field, thereby producing much stronger magnetic field gradients. As a result, significant magnetic forces can be obtained, even on cell-magnetic bead complexes displaying a weak magnetic moment. This type of separator therefore permits the separation of cells labeled with nano-sized particles (Figure 10B). The magnetic matrices used in HGMS have been reviewed by Ge et al. [155]. This is the principle exploited in the MACS technology, developed by Miltenyi Biotec [156]. The cell mixture is introduced in high-gradient magnetic cell separation columns containing a matrix composed of superparamagnetic spheres, which are sufficiently spaced so that unlabeled cells can move freely between them (Figure 10C). When the column is placed in a MACS Separator (strong magnet), the spheres distort the field lines, producing strong field variations, i.e., strong field gradients (up to 10⁴ T/m [157]). The high forces thereby generated retain cells labeled with MACS MicroBeads. Once the column is extracted from the magnet, the bead matrix can no longer retain the labeled cells and they can be eluted. The separation process can be automated, as is the case in the CliniMACS and AutoMACS systems produced by Miltenyi Biotec. Minimal labeling with only a small amount of MicroBeads (50 nm in size) is sufficient to ensure effective cell separation, which is one of the main advantages of the technology, as it reduces the risk of cell perturbation. Moreover, nanosized particles have a higher binding capacity, due to higher surface-to-volume ratio and reduced steric hindrance, which allows grafting of numerous particles on the cell surface. Their binding kinetics are also faster compared with microsized beads.

Table 2. Characteristics of some commercial cell separation technologies and their respective advantages and disadvantages.

Separator	Beads	Typical Bead Size	Technology	Advantages	Disadvantages	Ref.
DYNAL (Invitrogen)	Dynabeads	1–5 µm	OGMS, LGMS	- Simple, column-free - Low cost - Fast separation	- Slow binding kinetics due to large bead size - Potential cell damage due to large shear forces.	[158]
MACS (Miltenyi biotec)	MicroBeads	50 nm	HGMS	- Minimal labeling required, resulting in minimal cell perturbation.	- Use of dedicated magnetic column (cost) - Potential complications of column overloading	[156]
EasySepTM (STEMCELL Technologies)	EasySep magnetic nanoparticles (Dextran-coated iron particles)	150 nm–1.5 µm	OGMS, built around a multipole magnet	- Simple - Column-free - Fast separation	- Optimized magnet design, but field gradient still lower than in HGMS systems	[153]
BD IMagTM (Becton Dickinson)	BD IMagTM particles	230 nm	OGMS, based on a rectangular magnet assembly	- Magnet rack fitting 6 tubes simultaneously

Table 2. Characteristics of some commercial cell separation technologies and their respective advantages and disadvantages.

Separator	Beads	Typical Bead Size	Technology	Advantages	Disadvantages	Ref.
DYNAL (Invitrogen)	Dynabeads	1–5 µm	OGMS, LGMS	- Simple, column-free - Low cost - Fast separation	- Slow binding kinetics due to large bead size - Potential cell damage due to large shear forces.	[158]
MACS (Miltenyi biotec)	MicroBeads	50 nm	HGMS	- Minimal labeling required, resulting in minimal cell perturbation.	- Use of dedicated magnetic column (cost) - Potential complications of column overloading	[156]
EasySepTM (STEMCELL Technologies)	EasySep magnetic nanoparticles (Dextran-coated iron particles)	150 nm–1.5 µm	OGMS, built around a multipole magnet	- Simple - Column-free - Fast separation	- Optimized magnet design, but field gradient still lower than in HGMS systems	[153]
BD IMagTM (Becton Dickinson)	BD IMagTM particles	230 nm	OGMS, based on a rectangular magnet assembly	- Magnet rack fitting 6 tubes simultaneously

There is also a third approach, which is a trade-off between both the previous ones, combining OGMS with optimized magnet design for increased gradient, thereby allowing to take advantage of nanosized particles while avoiding the need for dedicated columns. This approach is used, for instance, in the case of BD Imag^TM separation technology, where a rectangular magnet assembly ensures the production of a high field gradient in up to 6 tubes simultaneously, while EasySep^TM exploits a multipole magnetic field coaxial with a standard cylindrical laboratory tube [153]. Chalmers and Zborowski have pioneered this approach [159,160] by designing open-gradient magnetic separation systems exploiting the relatively high magnetic field gradient (>150 T/m, up to 286 T/m [69]) that could be achieved based on a quadrupole magnet design. Cell separation is performed by flow-through MAP in an annular channel placed coaxially inside a quadrupole magnetic field, in a split-flow thin cell fractionation configuration [161] (Figure 10D). The magnet configuration produces a linearly increasing field intensity (Figure 10E) and a constant, high magnetic field gradient along the radial r coordinate. The magnetic force acting on a magnetized particle in such a field is therefore directed along r and has a centrifugal character. It pushes the magnetically labeled cells against the cylinder wall, near the magnet poles, without affecting the unlabeled cells. More recently, the same group has demonstrated that a periodic pattern of permanent magnet blocks (tessellation) could provide a means of increasing the efficiency of the magnetic flow cell sorter design by decreasing the mass of magnet blocks per flow channel. A 9-channel array generated a 5-fold higher throughput compared to the 1-channel array, for the same overall tessellated magnet array dimensions and the same magnet aperture [162] (Figure 10F).

4.2. Microfluidic Cell Separators

Due to progress in miniaturization processes, microfluidic devices have been widely used for a wide range of applications, in particular, for biological research or biomedical applications. They can handle small-volume samples, which provides several benefits (e.g., reduced cost of reagents, increased chemical reactivity, laminar fluid flow, etc.), including the ability to bring the magnets closer to the micrometric channel in which the samples will flow. Microfluidic cell separation can rely on various strategies to generate a non-uniform magnetic field, to create a MAP force that can be either perpendicular or parallel to the flow and exploit it to trap or deviate specific cells from the sample into a dedicated buffer. This force can also be combined with other effects (e.g., specific design of the microfluidic channel or additional flow or force) to enhance separation efficiency. An exhaustive overview of these different strategies is given in some recent reviews [25,164]. One strategy concerns electromagnets of different designs, such as single wire or micro-coils. They enable generation of a dynamically configurable magnetic field (ON/OFF) but have the disadvantage of generating Joule heating that can be detrimental to cells. We will, therefore, here focus on two other common approaches based on permanent magnets or ferromagnetic materials.

4.2.1. Permanent Magnets

The first and easiest strategy consists in using a macroscale permanent magnet placed on the side of a microchannel and exploiting the non-uniformity of the magnetic field at the edge, as illustrated on Figure 11A. Cells will be more or less deflected from their laminar flow path according to their magnetic properties, which enables their sorting, and potentially transfer of target cells in another fluid [77]. The arrangement of several permanent magnets of different magnetization orientations expands the possibilities of this strategy, as in the Halbach configuration (Figure 11B) [71,165] strengthening the magnetic field on one side of the magnets. Alternatively, magnets arranged with opposing poles enable a large magnetic field gradient to be obtained. Placed underneath the chip, such magnet assembly ensures target cell trapping at the bottom of the microchannel (Figure 11C) [166]. Similarly, Dumas Bouchiat et al. have developed an array of oppositely magnetized micromagnets capable of producing magnetic field gradients as high as 10⁵ T/m, obtained by thermomagnetic patterning of a flat NdFeB hard magnetic film [167], which can be integrated at the bottom of a microfluidic channel [44,168] (Figure 11D). Creating higher, asymmetric [169] gradient magnetic fields and forces, locating the maximum flux density at the center of the channel [170,171] (Figure 11E) or at multiple spots [172], are different options provided by adequate arrangement of several magnets, including the quadrupole magnet arrangement mentioned earlier in Section 4.1.

In order to limit the influence of cell sedimentation caused by gravity that could restrict the purity of the targeted sample, the permanent magnet can also be placed on top of the microfluidic device [173]. The use of bulk magnets may be combined with channel structuration. In this way, the trapping areas are not solely determined by the magnetic field applied, but also by the channel microstructures. For instance, by adding a microwell array between the channel and magnet, Huang et al. could demonstrate that MNP-labeled CTCs were trapped in the microwell region near the edge of the magnet after a high-speed washing step, while uncaptured blood cells could be easily flushed away [173]. Channel microstructures enable creation of passive turbulence/vortexes and increase the probability of interaction between target cells and the trapping surface due to advective transport [174,175] (Figure 12A). Zhang et al. [176] exploited this effect to first trap anti-EpCAM conjugated magnetic beads in a herringbone groove by applying the magnetic field and then introducing cells in the microfluidic device with a precise infusion rate for immunoreaction. However, owing to the fragility of some biological cells, such as CTCs, this sharp groove pattern was smoothed into a wavy herringbone pattern to avoid physical damage to the cells [177] (Figure 12B). Yang et al. recently developed a cell-sorting system that combines the mechanisms of magnetic sorting, with an array of micropillars acting as a sifter [178]. The device is capable of separating target cells, background cells and redundant MNPs at the same time (Figure 12C).

Permanent magnets can also be fabricated using hard magnetic powders, such as NdFeB, embedded in a polymer matrix [179,180]. The most used polymer is PDMS. Such composite materials featuring magnetic properties can be easily structured using simple, soft lithography processes, which facilitate the integration of magnetic sources very close to the microfluidic channel. They therefore provide a promising low-cost alternative to complex and costly microfabrication approaches, as recently reviewed [181].

4.2.2. Soft Magnetic Materials

A second strategy is to concentrate the magnetic flux relying on soft ferromagnetic elements embedded close to the microchannel and magnetized with an electromagnet or macroscale permanent magnet. This solution creates the possibility of switching off the magnetic field to release the trapped cells. The external magnet does not need to be as close to the channel as in the previous strategy, which can be more convenient for microscopic observation. Due to the development of easily accessible and cost-affordable microfabrication techniques, such as nickel electroplating [182], the ferromagnetic material can advantageously be microstructured to increase the magnetic field gradient. Such a high-gradient magnetic field concentrator can thus be integrated close to the microfluidic channel so that molecules and living cells bound to magnetic particles are pulled from one laminar flow path to another by applying a local magnetic field gradient [183].

Inglis et al. developed a microfluidic device with tilted strips of Ni at the bottom surface of the microchannel [184] to generate a lateral force evenly over the whole microchannel and deviate cells from their laminar trajectories. Such lateral-driven magnetophoretic separation was also implemented with a ferromagnetic wire array to separate blood cells based on their native magnetic properties [185]. More recently, Kim et al. developed a single-cell isolation technique for CTCs based on a similar approach [186]. Their device comprised a lateral magnetophoretic microseparator and a microdispenser as a two-step cascade platform. After CTCs enrichment from whole blood by the lateral magnetophoretic microseparator, target cells were electrically identified with a single-cell impedance cytometer and isolated relying on a synchronized microshooter (Figure 13A). For their part, Aldridge et al. [187] developed a “prismatic deflector” separating a continuous sample stream into discrete subpopulations based on surface marker expression (Figure 13B). Cobalt-based deflection guides made up of distinct segments of different angles can separate cells according to the number of magnetic beads attached to them. Profiling surface marker expression is therefore possible if this magnetic load varies in direct proportion with protein expression, which implies the use of magnetic nanoparticles rather than micrometer-sized particles.

Along with microwells strategies presented earlier, arrays of microstructured ferromagnetic material (such as pillars or planar magnets), magnetized by permanent magnets, have also been implemented to provide local magnetic field enhancement at specific locations in the microfluidic channel, where target cells are trapped. These structures therefore act as a magnetic sifter [189]. The use of soft micro or nanoparticles (carbonyl iron or nickel, for instance) embedded in a polymer matrix can provide a simple way to integrate soft magnetic pillars into the microfluidic channel (Figure 13C). Self-assembled structures of magnetic microparticles on top of printed magnetic ink spots also offer the potential to reduce the complexity and cost of fabrication of soft magnetic structures; this method is applicable for low flow rates to prevent the detachment of self-assembled structures from the printed arrays [190].

Unlike the majority of devices based on soft lithography, Malic et al. [191] developed a microfluidic separator composed of a sandwich of thermoplastic layers fabricated using hot-embossing. A hard plastic layer contains the engraved 3D magnetic capture region, and the microfluidic interface is embossed in a softer layer. Two permanent magnets are placed on both sides of the device, to generate a quasi-uniform magnetic field within the chamber and 16-µm diameter pillars are coated with a soft magnetic material (2 µm-thick Ni layer). To minimize the physical damage to the cells due to collision with the pillars, Huang et al. [192] have decreased the thickness of the micromagnets, made of Ni patterned into spots, using lift off and thermal deposition. Darabi and Guo proposed a continuous flow system based on a similar principle, enhanced with a buffer switching scheme to improve the performance of the separation process [193].

Besant et al. improved this concept of pillars trapping by giving an X-shape to the extruded microstructures which created pockets of locally low linear velocity, named velocity valleys [194]. Cells that enter a velocity valley slow down, allowing the magnetic force to overcome the reduced drag force and trap them. The cell-sorting device with four zones of decreasing average linear velocity is represented on Figure 14A. As the channel cross section is increased, the drag force drops in each sequential zone. Cells with higher levels of surface markers are captured in the first zones while cells with lower levels are captured in the latest. Here, the capture structures (pillars or X-shape) generally span the full height of the channel in each zone, but due to the reduction of the drag force the mechanical stress imposed on the cells is reduced. Poudineh et al. have developed a similar procedure [195] to profile nanoparticle-labeled cells, exploiting a concept referred to as “magnetic ranking cytometry” (MagRC). Using antibody-functionalized magnetic nanoparticles, cells can be discriminated thanks to their magnetization that is proportional to surface expression of a selected biomarker, as mentioned earlier. To do so, round nickel micromagnets are patterned under the X-shaped structures within the channel to increase the external magnetic field. As the micromagnets increase in size along the length of the channel, cells with a lower level of surface marker expression are trapped (cf. Figure 14B).

4.2.3. Hybrid Integrated Strategies

As previously seen, several studies show the value of integrating particular geometries in the channel to combine hydrodynamic effects with separation based on magnetophoretic properties (e.g., grooves [175,176], channel enlargement [194], sheath flow [152,170], etc.). Other passive methods can also be integrated to further increase separation efficiency and throughput. Nasiri et al. [197] proposed a hybrid device including inertial separating and focusing channels, and a magnetic cell separation device for CTC separation from whole blood based on specific antigen properties, to improve the separation efficiency and purity of separated CTCs (Figure 15A). In a similar manner, Ozkumur et al. [198] exploited a focusing unit with an upstream deterministic lateral displacement module, in which cells navigate through an array of posts. The post design ensures that small cells move with the convective flow while larger cells move in a direction imposed by the array. Based on this principle, RBCs and platelets stayed in the original blood sample, while large WBCs and target CTCs were transferred, then focused, into a specific buffer for antigen-dependent magnetophoretic sorting (Figure 15B). The device has the advantage of enabling both positive and negative selection modes.

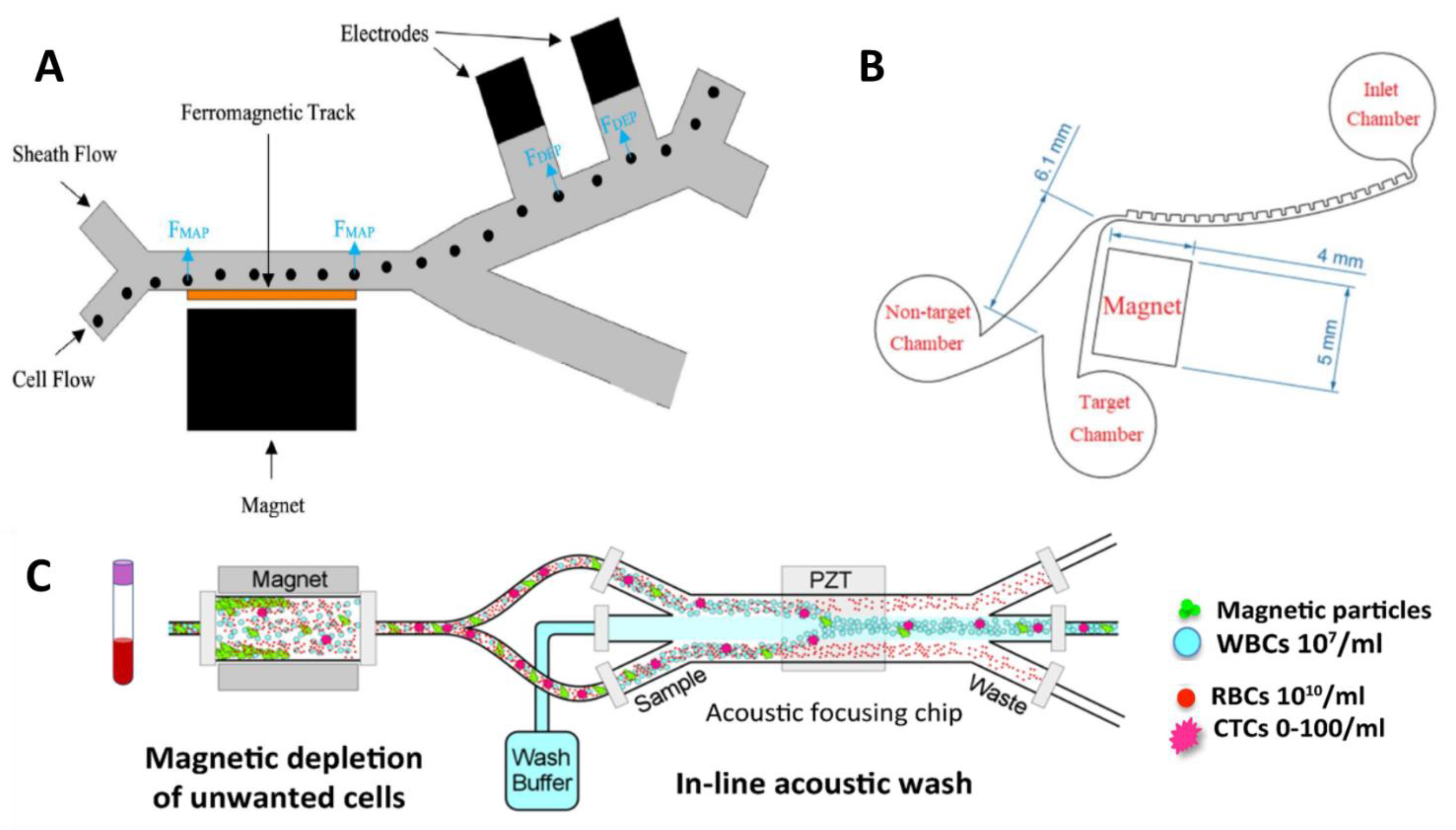

Magnetophoresis can also be combined with other physical methods, such as centrifugation [81,199], acoustophoresis [200], or dielectrophoresis [152,201] in hybrid microfluidic devices. This approach provides increased flexibility by exploiting different cell characteristics, such as density, compressibility or electrical properties, and opens the way to multi-target cell separation. Kim et al. [201] combined, for instance, DEP and MAP in the same device and demonstrated high-purity sorting of multiple bacterial target cell types in a single pass. The target cell types were sorted based on surface markers, via specific receptor–ligand binding to either DEP or magnetic tags. More recently, Shamloo et al. [152] have investigated a combined dielectrophoresis and magnetophoresis separator based on cell intrinsic properties. Their two-step device (Figure 16A) is designed to first remove the largest part of a blood sample (i.e., RBCs and smaller platelets), in the magnetophoresis section. Remaining cells are then sorted by the dielectrophoretic force depending on their dielectric properties and diameters.

Shamloo et al. [81,202] have also presented a system mounted on a rotating disk, where centrifugal force is combined with the negative magnetic force to enhance both purity and recovery rate of low-concentrated target cells. As illustrated on Figure 16B, sample preparation is performed directly on the chip, where the blood sample and ferrofluid are mixed using magnetic force. After that, cells are aligned after passing through a pinched channel and sorted with both negative magnetophoretic and centrifugal forces in a curved channel.

Bhaghat et al. [200] have recently described a novel approach combining immunomagnetic depletion and acoustic cell sorting (Figure 16C). The sample first passes through a magnetic depletion step that removes >98% of unwanted blood cells labeled with magnetic microparticles and then undergoes an in-line acoustic focusing and washing step, which removes unwanted cells and concentrates the CTCs for sorting.

4.2.4. Fluidized Bed Separation

A fluidized bed consists of a granular solid phase that behaves like a fluid when the drag force due to an imposed vertical fluid flow is higher than an opposite gravitational force. Used in chemistry and biology for many applications, it has been implemented by Pereiro et al. [203] in a miniaturized microfluidic device where gravity is replaced by a magnetic field created by an external permanent magnet. The granular solid phase is composed of magnetic microparticles (diameter ranging from 1 to 5 µm) that are functionalized so that they can specifically capture species that are brought by the flow (Figure 17). The authors highlight that stability, resistance to clogging and ability to separate analytes from a liquid, coupled with a very low elution volume, make this system very promising to play the role of a pre-concentrator in microsystems.

5. Applications

Magnetic cell separation is used for a wide range of applications and in various contexts, such as disease diagnostics, environment monitoring, fundamental biological research, etc. It is a crucial step in diverse biosensor assays and, along with the development of new cell separation systems, lots of efforts are also devoted to the synthesis of multifunctional magnetic nanoparticles displaying fluorescent [204,205,206,207], electrochemical [208,209] or plasmonic [210,211] properties, to enable both magnetic capture and downstream detection. In this section, we present examples of applications with a particular emphasis on CTCs and pathogenic bacteria isolation, representing considerable research efforts from the community.

5.1. Circulating Tumor Cell (CTC) Isolation

CTCs are defined as cancer cells that detach from a solid tumor lesion and enter the bloodstream, thereby having the potential of colonizing vital distant organs. They are of paramount importance to understand the biological process of metastasis and constitute potential blood-based markers to non-invasively evaluate disease progression and monitor therapeutic response. A significant effort has therefore been made in recent years to develop specialized technologies to capture, enumerate and interrogate CTC populations to test their suitability for clinical applications [212], as recently reviewed by others [213,214,215,216,217]. The low frequency of CTCs (potentially less than 1 CTC per mL of blood [218]), together with their heterogeneity and their property of moving individually or as cell clusters, make their detection very challenging [219].

5.1.1. Commercial Systems

The gold standard for the enumeration of CTCs remains the CellSearch^® system (Menarini Silicon Biosystems, Huntington Valley, PA, USA), based on magnetic cell separation [220]. It was cleared by the US Food and Drug Administration (FDA) in 2004 as a diagnostic tool to predict survival in patients with metastatic breast cancer [221], and was since FDA-approved for prognostic use in prostate and colorectal cancer. The method is based on magnetic enrichment of CTCs from a 7.5 mL blood sample using ferrofluid nanoparticles with antibodies targeting epithelial cell adhesion molecules (EpCAM). Cells are also fluorescently stained with antibodies against cytokeratins (8, 18, 19) and CD45 antigen, respectively, specific to epithelial and white blood cells. The system detects and enumerates CTCs of epithelial origin (CD45-, EpCAM+, and cytokeratin 8, 18, 19+). However, as CTC detection relies on epithelial markers, the system fails to detect populations of CTCs with low EpCAM level expression and non-epithelial phenotypes, such as carcinoma cells, that undergo epithelial-mesenchymal transition (EMT), or CTCs of mesenchymal origin [222,223,224,225,226]. Elimination of residual leukocytes using immunomagnetic capture antibodies against the leucocyte marker CD45 can also be performed after tumor cell enrichment by other approaches, such as filtration with the ISET^® system [227]. Another commercial platform for CTC detection is the AdnaTest (Quiagen), based on positive immunomagnetic selection of cells using a cocktail of antibodies (e.g., EpCAM, MUC-1, Her2) specific to the cancer type prior to analysis of tumor-associated gene expression by RT-qPCR [228,229].

5.1.2. In Vivo Solutions

The CellCollector^TM developed by Gilupi is a CE-certified medical device able to capture CTCs in vivo directly from the bloodstream, to increase the volume of blood that can be sampled (Figure 18A). EpCAM-positive tumor cells are attached to anti-EpCAM antibodies bound to the surface of a wire inserted into a vein. The wire is stained with fluorescently labeled antibodies and examined microscopically to identify CTCs [230]. Vermesh et al. have also recently proposed another in vivo solution for intravascular retrieval and enrichment of CTCs. The flexible MagWIRE, composed of magnetic units with alternating polarity, is introduced through an intravenous catheter to efficiently capture targets that have been labeled in the blood with injected antibody-coated magnetic particles (Figure 18B). In a proof-of-concept experiment in a live porcine model, the wire achieved capture efficiencies that corresponded to enrichments of 10–80 times the amount of CTCs in a 5-mL blood draw [231].

5.1.3. Microfluidics-Based Approaches

In the more widespread case of in vitro CTC capture, microfluidics-based approaches offer an attractive alternative to macroscale techniques, such as bulk magnetic sorting, since they are operator-independent and have the potential to provide precise sorting conditions and continuous sample processing, minimizing rare cell loss. Thus, many efforts have been devoted to the development of microfluidic systems based on magnetism to isolate CTCs in the past decade [110,177,232,233,234], as recently reviewed by Chen et al. [235]. The IsoFlux System (Fluxion Biosciences Inc, South San Francisco, CA) is an example of microfluidics-based technology using IMS and dedicated to CTC isolation brought to the market. The sample passes through a microfluidic device that contains an isolation zone to capture CTCs on the upper surface of the cartridge in an externally applied magnetic field. The roof of the microfluidic channel can be removed from the rest of the cartridge with the CTCs retained on its surface in a droplet of approximately 3 µL that can then be directly recovered into a cell lysis buffer for molecular analysis or onto a microscopy slide for further analysis.

The Ephesia cell capture technology uses magnetic particles bearing EpCAM antibodies, self-assembled in a regular array in a microfluidic flow cell [190]. High aspect-ratio magnetic columns are generated using a magnetic field and act as sieves to capture epithelial cells with high specificity and capture efficiency above 90% for concentrations as low as a few cells per ml, at a throughput of 3 mL per h [236]. Tang et al. also described an approach based on preliminary bead assembly in which immunomagnetic nanoparticles (IMN) formed patterns between nickel posts electroplated on a transparent (ITO-coated glass) substrate encapsulated in a thin PDMS layer (Figure 19A). CTCs were captured from whole blood on IMN and, as they were trapped almost in the same plane, they could be directly visualized with an inverted fluorescence microscope in situ for identification and enumeration by immunocytochemistry [237]. The capture efficiency could be up to 94% and the throughput approached 0.5 mL/h when four channels were arranged in parallel. This IMS device was later adapted for the development of a novel extracorporeal circulation microfluidic chip detection system (IV-chip-system), which could realize real-time monitoring of the tumor cells’ quantitative changes at different time points [238].

Lateral magnetophoresis-based approaches have also been widely reported for continuous separation of white blood cells and CTCs, one of these populations being labeled with magnetic nanobeads for positive or negative isolation of CTCs [186,239]. The advantages of both approaches were evaluated and compared by Cho et al. [240]. They concluded that the positive isolation method could be used to obtain highly pure CTCs, enabling detection of somatic oncogenic mutations using advanced genetic analysis techniques, while negative isolation yielded a larger number of CTCs and was more suitable for discovery of cellular and transcriptomic biomarkers of cancer.

Methods to enrich and count CTCs can be divided into two groups [241], one taking advantage of cell surface markers, including most methods based on magnetism, and the second using physical characteristics of cells, such as size [242], deformability and density [243]. A third, hybrid, strategy can also be used, as with the CTC-iChip technology developed by the Toner group [171,244]. The proposed approach relies on negative depletion of leukocytes with antibodies directed against them, which enables isolation of untouched CTCs, without bias for expression of specific tumor epitopes. It is therefore agnostic to cancer type. The separation of labeled leucocytes (WBCs) from unlabeled CTCs follows a first debulking step allowing erythrocyte and platelet depletion using deterministic lateral displacement [244] or inertial separation [245], which are based on cell size differences. Alternatively, it can follow a leukapheresis procedure, allowing centrifugal enrichment of peripheral blood mononuclear cells. Interestingly, the magnetic sorter design has been adapted to deflect labeled WBCs toward the center of the channel in the core of the flow, thus preventing WBCs clogging at high-throughput operation [171]. This was achieved by combining a quadrupolar magnet arrangement with adequate polarity of magnets. Using soft iron-filled channels to act as magnetic microlenses enabled 35-fold increase in the magnetic field gradient and achievement of an ultra-high-throughput (up to 168 mL/h). Moreover, 86% CTC recovery was achieved with a 10⁵-fold depletion rate of unwanted cells. The ^LPCTC-iCHIP is thus capable of processing an entire leukopak of ∼65 mL, and to recover many more CTCs than competing approaches, that can handle only a small percentage of this volume [246] (Figure 19B).

5.1.4. Towards Point-of-Care Application

The convenient and noninvasive sampling of CTCs from blood, or “liquid biopsy” offers opportunities for the development of new platforms for point-of-care disease screening [247,248,249], also accessible in low-resource settings. Yang et al. combined a dual recognition strategy and glucometer-based signal readout to develop a point-of-care approach for detecting CTCs in whole blood [250]. In this research, magnetic beads conjugated with anti-EpCAM antibodies were used as the capture probes for CTC isolation and enrichment, and anti-HER2 antibody and invertase co-modified polystyrene microspheres were used as the signal amplification probes to convert sucrose into glucose, which was then measured by a commercial glucose meter (Figure 20A). Issadore and coworkers have developed a microfluidic chip-based micro-Hall detector (μHD) which can detect single, immunomagnetically tagged cells in whole blood. The µHD successfully identified CTCs in 100% of patients with evidence of clinical progression or stage IV disease, where only 18% of cases were detected with CellSearch [251,252]. Kirby et al. also developed a lab-on-a-disc platform, which integrates direct immunoseparation of magnetically tagged cancer cells and their detection in whole blood (Figure 20B). Cells isolated from the background sample are specifically directed to a dedicated detection locus and the extent of occupation of this locus is analyzed using bright-field imaging for quantification [199]. The low complexity of this system makes it well suited for use in POC. However, the sample volume processed here is only a few µL. The prerequisite of small sample amount and fast turnaround time for POC applications raises the question of the minimal sample volume required to account for CTC cell rarity. According to Hong and Zu, it could be theoretically reduced to 1 mL of whole blood if more sensitive and accurate detection methods are developed [253].

5.2. Detection of Pathogenic Bacteria

Bacterial contamination of food, airborne transmission of pathogenic microorganisms to humans from the environment, and healthcare associated infections are major public health issues. Novel methods for the detection of pathogens in the food and beverages industry, environment, or clinics are therefore required to mitigate these threats.

Guidelines for assessing the microbiological safety of food usually state that pathogens such as Salmonella, E. coli O157, Listeria monocytogenes and Campylobacter should be absent in 25 g of the sample. Conventional methods for the detection of foodborne pathogens are based on culturing the microorganisms to increase their numbers to detectable levels. While they are selective, they can be time-consuming (the whole process can require several days) and laborious [254]. Due to the low content of target microorganisms and the possible interference of food ingredients and nontarget flora, the detection techniques must generally be combined with effective sample pretreatment relying on membrane filtration and centrifugation of the sample suspended in liquid medium. Immunomagnetic separation (IMS) offers an alternative by enabling selective separation of target bacteria from the heterogeneous matrix [54,255,256,257], and IMS-based sample pretreatment can be automated [258]. Thermo Fisher Scientific commercializes bench-top IMS instruments, such as the Dynal BeadRetriever^TM, used in combination with Dynabeads^TM specific to Salmonella, Legionella, Listeria, etc. and the Pathatrix^TM system [259]. Captured bacteria are further tested by polymerase chain reaction (PCR) or direct plating. ELISA is also commonly used as an end-detection method [260]. Still, the current detection techniques remain expensive and complex and there is growing interest in the development of fast, simple, and sensitive methods for on-demand and on-site detection of pathogenic bacteria from complex samples. Multifunctional MNPs coated with antibodies are used in a variety of novel biosensor assays for rapid and sensitive detection of foodborne pathogens based on several measurement methods, such as impedance [261,262], surface-enhanced Raman scattering (SERS [263,264,265], or loop-mediated isothermal amplification (LAMP) [266], potentially achieving limits of detection lower than 10 CFU/mL. Yao et al. developed a biosensor based on impedance which could detect E.coli O157:H7 in milk with a detection limit of 12 CFU/mL in 2 h [261].

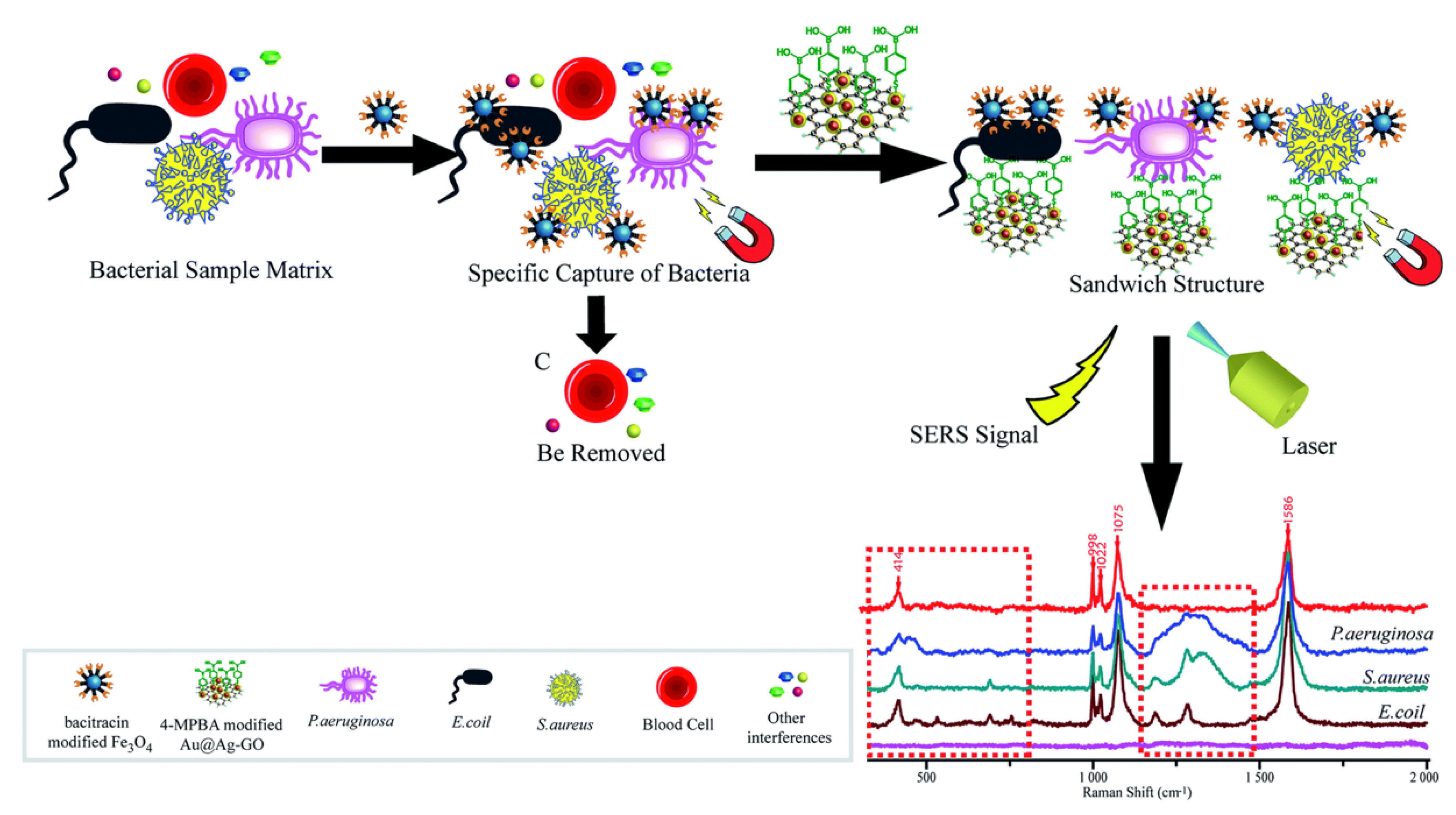

Aptamers or peptide-modified nanoparticles are widely investigated as an alternative to antibodies for the specific recognition of target pathogenic bacteria in the context of food safety, environmental or medical applications [101,118,267]. Ozalp et al. have demonstrated that the combination of aptamer-magnetic separation and quartz crystal microbalance could be used for rapid and sensitive detection of Salmonella in milk at 100 CFU/mL [268]. Feng et al. have similarly captured Listeria monocytogenes in food samples using aptamer magnetic capture, prior to detection by LAMP. The reported detection limit was 5 CFU/mL, for a total assay time of 3 hr [269]. Yuan et al. [265] have developed a new assay based on Fe₃O₄ particles functionalized with antimicrobial peptides (AMP) [270] for multiple bacteria detection from whole blood using SERS. When different kinds of bacterial pathogens were combined with the SERS tags, differences among their “fingerprints” could be detected (Figure 21). This approach could be potentially exploited to detect bacteria in blood prior to transfusion.

Phage-based detection strategies are also widely exploited in targeting various pathogens [271,272,273,274,275,276]. Bacteriophages are bacterial viruses that can infect a broad or narrow range of host organisms. Their ability to uniquely identify living bacterial hosts can be used as a means towards using phages as detectors for bacteria [277]. The natural lysis component of the infection cycle can be exploited for DNA release prior to qPCR analysis [278]. Bacterial selection can be achieved using magnetic particles coated with complete phages [279], or phage components, such as cell-wall-binding domains (CBDs), which are recombinant high-affinity domains derived from phage endolysin, an enzyme that hydrolyzes bacterial cell walls [280,281]. Phages only infect viable hosts and therefore overcome a limitation of other detection methods, such as PCR, which are not able to differentiate between viable and nonviable bacterial pathogens.

In the above-mentioned assays, the target bacteria are separated from the background by forming complexes with magnetic particles prior to detection, but this sample pre-treatment by IMS generally requires manual handling. Microfluidic platforms have the potential to integrate preconcentration of target bacteria and subsequent detection in the same chip to minimize off-chip sample preparation time and effort [282,283]. Pereiro et al. could perform one-step detection of Salmonella typhimurium in undiluted unskimmed milk using a microscale fluidized bed. Target bacteria were captured on antibody-functionalized magnetic beads retained in a chamber during sample perfusion due to the equilibrium between magnetic and drag forces. Captured cells were then cultivated in situ under nutritious medium perfusion, and their growth induced an expansion of the fluidized bed (Figure 22A) The measurement of this expansion allowed quantitative detection down to 4 CFU, with a dynamic range of 100 to 10⁷ CFU/mL in 2 to 8 hr [284,285]. In another study, a Salmonella cell capture efficiency of up to 99% could be achieved, with only 2% non-specific capture of E.coli using this hand-held device [286]. Guo et al. developed a microfluidic device for the detection of S. typhimurium from a bacterial mixture. A first module integrating nickel wires for lateral MAP enabled separation of non-target E. coli and immunomagnetically tagged pathogens, which were deflected towards the detection zone. Here, they were trapped between nickel patterns and could be detected by fluorescence after reaction with biotin-antibody and streptavidin-modified quantum dots (Figure 22B) The limit of detection (LOD) obtained in milk was 5.4×10³ CFU/mL [287].

5.3. Other Applications

While we have focused our attention here on the widely explored fields of CTCs and pathogen detection, there are many other applications related to magnetic separation, such as detection of malaria-infected cells [288,289,290,291,292], peripheral blood lymphocytes sorting in different T cell subsets for immunotherapy [293,294], cell counting for disease monitoring [295], as well as phenotypic cell sorting. The Kelley group has developed several microfluidic devices for high-throughput analysis based on the MagRC concept (see Section 4.2.2). One of them was used to separate a cell sample into distinct cell subpopulations expressing varying levels of surface biomarkers and perform high-throughput phenotypic CRISPR screens. The method allowed processing of an entire genome-wide screen containing more than 10⁸ cells in less than 1 hr [296]. The concept exploited here could similarly be applied to CTC profiling, antibiotic-resistant bacteria identification, and stem cell analysis [156]. This last field of investigation is also attracting a lot of interest [297,298]. Hematopoietic progenitor cell isolation is, for instance, a critical step in therapies based on hematopoietic stem cell transplantation for reconstitution of hematopoiesis in cancer patients [6]. Magnetic selection also enables enrichment of CD34+ blood stem cells from a donor graft prior to transplantation, while removing other cells that can cause graft-versus-host disease, as performed by the CliniMACS CD34 Reagent System (Miltenyi Biotec), an FDA approved medical device using antibodies conjugated to MNPs. In such applications, where certain cells will ultimately be implanted in vivo, negative selection strategies leaving target cells untouched could be preferred, or alternatively magnetic bead detachment should be made possible [299].

6. Conclusions

Although this review has attempted to cover many aspects of magnetic cell separation, it is far from being exhaustive, the possible applications and associated technological development being countless. A plethora of articles related to the subject have been written in the last decade, reflecting the excellent dynamics of the field. Magnetic cell separation has reached a certain maturity, as suggested by indicators such as certification and approval of medical devices, including for in vivo use. There are still some limitations to overcome for optimal development of MAP-based separation approaches, one of which being their cost, which remains high compared to other separation techniques. The development of label-free approaches based on magnetism, the large-scale production of MNPs, as well as the more systematic use of synthetic ligands, such as aptamers and peptides, should help to solve this issue. There is also a great need for the development of disposable, low-cost devices, and bedside diagnostic tools accessible in low-resource settings, which will be boosted by the emergence of new, easy-to-process materials, relying on affordable technologies, such as 3D printing. As regards improvements that can be expected on the theoretical side, a better comprehension of the collective behavior of magnetic objects should help understanding of how cooperative magnetophoresis and magnetophoretic-induced convective capture [300] could be exploited in new separator designs and how to optimize fluidized bed or ferrofluid-related experiments. Lastly, a crucial point for the efficient isolation of rare cells is to push further the limits that can be reached in terms of selectivity and sensitivity. In this respect, the combination of several approaches in hybrid microfluidic devices has great promise.
