Safety Analysis of Lithium-Ion Cylindrical Batteries Using Design and Process Failure Mode and Effect Analysis

Abstract

Cylindrical lithium-ion batteries are widely used in consumer electronics, electric vehicles, and energy storage applications. However, safety risks due to thermal runaway-induced fire and explosions have prompted the need for safety analysis methodologies. Though cylindrical batteries often incorporate safety devices, the safety of the battery also depends on its design and manufacturing processes. This study conducts a design and process failure mode and effect analysis (DFMEA and PFMEA) for the design and manufacturing of cylindrical lithium-ion batteries, with a focus on battery safety.

1. Introduction

As the demand for lithium-ion batteries has risen from use in portable electronics to electric vehicles, there has been a corresponding increase in the number of reported safety incidents worldwide. The number of battery fires in New York City alone rose from 104 in 2021 to 216 in 2022, killing six people in 2022 [1]. In 2016, Samsung had to recall 2.5 million Note 7 smartphones after complaints of overheating and exploding batteries [2].

In the mass production of cylindrical lithium-ion batteries, end-of-line testing is generally limited to capacity and open circuit voltage tests, which help in electrical screening but do not address the safety of the battery. While scanning electron microscopy, X-ray diffraction or nuclear magnetic response provide insights regarding the quality, performance, and safety of the battery, conducting these analyses on a large scale can be impractical due to the equipment costs and time required for sample preparation and analysis [3,4,5].

Addressing the safety issues of lithium-ion batteries is required in the design and manufacturing processes to reduce the frequency of failures and their consequences, if occurred. Failure mode and effect analysis (FMEA) is an engineering structured analysis of risks of potential failures [6]. The primary aim of conducting an FMEA is to avert the risk of a new design, process, or system not meeting the specified requirements, under certain conditions such as defined objectives and imposed limits. Its execution involves the analysis of failure modes, listing their possible causes and effects and suggesting corrective actions to alleviate the impact of those failure modes [6].

It involves systematically examining each element or process to determine the ways in which it may fail and the potential consequences of those failures. It assesses the risk of each failure mode based on their severity, likelihood of occurrence and detection. The failure modes with higher risk are prioritized and strategies like engineering controls, design modifications, process improvements and enhanced quality control measures are implemented to minimize the occurrence or impact of the failure mode [7].

Cylindrical lithium-ion batteries are complex systems with multi-step manufacturing processes. This introduces the possibility of diverse failure modes that detrimentally lead to a common effect, impacting the quality, reliability, and safety of the battery. Chris et al. conducted a failure mode, mechanisms mode and effect analysis, concentrating on design-related aspects, specifically material properties and design parameters [8]. However, the scope of this study was limited to the design, and a process failure mode and effect analysis has not been explored. While various researchers have examined the challenges within lithium-ion battery manufacturing processes, a significant gap remains in understanding the specific impact of each process on battery safety [9,10,11,12,13].

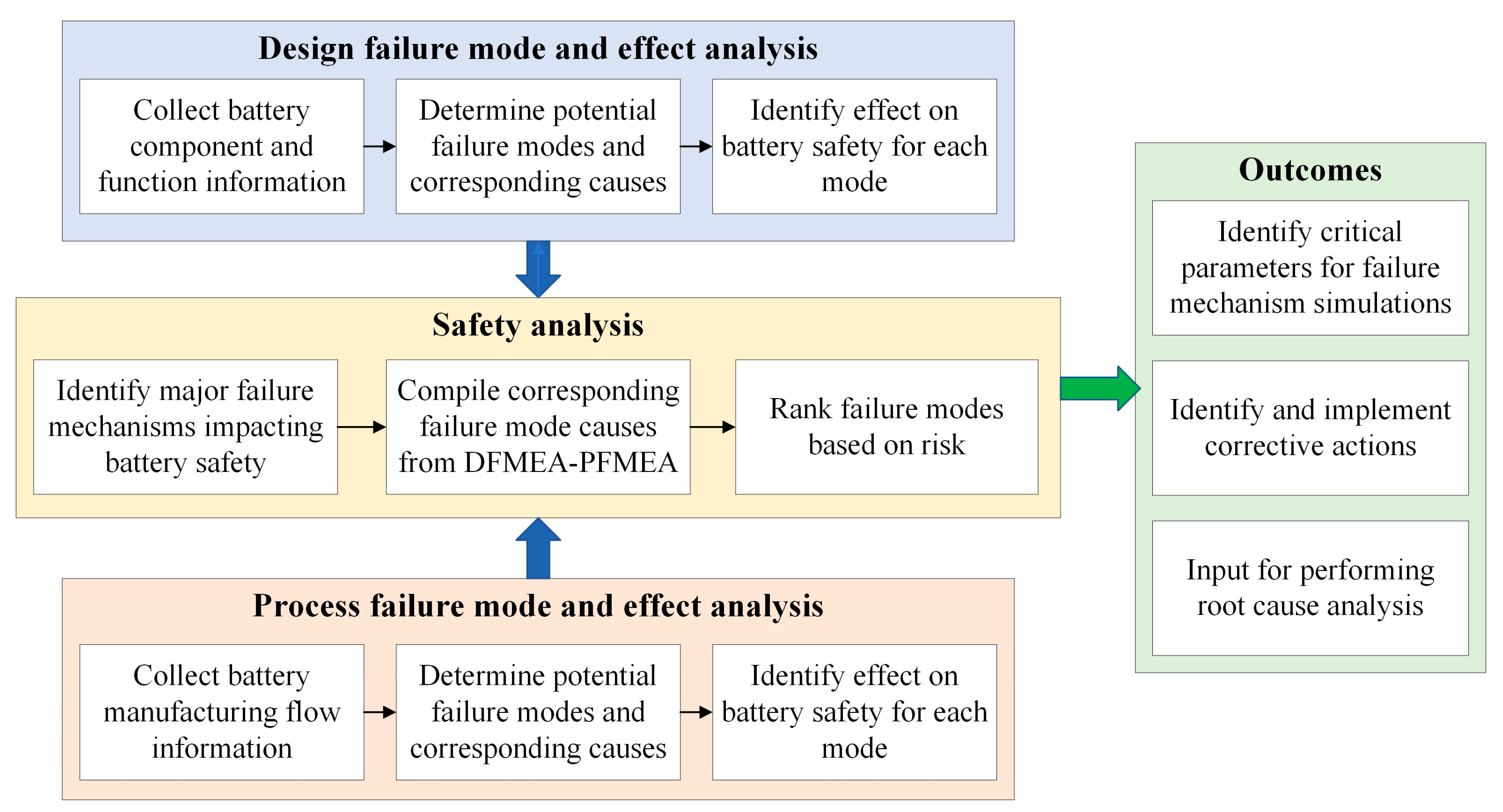

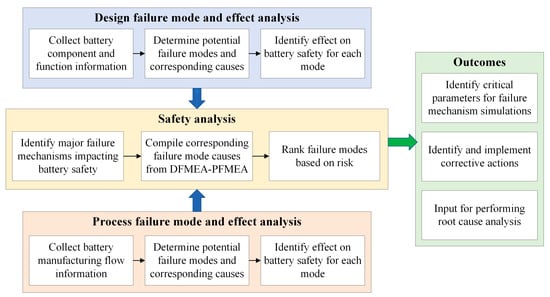

This paper presents an integrated safety analysis to address this challenge by consolidating the traditional DFMEA and PFMEA, as shown in Figure 1. Combining these two methodologies, the analysis considers the potential failure modes arising from the design elements and the manufacturing processes. The consolidation of failure mode causes that contribute to the same failure mechanisms facilitates a better understanding of the underlying mechanisms.

It is first important to comprehend the influence of each individual element and manufacturing process on battery safety. Section 2 and Section 3 provide an overview of the design elements and manufacturing processes, which serve as the foundation for identifying potential failure modes while performing the design and process failure mode and effect analysis (DFMEA and PFMEA), respectively. The corresponding modes, causes, and effects tables are listed in Appendix A. Section 4 presents the integrated DFMEA-PFMEA safety analysis, identifies four significant cause mechanisms, and compiles the corresponding causes to offer a comprehensive understanding. Section 5 serves as the concluding part of the paper, encapsulating the main findings and key insights derived from the preceding sections.

2. Design Failure Mode and Effect Analysis

The design failure mode and effect analysis (DFMEA) provides a structured methodology to evaluate and address potential failure modes in various components and aspects of cylindrical lithium-ion batteries, including materials selection and design. Cylindrical batteries are composed of a rolled-up assembly called a jelly roll, which includes anode, cathode, and separator sheets tightly wound together and connected with electrical tabs. A schematic of a cylindrical lithium-ion battery is shown in Figure 2.

The anode materials used, including graphite, silicon, germanium and Titanate, show good thermal stability [14]. However, graphite in the form of powder or combined with binder material is widely used [15]. The performance of the cell is affected by parameters like purity, particle size, particle size distribution, particle shapes, particle porosity, crystalline phase of carbon and degree of compaction [16,17].

The cathode materials consist of layered lithium cobalt dioxide (LCO), lithium iron phosphate (LFP), spinels like lithium manganese oxide (LMO), or mixed metal oxides like nickel cobalt aluminate (NCA) and nickel manganese cobaltite (NMC) [15]. The thermal stability of the battery is dependent on the cathode materials, which is affected by the nickel content [18]. Cathode materials undergo a phase transition and release oxygen in overcharge state along with heat generation and electrolyte decomposition, which can lead to a thermal runaway [19]. The amount and type of gases generated is directly proportional to the oxidation capability of the cathode materials, where LCO shows the highest oxidation capability, followed by LMO and LFP [20].

Thin foils of copper and aluminum are used as current collectors for anode and cathode material, respectively. A tab is welded to the current collector, which acts as a bridge that connects the electrode to the external circuit. The material, location, and number of tabs affect the performance of the cell in terms of uniform current distribution, heat generation and ohmic resistance [21]. The anode and cathode electrodes are separated by a porous polymer sheet called the separator. A shutdown separator can act as a safety device by closing the pores at high temperatures, blocking the ionic transport [22]. Properties to consider in the selection of a separator include mechanical strength, thermal and dimensional strength, permeability, porosity, chemical structure, surface energy with electrolyte and electrode materials [14].

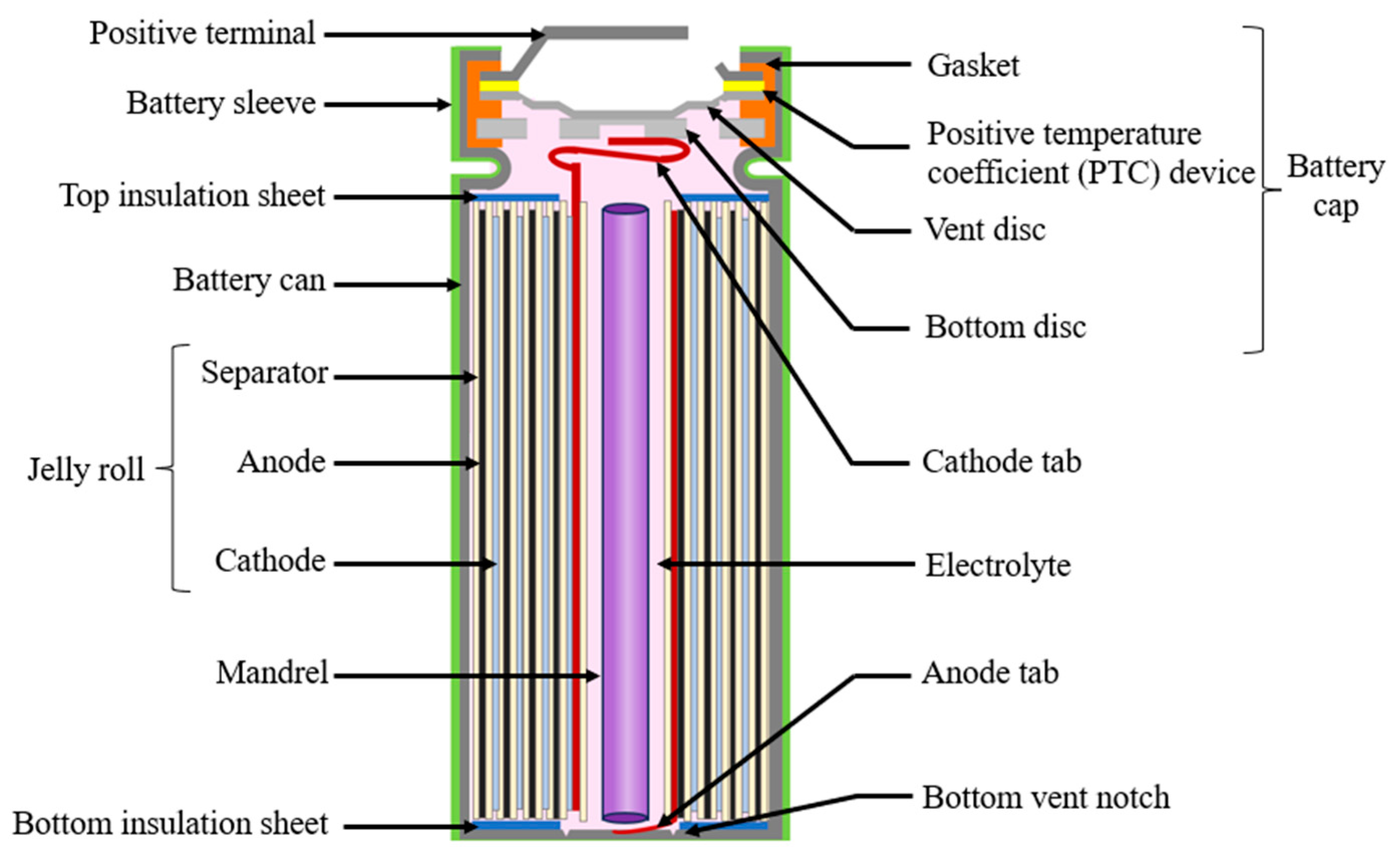

The jelly roll is placed into a cylindrical metal can made of nickel-coated steel or aluminum followed by a mandrel. The internal cylindrical mandrel is an optional component that increases the mechanical stability and safety of the battery [23]. The liquid electrolyte, which is a mixture of organic carbonates and lithium salt, is then added. The mixture ratio of the solvent dictates the flammability and auto-ignition temperatures of the electrolyte [15]. Parameters like the salt-to-solvent ratio and the amount of additives added can impact the solid electrolyte interphase (SEI) layer formation, thereby impacting the stability and safety of the cell [24,25].

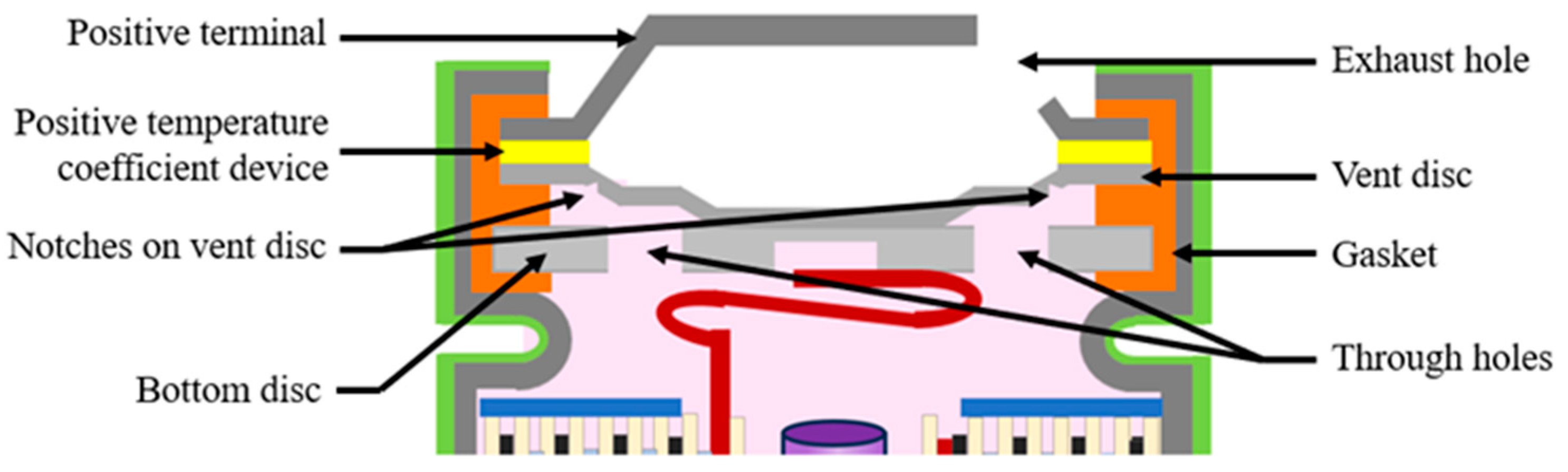

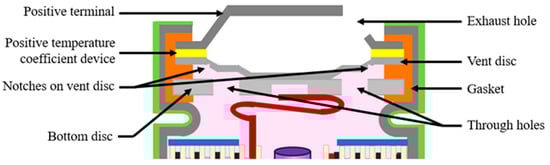

The battery is sealed with a cap located on the top of the cathode tab. A typical cylindrical battery cap structure is displayed in Figure 3. The battery cap is a vital component in the cylindrical battery as it often consists of safety devices to protect the cell from thermal runway and explosion [26]. The cap consists of conductive parts that include the positive temperature coefficient (PTC) thermistor, and the bottom and top disk that act as a current interrupt device (CID) [27]. The cap consists of a non-conductive plastic insert or gasket to insulate the positive terminal from the battery can. The cap provides an electrical connection between the cathode tab to the positive terminal, enabling the transfer of electrical current between the battery’s electrodes and external circuit.

The CID is designed to disconnect the battery’s internal current flow in case of excessive internal pressure, preventing thermal runaway. When the internal pressure of a cylindrical lithium-ion battery reaches a pre-determined level, typically between 1.0 and 1.2 MPa, the top disk will be pushed upwards to break the weak point, which is the welded connection between the central point of the top disk and the bottom disk. As a result, the electrical pathway between the current collector and the external load will be disconnected [28]. The function of safety vents is also to release the internal pressure of the battery by expelling the gases generated inside. The notch in the vent disc opens when the internal cell pressure increases beyond a limit, allowing for the gases to escape using the through holes in the bottom disc and the exhaust holes in the top terminal plate. For additional venting, a bottom vent is added to the battery can to prevent sidewall rupture [28].

Design failure mode and effect analysis (DFMEA) focuses on potential failure modes that are caused by the specifications and design parameters finalized in the design phase. While designing a lithium-ion battery, the general requirements for lithium-ion battery abuse tolerance also need to be considered [29]. Multiple lithium-ion battery industry standards encompass these requirements by formulating test conditions that simulate abuse scenarios capable of potentially triggering thermal runaway [30]. These standards generally classify testing into two categories: electrical abuse, involving operation beyond nominal voltage and current limits; and physical/environmental abuse, including extreme temperatures or mechanical stress [31]. Therefore, considering the potential abuse conditions when designing cell parameters is beneficial. Cells designed this way can have a certain safety margin or tolerate such abuse conditions, leading to predictable failure patterns and minimizing the damage caused. There can be more response time to take measures before the failure escalates.

Electrical abuse arises when a battery faces situations like overcharging, over-discharging, or an external short circuit, leading to adverse electrochemical reactions [29]. It is imperative to select electrolyte formulations with good thermal and electrochemical stability to prevent electrolyte decomposition and gas evolution during overcharge and over-discharge events [32]. Additionally, electrode structures should be designed to handle Li+ intercalation/deintercalation without experiencing degradation, such as electrode cracking or particle pulverization under high C-rate conditions [33].

In situations of thermal abuse, a battery can either encounter thermal shock or localized high temperatures [34]. The localized temperature rise within a battery is often a consequence of poor design [29]. Choosing cell materials with high thermal stability and low reactivity is paramount to mitigating the potential for exothermic reactions when exposed to elevated temperatures. The battery design should maintain structural integrity even when subjected to mechanical deformation. The outer casing of the battery should be designed to withstand mechanical forces without fracturing [29]. Using materials with high strength and durability can enhance the resilience of the casing. Ensuring the integrity of the separator is crucial to prevent direct contact between electrodes, which can lead to short circuits and thermal runaway. Designing separators with sufficient tear resistance can mitigate the risk of damage during mechanical abuse.

Table A1. DFMEA for cylindrical lithium-ion battery.

Element	Potential Failure Mode	Potential Failure Causes	Effect on Battery Safety
Cathode	Poor thermal stability	Wrong choice of material Poor-quality material from the supplier	Increased gas generation, causing poor safety due to risk of explosion and thermal runaway
	Poor overcharge safety	Wrong choice of material Poor-quality material from the supplier	Increased gas generation, causing poor safety due to risk of explosion
	High reactivity to electrolyte	Wrong composition of transition metals Wrong choice of binder	Increased gas generation and risk of thermal runaway due to crosstalk effect
	Metal contamination	Poor quality of material from supplier	Presence of metal particles can cause nucleation sites for formation of lithium dendrites, increasing risk of short circuit
	Improper N/P ratio	Wrong choice of material Poor-quality material from the supplier	N/P ratio is not maintained which can lead to lithium plating, increasing the risk of an internal short circuit
	Particle size is high	Wrong choice of blend time and temperature during design Wrong setting of equipment during manufacturing	Can result in tear of separator, causing an internal short circuit
	Specific area is too small	Improper design of cathode area for coating	Can result in severe electrochemical polarization, increasing the temperature at cathode, increasing risk of thermal runaway
	Peeling of cathode sheet	Improper binder chosen in design Poor quality binder from supplier	Non-uniform current distribution resulting in localized heating, increasing risk of thermal runaway
	Compaction density is high	Wrong choice settings for calendaring during design Improper settings of equipment during manufacturing	Can result in fractures causing non-uniform current distribution resulting in localized heating, increasing risk of thermal runaway
Anode	Poor thermal stability	Wrong choice of material Poor-quality material from the supplier	Increase risk of thermal runaway
	Metal contamination	Poor quality of material from supplier	Presence of metal particles can cause nucleation sites for formation of lithium dendrites, increasing risk of short circuit
	Compaction density is high	Wrong choice settings for calendaring during design Improper settings of equipment during manufacturing	Increase risk of lithium plating that could lead to an internal short circuit, causing thermal runaway
	Improper N/P ratio	Wrong choice of material Poor-quality material from the supplier	N/P ratio is not maintained which can lead to lithium plating, increasing the risk of an internal short circuit
	Particle size is high	Wrong choice of blend time and temperature during design Wrong setting of equipment during manufacturing	Can result in tear of separator, causing an internal short circuit
	Specific area is too small	Improper design of anode area for coating	Can result in severe electrochemical polarization, increasing the temperature at anode, increasing risk of thermal runaway
	Specific area is too large	Improper design of anode area for coating	Incomplete SEI layer formation resulting in increased gas generation, causing poor safety due to risk of explosion
	Peeling of anode sheet	Improper binder chosen in design Poor quality binder from supplier	Non-uniform current distribution resulting in localized heating, increasing risk of thermal runaway
Electrolyte	Poor overcharge safety	Wrong choice of electrolyte composition Poor-quality material from the supplier	Increased gas generation, causing poor safety due to risk of explosion
	Poor thermal stability	Wrong choice of electrolyte composition Poor-quality material from the supplier	Increased gas generation, causing poor safety due to risk of explosion
	Lack of electrolyte	Improper amount chosen during design Improper settings during manufacturing	Increased electrochemical polarization due to improper soaking, non-uniform current distribution, increasing risk of lithium plating, causing an internal short circuit
	Excess electrolyte	Improper amount chosen during design Improper settings during manufacturing	Improper seal, causing electrolyte leakage, leading to formation of flammable gas mixture, increasing the risk of explosion
	Micro short circuit	Wrong choice of electrolyte composition	Increasing risk of an internal short circuit, causing thermal runaway
	Conductivity of electrolyte is low/High ion diffusion resistance	Wrong choice of electrolyte composition Wrong amount of film forming additive is added Underuse of conductive agent	Can result in severe electrochemical polarization, increasing the temperature at anode, increasing risk of thermal runaway
	High corrosive nature	Wrong choice of electrolyte composition	Increased gas generation and risk of thermal runaway due to crosstalk effect
	Freezing point or viscosity is too high	Wrong choice of electrolyte composition	Can result in severe electrochemical polarization, increasing the temperature at anode, increasing risk of thermal runaway
Current Collector	Tensile strength is low	Wrong choice of material Poor manufacturing quality from the supplier	Metal foil fracture, causing non-uniform current distribution, resulting in localized heating, increasing risk of thermal runaway
	Poor elongation at break	Wrong choice of material Poor manufacturing quality from the supplier	Metal foil fracture, causing non-uniform current distribution, resulting in localized heating, increasing risk of thermal runaway
Separator	Shutdown temperature of the separator is high	Wrong choice of separator Poor-quality material from the supplier	Delay in separator shutdown at elevated temperatures, increasing risk of thermal runaway.
	Heat shrinkage is high	Wrong choice of separator Poor-quality material from the supplier	Increase risk of an internal short circuit leading to thermal runaway
	Puncture strength is low	Wrong choice of separator Poor-quality material from the supplier	Increase risk of an internal short circuit leading to thermal runaway
	Thickness is low	Wrong choice of separator Poor-quality material from the supplier	Increase risk of an internal short circuit leading to thermal runaway
	Poor elongation at break	Wrong choice of separator Poor-quality material from the supplier	Increase risk of an internal short circuit leading to thermal runaway
	Porosity is high	Wrong choice of separator Poor-quality material from the supplier	Reduction in mechanical strength, increasing the risk of tear, causing an internal short circuit, leading to thermal runaway
	Improper pore size distribution	Poor-quality material from the supplier	Non-uniform current distribution resulting in localized heating, lithium plating, increasing risk of thermal runaway
	Tensile strength is low	Wrong choice of separator Poor-quality material from the supplier	Increase risk of an internal short circuit leading to thermal runaway
Cap	PTC base resistance is high	Wrong choice of PTC during design Poor-quality material from the supplier	Increased internal resistance, causing reduction incapacity
	PTC temperature inflection point is high	Wrong choice of PTC during design Poor-quality material from the supplier	Delay in functioning of PTC, increasing risk of thermal runaway
	CID and vent activation pressure is high	Improper design of CID contact and vent disk Poor manufacturing quality from the supplier	Delay in activation of CID, increasing risk of internal pressure build up, causing thermal runway or explosion
	Insufficient air flow rate	Improper design of vent disk and exhaust holes Poor manufacturing quality from the supplier	Increased risk of internal pressure build up, causing thermal runway or explosion
	Gasket thermal stability is low	Wrong choice of gasket material during design Poor-quality material from the supplier	Improper seal, causing electrolyte leakage, leading to formation of flammable gas mixture, increasing the risk of explosion
	Gasket diffusion coefficient is high	Wrong choice of gasket material during design Poor-quality material from the supplier	Improper seal, causing electrolyte leakage, leading to formation of flammable gas mixture, increasing the risk of explosion
	Insulation ring thermal stability is low	Wrong choice of insulation ring material during design Poor-quality material from the supplier	Improper seal, causing electrolyte leakage, leading to formation of flammable gas mixture, increasing the risk of explosion
	Improper dimensions of PTC, insulation ring, vent disk, bottom disk, and gasket	Improper design of cap elements Poor manufacturing quality from the supplier	Improper seal, causing electrolyte leakage, leading to formation of flammable gas mixture, increasing the risk of explosion
Top and Bottom Insulation Ring	Diameter of the ring is small	Improper design of top insulation ring Poor manufacturing quality from the supplier	Increased risk of an internal short circuit, causing thermal runway
	Thickness is low	Improper design of top insulation ring Poor manufacturing quality from the supplier	Improper seal, causing electrolyte leakage, leading to formation of flammable gas mixture, increasing the risk of explosion
	Thickness is high	Improper design of top insulation ring Poor manufacturing quality from the supplier	Improper grooving and placement of cap forming an improper seal, causing electrolyte leakage, leading to formation of flammable gas mixture, increasing the risk of explosion
	Heat resistance is low	Wrong choice of material Poor manufacturing quality from the supplier	Deformation of the ring, increasing the risk of an internal short circuit, causing thermal runway
	Coefficient of thermal expansion does not match the can	Wrong choice of material Poor-quality material from the supplier	Improper seal at elevated temperatures, causing electrolyte leakage, leading to formation of flammable gas mixture, increasing risk of explosion
Protective Tape	Heat resistance is low	Wrong choice of material Poor-quality material from the supplier	The tape could peel off at large current, causing an internal short circuit, increasing the risk of thermal runaway
	Width/height is high	Wrong choice of dimensions during design Wrong setting of equipment during manufacturing	Reduction in capacity
	Width/height is low	Wrong choice of dimensions during design Wrong setting of equipment during manufacturing	Can result in tear of separator, causing an internal short circuit
Tab	Improper hardness	Wrong choice of material Poor-quality material from the supplier	The tab could cut through the separator, causing an internal short circuit, increasing the risk of thermal runaway
	Improper location and number of tabs	Improper design of tab location	Non-uniform current distribution resulting in localized heating, lithium plating, increasing risk of thermal runaway
	Increased electrical resistance	Improper design of tab size and composition	Localized heating, causing formation of local hotspots, increasing risk of thermal runaway
Can	Thickness of nickel coating is low	Wrong thickness of coating chosen during design Wrong setting of coating during manufacturing	Generate weak areas on the battery casing and lead to case rupture during thermal runaway Increases risk of internal structure damage in mechanical abuse conditions
	Diameter of can is large	Wrong choice of diameter during design Wrong setting of equipment during manufacturing	Loosening of jelly toll, causing non-uniform current distribution resulting in localized heating, increasing risk of thermal runaway
	Diameter of can is small	Wrong choice of diameter during design Wrong setting of equipment during manufacturing	Scratch of jelly roll during insertion could lead to an internal short circuit, increasing risk of thermal runaway
	Height of can is large	Wrong choice of height during design Wrong setting of equipment during manufacturing	Cell is discarded
	Height of can is small	Wrong choice of height during design Wrong setting of equipment during manufacturing	Improper seal, causing electrolyte leakage leading to formation of flammable gas mixture, increasing risk of explosion
	Grooving depth is low	Wrong design of groove dimensions Poor quality of groove during manufacturing	Improper seal, causing electrolyte leakage leading to formation of flammable gas mixture, increasing risk of explosion
	Grooving depth is high	Wrong design of groove dimensions Poor quality of groove during manufacturing	Electrode deformation can cause an internal short circuit
	Improper sealing compression	Wrong choice of compression pressure during design	Improper seal, causing electrolyte leakage leading to formation of flammable gas mixture, increasing risk of explosion
Mandrel and bottom vent	Thickness of mandrel is low	Wrong design of mandrel thickness Poor quality from supplier	Electrode deformation at core, increasing risk of an internal short circuit and thermal runaway
	Thickness of mandrel is high	Wrong design of mandrel thickness Poor quality from supplier	Can scrape the electrode layers, increasing risk of an internal short circuit and thermal runaway
	Height of mandrel is low	Wrong design of mandrel height Poor quality from supplier	Can change the alignment of the mandrel, blocking the vent path, increasing risk of explosion
	Height of mandrel is high	Wrong design of mandrel height Poor quality from supplier	Increases the risk of production of projectiles due to force on the cap, when internal cell pressure increases
	Insufficient air flow rate	Improper design of mandrel and bottom vent	Increased risk of internal pressure build up, causing thermal runway or explosion

presents the DFMEA for the design of a cylindrical lithium-ion battery, with a focus on safety. The design parameters for each element of the battery that influence its safety are consolidated and presented in

Table 1. Design parameters influencing battery safety.

Element	Influencing Parameters
Anode material	Purity, particle size, particle size distribution, particle porosity, crystalline phase of carbon, degree of compaction, surface area, coating thickness, surface roughness, and conductivity of coating material
Cathode material	Purity, particle size, particle size distribution, particle porosity, thermal stability, degree of compaction, surface area, coating thickness, surface roughness, binder type, binder-to-active-material ratio, and conductivity of the binder
Electrolyte	Salt-to-solvent ratio, thermal stability of solvent, the amount and composition of additives, moisture content, viscosity, conductivity, corrosive properties, and melting point
Current collectors	Mechanical strength, corrosion resistivity, conductivity, thickness, contact resistance, and adhesion strength
Separator	Mechanical strength, thermal and dimensional strength, permeability, porosity, chemical structure, surface energy with electrolyte and electrode materials, thickness, uniformity of pore size, and tensile strength
Electrode tabs	Material, location, number of tabs, thickness, and corrosion resistance
Can	Mechanical strength, corrosion resistivity, material composition, thickness, and thermal expansion coefficient
Current interrupt device	Activation pressure or temperature, response time, and corrosion resistivity
Safety vents	Activation pressure, and geometry
Positive temperature coefficient device	Thermal mass, heat dissipation coefficient, trip time, material composition, resistance stability, and corrosion resistance
Gasket	Diffusion coefficient, corrosion resistivity, compressibility, elasticity and thermal coefficient of expansion

.

3. Process Failure Mode and Effect Analysis

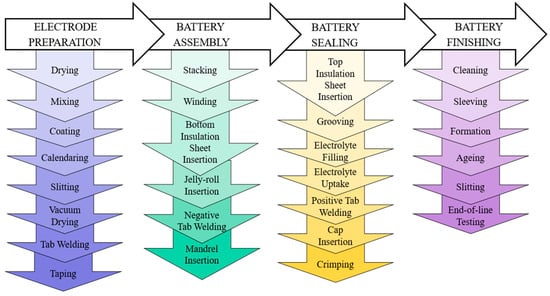

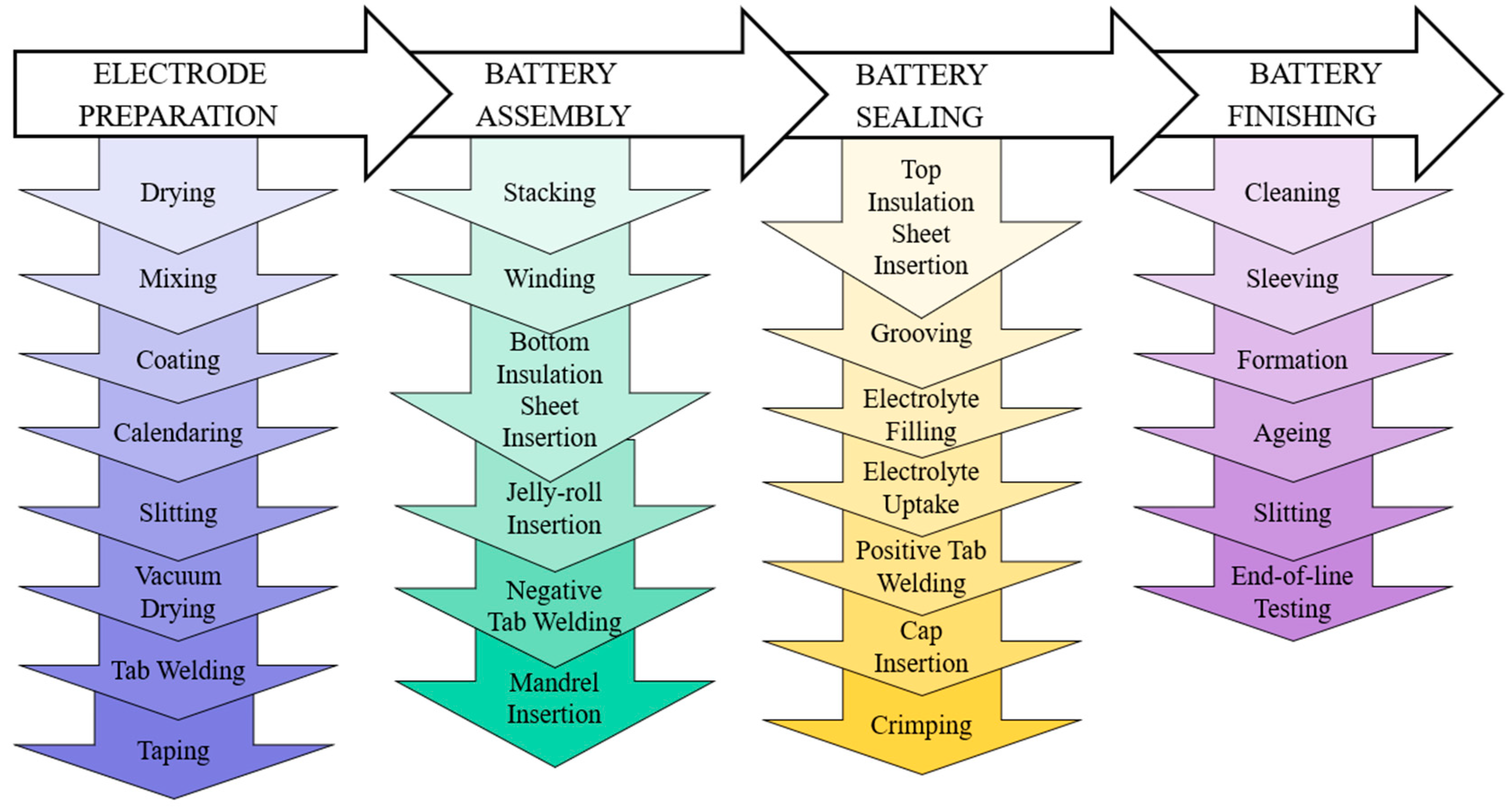

The primary input to a PFMEA is the process flow diagram, which describes the cylindrical battery manufacturing and assembly process. The manufacturing and assembly of a cylindrical battery involve the precise fabrication of battery cans and caps, the preparation of the electrode stack, its assembly into a jellyroll structure, followed by tab welding and assembly into battery can, and the sealing of the battery to ensure no leakage [9,12,35]. These steps, along with thorough quality checks, contribute to the production of reliable cylindrical batteries. To illustrate the overall manufacturing process of a cylindrical lithium-ion battery, Figure 4 provides a representation. This process involves four major steps: electrode preparation, cell assembly, cell sealing, and cell finishing [36].

The first step in the electrode fabrication process is the drying and mixing of the electrode materials. This involves mixing active materials (such as graphite, lithium cobalt oxide, or lithium iron phosphate) with conductive additives (such as carbon black) and a binder (such as polyvinylidene fluoride) in a solvent. The resulting slurry has a specific ratio of solids to solvent, which is crucial for the electrode’s performance. This process can be performed in a vacuum to avoid gas inclusions. The quality parameters that need to be considered are the homogeneity of the slurry, particle size, purity (the amount of foreign particles) and viscosity. These are influenced by the mixing and dispersing sequence, the filter systems, shear forces of the equipment, blending time and mixing temperature [12].

The most common method for coating the slurry mixture on the current collectors is the slot-die coating process [37]. Other techniques, such as spray coating or doctor-blade coating, may also be used. The coating thickness ranges from 70 µm to 350 µm and is measured using X-ray reflectivity (XRR) [21]. The coating speed, coating width and precision of the slurry pump define the thickness accuracy, homogeneity, and surface quality (blowholes, particles) of the coating [12].

After coating, the electrode sheet is dried to remove the solvent. The residual humidity and surface finish (cracks, inclusions) is determined by process parameters including temperature profile, drying speed and foil pretension [12]. Once the electrode is dry, it is calendared to improve its mechanical properties. Calendaring involves compressing the electrode using a pair of rollers, which increases its density and improves its adhesion to the current collector. The porosity, surface texture and adhesion between the coating and current collector is affected by line speed (30~100 m/min), roller diameters (600~1000 mm) and line load (500~1000 N/m) [38]. A high line load can cause fractures, which increases the moisture sorption of the active materials [39].

The fabricated electrode is slit into smaller sheets according to the design. Laser cutting is a widely applied shaping technology, where the cutting width and efficiency of the slitting process is controlled by laser power and scanning speed [9]. After slitting, the coils are vacuum dried for 12–30 h to remove residual moisture [12]. The drying time and temperature of the oven should be selected not to cause any cracks or fractures in the active materials while ensuring no residual moisture is present, as it can facilitate the generation of hydrogen fluoride gas [40]. The next step is welding the electrode tabs to the end of current collector, which is not coated by the active material. Resistance spot welding is usually used for cylindrical batteries; however, ultrasonic welding can be used on some occasions [38]. Low contact resistance and low mechanical and thermal stress must be ensured during the welding process. High resistance increases heat generation, resulting in cell degradation, and can cause thermal runway [41]. An insulation tape covers the welded tab to prevent electrical conduction and penetration through the separator [21].

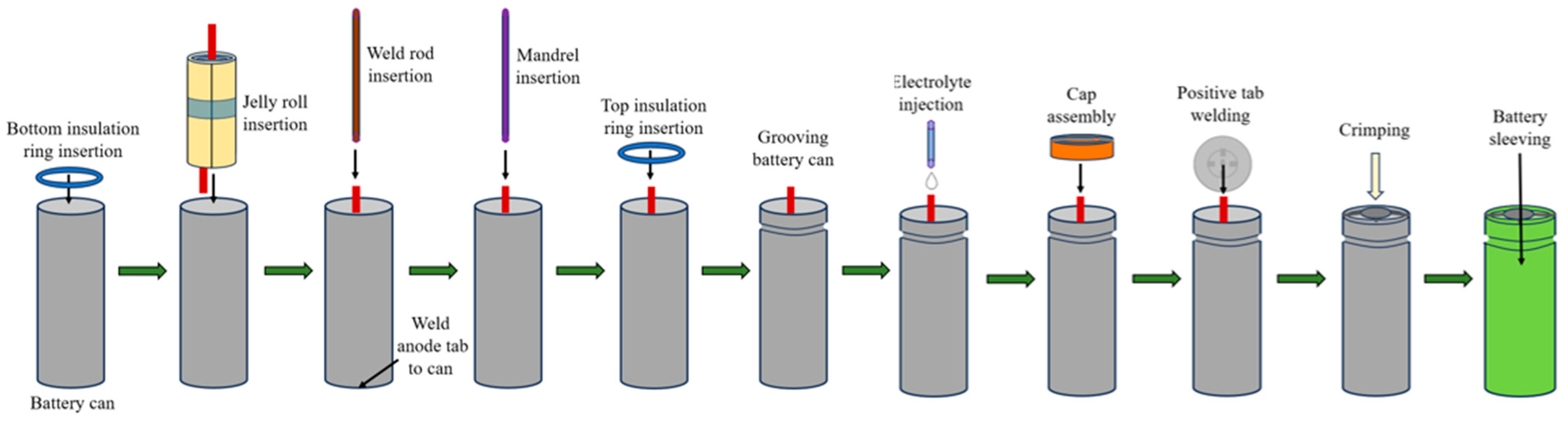

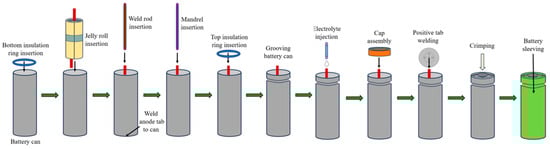

The anode electrode, separator, and cathode electrode will be stacked together and rolled up to form the jelly roll. During the winding process, a center pin can be used to prevent deformation of the electrode assembly. This component is also referred to as a deformation prevention core and is removed once the winding process is complete [42]. An adhesive tape is used to secure the jelly roll. Winding speed, web tension and web edge control influence the quality of the jelly roll. The jelly roll is inserted into the battery can along with a bottom insulator, and the negative tab is welded to the internal surface of the battery can’s bottom. This is a challenging step as the weld should not penetrate the battery can [43].

A mandrel is inserted to furnish mechanical stability to the cell and facilitate pressure relief by offering an unobstructed route for the fluidized material and gases to migrate from the base to the cell’s crimp [44]. A top insulator is applied to the jelly roll structure. There is a hole in the insulator which allows the positive tab to go through it. A groove is made above the top insulation ring to host the battery cap. The grooving speed and depth should be controlled to avoid electrode deformation. After another drying process to remove the remaining moisture, the electrolyte is applied to the battery before the final sealing. Although the separator of a lithium-ion battery has a porous structure, an electrolyte uptake/wetting step is applied to facilitate the infusion of the electrolyte to wet the entire jelly roll structure to ensure a homogenous distribution of the electrolyte [45].

After the electrolyte filling, the positive tab is welded to the cap and the battery cap will sit on the groove. Once the cap and cell are aligned, the crimping process can begin. The crimping machine applies pressure to the edges of the cap, causing it to deform and grip the top edge of the battery. The pressure is carefully controlled to ensure that the cap is securely attached to the battery, but not so much that it causes damage or deformation of the battery. The battery is cleaned and then wrapped with a sleeve that is made of insulating material. The complete assembly process is shown in Figure 5.

The following electrical treatment is the formation process that will generate a solid electrolyte interphase (SEI) on the anode surface. High-current and high-temperature formation cycles produce a porous SEI layer that cannot prevent electrolyte decomposition due to contact of electrolyte with anode surface [46]. High currents can lead to lithium plating, reducing the safety of the cell [47]. Post the formation process, the battery is aged by high- and normal-temperature storage to verify its self-discharge characteristics. Then, the battery will undergo end-of-line testing to verify its performance and capacity. End-of-line testing involves visual inspection, capacity measurement, internal resistance measurement, and open circuit voltage testing to ensure that it meets the desired performance and safety criteria [12].

Process failure mode and effect analysis (PFMEA) focuses on potential failure modes of the process that are caused by manufacturing and assembly process deficiencies [48].

Table A2. PFMEA for manufacturing a cylindrical lithium-ion battery.

Process	Sub-Steps	Potential Failure Mode	Potential Failure Causes	Effect on Battery Safety
Electrode preparation	Mixing	Wrong material chosen for mixing	Error during procurement Wrong labeling	N/P ratio * is not maintained which can lead to lithium plating, increasing the risk of an internal short circuit [12]
		Presence of moisture	Improper storage of raw material Improper warehouse humidity conditions	Increased gas generation, causing poor safety due to risk of explosion [13]
		Presence of metal contaminants	Procurement of poor-quality material Improper storage of raw material	Presence of metal particles can cause nucleation sites for formation of lithium dendrites, increasing risk of short circuit [14]
		Presence of dust contaminants	Procurement of poor-quality material Improper storage of raw material	Creation of discontinuities in electrode structure due to dust can result in local hotspots, increasing risk of thermal runaway [14]
		Wrong composition of materials for the mixture	Quantity of materials not measured before mixing Error during measurement	N/P ratio is not maintained which can lead to lithium plating, increasing the risk of an internal short circuit
		Presence of solid content in the mixture	Short blend time setting	Can result in tear of separator, causing an internal short circuit
		Insufficient viscosity of the mixture	Improper blend time setting Improper temperature of mixture	Improper coating of the mixture, causing non-uniform current distribution and peeling of coated film, which results in localized heating, increasing risk of thermal runaway [16]
	Coating	Non-uniform coating	Improper viscosity of the mixture Improper alignment of slot die Uneven flow rate of slot die Foil surface is uneven	Non-uniform current distribution resulting in localized heating and lithium plating, increasing risk of thermal runaway [17]
		Improper surface finish—presence of holes or voids	Improper viscosity of the mixture Improper alignment of slot die Uneven flow rate of slot die Foil surface is uneven	Non-uniform current distribution, resulting in localized heating, increasing risk of thermal runaway
		Improper surface finish—non-uniform dispersion or presence of agglomerates	Improper blend time during mixing	Non-uniform current distribution, resulting in localized heating, increasing risk of thermal runaway Increase in electrical conductivity and polarization
		Improper dimensions of coat—cathode width out of lower limit	Improper setting of equipment
		Improper dimensions of coat—anode width out of lower limit	Improper setting of equipment	N/P ratio is lowered, which can lead to lithium plating, increasing the risk of an internal short circuit
	Calendering	Thickness below lower limit Reduced electrode porosity	Improper setting of gap between the rollers Improper setting of force between the rollers	Low porosity of electrodes increases their diffusion resistance due to slow kinematics, which can result in lithium plating, increasing the risk of an internal short circuit
		Thickness above upper limit Increased electrode porosity	Improper setting of gap between the rollers	Cycle life performance degradation Jelly roll diameter above upper limit making assembly difficult
		Increased surface roughness	Uneven surface of the rollers	Non-uniform current distribution resulting in localized heating, increasing risk of thermal runaway
		Occurrence of fractures in the material	Improper setting of the rolling pressure Improper setting of force between the rollers	Cracks in cathode result in low N/P ratio which can lead to lithium plating, increasing risk of an internal short circuit. Fractures lead to increased moisture sorption leading to gas generation, increasing the risk of explosion
		Warping of electrode sheets	Improper setting of the rolling pressure Improper setting of force between the rollers	Non-uniform current distribution resulting in localized heating, increasing risk of thermal runaway
	Slitting	Improper width—cathode too narrow or anode too wide	Improper setting of equipment
		Improper width—cathode too wide or anode too narrow	Improper setting of equipment	N/P ratio is lowered which can lead to lithium plating, increasing the risk of an internal short circuit
		Improper width—separator too narrow	Improper setting of equipment	Increases the risk of an internal short circuit
		Improper width—separator too wide	Improper setting of equipment
		Improper height of electrodes and separator	Improper setting of equipment	Increases the risk of an internal short circuit
		Presence of burrs	Wear of slitting knife Unclean edge of slitting knife	Increases the risk of an internal short circuit
		Improper geometry of the cutting edges	Improper setting of equipment	Increases the risk of an internal short circuit
		Presence of metallic foreign particles	Unclean equipment and workshop conditions Melted splatters from laser current/slitting knife	Presence of metal particles can cause nucleation sites for formation of lithium dendrites, increasing risk of short circuit
	Vacuum Drying	Presence of moisture	Improper setting of room humidity level Insufficient setting of drying time	Increased gas generation, causing poor safety due to risk of explosion
		Occurrence of fractures in the material	Improper setting of room temperature Increased setting of drying time	Cracks in cathode result in low N/P ratio which can lead to lithium plating, increasing risk of an internal short circuit. Fractures lead to increased moisture sorption leading to gas generation, increasing the risk of explosion
	Tab welding	Insufficient weld strength and improper weld tension	Improper setting of equipment Improper weld position	Increased contact resistance causes increased Joule heating creating thermal hotspots, increasing risk of thermal runaway
		Presence of burrs or protrusions	Improper setting of equipment	Can result in tear of separator, causing an internal short circuit
		Over welding of tabs	Improper setting of equipment	Can damage the electrode sheet, causing an internal short circuit
		Presence of dust contaminants	Improper maintenance of workshop environment	Creation of discontinuities in electrode structure due to dust can result in local hotspots, increasing risk of thermal runaway
	Taping	Poor coverage of tab	Improper position settings in equipment	Can result in tear of separator, causing an internal short circuit
		Poor adhesion of tape	Poor quality procurement Presence of contaminants in the workshop	Can result in tear of separator, improper current distribution resulting in localized hotspots, causing an internal short circuit
		Presence of dust contaminants	Improper maintenance of workshop environment	Creation of discontinuities in electrode structure due to dust can result in local hotspots, increasing risk of thermal runaway
Cell Assembly	Stacking and Winding	Presence of holes in separators	Poor quality of separator	Internal short circuit
		Improper positioning of electrodes and separator	Operator fault	Internal short circuit
		Improper rolling of jelly roll—loose winding	Improper tension settings in equipment	Non-uniform current distribution resulting in localized heating, increasing risk of thermal runaway
		Improper rolling of jelly roll—tight winding	Improper tension settings in equipment	Internal short circuit
		Improper rolling of jelly roll—winding spiral	Improper tension settings in equipment Improper removal of winding rod	Non-uniform current distribution resulting in localized heating, increasing risk of thermal runaway
		Improper rolling of jelly roll—center collapse	Improper tension settings in equipment Improper removal of winding rod	Can scrape the electrode layers while welding the bottom tab, increasing the risk of an internal short circuit
	Bottom Insulation Sheet and Jelly roll Insertion	Diameter of bottom insulation ring is missing or small	Operator fault Manufacturing defects	Short circuit between negative terminal and can (positive terminal)
		Improper alignment of jelly roll—inclined	Improper alignment of equipment	Weld rod can scrape the electrode layers while welding the bottom tab, the increasing risk of an internal short circuit
		Improper alignment of jelly roll—positive and negative tab reversed	Operator fault Improper settings in equipment	External short circuit
	Bottom Tab Welding	Insufficient weld strength and improper weld tension	Improper setting of equipment Improper weld position	Increased contact resistance causes increased Joule heating creating thermal hotspots, increasing risk of thermal runaway
		Presence of burrs or protrusions	Improper setting of equipment	Can result in tear of separator, causing an internal short circuit
		Over welding of tab to can	Improper setting of equipment	Can damage the can, resulting in improper seal, causing electrolyte leakage leading to formation of flammable gas mixture, increasing risk of explosion
		Electrode damage due to weld rod	Improper alignment of equipment	Weld rod can scrape the electrode layers while welding the bottom tab, increasing risk of an internal short circuit
	Mandrel Insertion	Mandrel is absent	Operator fault	Without an internal mandrel the electrode assembly can collapse, blocking the flow of gas, and increasing the risk of the of side wall rupture and the generation of high-speed projectiles
		Misalignment of mandrel	Improper alignment of equipment	Improper air flow path, increasing the risk of the of side wall rupture and the generation of high-speed projectiles
Cell sealing	Top Insulation Sheet Insertion	Diameter of top insulation ring is missing or small	Operator fault Manufacturing defects	Short circuit between negative terminal and can (positive terminal)
		Improper alignment of insulation sheet	Improper alignment of equipment
	Grooving	Improper groove height—low	Improper settings in equipment	Electrode deformation can cause an internal short circuit
		Improper groove height—high	Improper settings in equipment	Movement of jelly roll can increase risk of an internal short circuit
		Improper crimping diameter—low	Improper settings in equipment	Electrode deformation can cause an internal short circuit
		Improper crimping diameter—high	Improper settings in equipment	Improper seal, causing electrolyte leakage leading to formation of flammable gas mixture, increasing risk of explosion
		Presence of dust contaminants	Improper maintenance of workshop environment	Creation of discontinuities in electrode structure due to dust can result in local hotspots, increasing risk of thermal runaway
	Electrolyte filling	Presence of contaminants in the electrolyte	Procurement of poor-quality material Improper storage of raw material	Increased gas generation, causing poor safety due to risk of explosion
		Presence of moisture	Improper setting of room humidity level	Increased gas generation, causing poor safety due to risk of explosion
		Increased electrolyte quantity	Improper settings in equipment	Electrolyte leakage leading to formation of flammable gas mixture, increasing risk of explosion
		Reduced electrolyte quantity	Improper settings in equipment	Inhomogeneous distribution of electrolyte, causing non-uniform current distribution, increasing risk of lithium plating, causing an internal short circuit
	Electrolyte Uptake/Wetting	Incomplete/non-uniform soaking of electrolyte	Insufficient soaking time settings	Inhomogeneous distribution of electrolyte, causing non-uniform current distribution, increasing risk of lithium plating, causing an internal short circuit
		Presence of moisture	Improper setting of room humidity level	Increased gas generation, causing poor safety due to risk of explosion
		Contamination of the electrolyte	Improper maintenance of workshop environment	Increased gas generation, causing poor safety due to risk of explosion
	Positive Tab Welding	Insufficient weld strength and improper weld tension	Improper setting of equipment Improper weld position	Increased contact resistance causes increased Joule heating creating thermal hotspots, increasing risk of thermal runaway
		Presence of burrs or protrusions	Improper setting of equipment	Can result in tear of separator, causing an internal short circuit
	Cap Insertion	Improper cap diameter—low	Manufacturing defects	Improper seal, causing electrolyte leakage leading to formation of flammable gas mixture, increasing risk of explosion
		Improper cap diameter—high	Manufacturing defects
		Misalignment of cap	Improper alignment of equipment	Improper activation of safety devices, improper sealing, causing electrolyte leakage leading to formation of flammable gases, increasing risk of explosion
		PTC resistance out of specification	Manufacturing defects	PTC does not activate when temperature is out of limits, increasing risk of thermal runaway
		CID activation pressure out of specification	Manufacturing defects	CID fails to activate, increasing risk of thermal runaway and explosion
	Crimping and sealing	Improper crimping force—low	Improper equipment settings	Improper seal, causing electrolyte leakage leading to formation of flammable gas mixture, increasing risk of explosion
		Improper crimping force—high	Improper equipment settings	Electrode deformation can cause an internal short circuit
		Misaligned crimp	Improper alignment of equipment	Improper seal, causing electrolyte leakage leading to formation of flammable gas mixture, increasing risk of explosion
		Improper seal due to gasket	Poor gasket quality like improper, sagging due to thermal stress, crack in the gasket, wrong size	Improper seal, causing electrolyte leakage leading to formation of flammable gas mixture, increasing risk of explosion
Cell Finishing	Sleeving	Improper sleeve thickness—low	Manufacturing defects	Insufficient wear resistance can cause external short circuit
		Improper sleeve thickness—high	Manufacturing defects	Poor heat dissipation, increasing risk of thermal runaway
		Improper sleeve direction—positive and negative side reversed	Improper loading into equipment	External short circuit
	Formation and aging	Improper SEI layer formation	High currents during formation cycle	Increased gas generation and risk of thermal runaway due to crosstalk effect
		Improper cell activation	High currents during formation cycle Short formation cycles
		Improper aging conditions	Improper setting of aging time and conditions

* N/P ratio is the ratio of negative electrode capacity to positive electrode capacity.

consists of a PFMEA for the manufacturing process described above. The process parameters for each step of the manufacturing process that influence its safety are consolidated and presented in

Table 2. Process parameters influencing battery safety.

Process Step	Influencing Parameters
Drying	Temperature profile, humidity, drying speed, foil pretension, and drying time
Mixing	Mixing and dispersing sequence, shear forces of the equipment, blending time, mixing temperature, mixing speed, and humidity
Coating	Coating speed, coating width, precision of the slurry pump, and humidity
Calendaring	Line speed, roller diameters, and line load, calendaring temperature, and roller alignment
Laser slitting	Laser power and scanning speed, laser beam quality, and focal spot size
Tab welding	Current profile, weld force, weld duration, and electrode alignment
Winding	Winding speed and web tension
Grooving	Grooving speed and depth, tool and grove alignment
Electrolyte wetting	Wetting time and ambient humidity
Crimping	Crimping force, crimping speed, and crimping electrode alignment
Formation	Charging current, voltage range, temperature, and formation duration

.

4. Discussion

Ensuring safety in lithium-ion batteries is often regarded as the stability of the battery in terms of abuse, including mechanical, electrical, and thermal [14]. Major safety concerns for lithium-ion batteries are thermal runaway and explosion. Thermal runaway is a phenomenon where exothermic reactions occur within the cell, leading to a rapid temperature increase, potentially causing the cell to catch fire [44]. When a lithium-ion battery experiences thermal runaway, it can lead to a buildup of pressure inside the battery, causing the cell to rupture or explode. Explosions can also occur due to increased gas generation in the battery [49].

From the integrated DFMEA–PFMEA, we have identified that localized heating and a short circuit increase the risk of thermal runaway, whereas increased gas generation due to moisture or electrolyte leakage increases the risk of explosion. Manufacturing and assembling defects in the safety devices also reduce the safety of the battery. Safety should, therefore, be a prime consideration in the initial development and material selection process. The following section describes each of the mechanisms affecting the safety of the battery.

4.1. Internal Short Circuit

The occurrence of internal short circuits in lithium-ion batteries can result in thermal runaway, as they generate sufficient heat to initiate a sequence of exothermic reactions [44]. Internal short circuits can occur due to lithium plating, lithium dendrites and contact between electrodes. The failure mechanisms, modes and causes of an internal short circuit from the DFMEA-PFMEA are mentioned in

Table 3. Failure mechanisms, modes, and causes of internal short circuit.

Failure Mechanism	Failure Mode	Failure Cause
Contact between electrode sheets	Tear in separator	High particle size of cathode and anode
		Poor puncture strength, poor tensile strength, high porosity, and low thickness of separator
		Presence of burrs during tab welding and electrode slitting Poor coverage and poor adhesion of protective tape covering the electrode tabs
	Improper insulation between electrode sheets	High heat shrinkage of separator and insulation rings
		Low diameter of top and bottom insulation rings Low heat resistance of adhesion tape
	Electrode deformation or misalignment	Scratch of jelly roll during insertion into can, during welding of bottom tab and insertion of mandrel Low thickness of nickel coating of can, resulting in weak spots
		Low grooving depth and high crimping strength
		Over welding of electrode tabs
		Improper alignment of electrodes while staking
Lithium plating and dendrite formation	Improper N/P ratio	Improper design choice of cathode and anode material
		High compaction density of anode Improper design choice of anode and cathode electrode dimensions and improper slitting Improper composition of materials for mixing
	Inhomogeneous distribution of active material	Improper design choice of binder, resulting in peeling of cathode and anode sheet Improper design choice—lower amount of electrolyte Improper pore size distribution of electrode sheets and separator Improper location and number of tabs Loosening of jelly roll due to improper dimension of can and improper tension while winding Improper coating of electrodes due to insufficient viscosity and uneven flow rate of slot die
	Reduced electrode porosity	Improper design choice of cathode and anode material Improper thickness and pressure setting during calendaring
	Metal contamination	Poor-quality material from supplier Unclean manufacturing environment Melted spatters from laser slitting process

.

If the integrity of the separator is compromised due to presence of holes or a tear, it can lead to an internal short circuit. Poor puncture strength or tensile strength or thickness can increase the risk of tear because of the high particle size of active materials, metallic particles due to contamination, lithium dendrite growth and burrs [8].

Weak spots on the cell casing can result in breakage and damage to electrodes upon application of mechanical force. Inadequate thickness or an uneven distribution of the nickel plating may create areas of vulnerability where the underlying steel is exposed, compromising the structural integrity of the casing. Surface damage such as scratches or abrasions on the nickel-plated steel casing during the manufacturing process can serve as initiation points for stress concentration and corrosion. In case of damage to the shell casing, air may directly enter the battery system, triggering reactions with the internal active materials [50]. Finite element simulations performed on the cylindrical can casing have shown predictive fracture capabilities. Experimental observations corroborate theoretical predictions, with short circuits often originating near the end of the can, close to the battery electrode connection section [51].

Proper insulation during the alignment of electrode sheets and assembly of the battery is required. The design of wider separators with high thermal resistance is suggested to avoid a short circuit due to separator shrinkage when exposed to high temperatures [52].

Ensuring proper capacity balancing between the negative electrode and positive electrode is a critical aspect of designing lithium-ion batteries that can operate safely. This is achieved by maintaining a proper N/P (negative/positive) ratio. The N/P ratio is defined as the ratio of the reversible capacity of negative electrode and positive electrode and is controlled between 1.03 and 1.2 [14]. A low N/P ratio can cause the anode potential to drop to less than 0 V vs. Li/Li+ during charging, which could lead to lithium plating on the surface of the anode electrode. Lithium plating can lead to the formation of dendrite, which may pierce the separator and induce the cell to an internal short circuit, which can initiate a thermal runway [44].

Numerous methods have been employed by researchers to evaluate, detect, and study lithium plating, including analyzing voltage plateau signals [53], measuring cell thickness [54], and creating simulation models [55,56,57]. However, despite these efforts, accurately predicting the likelihood of internal short circuits resulting from lithium plating remains a difficult task. This challenge adds complexity to the safety design of lithium-ion batteries and further increases the importance of mitigating the failure modes that could potentially cause lithium plating during design and manufacturing.

4.2. Localized Heating

Heat is generated in the battery due to entropy change and Joule heat [58]. When the rate of heat generation exceeds that of dissipation, it results in a temperature rise. An inhomogeneous distribution of materials and the presence of fractures cause uneven temperature distribution due to different heat generation and heat dissipation conditions in the electrode [14]. This localized heating increases the risk of thermal runway due to the initiation of exothermic side reactions. The temperature hotspots can promote lithium metal growth as compared to the surrounding lower temperature area due to the locally enhanced surface exchange current density, leading to an internal short circuit [21]. The failure mechanisms, modes and causes of localized heating from the DFMEA-PFMEA are mentioned in

Table 4. Failure mechanisms, modes, and their causes for localized heating.

Failure Mechanism	Failure Mode	Failure Cause
Non-uniform current distribution	Inhomogeneous distribution of active material	Improper design choice of binder, resulting in peeling of cathode and anode sheet Improper design choice—lower amount of electrolyte Improper pore size distribution of electrode sheets and separator Improper design and welding of electrode tabs Loosening of jelly roll due to improper dimension of can and improper tension while winding Improper coating of electrodes due to insufficient viscosity and uneven flow rate of slot die Incomplete/non-uniform soaking of electrolyte
	Presence of fractures	High compaction density of cathode Low tensile strength and poor elongation at break of current collectors Improper setting of rolling pressure in calendaring and temperature during vacuum drying

.

The poor quality of the materials and manufacturing processes can result in different heat generation and heat dissipation conditions in the electrode, which leads to an uneven temperature distribution. Reducing the porosity or increasing the electrode’s thickness can lead to an increase in ion concentration and potential gradient, which can influence the generation of Joule heat [59]. Electrode particle fracture due to calendaring and the vacuum drying process can cause local hotspots. Therefore, it becomes important to address the failure modes leading to localized heating and ensure that the design factors like porosity and electrode thickness are properly selected and tested. Proper process control during electrode fabrication can ensure that the design parameters are met consistently, thereby reducing the risk of localized heating due to manufacturing and improving the safety of the battery. Thermal simulations generally consider a lumped model [60], but the inclusion of local hotspots increases the accuracy of model prediction and aids in a better design of protection limits [61].

4.3. Increased Gas Generation

Gases generated in the battery increase the internal pressure, causing the battery to vent or rupture, eventually leading to thermal runway due to the reaction of hot flammable gases from the battery with ambient oxygen [62]. Gas generation in lithium-ion batteries is elevated by increased side reactions involving electrolyte decomposition, SEI layer formation, and moisture ingress. The failure mechanisms, modes and causes of increased gas generation from the DFMEA-PFMEA are mentioned in

Table 5. Failure mechanisms, modes, and causes of increased gas generation.

Failure Mechanism	Failure Mode	Failure Cause
Increased side reactions	Improper design and process parameters	Poor thermal stability of active material High concentration of transition metals in the cathode Poor choice of electrolyte resulting in corrosion of active material Improper SEI layer formation due to high specific area of anode and improper formation cycle Presence of moisture in manufacturing environment
	Presence of fractures	High compaction density of cathode Low tensile strength and poor elongation at break of current collectors Improper setting of rolling pressure in calendaring and temperature during vacuum drying
Electrolyte leakage and moisture ingression	Improper sealing	Improper design choice—more of amount of electrolyte Low thermal stability and high diffusion coefficient of gasket and insulation ring Improper dimensions of PTC, insulation rings, vent disk, bottom disc, and gasket Improper grooving height and crimping force

.

The poor thermal stability of cathodes and improper SEI layer growth can lead to electrolyte decomposition producing gases [18,63]. An improper composition of cathode material can cause increased gas generation during electrical abuse conditions like overcharge due to electrolyte decomposition at the cathode surface [64]. Coatings like transition metal oxide nanoparticles have shown potential in inhibiting lithium dendrites, enhancing stability and preventing side reactions during overcharge [65]. To facilitate Li+ diffusion and minimize overpotential, electrode porosity should be optimized, thereby reducing the side reactions [66].

The presence of moisture in a lithium-ion battery can lead to gas generation through a series of chemical reactions involving electrolyte, lithium salts, and moisture. When moisture enters the cell, it reacts with lithium salt to produce hydrogen fluoride (HF) and other byproducts. The hydrogen fluoride (HF) generated is highly reactive and can further react with the organic solvents in the electrolyte or the electrode materials, leading to more gas generation [67]. Moisture ingress can result from manufacturing defects and poor sealing due to improper design. The water content present in the anode during the manufacturing process drops from ~1000 ppm to ~200 ppm after vacuum drying, emphasizing the importance of the drying steps in the process [40]. Poor thermal stability of the gasket in the battery cap can lead to sagging during temperature cycling, leading to moisture ingress and electrolyte leakage [68].

Electrode crosstalk refers to a phenomenon wherein the byproducts generated at one electrode initiate adverse side reactions on the opposing electrode, leading to exothermic reactions and gas release [69]. This occurrence often stems from the dissolution of transition metals, the magnitude of which is influenced by factors such as cathode composition, electrolyte formulation, and the formation of a stable solid electrolyte interphase (SEI) [70]. Introducing aluminum doping into the transitional metal cathode material can mitigate the dissolution process [71], while incorporating appropriate electrolyte additives can suppress active material corrosion and oxygen evolution [69,72].

4.4. Malfunctioning of Safety Devices

When a lithium-ion battery goes into thermal runaway, the energy stored within the battery is often released in a matter of milliseconds [27]. Improper design and manufacturing processes can compromise the functionality of the safety devices, increasing the risk of cell failures or hazardous incidents. The failure mechanisms, modes and causes of malfunctioning of safety devices from the DFMEA-PFMEA are mentioned in

Table 6. Failure mechanisms, modes, and causes of malfunctioning of safety devices.

Failure Mechanism	Failure Mode	Failure Cause
Delay in function	Improper design parameters	High shutdown temperature of separator High base resistance and temperature inflection point of PTC High activation pressure of CID and vent Misalignment of mandrel, reducing air flow rate
No function	Improper design and process parameters	Improper air flow rate design considering the vents and mandrel Improper dimension of mandrel, resulting in blockage of vent and high-velocity projections Over-welding of positive tab to CID bottom disk

.

The PTC device is a temperature-sensitive resistor that limits the current flow when the battery’s temperature exceeds a specified threshold, protecting the battery from overheating. However, the improper design of PTC can increase the internal resistance of the battery, thereby increasing thermal loss [73]. PTC thermal mass and the heat dissipation coefficient affect its trip time, and choosing incorrect PTC material can cause the device to fail, leading to uncontrolled current flow and a higher risk of thermal runaway [74].

If the safety vent in a cylindrical battery becomes obstructed and the internal pressure is not released in a timely manner, the pressure may continue to build up and cause the battery case to rupture or even lead to explosions [75,76]. To mitigate this risk, a mandrel and a bottom vent are considered in certain models of cylindrical cells. This design enhancement increases the venting efficiency and reduces the thermal impact of a single battery rupture in a battery pack [28]. Without an internal mandrel, the electrode assembly can collapse, blocking the flow of gas, and increasing the risk of the cell reaching its burst pressure. A limitation of using the mandrel is that when gas flow rates are high, these may cause the mandrel to move independently from the electrode assembly, occasionally resulting in punctures to the crimp components [44].

It is important to choose the right activation pressure to ensure the CID is activated only when there is a risk of thermal runway or explosion and not during normal operation. Manufacturing issues, such as improper assembly, misalignment, or defects in the CID components, can cause it to fail or activate prematurely, compromising the battery’s safety and performance. The activation of the CID can be affected by the welding connection. If the welding connection is too strong, the top disk may not break the welded connection, which can prevent the CID from activating when needed. The trigger pressure of the safety vent in cylindrical batteries is typically higher than that of the pressure-responsive CID [77]. The vent opening area can determine the flow rate and burst pressure during venting [78]. Therefore, considering all the potential failure modes due to improper venting and simulating them to verify the design can help in improving the safety of the battery.

5. Conclusions

Enhancing the safety of lithium-ion batteries involves optimizing their design, ensuring high-quality manufacturing processes, and incorporating protective features to address potential safety incidents. Traditionally, this has been conducted in a haphazard manner. This study systematically examined all the safety factors within each design and manufacturing process element, using design and process FMEAs (DFMEA, PFMEA). Considering the multifaceted nature of factors contributing to failure causes, encompassing battery chemistry, design specifications, operating conditions, and intended use cases, a universal ranking was not provided. However, key areas of concern were found to be design and manufacturing processes that can exacerbate short circuits, localized heating, and abnormal gas generation within cells.

Of special concern is the contact between electrodes, which can result in a direct electrical pathway between electrodes and lead to short circuits within the battery. The design choice of a separator with poor puncture strength and thermal resistance increases the risk of tear and shrinkage, resulting in an internal short circuit. Maintaining a proper N/P ratio by choosing the correct quantities of anode and cathode active material, compaction densities and dimensions, lowers the risk of lithium plating.

An inhomogeneous distribution of active material in the coating process, reduced electrode porosity during calendaring process, and a non-uniform uptake of electrolyte in the wetting process cause non-uniform current distribution, leading to dendrite formation. Elevated rolling pressure during calendaring and elevated temperature and time during vacuum drying process can cause fractures or discontinuities within the electrode structure, leading to localized hotspots and potential thermal runaway. Considering these potential failure modes and their effects in the process of quality control by examining the electrode sheet before stacking to check for non-uniformity and fractures aids in the detection and elimination of jelly rolls that pose an elevated risk of causing thermal runaway.

It is imperative to ensure that the battery cap fulfills all the design requirements before its insertion. Qualification tests to consider encompass the CID pressure activation test for assessing burst pressure, the PTC trip temperature test to evaluate tripping temperature, response time and resistance, the temperature cycling test to inspect gasket performance, and the leakage test for verifying the seal of the cap.

The integrated FMEA-based safety analysis is useful in identifying design parameters that need to be considered while modeling a particular failure mechanism to predict an onset of failure. Identifying the process parameters and failure causes associated with these failures can provide guidance for designing quality checks in the manufacturing process. These quality checks, implemented as part of in-process quality control, can minimize costs and improve safety. This analysis can also be utilized for root cause analysis, aiming to determine the most probable explanation for a failure.
