Article

Simulating the Effects of Temperature and Food Availability on True Soles (Solea spp.) Early-Life History Traits: A Tool for Understanding Fish Recruitment in Future Climate Change Scenarios

1
EPOC-LPTC, UMR 5805, CNRS, University of Bordeaux, 33400 Talence, France
2
MARETEC—Marine, Environment and Technology Center, LARSyS, Instituto Superior Técnico, University of Lisbon, Av. Rovisco País 1, 1049-001 Lisboa, Portugal
3
IFAPA Centro El Toruño, Junta de Andalucía, Camino Tiro Pichón s/n, 11500 El Puerto de Santa Maria, Spain
4
MARBEC, Univ Montpellier, CNRS, Ifremer, IRD, INRAE, 34250 Palavas-Les-Flots, France
5
Division for Marine and Environmental Research, Rudjer Boskovic Institute, Bijenicka Cesta 54, 10002 Zagreb, Croatia
6
School of Biological Sciences, University of Western Australia, 35 Stirling Highway, Perth, WA 6009, Australia
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Fishes 2023, 8(2), 68; https://doi.org/10.3390/fishes8020068
Submission received: 28 December 2022 / Revised: 13 January 2023 / Accepted: 17 January 2023 / Published: 22 January 2023
(This article belongs to the Section Biology and Ecology)

Abstract

:
Research on recruitment variability has gained momentum in the last years, undoubtedly due to the many unknowns related to climate change impacts. Knowledge about recruitment—the process of small, young fish transitioning to an older, larger life stage—timing and success is especially important for commercial fish species, as it allows predicting the availability of fish and adapting fishing practices for its sustainable exploitation. Predicting tools for determining the combined effect of temperature rise and food quality and quantity reduction (two expected outcomes of climate change) on early-life history traits of fish larvae are valuable for anticipating and adjusting fishing pressure and policy. Here we use a previously published and validated dynamic energy budget (DEB) model for the common sole (Solea solea) and adapt and use the same DEB model for the Senegalese sole (S. senegalensis) to predict the effects of temperature and food availability on Solea spp. early life-history traits. We create seven simulation scenarios, recreating RCP 4.5 and 8.5 Intergovernmental Panel on Climate Change (IPCC) scenarios and including a reduction in food availability. Our results show that temperature and food availability both affect the age at metamorphosis, which is advanced in all scenarios that include a temperature rise and delayed when food is limited. Age at puberty was also affected by the temperature increase but portrayed a more complex response that is dependent on the spawning (batch) period. We discuss the implications of our results in a climate change context.

Graphical Abstract

1. Introduction

Research on recruitment variability—here referred to as the process of small, young fish transitioning to an older, larger life stage—has gained momentum in the last years [1,2,3], undoubtedly due to the many unknowns related to climate change (CC) impacts [4,5]. For example, temperature-driven reduction in primary production in the oceans is altering the recycling cycles of nutrients [6], which impacts the diversity and nutritious quality of zooplankton communities and consequently supports a smaller biomass of higher trophic levels, the overall result being warmer and nutrient poorer oceans [7]. The impacts of temperature-induced changes in phenology—studying the timing of recurring biological events and how these are influenced by climate [8]—are hard to predict and demonstrate, but phenological adaptations, i.e., shifts in the timing of seasonal events, have been reported for many planktonic and nektonic marine species, including fish [9,10,11,12,13].
Early transitional life stages of fish have strict environmental requirements for differentiation, metamorphosis, settlement, and growth. The environmental conditions can be used to determine healthy development and survival rates, which are very variable and often very low [14]. When the environmental requirements are not met, there are consequences at later life stages that could compromise the fitness of individuals and, thus, the health of populations. Compared with any other fish life stage, larvae will have the highest potential for growth, the highest weight-specific metabolic rates, and the highest sensitivity to environmental fluctuations and stressors [15,16]. As most processes determining the recruitment strength and the spatial distribution of fish populations occur during the planktonic stage of fishes, evaluation of ichthyoplankton remains a key element for fisheries assessment. Further, the survival of fish larvae directly influences future abundances of adult fish stocks, resulting in important interannual fluctuations in fish stock biomasses.
Understanding recruitment requires coupling physical and biological processes. The dominant recruitment mechanisms affecting fish larvae’s growth and survival are environmental factors, such as temperature and salinity, prey (feed) availability, predation pressure, and “the bigger and faster” relationship, which proposes that a bigger fish will be faster to evade predators and thus have a higher survival probability [17]. All of these mechanisms may act together over the entire period—from egg to the pre-recruit juvenile and are essential determinants of the year-class strength, i.e., the number of fish spawned or hatched in a given year and their respective recruitment success. Simultaneously to these environmental factors, growth and development are affected by the physiological characteristics of the individuals. Mechanistic bioenergetic models like Dynamic Energy Budget (DEB) models combine information on an individual’s physiology and ecology with information on environmental factors [18,19]. For example, growth is tightly linked to temperature, which in DEB models governs other physiological rates such as feeding, maintenance, and development [20,21]. In this sense, DEB models are a perfect tool to study the impact of environmental variability on, for example, the size and age at metamorphosis and puberty, which are relevant early life-history traits that affect fish recruitment.
Here we simulate the effect of future CC scenarios on fishes’ early life-history traits, particularly focusing on larval growth and age at metamorphosis in two flatfish species, the common sole, Solea solea, and the Senegalese sole, S. senegalensis. Both flatfish species are aquatic resources of high commercial value, appreciated in Europe due to their flesh quality [22,23,24].
Soles have a complex life cycle with progressive lifestyles and ontogenetic habitat shifts. S. solea and S. senegalensis are both “r strategist” species and batch spawners, and as such, they are characterized by strong fecundity. In both species, temperature is the principal environmental cue triggering the spawning of hundreds of thousands of eggs with low survival rates [25,26]. Fertilized eggs and larvae are both pelagic, which enables wide dispersion but also exposes these early life stages to (variable) environmental factors, notably temperature and food abundance. Recently hatched larvae drift towards estuaries and coastal areas—their juvenile environment—while they undergo metamorphosis. Major ontogenic, morphological, physiological, and behavioral changes occur during metamorphosis [27] and are accompanied by a change of habitat and lifestyle (from pelagic to benthic). The duration of metamorphosis varies depending on temperature and food availability. In S. solea, the transition from hatching until complete metamorphosis —the complete larval stage— can last between 15 and 26 days, at 19 °C and 16 °C, respectively [28], whereas the Senegalese sole usually takes about 8 days to complete metamorphosis at 20 °C, although with a high variability depending on environmental and feed availability [29,30]. Fully metamorphosed juveniles change from a pelagic to a benthic lifestyle—a process known as settlement—colonizing estuaries and bays that act as nursery areas [31,32]. The residence time in the nursery areas depends on fish size and development status and is around two to four years. Once fish reach maturity, adults migrate offshore (a few or up to hundreds of kilometers, depending on location) for spawning. They eventually return closer to the shore after the reproductive season to reach feeding grounds.
Environmental fluctuations strongly influence the spawning time, survival rates, egg and larval life history, the larval growth, development and dispersion process, and the transition from a pelagic to a benthic lifestyle [33]. For understanding the potential implications that (environmentally and thus CC-influenced) larval growth and development have for Solea spp. settlement and recruitment, we apply the species-specific DEB models to study the expected effects under future CC scenarios. Both species have three distinct life stages that characterize their development: a post-hatch pelagic larval phase, a juvenile benthic phase, and an adult benthic phase, so we decided to focus on two distinct life stage transitions: metamorphosis and puberty. We generate seven different temperature and food availability scenarios and study their effect on the growth and development of the early-life stages of these two flatfish species. We focus on larval stages as their sensitivity to CC might be further increased due to their high (mass-specific) metabolic rate, lower energy reserves, and the fact that they are less capable of migrating toward a suitable habitat [14], but we run our simulations until puberty is attained. Our hypothesis is that DEB model simulations will help identify the main effects of CC-induced changes in Solea spp. early-life-history traits when changes in food availability and temperature are forced into the models. Further, the effect of forcing variables should differ between spawning batches, which will have experienced different temperature exposure.

2. Materials and Methods

2.1. DEB Theory and Models

Dynamic Energy Budget (DEB) theory [18,20,21] focuses on energy—and mass—pathways in a (dynamic) environment, i.e., on energy and nutrient acquisition and subsequent utilization by an individual throughout its life cycle. DEB-based models describe the energy budgets of individual organisms, quantifying metabolism and the interaction of processes that constitute it, including feeding, maintenance, development or maturation, growth, reproduction, and aging. Temperature and food availability are often the main forcing variables in the model, and thus the way these environmental factors modify metabolism is considered explicitly. Further, dynamic energy budgets follow the changes of these fluxes during an organism’s complete life cycle, translating the individual’s physiological functions into a reduced number of differential equations and a dozen or so primary parameters. Most parameters are species-specific (see next section on model parameterization), but the rules for energy pathways are universal: energy is assimilated from food into energy reserves and then is mobilized (used) to fuel all metabolic processes, with maintenance having priority over growth and development (maturation) or reproduction. Life stage transitions, such as metamorphosis and puberty, are explicit maturity thresholds. Here, ‘maturity’ is one of the three main model state variables; the other two are ‘energy reserve’ and ‘structure’. Combined, the three state variables completely describe a (juvenile) individual: maturity tracks its development or maturation, and reserve and structure its size. After attaining puberty, an additional state variable, ‘reproductive buffer’, can be used to track the size and model reproduction of adults. For the complete model description, including a list of state variables and corresponding equations, please see Appendix A.

2.2. Accounting for Temperature and Food Availability

Temperature and food availability are the two main forcing variables in the model, effectively translating the environmental conditions into physiological responses of studied individuals. For the conversion between food availability and perceived food (scaled functional response, f), we use the Holling type II functional response:
f = X/XK + X,
where X is the food density and XK is the half-saturation constant for that type of food. Because f is a saturating function, it can vary between 0 when no food is available (food deprivation), and 1 food is abundant (feeding ad libitum).
The correction for the effect of (water) temperature is done using the Arrhenius equation (Equation (1.2) in [20]) and is assumed to be the same for all metabolic rates (Section 1.2 in [20]). The rate at a given temperature T is then obtained as:
k(T) = c(T) k(Tref),
where c(T) is the correction factor for a certain temperature T, and k(Tref) is the rate at the reference temperature (Tref = 293.15 K or 20 °C by convention [20]). Where appropriate, we used an extended 5- parameter temperature correction (pp. 21–22 in [20], [34]) to capture the fact that S. senegalensis might be experiencing suboptimally cold and S. solea suboptimally warm temperatures during simulations. The full temperature correction function is presented in Appendix A and is available as a pre-coded function tempcorr.m in the freely available Matlab package DEBtool_M [35], which was used for parameter estimation.

2.3. Model Parameterization for S. solea and S. senegalensis

The life cycle and ontogeny of both sole species (S. solea and S. senegalensis) can be described by the abj-type model, which includes a metabolic acceleration between birth and metamorphosis and accounts for the metamorphosis of flatfish species in their early life cycle [36,37]. The metabolic metamorphosis is assumed to coincide with the physical metamorphosis (the process of eye migration and head remodeling), with “age and size at metamorphosis” (in the DEB model) corresponding to the properties of the fish at the end of physical metamorphosis, i.e., head remodeling.
We decided to use the same abj-type models for S. solea and S. senegalensis. The models share the same assumptions and model setup, but they differ in species-specific parameter values. For parameterization of the S. solea model, we focused on the study by Mounier et al. [38] and on the latest available Add-my-pet entry (Teal, AmP Solea solea, version 2015/08/28). Both of these versions of the S. solea models were parameterized using the AmP tool setup [39], so we merged the scripts and complemented the data with data on larval growth and development at several temperatures [40,41]. We then re-estimated parameters to obtain a comprehensive parameter set able to describe all data. For S. senegalensis, a DEB model was parameterized using data on life history (age and size at life events) and other data, such as growth curves at a known temperature, from published and unpublished sources. All parameter estimation was performed in Matlab using AmPtool and DEBtool [35,39,42]. The fits of model predictions to data used for model parameterization and all DEB parameter estimates for S. solea and S. senegalensis are presented in Appendix B. The complete code is freely available in the AmP collection by searching for the species’ name.

2.4. Models Validation

We validated the models using independent datasets on larval growth (from birth to metamorphosis) reared under controlled conditions of temperature and food availability (data from [43,44]). Briefly, datasets consist of regular length and dry weight measurements of larvae reared under laboratory conditions using polystyrene microplates with a cover as a housing system. This type of housing allowed for monitoring larvae growth, development, and survival at the individual level during the entire experiment, which lasted for seven (S. solea) or four (S. senegalensis) weeks. The experiment included two factors: rearing temperature (16 °C and 20 °C in S. solea and 17 °C, 20 °C, and 23 °C in S. senegalensis) and feeding regimes (three levels: high, medium, and low food, approximated by different feeding frequencies). For S. solea, the data on larvae length is available for every week of the experiment (7 measurements starting at age 8 dph). In contrast, for dry weight, four measurements are available, three corresponding to the first week and one for the last week. Biometric data on S. senegalensis were collected at three different times before placing the larvae in microplates (12 dph), at intermediate age (22 dph), and at the end of the experiment (32 dph).
For model validation, physiological (species-specific) parameters were fixed for both species, while the dataset-specific scaled food availability (f) was manually adjusted until a satisfactory fit between model predictions and data was obtained. The temperature was explicitly taken into account by correcting all rates to the corresponding temperature (Equation (2)).

2.5. Simulation Setup

All simulations were set in a hypothetical location based on the temperature characteristics of the west coast of France and Portugal, as both species can be found—at different abundances—in this geographical extension [26,45]. To mimic the natural life-history events and study potential sources of inter-individual variability, we simulated early, middle, and late spawning for each fish species: for S. solea, we used early January, early March, and early May, and for S. senegalensis, early May, mid-June, and early August corresponding to the observed spawning periods in this geographic area [45]. Spawning occurs on the continental shelf and is followed by “migration” of the eggs and then larvae towards estuaries which serve as nurseries [3,5,46,47]. We assumed the migration to last 30 days, approximately corresponding to completing 75% of larval development at the time larvae reach the target nurseries (Table S1 and methods in [3]). Larvae were assumed to feed during the migration but with lower efficacy, resulting in a slight reduction of the overall scaled functional response: f during migration was assumed to be 75% of the f experienced by fish outside of the migration period. We assumed that the migration itself does not incur any additional energetic costs.
In all simulations, food availability after the migration was assumed constant, and initial energy in an egg was dependent on the mother’s condition at the time of egg-laying (maternal effect [20]). Simulation duration depended on the species and the simulated scenario, as the simulations lasted until individuals were predicted to reach puberty: for S. solea, this was approximately 2.5 years, and for S. senegalensis, between 7 and 10 years. As points of interest, we made note of the predicted age and size at (i) hatching, (ii) birth (mouth opening), (iii) end of metamorphosis (complete larval development), and (iv) puberty (sexual maturation). We also tracked the growth (in total length) as a function of time, with food and temperature as forcing variables. Results are presented until complete maturation because we assume fish then leave the estuaries and go to the coastal sea to reproduce. All simulations were performed using MATLAB R2017b.
We evaluated the effect of temperature and the effect of food availability. In total, seven scenarios were simulated (Table 1), with three spawning events (early-mid-late) in each: S1 (bXbT) baseline scenario of current temperature conditions and current estimated food availability; S2 (bT−X) and S3(bT+X): scenarios with baseline temperature and a 50% decrease (bT−X) or a 50% increase (bT+X) in food availability (X, see Equation (1)); S4 (+TbX) and S5 (++TbX): scenario with a 1.8 degree (+TbX) and scenario with a 3.7-degree temperature increase (++TbX) from baseline temperature (RCP 4.5 and RCP 8.5 respectively, (Intergovernmental Panel on Climate Change IPCC, 2014), with current food availability; S6(+T−X) and S7(++T−X): scenarios with a 1.8 degree and a 3.7-degree temperature increase, respectively, and a 50% decrease in food availability.

2.6. Temperature

The temperature baseline for our hypothetical location was designed as a sine function with the minimum temperature at Julian day 45 in mid-January, and the maximum temperature at Julian day 227.5, in mid-August. The coastline baseline temperature (Tsea) ranged from 10 °C to 20 °C, based on average temperature ranges in several locations on the west coast of France and Portugal (seatemperature.org). The estuary baseline temperature (Testu) ranged from 10 °C to 24 °C, based on the average minimum and maximum temperatures in the principal estuaries of the English Channel, the Bay of Biscay, and the Portuguese coast, including Seine, Gironde, and Tagus [48,49,50,51,52]. The simplified temperature functions are:
Tsea(t) = 5 sin f0((2π(t − 136.25))/365) + 15
Testu(t) = 7 sin f0((2π(t − 136.25))/365) + 17
To mimic the fact that larvae are spawned on the continental shelf and then are transported towards estuaries, we considered it essential to include a gradual shift from coastal to estuary temperatures. Therefore, we computed a final temperature function based on the two previous sinusoidal functions for the sea and for the estuary, which we used to describe the evolution of temperature as the forcing variable of our simulations. The resulting temperature was determined by elapsed time as a proportion of the total migration duration (tmig = 30 days [3,5,53]): as time progresses, this function gives less weight to sea temperature and more weight to estuary temperature:
T(t) = (1 − dt/tmig) × Tsea(t) + (dt/tmig) × Testu(t)

2.7. Food Availability

For the baseline food conditions, a constant food level equivalent to a functional response of f = 0.85 was selected based on similar values estimated for other species in the wild [54,55,56,57]. The food abundance (X) corresponding to f = 0.85 was calculated using Equation (1). For the scenarios targeted at evaluating the effect of food availability on the growth and development of fish, the decrease by 50% (relative to the baseline) resulted in a functional response of f = 0.74, whereas the increase by 50% resulted in f = 0.9.

3. Results

3.1. Models Parameterization and Validation

The models nicely captured individual traits along the whole life-cycle of both sole species, with model predictions generally fitting the data well (see Appendix B for model fits and Table 2 for a summary of the model parameters used within this study). The relatively low values for the mean relative error (MRE), symmetric mean average error (SMAE), and the symmetric mean squared error (SMSE) in both species parametrization supported the visual inspection of the model fits: S. solea MRE = 0.102, SMAE = 0.109, SMSE = 0.023; S. senegalensis MRE = 0.552, SMAE = 0.136, SMSE = 0.057.
The maturity levels at hatching, birth, and metamorphosis are estimated to be higher for S. solea than for S. senegalensis (Table 2). This can explain the observed faster development and maturation of S. senegalensis when data for the same temperatures are compared [41,58]. However, the maturity level at puberty is estimated to be higher for S. senegalensis, implying that S. solea starts allocating energy toward reproduction sooner.
Other primary parameters imply a somewhat higher assimilation potential ( { p ˙ A m } ) for S. solea, coupled with a higher specific maintenance cost ( [ p ˙ M ] ). With a similar specific cost for structure ([EG]) and allocation fraction to the soma (κ), we assume that the growth rates of the two species would not drastically differ, especially after final parameter values have been attained (post-acceleration). A notable difference is in the energy conductance ( v ˙ ), which starts at a similar value at the larval phase (birth) but undergoes a more drastic acceleration (by a factor sM = 3.34) in S. senegalensis. This, combined with the lower maturity thresholds mentioned earlier, contributes to the faster life cycle of the Senegalese sole and would result in faster growth compared with that of the common sole.
A higher Arrhenius temperature estimated for S. solea could be linked to the fact that parameterization of S. solea included a larger proportion of larval data, compared with S. senegalensis¸a point to which we come back in the discussion. Interestingly, the larval shape coefficient is similar to that for metamorphosized S. senegalensis, implying a negligible change in (metabolically relevant) shape; this could be a computational artifact.

3.2. Model Validation

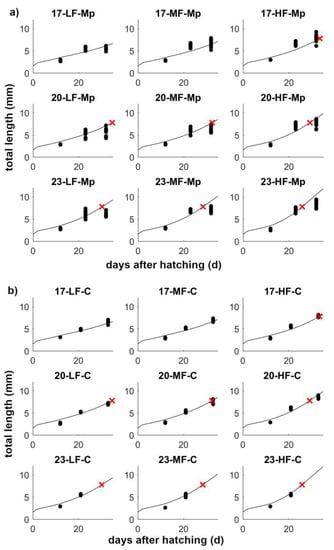

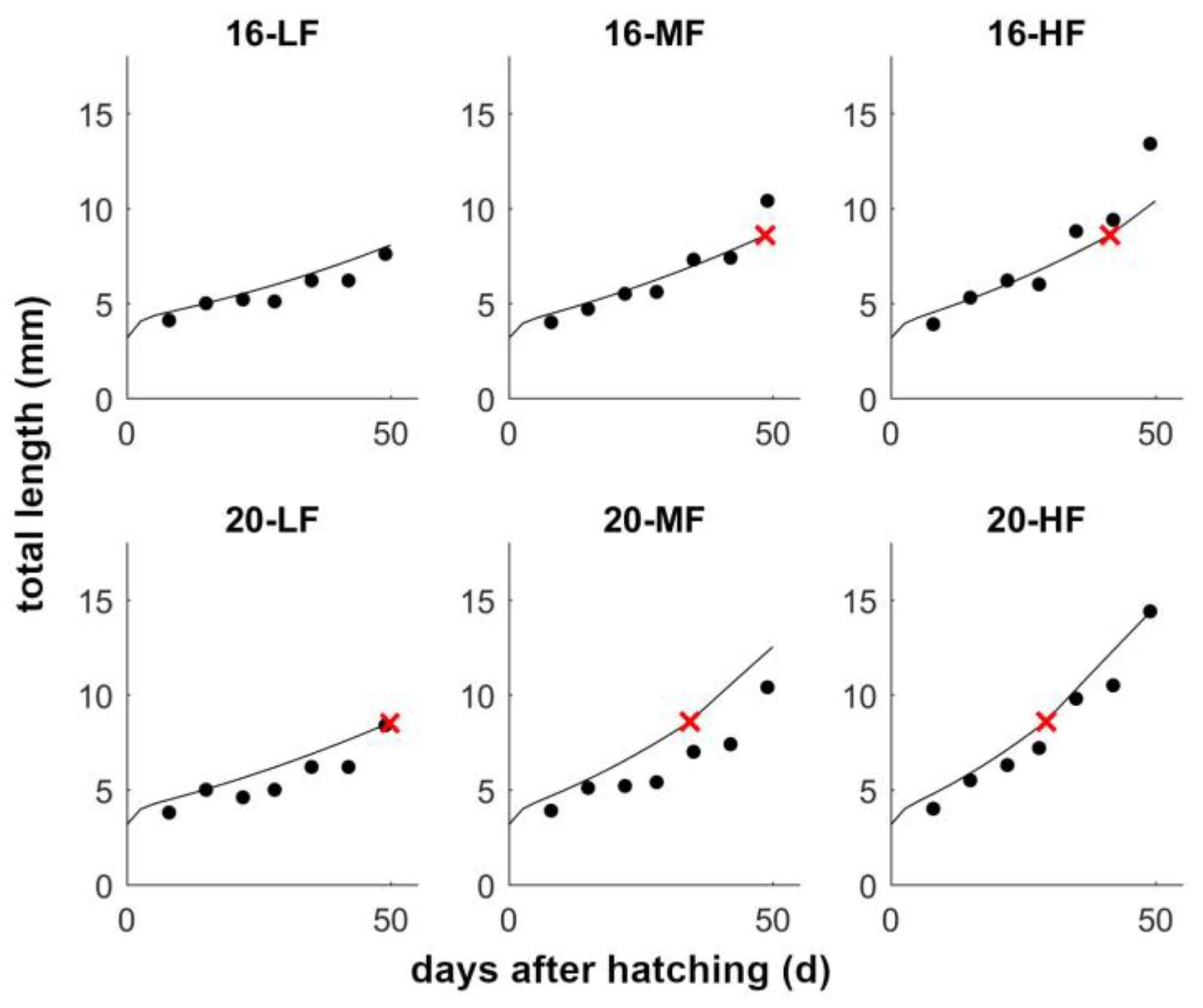

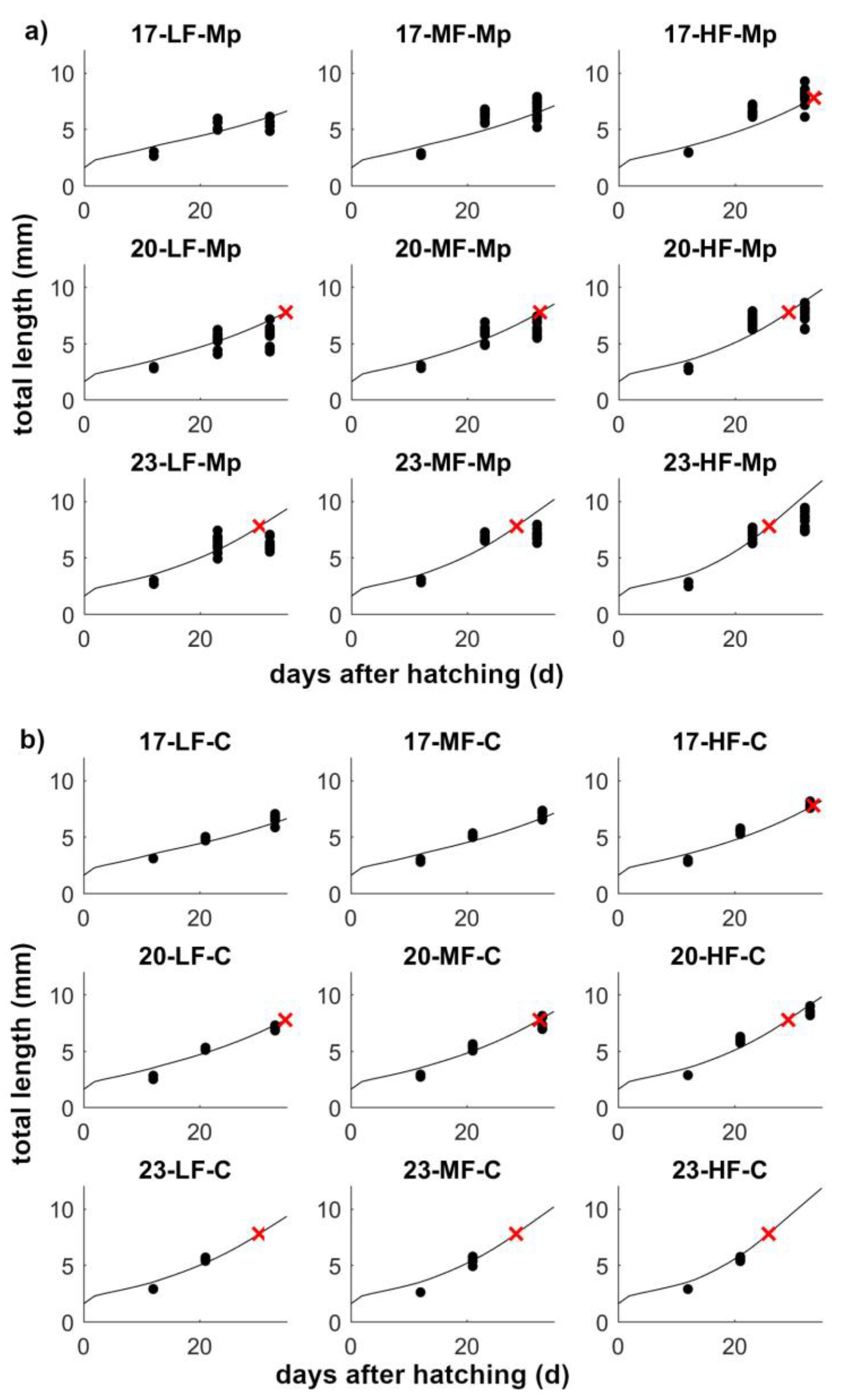

DEB model growth predictions were able to capture the observations (data from [43,44]) while explicitly accounting for experimental temperature and manually adjusting the value of f to best match the observations (Figure 1 and Figure 2). All other parameters were kept fixed at values listed in Table 2. For S. solea, the best fit to the data for the ad libitum treatment was obtained by setting the f parameter to 0.18 (Figure 1). For larvae at MediumFood and LowFood treatments, the f values were 0.15 and 0.10, respectively. For S. senegalensis, the f values were 0.4, 0.45, and 0.55, for larvae that were fed with low, medium and high frequency (Figure 2). We hypothesize these relatively low values implied for f in the discussion.

3.3. Simulation Results

3.3.1. Temperature Increase Is Speeding Up the Development and Thus Reducing the Stage Duration

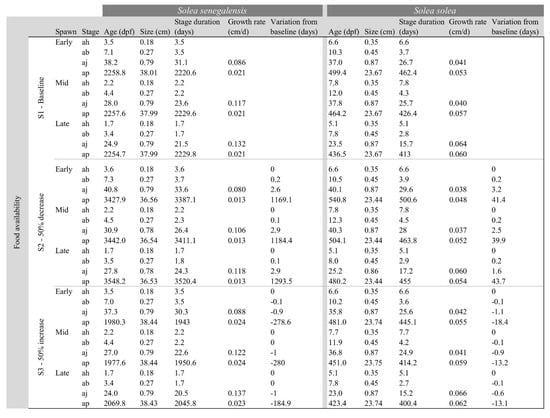

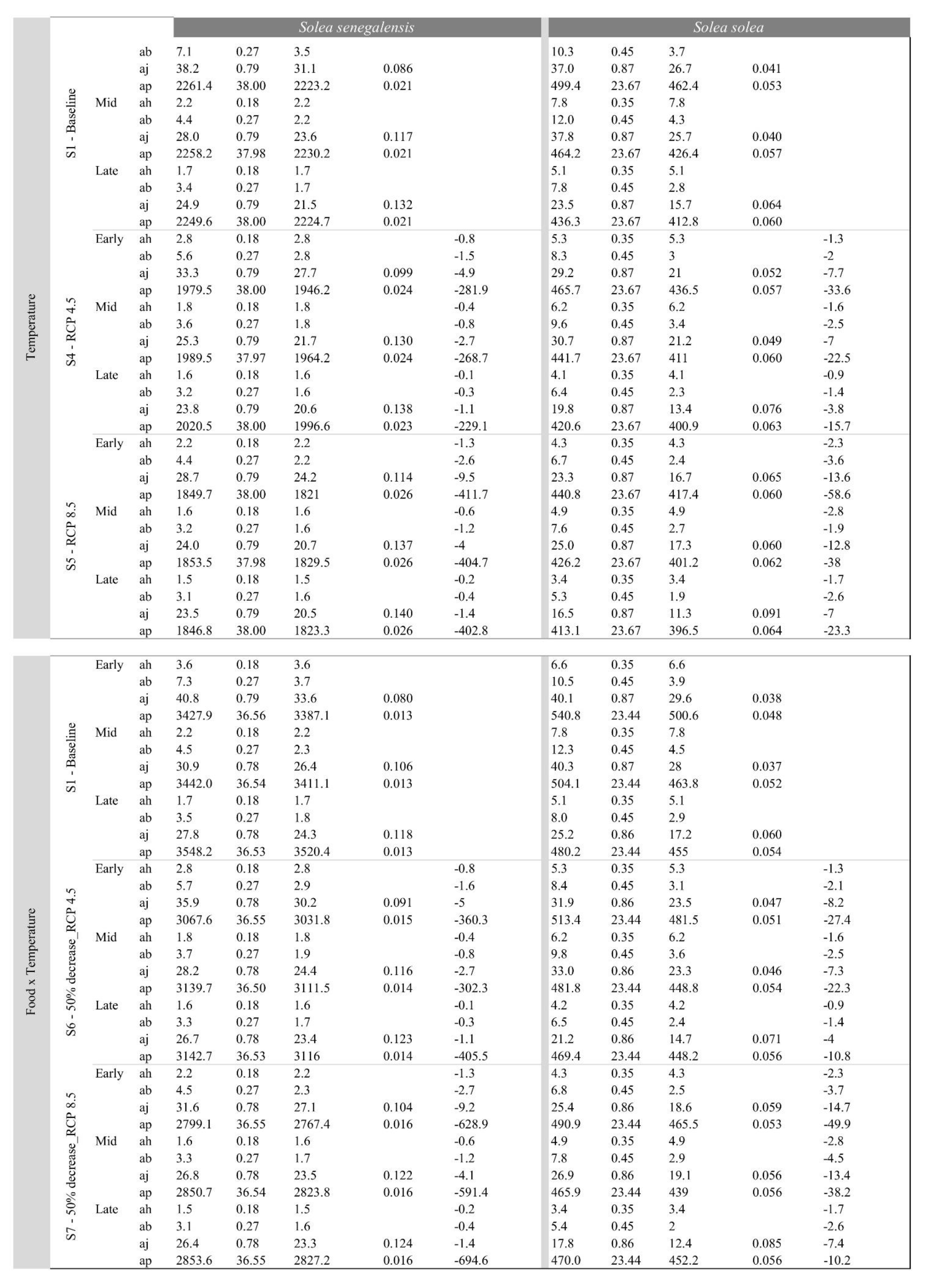

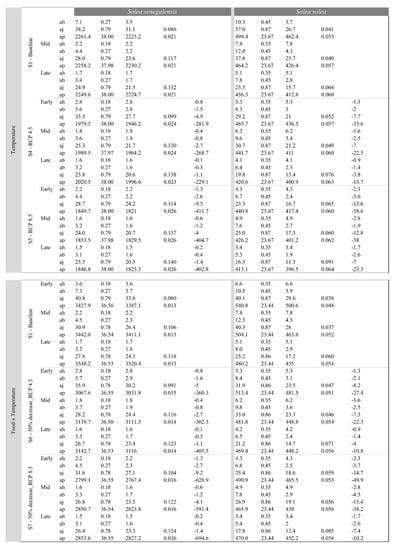

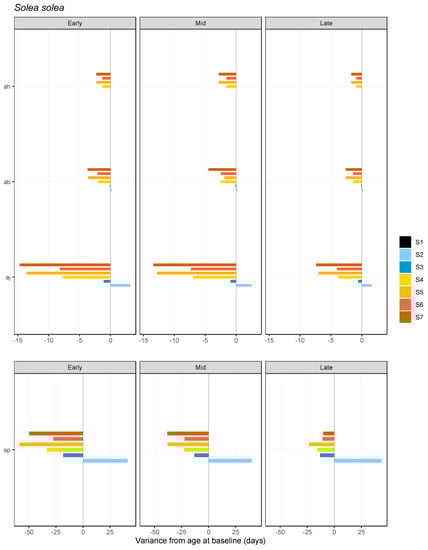

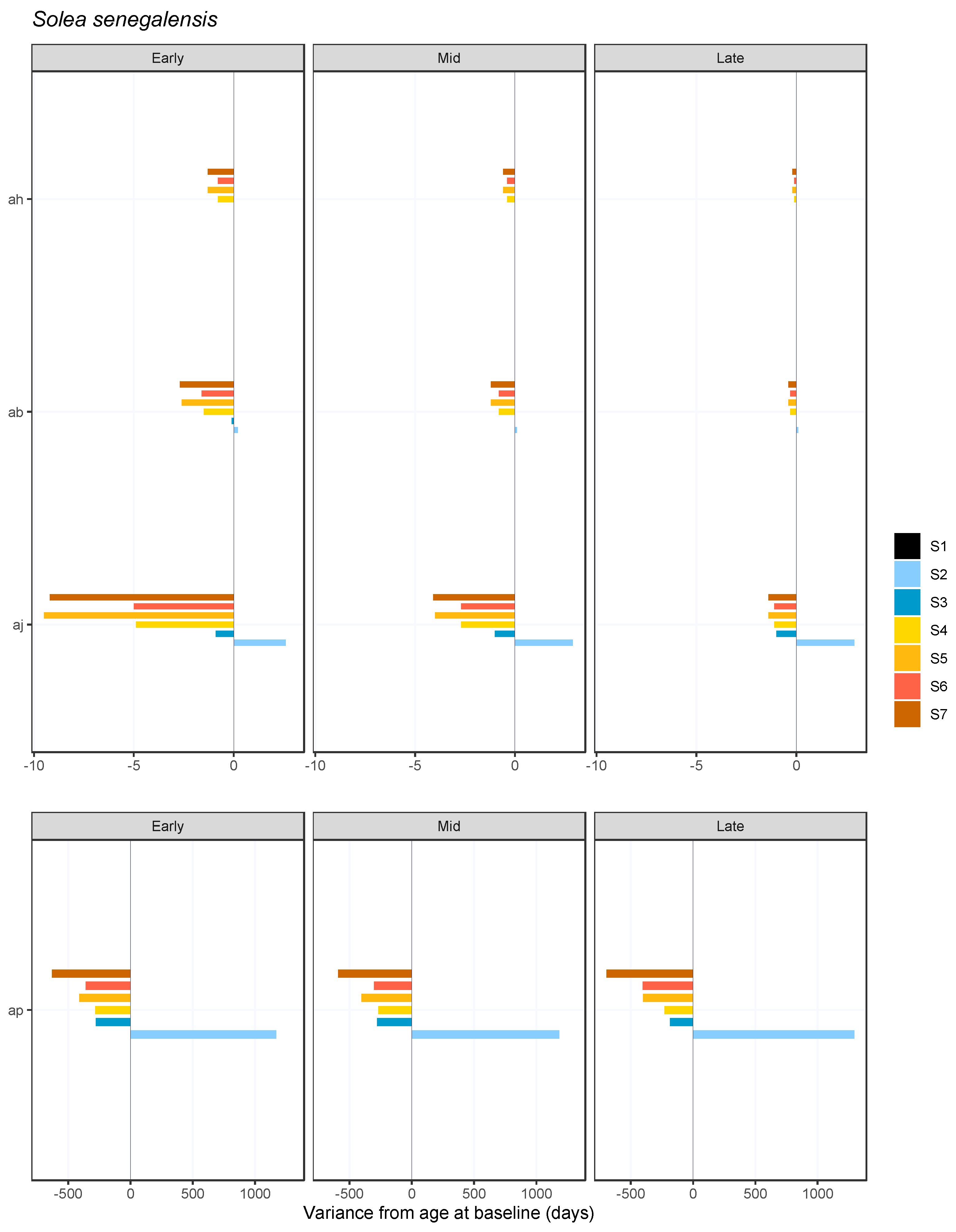

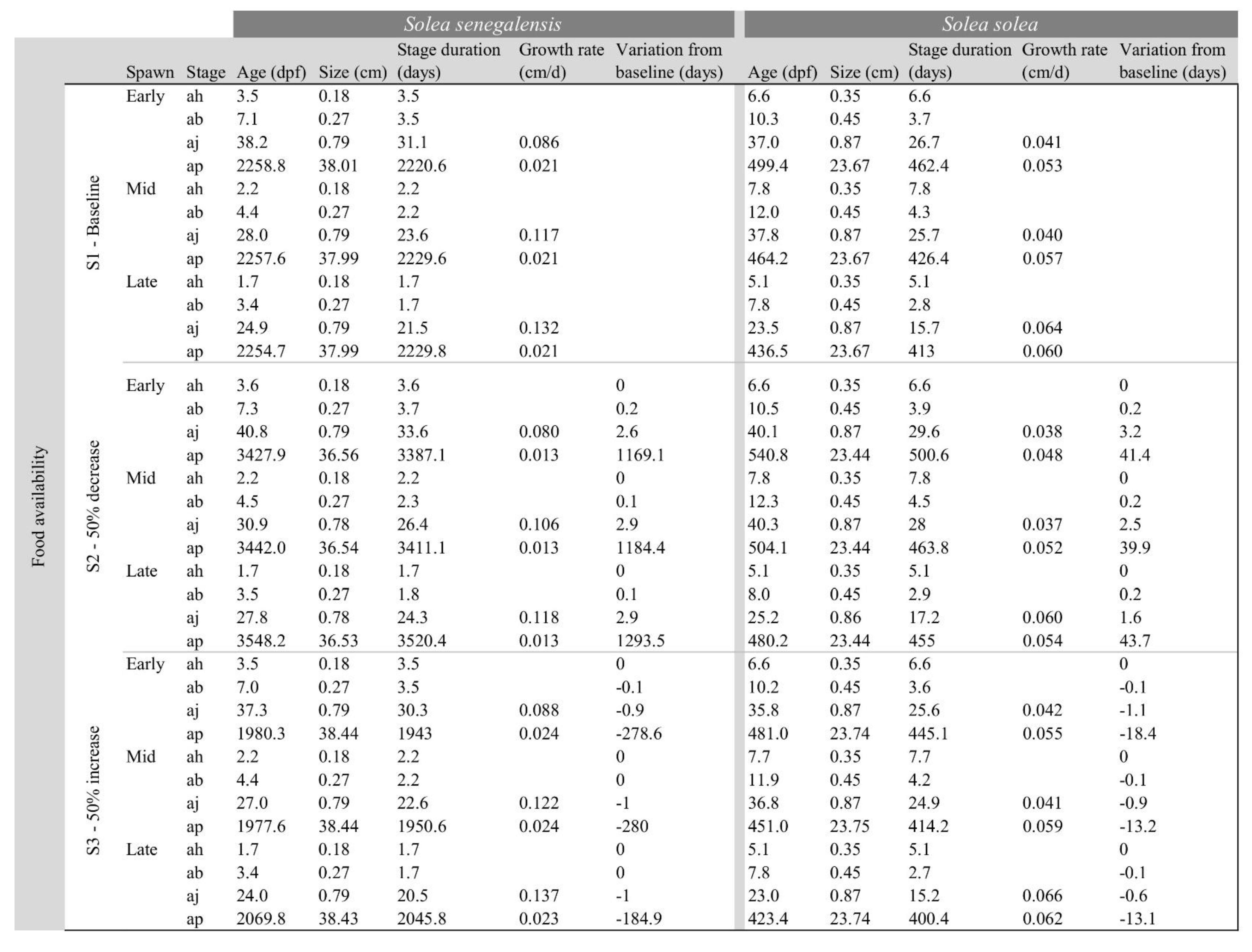

The stage duration, i.e., the time elapsed from one life event to the next one, decreased in both species within the simulation scenarios experiencing higher temperature (S4: +TbX and S5: ++TbX), higher food availability (S3:bT+X), and even lower food availability if combined with a temperature increase (S6:+T−X and S7:++T−X) (Figure 3 and Figure 4).
For S. solea, the S5 (++TbX) and S7 (++T−X) scenarios hastened development the most, which is especially interesting for S7, where a larger temperature increase compensated for a 50% decrease in food availability compared with S6 (+T−X). Early spawned individuals (i.e., on 1 January) in scenario S7 exhibited a more pronounced difference for age at metamorphosis (aj, Figure 3) than those spawned mid and later in the year. Compared with the baseline scenario S1, a complete metamorphosis occurred 14.7 days earlier for early-spawned individuals and 13.4 and 7.4 days faster for those spawned mid and later on the year, respectively (Figure A5 in Appendix C). Similarly, the time to complete puberty shortened the most in the S5 and S7 scenarios, with a maximum of 58.6 days difference between early-spawned larvae and baseline scenario ones in S5 individuals.
The differences in the stage duration until complete metamorphosis were less marked for S. senegalensis, which showed a maximum of 9.5 days difference between baseline and the S5 (++TbX) scenario for the early-spawned individuals, while the difference was less than a day and a half in late-spawned individuals (Figure 4, top).
Regarding age at puberty, late-spawned soles were generally a bit faster than mid and early-spawned fish in reaching puberty. The highest difference from baseline was obtained for S. senegalensis individuals issued from the last spawning event of the year (day 210, 1 August) and under the S7 (++T−X) scenario, where it would take up to 694 days less for individuals to reach puberty than individuals from its corresponding baseline scenario.
Changes in food availability and temperature impacted, to a lesser extent, the age at hatching and age at birth. In both species, a slight reduction in the age at birth was observed, notably for the scenarios involving an increase in temperature. In S. senegalensis, changes in the age of birth—the age at which exogenous feeding starts—were more evident for early-spawned individuals but always lower than 2.7 days, which was the maximum difference recorded for S7 (++T−X) scenario (early spawns). In S. solea, the highest time variance for age at birth was obtained in S7 individuals from the mid-spawn, which started exogenous feeding 4.5 days earlier than baseline individuals. The food availability did not alter the age at hatching or birth, which at this period are processes regulated by the amount of energy available in the egg yolk and yolk sac.

3.3.2. Food Availability Reduction Is Delaying Development and Thus Increasing the Stage Duration

For both species, age at metamorphosis and puberty were consistently higher in larvae from the S2 scenario (bT−X, Table 1), where food availability was reduced by 50% compared with the baseline and temperature was unaltered (S1: bTbX) (Figure 3 and Figure 4). The increase in time for completing metamorphosis varied among spawning events, although, for both species, it was always less than three days compared with the baseline scenario (Figure 3 and Figure 4). The age at puberty was notably delayed for both species: S. solea juveniles took, on average, 42 more days (compared with S1 juveniles) to complete maturation (Figure 3, bottom panel), whereas S. senegalensis juveniles needed over 1000 additional days to complete maturation (Figure 4, bottom, see also Table S1).

3.3.3. Larval and Juvenile Growth Rates

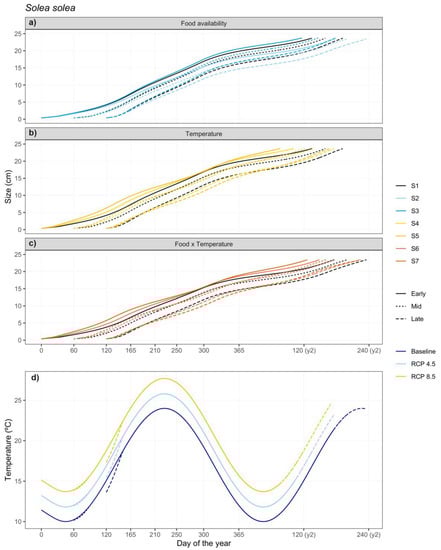

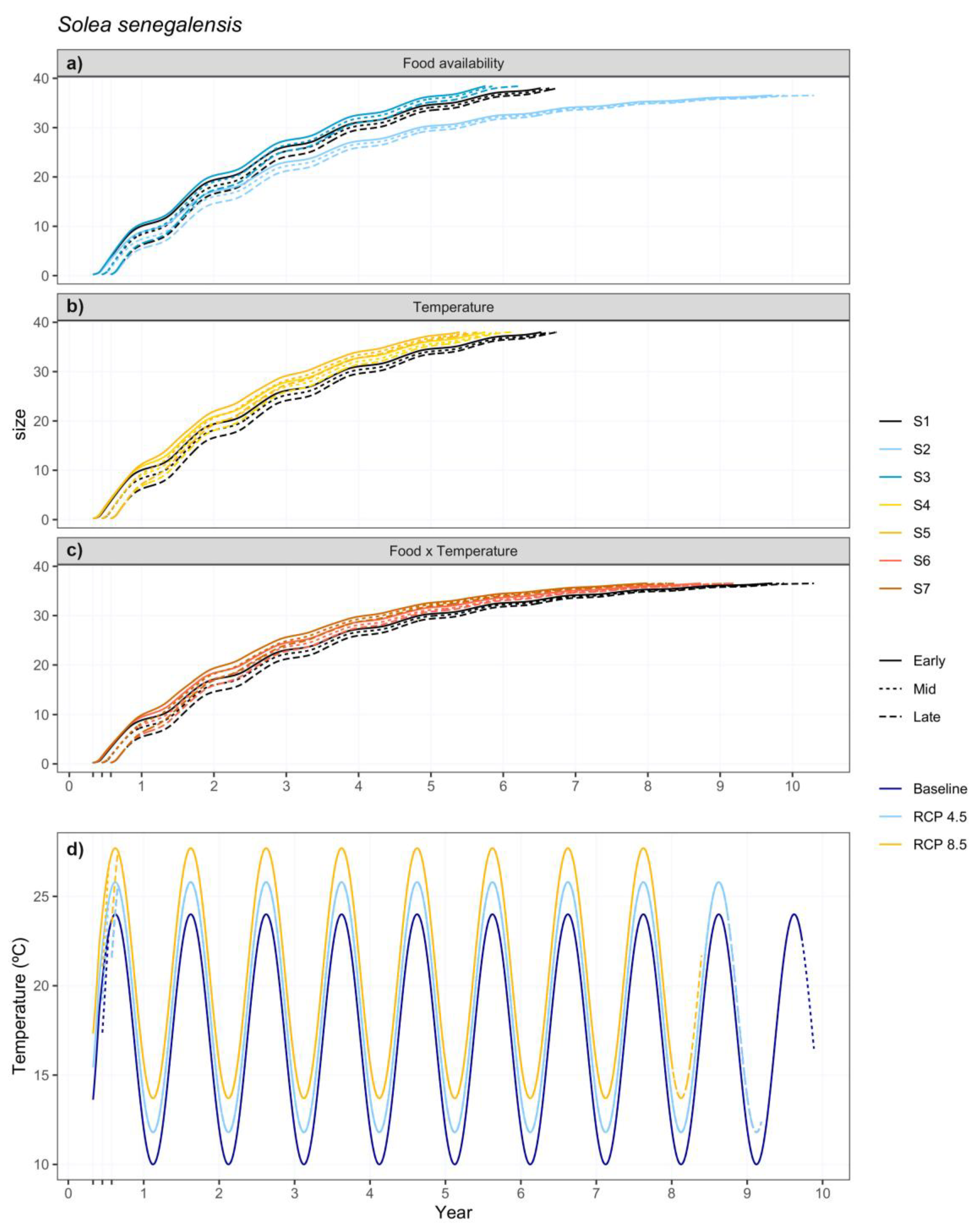

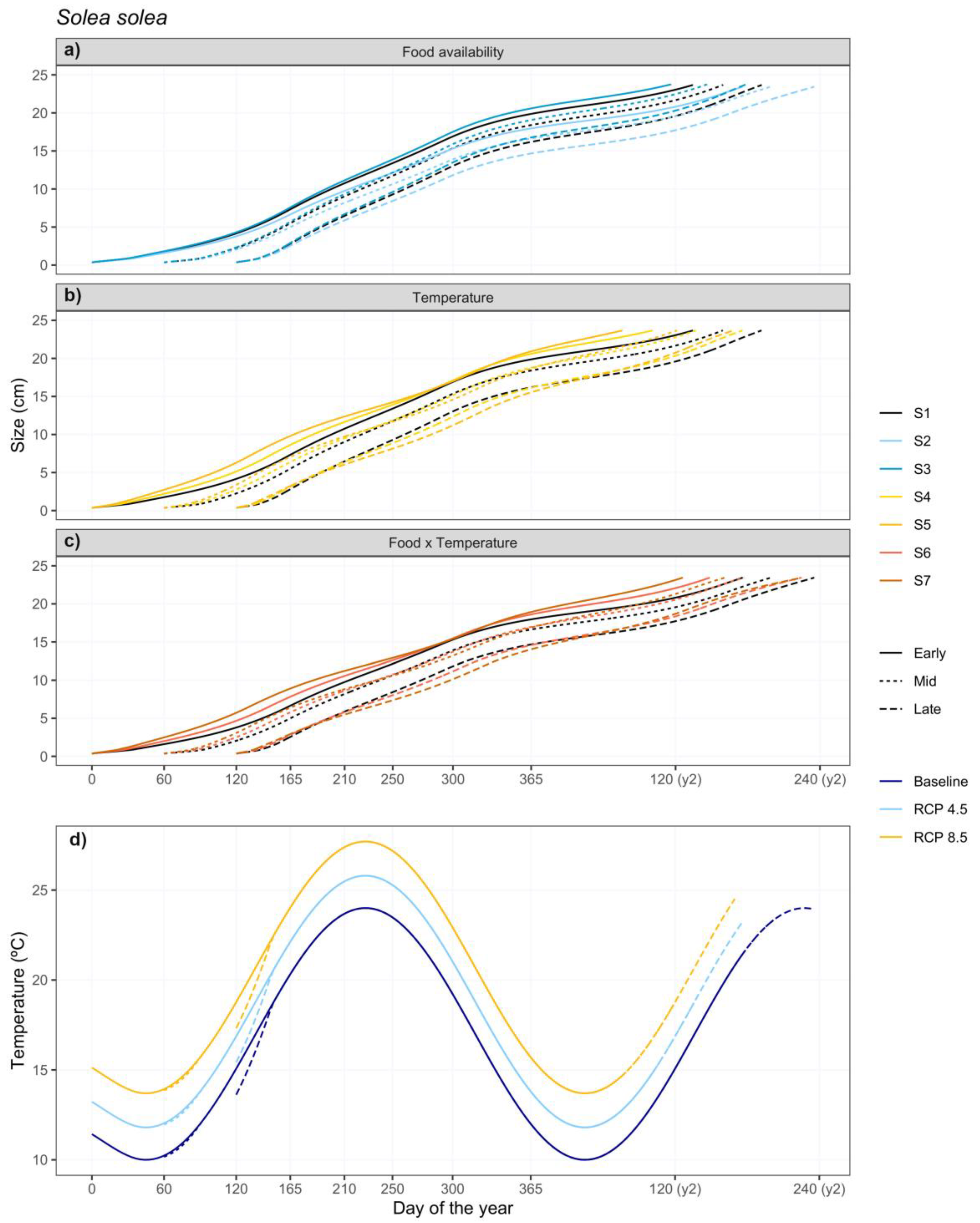

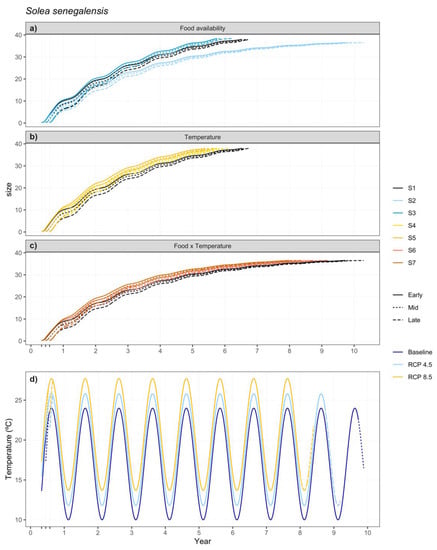

As a broad pattern, a rise in temperature increased growth rates in both species, and a decrease in food availability had the opposite effect, which was offset or even fully compensated when the two factors acted together (S6: +T−X, S7:++T−X). The effect depended on the time of spawning and the species (Figure 5 and Figure 6, see also Figure A6 in Appendix C): for example, a temperature increase affected larval phases of early S. solea spawners more than late S. solea spawners (Figure 5b,c), but the decrease in food availability hit late spawners of this species harder (Figure 5a). Late spawners of S. senegalensis also exhibited higher sensitivity to decreased food availability than earlier batches (Figure 6a), but the responses to temperature increase were similar between batches, with relatively little effect within the first few months (Figure 6b,c).

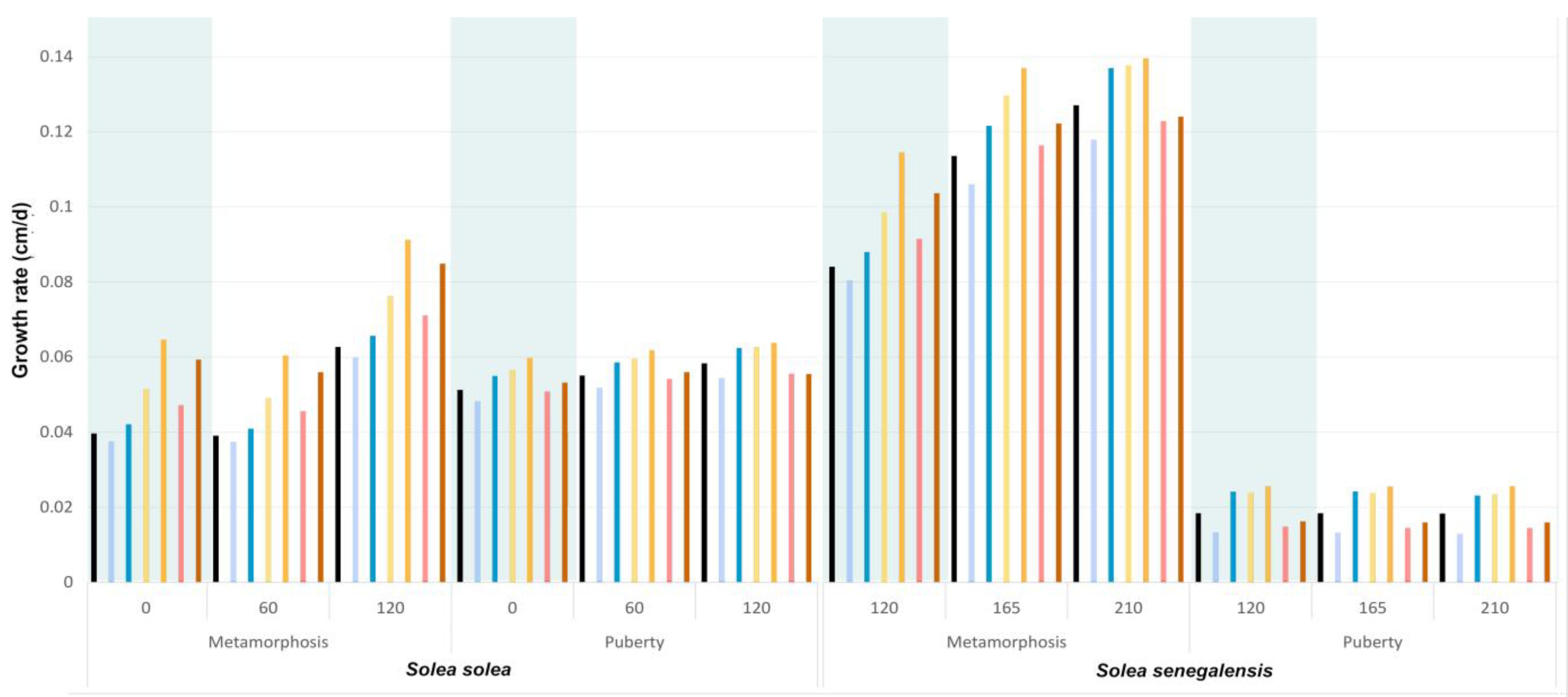

Predicted growth rates (in length) varied according to the developmental stage (Figure A5 and Figure A6), especially for S. senegalensis individuals. The growth rates in length declined with fish age and were highest for larvae stages—i.e., from birth to metamorphosis—ranging from 0.080–0.140 cm d−1 in S. senegalensis and 0.037–0.091 cm d−1 in S. solea larvae. For both species, the lowest growth rates were observed in individuals under the S2 (bT−X) scenario (0.08 and 0.037 cm d−1, for early-spawned S. senegalensis and mid-spawned S. solea, respectively). In contrast, the maximum growth rate corresponded to late-spawned S. senegalensis (0.140 cm d−1) and S. solea (0.091 cm d−1) larvae under the S5 (++T-bX) scenario.
When comparing growth rates between the two species, S. senegalensis larvae showed, for all simulated scenarios, higher growth rates than S. solea larvae, which has a more homogeneous growth rate between larvae and juveniles, and as such, a less drastic difference in developmental stage growth rate than the Senegalese sole (Figure S1). Interestingly, the highest temperature increase (scenarios S5: ++T-bX and S7: ++T−X) affected, overall, the late spawners of both species more severely than earlier spawners, but in the opposite direction: while S. solea individuals grew at times slower than their temp-baseline counterparts, S. senegalensis individuals grew faster (Figure 5b,c and Figure 6b,c).

4. Discussion

Studying the impact of CC-induced changes in food availability and temperature on the ontogenetic development of fish larvae seems necessary in the context of global change and biodiversity loss, coupled with the ongoing changes the planktonic communities have faced for several decades [7]. Here, we used DEB models for forecasting and comparing fish early life-history traits of two commercially relevant species (S. solea and S. senegalensis) under seven distinct future CC scenarios. The direct comparison (simulating identical environmental conditions to forecast the responses of two distinct species) was possible after independently parameterizing and validating models with species-specific parameter sets. We will discuss (i) the assumptions and choices made while parameterizing models and designing the study, (ii) the main results of model parameterization, validation, and simulations, (iii) the implications of our results in the wider context of climate change, and (iv) further research.

4.1. Study Design—Assumptions and Choices

We have made several explicit assumptions and choices while designing the study. The process was motivated by literature and experience, but as the choices determine the scope and applicability of the results, we feel it is useful to discuss each of the major assumptions and choices.
All individuals are physiologically equal. To simplify the study design and results interpretation, all individuals of the same species are assumed to be physiologically equal, i.e., they are described by the same set of (species-specific) parameters [20]. Clearly, this is not the case in nature, where much of the inter-individual variability stems precisely from physiological differences. When sufficient information is available and inter-individual variability is in focus, variability can be integrated into DEB models via one or more physiological parameters (e.g., [59,60]). However, our choice was motivated by the overall aim to focus on the role of the two environmental factors (temperature and food availability) in shaping observable responses in growth and maturation rates while excluding differences resulting from other factors (e.g., as was done in [38,54,55]).
Characterizing the hypothetical location. For the baseline conditions (temperature and food availability), we used a temperature year function representing a hypothetical location from the west coast of France and Portugal and have coupled this temperature function with constant food availability, represented by a scaled functional response of f = 0.85 for both species, which decreases during migration. The choice was, again, motivated by study focus and supporting literature. Even though the location temperature characteristics favor the growth and maturation of S. solea over S. senegalensis—a more subtropical species—the represented location does support both species [61,62,63] and might become more accommodating for S. senegalensis in the context of CC-induced temperature increase. Constant food availability—as applied in similar studies [38,54,57,64]—was preferred over some function of food availability because proxies generally used to construct such functions (e.g., chlorophyll a) vary irregularly between different years and micro-locations, as does water turbidity, hindering the design of a representative food function. However, the methods and models applied here could be used for a particular area, for which specific temperature and food density functions could be implemented, as was done in, e.g., [55,56].
Mother’s nutritional status determines the egg size. Egg size and the availability of energy from the yolk are conditioned to the mother’s status (i.e., see the maternal effect in [20,65]. Without information on the mother’s status and in the context of constant food availability in simulated environments, eggs of a species were assumed to be of the same size throughout the simulation. Devauchelle et al. [66], however, reported smaller S. solea eggs with increasing temperature, implying that these eggs have a lower energy content. Because higher temperatures are usually associated with being later in the spawning season, this could imply energy limitations experienced by mothers later in the spawning season, which could be included in the model. Under the current setup, the models’ predictions fail to illustrate the natural variability in individuals hatching with different energetic contents. However, should a need arise, it is possible to include variability in egg size—via the maternal effect and/or stochastic variability [59]—where the initial energy in an egg is adjusted to the temperature and/or spawning time and corresponds to a lower f (energy limitation) experienced by the mother, followed by a higher f after settlement into estuaries, i.e., nutrient-rich environments.
Migration as a passive journey. We modeled the larval migration as passive transport lasting 30 days. During this period, we assumed larvae have a 25% lower f compared with that experienced by fish outside the migration period. In addition, larvae were gradually exposed to the temperature of the estuary as opposed to that of the sea. The duration of the migration period was assumed to be dependent on abiotic factors only (mainly sea currents) and therefore was the same for both studied species. The assumptions for the ‘migration’ were motivated by the literature suggesting mostly passive drift [3,5] and larvae reaching estuaries almost or completely metamorphosed [3,5,46,47]. In reality, the migration duration—as well as recruitment success in the estuaries—depends on multiple biotic and abiotic factors; and includes, to an extent, active swimming by larvae, which not only differs between individuals of different species but also between individuals of the same species, showing temporal and spatial variation (e.g., [3,5]). Duration of larval development—happening in parallel with the migration—is, in turn, also highly dependent on biotic and abiotic factors and can have a range of values up to 40 days (Table S1 in [3,53]; see also our results). Setting the migration duration as fixed 30 days in our simulations is a reasonable and approximative choice but can be modified if more precision is needed.
Food and temperature as the main drivers of CC-induced effects. In this work, we simulated the effects of food and temperature—two important environmental drivers—in sole metamorphosis success separately, but in nature, they are unlikely to operate independently. Furthermore, each (or both) of these factors might be further combined with the effects of ocean acidification and/or hypoxia [67]. Even though some preliminary work has been carried out on the effects of acidification on sole development [64], we have decided to focus on the better-documented and much better-studied effects of temperature and food availability. To elucidate better the effects of food availability, we simulated a theoretical increase in food availability (scenario S3), but research indicates that a lower scaled functional response f is much more likely than a higher one, as shown for anchovy with f values estimated mostly below 0.8 [55,56], so more focus is given to interpreting the food reduction scenarios. In addition to exploring the effects of food and temperature (scenarios S1–S5) separately, the two simulated scenarios combining the effects of temperature and food (S6: +T−X and S7:++T−X) capture situations where CC-induced temperature increase results in energy-depleted oceans, which seems quite likely [7].
Parametrization of the model using aquaculture data. Finally, a minor but valid point is that a lot of the data used for model parameterization (see Appendix B) is obtained from aquaculture, whereas the simulations focus on wild populations. Generally, individuals reared within aquaculture facilities are well fed and raised at higher temperatures, which enhances growth, and as a result, aquaculture soles grow and mature faster than wild individuals. Aquaculture of the Senegalese sole has managed to make fish reach puberty within 2–2.5 years when the individuals reach an average weight of 700–1000 g, while in the wild, the transition from juvenile to adult can take between 4 to 7 years, depending on the location [30]. Regardless of using aquaculture data for the model parameterization, our models were able to reproduce these characteristics with an initial spawning between 5 and 7 years of age (Figure 6b). In fact, one might argue that it is precisely because aquaculture data were available, with monitored and recorded temperature and feeding conditions—which could then explicitly be taken into account—that we were able to parameterize the model for both species with such success (see Appendix B for model fit to data from both aquaculture and the wild).

4.2. Implications of the Main Results

4.2.1. Model Parameterization and Validation

Generally, parameter sets for both species produce good fits to data used for model parameterization (Appendix B) as well as good fits to validation data (Figure 1 and Figure 2). As expected for closely related species belonging to the same genus, parameter values are similar between the two species, with some exceptions (see Results, Table 2), which might have been influenced by the availability of data used for model parameterization. Namely, the relative abundance of larval data used for S. solea parameterization might have influenced a somewhat higher value for the parameter TA, implying a higher temperature sensitivity. We discuss this in more detail later in the discussion.
Model validation was carried out on experimental laboratory data. Finding relevant data for validation is often a challenge, particularly when evaluating the effects of multiple variables. Here, the experimental data imply a substantial difference between the expected and estimated food availability (f): while the experimental protocols aimed for ad libitum food (analogous to f = 1), estimates for high food treatments were much lower for both species (f ranging from 0.10 to 0.45). The relatively low estimates for f might result from insufficiently nutritious food items provided under an ad libitum feeding regime —either due to quantity or quality (variety) of food— as suggested for S. solea by Mounier et al. [38] and partially addressed for S. senegalensis by Sardi et al. [44], or due to inappropriate (too small) rearing containers. Feed not matching the realistic needs of commercial fish has already been demonstrated for another well-studied species (bluefin tuna [68]).

4.2.2. Larval and Juvenile Growth Are Affected by Temperature and Food Availability

As a general pattern, growth rates were positively affected by an increase in both temperature and food availability (Figure A6), and ultimate size (implied by the growth curve) was affected by food availability (Figure 5 and Figure 6). These results are in line with simulations of similar type [38,54,57] and have much to do with the model setup, but also do reflect what we can observe in nature.
Growth retardation over colder months (winter) was much more evident for S. senegalensis, the species for which simulations (lasting until puberty was attained) also lasted substantially longer: up to 10 years, compared with those for S. solea, lasting up to 2.5 years. S. senegalensis also had a more pronounced positive response to the more drastic temperature increase (+3.7 °C), whereas juveniles of S. solea that were spawned late even exhibited a negative response compared with the baseline (see Figure 5b). The patterns can most likely be explained by the different ecology of these species—S. senegalensis generally prefers warmer waters (but see [69])—which was accounted for in the model in the form of critical high and low temperatures (Table 2). Research shows that raising larvae at higher temperatures accelerates their growth rate (e.g., [70]), but the ultimate size decreases with increasing temperature—also known as the temperature-size rule (TSR [71]). Consequently, at higher temperatures, individuals do not necessarily attain their max size, resulting in smaller fish body sizes [72]. The reason may be directly related to the feeding rate, which also increases with temperature (i.e., food supplies will likely become limited at higher temperatures, reducing the ultimate size [20]), or to oxygen limitation, i.e., oxygen availability as the critical factor limiting growth becomes especially relevant at higher temperatures [73,74,75]. Ultimate size (of adults) could be relevant for recruitment: larger body size is (with high variability) positively correlated to fecundity [76,77], which, in turn, has been linked to higher recruitment variability [78]. However, the mechanisms behind the TSR in ectotherms are still an issue of debate in the scientific community [79] and are out of the scope of this study.
Size has been hypothesized to alter survivorship in several ways. Predation and “the bigger and faster relationship” depend on individuals’ size; as such, faster growth and larger body size are assumed to increase the survival probability of fish (but see [80,81]). In flatfish, the size at settlement—which has also been identified as a proxy for juveniles’ survival—is also influenced by the pelagic larvae duration (PLD) [53], which is, in turn, affected by the same abiotic factors (see next section). Larger sizes at settlement may offer some survival advantages, but small individuals settling in warmer conditions may grow faster after settlement and quickly reach equivalent sizes to fish settling in cooler conditions [82]. When studying the size composition of fish stock at any given time, it is important to keep in mind that the observed size can be a result of many complex interactions, as shown by our simulations. Even while assuming all individuals of the same species are physiologically identical and thus excluding inter-individual variability, our simulations predict that, for example, in January of the second year, the hypothetical nursing grounds will contain S. solea juveniles ranging from 15–20 cm total length, and S. senegalensis juveniles ranging from 5–10 cm total length. The size range, in our case, is a result of (i) age: S. solea individuals are between 8 and 12 months old, and S. senegalensis juveniles are between 5 and 8 months old; (ii) temperature: all of the S. solea individuals experienced peak high temperatures of the summer (June–August), whereas some S. senegalensis were spawned at the end of the warm season and consequently experienced only several months of winter temperatures, and (iii) food: some simulations included a higher, and some a lower food availability. In nature, the inter-individual variability will be affected by even more factors.

4.2.3. Developmental Rates Are Affected by Temperature and Food Availability

The simulation results demonstrate that both temperature and food availability affect development rates. A temperature rise reduced the time required for the occurrence of exogenous feeding and metamorphosis in pre-metamorphic larvae. The decrease in food availability, however, had a more pronounced effect on the period required for juveniles to reach puberty, especially for S. senegalensis. When the simulations combined temperature rise with food reduction (S6 and S7), the stage duration was slightly prolonged, indicating that the reduction of energy availability partially counterbalanced the acceleration effect of temperature rise. These results directly affect the population renewal, and they also imply—especially for later batches—more prolonged use of the nursery, where fish are more exposed to anthropogenic pressures, including exposure to pollutants, fishing, and heatwaves.
Metamorphosis is an energy-demanding process; as such, a food reduction simulated in scenario S2 delays the onset of metamorphosis, and larvae reach metamorphosis at an older age. However, the reduction in food availability did not delay the onset of metamorphosis in both species when combined with higher temperatures (S6 and S7). This counterintuitive result might indicate the need to include survival predictions and, more explicitly, model the physiological stress potentially experienced at higher temperatures [69]. Specifically, the survival probability of larvae might decrease if hastened growth (and development) is not coupled with abundant food [80,81], which was not the case in scenarios where a temperature increase was coupled with food reduction (S6, S7). In our results, the lesser effect of changes in food availability—particularly between scenarios S2, S6, and S7—on the early stages of larvae development (hatching and birth = mouth opening), as well as on the age to complete metamorphosis, reflects the influence of running simulations using the same initial reserve energy. Namely, the availability of energy from the yolk was assumed to be the same within the models because all eggs of the same species were assumed to be of the same size. In nature, larvae issued from large eggs with a large yolk sac have a higher energy supply (yolk) when they hatch [83] and thus have a greater chance of surviving than those with a small yolk sac, especially if food is scarce. As a result, individuals’ variability in the energy reserve would potentially result in differences in the stage duration between birth and the end of metamorphosis. From a simulation point of view, this could be solved by comparing larvae growth using different initial reserve energy content values, but detailed information is needed to compile a realistic range of values.

4.3. Context: Phenology, Phenological Adaptations, and Potential Mismatches

Soles are batch spawners, with the timing of spawning induced by temperature: for S. solea, the optimal temperature for spawning ranges from 8 °C to 12 °C, whereas for S. senegalensis, the water temperature should be between 15 °C and 20 °C [45]. We took this into account by simulating three spawning events (early-middle-late) for each species, corresponding to early January, early March, and early May for S. solea and for S. senegalensis early May, mid-June, and early August [45]. We did not evaluate/simulate the effect of temperature on the timing of spawning, but the observed variations in the intensity of the effect did depend on the spawning batch, with the fish spawning the latest being the most affected (Figure 3, Figure 4, Figure 5, Figure 6). For S. solea, the effects were negative for the highest simulated temperature, which reached the thermal tolerance for this species when larvae hatched in May. For S. senegalensis, the simulated temperature rise had a positive effect, but the food limitation drastically prolonged the maturation process. This was especially evident in late spawners who, possibly due to water temperatures decreasing soon after spawning (occurring in August), underwent growth and development retardation as low temperatures reached their thermal tolerance. Indeed, the times until yolk absorption, metamorphosis, and PLD of fish larvae are all negatively correlated with temperature [82]. All temperature rise simulations (S4–S7) advanced the onset and reduced the stage duration of metamorphosis in both species, and because mortality is generally very high during the larval phase, faster growth and shorter PLD at higher temperatures could positively affect larval survivorship [82]. However, should larvae metamorphosize entirely before reaching the estuarine nursery areas, they will be vulnerable to predation in an environment low in prey and will need to spend their energy trying to reach the estuaries, which will probably negatively impact their survival probability, as also suggested in Pepin et al. [84]. In that context, it might be advantageous for both species to shift spawning earlier in the season, to avoid high temperatures (S. solea) or lower temperatures with low food availability (S. senegalensis).
Organisms that are dependent on temperature to stimulate physiological development and larval release—such as S. solea and S. senegalensis—have significantly moved forward in their seasonal cycle in response to temperature [10]. Further, another study demonstrated that globally, spring phenologies of all marine species have advanced by 4.4 ± 1.1 days per decade since the mid–20th century [11]. Phenological adaptations also constitute, for fish, an important mechanism to tackle the changing climate [12]. Indeed, a study that estimated the peak spawning time in seven different subpopulations of sole from 1970–2010 demonstrated that at least four of the seven studied stocks of S. solea showed a significant long-term trend toward earlier spawning at a rate of 1.5 weeks per decade [13].
The impacts of temperature-induced changes in sole phenology are hard to predict and demonstrate. Even though spawning earlier might mitigate a mismatch between metamorphosis and arrival into nurseries, temperature-driven changes in phenology could cause a mismatch between different trophic levels and negatively affect recruitment by directly increasing mortality and extending the metamorphic period. Climate change is causing variations in the peak and seasonality of primary production in the oceans [85], pointing to a reduction of food availability for pelagic larval stages. Although many pelagic organisms are responding to water warming, it is, however, the intensity of the response that varies. The onset of metamorphosis requires larvae to acquire a competent size [53], and if the conditions are not favorable for growth, metamorphosis takes longer and renders larvae vulnerable to predation [82]. This was observed in S2 simulations, which accounted for the highest median duration for metamorphosis in S. solea (30 days) and S. senegalensis (~27 days). The scenario S2 (bT−X) can well represent the phenological adaptation of fish spawning earlier in the season (to experience lower temperatures in the future, akin to current temperatures at spawning) but, due to a phenological mismatch with the (rest of the) planktonic community, experience a lower food availability.

4.4. Further Research

4.4.1. Temperature Tolerance Shifts during Ontogenesis—Parametrization of TA

Changes in thermal tolerance along the life cycle imply that different developmental stages might react differently to temperature fluctuations. A narrow tolerance range suggests that the individual is exposed to small temperature changes, and this, in turn, is usually linked to a relatively high TA value. In DEB models, the Arrhenius temperature parameter (TA) describes how metabolic rates are affected by temperature. The value of the TA is the resulting slope after plotting the log of any metabolic rate against the inverse absolute temperature [20]. The TA is typically low (~6 kK) for species that experience extreme temperature changes, like in the intertidal zone, and higher (~12 kK) for species that experience temperature changes in a narrower range as would be, for instance, pelagic species [20].
One of the challenges we encountered while parametrizing the Solea spp. models was related to the TA parameterization, which seemed to be different for larvae vs. adult individuals. More precisely, data for developmental rates (hatching and birth) and growth in larvae suggest a higher slope of ~10–12 kK, while data describing juvenile and/or adult growth rates result in a slope of ~7000 K. As we could not source sufficiently detailed data on various metabolic rates for larvae, juveniles, and adults, we opted for a constant (average) TA value estimated by DEBtool parameter estimation routines (Table 2), which results in acceptable predictions for both larvae and later life stages (Appendix B). Having said that, we did put a stronger emphasis on larval data (as early life stages are the focus of this study), either by including more data for early life stages during parameter estimation (S. solea) and/or by giving higher ‘weights’ to early life-stage data during parameter estimation (both species). The estimated value of TA is around 8000 K for S. solea and 6500 K for S. senegalensis (Table 2), compared with TA of around 4500 K for S. solea in work by Mounier et al. [38]. As a result, our model predictions for S. solea match better data for early life stages, which is the opposite situation than in work by Mounier et al. [38], who focused on later life stages, while sacrificing the fits on early life stages. For S. senegalensis, the TA value might have been higher if more larval development data had been included, but the only other available dataset [86] did not match other data for the species and was therefore excluded.
In general, it is assumed that TA, like most other parameters, remains constant throughout the ontogeny of an individual and is species-specific [20]. The same holds for other parameters (TAL, TAH, TL, TH) that together define the optimal thermal niche, critical high and low temperature, and physiological responses to temperature shifts. However, evidence suggests that thermal tolerance shifts during the life cycle of fish species [87] and that the optimum temperature for growth decreases with the increasing body size of juveniles and adults [14]—a difference in thermal responses of life stages suggested also by our analysis. Thermal tolerance range might differ between fish larvae and adults due to respiration capacity varying between developmental stages [88]. In that sense, the changes in thermal tolerance during the life cycle correspond to the development of aerobic capacities and cardiorespiratory organs. Specifically, tolerance ranges are hypothesized to widen from embryo to larval and adult stages. During reproduction (spawning stage), tolerance ranges may narrow again due to a net decrease in the aerobic capacity associated with additional energy and, thus, O2 demand for gamete production and biomass [87]. This hypothesis supports the common observation that shows larvae have the highest sensitivity to environmental stressors [82]. It would also explain the differences observed while calibrating the TA parameter using larval or juvenile/adult data. This could be included as a simple model extension, akin to the modification enabling several parameters to change their value throughout ontogeny in the abj-type model, [36,37] also applied here. The thermal response might also be population specific, where (sub)tropical populations tolerate higher temperatures which cause stress in colder-water populations of the same species [69,89]. However, for a meaningful model extension, detailed experiments and data are needed, particularly data on metabolic rates (e.g., development, growth, ingestion, respiration) for all life stages of both species under controlled feeding regimes and several different temperatures. Such data were not available at the time of the study (so constant TA was assumed as a good approximation) but developing life stage- or population-specific temperature responses could be a valuable study direction, especially in the context of climate perturbations, including heat waves.

4.4.2. Survival Calculations Made Explicit

We have focused on energetic pathways and consequences of environmental perturbations (temperature increase, food availability increase or decrease) on the growth and development of sole individuals. This is an appropriate tool for studying fish recruitment, as developmental changes require energy and allocation, and the critical size for switching between life stages can be quantitatively linked to DEB parameters and modeled processes [90]. However, larvae survival modeling simulations should also be considered for forecasting recruitment. DEB (individual) models can easily be coupled to a population model that includes survival, as was done, e.g., for the early life stages of bluefin tuna [91]. As another example based on soles, Van De Wolfshaar and collaborators [92] estimated the number of viable S. solea larvae surviving the phase from the egg until settlement in a nursery by calculating the survival of post-settlement juveniles for a particular set of estuaries, years, and climate scenarios using the length-based mortality rate function. The authors based their calculations on temperature-dependent mortality losses [92]. Because size determines mortality rate and early arrival is associated with low growth rates, early arrivals stay small for a longer period than late arrivals, and post-settlement survival of late arrivals is, therefore, higher than for early arrivals. We believe that by coupling the proposed modeling framework to a larval dispersion model, as in [92,93], we could provide detailed information on recruitment success for specific locations/nursery grounds.

5. Conclusions

Given the fast pace of change in the ocean environment due to climate change and pollution, it is likely that the status of the future soles will not be improved. The rapid development of fish larvae in warmer waters requires highly nutritive and available food, but warmer oceans—due to stratification and a change in predominant plankton communities—might exhibit long and inefficient food webs with poor nutritional quality [7]. This will impact the food availability of mothers, larvae, and juveniles. As a result, we could anticipate two scenarios, one with smaller egg size and another with larger but fewer eggs, larvae from which will again face energy-impoverished environments. These scenarios logically denote a more extended period to reach metamorphosis and, thus, longer PLD and a reduction in survival and recruitment, respectively.
Modeling tools are necessary and practical for predicting the effects of climate change on fish recruitment. The DEB models calibrated and validated here showed potential, particularly by fitting the data very well. When confronting the model predictions to the experimental data used for validation, where feeding frequency is used as a food availability proxy, we noticed that fish were not fed until satiation, suggesting that the feeding regime was potentially insufficient in nutrition and quantity. This result points to the need to adjust and improve experimental larvae-rearing protocols, particularly regarding providing enough energy without compromising the larvae’s health and rearing conditions.
Regarding timing for reaching a developmental stage, the effects of temperature rise seemed to counterbalance the effect of reduced food availability. Our results indicate the critical effect of temperature rise on the phenological cycles of both species, mainly by advancing the onset and the completion of metamorphosis. The growth simulations in both species indicate shorter pelagic stages responding to increased temperatures. However, changes in the PLD, which are a priori beneficial for larvae survival, when accompanied by a potential mismatch between hatching and the zooplankton cycle timing, result in more extended periods for maturation and smaller ultimate size. In that regard, the combined temperature-rise and food-reduction conditions simulated in scenarios 6 and 7 strongly affected the maturation age of S. senegalensis, which was significantly prolonged, notably for the latest batches, and would result in prolonged use of the nursery areas. This result might have important consequences in population renewal as it will take longer for the cohort to reach maturity and spawn new eggs. Additionally, we believe that coupling the proposed modeling framework to a larval dispersion model, like in [93], would provide detailed information on recruitment success for specific locations/nursery grounds.
To get a more holistic (and realistic) conclusion on the subject, it is necessary to include potential temperature-induced damage and mortality in the model, which might change between different life stages and/or populations [69,89]. Without including these potential negative effects, the overall conclusion is that temperature rise reduces the pelagic larvae’ duration, potentially increasing the survival rates of larvae and, thus, recruitment. Additionally, survival should be explicitly included in the models, accounting for physiological temperature tolerance ranges, as well as size and habitat-linked mortality.
Finally, the survival and ontogeny of fish larvae may directly influence the future abundance of adult fish stocks. The latter has been, and still is, the most important reason for studying ichthyoplankton, as most processes determining the recruitment strength and the spatial distribution of fish populations occur during the planktonic stage of fishes, resulting in critical interannual fluctuations in fish stock biomasses. While questions on recruitment success and larvae survival were not our focus and thus remain unanswered, understanding the physiological mechanisms behind temperature increase and food limitation via DEB models provides a powerful tool for studying the role of early-life history traits on population renewal under climate change.

Author Contributions

Conceptualization, A.E.S., N.M. and J.M.M.; methodology, A.E.S., N.M. and J.M.M.; software, N.M. and J.M.M.; validation, A.E.S. and N.M.; formal analysis, A.E.S. and N.M.; investigation, A.E.S., J.M.M. and N.M.; data curation, A.E.S., J.M.M., L.O., M.M. and N.M.; writing—original draft preparation, A.E.S., N.M. and J.M.M.; writing—review and editing, M.-L.B., X.C. and M.M.; visualization, A.E.S. and N.M.; supervision, M.-L.B., X.C., M.M. and N.M.; project administration, A.E.S. All authors have read and agreed to the published version of the manuscript.

Funding

J.M.M. was supported by the Portuguese Foundation for Science and Technology (FCT), project FISHBUDGET—Effects of climate change on marine fish energy budgets (PTDC/BIA-BMA/28630/2017). N.M. was supported by the Croatian Science Foundation (HRZZ), project AqADAPT—Adapting Marine Finfish Aquaculture to a Changing Climate (IP-2018-01-3150).

Institutional Review Board Statement

All procedures for validation data were authorized by the Bioethics and Animal Welfare Committee of IFAPA as also by the Research and High Education French Ministry who evaluated and approved all animal experimentations within the project “Flatfish adaptation to temperature, feeding and pollution stress” led by Marie-Laure Bégout from Ifremer under the number reference APAFIS #38190-202208082103879.

Data Availability Statement

All data needed to evaluate the conclusions in the paper are present in the paper, the Appendices, and/or the publicly available Add-my-Pet collection (http://www.bio.vu.nl/thb/deb/deblab/add_my_pet/species_list.html (accessed on 1 December 2022)). Additional data related to this paper can be requested from the authors.

Acknowledgments

The authors would like to thank Florence Mounier for her helpful comments during the conceptualization and study design. The authors thank all the FISHBUDGET team for S. senegalensis data used in the parameter estimation.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Appendix A.1. Dynamic Energy Budget Model (DEB) Theory and DEB Models

In the Dynamic Energy Budget (DEB) theory [18,20,21], the focus is on energy—and mass—pathways in a (dynamic) environment, i.e., on energy and nutrient acquisition and subsequent utilization by an individual throughout its life cycle. In a DEB model, an individual is most often described and modeled by four state variables—energy reserve (E), structural volume (V), maturity (EH), reproduction buffer (ER)—and their interactions with the environment (mostly characterized by food and temperature) (Table A1). Energy and nutrients are assimilated from ingested food ( p ˙ A ) into reserves, which serve as a buffer in an environment with fluctuating food availability. Then, they are mobilized from reserves ( p ˙ C ) to fuel all biological functions: a constant portion of the energy (kappa, κ) is used for maintenance ( p ˙ M ) and growth ( p ˙ G ) of structural volume; maintenance has priority over growth. The remaining energy (1 − κ) is used for maturity—the cumulative energy invested in development or to become more complex (i.e., developing new organs, installing regulation systems; chapter 2 in [20]). Analogous with priority rules in the kappa-branch, the energy allocation for maturity maintenance ( p ˙ J ) has priority over increasing the maturity level for juveniles ( p ˙ R if E H < E H p ), i.e., over-investing into reproduction for adults ( p ˙ R if E H = E H p ) (Table 1).
Table A1. State variables and main processes of the Dynamic Energy Budget (DEB) abj-model, which includes a change in parameter values between birth and metamorphosis.
Table A1. State variables and main processes of the Dynamic Energy Budget (DEB) abj-model, which includes a change in parameter values between birth and metamorphosis.
State VariableSymbol (Units)Dynamics
Reserve energyE (J) d d t E = p A ˙ p C ˙
Structural body volumeV (cm3) d d t V = p G ˙ [ E G ]
Energy invested into maturation EH (J) d d t E H = p R ˙ ( E H < E H p )
Energy invested into reproduction ER (J) d d t E R = p R ˙ ( E H = E H p )
ProcessEnergy Flux (J·d−1)
Assimilation: p A ˙ = { p ˙ A m } s M f V 2 / 3 ( E H E H b )
Mobilization: p C ˙ = E [ E G ] V 2 / 3 + p ˙ S [ E G ] V + κ E
Somatic maintenance: p ˙ S = [ p ˙ M ] V
Maturity maintenance: p ˙ J = k ˙ J E H p
Growth: p ˙ G = κ p ˙ C p ˙ S
Maturation/Reproduction: p ˙ R = ( 1 κ ) p ˙ C p ˙ J
A DEB model quantifies the metabolic dynamics of an individual organism during its entire life cycle, mathematically describing the different processes of individual metabolism from the start of its development until its death. In DEB terms, the life cycle of an individual consists of an embryo, a juvenile, and an adult stage; transitions into stages occur when maturity level ( E H ) reaches a certain threshold. Birth (maturity level E H b ) marks a transition from embryo (does not feed or reproduce) to juvenile (feeds but does not invest energy into reproduction). Transitioning into adulthood is termed puberty (maturity level E H p ) and is characterized by a switch in energy allocation from maturation into reproduction. Juveniles and adults assimilate energy from food, whereas embryos depend entirely on their reserve. In the standard (simplest) DEB model, all parameter values are constant from birth until death, but other typified DEB models exist [37]. The abj-typified model, applied here, is a 1-parameter extension of the standard DEB model. The additional parameter is the maturity level at metamorphosis ( E H j ), marking a life event within the juvenile stage, at which all parameters reach their final (constant) value [36]. The parameters affected in the abj-model ( { p ˙ A m } and v ˙ ) are linked to assimilation and mobilization. They are assumed to start at a smaller value at birth and then increase their value, i.e., ‘accelerate’ until metamorphosis. The change in a parameter value is modeled via the acceleration factor sM, which is the ratio of the current length and length at birth. The sM multiplies the initial parameter value (value at birth) and reaches its maximum and final value at the end of metamorphosis.
In total, we follow the soles through five life stages, with transitions between them marked by four corresponding maturity thresholds: hatching (maturity level E H h ) marks the end of the egg stage, birth ( E H b ) marks the start of feeding and metabolic acceleration, metamorphosis ( E H b ) marks the end of metabolic acceleration and of physical metamorphosis, and puberty ( E H p ) marks the end of maturation and start of allocation to reproduction. Note that the main DEB-life stages (embryo, juvenile, adult) are still adhered to. Within the embryo stage (before mouth opening), we have an egg and an early larval stage. Within the juvenile stage, there are a larval stage (post-mouth opening and prior to complete metamorphosis) and a post-larval stage (after metamorphosis). The adult stage follows the juvenile stage after puberty is reached. Isomorphy is assumed prior to birth and post-metamorphosis.
Throughout their life cycle, the soles, like many other species with metabolic acceleration and metamorphosis, change their shape and metabolism. To convert the structural length (L, predicted by the model) into physical length (Lw), we used a gradual change in shape calculated as:
shape _ vector = δ M e + ( L L h ) . / ( L j L h )   ×   ( δ M δ M e ) ;
where δ M e and δ M are shape coefficient of larvae and adults (respectively), Lh structural length at hatching, and Lj structural length at metamorphosis. The formula was adapted from the S. solea AmP entry (2015, by F. Mounier).

Appendix A.2. Effect of Temperature on Rates, Arrhenius Temperature

Water temperature will strongly influence the energy budget and biology of ectothermic organisms such as fish. DEB theory argues that changes in temperature equally affect all metabolic rates (see Section 1.2 in [20]). The correction for the effect of temperature is done using the Arrhenius equation (from Equation (1.2) in [20]) within the optimum thermal niche ( C T ( 1 ) in Table A2), and is extended to a 5-parameter correction for a situation where temperature extremes are more likely ( C T ( 5 ) in Table S1.2, see also [34]). The full temperature correction function is available as a pre-coded function tempcorr.m in the freely available MATLAB package DEBtool_M [35], which was also used for parameter estimation.
Table A2. Temperature correction, coded as DEBtool function tempcorr.m. Parameters are as follows: Tref—reference temperature, TA—Arrhenius temperature, TAL—low Arrhenius temperature, TL—critical low temperature, TAH—high Arrhenius temperature, TH—critical high temperature.
Table A2. Temperature correction, coded as DEBtool function tempcorr.m. Parameters are as follows: Tref—reference temperature, TA—Arrhenius temperature, TAL—low Arrhenius temperature, TL—critical low temperature, TAH—high Arrhenius temperature, TH—critical high temperature.
Temperature CorrectionEquationComments
1-parameter correction C T ( 1 ) = s A = exp ( T A T r e f T A T )   Optimal temperature niche
5-parameter correction C T ( 5 ) = C T ( 1 ) ( s L r a t i o + s H r a t i o ) ,
with
Complete temperature niche (optimal and critical temp)
s L r a t i o = 1 + exp ( T A L T r e f T A L T L ) 1 + exp ( T A L T T A L T L )
and
applied   for   T < T r e f
s H r a t i o = 1 + exp ( T A H T H T A H T r e f ) 1 + exp ( T A H T H T A H T )   applied   for   T > T r e f

Appendix B. Solea spp. Add-My-Pet Model Parameterization

Appendix B.1. Solea Solea

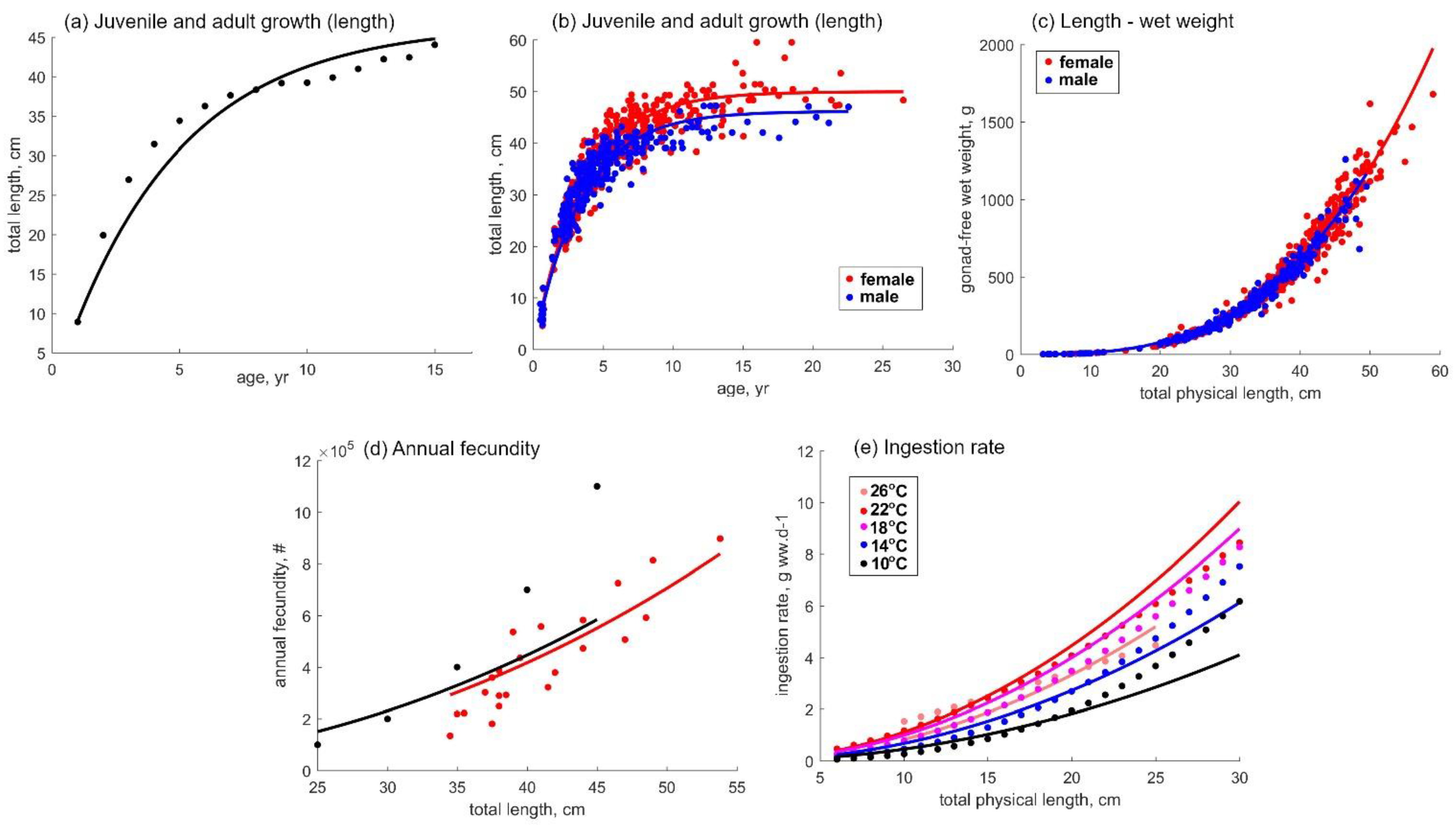

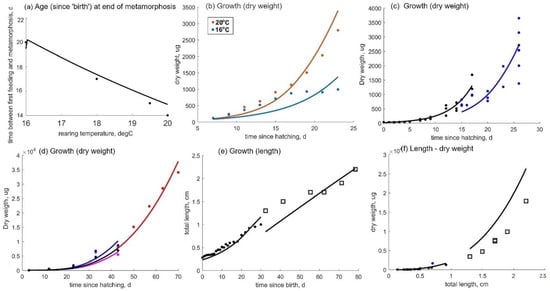

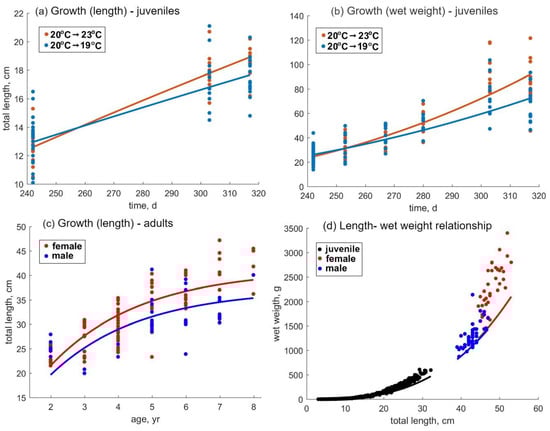

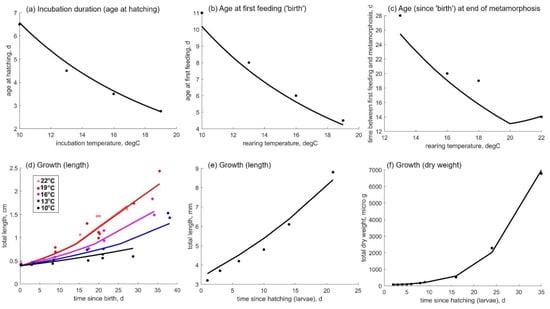

The model for S. solea was parameterized using the data listed in Table A4 and Figure A1 and Figure A2. Model parameters are listed in Table A3. Initial parameter values and the model structure were based on the S. solea entry in the Add-my-Pet database (AmP, Teal, 2015, AmP Solea solea, version 2015/08/28) and the model published by Mounier et al. [38]. We included additional data on larval growth and re-estimated model parameters. COMPLETE = 3.3; MRE = 0.102; SMAE = 0.109; SMSE = 0.024. The parameter set, data, and predictions presented here can be accessed by typing the species name in the collection.
Specific calculat–ons:
% LWw - wet weight calculation from Fonds water content formula
Wd = (LWw(:,1)*del_M).^3 * (1 + f_Deniel * w)* d_V; % g, expected dry weight at time
Kd = 100*Wd./LWw(:,1).^3; % -, Fulton’s dry index condition
dry_content = 40.68 * Kd .^0.364 ./100; % -, dry content
(from Fonds et al. 1989)
EWw = Wd ./dry_content; % g, wet weight at f
Table A3. Model primary parameters for the common sole (Solea solea) that were used for the simulations in the main text. Table lists primary and dataset-specific parameters estimated by DEBtool routines (Add-my-Pet procedure), with the exception of Maximum surface area specific assimilation rate, {pAm}, which is a primary parameter calculated as { p ˙ A m } =   z   [ p ˙ M ] κ L m r e f , where L m r e f = 1   c m. Several parameters (v, {pAm}) in the abj-model applied here increase their value between birth and metamorphosis (see Appendix A), so the final value is provided in brackets. The final parameter value is calculated by multiplying the initial value by sM = 2.7942, calculated at f = 1. Primary parameters for which default values were used are listed in the table footnote.
Table A3. Model primary parameters for the common sole (Solea solea) that were used for the simulations in the main text. Table lists primary and dataset-specific parameters estimated by DEBtool routines (Add-my-Pet procedure), with the exception of Maximum surface area specific assimilation rate, {pAm}, which is a primary parameter calculated as { p ˙ A m } =   z   [ p ˙ M ] κ L m r e f , where L m r e f = 1   c m. Several parameters (v, {pAm}) in the abj-model applied here increase their value between birth and metamorphosis (see Appendix A), so the final value is provided in brackets. The final parameter value is calculated by multiplying the initial value by sM = 2.7942, calculated at f = 1. Primary parameters for which default values were used are listed in the table footnote.
ParameterSymbolValueUnit
Arrhenius temperatureTA7980K
Zoom factor (female) *z7.069-
* Maximum surface area specific assimilation rate (female){pAm}282.195 (788.5219)J/d·cm2;
Zoom factor (male) **zm6.53-
** Maximum surface area specific assimilation rate (male){pAm}m260.6845 (728.4164)J/d·cm2;
Energy conductancev0.06828 (0.1908)cm/d
Allocation fraction to soma (kappa)κ0.782-
Volume specific somatic maintenance[pM]31.22J/d·cm3
Specific cost for structure[EG]5188J/cm3
Maturity at hatchingEHh0.1809J
Maturity at birthEHb0.3417J
Maturity at end of metamorphosisEHj7.49J
Maturity at pubertyEHp1.964 × 105J
Weibull aging acceleration (female)ha3.843 × 10−9d−2
Weibull aging acceleration (male)ham4.5122 × 10−9d−2
Arrhenius temperature for high temperature extremeTAH20,300K
High temperature extremeTH293.2K (20.05 °C)
Shape coefficient for larvaeδMe0.1578-
Shape coefficient post-metamorphosisδM0.199-
Standard parameter values from Kooijman (2010) [20]: Maximum specific searching rate, {Fm} = 6.5 d−1·cm−2; Digestion efficiency of food to reserve, .κX = 0.8; Digestion efficiency of food to faeces, κP = 0.1; Reproduction efficiency, κR = 0.95; Maturity maintenance rate coefficient kJ = 0.002 d−1; Gompertz stress coefficient, sG = 0.0001; Specific density of structure and reserve, dV = dE = 0.2 g/cm3.
Table A4. Life-history traits (‘zero-variate data’) of common sole (S. solea) used for model parameterization, with corresponding sources, model predictions, and relative errors. Life-history traits are grouped into life stages; ‘Birth’ is defined in DEB as ‘onset of feeding’, and thus corresponds with mouth opening of sole larvae. Definitions of age: ‘Age at hatching’ corresponds to incubation duration (from fertilization until hatching); ‘Age at birth’ corresponds to days needed from fertilization until mouth opening, and ‘Age at metamorphosis’ corresponds to time elapsed between birth (mouth opening) and end of metamorphosis. When relevant, temperatures are listed in the last column under Notes. Unless otherwise specified, the scaled functional response f for certain life-history traits matches that for corresponding datasets: e.g., f for larval age and length data in this Table and sourced from [41] is the same as f for larval growth curves from [41] in Figure S2.1. References for sources (in square brackets) are listed in the general Reference list.
Table A4. Life-history traits (‘zero-variate data’) of common sole (S. solea) used for model parameterization, with corresponding sources, model predictions, and relative errors. Life-history traits are grouped into life stages; ‘Birth’ is defined in DEB as ‘onset of feeding’, and thus corresponds with mouth opening of sole larvae. Definitions of age: ‘Age at hatching’ corresponds to incubation duration (from fertilization until hatching); ‘Age at birth’ corresponds to days needed from fertilization until mouth opening, and ‘Age at metamorphosis’ corresponds to time elapsed between birth (mouth opening) and end of metamorphosis. When relevant, temperatures are listed in the last column under Notes. Unless otherwise specified, the scaled functional response f for certain life-history traits matches that for corresponding datasets: e.g., f for larval age and length data in this Table and sourced from [41] is the same as f for larval growth curves from [41] in Figure S2.1. References for sources (in square brackets) are listed in the general Reference list.
Life-History Trait (Unit)DataPredictionRelative Error (%)Note, Source
Hatching
Age (d)4.254.8427.59Incubation at 13 °C; [41]
Length (cm)0.3250.3162.63[41]
Weight, dry (µg)51.935.6931.23Figure 1, age-weight relationship [40]
Birth (mouth opening)
Age (d)87.5066.17Incubation and rearing at 13 °C [41]
Length (cm)0.4250.3918.02[41]
Weight, dry (µg)91.9667.2826.84Figure 1, [40]
Metamorphosis (end)
Age (d)2825.439.19Rearing at 13 °C [41]
Length (cm)10.86513.52[41]
Weight, dry (mg)1.81.9347.45control at 12 °C Figure 1A, in [93], f assumed as in [41]
Puberty
Age, female (yr)2.582.1815.37Average temp 13 °C, number based on smallest spawning females maturing a year earlier [94]
Age, female (yr)32.932.20Average temp 13 °C, 50% of age 3 are mature, temp is North Sea estimate [95]
Age, male (yr)1.941.950.62Average temp assumed 13 °C; age calculated from length [96] via age-length relationship [94]
Length, female (cm)2723.0314.69Number based on smallest spawning females maturing a year earlier [94]
Length, male (cm)2219.869.81[96]
Weight, wet, female (g)173117.632.02length-gonad-free weight relationship for female estimated from raw dataset from [94]: Wwp_soma = 0.0041 × Lp^3.2312’, in accordance with 200 g from [95] (f ~0.6, T = 10 (North sea guestimates)
Weight, wet, male (g)8774.2114.7length-gonad-free weight relationship for male estimated from raw dataset from [94]: Wwpm_soma = 0.004 × Lpm^3.2304’
Ultimate
Lifespan, female (yr)2625.930.24Average temp assumed 13 °C, Table 118, [94] p.383
Lifespan, male (yr)2423.940.26Average temp assumed 13 °C, Table 119, [94] p.384
Length, female (cm)4849.924.0estimate [94] p.387; North Sea specimen rarely above 45 cm [97], but reports of 70 cm specimen exist
Length, male (cm)4246.129.81estimate [94] p.387
Weight, wet, female (g)111011977.89length-gonad-free weight relationship for female estimated from raw dataset from [94] Wwi_soma = 0.0041 × Li^3.2312, Ultimate wet weight in fishbase is 3000 g
Weight, wet, male (g)701929.532.6length-gonad-free weight relationship for male estimated from raw dataset from [94]: Wwi_soma = 0.004 × Li_m^3.2304
Reproduction
Fecundity (eggs/day)3014160146.88At length = 45 cm, average temp 10 °C, [98]
Fecundity (eggs/day)3027192736.33At max length, p.243 length-fecundity relationship, assumed average temp 13 °C [94]
Energy in an egg (J)22.063.05mean of batches with 100% viability from wild fish: 13.3% of dry weight is total lipids (assume 37,500 J·g d−1) and 65.9% is crude proteins (assume 18,000 J·g d−1) => E0 = Wd0 × (0.133 × 37500 + 0.659 × 18000); [66]
Egg weight, dry (µg)1.20.8925.37Wd0; Figure 5 (Page 137) for an egg diameter of 1.4 mm, 1000 eggs = 0.12 g, experimental data with in situ genitors [66]
Ingestion (pseudodata)
Max surf.area specific assimilation rate, {pAm}I (J/d·cm2)800788.71.41Approximated from mean daily food consumption of dry mussel meat as function of total wet weight, length-weight relationship, and energy density of mussel meat; assumed at Tref = 20 °C [99]
Figure A1. Larval development and growth of S. solea. (ac): duration of developmental stages as a function of incubation or rearing temperature; (df): larval growth in total length and dry weight over time. Data sources and corresponding conditions (estimated scaled functional response f, simulated temperature T): Panels a-d: [41] (f = 0.4451, T = 10, 13, 16, 19 °C for panels (a,b), T = 13, 16, 18, and 22 °C for panel (c), and T = 10, 13, 16, 19, 22 °C for panel (d)); Panel (e): [100] (f = 0.305, T = 11.2 °C for incubation (fertilization to hatching), 16.1 °C from hatching to birth, and 19.1 °C from birth onward; Panel (f): [40]—mean values (f = 0.4813, T = 12 °C for incubation (fertilization to hatching), then T = 15 °C).
Figure A1. Larval development and growth of S. solea. (ac): duration of developmental stages as a function of incubation or rearing temperature; (df): larval growth in total length and dry weight over time. Data sources and corresponding conditions (estimated scaled functional response f, simulated temperature T): Panels a-d: [41] (f = 0.4451, T = 10, 13, 16, 19 °C for panels (a,b), T = 13, 16, 18, and 22 °C for panel (c), and T = 10, 13, 16, 19, 22 °C for panel (d)); Panel (e): [100] (f = 0.305, T = 11.2 °C for incubation (fertilization to hatching), 16.1 °C from hatching to birth, and 19.1 °C from birth onward; Panel (f): [40]—mean values (f = 0.4813, T = 12 °C for incubation (fertilization to hatching), then T = 15 °C).
Fishes 08 00068 g0a1
Figure A2. Juvenile and adult S. solea. (a): growth in total length, sex unspecified; (b): growth in total length, females and males separated; (c): Relationship of length and gonad free wet weight, for males and females. (d): Relationship of length and annual egg production. (e): Ingestion rate as a function of length and temperature. Dara sources and corresponding conditions (estimated scaled functional response f, simulated temperature T): Panel (a): [100] (f = 0.4703, T = 10 °C); Panels (b,c) and red dots in panel (d): [94] (f = 0.5037, T = 13 °C); Panel (d) (black dots): [98] (f = 1.664, T = 10 °C), Panel (e): [Fond1977] (f = 1.156, T = 10, 14, 18, 22, 26 °C; food = mussel meat, energy density of mussels = 18750 J·g dry−1 (Fond1989), water content of mussels estimated 80%).
Figure A2. Juvenile and adult S. solea. (a): growth in total length, sex unspecified; (b): growth in total length, females and males separated; (c): Relationship of length and gonad free wet weight, for males and females. (d): Relationship of length and annual egg production. (e): Ingestion rate as a function of length and temperature. Dara sources and corresponding conditions (estimated scaled functional response f, simulated temperature T): Panel (a): [100] (f = 0.4703, T = 10 °C); Panels (b,c) and red dots in panel (d): [94] (f = 0.5037, T = 13 °C); Panel (d) (black dots): [98] (f = 1.664, T = 10 °C), Panel (e): [Fond1977] (f = 1.156, T = 10, 14, 18, 22, 26 °C; food = mussel meat, energy density of mussels = 18750 J·g dry−1 (Fond1989), water content of mussels estimated 80%).
Fishes 08 00068 g0a2

Appendix B.2. Solea Senegalensis AmP Entry

Model parameters are listed in Table A5. The model for S. senegalensis was parameterized using data listed in Table A6 and Figure A3 and Figure A4. COMPLETE = 3.3; MRE = 0.117; SMAE = 0.126; SMSE = 0.046. The parameter set, data, and predictions presented here can be accessed by typing the species name in the collection.
Table A5. Model primary parameters for the senegalese sole (Solea senegalensis) that were used for the simulations in the main text. The table lists primary and dataset specific parameters estimated by DEBtool routines (Add-my-Pet procedure), with the exception of Maximum surface area specific assimilation rate, {pAm}, that is a primary parameter calculated as { p ˙ A m } =   z   [ p ˙ M ] κ L m r e f , where L m r e f = 1   c m. Several parameters (v, {pAm}) in the abj-model applied here increase their value between birth and metamorphosis (see Appendix A), so the final value is provided in brackets. The final parameter value is calculated by multiplying the initial value by sM = 3.3472 calculated at f = 1. Primary parameters for which default values were used are listed in the table footnote.
Table A5. Model primary parameters for the senegalese sole (Solea senegalensis) that were used for the simulations in the main text. The table lists primary and dataset specific parameters estimated by DEBtool routines (Add-my-Pet procedure), with the exception of Maximum surface area specific assimilation rate, {pAm}, that is a primary parameter calculated as { p ˙ A m } =   z   [ p ˙ M ] κ L m r e f , where L m r e f = 1   c m. Several parameters (v, {pAm}) in the abj-model applied here increase their value between birth and metamorphosis (see Appendix A), so the final value is provided in brackets. The final parameter value is calculated by multiplying the initial value by sM = 3.3472 calculated at f = 1. Primary parameters for which default values were used are listed in the table footnote.
ParameterSymbolValueUnit
Arrhenius temperatureTA6528K
Zoom factor (female) *z3.399-
* Maximum surface area specific assimilation rate (female){pAm}95.61 (320.05)J/d·cm2
Zoom factor (male) **zm3.071-
** Maximum surface area specific assimilation rate (male){pAm}86.37 (289.11)J/d·cm2
Energy conductancev0.0697 (0.2332)cm/d
Allocation franction to soma (kappa)κ0.8117-
Volume specific somatic maintenance[pM]22.83 J/d·cm3
Specific cost for structure[EG]5230J/cm3
Maturity at hatchingEHh0.0552J
Maturity at birthEHb0.1671J
Maturity at end of metamorphosisEHj6.309J
Maturity at pubertyEHp1.258 × 106J
Weibull aging acceleration (female)ha5.776 × 10−9d−2
Weibull aging acceleration (male)ham4.5122 × 10−9d−2
Shape coefficient for larvaeδMe0.221-
Shape coefficient post-metamorphosisδM0.2235-
Standard parameter values from Kooijman (2010) [20]: Maximum specific searching rate, {Fm} = 6.5 d−1·cm−2; Digestion efficiency of food to reserve, .κX = 0.8; Digestion efficiency of food to feces, κP = 0.1; Reproduction efficiency, κR = 0.95; Maturity maintenance rate coefficient kJ = 0.002 d−1; Gompertz stress coefficient, sG = 0.0001; Specific density of structure and reserve, dV = dE = 0.2 g/cm3.
Table A6. Life-history traits (‘zero-variate data’) of Senegalese sole (S. senegalensis) used for model parameterization, with corresponding sources, model predictions, and relative errors. Life-history traits are grouped into life stages; ‘Birth’ is defined in DEB as ‘onset of feeding’, and thus corresponds with mouth opening of sole larvae. Definitions of age: ‘Age at hatching’ corresponds to incubation duration (from fertilization until hatching); ‘Age at birth’ corresponds to days needed from fertilization until mouth opening, and ‘Age at metamorphosis’ corresponds to time elapsed between birth (mouth opening) and end of metamorphosis. When relevant, temperatures are listed in the last column under Notes. Unless otherwise specified, the scaled functional response f for certain life-history traits matches that for corresponding datasets. References for sources (in square brackets) are listed in the general Reference list.
Table A6. Life-history traits (‘zero-variate data’) of Senegalese sole (S. senegalensis) used for model parameterization, with corresponding sources, model predictions, and relative errors. Life-history traits are grouped into life stages; ‘Birth’ is defined in DEB as ‘onset of feeding’, and thus corresponds with mouth opening of sole larvae. Definitions of age: ‘Age at hatching’ corresponds to incubation duration (from fertilization until hatching); ‘Age at birth’ corresponds to days needed from fertilization until mouth opening, and ‘Age at metamorphosis’ corresponds to time elapsed between birth (mouth opening) and end of metamorphosis. When relevant, temperatures are listed in the last column under Notes. Unless otherwise specified, the scaled functional response f for certain life-history traits matches that for corresponding datasets. References for sources (in square brackets) are listed in the general Reference list.
Life-History Trait (Unit)DataPredictionRelative Error (%)Note, Source
Hatching
Age (d)1.5831.7248.8338 h, Incubation at 19.5 °C [58]
Length (cm)0.2240.159528.8[58]
Weight, dry (µg)33.1941.8926.21[58]
Birth (mouth opening)
Age (d)3.63.434.71mouth opening 2 days after hatching, rearing at 19.5 °C [58]
Length (cm)0.24840.23087.1[58]
Weight, dry (µg)3035.6518.83[58]
Metamorphosis (end)
Age (d)1918.890.57Start 16 dpf (14 dph), end 19 dpf (17 dph), rearing at 19.5 °C [58]
Length (cm)0.91760.781614.82At start of metamorphosis
L = 0.6857 cm [58]
Weight, dry (mg)1.281.355.58At start of metamorphosis Wd = 0.553 mg [58]
Puberty
Age (yr)146014391.45Average temp 17.5 °C (between 15 °C and 20 °C in Tagus estuary) [101]
Length, female (cm)3839.022.69[102]
Length, male (cm)3335.296.92[102]
Weight, wet, female (g)850832.32.08[102]
Weight, wet, male (g)650601.67.44[102]
Ultimate
Lifespan (yr)401540000.38Average temp 17.5 °C [62]
Length (cm)5251.50.97Average size around 40 cm, max ever recorded 70 cm, FAO [62]
Weight, wet (g)183019134.51Average weight of male and female [102]
Reproduction
Fecundity (eggs/day)416041550.11At ultimate length and average temp 18.5 °C, calculated as total weight of eggs daily collected during the spawning seasons of 1996 and 1997 divided by Wd of egg and 365 [30]
Energy in an egg (J)11.0787.8[58]
Egg weight, dry (µg)46.146.81.5[58]
Egg diameter (cm)0.10.07123.52[58]
Figure A3. Larval development and growth of S. senegalensis. (a): duration of development (from mouth opening to completion of metamorphosis) as a function of rearing temperature; (be): larval and juvenile growth in total length and dry weight over time; (f): length-dry weight relationship for larvae and metamorphosized juveniles. Data sources and corresponding conditions (estimated scaled functional response f, simulated temperature T): Panel (a): [102] (f = 1, T = 20 °C (constant) and 16 °C (non-constant: 0–6 dph 20 °C, 6 dph 18 °C, 7 dph onwards 16 °C), [103](f = 0.820, T = 18 °C), [58] (f = 1, T = 19.5 °C); Panel (b): [102] (f = 1, T = 20 °C constant or gradually reduced to T = 16 °C); Panel (c): [58] black dots (f = 1.05, T = 19.5 °C) and [104] blue dots (f = 0.799, T = 19.5 °C); Panel (d): [105] different food quality and quantity (f = 0.651—red; f = 0.61—pink, f = 0.71—blue, f = 0.651—black, T = 19.5 °C); Panel (e): [103] dots (f = 0.82, T = 18 °C), [106] squares (f = 0.47, T = 20 °C); Panel (f): [107] blue dots (f = 1) [58] black dots (f = 1), [106] squares (f = 0.47).
Figure A3. Larval development and growth of S. senegalensis. (a): duration of development (from mouth opening to completion of metamorphosis) as a function of rearing temperature; (be): larval and juvenile growth in total length and dry weight over time; (f): length-dry weight relationship for larvae and metamorphosized juveniles. Data sources and corresponding conditions (estimated scaled functional response f, simulated temperature T): Panel (a): [102] (f = 1, T = 20 °C (constant) and 16 °C (non-constant: 0–6 dph 20 °C, 6 dph 18 °C, 7 dph onwards 16 °C), [103](f = 0.820, T = 18 °C), [58] (f = 1, T = 19.5 °C); Panel (b): [102] (f = 1, T = 20 °C constant or gradually reduced to T = 16 °C); Panel (c): [58] black dots (f = 1.05, T = 19.5 °C) and [104] blue dots (f = 0.799, T = 19.5 °C); Panel (d): [105] different food quality and quantity (f = 0.651—red; f = 0.61—pink, f = 0.71—blue, f = 0.651—black, T = 19.5 °C); Panel (e): [103] dots (f = 0.82, T = 18 °C), [106] squares (f = 0.47, T = 20 °C); Panel (f): [107] blue dots (f = 1) [58] black dots (f = 1), [106] squares (f = 0.47).
Fishes 08 00068 g0a3
Figure A4. Juvenile and adult growth of S. senegalensis. (a,b) juvenile growth in total length and wet weight over time; (c): adult (male, female) growth in total length over time; (d): length-wet weight relationship for juveniles and adults (male, female). Data sources and corresponding conditions (estimated scaled functional response f, simulated temperature T): Panels (a,b): [108] (f = 1.49, T = 20 °C from birth until start of experiment, 19 °C or 23 °C thereafter); Panel (c): [62] (f = 0.80, T = 17.5 °C); Panel (d): [102] (f = 1).
Figure A4. Juvenile and adult growth of S. senegalensis. (a,b) juvenile growth in total length and wet weight over time; (c): adult (male, female) growth in total length over time; (d): length-wet weight relationship for juveniles and adults (male, female). Data sources and corresponding conditions (estimated scaled functional response f, simulated temperature T): Panels (a,b): [108] (f = 1.49, T = 20 °C from birth until start of experiment, 19 °C or 23 °C thereafter); Panel (c): [62] (f = 0.80, T = 17.5 °C); Panel (d): [102] (f = 1).
Fishes 08 00068 g0a4

Appendix C. Additional Results

Figure A5. Predicted age and size at different stages, stage duration and growth rates for Solea spp. for the evaluated effects of temperature and food availability. In total, we simulated seven scenarios (S1–S7), with three spawning events (early-mid-late) in each. Scenarios were designed to reflect potential changes in food availability and increase in temperature (warming of 1.8 and 3.7 degrees—RCP 4.5 and RCP 8.5, respectively, IPCC, 2014), both relative to the baseline, i.e., current conditions. Current (baseline) food availability (X) is assumed to result in scaled functional response f = 0.85 in both species, and temperature is assumed to reflect the average seasonal fluctuations in typical coastal sea and estuaries inhabited by soles (please see Methods of main text for more information).
Figure A5. Predicted age and size at different stages, stage duration and growth rates for Solea spp. for the evaluated effects of temperature and food availability. In total, we simulated seven scenarios (S1–S7), with three spawning events (early-mid-late) in each. Scenarios were designed to reflect potential changes in food availability and increase in temperature (warming of 1.8 and 3.7 degrees—RCP 4.5 and RCP 8.5, respectively, IPCC, 2014), both relative to the baseline, i.e., current conditions. Current (baseline) food availability (X) is assumed to result in scaled functional response f = 0.85 in both species, and temperature is assumed to reflect the average seasonal fluctuations in typical coastal sea and estuaries inhabited by soles (please see Methods of main text for more information).
Fishes 08 00068 g0a5aFishes 08 00068 g0a5b
Figure A6. Growth rates in Solea spp. larvae (from hatching until complete metamorphosis) and juveniles (from metamorphosis until maturation). Green rectangles mark the individuals that spawned the earliest, with date of spawning indicated as the day of the year (number) under the bars. Colors of the bars correspond to color-coding of scenarios (S) in Figure 5 and Figure 6 of the manuscript: black—S1 baseline, blue—S2 and S3 food availability modifications, yellow—S4 and S5 temperature increase, red—S6 and S7 food decrease combined with temperature increase. For scenario descriptions please see Table 1 of the manuscript.
Figure A6. Growth rates in Solea spp. larvae (from hatching until complete metamorphosis) and juveniles (from metamorphosis until maturation). Green rectangles mark the individuals that spawned the earliest, with date of spawning indicated as the day of the year (number) under the bars. Colors of the bars correspond to color-coding of scenarios (S) in Figure 5 and Figure 6 of the manuscript: black—S1 baseline, blue—S2 and S3 food availability modifications, yellow—S4 and S5 temperature increase, red—S6 and S7 food decrease combined with temperature increase. For scenario descriptions please see Table 1 of the manuscript.
Fishes 08 00068 g0a6

References

  1. Hermant, M.; Lobry, J.; Bonhommeau, S.; Poulard, J.-C.; Le Pape, O. Impact of warming on abundance and occurrence of flatfish populations in the Bay of Biscay (France). J. Sea Res. 2010, 64, 45–53. [Google Scholar] [CrossRef] [Green Version]
  2. Petrik, C.M.; Stock, C.A.; Andersen, K.H.; van Denderen, P.D.; Watson, J.R. Large Pelagic Fish Are Most Sensitive to Climate Change Despite Pelagification of Ocean Food Webs. Front. Mar. Sci. 2020, 7, 588482. [Google Scholar] [CrossRef]
  3. Cabral, H.; Drouineau, H.; Teles-Machado, A.; Pierre, M.; Lepage, M.; Lobry, J.; Reis-Santos, P.; Tanner, S.E. Contrasting impacts of climate change on connectivity and larval recruitment to estuarine nursery areas. Prog. Oceanogr. 2021, 196, 102608. [Google Scholar] [CrossRef]
  4. Bueno-Pardo, J.; Nobre, D.; Monteiro, J.N.; Sousa, P.M.; Costa, E.F.S.; Baptista, V.; Ovelheiro, A.; Vieira, V.M.N.C.S.; Chícharo, L.; Gaspar, M.; et al. Climate change vulnerability assessment of the main marine commercial fish and invertebrates of Portugal. Sci. Rep. 2021, 11, 2958. [Google Scholar] [CrossRef] [PubMed]
  5. Bolle, L.; Dickey-Collas, M.; van Beek, J.; Erftemeijer, P.; Witte, J.; van der Veer, H.; Rijnsdorp, A. Variability in transport of fish eggs and larvae. III. Effects of hydrodynamics and larval behaviour on recruitment in plaice. Mar. Ecol. Prog. Ser. 2009, 390, 195–211. [Google Scholar] [CrossRef]
  6. Richon, C.; Aumont, O.; Tagliabue, A. Prey Stoichiometry Drives Iron Recycling by Zooplankton in the Global Ocean. Front. Mar. Sci. 2020, 7, 451. [Google Scholar] [CrossRef]
  7. Richardson, A.J. In hot water: Zooplankton and climate change. ICES J. Mar. Sci. 2008, 65, 279–295. [Google Scholar] [CrossRef] [Green Version]
  8. Sydeman, W.J.; Poloczanska, E.; Reed, T.E.; Thompson, S.A. Climate change and marine vertebrates. Science 2015, 350, 772–777. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Van de Waal, D.B.; Litchman, E. Multiple global change stressor effects on phytoplankton nutrient acquisition in a future ocean. Philos. Trans. R. Soc. B Biol. Sci. 2020, 375, 20190706. [Google Scholar] [CrossRef] [PubMed]
  10. Edwards, M.; Richardson, A.J. Impact of climate change on marine pelagic phenology and trophic mismatch. Nature 2004, 430, 881–884. [Google Scholar] [CrossRef]
  11. Poloczanska, E.S.; Brown, C.J.; Sydeman, W.J.; Kiessling, W.; Schoeman, D.S.; Moore, P.J.; Brander, K.; Bruno, J.F.; Buckley, L.B.; Burrows, M.T.; et al. Global imprint of climate change on marine life. Nat. Clim. Change 2013, 3, 919–925. [Google Scholar] [CrossRef]
  12. Vagner, M.; Zambonino-Infante, J.-L.; Mazurais, D. Fish facing global change: Are early stages the lifeline? Mar. Environ. Res. 2019, 147, 159–178. [Google Scholar] [CrossRef] [PubMed]
  13. Fincham, J.I.; Rijnsdorp, A.D.; Engelhard, G.H. Shifts in the timing of spawning in sole linked to warming sea temperatures. J. Sea Res. 2013, 75, 69–76. [Google Scholar] [CrossRef]
  14. Rijnsdorp, A.D.; Peck, M.A.; Engelhard, G.H.; Möllmann, C.; Pinnegar, J.K. Resolving the effect of climate change on fish populations. ICES J. Mar. Sci. 2009, 66, 1570–1583. [Google Scholar] [CrossRef]
  15. Belanger, S.E.; Balon, E.K.; Rawlings, J.M. Saltatory ontogeny of fishes and sensitive early life stages for ecotoxicology tests. Aquat. Toxicol. 2010, 97, 88–95. [Google Scholar] [CrossRef] [PubMed]
  16. Hutchinson, T.H.; Solbe, J.; Kloepper-Sams, P.J. Analysis of the ECETOC aquatic toxicity (EAT) database III—Comparative toxicity of chemical substances to different life stages of aquatic organisms. Chemosphere 1998, 36, 129–142. [Google Scholar] [CrossRef]
  17. Houde, E.D. Emerging from Hjort’s Shadow. J. Northwest Atl. Fish. Sci. 2008, 41, 53–70. [Google Scholar] [CrossRef]
  18. Jusup, M.; Sousa, T.; Domingos, T.; Labinac, V.; Marn, N.; Wang, Z.; Klanjšček, T. Physics of metabolic organization. Phys. Life Rev. 2017, 20, 1–39. [Google Scholar] [CrossRef] [Green Version]
  19. Kearney, M.R. What is the status of metabolic theory one century after Pütter invented the von Bertalanffy growth curve? Biol. Rev. 2021, 96, 557–575. [Google Scholar] [CrossRef] [PubMed]
  20. Kooijman, S.A.L.M. Dynamic Energy Budget Theory for Metabolic Organisation, 3rd ed.; Cambridge University Press: New York, NY, USA, 2010; Volume 365, ISBN 9780521131919. [Google Scholar]
  21. Sousa, T.; Domingos, T.; Kooijman, S.A.L.M. From empirical patterns to theory: A formal metabolic theory of life. Philos. Trans. R. Soc. B Biol. Sci. 2008, 363, 2453–2464. [Google Scholar] [CrossRef] [PubMed]
  22. Bjørndal, T.; Guillen, J.; Imsland, A. The potential of aquaculture sole production in Europe: Production costs and markets. Aquac. Econ. Manag. 2016, 20, 109–129. [Google Scholar] [CrossRef]
  23. Cerdà, J.; Manchado, M. Advances in genomics for flatfish aquaculture. Genes Nutr. 2013, 8, 5–17. [Google Scholar] [CrossRef] [Green Version]
  24. Manchado, M.; Planas, J.V.; Cousin, X.; Rebordinos, L.; Claros, M.G. Current status in other finfish species: Description of current genomic resources for the gilthead seabream (Sparus aurata) and soles (Solea senegalensis and Solea solea). In Genomics in Aquaculture; Academic Press: San Diego, CA, USA, 2016; pp. 195–221. ISBN 978-0-12-801418-9. [Google Scholar] [CrossRef]
  25. Anguis, V.; Cañavate, J.P. Spawning of captive Senegal sole (Solea senegalensis) under a naturally fluctuating temperature regime. Aquaculture 2005, 243, 133–145. [Google Scholar] [CrossRef]
  26. Imsland, A.K.; Foss, A.; Conceição, L.E.C.; Dinis, M.T.; Delbare, D.; Schram, E.; Kamstra, A.; Rema, P.; White, P. A review of the culture potential of Solea solea and S. senegalensis. Rev. Fish Biol. Fish. 2003, 13, 379–408. [Google Scholar] [CrossRef]
  27. Geffen, A.J.; van der Veer, H.W.; Nash, R.D.M. The cost of metamorphosis in flatfishes. J. Sea Res. 2007, 58, 35–45. [Google Scholar] [CrossRef]
  28. Sardi, A.E.; Bégout, M.-L.; Cousin, X.; Labadie, P.; Loizeau, V.; Budzinski, H. A review of the effects of contamination and temperature in Solea solea larvae. Modeling perspectives in the context of climate change. J. Sea Res. 2021, 176, 102101. [Google Scholar] [CrossRef]
  29. Campos, C.; Castanheira, M.F.; Engrola, S.; Valente, L.M.P.; Fernandes, J.M.O.; Conceição, L.E.C. Rearing temperature affects Senegalese sole (Solea senegalensis) larvae protein metabolic capacity. Fish Physiol. Biochem. 2013, 39, 1485–1496. [Google Scholar] [CrossRef] [PubMed]
  30. Dinis, M.T.; Ribeiro, L.; Soares, F.; Sarasquete, C. A review on the cultivation potential of Solea senegalensis in Spain and in Portugal. Aquaculture 1999, 176, 27–38. [Google Scholar] [CrossRef]
  31. Cabral, H.; Costa, M.J. Differential Use of Nursery Areas Within the Tagus Estuary by Sympatric Soles, Solea solea and Solea senegalensis. Environ. Biol. Fishes 1999, 56, 389–397. [Google Scholar] [CrossRef]
  32. Zambonino-Infante, J.L.; Claireaux, G.; Ernande, B.; Jolivet, A.; Quazuguel, P.; Sévère, A.; Huelvan, C.; Mazurais, D. Hypoxia tolerance of common sole juveniles depends on dietary regime and temperature at the larval stage: Evidence for environmental conditioning. Proc. R. Soc. B Biol. Sci. 2013, 280, 20123022. [Google Scholar] [CrossRef] [Green Version]
  33. Savina, M.; Lunghi, M.; Archambault, B.; Baulier, L.; Huret, M.; Le Pape, O. Sole larval supply to coastal nurseries: Interannual variability and connectivity at interregional and interpopulation scales. J. Sea Res. 2016, 111, 1–10. [Google Scholar] [CrossRef] [Green Version]
  34. Schoolfield, R.M.; Sharpe, P.J.H.; Magnuson, C.E. Non-linear regression of biological temperature-dependent rate models based on absolute reaction-rate theory. J. Theor. Biol. 1981, 88, 719–731. [Google Scholar] [CrossRef] [PubMed]
  35. DEBtool. DEBtool Software Package. 2022. Available online: https://github.com/add-my-pet/DEBtool_M (accessed on 24 November 2022).
  36. Kooijman, S.A.L.M.; Pecquerie, L.; Augustine, S.; Jusup, M. Scenarios for acceleration in fish development and the role of metamorphosis. J. Sea Res. 2011, 66, 419–423. [Google Scholar] [CrossRef]
  37. Marques, G.M.; Augustine, S.; Lika, K.; Pecquerie, L.; Domingos, T.; Kooijman, S.A.L.M. The AmP project: Comparing species on the basis of dynamic energy budget parameters. PLoS Comput. Biol. 2018, 14, e1006100. [Google Scholar] [CrossRef] [Green Version]
  38. Mounier, F.; Pecquerie, L.; Lobry, J.; Sardi, A.E.; Labadie, P.; Budzinski, H.; Loizeau, V. Dietary bioaccumulation of persistent organic pollutants in the common sole Solea solea in the context of global change. Part 1: Revisiting parameterisation and calibration of a DEB model to consider inter-individual variability in experimental and natural conditions. Ecol. Model. 2020, 433, 109224. [Google Scholar] [CrossRef]
  39. AmPtool. AmPtool Software Package. Available online: https://github.com/add-my-pet/AmPtool (accessed on 24 November 2022).
  40. Day, O.J.; Jones, D.A.; Howell, B.R. Food consumption, growth and respiration of sole, Solea solea (L.), during early ontogeny in a hatchery environment. Aquac. Res. 1996, 27, 831–839. [Google Scholar] [CrossRef]
  41. Fonds, M. Laboratory Observations on the Influence of Temperature and Salinity on Development of the Eggs and Growth of the Larvae of Solea solea. Mar. Ecol. Prog. Ser. 1979, 1, 91–99. [Google Scholar] [CrossRef]
  42. Marques, G.M.; Lika, K.; Augustine, S.; Pecquerie, L.; Kooijman, S.A.L.M. Fitting multiple models to multiple data sets. J. Sea Res. 2019, 143, 48–56. [Google Scholar] [CrossRef]
  43. Sardi, A.E.; Bégout, M.L.; Lalles, A.L.; Cousin, X.; Mounier, F.; Loizeau, V.; Budzinski, H. Temperature and Feeding Frequency Impact the Survival, Growth, and Metamorphosis Success of Solea solea Larvae. In revision.
  44. Sardi, A.; Omingo, L.; Bégout, M.L.; Cousin, X.; Manchado, M. What Can Go Wrong for Future Senegalensis Sole Recruitment? Studying the Effects of Temperature and Food Availability in Early Life History Traits and Gene Expression of Nutrition and Temperature Stress Genes. In prepress.
  45. FAO Solea Solea. Cultured Aquatic Species Information Programme. FAO Fisheries and Aquaculture Division. Rome. Text by Colen, R.; Ramalho, A.; Rocha, F.; Dinis, M.T. Available online: https://www.fao.org/fishery/en/culturedspecies/solea_spp/en (accessed on 27 December 2022).
  46. Lacroix, G.; Maes, G.E.; Bolle, L.J.; Volckaert, F.A.M. Modelling dispersal dynamics of the early life stages of a marine flatfish (Solea solea L.). J. Sea Res. 2013, 84, 13–25. [Google Scholar] [CrossRef]
  47. Vaz, A.C.; Scarcella, G.; Pardal, M.A.; Martinho, F. Water temperature gradients drive early life-history patterns of the common sole (Solea solea L.) in the Northeast Atlantic and Mediterranean. Aquat. Ecol. 2019, 53, 281–294. [Google Scholar] [CrossRef]
  48. Bachelet, G.; Baron, J.; Blanc, G.; Boschet, C.; Carassou, L.; Chaalali, A.; Hautdidier, B.; Gassiat, A.; Point, P.; Sautour, B.; et al. Bref Panorama Scientifique de L’estuaire de la Gironde. 2018. Available online: hal.inrae.fr/hal-02609253 (accessed on 24 January 2022).
  49. Carvalho, A.N.; Santos, P.T. Factors affecting the distribution of epibenthic biodiversity in the Cávado estuary (NW Portugal). Rev. Gest. Costeira Integr. 2013, 13, 101–111. [Google Scholar] [CrossRef] [Green Version]
  50. Gameiro, C.; Brotas, V. Patterns of Phytoplankton Variability in the Tagus Estuary (Portugal). Estuaries Coasts 2010, 33, 311–323. [Google Scholar] [CrossRef]
  51. Silva, A.; Palma, S.; Oliveira, P.B.; Moita, M.T. Composition and interannual variability of phytoplankton in a coastal upwelling region (Lisbon Bay, Portugal). J. Sea Res. 2009, 62, 238–249. [Google Scholar] [CrossRef]
  52. GIP Seine-Aval (Groupement d’Intérêt Public Seine-Aval). 2021. Available online: https://www.seine-aval.fr (accessed on 24 January 2022).
  53. Amara, R.; Lagardere, F.; Desaunay, Y.; Marchand, J. Metamorphosis and estuarine colonisation in the common sole, Solea solea (L.): Implications for recruitment regulation. Oceanol. Acta 2000, 23, 469–484. [Google Scholar] [CrossRef] [Green Version]
  54. Marn, N.; Jusup, M.; Legović, T.; Kooijman, S.A.L.M.; Klanjšček, T. Environmental effects on growth, reproduction, and life-history traits of loggerhead turtles. Ecol. Model. 2017, 360, 163–178. [Google Scholar] [CrossRef]
  55. Pecquerie, L.; Petitgas, P.; Kooijman, S.A.L.M. Modeling fish growth and reproduction in the context of the Dynamic Energy Budget theory to predict environmental impact on anchovy spawning duration. J. Sea Res. 2009, 62, 93–105. [Google Scholar] [CrossRef] [Green Version]
  56. Pethybridge, H.; Roos, D.; Loizeau, V.; Pecquerie, L.; Bacher, C. Responses of European anchovy vital rates and population growth to environmental fluctuations: An individual-based modeling approach. Ecol. Model. 2013, 250, 370–383. [Google Scholar] [CrossRef] [Green Version]
  57. Stubbs, J.L.; Marn, N.; Vanderklift, M.A.; Fossette, S.; Mitchell, N.J. Simulated growth and reproduction of green turtles (Chelonia mydas) under climate change and marine heatwave scenarios. Ecol. Model. 2020, 431, 109185. [Google Scholar] [CrossRef]
  58. Yúfera, M.; Parra, G.; Santiago, R.; Carrascosa, M. Growth, carbon, nitrogen and caloric content of Solea senegalensis (Pisces: Soleidae) from egg fertilization to metamorphosis. Mar. Biol. 1999, 134, 43–49. [Google Scholar] [CrossRef]
  59. Marn, N.; Lika, K.; Augustine, S.; Goussen, B.; Ebeling, M.; Heckmann, D.; Gergs, A. Energetic basis for bird ontogeny and egg-laying applied to the bobwhite quail. Conserv. Physiol. 2022, 10, coac063. [Google Scholar] [CrossRef]
  60. Augustine, S.; Litvak, M.K.; Kooijman, S.A.L.M. Stochastic feeding of fish larvae and their metabolic handling of starvation. J. Sea Res. 2011, 66, 411–418. [Google Scholar] [CrossRef] [Green Version]
  61. Cabral, H. Differences in growth rates of juvenile Solea solea and Solea senegalensis in the Tagus estuary, Portugal. J. Mar. Biol. Assoc. U. K. 2003, 83, 861–868. [Google Scholar] [CrossRef]
  62. Teixeira, C.M.; Cabral, H.N. Comparative analysis of the diet, growth and reproduction of the soles, Solea solea and Solea senegalensis, occurring in sympatry along the Portuguese coast. J. Mar. Biol. Assoc. U. K. 2010, 90, 995–1003. [Google Scholar] [CrossRef]
  63. Tanner, S.E.; Teles-Machado, A.; Martinho, F.; Peliz, Á.; Cabral, H.N. Modelling larval dispersal dynamics of common sole (Solea solea) along the western Iberian coast. Prog. Oceanogr. 2017, 156, 78–90. [Google Scholar] [CrossRef]
  64. Moreira, J.M.; Mendes, A.C.; Maulvault, A.L.; Marques, A.; Rosa, R.; Pousão-Ferreira, P.; Sousa, T.; Anacleto, P.; Marques, G.M. Impacts of ocean warming and acidification on the energy budget of three commercially important fish species. Conserv. Physiol. 2022, 10, coac048. [Google Scholar] [CrossRef]
  65. Kooijman, S.A.L.M. What the hen can tell about her eggs: Egg development on the basis of energy budgets. J. Math. Biol. 1986, 23, 163–185. [Google Scholar] [CrossRef]
  66. Devauchelle, N.; Alexandre, J.C.; Le Corre, N.; Letty, Y. Spawning of sole (Solea solea) in capivity. Aquaculture 1987, 66, 125–147. [Google Scholar] [CrossRef]
  67. Jusup, M.; Klanjšček, T.; Matsuda, H. Simple measurements reveal the feeding history, the onset of reproduction, and energy conversion efficiencies in captive bluefin tuna. J. Sea Res. 2014, 94, 144–155. [Google Scholar] [CrossRef]
  68. Cabral, H.N.; Costa, M.J.; Vinagre, C.; Pimentel, M.S.; Narciso, L.; Rosa, R. Contrasting impacts of climate change across seasons: Effects on flatfish cohorts. Reg. Environ. Change 2012, 13, 853–859. [Google Scholar] [CrossRef]
  69. Pimentel, M.S.; Faleiro, F.; Dionisio, G.; Repolho, T.; Pousao-Ferreira, P.; Machado, J.; Rosa, R. Defective skeletogenesis and oversized otoliths in fish early stages in a changing ocean. J. Exp. Biol. 2014, 217, 2062–2070. [Google Scholar] [CrossRef] [Green Version]
  70. Atkinson, D. Temperature and Organism Size—A Biological Law for Ectotherms? Adv. Ecol. Res. 1994, 25, 1–58. [Google Scholar] [CrossRef]
  71. Levangie, P.E.L.; Blanchfield, P.J.; Hutchings, J.A. The influence of ocean warming on the natural mortality of marine fishes. Environ. Biol. Fishes 2021, 105, 1447–1461. [Google Scholar] [CrossRef]
  72. Pauly, D. A framework for latitudinal comparisons of flatfish recruitment. Neth. J. Sea Res. 1994, 32, 107–118. [Google Scholar] [CrossRef]
  73. Pauly, D. The gill-oxygen limitation theory (GOLT) and its critics. Sci. Adv. 2021, 7, eabc6050. [Google Scholar] [CrossRef] [PubMed]
  74. Lefevre, S.; McKenzie, D.J.; Nilsson, G.E. In modelling effects of global warming, invalid assumptions lead to unrealistic projections. Glob. Change Biol. 2018, 24, 553–556. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Miller, J.M.; Burke, J.S.; Fitzhugh, G.R. Early life history patterns of Atlantic North American flatfish: Likely (and unlikely) factors controlling recruitment. Neth. J. Sea Res. 1991, 27, 261–275. [Google Scholar] [CrossRef]
  76. Rijnsdorp, A.D.; Vingerhoed, B. The ecological significance of geographical and seasonal differences in egg size in sole Solea solea (L.). Neth. J. Sea Res. 1994, 32, 255–270. [Google Scholar] [CrossRef]
  77. Rickman, S.J.; Dulvy, N.K.; Jennings, S.; Reynolds, J.D. Recruitment variation related to fecundity in marine fishes. Can. J. Fish. Aquat. Sci. 2000, 57, 116–124. [Google Scholar] [CrossRef]
  78. Verberk, W.C.E.P.; Atkinson, D.; Hoefnagel, K.N.; Hirst, A.G.; Horne, C.R.; Siepel, H. Shrinking body sizes in response to warming: Explanations for the temperature–size rule with special emphasis on the role of oxygen. Biol. Rev. 2021, 96, 247–268. [Google Scholar] [CrossRef]
  79. Pankhurst, N.W.; Munday, P.L. Effects of climate change on fish reproduction and early life history stages. Mar. Freshw. Res. 2011, 62, 1015. [Google Scholar] [CrossRef] [Green Version]
  80. Fiksen, Ø.; Jørgensen, C. Model of optimal behaviour in fish larvae predicts that food availability determines survival, but not growth. Mar. Ecol. Prog. Ser. 2011, 432, 207–219. [Google Scholar] [CrossRef] [Green Version]
  81. Dou, S.Z.; Masuda, R.; Tanaka, M.; Tsukamoto, K. Effects of temperature and delayed initial feeding on the survival and growth of Japanese flounder larvae. J. Fish Biol. 2005, 66, 362–377. [Google Scholar] [CrossRef]
  82. Bochdansky, A.B.; Grønkjær, P.; Herra, T.P.; Leggett, W.C. Experimental evidence for selection against fish larvae with high metabolic rates in a food limited environment. Mar. Biol. 2005, 147, 1413–1417. [Google Scholar] [CrossRef]
  83. Pepin, P.; Robert, D.; Bouchard, C.; Dower, J.F.; Falardeau, M.; Fortier, L.; Jenkins, G.P.; Leclerc, V.; Levesque, K.; Llopiz, J.K.; et al. Once upon a larva: Revisiting the relationship between feeding success and growth in fish larvae. ICES J. Mar. Sci. 2014, 72, 359–373. [Google Scholar] [CrossRef]
  84. Carballo, C.; Firmino, J.; Anjos, L.; Santos, S.; Power, D.M.; Manchado, M. Short- and long-term effects on growth and expression patterns in response to incubation temperatures in Senegalese sole. Aquaculture 2018, 495, 222–231. [Google Scholar] [CrossRef]
  85. Dahlke, F.T.; Wohlrab, S.; Butzin, M.; Pörtner, H.O. Thermal bottlenecks in the life cycle define climate vulnerability of fish. Science 2020, 369, 65–70. [Google Scholar] [CrossRef]
  86. Pörtner, H.O.; Knust, R. Climate change affects marine fishes through the oxygen limitation of thermal tolerance. Science 2007, 315, 95–97. [Google Scholar] [CrossRef] [Green Version]
  87. Teske, P.R.; Sandoval-Castillo, J.; Golla, T.R.; Emami-Khoyi, A.; Tine, M.; von der Heyden, S.; Beheregaray, L.B. Thermal selection as a driver of marine ecological speciation. Proc. R. Soc. B Biol. Sci. 2019, 286, 20182023. [Google Scholar] [CrossRef] [Green Version]
  88. Van Der Veer, H.W.; Kooijman, S.A.L.M.; van der Meer, J. Body size scaling relationships in flatfish as predicted by Dynamic Energy Budgets (DEB theory): Implications for recruitment. J. Sea Res. 2003, 50, 257–272. [Google Scholar] [CrossRef]
  89. Ijima, H.; Jusup, M.; Takada, T.; Akita, T.; Matsuda, H.; Klanjscek, T. Effects of environmental change and early-life stochasticity on Pacific bluefin tuna population growth. Mar. Environ. Res. 2019, 149, 18–26. [Google Scholar] [CrossRef]
  90. van de Wolfshaar, K.E.; Barbut, L.; Lacroix, G. From spawning to first-year recruitment: The fate of juvenile sole growth and survival under future climate conditions in the North Sea. ICES J. Mar. Sci. 2022, 79, 495–505. [Google Scholar] [CrossRef]
  91. Barbut, L.; Groot Crego, C.; Delerue-Ricard, S.; Vandamme, S.; Volckaert, F.A.M.; Lacroix, G. How larval traits of six flatfish species impact connectivity. Limnol. Oceanogr. 2019, 64, 1150–1171. [Google Scholar] [CrossRef] [Green Version]
  92. Galois, R.; Lagardre, F.; Richard, P. Changes in biochemical composition and otolith microstructure of larval common soleas, Solea solea (L.) under experimental starvation. La Mer 1990, 28, 273–285. [Google Scholar]
  93. Deniel, C. Les Poissons Plats [Teleosteens, Pleuronectiformes] en Baie de Douarnenez: Reproduction, Croissance et Migration. Ph.D. Thesis, Universite de Bretagne Occidentale, Brest, France, 1981. [Google Scholar]
  94. Mollet, F.; Kraak, S.; Rijnsdorp, A. Fisheries-induced evolutionary changes in maturation reaction norms in North sea sole Solea solea. Mar. Ecol. Prog. Ser. 2007, 351, 189–199. [Google Scholar] [CrossRef]
  95. Dorel, D. Poissons de l Atlantique Nord-Est: Relations Taille-Poids. IFREMER. 1986. Available online: https://archimer.ifremer.fr/doc/00000/1289/ (accessed on 1 December 2022).
  96. Wheeler, A. Key to the Fishes of Northern Europe; Food and Agriculture Organization of the United Nations: Rome, Italy, 1978. [Google Scholar]
  97. Witthames, P.; Greer Walker, M. Determinacy of fecundity and oocyte atresia in sole (Solea solea) from the Channel, the North Sea and the Irish Sea). Aquat. Living Resour. 1995, 8, 91–109. [Google Scholar] [CrossRef]
  98. Fonds, M.; Drinkwaard, B.; Resink, J.W.; Eysink, G.G.J.; Toet, W. Measurements of metabolism, food intake and growth of Solea solea (L.) fed with mussel meat or with dry food. Aquac. A Biotechnol. Prog. 1989, 2, 1851–1874. [Google Scholar]
  99. Lund, I.; Steenfeldt, S.J.; Suhr, K.I.; Hansen, B.W. A comparison of fatty acid composition and quality aspects of eggs and larvae from cultured and wild broodstock of common sole (Solea solea, L.). Aquac. Nutr. 2008, 14, 544–555. [Google Scholar] [CrossRef]
  100. Teal, L. IMARES Data Base Frisbe. 2011. Available online: http://www.bio.vu.nl/thb/deb/deblab/add_my_pet/entries_web/Solea_solea/Solea_solea_res.html (accessed on 15 January 2022).
  101. Vinagre, C. Ecology of the Juveniles of the Soles Solea solea (Linnaeus, 1758) and Solea senegalensis (Kaup, 1858), in the Tagus Estuary. Ph.D. Thesis, University of Lisbon, Lisbon, Portugal, 2007. [Google Scholar]
  102. Manchado, M. IFAPA Centro El Toruño, Junta de Andalucía, Camino Tiro Pichón s/n, 11500 El Puerto de Santa Maria, Spain. Personal Communication, Unpublished Work. 2021. [Google Scholar]
  103. Ribeiro, L.; Sarasquete, C.; Dinis, M.T. Histological and histochemical development of the digestive system of Solea senegalensis (Kaup, 1858) larvae. Aquaculture 1999, 171, 293–308. [Google Scholar] [CrossRef]
  104. Parra, G.; Yufera, M. Comparative energetics during early development of two marine fish species, Solea senegalensis (Kaup) and Sparus aurata (L.). J. Exp. Biol. 2001, 204 Pt 12, 2175–2183. [Google Scholar] [CrossRef]
  105. Canavate, J.P.; Fernandez-Diaz, C. Influence of co-feeding larvae with live and inert diets on weaning the sole Solea senegalensis onto commercial dry feeds. Aquaculture 1999, 174, 255–263. [Google Scholar] [CrossRef]
  106. Ribeiro, L.; Engrola, S.; Dinis, M.T. Weaning of Senegalese sole (Solea senegalensis) postlarvae to an inert diet with a co-feeding regime. Cienc. Mar. 2017, 31, 327–337. [Google Scholar] [CrossRef]
  107. Ortiz-Delgado, J.B.; Funes, V.; Sarasquete, C. The organophosphate pesticide-{OP}-malathion inducing thyroidal disruptions and failures in the metamorphosis of the Senegalese sole, Solea senegalensis. BMC Vet. Res. 2019, 15, 57. [Google Scholar] [CrossRef] [PubMed]
  108. Maulvault, A.L.; Marques, A.; Rosa, R.; Mendes, A.; Pousao-Ferreira, P.; Anacleto, P. Experimental data from {MARE}, University of Lisbon, Lisbon, Portugal. For Using This Data Outside of the Script before Publication Please Contact Jose Moreira ([email protected]) or Patricia Anacleto ([email protected]). Unpublished Work. 2019. [Google Scholar]
Figure 1. Model validation for S. solea. Larvae length (points) and DEB model larval growth predictions (lines) for S. solea larvae reared at three food availabilities (HighFood, HF; MediumFood, MF and LowFood, LF) and two constant temperatures (16 °C and 20 °C). Red X in the panels (where present) marks the end of metamorphosis as predicted by the model. Experimental conditions were modeled as follows: temperature for incubation 13 °C, hatching to birth: 16 °C, after birth: 16 °C (top row) or 20 °C (lower row). Temperature switches in the simulations are linked to life stage (maturity), not time. Size at birth will depend on the scaled food availability (f) experienced by the mother (f = 0.5), while subsequent growth will depend on experimental conditions (food and temperature) experienced by the larvae. Experimental f for larvae corresponds to feeding regimes: fLF = 0.1, fMF = 0.15, fHF = 0.18. All f values were adjusted manually. Physiological parameters were kept fixed at values listed in Table 2.
Figure 1. Model validation for S. solea. Larvae length (points) and DEB model larval growth predictions (lines) for S. solea larvae reared at three food availabilities (HighFood, HF; MediumFood, MF and LowFood, LF) and two constant temperatures (16 °C and 20 °C). Red X in the panels (where present) marks the end of metamorphosis as predicted by the model. Experimental conditions were modeled as follows: temperature for incubation 13 °C, hatching to birth: 16 °C, after birth: 16 °C (top row) or 20 °C (lower row). Temperature switches in the simulations are linked to life stage (maturity), not time. Size at birth will depend on the scaled food availability (f) experienced by the mother (f = 0.5), while subsequent growth will depend on experimental conditions (food and temperature) experienced by the larvae. Experimental f for larvae corresponds to feeding regimes: fLF = 0.1, fMF = 0.15, fHF = 0.18. All f values were adjusted manually. Physiological parameters were kept fixed at values listed in Table 2.
Fishes 08 00068 g001
Figure 2. Model validation for S. senegalensis. Larvae length (points) and DEB model larval growth predictions (lines) for S. senegalensis larvae reared at three food availabilities (HighFood, HF; MediumFood, MF and LowFood, LF) and three constant temperatures (17 °C, 20 °C, and 23 °C). (a) Mp- microplates (individual fish); (b) C—containers. Red X in the panels (where present) marks the end of metamorphosis as predicted by the model. Experimental conditions were modeled as follows: temperature for incubation and first 12 days of rearing: 17 °C, afterward: 17 °C (top row), 20 °C (middle row), or 23 °C (bottom row). Temperature switches in the experimental simulations are linked to time. Size at birth will depend on the scaled food availability (f) experienced by the mother (f = 1), while subsequent growth will depend on experimental conditions (food and temperature) experienced by the larvae. Experimental f for larvae switches on day 12 from the initial fEXP = 0.6 to treatment-specific: fLF = 0.4, fMF = 0.45, fHF = 0.55. All f values were adjusted manually. Physiological parameters were kept fixed at values listed in Table 2.
Figure 2. Model validation for S. senegalensis. Larvae length (points) and DEB model larval growth predictions (lines) for S. senegalensis larvae reared at three food availabilities (HighFood, HF; MediumFood, MF and LowFood, LF) and three constant temperatures (17 °C, 20 °C, and 23 °C). (a) Mp- microplates (individual fish); (b) C—containers. Red X in the panels (where present) marks the end of metamorphosis as predicted by the model. Experimental conditions were modeled as follows: temperature for incubation and first 12 days of rearing: 17 °C, afterward: 17 °C (top row), 20 °C (middle row), or 23 °C (bottom row). Temperature switches in the experimental simulations are linked to time. Size at birth will depend on the scaled food availability (f) experienced by the mother (f = 1), while subsequent growth will depend on experimental conditions (food and temperature) experienced by the larvae. Experimental f for larvae switches on day 12 from the initial fEXP = 0.6 to treatment-specific: fLF = 0.4, fMF = 0.45, fHF = 0.55. All f values were adjusted manually. Physiological parameters were kept fixed at values listed in Table 2.
Fishes 08 00068 g002
Figure 3. Time variance from baseline (S1, black line in figure) for age at hatching (ah), birth (ab, start of exogenous feeding), end of metamorphosis (aj), and puberty (ap) in S. solea individuals issued from early, mid and late spawning events and growing under the seven different scenarios (please see Table 1 for scenario descriptions).
Figure 3. Time variance from baseline (S1, black line in figure) for age at hatching (ah), birth (ab, start of exogenous feeding), end of metamorphosis (aj), and puberty (ap) in S. solea individuals issued from early, mid and late spawning events and growing under the seven different scenarios (please see Table 1 for scenario descriptions).
Fishes 08 00068 g003
Figure 4. Time variance from baseline for age at hatching (ah), birth (ab, start of exogenous feeding), end of metamorphosis (aj), and puberty (ap) in S. senegalensis individuals issued from early, mid and late spawning events and growing under the seven different scenarios (please see Table 1 for scenario descriptions).
Figure 4. Time variance from baseline for age at hatching (ah), birth (ab, start of exogenous feeding), end of metamorphosis (aj), and puberty (ap) in S. senegalensis individuals issued from early, mid and late spawning events and growing under the seven different scenarios (please see Table 1 for scenario descriptions).
Fishes 08 00068 g004
Figure 5. DEB model growth simulations for S. solea individuals spawned at three different times of the year (represented by full, dotted, and dashed lines) under baseline conditions (S1, black lines in panels a-c), and (a) magnitude changes of food (±50% X, S2 and S3. blue lines), (b) temperature rise scenarios (+1.8 °C and 3.7 °C, yellow lines) and (c) their combination (S6 and S7, orange lines). (d) Temperature during the simulation, representing the temperature experienced by the larvae and juveniles, i.e., it includes the gradual shift from coastal sea to estuary (see Methods for details). Please see Table 1 for the summary of scenario descriptions.
Figure 5. DEB model growth simulations for S. solea individuals spawned at three different times of the year (represented by full, dotted, and dashed lines) under baseline conditions (S1, black lines in panels a-c), and (a) magnitude changes of food (±50% X, S2 and S3. blue lines), (b) temperature rise scenarios (+1.8 °C and 3.7 °C, yellow lines) and (c) their combination (S6 and S7, orange lines). (d) Temperature during the simulation, representing the temperature experienced by the larvae and juveniles, i.e., it includes the gradual shift from coastal sea to estuary (see Methods for details). Please see Table 1 for the summary of scenario descriptions.
Fishes 08 00068 g005
Figure 6. DEB model growth simulations for S. senegalensis individuals spawned at three different times of the year (represented by full, dotted, and dashed lines) under baseline conditions (S1, black lines in panels a-c), and (a) magnitude changes of food (±50% X, S2 and S3, blue lines), (b) temperature rise scenarios (+1.8 °C and 3.7 °C, yellow lines) and (c) their combination (S6 and S7, orange lines). (d) Temperature during the simulation, representing the temperature experienced by the larvae and juveniles, i.e., it includes the gradual shift from coastal sea to estuary (see Methods for details). Please see Table 1 for the summary of scenario descriptions.
Figure 6. DEB model growth simulations for S. senegalensis individuals spawned at three different times of the year (represented by full, dotted, and dashed lines) under baseline conditions (S1, black lines in panels a-c), and (a) magnitude changes of food (±50% X, S2 and S3, blue lines), (b) temperature rise scenarios (+1.8 °C and 3.7 °C, yellow lines) and (c) their combination (S6 and S7, orange lines). (d) Temperature during the simulation, representing the temperature experienced by the larvae and juveniles, i.e., it includes the gradual shift from coastal sea to estuary (see Methods for details). Please see Table 1 for the summary of scenario descriptions.
Fishes 08 00068 g006
Table 1. List of simulated scenarios (S1–S7) designed to reflect potential changes in temperature (warming of 1.8 and 3.7 degrees—RCP 4.5 and RCP 8.5, respectively, IPCC, 2014), and decrease and increase in food availability, both relative to the baseline, i.e., current conditions. Current (baseline) temperature is assumed to reflect the average seasonal fluctuations in typical coastal sea and estuaries inhabited by soles (see subsection ‘Temperature scenarios’ of Methods), and the food availability (X) is assumed to result in scaled functional response f = 0.85 in both species. In each scenario, there are three spawning events: early, middle, and late, the timing of which depends on the species.
Table 1. List of simulated scenarios (S1–S7) designed to reflect potential changes in temperature (warming of 1.8 and 3.7 degrees—RCP 4.5 and RCP 8.5, respectively, IPCC, 2014), and decrease and increase in food availability, both relative to the baseline, i.e., current conditions. Current (baseline) temperature is assumed to reflect the average seasonal fluctuations in typical coastal sea and estuaries inhabited by soles (see subsection ‘Temperature scenarios’ of Methods), and the food availability (X) is assumed to result in scaled functional response f = 0.85 in both species. In each scenario, there are three spawning events: early, middle, and late, the timing of which depends on the species.
Food (X)/Temperature (T)Current Food (bX): BaselineLow Food (−X): 0.5 × BaselineHigh Food (+X): 1.5 × Baseline
Current temperature (bT): baselineS1 (bTbX)S2 (bT−X)S3 (bT+X)
RCP 4.5 (+T): bT + 1.8 degree increaseS4 (+TbX)S6 (+T−X)/
RCP 8.5 (++T): bT + 3.7 degree increaseS5 (++TbX)S7 (++T−X)/
Table 2. Summary of DEB parameter estimates for the common sole (S. solea) and the Senegalese sole (S. senegalensis) that were used for the simulations. Two parameters (v and {pAm}) in the abj-model applied here increase their value between birth and metamorphosis (see Appendix A), so the final value is provided in brackets. The final parameter value is calculated by multiplying the initial value by sM = 2.7942 (S. solea) or by sM = 3.3472 (S. senegalensis), sM calculated for f = 1. Arrhenius parameters for the 5-parameter temperature correction (TL, TH, TAL, TL) were set manually. For a full list of parameters, please see Table A3 and Table A5 in Appendix B.
Table 2. Summary of DEB parameter estimates for the common sole (S. solea) and the Senegalese sole (S. senegalensis) that were used for the simulations. Two parameters (v and {pAm}) in the abj-model applied here increase their value between birth and metamorphosis (see Appendix A), so the final value is provided in brackets. The final parameter value is calculated by multiplying the initial value by sM = 2.7942 (S. solea) or by sM = 3.3472 (S. senegalensis), sM calculated for f = 1. Arrhenius parameters for the 5-parameter temperature correction (TL, TH, TAL, TL) were set manually. For a full list of parameters, please see Table A3 and Table A5 in Appendix B.
ParameterSymbolS. soleaS. senegalensisUnit
Arrhenius temperatureTA79806528K
Maximum surface area specific assimilation rate{pAm}282.195 (788.5219)95.61 (320.05)J/d·cm2;
Energy conductancev0.06828 (0.1908)0.0697 (0.2332)cm/d
Allocation fraction to soma (kappa)κ0.7820.8117-
Volume specific somatic maintenance[pM]31.2222.83J/d·cm3
Specific cost for structure[EG]51885230J/cm3
Maturity at hatchingEHh0.18090.0552J
Maturity at birthEHb0.34170.1671J
Maturity at end of metamorphosisEHj7.496.309J
Maturity at pubertyEHp1.964 × 1051.258 × 106J
Shape coefficient for larvaeδMe0.15780.221-
Shape coefficient post-metamorphosisδM0.1990.2235-
Arrhenius temperature for high temperature extremeTAH20,00020,000K
High temperature extremeTH294.15 (21 °C)301.15 (28 °C)K
Arrhenius temperature for low temperature extremeTAL18,00018,000K
Low temperature extremeTL280.15 (7 °C)283.15 (10 °C)
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Sardi, A.E.; Moreira, J.M.; Omingo, L.; Cousin, X.; Bégout, M.-L.; Manchado, M.; Marn, N. Simulating the Effects of Temperature and Food Availability on True Soles (Solea spp.) Early-Life History Traits: A Tool for Understanding Fish Recruitment in Future Climate Change Scenarios. Fishes 2023, 8, 68. https://doi.org/10.3390/fishes8020068

AMA Style

Sardi AE, Moreira JM, Omingo L, Cousin X, Bégout M-L, Manchado M, Marn N. Simulating the Effects of Temperature and Food Availability on True Soles (Solea spp.) Early-Life History Traits: A Tool for Understanding Fish Recruitment in Future Climate Change Scenarios. Fishes. 2023; 8(2):68. https://doi.org/10.3390/fishes8020068

Chicago/Turabian Style

Sardi, Adriana E., José M. Moreira, Lisa Omingo, Xavier Cousin, Marie-Laure Bégout, Manuel Manchado, and Nina Marn. 2023. "Simulating the Effects of Temperature and Food Availability on True Soles (Solea spp.) Early-Life History Traits: A Tool for Understanding Fish Recruitment in Future Climate Change Scenarios" Fishes 8, no. 2: 68. https://doi.org/10.3390/fishes8020068

Article Metrics

Back to TopTop
