Conductivity Sum Rule in the Nearly Free Two-Dimensional Electron Gas in an Uniaxial Potential

Abstract

We report an investigation of the conductivity sum rule in the two-dimensional system of free electrons in a weak uniaxial potential. The sum rule is defined through the integration of a real part of a multiband conductivity tensor and separates between the intraband and interband charge transport concentrations. It is shown how the relative direction of the electric field and the uniaxial potential defines the transport concentrations of the nearly free electron system and why the sum rule is obeyed.

1. Introduction

The conductivity sum rule is an important tool in the analysis of the dynamical charge transport properties in the strongly correlated systems [1,2]. In this paper, we show, by using the simple electron gas model exposed to periodic potential on the atomic scale, how the electron transport concentrations (which are of fundamental importance in experimental data analysis), depend on doping under conditions of the pseudogap formation. Due to the presence of multiple electron-scattering channels and a significant number of bands around Fermi level, it is a challenge to separate intraband from interband contributions in the dynamical conductivity measurements. We demonstrate the sum rule connection with the charge conservation in the two-dimensional (2D) system of nearly free electrons (NFE) in an additional weak periodic potential. We assume that the weak periodic potential is uniaxial, having a single Fourier component with amplitude $\Delta$ and the modulation wave vector $\mathbf{Q}$, and that the Fermi energy can be easily changed. A possible onset of such potential in the real system is stabilization of the charge density wave (CDW). Hence, we call this model by abbreviation UniAxNFE. The conservation of charge that participates in electric transport, or the sum rule, amounts to evaluating the contributions from partial spectral weights which originate from the real parts of the intraband and interband conductivity. The general form of the multiband conductivity tensor [3] is approximated by an expression consisting of a bare single-particle electron-hole energies and a phenomenological electron-hole scattering constant. This approximate form of the multiband conductivity tensor is then divided into its intra- and interband parts, which are then evaluated in the long wavelength limit of a perturbating electric field. In this way, we obtain a simple form of the intraband part of the multiband conductivity tensor, known as the Drude conductivity formula [4], whereas the contributions to the conductivity originating from the interband excitations, will be referred to as optical conductivity [5]. In the limit of the vanishing intra- and interband relaxation constant, the expressions for the real parts of intra- and interband conductivity become simplified and, for the particular model of the electron ground state used in this work, they are given in a closed form. The sum rule is defined in Ref. [6] as well as the way by which it connects the real part of the conductivity and the various types of electron transport concentrations. The latter depends on the direction in which the macroscopic electric field is pointing.

The electron energies of the resulting two-band UniAxNFE model [4,7] retain, to some extent, the free electron-like properties in the direction perpendicular to $\mathbf{Q}$, whereas in the parallel direction, the bands are strongly influenced by the potential; hence, as a result a pseudogap is opened. The pseudogap position and its width is defined by two of the four characteristic energy points of the electron bands. These points also define the intervals of different energy dependence of the transport concentrations. Finally, we explicitly show how we can identify the intraband and interband effective electron concentration of the UniAxNFE model, which when added together, yield the total charge concentration. Moreover, we demonstrate a different energy dependence of these effective transport concentrations when measured in the direction parallel to the wave vector $\mathbf{Q}$, and direction perpendicular to it.

2. Multiband Conductivity Tensor

Here we give a simple overview of the general form of the conductivity tensor in a simple cubic type of crystal without the infrared active phonons. The conductivity tensor includes contributions from all types of single-particle excitation in a multiband system. Within the linear response theory, the conductivity tensor ${\sigma }_{\alpha }^{tot}(\mathbf{q},\omega )$ [3] is defined as a connection between the Cartesian component $\alpha$ of the induced current density $J_{\alpha }^{ind}(\mathbf{q},\omega )$ with respect to the same $\alpha$ component of the macroscopic electric field,

$$J_{\alpha }^{ind}(\mathbf{q},\omega )={\sigma }_{\alpha }^{tot}(\mathbf{q},\omega )E_{\alpha }(\mathbf{q},\omega ),$$

(1)

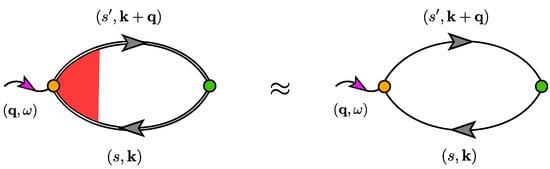

where $(\mathbf{q},\omega )$ are the wave vector and frequency of the macroscopic electric field $\mathbf{E}(\mathbf{q},\omega )$. In its general form, as shown in Figure 1, the conductivity tensor is in fact a current-dipole correlation function. This object is too complicated to be used as a tool for a simple analysis of the dynamical transport properties, so a simplified version has to be introduced. In this simplification of the conductivity tensor [8], the electron and hole self-energy renormalisation is neglected and electron-hole scattering is approximated by the phenomenological constant $\gamma$, which depends on the band index s,

$${\sigma }_{\alpha }^{tot}(\mathbf{q},\omega )=\frac{2i\hslash }{V}\sum _{s{s}^{\prime }}\sum _{\mathbf{k}}\frac{|{\lambda }_{\alpha \mathbf{k}}^{s{s}^{\prime }}{|}^2}{E_{\mathbf{k}}^s-E_{\mathbf{k}+\mathbf{q}}^{s^{\prime }}}\frac{f_{\mathbf{k}+\mathbf{q}}^{s^{\prime }}-f_{\mathbf{k}}^s}{ħ\omega +E_{\mathbf{k}}^s-E_{\mathbf{k}+\mathbf{q}}^{s^{\prime }}+iħ{\gamma }^{s{s}^{\prime }}}.$$

(2)

In (2), $E_{\mathbf{k}}^s$ is the s-band energy with the corresponding Fermi–Dirac distribution $f_{\mathbf{k}}^s$, V is the volume (area) of the crystal. The first term within the ${\sum }_{\mathbf{k}}$-summation, which extends over the first Brillouin zone in (2), is a product of current and dipole matrix elements, which are connected via continuity equation [10]. This is why the product of current and dipole matrix elements is written by using just the current elements (${\lambda }_{\alpha \mathbf{k}}^{s{s}^{\prime }}$) and the single-particle energies. Thus, ${\lambda }_{\alpha \mathbf{k}}^{s{s}^{\prime }}$ is the $s{s}^{\prime }$ matrix element of an $\alpha$-dependent matrix ${\lambda }_{\alpha }$, which is derived by using the unitary matrix $\mathbf{U}$ needed to diagonalize the electron Hamiltonian and the derivative of the Hamiltonian matrix [7,8,11],

$${\lambda }_{\alpha }=\frac{e}{\hslash }\mathbf{U}\frac{\partial \mathbf{H}}{\partial k_{\alpha }}{\mathbf{U}}^{-1}.$$

(3)

In general, the intraband $(s=s^{\prime })$ current matrix elements are model-independent and given by

$${\lambda }_{\alpha \mathbf{k}}^{ss}=\frac{e}{ħ}\frac{\partial E_{\mathbf{k}}^s}{\partial k_{\alpha }},$$

(4)

whereas the interband (s ≠ s′) current matrix elements are model-dependent. Taking the q→0 limit in the Equation (2) and dividing it in the intraband (s = s′) and interband (s ≠ s′) channel and assuming that the intraband phenomenological relaxation constants are equal to γ we get

$$\begin{array}{ccc}\hfill {\sigma }_{\alpha }^{tot}\left(\omega \right)& =& {\sigma }_{\alpha }^{intra}\left(\omega \right)+{\sigma }_{\alpha }^{inter}\left(\omega \right)\hfill \\ & =& \frac{i{e}^2{n}_{\alpha }^{intra}}{m_e(\omega +i\gamma )}+\frac{2i\hslash }{V}\sum _{s\ne s^{\prime }}\sum _{\mathbf{k}}\frac{|{\lambda }_{\alpha \mathbf{k}}^{s{s}^{\prime }}{|}^2}{E_{\mathbf{k}}^s-E_{\mathbf{k}}^{s^{\prime }}}\frac{f_{\mathbf{k}}^{s^{\prime }}-f_{\mathbf{k}}^s}{ħ\omega +E_{\mathbf{k}}^s-E_{\mathbf{k}}^{s^{\prime }}+i\hslash {\gamma }^{s{s}^{\prime }}}.\hfill \end{array}$$

(5)

In Equation (5), we have introduced the effective concentrations of electrons $n_{\alpha }^{intra}$ that participate in the intraband transport [12]. There are two equivalent forms of $n_{\alpha }^{intra}$ [13] obtainable from one another by partial integration,

$$\begin{array}{cc}\hfill n_{\alpha }^{intra}\left(E_F\right)& =-\frac{2}{V}\frac{m_e}{{\hslash }^2}\sum _s\sum _{\mathbf{k}}{\left(\frac{\partial E_{\mathbf{k}}^s}{\partial k_{\alpha }}\right)}^2\frac{\partial f_{\mathbf{k}}^s}{\partial E_{\mathbf{k}}^s},\hfill \end{array}$$

(6a)

$$\begin{array}{cc}\hfill & =\frac{2}{V}\frac{m_e}{2}\sum _s\sum _{\mathbf{k}}\frac{{\partial }^2{E}_{\mathbf{k}}^s}{\partial k_{\alpha }^2}{f}_{\mathbf{k}}^s.\hfill \end{array}$$

(6b)

We now turn to the real part of the total conductivity tensor (5) in the limit of a vanishing relaxation constants $(\gamma ,{\gamma }^{s{s}^{\prime }})\to 0$. For the intraband conductivity, we obtain

$$\mathrm{Re}{\sigma }_{\alpha }^{intra}\left(\omega \right)=\frac{\pi e^2{n}_{\alpha }^{intra}}{m_e}\delta \left(\omega \right),$$

(7)

and, correspondingly, for the interband conductivity,

$$\mathrm{Re}{\sigma }_{\alpha }^{inter}\left(\omega \right)=\frac{\pi e^2}{m_e}\frac{2}{V}\sum _{s\ne s^{\prime }}\sum _{\mathbf{k}}\frac{m_e}{e^2}{\left|{\lambda }_{\alpha \mathbf{k}}^{s{s}^{\prime }}\right|}^2\frac{f_{\mathbf{k}}^{s^{\prime }}-f_{\mathbf{k}}^s}{E_{\mathbf{k}}^s-E_{\mathbf{k}}^{s^{\prime }}}\delta \left(\omega +\frac{E_{\mathbf{k}}^s-E_{\mathbf{k}}^{s^{\prime }}}{\hslash }\right.).$$

(8)

The sum rule states that by integrating the real part of the conductivity (7) and (8), which are even function of ω, he conserved quantity called the spectral weight is obtained [6,12,14],

$$\begin{array}{c}\hfill {\int }_0^{\infty }\mathrm{Re}{\sigma }_{\alpha }^{tot}\left(\omega \right)d\omega =\frac{\pi e^2{n}_{\alpha }^{intra}}{2m_e}+\frac{\pi e^2{n}_{\alpha }^{inter}}{2m_e}=\frac{\pi e^2{n}_{\alpha }}{2m_e},\end{array}$$

(9)

where we have defined, analogously to the intraband effective concentration of electrons (6), an interband effective concentration of electrons

$$\begin{array}{c}\hfill n_{\alpha }^{inter}=\frac{2}{V}\sum _{s\ne s^{\prime }}\sum _{\mathbf{k}}\frac{m_e}{e^2}{\left|{\lambda }_{\alpha \mathbf{k}}^{s{s}^{\prime }}\right|}^2\frac{f_{\mathbf{k}}^{s^{\prime }}-f_{\mathbf{k}}^s}{E_{\mathbf{k}}^s-E_{\mathbf{k}}^{s^{\prime }}}.\end{array}$$

(10)

For any multiband system, the sum rule (9) states that the concentration of electrons $n_{\alpha }$ engaged in the dynamical charge transport is distributed among electrons participating in the intraband, and those participating in the interband excitations,

$$n_{\alpha }=n_{\alpha }^{intra}+n_{\alpha }^{inter}.$$

(11)

Here, we stress that $n_{\alpha }$ can be different from the total concentration of electrons $n^{tot}$ needed to fill the bands up to the Fermi energy. Whether or not $n_{\alpha }$ and $n^{tot}$ are equal, depends on the electron model in question. We will show that for the UniAxNFE model indeed $n_{\alpha }=n^{tot}$. This, however, does not apply for the systems with linear electron dispersions like the d-dimensional Dirac systems [3,15,16] where $n_{\alpha }\propto {\left(n^{tot}\right)}^{\frac{d-1}{d}}$. Moreover, evaluating the relation (6a) for the single-band system described by $E_{\mathbf{k}}\propto {\left|\mathbf{k}\right|}^{\nu }$, we can easily obtain the following general relation:

$$n_{\alpha }^{intra}\propto {\left(n^{tot}\right)}^{\frac{d+\nu -2}{d}}.$$

(12)

Thus, we see that only for the parabolic-like electron dispersion ($\nu =2$), $n_{\alpha }$ and $n^{tot}$ might be equal. We now turn our attention to the example of the two-band system in which (11) is conserved.

3. Two-Dimensional UniAxNFE Model

As a testing ground for the sum rule (9), we analyze the charge transport properties of the two-dimensional, nearly free electron gas in the presence of weak periodic uniaxial potential. The crystal potential is of the form $2\Delta cos(\mathbf{r}·\mathbf{Q})$ with the wave vector $\mathbf{Q}$, thus becoming the new reciprocal lattice vector. The electronic two-band Hamiltonian in its matrix form in the basis of $|\mathbf{k}\rangle$ and $|\mathbf{k}-\mathbf{Q}\rangle$, where the latter are the states near a single Bragg’s plane defined by $\mathbf{Q}$, is

$$\mathbf{H}=\left(\begin{array}{cc}{\epsilon }_{\mathbf{k}}& \Delta \\ \Delta & {\epsilon }_{\mathbf{k}-\mathbf{Q}}\end{array}\right),$$

(13)

where ${\epsilon }_{\mathbf{k}}=c{k}^2$ where $c={ħ}^2/2m_e$, $\mathbf{k}$ is electron wave vector, $m_e$ is the bare electron mass [4]. The diagonalisation of Equation (13) gives two electron bands labeled by index $s\in \{+,-\}$ within the newly defined Brillouin zone with the periodicity determined by $\mathbf{Q}$,

$$E_{\mathbf{k}}^s=\frac{1}{2}\left({\epsilon }_{\mathbf{k}-\mathbf{Q}}+{\epsilon }_{\mathbf{k}}\right)+s\frac{1}{2}\sqrt{{\left({\epsilon }_{\mathbf{k}-\mathbf{Q}}-{\epsilon }_{\mathbf{k}}\right)}^2+4{\Delta }^2}.$$

(14)

In the electron dispersion Equation (14), $\mathbf{k}$ is defined relatively to $\mathbf{Q}$ by decomposition $\mathbf{k}=({\mathbf{k}}_{\perp },{\mathbf{k}}_{\Vert })$ where ${\mathbf{k}}_{\Vert }$ is parallel to the $\mathbf{Q}$-direction. Moreover, the origin of the newly formed Brillouin zone is shifted by $\mathbf{k}\to \mathbf{k}+\mathbf{Q}/2$. Implementing these changes in Equation (14), we get

$$E_{\mathbf{k}}^s=c{k}_{\perp }^2+c{k}_{\Vert }^2+c{(Q/2)}^2+s\sqrt{c^2{k}_{\Vert }^2{Q}^2+{\Delta }^2}.$$

(15)

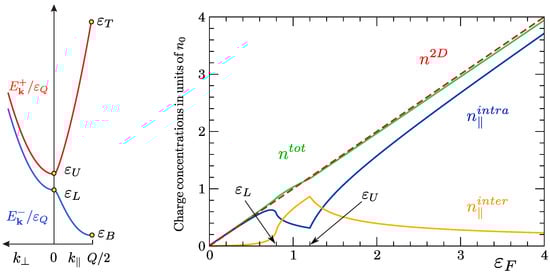

The two electron dispersions (15) are shown in Figure 2 (left) and are scaled with the ${\epsilon }_Q=c{(Q/2)}^2$, the electron energy at the Bragg’s plane, where the dispersions cross, prior to the pseudogap opening. In addition, a dimensionless gap parameter $\eta =\Delta /{\epsilon }_Q$ is introduced as a dimensionless order parameter, i.e., the measure of strength of the periodic potential. In the weak periodic potential approach we expect $\eta \ll 1$. The Brillioun zone, over which Equation (15) is spanned, resembles an infinitely long stripe in $k_{\perp }\in [-\infty ,\infty ]$ direction of total width $k_{\Vert }\in [-Q/2,Q/2]$. Four characteristic energy points related to the bands (15) are identified and designated by the yellow circle in Figure 2. The bottom (B) energy of the $s=-$ band and the top (T) energy of the $s=+$ band, within the $k_{\perp }=0$ cross-section of the Brillouin zone, are located at $k_{\Vert }=Q/2$ (see Figure 2 (left)). We have

$${\epsilon }_{T,B}=E_{T,B}/{\epsilon }_Q=2\pm \sqrt{4+{\eta }^2}.$$

(16)

In addition, the extent of the pseudogap region at $\mathbf{k}=0$ is determined by the upper (U) and lower (L) energy

$${\epsilon }_{U,L}=E_{U,L}/{\epsilon }_Q=1\pm \eta .$$

(17)

Calculated properties related to the charge transport will be presented as functions of the scaled Fermi energy ${\epsilon }_F=E_F/{\epsilon }_Q$.

4. Charge Transport Concentrations of the 2D UniAxNFE Model

Dispersion (15) implies different response to the dynamical electric field pointing parallel, or perpendicular to the direction of the vector $\mathbf{Q}$. To demonstrate this, we calculate the intraband concentration $n_{\alpha }^{intra}$ (6), for electrons described by the bands (15), filed up to the scaled Fermi energy ${\epsilon }_F$ at zero temperature for two distinct directions $\alpha \in (\Vert ,\perp )$.

Let us inspect the ⊥ direction first. It is easy to check from (15) that ${\partial }^2{E}_{\mathbf{k}}^s/\partial k_{\perp }^2={ħ}^2/m_e$, and thus Equation (6b) reduces to the standard definition of the total concentration of electrons $n^{tot}$,

$$n_{\perp }^{intra}=n^{tot},$$

(18)

which is shown in Figure 2 (right) in green as a function of ${\epsilon }_F$ in units of concentration $n_0=Q^2/\left(8\pi \right)$. $n^{tot}$ should be compared to the total concentration of 2D free electrons which is

$$n^{2D}=n_0{\epsilon }_F,$$

(19)

and is shown as a red dashed line in Figure 2 (right). We see a small deviation between the two concentrations (18) and (19) within the pseudogap region and for high ${\epsilon }_F$ values. This illustrates a small but observable influence of the uniaxial potential on the transport in the perpendicular direction. Moreover, from the Hamiltonian (13) and from the definition of the current matrix elements (4), we can derive [7] the interband current matrix elements

$$\begin{array}{c}\hfill {\lambda }_{\Vert \mathbf{k}}^{+-}=2\frac{e}{ħ}Qc\frac{\Delta }{E_{\mathbf{k}}^{+}-E_{\mathbf{k}}^{-}},{\lambda }_{\perp \mathbf{k}}^{+-}=0.\end{array}$$

(20)

The only Cartesian component $\alpha$, for which (20) is finite, is $\alpha =\Vert$. By inspecting Equation (10), we conclude that the interband concentration of electrons is

$$n_{\perp }^{inter}=0.$$

(21)

Therefore, the interband conductivity in the electron model derived in Section 3 is finite only when the macroscopic electric field is applied in the direction parallel to the vector $\mathbf{Q}$. Comparing expressions (21), (18) and (11), we get

$$n_{\perp }=n^{tot}.$$

(22)

If the macroscopic electric field is oriented parallel to $\mathbf{Q}$, the calculated $n_{\Vert }^{intra}$ is shown in Figure 2 (right) in blue. As is seen for ${\epsilon }_F<{\epsilon }_L$, the two concentrations $n^{tot}$ and $n_{\Vert }^{intra}$ nearly coincide. The biggest difference between them is when ${\epsilon }_F$ is within the pseudogap region ${\epsilon }_L<{\epsilon }_F<{\epsilon }_U$. The $n_{\Vert }^{inter}$ is calculated by inserting (20) into Equation (10). The result is also shown in Figure 2 (right) in orange. The main feature of $n_{\Vert }^{inter}\left({\epsilon }_F\right)$ is that it is nearly zero for ${\epsilon }_F<{\epsilon }_L$ and that it has a maximum at ${\epsilon }_F={\epsilon }_U$. Furthermore, by inspecting the Figure 2 (right), we observe that

$$n_{\Vert }^{intra}+n_{\Vert }^{inter}=n^{tot}.$$

(23)

The above expression can be shown explicitly by adding the terms in (6b) and (10) with (20) together under the same ${\sum }_{\mathbf{k}}$.

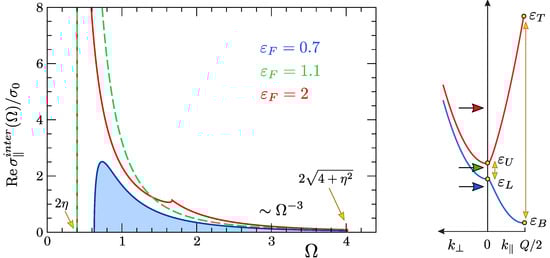

Another way of showing that a simple two-band model (15) obeys the sum rule (23) is by integrating the real part of the optical conductivity. To demonstrate this, we plot the parallel component of the real part of the interband conductivity which for the present model, has been derived in [7],

$$\begin{array}{ccc}\hfill & & \mathrm{Re}{\sigma }_{\Vert }^{inter}(\Omega )=\hfill \\ & & {\sigma }_0\frac{\Theta \left(\Omega -2\eta \right)\Theta \left(2\sqrt{4+{\eta }^2}-\Omega \right)}{{\Omega }^2\sqrt{{\Omega }^2-{\left(2\eta \right)}^2}}\left[\sqrt{16{\epsilon }_F-{(\Omega -4)}^2+{\left(2\eta \right)}^2}\Theta ({\epsilon }_F-{\epsilon }_L)\right.\hfill \\ & & +\sqrt{16{\epsilon }_F-{(\Omega -4)}^2+{\left(2\eta \right)}^2}\Theta ({\epsilon }_L-{\epsilon }_F)\Theta \left(\Omega -4+\sqrt{16{\epsilon }_F+{\left(2\eta \right)}^2}\right)\hfill \\ & & \left.+\sqrt{16{\epsilon }_F-{(\Omega +4)}^2+{\left(2\eta \right)}^2}\Theta \left(\sqrt{16{\epsilon }_F+{\left(2\eta \right)}^2}-4-\Omega \right)\Theta ({\epsilon }_F-{\epsilon }_U)\right].\hfill \end{array}$$

(24)

In the above expression, $\Omega$ is the scaled photon energy $\Omega =ħ\omega /{\epsilon }_Q$, and $\Theta$ is the Heaviside unit step function and ${\sigma }_0={\left(2e\eta \right)}^2/\left(\pi ħ\right)$ is the two-dimensional conductivity constant. Equation (24) is plotted in Figure 3 (left) for three values of ${\epsilon }_F$ whose positions are indicated by correspondingly colored arrows on the right part of Figure 3. Expression (24) is finite only for frequencies within the interval ${\epsilon }_U-{\epsilon }_L=2\eta \le \Omega \le 2\sqrt{4+{\eta }^2}={\epsilon }_T-{\epsilon }_B$ as shown in Figure 3. These limits originate from the energy conservation (8) with bands (15) that are spanned between the endpoints (16). Moreover, if ${\epsilon }_F<{\epsilon }_L$, then $\mathrm{Re}{\sigma }_{\Vert }^{inter}(\Omega )$ (blue curve) is finite, whereas if ${\epsilon }_F>{\epsilon }_L$, then $\mathrm{Re}{\sigma }_{\Vert }^{inter}(\Omega )$ develops a one-over a square-root type of divergence (red and dashed green line Figure 3 (left)). The common feature of the Equation (24) is the $\sim {\Omega }^{-3}$ decay as we increase $\Omega$. Using $\Omega$ as the new frequency variable, Equation (9) gives

$$n_{\Vert }^{inter}=\frac{2m_e{\epsilon }_Q}{\pi ħ{ẻ}^2}{\int }_0^{\infty }\mathrm{Re}{\sigma }_{\Vert }^{inter}(\Omega )d\Omega .$$

(25)

Because of the $\Omega$-restrictions in the $\mathrm{Re}{\sigma }_{\Vert }^{inter}(\Omega )$, the upper limit in the integral is set to $\infty \to 2\sqrt{4+{\eta }^2}\approx 4$. After finding the area under the conductivity curve numerically, as noted by the shaded region of the blue curve in Figure 3 (left), we obtain $n_{\Vert }^{inter}\left({\epsilon }_F\right)$ as shown in the Figure 2 (right).

As mentioned, the approach where we simply equate $n_{\alpha }\equiv n^{tot}$, does not apply for the 2D or 3D Dirac system [16,17] where the interband current matrix elements (20) are constant for any $\alpha$, and correspondingly, $\mathrm{Re}{\sigma }^{inter}(\Omega )\propto {\Omega }^{d-2}$. In order to apply the sum rule (9) with $n_{\alpha }=n^{tot}$, a cutoff frequency ${\Omega }_c$ has to be introduced in the upper boundary of the integral in (25) to prevent $n^{inter}$ from diverging. This will in turn lead to a self-consistency problem in which the parameters, like the Fermi energy $E_F$, will be tied to ${\Omega }_c$.

5. Conclusions

We have identified main parts of the multiband conductivity tensor within the single loop approximation and with a constant electron-hole scattering constant. After dividing the real part of the conductivity tensor to the intraband and interband parts we have applied the sum rule and obtained the intraband and interband charge concentrations. These charge concentrations that depend on the direction of an applied electric field where calculated for a simple two-dimensional, nearly free electron gas in a weak uniaxial crystal potential described by a two-band model. One possible way to introduce such a periodic potential, varying on an atomic scale, into the nearly free electron system is an onset of the charge density wave, for which several mechanisms has been proposed [18,19,20]. All aspects of eventual coherent CDW dynamics are neglected in this consideration. A fundamentally different Fermi energy dependence of intra- and interband concentrations is shown for this model when the direction of the electric field is parallel and perpendicular to uniaxial vector. In both cases the sum rule transport concentration is equal to the total concentration of electrons, but only for the case of electric field parallel to uniaxial potential, total concentration is divided between the inter- and intraband contributions. In this case, the conservation of total concentration is demonstrated directly by adding the expressions for inter- and intraband concentrations and by numerically integrating the real part of the interband conductivity.
