Article

Decrease in the Starting Temperature of the Reaction for Fabricating Carbides of Refractory Metals When Using Carbon Nanoparticles as Precursors

by
Vladimir Popov
1,*,
Anna Borunova
2,
Evgeny Shelekhov
1,
Oksana Koplak
3,
Elizaveta Dvoretskaya
3,
Danila Matveev
4,
Alexey Prosviryakov
1,
Ekaterina Vershinina
5 and
Vladimir Cheverikin
1
1
Department of Physical Metallurgy of Non-ferrous Metals, National University of Science and Technology “MISIS”, 119049 Moscow, Russia
2
N.N. Semenov Federal Research Center for Chemical Physics of Russian Academy of Sciences, 119334 Moscow, Russia
3
Federal Research Center of Problems of Chemical Physics and Medicinal Chemistry of Russian Academy of Sciences, 142432 Chernogolovka, Russia
4
Osipyan Institute of Solid State Physics of Russian Academy of Sciences, 142432 Chernogolovka, Russia
5
Department of Innovative Materials and Corrosion Protection, Dmitry Mendeleev University of Chemical Technology of Russia, 125047 Moscow, Russia
*
Author to whom correspondence should be addressed.
Inventions 2022, 7(4), 120; https://doi.org/10.3390/inventions7040120
Submission received: 10 November 2022 / Revised: 6 December 2022 / Accepted: 7 December 2022 / Published: 12 December 2022
(This article belongs to the Collection Feature Innovation Papers)
Browse Figures
Versions Notes

Abstract

:
Metal matrix composites with a matrix of refractory metals (niobium, tungsten) and reinforcing nanodiamond particles were prepared for studying the possibility of decreasing the starting temperature of carbide synthesis. The size of primary nanodiamond particles was 4–6 nm, but they were combined in large-sized agglomerates. Mechanical alloying was used for producing the composites by crushing agglomerates and distributing nanodiamonds evenly in the metal matrix. The initial and fabricated materials were investigated by X-ray diffraction, differential scanning calorimetry, and transmission and scanning electron microscopy. Thermal processing leads to the reaction for carbide synthesis. Studies have found that the usage of carbon nanoparticles (nanodiamonds) as precursors for fabricating carbides of refractory metals leads to a dramatic decrease in the synthesis temperature in comparison with macro-precursors: lower than 200 °C for tungsten and lower than 350 °C for niobium.

1. Introduction

In recent years, interest in carbon nanoparticles and their applications in many fields of science and technology has grown [1,2,3,4]; examples include fullerenes and carbon onions [5,6,7]. There are many studies of detonation synthesis nanodiamonds [8,9,10,11]. Like all nanopowders, nanodiamonds are subject to agglomeration, and combine into large aggregates. The size of primary nanodiamond particles is 4–6 nm (a small portion of them reach 10 nm) [12], but they are all combined in agglomerates, which can reach millimeters in size (Figure 1). Bonds in agglomerates are weaker in comparison with the monolithic material. If the aggl omerate is placed in a metal matrix composite, it will be destroyed by the application of load. This can lead to the destruction of the whole material because of the generation of the stress concentrator. On the other hand, during in situ synthesis (i.e., the chemical reaction of nanodiamonds with the material of the matrix) if there are agglomerates of nanoparticles, large-sized carbide particles will be formed. This will lead to a reduction in the effect of using carbon nanoparticles. It will be necessary to crush the agglomerates. This article is focused on studying the opportunity to decrease the starting temperature of the reaction for fabricating carbides of refractory metals when using carbon nanoparticles as precursors.
Refractory metals are of much interest for use in the engineering of many spheres [13,14,15]. Carbides of niobium [16,17,18,19,20,21,22] and tungsten [23,24,25,26,27,28] are also of interest to the industry. One of problems in fabricating these carbides is the necessity for high synthesis temperatures (1400–2000 °C) during the reaction between the metal (or its oxide) and carbon [29,30]. There are methods to fabricate carbides of refractory metals at lower temperatures, but they all relate to using intermediate and auxiliary chemical compounds, which have an adverse effect on the fineness [31]. That is why designing methods for fabricating carbides of various metals during the direct chemical reaction between the metal and carbon is a vital task. The opportunity to decrease the carbide synthesis temperature when using carbon nanoparticles as precursors has been studied in several works: articles show that the use of carbon nanoparticles (nanodiamonds [9,32], fullerenes, carbon onions [6], globular carbon [3]) in aluminum matrix composites leads to the synthesis of aluminum carbides at significantly lower temperatures than in the case of macro-materials: when fullerenes are used, the decrease reaches 350 °C. This effect was also investigated when using chromium as a composite matrix with nanodiamond reinforcing particles [33]. The temperature was reduced to 520 °C. Studies of using this effect for the synthesis of refractory metal carbides are important, since the existing methods of producing such carbides use high temperatures. Reducing the synthesis temperature will lead to a significant economic effect (reducing energy costs, costs of equipment, and usage of expensive high-temperature materials) and improve the environmental situation.

2. Materials, Equipment, and Research Methods

Commercially available powders of niobium and tungsten (supplied by VILS, Moscow, Russia) were used as the base material for fabricating the matrix of composite materials. Niobium powder contained 3%wt of niobium hydride, which was formed as a result of long-term storage at technical premises (niobium actively reacts with hydrogen); other impurities in total were not more than 0.35%wt (Table 1). Niobium particles had sizes of 10−50 microns. Total impurities in tungsten powder were not more than 0.5 %wt (Table 2). Tungsten particles had sizes of 0.5–3 microns.
Commercially available powder of nanodiamonds from detonation synthesis, supplied by Elektrokhimkomplect (Ekaterinburg, Russia), were chosen as reinforcing particles. Powder contained diamond phase not less than 95.0%wt. The composite material was fabricated by a mechanical alloying method, i.e., the processing of primary mixtures in planetary mills [34,35,36,37]. A Pulverisette 6 planetary mono-mill (FRITSCH GmbH, Germany) was used. The grinding jar had a volume of 80 mL and chromium steel balls (100 g) with a diameter of 5 mm were used as the grinding tool. Rotation speed was equal to 500 rpm. The processing has been implemented without any surfactants in an argon atmosphere for 0.5–9 h; the shut-down period for cooling was not included in the total processing time. Information about fabricated composites is presented in Table 3 (Digital Jewelry Scale FC-50 was used to weigh materials).
The fabricated powdery granules underwent a detailed study with the help of scanning electron microscopy (SEM), X-ray diffraction (XRD), and differential scanning calorimetry (DSC) [38,39,40,41,42], which was carried out on two appliances: DSC 404 C Pegasus and STA 449 F3 Jupiter (both manufactured by NETZSCH, Germany). In both cases, the heating rate was 20 degrees per minute. A DSC 404 C Pegasus was used for studying the niobium composites under heating up to 1000–1400 °C. Results were measured in an argon atmosphere with the feed rate of 50 mL/min. The appliance was graduated for measuring in mW/mg. An STA 449 F3 Jupiter was used for studying the tungsten composites under heating up to 1550 °C. Results were measured in a helium atmosphere with a feed rate of 50 mL/min. This appliance allowed us to perform differential scanning calorimetry (DSC) with the registration in microvolts and thermal gravimetric analysis (TG). Air was evacuated from the working chamber for the graduating scales. The working chamber was filled-in with helium of 6.0 mark (99.9999%). Thereafter, the appliance was returned to the original state. Two empty closed alumina (Al2O3) crucibles were then placed on the holder inside the working chamber of the appliance. The procedure of evacuation and filling-in was repeated, the baseline for the empty crucible was recorded and the appliance was returned to the original state. Then, the investigating sample was placed into one of the empty crucibles, the procedure of evacuation and filling-in was repeated, and necessary measurements were performed. The results of the DSC and TG of the sample were compared with the results of the empty crucible, considering the baseline for the empty crucible. The X-ray diffraction analysis was conducted using an X-ray diffractometer DRON-3 (Russia, Saint-Petersburg) with CuKα radiation. Reference [43] provides information about the technique and the software used during X-ray diffraction studies. During the phase analysis, data from ICSD (Inorganic Crystal Structure Database), CRYSTMET, COD (Crystallography Open Database) bases were used. A scanning electron microscope TESCAN VEGA3 (Czech Republic, Brno-Kohoulovice) and Supra 50VP (Carl Zeiss, Germany) was used for examining the general appearance of granules and their surface. Transmission electron microscopy studies were performed using a TITAN 80–300 (FEI, International).

3. Results and Discussion

Composite materials of «niobium + nanodiamonds» and «tungsten + nanodiamonds» (Table 1) were fabricated using mechanical alloying. Approximately, niobium composites contain 7%mass of nanodiamonds, and tungsten composites contain 3%mass of nanodiamonds. Niobium has decreased strength in comparison with tungsten, which is why it was applied for the investigation of several treatment periods of mechanical alloying: (i) short time—0.5 h (specimen 1-Nb), (ii) middle time—1.2 h (specimen 2-Nb); (iii) long time—6 h (specimen 3-Nb). The high strength of tungsten is the reason for the use of a long treatment time in mechanical alloying: 9 h (specimen 4-W).

3.1. Niobium Composites

The fabricated samples of composites were studied by scanning electron microscopy (SEM), X-ray diffraction (XRD), and differential scanning calorimetry (DSC). The general views of the initial niobium powder and niobium composite granules are presented in Figure 2a–d. During mechanical alloying, nanodiamond agglomerates are destroyed and mixed with metal particles, nanodiamond particles are embedded in a metal matrix, and metal particles are destroyed and welded again. Mixing, destruction, and welding processes lead to the formation of composite granules. The processing time determines the degree of destruction of primary nanodiamond agglomerates. The images in Figure 2 indicate that processing for a short time does not cause a high degree of elaboration of the structure (Figure 2b). An increase in the time of mechanical alloying leads to significant destruction of nanodiamond agglomerates, a decrease in the size of granules, and an increase in the uniformity of the material.
X-ray diffraction analysis was performed for «niobium + nanodiamonds» composites fabricated after mechanical alloying for 0.5 h, 1.2 h, and 6 h. The results are presented in Figure 3.
As can be seen in the X-ray diffraction patterns, carbides are not fabricated practically if the time of processing is short. When processing for 0.5 h, hydrides, which were generated in niobium powder upon storage, did not decompose. After processing for 1.2 h, some number of carbides were observed. In samples processed by mechanical alloying for 6 h, a considerable proportion of nanodiamonds participated in the synthesis of niobium carbide. This can be explained by the fact that in the place where balls collide during the mechanical alloying, the temperature can reach and even exceed 400 °C [44]. To reduce this value, it is obviously necessary to use special methods (cryo-milling, etc.). Calculations show that not all carbon material reacted during the mechanical alloying. Hence, this sample has been studied further.
An important part of the study was the differential scanning calorimetry of composite samples with a niobium matrix and nanodiamond reinforcing particles (Figure 4).
A short processing time by mechanical alloying did not allow us to significantly crush the agglomerates of the nanodiamonds; hence, the maximum of peak heat release has been observed at 950–1000 °C (Figure 4, curve 1 in red, specimen 1-Nb, processing time in the planetary mill was 0.5 h). A longer processing time leads to more serious crushing of agglomerates. As a result, the maximum of peak heat release shifts to a lower temperature: after 1.2 h of processing the maximum peak is approximately at 800 °C (Figure 4, curve 2 in green, specimen 2-Nb), and after 6 h of processing the maximum peak is approximately at 700 °C (Figure 4, curve 3 in blue, specimen 3-Nb). In all cases of using mechanical alloying, there are some fully crushed agglomerates. Consequently, heat release due to the fabrication of carbides has been observed even at 300–400 °C. To confirm the fabrication of carbides at heating, the XRD study of the sample processed for 6 h in the planetary mill (after heating up to 350–760 °C) was performed (Table 4).
Thus, the synthesis of niobium carbides begins at temperatures lower than 350 °C if carbon nanoparticles (in this case, nanodiamonds have been chosen) are used as precursors and if there is firm contact between components.

3.2. Tungsten Carbides

Figure 5 shows general views of the initial tungsten powder and tungsten composite granules.
Analysis by scanning electron microscopy revealed the smaller size of the tungsten particles. The X-ray diffraction patterns of the «tungsten + nanodiamonds» sample after mechanical alloying indicate that the sample mainly consists of tungsten (Figure 6a). The lower left part of the first peak indicates that there are some amorphic tungsten carbides in the composite after mechanical alloying. There is about 1% of tungsten oxide (WO2) in the sample (Figure 6b), which has possibly been generated from adsorbed atmospheric oxygen in the initial powders. The X-ray diffraction analysis using traditional appliances does not allow us to determine carbon nanoparticles in the metal matrix. The explanation for this is described in reference [45]. Later (during heating) tungsten carbides will be formed. This indicates that carbon material (the nanodiamonds) exists in the composite.
The most interesting analysis to perform is differential scanning calorimetry. Figure 7 shows the results of DSC studies of the «tungsten + nanodiamonds» composite.
In Figure 7, the curve of DSC presents exo- and endo-peaks. The exo-peak is associated with heat release during the synthesis of tungsten carbides, the endo-peak is associated with the sublimation of the oxide WO3 [46,47]. X-ray diffraction studies prove the presence of carbides and oxides. Figure 8 shows results of XRD studies after heating up to 720 °C.
XRD analysis determined the presence of the following phases: W, W2C, WC0.82, WO2, and WO3. Table 5 presents shares of these phases in the sample determined using techniques described in the paper [43].
In comparison with the initial condition, tungsten carbides and oxide WO3 have appeared; the content of oxide WO2 has increased. It can be assumed that there was some oxygen in the initial powders in the adsorbed state. During further heating of the sample in DSC, endo-peak can be observed. This endo-peak is associated with the sublimation of oxide WO3. Sublimation is proved by the decrease in the sample mass and the results of the TG measurement (Figure 7). XRD analysis of the sample after heating up to 1000 °C and 1600 °C showed the presence of tungsten and tungsten carbide W2C (Figure 9).
This means that oxide WO2 transformed into oxide WO3 and has fully sublimated, and carbide WC0.82 transformed in carbide W2C at carbon deficit.
However, the main result shown from these DSC studies is that the synthesis of tungsten carbides, when using nanodiamonds as precursors, begins even at temperatures below 200 °C.
Studies have shown that carbon nanoparticles react to synthesize carbides with metal in the matrix. There is in situ synthesis of niobium carbides in the niobium matrix and tungsten carbides in the tungsten matrix at the lower temperatures. Such technological operations lead to the formation of metal matrix composites with strengthening carbide nanoparticles of the metals from which the matrix is made.

4. Conclusions

The possibility of creating composites with a matrix of niobium or tungsten and reinforcing nanodiamond particles is shown. The use of differential scanning calorimetry and X-ray diffraction methods made it possible to establish that the application of nanodiamonds (nanosized carbon material) as a precursor for the synthesis of niobium and tungsten carbides leads to a decrease in the starting temperature of carbide formation: the synthesis of niobium carbides begins at temperatures below 350 °C and that of tungsten carbides below 200 °C. The use of such a technological procedure will facilitate the production of composites with a matrix of refractory metals (niobium, tungsten) and reinforcing nanoparticles of niobium or tungsten carbides obtained by in situ synthesis directly in the composite matrix.

Author Contributions

Conceptualization, investigation, V.P.; mechanical alloying, A.B.; XRD analyses, E.S.; DSC analysis, O.K. and E.D.; SEM investigation, D.M. and V.C.; analysis of results, A.P., investigation, E.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Acknowledgments

The authors are grateful to B. Senatulin, C. Kuebel, and Di Wang for assistance in the study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Islam, A.; Sharma, V.K.; Mausam, K. An analytical study of nano carbon materials for developing metal matrix nano compo-sites. Mater. Today Proc. 2021, 45, 2867–2870. [Google Scholar] [CrossRef]
  2. Tan, W.; Jiang, X.; Shao, Z.; Sun, H.; Fang, Y.; Shu, F. Fabrication and mechanical properties of nano carbon reinforced lam-inated Cu matrix composites. Powder Technol. 2022, 395, 377–390. [Google Scholar] [CrossRef]
  3. Popov, V.; Borunova, A.; Shelekhov, E.; Khodos, I.; Senatilin, B.; Matveev, D.; Versinina, E. Peculiarities of chemical interaction of some carbon nanoreinforcements with aluminum matrix in metal matrix composite (MMC). Mater. Werkst. 2022, 53, 602–607. [Google Scholar] [CrossRef]
  4. Reddy, S.T.; Manohar, H.; Anand, S. Effect of carbon black nano-fillers on tribological properties of Al6061-Aluminium metal matrix composites. Mater. Today Proc. 2019, 20, 202–207. [Google Scholar] [CrossRef]
  5. Romanova, V.S.; Khotina, I.A.; Kushakova, N.S.; Kovalev, A.I.; Kharitonova, V.G.; Kupriyanova, D.V.; Naumkin, A.V. Compound based on star-shaped oligophenylene and fullerene C60. Mendeleev Commun. 2022, 32, 783–785. [Google Scholar] [CrossRef]
  6. Popov, V.A.; Borunova, A.B.; Senatulin, B.R.; Shelekhov, E.V.; Kirichenko, A.N. Peculiarities of fullerenes and carbon onions application for reinforcing the aluminum matrix in the metal matrix composites. Surf. Interface Anal. 2019, 52, 127–131. [Google Scholar] [CrossRef]
  7. Dhand, V.; Yadav, M.; Kim, S.H.; Rhee, K.Y. A comprehensive review on the prospects of multi-functional carbon nano onions as an effective, high- performance energy storage material. Carbon 2020, 175, 534–575. [Google Scholar] [CrossRef]
  8. Volkov, D.S.; Krivoshein, P.K.; Mikheev, I.V.; Proskurnin, M.A. Pristine detonation nanodiamonds as regenerable adsorbents for metal cations. Diam. Relat. Mater. 2020, 110, 108121. [Google Scholar] [CrossRef]
  9. Popov, V. Several Aspects of Application of Nanodiamonds as Reinforcements for Metal Matrix Composites. Appl. Sci. 2021, 11, 4695. [Google Scholar] [CrossRef]
  10. Qin, J.-X.; Yang, X.-G.; Lv, C.-F.; Li, Y.-Z.; Liu, K.-K.; Zang, J.-H.; Yang, X.; Dong, L.; Shan, C.-X. Nanodiamonds: Synthesis, properties, and applications in nanomedicine. Mater. Des. 2021, 210, 110091. [Google Scholar] [CrossRef]
  11. Parker, D.M.; Lineweaver, A.J.; Quast, A.D.; Zharov, I.; Shumaker-Parry, J.S. Thiol-terminated nanodiamond powders for support of gold nanoparticle catalysts. Diam. Relat. Mater. 2021, 116, 108449. [Google Scholar] [CrossRef]
  12. Kuznetsov, V.L.; Aleksandrov, M.N.; Zagoruiko, I.V.; Chuvilin, A.L.; Moroz, E.M.; Kolomiichuk, V.N.; Likholobov, V.A.; Brylyakov, P.M.; Sakovitch, G.V. Study of ultradispersed diamond powders obtained using explosion energy. Carbon 1991, 29, 665–668. [Google Scholar] [CrossRef]
  13. Leonard, K.J.; Busby, J.; Zinkle, S. Aging effects on microstructural and mechanical properties of select refractory metal alloys for space-reactor applications. J. Nucl. Mater. 2007, 366, 336–352. [Google Scholar] [CrossRef]
  14. Xia, Y.; Wang, Z.; Song, L.; Wang, W.; Chen, J.; Ma, S. Inductively coupled plasma etching of bulk tungsten for MEMS applications. Sens. Actuators A Phys. 2022, 345, 113825. [Google Scholar] [CrossRef]
  15. Yu, M.; Pu, G.; Xue, Y.; Wang, S.; Chen, S.; Wang, Y.; Yang, L.; Wang, Z.; Zhu, T.; Tan, T.; et al. The oxidation behaviors of high-purity niobium for superconducting radio-frequency cavity application in vacuum heat treatment. Vacuum 2022, 203, 111258. [Google Scholar] [CrossRef]
  16. Lavigne, O.; Luzin, V.; Labonne, M.; Missiaen, J.-M. Neutron diffraction characterizations of NbC-Ni cemented carbides thermal residual stresses. Int. J. Refract. Met. Hard Mater. 2022, 109, 105966. [Google Scholar] [CrossRef]
  17. Graboś, A.; Rutkowski, P.; Huebner, J.; Kozień, D.; Zhang, S.; Kuo, Y.-L.; Kata, D.; Hayashi, S. Oxidation performance of spark plasma sintered Inconel 625-NbC metal matrix composites. Corros. Sci. 2022, 205, 110453. [Google Scholar] [CrossRef]
  18. Sanad, M.M.S.; El-Sadek, M.H. Porous niobium carbide as promising anode for high performance lithium-ions batteries via cost-effective processing. Diam. Relat. Mater. 2022, 121, 108722. [Google Scholar] [CrossRef]
  19. Dai, W.; Yue, B.; Chang, S.; Bai, H.; Liu, B. Mechanical properties and microstructural characteristics of WC-bronze-based impregnated diamond composite reinforced by nano-NbC. Tribol. Int. 2022, 174, 107777. [Google Scholar] [CrossRef]
  20. Zhang, W.; Jin, H.; Du, Y.; Chen, G.; Zhang, J. Sulfur and nitrogen codoped Nb2C MXene for dendrite-free lithium metal battery. Electrochim. Acta 2021, 390, 138812. [Google Scholar] [CrossRef]
  21. Arif, N.; Gul, S.; Sohail, M.; Rizwan, S.; Iqbal, M. Synthesis and characterization of layered Nb2C MXene/ZnS nanocomposites for highly selective electrochemical sensing of dopamine. Ceram. Int. 2020, 47, 2388–2396. [Google Scholar] [CrossRef]
  22. Babar, Z.U.D.; Zheng, R.-K.; Mumtaz, M.; Rizwan, S. Magneto-transport of mechanically-pressed niobium carbide (Nb2C) distorted MXene. Mater. Lett. 2020, 285, 129210. [Google Scholar] [CrossRef]
  23. Zou, Q.; Jiao, Z.; Li, Y.; He, W.; Li, S.; Luo, Y. Effects of TiC0.4 on microstructure and properties of WC composites. J. Alloys Compd. 2022, 925, 166588. [Google Scholar] [CrossRef]
  24. Han, L.; Liu, Z.; Yu, L.; Ma, Z.; Huang, Y.; Liu, Y.; Wang, Z. Effect of WC nanoparticles on the thermal stability and mechanical performance of dispersion-reinforced Cu composites. Scr. Mater. 2023, 222, 115030. [Google Scholar] [CrossRef]
  25. Shen, Q.; Ge, S.; Zhao, A.; Sun, Y.; Zhang, J.; Zhou, D.; Luo, G.; Zhang, L. Microstructural evolution and mechanical behavior of porous W reinforced by in-situ W2C. J. Alloys Compd. 2019, 797, 1106–1114. [Google Scholar] [CrossRef]
  26. Garcia-Ayala, E.; Tarancon, S.; Ferrari, B.; Pastor, J.; Sanchez-Herencia, A. Thermomechanical behaviour of WC-W2C composites at first wall in fusion conditions. Int. J. Refract. Met. Hard Mater. 2021, 98, 105565. [Google Scholar] [CrossRef]
  27. Šestan, A.; Sreekala, L.; Markelj, S.; Kelemen, M.; Zavašnik, J.; Liebscher, C.H.; Dehm, G.; Hickel, T.; Čeh, M.; Novak, S.; et al. Non-uniform He bubble formation in W/W2C composite: Experimental and ab-initio study. Acta Mater. 2022, 226, 117608. [Google Scholar] [CrossRef]
  28. Zhao, S.; Yang, L.; Huang, Y.; Xu, S. Enrichment of in-situ synthesized WC by partial dissolution of ex-situ eutectoid-structured WC/W2C particle in the coatings produced by laser hot-wire deposition. Mater. Lett. 2020, 281, 128641. [Google Scholar] [CrossRef]
  29. Tungsten Carbide. Available online: https://en.wikipedia.org/wiki/Tungsten_carbide (accessed on 1 August 2022).
  30. Niobium Carbide. Available online: https://en.wikipedia.org/wiki/Niobium_carbide (accessed on 1 August 2022).
  31. Ma, J.; Wu, M.; Du, Y.; Chen, S.; Jin, W.; Fu, L.; Yang, Q.; Wen, A. Formation of nanocrystalline niobium carbide (NbC) with a convenient route at low temperature. J. Alloys Compd. 2009, 475, 415–417. [Google Scholar] [CrossRef]
  32. Popov, V. The impact of the diamond reinforcing particle size on their interaction with the aluminum matrix of composites in the course of heating. Surf. Interface Anal. 2018, 50, 1106–1109. [Google Scholar] [CrossRef]
  33. Popov, V.; Borunova, A.; Shelekhov, E.; Cheverikin, V.; Khodos, I. Several Aspects of Interaction between Chrome and Nanodiamond Particles in Metal Matrix Composites When Being Heated. Inventions 2022, 7, 75. [Google Scholar] [CrossRef]
  34. Benjamin, J.S.; Volin, T.E. The mechanism of mechanical alloying. Met. Mater. Trans. B 1974, 5, 1929–1934. [Google Scholar] [CrossRef]
  35. El-Eskandarany, M.S. Fabrication of Nanocomposite Materials. In Mechanical Alloying: For Fabrication of Advanced Engineering Materials; Noyes Publications/William Andrew Publishing: Norwich, NY, USA, 2001; pp. 45–61. [Google Scholar] [CrossRef]
  36. Jain, H.; Shadangi, Y.; Chakravarty, D.; Dubey, A.K.; Mukhopadhyay, N. High entropy steel processed through mechanical alloying and spark plasma sintering: Alloying behaviour, thermal stability, and mechanical properties. Mater. Sci. Eng. A 2022, 856, 144029. [Google Scholar] [CrossRef]
  37. Lu, L.; Lai, M.O. Mechanical Alloying. In Kluwer; Academic Publisher: Cambridge, MA, USA, 1998; 276p. [Google Scholar]
  38. Höhne, G.W.H.; Hemminger, W.F.; Flammersheim, H.-J. Differential Scanning Calorimetry; Springer: Berlin/Heidelberg, Germany, 2003; 298p. [Google Scholar] [CrossRef]
  39. Spathara, D.; Sergeev, D.; Kobertz, D.; Müller, M.; Putman, D.; Warnken, N. Thermodynamic study of single crystal, Ni-based superalloys in the γ+γ′ two-phase region using Knudsen Effusion Mass Spectrometry, DSC and SEM. J. Alloys Compd. 2021, 870, 159295. [Google Scholar] [CrossRef]
  40. Toda, A. Kinetics of enthalpy recovery studied by temperature-modulated differential scanning calorimetry. Thermochim. Acta 2022, 716, 179330. [Google Scholar] [CrossRef]
  41. Gonçalves, R.L.; Robustillo, M.D.; Filho, P.D.A.P. A simplified two-resistance model for the description of melting curves obtained through differential scanning calorimetry. Thermochim. Acta 2022, 714, 179269. [Google Scholar] [CrossRef]
  42. Couturier, L.; De Geuser, F.; Deschamps, A. A comparative study of Fe-Cr unmixing using differential scanning calorimetry and small-angle scattering. Mater. Charact. 2021, 173, 110934. [Google Scholar] [CrossRef]
  43. Shelekhov, E.V.; Sviridova, T.A. Programs for X-ray analysis of polycrystals. Met. Sci. Heat Treat. 2000, 42, 309–313. [Google Scholar] [CrossRef]
  44. Kwon, Y.-S.; Gerasimov, K.B.; Yoon, S.-K. Ball temperatures during mechanical alloying in planetary mills. J. Alloys Compd. 2002, 346, 276–281. [Google Scholar] [CrossRef]
  45. Popov, V.A. X-ray micro-absorption enhancement for non-agglomerated nanodiamonds in mechanically alloyed aluminium matrix composites. Phys. Status Solidi (A) 2015, 212, 2722–2726. [Google Scholar] [CrossRef]
  46. Wirtz, G.P.; Sis, L.B.; Wheeler, J.S. Sublimation of MoO3 from WO3-MoO3 catalysts during the oxidation of toluene. J. Catal. 1975, 38, 196–205. [Google Scholar] [CrossRef]
  47. Yang, Y.; Ma, Y.; Yao, J.; Loo, B. Simulation of the sublimation process in the preparation of photochromic WO3 film by laser microprobe mass spectrometry. J. Non-Cryst. Solids 2000, 272, 71–74. [Google Scholar] [CrossRef]
Inventions 07 00120 g001 550

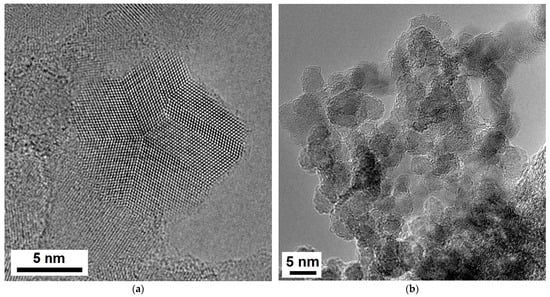

Figure 1. TEM images of nanodiamonds: (a) prime nanoparticle with twins; (b) agglomeration of nanodiamonds.
Figure 1. TEM images of nanodiamonds: (a) prime nanoparticle with twins; (b) agglomeration of nanodiamonds.
Inventions 07 00120 g001
Inventions 07 00120 g002a 550Inventions 07 00120 g002b 550

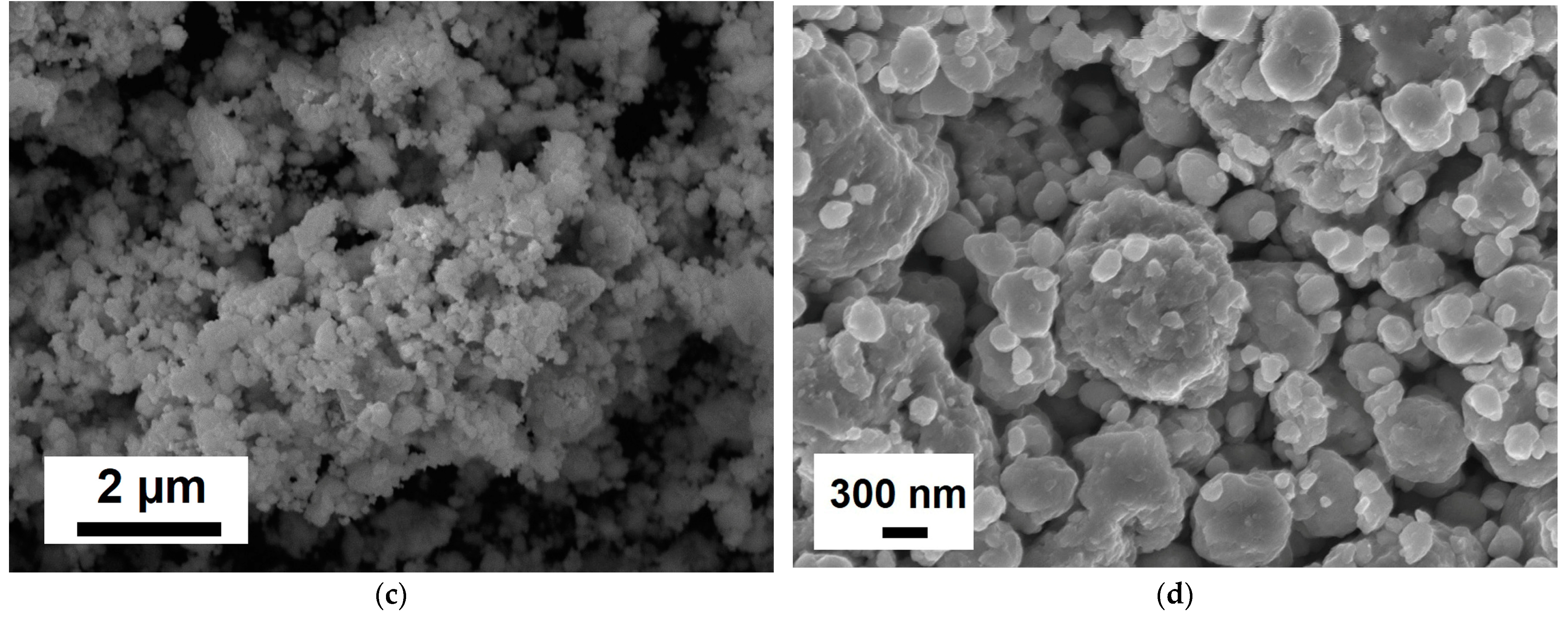

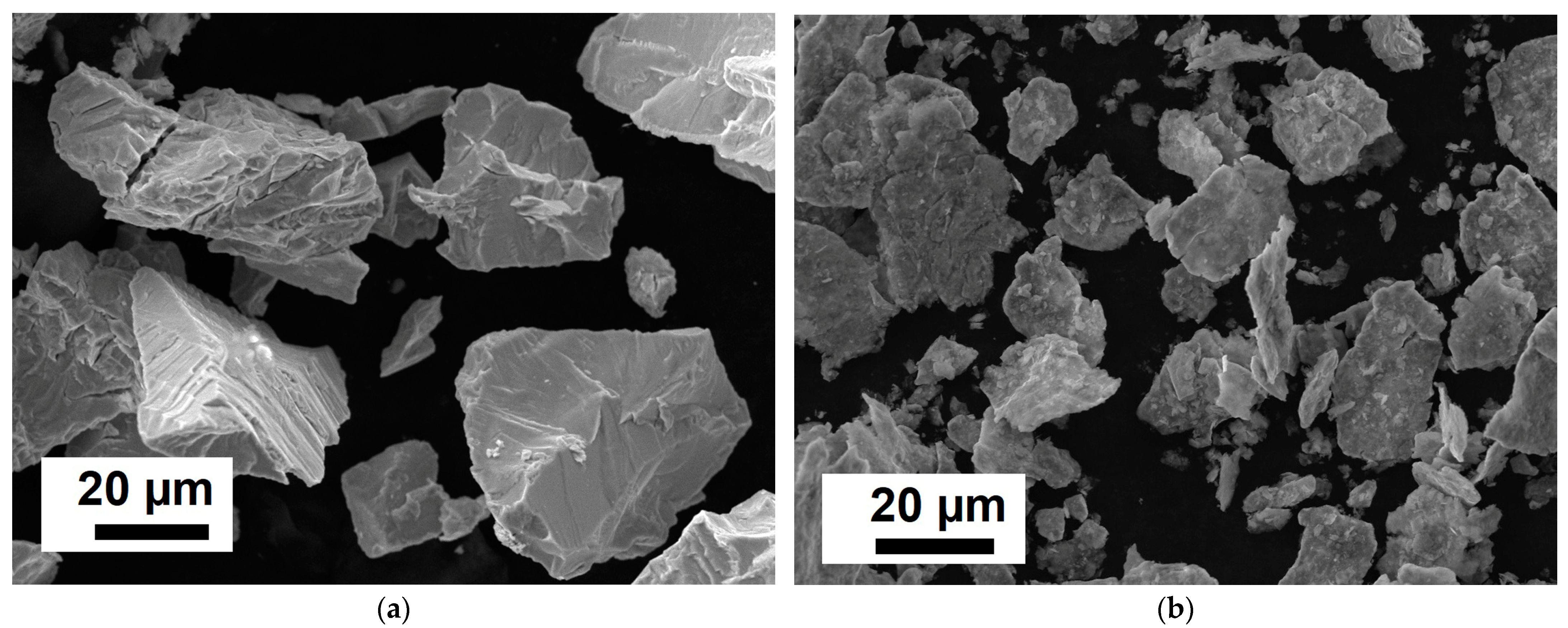

Figure 2. General view of the initial niobium powder (a) and composite granules “Nb + 7%massND” after various treatment periods of mechanical alloying: (b) 0.5 h; (c) 1.2 h; (d) 6 h ((a–c) SEM TESCAN VEGA3; (d) SEM Supra 50VP).
Figure 2. General view of the initial niobium powder (a) and composite granules “Nb + 7%massND” after various treatment periods of mechanical alloying: (b) 0.5 h; (c) 1.2 h; (d) 6 h ((a–c) SEM TESCAN VEGA3; (d) SEM Supra 50VP).
Inventions 07 00120 g002aInventions 07 00120 g002b
Inventions 07 00120 g003a 550Inventions 07 00120 g003b 550

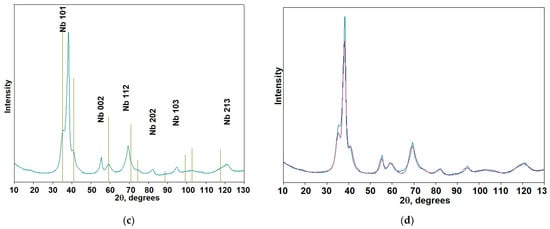

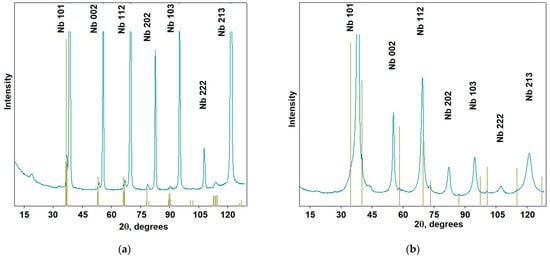

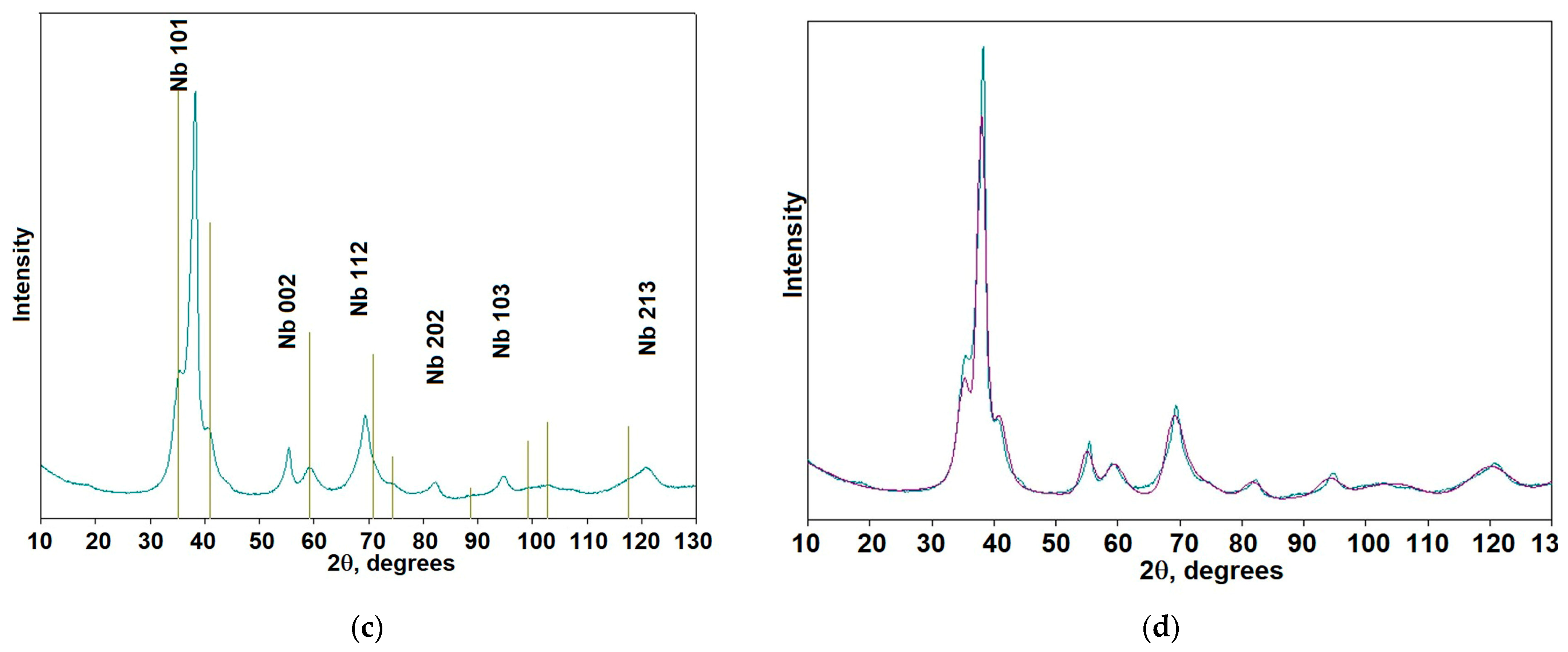

Figure 3. X-ray diffraction patterns of samples of the «niobium + nanodiamonds» composite after various processing times by mechanical alloying: (a) after 0.5 h (stick-diagram shows niobium hybrid NbH0.86), (b) after 1.2 h (stick-diagram shows niobium carbide NbC), (c) after 6 h (stick-diagram shows niobium carbide NbC0.77), (d) comparing the experimental X-ray diffraction pattern (painted green) with the fitted X-ray diffraction pattern (painted lilac) for the sample shown in Figure 3c.
Figure 3. X-ray diffraction patterns of samples of the «niobium + nanodiamonds» composite after various processing times by mechanical alloying: (a) after 0.5 h (stick-diagram shows niobium hybrid NbH0.86), (b) after 1.2 h (stick-diagram shows niobium carbide NbC), (c) after 6 h (stick-diagram shows niobium carbide NbC0.77), (d) comparing the experimental X-ray diffraction pattern (painted green) with the fitted X-ray diffraction pattern (painted lilac) for the sample shown in Figure 3c.
Inventions 07 00120 g003aInventions 07 00120 g003b
Inventions 07 00120 g004 550

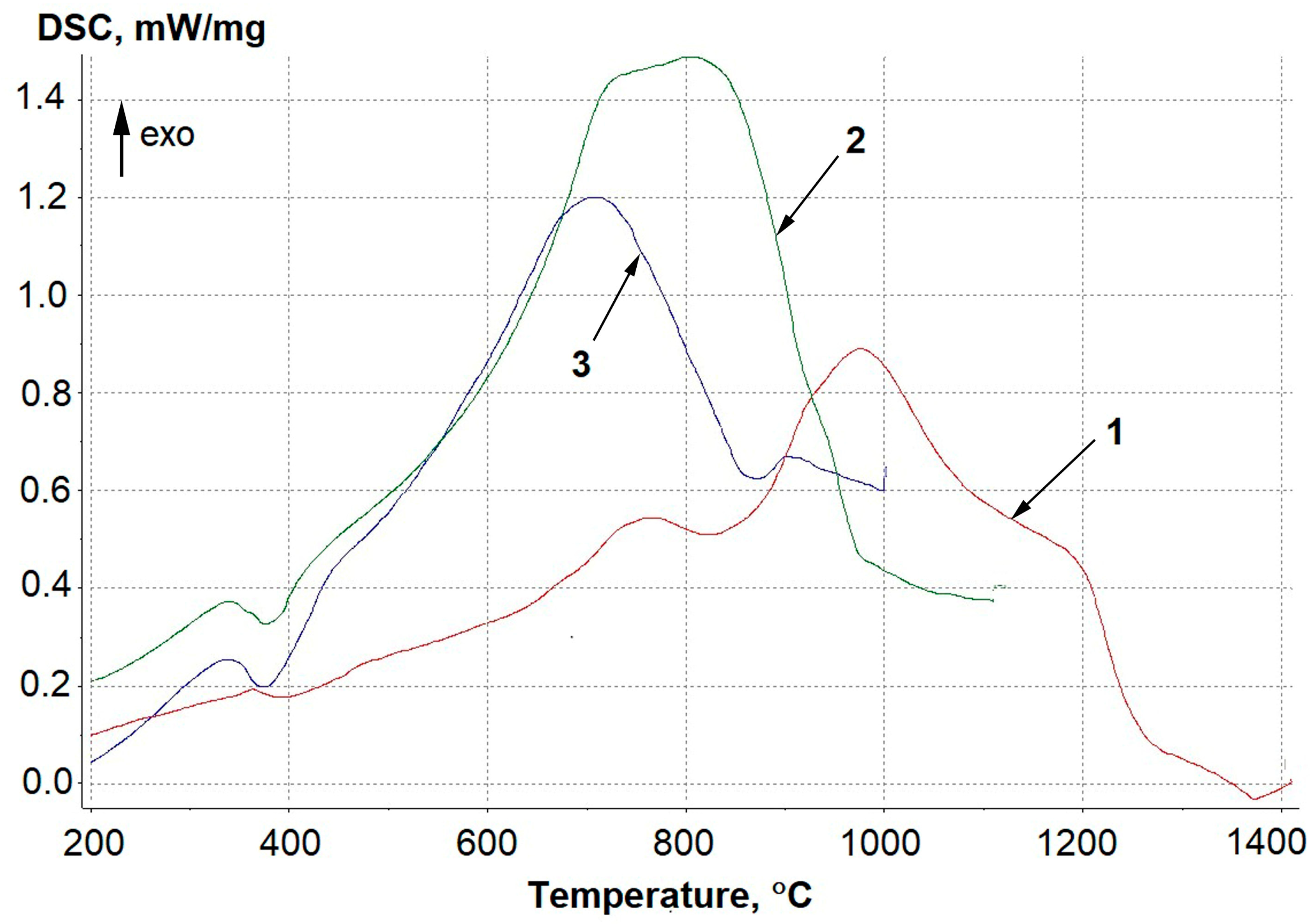

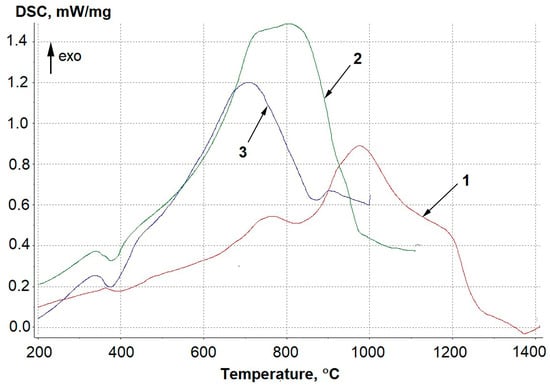

Figure 4. Results of DSC studies of samples of «niobium + nanodiamonds» composites: 1—after 0.5 h of processing (specimen 1-Nb); 2—after 1.2 h of processing (specimen 2-Nb); 3—after 6 h of processing (specimen 3-Nb).
Figure 4. Results of DSC studies of samples of «niobium + nanodiamonds» composites: 1—after 0.5 h of processing (specimen 1-Nb); 2—after 1.2 h of processing (specimen 2-Nb); 3—after 6 h of processing (specimen 3-Nb).
Inventions 07 00120 g004
Inventions 07 00120 g005 550

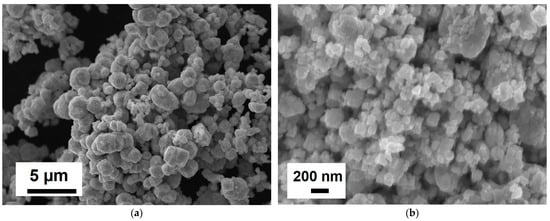

Figure 5. General view of initial tungsten powder (a) and composite granules (b). The general view of investigated tungsten materials: (a) tungsten initial powder (SEM NESCAN VEGA3); (b) composite granules (SEM Supra 50VP).
Figure 5. General view of initial tungsten powder (a) and composite granules (b). The general view of investigated tungsten materials: (a) tungsten initial powder (SEM NESCAN VEGA3); (b) composite granules (SEM Supra 50VP).
Inventions 07 00120 g005
Inventions 07 00120 g006 550

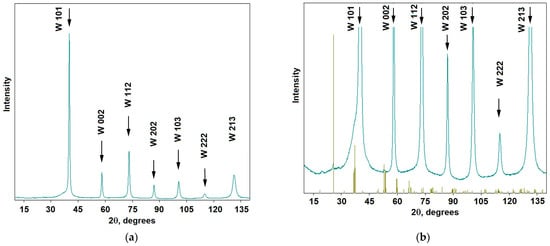

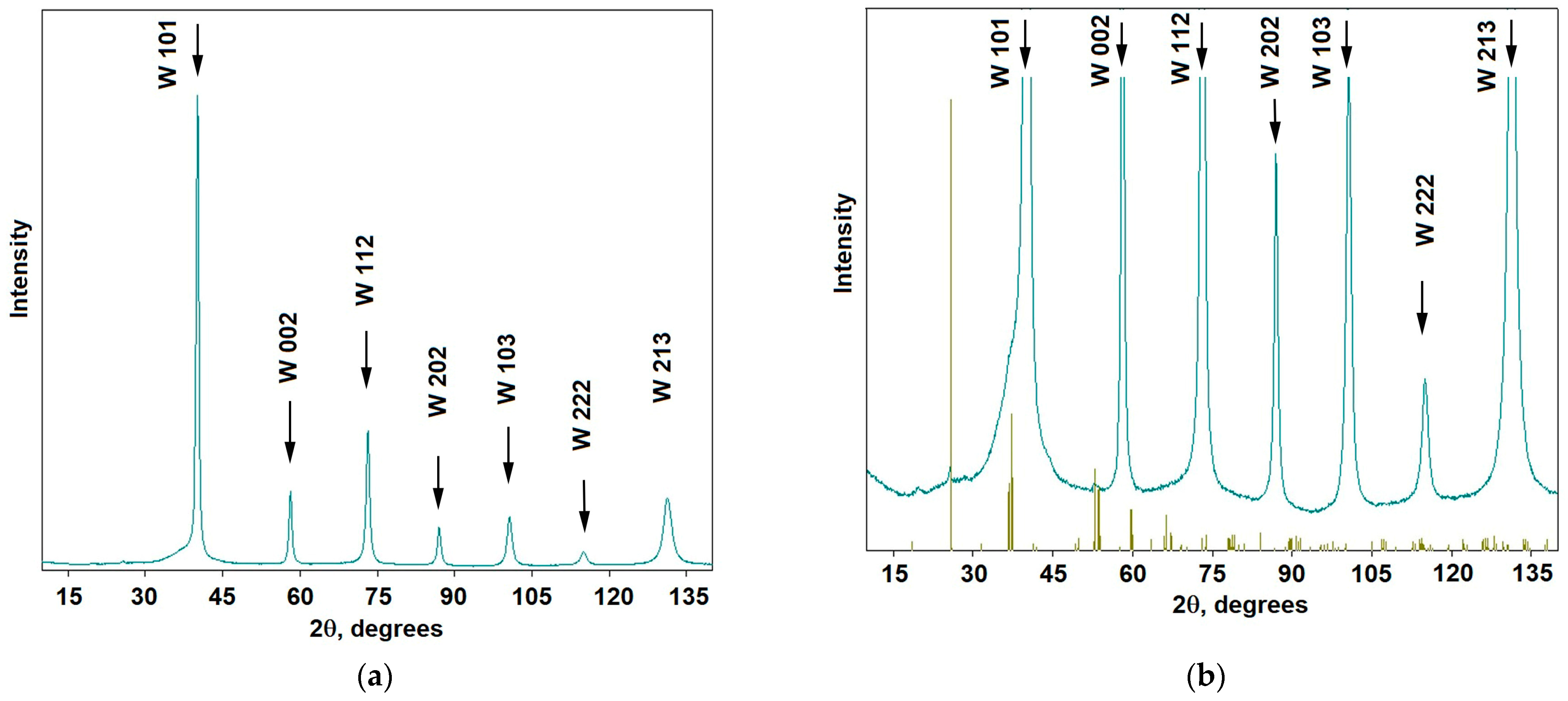

Figure 6. X-ray diffraction patterns of the composite material «tungsten + nanodiamonds»: (a) general view, (b) enlarged scale (tungsten peaks are shown with arrows, stick diagram shows tungsten oxide WO2).
Figure 6. X-ray diffraction patterns of the composite material «tungsten + nanodiamonds»: (a) general view, (b) enlarged scale (tungsten peaks are shown with arrows, stick diagram shows tungsten oxide WO2).
Inventions 07 00120 g006
Inventions 07 00120 g007 550

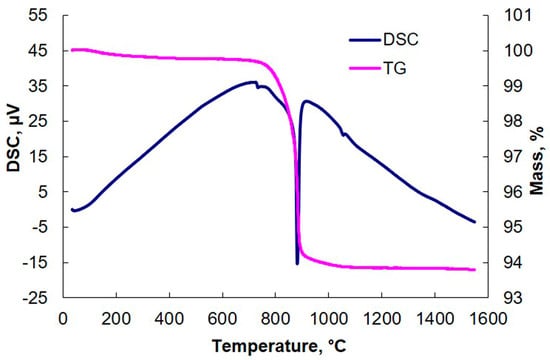

Figure 7. Results of differential scanning calorimetry (DSC) studies of the «tungsten + nanodiamonds» composite sample.
Figure 7. Results of differential scanning calorimetry (DSC) studies of the «tungsten + nanodiamonds» composite sample.
Inventions 07 00120 g007
Inventions 07 00120 g008 550

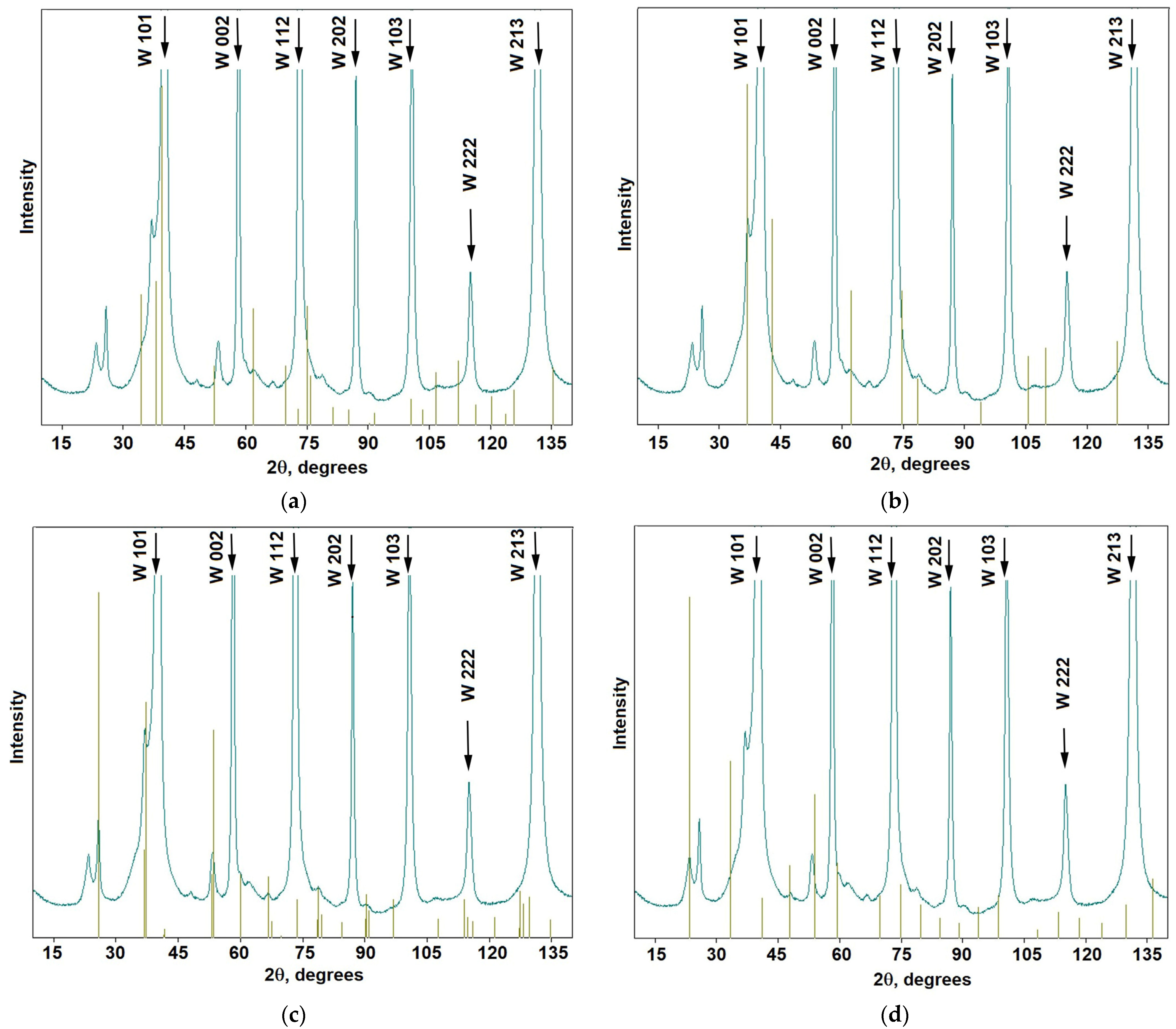

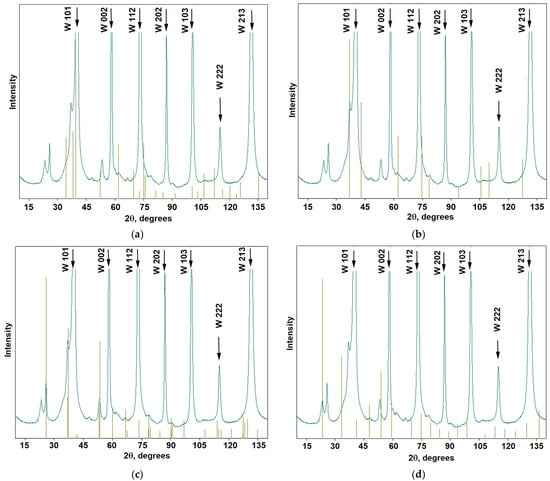

Figure 8. The X-ray diffraction pattern of the «tungsten + nanodiamonds» composite after heating up to 720 °C; tungsten peaks are shown with arrows, stick-diagrams show: (a) W2C, (b) WC0.82, (c) WO2, (d) WO3.
Figure 8. The X-ray diffraction pattern of the «tungsten + nanodiamonds» composite after heating up to 720 °C; tungsten peaks are shown with arrows, stick-diagrams show: (a) W2C, (b) WC0.82, (c) WO2, (d) WO3.
Inventions 07 00120 g008
Inventions 07 00120 g009 550

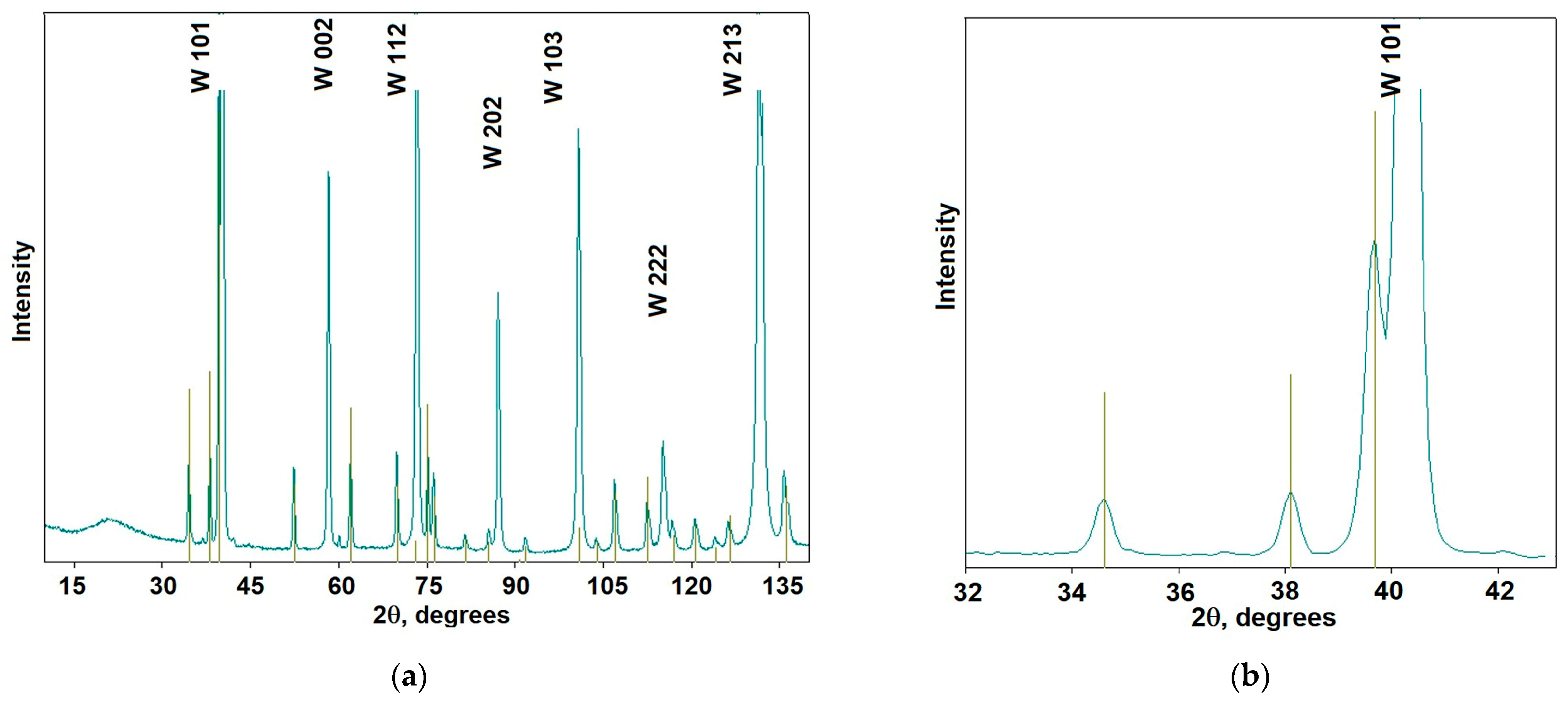

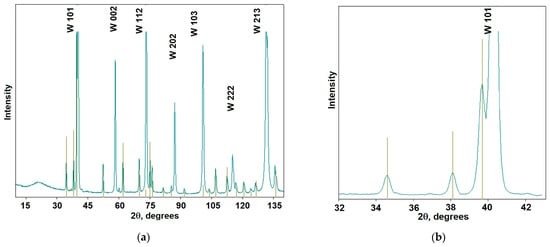

Figure 9. X-ray diffraction pattern of the «tungsten + nanodiamonds» composite after heating up to 1600 °C (tungsten peaks are shown with arrows; the stick diagram shows lines of tungsten carbide W2C): (a) general view (the amorphous halo is about 22° from the sample holder; (b) scaled-up section.
Figure 9. X-ray diffraction pattern of the «tungsten + nanodiamonds» composite after heating up to 1600 °C (tungsten peaks are shown with arrows; the stick diagram shows lines of tungsten carbide W2C): (a) general view (the amorphous halo is about 22° from the sample holder; (b) scaled-up section.
Inventions 07 00120 g009
Table
Table 1. Chemical composition of the niobium powder.
Table 1. Chemical composition of the niobium powder.
ElementTaSiFeWMoCNbHOther ImpuritiesNb
Content, %mass0.050.030.020.020.020.13.00.11Balance
Table
Table 2. Chemical composition of the tungsten powder.
Table 2. Chemical composition of the tungsten powder.
ElementFeNiMoKNaCOther ImpuritiesW
Content, %mass0.10.060.10.020.020.10.1Balance
Table
Table 3. Composite materials fabricated using mechanical alloying.
Table 3. Composite materials fabricated using mechanical alloying.
Number of SpecimenType and Mass of Metal, gMass of Nanodiamonds, gContent of Nanodiamonds, %massTime of Mechanical Alloying, h
1-NbNb, 9.2960.6536.560.5
2-NbNb, 9.302 0.6996.981.2
3-NbNb, 9.3070.6996.986
4-WW, 20.0920.6533.259
Table
Table 4. Content of phases in the sample processed in the planetary mill for 6 h after various thermal processing.
Table 4. Content of phases in the sample processed in the planetary mill for 6 h after various thermal processing.
Temperature, °CPhaseVolume Fraction, %Mass Fraction, %
As milledNbC0.77 (B1, cF8)
Balance–Nb		49.447.8
350NbC0.77 (B1, cF8)
Balance–Nb		66.165.6
275NbC0.77 (B1, cF8)
Balance–Nb		67.166.0
417NbC0.77 (B1, cF8)
Balance–Nb		69.768.0
760NbC0.77 (B1, cF8)
Nb2C (L’3, hP4)
Nb2C (oP12)
Balance–niobium oxide		65.3
8.0
21.4		64.7
8.1
21.3
Table
Table 5. Composition of the sample of the «tungsten + nanodiamonds» composite after heating to 720 °C.
Table 5. Composition of the sample of the «tungsten + nanodiamonds» composite after heating to 720 °C.
PhaseVolume Fraction, %Mass Fraction, %
W (A2, cI2)61.269.0
W2C (C6, hP3)14.614.7
WC0.82 (B1, cF8)6.97.0
WO2 (C4, tP6)9.46.0
WO3 (D0.9, cP4)7.93.3
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Popov, V.; Borunova, A.; Shelekhov, E.; Koplak, O.; Dvoretskaya, E.; Matveev, D.; Prosviryakov, A.; Vershinina, E.; Cheverikin, V. Decrease in the Starting Temperature of the Reaction for Fabricating Carbides of Refractory Metals When Using Carbon Nanoparticles as Precursors. Inventions 2022, 7, 120. https://doi.org/10.3390/inventions7040120

AMA Style

Popov V, Borunova A, Shelekhov E, Koplak O, Dvoretskaya E, Matveev D, Prosviryakov A, Vershinina E, Cheverikin V. Decrease in the Starting Temperature of the Reaction for Fabricating Carbides of Refractory Metals When Using Carbon Nanoparticles as Precursors. Inventions. 2022; 7(4):120. https://doi.org/10.3390/inventions7040120

Chicago/Turabian Style

Popov, Vladimir, Anna Borunova, Evgeny Shelekhov, Oksana Koplak, Elizaveta Dvoretskaya, Danila Matveev, Alexey Prosviryakov, Ekaterina Vershinina, and Vladimir Cheverikin. 2022. "Decrease in the Starting Temperature of the Reaction for Fabricating Carbides of Refractory Metals When Using Carbon Nanoparticles as Precursors" Inventions 7, no. 4: 120. https://doi.org/10.3390/inventions7040120

APA Style

Popov, V., Borunova, A., Shelekhov, E., Koplak, O., Dvoretskaya, E., Matveev, D., Prosviryakov, A., Vershinina, E., & Cheverikin, V. (2022). Decrease in the Starting Temperature of the Reaction for Fabricating Carbides of Refractory Metals When Using Carbon Nanoparticles as Precursors. Inventions, 7(4), 120. https://doi.org/10.3390/inventions7040120

Article Metrics

Back to TopTop
