Development of Advanced Biodevices Using Quantum Beam Microfabrication Technology

Abstract

Biodevices with engineered micro- and nanostructures are strongly needed for advancements in medical technology such as regenerative medicine, drug discovery, diagnostic reagents, and drug delivery to secure high quality of life. The authors produced functional biocompatible plastics and hydrogels with physical and chemical properties and surface microscopic shapes that can be freely controlled in three dimensions during the production process using the superior properties of quantum beams. Nanostructures on a biocompatible poly(L-lactic acid) surface were fabricated using a focused ion beam. Soft hydrogels based on polysaccharides were micro-fabricated using a focused proton beam. Gelatin hydrogels were fabricated using γ-rays and electron beam, and their microstructures and stiffnesses were controlled for biological applications. HeLa cells proliferated three-dimensionally on the radiation-crosslinked gelatin hydrogels and, furthermore, their shapes can be controlled by the micro-fabricated surface of the hydrogel. Long-lasting hydrophilic concave structures were fabricated on the surface of silicone by radiation-induced crosslinking and oxidation. The demonstrated advanced biodevices have potential applications in three-dimensional cell culture, gene expression control, stem cell differentiation induction/suppression, cell aggregation into arbitrary shapes, tissue culture, and individual diagnosis in the medical field.

1. Introduction

Quantum beams transfer their kinetic energy to target materials through ionization and excitation, and chemical reactions occur on the surface of and inside the materials via reactive species, such as electrons and radicals [1,2]. Typical chemical reactions induced on polymer materials are main chain scission, crosslinking, double bond formation, and oxidation. The branching ratio of these reactions can be controlled by an atmospheric condition, temperature, and state of the target materials, and also by dose, dose rate, and linear energy transfer (LET). The irradiated (modified) area and volumes are controlled by the beam energy and size from the cm to nm level.

Various functional polymer materials have been developed by radiation and commercialized [3,4,5]. Specifically, radiation crosslinking has a large advantage in that it can modify the materials at room temperature without chemicals. For example, polymers coating an electric wire are crosslinked by the radiation and their properties are held even at higher temperature [6]. These wires are applied in heat-resistant household appliances and automotive applications. Furthermore, heat-shrinkable tube, foamed polyethylene [7,8], high-purity ceramic fiber [9], fluorine polymer materials [10,11], and others [12,13,14] have been developed for practical use.

In addition to hard plastic materials, soft materials, including hydrogels, have also been developed [15,16,17,18]. Hydrogel contains a large amount of solvent (water) inside a three-dimensional network structure, is a highly flexible material, and can exchange substances (solutes and moisture) with the outside. Hydrogels are particularly applicable to drug carriers, cosmetics, wound dressings, biodevices, sensors, and cell culture scaffolds.

So far, new nanotechnology materials with controlled physical and chemical properties and shapes have been developed as innovative tools by controlling the quantum beam-induced chemical reactions with high precision. We have been developing functional biodevices that are indispensable for advanced medical, diagnostic, and bio-research by controlling the spatial distribution of the chemical reactions of polymer materials using the quantum beam. In particular, beyond classical modification using ionizing radiations, we developed new uses of the quantum beam as a microfabrication tool, local modification/functionalization tool, and processing tool capable of simultaneous sterilization to create unique functional materials that are impossible to manufacture by other methods such as chemical reagent, heat, UV light, and plasma. This mini-review introduces four development examples of biocompatible plastics and gel materials for medical use using the quantum beam.

First, poly(L-lactic acid) (PLLA) has been widely used for various medical applications, such as surgical sutures, bone fixation materials, and cell culture scaffolds owing to its high biocompatibility, biodegradability, modulus, mechanical hardness, and transparency [19,20,21,22]. PLLA is a plastic with the melting temperature of approximately 180 °C, and these products are injection or extrusion molded. However, PLLA has the low heat stability i.e., T_g, glass transition temperature, is about 60 °C and poor chemical resistance, so conventional micro/nanofabrication techniques are not applicable to PLLA. For applications of PLLA to advanced biodevices, such as lab-on-a-chip, it is essential to develop both precise fabrication and functionalization techniques. We thus applied top-down processing using quantum beams to PLLA, particularly focused ion beam (FIB) [23]. FIB provides ion beams such as Ga⁺, He⁺, and Ne⁺ with a diameter of several nm to hundreds of nm that scans on sample surfaces. Both elastic and inelastic collisions occur along the ion track. The elastic collisions displace atoms of the target samples and sputter from the sample surface. This sputtering can be used as a direct etching of the sample surfaces to get fine patterning without chemical treatment, irradiation mask, and mold. So, FIB direct etching has been applied for fabrication of arbitrary-shaped micro/nanostructures of various polymers [24,25,26,27]. FIB irradiation also induces radiation-induced chemical reactions in polymers, thus direct etching and chemical reactions such as chain scission and crosslinking can be combined for micro/nanofabrication of polymeric materials [28]. The damage cascade and energy deposition of FIB can be simulated using SRIM/TRIM code [29]. Additionally, PLLA surfaces should have a controlled amount of C=C, which influences the cell attachment [30].

Second, focused proton beam writing (PBW) has been used for microfabrication of inorganic materials [31,32] and hard polymers [33,34,35,36] for decades. PBW is a novel technique that draws by a focused proton beam with an energy of the order of MeV on target materials [37]. PBW is a highly flexible processing technology that can fabricate precisely without a mask and has been widely used in the semiconductor field. Recently, biocompatible organic devices have been widely developed in the bio- and medical fields [38]. Cell behaviors, such as attachment, growth, gene expression, and differentiation, depend on the chemical and physical properties of the base materials, such as the stiffness, hydrophilicity, microstructure, and electronic charge [39,40]. Because hydrogel has stiffness and hydrophilicity similar to those of tissues in the mammalian body, it is expected to be applied as a biological scaffold material [41]. Radiation crosslinking is extensively used as a strong tool to produce functional materials without any toxic crosslinking reagents. The formations of polysaccharide hydrogels have been reported using electron beam and γ-ray irradiations [42,43,44]. Here, we have developed a new use of PVW to microfabricate polysaccharides, which is expected as new material for the next-generation three-dimensional biological microdevices [45].

Third, in vivo, cells are supported by a hydrogel of proteins and polysaccharides called the extracellular matrix (ECM). It has been reported that not only the chemical component but the elasticity and topographical characteristics of the ECM are substantial cues to modulate or control the cell function and fate that are critical for tissue formation, maintenance, regeneration, and repair [46,47]. The main composition of the ECM is collagen. The ECM has the elasticity of ~1 kPa to a few 100 kPa and topographical features ranging from nanometers to micrometers. ECM-mimicking cell culture substrates are required for controlling cell function and fate as in vivo. However, synthetic polymers having a completely different composition from collagen have been used as artificial ECM [48]. Since gelatin is obtained from collagen and chemical composition is similar to collagen, gelatin hydrogel has attracted considerable attention as an artificial ECM. However, the sol-gel transition of gelatin occurs at around 37 °C and gelatin physical-gel cannot be used for cell culture. In order to avoid melting and control the stiffness of the hydrogel, use of chemical crosslinkers such as formaldehyde and glutaraldehyde that alter cytocompatibility and biodegradability of native gelatin is required [49]. When irradiated as solid state, gelatin is predominantly decomposed by ionizing-radiations. On the other hand, gelatin can be crosslinked by radiation in the presence of water, i.e., in the solution state [50]. Mayer et al. focused on electron beam cross-linking technology and developed gelatin and collagen hydrogels [51,52,53]. The quantum beam cross-linking technology capable of gelation without crosslinking agent is attracting attention for use in regenerative medicine and drug discovery. We introduced radiation-crosslinked gelatin hydrogels that can reproduce elasticity- and topography-controlled ECM for advanced biological applications [54].

Finally, polydimethylsiloxane (PDMS) is widely used in lab-on-a-chip technologies, since it has good optical transparency, low autofluorescence, biocompatibility, and ease of molding [55,56,57]. However, its hydrophobicity, originating from the repeating dimethylsiloxane units, is a significant drawback for the biological applications. The water contact angle (WCA) of PDMS is greater than 100°, thus the surface is commonly hydrophilized by plasma irradiation. However, the user must treat PDMS by the plasma just before use because PDMS surfaces rapidly recover their hydrophobicity [58,59,60,61]. There is also a method using a proton beam for local property modification of PDMS [33,34,36]. However, this method is not suitable for the mass production. Technology development is eagerly needed that can make the PDMS surface hydrophilic in the long time and its mass processing to obtain stable and reliable lab-on-a-chips. We developed microwell arrays with stable hydrophilic concaves on PDMS using low energy electron beam to resolve the above issue [62].

2. Results and Discussion

2.1. Micro/Nanopatterning of PLLA Using FIB Irradiation

We applied FIB top-down processing to PLLA [23]. PLLA (Eco-Plastic U’z S-12 supplied by the Toyota Motor Corporation, Mw = 112,000, density = 1.26 g/cm³) dissolved in chloroform (<10 wt%) was spin-coated onto silicon wafers and dried under ambient conditions (~25 °C). FIB irradiation of 30 keV Ga⁺ ions was used (SMI 2050, Hitachi High-Tech Science, Tokyo, Japan). We simulated the damage cascade and energy deposition of FIB using SRIM/TRIM code [29]. The sputtering yields of carbon, hydrogen, and oxygen in PLLA simulated for 30 keV Ga⁺ FIB irradiation were ~0.39 atoms/ion, ~1.34 atoms/ion, and ~0.71 atoms/ion, respectively. Figure 1 shows the simulated energy deposition in PLLA. The energy deposition range of 30 keV Ga⁺ ions into PLLA is 80 nm. The deposited energy is used for both ionization/excitation of PLLA and phonon production (heat).

We investigated the etching depths of a 1.5-µm-thick PLLA using 30 keV Ga⁺ FIB with different ion fluences and beam currents. We found that both higher ion fluence and beam current (flux) increased the fabricated depth and surface roughness. The heat produced by the FIB irradiation influences the etching speed and fabrication accuracy, because PLLA easily undergoes thermal deformation when above its T_g. Additionally, the thermal stability of PLLA is lowered by the radiation-induced decomposition. For the precise micro/nanofabrication of PLLA, we should reduce the influence of heat by suppressing beam current and ion fluence, or by choosing a thinner sample and isolated small-area irradiation.

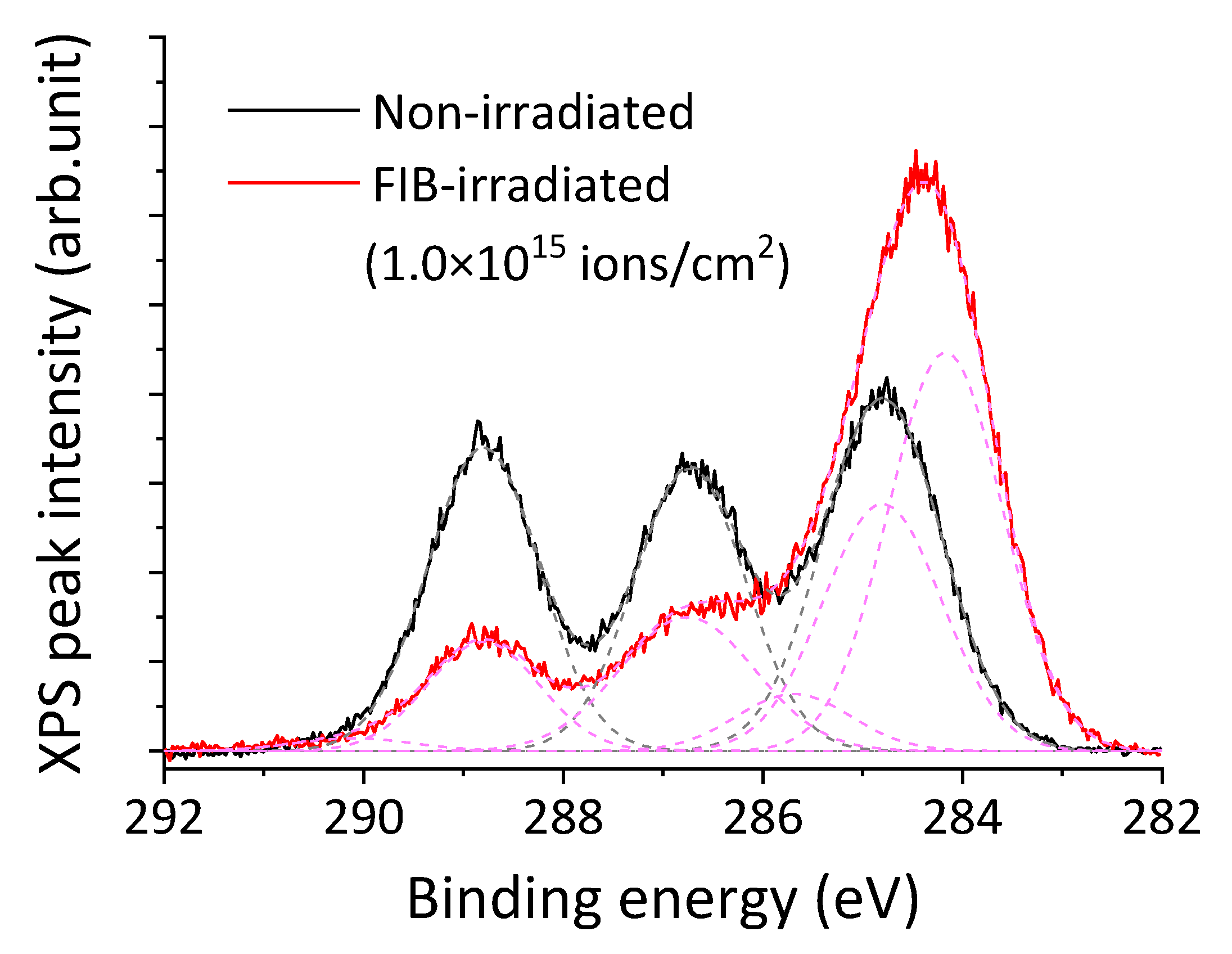

The chemical states of the FIB-irradiated PLLA surfaces were investigated using micro-area X-ray photoelectron spectroscopy (XPS: PHI 5000 VersaProbe WS, ULVAC-PHI, Kanagawa, Japan). The obtained XPS spectra of C 1 s are shown in Figure 2. For the non-irradiated sample, there are three peaks at 284.8 eV (C–H), 286.7 eV (C–O), and 288.8 eV (O=C–O). After the FIB irradiation, the C–O and O=C–O peaks decreased with the increase in the ion fluence, and two new peaks at 285.7 eV (C–OH) and 290.1 eV (O=C–OH) appeared. These terminal groups generated by the irradiation indicate main chain scission of PLLA. We observed a significant peak shift from 284.8 eV (C–C/C–H) to 284.1 eV (C=C), i.e., from sp³ to sp². The sp³-to-sp² ratio became approximately 2:3 after irradiation with 1.0 × 10¹⁵ ions/cm². In addition, the O-to-C ratio was decreased by irradiation. These results show that the irradiated area is carbonized and changed into a C=C bond-rich surface similar to diamond-like carbon (DLC) by physical sputtering and the desorption of decomposed fragments.

Figure 3 shows precise and arbitrary-shaped micro/nanostructures of PLLA observed with an atomic force microscope (SPI3800, Hitachi High-Tech Science , Tokyo, Japan) and a scanning electron microscope (S-3000N, HITACHI, Tokyo, Japan). By tuning the FIB irradiation conditions to avoid thermal deformation and debris, we obtained fine patterns such as ϕ80-nm-through-holes and 60-nm-wide lines. Moreover, the surfaces of these micro/nanostructures of the PLLA have a controlled amount of C=C, which influences the cell attachment [30]. Micro-fabricated PLLAs by FIB direct etching are advanced micro/nanodevices applicable especially in the biology and medicine fields.

2.2. Microfabricated Polysaccharide Hydrogels by Proton Beam Writing

We used hydroxypropyl cellulose (HPC: NISSO HPC H type, Nippon Soda, Tokyo, Japan, a molar degree of substitution of 3) and sodium carboxymethyl cellulose (CMC: CMC DAICEL 1380, Daicel FineChem, Tokyo, Japan, a degree of substitution of 1.36) without further purification as base materials. These cellulose derivatives were dissolved in ultra-pure water at 30% for HPC and 50% for CMC. Then the paste-like state samples were irradiated with a 3.0 MeV focused proton microbeam under atmospheric pressure conditions [63]. Air gap between sample and the beam extraction window was set at 1 mm for easy installation/exchange of the sample. The beam spot size on the sample surface was estimated at approximately 12 µm full width at half maximum (FWHM). The penetration depths of the protons were estimated using PHITS code [64] and were approximately 97.5 µm and 87.5 µm in the HPC and CMC samples, respectively. The proton beam current was controlled at about 10 pA, as measured with a Faraday cup set at just before the beam extraction window. The irradiation dose was set at 25 kGy to 100 kGy. 2 MeV electron beam irradiation was also conducted on the HPC and CMC paste samples as a reference. The 2 MeV electron beam has enough penetration range in the sample at 1.2 g/cm².

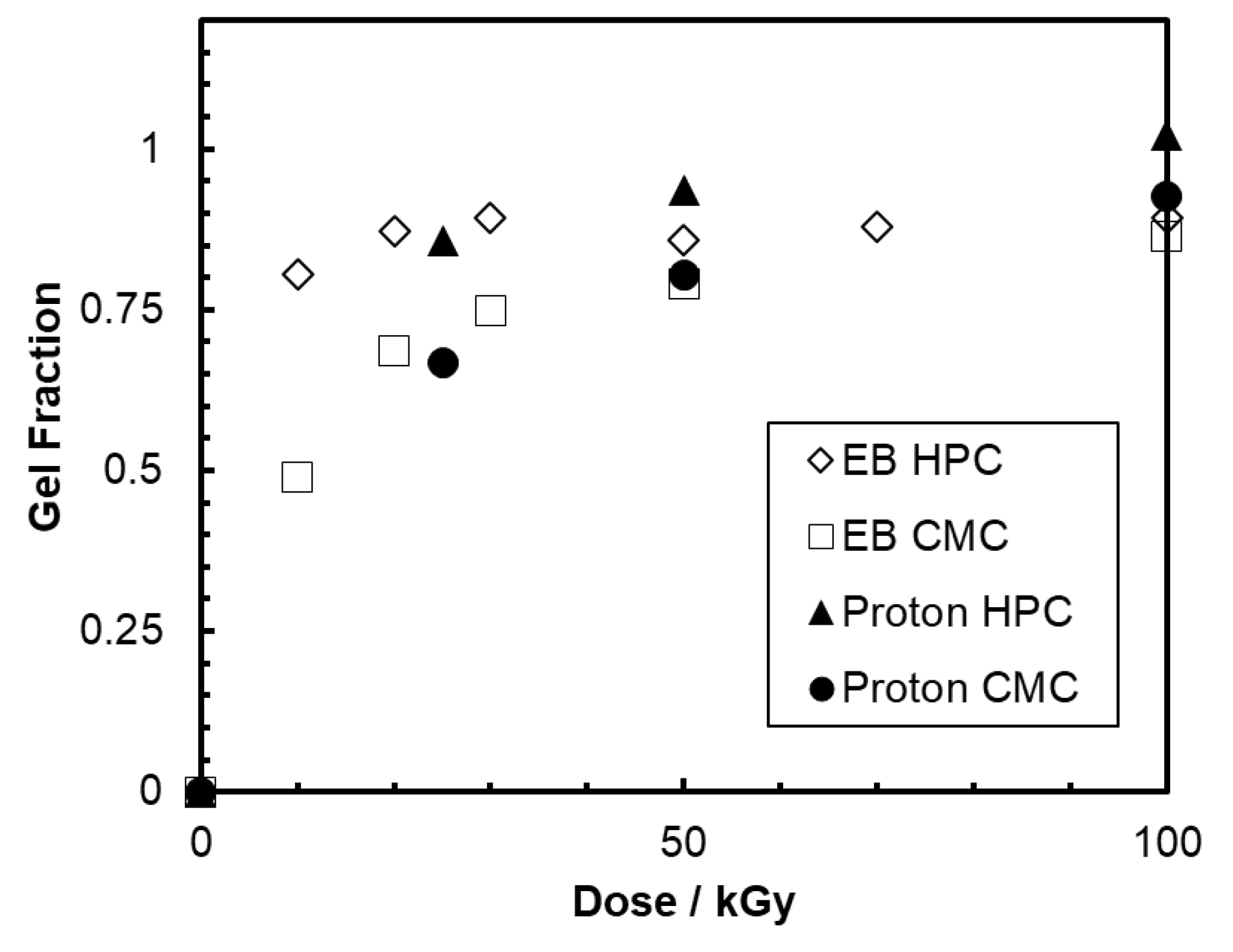

By a careful washing, the samples with pure water after the proton irradiation, insoluble hydrogels, were obtained like electron beam irradiation. The gel fractions of the hydrogels were estimated as the weight ratio of the dried crosslinked hydrogel to that of base polymer before irradiation. Figure 4 shows the gel fractions increasing with the dose of the proton beam and the electron beam. The swelling of the obtained hydrogels was estimated from the increment weight of the swollen hydrogel from that of dried hydrogel by absorbing ultra-pure water. The swelling of the hydrogels produced by the proton beam were also the same as that by the electron beam. Proton and electron beams are categorized as a low-LET radiation, and the hydrogels are formed by reactions of hydroxyl (OH) radical from water molecule produced by the indirect irradiation effect of the incident electrons. Proton and electron beams produce the hydrogel having the same gel fraction and swelling. However, it is difficult to evaluate the other physical properties, such as stiffness, tensile strength, and elongation, of the hydrogels produced by the proton beam because of the smaller size. The physical properties are considered the same as that obtained by the electron beam irradiation based on the formation mechanism of the hydrogel.

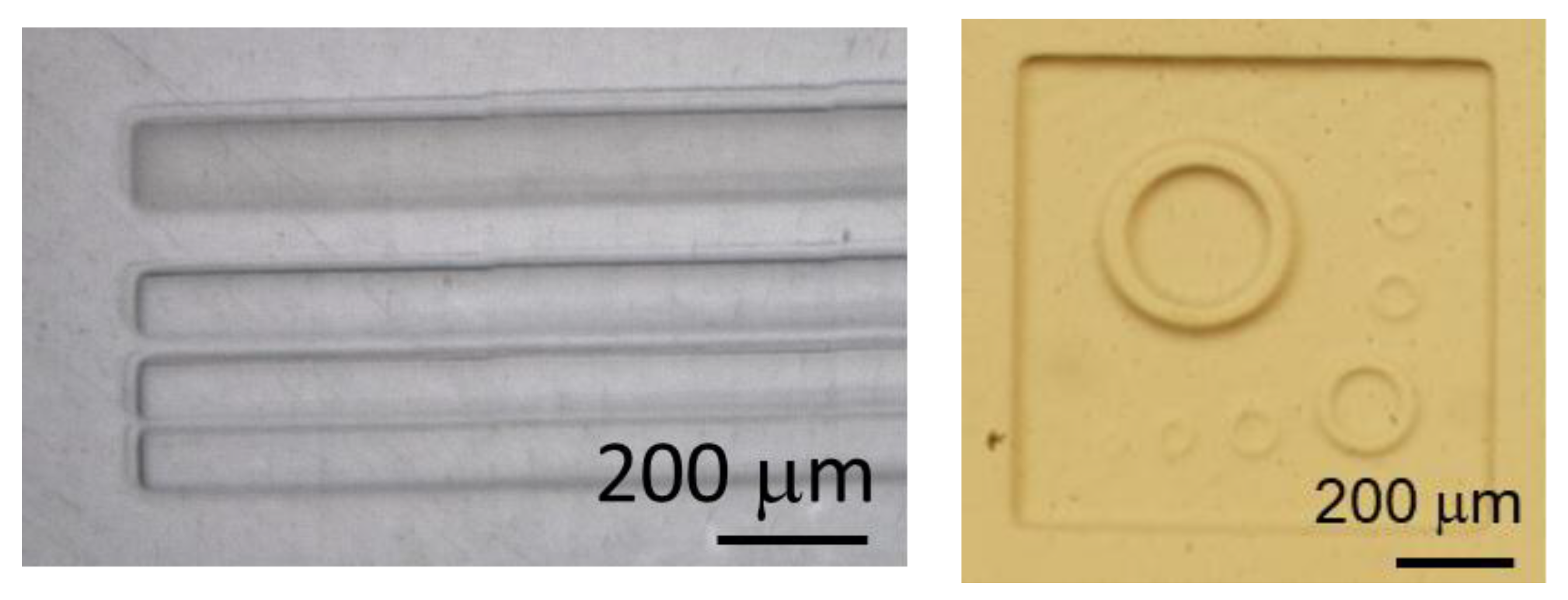

We successfully obtained the microstructured hydrogels with line-and-space, and hole patterns on polyethylene terephthalate film by the PBW technique. Figure 5 shows characteristic structures fabricated on the surface of HPC hydrogel. Here, we used line-and-space patterned hydrogel for the evaluation of the two-dimensional resolution of PBW. The produced square hydrogel was about 20 µm larger than the irradiation plan. The deviation from the plan is considered to be induced by the scattering of the proton beam by the beam extraction window foil and air, and the swelling of the hydrogel. The stiffness of the microstructured hydrogel was easily controlled with the irradiation dose. We have extended the PBW technology to soft polymeric materials containing large amounts of water to be used as scaffold materials for three dimensional cell culture that mimics the in vivo environment required for regenerative medicine and drug discovery, or as a container for culturing small insects and observing their ecology.

2.3. Gelatin Hydrogels for Mimicking In Vivo Extracellular Matrix

We introduce radiation-crosslinked gelatin hydrogels that can mimic chemical and physical properties of native ECM [54]. We prepared 10 wt% gelatin (from porcine skin, Type A, G1890, Sigma Aldrich, Tokyo, Japan) dissolved in ultra-pure water at 50 °C for 30 min. The solution was poured into cell culture dishes (Iwaki 1000-035, AGC Techno Glass, Shizuoka, Japan), and stored overnight at 20 °C. Gelatin underwent physical gelation during the storage. The samples were irradiated with ⁶⁰Co γ-rays or 2 MeV electron beam. These simple procedures can change the gelatin solution into radiation-crosslinked hydrogels that do not melt even at 50 °C. In addition, the irradiation not only induces crosslinking but also sterilizes the samples.

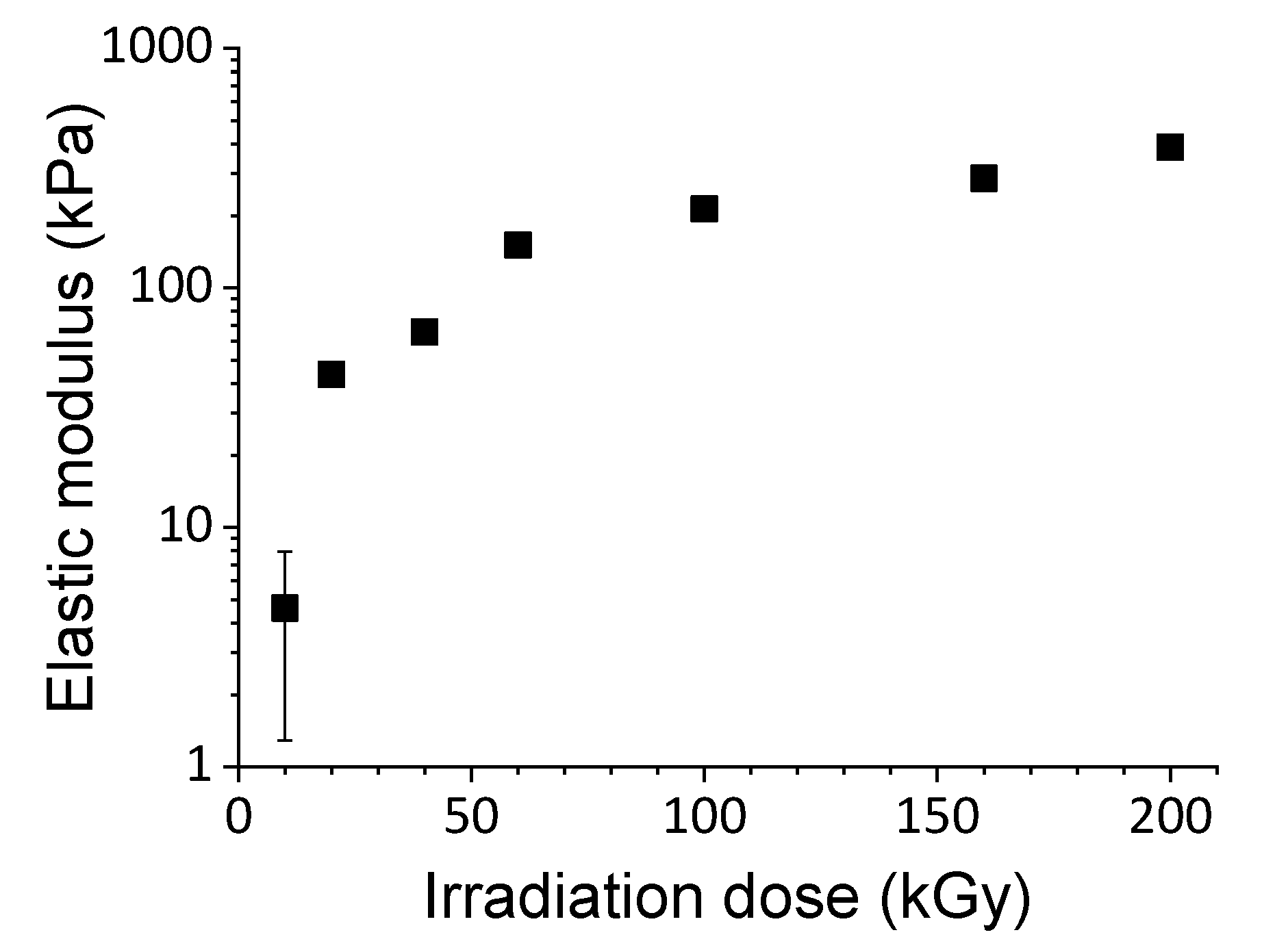

The stiffness of the radiation-crosslinked gelatin hydrogels can be controlled by choosing the irradiation dose. As shown in Figure 6, the compressive modulus of the hydrogel can be tuned within a wide range from 5–500 kPa, which is the same range as the compressive modulus of the soft tissue. Moreover, the surfaces of the hydrogels can be precisely microfabricated by applying quantum beam nanoimprint lithography (QB-NIL). QB-NIL is a technique that uses radiation-crosslinking instead of photo-crosslinking (UV-nanoimprint) or heat (thermal-nanoimprint), thus the technique is suitable for micro/nanofabrication of biomaterials that cannot be heated or mixed with cytotoxic photo-crosslinkers/initiators. After the irradiation of gelatin solution covered with a patterned mold, the microfabricated hydrogels are obtained.

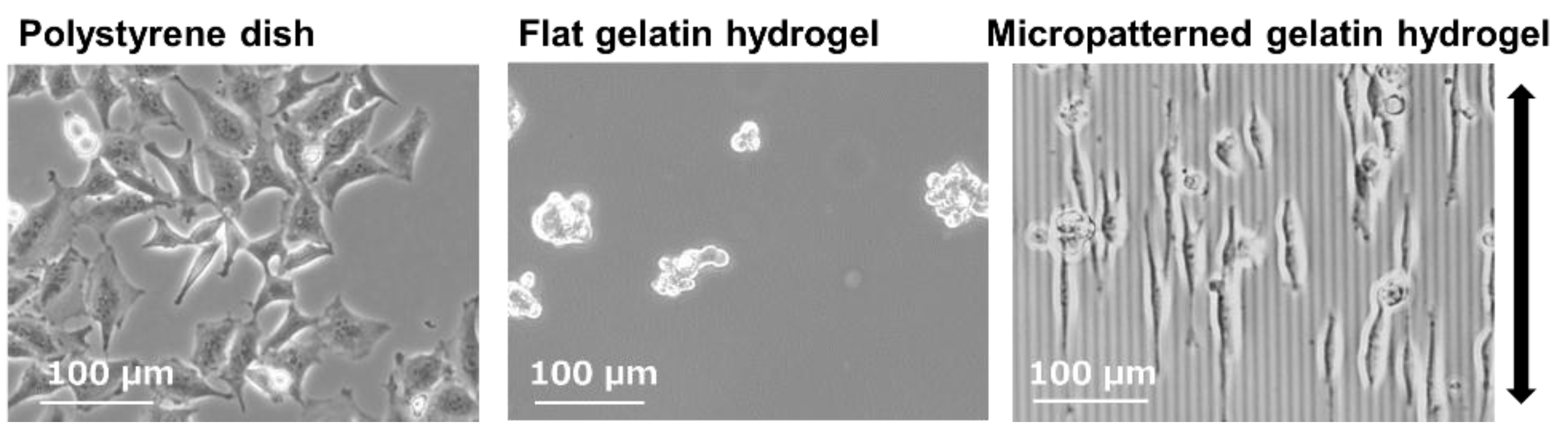

We obtained radiation-crosslinked gelatin hydrogels with variable stiffness and surface micropatterns that can mimic native ECM chemically and physically. We cultured HeLa cells (RCB0007, BioResource Center, RIKEN, Ibaraki, Japan) in Minimum Essential Eagle’s Medium (M5650, Sigma-Aldrich) supplemented with 10% fetal bovine serum (SH30910.03, GE Healthcare Japan, Tokyo, Japan), 100 U/mL penicillin, 100 μg/mL streptomycin (15,140-122, Thermo Fisher Scientific, Tokyo, Japan), and 2 mM L-glutamine (10,378,016, Thermo Fisher Scientific, Tokyo, Japan). HeLa cells on the hydrogel were observed with an inverted microscope (IX70, Olympus, Tokyo Japan). Figure 7 shows HeLa cells (derived from cervical cancer) cultured on conventional polystyrene (stiffness: >1 GPa) dish and our gelatin hydrogel with a stiffness of ~10 kPa. The cellular morphologies are completely different from each other; the cells spread flat on the polystyrene dish but form aggregates (spheroids) on the gelatin hydrogel. In addition, the spheroids partially infiltrated the hydrogel. The cancer cells cultured on the gelatin hydrogels can be used as a “tumor model” to reproduce cell responses in vivo. We have investigated various cell responses on our hydrogels and found that cell functions were tuned by the stiffness of the hydrogels. Moreover, the micropatterns on the hydrogels can control the cell morphology as shown in Figure 7. The radiation-crosslinked gelatin hydrogels have various advantages in addition to its ECM-like chemical and physical properties. They can control cell functions by their stiffness and micropatterns without adding any chemical reagent; they can be directly transferred into the body without peeling the cultured cells; they are sterilized during their production process; and their mass production is easily realized in existing commercial radiation facilities used for sterilization. The developed radiation-crosslinking method has contributed to the creation of scaffold materials that can be used as next-generation cell culture substrates in tissue engineering and regenerative medicine.

2.4. Long-Lasting Hydrophilic Polydimethylsiloxane (PDMS) Microwell Arrays

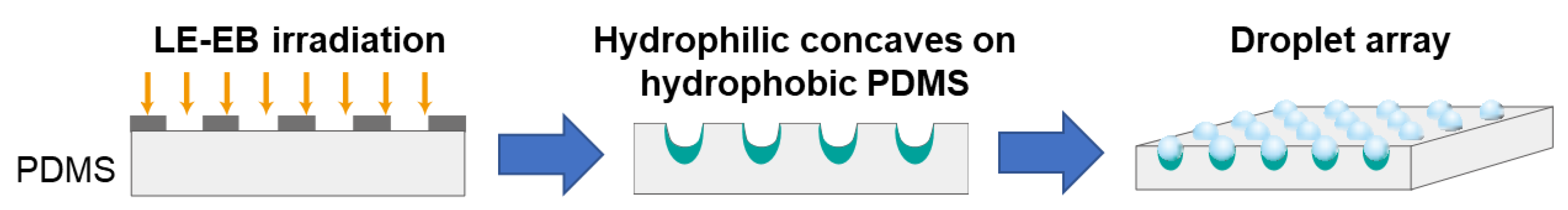

We propose a single-step fabrication method for long-lasting hydrophilic concaves on PDMS surfaces using low-energy electron beam (LE-EB) which is generated from a table-top accelerator (Figure 8) [62]. A mixture of the precursor SIM-260 and curing agent CAT-260 (both from Shin-Etsu Chemical, Tokyo, Japan) was poured on a Si substrate and heated at 150 °C for 30 min. After the prepared PDMS films were peeled off from the substrate, we irradiated with LE-EBs at the energy of 55–90 kV. The energy deposition ranges of 55–90 kV LE-EBs in PDMS are ~40–110 µm, and they are much deeper than that of plasma (< a few hundred nm).

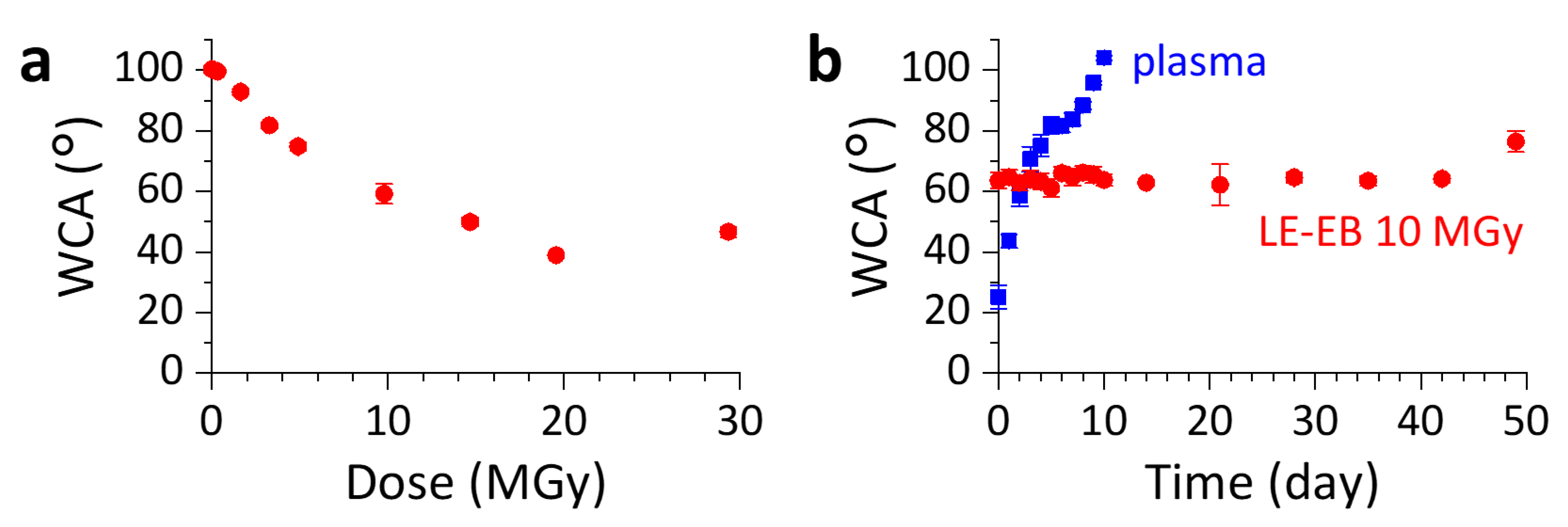

The hydrophilicity of the samples was evaluated by dropping ultra-pure water (~2 µL, Millipore) onto the PDMS surfaces. The static WCAs were measured within 1 h after LE-EB irradiation using a contact angle meter (FACE, CA-V, Kyowa Interface Science, Saitama, Japan). The WCA of PDMS surface was decreased by LE-EB irradiation (55 kV, 330 kGy/s) in air. The WCA changed from ~103° to ~60° after the irradiation of 10 MGy, and to 40° for the irradiation doses above 15 MGy (Figure 9a). Furthermore, a concave pattern on the PDMS surface was fabricated by the LE-EB irradiation through patterned masks. The depth of the concave features determined from micrographs of cross-sections was dozens of micrometers.

We investigated the chemical changes of PDMS induced by LE-EB by Fourier-transform infrared spectroscopy (FT-IR: Nicolet iN10 MX, Thermo Fisher Scientific, Tokyo, Japan) and XPS (PHI5000 VersaProbe II, ULVAC-PHI, Kanagawa, Tokyo). The two-dimensional FT-IR chemical imaging for a cross-section of a 10 MGy-LE-EB-irradiated PDMS showed that peaks related to –CH₃ stretching and bending (2964, 2904, 1412, and 1260 cm⁻¹) decreased to a depth of ~40 µm after LE-EB irradiation. Simultaneously, a broad peak appeared around 3400 cm⁻¹ that is assigned to –OH stretching. These results show that the hydrophobic methyl groups in PDMS are decomposed and a hydrophilic layer as thick as the energy deposition range of LE-EB (~40 µm) was produced by the irradiation. From the XPS measurement, we found that the original peak of Si(–O)₂ at 102 eV shifted to Si(–O)₃ (103 eV) and Si(–O)₄ (104 eV).,

Both plasma and LE-EB decompose the hydrophobic methyl group and produce hydrophilic Si–OH (silanol) and crosslinked SiOx-rich structure. The major difference between LE-EB and plasma is the durability of the hydrophilicity, which is originated from the different thickness of hydrophilized layer. Remarkably, the WCA of LE-EB–irradiated PDMS keeps <75° for more than a month storage in cell culture condition even after repeated drying for WCA measurement (Figure 9b), and 10 months in ultra-pure water at room temperature (RT, ~22 °C). The hydrophilic SiOx-rich layer generated as thick as 40 µm prolonged hydrophilicity. Moreover, the irradiated area compacted through the conversion to the SiO_x-rich inorganic phase forms dozens-µm-deep concaves.

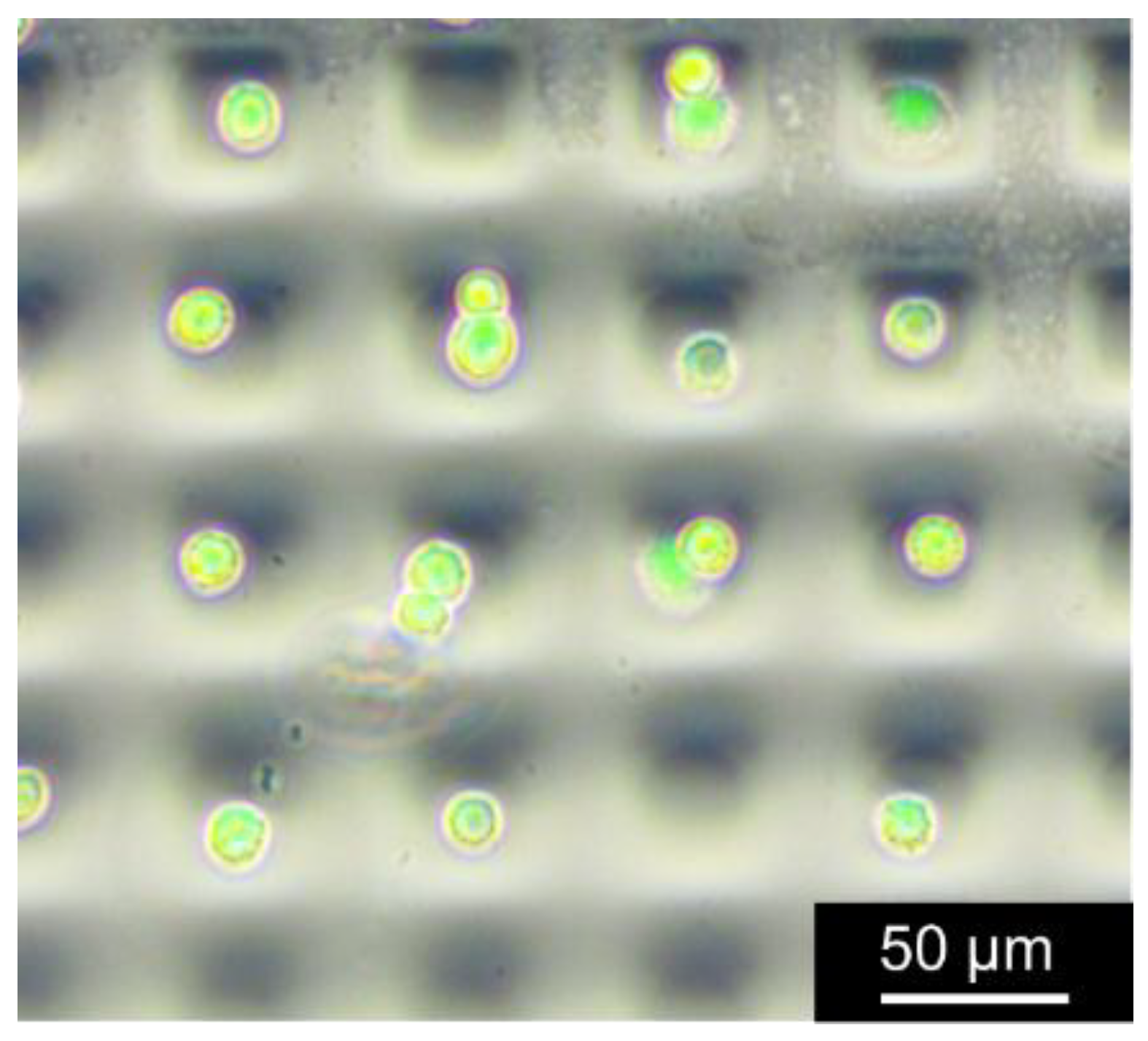

The most promising applications of concave features with the surfaces of durable hydrophilicity in PDMS is in cell culture. We demonstrated single-cell trapping in a microwell array chip (aperture: 35 µm square, depth: 30 µm), which was fabricated by 20 MGy irradiation of LE-EB. The 3T3-Swiss albino mouse embryo fibroblast cells (RCB1642, RIKEN BRC Cell Bank, Ibaraki, Japan) were seeded on the chip. The bright-field images were obtained with an inverted microscope (IX70, Olympus) with a digital camera (AdvanVision), and visualized the cells stained with calcein-AM using NIBA mirror units (Olympus). The bright-field images were merged with the fluorescence images to create composite images using ImageJ software (National Institutes of Health). After 2 h incubation, the non-adherent cells were removed by washing the chip with cell-culture medium. The cells favorably adhered to the hydrophilic surfaces of the microwells, and single-cell-level trapping was achieved as shown in Figure 10.

Our reagent-free method does not affect the biocompatibility of PDMS and provides local hydrophilization within the wells/channels. This single-step fabrication of PDMS is a state-of-the-art technology that makes the most of the properties of low energy electron beam and contributes to the development of lab-on-a-chip technologies, such as high-throughput single-cell analyses for diagnosis, drug screening, and stem cell biology.

3. Conclusions

We developed biocompatible functional materials using the micro/nano fabrication technique by controlling the quantum beam reaction qualitatively or spatially. Biocompatible PLLA, polysaccharide, gelatin, and PDMS having fine structures could capture cells individually or control cell shape, movement, and aggregations. Thus, biodevices created by the quantum beams are expected to greatly contribute not only to basic biological research but regenerative medicine, drug discovery, and individual diagnosis in the advanced medical field.
