Gas Sensing with Porphyrin Functionalized Metal Oxide Nanostructures ^†

Published: 19 June 2019

In the last years we have been interested to study the interplay of light and gas sensitivity in hybrid materials formed by porphyrins grafted onto ZnO nanostructures. First results shown that the conductivity of the hybrid material is sensitive to the visible light and to donor-acceptor gases such as amines and alcohols [1]. Surface photovoltage studies of the sensing properties of these materials suggests that the adsorption of volatile compounds may modulate, either positively or negatively, the photovoltaic properties of the dye-semiconductor hybrid [2].

The standard procedure to functionalize ZnO surface requires the addition of a carboxylic group functionalized porphyrin to a solution where the ZnO nanostructure is dipped. However, most of the gas sensing properties depend on the surface arrangement of the porphyrin layer. Thus, changes in the molecular film formation procedure may result in different sensors. This feature prompts the development of alternative routes for the hybrid film formation. One-pot methods, where porphyrin is directly added to the ZnO synthesis solution have been introduced, thus in spite of the same components (ZnO and porphyrin) the materials show different morphology and different sensitivity [3].

Further evidence of the importance of the molecular film morphology was obtained with porphyrins coated ZnO nanoparticles spotted on quartz microbalances (QMBs). In this study, a minimal array formed by the same porphyrin deposited onto three surfaces was considered. The same porphyrin (Zinc tetraphenylporphyrin) was spotted on the bare gold pad of the QMB and on ZnO nanoparticles. The coating of nanoparticles was obtained functionalizing the nanoparticles and with the one-pot procedure. Results show that changes in surface arrangements are enough to distinguish different volatile compounds and to recognize complex samples such as the headspace of cell cultures and vegetable oils [4].

A more recent exploitation of porphyrins grafted onto metal oxide nanostructures has been obtained for the development of an enantioselective QMB sensor [5]. The choice of QMB not only enables simple and fast sensors preparation but, more importantly, the non-selectivity of the mass transduction allows to explore the totality of the interactions occurring between the volatile compounds and the sensor, offering the opportunity to put in evidence the importance of chiral selective interactions respect to all the others.

Enantioselectivity is the capability of a sensor to show different sensitivities respect to chiral pairs of the same molecule. One of the main difficulties in chiral gas sensors is to transfer the chirality from single receptors to the solid-state material forming the sensing layer.

The molecular grafting on nanostructured material is a viable route to circumvent this problem. This property has been exploited by preparing a nanostructured film where chiral molecules are arranged on the surface of ZnO particles. The system retains chirality features and offers an optimal accessibility to the volatile compounds. We considered the inherently chiral porphyrin derivative where a (L)-proline unit infers the chiral features to a porphyrin macrocycle. Hydrothermally grown ZnO nanoparticles were functionalized in toluene solution of ZnPL.

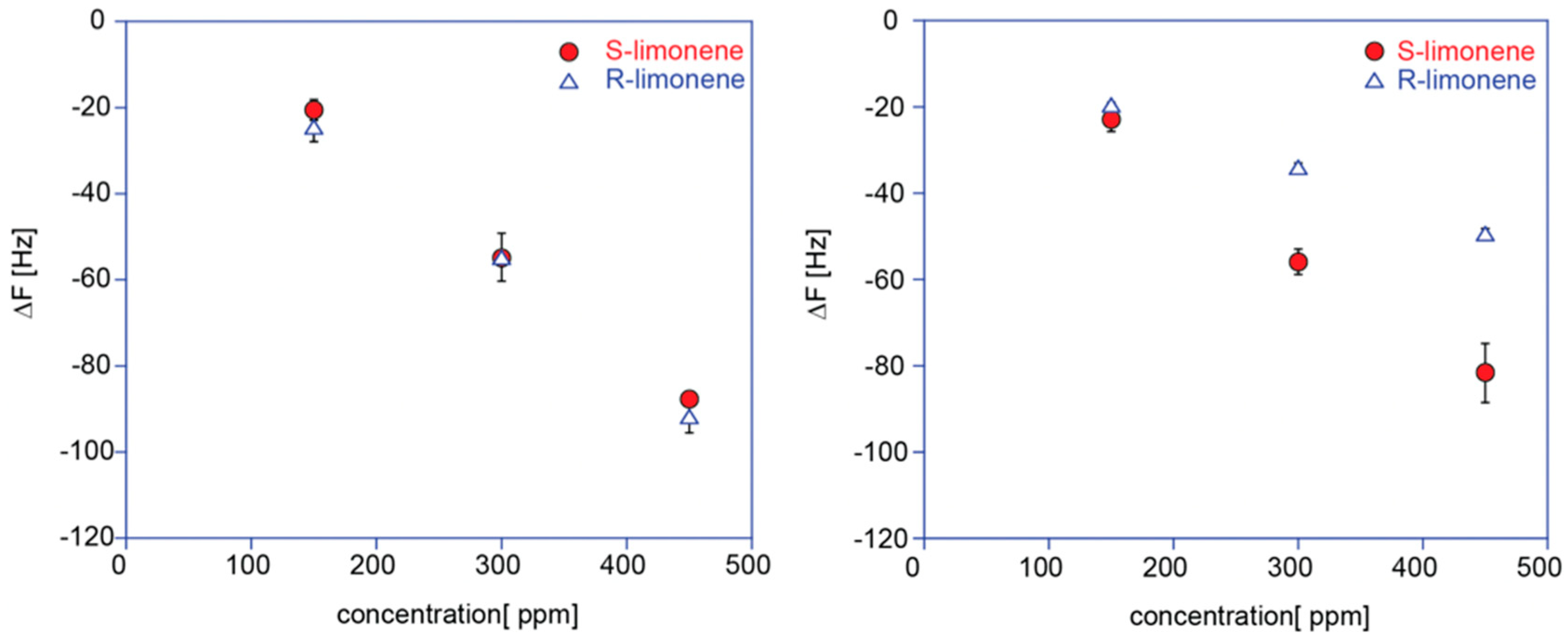

Figure 1 compares the response of sensors coated with chiral porphyrin and chiral porprhyrin grafted onto nanoparticles. Sensors were exposed to the enantiomers of S- and R-limonene, both at concentration of 375 ppm in air. Figure 2 shows the sensor response as a function of concentration. The enantioselectivity is preserved in the whole investigated range of observation.

The sensing properties of layers of porphyrins onto ZnO nanostructures offer a further degree of freedom for the design of sensor arrays extending the properties and the capabilities of porphyrin based sensor array in particular for medical diagnosis, the quality and control of foods and the detection of compounds signaling harmful or dangerous substances.
