Preparation and Identification of CuCr₂O₄ Nanoparticles and Investigation of Its Microwave Absorption Characteristics at X-Band Frequency Using Silicone Rubber Polymeric Matrix ^†

Abstract

Lately, silicone rubber, because of the desirable permittivity on the one hand, and various applications in the implants, membranes, solar cells, sensors, semiconductor devices, high frequency devices, photothermal therapy methods, acoustic metamaterials, and insulator materials on the other hand, has attracted considerable attention. In this research, CuCr₂O₄ nanoparticles were prepared according to the sol–gel method and then were identified by Fourier transform infrared (FT-IR), X-ray powder diffraction (XRD), field emission scanning electron microscopy (FE-SEM), and vibrating sample magnetometer (VSM). Results showed that monophase crystal structure with identical morphology of CuCr₂O₄ nanoparticles has been synthesized. Finally, CuCr₂O₄ nanoparticles and silicone rubber were composited and then microwave absorbing properties of the CuCr₂O₄/silicone rubber nanocomposite were investigated by vector network analyzer (VNA), exhibiting 48.56 dB microwave attenuation for the CuCr₂O₄/silicone rubber nanocomposite with 2.6 mm thickness at 10.9 GHz frequency, while having more than 92.99% microwave absorption along the x-band frequency.

1. Introduction

In recent years, merged metal oxide nanoparticles with spinel structure (AB₂O₄) have attracted considerable attention because of their wide variety of applications [1,2,3,4,5]. Copper chromite spinel structure (CuCr₂O₄) has attracted large attention due to thermal and chemical stability and various applications such as: photocatalytic degradation, photocatalytic H₂ production, oxidation of carbon monoxide, and water treatment. The thermal decomposition, ball milling, co-precipitation, and hydrothermal are methods used to prepare of CuCr₂O₄ nanoparticles [6,7].

The conventional solid state synthetic reaction is the most common method used to prepare CuCr₂O₄ nanoparticles. In this method, metal oxides of nanoparticles were used as precursors and then were ball milled and sintered in high temperature. The CuCr₂O₄ nanoparticles obtained by this method have large phase impurities due to lack of fine merging precursors. The size, shape, purity, and crystalline structure are the most significant factors that have an effect on the properties of nanoparticles [8].

In this research, due to the widespread application of the CuCr₂O₄ nanoparticles in recent years, the heat treatment effect on the purity of the crystal structure of spinel nanoparticles has been explored by the sol–gel method. Moreover, microwave absorption properties of the prepared nanoparticles were studied using silicone rubber as polymeric matrix.

2. Materials and Instruments

All the chemicals—Cu(NO₃)₂·3H₂O, Cr(NO₃)₂·9H₂O, citric acid, and ammonia solution—were purchased from MERCK and silicone rubber was provided from ELASTOSIL^® M4503. Wacker RTV-2.

The crystal phases of nanoparticles were studied using Philips X’Pert MPD instrument. The SEM micrographs were obtained by Tescan Mira2. The magnetic properties were investigated by IRI Kashan vibrating sample magnetometer (VSM). The chemical functional groups of samples were explored by the Shimadzu 8400 S FT-IR. Agilent technologies, E8364A and revealed microwave absorption properties of the samples.

2.1. Synthesis of CuCr₂O₄ by Sol–Gel Method

Cu and Cr nitrates with stoichiometric ratio of 0.01:0.02 were dissolved in deionized water by magnetic stirrer at room temperature and then citric acid was added in the solution. Afterwards, alkali pH was adjusted. The solution was heated and maintained at 90 °C until a transparent and viscous gel was obtained. The as-obtained gel was transferred into a furnace and annealed at 750 °C and 850 °C for 4 h to compare the results.

2.2. Preparation of the Microwave Absorbing Sample

The CuCr₂O₄ nanoparticles were dispersed in the silicone resin and then hardener was added with 20 wt %. Subsequently, the nanocomposite was molded to investigate microwave absorption properties.

3. Results and Discussion

3.1. X-ray Diffraction Analysis

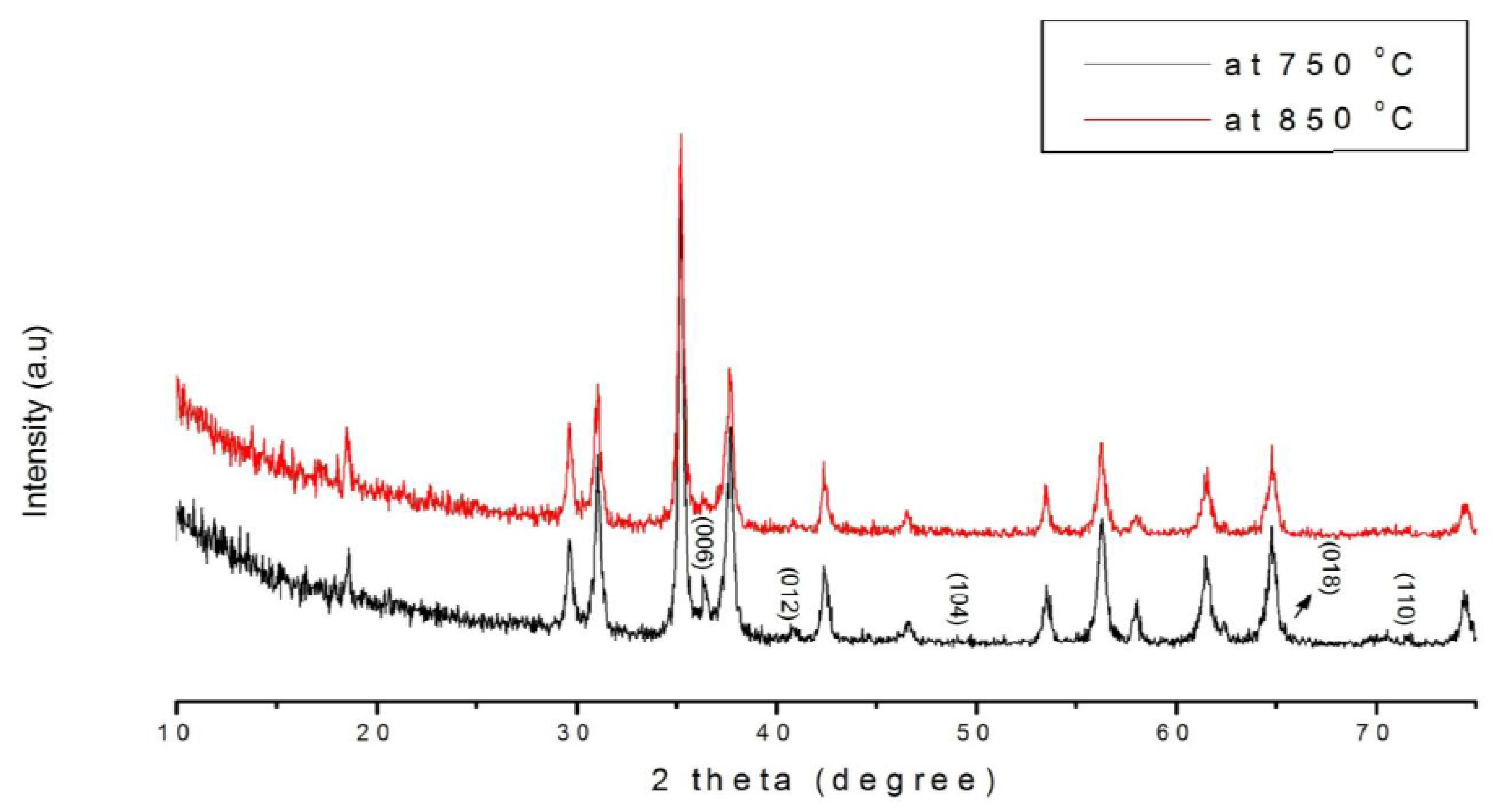

The XRD patterns of CuCr₂O₄ nanoparticles at 750 and 850 °C are shown in Figure 1. The results indicated that full width at half maximum (FWHM) of the (012), (104), (110), and (116) crystal planes related to the CuCrO₂ structure was decreased or disappeared by increasing the temperature. All the crystal phases of CuCr₂O₄ nanoparticles at 850 °C corresponded to the [34-0424] standard cart and confirmed that the nanoparticles were formed. The size of nanoparticles was calculated 15.5 nm according to the Scherrer equation.

3.2. SEM Images

As shown in Figure 2, CuCr₂O₄ nanoparticles annealed at 850 °C have uniform structure. According to the results, average particle size of nanoparticles was below 100 nm.

3.3. FT-IR Analysis

Chemical structures of CuCr₂O₄ nanoparticles were investigated by FT-IR analysis. FT-IR spectrum of CuCr₂O₄ annealed at 850 °C has been shown in Figure 3. The absorption bands at 503.90 cm⁻¹ and 612.85 cm⁻¹ are related to the Cu-O and Cr-O metal-oxide bond in the finger print region. The peaks about 1600 cm⁻¹ and at 3445.86 cm⁻¹ are attributed to the bending and stretching vibration of H₂O adsorbed on the CuCr₂O₄ nanoparticles surface. The peak at the 2356.24 cm⁻¹ is ascribed to the CO₂ that the copper chromite structure adsorbed.

3.4. Magnetic Properties

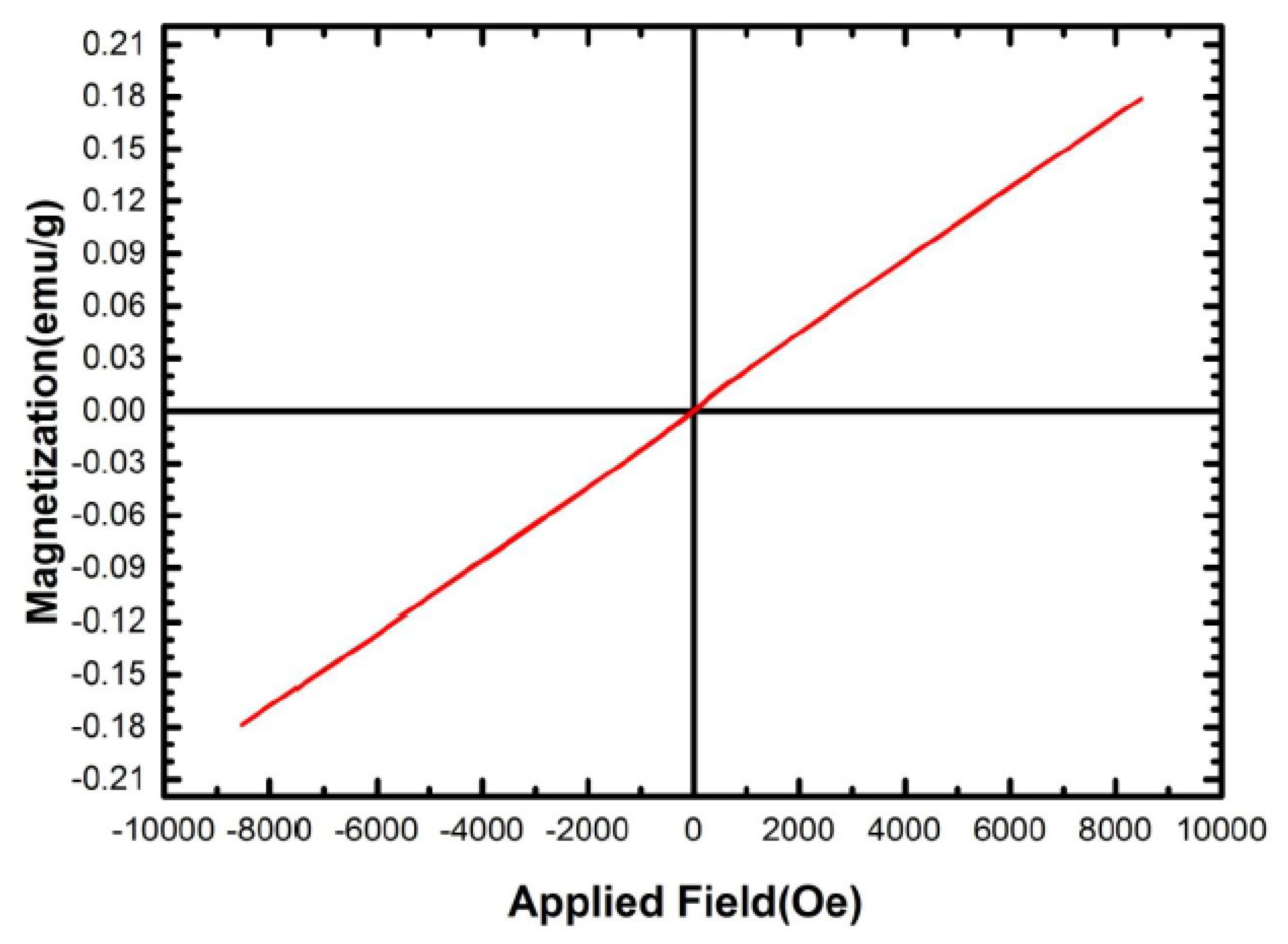

Figure 4 presents magnetic hysteresis loop of CuCr₂O₄ nanoparticles prepared at 850 °C. The magnetic parameters of nanoparticles have been reveled using applied Oersted (Oe) fields from −8.5 kOe to +8.5 kOe. Based on the result, saturation magnetization (Ms), coercivity (Hc), and remanent magnetization (Mr) were 0.21 emu/g, 0.0004 emu/g, and 16.92 Oe, respectively.

3.5. Microwave Absorption

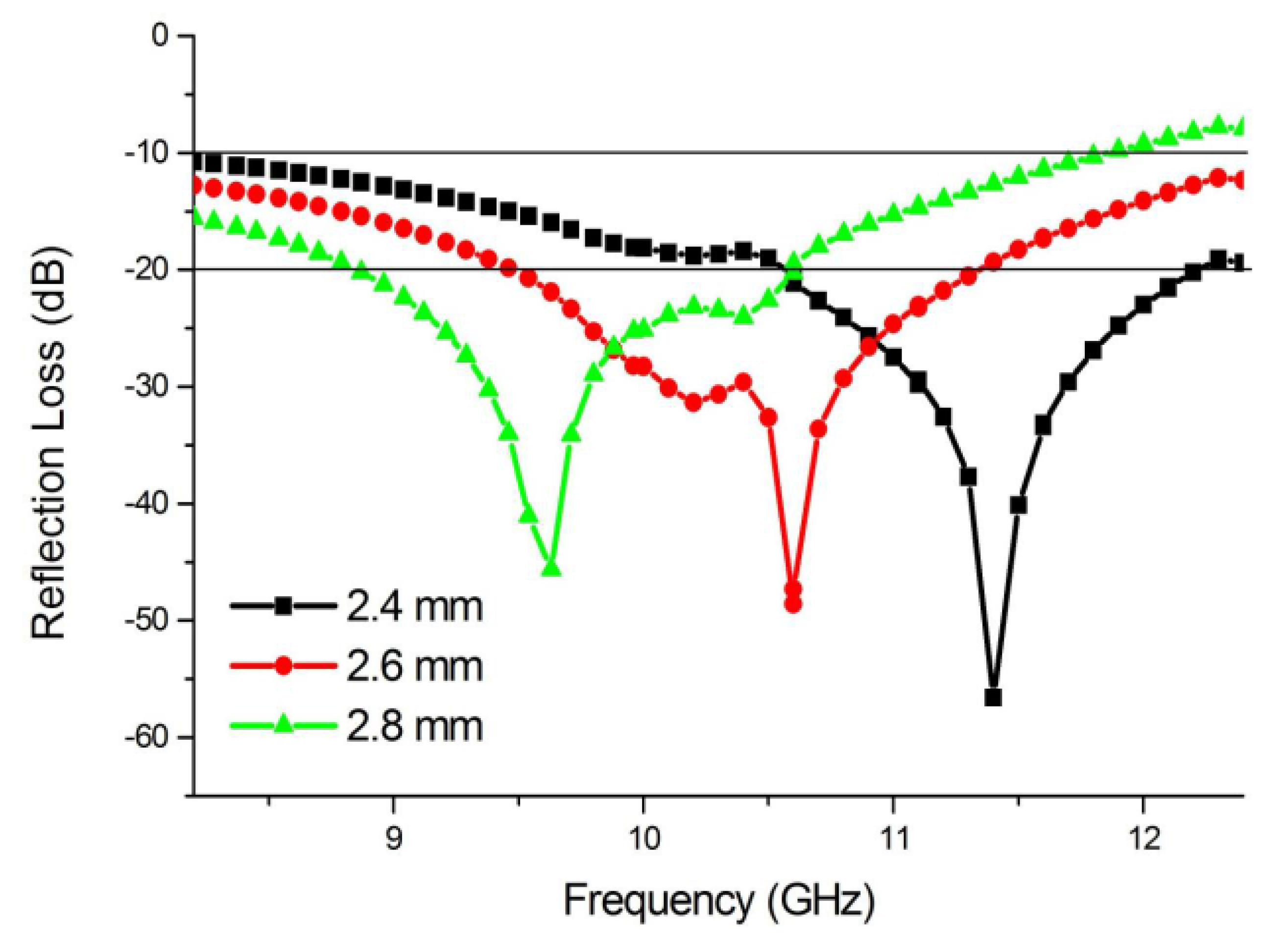

According to the transmission line theory, permittivity, permeability, as well as the diameter of the absorbers, are the remarkable factors affecting the microwave absorption properties [9,10,11,12,13]. Figure 5 shows microwave reflection losses of the CuCr₂O₄/silicone rubber nanocomposite with various thicknesses. Results indicated that CuCr₂O₄/silicone rubber nanocomposite absorbed 48.56 dB with 2.6 mm thickness at 10.9 GHz frequency while having more than 92.99% microwave absorption along the x-band frequency. The significant bandwidth and microwave absorption properties of the CuCr₂O⁴/silicone rubber nanocomposite were related to proper impedance matching, electron migrating, eddy current loss, magnetic resonance, conductive loss, and interfacial polarization in the absorber medium [14].

4. Conclusions

Results showed that copper chromite spinel structure was successfully synthesized by the conventional sol–gel method. SEM images showed that uniform structure of nanoparticles was synthesized by this method. Also, the FT-IR spectrum confirmed that nanoparticles were prepared without any organic impurities. Decreased or eliminated FWHM of impurity crystal planes in the XRD patterns demonstrated that annealing temperature did have an important role in crystal purity of CuCr₂O₄ nanoparticles. According to the results, heat treatment has a large effect on the purity of the CuCr₂O₄ nanoparticles. Finally, microwave absorption properties of the CuCr₂O₄/silicone rubber nanocomposite exhibited 48.56 dB microwave absorption with 2.6 mm thickness at 10.9 GHz frequency while having more than 92.99% microwave absorption along the x-band frequency, introducing CuCr₂O₄ nanoparticles as a promising filler in the microwave absorber.
