1. Introduction
Global demand of polyurethane (PU) products reached 15 million tons in 2013 and it is expected to reach 22 million tons in 2020. As a consequence of the high production and simultaneous consumption of these materials, a great volume of PU waste is landfilled. In this scenario, suitable and efficient routes for PU waste recycling have been searched for many years. Recycling techniques can be classified as primary, secondary, tertiary and quaternary. Primary and secondary recycling, gathered as mechanical recycling, consist on the direct reuse of uncontaminated discarded polymer into a new product. Tertiary recycling or chemical recycling consists on the depolymerization of PU to obtain monomers for their further re-polymerization to regenerate new PU. Finally, in quaternary recycling the material is incinerated in order to recover energy. Concerning chemical recycling of polyurethanes, glycolysis is one of the most studied techniques [
1]. It consists on a transesterification reaction implying an exchange of the ester group of the urethane by the hydroxyl group of a glycol, obtaining a recycled product that can replace the polyol component. The obtained polyol can be used in the synthesis of new polyurethane foams [
2] or elastomers [
3] and it constitutes the soft segments (SS) of the polyurethane conferring ductility, extensibility and recovering ability to the polyurethane. Urethane rich segments constitute the hard segments (HS) of the material, acting as reinforcement and complementing the microstructure of polyurethanes.
The objective of this work was to synthesize two series of PUs using different recycled PU sources: a thermoplastic PU series using a glycolysated polyol obtained from the glycolysis of elastomeric PU waste (chemical recycling) [
4] and a PU flexible foam series loaded with PU dust waste created in the shaping of PU surf tables (mechanical recycling). The effect of the added amounts of glycolysated polyol and PU dust on the final properties of the thermoplastic PU elastomers and flexible PU foams was studied, respectively, in order to establish the optimum recycled PU waste content in each series.
2. Materials and Methods
For the synthesis of thermoplastic polyurethanes, poly(ethylene-butylene adipate) diol (PEBA) was used as synthetic polyol (Poliols 55/10, Purinova, Chicago, IL, USA) (54.45 mg KOH g−1, 2060 g mol−1). 4,4′-Diphenylmethane diisocyanate (MDI) (Desmodur 44, kindly supplied by Covestro, Leverkusen, Germany) and 1,4-butanediol (BD) (Aldrich, St. Louis, MO, USA) were used as diisocyanate and chain extender, respectively. For the synthesis of flexible polyurethane foams a castor oil based polyol (Lupranol Balance® 50, BASF, Ludwigshafen, Germany) (49.7 mg KOH g−1, 3048 g mol−1), water as blowing agent, and toluene diisocyanate (TDI, kindly supplied by Covestro, Leverkusen, Germany) were used, together with catalysts and surfactants.
Elastomeric PU waste was recycled by glycolysis process. Ethylene glycol (EG) (POCH) was used as glycolysis agent and potassium acetate (KAc) (POCH) as catalyst. 10:1 wt (PU waste:EG), 0.5:100 wt (KAc:PU) ratios were used for the reaction, carried out at 180–190 °C for 40 min. A viscous polyol was obtained (Gly) (199 mg KOH g
−1, 564 g mol
−1). Thermoplastic polyurethanes were obtained by two step bulk polymerization. On the first step PEBA, Gly and MDI were reacted for 5h at 80 °C. On the second step, BD chain extender was added at 60 °C and the mixture was vigorously agitated for 10 min. The obtained viscous liquid was poured between two Teflon® coated metal sheets and was left to cure for 10 h, at 180 °C and 50 Bar. NCO:OH ratio was kept constant at 1.05 in all formulations. Samples were designated as PU-XGly, were X indicates the wt% of Gly over total polyol weight. Designation, PEBA:Gly:MDI:BD molar ratio and HS content (wt%) of each sample are shown in
Table 1.
Foams were synthesized at room temperature. Polyol, PU dust waste, catalysts (0.35 parts per hundred polyol, pphp), water (3.5 pphp) and surfactant (1.1 pphp) were mixed at 2000 rpm for 2 min. Then, the fixed amount of TDI (Isocyanate Index = 110) was incorporated and mixing continued for 10 s at the same speed. The mixture was then quickly poured into an open mold to left the foam rise freely. Foams were cured at room temperature for at least 24 h before characterization. The formulation was kept constant and PU dust was incorporated to the polyol in different amounts. Foams were designated as PUF-X where X denotes the wt% of PU dust over the polyol weight. Foam designation, density and obtained compressive mechanical properties are gathered in
Table 2.
3. Results and Discussion

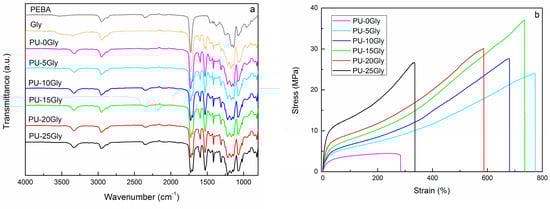

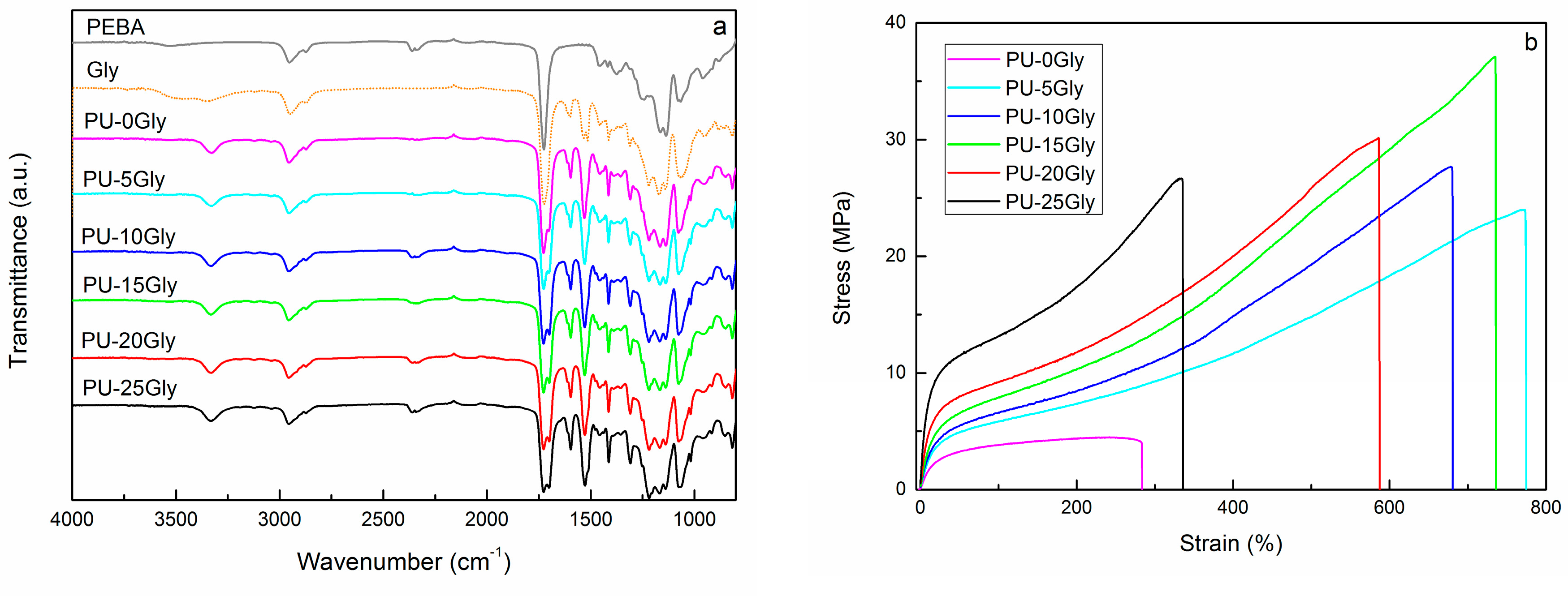

Fourier transformed infrared spectroscopy (FTIR) results of PEBA, Gly and synthesized thermoplastic polyurethanes are shown in
Figure 1a. When comparing the spectra of PEBA and Gly, the presence of OH groups was identified at around 3500 cm
−1 in both polyols. Besides, the presence of N-H (3363 cm
−1), C-N (1306 cm
−1) and C-O (1220 cm
−1) groups was evidenced in the spectrum of Gly polyol. This suggested that some residual urethane groups remained on Gly polyol after the glycolysis process. Analyzing the spectra of thermoplastic polyurethanes, there was no evidence of unreacted NCO groups (2270 cm
−1). All samples showed typical polyurethane spectrum with peaks corresponding to N-H (3334 cm
−1), C=O (1730 cm
−1), C-N (1306 cm
−1) and C-O (1220 cm
−1) groups.
Mechanical properties of samples were tested in tensile mode and the obtained stress-strain curves are shown in
Figure 1b. Young’s Modulus increased in proportion to Gly content, presumably due to the increase in HS content of the samples and the residual urethane groups. Tensile strength and elongation at break values showed a maximum at 15 wt% Gly content and then decreased. This behavior suggested that at high Gly contents phase separation was hindered, probably due to the increase in heterogeneity of polyol mixture. In fact, while Young’s modulus is related with HS content [
5], tensile strength and elongation at break values seem more susceptible to the degree of phase separation between hard and soft segments.
Concerning polyurethane foams, it was observed that the density of the samples increased as PU dust content increased (
Table 2). Moreover, as it can be observed in

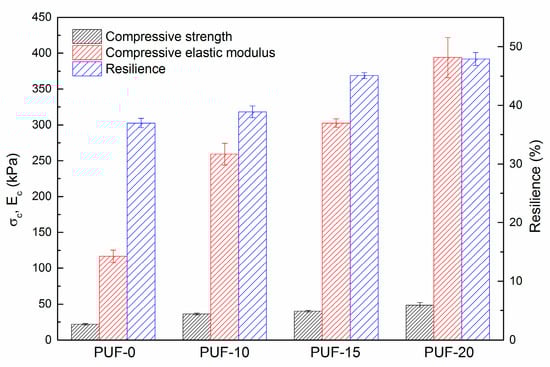

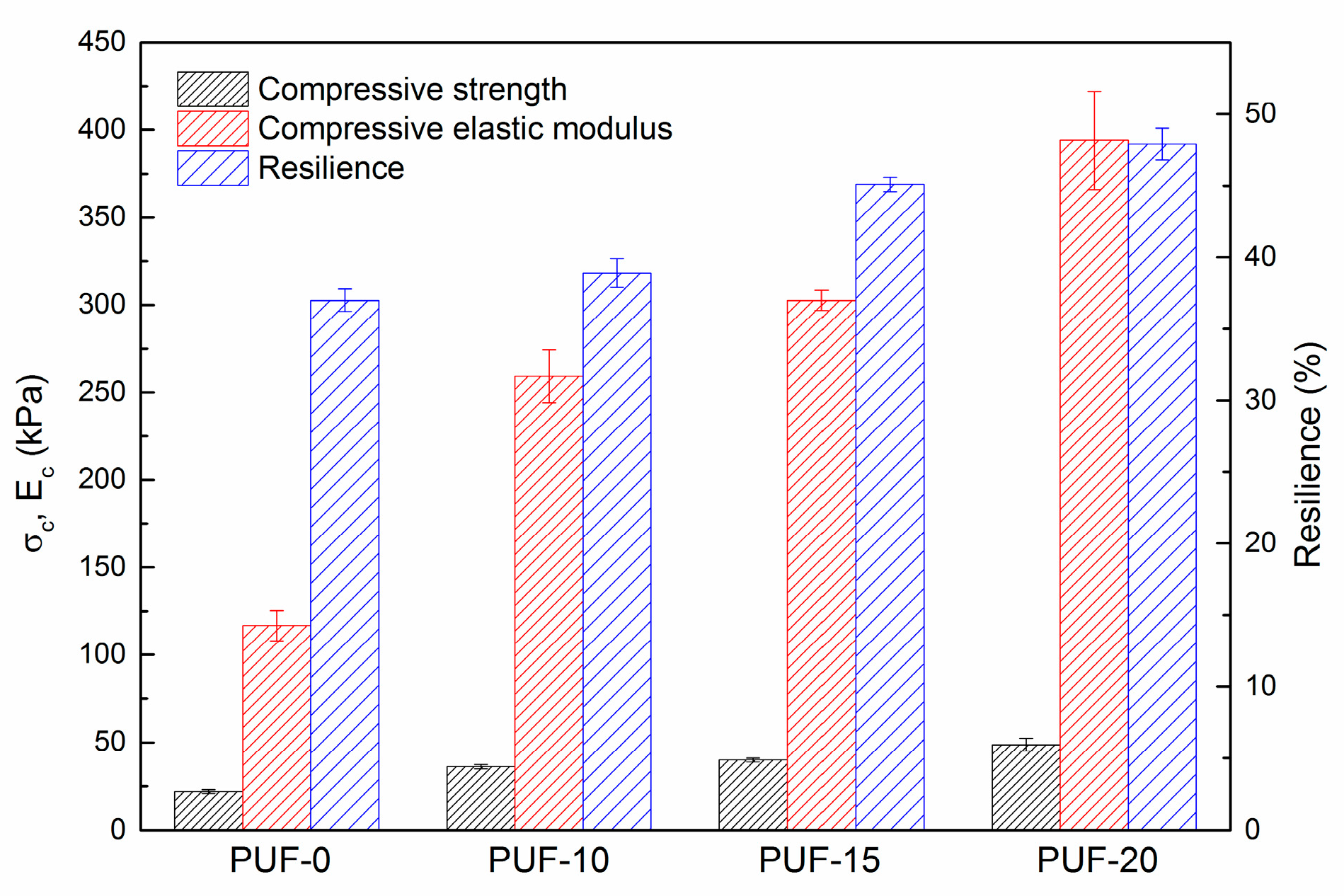

Figure 2, an important improvement of compressive mechanical properties was achieved with PU dust incorporation. Specifically, compressive strength and compressive modulus values increased more than 100% and 200%, respectively. Resilience values also improved with PU dust incorporation.
4. Conclusions
Both mechanical and chemical recycling processes showed to be effective for the management of polyurethane waste. New polyurethane products, thermoplastic and foams, with improved mechanical properties were successfully obtained from the recycling of different polyurethanes waste. In the case of thermoplastic polyurethanes, the optimum glycolysated polyol content was fixed at 15 wt% over the total polyol weight. For polyurethane foams, the maximum polyurethane waste dust content was fixed at 20 wt% over polyol weight due to limitations in the foaming process.
Author Contributions
L.U. analyzed the data and wrote the paper. T.C.-C. and O.E. performed the experiments, T.C.-C. also analyzed the data. C.P.-R., M.A.C. and A.E. conceived and designed the experiments. I.G.-G. contributed to write the paper.
Acknowledgments
We thank the Basque Government (IT-776-13) for the financial support. We also thank for technical and human support provided by SGIker of UPV/EHU and European funding (ERDF and ESF), and Olatu S.A (Gipuzkoa) for providing the PU dust. T.C.-C. thanks the University of the Basque Country (DOCREC17/13) and Provincial Country of Gipuzkoa (2017-BE01-000002-01).
Conflicts of Interest
The authors declare no conflict of interest.
References
- Simón, D.; Borreguero, A.M.; de Lucas, A.; Rodriguez, J.F. Recycling polyurethanes from laboratory to industry, a journey towards de sustainability. Waste Manag. 2018, 76, 147–171. [Google Scholar] [CrossRef] [PubMed]
- Nikje, A.; Mohammad, M.; Haghshenas, M.; Garmarudi, A.B. “Split-phase” glycolysis of flexible PUF wastes and application of recovered phases in rigid and flexible foams production. Polym. Plast. Technol. Eng. 2007, 46, 265–271. [Google Scholar] [CrossRef]
- Kopczynska, P.; Calvo-Correas, T.; Eceiza, A.; Datta, J. Synthesis and characterization of polyurethane elastomers with semi-products obtained from polyurethane recycling. Eur. Polym. J. 2016, 85, 26–37. [Google Scholar] [CrossRef]
- Calvo-Correas, T.; Ugarte, L.; Jutrzenka Trzebiatowska, P.; Rafael, S.; Datta, J.; Corcueraa, M.; Eceiza, A. Thermoplastic polyurethanes with glycolysate indetermediates from polyurethane waste rrecycling. Poym. Degrad. Stab. 2017, 144, 411–419. [Google Scholar] [CrossRef]
- Auad, M.L.; Mosiewicki, M.A.; Richardson, T.; Aranguren, M.I.; Marcovich, N.E. Nanocomposites made from cellulose nanocrystals and tailored segmented polyurethanes. J. Appl. Polym. Sci. 2010, 1215–1225. [Google Scholar] [CrossRef]
