Spray-Air Contact in Tall and Short-Type Spray Dryers Affects Important Physicochemical Properties of Microencapsulated Chia Seed Oil ^†

Abstract

The aim of this work was to determine the influence of the spray dryer’s aspect ratio (height/diameter) on the physico-chemical properties of microencapsulated chia oil (CSO). Two different dryers were analyzed: a tall-type dryer [H/D = 5/1], and a short-type dryer [H/D = 1.65/1]. The former corresponded to a co-current flow, while the latter had a central air disperser in the chamber, and a rotary air flow. Emulsions were prepared by homogenization of CSO, and a mixture of soy protein isolate (SPI) and gum arabic (GA). The co-current contact in the tall-type dryer yielded greater oxidative stability indexes (OSI) (three times higher than CSO), which was possibly associated the reduced thermal degradation. It can be concluded that a co-current contact constitutes a better alternative for the protection of CSO.

1. Introduction

Chia seed (Salvia hispanica L.) oil (CSO) is the major vegetable source of alpha-linolenic acid (ALA, C18:3); thus, the development of food fortified with chia has been extensively encouraged [1] However, CSO is highly susceptible to oxidation due to the unsaturated structure of its fatty acids [2], which ultimately decreases the nutritional value of the foods and negatively impacts their sensory properties [1]. Hence, the need for the protection of Omega-3-rich oils, through microencapsulation technologies is justified [1].

Spray drying is the most widespread technology in the microencapsulation field due to its low cost, flexibility and scalability [2]. Rapid water removal results in increased product shelf-life, and reduced shipping and storage costs [3,4]. The manner in which the sprayed feed contacts the drying air has a great bearing on the dried product’s properties, due to its influence on the droplet behavior during drying. This contact is dictated by the position of the atomizer in relation to the air disperser [4]. Therefore, the spray can be directed into hot air with a co-current, counter-current or mixed flow [3]. Co-current configurations are preferred if heat-sensitive products (like CSO) are involved, given that the spray evaporation is rapid, the drying air cools accordingly, and the evaporation times are short. Nonetheless, any areas of back mixing in the drying chamber (local counter-current flow) may create an overly hot environment for heat-sensitive ingredients [4]. This important issue, although very clear, is rarely addressed in the scientific literature, with only theoretical studies [4].

Based on the above considerations, the present work aimed to analyze the influence of two different spray dryers’ aspect ratios (height/diameter), and the spray–air contact therein, on the physico-chemical properties of microencapsulated CSO.

2. Materials and Methods

2.1. Materials

Chia seed oil (CSO) was extracted from seeds coming from Salta province (Nutracéutica Sturla SRL, Argentina), according to Martínez et al. [5], in a pilot plant screw press (Komet Model CA 59 G, IBG Monforts, Mönchengladbach, Germany). Soy protein isolate (SPI) SUPRO E with 90% protein on fat-free basis was purchased from The Solae Company (San Isidro, Argentina); gum arabic (GA) (Alland & Robert, Paris and Normandy, France) and maltodextrin (MD) DE 5 (Lorelite 5, Companhia Lorenz, Indaial, Brazil) were purchased from a local distributor (Distribuidora NICCO, Córdoba, Argentina).

2.2. Emulsion Preparation and Characterization

Coarse emulsions were prepared by high-speed homogenization of CSO, and a mixture of SPI and GA (15,000 rpm, 2 min, Ultraturrax homogenizer IKA T18, Janke & Kunkel GmbH, Staufen, Germany); 1/1 SPI/GA and 2/1 ((SPI+GA)/CSO) ratios (w/w) were used. The coarse emulsions were further homogenized in a high-pressure valve homogenizer at 700 bar (1 cycle, EmulsiFlex C5, Avestin, Ottawa, ON, Canada). The pH of fine emulsions was adjusted to 3.0 to induce coacervation between SPI and GA, and the reaction was completed with stirring at room temperature. Finally, MD DE 5 as filler was incorporated before drying to achieve a 22% w/v final total solid content.

Particle size distribution of final emulsions was determined according to Us-Medina et al. (2018), and with a LA 950V2 Horiba (Kyoto, Japan) analyzer.

Time-dependent steady shear properties of emulsions were evaluated using a controlled-stress rheometer MCR 301 Anton Paar, equipped with a plate-cone geometry (50 mm diameter) and working with a 0.05-mm gap [6].

The morphology of oil droplets was assessed with a confocal scanning laser microscope (Olympus FV1000, Tokyo, Japan) according to González et al. [1], with brief modifications. The continuous phase was labeled with a fluorescent marker, Rhodamine B (Sigma-Aldrich, Darmstadt, Germany) (0.08 g kg⁻¹ on a dry matter basis).

2.3. Spray Drying Experimental Design

Two replicated factorial designs were carried out in different spray dryers. The factors analyzed were inlet air temperature (3 levels) and feed flow rate (2 levels). The first design was performed in a tall-form spray dryer (TF-SD), Büchi B-290 (Büchi Labortechnik AG, Flawil, Switzerland), equipped with a two-fluid nozzle atomizer. The aspect ratio was 5/1 (height/diameter = 0.55 m/0.11 m). The evaluated values of inlet air temperature and feed flow rate were 130, 160 and 190 °C, and 2.6 and 5.8 mL/min, respectively. Finally, the second design was performed in a short-form spray dryer (SF-SD), Niro Mobile Minor (Søborg, Denmark), with a rotary atomizer. The aspect ratio was 1.65/1 (height/diameter = 1.40 m/0.85 m). The evaluated inlet air temperatures were the same as the previous design, and the feed flow rates were 10 and 15 mL/min.

2.4. Powder Characterization

The powders obtained with both spray dryers were characterized in terms of moisture content (MC), water activity (a_w) and particle size distribution (d₄₃ and d₃₂ mean diameters, and d₅₀ refer to volume-based distribution) as described by Us-Medina et al. (2018). The aggregation index (AI) of microparticles after the drying of chia oil-in-water emulsions was calculated according to Ma et al. [7].

Color determinations were performed with a CM600d spectrophotometer (Konica-Minolta, Tokyo, Japan) according to González et al. [1]. Whiteness (WI) and yellowness (YI) index, as well as the color change (ΔE index) between a blank and an oil-loaded microparticle, were estimated as described by Rodriguez et al. [8]. Surface fat (SF) and encapsulation efficiency (EE) were assessed according to González et al. [1]. The powder flowability was determined using the Carr’s Index (CI) and the Hausner Ratio (HR), as described by Rodriguez et al. [8]. The oxidative stability index (OSI) was determined by the Rancimat test (100 °C, 20 L/h air flow rate) according to González et al. [1]. The thermal behavior of powders was evaluated by thermogravimetric analysis (TGA), and was compared with a blank microparticle. Samples were heated from 25 to 350 °C with a linear rate of 10 °C/min. Glass transition temperatures were determined by differential scanning calorimetry (DSC, TA Instruments, New Castle, DE, USA) with a linear heating rate of 20 °C/min. Finally, the microstructure of powders was assessed by scanning electron microscopy (SEM, LSM5 Pascal; Zeiss, Oberkochen, Germany) according to González et al. [1].

3. Results and Discussion

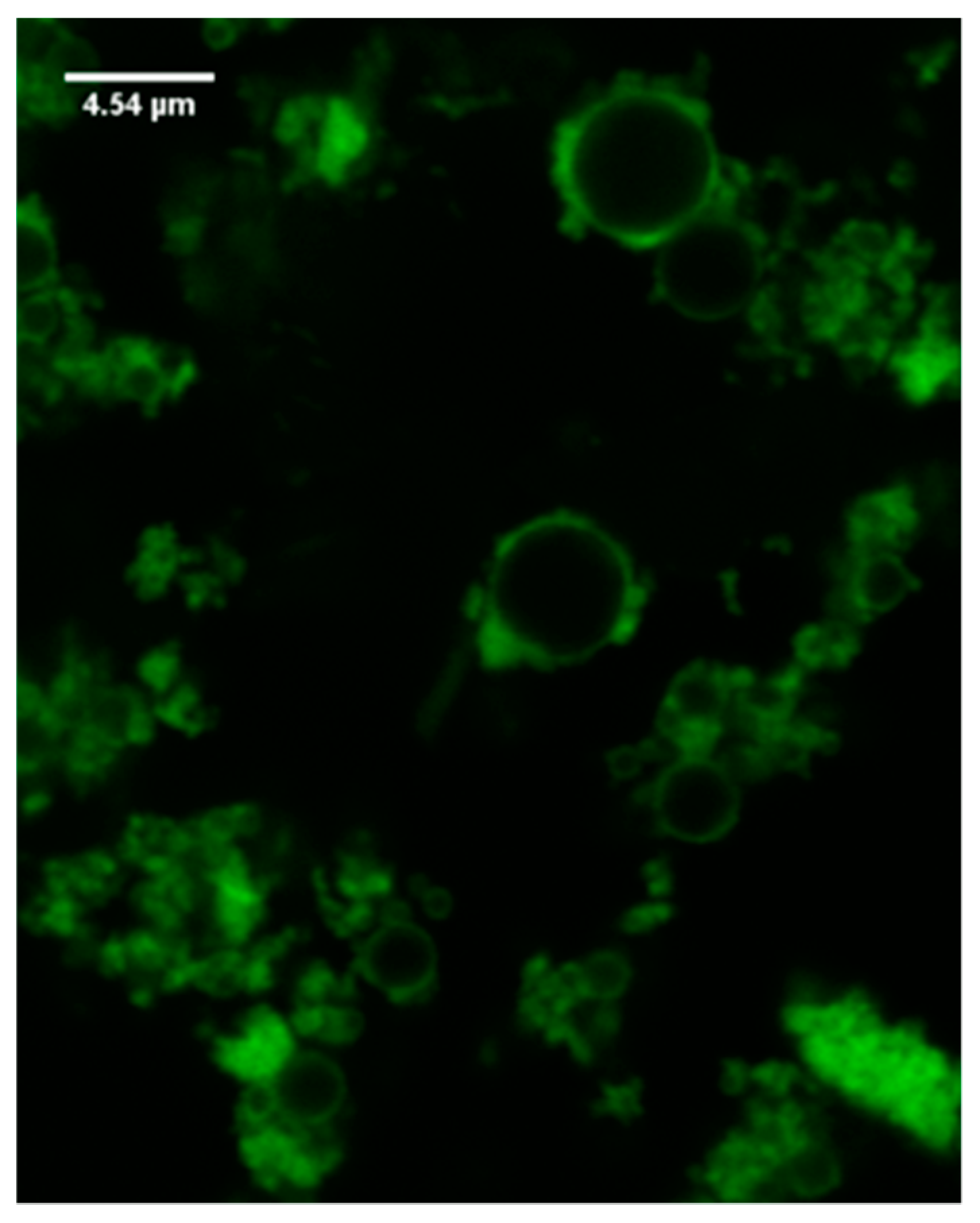

Many authors have highlighted the influence of parent emulsion characteristics on the final properties of powders, especially particle size distribution [9], which is useful for assessing the homogeneity of the system and tracking changes caused by processing transformations. Tiny and agglomerated oil droplets could be identified in emulsions (Figure 1) after complex coacervation of SPI and GA, which enhances the microparticles’ mechanical strength [10]. As regards the rheological behavior of parent emulsions, the data were fit to the power law (R² > 0.96). Flow index (n) values in the range of 0.32–0.40 were found, indicating a shear-thinning behavior. The consistency index (k) was in the range of 2.40–3.00 Pa sⁿ (0.1–300 s⁻¹ shear rate range). Finally, the viscosity value at 100 s⁻¹ (η₁₀₀), typical of many food processes, fell in the range of 0.111–0.155 Pa s.

Ranges for the particle size distribution of parent and reconstituted emulsions, as well as for the corresponding AI of powders, are shown in

Table 1. Particle size parameters of parent and reconstituted emulsions.

	d43	d32	d50	AI
Parent emulsion	21.10–21.20	12.80–12.90	12.21–12.30	--
T-F SD A	8.70–16.80	8.40–11.25	8.50–11.46	0.06–0.31
S-F SD B	45.30–60.00	9.50–13.20	48.50–51.70	3.00–4.30

^A TF-SD (Tall-form spray dryer); ^B SF-SD (Short-form spray dryer). These abbreviations hold for the rest of the Tables. d₄₃ (de Brouckere mean diameter, μm); d₃₂ (Sauter mean diameter, μm); d₅₀ (median diameter, volume distribution, μm); AI (aggregation index). The lowest and the highest values in each range correspond to the maximum air inlet temperature and the minimum feed flow rate, and to the minimum air inlet temperature and the maximum feed flow rate, respectively.

. In addition, the corresponding ranges for other physical properties can be found in

Table 2. Moisture content, water activity, surface fat, encapsulation efficiency and flowing properties of powders.

	MC	aw	SF	EE	CI	HR
T-F SD	3.10–4.50	0.270–0.335	7.00–10.50	61.50–75.00	40.20–46.30	1.45–2.00
S-F SD	5.08–6.55	0.320–0.385	0.25–2.10	92.40–99.00	31.50–49.60	1.65–1.81

MC (moisture content, % wet basis); a_w (water activity); SF (surface fat, % dry basis); EE (encapsulation efficiency, % dry basis); CI (Carr’s Index, %); HR (Hausner ratio).

(MC, a_w, SF, EE, CI and HR) and

Table 3. Color parameters of powders.

	L*	a*	b*	ΔE	WI	YI
T-F SD	91.10–94.05	−0.19–0.10	9.50–12.40	2.30–3.65	54.00–65.45	16.80–19.50
S-F SD	79.50–86.70	−0.21–1.10	14.20–18.05	7.40–13.50	32.40–44.05	23.40–29.80

L* (lightness); a* (red-green component); b* (yellow-blue component); ΔE (color change index); WI (whiteness index); YI (yellowness index).

(color parameters). The AI values for SF-SD microparticles were significantly higher (p < 0.05) than for TF-SD microparticles, which may be explained by the particle agglomeration facilitated by rotary atomizers [4]. In addition, a strong positive correlation (p < 0.05) was found between AI and d₄₃ (r = 0.9916).

A significant reduction (p < 0.05) in OSI values was observed for SF-SD powders, compared with bulk CSO: 0.21–0.80 h and 3.00–3.33 h, respectively. This may be related to eddies around the air disperser, which created local areas of counter-current flow between spray and air. On the other hand, the plug-flow air conditions in the chamber of a TF-SD are considerably different from the swirling air motion around the central disperser of the SF-SD, with less back mixing [4], thus preserving CSO from thermo-oxidative damage. For the TF-SD, the OSI values were in the range of 5.10–6.60 h.

The lowest and the highest values in each range correspond to the maximum air inlet temperature and the minimum feed flow rate, and to the minimum air inlet temperature and the maximum feed flow rate, respectively.

Strong correlations (p < 0.05) were also found between OSI and WI (r = 0.9358), L* (r = 0.9079), YI (r = −0.9029) and ΔE (r = −0.9410). Color changes are a sign of the oxidative deterioration of triacylglycerols and fatty acids, since this process can yield colored products [8]. In this regard, it is important to highlight that blank microparticles showed L*, a*, b*, WI and YI values in the ranges of 90.80–92.00, −0.03–0.05, 8.80–8.90, 65.40–65.50 and 13.70–13.80, respectively. Significant differences were observed (p < 0.05) between blank and SF-SD microparticles, as reflected by their higher values for ΔE compared to TF-SD powders, which was in consonance with greater oxidative damage.

The lowest and the highest values in each range correspond to the maximum air inlet temperature and the minimum feed flow rate, and to the minimum air inlet temperature and the maximum feed flow rate, respectively.

The particle size distributions and color parameters of the powders were also correlated (p < 0.05), as expected: WI–d₄₃ (r = −0.9540) and WI–AI (r = −0.9627). Finally, a higher EE was associated with greater values of d₄₃ (r = 0.9283) and AI (r = 0.9543).

As regards the flowing properties, CI > 25% and HR > 1.4 were observed, evidencing a poor flowability and strong inter-particle forces [8].

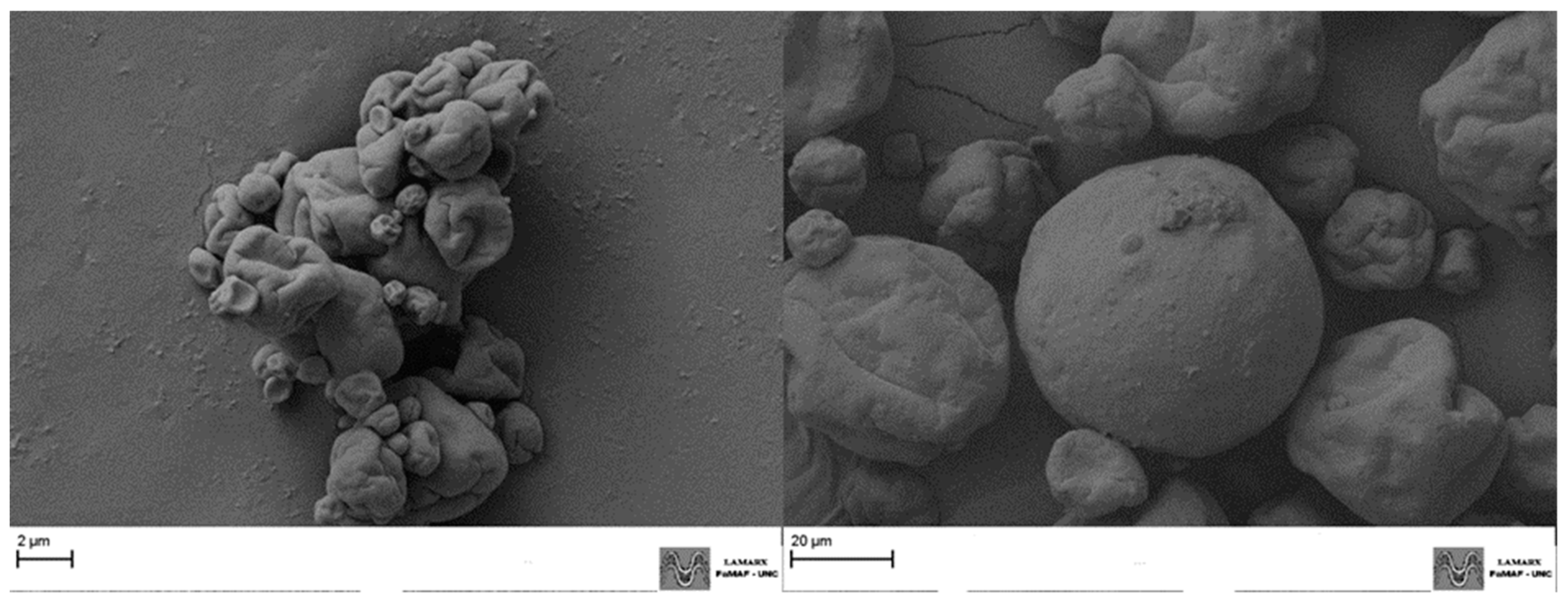

SEM micrographs of powders (Figure 2) showed tiny agglomerates, especially for a TF-SD, which are typically produced by twin-fluid atomizers and aid in the redispersion process [4]. On the other hand, round-shaped particles of greater size and no evident agglomerates were observed for the SF-SD.

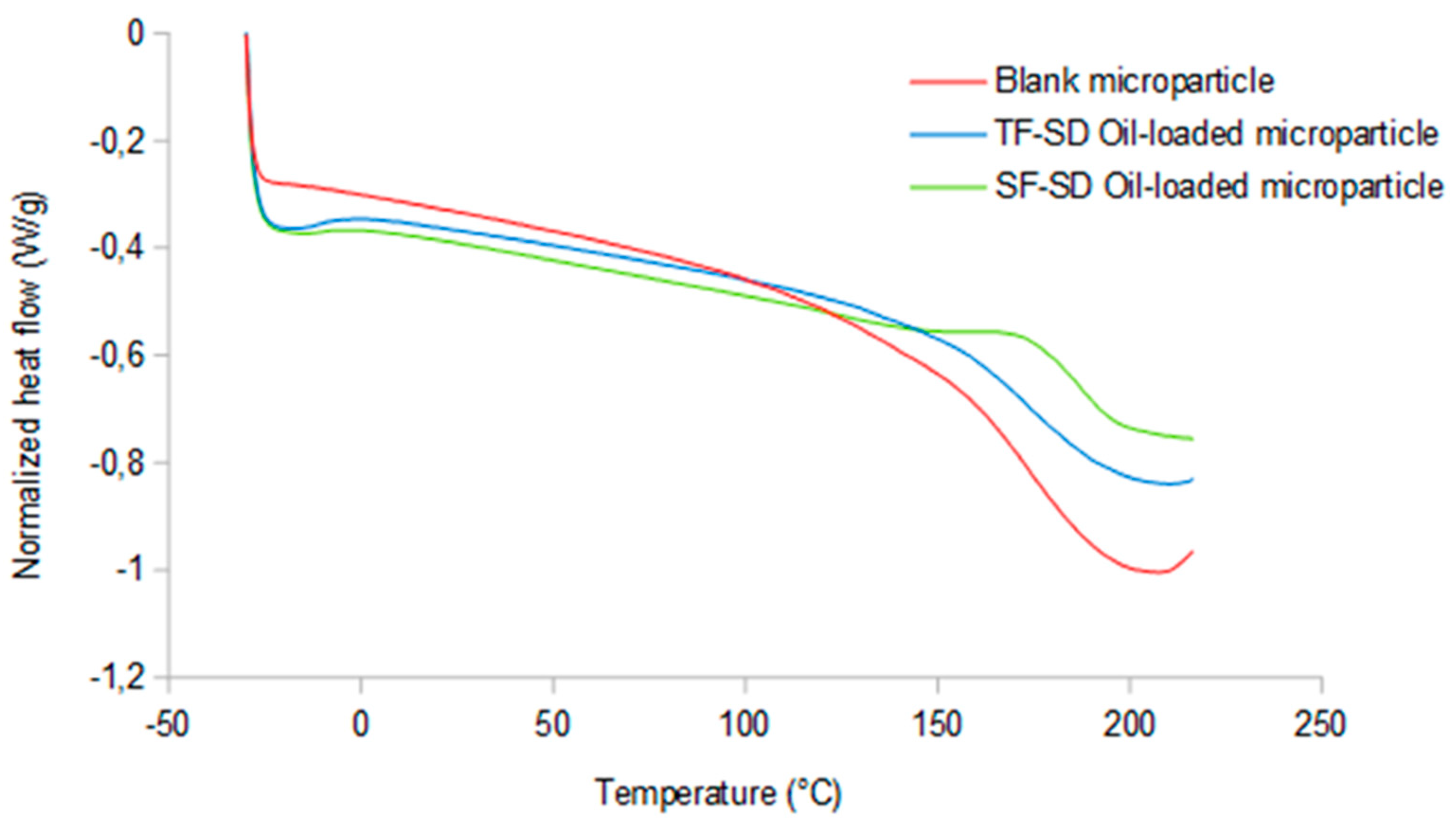

The thermal performance of the powders compared with a blank microparticle was assessed. It was found that all formulations showed two main stages of mass loss (curves not shown). The first stage, below 100 °C, was related to the loss of adsorbed and bound water, and had a small weight loss for all microparticles. The onset temperatures for the second degradation stage were around 250–260 °C for all samples. These temperatures were in consonance with values reported for the wall materials of the present work, and corresponded to SPI pyrolysis (~270 °C, Song et al. [11]) and the thermal degradation profile of polysaccharides (Castro-Cabado et al. [12]). Finally, glass transition temperatures (Figure 3), as shown by the DSC curves, were around 172, 169 and 186 °C for blank, TF-SD and SF-SD microparticles, respectively, in accordance with the reported values for MD DE 5 [3], GA (Barros Fernandes et al. [13]) and SPI (Tang et al. [14]).

4. Conclusions

The physico-chemical properties of microencapsulated CSO proved to be greatly affected by the spray dryer’s aspect ratio and by the spray-air contact. Turbulence around the air disperser in the SF-SD created local areas of counter-current flow between spray and air, damaging the oil chemical quality. L*, WI, YI and ΔE values varied accordingly. However, a greater EE was achieved in the same SF-SD, which was associated with higher d₄₃ and AI values. It can be concluded that a co-current spray–air contact constitutes a better alternative for the protection of a heat-sensitive ingredient like CSO.
