Revisiting Colorimetric Gas Sensors: Compact, Versatile and Cost-Effective ^†

Abstract

We report on an inexpensive and very selective gas sensor implemented by simply combining colorimetric indicators casted on top of acetate-based transparent tape, with a commercial microchip adapted here to measure optical reflectance. This sensor can be easily reproduced (leading to quantitatively consistent results), refreshed and reconfigured to sense different target gases replacing only the colorimetric tape. The device may either work as sensor (CO₂ and NH₃) or dosimeter (Formaldehyde) depending on the targeted gas.

1. Introduction

Colorimetric methods put at our disposal a wide arsenal of compounds and reaction mechanisms to address specific gaseous molecules. These techniques offer unbeatable levels of selectivity and specificity towards the target species. Regarding their readout, spectrophotometers offer a detailed view of the changes developed in the light absorption spectra of these indicators, but they are bulky and practicable only for research purposes or high-end applications. To achieve a continuous readout and compact form factors, development must be focused on miniaturized systems that measure color changes at specific spectral ranges [1,2]. Even though many different configurations have been proposed, most are based on confronting a narrow-spectrum light source with a photodetector. To maximize their sensitivity to small color changes, enlarging the optical path from the emitter to the detector through the indicator medium is the preferred option [3,4,5]. Consequently, the integration of the different components, especially concerning their optical alignment, is challenging. Additionally, the efforts in miniaturization complicate refreshing the indicator substances, which are prone to degradation over time. In summary, the continuous readout of colorimetric indicators still raises a set of inconveniences.

2. Description of the New Method

Here, we propose an easy-to-implement approach to colorimetric detection of gases that combines the following advantages: (1) it is based on easily accessible, off-the-shelf commercial components; (2) it is compatible with a wide range of colorimetric indicators, operating at different wavelengths; (3) it is easily resettable/refreshable with good stability in a time frame of weeks, and (4) offers an excellent repeatability among devices. Our gas sensor is based on the MAX30105 component. This integrated microsystem encloses a set of 3 internal LEDs (red, green and infrared), a broad band photodiode and the corresponding control, driving, acquisition and communication modules. We use this device to excite and monitor the indicator in reflection configuration.

To integrate the indicators on the readout chip, we spin coated each indicator on conventional Scotch tape. Then, the indicator-carrying pieces of tape were transferred to the readout MAX30105 chip by attaching the tape directly on the chip glass surface (Figure 1).

3. Experimental Results

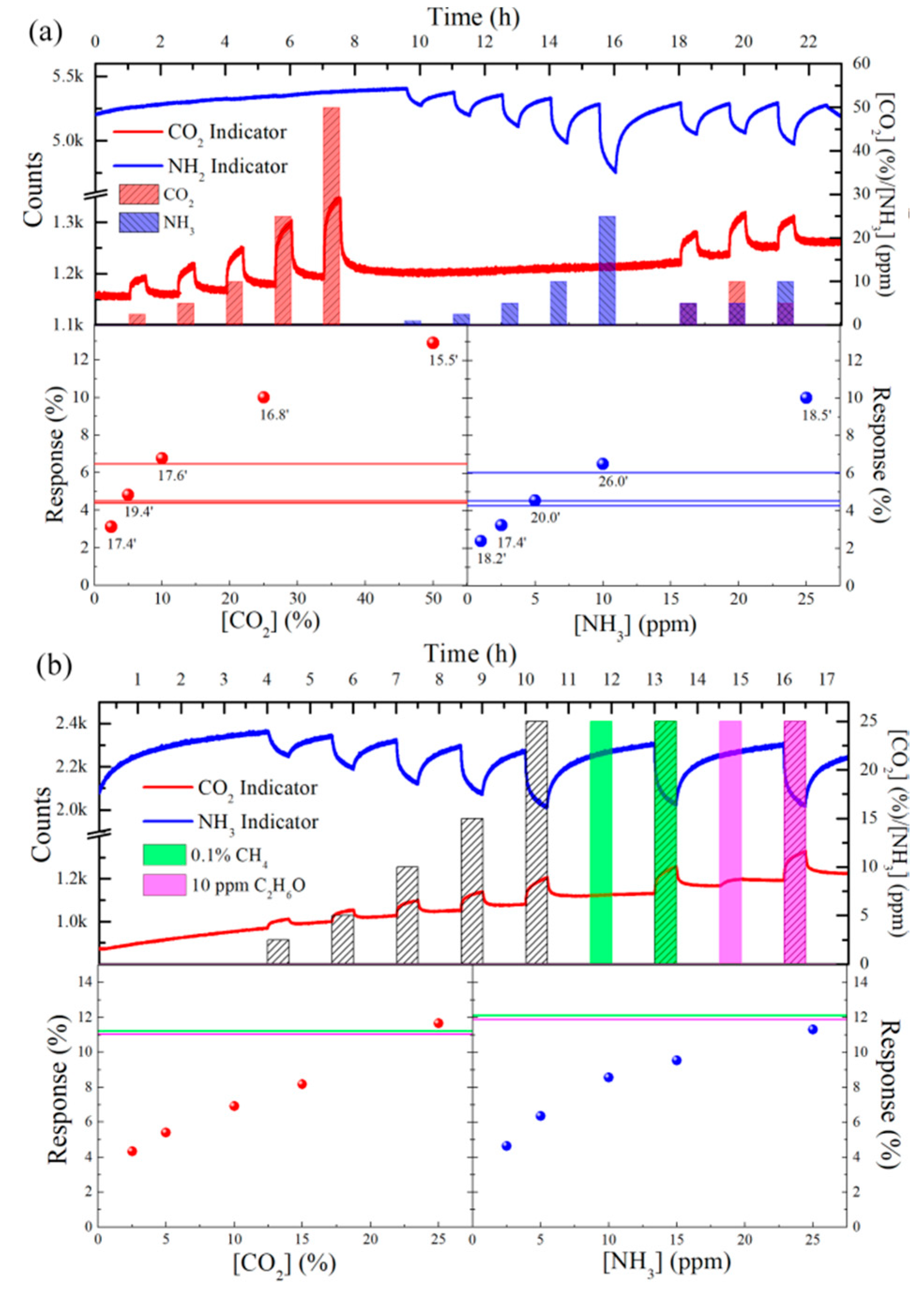

Figure 2 shows a summary of the responses to NH₃ and CO₂ obtained. NH₃ concentrations ranging from 2.5 to 25 ppm were measured, with responses up to 10%. The CO₂ concentrations first investigated ranged from 2.5% to 50%, with responses up to 12%. Based on a signal-to-noise analysis, lower detection limits could be estimated in 1 and 200 ppm for NH₃ and CO₂, respectively. To demonstrate the selectivity of the here-proposed sensors, both devices were exposed to mixtures containing NH₃ and CO₂ simultaneously (Figure 2a). Clearly, each indicator responded exclusively to its target gas, without being affected by the other one (no cross-interference). Similar interference experiments were carried out with other gases (ethanol, CH₄) leading to identical conclusions (Figure 2b). We must insist on the fact that the gas sensor behavior of our devices is completely determined by the colorimetric indicator. To illustrate this, we modified the formulation of the CO₂ indicator to measure lower concentrations, which are of interest in environmental applications (25–500 ppm). Concerning repeatability, the technology also shows an exemplary comparison of the signals obtained with tow devices produced in the same batch. Despite its apparent simplicity, this approach offers very consistent and reproducible results among manually assembled devices.
