Formulation and In Vitro Comparison Study between Lipid-Based and Polymeric-Based Nanoparticles for Nose-to-Brain Delivery of a Model Drug for Alzheimer’s Disease ^†

Abstract

Certain challenges like the presence of highly complex structure (blood–brain barrier (BBB)), P-glycoprotein efflux, and the particular enzymatic activity stand in the way of the successful delivery of the drug moieties to the brain and make them fruitless. Many efforts have been conducted to overcome the previous. Direct delivery of drugs to the brain after the intranasal application is one of those strategies since it holds a great hope to raise the chances of drug moieties to the brain. Nanoparticles could be the potential to improve nose-to-brain drug delivery since they are able to protect the encapsulated drugs from biological and/or chemical degradation and increase their penetration across biological barriers. Based on the fact that neuroinflammation is associated with neuron death and neurodegenerative diseases like Alzheimer’s, nonsteroidal anti-inflammatory drugs (NSAIDs) might play a positive role in the disease. The present study aimed to employ the QbD approach for the first time in optimizing polymeric and lipid-based nanoparticles for the nose-to-brain delivery of Meloxicam (MEL), and to perform a comparison between the pure drug and the formulated nanosystems regarding dissolution profiles, permeability, and mucoadhesiveness.

1. Introduction

The blood–brain barrier (BBB) presence forms the major drawback to the successful delivery of the brain targeting moieties to their active site. On the other hand, the P-glycoprotein efflux supports the preventing role of the BBB by transporting the particles out of the CNS. However, this physiological protective barrier is considered a fundamental challenge to the pharmaceutical fraternity, with a need to circumvent it to deliver drugs to the brain in various CNS disorders [1,2,3].

Nose to brain delivery route holds a great promise to overcome the BBB since it transports the drug directly to the brain along the olfactory and trigeminal nerve pathways. These nerve pathways initiate the nasal cavity at the olfactory neuroepithelium and terminate in the brain [4].

Several clinical studies concluded that long-term use of nonsteroidal anti-inflammatory drugs (NSAIDs) might protect against the onset of Alzheimer’s disease (AD) [5]. Among those, meloxicam exerts its pharmacological properties by inhibiting the enzymatic activity of cyclooxygenase-2 (COX-2) [6], which linked with a neuroprotective action in Alzheimer’s disease [7,8,9,10]. Unfortunately, meloxicam is a lipophilic drug with high potency and poor water solubility [11], which decreases its bioavailability when it is applied following the routine routes of administration.

The strategy of designing drugs in an encapsulated form of nanoparticles (NPs) to target the olfactory epithelium could potentially improve the direct CNS delivery of the drugs including biologics following the intranasal application [2]. Solid lipid NPs (SLNs) and PLGA NPs are preferable candidates for this purpose owing to the desired characteristics they have, including: increasing in the nasal permeability, controlling the drug release [12], protecting the encapsulated drug from biological and/or chemical degradation enhancing the drug retention time in the nasal mucosa due to their good mucoadhesion [13,14].

Since there are many factors that can affect the characteristics and properties of the previously mentioned nanosystems, the application of QbD approach presents a logical strategy that saves time, costs, and efforts when developing complex systems such as the nanosystems [14]. Starting by the definition of the quality target product profile (QTPP), then the critical process parameters (CPPs) and critical material attributes (CMAs) that can highly affect the critical quality attributes (CQAs) of the product [15].

In the present research, two types of nanoparticles were prepared following a QbD approach. Physical, chemical, and morphological characterization were conducted. The following step was to evaluate their in vitro behavior regarding release profile, permeation and mucoadhesion properties. Correspondingly, a profound comparison was performed followed by the selection of the optimized nanocarrier system to be a successful candidate for nose-to-brain delivery of anti-AD drug formulation.

2. Experiments

2.1. Materials

Cholesterol was purchased from MOLAR Chemicals (Budapest, Hungary), while Phosphatidylcholine, Pluronic F68, Tween80, and PVA were supplied by Sigma Aldrich (Steinheim, Germany). Meloxicam was obtained from Egis Pharmaceuticals Ltd. (Budapest, Hungary). Trehalose dihydrate, Mannitol, as well as all the organic solvents (analytical grade) were purchased from Merck (Darmstadt, Germany).

2.2. Preparation of MEL-Loaded NPs

2.2.1. MEL-Loaded SLNs

MEL-loaded SLNs were prepared following a modified double emulsion (W1/O/W2) solvent evaporation (DESE) technique [16]. MEL was dissolved in 0.1 M NaOH solution formulating the W1 Phase. The oily phase was prepared by dissolving phosphatidylcholine in cyclohexane. The primary emulsion was formed by adding the W1 phase dropwise into the organic phase using a homogenizing mixer (Hielscher, Germany) (0.5 cycles and 75% amplitude) for 1 min. The resultant nanoemulsion was then added dropwise into poloxamer aqueous solution using the homogenizing mixer (0.5 cycles and 75% amplitude) for 1 min. The final mixture was left then to stir overnight using a magnetic stirrer to allow the evaporation of the organic solvent and thus formulation of the SLNs.

2.2.2. MEL-Loaded PLGA NPs

MEL-loaded PLGA NPs were prepared using another DESE technique [17]. First, the formation of a primary W1/O emulsion took place, where the aqueous solution of the MEL was added to the PLGA solution in ethyl acetate upon sonication in an ice bath. This was followed by dispersing the primary emulsion in an external aqueous solution of Poloxamer 188, with the presence of sonication in an ice bath. Finally, the organic solvent evaporation overnight resulted in the formation of MEL-NPs.

Both the NPs were harvested by centrifugation at 16,000× g for 1 h at 10 °C (Sigma, Neustadt, Germany) and washed three times with deionized water to remove unentrapped drug, surfactants and remaining organic solvent.

The NPs were then resuspended in 2 mL of 10% (w/v) trehalose aqueous solution, frozen at −20 °C, and were finally freeze-dried (Christ, Germany) at −40 °C for 72 h.

2.3. Characterization of NPs

2.3.1. Mean Particle Diameter, Size Distribution and Zeta Potential

The average hydrodynamic diameter (Z-average), polydispersity index (PDI), and surface charge (zeta potential) of the NPs were analyzed in folded capillary cells, using Malvern nano ZS instrument (Malvern Instruments, Worcestershire, UK).

2.3.2. Encapsulation Efficacy and Drug Load

The obtained NPs were separated from the preparation medium by centrifugation and washed three times, and each time was followed by centrifugation to obtain NPs pellets. Meloxicam then was extracted using chloroform. The mixture was moved to a separatory funnel, and the aqueous phase was withdrawn to determine its drug content by HPLC, and the EE and DL were calculated according to the following equations:

$$EE=\frac{\mathrm{The}\mathrm{calculated}\mathrm{amount}\mathrm{of}\mathrm{MEL}\mathrm{encapsulated}\mathrm{in}\mathrm{the}\mathrm{freeze}-\mathrm{dried}\mathrm{SLNs}}{\mathrm{Total}\mathrm{amount}\mathrm{of}\mathrm{MEL}\mathrm{used}\mathrm{in}\mathrm{the}\mathrm{preparation}}\times 100$$

(1)

$$DL=\frac{\mathrm{The}\mathrm{calculated}\mathrm{amount}\mathrm{of}\mathrm{MEL}\mathrm{encapsulated}\mathrm{in}\mathrm{the}\mathrm{freeze}-\mathrm{dried}\mathrm{SLNs}}{\mathrm{The}\mathrm{weight}\mathrm{of}\mathrm{the}\mathrm{freeze}-\mathrm{dried}\mathrm{SLNs}}\times 100$$

(2)

2.3.3. Scanning Electron Microscopy (SEM)

The morphological appearance of the NPs was investigated using scanning electron microscopy (SEM) (Hitachi S4700, Hitachi Scientific Ltd., Tokyo, Japan) at 10 kV.

2.3.4. Fourier-Transform Infrared Spectroscopy (FTIR)

The chemical interactions between the drug and excipients were analyzed by a Thermo Nicolet AVATAR FTIR spectrometer (Thermo-Fisher, Waltham, MA, USA).

2.3.5. X-ray Powder Diffraction XRPD

The X-ray powder diffractograms of phosphatidylcholine, PLGA, poloxamer, SLNs, and PLGA NPs were obtained in the angular range of 3–40° 2θ at a step time of 0.1 s and a step size of 0.007° at ambient temperature. Monochromatic CuΚα1 radiation (with λ = 1.5406 Å) at 40 kV and 40 mA was used as the X-ray source. The same was repeated with the polymeric NPs.

2.4. In vitro evaluation of the NPs:

2.4.1. Dissolution Test

Dissolution of meloxicam and the drug release from MEL-NPs was determined using a dialysis bag diffusion technique using a dialysis membrane [18,19,20]. The samples were analyzed spectrophotometrically at λ max of 346 nm (Jasco V730 UV-VIS spectrophotometer (ABL&E-JASCO Ltd., Budapest, Hungary).

2.4.2. Mucoadhesiveness Test

Mucoadhesion was determined following the direct method (turbidimetric method) as following: briefly, the mucin was in PBS 6.4 (0.5 mg mL⁻¹), and the NPs were mixed and incubated at 37 °C with continuous stirring with predetermined times of 1, 2, 3, and 4 h [21,22].

2.4.3. Permeation Test

In vitro permeation of the prepared NPs was investigated using side-by-side type apparatus as follows: accurate weights of MEL and MEL NPs equivalent to 1 mg of MEL were suspended in 9 mL of simulated nasal electrolyte solution (SNES), then placed in the donor chamber. On the other hand, 9 mL of pH 7.40 phosphate buffer was placed in the acceptor chamber. A semipermeable cellulose membrane, previously impregnated in isopropyl myristate for 1 h, was placed between the two chambers as membrane to imitating the presence of the nasal mucosa. The permeation test was conducted for 1 h comparing pure MEL, optimized SLNsandPLGA NPs.

3. Results

3.1. Risk Assessment

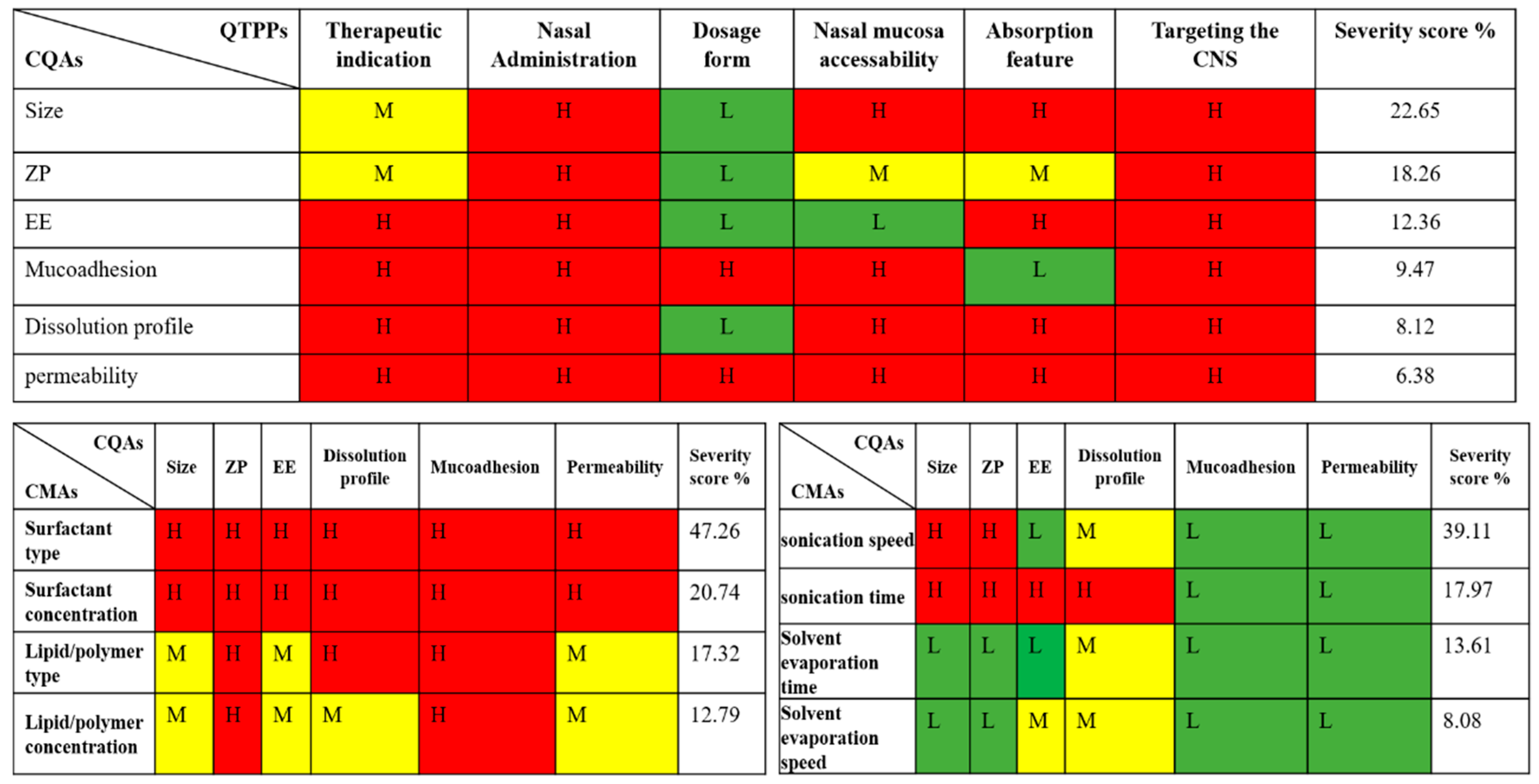

Risk assessment was conducted to rank and prioritize the factors with the highest impact on product quality. The first step of the QbD-based risk assessment study was to set the QTPP encompassing the desired quality attributes in MEL-NPs, followed by the selection of CPPs and CMAs. The previous is summarized and ranked as in Figure 1

3.2. Morphology, Size, ZP and EE

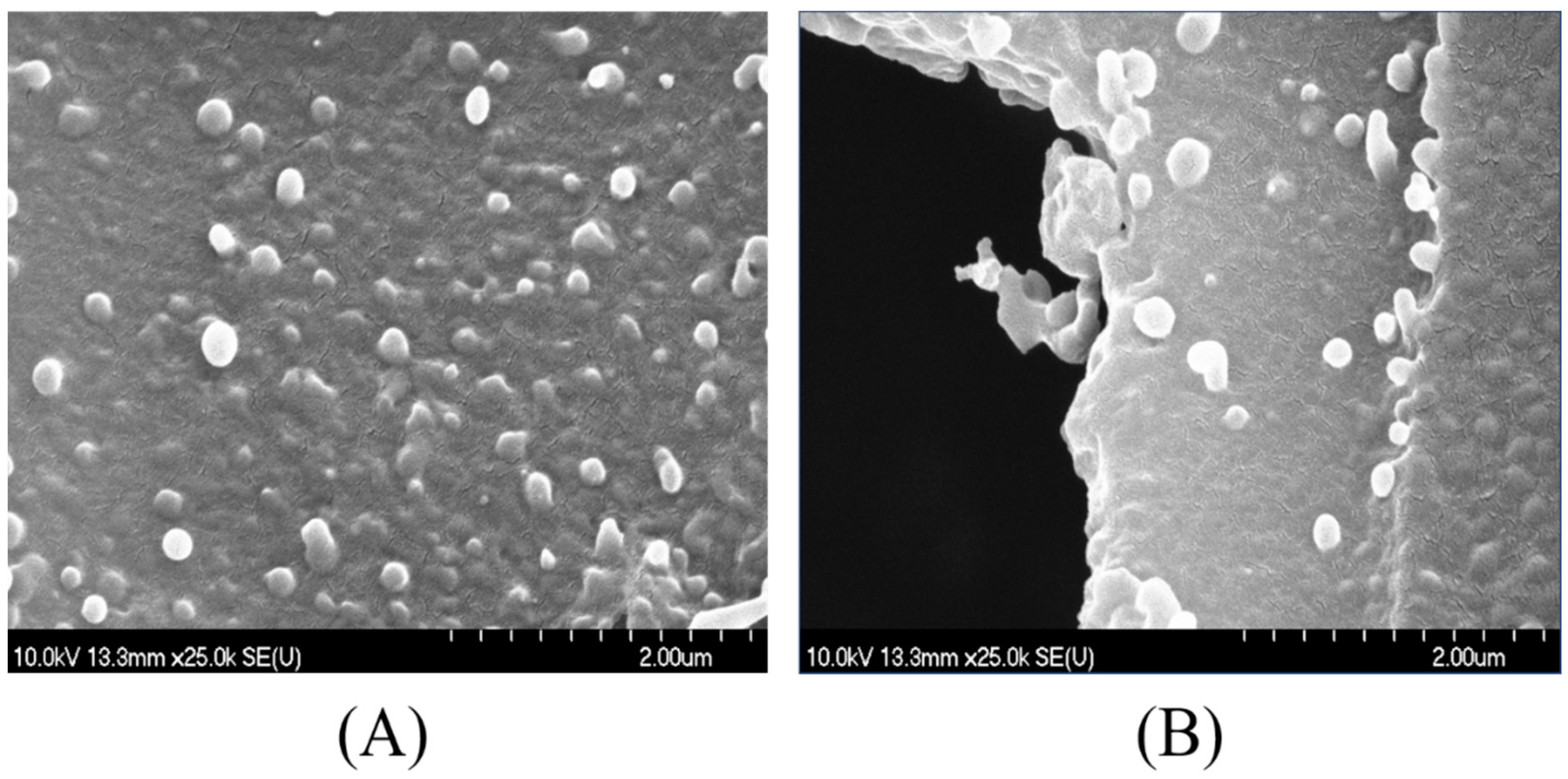

The resulted NPs were smooth and spherical in shape as shown in Figure 2.

After that the Particle size, ZP, and EE were measured as the major physical characteristics and the result are listed in the following table,

Table 1. Size, zeta potential and encapsulation efficacy of the optimized nanoformulations.

Sample	Particle Size (nm)	ZP	EE%
PLGA NPs	142.02 ± 12.83	−16.2 ± 1.81	87.26 ± 3.16%
SLNs	94.76 ± 7.41	−43.65 ± 1.47	72.23 ± 2.84%

.

3.3. Compatibility Study

The FT-IR spectra, XRD patterns of MEL, both MEL-loaded NPs formulations, and the used excipients are presented in Figure 3.

3.4. In Vitro Release Test

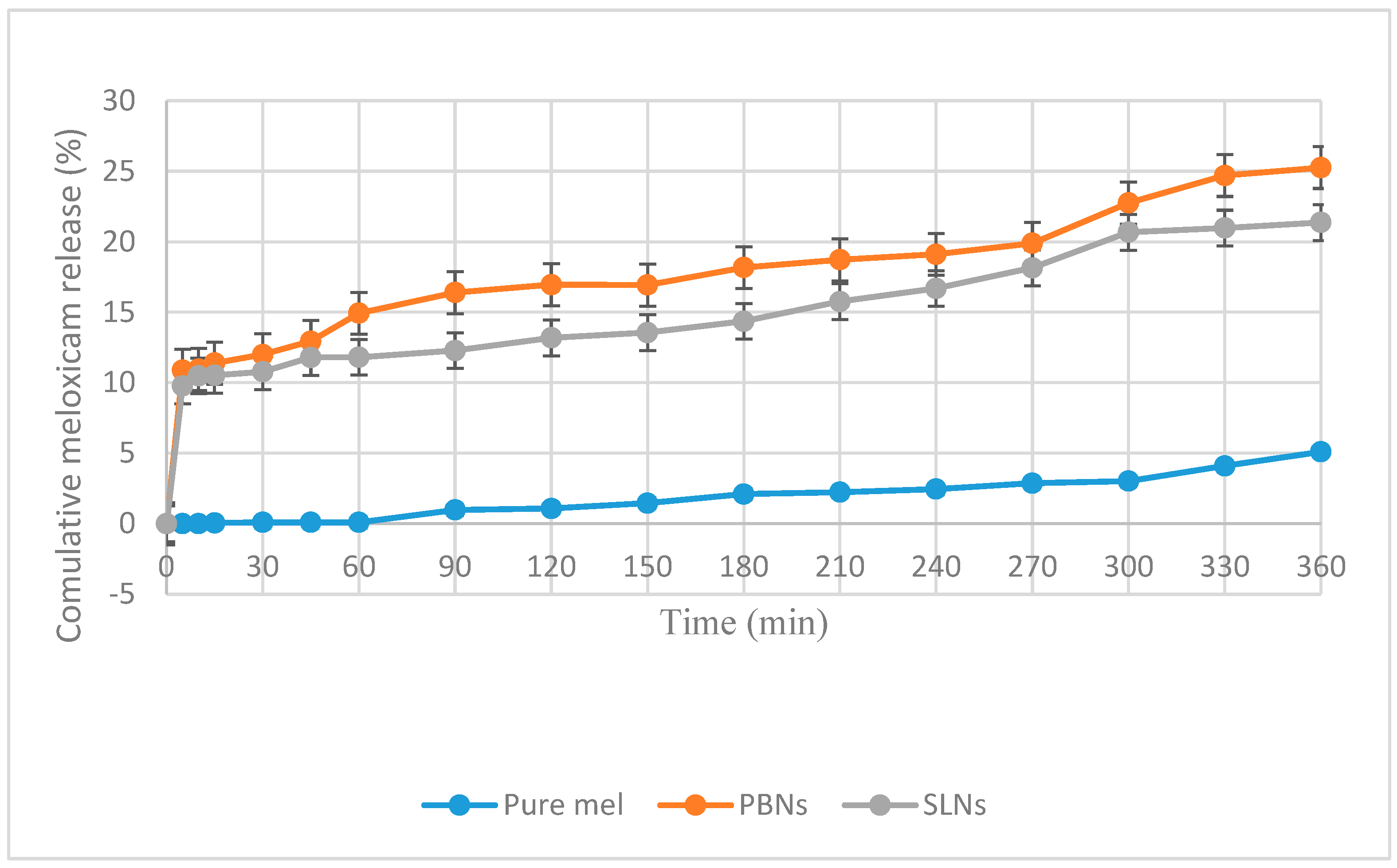

The in vitro dissolution profiles of pure MEL and MEL-loaded NPs were investigated in intranasal-simulated conditions, using simulated nasal electrolytic solution (SNES) medium (pH of 5.6) and the results are shown in Figure 4.

3.5. In Vito Mucoadhesion Test.

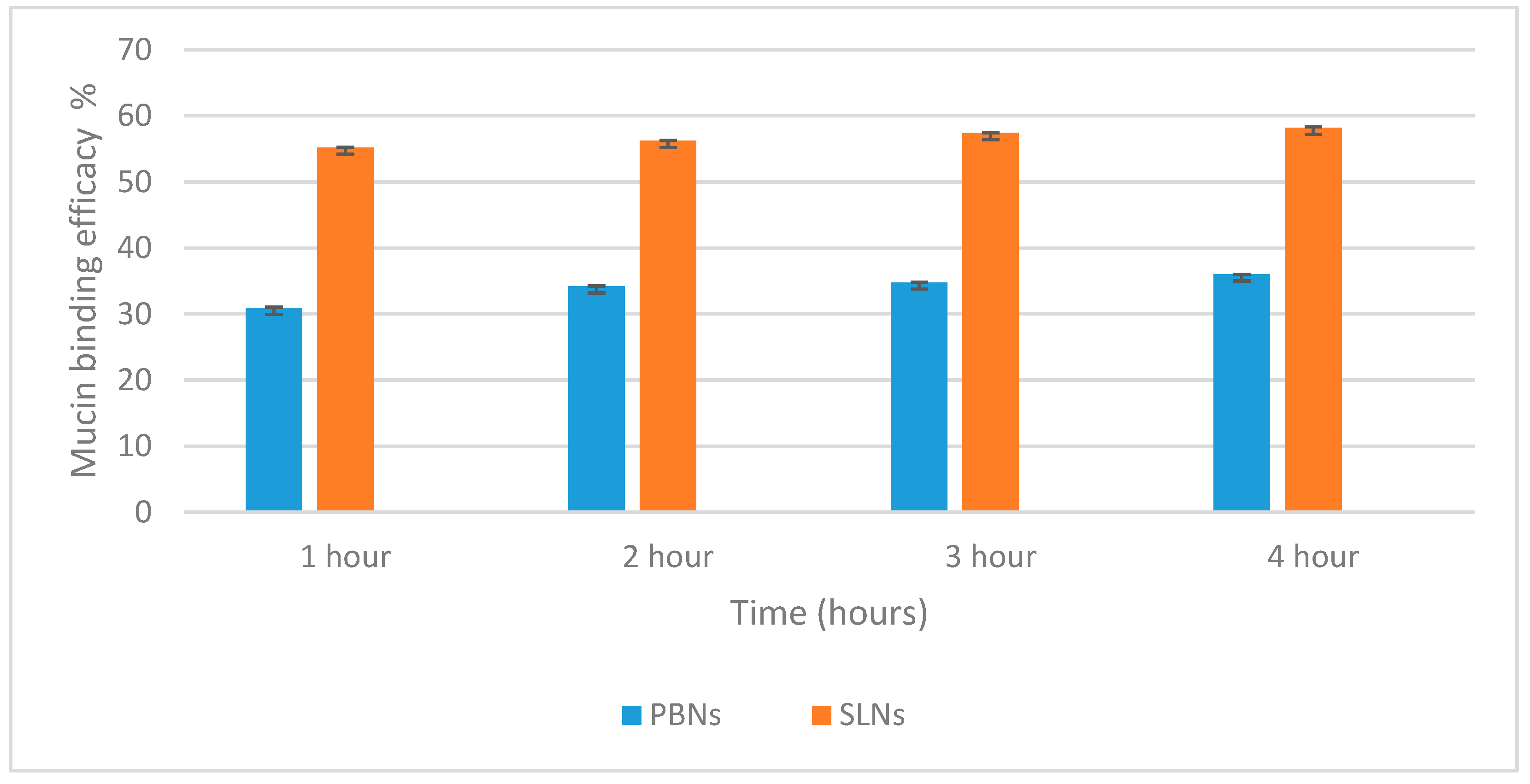

The mucoadhesion was determined by turbidity analysis method to understand how the NPs will be retained and the results are shown in (Figure 5). Since a strong mucoadhesion suggests a close contact with absorption site, thus ensuring the effective absorption following the nasal administration.

3.6. In Vito Permeation Test

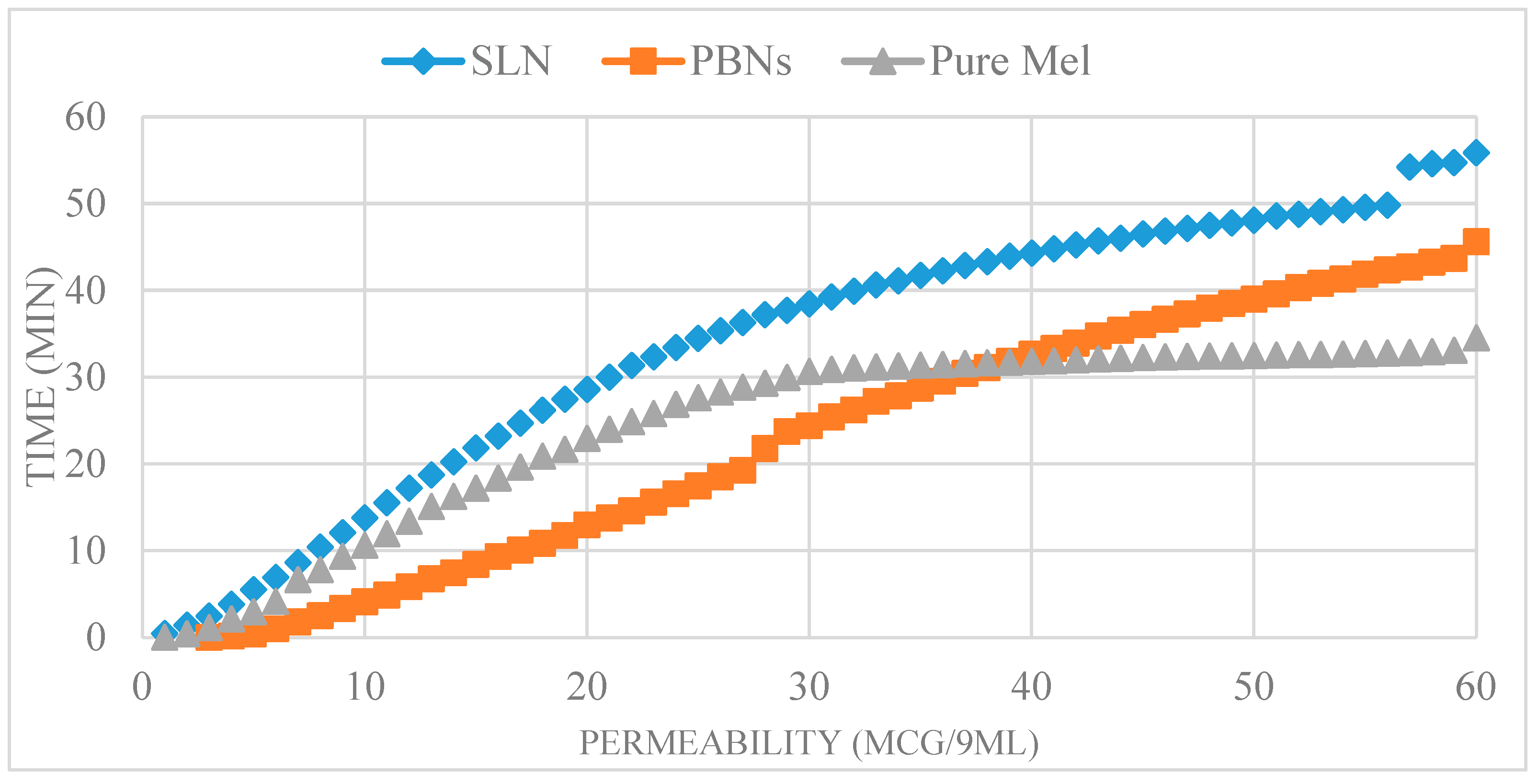

Permeation test was performed in vitro for pure MEL solution and MEL-NPs, following similar conditions to the nasal delivery route and the result are shown in the following figure (Figure 6).

4. Discussion

Analyzing the results of the risk assessment as a part of QbD and based on the risk priority number RPN demonstrated the most highly influential CPP was sonication time, while the most highly influential CMAs were lipid/polymer type, lipid/polymer concentration, surfactant type, and surfactant concentration as shown in Figure 7.

Both the NPs types comply with the size requirement of the nasal administration of the drugs for the aim of nose to brain delivery, which is preferred to be up to 200 nm [23,24].

The zeta potential values obtained for PLGA NPs and SLNs were −16.2 ± 1.81, −43.65 ± 1.47 mV, respectively, which is logical due to the negative charge of phosphatidylcholine estimated at between −10 and −30 mV at neutral pH [25] due to the presence of phosphate and carboxyl groups. In contrast, the negatively charged carboxyl groups on PLGA only are the cause behind the negative charge.

The FTIR spectra of the NPs showed that no changes occurred in the MEL chemical structure and did not present a significant difference in the main functional groups of MEL. The absorption band at 3290 cm⁻¹ correspondings to -NH stretch appears to overlap with the -OH group of phosphatidylcholines, represented at 3200–3400 cm⁻¹. Likewise, the absorption band at 1650 cm⁻¹ matches a slight shift of the C=O group. Hence, there is no interaction between MEL and the other SLNs excipients, and they are compatible with each other.

Similarly, absorption peaks of the materials used for polymeric NPs preparation (PLGA, Poloxamer) exhibited compatibility with MEL since the previously mentioned two chemical groups of MEL were maintained the same after PLGA NPs formulations.

The XRD of MEL gave unique fingerprint patterns owing to its crystalline structure. However, both SLNs and PLGA NPs did not show the characteristic fingerprints for the drug in their XRD pattern. The previous confirm that the drugs are present in a nanocrystalline state in the NPs [26]. The previous results are in agreement with the results of FTIR.

Based on Figure 4, it is evident that pure MEL demonstrates a poor solubility (5.10 ± 0.9 µg/mL, over 360 min, at 35 °C) due to the chemical structure it has, and the weak acidic character resulted in this medium (pKa = 3.43) [27]. Fabrication of MEL in nanoformulations showed a significant increase in the dissolution rate than that of pure MEL (approximately 4–5 times higher); this goes in line with the results previously reported by Katona et al. and might be due to the nano-size and the increased specific surface area that the NPs have [28].

The release behavior from the NPs showed a sustained release pattern starting by a mild initial burst release during the first hour, where 12.94 ± 0.86%, 11.79 ± 0.74 of MEL was released from the PLGA NPs and SLNs, respectively, which has been frequently reported for polymeric NPs [29,30] and SLNs [13,18]. A possible explanation for that could be the presence of the drug molecules adsorbing on the NPs surface, in addition to the drug molecules that exist close to the surface having weak interactions with the NPs system. A slow-release profile until 6 h was then noticed, where only 25.26 ± 2.39%, 21.37 ± 1.47 of cumulative MEL release was observed for PLGA NPs and SLNs, respectively as the encapsulated drug slowly diffused through the NPs core [18]. The previous results point out that most of the drug remained in the NPs after their contact with the nasal mimetic conditions and can release inside the targeted position.

The mucoadhesive strength was detected by calculating the binding efficiency of mucin to PLGA NPs, and SLNs, which were 36.55%, 57.59%, respectively, by the end of the experiment, as Figure 5 represents. Since mucin is a highly glycosylated and negatively charged protein, the negatively charged SLNs showed a modest affinity driving, especially by electrostatic interactions between mucin and SLNs. Since SLNs are more negatively charged, the electrostatic interactions between them and mucin will be higher than those with PLGA NPs. This observation is in close agreement with previous studies [31,32].

A significant enhancement of MEL permeability through the semipermeable membrane was achieved when formulating MEL in NPs compared to the pure MEL solution. This could be due to the nanoscale size of the prepared nanosystems, which have the best nasal permeation properties, as previously reported by Gänger et al. [23]. Moreover, the spherical and smooth surface of both NPs, as confirmed by SEM images, leads to the least friction with the membrane surface compared to the needle-shape particles [33]. Stabilizing these NPs using poloxamer, a permeation enhancer, further improves their permeation properties [34] by inhibiting the efflux pumps and lowering the membrane fluidity when it is used in vivo [35].

SLNs showed superior permeability over PLGA NPs, which might be explained by the lipophilic properties of these lipid-based nanosystems [36], which exceed those of PLGA NPs [33].

5. Conclusions

The present research work put forward solid lipid nanoparticulate (SLNs) and polymeric based nanoparticle PBNs for the nasal delivery of meloxicam with the purpose of brain delivery. QbD concept was employed to analyze the previous research efforts to define the critical process parameters and the critical material attribute.

All the measurements were found to be in an acceptable range. Spherical nanoparticles were obtained for both SLNs and PBNs with a diameter of 142.06, 94.76 nm, and a ZP of −16.2, −43.65, respectively. The resulted nanoparticle showed good compatibility with used materials based on FTIR and XRD measurements. Higher entrapment efficacy and drug load were noticed with SLNs (87.26%, 2.64%, respectively). Better in vitro drug release, permeation and mucoadhesion accomplished the formulation of meloxicam in SLNs more than PBNs. However, ex-vivo data is still needed to investigate cell viability, permeability, and cytotoxicity. Then, in vivo measurements are critical to detect brain concentration and distribution in between brain different parts evaluating the risk/benefit ratio.
