Embedded Sensing System for Wireless Sleep Apnea Monitoring †

by
Gabriel Rodriguez Gutierrez
1,
Chenchen Shen
1,
Daniel Rau
2,
Alvaro Ortiz Perez
1,
Jürgen Götze
2 and
Stefan Palzer
1,*
1
Professorship for Sensors, Department of Electrical Engineering and Information Technology, TU Dortmund, 44227 Dortmund, Germany
2
Information Processing Lab, Department of Electrical Engineering and Information Technology, TU Dortmund, 44227 Dortmund, Germany
*
Author to whom correspondence should be addressed.
†
Presented at the XXXV EUROSENSORS Conference, Lecce, Italy, 10–13 September 2023.
Proceedings 2024, 97(1), 162; https://doi.org/10.3390/proceedings2024097162
Published: 8 April 2024
(This article belongs to the Proceedings of XXXV EUROSENSORS Conference)
Browse Figures
Versions Notes

Abstract

:
Sleep apnea syndrome is a breathing disorder with a prevalence exceeding 20% in the overall population, and it can seriously affect health and well-being. However, this condition usually remains undetected because suitable monitoring solutions are lacking. This contribution presents an approach to facilitate apnea diagnosis using a battery-powered, wireless, miniaturized sensing system embedded in a patient’s mask. It combines a photoacoustic-based carbon dioxide detector with temperature and humidity sensors as well as embedded algorithms to automatically detect apnea episodes. The results show the feasibility of detecting apnea using an easily deployable analysis system.

1. Introduction

Among the various types of sleep apnea syndromes, so-called obstructive sleep apnea (OSA) is the result of a relaxation of the soft palate and tongue muscles and may lead to restricted airflow during breathing. The timely diagnosis of this condition leads to a significant reduction of adverse health effects, which include high blood pressure, diabetes, and cerebrovascular disease [1]. While dedicated, highly effective medical equipment like polysomnography (PSG) is able to reliably detect this condition, it is almost exclusively employed in hospital settings [2].
The widespread occurrence of OSA in combination with its serious adverse health effects make the development of easy-to-use, reliable, and low-cost diagnostic instrumentation for its detection desirable. To this end, efforts have included determining intraocular pressure as it correlates with the occurrence of OSA [3], changes in ambient air humidity using surface acoustic wave sensors [4], and methods detecting breathing movements [5]. However, monitoring the exhaled levels of carbon dioxide has the potential to increase the reliability of apnea diagnostic tools.

2. Materials and Methods

The use of indirect, photoacoustic-based non-dispersive infrared spectroscopy sensors enables the construction of selective, sensitive gas sensors for carbon dioxide (CO2) [6] and enables the design of a miniaturized apnea sensor with low-power consumption. To this end, a sensor system was embedded into a mask to determine the most important parameters for a diagnosis of apnea. The system design concept is shown in Figure 1. It is controlled via an Infineon (Neubiberg, Germany) PSoC6 Bluetooth-low-energy system-on-chip, where all system control and analysis algorithms have been implemented and which is used to communicate with users’ smartphones. The overall size of the embedded device is (3.6 × 2.6 × 4.6) cm3.

3. Discussion

Using the system, apnea events were reproduced, and the time evolution of the corresponding sensor signal was analyzed. Using the time evolution of the CO2 concentration data, the breathing status of test persons was analyzed in real-time, as shown in Figure 2.

Author Contributions

C.S., A.O.P. and G.R.G. built the sensing system and performed the experiments. D.R., J.G. and G.R.G. performed the data analysis. S.P., G.R.G., J.G. and D.R. wrote and edited the manuscript, S.P. and G.R.G. devised the experimental setup. All authors have read and agreed to the published version of the manuscript.

Funding

G.R.G. acknowledges funding from the Research Council of Norway under Grant Number 301552 (Upscaling Hotpots).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors upon request.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Fletcher, E.C. The relationship between systemic hypertension and obstructive sleep apnea: Facts and theory. Am. J. Med. 1995, 98, 118–128. [Google Scholar] [CrossRef]
  2. McGregor, P.A.; Weitzman, E.D.; Pollak, C.P. Polysomnographic Recording Techniques Used for the Diagnosis of Sleep Disorders in a Sleep Disorders Center. Am. J. EEG Technol. 1978, 18, 107–132. [Google Scholar] [CrossRef]
  3. Carnero, E.; Bragard, J.; Urrestarazu, E.; Rivas, E.; Polo, V.; Larrosa, J.M.; Antón, V.; Peláez, A.; Moreno- Montañés, J. Continuous intraocular pressure monitoring in patients with obstructive sleep apnea syndrome using a contact lens sensor. PLoS ONE 2020, 15, e0229856. [Google Scholar] [CrossRef]
  4. Jin, H.; Tao, X.; Dong, S.; Qin, Y.; Yu, L.; Luo, J.; Deen, M.J. Flexible surface acoustic wave respiration sensor for monitoring obstructive sleep apnea syndrome. J. Micromech. Microeng. 2017, 27, 115006. [Google Scholar] [CrossRef]
  5. Hashizaki, M.; Nakajima, H.; Tsutsumi, M.; Shiga, T.; Chiba, S.; Yagi, T.; Ojima, Y.; Ikegami, A.; Kawabata, M.; Kume, K. Accuracy validation of sleep measurements by a contactless biomotion sensor on subjects with suspected sleep apnea. Sleep Biol. Rhythm. 2014, 12, 106–115. [Google Scholar] [CrossRef]
  6. Scholz, L.; Ortiz Perez, A.; Bierer, B.; Eaksen, P.; Wollenstein, J.; Palzer, S. Miniature Low-Cost Carbon Dioxide Sensor for Mobile Devices. IEEE Sens. J. 2017, 17, 2889–2895. [Google Scholar] [CrossRef]
Proceedings 97 00162 g001

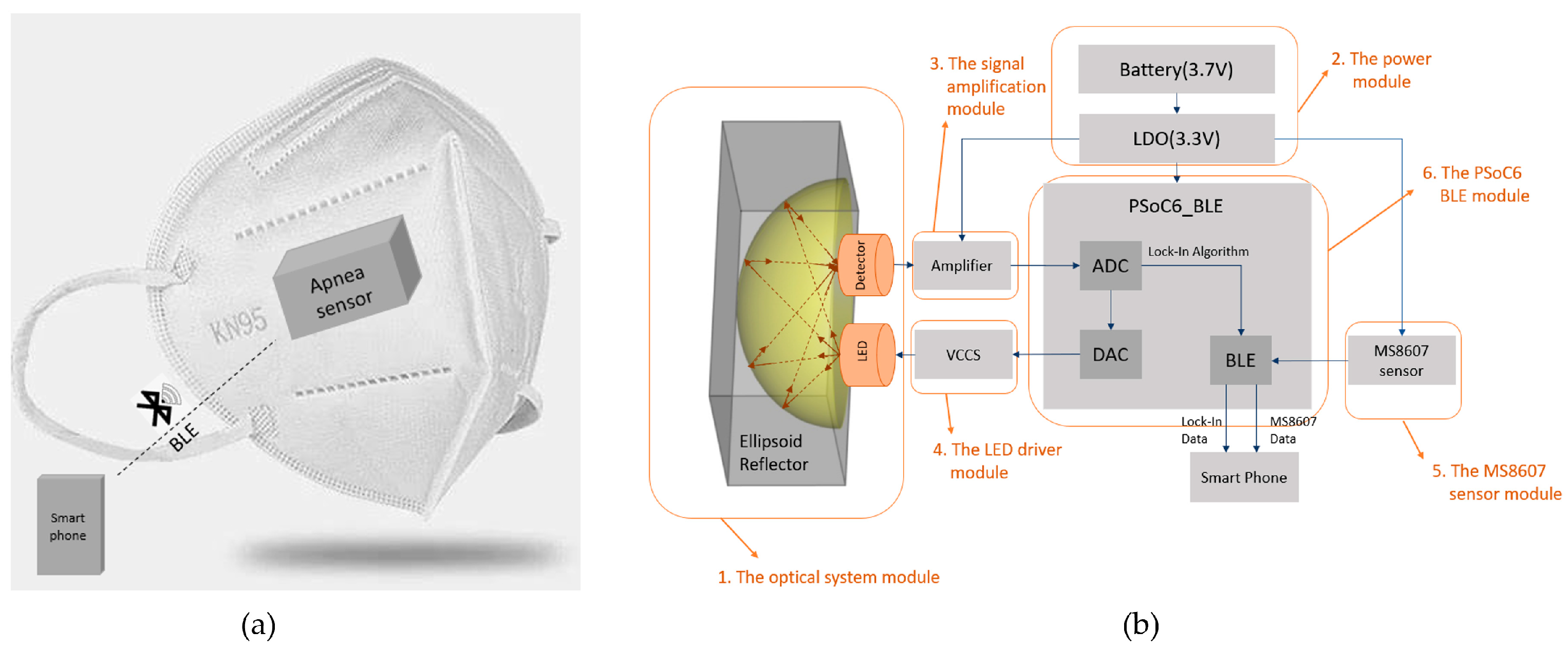

Figure 1. (a) Schematic overview of the wireless, embedded system design for apnea diagnosis. (b) The system concept including a highly selective, miniatured CO2 sensing module.
Figure 1. (a) Schematic overview of the wireless, embedded system design for apnea diagnosis. (b) The system concept including a highly selective, miniatured CO2 sensing module.
Proceedings 97 00162 g001
Proceedings 97 00162 g002

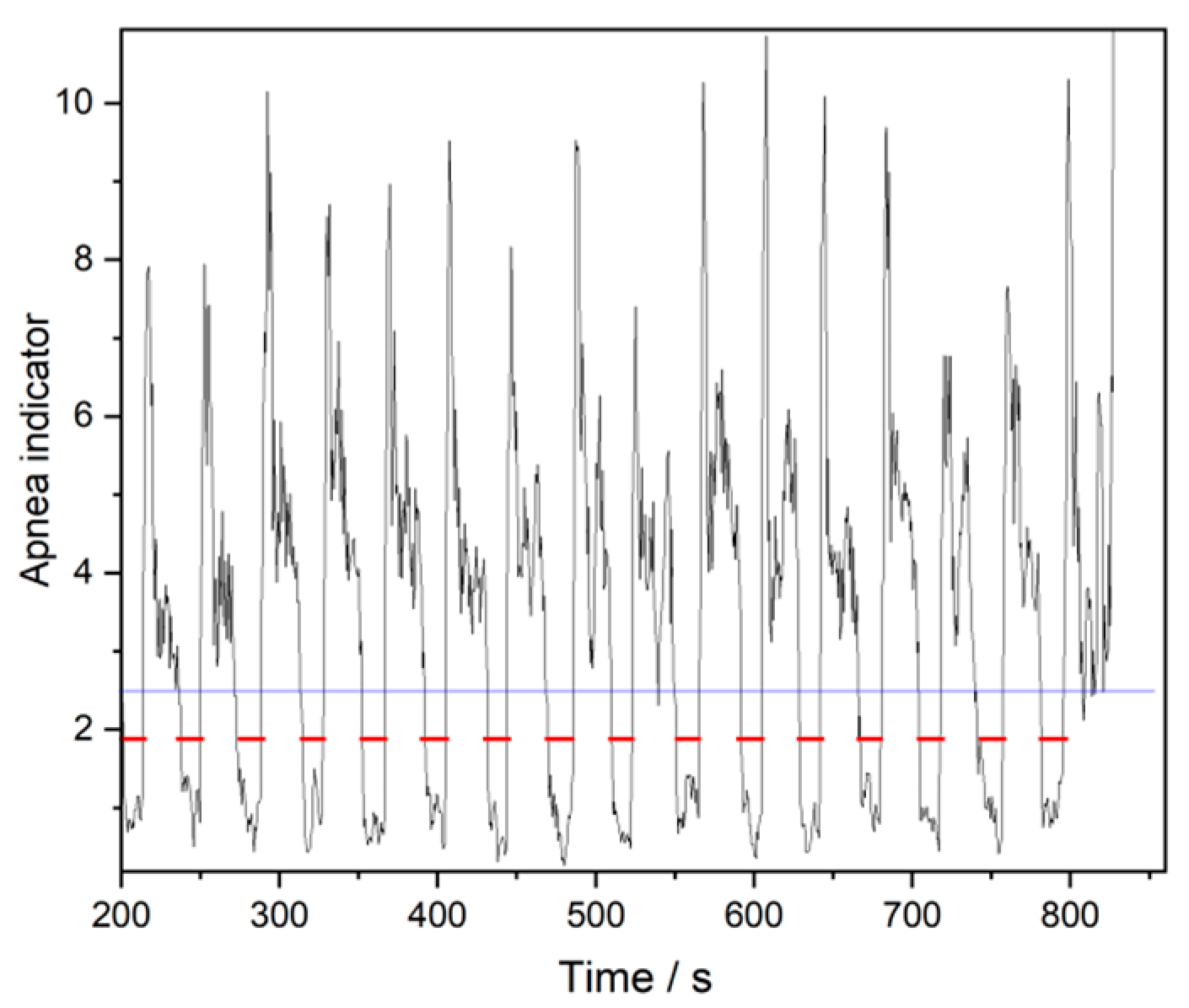

Figure 2. The real time values of the apnea indicator (black line) during a laboratory test and simulated apnea events. The system’s algorithm reliably detected patterns in line with OSA. The blue line represents the threshold value under which an apnea episode is detected, the red lines are time intervals in which a simulated apnea event occurred.
Figure 2. The real time values of the apnea indicator (black line) during a laboratory test and simulated apnea events. The system’s algorithm reliably detected patterns in line with OSA. The blue line represents the threshold value under which an apnea episode is detected, the red lines are time intervals in which a simulated apnea event occurred.
