A Cervical Plethysmography System to Monitor Blood Vessel Pulses on the Neck †
1
Department of Neuroscience and Rehabilitation, University of Ferrara, 44123 Ferrara, Italy
2
Department of Translational Medicine and for Romagna, University of Ferrara, 44121 Ferrara, Italy
3
Department of Physics and Earth Sciences, University of Ferrara, 44122 Ferrara, Italy
*
Author to whom correspondence should be addressed.
†
Presented at the XXXV EUROSENSORS Conference, Lecce, Italy, 10–13 September 2023.
Proceedings 2024, 97(1), 27; https://doi.org/10.3390/proceedings2024097027
Published: 15 March 2024
(This article belongs to the Proceedings of XXXV EUROSENSORS Conference)
Abstract
:A cervical plethysmography system has been developed to monitor blood vessel pulses on the neck area and at the same time to record the electrocardiogram signal. The system was tested on subjects in upright (90°) and supine (0°) position. The proposed cervical plethysmography system can be used as a biomedical tool for cardiovascular screening in the general population.
1. Introduction
Monitoring of blood flow on the heart–brain axis is very important for early diagnosis of cardiovascular diseases [1]. Internal jugular veins and common carotid arteries are the main vessels in the neck. The waveforms generated by the pulsation of these vessels are called jugular venous pulse (JVP) and carotid arterial pulse (CAP), and both are related to the electrocardiogram phases (ECG) [2].
The internal jugular vein connects to the right atrium, thus acting as a column for the blood in the right atrium. The arterial pulse is a measurement of the heart’s contraction rate since a pulse wave is created when the left ventricle contracts [1]. To monitor these pulse signals in the neck area, plethysmography (PG) is a novel noninvasive and non operator dependent technique [3,4].
In this work, we propose a cervical PG system to monitor blood vessel pulses on the neck, along an individual normalized time consisting in a synchronized ECG trace. Particularly, we found that the subject’s posture affects the measurement, since when the subject is supine the recorded pulse refers to the JVP, while when the subject is upright the recorded pulse refers to the CAP.
2. Materials and Methods
The cervical PG system includes a wearable capacitive stretch sensor to measure blood vessel pulses, i.e., JVP and CAP, and a three-lead electrode to carry out ECG measurements. The system also includes a portable electronic unit (PEU) to acquire these signals and send them to a PC through a Bluetooth connection to display data in real-time and save information in .txt files [4,5].
To carry out experimental tests, male subjects were subjected cervical PG by tipping them from the upright (90°) to supine (0°) position using a motorized chair. Obtained data were post-processed on MATLAB.
3. Discussion
Figure 1 shows all data acquired in the test (Figure 1A) where the raw signals are displayed in grey. Figure 1B shows an interval of 4.5 s in the filtered signal when the subject was in the upright position, while Figure 1C shows an interval of 4.5 s in the filtered signal when the subject was in the supine position. The enlarged PG signals, shown in Figure 1B,C, were filtered with appropriate band-pass filters [6].
When looking at Figure 1B,C, the former relates to the subject in the upright position and it is clearly visible that the monitored blood vessel pulse is like the CAP. Conversely, the latter refers to the subject in the supine position and in this case the monitored pulse is like the JVP. The ECG signal served as a reference for the measurements [7]. Moreover, with the proposed system it is possible to differentiate dissimilar activities. Indeed, when the chair was tilted backward from 90° to 0°, the acquired signals had large peaks (Figure 1A), which can be analyzed with machine learning techniques for activity recognition purposes [8].
The proposed system can be used as a screening tool for monitoring the health and wellness of people [9]. It can monitor blood vessel pulses on the neck with the synchronization of the ECG signal.
Author Contributions
Conceptualization, P.Z. and A.T.; methodology, P.Z. and A.P. (Anselmo Pagani); investigation, A.P. (Anselmo Pagani); resources, A.T.; data curation, A.P. (Antonino Proto); writing—original draft preparation, A.P. (Antonino Proto); writing—review and editing, A.P. (Antonino Proto), A.P. (Anselmo Pagani), A.T. and P.Z.; visualization, A.P. (Antonino Proto); supervision, P.Z.; project administration, A.T.; funding acquisition, A.T. All authors have read and agreed to the published version of the manuscript.
Funding
This research was partially funded by INFN, WISE Project, grant for Young Researchers 2018; and partially funded with a research contract co-funded by the European Union—PON Research and Innovation 2014–2020 pursuant to Article 24, paragraph 3, letter (a) of Law No. 240 of 30 December 2010, as amended and Ministerial Decree No. 1062 of 10 August 2021, contract code: 09-I-48230-1.
Institutional Review Board Statement
The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Institutional Review Board of the Azienda Ospedaliera Universitaria di Ferrara (Protocol n°. 160499/2016).
Informed Consent Statement
Informed consent was obtained from all subjects involved in the study.
Data Availability Statement
The data that support the findings of this study are available from the corresponding author, [A.P. (Antonino Proto)], upon reasonable request.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Drazner, M.H.; Rame, J.E.; Stevenson, L.W.; Dries, D.L. Prognostic importance of elevated jugular venous pressure and a third heart sound in patients with heart failure. N. Engl. J. Med. 2001, 345, 574–581. [Google Scholar] [CrossRef] [PubMed]
- Peter, L.; Proto, A.; Cerny, M. Investigation of a possibility of ECG and PPG common measurement. In World Congress on Medical Physics and Biomedical Engineering 2018; Springer: Singapore, 2019; Volume 68, pp. 851–855. [Google Scholar]
- Zamboni, P.; Menegatti, E.; Conforti, P.; Shepard, S.; Tessari, M.; Beggs, C. Assessment of cerebral venous return by a novel plethysmography method. J. Vasc. Surg. 2012, 56, 677–685. [Google Scholar] [CrossRef] [PubMed]
- Proto, A.; Conti, D.; Menegatti, E.; Taibi, A.; Gadda, G. Plethysmography System to Monitor the Jugular Venous Pulse: A Feasibility Study. Diagnostics 2021, 11, 2390. [Google Scholar] [CrossRef] [PubMed]
- Menegatti, E.; Proto, A.; Paternò, G.; Gadda, G.; Gianesini, S.; Raisi, A.; Pagani, A.; Piva, T.; Zerbini, V.; Mazzoni, G.; et al. The Effect of Submaximal Exercise on Jugular Venous Pulse Assessed by a Wearable Cervical Plethysmography System. Diagnostics 2022, 12, 2407. [Google Scholar] [CrossRef] [PubMed]
- Menegatti, E.; Proto, A.; Paterno, G.; Gianesini, S.; Pagani, A.; Tommaso, P.; Andrea, R.; Zerbini, V.; Taibi, A.; Zamboni, P.; et al. Assessment of jugular venous pulse during walking by wearable strain-gauge plethysmograph: A pilot study. In Proceedings of the IEEE International Workshop on Sport, Technology and Research (STAR), Trento, Cavalese, Italy, 6–8 July 2022; IEEE: Piscataway, NJ, USA, 2022; pp. 51–55. [Google Scholar]
- Sisini, F. Physical description of the blood flow from the internal jugular vein to the right atrium of the heart: New ultrasound application perspectives. arXiv 2016, arXiv:1604.05171. [Google Scholar]
- Majidzadeh Gorjani, O.; Proto, A.; Vanus, J.; Bilik, P. Indirect Recognition of Predefined Human Activities. Sensors 2020, 20, 4829. [Google Scholar] [CrossRef] [PubMed]
- Capalbo, I.; Penhaker, M.; Peter, L.; Proto, A. Consumer perceptions on smart wearable devices for medical and wellness purposes. In Proceedings of the 2019 IEEE Technology & Engineering Management Conference (TEMSCON), Atlanta, GA, USA, 12–14 June 2019; IEEE: Piscataway, NJ, USA, 2019. [Google Scholar]

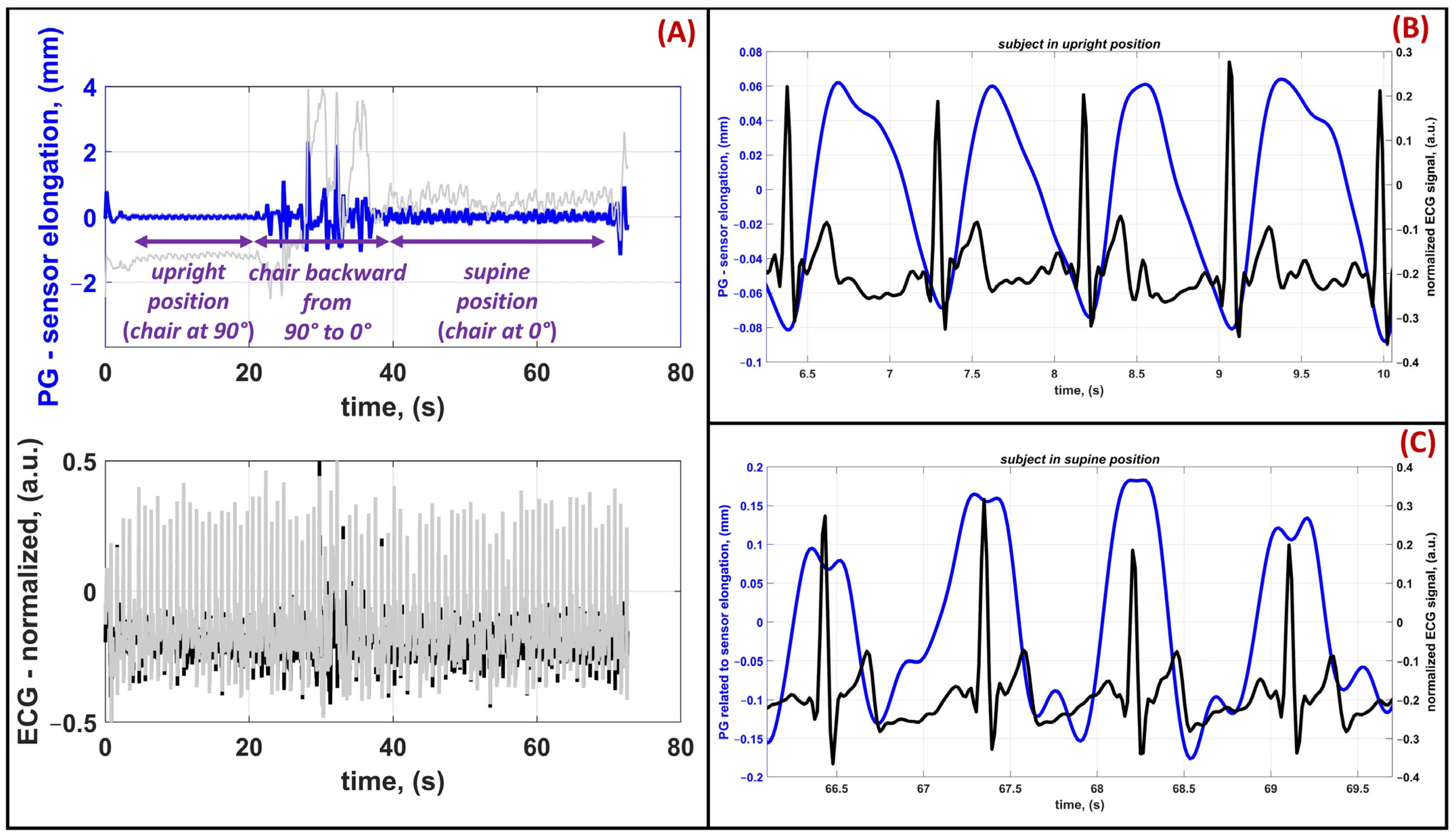

Figure 1.
