Influence of Component Ratio on Thermal and Mechanical Properties of Terpenoid-Sulfur Composites

Abstract

Terpenoids are potentially sustainable replacements for petrochemical olefins. Sulfur is a waste product produced in large quantities from fossil fuel refining. Several composites with attractive properties have recently been made from terpenoids and sulfur. This report details the extent to which the ratio of sulfur to terpenoid and the terpenoid olefin content influences the thermal and mechanical properties of such terpenoid-sulfur composites. The terpenoids selected were diunsaturated geraniol and triunsaturated farnesol that, upon their inverse vulcanization with elemental sulfur, yield composites GerS_x and FarS_x, respectively (x = wt % sulfur). The wt % sulfur in the monomer feed was varied from 30–95 for this study, providing twelve materials. Mechanical analysis of these materials was undertaken by compressive and tensile strength techniques. Differential scanning calorimetric analysis revealed both polymeric and orthorhombic sulfur present in the materials with glass transition temperatures (T_g) of −37 °C to −13 °C and melt temperatures (T_m) of 119 to 104 °C. The crystallinity of composites decreases as the weight fraction of sulfur decreases and composites having the highest olefin content exhibit no detectable crystalline microstructures. The compressive strength of the materials showed increasing strength for higher olefin-content materials for both GerS_x (with compressive strength of up to 32 MPa) and FarS_x (with compressive strength of up to 43 MPa). The improved strength with increasing olefin content levels off at around 80–85% of terpenoid, after which point both tensile and compressive strength diminish.

1. Introduction

Terpenoids are biologically-sourced olefins that hold great promise for supplanting fossil fuel-derived olefins in tars and bitumen used in asphalt, in polymers, and in related composite materials [1,2,3,4,5,6,7,8,9]. In previous work we demonstrated that monoalkene, diene and triene terpenoids react with sulfur to yield durable composites having compressive strengths that can exceed that of ordinary Portland cement (OPC) [10,11]. Sulfur is a waste product of fossil fuel refining, and significant efforts have been made to uncover value-added applications for it [12,13,14,15,16,17,18]. One avenue for sulfur valorization is to employ it as a component of sulfur cements [19,20,21,22,23,24]. Sulfur’s reactivity with olefins is driven by thermal formation of sulfur-centered radicals (Scheme 1). When sulfur is used as the majority component in reactions with olefins, high sulfur-content materials (HSMs) are formed in a process known as inverse vulcanization [12,13,14,15,16,17]. These HSMs are often composites wherein some free sulfur is trapped within a cross-linked network of organics linked by oligomeric or polymeric sulfur catenates [11,18,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40]. Sulfur catenates are generally unstable and revert back to the orthorhombic, eight-membered ring allotrope under ambient conditions [41]. When trapped within a network solid, however, the polymeric catenates can be stabilized, thus affording the composite with strength typical of more traditional carbon-catenate-backbone materials.

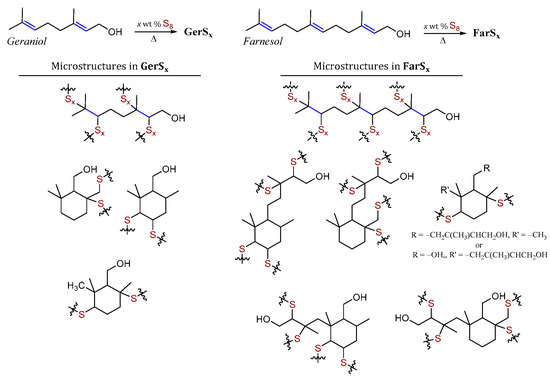

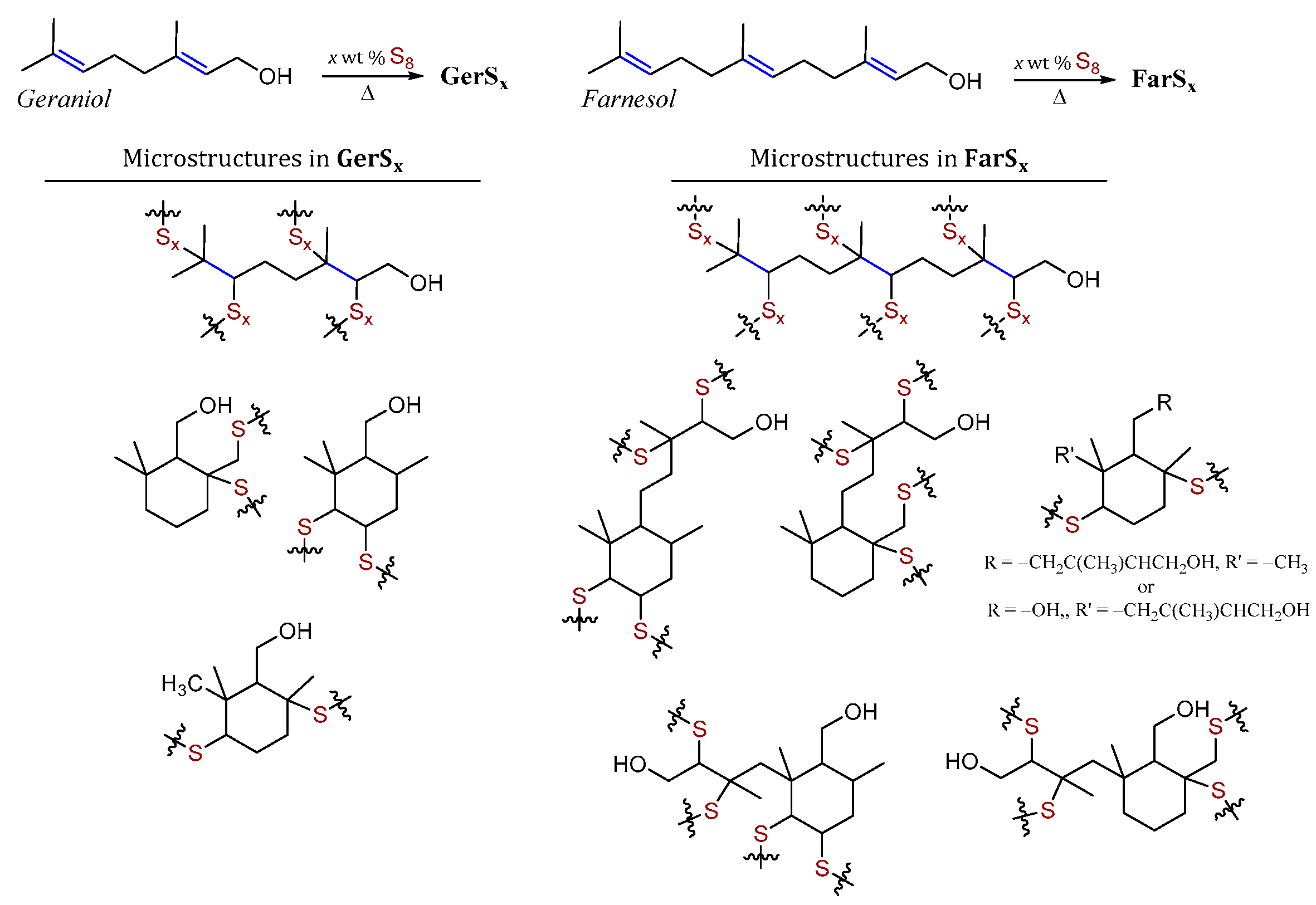

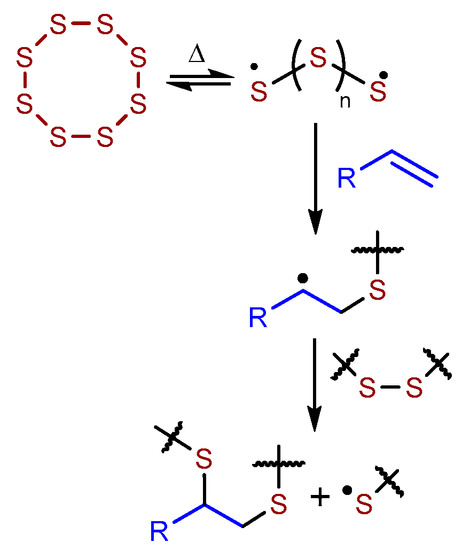

Our prior work on terpenoid-sulfur composites revealed that diene and triene terpenoids geraniol and farnesol underwent intramolecular cyclization reactions in addition to the expected inverse vulcanization shown in Scheme 1 [10]. Microstructures for the geraniol-sulfur composites GerS_x and farnesol-sulfur composites FarS_x (x = wt % S in the monomer feed) were thus determined to be those shown in Scheme 2. Compared to simple inverse vulcanization in which each starting material olefinic carbon is expected to form a crosslink via C–S bond-formation, the intramolecular cyclization pathway lowers the number of olefinic carbons in the starting material that end up in C–S in the product. The lower crosslink density in composites formed using cyclization-prone terpenoids resulted in their lower mechanical strength compared to other olefin-sulfur composites in which there is no evidence for such cyclization.

The preliminary work on terpenoid-sulfur composites described above employed a 90:10 sulfur-to-terpenoid monomer feed ratio. For the current work, it was of interest to evaluate the extent to which terpenoid-sulfur composite mechanical and thermal properties could be tuned by adjusting the comonomer feed ratio. Previous studies on other HSMs suggest that the tensile and compressive strength profiles, crystallinity and thermal properties are all significantly impacted by at times small changes in the olefin content. Herein were studied terpenoid sulfur composites employing diolefin terpenoid geraniol (GerS_x) and triolefin terpenoid farnesol (FarS_x), where the wt % sulfur was varied from 50–95%. The influence of comonomer ratio on tensile strength, compressive strength, morphological changes and thermal stability of the composites were evaluated. This is the first report in which the influence of olefin content on either the mechanical or morphological properties of terpenoid-sulfur cement composites has been evaluated, and as such provides guidance for the design of such materials for future applications.

2. Materials and Methods

2.1. General Considerations

Thermogravimetric analysis (TGA) was recorded on a Mettler Toledo TGA 2 STAR^e System over the range of 25 to 800 °C with a heating rate of 5 °C min^–1 under a flow of N₂ (20 mL min^–1). Differential Scanning Calorimetry (DSC) data were acquired using a Mettler Toledo DSC 3 STAR^e System over the range of −60 to 140 °C, with a heating rate of 5 °C min^–1 under a flow of N₂ (200 mL min^–1). Each DSC measurement was carried out over three heat-cool cycles to screen out thermal history. The data reported were taken from the third cycle of the experiment.

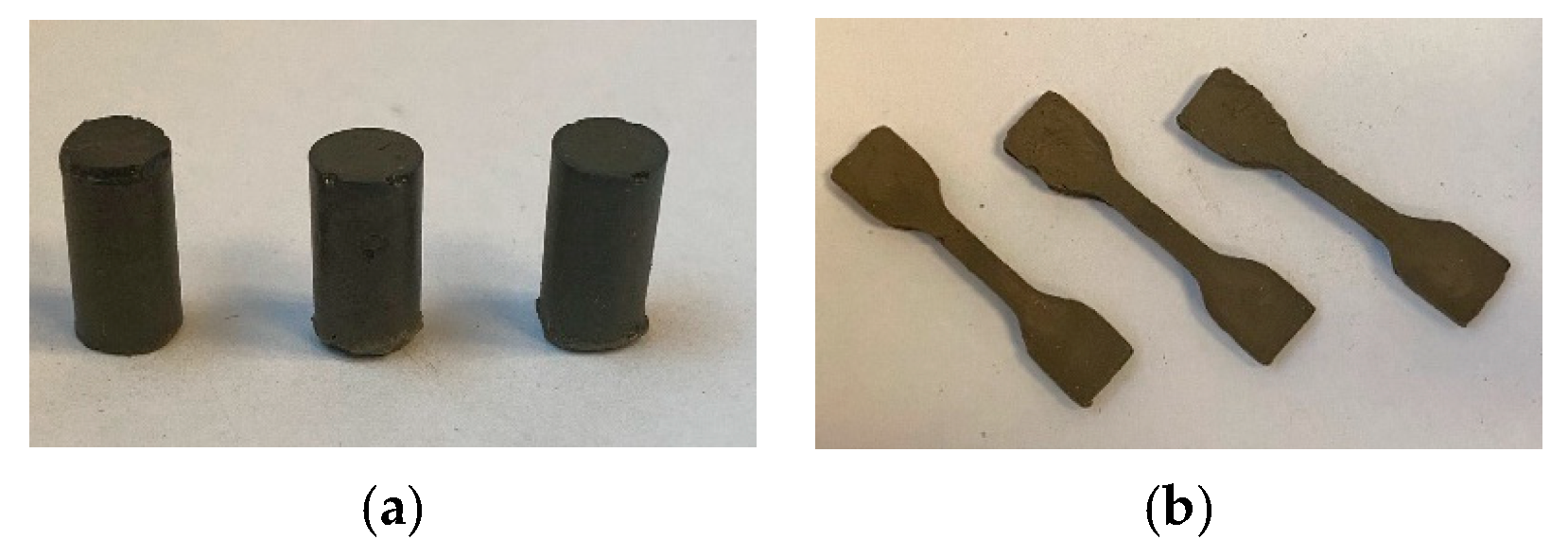

Compressive measurements were acquired on cylinders (Figure 1) using a Mark-10 ES30 Manual Test Stand equipped with a Mark 10 M3-200 Force Gauge by a modified ASTM C39 standard. Terpenoid-sulfur composite materials were aged for 4 d prior to compressive strength testing. The 4 d aging period was selected after assessing material properties over shorter and longer times for one set of samples and the properties were levelled off after 4 d. Longer-term stability is not known for these materials (Figure S2, Supplementary Materials).

Tensile measurements were taken on dog bone-shaped samples (Figure 1) with a Mark-10 ES30 Manual Test Stand equipped with a Mark 10 Force Gauge (Model M3-2 or Model M3-200). The tensile specimens were clamped down with a Mark 10 wedge grip (Model G1061-1). Tensile specimens were cut or moulded into dog bone shapes with dimensions as depicted in Figure S3 of the Supplementary Materials. Samples of I-BPA₈₀ were approximately 1.2 mm in thickness, while R-BPA₈₀ samples were approximately 2.5 mm in thickness. The actual thicknesses were individually measured at positions on each sample using callipers and average values were used for calculations. The data reported are an average of runs on five different samples.

2.2. Chemical Precursor Sources

Terpenoids (Alfa Aesar (Ward Hill, MA, USA) or Sigma-Aldrich (St. Louis, MO, USA)) and elemental sulfur (99.5%, Alfa Aesar) were used without further purification.

2.3. General Synthesis of Terpenoid-Sulfur Composites

CAUTION: Heating elemental sulfur with organics can result in the formation of H₂S gas. H₂S is toxic, foul-smelling, and corrosive. Elemental sulfur was weighed directly into a 250mL Erlenmeyer flask. The vessel was placed in a thermostat-controlled oil bath set to 180 °C. After about 2–3 min, the sulfur had visibly melted and become a dark orange colour. The requisite terpenoid was added to the flask and the reaction media was vigorously stirred with an overhead mechanical stirrer equipped with a stainless-steel stir rod and vane for 35 min, over which time the colour changed to brown/black. After cooling to room temperature, the materials were rigid brown to black solids that were all readily remeltable and could be shaped into compressive test cylinders or tensile test dog bones by simply pouring into silicone moulds.

GerS₉₅

This material was made according to the general procedure described above using 19.07 g of sulfur and 1.66 g of geraniol. Yield: quantitative. Elemental analysis calculated: C, 3.88%; S, 95%; H, 0.58%. Found: C, 4.94%; S, 94.21%; H, 0.35%.

GerS₉₀

This material was made according to the general procedure described above using 18.05 g of sulfur and 2.21 g of geraniol. Yield: quantitative. Elemental analysis calculated: C, 7.78%; S, 90%; H, 1.17%. Found: C, 7.86%; S, 89.45%; H, 0.90%.

GerS₈₅

This material was made according to the general procedure described above using 17.14 g of sulfur and 3.49 g of geraniol. Yield: quantitative. Elemental analysis calculated: C, 11.67%; S, 85%; H, 1.75%. Found: C, 10.98%; S, 86.72%; H, 1.25%.

GerS₈₀

This material was made according to the general procedure described above using 16.17 g of sulfur and 4.16 g of geraniol. Yield: quantitative. Elemental analysis calculated: C, 15.56%; S, 80%; H, 2.33%. Found: C, 15.68%; S, 81.67%; H, 1.84%.

GerS₇₀

This material was made according to the general procedure described above using 14.17 g of sulfur and 6.19 g of geraniol. Yield: quantitative. Elemental analysis calculated: C, 23.34%; S, 70%; H, 3.5%. Found: C, 25.44%; S, 70.19%; H, 2.51%.

FarS₉₅

This material was made according to the general procedure described above using 19.07 g of sulfur and 1.17 g of geraniol. Yield: quantitative. Elemental analysis calculated: C, 4.05%; S, 95%; H, 0.58%. Found: C, 4.67%; S, 94.55%; H, 0.35%.

FarS₉₀

This material was made according to the general procedure described above using 18.25 g of sulfur and 2.34 g of geraniol. Yield: quantitative. Elemental analysis calculated: C, 8.1%; S, 90%; H, 1.18%. Found: C, 7.59%; S, 89.44%; H, 0.89%.

FarS₈₅

This material was made according to the general procedure described above using 17.01 g of sulfur and 3.52 g of geraniol. Yield: quantitative. Elemental analysis calculated: C, 12.14%; S, 85%; H, 1.75%. Found: C, 17.83%; S, 78.86%; H, 2.04%.

FarS₈₀

This material was made according to the general procedure described above using 16.18 g of sulfur and 4.61 g of geraniol. Yield: quantitative. Elemental analysis calculated: C, 16.19%; S, 80%; H, 2.33%. Found: C, 19.68%; S, 77.04%; H, 1.76%.

FarS₇₀

This material was made according to the general procedure described above using 14.33 g of sulfur and 7.04 g of geraniol. Yield: quantitative. Elemental analysis calculated: C, 24.28%; S, 70%; H, 3.51%. Found: C, 28.78%; S, 69.2%; H, 3.54%.

FarS₆₀

This material was made according to the general procedure described above using 12.23 g of sulfur and 9.39 g of geraniol. Yield: quantitative. Elemental analysis calculated: C, 32.38%; S, 60%; H, 4.68%. Found: C, 36.03%; S, 57.83%; H, 4.73%.

FarS₅₀

This material was made according to the general procedure described above using 10.25 g of sulfur and 11.47 g of geraniol. Yield: quantitative. Elemental analysis calculated: C, 40.47%; S, 50%; H, 5.85%. Found: C, 40.46%; S, 52%; H, 5.96%.

3. Results and Discussion

3.1. Synthesis and Thermal Properties

Preparation of terpenoid-sulfur composites was accomplished by the reaction of each terpenoid with molten elemental sulfur at 180 °C for 35 min in the absence of any other added solvents or reagents according to the procedure we previously reported for the preparation of GerS₉₀ and FarS₉₀ [10]. Reactions of farnesol with 5, 10, 15, 20, 30, 40 and 50 wt % sulfur all produced rigid homogeneous solids FarS_x (x = wt % S) ranging in color from brown to black (Figure 1). Geraniol reacted with 5, 10, 15, 20 and 30 wt % sulfur to produce materials GerS_x similar in appearance to FarS_x. When analogous reactions of geraniol with 40 or 50 wt % S were undertaken in an effort to prepare GerS₄₀ and GerS₅₀, however, some geraniol separated from the initially-isolated solids after several hours. These materials were thus not further evaluated in this study. All of the materials listed in

Table 1. Thermal properties of terpenoid-sulfur composites and comparison to elemental sulfur (orthorhombic).

Materials	Tg/°C	Tm/°C	∆Hm (a) J/g	∆Hcc (b) J/g	Percent Crystallinity (c)
S8	NA	119	45	NA	100
GerS95	−38	113	33	22	27
GerS90	−37	116	25	20	23
GerS85	−37	104	33	24	20
GerS80	−11	NA	NA	NA	0
GerS70	−13	NA	NA	NA	0
FarS95	−38	117	36	31	12
FarS90	−37	105	25	21	10
FarS85	−4.5	112	14	12	6.7
FarS80	4.6	108	5.5	NA	0
FarS70	5.0	111	NA	NA	0
FarS60	2.7	NA	NA	NA	0
FarS50	8.5	NA	NA	NA	0

(a) Integrated heat of melting for the orthorhombic sulfur melt transition. (b) Integrated area for all cold crystallization transitions. (c) The reduction in percent crystallinity of each samples was calculated with respect to sulfur (normalized to 100%).

were remeltable solids that could be readily poured into silicone moulds for shaping following reported protocols.

Differential scanning calorimetry (DSC, Table 1) was used to analyze the thermal-morphological properties of the materials. Some of the characteristics of HSMs often observed in their DSC analysis include a glass transition temperature (T_g) near −37 °C diagnostic for the presence of polymeric sulfur domains, a melting temperature (T_m) near 118 °C for orthorhombic sulfur trapped but not covalently incorporated into the composite, monoclinic–orthorhombic transition near 106 °C if trapped monoclinic sulfur is present, and cold crystallization features between −40 and 80 °C. These features are typical for HSMs made from a wide range of monomers [42,43,44,45,46,47].

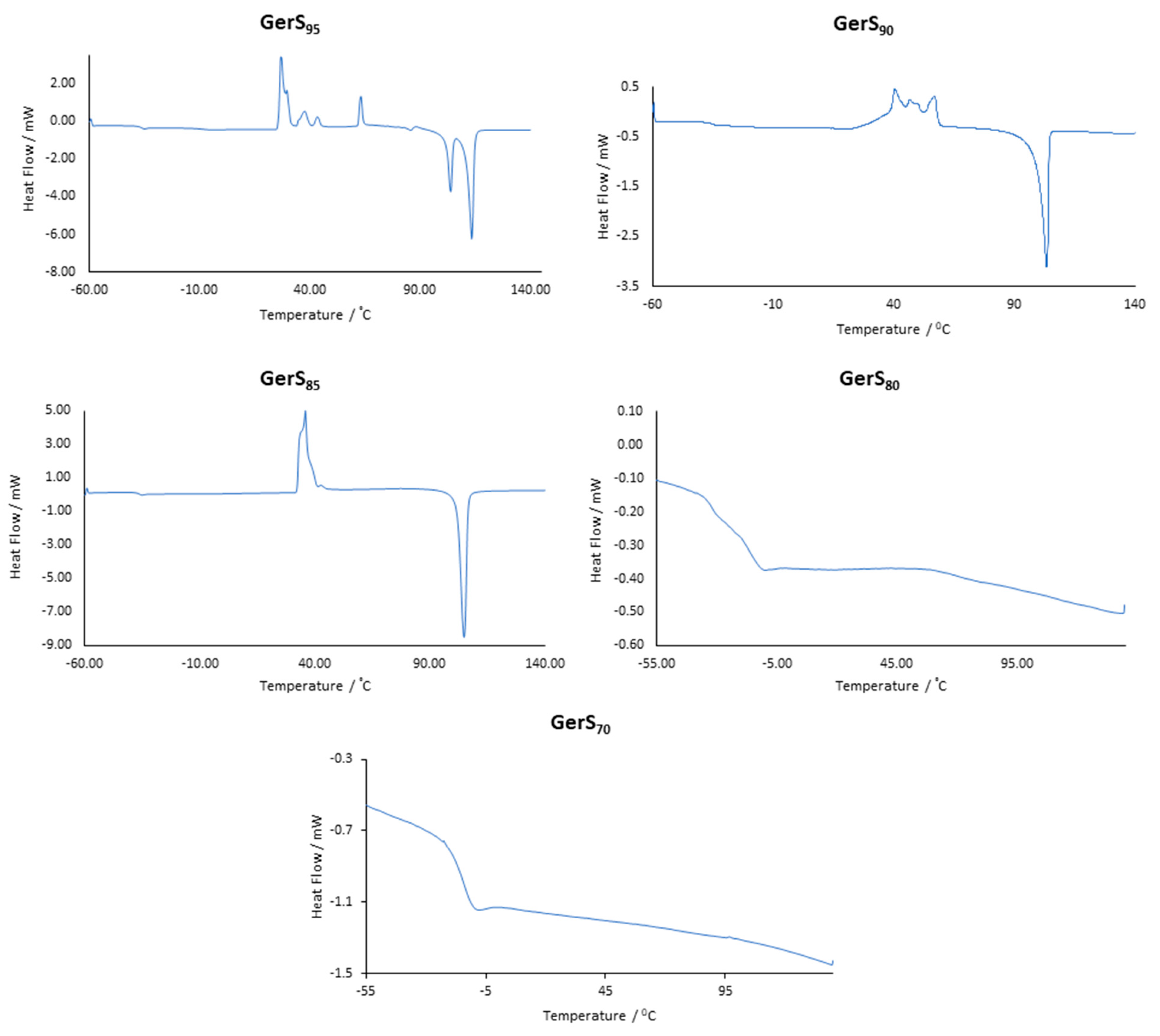

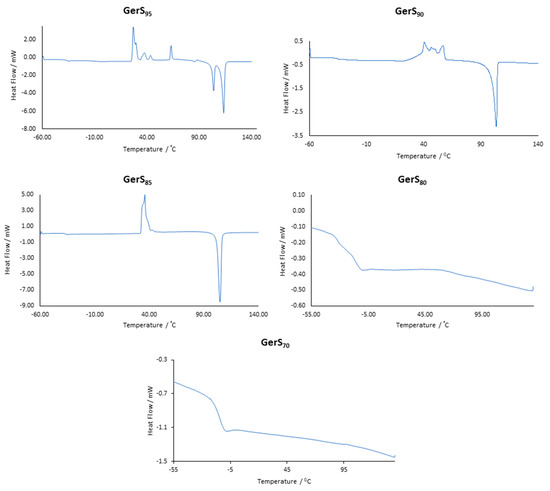

The morphological changes in the geraniol-sulfur composites as a function of monomer composition are clear from the DSC traces shown in Figure 2 and summarized in Table 1. The very high sulfur loading in GerS₉₅ leads to a material that exhibits all of the general features noted above: a glass transition indicating the presence of polymeric sulfur domains observed at −38 °C, several cold crystallization peaks observed between 3 and 65° C, the monoclinic-orthorhombic transition observed at 104 °C and the orthorhombic sulfur melt transition observed at 113 °C. The slight melting point depression from 118 °C for pure orthorhombic sulfur is typical. In GerS₉₀ and GerS₈₅ materials having additional organic crosslinker the glass transition for polymeric sulfur is still present at −37 °C and the cold crystallization peaks progressively coalesce to a more well-defined peak centered at 37 °C in the thermogram for GerS₈₅. The sharpening of the crystallization temperature is consistent with fewer types of crystallizable domains that would be expected in the presence of progressively more confining cross-links. The monoclinic-to-orthorhombic transition observed in GerS₉₅ is also absent in GerS₉₀ and GerS₈₅, consistent with the smaller pockets of free volume in more crosslinked materials and the greater volume required for the conformation of S₈ rings in the monoclinic crystal morphology. A dramatic change in the thermal-morphological properties of the GerS_x materials takes place between 20 and 30 wt % geraniol monomer. The DSC analysis for GerS₈₀ and GerS₇₀ lack cold crystallization and orthorhombic sulfur melt features, indicating that in these materials the olefin content is high enough to fully react with and covalently incorporate the sulfur comonomer. Multiple, broad/overlapping glass transition features are observed spanning the range from −40 to −5 °C, with midpoints at −11 and −13 °C for GerS₈₀ and GerS₇₀, respectively, followed by a broad melting transition from around 55 to 135 °C in both GerS₈₀ and GerS₇₀. The broadness of the features is similar to analogous transitions observed in some other HSMs with high olefin content [48] and is perhaps unsurprising given the variety of microstructural subunits contributing to the materials’ morphologies.

The DSC analysis of farnesol-sulfur composites FarS_x (Figure S1, Supplementary Materials) showed some similar trends to those observed for GerS_x, but with some notable differences as well. First, no cold crystallization features or T_g were observed in the DSC analysis of FarS₉₅, while the monoclinic-orthorhombic transition (104 °C) and orthorhombic sulfur melt (117 °C) features are prominent. The orthorhombic sulfur melt peak and the glass transition for polymeric sulfur were also observed in FarS₉₀, which additionally exhibited a relatively narrow cold crystallization feature centered at 49 °C. The cold crystallization and orthorhombic melt features are also observed with progressive broadening as olefin content increases (similar to that observed for GerS_x materials) for FarS₈₅ and FarS₈₀. The T_g for polymeric sulfur is absent from DSC analysis of FarS_x materials having >20 wt % farnesol in the monomer feed, which can be reasonably attributed to the ever-shorter sulfur catenates with increasing olefin cross-linker content. A new T_g is observed attributable to the organosulfur network comprising oligosulfur catenates and farnesol microstructures shown in Scheme 2. The T_g progressively shifts from −4.5 °C in FarS₈₅ to +8.5 °C in FarS₅₀. As the T_g continues to shift and the DSC curve continues to flatten as a result of crystallization and melting peaks shrinking as farnesol content increases from 20 to 50 wt %. Quantification of crystallinity for FarS_x and comparison to pure sulfur by integration of thermal features according to Equation (1) also reflects the diminished contribution of crystalline orthorhombic or polymeric sulfur domains to the structures.

$$∆{\chi }_c=1-\left\{\frac{∆H_m-∆H_{cc}}{∆H_{m\left(S\right)}-∆H_{cc\left(S\right)}}\right\}\ast 100\%$$

(1)

where $∆{\chi }_c$ is change of percentage crystallinity with respect to sulfur, $∆H_m$ is melting enthalpy of composite material, $∆H_{cc}$ is cold crystallization enthalpy of composite material, $∆H_{m\left(S\right)}$ is melting enthalpy of sulfur and $∆H_{cc\left(S\right)}$ is cold crystallization enthalpy of sulfur. A comparison of the percent crystallinity values for FarS_x to the values for GerS_x analogues comprising the same wt % terpenoid in the monomer feed reveals lower percent crystallinity for the FarS_x materials, reinforcing the trend that more olefin content generally leads to less crystalline materials in HSMs for a wide range of olefin linkers. It is also noteworthy that the disappearance of the polymeric sulfur T_g in FarS_x occurred between 10 and 15% terpenoid monomer feed, whereas this occurred between 15 and 20 wt % terpenoid monomer feed for the GerS_x materials, again attributable to greater crosslinking afforded by triunsaturated farnesol versus the diunsaturated geraniol.

3.2. Mechanical Properties

Previous work has established that the mechanical strength (compressive, flexural or tensile) of HSMs generally increases with increasing olefin linker content until a levelling-off point at which the HSM becomes more brittle and thus fragments at lower strain [49]. It was therefore of interest to determine the ratio of terpenoid to sulfur that would achieve the maximum compressive and tensile strength for FarS_x and GerS_x.

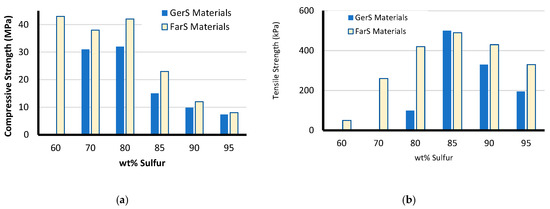

The compressive strength trends (Figure 3a and

Table 2. Mechanical properties of terpenoid-sulfur composites.

Materials	Compressive Tests		Tensile Tests
	Strength (MPa)	St.dev. (b) (MPa)	Strength (kPa)	St.dev. (b) (kPa)	Elongation at Break (%)
OPC (a)	17	NA	1400	NA	--
GerS95	7.3	0.3	195	4	1
GerS90	9.8	0.6	330	12	3
GerS85	15	1	750	40	5
GerS80	32	1	99	4	36
GerS70	31	1	NA	NA	NA
FarS95	10	1	330	20	23
FarS90	8	1	430	30	5
FarS85	12	1	490	12	4
FarS80	23	1	420	9	1
FarS70	42	2	260	4	5
FarS60	38	4	50	3	36
FarS50	43	3	NA	NA	NA

(a) Values for residential building-grade ordinary portland cement for foundations and footings. (b) Standard deviation for the measurements.

) for GerS_x and FarS_x illustrate first that for a given weight percent sulfur composition the farnesol-derived composites are stronger than the corresponding geraniol-derived materials due to the differences in crosslinking units in the two terpenoids. Both series GerS_x and FarS_x appear to level off after 20 wt % terpenoid is added to the mixture, though the trend could not be evaluated for higher percent terpenoid-composition materials because attempts to use the conditions employed for the other materials to obtain materials with increased terpenoid content further let to phase-separation following reaction.

Tensile strengths were lower than that of OPC (Figure 3b and Table 2) and followed a somewhat different trend than was observed in the compressive strengths. First, the GerS_x materials were too brittle to even be clamped into the instrument without breaking when the sulfur content was below 80 wt %. The tensile strength of measurable GerS_x materials reflected increased tensile strength with increasing crosslinking from GerS₉₅ to GerS₈₅ before the sudden drop in tensile strength between GerS₈₅ and GerS₈₀. This drop in tensile strength was accompanied by a notable increase in elongation at break from 5% to 36%. This change in mechanical properties also mirrors the distinct change in morphology between GerS₈₅ and GerS₈₀ observed from the DSC data (Figure 2) discussed above. The brittleness reflected in the low elongation at break for materials comprising more sulfur appears to be attributable to the crystallinity of those materials, while the amorphous material that are above T_g at room temperature shows significantly higher elongation at break as would be anticipated. The tensile strength data for FarS_x composites showed trends similar to those observed in the GerS_x materials. The FarS_x materials generally have higher ultimate tensile strengths but similar elongations at break when compared to their GerS_x analogues comprising the same wt % of sulfur. FarS_x materials were notably stronger at lower terpenoid loading due to higher cross-linking but the ultimate tensile strength levels off at about the same strength and at the same amount of sulfur (85 wt %) as the GerS_x materials, suggesting a possible ultimate limit for these classes of materials. The compressive strengths of the strongest previously-reported HSMs was up to around 35 MPa, [25,30,49,50] so materials FarS_50–70 appear to have the highest compressive strengths of any HSMs for which data has been reported.

4. Conclusions

In conclusion, increased organic content facilitates cross-linking with elemental sulfur in terpenoid-sulfur composites, leading to concomitantly improved mechanical properties of the composites. The compressive strength of these composites (up to 43 MPa) is significantly greater than that of ordinary Portland cement, while terpenoid-sulfur composite tensile strength (up to 750 kPa) is notably lower than that of ordinary Portland cement. A higher olefin content is found to progressively improve the strength of composites until around 80–85% of terpenoid, after which point both tensile and compressive strength diminish as the length of polymeric sulfur chains in the network are expected to concomitantly decrease. The crystallinity of composites also decreases with increasing olefin content, such that composites having the highest olefin content no longer exhibit detectable crystalline microstructures. The mechanical metrics make terpenoid-sulfur composites potential candidates for static load-bearing applications like footings and foundations where less sustainably produced mineral cements might otherwise be employed.
