Chopped Basalt Fiber-Reinforced High-Performance Concrete: An Experimental and Analytical Study
Abstract
:1. Introduction
2. Experimental Program
2.1. Materials
2.2. Concrete Mix Design
2.3. Mixing Procedure and Specimens Preparation
3. Results and Discussion
3.1. Workability
3.2. Compressive Strength
3.3. Impact Resistance
3.4. Relationship between Impact Energy and Compressive Strength
3.5. Microstructural Analysis
4. Conclusions
- BF was added to the high-performance concrete with the aim of increasing both the ductility and the mechanical properties. The amount of BF influenced the workability of the final product.
- Using chopped basalt fibers enhanced the compressive strength of the concrete. The optimum compressive strength value was obtained using a BF content of 8 kg/m3. When the volume fraction of basalt fiber was 8 kg/m3, the compressive strength was increased by 16.00%, 17.50%, and 14.45% at ages 2, 28, and 56 days, respectively, compared with that of HPC without fiber.

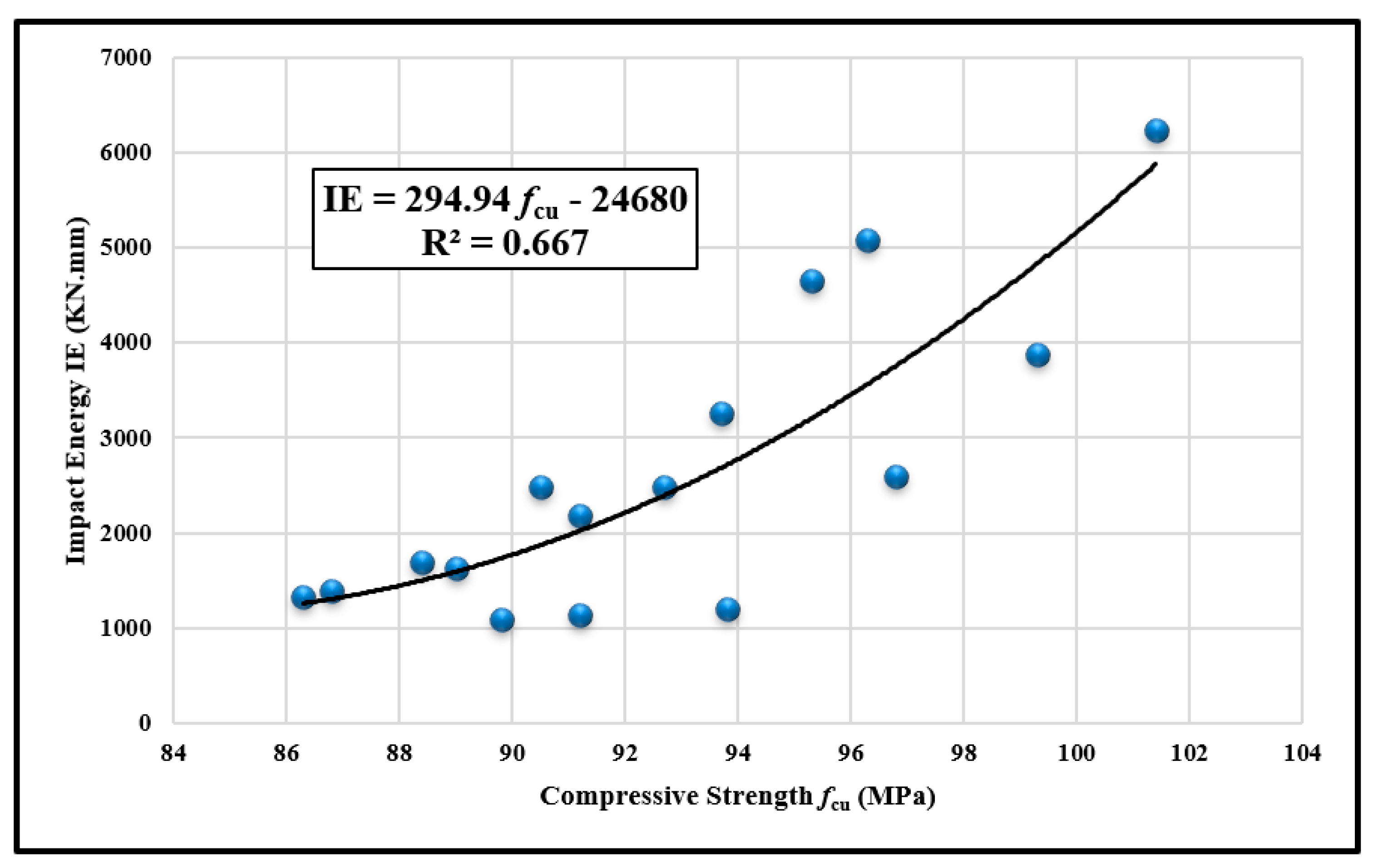

- The empirical relationship between the impact energy and compressive strength, obtained from regression analysis, shows that the predictable values are in a good agreement and integration with the empirical data.
- Based on the experimental results, the addition of BF increased the number of blows that the high-performance concrete was subjected to at ultimate failure compared with HPC without fiber. Moreover, the results indicated this addition of BF significantly influenced the impact toughness of the concrete when subjected to impact loading. In the case of impact loading, the impact toughness significantly increased with a dosage of 8 kg/m3 of BF compared with reference concrete. Therefore, the failure mechanism showed less brittleness throughout, changing from a diagonal to a radial failure pattern.
- The SEM observations of the concrete showed that the BFs which accumulated in pores and on the surface of the attached mortar could both strengthen the concrete and improve the microstructure of the interfacial transition zone (ITZ), which further enhanced the bonding strength and ductility of the concrete.
- It is recommended for future studies to further develop and verify the relationship between the concrete impact resistance and compressive strength using more experimental measurements.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Zhou, A.; Qin, R.; Feo, L.; Penna, R.; Lau, D. Investigation on interfacial defect criticality of FRP-bonded concrete beams. Compos. B Eng. 2017, 80–90, 113. [Google Scholar] [CrossRef]
- Abbass, W.; Khan, M.I.; Mourad, S. Evaluation of mechanical properties of steel fiber reinforced concrete with different strengths of concrete. Construct. Build. Mater. 2018, 168, 556–569. [Google Scholar] [CrossRef]
- Lee, J.; Cho, B.; Choi, E. Flexural capacity of fiber reinforced concrete with a consideration of concrete strength and fiber content. Construct. Build. Mater. 2017, 138, 222–231. [Google Scholar] [CrossRef]
- Branston, J.; Das, S.; Kenno, S.Y.; Taylor, C. Mechanical Behavior of Basalt Fiber Reinforced Concrete. Constr. Build. Mater. 2016, 124, 878–886. [Google Scholar] [CrossRef]
- Olalusi, O.B.; Awoyera, P. Shear capacity prediction of slender reinforced concrete structures with steel fibers using machine learning. Eng. Struct. 2021, 227, 111470. [Google Scholar] [CrossRef]
- Okeh, C.A.O.; Begg, D.W.; Barnett, S.J.; Nanos, N. Behaviour of hybrid steel fiber reinforced self-compacting concrete using innovative hooked-end steel fibers under tensile stress. Constr. Build. Mater. 2019, 202, 753–761. [Google Scholar] [CrossRef] [Green Version]
- Villar, V.P.; Medina, N.F.; Alonso, M.M.; Diez, S.G.; Puertas, F. Assessment of parameters governing the steel fiber alignment in fresh cement-based composites. Constr. Build. Mater. 2019, 207, 548–562. [Google Scholar] [CrossRef]
- Luo, D.; Khater, A.; Yue, Y.; Abdel Salam, M.; Zhang, Z.; Li, Y.; Li, J.; Iseley, D.T. The performance of asphalt mixtures modified with lignin fiber and glass fiber: A review. Constr. Build. Mater. 2019, 209, 377–387. [Google Scholar] [CrossRef]
- Schneider, K.; Michel, A.; Liebscher, M.; Terreri, L.; Hempel, S.; Mechtcherine, V. Mineral-impregnated carbon fiber reinforcement for high temperature resistance of thin-walled concrete structures. Cem. Concr. Compos. 2019, 97, 68–77. [Google Scholar] [CrossRef]
- Chen, X.; Kou, S.; Xing, F. Mechanical and durable properties of chopped basalt fiber reinforced recycled aggregate concrete and the mathematical modeling. Constr. Build. Mater. 2021, 298, 123901. [Google Scholar] [CrossRef]
- Youssf, O.; ElGawady, M.A.; Mills, J.E.; Ma, X. Finite element modelling and dilation of FRP-confined concrete columns. Eng. Struct. 2014, 79, 70–85. [Google Scholar] [CrossRef]
- Youssf, O.; Hassanli, R.; Mills, J.E. Retrofitting square columns using FRP-confined crumb rubber concrete to improve confinement efficiency. Constr. Build. Mater. 2017, 153, 146–156. [Google Scholar] [CrossRef]
- Elchalakani, M. High strength rubberized concrete containing silica fume for the construction of sustainable road side barriers. Structures 2015, 1, 20–38. [Google Scholar] [CrossRef]
- Youssf, O.; Hassanli, R.; Mills, J.E. Mechanical performance of FRP-confined and unconfined crumb rubber concrete containing high rubber content. J. Build. Eng. 2017, 11, 115–126. [Google Scholar] [CrossRef]
- Fiore, V.; Scalici, T.; Di Bella, G.; Valenza, A. A review on basalt fiber and its composites. Compos. B Eng. 2015, 74, 74–94. [Google Scholar] [CrossRef]
- Sadrmomtazi, A.; Tahmouresi, B.; Saradar, A. Effects of silica fume on mechanical strength and microstructure of basalt fiber reinforced cementitious composites (BFRCC). Constr. Build. Mater. 2018, 162, 321–333. [Google Scholar] [CrossRef]
- Ralegaonkar, R.; Gavali, H.; Aswath, P.; Abolmaali, S. Application of chopped basalt fibers in reinforced mortar: A review. Constr. Build. Mater. 2018, 164, 589–602. [Google Scholar] [CrossRef]
- Alaskar, A.; Albidah, A.; Alqarni, A.; Alyousef, R.; Mohammadhosseini, H. Performance evaluation of high-strength concrete reinforced with basalt fibers exposed to elevated temperatures. J. Build. Eng. 2021, 35, 102108. [Google Scholar] [CrossRef]
- Ozen, M.; Algin, Z. The properties of chopped basalt fiber reinforced self-compacting concrete. Constr. Build. Mater. 2018, 186, 678–685. [Google Scholar]
- Niu, D.; Su, L.; Luo, Y.; Huang, D.; Luo, D. Experimental study on mechanical properties and durability of basalt fiber reinforced coral aggregate concrete. Constr. Build. Mater. 2020, 237, 117628. [Google Scholar] [CrossRef]
- Jiang, C.; Fan, K.; Wu, F.; Chen, D. Experimental Study on Mechanical Properties and Microstructure of Chopped Basalt Fiber Reinforced Concrete. Mater. Design. 2014, 58, 187–193. [Google Scholar] [CrossRef]
- Adesina, A. Performance of cementitious composites reinforced with chopped basalt fibers—An overview. Constr. Build. Mater. 2021, 266, 120970. [Google Scholar] [CrossRef]
- Elshafie, S.; Whittleston, G. A Review of the Effect of Basalt Fiber Lengths and Proportions on the Mechanical Properties of Concrete. Int. J. Res. Eng. Technol. 2015, 4, 458–465. [Google Scholar]
- Wang, D.; Ju, Y.; Shen, H.; Xu, L. Mechanical Properties of High-Performance Concrete Reinforced with Basalt Fiber and Polypropylene Fiber. Constr. Build. Mater. 2019, 197, 464–473. [Google Scholar] [CrossRef]
- Irine, F. Strength Aspects of Basalt Fiber Reinforced Concrete. Int. J. Innov. Res. Advert. Eng. 2014, 1, 192–198. [Google Scholar]
- Kathuda, H.; Shatarat, N. Improving the Mechanical Properties of Recycled Concrete Aggregate Using Chopped Basalt Fibers and Acid Treatment. Constr. Build. Mater. 2017, 140, 328–335. [Google Scholar] [CrossRef]
- Afroughsabet, V.; Biolzi, L.; Ozbakkaloglu, T. High-performance fiber-reinforced concrete: A review. J. Mater. Sci. 2016, 51, 6517–6551. [Google Scholar] [CrossRef] [Green Version]
- Mehta, P.K.; Aitcin, P.C. Cementitious Concrete and Aggregates; American Society for Testing Materials: Philadelphia, PA, USA, 1990; Volume 12, pp. 70–78. [Google Scholar]
- Ahmed, S.F.U.; Maalej, M. Tensile strain hardening behaviour of hybrid steel polyethylene fiber reinforced cementitious composites. Constr. Build. Mater. 2009, 23, 96–106. [Google Scholar] [CrossRef] [Green Version]
- Li, W.; Xu, J. Mechanical Properties of Basalt Fiber Reinforced Geo-Polymeric Concrete under Impact Loading. Mater. Sci. Eng. A 2009, 505, 178–186. [Google Scholar] [CrossRef]
- ES 4756-1/; Cement-Part 1: Composition, Specifications and Conformity Criteria for Common Cements. Egyptian Organization for Standardization and Quality: Cairo, Egypt, 2013.
- Egyptian Standard, ES: 1109/; Aggregates for Concrete. Egyptian Organization for Standardization and Quality: Cairo, Egypt, 2008.
- ASTM C494; Standard Specification of Chemical Admixtures for Concrete. American Society for Testing and Materials Standard Practice C494: Philadelphia, PA, USA, 2004.
- Egyptian Standard, ES: 2421; Cement-Physical and Mechanical Testing. Egyptian Organization for Standardization and Quality Control: Cairo, Egypt, 2009.
- ACI Committee 544.2R-89; Measurement of Properties of Fiber Reinforced Concrete. ACI: West Conshohocken, PA, USA, 1999.
- Badr, A.; Ashour, A.F. Modified ACI Drop-weight Impact Test for Concrete. ACI Mater. J. 2005, 102, 249–255. [Google Scholar]
- Siddique, S.; Shrivastava, S.; Chaudhary, S.; Gupta, T. Strength and Impact Resistance Properties of Concrete Containing Fine Bone China Ceramic Aggregate. Constr. Build. Mater. 2018, 169, 289–298. Available online: https://doiorg.ezproxy.library.unlv.edu/10.1016/j.conbuildmat.2018.02.213 (accessed on 15 September 2020). [CrossRef]
- Abdel Aleem, B.H.; Ismail, M.K.; Hassan, A.A.A. The Combined Effect of Crumb Rubber and Synthetic Fibers on Impact Resistance of Self-consolidating Concrete. Constr. Build. Mater. 2018, 162, 816–829. Available online: https://doiorg.ezproxy.lbrary.unlv.edu/10.1016/j.conbuildmat.2017.12.077 (accessed on 3 November 2020). [CrossRef]
- Murali, G.; Santhi, A.S.; Ganesh, G.M. Empirical Relationship between the Impact Energy and Compressive Strength for Fiber Reinforced Concrete. J. Sci. Ind. Res. 2014, 73, 469–473. [Google Scholar]
- Myers, J.J.; Tinsley, M. Impact resistance of blast mitigation material using modified ACI drop-weight impact test. ACI Mater. J. 2013, 110, 339–348. [Google Scholar]
- Niaki, M.H.; Fereidoon, A.; Ahangari, M.G. Experimental study on the mechanical and thermal properties of basalt fiber and nano clay reinforced polymer concrete. Compos. Struct. 2018, 191, 231–238. [Google Scholar] [CrossRef]
- Dong, J.F.; Wang, Q.Y.; Guan, Z.W. Material Properties of Basalt Fiber Reinforced Concrete Made with Recycled Earthquake Waste. Constr. Build. Mater. 2017, 130, 241–251. [Google Scholar] [CrossRef]
Property | Cut Length (mm) | Diameter (µm) | Density (gm/cm3) | Elastic Modulus (GPa) | Elongation at Break (%) | Tensile Strength (MPa) |
---|---|---|---|---|---|---|
BF-3 | 3 | 13 | 2.65 | 83 | 3.1 | 2574 |
BF-12 | 12 | 15 | 2.65 | 62 | 2.9 | 2450 |
BF-18 | 18 | 15 | 2.65 | 62 | 2.9 | 2450 |
Mix Code | Fiber Length (mm) | Vf (%) | Cement (kg/m3) | Silica Fume (kg/m3) | Sand (kg/m3) | Dolomite (kg/m3) | Water (kg/m3) | SP (kg/m3) | BF (kg/m3) |
---|---|---|---|---|---|---|---|---|---|
BF-0 | - | 0 | 450 | 50 | 625 | 1075 | 150 | 10 | - |
BF-3-2 | 3 | 0.075 | 450 | 50 | 625 | 1075 | 150 | 10 | 2 |
BF-3-4 | 3 | 0.15 | 450 | 50 | 625 | 1075 | 150 | 10 | 4 |
BF-3-8 | 3 | 0.3 | 450 | 50 | 625 | 1075 | 150 | 10 | 8 |
BF-3-12 | 3 | 0.45 | 450 | 50 | 625 | 1075 | 150 | 10 | 12 |
BF-3-16 | 3 | 0.6 | 450 | 50 | 625 | 1075 | 150 | 10 | 16 |
BF-12-2 | 12 | 0.075 | 450 | 50 | 625 | 1075 | 150 | 10 | 2 |
BF-12-4 | 12 | 0.15 | 450 | 50 | 625 | 1075 | 150 | 10 | 4 |
BF-12-8 | 12 | 0.3 | 450 | 50 | 625 | 1075 | 150 | 10 | 8 |
BF-12-12 | 12 | 0.45 | 450 | 50 | 625 | 1075 | 150 | 10 | 12 |
BF-12-16 | 12 | 0.6 | 450 | 50 | 625 | 1075 | 150 | 10 | 16 |
BF-18-2 | 18 | 0.075 | 450 | 50 | 625 | 1075 | 150 | 10 | 2 |
BF-18-4 | 18 | 0.15 | 450 | 50 | 625 | 1075 | 150 | 10 | 4 |
BF-18-8 | 18 | 0.3 | 450 | 50 | 625 | 1075 | 150 | 10 | 8 |
BF-18-12 | 18 | 0.45 | 450 | 50 | 625 | 1075 | 150 | 10 | 12 |
BF-18-16 | 18 | 0.6 | 450 | 50 | 625 | 1075 | 150 | 10 | 16 |
Mixture (ID) | Fiber Dosage (kg/m3) | Slump (mm) |
---|---|---|
BF-0 | - | 280 |
BF-3-2 | 2 | 230 |
BF-3-4 | 4 | 190 |
BF-3-8 | 8 | 140 |
BF-3-12 | 12 | 100 |
BF-3-16 | 16 | 65 |
BF-12-2 | 2 | 200 |
BF-12-4 | 4 | 170 |
BF-12-8 | 8 | 105 |
BF-12-12 | 12 | 90 |
BF-12-16 | 16 | 45 |
BF-18-2 | 2 | 175 |
BF-18-4 | 4 | 120 |
BF-18-8 | 8 | 80 |
BF-18-12 | 12 | 50 |
BF-18-16 | 16 | 20 |
Mix Code | Fiber Length (mm) | Vf (%) | Compressive Strength (MPa) | |||||
---|---|---|---|---|---|---|---|---|
2 Days | 28 Days | 56 Days | ||||||
Measured (MPa) | Strength Enhancement (%) | Measured (MPa) | Strength Enhancement (%) | Measured (MPa) | Strength Enhancement (%) | |||
BF-0 | - | 0 | 46.8 | - | 86.3 | - | 99.6 | - |
BF-3-2 | 3 | 0.075 | 47 | 0.4 | 86.8 | 0.6 | 99.3 | -0.3 |
BF-3-4 | 3 | 0.15 | 48.6 | 3.8 | 88.4 | 2.4 | 101.7 | 2.1 |
BF-3-8 | 3 | 0.3 | 52.4 | 12.0 | 96.8 | 12.2 | 107.5 | 7.9 |
BF-3-12 | 3 | 0.45 | 49.3 | 5.3 | 91.2 | 5.7 | 102.5 | 2.9 |
BF-3-16 | 3 | 0.6 | 48.1 | 2.8 | 89.8 | 4.1 | 99.8 | 0.2 |
BF-12-2 | 12 | 0.075 | 47.9 | 2.4 | 89 | 3.1 | 101.3 | 1.7 |
BF-12-4 | 12 | 0.15 | 49.7 | 6.2 | 92.7 | 7.4 | 105.1 | 5.5 |
BF-12-8 | 12 | 0.3 | 53.4 | 14.1 | 99.3 | 15.1 | 112.3 | 12.8 |
BF-12-12 | 12 | 0.45 | 51.2 | 9.4 | 93.7 | 8.6 | 103.6 | 4.0 |
BF-12-16 | 12 | 0.6 | 49.1 | 4.9 | 91.2 | 5.7 | 101.2 | 1.6 |
BF-18-2 | 18 | 0.075 | 49.4 | 5.6 | 90.5 | 4.9 | 102.3 | 2.7 |
BF-18-4 | 18 | 0.15 | 51.2 | 9.4 | 95.3 | 10.4 | 107.8 | 8.2 |
BF-18-8 | 18 | 0.3 | 54.3 | 16.0 | 101.4 | 17.5 | 114 | 14.5 |
BF-18-12 | 18 | 0.45 | 52.5 | 12.2 | 96.3 | 11.6 | 105.7 | 6.1 |
BF-18-16 | 18 | 0.6 | 50.8 | 8.6 | 93.8 | 8.7 | 102.7 | 3.1 |
Mixture No. | Fiber Length (mm) | Vf (%) | Number of Drop | t (mm) | D (mm) | Specimen Volume (m3) | Impact Energy (J) | Specimen Mass (kg) | Energy/ Volume (kJ/m3) | Energy/Mass (J/kg) |
---|---|---|---|---|---|---|---|---|---|---|
BF-0 | - | 0 | 22 | 65 | 151 | 1.163 × 10−3 | 1331.5 | 2.65 | 1144.9 | 502.4 |
BF-3-2 | 3 | 0.075 | 23 | 66 | 151 | 1.181 × 10−3 | 1392.0 | 2.78 | 1178.6 | 500.7 |
BF-3-4 | 3 | 0.15 | 28 | 63 | 150 | 1.112 × 10−3 | 1694.6 | 2.68 | 1523.9 | 632.3 |
BF-3-8 | 3 | 0.3 | 43 | 64 | 150 | 1.130 × 10−3 | 2602.4 | 2.71 | 2303 | 960.3 |
BF-3-12 | 3 | 0.45 | 36 | 63 | 149 | 1.098 × 10−3 | 2178.8 | 2.61 | 1984.3 | 834.8 |
BF-3-16 | 3 | 0.6 | 18 | 64 | 149 | 1.115 × 10−3 | 1089.4 | 2.63 | 977.0 | 414.2 |
BF-12-2 | 12 | 0.075 | 27 | 65 | 150 | 1.148 × 10−3 | 1634.0 | 2.69 | 1423.3 | 607.4 |
BF-12-4 | 12 | 0.15 | 41 | 64 | 148 | 1.100 × 10−3 | 2481.4 | 2.61 | 2255.8 | 950.7 |
BF-12-8 | 12 | 0.3 | 64 | 66 | 149 | 1.150 × 10−3 | 3873.4 | 2.73 | 3368.2 | 1418.8 |
BF-12-12 | 12 | 0.45 | 54 | 65 | 150 | 1.148 × 10−3 | 3268.2 | 2.71 | 2846.9 | 1206.0 |
BF-12-16 | 12 | 0.6 | 19 | 66 | 150 | 1.165 × 10−3 | 1150.0 | 2.68 | 987.1 | 429.1 |
BF-18-2 | 18 | 0.075 | 41 | 66 | 150 | 1.165 × 10−3 | 2481.4 | 2.73 | 2130.0 | 908.9 |
BF-18-4 | 18 | 0.15 | 77 | 63 | 151 | 1.127 × 10−3 | 4660.2 | 2.68 | 4135 | 1738.9 |
BF-18-8 | 18 | 0.3 | 103 | 66 | 151 | 1.181 × 10−3 | 6233.8 | 2.79 | 5278.4 | 2234.3 |
BF-18-12 | 18 | 0.45 | 84 | 64 | 149 | 1.115 × 10−3 | 5083.8 | 2.70 | 4559.5 | 1882.9 |
BF-18-16 | 18 | 0.6 | 20 | 64 | 151 | 1.145 × 10−3 | 1210.4 | 2.69 | 1057.1 | 450.0 |
