Polyelectrolyte-Surfactant Mixture Effects on Bulk Properties and Antibacterial, Cytotoxic Activity of Fine Sulfur Particles

Abstract

Elemental sulfur, commonly known for its wide range of biological activities, has a long history of use in protecting all garden and vegetable crops from a range of pests and diseases, including powdery mildew, ascochyta blight, clubroot, plant mites, oidium, anthracnose, and scab. In the present study, a quick and environmentally friendly approach has been developed for the synthesis of sulfur nanoparticles with antibacterial activity. Fine sulfur particles (FSPs) were prepared by modifying the surface of elemental sulfur using various polyelectrolyte–surfactant mixtures (PSMs) including sodium carboxymethyl cellulose–sodium dodecylbenzene sulfonate (NaCMC-SDBS) and polyhexamethylene guanidine hydrochloride–cetyltrimethylammonium bromide (PHMG-CTAB). The FSPs were characterized by UV–visible spectrophotometry, X-ray diffraction (XRD), thermogravimetric/differential scanning calorimetry analysis (TG/DSC), and scanning electron microscopy (SEM), with the FSPs showing an almost spherical shape with an average size in the range of 150–200 nm. The antibacterial activity of the FSPs was tested against Gram-positive Staphylococcus aureus and Enterococcus faecium and Gram-negative Escherichia coli and Pseudomonas aeruginosa bacteria and one fungus (Aspergillus brasiliensis ATCC 95 16404). Based on this, it could be seen that FSPs exhibited significant antimicrobial activity against Gram-positive bacteria, i.e., S. aureus and E. faecium. The in vitro cytotoxicity of the FSPs-1 and FSPs-2 studied in normal (MeT-5A) and tumorous (MCF-7) human cell lines was assessed in the concentration range from 500 μg/mL to 0.12 mg/mL, from which it was determined as being non-cytotoxic. The received products can be considered for potential application in agriculture and medicine.

1. Introduction

Element sulfur is naturally a pale yellow, insoluble, odorless, and brittle solid, which is chemically and biologically active and which has accordingly seen extensive application in the field of agriculture to combat various kind of mites (ixodid mites, scabies, chicken mites, spider mites), lice, bedbugs, fleas, etc. [1].

However, sulfur has been employed in various forms in contemporary times for crop protection and has been recognized as safe for this purpose [2,3,4]. It is a significant element in the promotion of plant growth and is synthesized naturally in several plants as a part of their defense against pathogenic infections and invasions [5,6]. In spite of soil supplementation, low-dimensional sulfur particles have shown considerable antimicrobial potential with regard to various fungal (F. solani, V. inaequalis, A. brasiliensis, C. utilis, etc.) and bacterial (P. aeruginosa, S. aureus, etc.) species and show considerable promise for use as a broad-spectrum pesticide [7,8]. Furthermore, field resistance to elemental sulfur has not been reported, as it has multimodal action that targets multiple sites in phytopathogens [7,9]. Active research focused on the development of new materials based on sulfur nanoparticles with anti-infectious properties is a particular area of study in the modern science of nanodispersed materials. A number of different methods of synthesis of sulfur nanoparticles have been reported in the literature, such as electrochemical methods [10], water–oil microemulsion [11,12], eggshell membrane templating [13], heating sublimed sulfur and polyethylene glycol-200 [14], chemical precipitation [15], the supersaturated solvent method [16], the surfactant-assisted route [17,18], liquid phase precipitation [19], H₂S reduction by iron chelates in W/O microemulsion [20], and ultrasonic treatment of sulfur-cystine solution [21]. These methods have many disadvantages due to difficulties in scaling up such processes, separation and purification of nanoparticles from the microemulsion, having multistage synthetic processes, and the use of various inorganic and organic acids which requires multiple treatments and which could potentially incur significant harm to human health when using poisonous gases such as hydrogen sulfide.

Polyelectrolytes (PELs), surfactants, and their mixtures are ubiquitous in nature and technology due to their unique properties and versatile functionality. This combination offers synergistic effects that enhance performance in different formulations [22]. When combined, surfactants and polymers can enhance each other’s performance and indeed provide additional benefits; for instance, surfactants can improve the dispersibility of the particles, while polymers can contribute to the stability and rheological properties of the suspension. Such combinations are often used in formulations such as emulsions, gels, coatings, and flocculants. Overall, the synergy between surfactants and polymers offers a wide range of applications and benefits, making them valuable components in many industrial and consumer products [23].

Nanoparticles, defined as particles with dimensions in the nanometer scale, have garnered significant attention due to their unique physical, chemical, and biological properties, which differ markedly from their bulk counterparts. Their potential applications span various fields, including medicine, electronics, environmental science, and materials engineering.

Recent advances in nanoparticle research are extensively covered in the review article “Nanoparticles: From Synthesis to Applications and Beyond”, published in Advances in Colloid and Interface Science (May 2022, Volume 303, 1–12). This comprehensive review provides an in-depth analysis of contemporary methods for synthesizing nanoparticles, emphasizing the importance of modifying particle size, shape, and surface characteristics to achieve desired functionalities. It explores various synthesis techniques, including chemical vapor deposition, sol-gel processes, and biological methods, highlighting the advancements in each approach.

The novelty of this work lies in the use of polyelectrolyte–surfactant mixtures (NaCMC-SDBS and PHMG-CTAB) for the synthesis of FSPs, which has not been widely explored. Additionally, the antibacterial activity and non-cytotoxic nature of these nanoparticles suggest potential applications in agriculture and medicine, highlighting the significance of this study.

Advancing from foundational work, our study focuses on the influence of PSMs on the size and stability of FSPs. We investigate how different concentrations of polyelectrolytes, when added to a surfactant at its optimal concentration, affect the properties of sulfur particles. By integrating recent advancements and exploring specific interactions in our synthesis approach, we aim to contribute to the ongoing development and optimization of nanoparticle systems for various applications. A method for obtaining FSPs through mechanical and ultrasonic grinding is presented. FSPs were obtained by modifying the surface of sulfur with various PSMs, including NaCMC-SDBS (FSPs-1) and PHMG-CTAB (FSPs-2). The synthesized FSPs were characterized using various analytical techniques. The antibacterial activities of the synthesized FSPs were assessed using different cell lines, and the in vitro cytotoxicity of the studied FSPs-1 and FSPs-2 against normal (MeT-5A) and tumor (MCF-7) human cell lines was evaluated in the concentration range of 500 μg/mL to 0.12 mg/mL.

The novelty of this work lies in the use of PSMs (NaCMC-SDBS and PHMG-CTAB) for the synthesis of FSPs, which has not been widely explored. Previous studies have demonstrated that polyelectrolytes and surfactants can significantly enhance the stability and dispersibility of nanoparticles, leading to improved performance in various formulations [24,25]. Additionally, the antibacterial activity and non-cytotoxic nature of these nanoparticles suggest potential applications in agriculture, and the use of sulfur nanoparticles as a broad-spectrum pesticide could offer significant advantages over traditional chemical pesticides given their low toxicity and ability to target multiple sites within phytopathogens, reducing the likelihood of resistance development [26]. Recent research indicates that sulfur nanoparticles can effectively control fungal pathogens like Fusarium solani and Verticillium inaequalis, which are responsible for substantial crop losses [27].

In the medical field, the antibacterial properties of FSPs open avenues for their use in wound healing and infection control, especially in the context of antibiotic resistance. Studies have shown that sulfur nanoparticles exhibit significant antibacterial activity against a range of pathogens, including Staphylococcus aureus and Pseudomonas aeruginosa [28,29]. Their biocompatibility and non-cytotoxic nature make them promising candidates for developing novel therapeutic agents that can mitigate infections without adversely affecting human cells [30].

In summary, this study not only advances the understanding of polyelectrolyte–surfactant interactions in the synthesis of sulfur nanoparticles but also highlights the potential for these materials in agricultural and medical applications, thus underscoring the significance of our findings.

2. Materials and Methods

2.1. Materials

Sulfur, molecular weight 32.06 g/mol (98%, GOST 127.1, Tengizchevroil, Atyrau, Kazakhstan), cetyltrimethylammonium bromide (CTAB, MW 364.45 g/mol), and sodium dodecylbenzene sulfonate (SDBS, MW 348.48 g/mol) were purchased from Sigma-Aldrich (St. Louis, MO, USA, ≥99%), whilst sodium carboxymethyl cellulose (NaCMC, 99%, MW 250000) was purchased from Tianjin Heowns Biochem. LLC., (Tian Jin, China), and polyhexamethylene guanidine hydrochloride (PHMG-HCl, MW 533.03 g/mol) from Quzhou Ebright chemicals. Co., Ltd. (Quzhou, China).

2.2. Preparation of Sulfur Nanoparticles

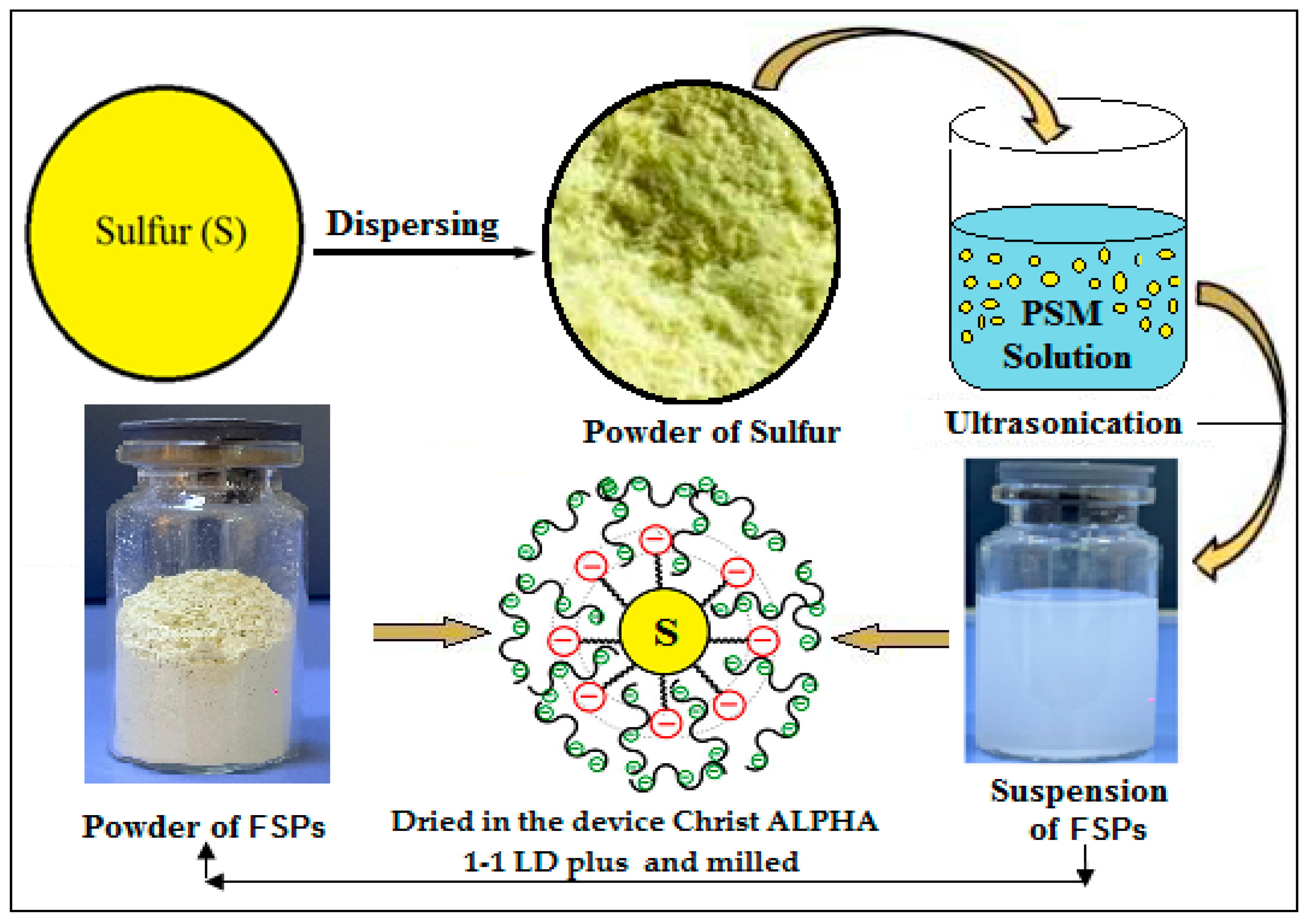

Preparation of FSPs was carried out in two stages. In the first stage, 10 g of crystalline sulfur was milled in an Ultra Centrifugal Mill ZM 300 (Retsch, Haan, Germany) for 3 min. The milling was performed at a speed of 20,000 rpm, with the temperature of the mill chamber maintained at approximately 25 °C. The size of the sulfur powder grains was in the range of 5–60 microns. In the second stage, the milled sulfur powders were dispersed into 100 mL of PSM aqueous solution and ultrasonicated (Sonopuls, Bandelin Electronic UW 200, Berline, Germany) for 10 min at an amplitude of 60%, which corresponded to an energy input of 367 J/cm³. On/off pulses of 2/2 s were used to reduce heat generation. The suspension temperature after treatment was about 50 °C. Then, the crushed sulfur was dried in a Christ ALPHA 1-1 LD plus (Osterode am Harz, Germany) freeze dryer at −50 °C to −60 °C under a vacuum of 0.1 mbar for 24 h, and the experiment was replicated three times. After drying, the samples were milled again using the Ultra Centrifugal Mill ZM-300 for 1 min. So, the samples indeed undergo a second milling step after the drying process to achieve the desired particle size and consistency.

2.3. Characterization

The surface charge of FSPs was evaluated via zeta potential and particle size using the dynamic light scattering (DLS) method using a Photocor Compact-Z (Fotokor LLC, Moscow, Russia). The UV–vis electronic absorption patterns of the FSPs were examined in the range of 190–1100 nm using a LAMBDA-35 UV–vis spectrophotometer (PerkinElmer, Shelton, CT, USA) to confirm the formation of FSPs. The thermal stability of the FSPs was evaluated using a TG/DSC (STA 449 F1 Jupiter, NETZSCH, Berline, Germany). About 10 mg of each sample in a standard aluminum pan was heated from room temperature to 600 °C at a heating rate of 10 °C/min under a nitrogen flow rate of 50 cm³/min. Derivatives of TG/DSC were determined using the central finite difference method. The X-ray diffraction patterns of FSPs were investigated using an XRD diffractometer (PANalytical X’pert Pro MRD Diffractometer, Amsterdam, The Netherlands). The spectra were recorded using Cu Kα radiation (wavelength of 0.1541 nm) and a nickel monochromator operated at a voltage of 40 kV and a current of 40 mA at diffraction angles in the range of 2θ = 5–80° at a scanning speed of 0.4°/min. The morphologies, such as size and shape, of the FSPs were evaluated using scanning electron microscopy (SEM). For this purpose, 10 μL of FSPs water suspension was applied dropwise onto a carbon-coated copper grid and allowed to dry, the morphological image of which was recorded using a Quanta 3D 200i (FEITM (Amsterdam, The Netherlands)) operated at an accelerating voltage of 30 kV. Elemental analysis of the FSPs was performed using energy-dispersive spectroscopy (EDS) as part of an SEM instrument (Quanta 3D 200i (FEITM)).

2.4. Test Strains

Antimicrobial properties of FSPs were tested against the following microorganisms: Gram-positive bacteria: S. aureus (ATCC 6538-P), E. faecium (ATCC 700221). Gram-negative bacteria: E. coli (ATCC 8739), P. aeruginosa (ATCC 9027), A. baumannii (ATCC 1790), K. pneumoniae (ATCC 10031). Yeasts: C. albicans (ATCC 10231), C. utilis. Fungus: A. brasiliensis (ATCC 16404).

All test strains were obtained from the American Type Culture Collection (ATCC). Stock cultures were maintained at −80 °C in low-temperature storage. Before conducting the experiments, bacterial test strains were cultivated and passaged twice on Muller–Hinton Agar, while yeasts and fungi were cultivated on Sabouraud Dextrose Agar, according to ATCC guidelines. The bacterial cells were incubated at 37 °C for 18–24 h, yeasts at 24–26 °C for 24–48 h, and fungi at 25 °C for 2–11 days.

2.5. Test System

The cytotoxicity of FSPs assays was evaluated in two different types of human tumor cell lines, MeT-5A and MCF7.

The MeT-5A cell culture consists of SV40-transformed human mesothelial cells. The cells effectively proliferate at a concentration of 1 × 10⁵ cells/cm², reaching 100% growth within two to three days of cultivation. The culture medium used is RPMI-1640 medium supplemented with 10% FBS. The MCF7 cell culture is a line of human breast adenocarcinoma. The MCF7 line retains some characteristics of differentiated mammary epithelium, including the ability to process estradiol via cytoplasmic estrogen receptors and express the oncogene WNT7B. These cell lines are intended solely for scientific laboratory research. The cells effectively proliferate at a concentration of 1 × 10⁵ cells/cm², reaching 100% growth within two to three days of cultivation. The culture medium is RPMI-1640 medium supplemented with 10% fetal bovine serum. The cells are cultivated under the following conditions: 37 °C, 5% CO₂, and 95% humidity. Viability after cryopreservation is ≥90% (staining with trypan blue before cultivation). The source of the cell culture is ATCC.

2.6. Antibacterial Activity of FSPs

2.6.1. Preparation of Inoculum

Bacterial Inoculum Preparation

The bacterial inoculum was prepared using a direct suspension method. Using a bacteriological loop, similar colonies from a 24 h test culture grown on solid nutrient media were selected and transferred to a test tube containing sterile saline. The mixture was carefully homogenized, and the optical density was measured. The bacterial cell density was adjusted to 0.5 McFarland units, which corresponds to a cell concentration of approximately 1.5 × 10⁸ CFU/mL.

Yeast Inoculum Preparation

The yeast inoculum was also prepared using a direct suspension method. Five colonies of a 24 h cultivated test strain, approximately 1 mm in diameter, were taken from the agar medium and suspended in sterile saline. The mixture was vortexed for 15 s, after which the optical density of the cell suspension was measured. The yeast cell density was adjusted to 0.5 McFarland units, which corresponds to a cell concentration of approximately 1.0–5.0 × 10⁶ CFU/mL.

Fungi Inoculum Preparation

Aspergillus conidial inoculum suspensions were prepared from well-sporulated cultures grown on Sabouraud dextrose agar for 3–7 days, following CLSI guidelines. For this purpose, the test strain was suspended in saline and measured spectrophotometrically at a 530 nm wavelength to achieve approximately 81% transmittance. The inoculum concentration was adjusted to 10⁶ CFU/mL, corresponding to a turbidity that ranged from 0.4 to 0.7 McFarland standards [31,32,33,34].

2.6.2. Procedure of Antimicrobial Testing

The antibacterial and antifungal properties of FSPs were assessed using the agar well diffusion method. The procedure adhered to the standard protocols for disk diffusion assays. Each test strain’s inoculum was adjusted to the required cell concentration and spread onto the surface of the test medium, followed by drying at room temperature for approximately 20 min. Next, wells with a diameter of 6 mm were made in the inoculated agar with a sterile cork borer. Into each well, 100 μL of the sample (hydrophilic sulfur nanoparticles) was added, with a nanoparticle concentration of 10 mg/mL. Sulfur at the same concentration (10 mg/mL) served as a reference.

All test plates were incubated at 35 °C according to CLSI guidelines. Antimicrobial activity results were recorded by measuring the inhibition zones (in millimeters) after incubation periods of 18–24 h for bacteria, 24–48 h for yeasts, and 3–7 days for fungi.

2.7. Determination of Cytotoxicity of FSPs In Vitro

The investigated FSPs-1 and FSPs-2 were provided at a concentration of 1 mg/mL diluted in dH₂O. The investigated substances were added once to wells containing cell suspensions of tumor cell lines at the following concentrations: 500.0, 250.0, 125.0, 62.5, 31.25, 15.63, 7.81, 3.91, 1.95, 0.98, 0.49, and 0.24 µg/mL. Each dilution was used in triplicate. RPMI-1640 medium was used as a diluent. The duration of exposure of the investigated substances to the tumor cell lines was 48 h in a CO₂ incubator. Cells without the addition of the investigated substances were used as a negative control.

The arithmetic average of the optical density (Y) for the negative control was calculated via Equation (1):

$$\overline{ Y}={\displaystyle \frac{y_1+...+y_n}{n}}={\displaystyle \frac{1}{n}}\sum _{i=1}^n{y}_i$$

(1)

where $Y_i$ is the measurement of the optical density (OD) of each object of the group and n is the number of objects in the group.

The percentage of surviving cells for each repetition of each concentration of the test substance was calculated according to Equation (2):

$$\% Viability={\displaystyle \frac{Y_i}{{\overline{Y}}_{NC}}}\times 100\%$$

(2)

where Y_i is the OD measured for each group and $\bar{Y}$_NC is the arithmetic average OD ($\bar{Y}$) for negative control.

The standard deviation and a percentage of surviving cells were calculated for each test substance as per Equation (3):

$$StD=\sqrt{{\displaystyle \sum _{i=1}^n}{(Y_i-\overline{Y})}^2/(n-1)}$$

(3)

2.8. MTT Test

The method for determining the viability of cell cultures is based on the ability of living cells to convert the soluble yellow bromide 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium (MTT) into insoluble purple-blue intracellular formazan crystals. Non-viable dead cells do not possess this capability. Four hours before the end of exposure to the tested compounds, a solution of MTT at a concentration of 5 mg/mL was added to the cultured cells. The cells were then incubated for the remaining 4 h in a CO₂ incubator at 37 °C, 5% CO₂, and 95% humidity. After removing the culture medium, the formazan crystals were dissolved in 100 µL of DMSO for 10 min. The amount of formazan crystals increases in direct proportion to the number of viable cells. The optical density (OD) of the dissolved formazan was measured using a Sunrise RC.4 microplate reader (Tecan Austria GmbH, Salzburg, Austria) at a wavelength of 492 or 540 nm [35].

3. Results and Discussion

3.1. Effect of Surfactants on the Particle Size of Sulfur

It is well known that surfactants capable of adsorbing onto the surface of solid microcrystals reduce the surface tension at the solid/liquid interface and create two-dimensional pressure [36]. This, in turn, weakens intermolecular interactions, reduces aggregate formation, and increases the number of nanoparticles. This phenomenon is a good illustration of the Rehbinder effect [37]. We previously investigated the influence of the surfactants CTAB and SDBS on the particle sizes and zeta potentials of FSPs. The results indicated that the optimal surfactant concentrations were 0.36 mM for SDBS and 1.0 mM for CTAB [38].

In this study, we demonstrate how polyelectrolyte–surfactant complexes affect the size and stability of sulfur particles when different concentrations of polyelectrolytes are added to the surfactant (at optimal concentration). For the first time, the effects of adding two mixtures of polyelectrolyte and surfactants, NaCMC-SDBS and PHMG-CTAB, on the size distributions and zeta potentials of FSPs were investigated, the results of which are presented in

Table 1. Effects of different concentrations of NaCMC and PHMG polyelectrolytes on sizes and zeta potentials of FSPs.

Surfactant Type	Polyelectrolyte Type	Polyelectrolyte Concentration %	Particle Size (nm)	Zeta Potential (mV)
Anionic SDBS	Anionic NaCMC	0.001	183 ± 6.11	−21.38 ± 0.63
		0.01	178 ± 3.78	−27.28 ± 1.27
		0.1	182 ± 3.52	−31.33 ± 0.33
		0.25	190 ± 3.18	−38.90 ± 1.48
Cationic CTAB	Cationic PHMG	0.001	188 ± 4.23	28.45 ± 2.07
		0.01	175 ± 6.83	38.16 ± 0.42
		0.1	180 ± 4.26	53.00 ± 2.49
		0.25	183 ± 3.71	53.60 ± 2.57

. As shown in Table 1, the composition of 0.01% NaCMC-SDBS + Sulfur (FSPs-1) and 0.01% PHMG-CTAB + Sulfur (FSPs-2) represented the optimal polyelectrolyte concentrations in each instance, providing smaller particle sizes of 178 and 175 nm, respectively. The zeta potentials of these particles were approximately −27.28 mV and 38.16 mV, respectively, indicating that in the presence of the NaCMC-SDBS and PHMG-CTAB mixture, first, the polyelectrolytes adsorb onto the surface of the sulfur along with the surfactant, increasing the electrostatic repulsion force and reducing aggregate formation. The stabilization of FSPs is influenced by the effects of PSMs. The Helmholtz–Smoluchowski equation plays a crucial role in explaining the system’s stability [39,40]. Although the viscosity values for NaCMC-SDBS and PHMG-CTAB mixtures have not yet been experimentally determined, the stability of the system is directly linked to the zeta potential values. According to the Helmholtz–Smoluchowskin equation, the viscosity of the system is strictly proportional to the zeta potential, and increasingthese two values leads to decreasing, which, in turn, reduces particle aggregation (coagulation) and enhances stability. This process is depicted in Scheme 1.

3.2. UV–Visible Spectrophotometry of FSPs

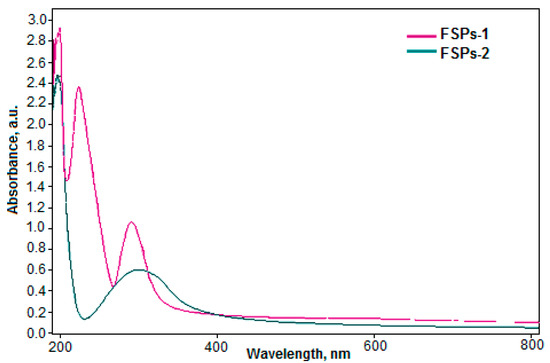

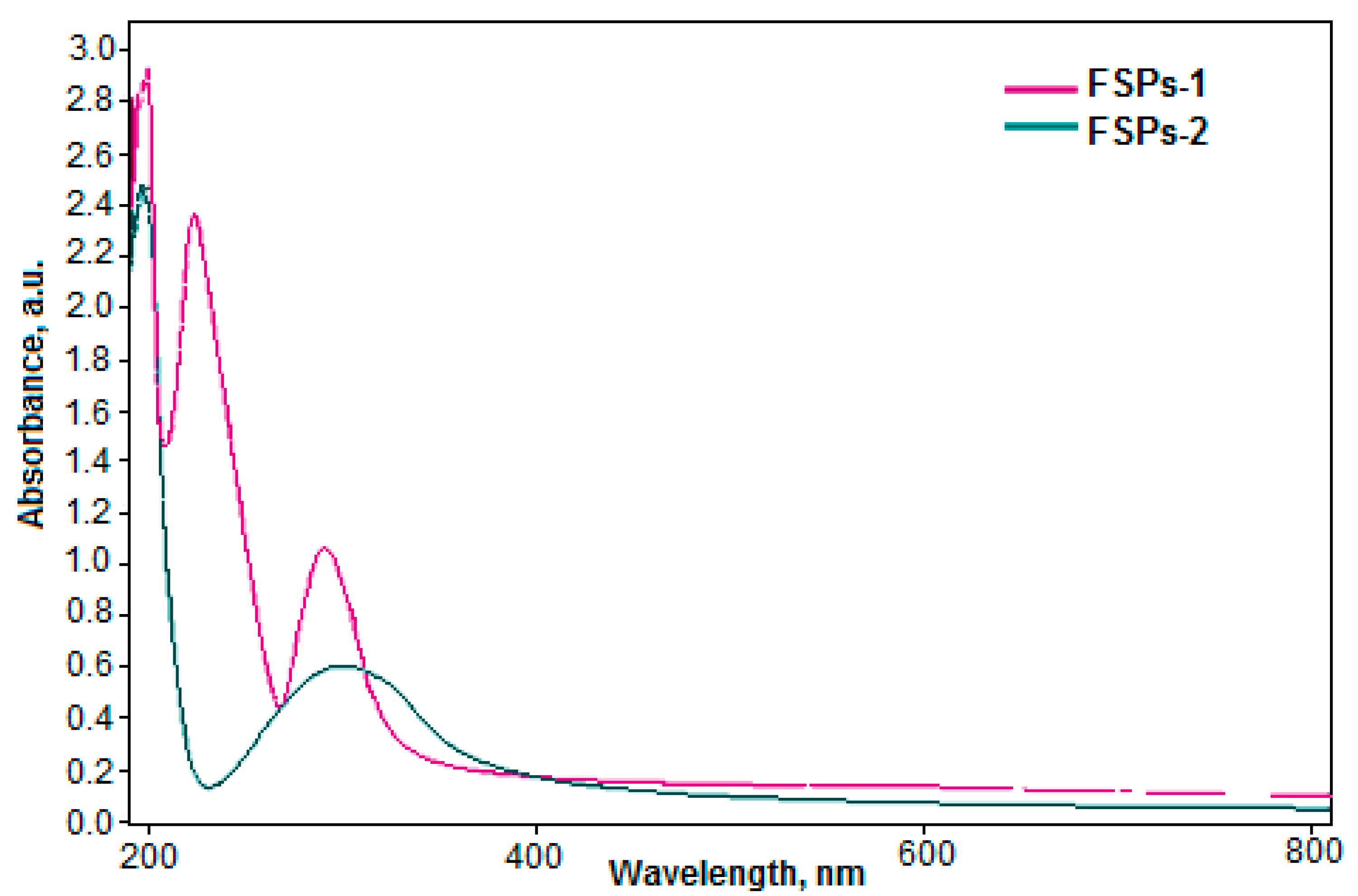

The progress with regard to the formation of FSPs synthesized from various PSMs was monitored using a UV–visible spectrophotometer in the range of 200–800 nm, as shown in Figure 1. The characteristic UV–visible peaks of FSPs-1 and FSPs-2 synthesized from NaCMC-SDBS and PHMG-CTAB were observed at 285 and 280 nm, respectively, indicating the formation of FSPs. Suryavanshi et al. [41] also found the maximum absorption peak of FSPs to be around 290 nm. The appearance of absorption peaks at 223 and 199 nm, characteristic of SDBS and CTAB, respectively, indicated the adsorption of surfactants onto the surface of the sulfur nanoparticles. This confirms the presence of surfactants in the structure of the obtained nanoparticles [42]. The absence of characteristic peaks of polyelectrolytes in the UV spectrum may be due to the low concentration of polyelectrolytes, as well as the presence of surfactants, which can mask the absorption peaks of polyelectrolytes in the UV spectrum [43].

3.3. Thermal Stability of FSPs

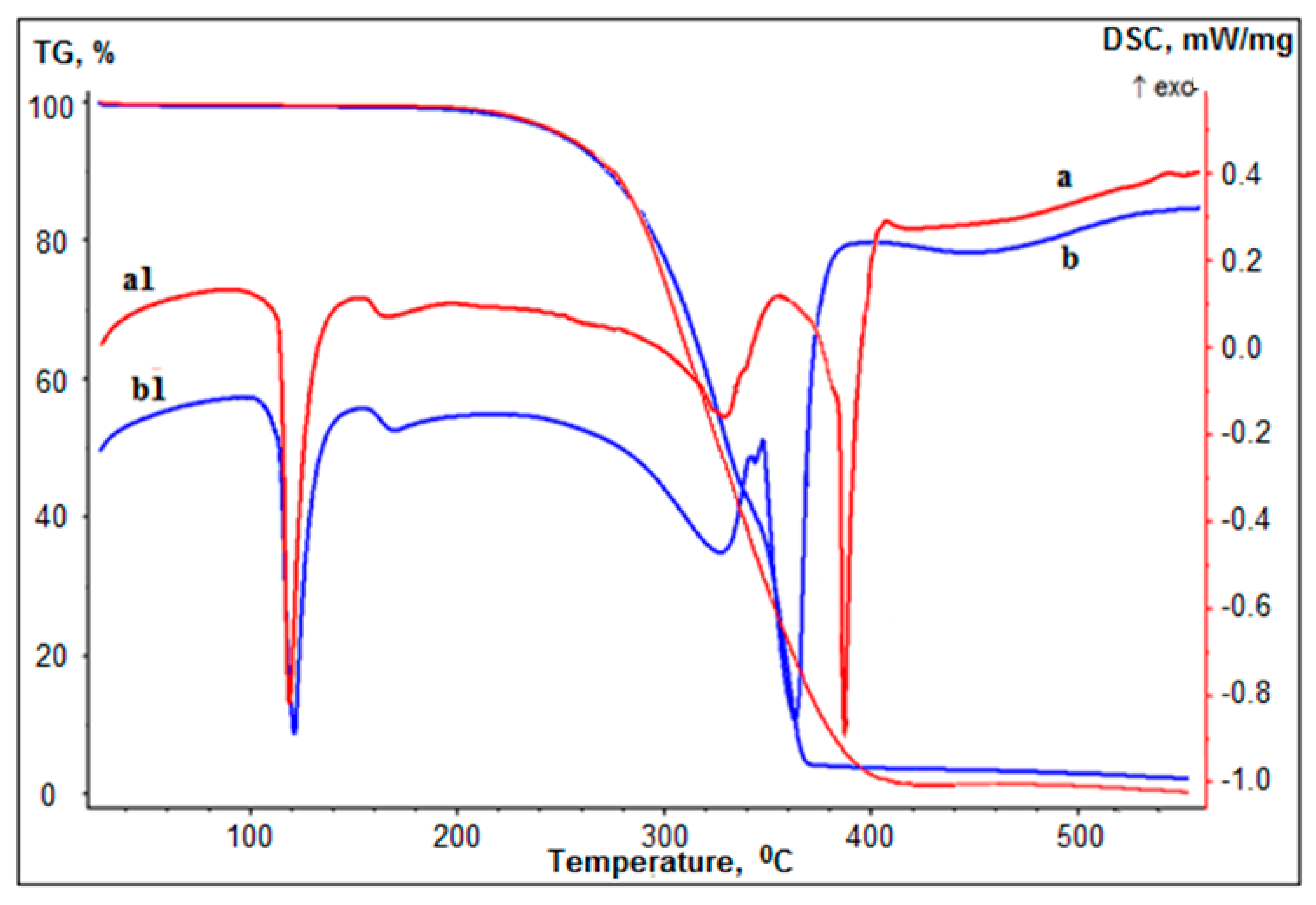

Figure 2 shows the TG/DSC thermograms of the FSPs at heating rates of 10 K min⁻¹. In the DSC curve, the endothermic peaks at around 100 and 121 °C can be, respectively, attributed to the transition of rhombic to monoclinic forms and the solid–liquid transition of FSPs. The endothermic peak at around 170 °C can be attributed to the polymerization of FSPs [44]. The endothermic peaks at around 300–400 °C can be attributed to the degradation of PSMs, indicative of the presence of a PSM on the surface of the FSP. The endothermic peaks at around 400–450 °C can be attributed to the strong volatilization of FSPs. In the TG curves in Figure 2, the obvious mass losses begin at about 250 °C, where the vapor pressure of sulfur is 13 mm Hg. The mass losses end at 378 °C for the curve associated with FSPs-1 and 385 °C for the curve associated with FSPs-2. Due to the volatilization of sulfur, 100% mass loss is achieved before its melting point is achieved. The char content after 400 °C was between 3.25 and 4.13% of the initial weight, which indicated that the FSPs are thermostable, as their degradation was not complete over the tested temperature range.

3.4. XRD Analysis of FSPs

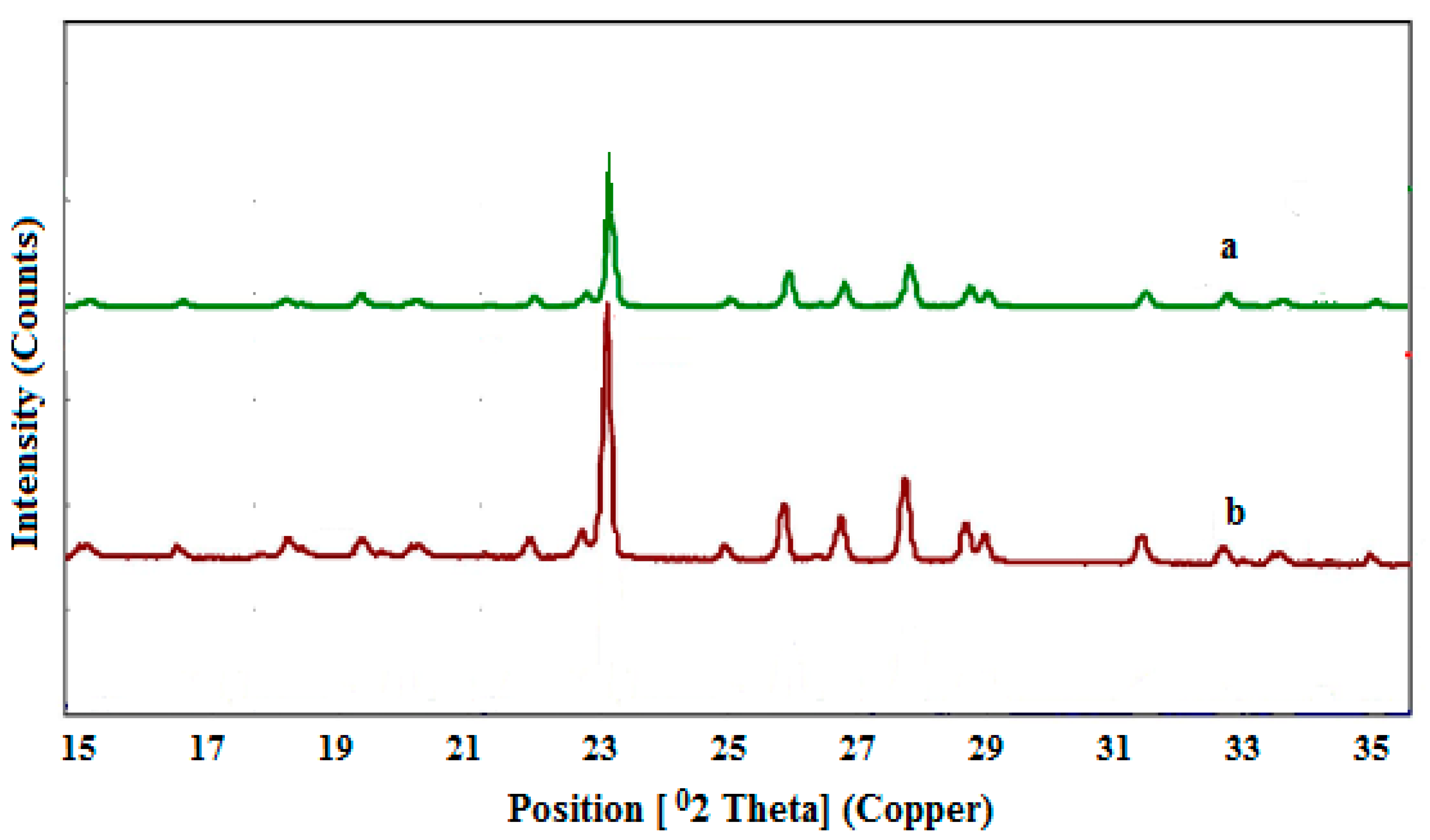

The XRD analyses of FSPs-1 and FSPs-2, as shown in Figure 3, revealed diffraction peaks corresponding to orthorhombic α-sulfur with an S8 molecular structure (JCPDS PDF No. 74-1465). Characteristic peaks were observed at 2θ values of 21.47°, 22.18°, 23.23°, 23.37°, 25.19°, 26.41°, and 27.63°, consistent with the literature and reference standards [11]. These results confirm that the synthesized FSPs maintain their crystallographic integrity and match known sulfur phase diffraction patterns.

SDBS typically shows broad diffraction peaks, indicating a semi-crystalline or amorphous nature [45,46]. CTAB, on the other hand, displays distinct crystalline peaks at around 2θ values of 21–22°, attributed to its lamellar structure [47,48]. NaCMC and PHMG-HCl generally show broad amorphous peaks in the range of 20–23°, reflecting the lack of a well-defined crystalline structure [49,50]. Therefore, when surfactants such as SDBS, CTAB, NaCMC, and PHMG-HCl are used at low concentrations during the synthesis of sulfur nanoparticles, their amorphous nature or low quantity does not significantly affect the dominant sulfur crystalline structure. As a result, distinct diffraction peaks do not appear in the XRD patterns.

3.5. SEM Analysis of FSPs

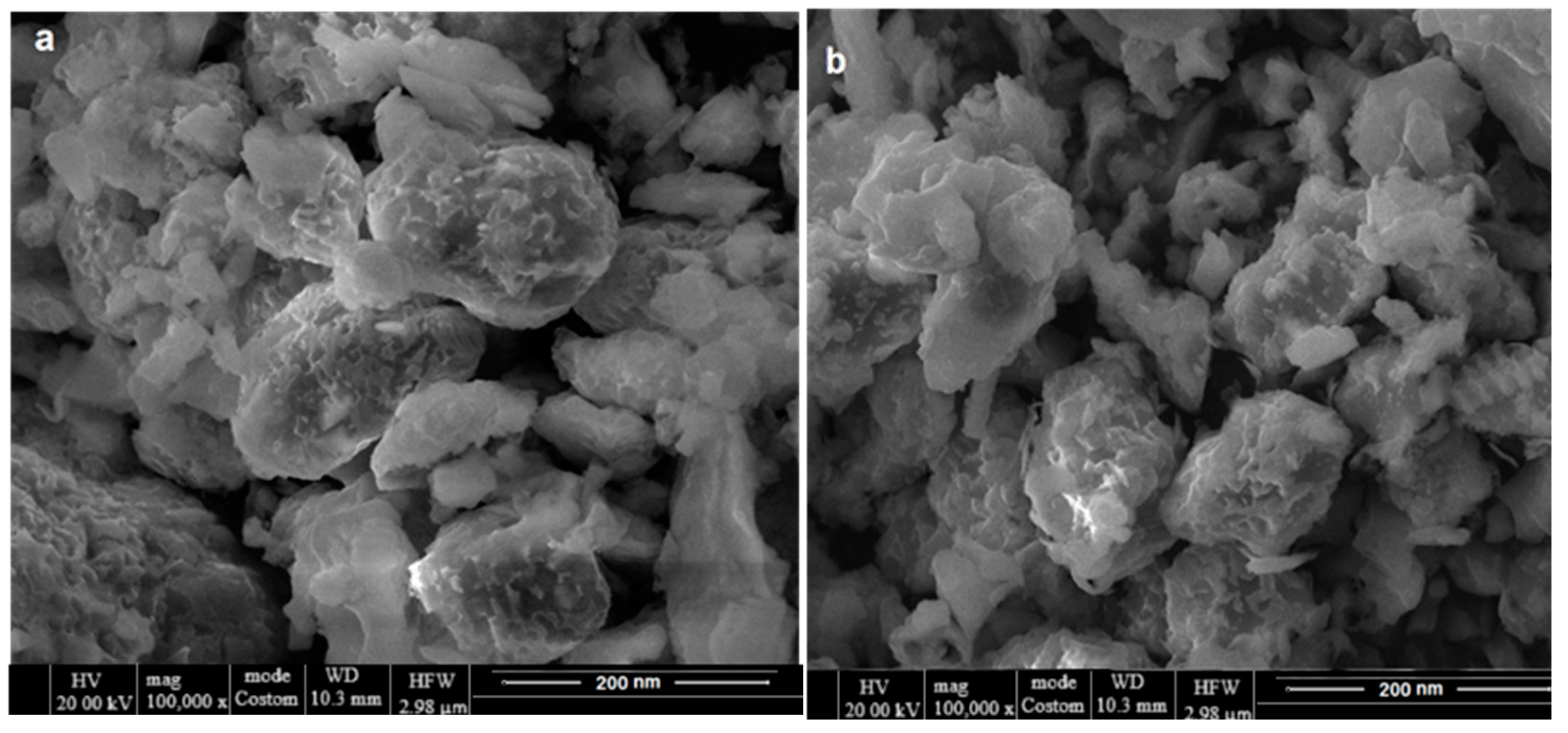

Figure 4 shows the SEM images of FSPs-1 and FSPs-2 (Figure 4a,b). The SEM micrographs showed that FSPs-1 and FSPs-2 were granular to ellipsoidal in irregular shape with smooth surfaces, with the addition of either NaCMC-SDBS or PHMG-CTAB. The morphologies of FSPs have previously been investigated by Dop R.A. et al. [51], who found that they exhibited an ellipsoidal morphology with a mean diameter of 30 µm. The particle size of the FSPs observed in the SEM images was consistent with the results obtained from DLS experiments. The accumulation of small particles could be what led to the formation of large particles, the size of which ranged from 150 to 200 nm. The SEM images confirmed the influence of the polyelectrolyte–surfactant in terms of decreasing the size of the FSPs. Interestingly, there was no significant difference in the effect of cationic or anionic surfactants on their ultimate shape.

3.6. Elemental Analysis of FSPs

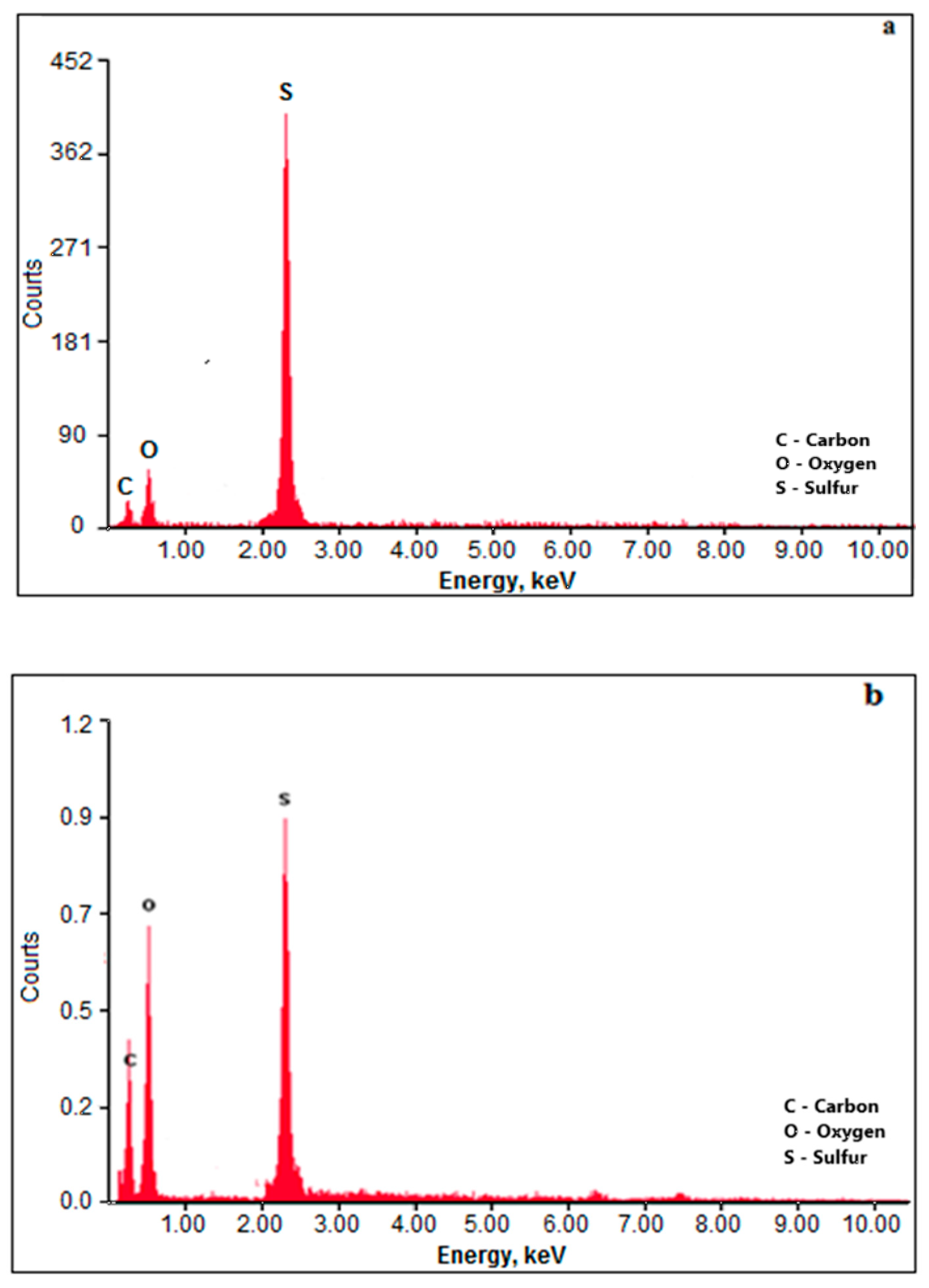

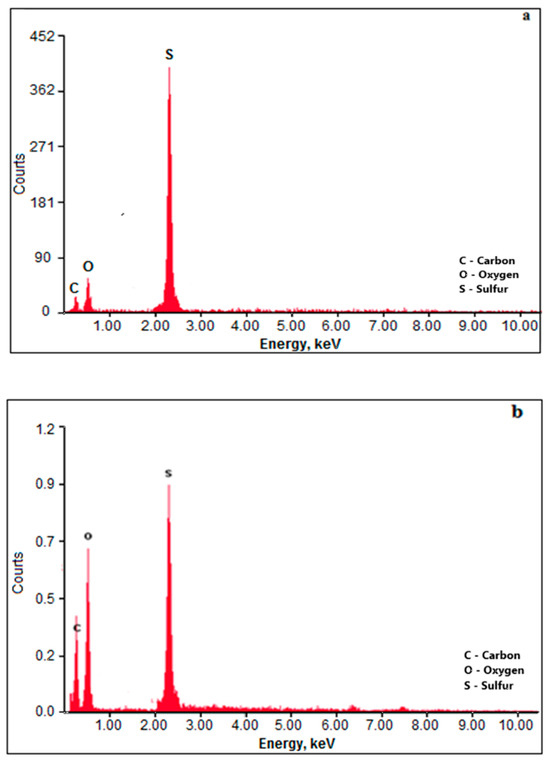

The atomic contents of the FSPs-1 and FSPs-2 were confirmed by EDX, the results of which are presented in Figure 5. The EDX spectra of FSPs-1 and FSPs-2 show peaks around 2.4 keV, confirming the purity of the FSPs. The studied samples contain 89.64% and 88.09% sulfur, low intensity 2.78% and 4.20% carbon. 3.77% and 8.85% oxygen peaks were found, indicating the capping of PSMs NaCMC-SDBS and PHMG-CTAB on the surface of FSPs. The absence of any other signal indicated that the prepared FSPs were of a high degree of purity.

3.7. Investigation of the Antimicrobial Potential of FSPs

The antimicrobial properties of FSPs have been assessed in this study. The results revealed that the FSPs particles efficiently suppressed the growth of test strains with variable potencies.

As shown in

Table 2. Antimicrobial activities of FSPs.

Microorganism	Zone of Inhibition, M ± StD, mm (According to CLSI)
	FSPs-1	NaCMC-SDBS	FSPs-2	PHMG-CTAB	Sulfur
Gram negatives
E. coli ATCC 8739	6.0 ± 0.0	6.0 ± 0.0	22.3 ± 0.58	6.0 ± 0.0	6.0 ± 0.0
P. aeruginosa ATCC 9027	6.0 ± 0.0	6.0 ± 0.0	6.0 ± 0.0	6.0 ± 0.0	6.0 ± 0.0
A. baumannii ATCC 1790	6.0 ± 0.0	6.0 ± 0.0	17.3 ± 2.3	6.0 ± 0.0	6.0 ± 0.0
K. pneumoniae ATCC 10031	6.0 ± 0.0	6.0 ± 0.0	18.0 ± 0.0	6.0 ± 0.0	6.0 ± 0.0
Gram positives
S. aureus ATCC 6538-P	20.0 ± 0.0	6.0 ± 0.0	17.7 ± 0.58	6.0 ± 0.0	6.0 ± 0.0
E. faecium ATCC 700221	19.7 ± 0.58	6.0 ± 0.0	21.7 ± 1.15	6.0 ± 0.0	6.0 ± 0.0
Yeasts
C. albicans ATCC 10231	7.3 ± 0.58	6.0 ± 0.0	30.7 ± 0.58	6.0 ± 0.0	6.0 ± 0.0
C. utilis	6.0 ± 0.0		51.3 ± 1.15	6.0 ± 0.0	6.0 ± 0.0
Fungi
A. brasiliensis ATCC 16404	14.7 ± 0.58	6.0 ± 0.0	35.3 ± 0.58	6.0 ± 0.0	6.0 ± 0.0

Note: meanings ≤ 6.0 ± 0.0 indicates the absence of antimicrobial activity.

(Figures S1–S3), sulfur particles FSPs-1 and FSPs-2 exhibited antimicrobial activity while pure PHMG-CTAB, NaCMC-SDBS mixtures and the control powder of sulfur samples did not show growth exhibition for all test strains taken into the experiment.

We detect antimicrobial activity of FSPs-1 against Gram positives S. aureus ATCC 6538-P with inhibition zone 20.0 ± 0.0 mm and E. faecium ATCC 700221 with inhibition zone 19.7 ± 0.58 mm, respectively. Moreover, the sample showed a zone of inhibition for the yeast C. albicans ATCC 10231 of 7.3 ± 0.58 mm. The antifungal effect of FSPs-1 wase showed against A. brasiliensis ATCC 16404, where it managed to have a 14.7 ± 0.58 mm inhibition zone. All the test results of the disk diffusion method indicated that FSPs-1 did not show antibacterial effect against the Gram-negative (E. coli ATCC 8739, P. aeruginosa ATCC 9027, A. baumannii ATCC BAA-1790, K. pneumoniae ATCC 10031) bacteria and Candida utilis yeasts cells.

The disk diffusion test results for Gram negatives showed that FSPs-2 did not show growth inhibition for P. aeruginosa ATCC 9027 but showed significant growth inhibition of E. coli ATCC 8739 (22.3 ± 0.58 mm), A. baumannii ATCC BAA-1790 (17.3 ± 2.3 mm), and K. pneumoniae ATCC 10031 (18.0 ± 0.0 mm) compared the antibacterial activity of FSPs-1.

FSPs-2 formulation showed characteristic antimicrobial activity against S. aureus ATCC 6538-P and E. faecium ATCC 700221, as shown in Table 2. Growth inhibition zones of S. aureus ATCC 6538-P and E. faecium ATCC 700221 were 17.7 ± 0.58 mm and 21.7 ± 1.15 mm, respectively. The strongest fungicidal efficacy of SNPs-2 was observed against C. albicans ATCC 10231 and C. utilis, with inhibition zones of 30.7 ± 0.58 mm and 51.3 ± 1.15 mm, respectively. The growth inhibition zone of A. brasiliensis ATCC 16404 was 35.3 ± 0.58 mm.

While the antimicrobial potential of SNPs has been acknowledged, there remains a scarcity of research evaluating their antibacterial effects. Choudhury et al. [4] recently demonstrated that nanosized sulfur exhibited antibacterial properties against both Gram-positive and Gram-negative bacteria, unlike elemental sulfur, which showed no such inhibition of bacterial growth. Conversely, Suleiman et al. [11] observed significant antibacterial activity of sulfur nanoparticles against the Gram-positive bacterium S. aureus, but not against E. coli. This can be explained by the fact that Gram-negative bacteria have an outer membrane [52], which creates a barrier that prevents or limits penetration of sulfur nanoparticles into the bacterial cell and may enhance self-aggregation between nanoparticles. In our study, we selected both Gram-positive and Gram-negative bacteria as test organisms and found that FSPs-1 exhibited no inhibitory effect against Gram negatives. FSPs-2, however, exhibited remarkable bactericidal effects against both Gram negatives and Gram positives, demonstrating exceptional antibacterial efficiency. The higher antibacterial activity of FSPs-2 compared to FSPs-1 may be attributed to the cationic surface charge of FSPs-2 due to the polyelectrolyte–surfactant mixtures. This positive charge potentially facilitates binding of FSPs-2 to the negatively charged bacterial cell membrane. Although the precise mechanism of action of FSPs remains unclear, it is theorized that they bind to the bacterial cell wall, leading to membrane rupture, cell lysis and, ultimately, cell death.

3.8. Cytotoxic Effects of FSPs In Vitro

The aim of this study was to investigate the in vitro cytotoxicity of the investigated substances FSPs-1 and FSPs-2 against normal (MeT-5A) and tumor (MCF-7) human cell lines. The substances were initially dissolved in distilled water at concentrations of 1 mg/mL, and for cytotoxicity testing, further dilution was performed with a culture medium in a 1:1 ratio. Cytotoxicity was evaluated in the concentration range from 500 µg/mL to 0.12 µg/mL. The quantitative assessment of the cytotoxic effect of the investigated substances was carried out using the MTT assay. The results of the study showed a dose-dependent decrease in the percentage of viable cells relative to the investigated substances, as depicted in Figure 6.

Table 3. Cytotoxic effects of the investigated substances FSPs-1 and FSPs-2 on normal and tumor human cell lines after 24 and 48 h exposure.

Test Substances	Cytotoxic Concentration 50 ± StD (µg/mL)
	24 h		48 h
	MeT-5A	MCF7	MeT-5A	MCF7

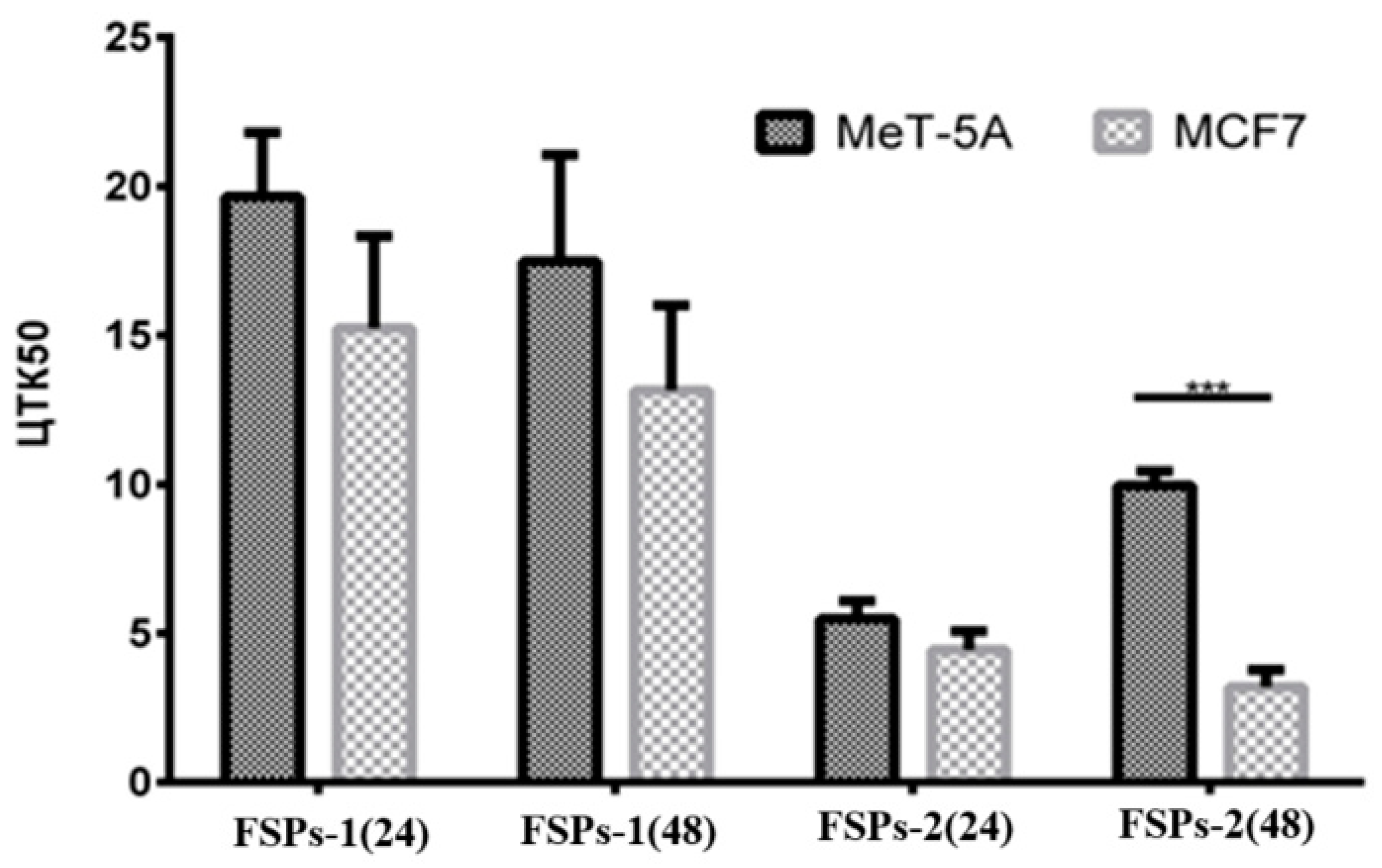

Substance FSPs-1	20.50 ± 2.13	15.06 ± 3.08	19.16 ± 3.51	14.26 ± 2.85
Substance FSPs-2	5.97 ± 0.59	4.55 ± 0.62	10.66 ± 0.48	3.14 ± 0.57
Doxorubicin	NA	0.087 ± 0.03	NA	0.058 ± 0.02

Note: average values from three independent experiments; NA—no activity.

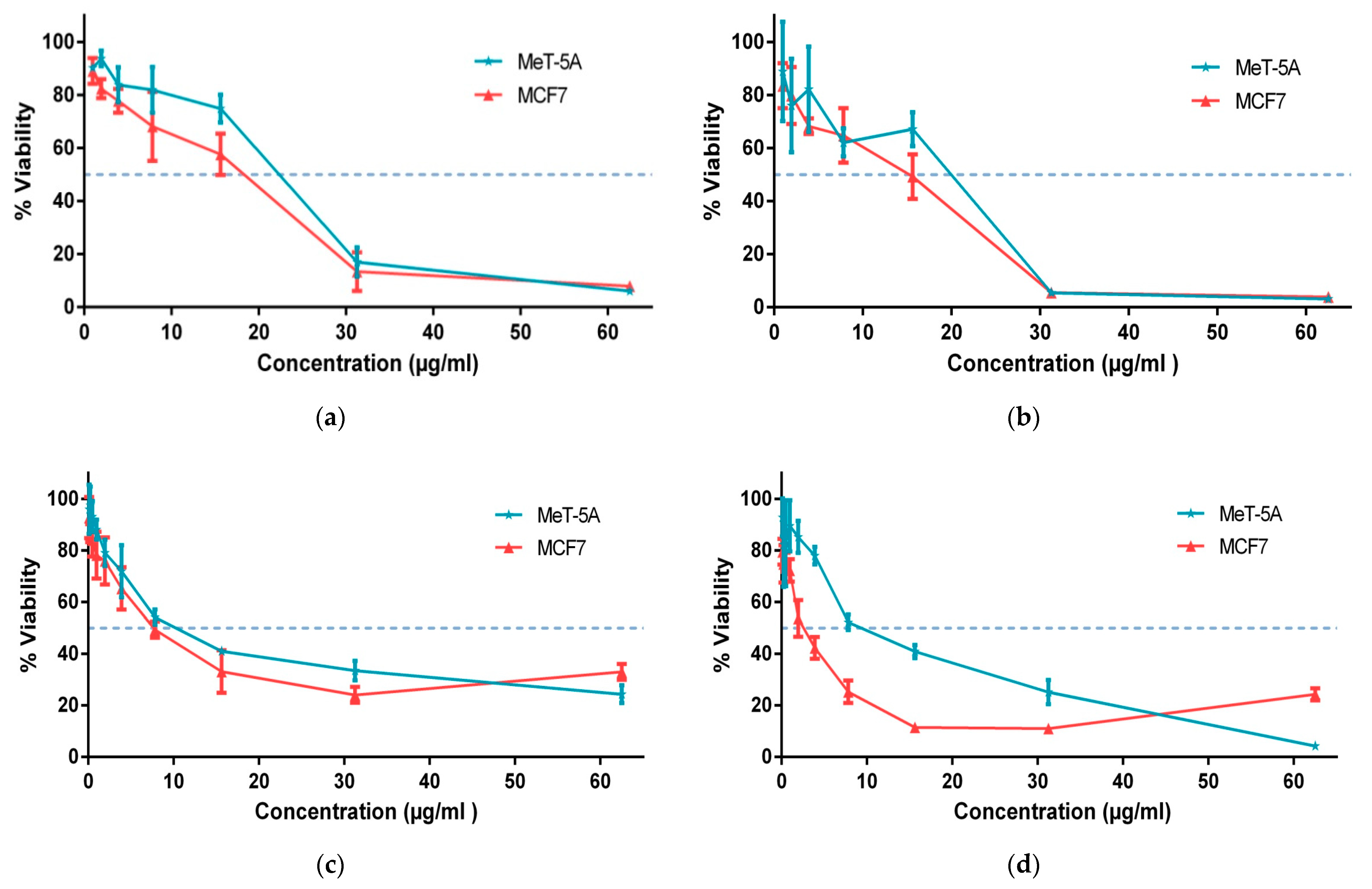

presents the half-maximal inhibitory concentrations (IC₅₀) for the investigated substances FSPs-1 and FSPs-2, as well as for the comparator drug, doxorubicin.

Based on the results obtained, it can be concluded that the investigated substances exhibit cytotoxic effects over a 48-h exposure period. After 48 h of exposure, the IC₅₀ were as follows: for FSPs-1 on MeT-5A, 19.16 µg/mL; on MCF7, 4.26 µg/mL; for SNPs-2 on MeT-5A, 10.66 µg/mL; and on MCF7, 3.14 µg/mL.

A comparative analysis of the IC₅₀s of the investigated substances, FSPs-1 and FSPs-2, was also conducted (Figure 7).

As evident from the obtained data, the investigated substances, FSPs-1 and FSPs-2, exhibit cytotoxic effects at different concentrations.

Analysis of the cytotoxicity of FSPs-1 showed that the introduction of the solution at concentrations of 19 µg/mL and 20 µg/mL led to moderate cytotoxicity, i.e., resulted in more than 50% cell death in the non-tumor cell line, MeT-5A, and, at concentrations above 14 µg/mL, exhibited moderate cytotoxicity towards the tumor cell line, MCF7. The cytotoxic effect on the tumor cell line showed no significant difference in comparison to the MeT-5A cell line.

Analysis of the cytotoxicity of FSPs-2 showed a cytotoxic effect on the non-tumor cell line, MeT-5A, at concentrations of 5 µg/mL, and on the tumor cell line, MCF7, at concentrations of 3 µg/mL and 6 µg/mL. Remarkably, statistical analysis of FSPs-2 data showed a significant cytotoxic difference towards the tumor cell line, which is 2.5 times lower than for normal cells.

It was established that FSPs-1 exhibits non-significant selective cytotoxicity towards the human tumor cell line, MCF7, while being minimally toxic towards the normal cell line, MeT-5A.

Summarizing the obtained data, it can be concluded that FSPs-2 possesses significant selective cytotoxicity towards the tumor cell line, MCF7, making this substance highly promising for further investigation.

4. Conclusions

The FSPs synthesized using NaCMC-SDBS and PHMG-CTAB surfactant mixtures demonstrated promising antimicrobial activity, particularly against Gram-positive bacteria, fungi, and yeasts. FSPs-1 showed specific inhibition towards Gram-positive bacteria and fungi, while FSPs-2 displayed broader antimicrobial potential, excluding a few Gram-negative bacteria. These results suggest that FSPs could be developed as antibacterial and fungicidal agents, with particular potential for agricultural and medical applications.

The feasibility of applying these nanoparticles lies in their simple and environmentally friendly synthesis, which makes them suitable for scaling up. However, challenges such as ensuring consistent particle size distribution and stability during large-scale production need to be addressed. Further optimization of the synthesis process could mitigate these issues, enhancing the reproducibility and cost-effectiveness of mass production.

Additionally, while the cytotoxicity studies indicated some selective action against tumor cells, further in-depth studies are required to explore this potential fully. Overall, the FSPs synthesized in this study offer significant potential for practical applications, but further research is necessary to optimize their performance and ensure safe, large-scale use.
