Review

Ecological and Wildfire Responses to Rapid Landscape Changes within the Last ~900 Years on the South Haven Peninsula, Dorset (Southern England)

by
Daniel Howlett
,
Sabine Wulf
*,
Scarlett Wharram
,
Mark Hardiman
and
Harry Byrne
School of the Environment, Geography and Geosciences, University of Portsmouth, Buckingham Building, Lion Terrace, Portsmouth PO1 3HE, UK
*
Author to whom correspondence should be addressed.
Quaternary 2022, 5(2), 27; https://doi.org/10.3390/quat5020027
Submission received: 11 February 2022 / Revised: 22 April 2022 / Accepted: 28 April 2022 / Published: 4 May 2022
Browse Figures
Versions Notes

Abstract

:
A multi-proxy palaeoenvironmental dataset (LOI, pollen, charcoal, grain sizes and the humification index) was extracted and radiocarbon dated from a sedimentary sequence from Spur Bog, central South Haven Peninsula (Dorset, southern England) to reconstruct ecological and environmental changes within the last ~900 years. These analyses reveal highly unstable environmental conditions at the site, evidencing the occurrence of multiple, often rapid changes during this period. The results significantly expand upon the existing palaeoenvironmental and geomorphological frameworks of the South Haven Peninsula which previously relied upon sparse, vague historical records prior to ~1750 AD. The multi-proxy dataset of Spur Bog sediments recorded a primary “development” phase (~1150–1470 AD) during which marine processes were the dominant control upon environmental conditions at the site, resulting in marked geomorphological changes that lead to the progressive eastward expansion of the South Haven Peninsula. This is followed by a secondary “maturation” phase (~1470–1880 AD) during which the Spur Bog sequence exhibits significant ecological changes in response to fluctuations in sea level, coastal erosion and human activity, demonstrating the vulnerability of the site to future climatic and anthropogenic pressures.

1. Introduction

Due to their sensitivity to rapid geomorphological and ecological changes [1,2], coastal environments are acutely vulnerable to the impacts of anthropogenic pressures and future climate uncertainty, such as sea level rise, coastal flooding and groundwater salinisation [3]. In addition, coastal environments are of significant socio-economic-ecological importance, presenting significant risks to environmental processes and human activities should these areas become destabilised [4,5]. The South Haven Peninsula, Dorset (southern-central England), supports numerous internationally important habitats, including Spartina salt marshes, sand dunes, wetlands, peat bogs and heathlands, resulting in substantial research focus upon the area [6,7,8,9,10]. Historical records reaching back to the late 16th century AD indicate rapid geomorphological changes in this area which were most likely accompanied by significant environmental changes, although the exact timings and driving mechanisms of which are currently uncertain.
Today, much of the South Haven Peninsula is a National Reserve and forms part of the Dorset Area of Outstanding Natural Beauty, which, due to its rich biodiversity, attracts millions of visitors each year. In response to the rapid geomorphological changes at the Peninsula and in light of current climate change, i.e., rising sea level and increasing storm frequency, a ‘Shifting Shores’ coastal change policy was launched by National Trust in 2005 in order to aid the recognition and planning of coastal properties in the Purbeck/Studland area, to ensure that continuing tourism does not impede upon the conservation of natural habitats [11]. One active management strategy is controlled burning to preserve heathland habitats near the study site [11].
The aim of this study is to provide quantitative evidence and a timeline for past geomorphological and ecological changes in response to rapid climate and environmental change by applying a multi-proxy approach (pollen, charcoal, humification, and grain sizes) on a sediment core from Spur Bog located on the south-central part of South Haven Peninsula. These results are critical for better understanding and facilitating the effective mitigation of the risks by the National Trust associated with future climate uncertainty and anthropogenic pressures in these regions.

2. Study Site

2.1. Location of Spur Bog and Geology of South Haven Peninsula

Spur Bog is an area of wetland situated on the south-western shore of the coastal freshwater lake ‘Little Sea’ on the South Haven Peninsula in Dorset, southern England (Figure 1). The site is located within the Studland and Godlingston Heath National Nature Reserve (SSSI) and managed by the National Trust. Presently, environmental conditions at the Spur Bog are that of an ombrotrophic lowland bog supporting wet acidophilus heath and shrubs. The Spur Bog is constrained by an area of Betula- and Pinus-dominated woodland to the south referred to as ‘Twelve Acre Wood’, whilst dry heathland of Spur Heath, the Little Sea and Ferry Road constrain the Spur Bog to the north, east and west, respectively.
The geology of the South Haven Peninsula is characterised by Palaeocene sedimentary rocks in the western part, specifically by the Broadstone Clays and overlying Parkstone Clays and Sands of the Eocene Poole Formation (formerly ‘Bagshot Beds’), which are locally overlain by Pleistocene fluvial terraces [12,13,14]. The geology of the central and eastern part of the Peninsula is entirely made up of young (>400 years) dune ridges (aeolian sand), beach sands and gravel deposits (Figure 1d).
The cliffs of the Poole Formation east of Bournemouth and in the south of Studland Bay (Figure 1c) are the main sources of material that have continuously supplied the accumulation of sand and gravel along the mostly wind-protected eastern shore of the South Haven Peninsula over the last >400 years [14,15]. Figure 1c (see below) depicts the main sediment transport processes within the Studland Bay area. The original coastline was located at the western shore of Little Sea, which is today marked by 6–9 m rises in elevation onto the Plateau Heath (Figure 1d) [14]. Though most of the South Haven Peninsula is sheltered from prevailing south-westerly winds and storms, some considerable erosion occurs at the southern shores of Studland Bay and at the northern end of the Peninsula (Figure 1c). Eroded sediments from the south are transported northwards along the shoreline (littoral drift that aligns with prevailing winds; yellow arrow in Figure 1c) and deposited in the north-eastern part of South Haven Peninsula, predominantly forming the long-term extension of the spit [11,16]. Seasonal weather fluctuations can furthermore initiate wave-driven sediments to be pushed up the beach (blue arrows in Figure 1c). These sediments are either supplied by strong tidal currents from Poole Harbour (red arrow in Figure 1c) or derive from cliff and dune erosion east of Bournemouth and at the northern tip of South Haven Peninsula (orange arrow in Figure 1c) [11]. Furthermore, sediment accumulation at the Peninsula also occurs by aeolian transport, forming dunes (green arrows in Figure 1c).
Quaternary 05 00027 g001 550

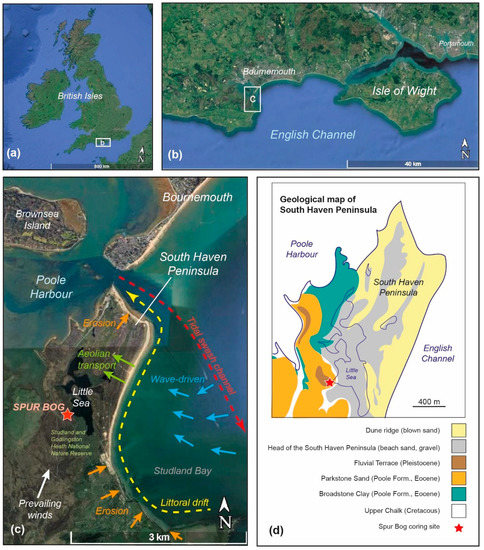

Figure 1. (a,b) Google Earth (2021) satellite images showing the study area in southern England. (c) Aerial image (Google Earth, 2021) of the South Haven Peninsula with the coring location at Spur Bog (red star). Coloured arrows indicate the main sediment transport processes in Studland Bay, based on the SCOPAC Sediment Transport Study [16], modified from [11]. (d) Geological map of South Haven Peninsula (modified from [14]).
Figure 1. (a,b) Google Earth (2021) satellite images showing the study area in southern England. (c) Aerial image (Google Earth, 2021) of the South Haven Peninsula with the coring location at Spur Bog (red star). Coloured arrows indicate the main sediment transport processes in Studland Bay, based on the SCOPAC Sediment Transport Study [16], modified from [11]. (d) Geological map of South Haven Peninsula (modified from [14]).
Quaternary 05 00027 g001

2.2. Historical Records of the Geomorphological Developments of South Haven Peninsula

The earliest surviving contemporary depictions of the South Haven Peninsula date to the late 16th and early 17th centuries AD [17,18,19,20,21] (Figure 2). These sources depict the presence of a long, thin peninsula extending north easterly across Poole Harbour, with little evidence of sediment build up further east than its present-day western shore and no reference to the presence of freshwater bodies such as the Little Sea [6] (Figure 2a,b). Although no scale is defined within these sources, it is likely that the width of the peninsula ranges from 700 yards (640 m) at its widest to the south and <300 yards (<275 m) at its narrowest point protruding into Poole Harbour, whilst the vegetation status of the peninsula at this time is thought to have been predominantly heathland [6].
Contemporary sources from the late 17th and early 18th centuries AD depict the formation of a wide, sandy beach along the eastern shore of the peninsula [24], whilst the development of additional dune ridges is noted behind Studland Beach and drainage channels running from the bay to an area shielded from Studland Bay by a thin sand bar protruding across the southern half of the inlet is evident in the work of [6,23] (Figure 2c). The aforementioned sand bar is approximated to be ~1000 yards (900 m) in length [6].

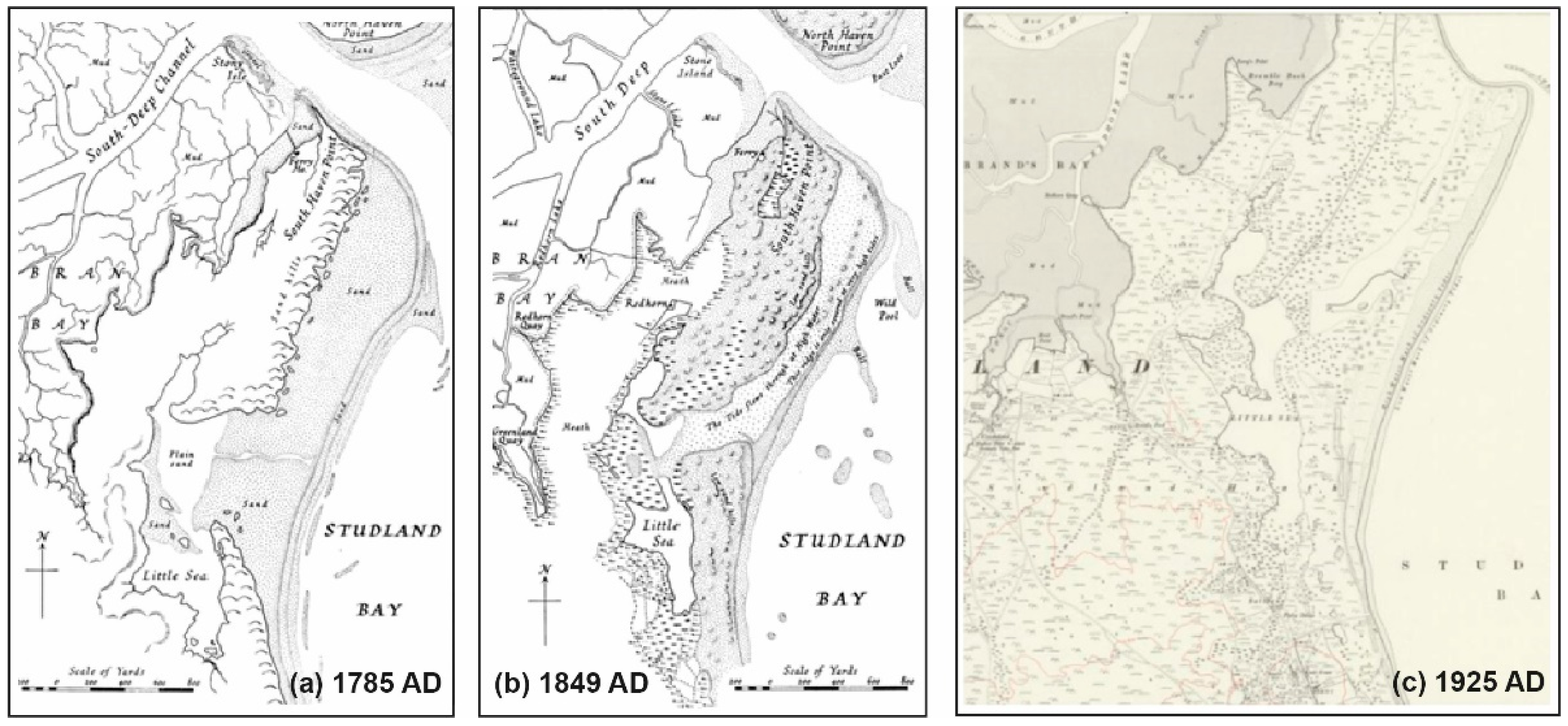

The development of this landform is further detailed during the late 18th century AD [25], by which time the beach had expanded eastward, becoming approximately half a mile (~800 m) wide [6] (Figure 3a). The system of drainage channels presented in the work of [6,23] appears to have developed into a lagoon, now referred to as ‘Little Sea’, which is noted to become inundated at high water due to the continued presence of drainage channels stretching from the lagoon into Studland Bay. The illustration by [26] of the South Haven Peninsula (Figure 3b) depicts further expansion of the South Haven Peninsula, including the development of an extensive dune system along the shore of the Little Sea and South Haven point. The expansion of these dune systems significantly encroaches upon Studland Beach, which is bisected by a sand ridge noted to be covered only at very high tide. The northern and southern halves of the Little Sea are split by a channel extending into Studland which facilitates tidal in-wash at high water, temporarily connecting these areas. Ecologically, the peninsula is characterised by dune environments in the west and heathland to the east, whilst marshland conditions are indicated around the Little Sea.
The study by Diver [6] notes significant geomorphological changes to the peninsula between the late 19th and early 20th centuries AD, including rapid erosion of the north-eastern tip of the peninsula, receding southward by 200 yards (180 m) between 1886 AD and 1924 AD (Figure 3c). In contrast, sediment accretion is noted along the eastern coast of the peninsula, resulting in eastward propagation out into Studland Bay by approximately 80 yards (72 m) during this time, attributed to the alteration of sediment transport pathways due to the construction of the Pier and coastal defences at Bournemouth [14]. Marked changes in environmental conditions are also noted within the interior of the South Haven Peninsula during this time, including in the reconnection of the northern and southern sectors of the Little Sea into a contiguous body of water totalling 35,400 m2 by 1912 AD [6,10]. This lake was completely isolated from marine in-wash as a result of the aforementioned eastward propagation of the peninsula’s eastern shore during the late 19th/early 20th centuries AD, with freshwater conditions (0.17 kg m−3 NaCl) established within the Little Sea by 1932 AD [6]. Meanwhile, the formation of a further water body on the peninsula a short distance eastward of the Little Sea, referred to as ‘Eastern Lake’, is also noted to have occurred between 1894 AD and 1900 AD (Figure 3c).
Geomorphological changes to the South Haven Peninsula throughout the mid/late 20th and early 21st centuries AD are well documented as a result of extensive aerial photography of the area in addition to the monitoring of sediment accretion/erosion rates and the conduction of various geomorphological and ecological surveys [6,10,28,29,30]. These records evidence significant erosion of the north-eastern shores of the peninsula, recorded to be 0.5 m yr−1 between 1933 AD and 1970 AD [31] and 0.4 m yr−1 between 1951 AD and 2001 AD [32], contrasted by records of rapid sediment accretion along the south-eastern shore of the peninsula—ranging between 2.15 and 4.3 m yr−1 (1936–1970 AD; [31]) and 1.12 to 2.43 m yr−1 (1963–1970 AD; [33]). The interior of the peninsula also evidences significant geomorphological changes throughout the 20th century AD, including marked degradation of the dune systems to the east of the Little Sea as a result of military exercises, the construction of coastal defences and high levels of footfall [10], whilst a significant amount of WW2 era ordnance was dumped into the Little Sea [11]. Presently, the South Haven Peninsula is threatened by the disruption of sediment supply associated with the construction of Bournemouth Pier in the early 20th century AD [14] and relative sea level rise in the region [9,34,35].

2.3. Material and Methods

Fieldwork included transect mapping and coring and was carried out on Spur Bog in June 2018. A south-easterly transect consisting of twelve sampling points approximately one metre apart from one another was carried out across the centre of the bog using an auger gouger (Figure 4).
Of these sampling sites, transect point 4 (N 50°39′31.248″, W 001°57′46.512″) yielded the deepest gouger depth (132 cm) and thus was targeted for coring. Five contiguous, 10 cm overlapping sediment cores were taken at this transect point using a Russian Peat Corer of 50 cm length and a 6 cm diameter. A contiguous composite profile, SPUR-A, of 129 cm length was constructed for the sequence, excluding truncation of the sequence at 0–7 cm and 10–17 cm due to waterlogging (Figure 5). The cores were photographed, and the sedimentology was described prior to processing for multi-proxy analysis (loss on ignition (LOI), charcoal, pollen, humification, and grain size).
The composite profile SPUR-A was sub-sampled (~1 cm3) contiguously at 1 cm resolution (with the exception of the truncated sections at 0–7 cm and 10–17 cm) to quantify sediment organic matter content, achieved via LOI. Samples were dried in an oven at 105 °C for 24 h, then combusted in a furnace at 550 °C for 2 h with mass loss recorded between each step to enable the calculation of organic matter.
The composite profile was additionally sub-sampled (~1 cm3) for pollen analysis to reconstruct vegetation changes at ~7 cm resolution between 23 cm and 128 cm, with sampling in the upper 23 cm sequence limited by a lack of suitable material. Sample preparation was achieved following the standard extraction technique of sieving and acid digestion [36]. Processed samples were then mounted on microscope slides, and all pollen grains (56–563 grains per sample; see Supplement Table S1) were quantified and identified under a Zeiss transmitted light microscope at 400× and 1000× magnification to the lowest taxonomic level possible by morphology following [37] and comparison against reference collections available at the Physical Geography Laboratory of the School of Environment, Geography and Geosciences, University of Portsmouth. Raw pollen counts were categorised according to vegetation type (e.g., arboreal, dwarf shrub, herb and aquatic) and converted into relative abundance values for each taxon. Relative abundance assemblages were plotted stratigraphically using the ‘Rioja’ (v. 0.9–21) package for RStudio (v. 3.6.1) [38]. Following this, correlation analysis was performed to determine statistical relationships between microcharcoal, macrocharcoal, pollen concentration and pollen taxa to reconstruct sediment influx and ecosystem fire response (see Supplementary Table S1).
Down-core macrocharcoal and microcharcoal concentrations, defined as >125 μm and <125 μm, respectively [39], were quantified to reconstruct local sediment influx and fire regime. The composite sequence was sub-sampled (~1 cm3) contiguously in 1 cm increments between 20 cm and 129 cm and (where possible) between 0 cm and 20 cm for macrocharcoal analysis, whilst microcharcoal analysis was carried out using samples prepared during the aforementioned pollen analysis. Samples prepared for macrocharocal analysis were sieved to remove material <125 μm, submerged in a sodium hypochlorite solution for five minutes, diluted and transferred to a gridded agar plate for counting. Counting was completed at low magnification (10–20×) using a stereoscope, with macrocharcoal concentrations expressed as a raw count of total observed fragments. To account for variability in macrocharcoal concentrations due to sediment deposition flux, sedimentation rates (cm yr−1) were applied to raw macrocharcoal concentrations cm−3, enabling the calculation of annual charcoal accumulation rates (CHAR, particles cm−2 yr−1).
Grain size analysis was carried out on detrital sediments of the composite profile contiguously between 109 cm and 128 cm at a resolution of 1 cm. Sub-samples of 1 cm3 were mechanically stirred in solution with deionised water and underwent laser diffraction analysis using a Malvern Mastersizer 3000 to quantify sediment grain sizes within each of the samples. The process was repeated on each sample three times, from which an average reading was calculated to reduce the effect of anomalous readings upon the dataset.
Humification analysis was limited to peat and organic-rich sections of the Spur Bog composite profile and undertaken at 10 cm resolution between the depths of 26 cm and 86 cm (Figure 5). The humification index (absorption value) has been obtained by using spectrophotometry, following the standard methodological process detailed in [40]. The measurement of each sample was repeated three times, from which an average absorbance value was calculated.
During sub-sampling of the composite profile for the aforementioned analyses, two plant macrofossils suitable for 14C dating were extracted from the sequence at depths of 51 cm and 109 cm, respectively. These samples were analysed using Accelerator Mass Spectrometry (AMS) at Beta Analytic, Florida (USA). The AMS radiocarbon ages returned from this analysis were calibrated against the IntCal20 curve [41], whilst an age-depth model was developed using Bayesian modelling with OxCal v4.4.4 [42] (Table 1, Figure 6).
Detailed information of the age-depth model and multi-proxy raw data are provided in Supplementary Table S1.

3. Results

3.1. Lithology

The composite profile SPUR-A is composed of clays, sands, silts, organic-rich sediments and peats (Figure 5). The basal sediments of the Spur Bog sequence (129–117 cm) consist of a beige-greyish claystone bedrock, identified as the Eocene Poole Formation—formerly ‘Bagshot Beds’ [12,13,14]. A sharp lithological boundary is visible at 117 cm, marked by the transition from claystone bedrock to brownish coarse sands and fine gravels which persist until 109 cm, where a diffuse transition towards brownish mixed silts and sands is noted. A second diffuse transition is noted at 88 cm from silts/sands to organic-rich sediments, followed by an abrupt transition to peats at ~62 cm depth. These peats persist throughout the remainder of the upper sequence with the exception of 17–10 cm and 7–0 cm, where the profile is truncated due to waterlogging.

3.2. Chronology

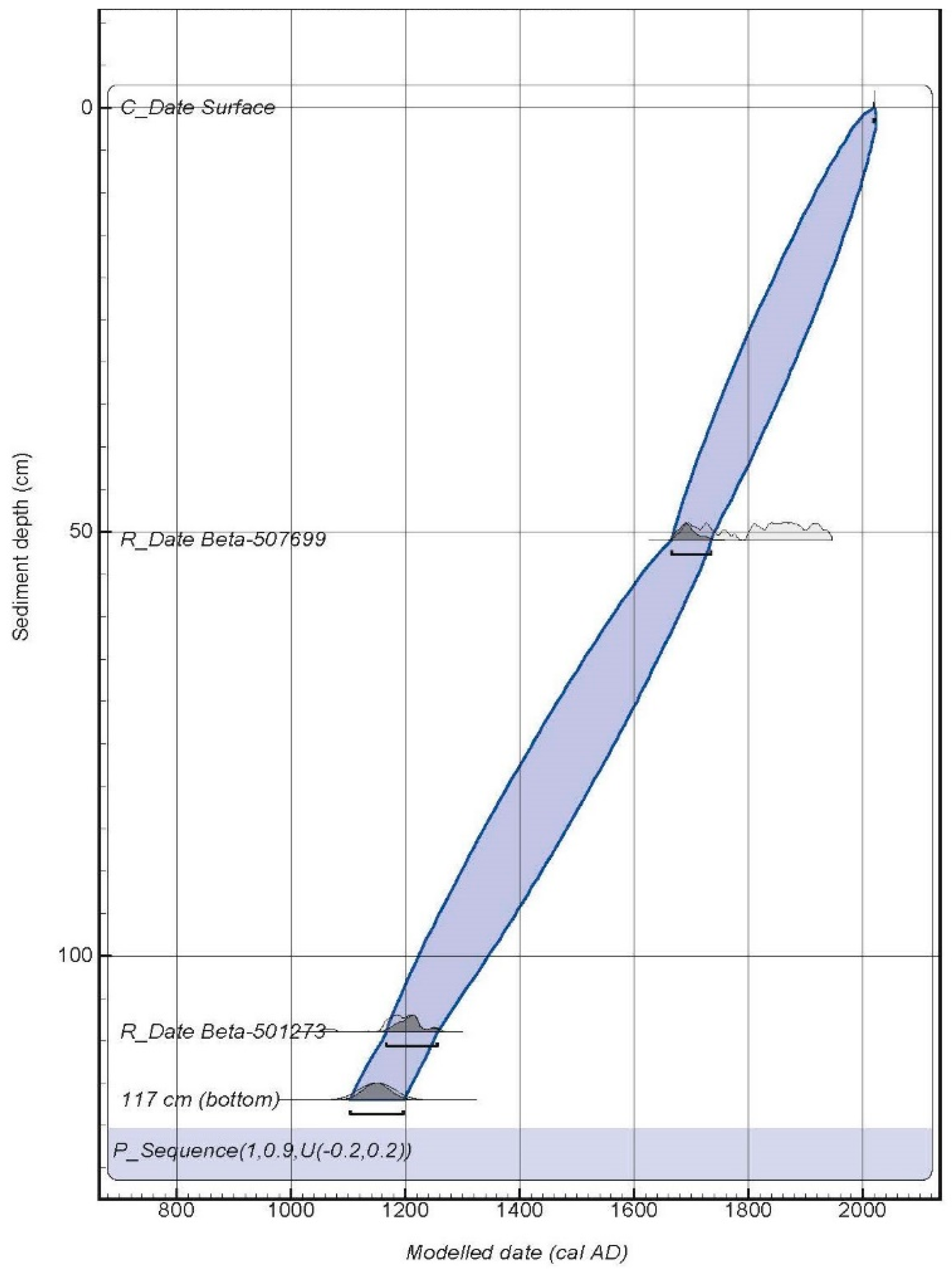

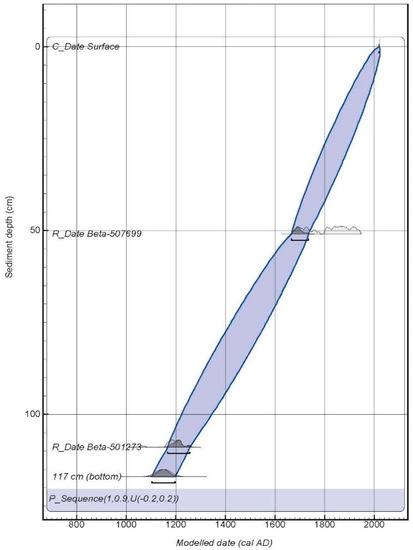

The chronological framework for the Spur Bog sequence is based on interpolation using the two AMS radiocarbon dates of 142 ± 133 cal BP (~1700 cal AD) and 798 ± 103 cal BP (~1210 cal AD) at 51 cm and 109 cm composite depth, respectively (Table 1). The constructed age model (Figure 6) indicates that the deposition of sediments upon the Eocene Bagshot Bed Formation at 117 cm depth at the site likely began during the late Holocene at ~900 cal BP (~1150 cal AD). However, this age model does not consider the lithological changes at 109 cm from silts/sand to sand/gravel and at 117 cm from sands/gravel to the Eocene clays and silts, and hence the modelled ages below 109 cm composite depth only represent rough estimates which require further confirmation. According to the age model, the transition from silts/sands to organic-rich sediments at 88 cm composite depth is dated at ~550 ± 100 cal BP (~1390 cal AD ± 100 years), continuing until the deposition of peats ~340 ± 100 cal BP (~1610 cal AD ± 100 years) until the present day.

3.3. LOI (Organic Matter Content)

LOI values within the basal Eocene clays (129–117 cm) are extremely low (<5%) and remain low (<10%) throughout the sand/gravel and silt/sand lithological layers within the lower sequence (117–88 cm depth, ~1150 to 1390 cal AD; Figure 6 and Figure 7). A slight increase in LOI values to 15% is evidenced following the transition from silts/sands to organic-rich sediments at 88 cm (~1390 cal AD; Figure 6 and Figure 7). LOI values increase steadily to 40% between 86 and 82 cm (~1400–1440 cal AD; Figure 6 and Figure 7), followed by an abrupt decrease to 14% between 82 and 80 cm (~1440–1455 cal AD; Figure 6 and Figure 7). At 79 cm (~1470 cal AD), LOI concentrations rebound quickly to 67% and remain relatively high (40–70%) throughout the remainder of the organic-rich sediment layer, with further peaks of 67–68% noted at 77–76 cm (~1480–1490 cal AD), 68 cm (~1560 cal AD), and 63 cm (~1600 cal AD; Figure 6 and Figure 7). A further abrupt increase in LOI values to 80% occurs in the sequence at 62 cm depth (~1610 cal AD; Figure 6 and Figure 7), corresponding to the lithological transition from organic-rich sediments to peats. LOI values are extremely high ~80–95% following this transition until 52 cm (~1610–1690 cal AD), before declining to 61% at 36 cm (~1800 cal AD; Figure 6 and Figure 7). LOI values increase once again throughout the peaty sediments, recovering to ~90% prior to truncation of the sequence at 17 cm (~1910 cal AD; Figure 6 and Figure 7).

3.4. Pollen

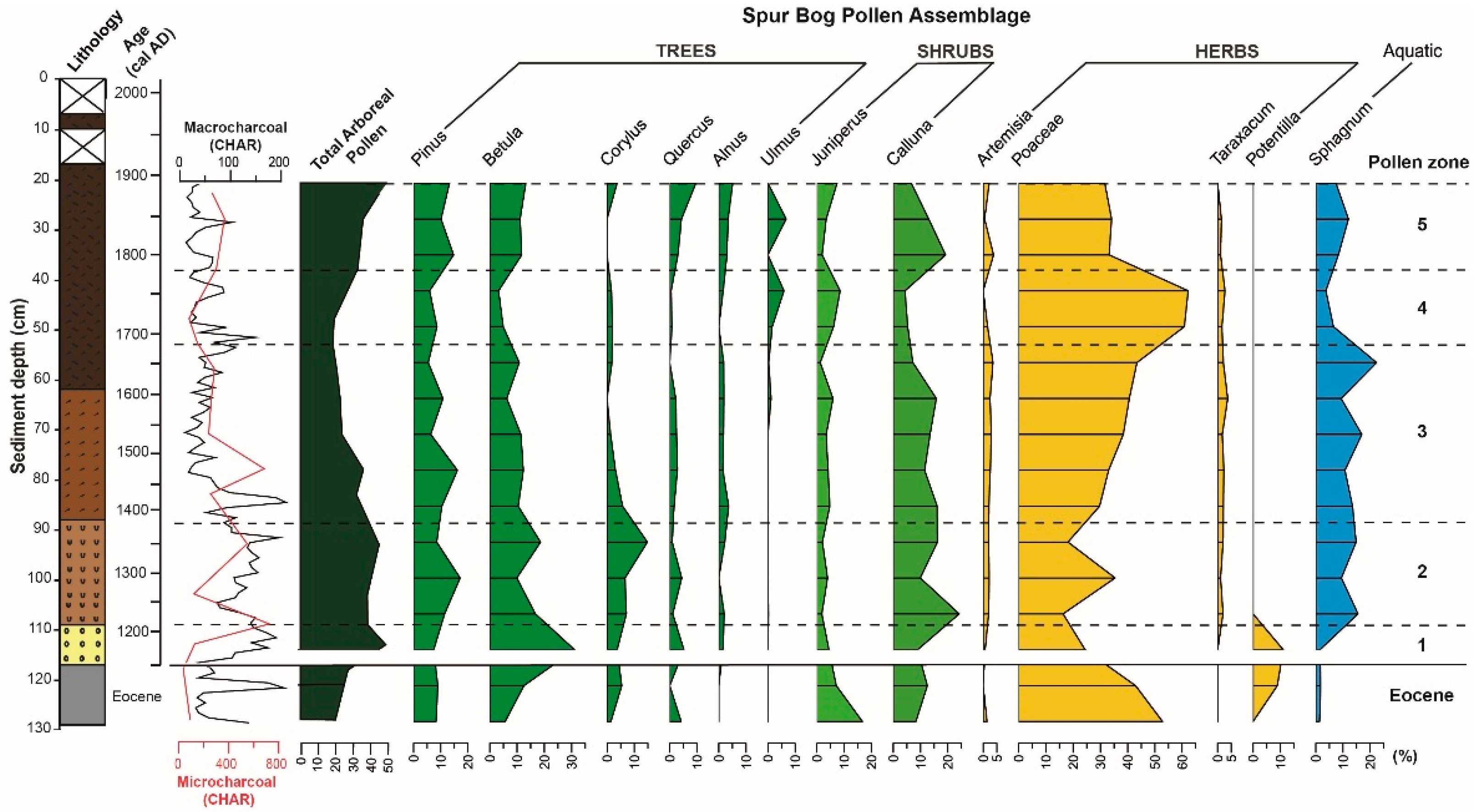

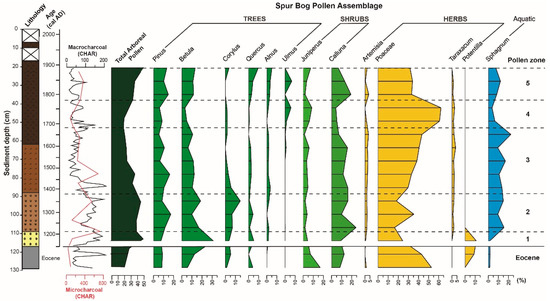

The pollen assemblage of the Spur Bog profile is composed largely of Pinus, Betula, Calluna, Poaceae and Sphagnum, accounting for >80% of the total pollen (TP) grains within the sequence (Figure 7 and Figure 8). Fluctuations in the pollen assemblage vary significantly throughout the sequence, indicating highly variable ecological conditions at the site in response to climate and environmental changes (Figure 7 and Figure 8). Pollen assemblages of the Eocene bedrock are clearly distinguishable from those of historical sediments (~1150–1880 cal AD) which can be further subdivided into five main pollen zones based solely on visual inspection (Figure 8).

3.4.1. Eocene Bedrock (128–117 cm)

Eocene clays and silts are typified by extremely low pollen concentrations (<100 grains per cm3) and low species diversity. Arboreal pollen (AP) accounts for 19–27% of total pollen and is comprised of Pinus (8–9%), Betula (5–13%), Corylus (1–5%) and Quercus (0–4%). Dwarf shrub totals 20–25%, consisting of Juniperus (7–17%) and Calluna (8–13%), whilst herbaceous pollen is dominant at 52–54% due to high values of Poaceae (43–53%), Potentilla (9%) and low concentrations of Artemisia (0–1%). Sphagnum (1–2%) accounts for the remainder of the pollen total in this sediment.

3.4.2. Pollen Zone 1 (117–109 cm; ~1150 to ~1210 cal AD)

Pollen zone 1 corresponds to the sand/gravel unit situated directly above the Eocene bedrock. In contrast to the Eocene clays, this zone evidences high levels of AP (49%), due the marked elevated values of Betula (31%), Pinus (7%), and Corylus (4%), and the establishment of Quercus (5%) and Alnus (2%). Subsequently, dwarf shrubs decline to 13% due to reduced concentrations of Juniperus (4%) and Calluna (9%). Herbaceous pollen consisting of Poaceae (24%), Potentilla (11%) and a low appearance of Artemisia (1%) decrease to 36%, whilst aquatic pollen species such as Sphagnum are sparsely present (2%).

3.4.3. Pollen Zone 2 (109–88 cm; ~1210 to ~1390 cal AD)

Pollen zone 2 covers the entire sediment unit of brownish mixed silts and sands between 109 cm (~1210 cal AD) and 88 cm (~1390 cal AD). AP remains dominant, accounting for 38% of observed grains consisting of Pinus (11%), Betula (17%), Corylus (7%), and Quercus (1%). Dwarf shrub totals double to 26%, consisting largely of Calluna (24%) and just 2% of Juniperus. In contrast, herbaceous pollen totals are at their lowest value within the sequence (20%) due to the disappearance of Potentilla, the decline of Poaceae (16%) and low values of Artemisia and Taraxacum which makes its first appearance in the sequence (2%, respectively). Conversely, a significant increase in Sphagnum concentrations is noted, rising to 16% (Figure 7 and Figure 8). Mid-zone 2 at ~1260 cal AD cm evidences marked changes in pollen concentrations. Whilst AP counts remain stable at 38%, the composition of arboreal species alters dramatically, with the expansion of Pinus (17%) and Quercus (4%) noted at the expense of Betula (10%), Corylus (7%) and Alnus which disappear from the record. Dwarf shrub pollen concentrations decrease to 14%, reflected in the decline of Calluna to 10%, while Juniperus values slightly increase to 4%. Herbaceous pollen totals increase to 39%, due to the expansion of Poaceae (35%) and the maintenance of Artemisia (2%) and Taraxacum (1%) species. Aquatic pollen, represented by Sphagnum, declines to 9%. The upper part of zone 2 at ~1350 cal AD evidences the highest AP values of the record (49%), consisting of Pinus (9%), Betula (19%), Corylus (15%), Quercus (1%), and Alnus (2%). Dwarf shrub values increase to 18%, comprised of Juniperus (2%) and Calluna (16%), whilst herbaceous pollen percentages decline sharply to 22% due to the reduction in Poaceae to 18% in addition to the stabilisation of Artemisia and Taraxacum at 2%, respectively. Conversely, Sphagnum recovers to 15%, comparable to its abundance at the beginning of the zone.

3.4.4. Pollen Zone 3 (88–53 cm; ~1390 to 1680 cal AD)

Pollen zone 3 is the largest zone in the sequence, spanning from the transition from silts/sands to organic-rich sediments at 88 cm (~1390 cal AD) to the lower part of the peat unit at 53 cm depth (~1680 cal AD). A marked decline in AP totals from 45% to 32% is noted in this zone (Figure 7). The reduced AP values are associated with lower quantities of Betula (10%) and Corylus (6%), despite minor increases amongst Pinus (2%), Quercus (1%), and Alnus (2%). Dwarf shrub totals increase to 21%, reflecting increased Juniperus values (5%), whilst Calluna remains stable at 16%. Herbaceous pollen totals exhibit an increase from 22% to 34%, largely due to the expansion of Poaceae to 30%, becoming the dominant pollen type with Artemisia (2%) and Taraxacum (2%), and Sphagnum (14%) remaining relatively stable. Until ~1470 cal AD, AP values increase to 36%, corresponding to the expansion of Betula (12%), Pinus (16% TP) and Quercus (3%), counteracting declines in Corylus (3%) and Alnus (2%). Calluna and Juniperus values decrease to 4% and 12%, respectively, resulting in reduced dwarf shrub pollen values (16%). Herbaceous species to become the dominant vegetation type (38%) as Poaceae values increase further to 33% with Artemisia (2%) and Potentilla (1%) retain marginal species, whilst Sphagnum declines to 11%. The upper part of zone 3 (~1470–1680 cal AD) shows a gradual decline in AP values from 36% to 20% consisting largely of Pinus and Betula (16% in total), in addition to marginal (>2%) populations of Corylus, Quercus, Alnus and Ulmus, appearing for the first time in the record. Dwarf shrub totals vary throughout upper zone 4, initially rising to 22% (Juniperus 6%, Calluna 16%), before declining to a minimum value of 8% (Juniperus 1%, Calluna 7%) prior to the zone 3/4 boundary. In contrast to AP, herbaceous pollen evidences a gradual increase from 38% to 49%. This is driven by a rise in Poaceae values from 33% to 43%, whilst Artemisia and Taraxacum values fluctuate between 2% and 4%. Sphagnum retains moderate values throughout this zone before rising to a maximum value of 22% at the transition to zone 4, exhibiting an inverse relationship with dwarf shrub concentrations (Figure 8).

3.4.5. Pollen Zone 4 (53–38 cm; ~1680 to 1780 cal AD)

Pollen zone 4, situated in the lower to middle part of the peat unit, is characterised by extremely low AP concentrations (<20%), comprised largely of Pinus (9%) and Betula (5%), alongside low (<2%) concentrations of Corylus, Quercus and Ulmus in lower zone 5, whilst in upper zone 4 AP values consist of Pinus (6%), Betula (3%), Ulmus (6%) and low values (<2%) of Corylus, Quercus and Alnus. Dwarf shrub values recover to 12% throughout zone 4, owing to the expansion of Juniperus (9%) despite the decline of Calluna (4%). A marked increase in herbaceous pollen totals occurs within this zone, increasing to 65% due to the rise in Poaceae to 61%, whilst Artemisia and Taraxacum account for the remaining 4%. Conversely, an abrupt decrease in Sphagnum pollen is noted, declining from 22% at the onset of zone 4 to 4% at the zone 4/5 boundary at ~1780 cal AD.

3.4.6. Pollen Zone 5 (43–23 cm; ~1780 to 1880 cal AD)

Pollen zone 5 is the youngest zone in the record, pertaining to the middle to upper parts of the peat unit prior to truncation of the sequence. This zone evidences the recovery of AP values, becoming the dominant pollen type at the upper bound of the zone (45%) due to the expansion of Pinus (13%), Betula (13%), Quercus (9%), Alnus (5%), and the reappearance of Corylus (4%). This is contrasted by dwarf shrub values, which decline from 21% (Juniperus 2%, Calluna 19%) to 14% (Juniperus 7%, Calluna 7%) throughout zone 5. An abrupt decrease in herbaceous pollen also occurs at the transition of zones 4 and 5 from 65% to 38% due to the decline of Poaceae (33%) and Taraxacum (1%), despite the reappearance of Artemisia (4%). Throughout zone 5, herbaceous pollen continues to decline gradually to 34%, as Poaceae and Artemisia fall to 32% and 2%, respectively, whilst Taraxacum disappears from the record. Sphagnum values fluctuate throughout zone 5, initially recovering to 12% before declining to 7% at the top of the zone.

3.5. Macro- and Microcharcoal

Similar to pollen assemblages, macro- and microcharcoal concentrations within the Spur Bog sequence exhibit significant variability (Figure 7 and Figure 8). Macrocharcoal and microcharcoal concentrations in the basal Eocene clays (129–117 cm) are generally low (<70 and <100 fragments per cm−3, respectively), with macrocharcoal excursion peaks at 129 cm (136 fragments cm−3), 122 cm (175 fragments per cm−3) and 121 cm depth (205 fragments cm−3).
Macrocharcoal concentrations increase significantly within pollen zone 1 (117–109 cm; ~1150–1215 cal AD), with concentrations >100 fragments cm−3 (~5.5 cm−2 yr−1) of macrocharcoal observed throughout this zone, rising to between 140 and 190 fragments per cm−3 (7.5–10 cm−2 yr−1) throughout the middle and upper part of zone 2 (114–109 cm; ~1170–1215 cal AD). Similarly, microcharcoal concentrations increase to 129 fragments cm−3 in the middle of zone 2 (113 cm; ~1180 cal AD) and 724 fragments cm−3 at the zone 2/3 boundary (109 cm; ~1215 cal AD) (Figure 7 and Figure 8).
Within pollen zone 2 (109–88 cm; ~1215–1390 cal AD), macrocharcoal concentrations are variable, initially remaining at levels comparable to upper zone 1 (>100 fragments cm−3, ~7 cm−2 yr−1) between 109 cm and 107 cm (~1215–1230 cal AD), before falling to < 80 fragments cm−3 (<4 cm−2 yr−1) between 106 cm and 105 cm (~1240–1250 cal AD). Macrocharcoal concentrations increase to ~110 fragments cm−3 (~5.5 cm−2 yr−1 within the middle of zone 2 (104–100 cm; ~1260–1290 cal AD), with a minor peak of 132 fragments cm−3 (6.5 cm−2yr−1) recorded at 102 cm depth (~1270 cal AD). Following this, macrocharcoal concentrations increase throughout the middle and upper part of zone 2 (99–92 cm; ~1300–1360 cal AD), exceeding 130 fragments cm−3 (>6.5 cm−2 yr−1) and peaking at 196 fragments cm−3 (9.6 cm−2 yr−1) at 92 cm (~1360 cal AD). Macrocharcoal concentrations decline sharply thereafter to ~100 fragments cm−3 (~5 cm−2 yr−1) in the upper part of zone 2. In comparison, microcharcoal concentration in lower zone 3 is low (121 fragments cm−3 at 103 cm; ~1260 cal AD) before rising in the middle to upper part of zone 2 to 548 fragments cm−3 (93 cm; ~1350 cal AD) in phase with macrocharcoal (Figure 7 and Figure 8).
A decrease in macrocharcoal concentrations to ~50 fragments cm−3 (2.5 cm−2 yr−1) is noted immediately above the pollen zone 2/3 boundary at 87 cm (~1400 cal AD). Following this, a significant peak in macrocharcoal concentrations of ~200 fragments cm−3 occurs between 85 cm and 84 cm (~1410–1420 cal AD). Throughout the remainder of pollen zone 4 (83–53 cm; ~1430–1680 cal AD), macrocharcoal concentrations remain low (10–98 fragments cm−3). In contrast, charcoal accumulation rates are highly variable throughout zone 4, ranging from 45 cm−2 yr−1 within the aforementioned peak in the lower part of zone 4 to 2.3 cm−2 yr−1. Microcharcoal concentrations within zone 3 are moderate (240–286 fragments cm−3), with an excursion peak of 684 fragments cm−3 noted at 78 cm depth (~1470 cal AD) (Figure 7 and Figure 8).
The upper part of pollen zone 3 and the lower part of pollen zone 4 (55–50 cm; ~1660–1710 cal AD) exhibit significant variability in macrocharcoal concentrations, with peaks of 110, 149 and 90 fragments cm−3 (26, 35 and 21 cm−2 yr−1) at ~1670, ~1680, ~1690 and 1710 cal AD, respectively, interspersed by lower counts of 68 cm−3 and 40 cm−3. Macrocharcoal concentrations in upper zone 4 (49–44 cm; ~1710–1740 cal AD) fall to low, stable values between 21 and 32 fragments cm−3 before rising to 55 fragments cm−3 at the zone 4/5 boundary. Microcharcoal concentrations decline throughout zone 4 to 153 cm−3 (53 cm; ~1680 cal AD) and 83 cm−3 (48 cm; ~1720 cal AD) (Figure 7). The lower zone 4 exhibits similar low macrocharcoal concentrations (<50 fragments cm−3, <10 cm−2 yr−1). However, macrocharcoal peaks of >80, 65 and 103 fragments cm−3 (20, 15 and 24 cm−2 yr−1, respectively) are evident at 43–42 cm (~1750–1760 cal AD) and immediately following the zone 4/5 transition at 38 cm–36 cm (~1780–1790 cal AD) and 29 cm (~1840 cal AD), respectively.
The upper pollen zone 5 (28–23 cm; ~1840–1880 cal AD) reveals low macrocharcoal concentrations (14–39 fragments cm−3, <10 cm−2 yr−1) comparable to the rest of zone 5 and upper zone 4 (Figure 7 and Figure 8).

3.6. Grain Size

Sediment grain sizes within the lower sequence (128–109 cm) evidence multiple changes to the type of sediments deposited at the site (Figure 7). Within the basal Eocene clays (128–117 cm), mean sediment grain sizes are within the clay and fine silt fraction (<10 μm) and maximum grain sizes typically do not exceed 250 μm, indicating a low-energy depositional environment. In contrast, mean sediment grain sizes of the overlying historical sediments at 117 cm depth (~1150 cal AD; Figure 6 and Figure 7) increase to <12 μm and maximum grain size increases significantly to > 2000 μm. Sediment grain size remains relatively stable between 117 cm and 114 cm (~1150–1174 cal AD; Figure 6 and Figure 7), consisting mainly of silts and fine sands (mean grain sizes of ~10–30 μm. This is followed by an abrupt increase in sediment grain sizes to >90 μm (mean) and >500 μm (maximum) between 112 and 109 cm (~1190–1215 cal AD; Figure 6 and Figure 7).

3.7. The Humification Index

Humification indices have been obtained for organic-rich sediments and peats between 86 and 26 cm depth (~1410–1860 cal AD; Figure 6 and Figure 7) to document the development of the bog and to determine natural climate processes (wetness/dryness) at the site (Figure 7). The lowermost sample at 86 cm depth has a spectral absorption value of 0.084%, and levels rise continuously to up to 0.211% throughout the remainder of the organic-rich sediments and into the peat layer at 56 cm depth (~1660 cal AD), indicating a relatively constant increase in humification of deposited organic material. This increase in humification occurs synchronously to a marked increase in LOI values from 15% at ~1390 cal AD to a maximum value of 93% by 1660 cal AD. Humification levels slightly regressed throughout the late 17th and early 18th centuries AD, evidenced by a spectral absorption value of 0.175% at 46 cm depth (~1730 cal AD). Humification levels constantly increased again during the late 18th and mid-19th centuries AD, evidenced by absorption values of 0.197% at 36 cm (~1795 cal AD) and 0.254% at 26 cm depth (~1860 cal AD).

4. Discussion

4.1. Relationships between Pollen Taxa and Wildfire Regime

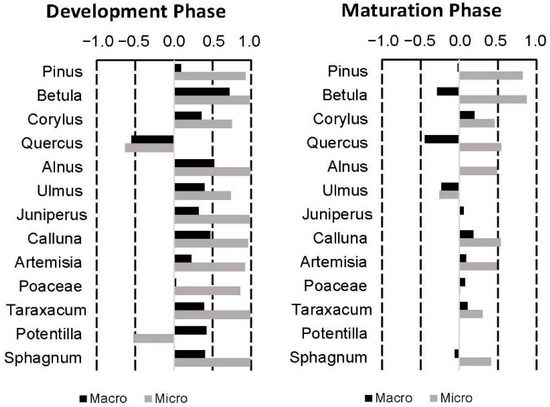

Microcharcoal concentrations observed within the Spur Bog sequence exhibit a significant positive correlation with pollen grain concentrations (r2 = 0.88), reflecting the potential for these proxies to capture variations in climatic variables (e.g., temperature, precipitation, and aeolian processes) and their impact upon the deposition of organic material. The analysis of statistical relationships between respective pollen taxa, microcharcoal and macrocharcoal evidences marked variation between the development and maturation phases of the site (Figure 9). Macrocharcoal and microcharcoal concentrations exhibit positive to strong positive correlation with all pollen taxa (with the exception of Quercus and Potentilla-microcharcoal only), indicating that the deposition of charcoal fragments and most pollen taxa during the developmental phase of the site occurred simultaneously during high-energy depositional events (e.g., coastal flooding) [43]. In contrast, pollen/charcoal abundance relationships during the maturation phase of the Spur Bog exhibit clear variations according to vegetation type. Arboreal pollen types respond positively (r2 = 0.45–0.87) to microcharcoal—excluding Ulmus (r2 = −0.26)—and neutral-negatively (r2 = 0–0.45) with macrocharcoal—with the exception of Corylus (r2 = 0.20). Non-arboreal pollen types are also positively correlated with microcharcoal (r2 = 0–0.54) and, to a lesser extent, macrocharcoal (r2 = 0.06–0.18)—with the exception of Sphagnum (r2 = −0.06). This indicates that the mechanisms associated with microcharcoal deposition at the Spur Bog are also conducive to the deposition of pollen—particularly species adapted for long-distance pollen dispersal, Pinus and Betula—whilst the negative relationship between macrocharcoal and arboreal pollen indicates that fire events (natural or otherwise) inhibited the development of woodland species, with the notable exception of Corylus due to its adaptation for post-fire recolonisation [44,45]. In contrast, dwarf shrub and herbaceous pollen types responded positively to macrocharcoal concentrations due to its association with fire events and human activity which prevent ecological succession. The weak negative relationship between Sphagnum and macrocharcoal suggests that climatic conditions had a negligible effect on the frequency and intensity of fire events, thus presenting human activity as the main driver of the site’s fire regime.

4.2. Climate and Environmental Changes at Spur Bog since ~1150 cal AD

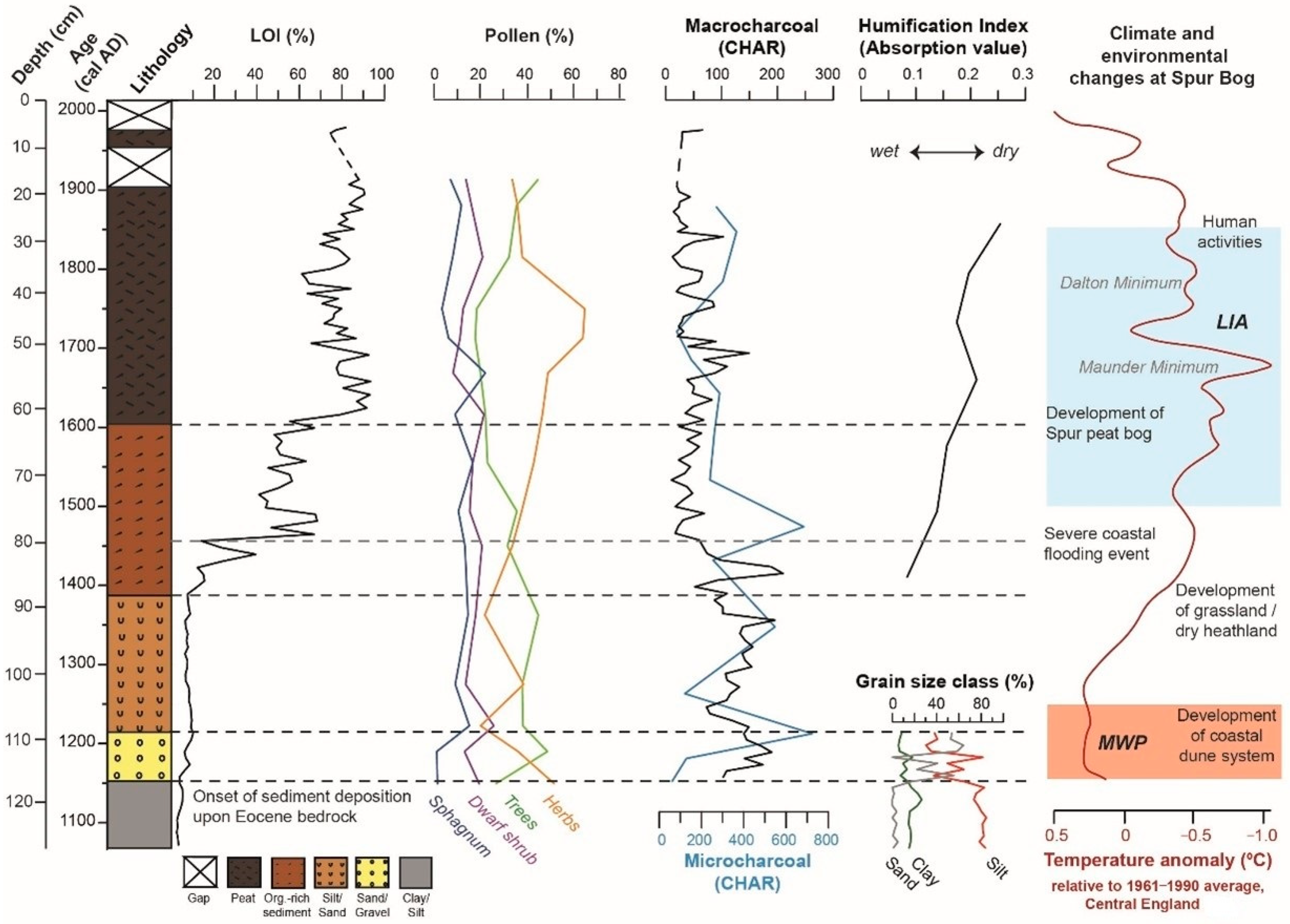

Based on the age-depth model, deposition of young (historical) sediments upon the Eocene bedrock at Spur Bog started at ~1150 cal AD, during the ‘Medieval Warm Period’ (MWP). The basal coarse-grained, inorganic sediments (gravel/sands) indicate a high-energy coastal depositional environment at that time, possibly influenced by flooding during severe storm events recorded in the southern North Sea and the English Channel in 1134 AD and/or 1178 AD [46], both of which fall within the 2 σ uncertainty range of the Spur Bog age-depth model (Figure 6). Pollen assemblages of zone 1 between ~1150 and 1210 cal AD reflect a typical brackish coastal dune environment with sparse pioneer communities of Calluna, Poaceae and Sphagnum, and distal arboreal pollen most likely deposited by marine processes. High amounts of macro- and microcharcoal fragments support this hypothesis. The rapid deposition of inorganic, marine-derived sands between ~1190 and 1210 cal AD possibly indicates that the initial development of the South Haven Peninsula was associated with an extreme high-energy depositional environment, consistent with extensive coastal flooding in the region between 1200 and 1219 AD noted in contemporary records [47,48].
At ~1210 cal AD, at the onset of pollen zone 2, the marked variation in pollen assemblage occurs simultaneously to the lithological transition from coarse sands to finer silts and sands and an increase in LOI to 15%, thus presenting strong evidence of abrupt environmental changes. These changes are interpreted as the decline in marine influence at the site as the South Haven Peninsula continued to develop, facilitating the establishment of a brackish coastal floodplain environment populated by typical pioneer communities of Calluna, Poaceae and Sphagnum, which are indicative of less saline conditions [49,50,51]. High volumes of arboreal pollen and macro- and microcharcoal fragments, which are interpreted as having a larger, regional source during this time, as well as low LOI values indicate continued periods of inorganic sediment input, possibly deposited as a result of coastal flooding events recorded during the first half of the 13th century AD [46,48,52,53]. Between ~1250 and 1390 cal AD, at the termination of the MWP, pollen assemblages at Spur Bog indicate an increasingly brackish environment but strongly influenced by marine processes. This is supported by the stagnation of LOI values at ~7% and contemporary records of severe storm surge events affecting south-eastern England during 1362 AD and 1374–1375 AD [46,53].
A significant reduction in the influence of coastal processes upon the Spur Bog is visible from the pollen record (zone 3) starting at ~1390 cal AD, facilitating the establishment of grassland and wet heathland environments consisting of Juniperus, Calluna, Poaceae and Sphagnum. This interpretation is supported by the lithological transition from silts to organic-rich sediments between ~1390 cal AD and 1430 cal AD (Figure 7). Pollen changes at ~1470 cal AD present strong evidence for the development of a mature terrestrial environment devoid of marine influences, resulting in the establishment of wet heathland, dry heath, and grassland near Spur Bog which was likely facilitated by sheltering of the site by a coastal landform (e.g., sand bar and dune system). Furthermore, reduced local wildfire activity is inferred by the rapid decrease in macrocharcoal fragments at ~1430 cal AD. Climatic amelioration in the region throughout the late 15th century AD [53,54] also facilitated the development of medial-distal woodlands possibly located south from Spur Bog.
Between ~1490 and 1550 cal AD, cooler/wetter conditions resulted in the decline of nearby woodland environments and subsequent expansion of grassland and wet heathland at Spur Bog, which is also evidenced by a notable decrease in LOI values (Figure 7). The climatic deterioration inferred from the Spur Bog record conforms strongly to contemporary accounts from southern England which detail cold winters, wet summers and frequent coastal storms throughout the 16th century AD [46,47,48,52,53], typically associated with the onset of the ‘Little Ice Age’ (LIA) cooling period experienced across Europe at ~1500 AD [55,56]. Low wildfire activity at the Spur Bog and surrounding area during the late 15th and 16th centuries AD, evidenced by reduced macro- and microcharcoal fragment counts, are furthermore indicative of the climatic deterioration identified across Britain and north-western Europe during the early LIA [57,58,59]. Climatic conditions lasted at Spur Bog until ~1610 cal AD as supported by continuing decreasing arboreal pollen and increasing Poaceae concentrations and stagnating values in LOI (Figure 7 and Figure 8). The onset of peat deposition at that time indicates the establishment of a terrestrial wetland environment at Spur Bog.
The pollen record at the transition of zone 3 and 4 (~1670–1700 cal AD) presents strong evidence of a vegetation succession from wet heath to a dry heath/grassland and further decline of woodland, consistent with a proposed cold and arid climate as also implied by high peat humification values and macrocharcoal counts (Figure 7). Contemporary evidence suggests that southern England experienced a prolonged period of extremely cold conditions throughout the mid- and late 17th century AD [60,61,62,63], including a period of drought between 1684 and 1686 AD [44,49,50,54], which coincided with the ‘Maunder Minimum’ of the LIA. However, the possibility of anthropogenic activity impacting upon environmental conditions at the site cannot be discounted, due to the intensive removal of peat and timber from southern England for fuel, building materials and agricultural practices throughout the 16th, 17th and early 18th centuries AD [64,65,66,67].
At ~1720 cal AD, a climatic shift towards warmer and likely slightly wetter conditions following the ‘Maunder Minimum’, conforming with increasing arboreal pollen taxa (zone 4) and decreased peat humification values and reduced wildfire activity observed in the Spur Bog sequence and regional climate records at this time [47,52,53,68,69]. Elevated macrocharcoal counts between ~1750 and 1760 cal AD coincide with unusual warm and dry conditions during October 1752 AD and July 1757 AD [53,70], which could have facilitated a natural fire event near Spur Bog. Alternatively, these charcoal peaks could reflect anthropogenic activities, such as arson [71] or land reclamation [67].
The marked shift in the pollen record at ~1780 cal AD (the onset of zone 5) of the Spur Bog suggests vegetation succession towards mixed woodland and reduced grassland and wet heathland communities, indicating drier climatic conditions corroborated by increasing peat humification values and elevated macrocharcoal counts at Spur Bog as well as historical records from the region [47,52,70,72,73]. This period coincides with the ‘Dalton Minimum’ of the LIA which was characterised by general cooler winters and variable dry and wet summers in England [47,52,53]. It also coincides with the intensification of agricultural and industrial activities in the region, resulting in the clearance of one quarter of all heathland habitats within the Poole Basin between 1760 AD and 1811/17 AD to facilitate the construction of roads, livestock grazing and planting of Pine forests [72,73,74].
The pollen assemblage exhibits climatic amelioration during the early-mid 19th century AD, facilitating the expansion of mixed woodland and wet heathland communities at the Spur Bog. These vegetation changes occur simultaneously to a period of relatively high mean temperatures and increased precipitation between 1830 AD and 1860 AD [69], further supported by reduced fire activity at Spur Bog (Figure 7 and Figure 8) and instrumental records detailing prolonged warm, wet conditions throughout the winter of 1845/46 AD and summer of 1846 AD in the region [47,52,75]. A macrocharcoal peak at ~1840 cal AD may be either in response to exceptional dry conditions recorded during 1834/35 AD or 1840 AD [53,70,74] or reflect anthropogenic activity.
The encroachment of mixed woodland at the Spur Bog facilitated by a warmer, wetter climate in England following the end of the LIA at ~1850 AD [53,70,76,77] is supported by contemporary historical records, which document the expansion of the ‘12 Acre Wood’ and other woodlands within the Poole Basin, facilitated by the decline of livestock grazing and peat/furze cutting in the region [6,73]. Throughout the late 19th century AD, generally low, stable macrocharcoal concentrations are exhibited, corresponding to a period of relatively low temperatures and wet summers in the region [69,70]. Two notable charcoal peaks occur at ~1890 AD and ~1976 AD during periods of hot, dry summers [69,70,78]—the former of which may be linked to the fire which damaged Brownsea Castle in 1896 [79,80].

4.3. Geomorphological Changes of the South Haven Peninsula since ~1150 cal AD

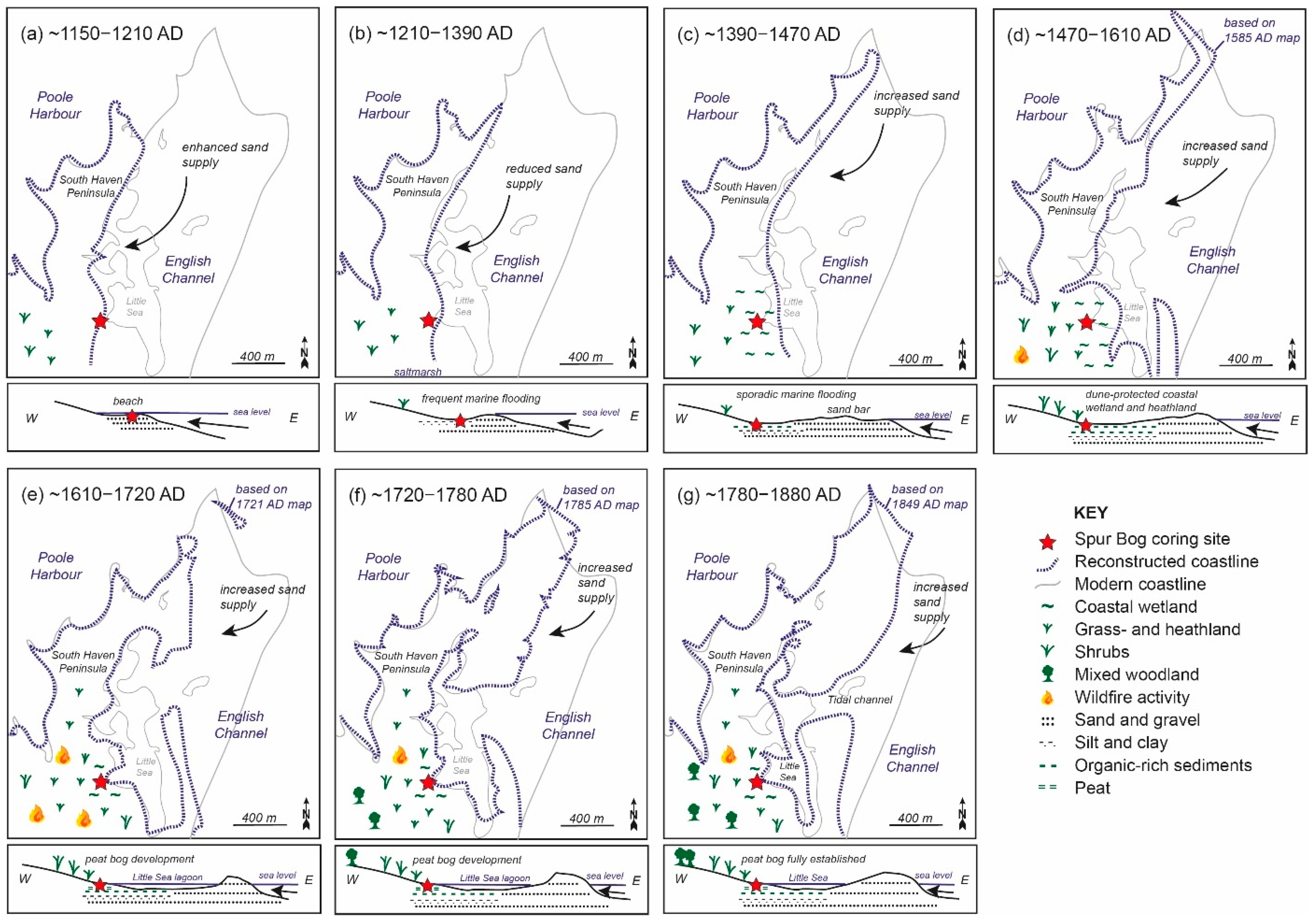

The aforementioned reconstruction of climatic and environmental conditions at the Spur Bog reveals that ecological and geomorphological changes at the South Haven Peninsula have been extremely rapid during the last ~900 years (Figure 10).
Sediment accretion at the site is thought to have begun at ~1150 cal AD, associated with the deposition of coarse sands and fine gravels observed in the Spur Bog record. It is hypothesised that these sediments have been deposited in a coastal environment, i.e., within the intertidal zone (Figure 10a), which is also supported by low organic matter content and high concentrations of distally transported arboreal pollen and charcoal fragments. This type of environment is indicative of a marked shift in regional sediment transport pathways, enabling the formation of a sand-bar around which further sediment coalesced over time as proposed by [6,10,81]. The development of such a landform was likely facilitated by a period of relative sea level fluctuation around Poole Harbour, resulting in a period of enhanced sediment deposition in the region between 750 AD and 1150 AD [9], the timing of which correlates closely with the ~1150 cal AD age attributed to the basal sands and gravels of the Spur Bog sequence.
The lithological transition between sands/gravels and silts/sands in the Spur Bog core at ~1210 cal AD is interpreted as a decline in marine sediment supply, which is in accordance with the proposed reduced marine sediment deposition in the area at ~1150 AD likely as a result of eastward propagation of the peninsula into the English Channel [9], and hence general lower-energetic depositional conditions at Spur Bog (Figure 10b). This type of environment is corroborated by increased concentrations of dwarf shrub, herbaceous and aquatic pollen taxa in the Spur Bog sequence, in contrast to reduced arboreal pollen taxa and macrocharcoal concentrations between ~1210 and 1270 cal AD. Throughout the late 13th and the entire 14th century AD, continuously high macrocharcoal concentrations and the presence of saline tolerant pollen taxa indicate that the site continued to be significantly influenced by marine processes, i.e., by frequent coastal flooding, which prevented further ecological succession.
The diffused boundary within the Spur Bog sequence between silts/sands to organic-rich sediments at ~1390 cal AD, which is accompanied by a slight increase in bioproductivity and marked reduction in distally transported arboreal pollen and charcoal fragment concentrations, is indicative of the development of a wetland environment at the site which is possibly protected by a sand bar or a developing dune system (Figure 10c). This resulted in the decreased influence of marine-coastal processes due to further gradual sediment accretion around this landform and subsequent eastward propagation of the peninsula. Severe coastal flooding events at ~1420 AD and ~1460 AD are inferred from abrupt decreases in organic matter and elevated macrocharcoal concentrations, evidencing continued vulnerability of the Spur Bog to the intense coastal storm activity which is documented throughout the early 15th century AD across north-western Europe [46,47,48,82]. This period is followed by a cessation of marine influence upon the site. Higher levels of bioproductivity associated with a fully established terrestrial environment at Spur Bog (Figure 10d) are evidenced between ~1470 cal AD and 1610 cal AD. This is supported by high concentrations of Calluna, Poaceae and Sphagnum pollen associated with wet heathland, dry heathland and grassland environments. An increase in bioproductivity at Spur Bog indicates a more mature terrestrial environment, i.e., the development of a peat bog at ~1610 cal BP (Figure 10e). Cooler and likely more arid conditions across Britain and north-western Europe during the ‘Maunder Minimum’ [65,66,83] lead to the expansion of grassland and the decline of woodland and wet heathland communities between ~1640 and 1720 cal AD, accompanied by increased local wildfire activity. During this time period, increased marine sediment accumulation and/or possibly fluctuating sea levels lead to the establishment of a mature dune system and the development of the ‘Little Sea Lagoon’ east of Spur Bog (Figure 10e,f).
Between 1720 AD and 1780 cal AD, vegetation at the Spur Bog transitioned from a grassland environment to a mixed woodland (Figure 10f), indicative of a climatic shift towards warmer and slightly wetter conditions, which is also supported by relatively low local wildfire activity. Throughout the late 18th and 19th centuries AD, woodlands in the southern periphery of the Spur Bog expanded further, as inferred from the continued increase in arboreal pollen and the decrease in herbaceous pollen concentrations. The significant increase in arboreal pollen values noted within the Spur Bog sequence are likely to reflect increased pollen transport from local woodland within the catchment area of the Little Sea (e.g., ‘Twelve Acre Wood’), which at that time developed from an open lagoon to a brackish lacustrine environment (Figure 10g). Stable aquatic pollen counts between ~1780 AD and 1880 cal AD in addition to the maintenance of high bioproductivity indicate the full establishment of the peat bog at Spur Bog and the recovery of wetland communities in this region as recorded in contemporaneous accounts [6,26]. Throughout much of the 19th century AD, low wildfire activity around the Spur Bog exhibit strong evidence of mild and relatively wet climatic conditions at the site, conforming to significantly increased precipitation and warmer temperatures noted across southern England and north-western Europe at that time [65,66,84].
According to historical records, environmental conditions at the Spur Bog continued to change throughout the 20th century AD, in response to the significant modification and intensification of human activities in the area, including the cessation of hunting and peat/furze cutting on heathlands in the Poole Basin by 1900 AD and 1918 AD, respectively [73], in addition to the construction of the Ferry Road adjacent to the Spur Bog in 1924 AD [6]. As such, by the 1930s, the Spur Bog and surrounding areas consisted of diverse mixed woodland, dry heathland and wet heathland habitats [6,85]. Land use of the South Haven Peninsula was altered dramatically once again during the Second World War when the area was used for military exercises, resulting in significant damage to Studland Beach, dune system and Little Sea—much of which is still evident in the present day [10,11]. Following the end of the Second World War, heathland habitats throughout the Poole Basin underwent grazing and were frequently burned, including a notable burning event in close proximity to the Spur Bog during the period 1959–1960 [73]. The Studland and Godlingston Heaths, containing the Spur Bog, were designated as a SSSI in 1954 [86]. Despite this, degradation of the heathland habitats in the area continued throughout the late 20th century AD due to poor management, anthropogenic pressures and climatic variability [57,67,87,88,89]. Following this, management of the Studland Heath was adapted to ensure the preservation and regeneration of heathland habitats, beginning in 1990 AD with the re-introduction of heathland flora and fauna, resulting in the expansion of stable heathland habitats on reclaimed Pine plantations within 14 years [89]. In addition, existing and regenerated areas of heathland are maintained through the periodic clearances and controlled burning [11], particularly to the benefit of dry heathland habitats, whilst a shift in climate towards warmer and wetter winters has facilitated the expansion of wet heathland/marshland since the 1930s [90,91]. These active management techniques have also been complemented by extensive ecological surveying of the Studland Heaths [90,91,92,93], against which the success of the aforementioned management strategies can be assessed.

5. Conclusions

The analysis of multi-proxy data extracted from the sedimentary sequence of the Spur Bog has enabled the reconstruction of environmental conditions in the area over the last ~900 years, significantly improving our understanding of the geomorphological formation, development and ecological conditions of the South Haven Peninsula during this time, which has previously relied upon sparse contemporary sources. Furthermore, the findings of this study demonstrate the sensitivity of the area to environmental changes associated with climate forcing and anthropogenic activity.
This study demonstrates that the Spur Bog sediments capture significant environmental variability, exhibiting a primary development phase (~1150–1470 cal AD) during which marine processes were the dominant control upon environmental conditions at the site, facilitating the development of the South Haven Peninsula supporting coastal wetlands. This was followed by a secondary maturation phase (~1470–1900 cal AD) during which the Spur Bog sequence exhibits the formation of a lagoon bog, followed by a fully terrestrial peat bog and mixed woodland as the South Haven Peninsula continued to propagate eastward, whilst also responding to climatic instability and a range of anthropogenic pressures.
Therefore, the Spur Bog record significantly extends the previous palaeoenvironmental and geomorphological frameworks of the South Haven Peninsula, providing a record of environmental conditions between ~1150 cal AD and ~1900 cal AD in response to climatic and anthropogenic pressures. Thus, this record can serve as a valuable resource to enable the prediction and mitigation of future environmental changes at the Spur Bog amid an uncertain climate future.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/quat5020027/s1, Table S1: Spur Bog multi-proxy dataset.

Author Contributions

Conceptualisation, D.H. and S.W. (Sabine Wulf); methodology, D.H. and S.W. (Scarlett Wharram); validation, S.W. (Sabine Wulf) and M.H.; formal analysis, D.H. and S.W. (Scarlett Wharram); investigation, D.H., S.W. (Scarlett Wharram), H.B. and S.W. (Sabine Wulf); resources, M.H. and S.W. (Sabine Wulf); data curation, S.W. (Sabine Wulf) and M.H.; writing—original draft preparation, D.H.; writing—review and editing, S.W. (Sabine Wulf), M.H., S.W. (Scarlett Wharram) and H.B.; visualisation, D.H. and S.W. (Sabine Wulf); supervision, S.W. (Sabine Wulf) and M.H.; project administration, S.W. (Sabine Wulf); funding acquisition, S.W. (Sabine Wulf). All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in Supplementary Table S1.

Acknowledgments

We thank the National Trust and especially David Brown for their cooperation, including the granting of permission to carry out surveys within the Studland and Godlingston Heath and extraction of sediment cores from the Spur Bog.

Conflicts of Interest

The authors declare no conflict of interest.
