Phytoextraction of Heavy Metals by Various Vegetable Crops Cultivated on Different Textured Soils Irrigated with City Wastewater

Abstract

A challenging task in urban or suburban agriculture is the sustainability of soil health when utilizing city wastewater, or its dilutes, for growing crops. A two-year field experiment was conducted to evaluate the comparative vegetable transfer factors (VTF) for four effluent-irrigated vegetable crops (brinjal, spinach, cauliflower, and lettuce) grown on six study sites (1 acre each), equally divided into two soil textures (sandy loam and clay loam). Comparisons of the VTF factors showed spinach was a significant and the best phytoextractant, having the highest heavy metal values (Zn = 20.2, Cu = 12.3, Fe = 17.1, Mn = 30.3, Cd = 6.1, Cr = 7.6, Ni = 9.2, and Pb = 6.9), followed by cauliflower and brinjal, while lettuce extracted the lowest heavy metal contents (VTF: lettuce: Zn = 8.9, Cu = 4.2, Fe = 9.6, Mn = 6.6, Cd = 4.7, Cr = 2.9, Ni = 5.5, and Pb = 2.5) in response to the main (site and vegetable) or interactive (site * vegetable) effects. We suggest that, while vegetables irrigated with sewage water may extract toxic heavy metals and remediate soil, seriously hazardous/toxic contents in the vegetables may be a significant source of soil and environmental pollution.

1. Introduction

A 1–3 °C increase in global warming is predicted by the 2050s [1]; the warming in the South Asian region is expected to be higher (2.2–3.3 °C) [2,3], with surface warming as high as 4.2 °C predicted to be in the northern regions of Pakistan [4] under the RCP8.5 emission scenario. Subsequently, enhanced glacier melts [5,6], soil surface drying, and water table lowering [7] are broadly expected, which may result in an acute shortage of surface- and/or groundwater supply for irrigating crops. Therefore, Pakistan, whose economy is ~21% agriculture driven, would be one of the regions most severely affected by climate change [6]. Some of these impacts are already being observed. That is why some of the suburban crops are irrigated using dilutes of city wastewater [8,9]. Likewise, approximately 20 million hectares of vegetable or cereal crops grown in a total of 50 countries are also being supplied with substandard waters, including ~80% untreated or partially treated wastewater of household or industrial nature [10,11] to cope with the issue of food security [12,13]. However, given the use of untreated wastewater for growing vegetables or cereal crops for human or animal consumption, human and soil health are at risk.

Wastewaters potentially contain a large variety of pollutants [9], including, but not limited to, unknown chemicals (organic, inorganic or biological nature) and/or salts, metals and metalloids, pathogens and hosts, residual drugs and pesticides, endocrine-disrupting chemicals, or active ingredients of human care products. On one hand, these pollutants can impair soil and environmental health [14]; on the other hand, they can be taken up by the growing field crops resulting in buildups of toxic levels of heavy metals in the vegetable biomass. The toxic crops (especially vegetables) when consumed by humans may put their health at risk. Therefore, urban and farming communities’ environments and human and animal health are at risk, which indirectly poses an even greater risk of global food security.

A heavy metal is defined as a chemical element of 500% higher specific gravity than that of normal water [15]. Continuous use of heavy metals containing wastewater for vegetable crop irrigation results in heavy metal accumulation in soil [16] and subsequent transfer to vegetable plants above the safe limits [17,18]. The plant accumulation concentration divided by soil accumulation concentration is called the vegetable transfer factor (VTF) [19], which shows the vegetable accumulation rate concerning soil accumulation concentration [20]. The soil–plant transfer of heavy metals is largely dependent on the plant species and is evaluated using the soil–plant TF [21]. The transfer factor is further controlled by several factors: plant age and species, crop variety, heavy metal concentration and its physical and chemical properties, and duration of effect [22].

Cd toxicity, even at low levels, has been attributed to its bioaccumulation and long half-life of ~30 years [8,23,24]. Cd also is known for its high mobility across the soil–water–plant–environment continuum [25]. A few major toxic plant effects include, but are not limited to, leaf chlorosis, stunted growth, and limited uptake of essential nutrients and protein synthesis [24,26]. Cr toxicity also reduces crop yield via impaired leaf and root hair growth, reduced enzymatic dynamics, and mutagenesis [27]. Toxic soil–water—plant concentrations are reported to impair overall plant growth and reproduction [28]. Excessive amounts of soil Zn together with soil Cu may decrease overall plant growth but increase TF, and ingestion of these higher TF vegetables result in acute depression symptoms in humans [29]. Excess levels of Cu alone in human blood showed acute stomachache and subsequent liver damage in many patients [30].

While the accumulation of heavy metals by wastewater-irrigated crops has been studied over several soil types, these investigations were made using one crop and one soil type at a time. Thus, various crops have not been compared for their comparative VTFs using the same or different soil types. Phytoremediation of the contaminated soils irrigated with wastewaters is an environmentally friendly and green technique [31,32] to remediate the soil–water–air continuum and quantify the translocation of these heavy metals by calculating the VTF.

Thus, an evaluation of the comparative phytoextraction efficiencies of various crops grown on the same and different soil types and irrigated with several wastewater types, or comparison of the VTFs, remained largely unexplored in Pakistan. Therefore, our unique study aims at identifying and assessing the potential sources of contamination to the soil, water, or plant, and evaluating the comparative VTFs of various crops grown on the same and different textured soils irrigated with a variety of wastewaters. The conclusions of this study will be helpful to suggest the necessary mitigation measures and inform policy development.

We hypothesize that the comparative VTF evaluation of various crops grown on the same or different textured soils irrigated with a variety of wastewaters will differ. Therefore, the present study was carried out to quantify the heavy metal (Zn, Cu, Mn, Fe, Cd, Cr, Ni, and Pb) accumulation in four vegetables (spinach, brinjal, lettuce, and cauliflower) grown on the same and different soil types irrigated with different wastewaters, and to evaluate the suitability of the wastewater used for growing these vegetables.

The specific objectives of the present study are (1) to quantify the contents of heavy metals in two different soil types and their irrigation wastewater samples, both collected from six different study sites of the Multan suburban area; and (2) to monitor the comparative accumulation of heavy metals between the edible portions of the vegetables grown on the same and different textured soils irrigated with wastewaters, by quantifying the vegetable transfer factor. The VTF will also be related to the soil concentrations of heavy metals.

2. Materials and Methods

2.1. Study Sites

To determine the vegetable transfer factors (VTF) in the effluent-irrigated vegetable crops, a total of six study sites were chosen in the vicinity of the WASA disposal stations within the suburban area of Multan city. The sites had several open and covered drainage channels that fed the vegetable crops. Each site was around one acre in size. We divided the sites (6) into two major soil texture types: sandy loam (3) and clay loam (3). Each of the texture types was irrigated with three types of water: normal, waste (sewage), and normal + waste. The brinjal (Solanum melogena L.) and spinach (Spinacia oleacea L.) crops were sown during January 2016 on a quarter of each site, randomly, while the cauliflower (Brassica oleracea L.) and lettuce (Lactuca sativa L.) were also sown on the rest of the quarters of each site during September 2015. Details of the study sites, their textural classes, the irrigation water types, and the heavy metal concentrations of soil and irrigation waters are shown in

Table 1. Chemistry (EC and pH) and concentrations of the heavy metals in the study soils and their irrigation wastewaters, sampled during 2015–2016 from six major vegetable production areas in the Multan region of Pakistan †.

Study Site	Soil Texture/Water	Chemistry		Heavy Metal Concentration (mg kg−1)
Soil/Water		ECs/ECiw (dSm−1)	pHs/pHiw	Zn	Cu	Fe	Mn	Cd	Cr	Ni	Pb
Khan village
Soil	Sandy loam	1.4	8.3	1.80	0.94	6.80	2.90	0.66	1.10	0.42	1.40
Water	Normal	0.3	7.2	0.03	0.04	0.03	0.06	0.02	-	-	0.02
Vehari road
Soil	Clay loam	1.5	8.4	1.66	1.28	9.64	3.68	1.40	1.62	0.46	1.74
Water	Normal	0.3	7.1	0.04	0.03	0.09	0.02	0.02	0.02	-	-
Shujabad road
Soil	Sandy loam	3.1	8.4	2.48	1.70	12.60	3.38	4.30	2.60	1.04	2.66
Water	Sewage	2.8	6.9	0.06	0.14	0.31	0.11	0.04	0.09	0.06	0.06
Industrial estate
Soil	Clay loam	3.9	8.4	3.90	2.58	17.34	4.04	4.76	4.36	1.72	3.38
Water	Sewage	3.6	6.8	0.10	0.11	0.34	0.19	0.06	0.08	0.09	0.11
Suraj miani
Soil	Sandy loam	2.7	8.3	2.12	2.04	11.66	3.36	2.28	3.98	1.34	2.60
Water	Normal + Sewage	2.0	7.1	0.05	0.04	0.18	0.16	0.04	0.02	0.05	0.08
Sameeja abad
Soil	Clay loam	3.5	8.2	1.82	0.48	7.52	2.30	1.94	1.72	0.46	1.28
Water	Normal + Sewage	2.1	7.1	0.40	0.08	0.07	0.14	0.07	0.40	0.07	0.05
UNESCAP *		--	6.1	5.00	1.00	2.00	1.50	0.10	1.00	1.00	0.50
Pescod, MD **		--		2.00	0.20	5.00	0.20	0.01	0.01	0.20	5.00

† Each value is a mean of four sample months. * Permissible limits for liquid municipal and industrial effluents in Pakistan. ** Threshold levels of trace elements in irrigation water. ECs and pHs, and ECiw and pHiw denote electrical conductivity and pH of the soil and irrigation water, respectively. After four months, the study sites (soils) were significantly different in chemistry and heavy metal concentrations (ECs: p = 0.001; pHs: p < 0.001; Zn: 0.036; Cu: p = 0.002; Fe: p < 0.001; Mn: p < 0.001; Cd: p = 0.006; Cr: p = 0.003; Ni: p = 0.005; Pb: p < 0.001). The variable buildup of concentrations that was observed may be due to sewage water irrigation during the experimental period. All respective irrigation waters were also significantly different except for Cr (ECs: p = 0.019; pHs: p < 0.001; Zn: 0.031; Cu: p = 0.005; Fe: p = 0.012; Mn: p = 0.003; Cd: p = 0.004; Cr: p = 0.058; Ni: p = 0.002; Pb: p = 0.013).

.

2.2. Sampling and Analysis

A total of 4 composite surface soil (0–20 cm) samples were randomly collected monthly from each of the six sites receiving wastewater regularly for irrigation, (4 samples * 6 sites * 4 months = 96 samples). However, the soil samples from the brinjal and spinach crop sites were collected during January–April 2015, compared to the cauliflower and lettuce crop site soil samples collected during September–December 2016. The soil samples were air-dried, crushed and sieved to <2 mm, and stored at room temperature before analyses of the physicochemical properties and heavy metal concentrations. Soil samples were analyzed for textural class, saturation paste electrical conductivity (ECs), and saturation paste pH (pHs) following methods described by the US Salinity Laboratory Staff following Richards [33]. Textural class of only the first batch (month) of soil samples was analyzed. To quantify the water-soluble soil Zn, Cu, Fe, Mn, Cd, Cr, Ni, and Pb concentrations, 10 g of dry soil was extracted with 50 mL deionized water following Zia et al. [34].

Irrigation wastewater samples were also collected monthly during the soil sampling campaigns. Four replicate polyethylene bottles (acid washed) of 500 mL each were filled with wastewater one by one at an interval of 10 s from an open channel flowing to the study site, for all sites. Each of the collected wastewater samples was acidified immediately with 1 mL of concentrated HCl to avoid microbial degradation of the heavy metals. The samples were placed in a cooler and transported to a soil- and water-testing laboratory in Multan. Within a week, 50 mL of the sample was digested with 10 mL of concentrated HNO₃ at 80 °C until the solution turned clear [35]. The clear solution was then filtered through a Whatman™ 42 filter, diluted back to 50 mL using distilled water, and stored for analysis.

Edible parts of the harvested vegetables were thoroughly washed sequentially with 1% HCl and deionized water (to clean/remove any dust material), air-dried in shade for 24 h, and then oven-dried at 70 °C until a constant weight. The dried matter was ground to a powder form and then sieved to <1 mm. One gram of the powder was digested with a mixture of HNO₃ and HClO₄ in a 2:1 ratio, respectively. The clear digest was filtered and diluted to 50 mL using deionized water and stored for analysis.

Plant total and soil and wastewater soluble Zn, Cu, Fe, Mn, Cd, Cr, Ni, and Pb concentrations were measured from the stored extracts using an Atomic Absorption Spectrophotometer (Model AAS Vario 6, Analytik Jena AG, Jena, Germany).

Transfer factors of the vegetables were calculated by dividing the vegetable total heavy metal concentration with the soil water-soluble heavy metal concentration [20], to interpret comparative bioaccumulation of heavy metals by the experimental vegetables grown on the same or different textures soils irrigated with various wastewater sources in Multan.

2.3. Statistical Analyses

All data analyses were performed using the SPSS 26.0 package (SPSS, Chicago, IL, USA). A two-way (soil/water and vegetable) multivariate (Zn, Cu, Fe, Mn, Cd, Cr, Ni, and Pb) ANOVA for quantifying the individual and interactive effects of the soil/water and vegetable factors on the response variables of the Zn, Cu, Fe, Mn, Cd, Cr, Ni, and Pb concentrations in vegetables. Regressions and correlations were also performed where needed. Data were not normally distributed; therefore, they were normalized to log10 values. Differences were significant when p < 0.05.

3. Results

The ECs of the Industrial estate was the highest (3.9 dSm⁻¹; Table 1) and was significantly higher than those of the Khan Village (1.4 dSm⁻¹) and Vehari road (1.5 dSm⁻¹; p = 0.001, p = 0.019, respectively) sites, in which the two sites had significantly lower ECs than the Sameej abad site (3.5 dSm⁻¹; p = 0.016). All other ECs comparisons did not significantly differ. The pHs of the sites were not significantly different, except for the Industrial estate pHs (8.4; Table 1), which was significantly higher than that of the Sameeja abad site (8.2; p = 0.005).

The ECiw of Industrial estate was also the highest (3.6 dSm⁻¹; Table 1) and was significantly higher than those of the Khan Village (0.3 dSm⁻¹) and Vehari road (0.3 dSm⁻¹; p = 0.001, p = 0.017, respectively) sites, in which the two sites had significantly lower ECiw than the Shujabad site (2.8 dSm⁻¹; p = 0.017). All other comparisons did not significantly differ. The pHiw of the sites were not significantly different with the exceptions of the Khan Village pHiw (7.2; Table 1), which was significantly higher than those of the Industrial estate (6.8; p = 0.001) and Shujabad (6.9; p = 0.017) where the Shujabad site had significantly lower pHiw than that of the Soraj miani site (7.1; p = 0.017).

Overall, the study sites (soils) were significantly different in chemistry and heavy metal concentration (Table 1; ECs: p = 0.001; pHs: p < 0.001; Zn: 0.036; Cu: p = 0.002; Fe: p < 0.001; Mn: p < 0.001; Cd: p = 0.006; Cr: p = 0.003; Ni: p = 0.005; and Pb: p < 0.001). All respective irrigation waters were also significantly different, except for Cr (ECs: p = 0.019; pHs: p < 0.001; Zn: 0.031; Cu: p = 0.005; Fe: p = 0.012; Mn: p = 0.003; Cd: p = 0.004; Cr: p = 0.058; Ni: p = 0.002; and Pb: p = 0.013). It is to be noted that Mn is not exactly a heavy metal but toxic when absorbed or present in excessive amounts.

Soil heavy metal concentrations were significantly different (p < 0.05; Table 1) between sites with the highest concentrations of all metals at the Industrial estate (Zn = 3.9, Cu = 2.6, Fe = 17.3, Mn = 4.0, Cd = 4.8. Cr = 4.4, Ni = 1.7, and Pb = 3.4 mg kg⁻¹), and the lowest at the Khan Village site (Zn = 1.8, Cu = 0.9, Fe = 6.8, Mn = 2.9, Cd = 0.7, Cr = 1.1, Ni = 0.4, and Pb = 1.4 mg kg⁻¹). All other sites had a mix of higher or lower concentrations of the heavy metals compared to each other.

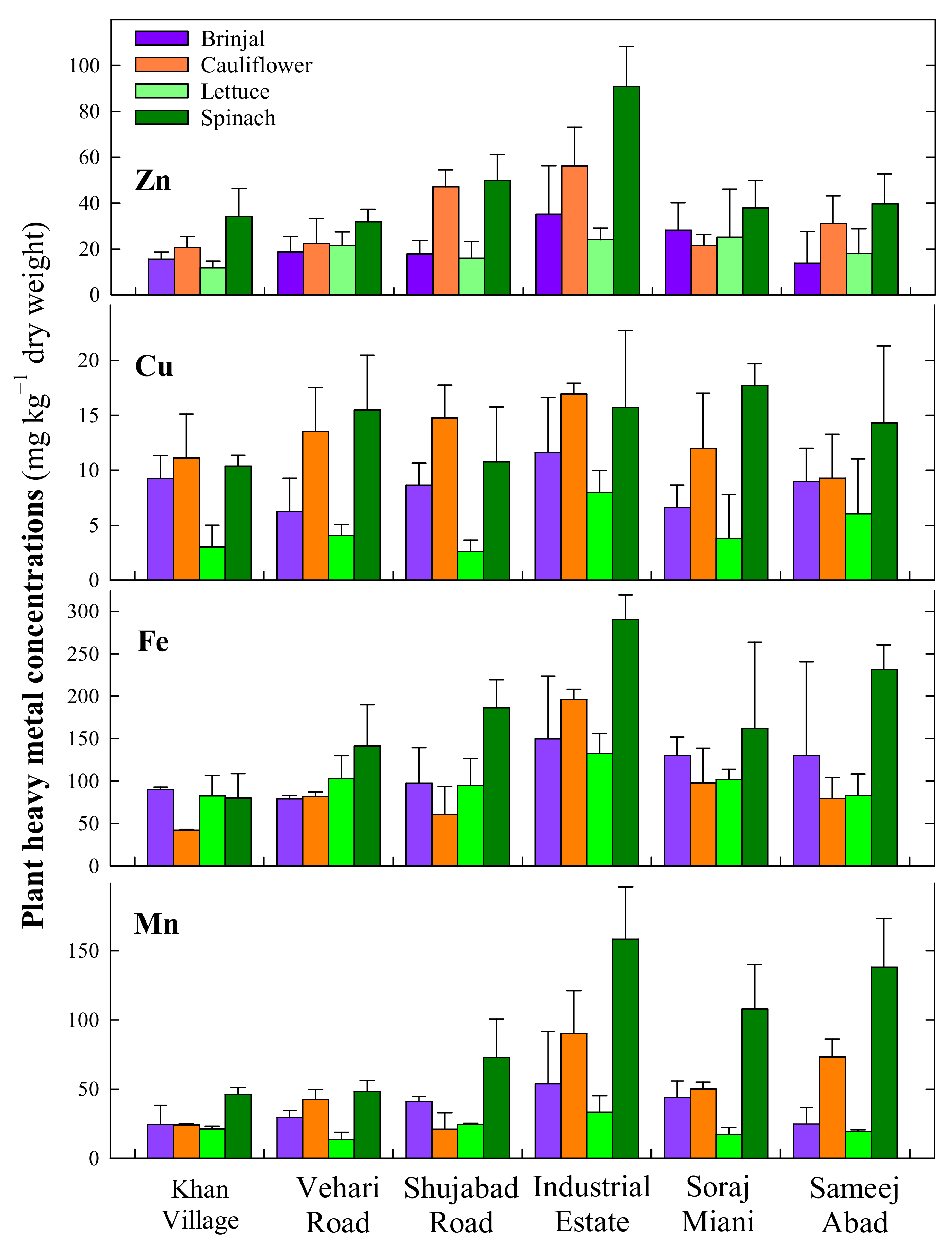

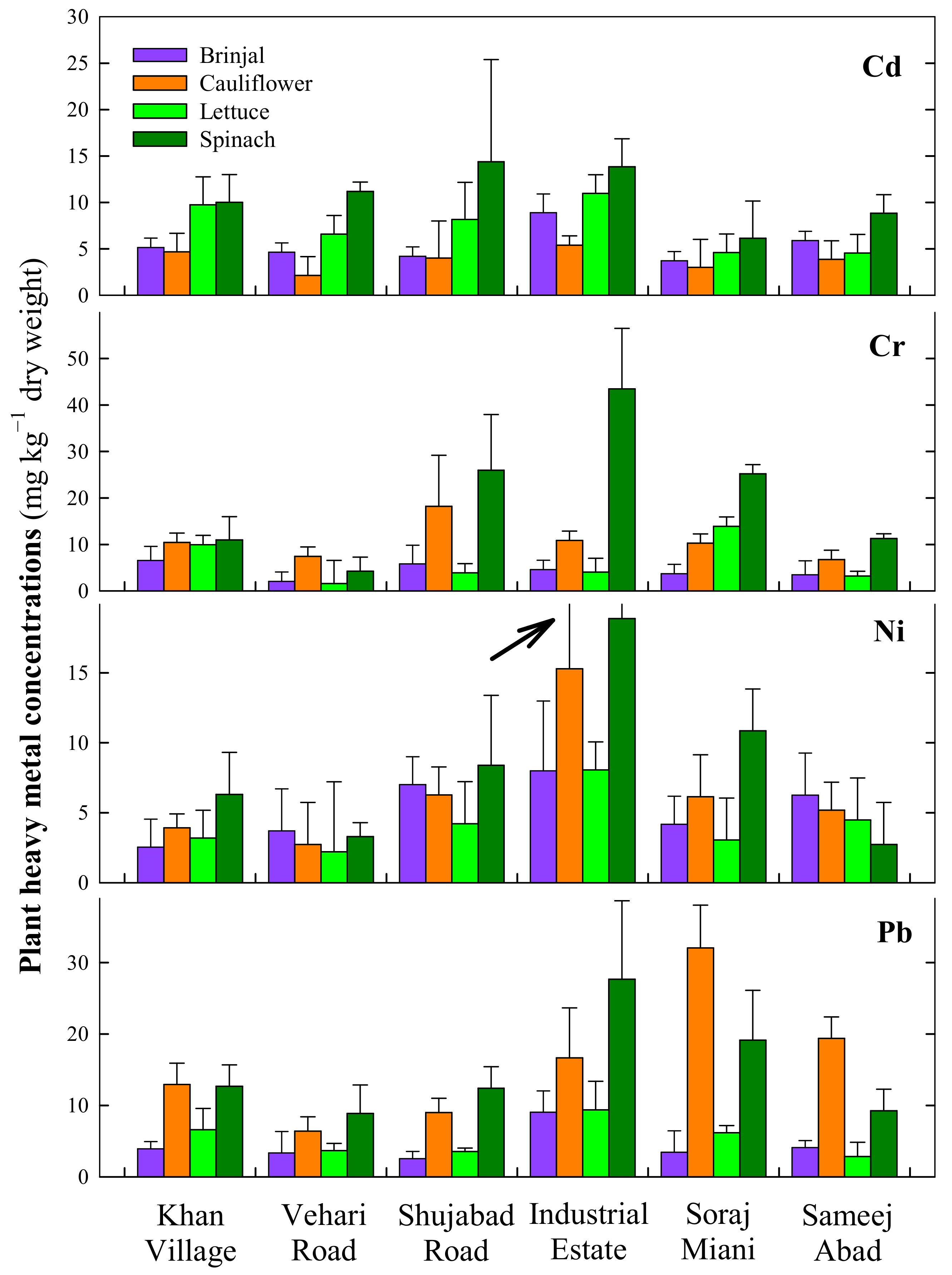

There were significant (p < 0.05) main (site/water and vegetable) and interactive (soil/water * vegetation) effects on phytoextraction of all metal concentrations. At the site level, the Cu, Mn, Cd, and Ni phytoextraction values were significantly different, except for the Cu and Cd values at Khan Village that did not differ from the corresponding values at Shujabad road and Vehari road (both; p = 1.000, p = 0.073, respectively; Figure 1 and Figure 2), Cd concentrations at Sameeja abad did not differ from those at the Khan village and Vehari road values (both p = 1.00, respectively Figure 3 and Figure 4). The phytoextraction concentrations of Mn, Cd, and Ni also significantly differed between all four vegetables; however, the lettuce Zn concentration did not differ from that in brinjal (p = 1.00), the cauliflower Cu value did not differ from that in spinach (0.189), and the lettuce and cauliflower values did not differ from those in brinjal and spinach (both; p = 1.00; Figure 1 and Figure 2)

There were significant (p < 0.05) main (site and vegetable) and interactive (soil * vegetation) effects on vegetable transfer factor (VTF) for all metals, except no site/water * vegetable interaction for the Cr VTF was found (p = 0.585;

Table 2. Mean (± SD) values (unitless) of the soil–plant transfer factors (vegetable leaf concentration/soil concentration) for all heavy metals across the study sites *.

Site/Vegetable	Zn	Cu	Fe	Mn	Cd	Cr	Ni	Pb
Khan Village
Brinjal	8.6 ± 3.9	9.8 ± 0.6	13.3 ± 0.9	8.4 ± 0.5	7.8 ± 0.4	5.9 ± 5.8	6.0 ± 0.1	2.8 ± 0.2
Cauliflower	11.4 ± 1.7	11.8 ± 0.6	6.2 ± 0.9	8.2 ± 3.5	7.0 ± 5.3	9.5 ± 10.0	9.3 ± 0.5	9.2 ± 7.5
Lettuce	6.5 ± 3.8	3.2 ± 0.4	12.1 ± 0.3	7.2 ± 3.2	14.7 ± 0.4	9.0 ± 10.0	7.5 ± 1.0	4.6 ± 0.3
Spinach	19.0 ± 1.6	11.0 ± 0.1	11.7 ± 8.5	15.9 ± 1.0	15.1 ± 0.6	10.0 ± 8.8	15.0 ± 0.0	9.0 ± 0.1
Vehari road
Brinjal	11.2 ± 2.6	4.8 ± 0.7	8.1 ± 0.9	8.0 ± 0.0	3.3 ± 1.2	1.2 ± 0.5	8.0 ± 0.1	1.9 ± 0.2
Cauliflower	13.4 ± 4.6	10.5 ± 0.7	8.5 ± 0.6	11.5 ± 0.5	1.5 ± 0.6	4.6 ± 1.3	5.9 ± 0.7	3.6 ± 0.5
Lettuce	12.9 ± 6.8	3.1 ± 0.4	10.6 ± 0.5	3.7 ± 0.5	4.7 ± 0.5	0.9 ± 0.0	4.8 ± 0.5	2.1 ± 0.2
Spinach	19.2 ± 2.2	12.0 ± 0.1	14.6 ± 0.5	13.1 ± 0.1	7.9 ± 0.0	2.6 ± 0.5	7.1 ± 0.3	5.0 ± 0.2
Shujabad road
Brinjal	7.1 ± 1.4	5.0 ± 0.2	7.7 ± 0.5	12.0 ± 4.2	0.9 ± 0.0	2.2 ± 1.3	6.7 ± 0.5	0.9 ± 0.1
Cauliflower	19.0 ± 0.8	8.6 ± 0.8	4.8 ± 1.7	6.1 ± 0.9	0.9 ± 0.1	7.0 ± 4.8	6.0 ± 0.1	3.3 ± 3.1
Lettuce	6.4 ± 1.2	1.5 ± 0.6	7.5 ± 0.5	7.1 ± 3.2	1.9 ± 0.2	1.5 ± 1.0	4.0 ± 0.1	1.3 ± 0.5
Spinach	20.1 ± 5.5	6.3 ± 0.5	14.7 ± 6.9	21.5 ± 3.7	3.3 ± 0.5	9.9 ± 5.8	8.0 ± 0.1	4.6 ± 0.5
Industrial estate
Brinjal	9.0 ± 0.1	4.5 ± 1.7	8.6 ± 0.5	13.3 ± 1.4	1.8 ± 0.3	1.0 ± 0.1	4.6 ± 0.5	2.6 ± 1.0
Cauliflower	14.4 ± 0.5	6.5 ± 1.0	11.3 ± 3.3	22.3 ± 2.5	1.1 ± 0.3	2.4 ± 1.0	8.8 ± 0.2	4.9 ± 2.1
Lettuce	6.1 ± 0.4	3.0 ± 2.1	7.6 ± 0.5	8.21 ± 0.5	2.3 ± 0.5	0.9 ± 0.1	4.6 ± 0.5	2.7 ± 1.5
Spinach	23.2 ± 5.2	6.0 ± 0.2	16.7 ± 1.5	39.2 ± 1.4	2.9 ± 0.2	9.9 ± 5.8	10.9 ± 0.0	8.1 ± 0.6
Soraj miani
Brinjal	13.3 ± 0.5	3.2 ± 1.0	11.1 ± 1.6	13.0 ± 0.7	1.6 ± 0.5	0.9 ± 0.1	3.1 ± 0.2	1.3 ± 0.5
Cauliflower	10.0 ± 0.1	5.8 ± 0.6	8.3 ± 0.9	14.9 ± 0.8	1.3 ± 0.5	2.5 ± 0.5	4.5 ± 0.7	12.2 ± 1.4
Lettuce	11.8 ± 4.0	1.8 ± 0.6	8.7 ± 1.0	5.1 ± 0.6	2.0 ± 0.0	3.5 ± 5.7	2.2 ± 0.5	2.3 ± 0.8
Spinach	17.8 ± 0.6	8.6 ± 0.8	13.8 ± 5.9	32.1 ± 0.6	2.7 ± 0.5	6.3 ± 4.4	8.0 ± 0.2	7.3 ± 0.5
Sameeja abad
Brinjal	7.5 ± 1.8	18.7 ± 1.5	17.2 ± 3.8	10.7 ± 0.9	3.0 ± 0.1	2.0 ± 0.1	13.6 ± 0.5	3.1 ± 0.5
Cauliflower	17.1 ± 1.1	19.3 ± 0.9	10.5 ± 5.3	31.8 ± 2.1	1.9 ± 0.0	3.9 ± 0.1	11.2 ± 1.0	15.1 ± 0.6
Lettuce	9.8 ± 1.6	12.5 ± 1.7	11.0 ± 2.0	8.5 ± 0.6	2.3 ± 0.5	1.8 ± 0.2	9.7 ± 0.5	2.2 ± 0.5
Spinach	21.8 ± 2.5	29.7 ± 0.5	30.7 ± 4.9	60.1 ± 0.2	4.5 ± 0.5	6.5 ± 5.0	5.9 ± 0.1	7.2 ± 0.5

* Sites comparison: soil–plant transfer of Fe was significantly higher at the industrial estate site than that at the Khan Village site (F_{5, 24} = 2.51, p = 0.048, R² = 0.41). The Ni transfer factor at the Industrial site was significantly higher than all sites except the Shujabad road site (F_{5, 24} = 5.51, p = 0.003, R² = 0.61).

and

Table 3. Results of a two-way MANOVA of the soil–vegetable heavy metal transfer factor for six study sites in Multan, Pakistan.

Source	df	Zn	Cu	Fe	Mn	Cd	Cr	Ni	Pb
Site
F	5, 96	2.69	93.99	6.13	66.17	168.86	3.07	243.52	20.86
p	5, 96	0.03	0.00	0.00	0.00	0.00	0.01	0.00	0.00
Vegetable
F	5, 96	52.50	131.85	13.59	257.04	108.95	17.64	213.05	90.90
p	5, 96	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00
Site × Vegetable
F	5, 96	3.31	4.20	2.59	13.13	4.30	0.88	68.92	4.55
p	5, 96	0.00	0.00	0.00	0.00	0.00	0.59	0.00	0.00
R2	5, 96	0.75	0.93	0.61	0.95	0.95	0.53	0.98	0.86

Bold values are significant at the =0.05 level. R² shows the relationship between the soil and plant heavy metal concentrations.

). VTF comparisons revealed that spinach was the best phytoextractant with the highest phytoextraction values (spinach: Zn = 20.2 (±3.6), Cu = 12.3 (±8.3), Fe = 17.1 (±8.1), Mn = 30.3 (±16.5), Cd = 6.1 (±4.5), Cr = 7.6 (±5.7), Ni = 9.2 (±3.1), and Pb = 6.9 (±1.7)—Table 2 and Table 3) followed by cauliflower and brinjal, while lettuce had the lowest VTF values for phytoextraction (lettuce: Zn = 20.2 (±4.3), Cu = 12.3 (±4.0), Fe = 17.1 (±2.0), Mn = 30.3 (±2.4), Cd = 6.1 (±4.7), Cr = 7.6 (±5.1), Ni = 9.2 (±2.6), and Pb = 6.9 (±1.3)—Table 2 and Table 3) under main (site and vegetable) or interactive (site * vegetable) effects. Values in brackets show the standard deviation.

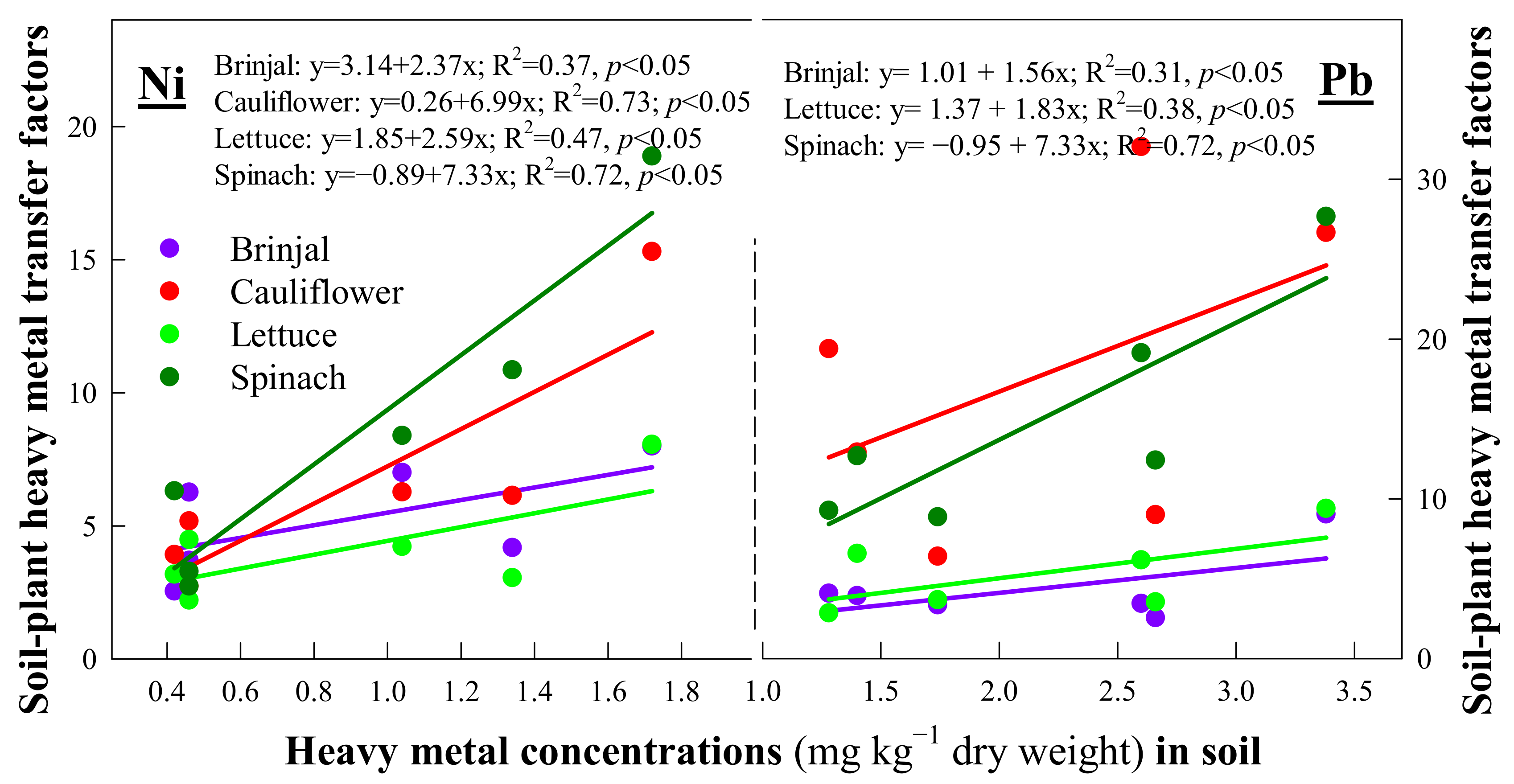

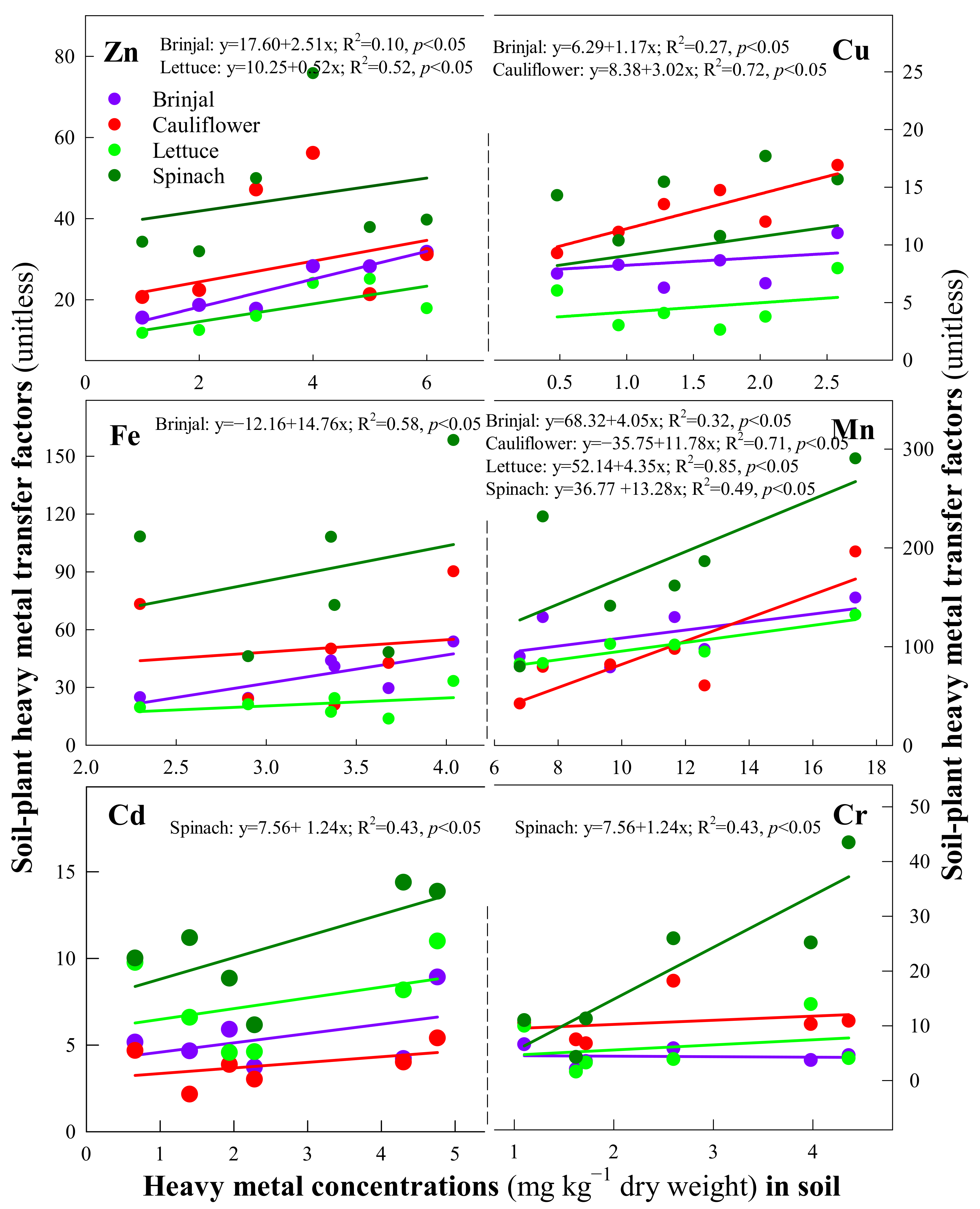

The soil metal concentration–VTF correlations were significant (p < 0.05; Figure 3 and Figure 4) for brinjal and lettuce for Zn; for brinjal and cauliflower for Cu; for brinjal only for Fe; all for Mn and Ni; for spinach for Cd and Cr; and for brinjal, lettuce, and spinach for Pb (Figure 3 and Figure 4).

4. Discussion

In this study, the phytoextractions of soil Zn, Cu, Fe, Mn, Cd, Cr, Ni, and Pb heavy metals by the four vegetables (brinjal, cauliflower, lettuce, and spinach), grown on six sites equally divided into sandy loam and clay loam soils, and where each soil was irrigated with three types of water—normal, sewage, and normal + sewage—were measured. Since comparing the phytoextraction values of the vegetables grown on different textured soils irrigated with different types of waters would not be satisfying, we additionally compared the vegetable transfer factor (VTF; Cui et al. [20]), which is equal to the heavy metal concentration in the vegetable divided by the heavy metal concentration in the soil. The VTF minimizes biases in comparative phytoextraction values owing to differences in heavy metal concentrations among the soil textures as well as the irrigation waters used in the study.

4.1. Effect of Site/Water on Phytoextraction of Heavy Metals

In this study, heavy metal phytoextraction of all heavy metals was the highest at the Industrial estate study site, which had a clay loam texture and was being irrigated with the sewage water. The overall phytoextractions of heavy metals by the four vegetables at this site were significantly higher than those at the Khan Village and Sameej abad sites, which had sandy loam and clay loam textures, respectively, and were being irrigated with normal water. Moreover, Shujabad road site (sandy loam) vegetables had also clearly higher phytoextractions than those of the crops at the sites being irrigated with normal water. These results are in line with that of Yargholi [36], who also reported significant increases in heavy metal concentrations in soil (or VTF) in response to irrigation with sewage water of high heavy metal concentrations. The toxic concentration of the heavy metals or other micro/nutrients in the irrigation water has frequently been reported, for example, [37,38] to directly concentrate in the plant roots/shoots/leaves, which food may put the health and life of animals and humans in jeopardy.

The highest phytoextraction by the industrial site vegetables was likely due to the greatest soil concentrations of the respective heavy metals owing to continuous use of sewage water at this heavy soil texture site. It also reveals that the soil particle exchange sites of this heavy texture site tend to be fully occupied and are transferring the surplus to the crops, resulting in high VTF factors. A similar phenomenon is also shown by the Shujabad road site; however, the extent of the transfer of heavy metals to the vegetables was much lower due to the light texture nature of the soil, which may, for example, accumulate or supply lesser heavy metals to the plant parts [39].

Overall phytoextraction of heavy metals by vegetable crops showed that spinach had the highest phytoextraction of all the heavy metals followed by cauliflower and lettuce, while brinjal had the lowest phytoextraction of heavy metals, as was also found by Sharma et al. [17,18]. The phyto uptake capability of the spinach crop we found is comparable to the findings of Ng et al. [40]. The highest heavy metal phytoextraction of spinach could be attributed to its leafy structure, short stature and growth cycle, and the fastest metabolism, which can uptake toxic compounds or heavy metals in toxic quantities and transform or mineralize them to simpler compounds, which can be assimilated or accumulated for the long term. There was a site * vegetable interaction for spinach at the Industrial estate site, which has a heavy soil texture irrigated with sewage water, again supporting our findings on the individual effects of site and vegetable on the phytoextraction of the heavy metals, and also support the findings of Zia et al. [34], except they used phytoextraction enhancing chemicals.

4.2. Effect of Site/Water on Vegetable Transfer Factor

In contrast to the phytoextraction values, the VTF values were found to be the highest at the Sameeja abad site of heavy texture and irrigated with a mix of normal and sewage waters (the exact ratio of the mix is not reported since it kept changing). It was found that the crops had visually much higher coverages and biomasses than those at the other experimental sites. Vegetation may attain maximum coverage and biomass when supplied with exponentially dissolved organic carbon and salts or ions in soils [41]. Therefore, a higher VTF at this site could be attributed to greater uptake of heavy metals (relative to its soil concentrations) along with essential nutrients in contrast to the Industrial estate, which had greater concentrations of heavy metals in both the soil and vegetable crop and the VTF was low due to the much higher soil heavy metal concentrations than those at the Sameeja abad site. The findings of Cui et al. [20] corroborate our explanation of the higher VTFs of vegetables due to lower soil heavy metal concentrations.

Interestingly, spinach had overall the highest VTF values of all the heavy metals, similar to its corresponding phytoextraction values. Additionally, the VTF values of cauliflower, lettuce, and brinjal were also in the order similar to those of the phytoextraction values of these vegetables. These findings complement our results on the phytoextraction capacities of the four vegetable crops used in this study.

5. Conclusions

Vegetables, one of the most important foods for humans, are also efficient phytoextractants of heavy metals in soils. When grown on heavy or light-textured soils irrigated with sewage water, vegetable crops phytoextracted the heavy metals to highly toxic levels. Spinach was the most efficient phytoextractant followed by cauliflower and lettuce, while brinjal was the least efficient of all. We suggest that soils, when irrigated with sewage water having excessive concentrations of the studied heavy metals, may transfer these metals in toxic amounts to vegetable crop plants.
