Riding into Danger: Predictive Modeling for ATV-Related Injuries and Seasonal Patterns

by
Fernando Ferreira Lima dos Santos
and
Farzaneh Khorsandi
*
Agricultural Health and Safety Laboratory, Department of Agricultural and Biological Engineering, University of California, Davis, One Shields Ave, Davis, CA 95616, USA
*
Author to whom correspondence should be addressed.
Forecasting 2024, 6(2), 266-278; https://doi.org/10.3390/forecast6020015
Submission received: 2 January 2024 / Revised: 26 February 2024 / Accepted: 14 March 2024 / Published: 2 April 2024

Abstract

:
All-Terrain Vehicles (ATVs) are popular off-road vehicles in the United States, with a staggering 10.5 million households reported to own at least one ATV. Despite their popularity, ATVs pose a significant risk of severe injuries, leading to substantial healthcare expenses and raising public health concerns. As such, gaining insights into the patterns of ATV-related hospitalizations and accurately predicting these injuries is of paramount importance. This knowledge can guide the development of effective prevention strategies, ultimately mitigating ATV-related injuries and the associated healthcare costs. Therefore, we performed an in-depth analysis of ATV-related hospitalizations from 2010 to 2021. Furthermore, we developed and assessed the performance of three forecasting models—Neural Prophet, SARIMA, and LSTM—to predict ATV-related injuries. The performance of these models was evaluated using the Root Mean Square Error (RMSE) accuracy metric. As a result, the LSTM model outperformed the others and could be used to provide valuable insights that can aid in strategic planning and resource allocation within healthcare systems. In addition, our findings highlight the urgent need for prevention programs that are specifically targeted toward youth and timed for the summer season.

1. Introduction

All-Terrain Vehicles (ATVs) are popular off-road vehicles in the United States (U.S.), with an estimated 10.5 million households owning at least one ATV in 2017 [1]. However, despite their popularity, ATVs are known to be unstable vehicles due to their high center of gravity, narrow wheelbase, and track width. Riding them can result in severe injuries and even death [2]. According to the U.S. Consumer Product Safety Commission report [3], around 504 deaths occur every year due to ATV incidents. ATV-related injuries are a significant public health concern, with hospitalizations being a common outcome of ATV incidents [4]. These hospitalizations not only result in significant morbidity and mortality, but also impose a significant economic burden on healthcare systems. The cost of ATV-related hospitalizations is substantial, with estimates suggesting that the average cost of care for ATV-related injuries is approximately USD 90,000 per patient in the U.S. [5]. As such, understanding the patterns of ATV-related hospitalizations and being able to accurately predict those injuries is crucial for the development of effective strategies for preventing ATV-related injuries and reducing healthcare costs.
ATV-related injuries follow a seasonal variation, in which most hospital admissions happen during the summer season, holidays, and weekends [6,7,8,9]. In order to effectively predict and prevent ATV-related injuries, it is important to incorporate data seasonality into forecasting models. Some of the most popular forecasting models for time series data with seasonality are Facebook’s Neural Prophet, Seasonal Auto-Regressive Integrated Moving Average (SARIMA) and Long Short-Term Memory (LSTM) [10,11,12]. Those models have been increasingly used for motor-vehicle-related injury prediction, in which recent studies pointed out their effectiveness in predicting injuries and trends over a period of time [13,14,15,16]; yet, in the case of ATVs, little has been reported with the use of injury prediction models. An artificial neural network has been developed to predict the severity of ATV-related injuries. Its architecture was composed of nine hidden nodes and one hidden layer, resulting in a correct classification rate of 68.6% [17]. Multiple linear regression models have been used to predict hospital length of stay and costs based on factors associated with ATV-related injuries. While length of stay was predicted by four different variables and presented an adjusted R2 of 0.259, hospital charges were predicted by six different variables and presented an adjusted R2 of 0.263 [18]. However, to the best of our knowledge, there has been no study that focuses on ATV-related injury prediction that considers the seasonality of the data and provides an accurate estimate of the number of injuries throughout the year.
In this study, we aimed to address this gap by developing a forecasting model for ATV-related injuries that considers seasonal patterns. We conducted a thorough analysis of hospitalization records related to ATV use and identified key factors such as demographics and occupational usage to inform injury prevention strategies. Further, we implemented different forecasting models such as Neural Prophet, SARIMA, and LSTM, followed by performance evaluation. Our findings provide valuable insights into the patterns of ATV-related injuries, aid in the development of effective prevention strategies, and help to reduce the economic burden on healthcare systems and insurance companies.

2. Materials and Methods

Data on ATV-related injuries that led to hospitalizations were used to develop machine learning forecast models. The study aimed to develop forecasting models for ATV-related injuries that accounted for the data’s seasonality using different algorithms, such as Neural Prophet, SARIMA, and LSTM. The performance of these models was evaluated by using the Root Mean Squared Error (RMSE), Mean Absolute Error (MAE), and Mean Absolute Percentage Error (MAPE) accuracy metrics. Figure 1 illustrates the study’s framework.

2.1. Data Source and Treatment

This study utilized data from the National Electronic Injury Surveillance System (NEISS) online database for the period of January 2010 to December 2021. The NEISS database is maintained by the U.S. Consumer Product Safety Commission (CPSC) and provides information on injury events related to consumer products [19]. Data on injury events were extracted from the NEISS database for all ATV-related incidents and were compounded by several descriptors such as age, race, gender, diagnosis, body part injured, disposition, location of the incident, and a brief descriptive narrative of the incident [20]. Currently, recommendations for ATV use among youths follow different criteria, including engine size. It is recommended that engine sizes between 70 and 90 cc should be used by youths of 12 years old or older, and engine sizes larger than 90 cc should be used only by youths of 16 years old or older [21]. For this study, we adopted this criterion for sorting the age range for the analysis.
Data obtained from the NEISS database were treated using an algorithm written in Python programming language. First, the data were cleaned and preprocessed to ensure that they were accurate and consistent. This included removing any duplicate data and ensuring that the data were in the correct format (e.g., date of the incident should be in date format). The data were then searched for references to ATV-related injuries, by using keywords such as “ATV”, “All-Terrain Vehicle”, “Four-Wheeler”, “Quad bike”, and variations derived from those names (e.g., “quadbike” and “4-wheeler”). We used the field “emergency department (ED) disposition” as a way to measure the severity of injuries since the NEISS database did not have any specifications in this regard. We created the category “Hospitalization”, which is a binary variable (yes/no). Data entries that presented ED disposition codes 2 (treated and transferred), 4 (treated and admitted/hospitalized), 5 (held for observation), and 8 (died in the emergency room) were assigned to Hospitalization = yes. Conversely, all data entries with ED disposition codes different from 2, 4, or 5 were assigned to Hospitalization = no.
The next step consisted of grouping the data by month instead of day (original dataset). The column “Monthly Hospitalizations” was created to account for the total reported cases per month. After all of these steps, the filtered and sorted data were saved in an Excel worksheet. Lastly, the obtained data were split into testing and training datasets. The testing dataset consisted of all ATV-related hospitalizations for the year 2021, accounting for a total of 633 cases. The training dataset included a total of 4688 cases of hospitalizations from the period of 2010 to 2020.

2.2. Neural Prophet Model

Neural Prophet is a combination of a neural network and the Prophet model, which is a decomposable time-series model, developed by Meta Platforms, Inc. The model is compounded by different modules, each of which adds a specific component to the forecast. Some of these components can also be adjusted to be influenced by the trend, resulting in a multiplied effect on the forecast. The model components can be described as follows [22]:
y t = T t + S t + E t + F t + A t + L t ,
where
T(t) = Trend at time t;
S(t) = Seasonal effect at time t;
E(t) = Event and holiday effects at time t;
F(t) = Regression effects at time t for future-known exogenous data;
A(t) = Auto-regression effects at time t based on past observations;
L(t) = Regression effects at time t for lagged observations of exogenous data.
The Neural Prophet model uses a neural network to model non-linear relationships in the data and the Prophet to model seasonality. This combination allows the model to capture both the data’s complex patterns and seasonality in their predictions [12,23]. The model is effective at identifying and dealing with outliers, and it proved to be robust in handling missing data and changes in the trend [24].
The implementation of the Neural Prophet model for this study was conducted using Python 3.9 and the “neuralprophet” library. We used automatic selection for change points and added the influence of yearly seasonality and U.S. holidays in the model development. Further, we set the number of hidden layers as four, the learning rate as 0.005, and the model’s growth as linear.

2.3. SARIMA Model

SARIMA is a stochastic model designed to analyze and forecast time series data, with a particular focus on data that exhibit strong seasonal variation. The model is composed of autoregression (AR), difference (I), and moving average (MA) components, with an added seasonal component (S) to account for seasonality, as outlined by previous research [13,25]. The model is summarized in Equation (2) [13].
d s D x t = θ ( B ) Φ s ( B ) Φ ( B ) Φ s ( B ) ε t ,
where
= Difference operation;
D = Seasonal degree;
d = Degree of mom-seasonal difference;
xt = Time series;
B = Backwards shift operator;
εt = Error term at time t;
s = Period length.
The implementation of the SARIMA model was conducted using Python 3.9 and the “SARIMAX” package from the “statsmodels” library. Before training the model, several steps were taken to ensure that the data were modeled accurately. The dataset’s stationarity was analyzed through an Augmented Dickey–Fuller (ADF) test (α = 0.05), which confirmed that the data were non-stationary (p = 0.994). After submitting the data to first-order differencing, the ADF test indicated the stationarity of the data (p < 0.05). In addition, as the data were showing an annual seasonality, we performed seasonal differencing at lag 12 (yearly). Once we were able to identify the trend (d) and seasonal (D) differencing order components (d, D = 1), and lag (equal to 12), we used the Auto and Partial Correlation Functions to identify the other components (p, d and q). To check whether or not the choice of the model’s components was the best, we used a grid search to explore a range of possible values for our estimated parameters. Then, we selected the model with the lowest Akaike Information Criterion (AIC) score, which is a quality measure for comparing models. The chosen model, which obtained an AIC equal to 689.60, was the SARIMA (2, 1, 2) × (2, 1, 2)12.

2.4. LSTM Model

The LSTM model is a type of recurrent neural network that excels at analyzing complex time series data with intricate patterns and seasonality. Its ability to learn from past observations enables it to make accurate predictions. What sets this model apart is its series of memory cells, which can capture intricate correlation features in the data over short and long time periods. This improvement over traditional recurrent neural networks has been highlighted in a previous study [26].
The model was implemented by using Python 3.9 and the “LSTM” package from the “tensorflow” library. Before fitting data to the model, the field “Monthly Hospitalizations” from the dataset was normalized on a scale from zero to one, as this model can be sensitive to the scale of the input data [27]. Finally, an optimal set of hyperparameters was selected based on the best RMSE value obtained by the model and the minimum input and output’s loss functions. A summary of the parameters used in the model is shown in Table 1.
The model’s training and validation performance were analyzed through the loss values obtained during both training and validation steps (Figure 2). To avoid overfitting, we implemented an early stopping function with patience equal to 50. The obtained model was trained with a total of 198 epochs and presented loss values equal to 0.006 for both training and validation (Figure 2).

2.5. Accuracy Assessment of the Models

The forecasting models’ accuracy was assessed through several accuracy metrics, such as MAE, MAPE, and RMSE. These metrics provide an indication of the difference between the predicted and actual values, allowing us to evaluate the overall performance of the models. MAE measures the average absolute difference between the predicted and actual values, while MAPE measures the average percentage difference. RMSE, on the other hand, measures the average of the squared differences between the predicted and actual values, providing the error in terms of the actual value’s unit. Those metrics can be described as follows:
M A E = i = 1 n x i x ^ i n ,
M A P E = i = 1 n x i x ^ i x i 100 n ,
R M S E = i = 1 n x i x ^ i 2 n
where
x i = Actual value;
x ^ i = Predicted value;
n = Number of observations.

3. Results and Discussion

3.1. Demographic Characteristics and Overall Trends in Hospitalization

From January 2010 to December 2021, there were 5321 ED visits in the U.S. due to ATV-related incidents. Males accounted for the majority of hospitalizations, with a ratio of approximately 3:1 compared to females, as shown in Table 2. The age group with the highest hospitalization rate was youths between 12 and 15 years old, representing 16% of all hospitalizations. Among female patients, this trend was even more pronounced, with 19% of hospitalizations occurring in the 12–15 age group. In contrast, among male patients, the highest incidence of ED visits occurred in the 12 years or younger age group (15.79%), followed closely by the 30–39 age group (15.26%) and the 12–15 age group (15.21%). The high rate of ATV-related incidents among individuals younger than 16 is consistent with previous studies [28,29,30,31].
Among the reported locations, recreational or sports areas were the leading cause of incidents, accounting for 35% of the reported locations and 17.6% of all the hospitalizations, including the incidents without a recorded location (Table 2). The high number of incidents in these locations may be attributed to several factors. In the U.S., ATVs are mainly used for recreational purposes such as off-road adventures and sports events, making these areas a prime location for incidents to occur. According to the U.S. Government Accountability Office, 79% of all ATV riders were using their vehicles for recreational purposes by 2008 [32]. Furthermore, recreational and sports areas are often open spaces with rough terrain, which can increase the risk of incidents [33], especially for inexperienced riders. Riders engaging in ATV sports and recreation may take more risks and be less cautious, which can also increase the likelihood of incidents. Lastly, the lack of proper training, safety measures and enforcement of safety guidelines in these areas can contribute to the high number of injuries [34,35].
It was reported that 9.7% of all the hospitalizations were caused by riding ATVs on streets or highways (Table 2). This statistic highlights the risks of using ATVs, which are designed for off-road activities, on paved surfaces [8,29]. These vehicles are equipped with low-pressure tires that are designed to offer traction on rough and slippery surfaces. However, when ridden on smooth surfaces, such as pavements, the tires have higher friction and adhesion with the road, which can cause the vehicle to shift laterally and increase the risk of rollover, especially when making turns at high speeds [29].
The number of hospitalization cases associated with riding ATVs on farms and ranches was among the lowest, accounting for 0.7% of all the reported cases (Table 2). Nevertheless, the agricultural setting is particularly dangerous for riders, as it may present several factors that contribute to the loss of the vehicle’s control [36,37]. As a result, the fatality rate for ATV-related incidents in the agriculture/forestry/fishing/hunting industry was reported to be 100 times greater compared to all other industries in the U.S. [38]. Thus, it is noteworthy that data on farm and ranch incidents in this study may not be complete and fail to describe the full picture. According to the Occupational Safety and Health Act of 1970 [39], agricultural properties with ten or fewer employees are exempt from reporting working incidents, which could lead to data underrepresentation [40].
The overall trend in ATV-related hospitalizations pointed to an increase in the number of cases over the years, as illustrated in Figure 3. The analysis also revealed that the highest numbers of monthly hospital admissions for ATV-related injuries occurred during 2020 and 2021, with a peak of 91 hospitalizations in May 2020. This trend is consistent with reports from a previous study that pointed out an increase of 78% in injuries involving ATVs after the onset of shutdown measures due to the COVID-19 pandemic [41].
Data seasonality analysis pointed out that the highest number of hospitalizations happened during the summer months (June, July, and August), accounting for 35% of all ATV-related injury cases (Figure 4). This finding aligns with both results from Table 2 and the previously reported seasonality patterns of ATV incidents [6,7,8,9], suggesting that ATV-related incidents are more likely to happen during warmer months, as most ATVs are used for recreational purposes (Table 2).

3.2. Performance Assessment of the Models

It was observed that the LSTM model outperformed the other two models, with an RMSE of 3.71. The SARIMA and Neural Prophet models had RMSE values of 9.21 and 8.96, respectively (Table 3). Figure 5 shows the predicted values obtained by the models compared to the actual values for the validation dataset.
The SARIMA model has been successfully used to predict road traffic incidents [13,42,43], as it is one of the most effective linear models for forecasting seasonal time series [13]. In addition, this model can manage the data’s secular trend, seasonal variation, and autocorrelation without the need for complex transformations or additional surrogate variables [42]. However, it may not accurately predict non-linear data [13], such as the number of ATV-related hospitalizations, which explains its relatively low accuracy (RMSE = 9.21). Moreover, additive models such as SARIMA and Prophet are prone to errors when dealing with unstable data [13]. Data analysis in this study revealed a sudden increase in the numbers of monthly hospital admissions for ATV-related injuries from 2020 to 2021 (Figure 3), which also influenced the performance of the SARIMA and Neural Prophet models.
In contrast to the previous models, LSTM has strong capabilities in processing non-linear and unstable data [13,44], which explains its superior performance in predicting ATV-related hospitalizations (RMSE = 3.71). Similar results have been reported in a previous study. Feng et al. [13] used the LSTM, SARIMA, and Prophet models to predict the number of road traffic incidents in Northeast China. Due to the non-linear nature of the data and the presence of disturbance within data, it was observed that the LSTM outperformed the other models.

3.3. Insights and Recommendations for Developing Effective Safety Guidelines and Prevention Programs

The findings of this study highlight the need for developing and implementing effective safety guidelines and prevention programs to reduce the number of ATV-related hospitalizations, which has a clear seasonal trend. We identified key characteristics of ATV-related hospitalizations, including demographic characteristics, locations of incidents, and seasonal trends, which could inform stakeholders (e.g., funding agencies, hospitals, and insurance companies). According to the data analysis, the majority of the ED visits occurred during the summer months, with a peak in July. Moreover, a high incidence of injuries among youth younger than 16 years old was reported, and areas of sports and recreation were among the leading locations in number of hospitalizations. These findings suggest that targeted prevention programs should be implemented during the summer season to reduce the incidence of ATV-related injuries. A hierarchy of controls was used as a guideline to identify possible solutions for the incident patterns reported in this study [45], as illustrated in Figure 6.
To address the concerning trend involving youth riders’ incidents with ATVs, different approaches could be considered. Awareness programs in schools before summer breaks could be developed to provide educational materials and presentations to students about ATV safety. This could include information on proper helmet use and safe riding practice. Additionally, schools could partner with local ATV dealerships to offer hands-on safety training courses for students. Schools could also provide resources and information to parents to ensure that they are aware of the risks associated with ATV use and the steps they can take to protect their children. Lastly, youth are particularly vulnerable to ATV-related incidents due to their physical, cognitive, and emotional immaturity [40,46,47,48]. To address this issue, implementing stricter laws and regulations around the use of ATVs by minors could help mitigate the risk of ATV-related incidents. Age restrictions, helmet laws, and limitations on when and where minors can operate ATVs are some of the measures that could be taken.
Further, efforts in promoting the use of vehicle safety structures could be considered to reduce ATV-related hospitalization cases. Several successful programs have been implemented to promote the use of Rollover Protective Structures (ROPS) on agricultural tractors in different countries. In Sweden, after a decrease in the number of unprotected tractors (without ROPS) from 24% to 8%, it was observed that the fatality rate (number of deaths per 100,000 tractors) had fallen to zero. A similar trend was observed in Australia after the implementation of the ROPS rebate program, where the number of unprotected tractors decreased from 24% to 7%. As a result, the program prevented approximately two deaths per year, within which a statistical estimate of 0.9 rollover deaths per year after the program was observed [49]. In the United States, the success of the ROPS rebate program in the State of New York resulted in the creation of the ongoing National ROPS Rebate Program (NRRP). Since the implementation of the program, farmers who participated in the NRRP have proven its effectiveness. Approximately 99.5% of the participants would recommend the program to other farmers [50]. Similar to ROPS, Crush Protection Devices (CPDs) were developed to protect ATV riders in the event of a rollover. In fact, 77% of the ATV-related rollover deaths could be avoided if the vehicles had a CPD [36]. Despite that, no ongoing efforts to promote their use in the United States have been reported.
The LSTM model could be used to inform strategic planning and resource allocation for the public health system. Hospitals could leverage the model’s predictive power to plan the amount of resources and health practitioners that will be necessary based on the model’s predictions. For instance, the total estimated cost of ATV-related hospitalizations for the 2021 period based on the reported data is approximately USD 56,970,000.00 compared to USD 56,128,991.00 obtained from the LSTM model prediction [5]. Moreover, the model can provide both short- and long-term predictions, and time constraints should not be an obstacle for stakeholders’ strategic planning.

4. Strengths and Limitations

Strengths of this study include the use of a large sample size (n = 5321) from a national database to provide a comprehensive assessment of ATV-related hospitalizations in the U.S. over an 11-year period. We also conducted a thorough analysis of the demographic characteristics, locations of incidents, and seasonal trends to identify key characteristics of ATV-related hospitalizations that could inform future injury prevention efforts. Additionally, the study provides valuable insights to assist in future prevention programs and changes in safety guidelines. Lastly, it has been proven that the LSTM model is highly effective for predicting ATV-related injuries. Consequently, it could be used to develop more effective injury prevention strategies and reduce the economic expenses for healthcare systems by informing strategic planning.
On the other hand, there are a few limitations to this study. The dataset lacks more detail and additional variables that could enhance the study analysis. It did not have any specifications about injury severity other than ED disposition, which can influence the results. The absence of a detailed description about the occupational use of ATVs also limits the impact of the results. Moreover, we noticed that data on farm and ranch incidents may be underrepresented due to reporting exemptions, which could limit the generalizability of the findings to these settings. Despite these limitations, this paper provides important information for public health practitioners and policymakers to inform targeted interventions and reduce the burden of ATV-related injuries.

5. Conclusions

This study provides valuable insights into the characteristics and trends of ATV-related hospitalizations in the United States. Our analysis identified a clear seasonal trend, with most incidents occurring during the summer months, with a peak in July. The high incidence of injuries among youth riders (<16 years old) and in sports and recreation areas highlights the need for targeted prevention programs to reduce the number of ATV-related injuries. The use of the LSTM model proved to be highly effective in predicting ATV-related injuries, and it outperformed the SARIMA and Neural Prophet models. In addition, the LSTM model could be utilized in developing more effective prevention strategies. The implementation of safety guidelines and prevention programs, such as awareness programs in schools, hands-on safety training courses, and information resources for parents, is a crucial step in reducing the burden of ATV-related injuries on individuals, families, and healthcare systems. Policymakers and public health practitioners should work together to implement effective prevention programs and allocate resources effectively, leveraging the insights provided by our study to make data-driven decisions. Ultimately, reducing ATV-related injuries requires a multi-faceted approach that involves education, awareness, policy, and advocacy efforts to promote safe and responsible ATV use.

Author Contributions

Conceptualization, F.F.L.d.S. and F.K.; methodology, F.F.L.d.S.; software, F.F.L.d.S.; validation, F.F.L.d.S.; formal analysis, F.F.L.d.S.; investigation, F.F.L.d.S.; resources, F.F.L.d.S.; data curation, F.F.L.d.S.; writing—original draft preparation, F.F.L.d.S.; writing—review and editing, F.F.L.d.S. and F.K.; visualization, F.F.L.d.S.; supervision, F.F.L.d.S.; project administration, F.F.L.d.S.; funding acquisition, F.K. All authors have read and agreed to the published version of the manuscript.

Funding

We would like to express our sincere gratitude to the CDC/NIH/NIOSH fund and WCAHS renewal (grant number: 5U54OH009568-14) for their generous support in funding our research project.

Data Availability Statement

Publicly available datasets were analyzed in this study. These data can be found here: https://www.cpsc.gov/cgibin/NEISSQuery/home.aspx (accessed on 3 February 2023).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Weichelt, B.; Gorucu, S.; Jennissen, C.; Denning, G.; Oesch, S. Assessing the emergent public health concern of all-terrain vehicle injuries in rural and agricultural environments: Initial review of available national datasets in the United States. JMIR Public Health Surveill. 2020, 6, e15477. [Google Scholar] [CrossRef] [PubMed]
  2. Khorsandi, F.; Ayers, P.D.; Fong, E.J. Evaluation of Crush Protection Devices for agricultural All-Terrain Vehicles. Biosyst. Eng. 2019, 185, 161–173. [Google Scholar] [CrossRef]
  3. Zhang, C. 2022 Report of Deaths and Injuries Involving Off-Highway Vehicles with More than Two Wheels; U.S. Consumer Product Safety Commission: Bethesda, MD, USA, 2023.
  4. Topping, J. 2018 Annual Report of ATV-Related Deaths and Injuries; U.S. Consumer Product Safety Commission: Bethesda, MD, USA, 2020; p. 29.
  5. CDC. Web-Based Injury Statistics Query and Reporting System (WISQARS) Cost of Injury. Available online: https://wisqars.cdc.gov/cost/?y=2020&o=HOSP&i=0&m=3020&g=00&s=0&u=AVG&t=COMBO&t=MED&t=LIFE&t=WORK&a=5Yr&g1=0&g2=85&a1=0&a2=199&r1=MECH&r2=INTENT&r3=NONE&r4=NONE&c1=&c2= (accessed on 14 May 2023).
  6. Phrampus, E.D.; Shultz, B.L.; Saladino, R.A. Injuries Associated with All-Terrain Vehicles: A New Epidemic. Clin. Pediatr. Emerg. Med. 2005, 6, 57–61. [Google Scholar] [CrossRef]
  7. Grzebieta, R.R.G.; McIntosh, A.S.; Mitchell, R.; Patton, D.; Simmons, K. Investigation and Analysis of Quad Bike and Side by Side Vehicle (SSV) Fatalities and Injuries; University of New South Wales: Sydney, Australia, 2015. [Google Scholar]
  8. Lagerstrom, E.; Magzamen, S.; Stallones, L.; Gilkey, D.; Rosecrance, J. Understanding risk factor patterns in ATV fatalities: A recursive partitioning approach. J. Saf. Res. 2016, 59, 23–31. [Google Scholar] [CrossRef]
  9. Kute, B.; Nyland, J.A.; Roberts, C.S.; Hartwick-Barnes, V. Recreational All-Terrain Vehicle Injuries Among Children: An 11-Year Review of a Central Kentucky Level I Pediatric Trauma Center Database. J. Pediatr. Orthop. 2007, 27, 5. [Google Scholar] [CrossRef]
  10. Long, B.; Tan, F.; Newman, M. Forecasting the Monkeypox Outbreak Using ARIMA, Prophet, NeuralProphet, and LSTM Models in the United States. Forecasting 2023, 5, 127–137. [Google Scholar] [CrossRef]
  11. Rahimi, I.; Chen, F.; Gandomi, A.H. A review on COVID-19 forecasting models. Neural Comput. Appl. 2021, 35, 23671–23681. [Google Scholar] [CrossRef] [PubMed]
  12. Karingula, S.R.; Ramanan, N.; Tahmasbi, R.; Amjadi, M.; Jung, D.; Si, R.; Thimmisetty, C.; Polania, L.F.; Sayer, M.; Taylor, J. Boosted Embeddings for Time-Series Forecasting. In Proceedings of the International Conference on Machine Learning, Optimization, and Data Science, Grasmere, UK, 4–8 October 2021; pp. 1–14. [Google Scholar]
  13. Feng, T.; Zheng, Z.; Xu, J.; Liu, M.; Li, M.; Jia, H.; Yu, X. The comparative analysis of SARIMA, Facebook Prophet, and LSTM for road traffic injury prediction in Northeast China. Front. Public Health 2022, 10, 946563. [Google Scholar] [CrossRef]
  14. Zhang, Z.; Yang, W.; Wushour, S. Traffic Accident Prediction Based on LSTM-GBRT Model. J. Control Sci. Eng. 2020, 2020, 4206919. [Google Scholar] [CrossRef]
  15. Zhu, W.; Wu, J.; Fu, T.; Wang, J.; Zhang, J.; Shangguan, Q. Dynamic prediction of traffic incident duration on urban expressways: A deep learning approach based on LSTM and MLP. J. Intell. Connect. Veh. 2021, 4, 80–91. [Google Scholar] [CrossRef]
  16. Deretić, N.; Stanimirović, D.; Awadh, M.A.; Vujanović, N.; Djukić, A. SARIMA modelling approach for forecasting of traffic accidents. Sustainability 2022, 14, 4403. [Google Scholar] [CrossRef]
  17. Erdebil, Y.; Frize, M. An Analysis Of Chirpp Data To Predict Severe ATV Injuries Using Artificial Neural Networks. In Proceedings of the 2005 IEEE Engineering in Medicine and Biology 27th Annual Conference, Shanghai, China, 1–4 September 2006; pp. 871–874. [Google Scholar]
  18. Miller, A.; Gallegly, J.D.; Orsak, G.; Huff, S.D.; Peters, J.A.; Murry, J.; Ndetan, H.; Singh, K.P. Potential predictors of hospital length of stay and hospital charges among patients with all-terrain vehicle injuries in rural Northeast Texas. J. Inj. Violence Res. 2020, 12, 55. [Google Scholar]
  19. CPSC. National Electronic Injury Surveillance System (NEISS). Available online: https://www.cpsc.gov/Research--Statistics/NEISS-Injury-Data (accessed on 20 January 2023).
  20. NEISS. National Electronic Injury Surveillance System: Coding Manual; U.S. Consumer Product Safety Commission, Division of Hazard and Injury Data Systems: Washington, DC, USA, 2019.
  21. CPSC. Standards for All Terrain Vehicles and Ban of Three-Wheeled All-Terrain Vehicles; Notice of Proposed Rulemaking. Fed. Regist. 2006, 71, 45904–45962. [Google Scholar]
  22. Triebe, O.; Hewamalage, H.; Pilyugina, P.; Laptev, N.; Bergmeir, C.; Rajagopal, R. Neuralprophet: Explainable forecasting at scale. arXiv 2021, arXiv:2111.15397. [Google Scholar]
  23. ChikkaKrishna, N.K.; Rachakonda, P.; Tallam, T. Short-Term Traffic Prediction Using Fb-PROPHET and Neural-PROPHET. In Proceedings of the 2022 IEEE Delhi Section Conference (DELCON), New Delhi, India, 11–13 February 2022; pp. 1–4. [Google Scholar]
  24. Rostami-Tabar, B.; Rendon-Sanchez, J.F. Forecasting COVID-19 daily cases using phone call data. Appl. Soft. Comput. 2021, 100, 106932. [Google Scholar] [CrossRef]
  25. He, K.; Ji, L.; Wu, C.W.D.; Tso, K.F.G. Using SARIMA–CNN–LSTM approach to forecast daily tourism demand. J. Hosp. Tour. Manag. 2021, 49, 25–33. [Google Scholar] [CrossRef]
  26. Zhao, Z.; Chen, W.; Wu, X.; Chen, P.C.; Liu, J. LSTM network: A deep learning approach for short-term traffic forecast. IET Intell. Transp. Syst. 2017, 11, 68–75. [Google Scholar] [CrossRef]
  27. Brownlee, J. Time Series Prediction with LSTM Recurrent Neural Networks in Python with Keras. Available online: https://machinelearningmastery.com/time-series-prediction-lstm-recurrent-neural-networks-python-keras/ (accessed on 22 November 2022).
  28. Weichelt, B.; Salzwedel, M.; Heiberger, S.; Lee, B.C. Establishing a publicly available national database of US news articles reporting agriculture-related injuries and fatalities. Am. J. Ind. Med. 2018, 61, 667–674. [Google Scholar] [CrossRef]
  29. Neves, H.; Brazile, W.; Gilkey, D.P. ATVs and Agriculture: A Review of the Literature. Acta Sci. Agric. 2018, 2, 178–194. [Google Scholar]
  30. Pollack-Nelson, C.; Vredenburgh, A.G.; Zackowitz, I.B.; Kalsher, M.J.; Miller, J.M. Adult Products That Kill and Injure Children. Proc. Hum. Factors Ergon. Soc. Annu. Meet. 2017, 6, 886–889. [Google Scholar] [CrossRef]
  31. Strohecker, K.A.; Gaffney, C.J.; Graham, J.; Irgit, K.; Smith, W.R.; Bowen, T.R. Pediatric all-terrain vehicle (ATV) injuries: An epidemic of cost and grief. Acta Orthop. Traumatol. Turc. 2017, 51, 416–419. [Google Scholar] [CrossRef] [PubMed]
  32. GAO. ALL-TERRAIN VEHICLES: How They Are Used, Crashes, and Sales of Adult-Sized Vehicles for Children’s Use; General Accounting Office (GAO): Washington, DC, USA, 2010.
  33. Edlund, B.; Lindroos, O.; Nordfjell, T. The effect of rollover protection systems and trailers on quad bike stability. Int. J. For. Eng. 2020, 31, 95–105. [Google Scholar] [CrossRef]
  34. Abdelrahman, H.; Khan, N.A.; El-Menyar, A.; Consunji, R.; Asim, M.; Alani, M.; Shunni, A.; Al-Aieb, A.; Al-Thani, H. All-terrain vehicle (ATV)-related injuries among different age groups: Insights from a 9-year observational study. Eur. J. Trauma Emerg. Surg. 2022, 48, 4971–4981. [Google Scholar] [CrossRef] [PubMed]
  35. Nolan, H.R.; Ashley, D.W.; Stokes, N.A.; Christie III, D.B. Increasing incidence of All-Terrain Vehicle trauma admissions in the pediatric and adult populations: An evaluation of injury types and severity. Int. J. Orthop. Trauma Nurs. 2018, 28, 33–36. [Google Scholar] [CrossRef] [PubMed]
  36. McIntosh, A.S.; Patton, D.A.; Rechnitzer, G.; Grzebieta, R. Injury mechanisms in fatal Australian quad bike incidents. Traffic Inj. Prev. 2016, 17, 386–390. [Google Scholar] [CrossRef] [PubMed]
  37. Hicks, D.; Grzebieta, R.; Mongiardini, M.; Rechnitzer, G.; Simmons, K.; Olivier, J. Investigation of when quad bikes rollover in the farming environment. Saf. Sci. 2018, 106, 28–34. [Google Scholar] [CrossRef]
  38. Helmkamp, J.C.; Marsh, S.M.; Aitken, M.E. Occupational All-Terrain Vehicle Deaths among Workers 18 Years and Older in the United States, 1992–2007. J. Agric. Saf. Health 2011, 17, 147–155. [Google Scholar] [CrossRef] [PubMed]
  39. OSHA: Occupational Safety and Health Administration Occupational Health and Safety Act of 1970. 1970. Available online: https://www.osha.gov/laws-regs/oshact/completeoshact (accessed on 17 May 2023).
  40. Khorsandi, F.; De Moura Araujo, G.; Fathallah, F. A systematic review of youth and all-terrain vehicles safety in agriculture. J. Agromed. 2022, 28, 254–276. [Google Scholar] [CrossRef] [PubMed]
  41. Gillory, L.; Cairo, S.; Megison, S.; Vinson, L.; Chung, D.H.; Ryan, M.L. Effect of quarantine and reopening measures on pediatric trauma admissions during the 2019 SARS-CoV-2 virus pandemic. J. Am. Coll. Surg. 2022, 234, 685–690. [Google Scholar] [CrossRef]
  42. Zhang, X.; Pang, Y.; Cui, M.; Stallones, L.; Xiang, H. Forecasting mortality of road traffic injuries in China using seasonal autoregressive integrated moving average model. Ann. Epidemiol. 2015, 25, 101–106. [Google Scholar] [CrossRef]
  43. Bahadorimonfared, A.; Soori, H.; Mehrabi, Y.; Delpisheh, A.; Esmaili, A.; Salehi, M.; Bakhtiyari, M. Trends of fatal road traffic injuries in Iran (2004–2011). PLoS ONE 2013, 8, e65198. [Google Scholar] [CrossRef]
  44. Hao, W.; Sun, X.; Wang, C.; Chen, H.; Huang, L. A hybrid EMD-LSTM model for non-stationary wave prediction in offshore China. Ocean Eng. 2022, 246, 110566. [Google Scholar] [CrossRef]
  45. Khorsandi, F.; Ayers, P.; Denning, G.; Jennissen, C.; Jepsen, D.; Myers, M.; Oesch, S.; Pate, M.; White, D.J. Hazard Control Methods to Improve Agricultural All-Terrain Vehicle Safety. J. Agromed. 2020, 26, 420–435. [Google Scholar] [CrossRef] [PubMed]
  46. Araujo, G.D.M.; Khorsandi, F.; Fathallah, F. Forces required to operate controls on agricultural all-terrain vehicles: Implications for youth. Ergonomics 2022, 66, 1280–1294. [Google Scholar] [CrossRef]
  47. Araujo, G.D.M.; Khorsandi, F.; Fathallah, F. Ability of youth operators to reach agricultural all-terrain vehicles controls. J. Saf. Res. 2022, 84, 353–363. [Google Scholar] [CrossRef]
  48. Bernard, A.C.; Mullineaux, D.R.; Auxier, J.T.; Forman, J.L.; Shapiro, R.; Pienkowski, D. Pediatric anthropometrics are inconsistent with current guidelines for assessing rider fit on all-terrain vehicles. Accid. Anal. Prev. 2010, 42, 1220–1225. [Google Scholar] [CrossRef] [PubMed]
  49. Day, L.; Rechnitzer, G.; Lough, J. An Australian experience with tractor rollover protective structure rebate programs: Process, impact and outcome evaluation. Accid. Anal. Prev. 2004, 36, 861–867. [Google Scholar] [CrossRef]
  50. Sorensen, J.A.; Milkovich, P.J.; Dorfman, L.; Mejia, P.; Perez-Sanz, S.B. ROPS commentary—Addressing our fatal blind spot: Applying evidence-based solutions to reduce the most frequent cause of death on US farms. Am. J. Ind. Med. 2023, 66, 554–557. [Google Scholar] [CrossRef]

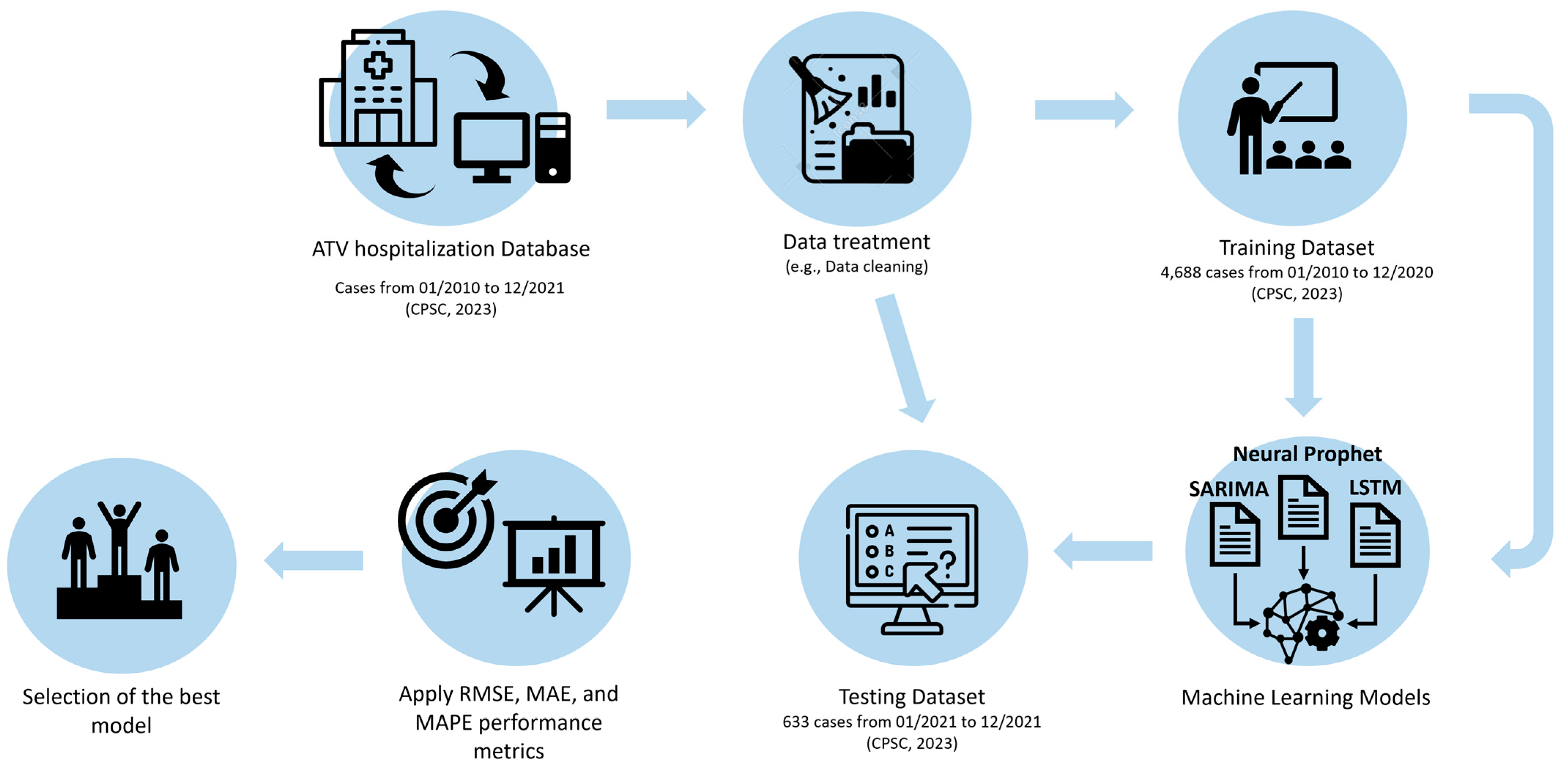

Figure 1. Research flowchart of the machine learning model’s development [19].
Figure 1. Research flowchart of the machine learning model’s development [19].
Forecasting 06 00015 g001

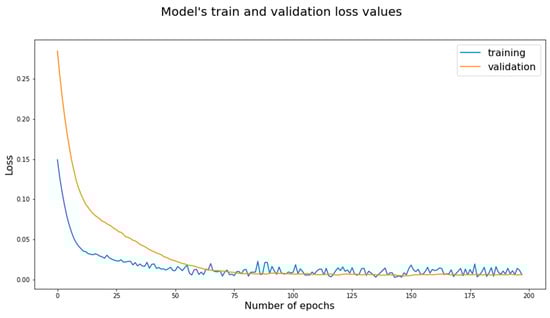

Figure 2. Training and validation losses for the LSTM model.
Figure 2. Training and validation losses for the LSTM model.
Forecasting 06 00015 g002

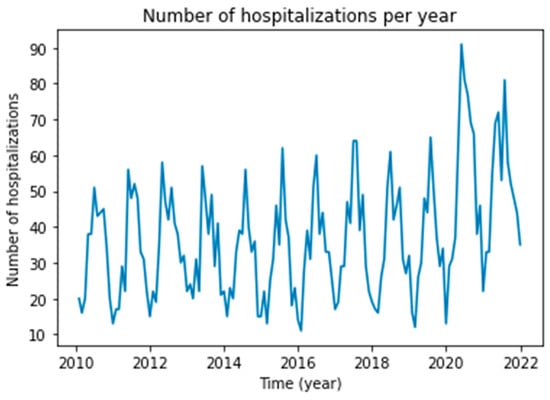

Figure 3. Number of ATV-related hospitalizations for the period from January 2010 to December 2021.
Figure 3. Number of ATV-related hospitalizations for the period from January 2010 to December 2021.
Forecasting 06 00015 g003

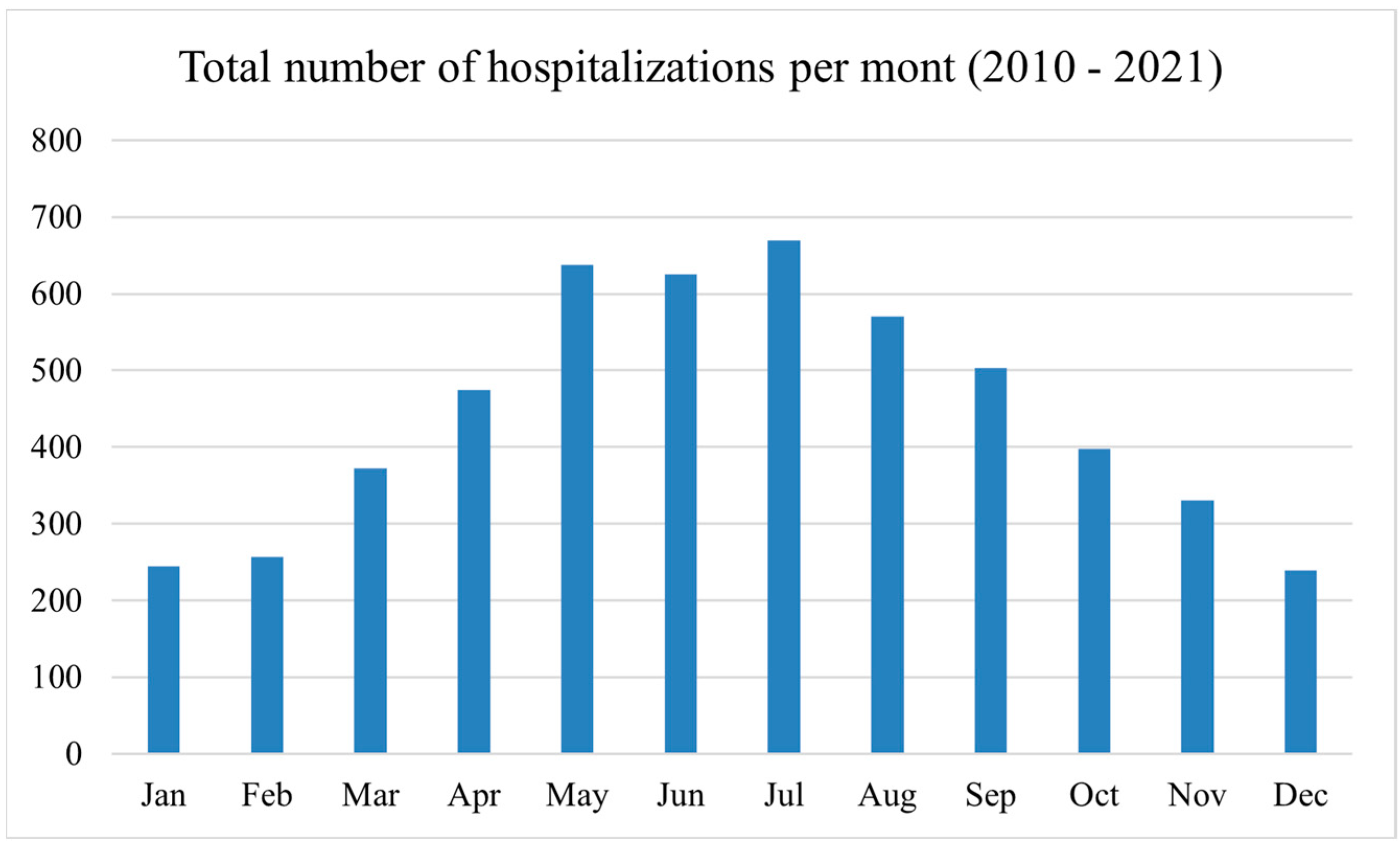

Figure 4. Total cases of ATV–related hospitalizations per month for the period from January 2010 to December 2021.
Figure 4. Total cases of ATV–related hospitalizations per month for the period from January 2010 to December 2021.
Forecasting 06 00015 g004

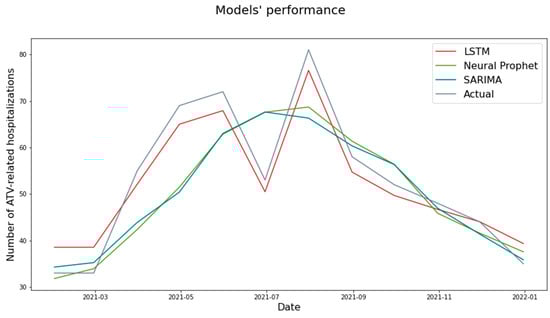

Figure 5. Comparison between actual and predicted number of hospitalizations obtained by the models.
Figure 5. Comparison between actual and predicted number of hospitalizations obtained by the models.
Forecasting 06 00015 g005

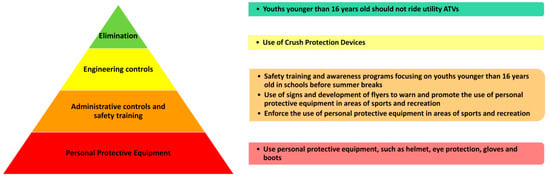

Figure 6. Hierarchy of controls and the possible solutions based on the reported ATV incidents. Adapted from [45].
Figure 6. Hierarchy of controls and the possible solutions based on the reported ATV incidents. Adapted from [45].
Forecasting 06 00015 g006
Table 1. Summary of hyperparameters used for tuning the LSTM model.
Table 1. Summary of hyperparameters used for tuning the LSTM model.
ParametersValue
Number of layers3
Dropout0.1
Activation functionLinear
OptimizerAdam
Batch size6
Maximum epochs400
Table 2. Demographic and location characteristics of ATV-related hospitalizations by gender in the U.S. from January 2010 to December 2021.
Table 2. Demographic and location characteristics of ATV-related hospitalizations by gender in the U.S. from January 2010 to December 2021.
VariableGender
CombinedMaleFemale
NumberPercentageNumberPercentageNumberPercentage
Total5321100.00%394574.14%137725.88%
Age
<1277114.49%62315.79%14810.75%
12–1586216.20%60015.21%26219.03%
16–184257.99%2827.15%14310.38%
18–225319.98%3849.73%14710.68%
23–2965112.23%50412.78%14710.68%
30–3977714.60%60215.26%17512.71%
40–4960411.35%46911.89%1359.80%
50–594508.46%3478.80%1037.48%
60>3546.65%3107.86%443.20%
Location
Not recorded264249.65%192948.90%71351.78%
Place of recreation or sports93917.65%71218.05%22716.49%
Home60011.28%42810.85%17212.49%
Other public property58611.01%43310.98%15311.11%
Street or highway5159.68%41310.47%1027.41%
Farm/ranch380.71%300.76%80.58%
School/daycare10.02%00.00%10.07%
Table 3. Accuracy metrics of the prediction models.
Table 3. Accuracy metrics of the prediction models.
ModelsAccuracy Metrics
RMSEMAEMAPE
LSTM3.713.317.06%
SARIMA9.216.9011.59%
Neural Prophet8.966.8311.74%
