Using Negative Muons as a Probe for Depth Profiling Silver Roman Coinage

Abstract

Debasement of silver Roman coins is a well-known phenomenon and understanding the quality of ancient silver coinages can provide an idea about the underlying fiscal condition of the issuing states. These coins are made from a silver-copper alloy, the surfaces of which were deliberately enhanced at the mints by a process of surface-enrichment to give them the appearance of being made of pure silver. Therefore, any surface analysis would provide a composition of the silver-copper alloy that would not be representative of the original alloy from which the coin blank was made; the result would be too high in silver. However, the bulk of the sample, the interior, should provide a composition that is true to the original alloy. Elemental analysis using negative muons has been used to provide a depth dependent compositional, completely non-destructive analysis of a silver-copper alloy denarius of the empress Julia Domna datable to 211–217 CE. The composition of the coin, beyond the surface enrichment layer, is 51 ± 1.8 % copper and 49 ± 1.9% silver, taken at a muon depth of 402 ± 61 µm. The surface enrichment layer is approximately 190 µm thick.

1. Introduction

The quality of ancient silver coinage is often seen as a comment on the fiscal health of the issuing states. This is nowhere more apparent than with Roman coinages, which witnessed heavy debasements during the first three centuries of our era. Two processes are detectable: a reduction in the fineness of the alloys; and a reduction in weight standards. The debasement of silver Roman coinage is a common phenomenon. Most silver Roman coins are made from a silver-copper alloy that undergoes surface-enrichment, making the coin appear to be pure silver. Once the blanks for the coins were cast, they were kept at red heat in order to oxidize the copper at the surface. After the oxidation process, the blanks were soaked in an organic acid which stripped the copper out of the alloy, leaving a silver-enriched layer [1]. This technique was employed on alloys with a composition as low as 80% copper, allowing such coins to leave the mint appearing to be made of pure silver. The surface-enriched layer can be up to a few hundred microns deep [2].

In this paper, we exploit recent developments at the ISIS pulsed neutron and muon source, STFC Rutherford Appleton Laboratory, UK [3]. The negative muon has the same charge and spin as an electron. However, the mass is 207 times greater than that of an electron, with a mass of 105.7 MeV/c² [4]. Due to the mass, the muonic- X-ray energy is greater than that of an electronic- X-ray, in the 10’s of keV to MeV, allowing the possibility of using muons for bulk elemental analysis of samples as the emitted X-rays are high enough to be emitted without significant absorption. The X-rays emitted are characteristic of the atom of which they are captured, thus it is possible to identify the elements inside a sample through the energy of the X-rays. Controlling the momentum of the incident muon, in turn controls the implantation depth of the muon. Using negative muons for elemental analysis is a non-destructive technique and has been successfully used on Japanese coins [5], Celtic glasses [6], and extra-terrestrial materials [7]. Here, we report a study using negative muons as a probe to determine the composition of silver and copper, through a depth profile, within a denarius of Julia Domna from 211–217 CE (RIC IV.1 391: BMCRE V 31) (see Figure 1), completely non-destructively.

2. Materials and Methods

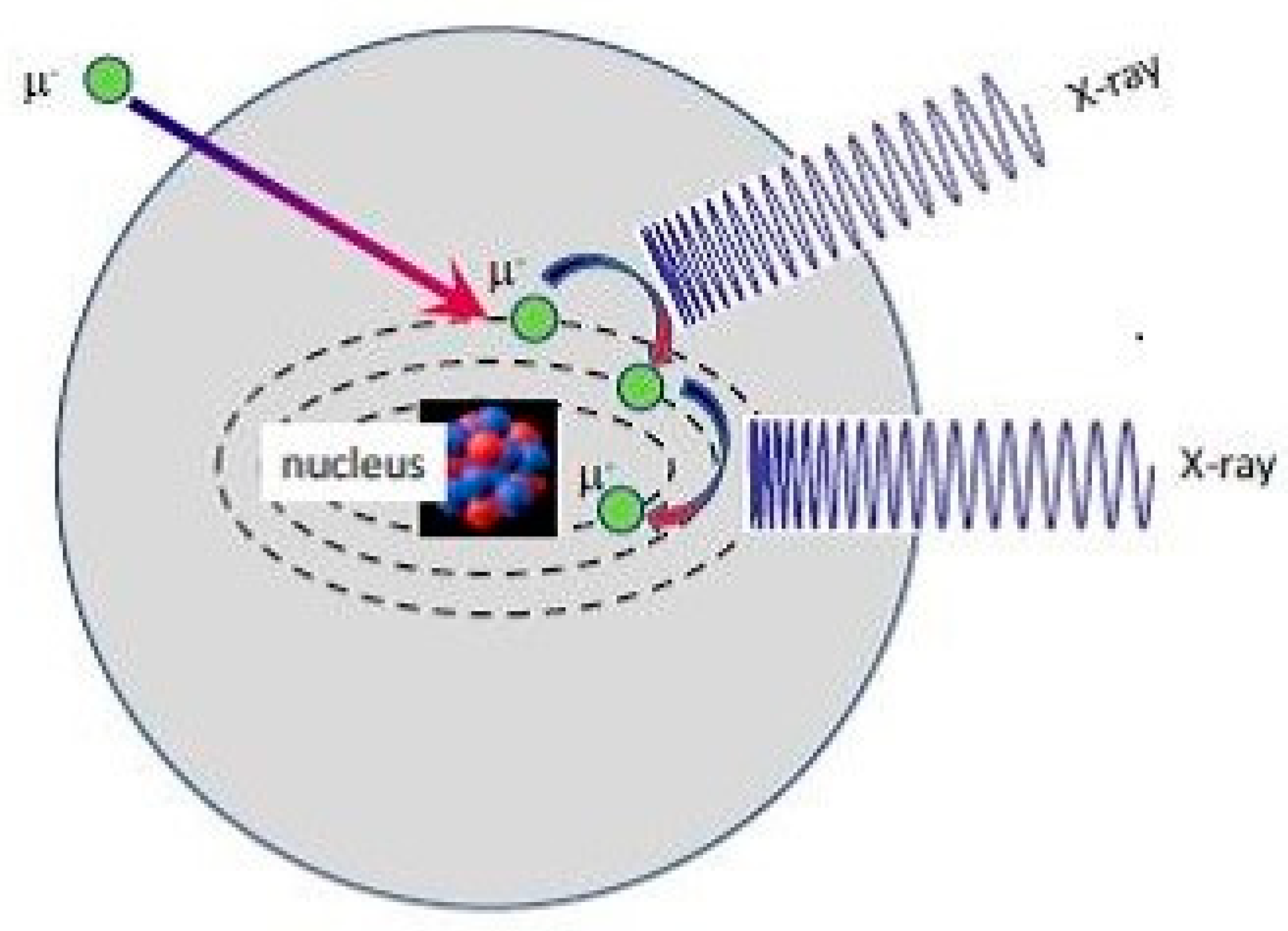

The experiment was carried out on the RIKEN-RAL beamline at ISIS [8,9,10] (see Figure 2a). ISIS is proton accelerator that accelerates the protons to 800 MeV before they collide with neutron and muon targets. The ISIS facility produces both muons and neutrons. The muon target is situated before the neutron target, in Target Station 1, and is 10 mm thick carbon. Once protons interact with the carbon nuclei, pions are formed, these pions decay into muons [3]. These muons are then transported to the experimental area using a series of focusing and bending magnets. These magnets select a particular momentum (±4%) [11,12]. The muons are then implanted into a material and give the composition of a thin slice within the sample. When the muon is captured by an atom, it displaces an electron, forming a muonic atom, and cascades down towards the nucleus through the modified energy states, emitting muonic X-rays (see Figure 3). Once the muon reaches the nucleus it either gets captured by a bound proton or decays. The muon can interact with the proton, which produces a neutron and a neutrino. This can lead to an unstable nucleus and the emission of a γ-ray [13].

Four ORTEC germanium detectors are used: two low-energy-high-resolution (3 keV–1 MeV), and two high-energy-low-resolution (0.1 MeV–8 MeV). The coin was placed in an aluminum packet to support it in the beam, as a result, at the very lowest momentum aluminum peaks can be seen, these were ignored (see Figure 2b). Currently, the beam snout is constructed with lead collimators, this can lead to a signature from lead being detected. This can be in the form of lead muonic X-ray and electronic X-rays. These have been ignored in the analysis. For the analysis in this paper, the coin was treated as a binary alloy of silver and copper. Six momenta were used: 17 MeV/c, 18 MeV/c, 19 MeV/c, 20 MeV/c, 22 MeV/c, and 35 MeV/c. 17 MeV/c and 18 MeV/c can be considered as near-surface and the aluminum packet can be seen in their spectra. SRIM [14] was used to confirm the implantation depth.

A calibration factor was used, obtained from a known standard, to apply any required weighting to the peaks to obtain a more accurate ratio of silver and copper. This is due to the efficiency of the detector decreasing as energy increases. Although the change in energy in between the peaks used in this paper is small, the calibration factor is still necessary as it also considers that peaks of different transitions were compared. The peaks used to determine composition were at 304.5 and 308.2, and 330.6 and 336.4 keV, for silver and copper respectively.

3. Results

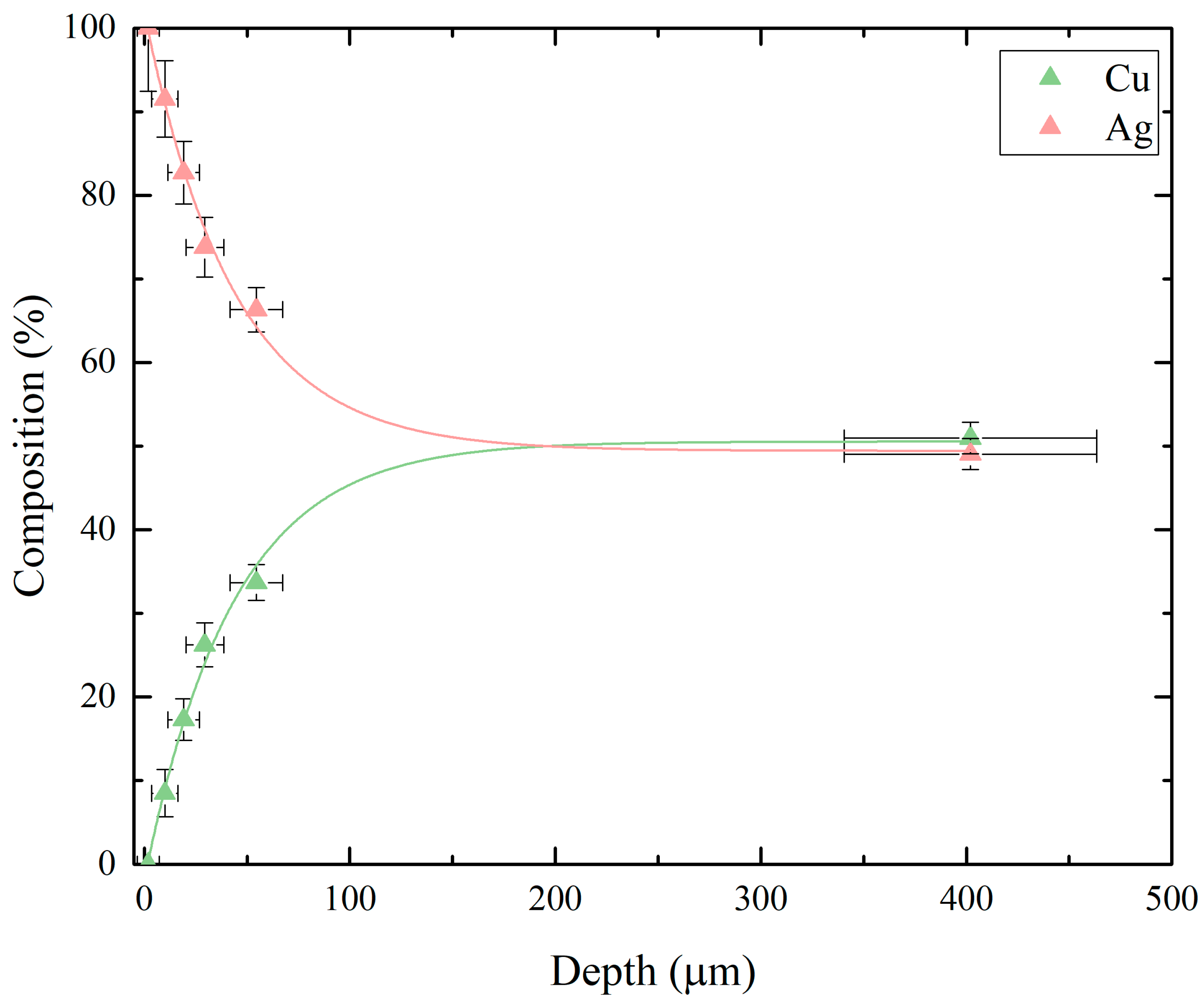

Figure 4 shows typical spectra from the two upstream detectors with the muon momentum of 35MeV/c which is an implantation depth of 402 ± 61 µm. These detectors were used to reduce the effects of self-absorption for the lowest muonic X-ray energies. The spectra clearly show the presence of silver and copper, in significant abundance. It is clear that each element has multiple peaks associated with different transitions. These are labelled in Figure 4 over an energy range of 50 to 3200 keV. In order to determine the composition of the muon implantation volume the muonic X-rays in the 300 to 340 keV energy range were used. In this range the 3d_5/2,3/2 -> 2p_3/2 and 3d_3/2 -> 2p_1/2 transitions of Cu and the 4f_7/2,5/2 -> 3d_5/2 and 4f_5/2 -> 3d_3/2 transitions of Ag are observed. Figure 5 shows the momentum dependence of the of the Ag and Cu peak intensities. It can clearly be seen that the lowest momentum only Ag peaks are observed and the highest momentum both Ag and Cu peaks are clearly seen. By determining the area of each peak, by fitting the peaks (see Figure 6), the relative composition can be determined, from this the depth dependent composition has been found (See Figure 7). A composition close to that of the original alloy, can be found at 402 ± 61 µm, with 51% copper and 49% silver. Using the fit, this original alloy composition is reached by around 190 µm. Five runs were carried out in the surface layer in the range of 1.8 ± 5 µm and 54.6 ± 13 µm, with the composition of silver ranging 100 ± 7.5% and 66 ± 2.7%, respectively.

Each of the peaks used to determine the composition were fitted with a Gauss function (see Figure 6), confining the width between them. As the energy increases the width of the peak increases, as the four peaks are in a similar range, this has a minimal effect. The sum of the integral of the fit was used to determine the composition with the calibration factor applied to the total of silver peaks to counteract the effects of detector efficiency and probability of capture.

4. Discussion and Conclusions

A depth profile of the composition of a silver Roman coin has been determined using negative muons, completely non-destructively. From the results: the thickness of the surface-enriched layer, the composition of the bulk, and the composition in the surface-enriched layer, can be determined using negative muons and without having to destroy the sample. The composition of the bulk of the sample is reached by around 190 µm, this is in accordance with the literature where the enriched surface of Roman silver-copper alloy coins is determined to be around 200 µm [18]. The composition of the bulk of the sample is with 51 ± 1.8% copper and 49 ± 1.9% silver. The surface enriched layer has five data points in the range of 100 ± 7.5% and 66 ± 2.7% for the composition of silver. Elemental analysis can be used to successfully form a full depth profile of the sample by varying the momentum of the incident muon. Future work will apply this technique to study a collection of ancient silver coins with varying bulk compositions and thickness of surface-enrichment layers. The results can be used to provide more detail on the mint and the Roman Empire in the year of issue of the coins.
