Limitations of Curl and Directional Filters in Elastography

Abstract

In the approaches to elastography, two mathematical operations have been frequently applied to improve the final estimate of shear wave speed and shear modulus of tissues. The vector curl operator can separate out the transverse component of a complicated displacement field, and directional filters can separate distinct orientations of wave propagation. However, there are practical limitations that can prevent the intended improvement in elastography estimates. Some simple configurations of wavefields relevant to elastography are examined against theoretical models within the semi-infinite elastic medium and guided waves in a bounded medium. The Miller–Pursey solutions in simplified form are examined for the semi-infinite medium and the Lamb wave symmetric form is considered for the guided wave structure. In both cases, we examine simple but practical wave combinations that can prevent the curl and directional filter operations from directly providing an improved measure of shear wave speed and shear modulus. Additional factors including signal-to-noise and the support of filters also restrict the applicability of these strategies for improving elastographic measures. Thus, some implementations of shear wave excitations applied to the body and to bounded structures within the body are shown to involve waves that are not easily resolved by the vector curl operator and directional filters. These limitations may be overcome by more advanced strategies or simple improvements in baseline parameters including the size of the region of interest and the number of shear waves propagated within.

1. Introduction

The use of the vector curl operator and directional filters have been key elements in a number of elastography techniques. The curl is used because shear waves can be separated from any irrotational (dilatational or longitudinal) waves by the curl operator [1,2]. The curl operator can only be applied rigorously to the components of displacement vector fields in three dimensions (3D), and so has been used in conjunction with 3D magnetic resonance imaging (MRI) data sets [3,4,5,6,7], and in fewer ultrasound systems [8,9].

Directional filters are used where there is a desire to separate out shear wave propagation from different quadrants or angles, so as to capture separate estimations of their behavior. These have been utilized in ultrasound, optical, and MRI applications [10,11,12,13,14,15,16,17].

Given the well-established use of these processes in elastography, it may seem that they will generally lead to an improved estimate of shear wave speed. However, there are limits to both of these approaches and simple configurations where neither the curl operator nor the directional filters lead directly to a more accurate estimate of shear modulus. These practical limits are explored with simple examples, first from continuous waves in a semi-infinite medium and then within a guided wave structure.

2. Theory

The curl operator has a central role in vector calculus and in rotational waves including shear waves. In cartesian coordinates, it is defined as:

$$\nabla \times F=\left(\frac{\partial F_z}{\partial y}-\frac{\partial F_y}{\partial z}\right)\widehat{\mathit{i}}+\left(\frac{\partial F_x}{\partial z}-\frac{\partial F_z}{\partial x}\right)\widehat{\mathit{j}}+\left(\frac{\partial F_y}{\partial x}-\frac{\partial F_x}{\partial y}\right)\widehat{\mathit{k}}=\left[\begin{array}{c}\frac{\partial F_z}{\partial y}-\frac{\partial F_y}{\partial z}\\ \frac{\partial F_x}{\partial z}-\frac{\partial F_z}{\partial x}\\ \frac{\partial F_y}{\partial x}-\frac{\partial F_x}{\partial y}\end{array}\right].$$

(1)

The curl operator is well defined for analytical expressions used in the later sections. For experimental results, finite differences and more sophisticated approaches can be used as an approximation given discrete samples of the vector displacement fields. The computational issues can lead to additional levels of complexity [18,19] that are beyond the scope of this paper.

Within these issues, it is common to make reference to the Laplacian operator, involving second spatial derivatives of the components of the displacement vector, along with the governing Helmholtz equation and the direct inverse of the Helmholtz equation. These are given, respectively, as follows:

$${\nabla }^{2}f=\frac{{\partial }^{2}f}{\partial x^2}+\frac{{\partial }^{2}f}{\partial y^2}+\frac{{\partial }^{2}f}{\partial z^2},$$

(2)

$${\nabla }^{2}f=-k^{2}f,$$

(3)

$$\frac{{\nabla }^{2}f}{f}=-k^2.$$

(4)

These operations are defined for 3D data sets and if only a 2D imaging plane is available, assumptions must be made about the out-of-plane directions in order to implement the full definitions.

Directional filters can be applied to 2D and 3D spatial distributions, furthermore with an additional dimension of time in transient applications. These can take a variety of forms but bear a general relation to the Fourier transform of the detected wave, and also the limitations of filtering given limited windows (limited support of filters). The Gabor directional filters are a classical example of practical filters that can discriminate and separate different orientations [20], albeit within the fundamental limitations on the ability to discriminate in both the image or spatial domain and the transform domain.

The well-known uncertainty relationship inherent to Fourier transform operations [21] is paramount in elastography because tissues and organs are inherently varying (grey vs. white matter in the brain, cortex vs. medulla in the kidney), and of limited size so limited support of directional filters is a practical issue, leading directly to constraints on discriminating between different wave directions for the purpose of analysis. Examples are provided to illustrate practical situations and all numerical examples are calculated in Mathematica (version 12.1.1, Wolfram Research, Champaign, IL, USA). These issues will be illustrated in the next sections.

3. Limitations within a Semi-Infinite Medium

A canonical situation highly relevant to elastography is the simple sinusoidal excitation source on a semi-infinite medium. This was treated adeptly by Miller and Pursey [22] and also placed in context by Graff [1]. Three major categories of waves are produced by a small contact vibrating on the surface: longitudinal waves, shear waves, and surface or Rayleigh waves. These are illustrated in Figure 1.

3.1. The 2D Imaging Plane in Arbitrary Location

It can be simply noted from Figure 1a,b that arbitrary imaging planes having an uncertain position with respect to the single source can lead to problems with interpretation. Consider an imaging plane parallel to the surface, such that the imaged region of interest (ROI) is oriented along the x-axis in Figure 1 and extends out of the page. If the ROI is positioned under the source, a circular pattern of displacement is detected, centered under the position of the surface source, and possessing the correct temporal frequency but a wavelength that appears anomalously large and bidirectional. This can be understood as an en face or C-scan cut of the pattern of Figure 1b. In other cases with an arbitrary angle with respect to the surface, the unknown angle and vector projection of the propagating wave onto that plane leads to biased estimates towards larger wavelengths [24]. Neither curl nor directional filters can resolve this problem within a single 2D imaging plane. The curl operator requires 3D information to implement Equation (1), which is not available in a 2D imaging plane. The directional filters are not useful in this example because the en face imaging plane is oriented transverse to the downward principal direction of propagating waves. The problem can be resolved with a priori enforcement of the known positioning of the imaging plane with respect to the source. In practice this leads to approaches that align the source and imaging plane: Echosens Fibroscan and acoustic radiation force systems (ARFI) are prominent examples of fixed configurations [25,26]. Alternatively, examining a set of estimates across different angles in a freehand system has been proposed [24] within the context of the probability distribution of sampled wavelengths.

3.2. The 2D Imaging Plane with Several Shear Wave Sources

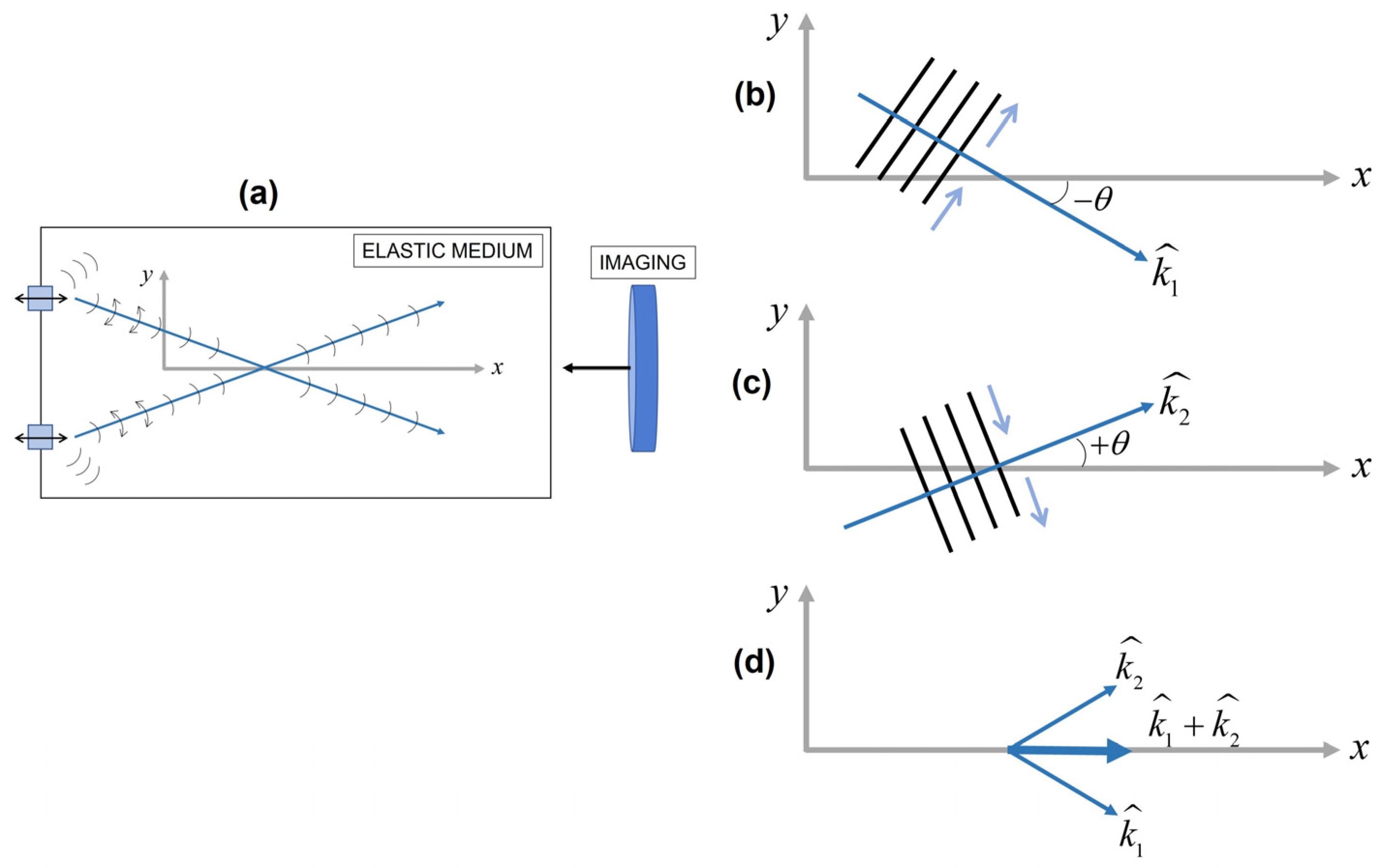

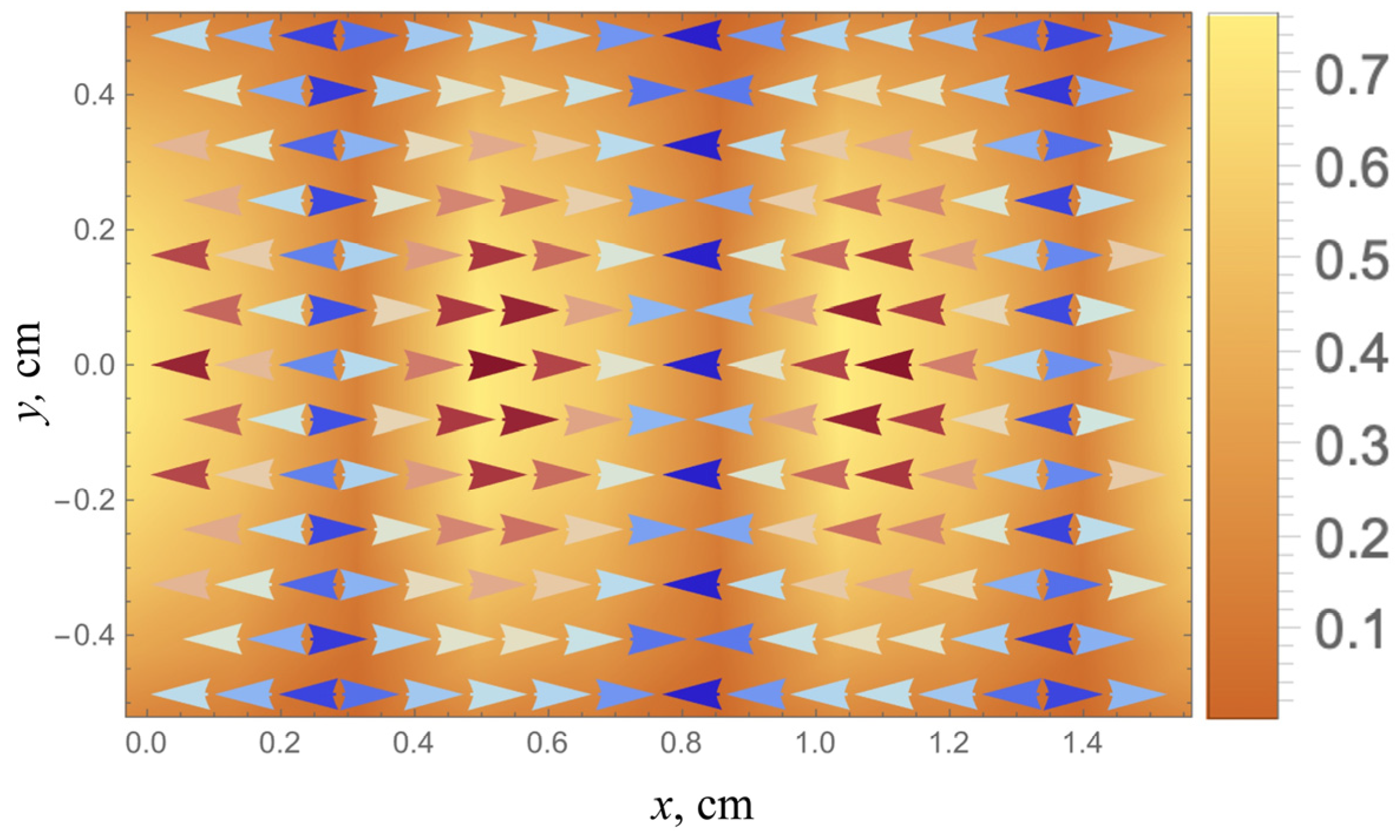

This is a practical situation, illustrated with a pair of sources and the superposition of the Miller and Pursey [22] solution (Figure 1) in order to generate a pair of waves that superimpose with some angular alignment [27,28]. Figure 2 describes a far-field simplification of the middle region between two small external sources vibrating normally to the surface of a semi-infinite medium. A pair of plane waves are represented as having identical amplitude and angle with respect to the depth (x-axis). Along the midline, the shear vectors add to create an x-directed displacement. To an imaging system sensitive to the x-axis, this appears similar to a longitudinal shear wave but with an elongated wavelength (higher shear speed than the nominal shear wave velocity of $c_s=\sqrt{G/\rho }$, where $G$ is the shear modulus and $\rho$ is the density of the elastic material). The error is proportional to $1⁄\mathrm{c}\mathrm{o}\mathrm{s}\left(\theta \right)$, where $\theta$ is the angle with respect to the x-axis in Figure 2, and this error is not readily resolved for the case of the x-sensitive 2D imaging system.

Directional filters applied to the case of the superimposed pair of waves shown in Figure 2 and Figure 3 can fail to enable an accurate assessment of the underlying components with the correct wavelength of $\lambda =c_s/f$, where f is the frequency of the shear wave. Directional filters can take many forms in two-dimensional (2D) or 3D spatial transforms or mixed spatial-temporal filters. Many bear some similarities to the classical Gabor directional filters that have been widely used in imaging applications [20] along with the inherent limits on resolution between the spatial and transform domains [21].

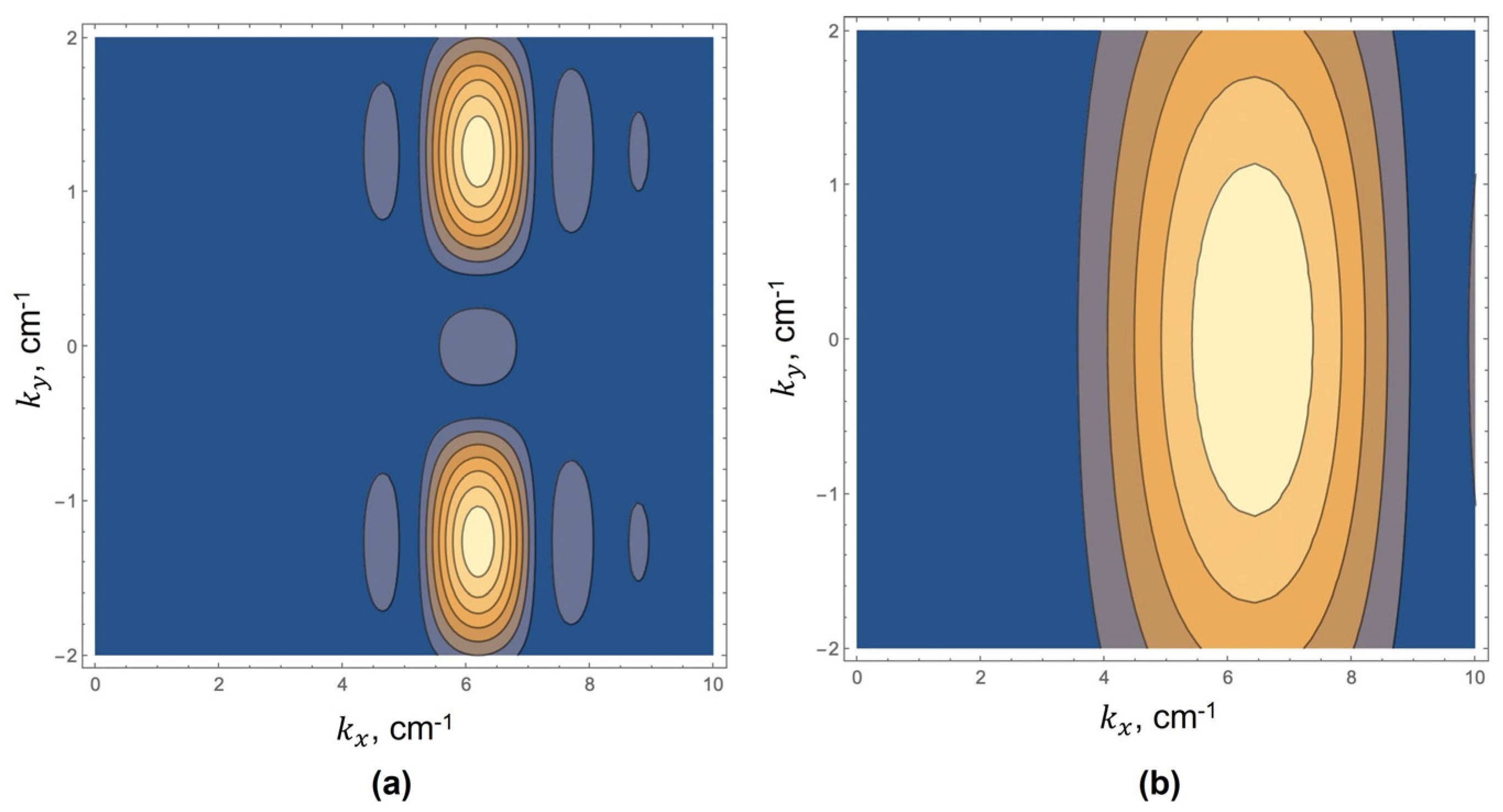

To illustrate the limitations, we examine the 2D spatial Fourier transform of the pair of plane waves produced by two external sources as illustrated in Figure 2 and with the angle $\theta$ taken as $\pi /16$ radians. The practical issue here is that we will necessarily have a finite window on the function, so instead of obtaining $\mathfrak{I}\left\{U_x\left(x,y\right)\right\}$, we obtain $\mathfrak{I}\left\{W\left(x,y\right)U_x\left(x,y\right)\right\}$, where $\mathfrak{I}\left\{ \right\}$ is the 2D spatial transform operator, $U_x\left(x,y\right)$ is the measured displacements in the x direction, and $W\left(x,y\right)$ is the spatial window applied, where small windows are typically preferred for spatial resolution. Figure 4a shows the magnitude of the transform utilizing a square window of 6 cm on edge ($6\lambda$ in this example), close enough to the ideal transform where we can distinguish two different waves and can reasonably filter these with finite impulse response directional filters of the same spatial support. However, $6\lambda$ windows are very unlikely to be achieved in many elastography studies, for example at 50 Hz shear wave frequency and assuming $c_s=1$ m/s in soft tissue, the wavelength is 2 cm, so a $6\lambda$ window of 12 cm on a side will average over many substructures of interest within a large organ such as the brain or kidney. More realistically, Figure 4b shows the transform magnitude with a $2\lambda$ (2 cm) square window. Here, the transform indicates a predominantly x-directed wave, commensurate with the appearance of Figure 3 and with error and uncertainty in the nominal wavelength proportional in this simple example to $1/\mathrm{c}\mathrm{o}\mathrm{s}\left(\theta \right)$.

4. Limitations within Guided Wave Structures

Things get more complicated when a structure such as a tendon or a cornea can modify the phase velocity by guiding a wave within its boundaries. The exact solution will depend on boundary conditions, shape, size, and material properties, but the key message here is that because the general solutions allow multiple displacement modes, a wide range of different phase velocities are possible at a single frequency, and no one of these phase velocities (at a single frequency) is likely to match the phase velocity of shear waves, $c_s$, expected within an infinite medium. The theory behind these cases was magnificently illustrated in the 1870s through the early 1900s with landmark papers from Pochhammer [29], Rayleigh [30], Love [31], and Lamb [32,33].

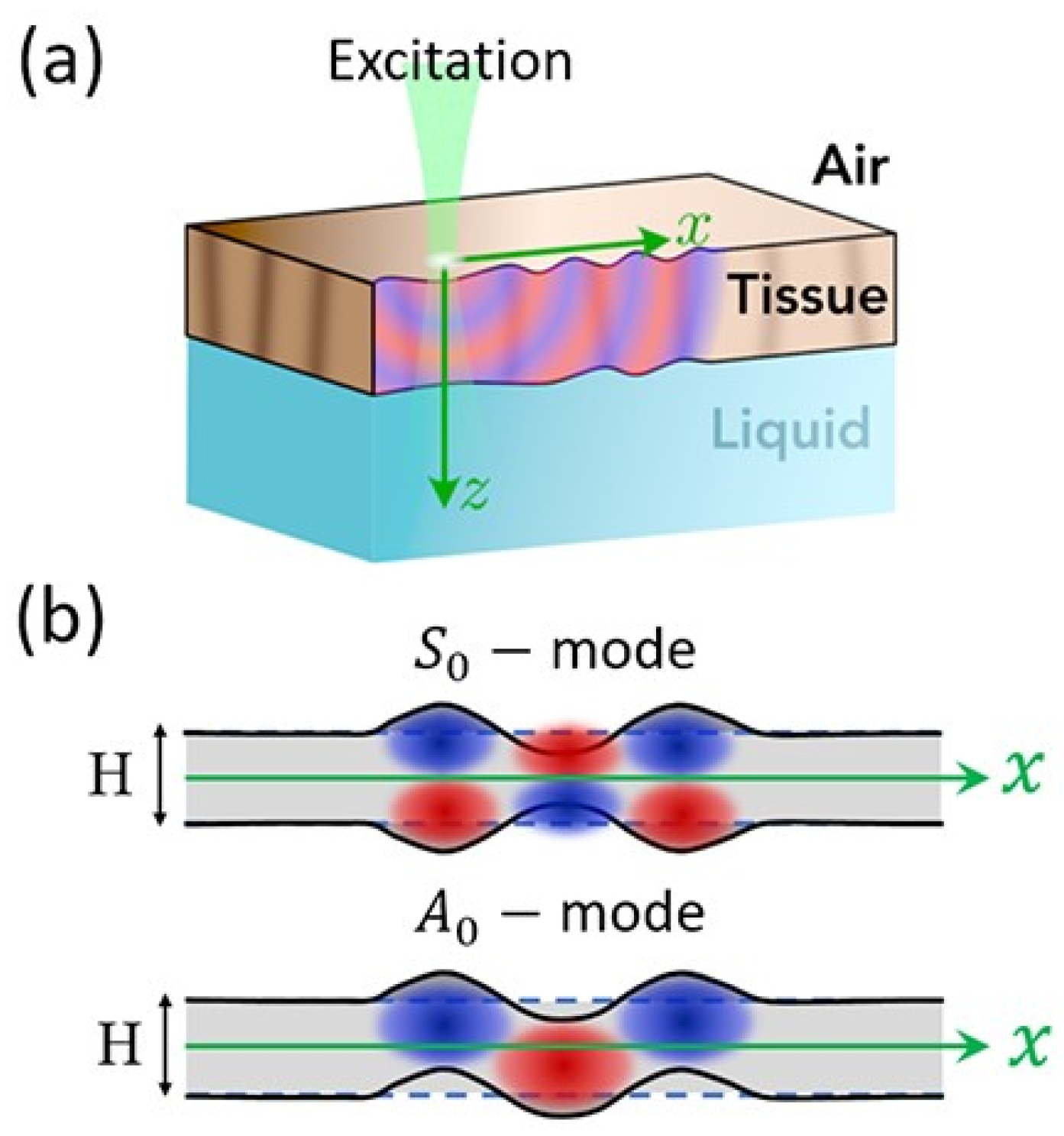

We will follow Lamb’s 1917 derivation because this spurred far-reaching research for over a century of new applications, eventually arriving in elastography where structures such as biofilms [34], corneas [23,35], and arterial walls [36] are under investigation. An illustration of the two possible modes, symmetric and antisymmetric, propagating in a thin structure with parallel sides is shown in Figure 5.

A significant issue for the elastography of structures that can guide waves is that the modes allow for propagation in the long axis of periodic displacements that have a phase velocity below, above, or much higher than the nominal shear wave velocity of $c_s=\sqrt{G/\rho }$, where $G$ is the shear modulus and $\rho$ is the density of the elastic material. An excitation at one frequency can, in theory and in practice, excite more than one mode of propagation, each with a separate phase velocity in the direction of the long axis, and none matching the nominal shear wave velocity [2,37,38]. A numerical example following the derivations of Lamb [33] is given in the Appendix A for the purpose of illustration. However, the main question before us is: in the case of a guided wave structure, will either the curl operator or some set of directional filters provide us a direct estimate of spatial frequency directly and solely related to $c_s$? The answer is no, at least not without rare and special conditions. The form of the solutions from Pochhammer, Rayleigh, Love, and Lamb are all separable with a phase velocity in the long axis z given as $\mathrm{e}\mathrm{x}\mathrm{p}\left[I\xi z\right]$, where $\xi$ is the wavenumber derived from a complicated interaction of factors including boundary conditions, geometry, and the longitudinal wave speed, and I is the imaginary unit. The component directions of the propagations are separable along the long axis and in the lateral directions respectively, with no need for filters to separate them; however, no spatial wavenumber will reduce to the nominal $k_s=\omega /c_s$ except asymptotically at relatively high frequencies. There is, however, a way to more fully characterize the structure under examination: given a priori knowledge of the shape and size of the structure and measurements of a particular mode across different frequencies, an inverse solution can be generated for the unknown material properties [39,40,41]. In more general terms, the measured dispersion of the phase velocity can be input to appropriate models to estimate the unknown shear modulus of a waveguide.

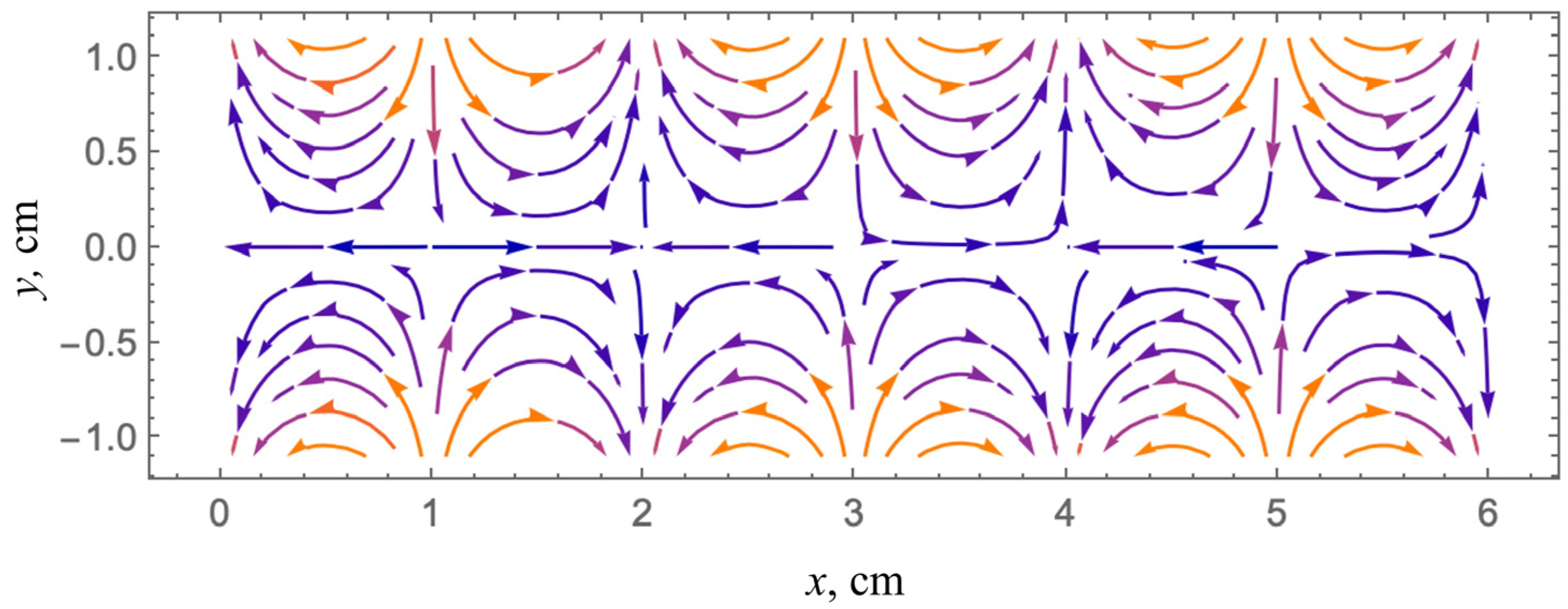

For the case of Lamb waves, we can show that the curl operator does provide a periodic pattern that can be further analyzed to estimate the shear modulus. An example is given in Figure 6 of the symmetric mode of the soft material (G = 1000 Pa) flat sample, 2 cm thick, excited from the left side at 100 Hz and with parameters described more fully in the Appendix A. The shear wave speed in this example is $c_s=1 \mathrm{m}/\mathrm{s}$ and we would like to estimate that and infer the correct value of G from the observed displacements. However, we find repeating patterns along the x-axis in the symmetric mode, also in the patterns resulting from the curl operator that are periodic along the long axis with the apparent wavelength consistent with twice the shear velocity, where cycles repeat every 2 cm instead of every 1 cm in the long axis. However, it can be shown that by further applying the Laplacian operator in two dimensions, then using this within a Helmholtz direct inversion formula, the result is capable of providing an estimate of the shear modulus, as described in more detail in the Appendix A. In summary, the apparent wavelength seen in Lamb waves (or more generally, guided waves in long structures) can be much longer or much shorter than the shear wavelength found in a semi-infinite medium. Neither the curl operator nor directional filters can change this pattern. Additional mathematical steps would be required to estimate the underlying shear modulus G of the material.

Another important issue with the use of curl in this example, and more generally in elastography, is that estimates of displacements in tissues tend to be noisy due to the small, micron-scale displacements commonly utilized across all the imaging modalities, along with the need for speed in data acquisition (limited averaging across repetitions) and the reality of physiological motions and electronic noise. Taking the curl’s spatial derivatives using finite difference approximations will notoriously amplify noise. In this example, one must estimate the curl and then the Laplacian in order to complete an estimation of the shear wave speed, essentially three successive orders of spatial derivatives which amplify noise. This would be followed by a quotient of terms for the direct Helmholtz equations [42,43]. Thus, more sophisticated noise reduction and regularization strategies may be required [44,45].

5. Discussion

In optical coherence tomography, MRI, and ultrasound imaging systems, one of the fastest means of obtaining information for elastography is to obtain a single component of displacement or velocity in a 2D imaging plane. For common situations where external sources are providing continuous shear waves, simple configurations are shown to be resistant to improved analysis by the use of curl or directional filters. The curl operator requires volumetric information which is not available in simple 2D imaging ROIs. Directional filters’ ability to separate and discriminate between different waves is limited by the support of the filters and the size of the ROI, such that practical configurations resembling a pair of Miller–Pursey sources can produce wavefronts that are easily misinterpreted and not resolvable by directional filters.

One means of mitigating these difficulties is to design the source and imaging plane in a fixed geometry, for example in Echosens and ARFI systems where the excitation and imaging planes are preconfigured [25,26].

Another means of mitigating the difficulties is to establish a 3D set of shear waves across multiple directions, producing the reverberant shear wave field. In that case, the imaging system ROI can have an arbitrary configuration with respect to the organ of interest, and the estimators take advantage of the simple limiting mathematics of the expected ensemble of waves in 3D [46,47,48]. This enables the freehand orientation of the imaging plane, as is common with hand-held imaging probes, in addition to preset 3D scan geometries.

A limitation of this paper is that for both the curl operator and the directional filters, their ability to improve estimates of the shear modulus will diminish as a function of specific parameters, including the noise level in the displacement estimates and the size of the imaging ROI relative to the wavelength. Further work is required to characterize these error curves and trends for specific implementations.
