Topological Properties of the 2D 2-Band System with Generalized W-Shaped Band Inversion

Abstract

We report the topological properties, in terms of the Berry phase, of the 2D noninteracting system with electron–hole band inversion, described by the two-band generalized analogue of the low-energy Bernevig–Hughes–Zhang Hamiltonian, yielding the W-shaped energy bands in the form of two intersecting cones with the gap along the closed continuous loop. We identify the range of parameters where the Berry phase attains qualitatively different values: (a) the integer multiplier of $2\pi$, (b) the integer multiplier of $\pi$, and (c) the nontrivial value between the latter two, which depends on the system parameters. The system thus exhibits the anomalous quantum Hall effect associated with the nontrivial geometric phase, which is presumably tunable through the choice of parameters at hand.

1. Introduction

The Berry phase [1] was introduced at least conceptually for the first time most likely in the 1950s in D. Bohm’s Quantum Theory [2], Ch. 20, Sec. 1 in equation 8, as the geometric phase accumulated in the wave function during the cyclic adiabatic change of parameters in the Hamiltonian; today, it still grasps the focus of interest of the modern physics, particularly in the fields of condensed matter and optics [3]. The concept of nontrivial topological properties of the wave function is important not only from the fundamental point of view of the general quantum mechanics but also from the experimental and technological point of view. The topological insulators [4] and quantum Hall effect (QHE) [5,6] are just some of the most well-known examples of real systems with the above-mentioned effects experimentally observed. Furthermore, the anyons, firstly suggested by F. Wilcek as the composite particles consisting of the electric charge moving in the 2D plane around the infinite magnetic flux tube perpendicular to it [7], are objects satisfying neither fermionic nor bosonic statistics. In turn, the phase in the wave function, accumulated by braiding the two of them, is neither zero (bosons) nor $\pi$ (fermions) but some real number between the two instead, reflecting the nontrivial topology of the wave function. The fundamental requirement to be able to achieve such a nontrivial braiding is the two-dimensionality (2D) of the system. So far, the only experimentally realized system exhibiting anyons in the field of solid-state physics is the fractional QHE [8,9], which is emerging due to electron–electron interactions. The extra efforts to realize anyons in different systems, especially the so-called non-Abelian ones, is also motivated by their potential application for quantum computation [10]. Some of these efforts are directed at finding the systems in which anyons may emerge in the absence of interactions (e.g., the electron–electron interaction) but solely due to the special topology of the wave function, resulting from diagonalization of the Hamiltonian containing parameters that can be controlled from the outside [11], the realization of which is still an open question.

We analyze the topological properties of the 2D system with inverted electron and hole bands. The band inversion and so-called “conical intersections” [12] are practically paradigmatic prerequisites for the nontrivial topological properties and onset of the topological insulators. Although the full scale of mechanisms leading to the band inversion is not fully known yet, usually, the spin–orbit interaction in the solid state is used as its main generator. The quest to generate the intrinsic QHE state, as an intrinsic property of the system without the external magnetic field (so-called anomalous QHE) [13], has been continued since Haldane’s proposal [14], its experimental realizations [15], as the important topic of modern solid-state physics and material science through the design of new topological materials. Here, we shall not discuss the mechanisms leading to the band inversion. We shall start with the Hamiltonian already possessing that feature and explore its properties. The system under consideration features the W-shaped bands with rotational symmetry (the so-called “Witch’s hat” form created by the two oppositely oriented intersecting cones with a gap created along the circular line of intersection). It is in essence the two-band derivative of the low-energy Bernevig–Hughes–Zhang Hamiltonian (BHZ) [16] for the 2D system, which is sometimes called the “half BHZ model”, leading to the modified Dirac equation [17], which we generalize in terms of the number of parameters presumably tunable by the external influence such as electric field, mechanical strain, etc. The results indicate regions of parameters for which the Berry phase can achieve different nontrivial values; i.e., we find regions in the parameter space with the nontrivial Berry phase characterized by the integer multiplier of $\pi$ and of $2\pi$ as well as the region where the Berry phase attains the nontrivial value between the latter two depending on the parameters in the Hamiltonian. Likewise, the anomalous QHE determined by it emerges, possessing the corresponding nonstandard properties.

2. Methods

2.1. The Model

The low-energy Hamiltonian of the 2D two-band system under consideration, in the basis of the plane waves characterizes by the 2D wave vector $\mathbf{k}=(k_x,k_y)$, reads

$$\begin{array}{c}\hfill \widehat{H}=\left[\begin{array}{cc}(\Delta -{\alpha }_1|\mathbf{k}{|}^m)& {\alpha }_2{(k_x-\mathrm{i}{k}_y)}^n\\ {\alpha }_2{(k_x+\mathrm{i}{k}_y)}^n& -(\Delta -{\alpha }_1|\mathbf{k}{|}^m)\end{array}\right],\end{array}$$

(1)

where $\Delta$ is one of the parameters determining the band gap, and parameters $(n,m)\in \{1,2,3,\dots \}$ are positive integers. In particular, m describes different possible initial electron dispersions such as linear, parabolic etc., while n describes the possibility of introducing more general topology beyond simple conical band intersections. The case $n=0$ (and $m=0$) is also covered by the result, but it leads to the trivial topology; thus, we shall comment on it at the end only for the sake of completeness. Here, ${\alpha }_1$ (${\alpha }_2$) stand for positive parameters giving, multiplied with $k^m$ ($k^n$), dimension of energy, e.g., for $m=n=1$, ${\alpha }_{1,2}$ are the Fermi velocity parameters ${\alpha }_{1,2}=\hslash v_{1,2}$ such as for graphene, for example; for $m=n=2$, ${\alpha }_{1,2}$ are the effective mass ($m^{\ast }$) parameters ${\alpha }_{1,2}={\hslash }^2/2m_{1,2}^{\ast }$ such as for the free electron gas, etc.

Using the in-plane rotational symmetry of the problem, i.e., using the polar coordinates $k=\left|\mathbf{k}\right|>0$ and $\phi =arctan(k_y/k_x)$, in which $k_x\pm \mathrm{i}{k}_y=kexp(\pm \mathrm{i}\phi )$, and expressing energy E in units of ${\alpha }_1$, i.e., $E\to \mathcal{E}\equiv E/{\alpha }_1$ consequently scaling the Hamiltonian in the same way, i.e., $\widehat{H}\to \widehat{\mathcal{H}}\equiv \widehat{H}/{\alpha }_1$, we can write the Hamiltonian (1) in the convenient form for analytical analysis

$$\begin{array}{c}\hfill \widehat{\mathcal{H}}=\left[\begin{array}{cc}(\delta -k^m)& \gamma k^n{\mathrm{e}}^{-\mathrm{i}n\phi }\\ \gamma k^n{\mathrm{e}}^{\mathrm{i}n\phi }& -(\delta -k^m)\end{array}\right],\end{array}$$

(2)

where $\delta \equiv \Delta /{\alpha }_1$ and $\gamma \equiv {\alpha }_2/{\alpha }_1$ are the control parameters of the model, together with the corresponding exponents n and m. It is straightforward to diagonalize the Hamiltonian (2). The eigen-states, i.e., the electronic energy bands, are

$$\begin{array}{c}\hfill {\mathcal{E}}_{\pm }\left(k\right)=\pm \sqrt{{(\delta -k^m)}^2+{\gamma }^2{k}^{2n}},\end{array}$$

(3)

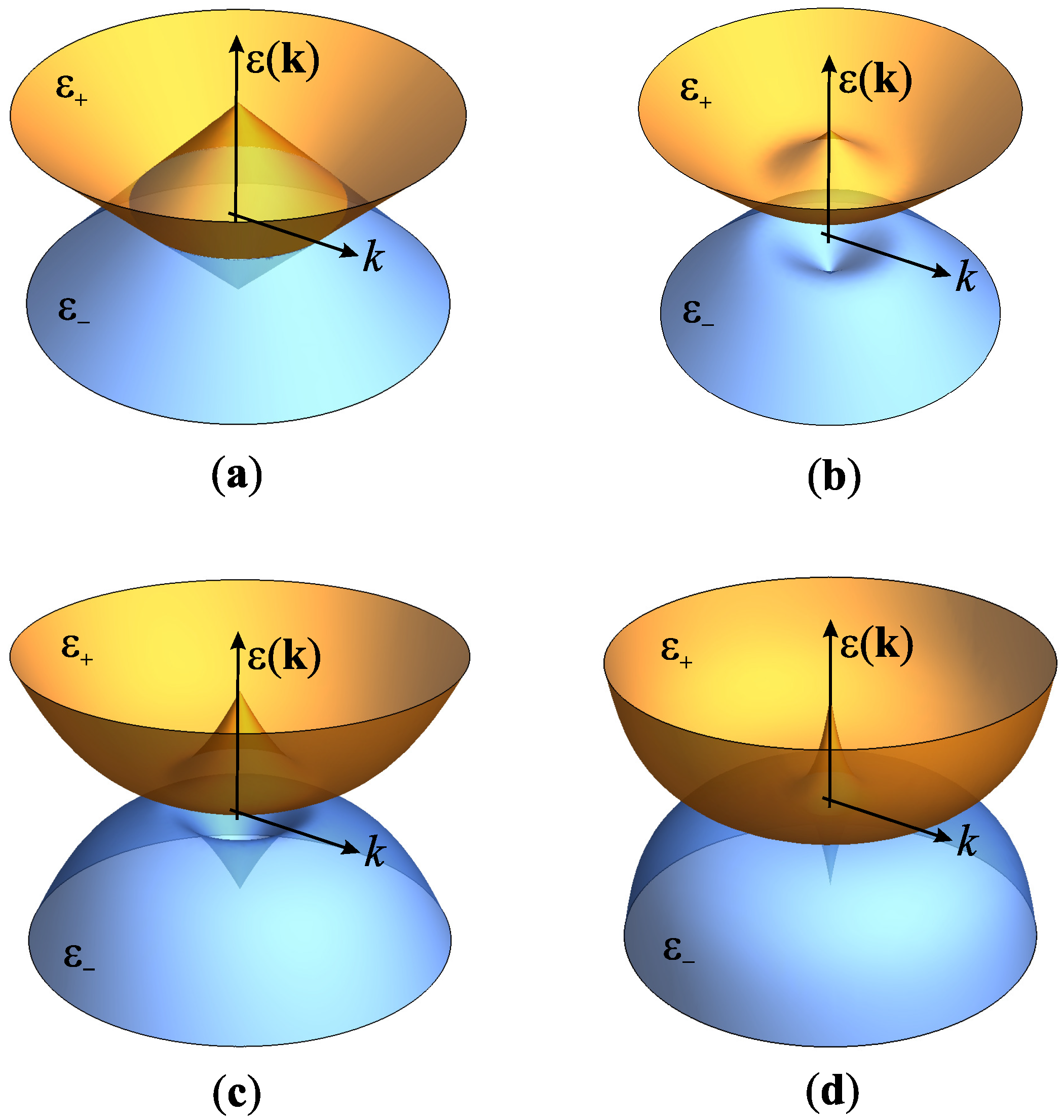

where the sign “+” stands for the conduction (or electron) band, and sign “−” stands for the valence (or hole) band. The bands are shown schematically in Figure 1 for several choices of parameters.

The (normalized) eigen-vectors in the plane wave basis in polar coordinates, corresponding to the eigen-states (3), are

$$\begin{array}{c}\hfill {\psi }_{\pm }(k,\phi )=\frac{1}{\sqrt{2}{\left({(\delta -k^m)}^2+{\gamma }^2{k}^{2n}\right)}^{\frac{1}{4}}}\left[\begin{array}{c}\pm \gamma k^n{\left(\mp (\delta -k^m)+\sqrt{{(\delta -k^m)}^2+{\gamma }^2{k}^{2n}}\right)}^{-\frac{1}{2}}{\mathrm{e}}^{-\mathrm{i}n\phi }\\ {\left(\mp (\delta -k^m)+\sqrt{{(\delta -k^m)}^2+{\gamma }^2{k}^{2n}}\right)}^{\frac{1}{2}}\end{array}\right].\end{array}$$

(4)

2.2. The Berry Phase

Knowing the eigen-vectors, we can calculate the Berry connection ${\overrightarrow{\mathcal{A}}}^{(\pm )}=({\mathcal{A}}_k^{(\pm )},{\mathcal{A}}_{\phi }^{(\pm )})$ in polar coordinates, where

$$\begin{array}{c}\hfill \begin{array}{c}{\mathcal{A}}_k^{(\pm )}(k,\phi )=-\mathrm{i}\langle {\psi }_{\pm }(k,\phi )|{\partial }_k|{\psi }_{\pm }(k,\phi )\rangle ,\\ {\mathcal{A}}_{\phi }^{(\pm )}(k,\phi )=-\frac{\mathrm{i}}{k}\langle {\psi }_{\pm }(k,\phi )|{\partial }_{\phi }|{\psi }_{\pm }(k,\phi )\rangle ,\end{array}\end{array}$$

(5)

playing the role of the “Berry (vector) potential”, or synthetic gauge field generated by the “topological charge” located in the origin. Performing the partial differentiation ${\partial }_{k,\phi }$ and the straightforward algebra, we obtain

$$\begin{array}{c}\hfill \begin{array}{c}{\mathcal{A}}_k^{(\pm )}(k,\phi )=0\\ {\mathcal{A}}_{\phi }^{(\pm )}(k,\phi )=-\frac{n}{2}\left[\frac{1}{k}\pm \frac{\delta -k^m}{k\sqrt{{(\delta -k^m)}^2+{\gamma }^2{k}^{2n}}}\right].\end{array}\end{array}$$

(6)

The Berry phase for each band is then calculated as the contour integral of $\mathcal{A}$ along the path encircling the “topological charge” in the origin. In the case of standard solid-state systems at the lattice, that path encircles the Brillouin zone, being the natural boundary along which the derivative of the wave function vanishes due to the periodicity condition. The topology of the 2D Brillouin zone is the one of the torus, granting the integer (or trivial, i.e., zero) TKNN invariant, also called the Chern number, in the standard noninteracting systems, thus reflecting its topological nature [18]. The presented model is approximate in the sense that it is continuous; we modeled just the vicinity of the conical intersection without full periodicity conditions of the lattice (so-called low-energy Hamiltonian). Thus, the path encircling the “topological charge” in the origin should be taken in the limit $k\to \infty$. This reflects its geometric instead of pure topological nature (such as for the pure Dirac cone in graphene, for example). Therefore, the Berry phase ${\mathcal{B}}^{(\pm )}$ is

$$\begin{array}{c}\hfill {\mathcal{B}}^{(\pm )}=\underset{\left|\mathbf{k}\right|\to \infty }{lim}\oint {\overrightarrow{\mathcal{A}}}^{(\pm )}\left(\mathbf{k}\right)\mathrm{d}\mathbf{k}=\underset{k\to \infty }{lim}{\int }_0^{2\pi }{\mathcal{A}}_{\phi }^{(\pm )}\left(k\right)k\mathrm{d}\phi \end{array}$$

(7)

which transforms, after inserting the expression for the Berry connection (6) and taking the integral, into

$$\begin{array}{c}\hfill {\mathcal{B}}^{(\pm )}=-n\pi \left[1\pm \underset{k\to \infty }{lim}\frac{\delta -k^m}{\sqrt{{(\delta -k^m)}^2+{\gamma }^2{k}^{2n}}}\right],\end{array}$$

(8)

and, taking the limit, we finally obtain

$$\begin{array}{c}\hfill {\mathcal{B}}^{(\pm )}=\left\{\begin{array}{c}-\pi n\left[1\mp \frac{1}{\sqrt{1+{\gamma }^2}}\right],n=m\\ -\pi n,n>m\\ 0\mathrm{or}-2n\pi ,n<m.\end{array}\right.\end{array}$$

(9)

2.3. The Anomalous QHE

Another way to address the intrinsic QHE originating solely from the band topology is the calculation of the electrical conductivity tensor within the adiabatic approximation, namely its off-diagonal element that accounts for the Hall conductivity. The contribution in the case of the full band accounts exactly for the QHE as illustrated in detail in early works of Streda, Kohomoto and others [19,20,21]. The simplest way is to calculate the average of the, say, x-component of the current operator as the response to the perpendicular electric field introduced through the time-dependent gauge, i.e., the vector potential of the form $\mathbf{A}=(0,-E_{y}t,0)$, where $E_y$ is the perpendicular component of electric field, and t is time.

The current operator is defined by the expression

$$\begin{array}{c}\hfill \widehat{\mathbf{J}}=\frac{e}{\hslash }\frac{1}{{\left(2\pi \right)}^2}\int \mathrm{d}{k}_x\int \mathrm{d}{k}_y{▿}_{\mathbf{k}}\widehat{H}(\mathbf{k},t),\end{array}$$

(10)

where $\widehat{H}$ is the Hamiltonian of the system, and the Hall conductivity ${\sigma }_{xy}$ is defined as the response function, i.e., $\langle {\widehat{J}}_x\rangle ={\sigma }_{xy}{E}_y$. The Hall conductivity in this case, per state $|\eta \rangle$ with energy $E_{\eta }$ in the, by assumption, fully occupied band, is given by the well-known Kubo formula

$$\begin{array}{c}\hfill {\left[{\sigma }_{xy}\right]}_{\eta }=-\mathrm{i}\hslash \sum _{{\eta }^{\prime }\ne \eta }\frac{\langle \eta |J_x|{\eta }^{\prime }\rangle \langle {\eta }^{\prime }|J_y|\eta \rangle -\langle \eta |J_y|{\eta }^{\prime }\rangle \langle {\eta }^{\prime }|J_x|\eta \rangle }{{(E_{{\eta }^{\prime }}-E_{\eta })}^2}.\end{array}$$

(11)

In our case with two bands $\nu$ and ${\nu }^{\prime }$, Equation (11), after summing up the contributions per states $|\mathbf{k}\rangle$ in the band, reduces to the expression for the Hall conductivity per band $\nu$ [22]

$$\begin{array}{c}\hfill {\sigma }_{xy}^{\left(\nu \right)}=\hslash \sum _{\mathbf{k}}\frac{2\mathrm{Im}\left[J_x^{\left(\nu {\nu }^{\prime }\right)}\left(\mathbf{k}\right)J_y^{\left({\nu }^{\prime }\nu \right)}\left(\mathbf{k}\right)\right]}{{(E_{{\nu }^{\prime }}\left(\mathbf{k}\right)-E_{\nu }\left(\mathbf{k}\right))}^2}.\end{array}$$

(12)

where we calculated it per unit area. To pursue this quest, one needs to calculate the current vertices

$$\begin{array}{c}\hfill J_{\kappa }^{\left(\nu {\nu }^{\prime }\right)}\left(\mathbf{k}\right)=\frac{e}{\hslash }\sum _{l{l}^{\prime }}\frac{\partial H_{l{l}^{\prime }}}{\partial k_{\kappa }}{U}_{l\nu }{U}_{l^{\prime }{\nu }^{\prime }}^{†},\end{array}$$

(13)

where $\kappa \in \{x,y\}$ accounts for the Cartesian component and $l,l^{\prime },\nu ,{\nu }^{\prime }$ are the indices denoting (row, column) the corresponding matrix elements. $U_{l\nu }$ are elements of the $\mathbf{k}$-dependent unitary matrix

$$\begin{array}{c}\hfill \widehat{U}=\left[\begin{array}{cc}{\mathrm{e}}^{\mathrm{i}{\varphi }_{\mathbf{k}}}cos({\vartheta }_{\mathbf{k}}/2)& {\mathrm{e}}^{\mathrm{i}{\varphi }_{\mathbf{k}}}sin({\vartheta }_{\mathbf{k}}/2)\\ -sin({\vartheta }_{\mathbf{k}}/2)& cos({\vartheta }_{\mathbf{k}}/2)\end{array}\right],\end{array}$$

(14)

determined by the condition $\widehat{U}\widehat{H}{\widehat{U}}^{†}=\widehat{E}$, where $\widehat{E}$ is the diagonal eigenvalue matrix and

$$\begin{array}{c}\hfill H_{12}=\left|H_{12}\right|{\mathrm{e}}^{\mathrm{i}{\varphi }_{\mathbf{k}}},tan{\varphi }_{\mathbf{k}}=\frac{\mathrm{Im}\left[H_{12}\right]}{\mathrm{Re}\left[H_{12}\right]},tan{\vartheta }_{\mathbf{k}}=\frac{-2H_{12}}{H_{11}-H_{22}}.\end{array}$$

(15)

Taking it into account, the current vertices (13) read

$$\begin{array}{c}\hfill \begin{array}{c}{J}_{\kappa }^{\left(\nu \nu \right)}\left(\mathbf{k}\right)=\frac{e}{\hslash }\left(\frac{1}{2}cos{\vartheta }_{\mathbf{k}}\frac{\partial (H_{11}-H_{22})}{\partial k_{\kappa }}+sin{\vartheta }_{\mathbf{k}}\frac{\partial |H_{12}|}{\partial k_{\kappa }}\right),\\ J_{\kappa }^{\left(\nu {\nu }^{\prime }\right)}\left(\mathbf{k}\right)=\frac{e}{\hslash }\left(\frac{1}{2}sin{\vartheta }_{\mathbf{k}}\frac{\partial (H_{11}-H_{22})}{\partial k_{\kappa }}+\mathrm{i}\left|H_{12}\right|\frac{\partial {\varphi }_{\mathbf{k}}}{\partial k_{\kappa }}+cos{\vartheta }_{\mathbf{k}}\frac{\partial |H_{12}|}{\partial k_{\kappa }}\right),\end{array}\end{array}$$

(16)

for the intraband ($\nu \nu$) and interband ($\nu {\nu }^{\prime }$) case, respectfully.

We illustrate the procedure and the result for the particular problem, using the Hamiltonian (1) for the case $n=m=1$. Having $H_{11}=-H_{22}=\Delta -{\alpha }_1\left|\mathbf{k}\right|$, $H_{12}={\alpha }_2\left|\mathbf{k}\right|exp\left(\mathrm{i}{\varphi }_{\mathbf{k}}\right)$, $tan{\varphi }_{\mathbf{k}}=-k_y/k_x$ and $tan{\vartheta }_{\mathbf{k}}=-{\alpha }_2\left|\mathbf{k}\right|/(\Delta -{\alpha }_1\left|\mathbf{k}\right|)$, we calculate the interband current vertices for our two-band system with the valence band ($\nu =“-”$) and conduction band (${\nu }^{\prime }=“+”$)

$$\begin{array}{c}\hfill \begin{array}{c}{J}_x^{(-+)}\left(\mathbf{k}\right)=\frac{e}{\hslash }\frac{{\alpha }_2}{\left|\mathbf{k}\right|}\left(\frac{\Delta }{E_{\mathbf{k}}}{k}_x-\mathrm{i}{k}_y\right),\\ J_y^{(-+)}\left(\mathbf{k}\right)=\frac{e}{\hslash }\frac{{\alpha }_2}{\left|\mathbf{k}\right|}\left(\frac{\Delta }{E_{\mathbf{k}}}{k}_y+\mathrm{i}{k}_x\right),\end{array}\end{array}$$

(17)

for which $J_{\kappa }^{(+-)}={\left[J_{\kappa }^{(-+)}\right]}^{\ast }$, and where the spectrum, appearing in the expression, is $E_{\mathbf{k}}=\sqrt{(\Delta -{\alpha }_1{\left|\mathbf{k}\right|)}^2+{\alpha }_2^2{\left|\mathbf{k}\right|}^2}$.

The (quantum) Hall conductivity of the system with a fully occupied valence band ($\nu =“-”$) and empty conduction band (${\nu }^{\prime }=“+”$), with $E_{\mathbf{k}}\equiv E_{+}\left(\mathbf{k}\right)=-E_{-}\left(\mathbf{k}\right)$, is given by the expression

$$\begin{array}{c}\hfill \begin{array}{c}{\sigma }_{xy}=\frac{\hslash }{2}\int \frac{\mathrm{d}{k}_x}{2\pi }\int \frac{\mathrm{d}{k}_y}{2\pi }\frac{1}{E_{\mathbf{k}}^2}\mathrm{Im}\left[J_x^{-+}\left(\mathbf{k}\right)J_y^{+-}\left(\mathbf{k}\right)\right]\\ =-\frac{e^2}{h}\frac{{\alpha }_2^2\Delta }{2}{\int }_0^{\infty }\frac{k\mathrm{d}k}{{\left({(\Delta -{\alpha }_{1}k)}^2+{\alpha }_2^2{k}^2\right)}^{3/2}}\\ =-\frac{e^2}{h}\frac{1}{2}\left[1+\frac{1}{\sqrt{1+{\gamma }^2}}\right].\end{array}\end{array}$$

(18)

3. Results

The most natural way to analyze the obtained results is to start with the properties of the electron energy bands (3) which also reflect the topological properties, depending on parameters. The band structure, depending on the characteristic choices of parameters, is shown in Figure 2. In principle, the energy bands have two intersecting cones with a gap opened between them along the circular intersecting line (we call it “the nodal ring”). The tips of the protruding cones are located symmetrically, beyond and beneath the origin, at the distance equal to $2\delta$. The circular nodal ring, giving the W-shape (or “Mexican hat-shape”, depending on n, m), shrinks in radius as $\gamma$ increases, but it is preserved up to the limit $\gamma \to \infty$.

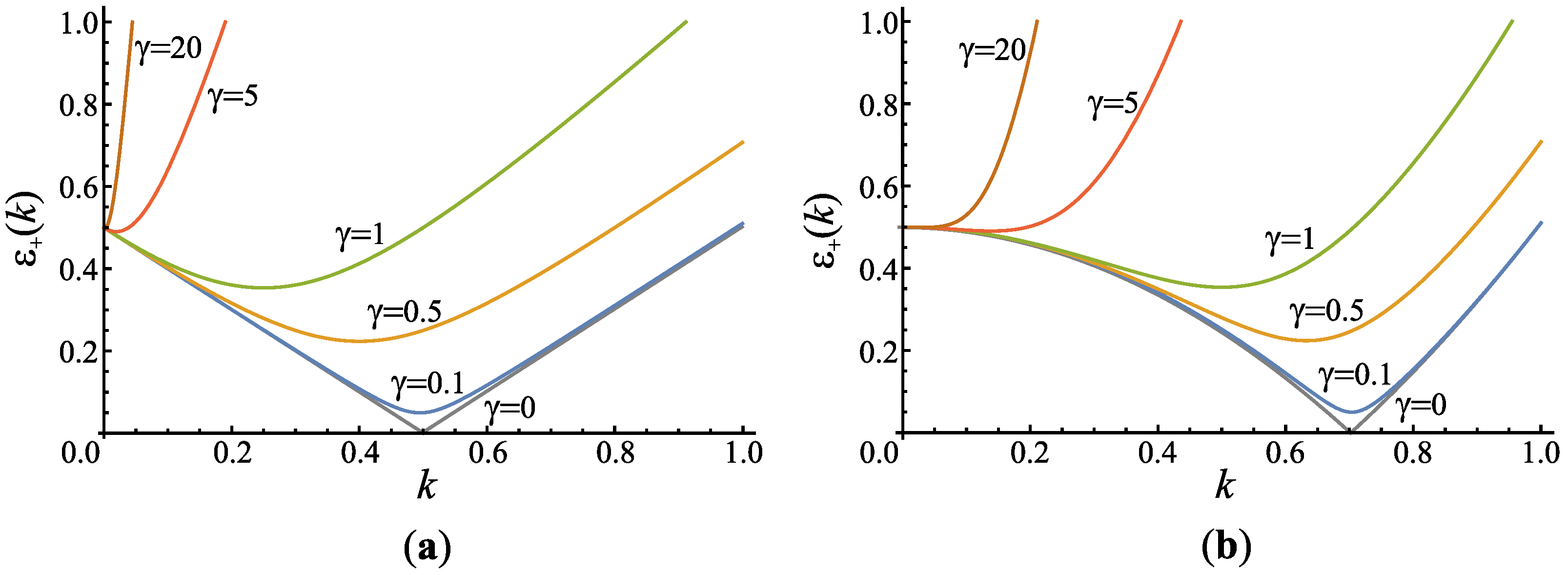

For the case $n=m$, the radius of the nodal ring is $k_0={(\delta /(1+{\gamma }^2))}^{1/n}$, and the real band gap, i.e., the vertical distance between the lower and upper band, along the nodal ring is equal to ${\mathcal{E}}_{+}-{\mathcal{E}}_{-}=2\delta \gamma /\sqrt{1+{\gamma }^2}$ (or $E_{+}-E_{-}=2\Delta \gamma /\sqrt{1+{\gamma }^2}$ in the original units of energy). In the general case $n\ne m$, one needs to solve the equation $n{\gamma }^2{k}_0^{2n-m}+m{k}_0^m-m\delta =0$ for $k_0$ and insert it into expression (3) to find the value of the gap ${\mathcal{E}}_{+}-{\mathcal{E}}_{-}$.

The Berry phase of the system is a sum of the contributions of all occupied bands. We consider the case with only the lower band (“−”) fully occupied and upper band (“+”) empty. Then, the Berry phase of the system is equal to $\mathcal{B}={\mathcal{B}}^{(-)}$, i.e.,

$$\begin{array}{c}\hfill \mathcal{B}=\left\{\begin{array}{c}-\pi n\left[1+\frac{1}{\sqrt{1+{\gamma }^2}}\right],n=m\\ -\pi n,n>m\\ -2\pi n,n<m.\end{array}\right.\end{array}$$

(19)

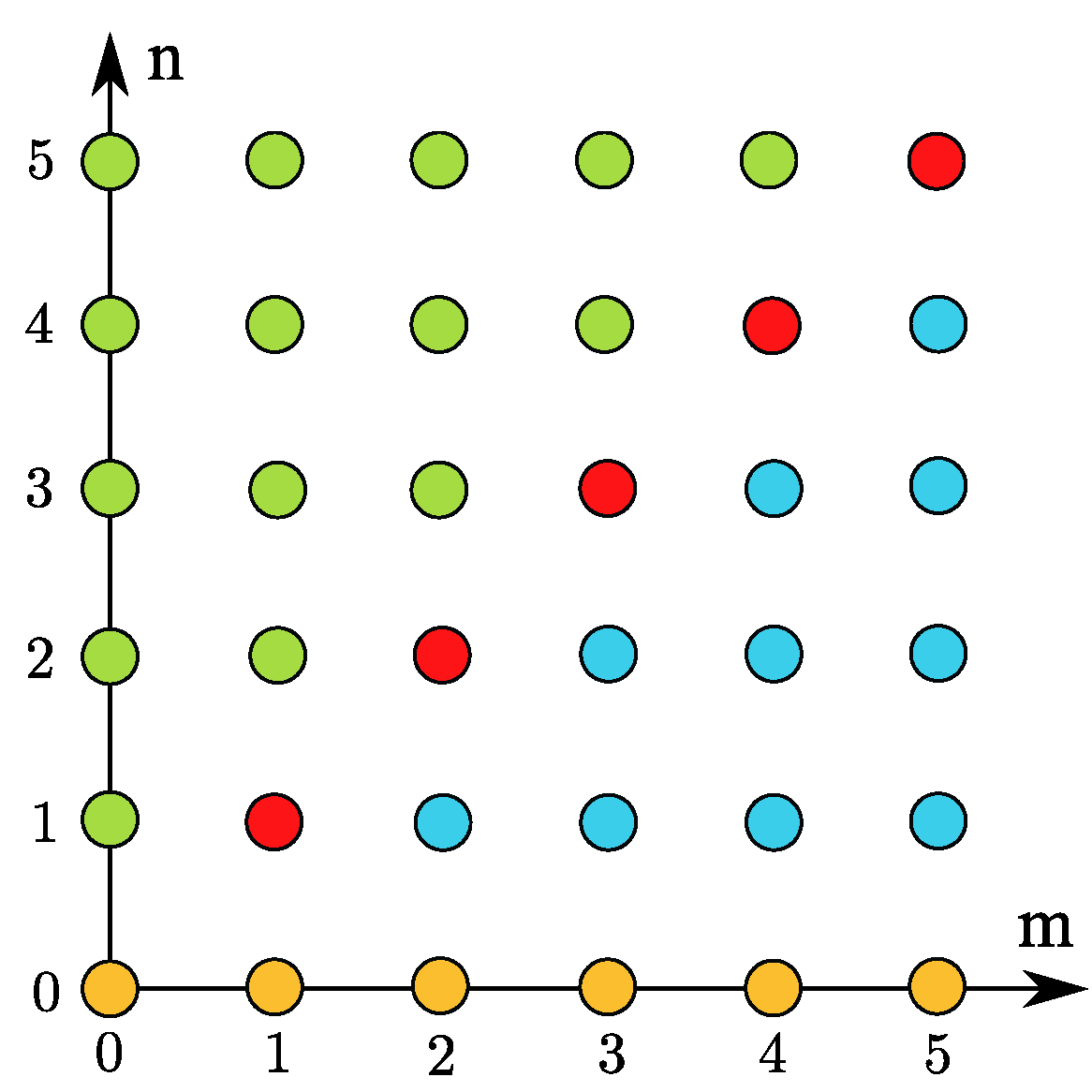

opening the possibility of different classes of nontrivial results dependent on the system parameters (but not on the scaling of energy). It is essential to stress that this result holds as long as we have two distinct bands, i.e., until the gap closes. Basically, the result exhibits three main classes depending on the relation of n and m: (a) if $n<m$, $\mathcal{B}$ attains the value $-2\pi n$; if $n>m$, $\mathcal{B}$ attains the value $-\pi n$; if $n=m$, $\mathcal{B}$ attains the value between $-2\pi n$ and $-\pi n$ depending on $\gamma$. We show the Berry phase for the case $n=m$ in Figure 3. Apparently, as $\gamma \to 0$, the band gap closes and $\mathcal{B}\to -2n\pi$. In the opposite case $\gamma \to \infty$, the W-shape of the band is lost, yielding the value $\mathcal{B}\to -n\pi$.

The anomalous QHE is confirmed also by the “electrodynamical approach”, i.e., by the calculation of the Hall conductivity in the gapped state using the interband current vertices. The result (18), obtained for the case $n=m=1$, can be easily generalized using the analogous straightforward procedure for the case of general $(n,m)\in \{1,2,3,\dots \}$. It yields the result ${\sigma }_{xy}=(e^2/h)·\mathcal{C}$, where

$$\begin{array}{c}\hfill \mathcal{C}=\left\{\begin{array}{c}-\frac{1}{2}\left[1+\frac{1}{\sqrt{1+{\gamma }^2}}\right]n,n=m\\ -\frac{1}{2}n,n>m\\ -n,n<m.\end{array}\right.\end{array}$$

(20)

The conductivity appears in the units of conductivity quanta $e^2/h$ multiplied by the dimensionless quantity $\mathcal{C}$ which appears as the “winding number” equal to the Berry phase divided by $2\pi$, therefore being in accordance with Equation (19). In the next section, we shall discuss when it may have the meaning of the topological invariant known as the Chern number.

4. Discussion

Physical systems featuring different topological properties are nowadays well categorized in terms of classes of corresponding topological invariants depending on the symmetries that the system possesses [23]. The general topological properties of conical intersections, as generators of nontrivial synthetic gauge fields, and inverted bands are rather well-understood. The interesting upgrade to that established picture is to find a way how to tune or violate certain assumptions, upon which the symmetry classes are built, through the change of parameters, and then track the transitions between the topological phases. The model that we analyze is symmetric with respect to the time reversal; it is the low-energy approximation which reflects topological properties of the single (generalized) conical intersection, which is expressed in terms of the “winding number” $\mathcal{C}$ given by Equation (20). The character of the conical intersection, expressed by $\mathcal{C}$, is determined by the system parameters m, n and $\gamma ={\alpha }_2/{\alpha }_1$, yielding the topological phase diagram with two phases and the unusual boundary between them—Figure 4.

The result reproduces, for example, the result for the modified Dirac equation, $\mathcal{C}=-1$ [17], taking parameters $m=2$ and $n=1$, or the $K^{\prime }$ point of simple “massive graphene” [24] with $\mathcal{C}=-1/2$ for $m=0$ and $n=1$, or trivial insulator with $\mathcal{C}=0$ for $n=0$, $\forall m$ (e.g., $n=0$, $m=2$ case is considered in Ref. [25]), etc. However, the analyzed system goes qualitatively beyond that. Apart from the trivial phase ($\mathcal{C}=0$) for $n=0$, in the case of the nonzero n, the “winding number” $\mathcal{C}=-1·n$ remains such for all $m>n$. It attains the value $\mathcal{C}=-1/2·n$ for all $m<n$. Finally, for all $m=n$, $\mathcal{C}=-n\left[1+1/\sqrt{1+{\gamma }^2}\right]/2$. As a result of the lack of other effective means of visualization, we illustrate the effect of topology, “encoded” into the wave function (4), on the spin operator $({\sigma }_x,{\sigma }_y,{\sigma }_z)$, by calculating the vector field $\Sigma (k_x,k_y)$ having the expected values of ${\sigma }_x$ and ${\sigma }_z$ operators as its components, i.e.,

$$\begin{array}{c}\hfill \Sigma (k_x,k_y)=(\langle {\mathsf{\Psi }}_{-}(k_x,k_y)|{\sigma }_x|{\mathsf{\Psi }}_{-}(k_x,k_y)\rangle ,\langle {\mathsf{\Psi }}_{-}(k_x,k_y)|{\sigma }_z|{\mathsf{\Psi }}_{-}(k_x,k_y)\rangle ),\end{array}$$

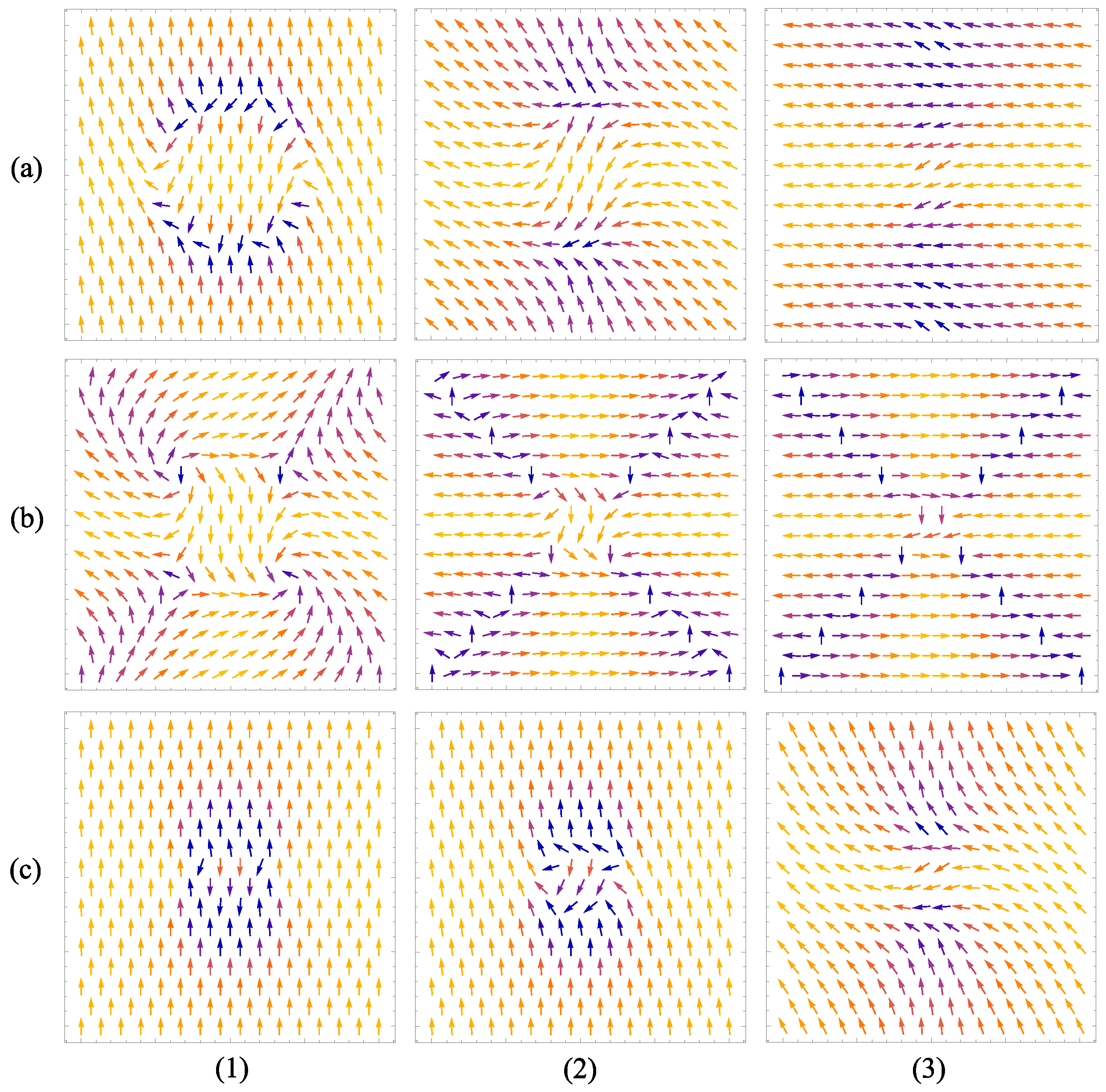

as depicted in Figure 5 (the topologically trivial case $\mathcal{C}=0$ would have all spins directed “upwards”).

To apply the presented results to the real systems requires taking into account all symmetries that it imposes. For example, the system on the lattice, such as graphene, is limited with symmetry yielding the necessity of an even number of Dirac points in the Brillouin zone. Those may cancel each other’s Berry phase if the Berry curvatures are of the opposite signs; thus, some time-reversal symmetry-lifting mechanism (for example, such as the Haldane model [14]) is necessary to observe the finite effect. In this quantum report, we do not go into such details but rather focus on reporting the unusual topological property of the quantum system (1) possessing the anomalous QHE and the non-integer “winding number” for the certain set of parameters.
