In-Field Quantum-Protected Control-Based Key Distribution with a Lossy Urban Fiber Link

Abstract

Quantum cryptography protocols offering unconditional protection open great rout to full information security in quantum era. Yet, implementing these protocols using the existing fiber networks remains challenging due to high signal losses reducing the efficiency of these protocols to zero. The recently proposed quantum-protected control-based key distribution (QCKD) addresses this issue by physically controlling interceptable losses and ensuring that leaked quantum states remain non-orthogonal. Here, we present the first in-field development and demonstration of the QCKD over an urban fiber link characterized by substantial losses. Using information-theoretic considerations, we configure the system ensuring security and investigate the interplay between line losses and secret key rates. As an example, we present calculation for the communication distance 4 km, QCKD rate 490 bits per second, and find that the corresponding system’s total loss is about 1.628 decibels. Our results, backed by the statistical analysis of the secret key, confirm QCKD’s robustness under real-world conditions, and establish it as a practical solution for quantum-safe communications over existing fiber infrastructures.

1. Introduction

With the rise of quantum computing, the widely used cryptographic algorithms relying on the computational complexity of certain mathematical problems—such as the RSA [1], ECC [2], and DSA [3]—face a significant threat. Namely, a sufficiently powerful quantum computer running Shor’s algorithm [4] promises to overcome these complicated mathematical problems in a short amount of time and, thus, to break the protocols’ security. Remarkably, the advances in quantum technologies offer a security–protecting counter measure: quantum cryptographic methods based on fundamental quantum properties, rather than on computational complexities [5,6,7,8,9,10,11,12,13,14,15,16,17,18] promise to guarantee secure communications. The central point of novel communication methods is quantum key distribution (QKD) [5,6,7,8,9,10,11], by which two users, commonly referred to as Alice and Bob, establish a shared random secret key through the exchange by quantum states. When used with symmetric encryption, this key guarantees full security even against the attacks with quantum computers.

Conceptually, the security of the QKD against the intrusions is based on the ability of the communicating users to detect the presence of an eavesdropper, Eve, using the fundamental laws of quantum mechanics. The eavesdropper disturbs the quantum states distributed between users in the process of their communications and, therefore, introduces measurable anomalies in the process, such as an increased bit error rate or loss of entanglement. By detecting and evaluating these anomalies in a way specific to each QKD protocol, the legitimate users determine the extent of the information breach. This allows them to take measures protecting secure key, so that none of transmitted bits becomes known to Eve.

However, when implementing these protocols in existing fiber-optic infrastructure, relying on such control mechanisms becomes problematic, as the telecommunication fiber lines have a high level of losses. Quantum signals, which usually consist of only a few photons, degrade rapidly in these lossy environments, making it not possible to rely on the state disturbances as on a direct indicator of eavesdropping. Even if the users manage to discover Eve’s presence, attributing to her all the channel losses, this will provide them little or even practically no informational advantage and, therefore, very limited achievable secret key rates.

To address these issues, recent works [19,20,21] introduced the concept of physical loss control in optical quantum communication. In this approach, users send high-intensity probe signals and analyze the transmitted and reflected components, which enables them to distinguish between localized losses exploitable by Eve and the naturally occurring, uniformly distributed scattering losses on quenched disorder that remain unusable for eavesdropping due to thermodynamic constraints [19]. By precisely determining the fraction of light which an eavesdropper could intercept, users precisely estimate Eve’s potential information gain and apply the optimal postprocessing techniques to the distributed bits to ensure key rates guaranteeing high-secrecy.

Physical loss control is a central component of the quantum-protected control-based key distribution (QCKD) [19], a prepare-and-measure protocol that encodes bits into the low-intensity coherent quantum states, $|{\gamma }_0\rangle$ and $|{\gamma }_1\rangle$. Because these states are substantially non-orthogonal ($|〈{\gamma }_0|{\gamma }_1〉|\sim 1$), neither the legitimate receiver (Bob) nor an eavesdropper (Eve) can reliably distinguish them. To simplify the explanation of the QCKD, users measure the fraction of the stolen signal $r_{\mathrm{E}}$ and verify that Eve, receiving $|\sqrt{r_{\mathrm{E}}}{\gamma }_0\rangle$ and $|\sqrt{r_{\mathrm{E}}}{\gamma }_1\rangle$, cannot distinguish them better than Bob can distinguish the states he receives. Once users accurately determine their informational advantage over Eve, they postprocess their respective bit strings to produce a secure secret key about which Eve knows nothing (we note that in reality, even if Eve is better in distinguishing bits than Bob, users may still have an informational edge on account of postselection).

The QCKD has already been experimentally implemented over a 1707 km optical fiber line in a controlled laboratory environment [22]. In this paper, we advance to the first real-world implementation of the protocol over a 4 km lossy urban fiber link within an operational fiber network. Unlike the fiber line in Ref. [22], where sections are joined through low-loss splices, the transmission line in our experiment includes multiple physical connectors that introduce significant losses, which represents the real-world fiber network conditions. We report the results of the physical loss control and the corresponding impact on key distribution rates, further verifying the quality of the resulting keys through comprehensive statistical analysis. Furthermore, we detail the physical-informational considerations defining the choice of both signal states and postprocessing parameters in our experimental setup, which itself represents a significant enhancement over the configuration in Ref. [22].

2. Protocol Description

Conceptually, the realized protocol is equivalent to that presented in Ref. [22] and follows the logic outlined in Ref. [19]. It is assumed that the users are connected via a quantum channel (optical fiber) and an authenticated classical communication channel. The procedure can be summarized as follows:

Scheme Adjustment

(i)

OTDR—Alice and Bob carry out optical time-domain reflectometry (OTDR) to identify local leakages that could be exploited by Eve and to measure the natural, homogeneous scattering losses which are considered non-interceptible [19]. Once this baseline is established, subsequent additional losses, determined at the later stage, will be attributed to Eve. The resulting reflectogram is shared over the classical channel. For details, see Section 7.1 in Methods.

(ii)

Auto-tuning procedure—Alice transmits to Bob a series of phase-randomized pulses encoding a bit sequence (via their intensities), while the same bit sequence is sent over the classical channel. Bob’s detector produces a sequence of voltages, which he compares against the known bit sequence from Alice. Based on this comparison, Bob and Alice set the postselection parameters to optimize the trade-off between bit error ratio (BER) and bit loss ratio (BLR) (see Section 4).

Transmission & Control

• Transmittometry—For the purpose of the loss control, Alice sends a sinusoidal signal through the quantum channel for loss estimation. The signal is modulated at a high frequency to suppress $1/f$ noise at Bob’s detection stage.
• Quantum information transmission—Alice transmits a sequence of low-intensity pulses (633,600 pulses in one transmission). Each 33rd pulse serves as a synchronization marker. The 32 phase-randomized pulses between two consecutive synchronization pulses encode informational bits. Informational pulses are two times weaker than synchronization pulses.
• Measurements—Bob measures all received signals. By analyzing the known baseline losses with the measured amplitude of the transmittometry signal, Bob estimates the exploitable leaked fraction photons $r_{\mathrm{E}}$ of the bit-encoding signals. This estimate is sent to Alice over the classical channel. In turn, the synchronization pulses identify the start positions of each bit series, ensuring Bob that he has obtained the full series.

Postprocessing

4.

Postselection—Bob reports to Alice via the classical channel the positions of inconclusive measurement outcomes as determined by the agreed postselection criteria. Then both parties remove these bits from their respective bit strings.

5.

Error correction—Disclosing a small selection of bits through the classical channel, the users estimate the BER. If the error is above a certain level, see Section 4 for details, the users apply the advantage distillation procedure [23]. Once the effective BER is sufficiently reduced, low-density parity-check (LDPC) code correction is employed to remove the remaining errors. The protocol verifies that the collision probability remains below ${10}^{-6}$.

6.

Privacy amplification—To ensure that Eve does not know any bits from the final key, privacy amplification is performed [24]. Knowing the observed channel losses $r_{\mathrm{E}}$ and the amount of information revealed during error correction, the users evaluate the amount of information leaked to Eve. If the leaked information exceeds the users’ own shared information, they discard the entire bit sequence from that round. Otherwise, they apply a suitable hashing technique to compress the sequence into a shorter key, about which Eve holds no information. The compression factor is determined by the evaluated leaked information. The resulting key is added to the key storage.

The protocol leverages the non-orthogonality of bit-encoding states, implemented as phase-randomized low-intensity coherent states with different mean photon numbers. With that, the optimal strategy for both Bob and Eve to measure the transmitted bits is photon-number detection. However, because photon-number fluctuations scale as $1/\sqrt{N}$ relative to the mean photon number N, there is a fundamental limit to how well bits 0 and 1 can be distinguished. For Eve, this is more problematic, since the signals she intercepts are weaker than Bob’s—which is verified by the protocol’s loss control—and therefore exhibit larger relative fluctuations. This limitation, combined with the consequent postselection, acts as the quantum protection mechanism, guaranteeing users’ information advantage over Eve.

In our experiment, Step (i) is repeated once every 500 cycles of the Transmission and Control stage (Steps 1–3). During these 500 cycles, any interceptable local losses are updated via transmittometry, which remains reliable over this interval (see the next section for details). Step (ii) is executed every 20 cycles, at which point the postselection parameters are adjusted to optimize the precision of bit identification. Postprocessing (Steps 4–5) can, in turn, be applied to the raw bit sequence after the end of the active Transmisson & Control phase.

The advantage distillation used in Step 5 effectively amplifies the correlation between Alice’s and Bob’s bit sequences at the price of discarding part of the bits. In this procedure the users split their raw bit strings into blocks of length M. For each block a, Alice announces a pair of a and its inversion $\overline{a}$. If the corresponding Bob’s block matches with either-one, a now represents a “distilled” 0 bit, and $\overline{a}$ “distilled” 1 bit. Otherwise, the corresponding block is discarded. As a result, the effective BER becomes ${\tilde{p}}_{\mathrm{err}}=p_{\mathrm{err}}^M/(p_{\mathrm{err}}^M+{(1-p_{\mathrm{err}})}^M)$, where $p_{\mathrm{err}}$ is the BER before the distillation.

We note that the protocol’s security relies on additional assumptions regarding the used equipment, namely that eavesdropper is not able to substitute the equipment at the sender and receiver sides. This makes the protocol device-dependent but allows us to overcome the PLOB bound. This approach is physically justified not less then the traditional device-dependent scenario. Besides, we do not make any compromises in security while enhancing the system performance along with the correct channel work ensured by the tomography methods. For more details on these assumptions and a comprehensive security analysis, we refer the reader to Ref. [19].

3. Experimental Setup

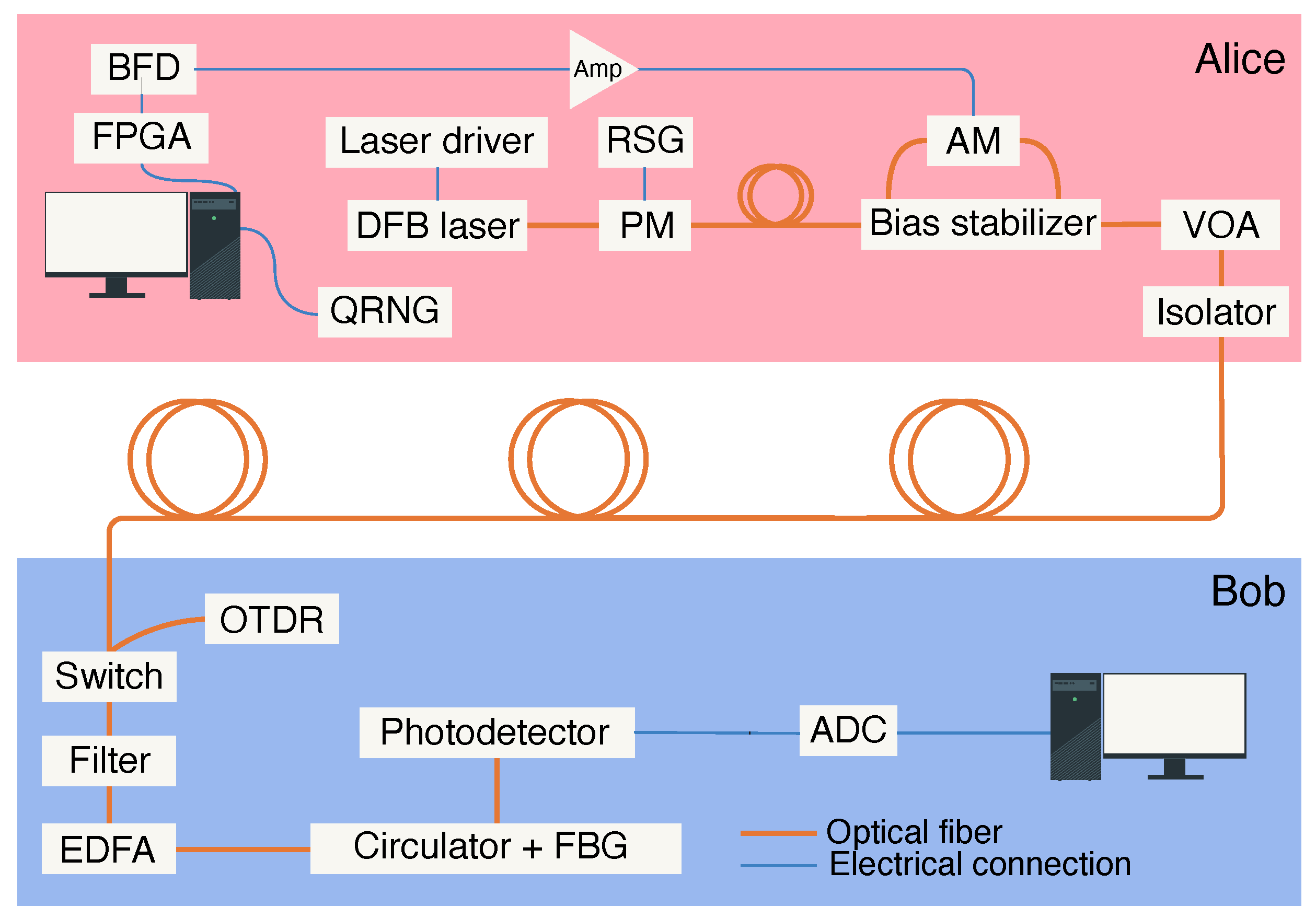

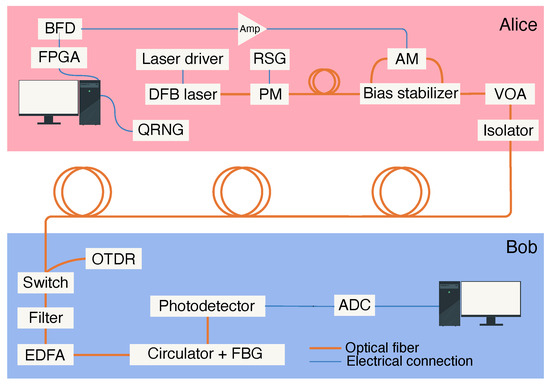

The experimental setup of the implemented QCKD is depicted in Figure 1. In Alice’s module, the laser-generated light undergoes phase randomization via a phase modulator (PM), which is driven by a random signal generator (RSG). The RSG relies on the avalanche breakdown mechanism, as detailed in Refs. [25,26]. The phase randomization [27,28,29,30] mitigates the potential of the eavesdropping attacks [31], while preserving the statistical distribution of Bob’s measurement results.

Following phase randomization, the light passes through an amplitude modulator (AM), which shapes it into optical signals—namely bit-carrying pulses, synchronization pulses, and sinusoidal transmittometry signal. The AM is based on a Mach–Zehnder-type interferometer embedded in a lithium niobate crystal; applying a voltage across radio-frequency (RF) electrodes controls the optical path length. The AM’s operation is managed by a field-programmable gate array (FPGA) interfaced with a computer that hosts a quantum random number generator (QRNG). Specifically, the FPGA produces 2.5 ns- and 20 ns-long voltage pulses for bit-encoding and synchronization, respectively. These pulses are fine-tuned in amplitude by an additional electrical circuit—notated in the scheme as the bit-forming device (BFD)—before being amplified and applied to the AM’s RF ports.

A separate direct-current (DC) port on the AM is employed to stabilize the bias point and compensate for unwanted phase drifts caused by thermal fluctuations and inhomogeneities, photorefractive effects, and electrostatic charge accumulation, see Ref. [32]. This stabilization is achieved via a dedicated bias stabilizer, which provides an offset voltage determined from a power-level feedback loop, using a monitoring detector integrated into a bias control device.

Alice’s optical signals shaped by the AM are transmitted to Bob through the 4-km-long urban G.652.D single-mode optical fiber link, see Figure 1. Upon reaching Bob’s module, the incoming light first passes through a 50 GHz passband filter, is then amplified by a variable erbium-doped fiber amplifier (EDFA), and subsequently traverses a narrow-band optical filter with an 8.5 GHz bandwidth. The latter filter, employing the FBG [33], suppresses the amplified spontaneous emission (ASE) generated by the EDFA. Because the FBG is highly sensitive to temperature changes, we use a custom thermostat to maintain the filter within its specified bandwidth. The filtered optical signal is then detected by a photodetector converting it into a voltage, which is then digitized by an analog-to-digital converter (ADC), and finally processed by Bob’s computer.

The optical time-domain reflectometer is connected to the fiber line via an optical switch, as illustrated in Figure 1. In short, the OTDR involves sending a short and intense probing pulse down the line and monitoring the backscattered signal. By analyzing both the power of the returned light and its time of flight, one can determine the magnitude and precise locations of potential leakages (for more details see Refs. [19,20]).

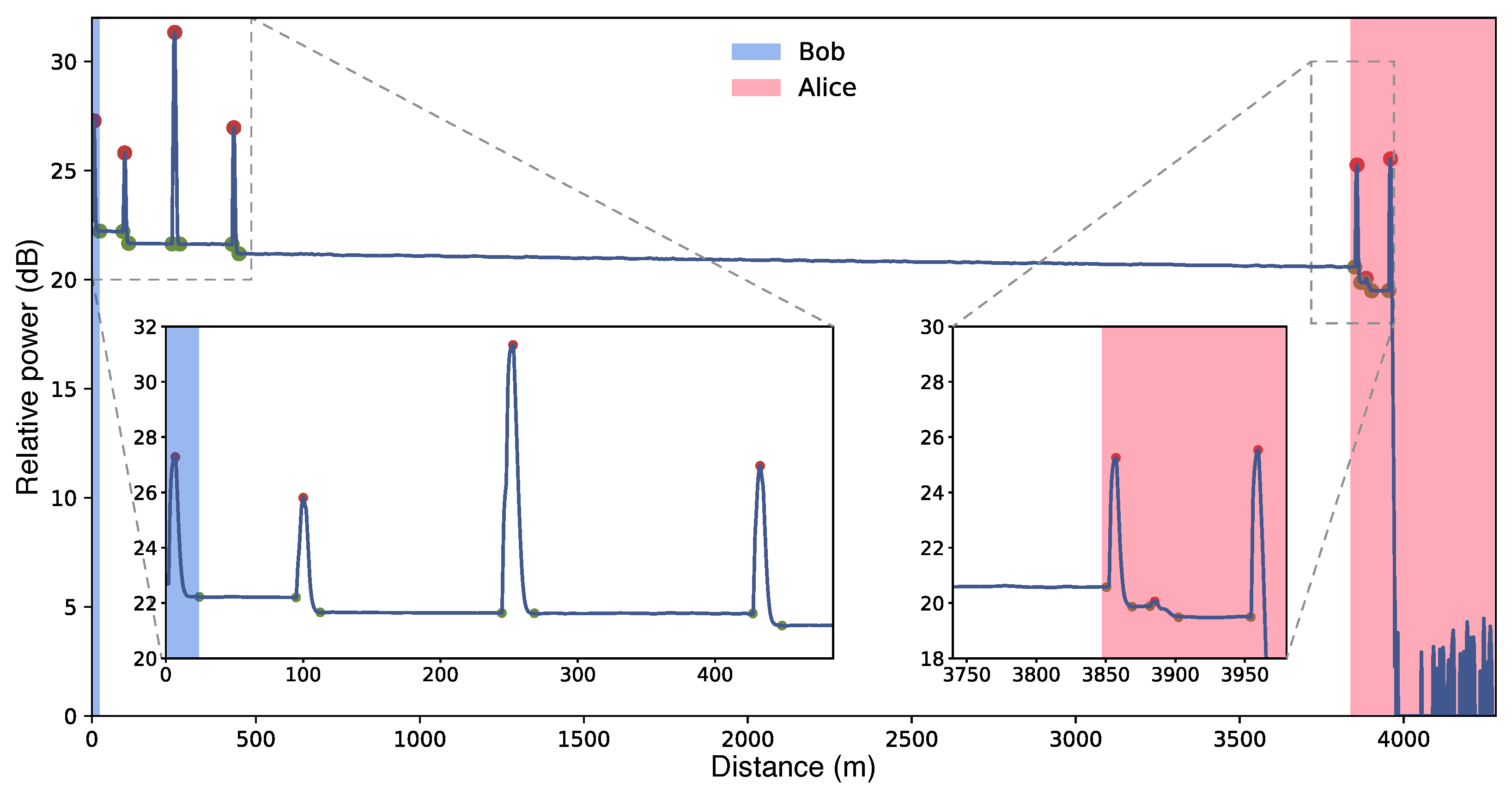

Figure 2 presents the reflectogram obtained for the urban fiber link under study. Local losses are primarily attributed to connectors and splices. The feature highlighted in blue corresponds to the optical switch through which the reflectometer is connected on Bob’s side, while the events highlighted in pink are caused by the connectors on Alice’s side. Since these three connection points are located within controlled users’ environments, we assume that Eve cannot exploit the associated losses. From the trace in Figure 2, we estimate the total proportion of local losses intercepted by the adversary, $r_{\mathrm{E}}$, to be $20.4\pm 0.2\%$ which corresponds to $0.993\pm 0.001$ dB. The precision of the OTDR is ${10}^{-3}$ dB. The utilized computational loss determination technique, which particularly implies identifying the start and end points of each local loss feature, is detailed in Section 7.1.

While the OTDR provides a detailed loss map every 500 sendings of bits (Steps 1–3 of the protocol), real-time loss monitoring is carried out via transmittometry. In this procedure, a sinusoidally modulated signal at frequency 25 MHz with duration 5 ms and power 200 nW is sent once per sending of bits. By comparing the spectral power at the modulation frequency at both the input (Alice’s side) and the output (Bob’s side), the users determine the total loss in the line. From the OTDR reflectogram, they already know the natural losses; subtracting these yields the interceptable loss $r_{\mathrm{E}}$. Modulating the signal helps mitigate $1/f$ noise. As detailed in Methods, transmittometry measurements remain accurate as long as system’s parameters, namely EDFA’s amplification coefficient, remain calibrated. Therefore, before the impact of parameters’ drift becomes comparable to the intrinsic power measurement uncertainty, the users must perform a new OTDR measurement and recalibrate transmittometry.

4. System Configuration

In this section, we explain the particular selection of these parameters in our setup based on how signal and postprocessing parameters affect the secret key generation rate. In the case where postselection yields the outcomes 0 and 1 with equal probability and postprocessing includes advantage distillation with block length M, the secret key rate (in bits per channel use) is given by the Devetak–Winter formula [34] as follows:

$$R={\displaystyle \frac{p_{✓}}{M}}\left(p_{\mathrm{err}}^M+{(1-p_{\mathrm{err}})}^M\right)\left[1-f\left({\tilde{p}}_{\mathrm{err}}\right)h_2\left({\tilde{p}}_{\mathrm{err}}\right)-I_M(\mathrm{A},\mathrm{E})\right],$$

(1)

where p_✓ is the proportion of bits that are not discarded at the postselection stage, $h_2(·)$ is the binary entropy function, $p_{\mathrm{err}}$ and ${\tilde{p}}_{\mathrm{err}}=p_{\mathrm{err}}^M/\left(p_{\mathrm{err}}^M+{(1-p_{\mathrm{err}})}^M\right)$ are the BERs before and after advantage distillation, respectively, $f\left({\tilde{p}}_{\mathrm{err}}\right)\ge 1$ is the efficiency factor for the employed error-correcting code, and $I_M(A,E)$ is mutual information between Alice and Eve after postselection and advantage distillation. In its explicit form, provided in Section 7.2 in Methods, $I_M(A,E)$ depends on $r_{\mathrm{E}}$, the intensities ${\mu }_0$ and ${\mu }_1$ of the signals encoding bits 0 and 1, respectively, and the choice of M. As we mentioned above, M is the length of blocks into which Alice and Bob split their raw bit strings. A detailed derivation of Equation (1) can be found in Ref. [22].

The resulting analytical expression defines the set of system parameters—namely, the intensities ${\mu }_0$ and ${\mu }_1$, the advantage distillation block size M, and the privacy amplification compression factor—that ensure a positive secret key rate at the specified value of $r_{\mathrm{E}}$. In principle, all of these parameters could be adaptively selected to maximize R each time users update the value of $r_{\mathrm{E}}$. In the present experiment, however, we adopt a simpler strategy: we only adapt the privacy amplification compression factor when $r_{\mathrm{E}}$ changes, while keeping the other parameters fixed throughout all protocol runs.

The signal intensities ${\mu }_0$ and ${\mu }_1$ are selected to ensure that, for a $r_{\mathrm{E}}$ of around 20% (as observed in the experiment), the secret key rate R from Equation (1) remains positive, which corresponds to an informational advantage over Eve. Specifically, using Equation (1), for various ${\mu }_0$ and ${\mu }_1$ we calculate the critical value of $r_{\mathrm{E}}$ that sets $R=0$. Then, for the experiment, we choose ${\mu }_0$ and ${\mu }_1$ such that the corresponding critical $r_{\mathrm{E}}$ is above 20% with about 10% overhead. If, at any point during the experiment, the measured $r_{\mathrm{E}}$ exceeds the critical value, the corresponding bits are discarded. Conversely, if $r_{\mathrm{E}}$ is below the critical value, the users evaluate the corresponding amount of Eve’s information, apply appropriate privacy amplification, and generate the corresponding amount of secret key as prescribed by Equation (1).

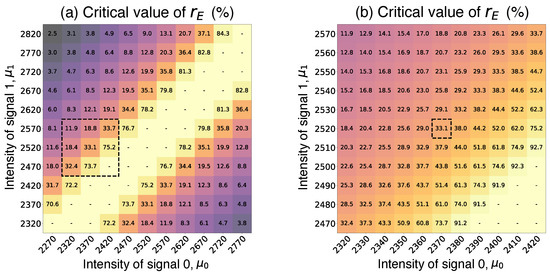

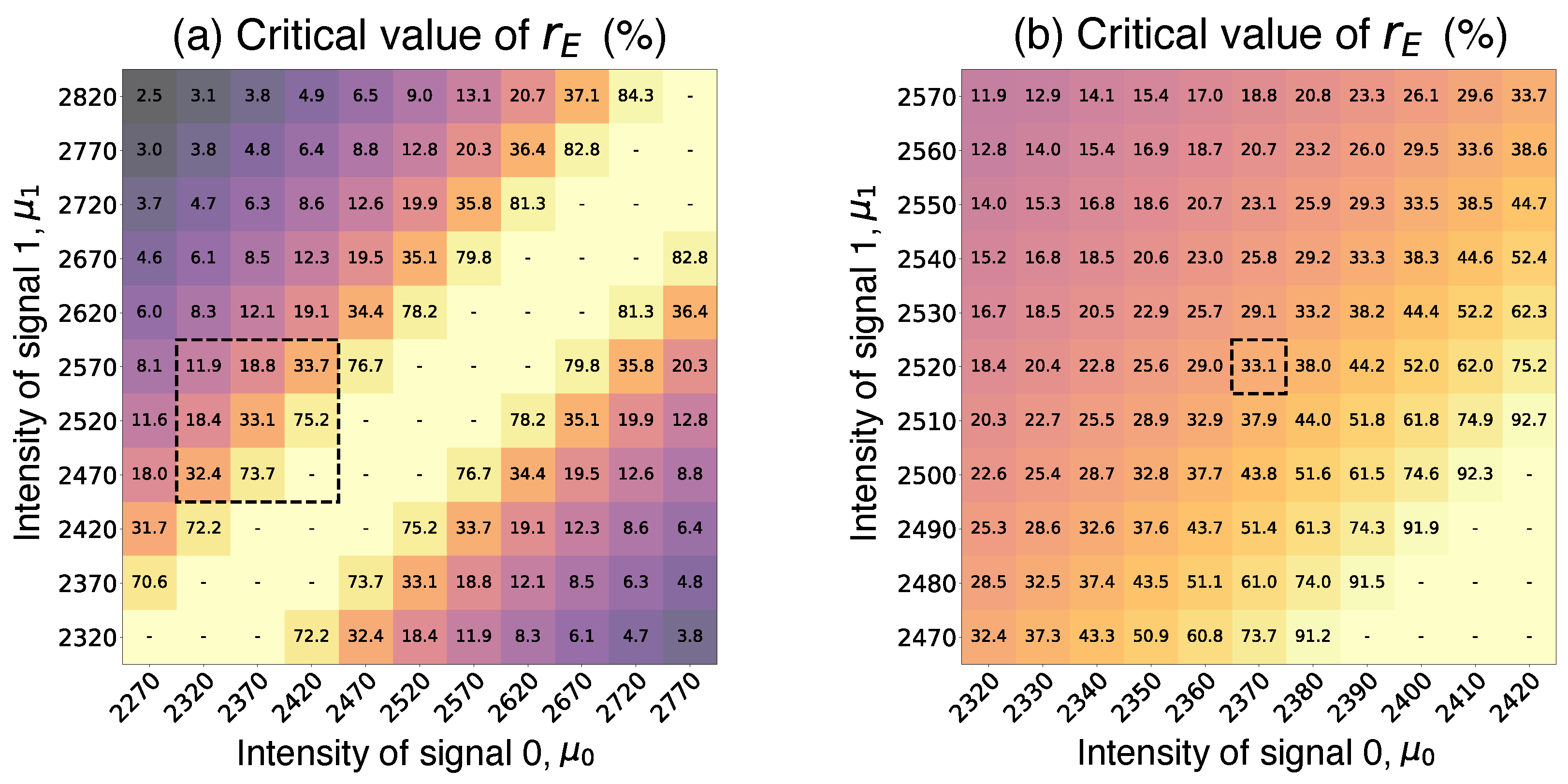

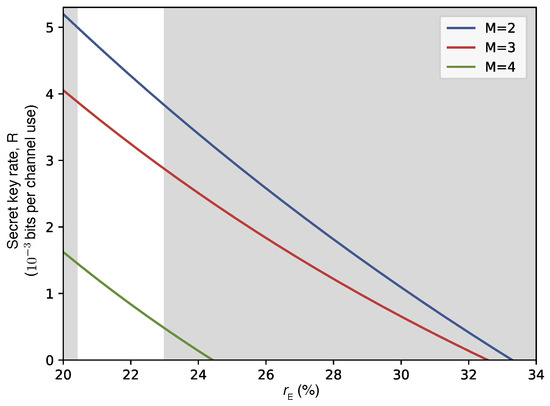

Figure 3 shows the calculated critical $r_{\mathrm{E}}$ as a function of ${\mu }_0$ and ${\mu }_1$ for the effective BER ${\tilde{p}}_{\mathrm{err}}=5\%$. Figure 3a covers a wider range of intensities, while Figure 3b focuses on a narrower range with the critical $r_{\mathrm{E}}$ near the experimentally observed $r_E$ with some overhead. The marked point in Figure 3b corresponds to our experimental choice of intensities ${\mu }_0=2370$ and ${\mu }_1=2520$. The particular choice of ${\tilde{p}}_{\mathrm{err}}=5\%$ is motivated by the constraints of the LDPC-based error correction realization utilized in our scheme, which is optimized for BER below 5%. Under the experimental conditions—with the chosen ${\mu }_0=2370$ and ${\mu }_1=2520$ and using empirically picked postselection parameters—we observe a raw BER of $p_{\mathrm{err}}=18\%$. After advantage distillation with the block size $M=2$, the effective BER ${\tilde{p}}_{\mathrm{err}}$ is close to 5%, meeting the requirements of the LDPC procedure. An extended table of intensities and critical $r_{\mathrm{E}}$ is provided in Section 7.3 in Methods.

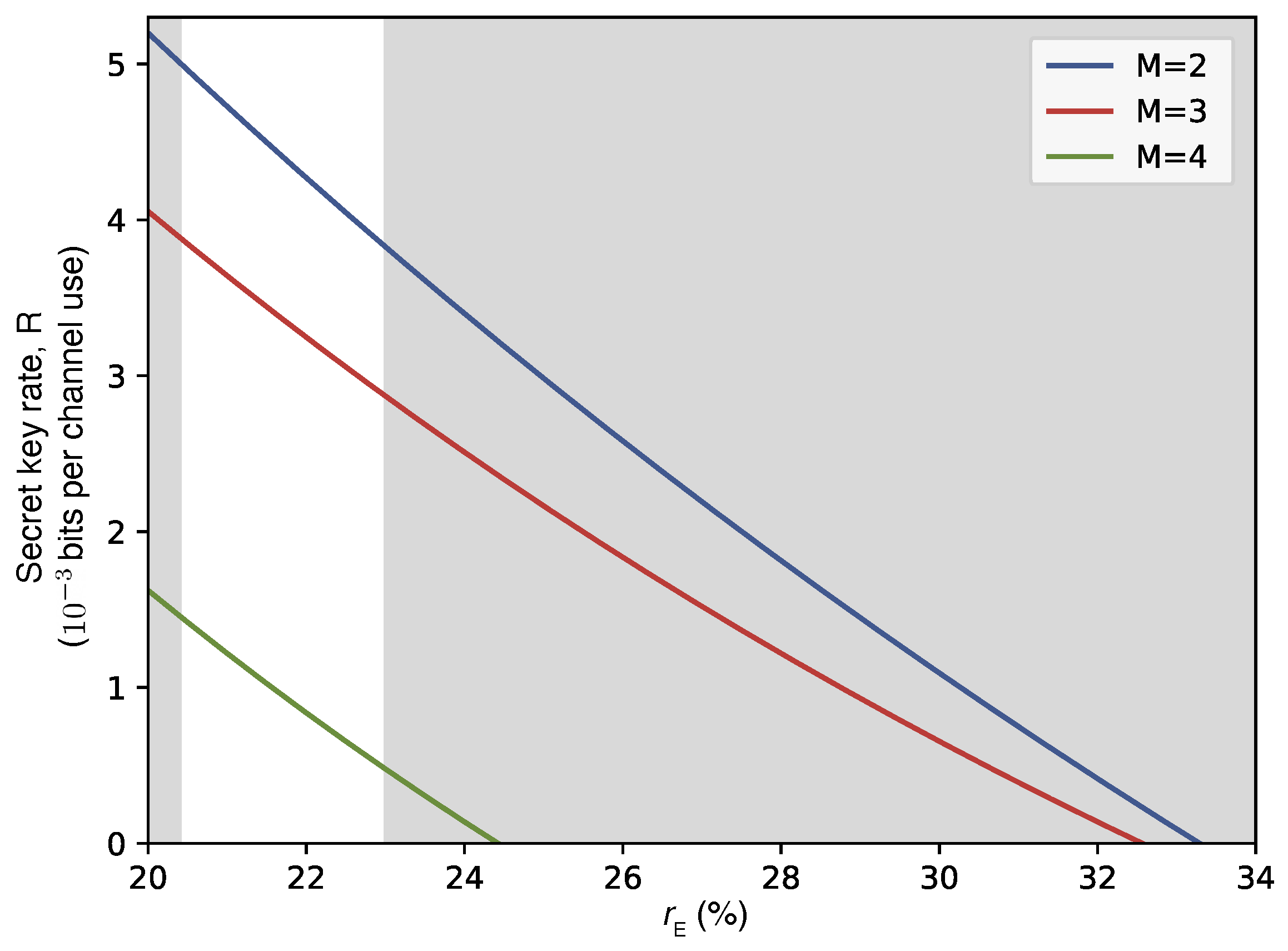

Although in the experiment we perform advantage distillation with $M=2$, choosing other values of M can also yield positive secret key rate R. The numerically calculated R as a function of $r_{\mathrm{E}}$ for $M=\{2,3,4\}$ is plotted in Figure 4. Within the highlighted experimentally observed range of $r_{\mathrm{E}}$, $M=2$ ensures the best secret key rates, while $M=3$ and $M=4$ allow for less optimal results. Other choices of $M\ge 5$, not represented in the plot result in substantially worse R. Note that, without advantage distillation ($M=1$), the amount of information disclosed with error correction is so high that the users lose informational edge over Eve, and $R=0$.

5. Results

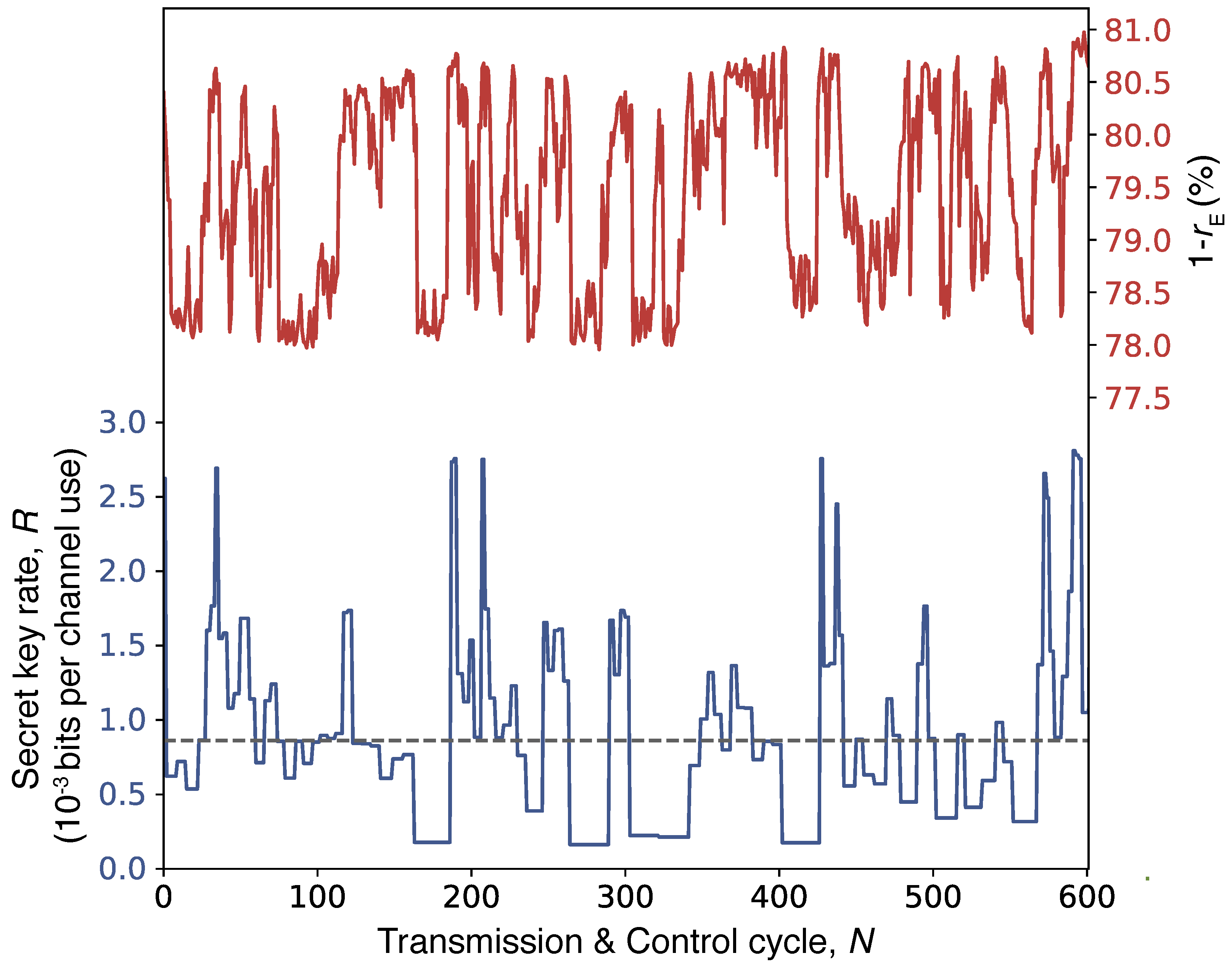

Figure 5 shows the experimentally observed dynamics of the interceptable leakage $r_{\mathrm{E}}$ and secret key rate R. The horizontal axis corresponds to the number of conducted cycles of Transmission and Control (Steps 1–3 of the protocol), N. Within the time interval reflected in Figure 5, the measured $r_{\mathrm{E}}$ varies between 19% and 22%, while R correspondingly changes within the range from 2 ×${10}^{-4}$ and $2.7$×${10}^{-3}$ bits per channel use. The average R is 8 ×${10}^{-4}$ bits per channel use, which translates into 490 bit/s given that the average rate at which Alice transmits bits is 614 kbit/s.

Due to the intrinsic transmittometry error, on a short scale of N, the measured value of $r_{\mathrm{E}}$ fluctuates by $\delta r_{\mathrm{E}}$ (this deviation is about $\delta r_{\mathrm{E}}\approx 0.15r_{\mathrm{E}}$). With that, the selected measurement time interval in Figure 5 is such that any systematic error due to the system’s detuning (see Section 7.1 in Methods for details) remains below the same threshold of $\delta r_{\mathrm{E}}$. When calculating the compression factor for the privacy amplification, $r_{\mathrm{E}}$ fluctuations are taken into account as $r_{\mathrm{E}}+3\delta r_{\mathrm{E}}$. Equation (1) relates the key rate and Eve’s information $I_{\mathrm{M}}(A,E)$. And this quantity, $I_{\mathrm{M}}(A,E)$, fluctuates due to $r_{\mathrm{E}}$ fluctuations $\delta r_{\mathrm{E}}$. Figure 4 illustrates how the key rate depends on $r_E$, e.g., for $M=2$, $\delta R/\delta r_{\mathrm{E}}\approx -4.6\times {10}^{-2}$.

Note that the secret key rate R in Figure 5 appears constant over intervals of $\tilde{N}=3$ to 10 Transmission and Control cycles. This is because the used error correction implementation required users to have a minimum number of raw bits, which cannot be harvested within a single cycle. Consequently, secret keys are generated only after sufficient bits have been accumulated, typically over $\tilde{N}=3$ to 10 cycles, depending on the error rate. Although each cycle has its own measured $r_{\mathrm{E}}$, in privacy amplification of the combined data, we apply the maximum from the measured $r_{\mathrm{E}}$ values to the entire accumulated sequence. Within each $\tilde{N}$ interval, the plotted R represents an average over those cycles, which looks like a constant.

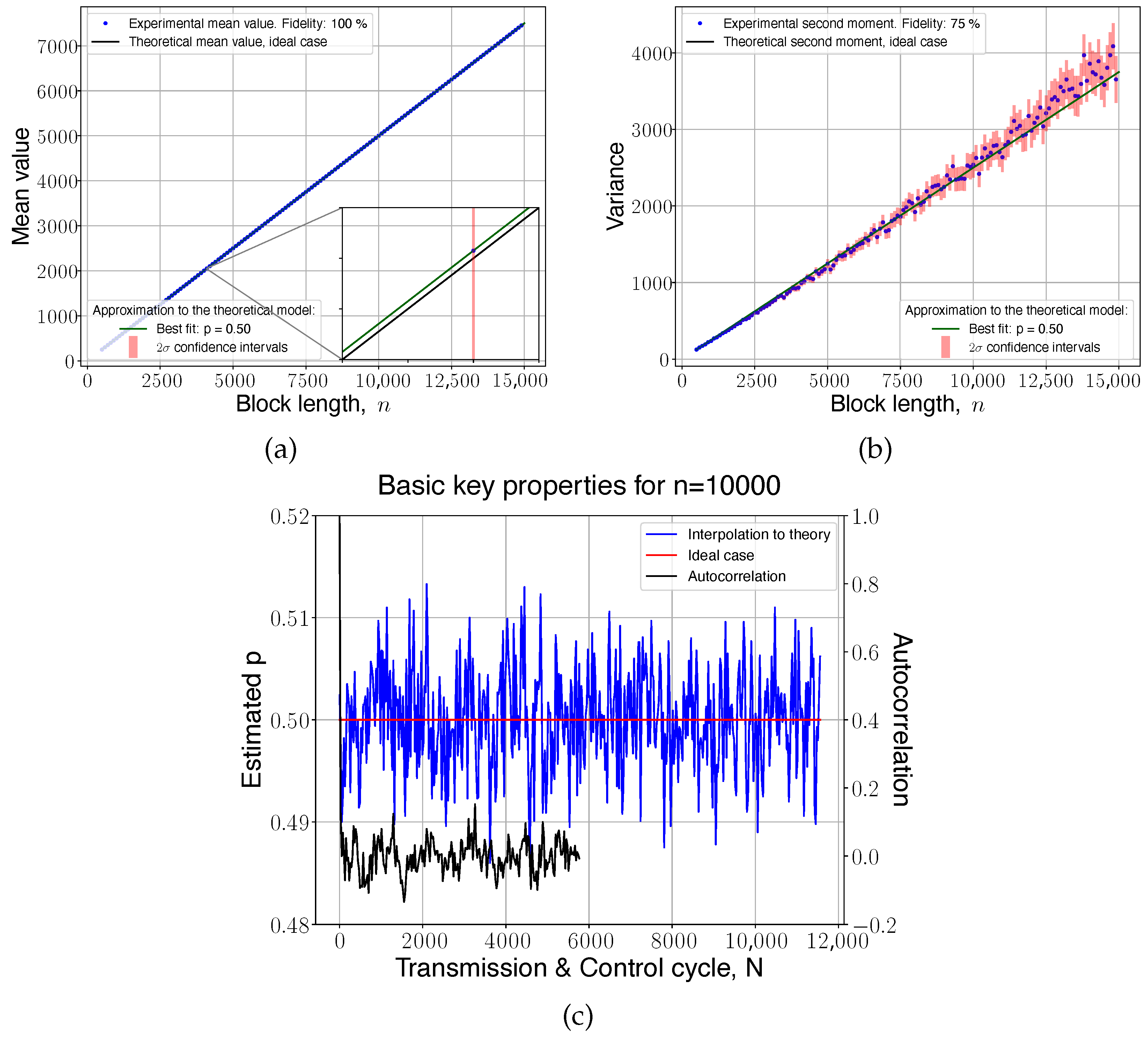

The statistical quality of the generated key is demonstrated in Figure 6, where we plot in Figure 6a the mean and Figure 6b the variance in the consecutive n bits of the key as function of n, and compare these values to those expected from an ideal equiprobable binomial distribution. Analyzing statistics within consecutive blocks of length n is beneficial since it fully reflects the quality of the key in respect to the potential noises of different frequencies. We find that the mean deviates from the ideal $n/2$ on average by a negligibly small value, in the order of one thousandth of a percent. Similarly, the variance discrepancy remains within two standard deviations (see Section 7.4 in Methods for details on their calculation) from the ideal $n/4$. In this scope, it is important to note that these properties of the key lie within statistical error caused by a finite length of the samples across the full range of n observed in the experiment. In other words, the fidelity of the statistical model applied to experimental data is high, though it decreases slightly for a small fraction of block lengths. Additionally, in Figure 6c, we show the fluctuations of the mean along with its autocorrelation function for a fixed block length ($n={10}^4$). In support of this, the key passes the full suite of NIST statistical tests, as summarized in

Table 1. Results of NIST statistical tests for randomness. For each test in the NIST statistical test suite, the table reports the test name, the corresponding p-value, the proportion of sequences that passed (i.e., the fraction of sequences with p-values at or above the significance level), and the overall pass/fail verdict. The proportion is evaluated against an expected confidence interval—computed using a normal approximation to the binomial distribution for large sample sizes—to determine if the randomness criteria are met.

Statistical Test	p-Value	Proportion	Result
Frequency	0.64	1.0	SUCCESS
Block frequency	0.83	1.0	SUCCESS
Cumulative sums	0.16	1.0	SUCCESS
Runs	0.44	1.0	SUCCESS
Longest run	0.28	0.9	SUCCESS
Rank	0.83	1.0	SUCCESS
FFT	0.44	1.0	SUCCESS
Non-overlapping template	0.06 ÷ 0.98	0.9 ÷ 1.0	SUCCESS
Overlapping template	0.28	0.9	SUCCESS
Universal	0.16	1.0	SUCCESS
Approximate entropy	0.16	1.0	SUCCESS
Random excursions	0.14 ÷ 0.99	1.0	SUCCESS
Random excursions variant	0.06 ÷ 0.98	1.0	SUCCESS
Serial	0.83 ÷ 0.96	1.0	SUCCESS
Linear complexity	0.96	1.0	SUCCESS

. Taken together, these results affirm the statistical quality of the secret key and absence of correlations.

6. Discussion

In this study, we have experimentally realized QCKD using the real-world fiber infrastructure. The security of the protocol is ensured by the appropriate system configuration based on the information theoretic analysis. The presented experimental results show that the precision of the loss control and the dynamics of losses within a real-life telecommunication line allow for the secret key rate of 490 bit/s on average. With that, the presented statistical analysis of the resulting key underscores its high quality for secure communication. Our results show the practical way of deploying quantum-resistant communications through adopting the existing fiber infrastructure.

The study shows that QCKD remains secure even in the presence of high-loss connectors within the transmission line. Thus, we expect that the system would tolerate the introduction of additional users through imperfect optical switches, as proposed in Ref. [22]. To this end, we further plan to demonstrate a multi-node implementation of the QCKD within a single telecommunication network. For the next development, we are working on several hard- and software enhancements for improving key rates. The input data rate will be increased by expanding FPGA bandwidth, by increasing the bit density in the transmitted packet, and by implementing several QRNGs in parallel on Alice’s side. Improving the bit shape will result in the lower BLR. Furthermore, the new software architecture will enable postprocessing to be performed in parallel with signal transmission, and updated postselection and error correction algorithms will speed up the system. In addition, implementing our own high-frequency OTDR monitoring with modulated pulses will make the system even more robust against interceptors. There is also existing another approach to quantum communication such as quantum secure direct communication (QSDC) [35]. The QSDC differs from the QKD by the directly transmitting information encoded in quantum states, rather than the exchanging quantum-encoded key for later encryption. The possible developments will be addressed in our subsequent publications.

7. Methods

7.1. OTDR and Transmittometry

The following is the method that we use to identify points of local losses and their magnitude from a reflectogram, namely in Figure 2. First, the raw trace is smoothed using a moving average filter. Then, we calculate the gradient of this smoothed signal at every point. In regions exhibiting only natural losses, the gradient remains within predefined threshold values; any gradient excursion beyond these thresholds is taken as evidence of a local loss event. The magnitude of the local loss is obtained from the power difference between the start and end points of the identified local feature.

Applying this method to our 4 km fiber link, we measure a total natural loss of approximately 0.635 dB (13.6%), in agreement with the expected Rayleigh scattering for this distance. At the beginning of the link, the first peak in the trace corresponds to the light reflection on the input connector, followed by three localized losses measured at 0.543 dB (11.8%), 0.010 dB (0.2%), and 0.439 dB (9.6%), respectively. At the opposite end, the final peak corresponds to the reflection on the isolator, while two additional connectors within Alice’s trusted zone give loss values of 0.708 dB (15.0%) and 0.398 dB (8.8%). Consequently, the total event loss—determined as the sum of all event losses outside Alice’s and Bob’s laboratories—amounts to 0.993 dB (20.4%).

During transmittometry, Alice sends a signal with power $P_{\mathrm{A}}=100$ nW, modulated at a frequency 25 MHz. Bob then receives this signal, performs a Fourier transform, and obtains its output spectral power $P_{\mathrm{B}}$. He communicates $P_{\mathrm{B}}$ back to Alice through a classical channel. Because

$$P_{\mathrm{B}}=P_{\mathrm{A}}G(1-r_{\mathrm{E}})(1-r_{\mathrm{L}})(1-r_0),$$

(2)

where G is the amplification factor of Bob’s EDFA and $r_{\mathrm{L}}$ is the loss on the connectors within Alice’s and Bob’s laboratories (corresponding to the blue and red regions in Figure 2), the users calculate $r_{\mathrm{E}}$ using

$$r_{\mathrm{E}}=1-{\displaystyle \frac{P_{\mathrm{B}}}{P_{\mathrm{A}}G(1-r_0)(1-r_{\mathrm{L}})}}.$$

(3)

Our OTDR measurements indicate that, over a 12-hour period, $r_0$ and $r_{\mathrm{L}}$ remain constant within 0.2%, while $P_{\mathrm{A}}$ is preserved through the control of Alice’s laser. Detector’s dark noise and the amplified spontaneous emission (ASE) from the EDFA may contribute to the uncertainty in the transmittometry measurements. To eliminate potential systematic errors arising from possible drifts in G, $r_0$, or $r_{\mathrm{L}}$, we perform OTDR every two hours and recalibrate the parameters in Equation (3). In principle, OTDR can be carried out more frequently if needed.

7.2. Eve’s Information

Let us derive an analytical expression for the mutual information between Alice and Eve after postselection and advantage distillation, $I_M(A,E)$, in the scenario where Eve intercepts a fraction $r_{\mathrm{E}}$ of the signal intensity, and Alice and Bob apply advantage distillation with a block size M.

To encode the bit $a\in \{0,1\}$, Alice prepares a phase-randomized coherent state with intensity ${\mu }_a={\left|{\gamma }_a\right|}^2$, the density matrix of which is given by

$${\rho }_{\mathrm{A}}^{\left(a\right)}={\displaystyle \frac{1}{2\pi }}\underset{0}{\overset{2\pi }{\int }}d\phi |e^{i\phi }\sqrt{r_{\mathrm{E}}}|{\gamma }_a|\rangle \langle e^{i\phi }\sqrt{r_{\mathrm{E}}}|{\gamma }_a\left|\right|=e^{-{\mu }_a}\sum _{n=0}^{+\infty }{\displaystyle \frac{{\mu }_a^n}{n!}}|n\rangle \langle n|.$$

(4)

Diverting the fraction $r_{\mathrm{E}}$ of the signal, Eve obtains the corresponding state

$${\rho }_{\mathrm{E}}^{\left(a\right)}=e^{-r_{\mathrm{E}}{\mu }_a}\sum _{n=0}^{+\infty }{\displaystyle \frac{{\left(r_{\mathrm{E}}{\mu }_a\right)}^n}{n!}}|n\rangle \langle n|.$$

(5)

Note that the postselection procedure employed by Alice and Bob does not change the overall probability distribution of the bits, and—as long as the transmission line contains no elements (e.g., optical amplifiers) that introduce additional correlations between Bob’s and Eve’s states—the state ${\rho }_{\mathrm{E}}^{\left(a\right)}$ remains independent of postselection [19].

In the advantage distillation step, Alice groups her bits into blocks of length M and for each block $a_1\cdots a_M$ publicly discloses that its value is either $a_1\cdots a_M$ or its bitwise complement ${\overline{a}}_1\cdots {\overline{a}}_M$. Therefore, Eve’s task is to distinguish two equiprobable product states: ${\rho }_{\mathrm{E}}^{a_1\cdots a_M}={\rho }_{\mathrm{E}}^{\left(a_1\right)}\otimes \cdots \otimes {\rho }_{\mathrm{E}}^{\left(a_M\right)}$ and ${\rho }_{\mathrm{E}}^{{\overline{a}}_1\cdots {\overline{a}}_M}={\rho }_{\mathrm{E}}^{\left({\overline{a}}_1\right)}\otimes \cdots \otimes {\rho }_{\mathrm{E}}^{\left({\overline{a}}_M\right)}$. To quantify the maximum information that Eve can extract, we apply the Holevo theorem [36] and maximize over all pairs of opposing blocks. Thus, Eve’s information is expressed as

$$I_M\left(\mathrm{A},\mathrm{E}\right)=\underset{a1,...,a_M}{max}\left\{S\left({\displaystyle \frac{1}{2}}{\rho }_{\mathrm{E}}^{(a_1\cdots a_M)}+{\displaystyle \frac{1}{2}}{\rho }_{\mathrm{E}}^{({\overline{a}}_1\cdots {\overline{a}}_M)}\right)-{\displaystyle \frac{1}{2}}S\left({\rho }_{\mathrm{E}}^{(a_1\cdots a_M)}\right)-{\displaystyle \frac{1}{2}}S\left({\rho }_{\mathrm{E}}^{({\overline{a}}_1\cdots {\overline{a}}_M)}\right)\right\},$$

(6)

where $S(·)$ is the von Neumann entropy. By substituting Equation (5) into Equation (6), one obtains an explicit form of Eve’s information. This expression is then incorporated into Equation (1) to calculate the secret key rate.

7.3. Critical Leakage Data

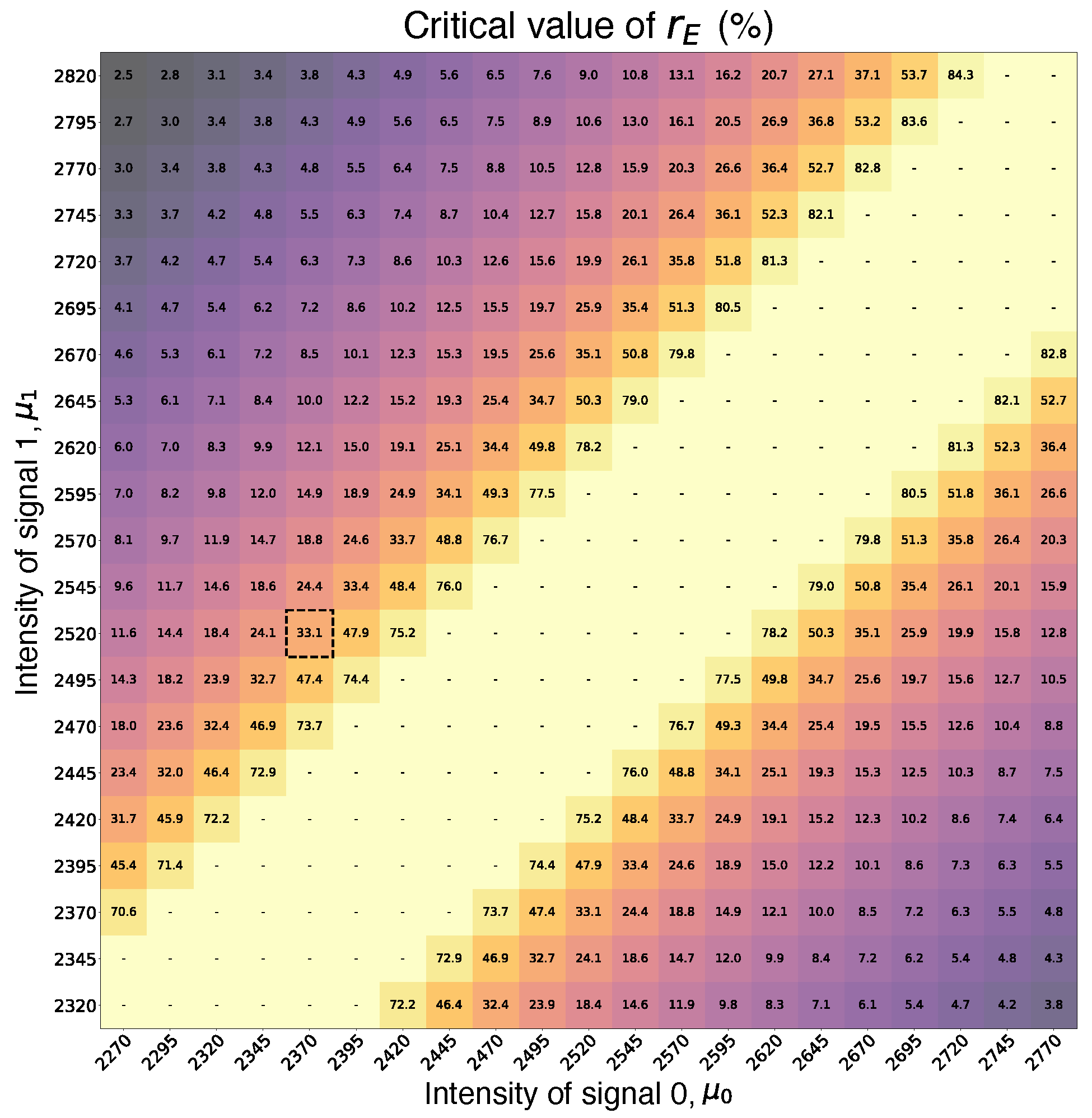

By picking a particular pair of intensities for bit-encoding pulses, Alice and Bob determine the tolerance for an observed leakage value $r_{\mathrm{E}}$. Figure 7 shows an extended table of critical $r_{\mathrm{E}}$ value as a function of signal intensities. The critical leakage achieves its maximum when the intensity values are close to each other.

7.4. Statistical Analysis

On par with the NIST statistical test, the results of which are presented in Table 1, we perform additional analysis of the central moments of the key distribution, that may provide better understanding of the key’s quality. Ideally, the secret bit sequence must follow the equiprobable Bernoulli distribution. To check this, we divide this array of bits into consecutive blocks of length n, and for each of these $k\left(n\right)$ blocks, we calculate the sum of its bit values, producing a random variable $X_n$. This division would result in a random sample ${\left\{X_n^i\right\}}_{i=1}^{k\left(n\right)}$ of size $k\left(n\right)$, in which $X_n^i$ are taken from a population following binomial distribution $Bi(n,p)$ with $p=0.5$. Therefore, analyzing the central moments $\mathbb{E}\left[{(X_n-\mathbb{E}\left[X_n\right])}^2\right]$ would allow us to know how far the initial distribution is from the ideal theoretical model. More precisely, if the central moment of the sample ${\left\{X_n^i\right\}}_{i=1}^{k\left(n\right)}$ is too far from its theoretical prediction, the fidelity of the model would be questioned for this particular n.

This approach allows us to identify the frequency of the noise, should it worsen the quality of the key. In this way, by increasing the length of the blocks n, we shift our focus from higher to lower frequency noise, as small blocks fail to capture low frequency effects. For this reason, we test the final key on a wide range of n, tracing the deviation from the theoretical model.

The results for the first two central moments are presented in Figure 6a,b. The error bars in these plots reflect the finiteness of the sample size $k\left(n\right)$, and in our case can be easily found only for the first two moments. We first note that the binomial distribution $Bi(n,p)$ tends to the Gaussian distribution in the limit $n\to \infty$. Therefore, our objective reduces to determining the variance $s^2$ in the random sample ${\left\{X_n^i\right\}}_{i=1}^{k\left(n\right)}$, where each $X_n^i$ is drawn from a Gaussian population with variance ${\sigma }_0^2$. For such an unbiased sample variance, it is known that ${\displaystyle \frac{(k\left(n\right)-1)s^2}{{\sigma }_0^2}}$ has a chi-squared distribution with $k\left(n\right)-1$ degrees of freedom. In our case, ${\sigma }_0^2=np(1-p)$.

Therefore, we can determine that

$$\mathbb{V}\left[\mathbb{E}\left[{\left(X_n-\mathbb{E}\left[X_n\right]\right)}^2\right]\right]\approx {\displaystyle \frac{2n^2{p}^2{(1-p)}^2}{k\left(n\right)}},$$

(7)

where $\mathbb{V}[·]$ is the variance in the sample data. This result allows us to plot $2\sigma$ confidence intervals in Figure 6b.

A similar result can be obtained for the sampling distribution of the sample mean. This result is called the central limit theorem, which in our case leads to the following result:

$$\mathbb{V}\left[\mathbb{E}\left[X_n\right]\right]={\displaystyle \frac{np}{\sqrt{n}}}=\sqrt{n}p.$$

(8)

This analysis is shown in Figure 6a. Finally, in Figure 6c, we show the dynamics of the parameter p, fitting the experimental data to the theoretical model described above for a fixed value of n. A small deviation of the estimated value of p from the target value $0.5$ and small values of its autocorrelation confirm the high quality of the final key.

According to these results, the final key is well described by the model. In particular, the bits in the final key can be represented as random variables following a Bernoulli distribution with a parameter $p=0.5$, within the limits of statistical precision. Consequently, we can conclude that any noise affecting the key statistics has been effectively mitigated by the postprocessing methods used.
