Article

Total Recycling of Copper Cable Scrap and Production of Carbon Using Fast Microwave Technology

by
Athanasios B. Bourlinos
1,*,
Nikolaos Chalmpes
2,
Emmanuel P. Giannelis
2,
Dimitrios P. Gournis
3,4,
Dimitrios Moschovas
5,
Apostolos Avgeropoulos
5,
Constantinos E. Salmas
5,* and
Michael A. Karakassides
5,*
1
Physics Department, University of Ioannina, 45110 Ioannina, Greece
2
Department of Materials Science & Engineering, Cornell University, Ithaca, NY 14850, USA
3
School of Chemical & Environmental Engineering, Technical University of Crete, 73100 Chania, Greece
4
Institute of GeoEnergy, Foundation for Research & Technology-Hellas, 73100 Chania, Greece
5
Department of Materials Science & Engineering, University of Ioannina, 45110 Ioannina, Greece
*
Authors to whom correspondence should be addressed.
Eng 2025, 6(4), 74; https://doi.org/10.3390/eng6040074
Submission received: 28 February 2025 / Revised: 3 April 2025 / Accepted: 7 April 2025 / Published: 10 April 2025
Browse Figures
Versions Notes

Abstract

:
The recycling of cable scrap, particularly from discarded electrical wiring, is gaining significant attention due to the rising demand for copper and the need for sustainable management of electronic waste. Traditionally, mechanical and thermal processings have been used to recover copper and plastic from cables. However, these approaches are often energy-intensive, time-consuming, and costly in terms of equipment and labor. In this study, we present a simple and effective method for recovering materials from cable scrap using a domestic microwave oven. Cable pieces (2–2.5 cm long) were exposed to 700 W of microwave irradiation under rotation for 30 s, enabling the rapid and efficient separation of high-quality copper metal from the core wire, and activated carbon from the carbonized plastic sheath. Microwaves facilitate this process through Ohmic heating, which induces electrical resistance in the metal, generating heat that mechanically loosens the metal and carbonized plastic components. The process demonstrates high efficiency, achieving an 80% reduction in energy consumption compared to conventional processings. This fast and energy-efficient method shows strong potential for scaling up to industrial recycling, offering a cost-effective and environmentally friendly way to recover high-quality materials for further use or repurposing.

1. Introduction

Cables are essential components for transmitting information and electricity. They contain valuable materials like copper and plastic, which make their recovery highly desirable. According to the Brussels-based organization Waste Electrical and Electronic Equipment (WEEE), approximately 1 billion kg of cables were discarded in 2022—enough to circle the earth 107 times. If not adequately managed, heavy metals and microplastics can leach into soil and contaminate water, resulting in the loss of a valuable resource and an environmental hazard. Recycling becomes therefore crucial to conserve key resources and support sustainable economic growth [1,2,3,4]. Direct recycling, such as mechanical stripping, is the primary means of recovering copper and plastic from cable scrap [1,2,3]. Indirect methods, such as pyrolysis in energy-intensive electric furnaces to extract valuable carbon from the plastic sheath while preserving the copper, have also gained popularity [3,5,6,7,8,9,10]. Incineration in air, thermal decomposition under anoxic conditions, and steam gasification are among the most common heat-recovery processes. Both direct and indirect technologies have advantages and limitations and are used interchangeably in cable recycling; however, challenges remain such as the need for faster processing, energy savings, low costs, and high-quality recovered copper [3].
Microwave technology provides an energy-efficient way to rapidly convert plastic waste into valuable carbon at relatively short times [11,12,13,14,15,16,17,18,19,20,21,22]. Microwave-assisted pyrolysis is an eco-friendly waste-disposal method that plays an important role in advancing the circular economy. It has been effectively employed for producing biochar and biofuels, thanks to its volumetric and selective heating capabilities, which set it apart from the direct heating used in traditional pyrolysis processes [12]. For instance, Park et al. [11] highlighted the efficiency of microwave-assisted stabilization and carbonization of polyacrylonitrile composites, cutting processing times from hours to minutes. The resulting carbon anodes achieved high nitrogen content (>7%) and delivered a specific capacity of over 300 mAh·g−1 at 0.1 A·g−1. This approach improves energy efficiency and enhances the electrochemical performance of anodes, positioning microwave processing as a promising method for developing advanced materials for lithium-ion batteries. Similarly, Shi et al. [15] utilized rapid microwave carbonization of natural cellulose nanofibers combined with a graphene initiator to develop high-performance anodes for sodium-ion batteries. This process resulted in an initial capacity of 558 mAh·g−1, significantly higher compared to typical sodium-ion battery anodes. In addition, the materials showed good cycling performance. They observed a capacity of ca. 340 mAh·g−1 after 200 cycles. The inclusion of reduced graphene oxide (rGO) enhanced the microwave absorption of CNFs, facilitating ultrafast carbonization and improving the structural properties of the resulting carbon. Additionally, Brazil et al. [20] explored the microwave-assisted production of activated carbon from lignocellulosic waste in a modified domestic microwave oven with high surface areas ca. 900 m2·g−1 and pore volumes of 0.5 cm3·g−1. These activated carbons show excellent adsorption properties, particularly for removing contaminants like methylene blue (90 mg·g−1). Wang et al. [21] explored the use of coconut husk carbon in the microwave co-pyrolysis of polyethylene terephthalate (PET) and low-density polyethylene (LDPE). At 550 °C, the liquid yield reached 52%, with a high content of monocyclic aromatic hydrocarbons at 83%. The study also highlighted a positive synergistic effect between PET and LDPE, demonstrating enhanced liquid yield and improved aromatic content through the combined pyrolysis of the two precursors. A continuous microwave-assisted pyrolysis system was developed by Zhou et al. [22] for converting plastics into oil. Higher pyrolysis temperatures facilitated the cracking of waxes, resulting in lighter and more stable hydrocarbons. Using a ZSM-5 catalyst at 620 °C, the liquid phase yield reached 49%, with the product containing 73% gasoline-range hydrocarbons, including 45% aromatics and 25% isomerized aliphatics.
Microwave technology is particularly effective for carbonizing plastics that contain metal components, while simultaneously enabling the recovery of metals. Under microwave irradiation, the temperature of the metal core rises rapidly due to Ohmic heating by the electromagnetic radiation, which not only facilitates the carbonization of the plastic but also promotes the separation of the metal from the plastic. This occurs as the microwave-induced heating weakens the bond between the metal and plastic, allowing for easier extraction of the metal, while simultaneously carbonizing the plastic sheath. This approach has been successfully applied to various items, including tires, toothpaste tubes, multilayer packaging, pencils, printed circuit boards, CDs, and snack bags [23,24,25,26,27,28,29,30,31,32,33]. For cables, microwaves have primarily been used in fuel-generation applications [34,35,36]. However, no report in the literature covers the microwave synthesis, detailed characterization, or applications of chars derived from cable scrap, including the simultaneous extraction of high-quality copper, which is critical for maintaining its high conductivity and performance in electrical applications.
In this paper, we demonstrate for the first time an efficient, sustainable, and cost-effective method for recovering valuable materials from copper cable scrap, a common byproduct of the electronics industry. Specifically, we show that microwave technology accelerates the thermal degradation of the plastic component into valuable carbon, facilitating clean copper recovery with minimal energy input. Notably, the microwave treatment is significantly faster and more energy-efficient, thus reducing energy consumption by up to 80% compared to conventional heating in a box oven. The microwaves also help to mechanically loosen the brittle carbonized polymer coating from the copper core, enabling easy physical separation of the copper and carbon. The recovered copper retains its lustrous appearance and exhibits high conductivity, approaching the expected values for pure copper. In addition, we provide detailed characterization of the derived carbon using several analytical techniques and discussing potential applications for the recovered materials. The advantages of the method are selective material separation, efficient processing, and reduced processing time—all of which make the process attractive and promising for large-scale industrial implementation.

2. Materials and Methods

All chemicals and solvents were purchased from Sigma-Aldrich (Darmstadt, Germany). Experiments were conducted using a household microwave oven (frequency 2.45 GHz, wavelength ca. 12 cm). Microwave treatment was carried out in a fume hood. Prior to microwave treatment, thin single-strand copper cable (diameter 1.5 mm) with polyvinyl chloride (PVC) insulation was cut into 2–2.5 cm-long pieces. Note that the polymer sheath in the cable contains calcium carbonate (CaCO3), an inexpensive filler adding electrical insulation, weight reduction, and thermal stability.
Microwave carbonization of cable scrap is conducted in the presence of oxygen, leading to the release of organic volatiles from the combustion of the polymer sheath. To minimize these emissions for future industrial applications, a promising approach is to perform microwave carbonization in an inert nitrogen atmosphere, thereby eliminating combustion by removing oxygen. Furthermore, incorporating a filtration system to capture and neutralize volatiles during the process could further reduce emissions. These modifications would support a more sustainable and safer carbonization process while mitigating the release of organic volatiles [3,37].

2.1. Microwave Separation of Copper and Carbon

Due to the straightforward nature of the present microwave approach, no additional complex steps are required, making it both efficient and easily reproducible. This simplicity is a key advantage of the method, allowing for easy implementation and scalability. In detail, several cable pieces (10–20) were placed on a silica ceramic crucible in a microwave oven and irradiated in air for 30 s at 700 W under rotation (operating at less than 700 W generates sticky masses of carbon and polymer melt). The plasma generated by the copper wires ignited the cables, causing carbonization of the plastic part. The as-formed carbon adhered weakly to the copper wires and was separated mechanically by hand abrading. Any remaining carbon was removed by mild sonication in water for a few minutes in an ultrasound bath. The recovered carbon was treated with concentrated HNO3 aqueous solution (65%) to remove microscopic copper particles and CaCO3. It was then treated with 48% HF, 30% KOH, and hot 3 M HCl aqueous solutions to remove any silica residue from the ceramic crucible. The solid was thoroughly washed with deionized water until neutral pH, and then acetone until no coloration of the solvent, prior to drying at 100 °C. The copper was recovered practically quantitatively (90%). The minimal metal loss observed was attributed to copper particulates detaching from the metal surface under the plasma conditions generated during microwave irradiation. While the process has yet to be optimized, the yield is 1 g of carbon per 10 m cable.

2.2. Characterization Techniques and Instrumentation

X-ray diffraction (XRD) patterns were obtained using a glass substrate for copper wire and a background-free Si wafer for carbon powder, with Cu Kα radiation (λ = 1.54 Å) from a Bruker Advance D8 diffractometer (Brüker Corporation, Billerica, MA, USA). Samples were scanned over a 2–80° 2θ range, in steps of 0.02° (2θ), at a rate of 0.2 s per step. Raman spectra were recorded with a micro-Raman system RM 1000 Renishaw using a laser excitation line at 532 nm (10 mW). X-ray photoelectron spectroscopy (XPS) measurements were obtained by a Thermo Scientific Nexsa G2 Spectrometer (Waltham, MA, USA) at operating pressure 1 × 10−9 Torr and monochromatic Al Kα x-rays (1486.6 eV) with photoelectrons were collected from a 200 μm diameter analysis spot at a 90° emission angle and a source to analyzer angle of 54.7°. A hemispherical analyzer determined electron kinetic energy, using pass energy of 200 eV for wide/survey scans and 50 eV for high-resolution scans. A flood gun was used for charge neutralization of non-conductive samples. Carbon sample was measured in powder form, while Cu wires were measured in their original state. Spectra were deconvoluted with the CasaXPS software (v. 2.3.26). Scanning electron microscopy (SEM) images were obtained using a JEOL JSM-6510 LV SEM Microscope (JEOL Ltd., Akishima, Tokyo, Japan) equipped with an X-Act EDS-detector by Oxford Instruments, Abingdon, UK (an acceleration voltage of 20 kV was applied). Carbon sample was sputter-coated with gold/palladium for 45 s to prevent sample charging during measurement. All samples were adhered to aluminum holder via double sided adhesive carbon tape. Transmission electron microscopy (TEM) images were collected using FEI Tecani 12 BioTwin TEM, Hillsboro, OR, USA, using a LaB6 electron source operated at 120 kV and equipped with a Gatan Orius S1000 (Gatan, Inc., Pleasanton, CA, USA) charged-coupled device camera. 1% w/v suspensions were prepared in ethanol and dropped-casted into carbon coated copper grids and dried under air, prior to imaging. Atomic force microscopy (AFM) experiments were conducted in peak force tapping mode on a Multimode 8, Nanoscope 6, using RTESPA-525 (Brüker Corporation, Billerica, MA, USA) cantilevers with a tip radius of 8 nm. The sample was drop-casted onto silicon wafers prior to imaging. Nitrogen (N2) adsorption-desorption isotherms were measured by a Micromeritics ASAP 2460 (Micromeritics Instrument Corporation, Norcross, GA, USA) by using ultrahigh pure N2 (99.999%). The sample was outgassed for 18 h under vacuum (10−4 mbar) at 140 °C. Porosimetry isotherms were recorded at 77 K using a liquid N2 Dewar vessel at a relative pressure (P/P0) of 10−2 to 0.99. A Lakeshore tabletop probe station was used to design contacts to the copper wire samples, and a Keithley 2400 (Keithley Instruments, Solon, OH, USA) source meter (source current 1 A) was used to perform the four-probe resistance measurements.

3. Results and Discussion

3.1. Microwave Pyrolysis of Cable Scrap

The process for copper recovery with simultaneous carbon synthesis is shown in Figure 1. Microwave irradiation permits the simultaneous conversion of the plastic to carbon and the separation of copper from the cables by completing the process in a short time (30 s) with low energy consumption. In the first step, the hot copper metal produced by microwave heating softens the polymer sheath, mechanically loosening it from the metal. In the second step, carbonization results in low-density carbon, which, upon expansion, further mechanically separates from the copper due to the expansion and formation of cracks. The recovered copper retains its lustrous appearance, indicating that no oxidation to CuO has occurred. We hypothesize that the polymer turned into a carbon coating protects the metal against oxidation, as shown by the following displacement reaction:
C + 2 CuO → 2 Cu + CO2
Analysis of copper cable wire through XRD, XPS, and SEM before and after microwave treatment reveals no significant structural or compositional changes. Concerning carbon, this is produced from the carbonization of PVC in air through a series of complex chemical transformations. Initially, the PVC undergoes dechlorination, where chlorine atoms are removed as hydrogen chloride (HCl) gas, typically through thermal cleavage of C-Cl bonds. This step is facilitated by the high temperatures, which generate free radicals that initiate the breakdown of the polymer. As the temperature rises, cyclization occurs, leading to the formation of cyclic structures within the polymer chains. This is followed by aromatization, where some of the cyclized products undergo rearrangement to form aromatic rings, typically benzene-like structures, contributing to the formation of stable carbon-rich molecules. In the presence of oxygen, oxidation reactions further break down the polymer, releasing small volatile molecules, while free radicals generated during these reactions continue to mediate further bond cleavage. The final result is the formation of char, a high-carbon residue composed mainly of aromatic carbon structures. Each of these processes is inherently endothermic, requiring a continuous heat supply. Under microwave conditions, this heat is sufficiently supplied through Ohmic heating, where electrical currents induced by the microwave field generate resistive heating in the copper metal, providing the necessary thermal energy for the reactions to proceed. Notably, the 2.45-GHz microwaves used in this study have a wavelength of approximately 12 cm, while the cable lengths ranged from 2 to 2.5 cm. This length is close to one-quarter of the wavelength (3 cm), where the standing wave’s intensity is at its peak. As a result, copper wires of this specific length interact strongly with the microwaves, leading to significant heating and pyrolysis [37]. On the other hand, copper may act as a catalyst, particularly during the dechlorination step, by facilitating the cleavage of C-Cl bonds. This could occur through the formation of copper–chlorine complexes or by promoting electron transfer processes, which accelerate the release of chlorine as HCl. Furthermore, copper’s catalytic properties may also influence other stages of the process, such as aromatization and oxidation, by stabilizing reactive intermediates or providing a surface for free radical-mediated transformations.

3.2. Characterization of Cu Metal and Carbon Derived from Cables’ PVC Cover

3.2.1. X-Ray Diffraction (XRD) Analysis of Cu Metal (Before and After Process) and Carbon Derived from Cables’ PVC Cover

The XRD patterns presented in Supplementary File (Figure S1) are characteristic and consistent with Cu metal, suggesting that the crystalline structure of copper remains unchanged during the microwave treatment.
The XRD pattern of the derived carbon (Figure 2) is consistent with amorphous carbon [38] showing broad reflections with decreasing intensity corresponding to graphite’s (002) and (100) planes. The (002) reflection is attributed to stacked layers with a Bragg interlayer spacing d002 = 3.6 Å (λ = 2 d002sinθ), slightly larger than that of crystalline graphite (d002 = 3.34 Å) [39]. Applying the Scherrer equation to the (002) peak (Lc = 0.9 λ/β cosθ) resulted in particle thickness Lc = 2 nm along the c-axis, equivalent to stacks of Nc = 6–7 layers [40]. On the other hand, the (100) reflection is associated with the in-plane crystallinity of a single layer. Using the modified Scherrer equation (La = 1.84 λ/β cosθ) [41], the size of the nanocrystalline graphitic domains La was 4 nm along the a-axis. Sharp reflections of CaF2 [42], an insoluble byproduct formed by the HF treatment, persist even after EDTA treatment, suggesting that calcium is retained within the carbon matrix. According to thermal gravimetric analysis (TGA) in air, the product consists of nearly 90% carbon and 10% calcium fluoride (CaF2).

3.2.2. Raman Analysis of Carbon Derived from Cables’ PVC Cover

The Raman spectrum (Figure 3) similarly supports the presence of amorphous carbon [38]. The spectrum contains two broad bands: 1594 cm−1 (G band) and 1350 cm−1 (D band). The G and D bands are formed by the E2g and A1’ vibrational modes of graphene’s hexagonal rings, respectively. The G band is typically associated with sp2 graphitic domains, whereas the D band is linked with sp3 aliphatic domains. These bands have a higher-intensity ratio (ID/IG = 0.8) than crystalline graphite (ID/IG = 0.1–0.2) [39]. Based on this value, the size of the nanocrystalline graphitic domains La along the a-axis was independently determined at 5.5 nm using the formula La = 4.4 (ID/IG)−1 [43], which is consistent with that derived from the XRD pattern.

3.2.3. X-Ray Photoelectron Spectroscopy (XPS) Analysis of Cu Metal (Before and After Process) and Carbon Derived from Cables’ PVC Cover

XPS survey analysis of Cu metal before and after microwave treatment is provided by the Supplementary Material (Figure S2) and is also similar, indicating uniform surface characteristics in terms of elemental composition (Figure S2, left). The Cu2p XPS spectra (Figure S2, right) show no variation in chemical state, indicating that the copper’s oxidation state or surface chemistry was not impacted.
The XPS survey spectrum of the carbon reveals the presence of C (68.7 at. %), O (14.8 at. %), and N (15.7 at. %) with minor contributions from Ca (0.3 at. %) and Cl (0.5 at. %) (Figure 4a). Oxygen is expected to be present since the microwave treatment was conducted in air. In addition, nitrogen and chlorine are derived from the acid treatments and the chlorine in PVC, respectively. The high-resolution C1s spectrum shows a dominant component (65.7%) at a binding energy of 284.8 eV due to C-C/C=C bonds, followed by oxidized carbon species at higher binding energies and decreasing order C-O > C=O > O-C=O (Figure 4b) [44,45]. XPS shows no fluorine at all and a very small amount of calcium that appears inconsistent with the XRD data presented above. We note that XPS is a surface-sensitive technique that typically probes the top 5–10 nm of the sample. Hence, the results suggest that both F and Ca are embedded in the interior of the carbon matrix as CaF2.

3.2.4. Microscopy Analysis of Cu Metal (Before and After Process) and Carbon Derived from Cables’ PVC Cover

SEM images of Cu metal (Supplementary File, Figure S3) confirm that the surface morphology of the copper wire remained practically intact. This finding indicates that the copper wire is resistant to structural, chemical, and morphological changes under the microwave conditions. Subsequently, electrical conductivity measurements via the 4-probe method show similar values before and after microwave treatment (6.8 × 107 and 6.5 × 107 S·m−1, respectively). These values are very close to those reported in the literature for copper (5.80 × 107–5.95 × 107 S·m−1).
SEM imaging of carbon shows predominantly macroporous (pore size > 50 nm) carbon particles with swiss-cheese morphology (Figure 5, top). We attribute this morphology to the presence of CaCO3 filler particles in the PVC acting as porogen [46,47]. In addition, compact particles with platy morphology were also found, but in much fewer numbers. Energy-dispersive spectroscopy (EDS) elemental mapping shows that the sample is mainly composed of C (81.2 wt. %) and O (9.1 wt. %) (Figure 5, bottom), consistent with XPS, followed by Ca (4.1 wt. %), Cl (5.2 wt. %), K (0.2 wt. %) and Si (0.2 wt. %). The traces of silicon and potassium come from the silica ceramic crucible and the KOH base treatment, respectively. No nitrogen was detected in the sample’s bulk composition, implying that N is only present on the surface (as detected by XPS). Regarding the absence of fluorine, we note that as a light element it is difficult to detect by EDS especially when present in small amounts.
TEM images indicate the presence of compact carbon nanosheets (Figure 6) with micron- or submicron-sized lateral dimensions. Furthermore, they show a multilayer structure along the edges due to stacks of individual layers, which is a common property of layered-like carbon nanomaterials.
The average thickness of the nanosheets measured using AFM was 2.6 nm (Figure 7). This number is close to the Lc value of 2 nm obtained from XRD and the Scherrer equation. Based on the TEM and AFM measurements, the lack of any kind of porosity in the nanosheets suggests that the macroporosity observed in the SEM arises from particle packing and interparticle voids created by the removal of CaCO3 by acid dissolution.

3.2.5. Nitrogen (N2) Porosimetry Analysis of Carbon Derived from Cables’ PVC Cover

The N2 adsorption-desorption isotherm of carbon shows a mixed H2 and H3 type hysteresis loop. The hysteresis loop was simulated using the CPSM model (Figure 8a), indicating a mesoporous structure with cylindrical pores arising from aggregates of plate-like particles [48,49]. Similar to macropores, such mesopores originate from CaCO3, which acts as a porogen [46,47]. The BET and CPSM techniques were used to calculate the specific surface area [50]. The SBET was 141 m2·g−1; the corrected SCPSM, considering pore curvature effects [50], was 153 m2·g−1. These two values were close because of the mesopore nature of the material’s pore structure. This is evidenced by the pore size distributions estimated by BJH, CPSM, and DFT methods [50,51] and presented in Figure 8b–d. All three curves showed two distinct groups of pores, with 0.25 cm3·g−1 total pore volume. The first group of pores has a diameter of 1–15 nm while the second group in the region has a diameter of 15–35 nm. From the above, we conclude that in addition to the macroporosity, which is also seen in the SEM, the material also has a mesoporous structure. Mesopores contribute significantly more to the sample’s specific surface area than the macropores. The microporosity fraction estimated from the CPSM simulation was 0.3%, which is insignificant.

3.3. Microwave vs. Conventional Pyrolysis of Cable Scrap

Heating experiments in a conventional electric box oven showed that the cable wires ignite at 500 °C, producing a yellow flame similar to that observed in the microwave oven. Based on this, we estimate an average temperature of approximately 500 °C in the microwave oven. However, the plasma generated by the heated metal under microwave irradiation likely results in higher localized temperatures. The estimated temperature of 500 °C is consistent with the ignition temperature of PVC plastic in air (485 °C).
In order to compare microwave carbonization with conventional pyrolysis for cable scrap, heating experiments were conducted using an electric box oven (1300 W) at 500 °C in air and 2–2.5 cm-long samples. These conditions match reasonably well with those used in microwave heating (700 W). Due to the slower heating rate of the conventional oven compared to microwave processing, the heating duration was extended to at least 5 min, in contrast to 30 s required in the microwave oven. This adjustment ensured effective carbonization of the polymer sheath and prevented the formation of a sticky polymer melt, which could otherwise hinder the separation process. Based on simple calculations (E = P·t) that take into account power consumption, conversion rate (30% for box ovens, 70% for microwave ovens), and duration, microwave heating has an energy efficiency of 80%. After conventional pyrolysis, the carbon and copper metal were mechanically separated, with the recovered carbon undergoing similar acid treatments as described in the experimental section. Copper is practically extracted quantitatively, while the carbon yield is lower (0.5 g per 10 m cable) due to prolonged exposure in air, which promotes combustion and reduces carbon residue formation.
Further analysis reveals notable differences compared to microwave processing. The XRD pattern for the metal (Supplementary Material, Figure S4) confirms the presence of Cu metal but also indicates carbon residues that cannot be mechanically removed. Similarly, XPS, presented in the supplementary figures, shows elevated carbon content and greater surface oxidation (Figure S5). In line with these observations, SEM clearly reveals carbon residues on the metal wire’s surface (Supplementary Material, Figure S6). It seems that the molten polymer sheath has sufficient time to infiltrate metal cracks, leaving behind carbon particles after carbonization that stains the surface. Additionally, the conductivity of the Cu processed conventionally is lower by an order of magnitude 1.96 × 106 S·m−1. This decrease is attributed to prolonged heating during conventional processing and increased oxygen exposure. These results suggest that the copper obtained through conventional heating is of lower quality than that produced via microwave heating.
With respect to carbon, the XRD reveals an amorphous structure with inorganic phase impurities that persist even after acid treatments (Supplementary Material, Figure S7). XPS further indicates that this carbon is more oxidized compared to that obtained through microwave heating similar to the Cu discussed above (Supplementary Material Figure S8). SEM shows a macroporous structure comparable to that of the microwave-derived carbon (Supplementary Material, Figure S9). However, the specific surface area of the former is <10 m2·g−1, much smaller than that of microwave-derived carbon. The lower surface area is due either to the lack of micro-/mesoporosity or the blockage of micro-/mesopores by impurities.
All in all, microwave pyrolysis offers significant advantages over conventional pyrolysis. One of its key benefits is speed, as microwave pyrolysis is considerably faster, reducing processing time. The method is more energy-efficient with an efficiency of 80%, making it a more environmentally friendly and cost-effective option compared to traditional pyrolysis. From a cost perspective, the reduced heating time and improved energy efficiency of microwave processing lead to lower operational costs. The faster processing time can also result in increased throughput, further reducing the cost per unit of material processed. Regarding environmental benefits, the lower energy consumption of microwave heating not only reduces operational costs but also decreases the carbon footprint associated with the process. This makes microwave processing a more sustainable option compared to conventional pyrolysis, especially in large-scale industrial applications where energy use is a critical factor. Additionally, microwave pyrolysis results in a higher quality of recovered copper with a minimal number of impurities. Another notable advantage is the improved carbon yield and higher surface area from the carbonization of PVC sheath. This leads to a higher quantity of active carbon products, which can be further utilized or sold.

3.4. Thoughts for Cable Scrap Valorization

The copper and carbon recovered from cable scrap are valuable for numerous practical applications. Copper chops, for example, play a key role in the recycling of scrap copper, where they are reused to create new copper products (electronic appliances, building material, consumer products) [52]. The process conserves natural resources and is more energy-efficient than mining and refining virgin copper. What’s more, copper chops are useful in metallurgy (smelting, cast molding, alloying, refining, plating), as catalysts in the chemical industry (production of methanol, desulfurization of fuels), in mechanical reinforcement (gypsum), and in resin art/epoxy crafts (orgonite pucks). Carbon, on the other hand, plays a crucial role in several processes, including extractive metallurgy, gunpowder production, paint formulations, and inks, where carbon supply is in high demand [23,25,53,54,55]. Furthermore, the porosity of carbon, combined with its oxidized surface, could enhance its effectiveness in adsorption processes (e.g., in filters). The porous structure provides a large surface area, while the oxidized sites offer active centers for binding various molecules. Given the volume of scrap and the quality of the materials generated, further process optimization is likely to yield significant amounts of copper and carbon.

3.5. Scalability and Optimization Considerations for Industrial Applications

Scaling the microwave-assisted process for industrial applications requires careful consideration of factors such as uniformity of heating, the design of microwave reactors, and the handling of larger quantities of material. At industrial scale, ensuring consistent energy distribution and efficient heat transfer across the material is critical to maintain high conversion rates and product quality. Additionally, issues such as reactor size, microwave power limitations, and material flow rates must be optimized to handle larger volumes effectively.
One of the significant advantages of microwave heating is the substantial reduction in processing time. While laboratory-scale tests typically take only 30 s, industrial-scale implementations may involve longer processing times due to the larger mass of material. However, even at larger scales, the microwave process is expected to significantly outperform conventional heating methods, which typically require several minutes to process the same material. Ongoing work should focus on optimizing the scale-up process to minimize any potential increase in time while maintaining energy efficiency.
Lastly, at larger scales, optimizing yield will depend on factors such as the consistency of the input material (e.g., copper cable scrap) and the microwave power distribution. Optimization should focus on maximizing the carbon yield and copper recovery rate by fine-tuning parameters such as microwave power, temperature profiles, and reaction times. Hence, yield can be maintained or even improved at scale, with appropriate adjustments to process conditions.

4. Conclusions

We demonstrate that microwave treatment of cable scrap is a highly effective and remarkably fast approach for copper recovery and carbon synthesis, completing in just 30 s. The recovery of highly conductive copper is critical for the process, as the recovered copper retains its lustrous appearance and excellent conductivity, making it valuable for electrical applications. In addition, the process produces disordered porous carbon with a meso/macroporous texture resulting from particle packing, void spaces generated during microwave heating, as well as the presence of CaCO3 particles in the cables that act as porogen. The microwave process also exhibits high energy efficiency, achieving approximately 80% energy savings compared to conventional thermal treatment in a box oven. Moreover, the process allows for easy separation of recovered copper and synthesized carbon, enhancing the overall practicality and scalability of the method. By combining rapid processing, energy efficiency, and straightforward separation with the recovery of high-quality copper, the microwave process offers a sustainable and economically viable approach, transforming cable scrap into valuable resources for multiple industries, while promoting waste reduction and resource efficiency. The approach could also be adapted for other types of cable with different metals (e.g., aluminum) or insulation materials (e.g., silicone) to recycle and synthesize various materials, including ceramic powders.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/eng6040074/s1, Figure S1: XRD patterns of cable Cu wires before (black line) and after (green line) microwave treatment, as compared to crystalline copper; Figure S2: XPS survey (left) and high-resolution Cu2p (right) spectra of cable Cu wires before (black lines) and after (blue lines) microwave treatment; Figure S3: Representative SEM images of cable Cu wires before (top) and after (bottom) microwave treatment under same magnification (scale bar 200 nm); Figure S4: XRD pattern of cable Cu wire after heat treatment of the cable at 500 °C in air; Figure S5: XPS survey spectrum of cable Cu wire after heat treatment of the cable at 500 °C in air. The spectrum shows an increased carbon and oxygen content on the metal wire surface; Figure S6: Representative SEM image of cable Cu wire after heat treatment of the cable at 500 °C in air. The image shows that the metal wire surface is stained with carbon particles; Figure S7: XRD pattern of carbon derived from heat treatment of the cable at 500 °C in air; Figure S8: Deconvoluted high-resolution C1s XPS spectrum of carbon derived from heat treatment of the cable at 500 °C in air; Figure S9: Representative SEM image of carbon derived from heat treatment of the cable at 500 °C in air.

Author Contributions

Conceptualization, A.B.B., E.P.G., C.E.S. and M.A.K.; Methodology, N.C., D.P.G., A.B.B., C.E.S. and M.A.K.; Software, N.C. and D.M.; Validation, A.B.B., N.C., E.P.G., C.E.S. and M.A.K.; Formal analysis, D.P.G., D.M. and A.A.; Investigation, N.C., D.M., D.P.G. and A.A.; Resources, A.B.B., E.P.G., C.E.S. and M.A.K.; Data curation, D.M. and N.C.; Writing—original draft preparation, A.B.B., N.C., E.P.G., C.E.S. and M.A.K.; Writing—review and editing, A.B.B., N.C., E.P.G., C.E.S. and M.A.K.; Visualization, A.B.B., E.P.G., A.A., M.A.K. and C.E.S.; Supervision, A.B.B., C.E.S. and M.A.K.; Project administration, A.B.B., E.P.G., M.A.K. and C.E.S.; funding acquisition, A.B.B., A.A., E.P.G., M.A.K. and C.E.S. All authors have read and agreed to the published version of the manuscript.

Funding

We acknowledge support of this work by the project “Advanced Nanostructured Materials for Sustainable Growth: Green Energy Production/Storage, Energy Saving and Environmental Remediation” (TAEDR-0535821)”, which is implemented under the action “Flagship actions in interdisciplinary scientific fields with a special focus on the productive fabric” (ID 16618), Greece 2.0-National Recovery and Resilience Fund and funded by European Union NextGenerationEU. The research project is implemented in the framework of H.F.R.I. Call “Basic research Financing (Horizontal support of all Sciences)” under the National Recovery and Resilience Plan “Greece 2.0” funded by the European Union–NextGenerationEU (H.F.R.I. Project Number: 15949). This work made use of the Cornell Center for Materials Research (CCMR) shared instrumentation facility. The authors acknowledge support by the Center for Alkaline-Based Energy Solutions (CABES), part of the Energy Frontier Research Center (EFRC) program supported by the U.S. Department of Energy, under Grant DE-SC-0019445.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Kumar, H.; Kumagai, S.; Saito, Y.; Yoshioka, T. Latest trends and challenges in PVC and copper recovery technologies for end-of-life thin cables. Waste Manag. 2024, 174, 400–410. [Google Scholar] [CrossRef] [PubMed]
  2. Tanabe, E.H.; Silva, R.M.; Júnior, D.L.O.; Bertuol, D.A. Recovery of valuable metals from waste cables by employing mechanical processing followed by spouted bed elutriation. Particuology 2019, 45, 74–80. [Google Scholar] [CrossRef]
  3. Li, L.; Liu, G.; Pan, D.; Wang, W.; Wu, Y.; Zuo, T. Overview of the recycling technology for copper-containing cables. Resour. Conserv. Recycl. 2017, 126, 132–140. [Google Scholar] [CrossRef]
  4. Zhang, W.; Li, Z.; Dong, S.; Qian, P.; Ye, S.; Hu, S.; Xia, B.; Wang, C. Analyzing the environmental impact of copper-based mixed waste recycling-a LCA case study in China. J. Clean. Prod. 2021, 284, 125256. [Google Scholar] [CrossRef]
  5. Khaobang, C.; Kathongthung, N.; Phitsuwan, P.; Sitthichirachat, P.; Wibowo, H.; Areeprasert, C. In-situ adsorptive pyrolysis of e-waste using coal and rice husk fly ash as alternative adsorbents for energy and precious metal recovery by solvent extraction. J. Anal. Appl. Pyrol. 2024, 179, 106465. [Google Scholar] [CrossRef]
  6. Kwak, Y.; Eom, J.; Nam, H.; Nam, C. Upcycling of PVC waste to high-value sorbent with KOH-activation for efficient removal of organic dyes. Chemosphere 2024, 359, 142283. [Google Scholar] [CrossRef] [PubMed]
  7. Mota-Panizio, R.; Assis, A.; Carmo-Calado, L.; Nobre, C.; Longo, A.; Silveira, J.; Goncalves, M.M.; Brito, P. Production characterization, and activation of biochars from a mixture of waste insulation electric cables (WIEC) and waste lignocellulosic biomass (WLB). C 2023, 9, 49. [Google Scholar] [CrossRef]
  8. Wu, Z.; Zhang, Y.; Chen, X.; Deng, N. The pilot scale test on the recycling of copper from the scrap cables by using the pyrolysis. Adv. Inf. Sci. Serv. Sci. 2012, 4, 593–600. [Google Scholar]
  9. de Marco, I.; Caballero, B.M.; Chomón, M.J.; Laresgoiti, M.F.; Torres, A.; Fernández, G.; Arnaiz, S. Pyrolysis of electrical and electronic wastes. J. Anal. Appl. Pyrol. 2008, 82, 179–183. [Google Scholar] [CrossRef]
  10. Chaala, A.; Darmstadt, H.; Roy, C. Vacuum pyrolysis of electric cable wastes. J. Anal. Appl. Pyrol. 1997, 39, 79–96. [Google Scholar] [CrossRef]
  11. Park, I.; Lee, Y.; Park, S.; Jin, H.; Lee, J.T.; Choi, D. Microwave-mediated stabilization and carbonization of polyacrylonitrile/Super-P composite: Carbon anodes with high nitrogen content for lithium ion batteries. Chem. Mater. 2023, 35, 9182–9191. [Google Scholar]
  12. Selvam, M.S.; Paramasivan, B. Microwave assisted carbonization and activation of biochar for energy-environment nexus: A review. Chemosphere 2022, 286, 131631. [Google Scholar]
  13. Matveev, E.V.; Gajdar, A.I.; Lapshinov, B.A.; Mamontov, A.V.; Berestov, V.V. Microwave carbonization of cotton fiber for production of carbon materials. Inorg. Mater. Appl. Res. 2022, 13, 549–559. [Google Scholar]
  14. Teğin, Ş.Ö.; Şahin, Ö.; Baytar, O.; İzgi, M.S. Preparation and characterization of activated carbon from almond shell by microwave-assisted using ZnCl2 activator. Int. J. Chem. Technol. 2020, 4, 130–137. [Google Scholar]
  15. Shi, Q.; Liu, D.; Wang, Y.; Zhao, Y.; Yang, X.; Huang, J. High-performance sodium-ion battery anode via rapid microwave carbonization of natural cellulose nanofibers with graphene initiator. Small 2019, 15, 1901724. [Google Scholar]
  16. Izgi, M.S.; Saka, C.; Baytar, O.; Saraçoğlu, G.; Şahin, Ö. Preparation and characterization of activated carbon from microwave and conventional heated almond shells using phosphoric acid activation. Anal. Lett. 2019, 52, 772–789. [Google Scholar]
  17. Villota, E.M.; Lei, H.; Qian, M.; Yang, Z.; Villota, S.M.A.; Zhang, Y.; Yadavalli, G. Optimizing microwave-assisted pyrolysis of phosphoric acid-activated biomass: Impact of concentration on heating rate and carbonization time. ACS Sustain. Chem. Eng. 2018, 6, 1318–1326. [Google Scholar]
  18. Sharif, Y.M.; Saka, C.; Baytar, O.; Şahin, Ö. Preparation and characterization of activated carbon from sesame seed shells by microwave and conventional heating with zinc chloride activation. Anal. Lett. 2018, 51, 2733–2746. [Google Scholar]
  19. Kim, S.-Y.; Kim, S.Y.; Lee, S.; Jo, S.; Im, Y.-H.; Lee, H.-S. Microwave plasma carbonization for the fabrication of polyacrylonitrile-based carbon fiber. Polymer 2015, 56, 590–595. [Google Scholar]
  20. Brazil, T.R.; Gonçalves, M.; dos Anjos, E.G.R.; de Oliveira, M.S., Jr.; Rezende, M.C. Microwave-assisted production of activated carbon in an adapted domestic oven from lignocellulosic waste. Biomass Conv. Bioref. 2024, 14, 255–268. [Google Scholar]
  21. Wang, X.; Peng, Y.; Zhou, R.; Fan, L.; Zhang, Q.; Cui, X.; Wu, Q.; Zeng, Y.; Tian, X.; Ke, L.; et al. Production of monocyclic aromatic hydrocarbons from microwave co-pyrolysis of polyethylene terephthalate and low-density polyethylene using coconut husk carbon as microwave absorbent. Chem. Eng. J. 2024, 488, 150732. [Google Scholar] [CrossRef]
  22. Zhou, N.; Dai, L.; Lv, Y.; Li, H.; Deng, W.; Guo, F.; Chen, P.; Lei, H.; Ruan, R. Catalytic pyrolysis of plastic wastes in a continuous microwave assisted pyrolysis system for fuel production. Chem. Eng. J. 2021, 418, 129412. [Google Scholar] [CrossRef]
  23. Bourlinos, A.B.; Spyrou, K.; Moschovas, D.; Avgeropoulos, A.; Salmas, C.; Karakassides, M.A. Fast microwave carbonization of aluminum-coated plastic wastes and perspectives: The examples of CDs and snack bags. Next Mater. 2025, 6, 100333. [Google Scholar] [CrossRef]
  24. Yaqoob, L.; Noor, T.; Iqbal, N. Conversion of plastic waste to carbon-based compounds and application in energy storage devices. ACS Omega 2022, 7, 13403–13435. [Google Scholar] [CrossRef]
  25. Chalmpes, N.; Asimakopoulos, G.; Baikousi, M.; Salmas, C.E.; Moschovas, D.; Avgeropoulos, A.; Bourlinos, A.B.; Tantis, I.; Bakandritsos, A.; Gournis, D.; et al. Microwave synthesis, characterization and perspectives of wood pencil-derived carbon. Appl. Sci. 2022, 12, 410. [Google Scholar] [CrossRef]
  26. Andooz, A.; Eqbalpour, M.; Kowsari, E.; Ramakrishna, S.; Cheshmeh, Z.A. A comprehensive review on pyrolysis of e-waste and its sustainability. J. Clean. Prod. 2022, 333, 130191. [Google Scholar] [CrossRef]
  27. Risco, Á.; Sucunza, D.; González-Egido, S. Chemical recovery of waste electrical and electronic equipment by microwave-assisted pyrolysis: A review. J. Anal. Appl. Pyrol. 2021, 159, 105323. [Google Scholar] [CrossRef]
  28. Huang, Y.-F.; Pan, M.-W.; Lo, S.-L. Hydrometallurgical metal recovery from waste printed circuit boards pretreated by microwave pyrolysis. Resour. Conserv. Recycl. 2020, 163, 105090. [Google Scholar] [CrossRef]
  29. Huang, Y.-F.; Lo, S.-L. Energy recovery from waste printed circuit boards using microwave pyrolysis: Product characteristics, reaction kinetics, and benefits. Environ. Sci. Pollut. Res. 2020, 27, 43274–43282. [Google Scholar] [CrossRef]
  30. Undri, A.; Rosi, L.; Frediani, M.; Frediani, P. Fuel from microwave assisted pyrolysis of waste multilayer packaging beverage. Fuel 2014, 133, 7–16. [Google Scholar] [CrossRef]
  31. Undri, A.; Sacchi, B.; Cantisani, E.; Toccafondi, N.; Rosi, L.; Frediani, M.; Frediani, P. Carbon from microwave assisted pyrolysis of waste tires. J. Anal. Appl. Pyrol. 2013, 104, 396–404. [Google Scholar] [CrossRef]
  32. Sun, J.; Wang, W.; Liu, Z.; Ma, C. Recycling of waste printed circuit boards by microwave induced pyrolysis and featured mechanical processing. Ind. Eng. Chem. Res. 2011, 50, 11763–11769. [Google Scholar]
  33. Ludlow-Palafox, C.; Chase, H.A. Microwave-induced pyrolysis of plastic wastes. Ind. Eng. Chem. Res. 2001, 40, 4749–4756. [Google Scholar]
  34. Anis, S.; Qudus, N.; Kusumastuti, A. Treatment of electrical and electronic waste to reduce environmental issue. J. Adv. Res. Fluid Mech. Therm. Sci. 2020, 72, 148–156. [Google Scholar]
  35. Anis, S.; Prasetyo, E. Conversion of hand phone case waste into liquid fuels in a microwave reactor. IOP Conf. Ser. Earth Environ. Sci. 2019, 258, 012011. [Google Scholar] [CrossRef]
  36. Anis, S.; Lestari, S.E. Production of liquid oil from thermolysis of electrical and electronic wastes (e-waste) under microwave irradiation. J. Phys. Sci. 2018, 29, 53–62. [Google Scholar] [CrossRef]
  37. Horikoshi, S.; Hachisuga, N.; Serpone, N. Recycling of e-waste power cables using microwave-induced pyrolysis-process characteristics and facile recovery of copper metal. RSC Adv. 2024, 14, 29955–29964. [Google Scholar]
  38. Penki, T.R.; Shanmughasundaram, D.; Kishore, B.; Munichandraiah, N. High rate capability of coconut kernel derived carbon as an anode material for lithium-ion batteries. Adv. Mat. Lett. 2014, 5, 184–190. [Google Scholar] [CrossRef]
  39. Chalmpes, N.; Spyrou, K.; Bourlinos, A.B.; Moschovas, D.; Avgeropoulos, A.; Karakassides, M.A.; Gournis, D. Synthesis of highly crystalline graphite from spontaneous ignition of in situ derived acetylene and chlorine at ambient conditions. Molecules 2020, 25, 297. [Google Scholar] [CrossRef]
  40. Katsumi, N.; Yonebayashi, K.; Okazaki, M. Evaluation of stacking nanostructure in soil humic acids by analysis of the 002 band of their X-ray diffraction profiles. Soil Sci. Plant Nutr. 2015, 61, 603–612. [Google Scholar]
  41. Cançado, L.G.; Takai, K.; Enoki, T.; Endo, M.; Kim, Y.A.; Mizusaki, H.; Jorio, A.; Coelho, L.N.; Magalhães-Paniago, R.; Pimenta, M.A. General equation for the determination of the crystallite size La of nanographite by Raman spectroscopy. Appl. Phys. Lett. 2006, 88, 163106. [Google Scholar] [CrossRef]
  42. Sasidharan, S.; Jayasree, A.; Fazal, S.; Koyakutty, M.; Nair, S.V.; Menon, D. Ambient temperature synthesis of citrate stabilized and biofunctionalized, fluorescent calcium fluoride nanocrystals for targeted labeling of cancer cells. Biomater. Sci. 2013, 1, 294–305. [Google Scholar] [CrossRef]
  43. Knight, D.S.; White, W.B. Characterization of diamond films by Raman spectroscopy. J. Mater. Res. 1989, 4, 385–393. [Google Scholar] [CrossRef]
  44. Karageorgou, D.; Thomou, E.; Vourvou, N.T.; Lyra, K.-M.; Chalmpes, N.; Enotiadis, A.; Spyrou, K.; Katapodis, P.; Gournis, D.; Stamatis, H. Antibacterial and algicidal effects of porous carbon cuboid nanoparticles. ACS Omega 2019, 4, 4991–5001. [Google Scholar] [CrossRef]
  45. Baikousi, M.; Chalmpes, N.; Spyrou, K.; Bourlinos, A.B.; Avgeropoulos, A.; Gournis, D.; Karakassides, M.A. Direct production of carbon nanosheets by self-ignition of pyrophoric lithium dialkylamides in air. Mater. Lett. 2019, 254, 58–61. [Google Scholar] [CrossRef]
  46. Kong, L.; Liu, M.; Diao, Z.; Chen, D.; Chang, X.; Xiong, Y. Coupling template nanocasting and self-activation for fabrication of nanoporous carbon. Sci. Rep. 2016, 6, 38176. [Google Scholar] [CrossRef]
  47. Xu, B.; Peng, L.; Wang, G.; Cao, G.; Wu, F. Easy synthesis of mesoporous carbon using nano-CaCO3 as template. Carbon 2010, 48, 2361–2380. [Google Scholar] [CrossRef]
  48. Tang, X.; Jiang, Z.; Li, Z.; Gao, Z.; Bai, Y.; Zhao, S.; Feng, J. The effect of the variation in material composition on the heterogeneous pore structure of high-maturity shale of the Silurian Longmaxi formation in the southeastern Sichuan Basin, China. J. Nat. Gas Sci. Eng. 2015, 23, 464–473. [Google Scholar] [CrossRef]
  49. Alothman, Z.A. A review: Fundamental aspects of silicate mesoporous materials. Materials 2012, 5, 2874–2902. [Google Scholar] [CrossRef]
  50. Salmas, C.E.; Androutsopoulos, G.P. Rigid sphere molecular model enables an assessment of the pore curvature effect upon realistic evaluations of surface areas of mesoporous and microporous materials. Langmuir 2005, 21, 11146–11160. [Google Scholar] [CrossRef]
  51. Landers, J.; Gor, G.Y.; Neimark, A.V. Density functional theory methods for characterization of porous materials. Colloids Surf. A Physicochem. Eng. Asp. 2013, 437, 3–32. [Google Scholar]
  52. Li, X.; Ma, B.; Wang, C.; Chen, Y. Sustainable recovery and recycling of scrap copper and alloy resources: A review. Sustain. Mater. Technol. 2024, 41, e01026. [Google Scholar]
  53. Rajarao, R.; Mansuri, I.; Dhunna, R.; Khanna, R.; Sahajwalla, V. Study of structural evolution of chars during rapid pyrolysis of waste CDs at different temperatures. Fuel 2014, 134, 17–25. [Google Scholar]
  54. Mansuri, I.; Khanna, R.; Sahajwalla, V. Recycling carbonaceous industrial/commercial waste as a carbon resource in iron and steelmaking. Steel Res. Int. 2017, 88, 1600333. [Google Scholar] [CrossRef]
  55. Duan, Z.; Yuan, Z.; Jiang, Y.; Yuan, L.; Tai, H. Amorphous carbon material of daily carbon ink: Emerging applications in pressure, strain, and humidity sensors. J. Mater. Chem. C 2023, 11, 5585–5600. [Google Scholar]
Eng 06 00074 g001

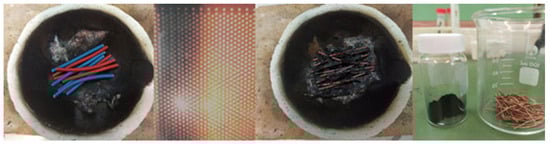

Figure 1. From left to right: microwave irradiation of copper cable chops in a ceramic crucible causes the polymer sheath to carbonize due to the plasma produced by the metal. The far-right image shows recovered copper metal and carbon after separation.
Figure 1. From left to right: microwave irradiation of copper cable chops in a ceramic crucible causes the polymer sheath to carbonize due to the plasma produced by the metal. The far-right image shows recovered copper metal and carbon after separation.
Eng 06 00074 g001
Eng 06 00074 g002

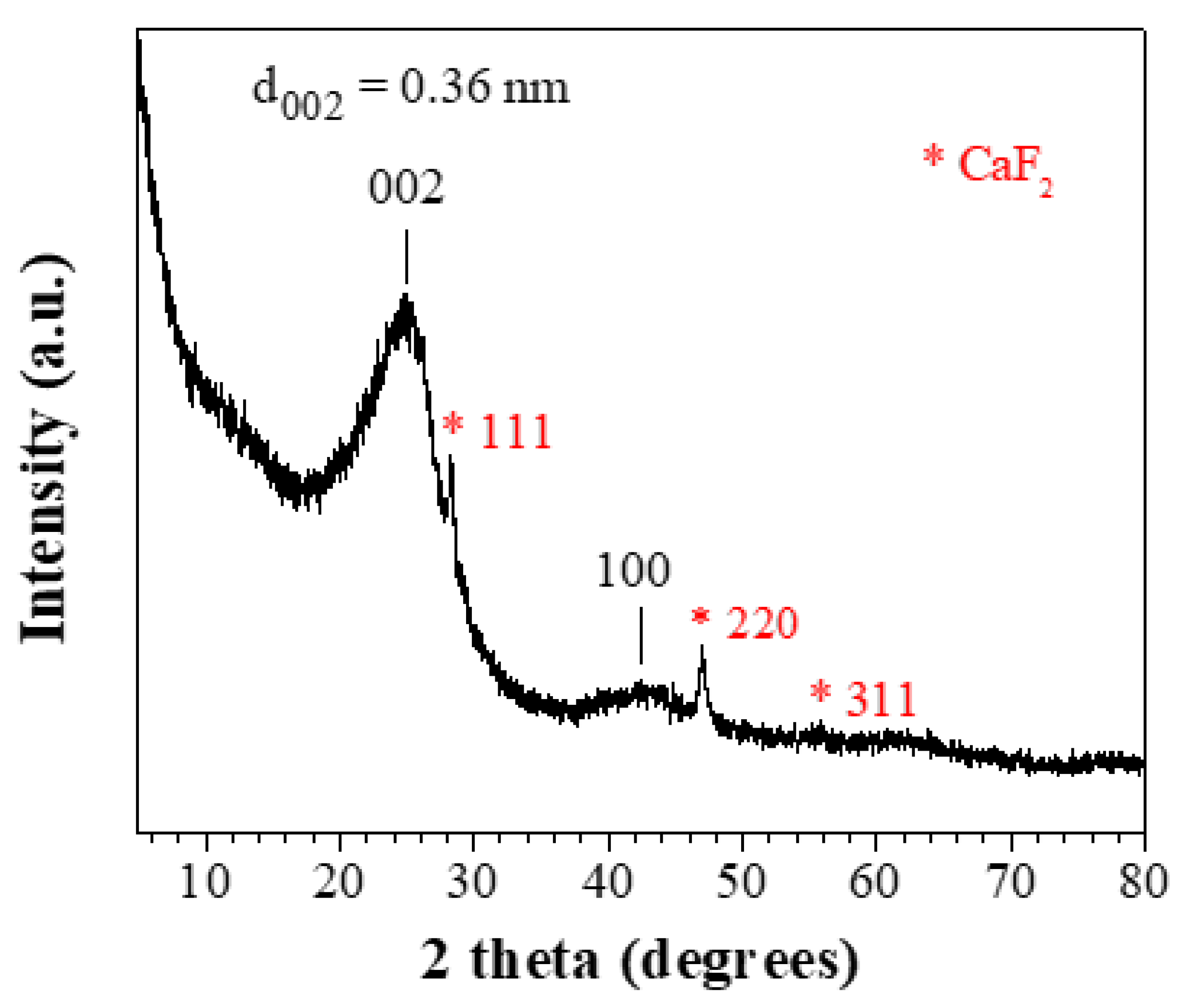

Figure 2. XRD pattern of the derived carbon.
Figure 2. XRD pattern of the derived carbon.
Eng 06 00074 g002
Eng 06 00074 g003

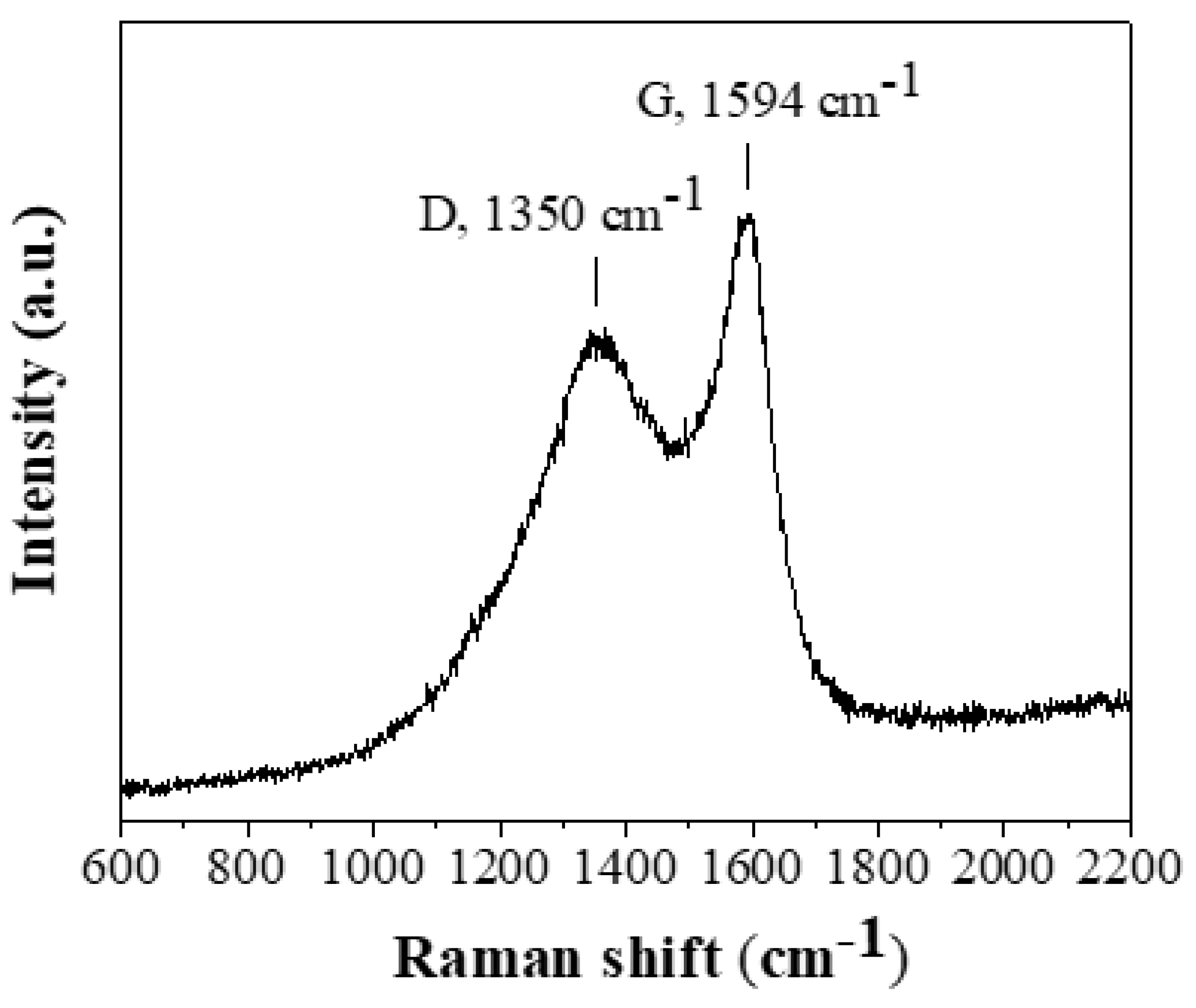

Figure 3. Raman spectrum of the derived carbon.
Figure 3. Raman spectrum of the derived carbon.
Eng 06 00074 g003
Eng 06 00074 g004

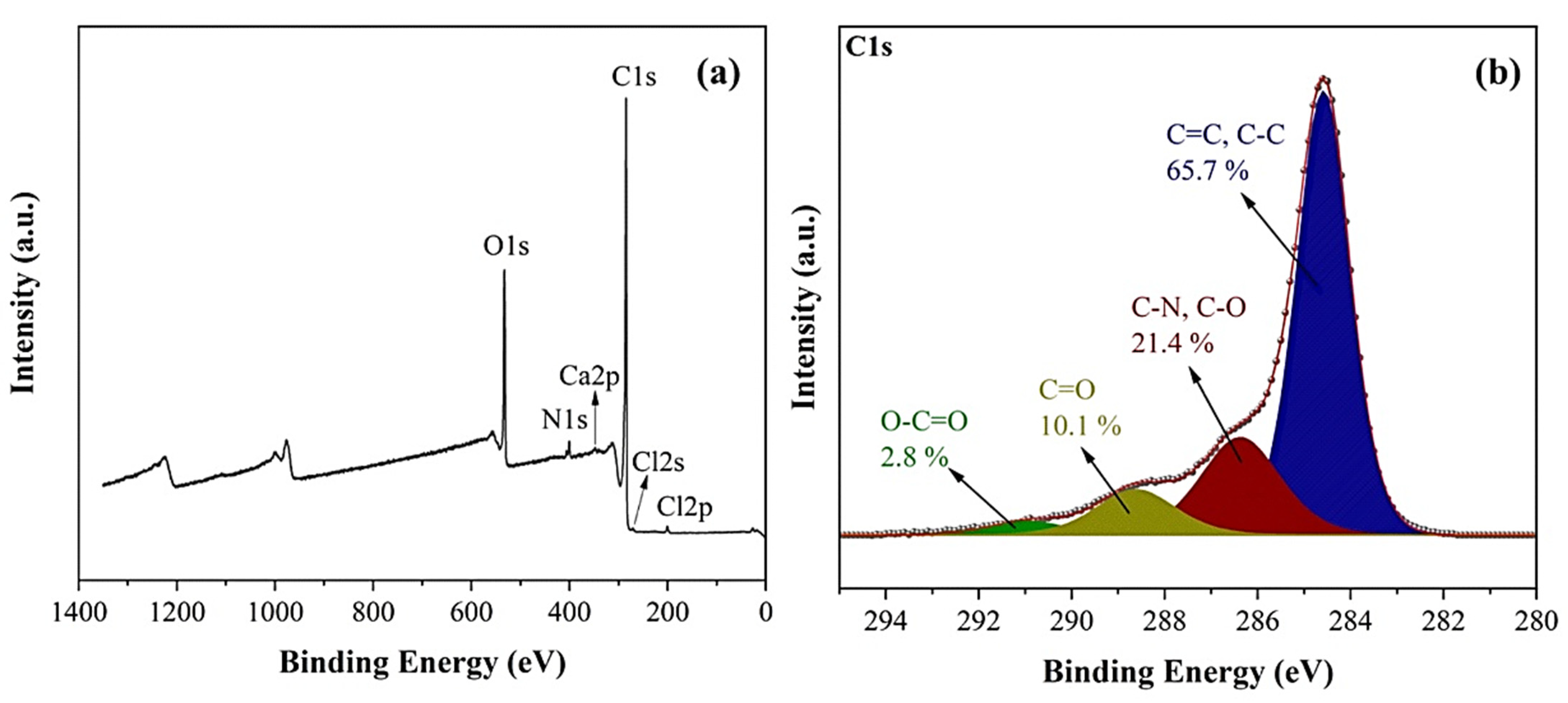

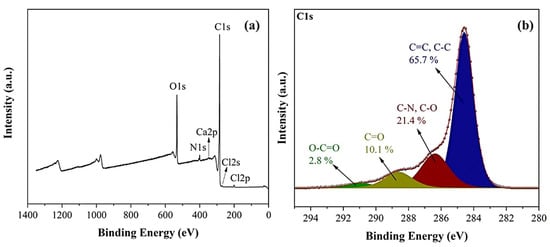

Figure 4. XPS survey spectrum (a) and deconvoluted high-resolution spectrum of C1s region (b) of the derived carbon.
Figure 4. XPS survey spectrum (a) and deconvoluted high-resolution spectrum of C1s region (b) of the derived carbon.
Eng 06 00074 g004
Eng 06 00074 g005
Figure 5. Representative SEM images (top) and selected area C/O chemical mapping (bottom) of the derived carbon. Carbon and oxygen were chosen to represent the sample’s major components.
Figure 5. Representative SEM images (top) and selected area C/O chemical mapping (bottom) of the derived carbon. Carbon and oxygen were chosen to represent the sample’s major components.
Eng 06 00074 g005
Eng 06 00074 g006
Figure 6. Representative TEM images (a–d) of the derived carbon.
Figure 6. Representative TEM images (a–d) of the derived carbon.
Eng 06 00074 g006
Eng 06 00074 g007

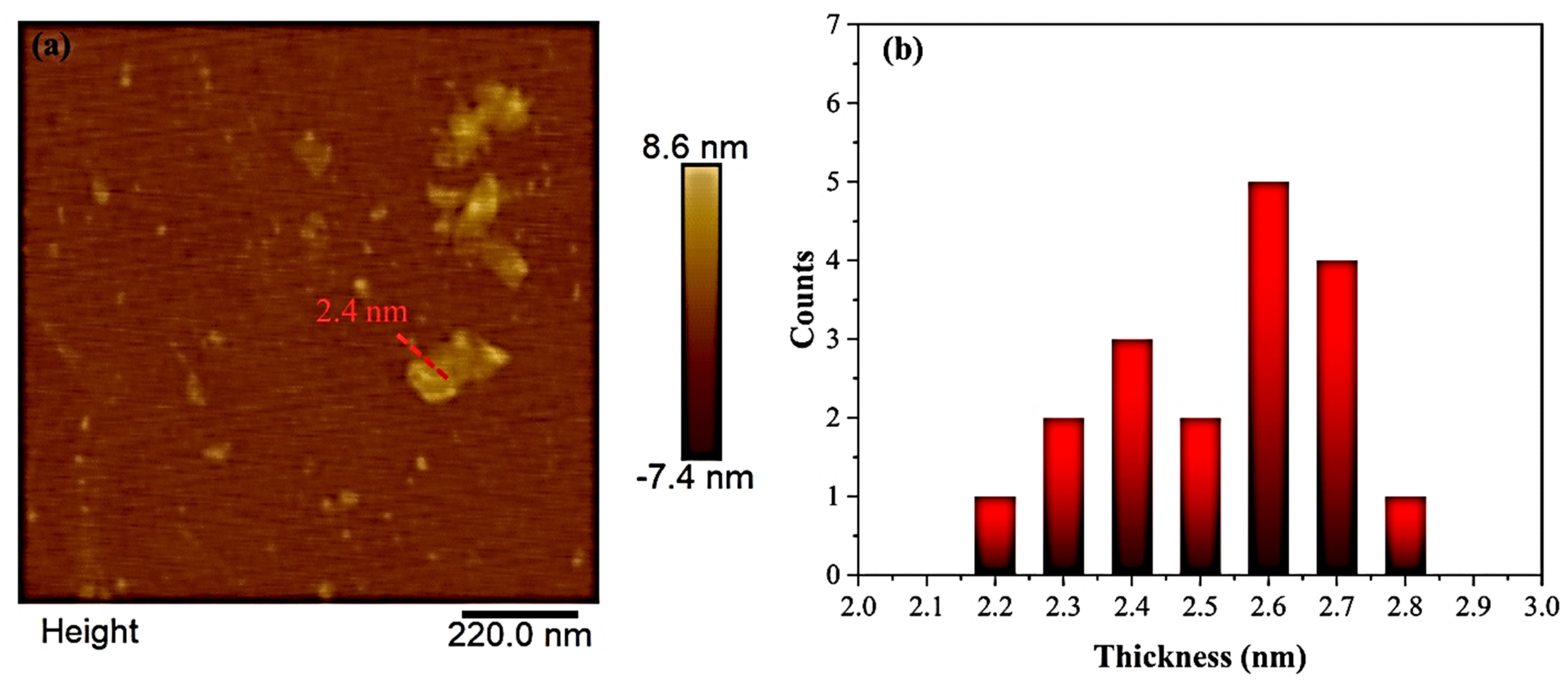

Figure 7. (a) Representative height profile image derived by AFM of selected carbon nanosheet. (b) Statistical analysis histogram of thickness of randomly selected sheets.
Figure 7. (a) Representative height profile image derived by AFM of selected carbon nanosheet. (b) Statistical analysis histogram of thickness of randomly selected sheets.
Eng 06 00074 g007
Eng 06 00074 g008

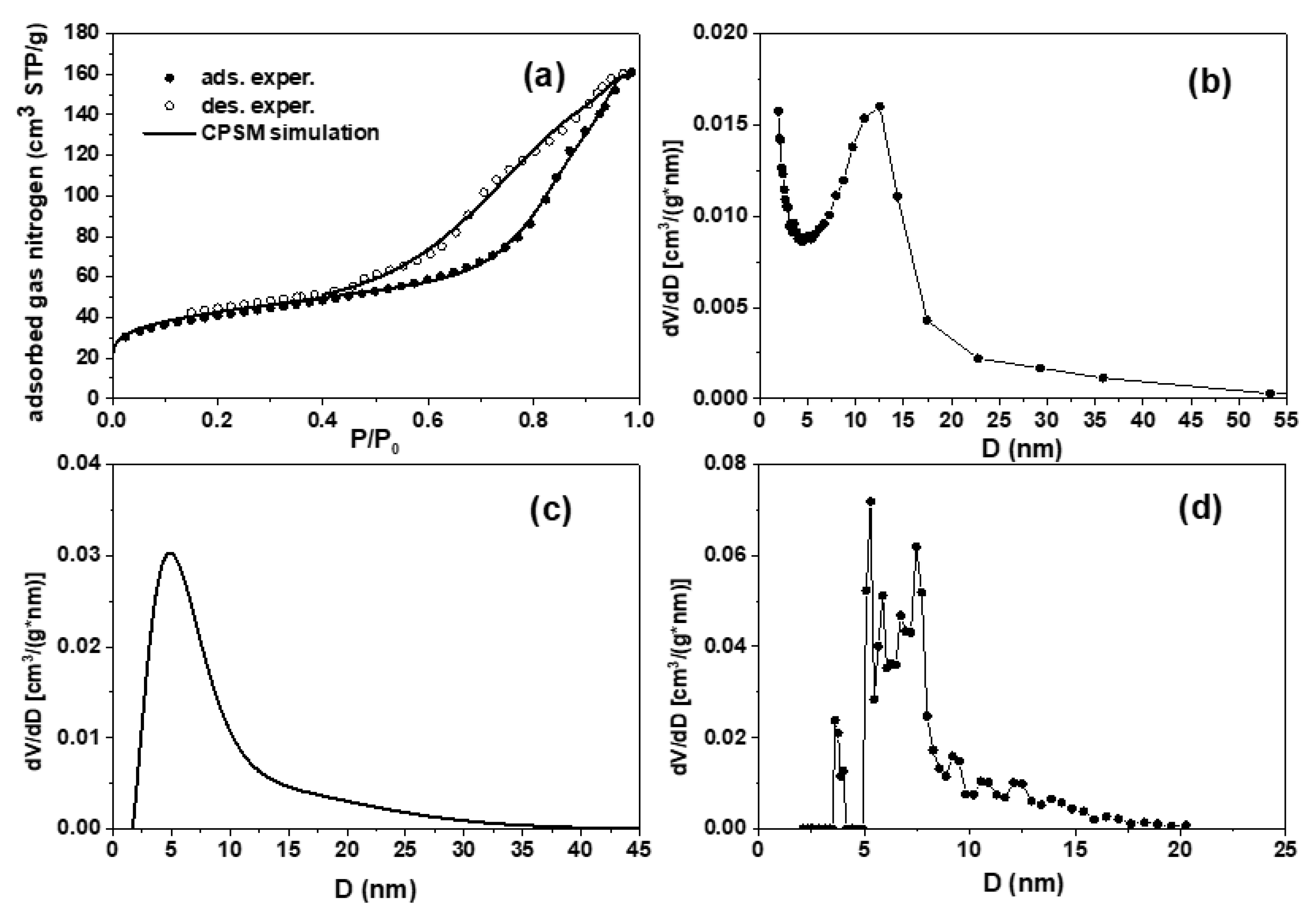

Figure 8. N2 adsorption-desorption experimental hysteresis loop and CPSM simulation (a), BJH pore volume distribution, desorption branch (b), CPSM pore volume distribution (c), and DFT pore volume distribution (d).
Figure 8. N2 adsorption-desorption experimental hysteresis loop and CPSM simulation (a), BJH pore volume distribution, desorption branch (b), CPSM pore volume distribution (c), and DFT pore volume distribution (d).
Eng 06 00074 g008
