Article

Environmental Factors Structuring Diatom Diversity of the Protected High Mountain Lakes in the Kaçkar Mountains National Park (Rize, Turkey)

1
Department of Biology Education, Fatih Education Faculty, Trabzon University, 61335 Trabzon, Turkey
2
Institute of Evolution, University of Haifa, Mount Carmel, 199 Abba Khoushi Avenue, Haifa 3498838, Israel
*
Author to whom correspondence should be addressed.
Ecologies 2024, 5(2), 312-341; https://doi.org/10.3390/ecologies5020020
Submission received: 2 March 2024 / Revised: 24 May 2024 / Accepted: 27 May 2024 / Published: 3 June 2024
(This article belongs to the Special Issue The Ecology of Rivers, Floodplains and Oxbow Lakes)

Abstract

:
The altitude of the habitat is one of the important regulators of species survival. Kaçkar Mountains National Park is located in the Eastern Black Sea region of Turkey. This is the first study on the benthic diatom flora of the high mountain lakes in Kaçkar Mountains National Park, which is situated between 2782 and 3075 m a.s.l. A total of 84 diatom species were identified from benthic communities of 15 habitats in summer (19 July, 28 August) and autumn (10 September) months of 2020. The genus Pinnularia (thirteen species) formed the basis of the taxonomic list, followed by Eunotia (five species), Navicula (five species), and Frustulia (four species) genera, respectively. The waters in all the studied lakes were fresh, low-saline, with low-alkaline or circumneutral pH and organically uncontaminated, as evidenced by prevailed bioindicator groups. Statistical methods and comparative floristic results confirm the role of the lake altitude for the diatom species distribution. The species richness of the studied lakes was higher in lakes with lower altitudes. The statistical approach also revealed the potential for an increase in the number of species in high mountain lakes if the study of the diatom flora of the Kachkar Mountains National Park is continued and the species composition of the lakes is replenished. Further studies will be needed to continue exploring this pattern. To protect studied high mountain lakes, their ecological conditions must be constantly monitored in the Kaçkar Mountains National Park.

1. Introduction

Siliceous crystal mountain ranges are among the highest-altitude regions in the world. This feature allows them to harbor pristine biodiversity, provide recreation areas, and maintain healthy water resources. Therefore, they hold a prominent position among natural areas that need protection [1].
High mountain lakes are habitats where a limited number of species live, as they generally have low nutrient and ion concentrations [2]. They are also sensitive to climate change, dissolved organic carbon, and nitrogen inputs [3,4]. Increases in air temperature and changes in snow and ice cover on mountains in some regions have changed the functioning, diversity, and productivity of these lakes [5,6,7]. Despite these effects, high mountain lakes are still considered as undisturbed ecosystems [8].
Biodiversity, which bears the evidence of evolutionary processes, plays an important role in the maintenance of ecological functions and the stability of the ecosystem [9]. At the same time, biodiversity is also used to evaluate the environmental status of aquatic ecosystems [10]. Diatoms, which have very important ecological functions, contribute 20–25% to the world’s global primary production, carbon fixation, and oxygen release to the atmosphere, thanks to their photosynthetic activities [11,12]. In addition, the annual amount of carbon fixation by diatoms represents 40% of total primary production in seawater, an amount equivalent to the total amount fixed by all terrestrial tropical forests [13]. Therefore, examining the diatom communities in the sediments of high mountain lakes and using the obtained information in the creation of diatom-based biomonitoring programs will be one of the most effective ways to understand the response of these lakes to climatic change [14].
The need to study the species richness and ecology of benthic diatoms becomes more obvious as data accumulate in the biomonitoring system of high mountain lake ecosystems of the Eastern Black Sea region. Studies have been carried out on the benthic diatom flora of high mountain lakes and the physico-chemical properties of their waters in the region since 1990 [15]. However, until now, no information has been obtained about the diatom flora of the high mountain lakes in the Kaçkar Mountains National Park.
The aim of this work was to describe the diversity of benthic diatoms collected from 14 lakes and a pond in the Kaçkar Mountains National Park, located in the Eastern Black Sea region of Turkey, and their relationship with environmental factors. Additionally, it determines the rarity and frequencies of diatom species based on the number of studied lakes where species were found.

2. Materials and Methods

2.1. Description of Study Site

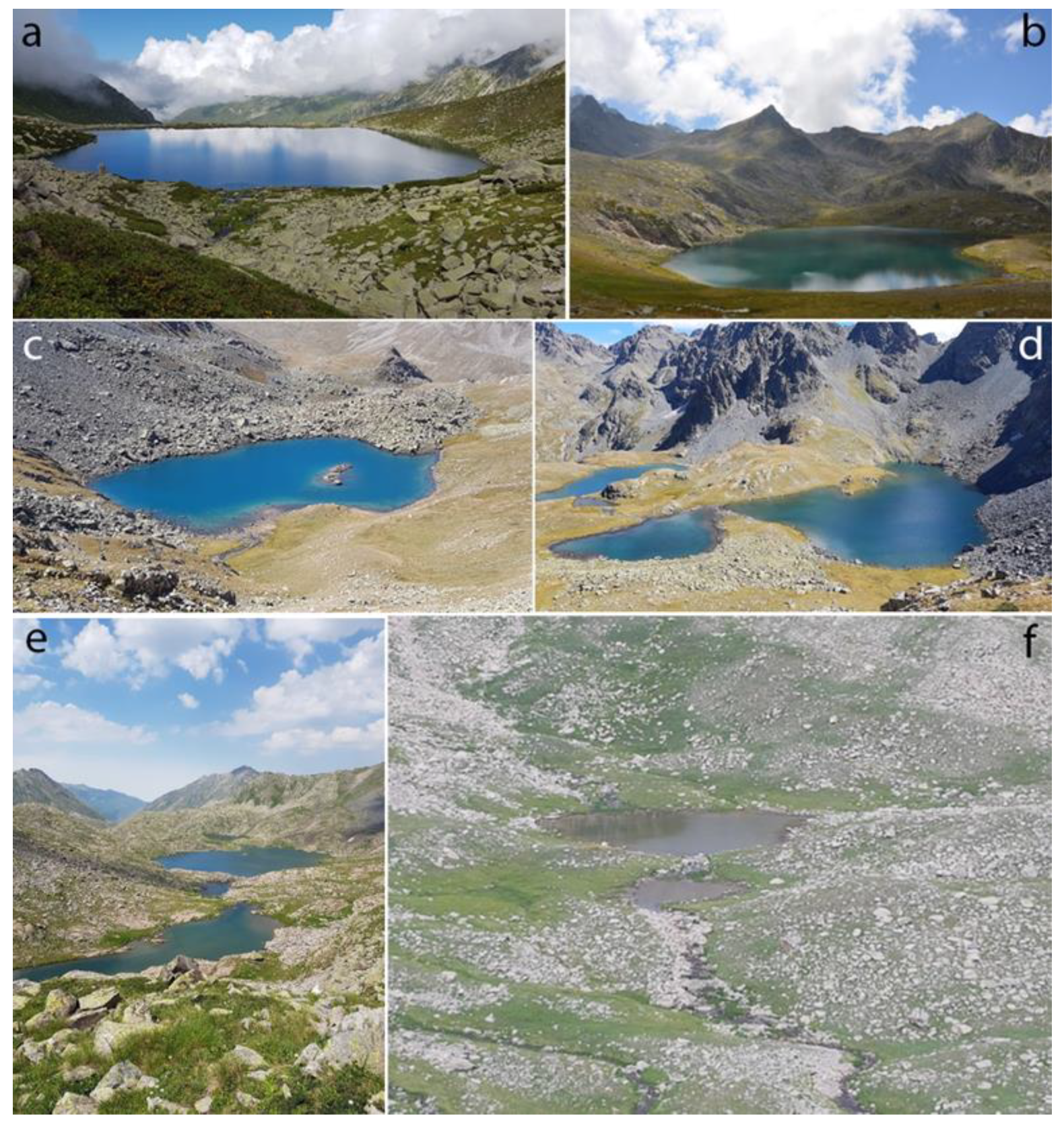

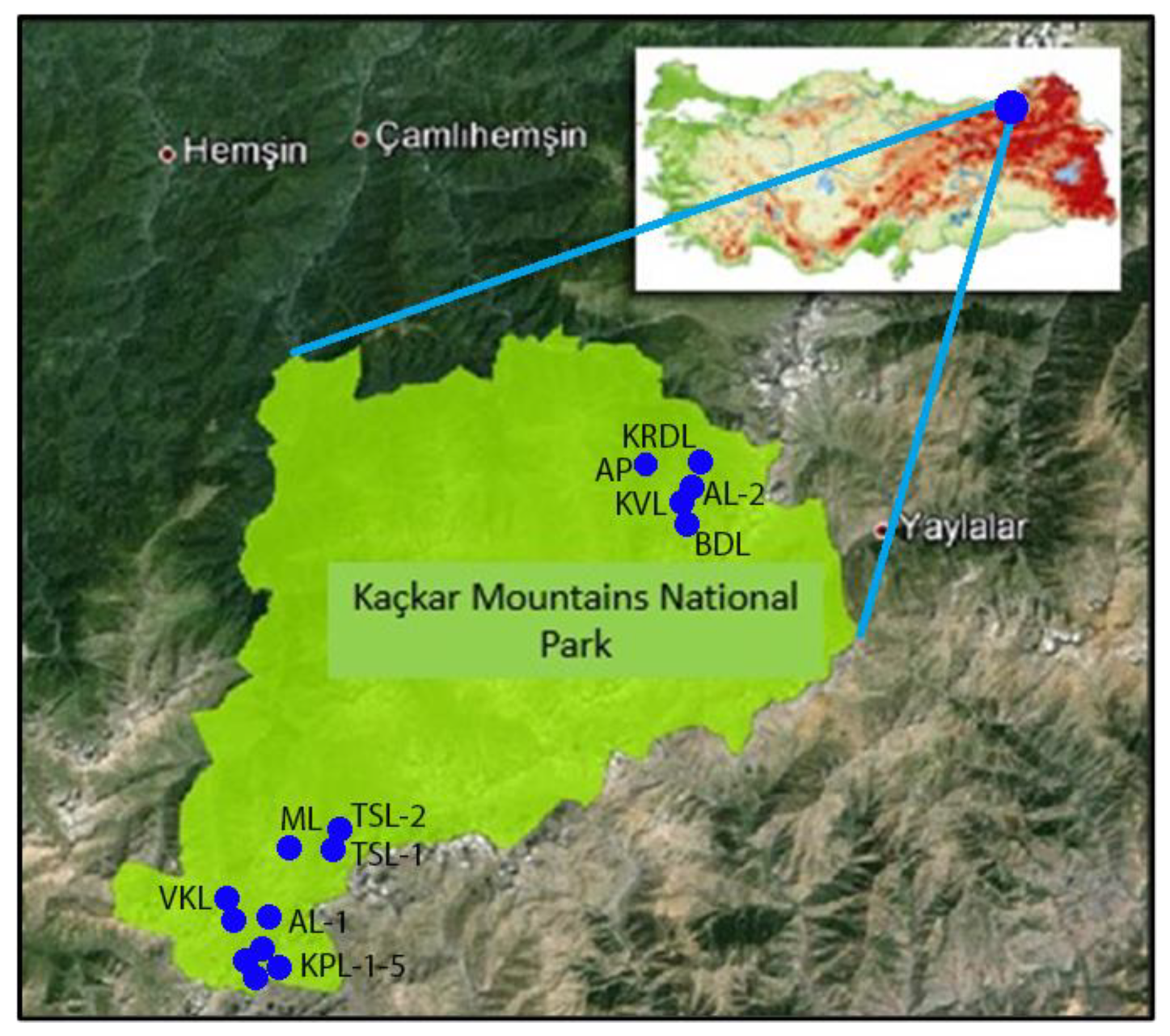

The Kaçkar Mountains National Park was designated as a national park in 1994. It covers a total area of 51,550 hectares and is located administratively between Rize, Artvin, and Erzurum Provinces (40°57′49″–40°42′10″ N–41°14′45″–40°51′27″ E) (Figure 1) [16]. The Park is located in the northeastern part of the Eastern Black Sea Mountain Belt, which runs parallel to the southeastern Black Sea coast. It is approximately 600 km long and 200 km wide. The park mainly consists of granitic and volcanic rocks that range in age from the Late Cretaceous to the Eocene [17]. The area is primarily composed of Granodiorite and Cretaceous flysch, with occasional patches of Neogene deposits. These structures were brought to the surface during the mountain formation process that occurred during the Paleozoic (I Period) and Cretaceous periods (III Period) [16]. The Kaçkar Mountains are one of the few places where current glaciation is observed alongside traces of Pleistocene glaciers. This region boasts numerous glaciers, glacial lakes, glacial valleys, cirques, and moraines [18]. With an altitude of 3932 m, the Kaçkar Mountains are the fourth highest mountain in Turkey and are home to nearly 100 glacial lakes [16].
The area is classified under Turkey’s climate classification system [19] as being under the influence of the Eastern Black Sea climate. This climate is characterized by cool summers, temperate winters, and rainfall throughout the year. In the lower, northern part of the Kaçkar Mountains National Park, such as around the Ayder Plateau, temperatures range from 0 °C to 4 °C during the winter months and rise above 18 °C in the summer. At an altitude of over 3000 m a.s.l. in the southern mountains of the park, temperatures drop to −6 °C in winter and range from 6 to 9 °C in summer. High alpine areas are typically covered in snow from late September to mid-May. The park receives an annual average precipitation of over 2000 mm. The park is composed of four major soil groups: high mountain meadow soils, limeless brown forest soil, red yellow soils, and gray brown soils [16]. The park area has significant biodiversity in terms of flora and fauna. Davis [20] identifies the research area as part of the Colchis (Colchis) region of the Euro-Siberian floristic region. The forest belt contains broad-leaved conifers, Fagus orientalis, Castanea sativa, and Carpinus sp. The alpine zone has a rich vegetation with many endemic and relict species. This location in Turkey is unique, as it is the only place where Rhododendrons grow at an altitude of 3000 m above sea level. The study area is one of three significant routes for bird migration, with the northeast–south migration route being the most important for daytime raptors in the Western Palearctic [21].

2.2. Methods of Sampling and Laboratory Studies

A total of 39 samples of epipelic, epilithic, and epiphytic algae were collected from 14 lakes and a pond on 19 July, 28 August, and 10 September 2020 (Figure 2, Table 1). Due to the inaccessibility of the lakes, 2 or 3 fouling samples were taken from each. Epipelic algae were collected from the sediment surface of all studied waters using a glass pipe 1 m long and 0.8 cm in diameter. Epilithic samples from 2 or 3 stones were collected only from TSL-1, TSL-2, BDL, and KVL lakes. Randomly selected stones were scraped off with a toothbrush and the suspension was placed in plastic bottles.
Epiphytic species were collected by squeezing out from the macrophytes (Potamogeton sp. and Juncus sp.), where several parts of submerged plants were manually squeezed out, and the suspension was placed in a test tube found in KVL and AP [22,23]. All samples were preserved in 100 mL plastic bottles with 4% (v/v) formaldehyde. In the field, we measured in three repetitions the water temperature, dissolved oxygen, conductivity, and pH using Thermo Orion-4-Star pH and YSI-55 portable meters for all sampling points, excluding AP pond, where variables were not tested because the water sample was lost. The DSI General Directorate Laboratories DSI 22nd Regional Directorate Quality Control and Laboratory Branch Office conducted analyses of variables other than temperature, dissolved oxygen, conductivity, and pH: potassium, total hardness, calcium, magnesium, ammonium, chlorine, nitrate, nitrite, and phosphate hydrochemical parameters. Diatom samples were acid-purified using H2SO4 and HNO3 in the lab, followed by washing with distilled water [22]. The cleaned diatom shells were then placed in Naphrax®. The diatoms were examined (up to 400 shells per slide) and photographed using a Leica DM 2500 light microscope and a Leica DFC 290 camera (Leica, Wetzlar, Germany).
To identify the diatom species, we consulted relevant literature, including [24,25,26,27,28,29,30,31,32,33,34,35]. We verified the nomenclature of all identified taxa on the Algaebase website [36].
Frequencies of algal taxa were determined based on the number of lakes in the Kaçkar Mountains Natural Park where species were found, according to the following scale: very rare (VR)—taxa recorded in 1–20% of investigated lakes; rare (R)—in 21–40%; common (C)—in 41–60%; frequent (F)—in 61–80%; very frequent (VF)—in 81–100% [37].
Bioindication methods were used to assess the ecological state of lake ecosystems [38]. For this purpose, the distribution of species with certain ecological preferences was identified across intervals of environmental factors [39]. Then, data on the abundance of species in a particular lake were summarized for each indicator group. The distribution of the number of species with the same indicator properties was plotted by ecological groups for each environmental variable. The class of water quality indicators of organic pollution was grouped by the range of the species-specific index of saprobity S: class 1, S = 0.0–0.5; class 2, S = 0.5–1.5; class 3, S = 1.5–2.5; class 4, S = 2.5–3.5 [39]. In total, groups of indicators for nine environmental and ecosystem variables (substrate preferences, temperature, oxygen, salinity, pH, organic pollution by Watanabe system [40], organic pollution by Sládeček system [41], autotrophy–heterotrophy nutrition type, trophic state) were used for analysis in this study. The arrangement of groups of indicators for each environmental variable on the histogram was in increasing order of the indicated variable.
Bray–Curtis analysis was performed using BioDiversity Pro 9.0 and a similarity tree was constructed [42]. Pearson correlation coefficients were calculated using [43]. Correlation analysis of species data in each lake was performed as a network graph in JASP (Jeffrey’s Amazing Statistics Program 0.16.4) statistics botnet package with R [44]. Three-dimensional (3D) surface plots of the number of species versus individual parameters were constructed in Statistica 12.0 using the distance-weighted least squares method. For comparison, for each 3D graph, one main parameter (species number) and two others are selected, within which the program calculates probable changes in the main parameter. Thus, the resulting graph shows the trends in each of the related parameters. From here, extreme values may appear that are not real, but only reflect trends for a given distribution. The graph can be interpreted as a trend of changes (increases or decreases) in the values of the main parameter (z-axis) when the other two parameters (x- and y-axis) change. Redundancy discriminant analysis (RDA) to calculate the relationship between biological dominant variables and environmental variables was performed using the CANOCO program [45].

3. Results

3.1. Physical and Chemical Properties of Waters

The water temperatures of the studied lakes fluctuated between 7.1 and 22.5 °C. While the pH values of the waters were determined to be between 6.10 and 8.21, the dissolved oxygen values were measured to be between 8.02 and 9.17 mg L−1. Total dissolved solids were 9.92–44.27 mg L−1 and electrical conductivity values were found as 14.1–71.4 μSm cm−1. Total hardness was measured in the range of 17.59–38.84 mg L−1 in the KPL-1,2,3,4,5, BDL, and ML. The amount of nitrate detected in the studied lakes was in the range of 0.207–0.575 mg L−1, excluding lakes KPL-1, VKL, and KVL, where the nitrates were very low. Nitrite was detected as 0.020 mg L−1 in ML and TSL-1, while phosphate was detected as 0.113 mg L−1 only in KPL-5. Potassium, calcium, magnesium, ammonium, and chlorine values of the waters were also determined and are represented in Table 2, with some indeterminate values as a result of fresh soft water.

3.2. Floristic Composition and Diversity of Diatoms

A total of 84 species and intraspecific taxa of Bacillariophyta, belonging to three classes, 15 orders, 25 families, and 42 genera were identified in 14 lakes and the pond (Appendix A Figure A1, Figure A2, Figure A3 and Figure A4). While the two classes (Mediophyceae, Coscinodiscophyceae, four species in each class) represent a very small part of the benthic diatom flora (9.52%), class Bacillarophyceae formed the basis of the species richness of the flora (76 species, 90.47%). The top two orders of the flora composition of benthic diatoms included Naviculales (35 species) and Cymbellales (10 species). Among the dominant families were Pinnulariaceae (thirteen species), Naviculaceae (eight species), Surirellaceae (seven species), Cymbellaceae (five species), and Eunotiaceae (five species). The main part of the benthic diatom flora was formed by genera Pinnularia (thirteen species), Eunotia (five species), Navicula (five species), and Frustulia (four species) (Appendix A Table A1). One diatom species (Eunotia cristagalli) was identified for the first time in the freshwater diatom flora of Turkey. It is marked with an asterisk (*) in Appendix A Table A1 and Table A2.
About 8.33% of the diatom species were found in more than 80% of investigated lakes (VF), whereas 72.61% were found in less than 40% of the investigated lakes (VR, R). The representation ratios of the species in the frequent (F) and common (C) groups are the same (eight species in each group, 9.52%). Thirty diatom species (35.71% of the flora) were identified in only one lake each.
On the other hand, Iconella capronii is the only species identified in all studied lakes and the pond. Likewise, Didymosphenia geminata and Encyonema minutum were observed in 15 habitats. The Caloneis silicula, Navicula cryptocephala, Pinnularia interrupta, and P. major were found in 13 lakes (Appendix A Table A1; Appendix A Figure A1, Figure A2, Figure A3 and Figure A4).
When the benthic diatom flora of the studied lakes were compared, it was observed that the species diversity and relative abundances were different. In particular, the epilithic diatom species richness (81 species) was higher than that of epipelic and epiphytic diatoms. With regard to the geographical distribution of species, a significant part of the flora consisting of cosmopolitan species is of alpine and subalpine origin. The flora also includes northern alpine and alpine diatom species [24,25,26,27,28,29,30,31,32,33,34,35].

3.3. Bioindicators

The distribution of indicator properties of diatom species in studied lakes is represented in Appendix A Table A2 and summarized in Appendix A Table A3. It can be seen that the total number of diatom species in each lake strongly correlated with the abundance scores, R = 0.995, p < 0.0001 (Figure 3). The dashed trend lines show a decrease in both variables with increasing altitude of the lake. The organic pollution evidence is crucial for the protected lakes, and in the Kaçkar Mountains National Park, we can observe that the calculated Index of Saprobity (S) reflects clear waters in the studied lakes, falling within Class 2 or 3 of water quality (Figure 3), with a tendency for a slight decrease with increasing altitude.

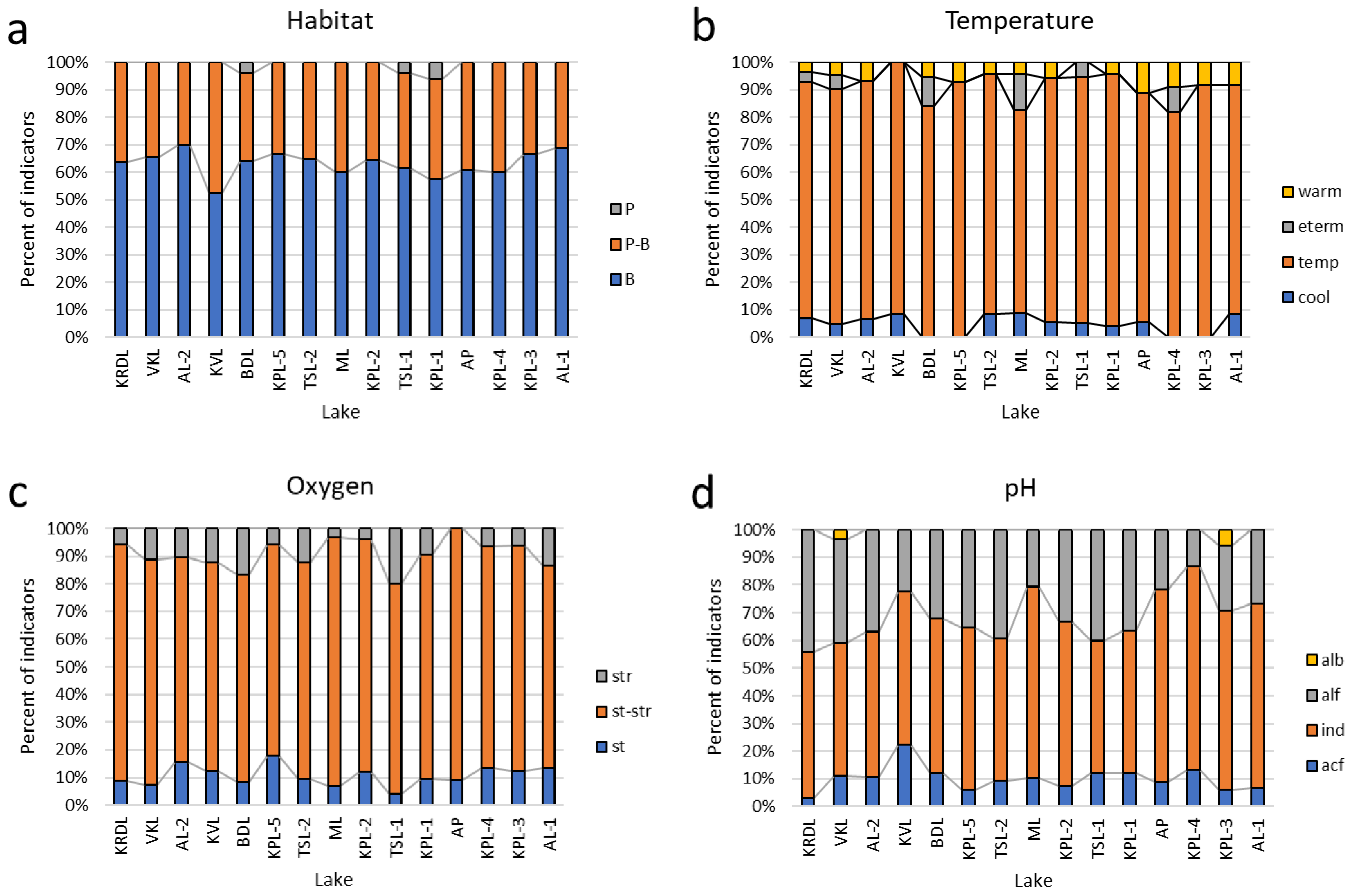

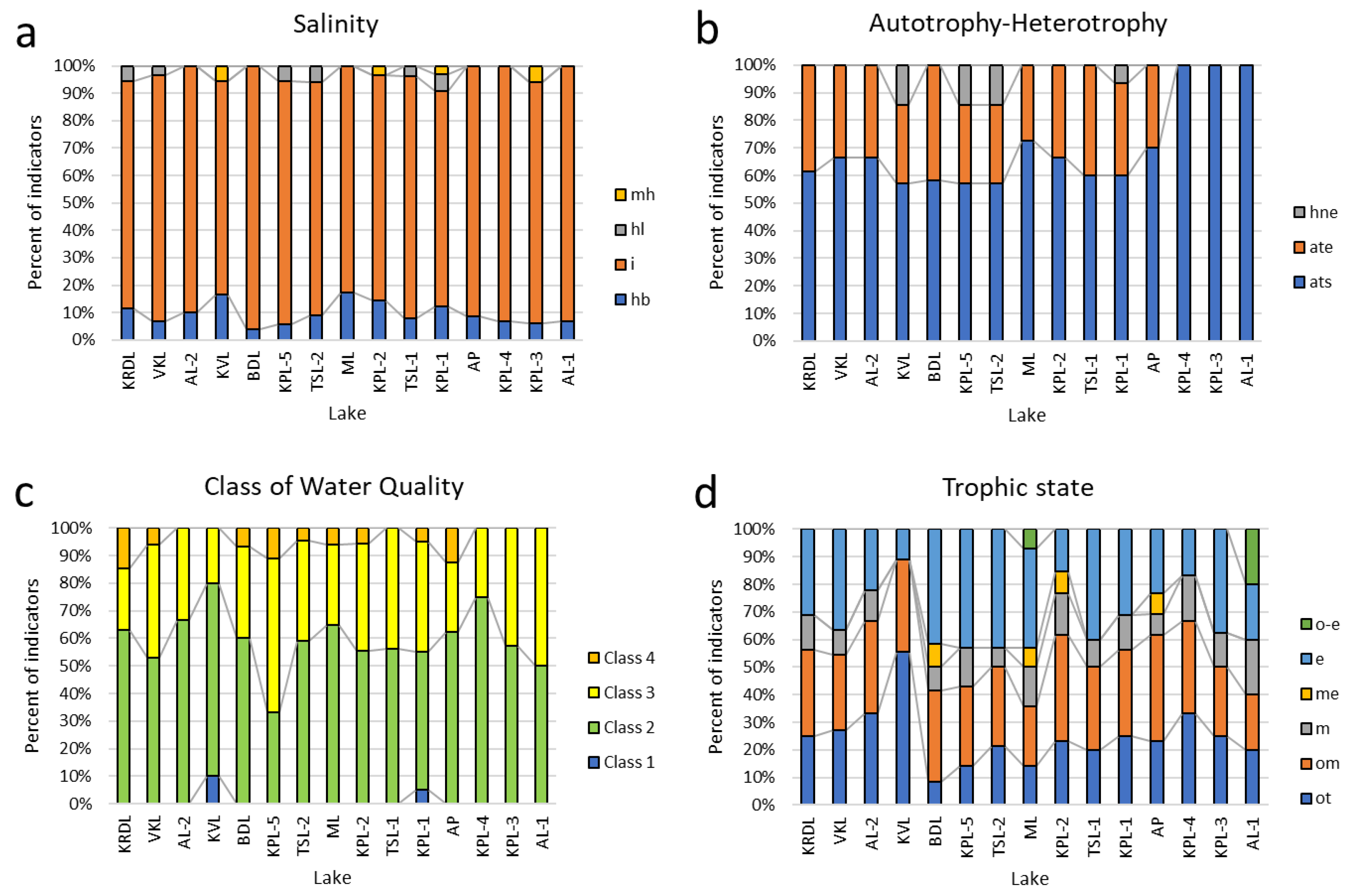

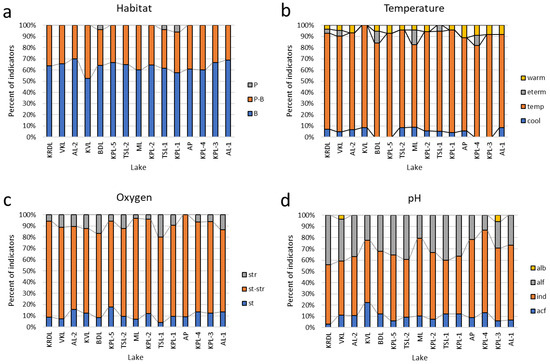

The distribution of each group of indicators is represented in Figure 4 and Figure 5. Benthic species dominated the examined samples. The plankto-benthic species were also observed (Figure 4a). It can be seen that the percentage of benthic inhabitants slightly increased with altitude from 60% in KRDL to 70% in AL1, but it appears to be rather stable in the lake community (Figure 4a). Among the indicators of water temperature belonging to four groups, species characteristic of temperate conditions strongly predominate in the surveyed lakes (Figure 4b). Three ecological groups of diatom species were found in relation to oxygenation, water velocity, and oxygen saturation. In the studied lakes, the species characteristics for standing water prevail (Figure 4c). The results of the pH bioindication show that indifferent species (45.45%) are common in the Kaçkar Mountains Natural Park. It was followed by alkaliphile (35.06%) and acidophile species (15.58%), respectively (Figure 4d). Additionally, alkalibionte species were also seen in VKL and KPL-3 lakes (Appendix A Table A3). As a whole, indicator groups consisting of indifferent alkaliphiles and acidophiles comprised 96.09% of the indicator species in each lake community (Figure 4d).
Salinity is a crucial component of the total ion content in water, influencing the algal community. Bioindication based on water salinity reveals that the “indifferent” group of species dominates in all studied lakes. The other groups were oligohalobes/halophobes, halophiles, and mesohalobes (Figure 5a). Light and temperature are the basic climatic variables affecting photosynthesis, so these global climatic factors also define life and evolution [4]. Photosynthetic diatoms prevail in communities of all studied lakes (Figure 5b) and strongly prevail with increasing altitude.
The bioindication results of organic pollution obtained from the Sladecek’s [41] systems are shown in Figure 5c. Organic pollution indicator groups of Watanabe’s [40] method are not presented on the histogram but can be seen in Appendix A Table A3 and demonstrated the same results as Sládeček’s method. While the indicators of Class 2 in Sládeček’s [41] system contained a significant portion of the diatom community in all the studied waters, Class 3 was second. While Class 1 was represented in the KVL and KPL-1 lakes, Class 4 was also represented in the AP, KRDL, VKL, BDL, KPL-5, TSL-2, ML, KPL-2, and KPL-1. KPL-1 was the only lake where all class indicators were found. The indicators for water pollution in Class 5 were not identified. Figure 5c illustrates a decrease in Class 4 indicators with an increase in altitude, accompanied by a rising percentage of indicators corresponding to Class 3 water quality.
The trophic state of the lake usually correlates to organic matter content [46]. Oligotrophic diatom species constitute 15.47% of all diatom species and dominate the diatom communities of the studied lakes. They are followed by oligo-mesotrophic (13.09%) and eutrophic (11.90%) diatom species, respectively. In total, they comprise 40.46% of all diatom species. Additionally, mesotrophic, meso-eutrophic, and oligo-eutrophic diatoms were recorded, representing a smaller share in the diatom community (5.95%) (Figure 5d).

3.4. Comparative Analysis

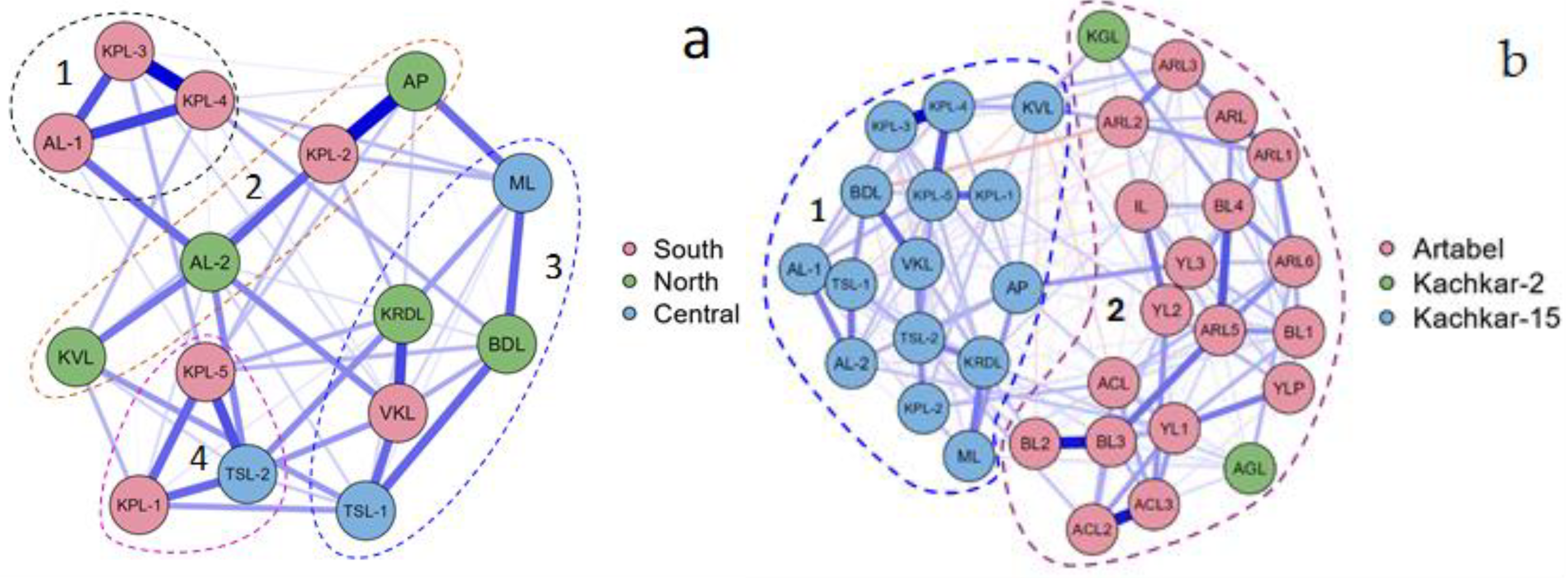

A JASP Network plot of bioindicator correlation of the studied lakes in the Kaçkar Mountains National Park was constructed based on Appendix A Table A3. Four clusters can be seen in Figure 6a. Cluster 1, marked with a black dotted line, unites lakes AL-1 and KPL-3,4, the structure of diversity of which is similar, and the species composition is not high, as seen in Appendix A Table A3. These three lakes are located above all the others and are part of the southern group of lakes, and their floras are dominated by indicators of class 2 clean waters. Cluster 2, outlined by a red dotted line, consists of the floras of four lakes, the indicators of which occupy an intermediate position between the high mountain lakes of cluster 1 and the rest. Cluster 3 includes five lakes, among which are low-lying lakes with higher temperature and conductivity. The three lakes of cluster 4 have high species richness and are located in the group of southern and middle lakes. In general, the analysis did not reveal a strict relationship to groups of lakes and to altitude, but revealed a noticeable role of species richness as a grouping factor. We supplemented the current analysis with a comparison with the floras of the lakes of the Artabel Park [47] located in the mountainous region of Turkey, but somewhat to the west, and also included in the analysis two previously studied lakes of the Kaçkar part [15]. Figure 6b shows that the lake communities are grouped according to territorial characteristics, corresponding to two groups of protected areas, while the floras of two previously studied lakes located on the low spurs of the mountains in the Kaçkar Park are included in the western group of lakes of the Artabel Park, emphasizing the high individuality of those studied in this study of 14 lakes and ponds.

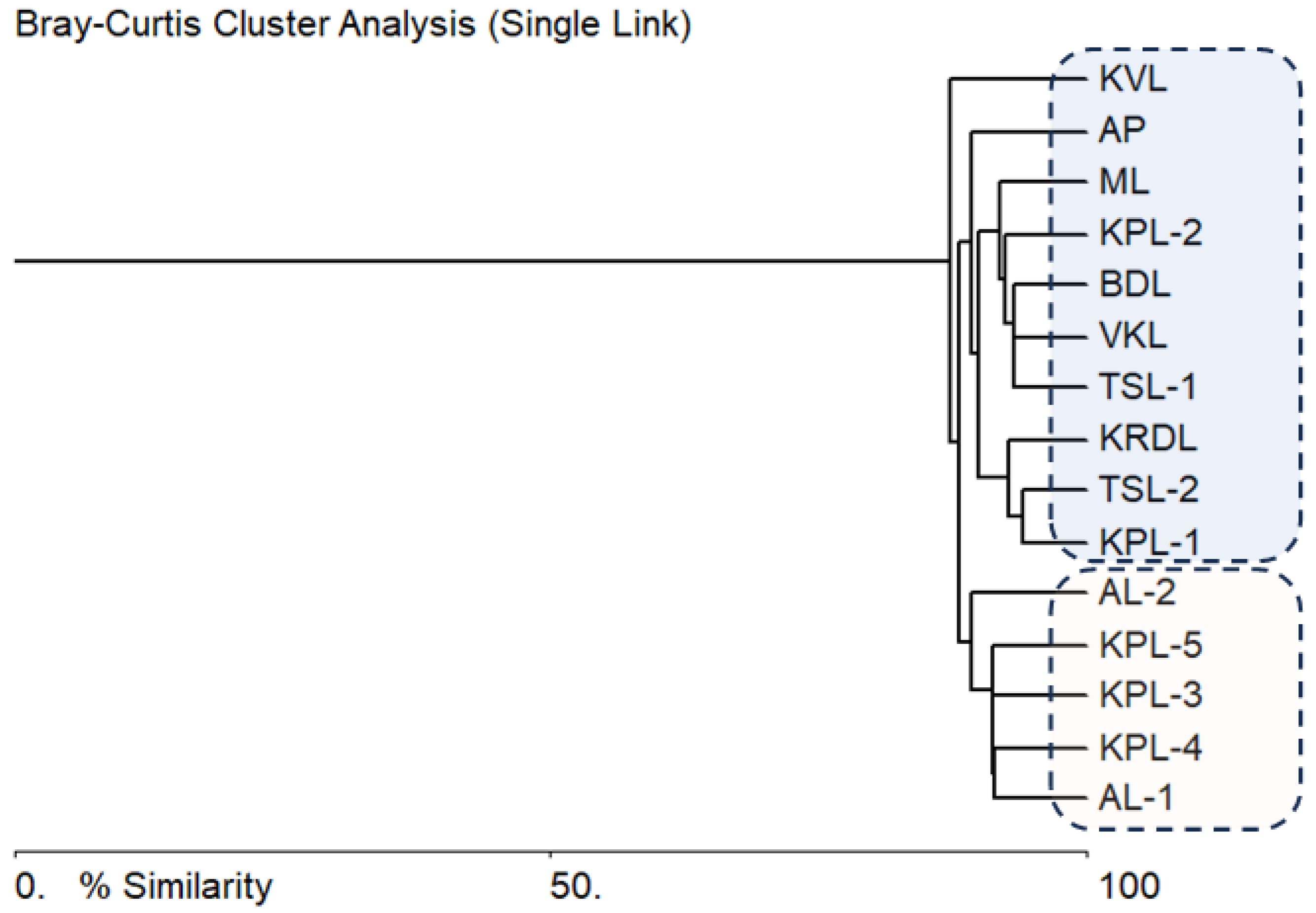

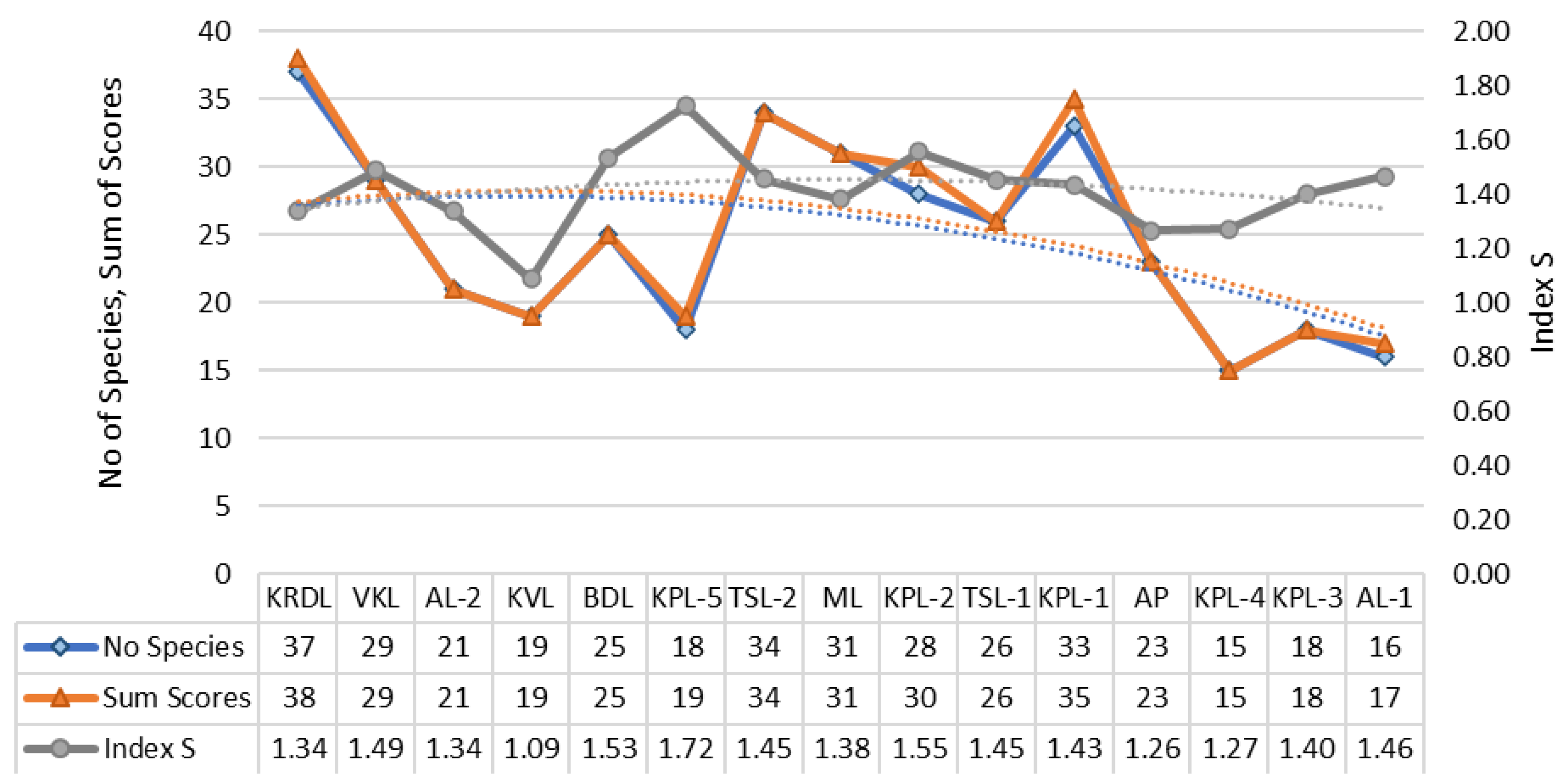

The comparison of the species richness from Appendix A Table A1 by the Bray–Curtis calculation of similarity for diatom species composition shows two groups of lakes (Figure 7), outlined by a dashed line and represented by different colors. It can be observed that the smaller group of lakes includes only KPL lakes 3, 4, 5, and AL 1 and 2. All other diatom communities are outlined by the largest cluster. Both type analyses (JASP and Bray–Curtis) show similar results, because the smallest group also included the lakes with low species richness of diatoms placed at high altitude.

3.5. Species–Environment Relationships

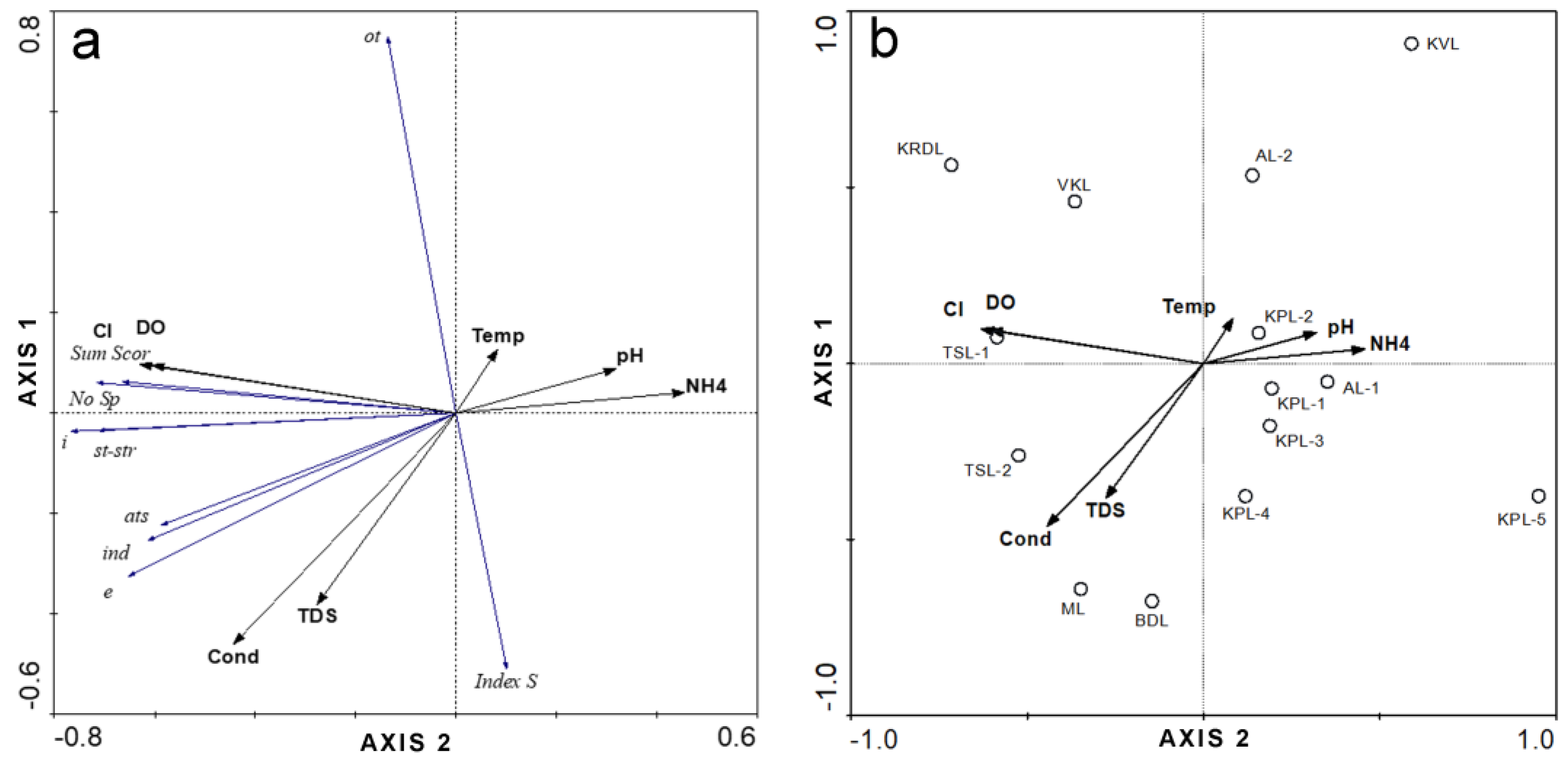

RDA plots of the relationship analysis of dominated ecological groups and environmental variables are represented in Figure 8a,b and in the correlation matrix in Appendix A Table A4. Data from fourteen lakes were used for this analysis, with seven environmental data points as independent variables and nine biological data points as dependent variables. Despite the fact that the test indicators are far from ideal (945 permutation; Eigenvalue = 0.488; p-value = 0.5), since this is a complex natural system of lakes, one can focus on the general trends in the dependence of the activity of indicator groups in the available environmental indicators. Figure 8a shows that the majority of indicators are combined into one set related to the increase in dissolved ions and oxygen concentration. The other set of environmental variables represents a negative influence on most indicator groups and includes ammonia, pH, and temperature variables. It is remarkable that one of the most species-rich indicator groups of oligotrophic waters stays in opposition to the Index Saprobity S value. An increase in the Index Saprobity S value is typically associated with eutrophication. Figure 8b reflects the lakes related to the groups of variables described above. So, ammonia is an important factor for KVL lakes, favoring oligotrophic species domination. The increasing water pH influenced diversity mostly in AL-1, while a decrease in pH is important for diatom species abundance in TSL-2 lake when total salt concentration was increased.

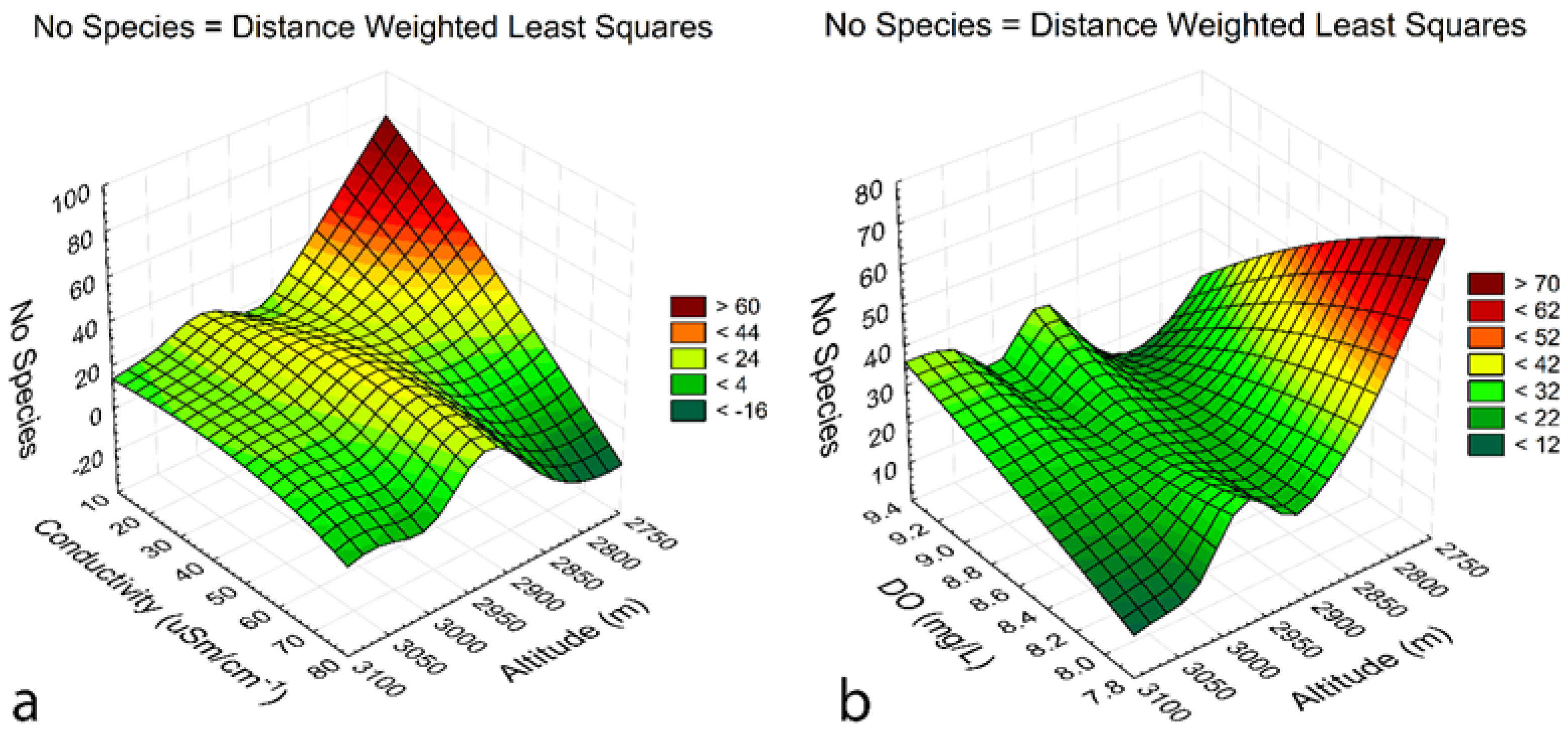

The relationships between species richness in the diatom community of the protected lakes in the Kaçkar Mountains National Park and the major climatic and water property variables were studied with the 3D plots in the Statistica program. Figure 9, Figure 10, Figure 11 and Figure 12 show the surface plots in which the dependent variable was the number of diatom species in the community of 14 lakes and the independent variable for each plot was the lake altitude, but the third variable for each plot was different. Figure 9a shows an increase in the number of diatom species in the community when water conductivity and the lake altitude were low. The different tendency can be seen in relation to dissolved oxygen (Figure 9b) when species richness decreased in high-altitude lakes where DO increased.

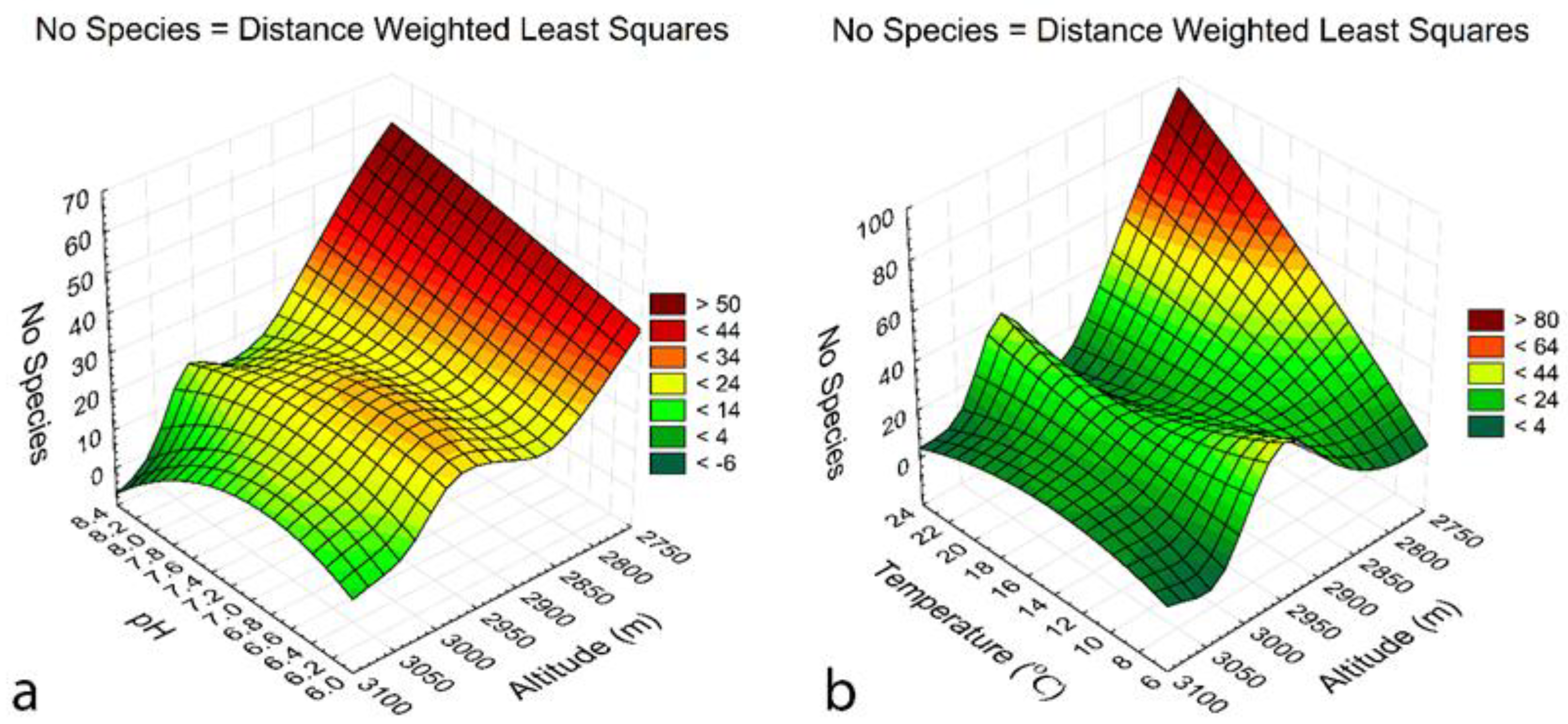

Figure 10a demonstrates the relationships of water pH that fluctuated between 6.0 and 8.4, in which, at the low-altitude lakes, the species number increased. In contrast, the temperature surface has a two-wave shape that reflects the complex relation of species richness with this environmental factor. In any case, species richness increased with the highest temperature in the low-altitude lakes (Figure 10b).

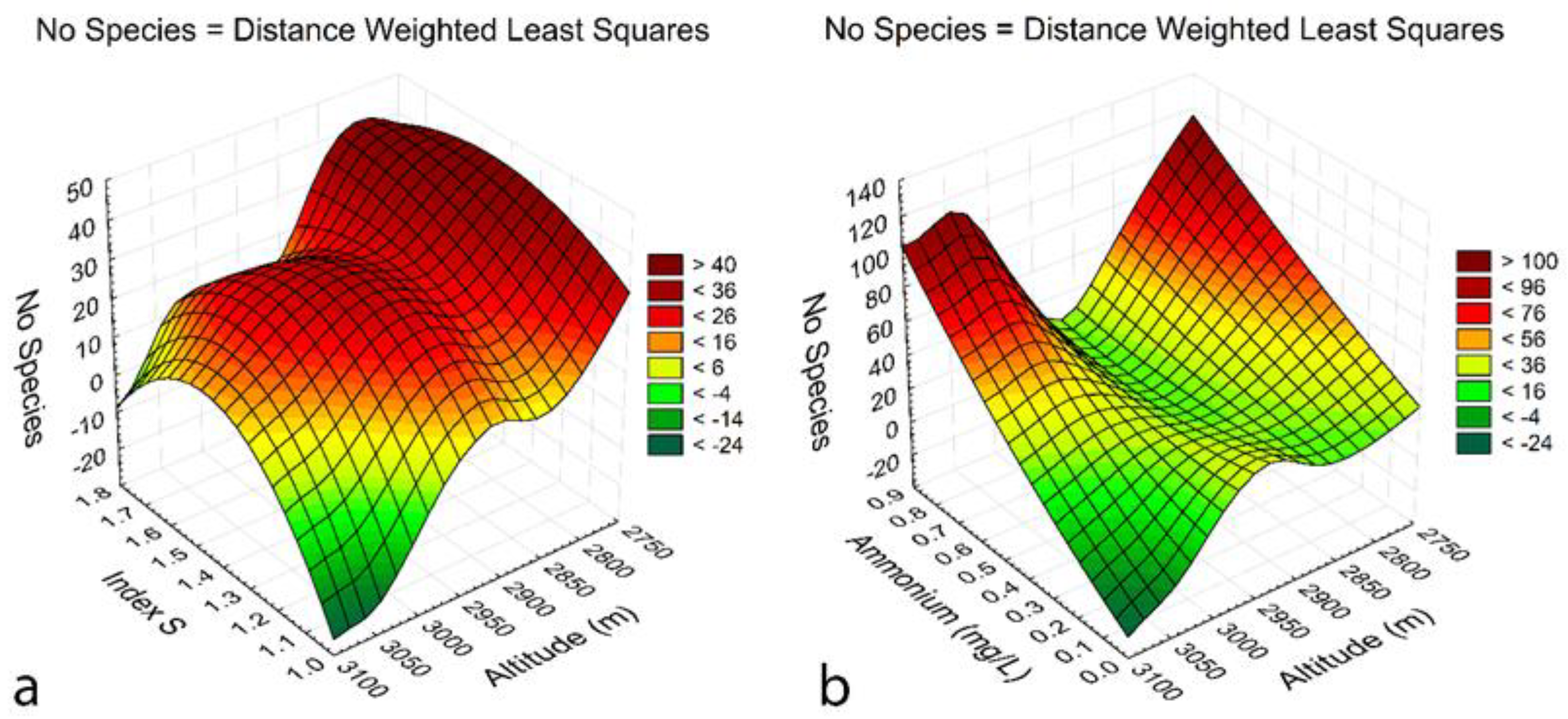

Index saprobity S is evidence of organic pollution, which is an important factor for the protected lakes’ diversity. Figure 11a demonstrates that the relationships between species richness in the diatom community and organic pollution are complex, showing a two-wave pattern. But in general, there is an increase in species richness in the group of “low”-altitude lakes with an increase in organic pollution. The ammonium impact is reflected in the surface of Figure 11b when increasing, which stimulates the species richness in both high-altitude and low-altitude lakes.

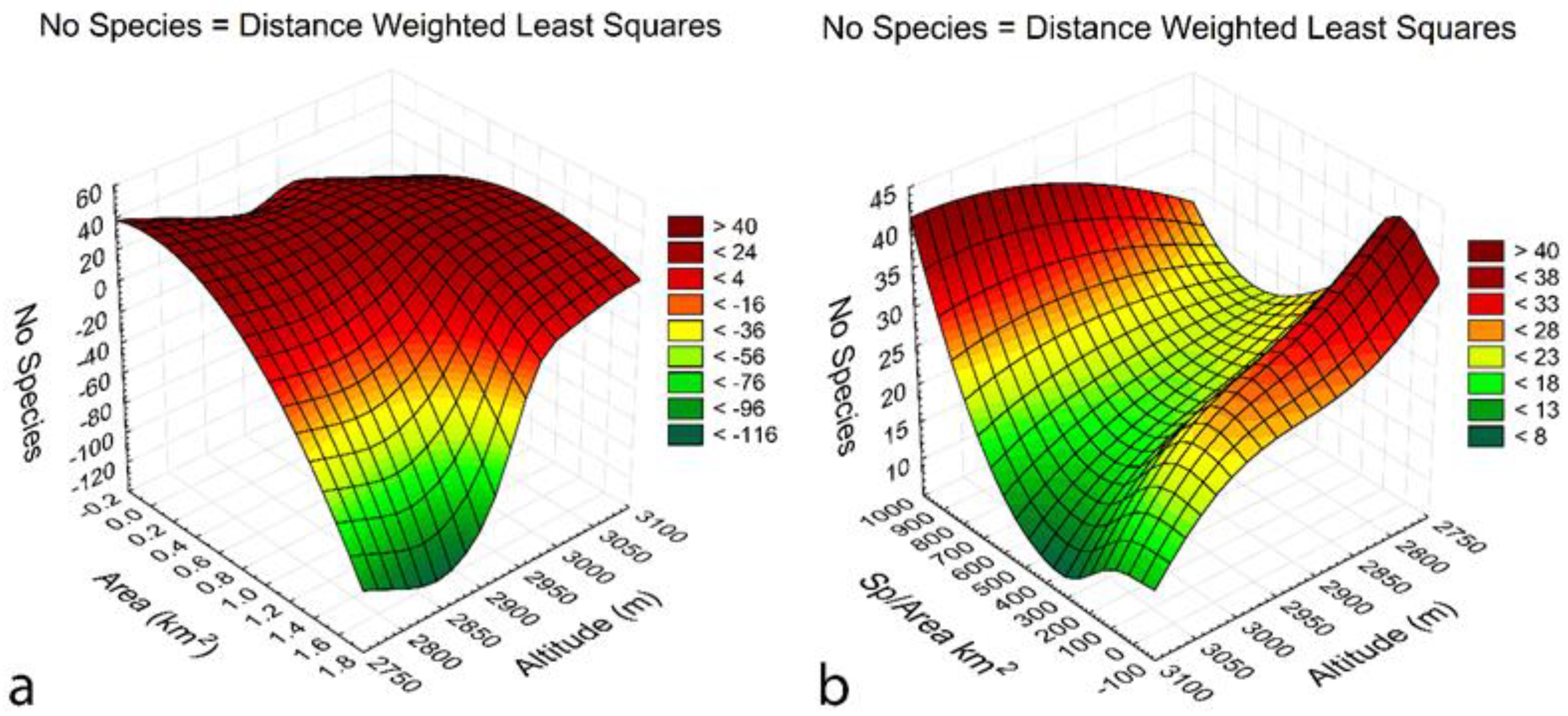

There was a special part of the 3D analysis in which we tried to reveal the relationships of species richness with the calculated index of species number per lake area, and the lake area as an environmental factor for the Kaçkar Mountains National Park lakes. So, Figure 12a shows that the number of diatom species is decreasing in the lakes at low altitude and that have a large surface area. This may be the result of insufficient research, but in any case, it pointed to potential future research in the diatom studies in the protected areas. At the same time, Figure 12b shows an increase in the number of species per lake surface area in ‘lowland’ lakes if the Sp/Area index has low values. However, the left side of Figure 12b shows an increasing trend for both the number of species per lake area and species richness in high-altitude lakes if efforts are made to deplete diatom diversity in the Kaçkar Mountains National Park in future studies.

4. Discussion

We investigated the diatom communities of 14 high mountain lakes and a pond in Kaçkar Mountains National Park and their relationship with environmental factors. The chemistry of the studied lakes characterizes their waters as fresh and soft, slightly saturated with salts, which unites them with the group of high mountain lake Artabel [47], but significantly distinguishes them from the sulfate alkaline lake Great Lota [48].
We identified 84 taxa of epipelic, epilithic, and epiphytic diatoms. The families (Pinnulariaceae, Naviculaceae, Surirellaceae, Cymbellaceae and Eunotiaceae) and genera (Pinnularia, Eunotia, Navicula, and Frustulia) that stand out in the flora are also characteristic members of other high mountain lakes that have been identified in the region. The flora, which generally consists of common species, is also similar to the diatom communities of the alpine and subalpine lakes in the region [15]. We suppose that the macro-climatic conditions, the similarity of the land structure, and the lake characteristics are the factors in the formation of this situation.
The common species were Caloneis silicula, Encyonema minutum, Iconella capronii, Navicula cryptocephala, and Pinnularia interrupta (Appendix A Table A1). These species occur in most of the lakes studied and thus may be indicators of the ecological health of the park as a whole (Appendix A Table A2). The most abundant and common species were benthic autotrophes, indicative for temperate well-oxygenated waters with circumneutral and low-alkaline pH and with low organic content of Class 2 of water quality.
The noticeable presence of species of the genus Pinnularia in the studied flora of the lakes of the park attracted attention, since these species are inherent in the floras of high-mountain and high-latitude reservoirs with fresh, slightly acidic waters and low electrical conductivity [46,49,50], which is confirmed by our chemical analyses (Table 2), that is, they allow us to classify the studied lakes as high mountain habitats not subject to anthropogenic influence. Thus, the ecological conditions of the waters form a suitable environment for the development of representatives of Pinnularia species. In addition, species of the genus Pinnularia are also known to inhabit extreme habitats, including highlands and arctic [49], indicators of diversity hotspots in the Ecotones, which are a border area of different landscapes [51]. Pinnularia interrupta and P. maior, which were found in 14 of the investigated lakes and pond, were recorded very frequently (VF) (86.66%) and were among the important species in the diatom flora of the park (Appendix A Table A1). Pinnularia interrupta occurs in low-mineral-content, circumneutral, oligosaprobic, and oligo-mesotrophic waters, while P. maior prefers low-mineral-content, circumneutral, β-mesosaprobic, and meso-eutrophic waters [34,38,46]. In addition, Pinnularia borealis and P. viridis species were also recorded as common (C).
Caloneis silicula is usually found in alkaliphilic, oligosaprobic, and meso-eutrophic waters, and in littoral areas of freshwater habitats with moderate electrolyte content [31,38,46], whereas Patrick and Reimer [34] state that the species has a wide ecological tolerance. Didymosphenia geminata prefers cool, low-conductivity, and circumneutral-pH waters [35,38,46]. Encyonema minutum, which has a wide geographical distribution, prefers oligo-mesotrophic freshwater habitats with medium electrolyte content, and circumneutral-pH waters [31,34,46]. According to Krammer and Lange-Bertalot [28], Iconella capronii is a cosmopolitan benthic form common throughout Europe and generally prefers meso-eutrophic waters with moderate to high electrolyte levels. In addition, Van Dam et al. [46] states that the species has alkaliphilic and oligosaprobic ecological properties. Navicula cryptocephala, which has a wide ecological tolerance, is found in oligo-eutrophic and eutrophic–polytrophic freshwater habitats with poor electrolyte content, and circumneutral-pH and alkaline waters. At the same time, this species also tolerates saprobic levels exceeding beta-alpha-mesosaprobic [31,34,38,46]. The detected physico-chemical properties in the studied lakes support the above-mentioned references.
A comparison of the influence of individual environmental parameters on the diatom communities of 14 lakes showed that the flora consists of diatom taxa that are influenced by the ionic composition of water and habitat altitude, which was demonstrated by RDA and 3D plot anslysis. Both statistical methods (JASP and Bray–Curtis) helped to reveal the high role of the lake altitude in the formation of diatom communities. At the same time, comparison with the other lake systems in the protected areas in the north of Turkey show high individuality of diatom community content of each natural reserve.
Eutrophication and acidification are among the important problems of high mountain lakes [52,53]. The bioindication and chemical data obtained from the research showed us that these problems do not exist in the lakes studied. In addition, the low species richness of the identified diatoms and the absence of a pronounced domination in the communities are among the notable features of the detected flora, and these features are inherent for the intact ecosystems of high mountain lakes [54,55,56].
In Appendix A Table A4, a strong correlation was observed between DO, conductivity, and Cl ions. This may be why we found a correlation between DO and species richness, but it may also be why the correlation does not actually occur. Table 2 shows that DO values do not change much and fluctuate in the range of 7.98–9.17, especially in lakes such as TSL-1, AL-2, and BDL, located at altitudes above 2900 m. However, the results of bioindication confirm an increase in the number of indicators requiring increased oxygen content in water. At the same time, we do not forget that chemical analyses of oxygen content were carried out in the laboratory; therefore, they are subject to changes during transportation from the inaccessible research area, where sampling was carried out simultaneously. But the presence of certain indicator species is not instantaneous but is the result of the development of a biological system in given living conditions, and therefore integrates the chemical parameters inherent in lake waters over a long period. Thus, bioindicators confirm the connection between the saturation of lake water with oxygen and the altitude of the lake and the species composition of its communities, even though these changes are not statistically significant. Thus, bioindicator analysis allows us to conclude that the lakes of the park were clean, mesotrophic, and of class 2 water quality. The aquatic inhabitants of the lakes developed in well-oxygenated waters of moderate temperature, and the number of benthic species increased slightly with altitude.
With increasing lake altitude, an increase in the proportion of autotrophic species in communities was observed. At the same time, the number of indicators of slightly alkaline waters decreased slightly with altitude. The low degree of the studied lakes’ diatom endemism and rarity [15,23,49] was revealed for this first study, which proved to be an insufficient study in the park, on the one hand, and stimulates future research on the other.

5. Conclusions

The species composition, dominant species, and prominent families and genera determined in this study are characteristic of the benthic diatom composition of high mountain lakes. Very frequent (VF) species comprised only 8.33% of the species composition, while very rare (VR) species comprised 57.14%. The composition of very frequent (VF) species is not rich (seven species).
The data we obtained from the research show that the physico-chemical properties of the waters, environmental conditions, and the lake altitude are effective in shaping the benthic diatom flora and in the distribution of diatoms. Future research in the Kaçkar Mountains National Park should include a greater number of high mountain lakes, so that deeper information about the distribution of diatoms within the park should be obtained. Continued research is all the more important, as our analysis reveals a trend for diatom diversity to increase in high mountain lakes if research is expanded. This study is the first on the benthic diatom flora of the high mountain lakes in Kaçkar Mountains National Park and therefore constitutes a starting point for the creation of diatom-based biomonitoring programs for further investigation on diatom–environment relationships and implementation of sustainable management plans.
High mountain lakes (especially oligotrophic lakes), which are a very fragile ecosystem type, are under the influence of local (road construction) and global (climatic warming) threats. They will be among the ecosystems that will be strongly affected by species loss, especially when it comes to climatic warming [5]. In order to protect these high mountain lakes, their ecological conditions must be constantly monitored in the Kaçkar Mountains National Park.

Author Contributions

Conceptualization, B.Ş. and S.B.; methodology, B.Ş. and S.B.; software, S.B.; validation, B.Ş. and S.B.; formal analysis, B.Ş. and S.B.; investigation, B.Ş.; resources, B.Ş.; data curation, B.Ş.; writing—original draft preparation, B.Ş. and S.B.; writing—review and editing, B.Ş. and S.B.; visualization, B.Ş. and S.B.; supervision, B.Ş.; project administration, B.Ş.; funding acquisition, B.Ş. All authors have read and agreed to the published version of the manuscript.

Funding

This research received financially supported by Trabzon University Scientific Research Projects Coordination Unit (Project No: 20TAP00102).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the authors.

Acknowledgments

This work was supported by Trabzon University Scientific Research Projects Coordination Unit (Project No: 20TAP00102) and partly by the Israeli Ministry of Aliya and Integration.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Appendix A

Figure A1. (a) Achnanthidium minutissimum, (b) Amphora ovalis, (c) Aulacoseira ambigua, (d) A. valida, (e) Caloneis silicula, (f) Campylodiscus bicostatus, (g) Chamaepinnularia hassiaca, (h) Cocconeis lineata, (i) Craticula cuspidata, (j) Cyclotella bodanica var. lemanica, (k) C. distinguenda, (l) C. meneghiniana, (m) Cymbella aspera, (n) C. cistula, (o) C. cymbiformis, (p) Cymbopleura naviculiformis, (q) Diatoma vulgaris, (r) Didymosphenia geminata, (s) Diploneis elliptica, (t) D. oblongella, (u) D. petersenii, (v) Discostella stelligera, (w) Encyonema minutum, (x) E. silesiacum, (y) Epithemia adnata. Scale bar: 10 μm.
Figure A1. (a) Achnanthidium minutissimum, (b) Amphora ovalis, (c) Aulacoseira ambigua, (d) A. valida, (e) Caloneis silicula, (f) Campylodiscus bicostatus, (g) Chamaepinnularia hassiaca, (h) Cocconeis lineata, (i) Craticula cuspidata, (j) Cyclotella bodanica var. lemanica, (k) C. distinguenda, (l) C. meneghiniana, (m) Cymbella aspera, (n) C. cistula, (o) C. cymbiformis, (p) Cymbopleura naviculiformis, (q) Diatoma vulgaris, (r) Didymosphenia geminata, (s) Diploneis elliptica, (t) D. oblongella, (u) D. petersenii, (v) Discostella stelligera, (w) Encyonema minutum, (x) E. silesiacum, (y) Epithemia adnata. Scale bar: 10 μm.
Ecologies 05 00020 g0a1
Figure A2. (a) Eunotia arcus, (b) E. mucophila, (c) E. paludosa, (d) E. praerupta, (e) E. cristagalli, (f) Fragilaria gracilis, (g) F. rumpens, (h) Frustulia crassinervia, (i) F. saxonica, (j) Gomphonella olivacea, (k) Gomphonema parvulum, (l) G. truncatum, (m) Gyrosigma acuminatum, (n) Hannaea arcus, (o) Hantzschia amphioxys, (p) Iconella capronii, (q) I. spiralis, (r) I. tenera, (s) Meridion circulare, (t) Navicula cryptocephala, (u) N. cryptotenella, (v) N. phyllepta, (w) N. radiosa, (x) N. rhynchocephala. Scale bar: 10 μm.
Figure A2. (a) Eunotia arcus, (b) E. mucophila, (c) E. paludosa, (d) E. praerupta, (e) E. cristagalli, (f) Fragilaria gracilis, (g) F. rumpens, (h) Frustulia crassinervia, (i) F. saxonica, (j) Gomphonella olivacea, (k) Gomphonema parvulum, (l) G. truncatum, (m) Gyrosigma acuminatum, (n) Hannaea arcus, (o) Hantzschia amphioxys, (p) Iconella capronii, (q) I. spiralis, (r) I. tenera, (s) Meridion circulare, (t) Navicula cryptocephala, (u) N. cryptotenella, (v) N. phyllepta, (w) N. radiosa, (x) N. rhynchocephala. Scale bar: 10 μm.
Ecologies 05 00020 g0a2
Figure A3. (a) Neidium ampliatum, (b) N. iridis, (c) Odontidium mesodon, (d) Orthoseira dendroteres, (e) O. roeseana, (f) Pinnularia aestuarii, (g) P. balatoni (h) P. borealis, (i) P. brebissonii, (j) P. interrupta, (k) P. lata, (l) P. major, (m) P. mesogongyla, (n) P. microstauron, (o) P. microstauron var. nonfasciata, (p) P. rupestris, (q) P. viridis, (r) Planothidium distinctum, (s) Psammothidium helveticum, (t) Rhopalodia gibba, (u) Stauroneis anceps. Scale bar: 10 μm.
Figure A3. (a) Neidium ampliatum, (b) N. iridis, (c) Odontidium mesodon, (d) Orthoseira dendroteres, (e) O. roeseana, (f) Pinnularia aestuarii, (g) P. balatoni (h) P. borealis, (i) P. brebissonii, (j) P. interrupta, (k) P. lata, (l) P. major, (m) P. mesogongyla, (n) P. microstauron, (o) P. microstauron var. nonfasciata, (p) P. rupestris, (q) P. viridis, (r) Planothidium distinctum, (s) Psammothidium helveticum, (t) Rhopalodia gibba, (u) Stauroneis anceps. Scale bar: 10 μm.
Ecologies 05 00020 g0a3
Figure A4. (a) Stauroneis phoenicenteron, (b) S. smithii, (c) Staurosira construens, (d) Staurosirella pinnata, (e) Surirella angusta, (f) S. minuta, (g) S. roba, (h) Ulnaria ulna. Scale bar: 10 μm.
Figure A4. (a) Stauroneis phoenicenteron, (b) S. smithii, (c) Staurosira construens, (d) Staurosirella pinnata, (e) Surirella angusta, (f) S. minuta, (g) S. roba, (h) Ulnaria ulna. Scale bar: 10 μm.
Ecologies 05 00020 g0a4
Table A1. The list of benthic diatom species of 14 lakes and the pond in the Kaçkar Mountains National Park with frequencies of algal taxa, in summer and autumn of 2020.
Table A1. The list of benthic diatom species of 14 lakes and the pond in the Kaçkar Mountains National Park with frequencies of algal taxa, in summer and autumn of 2020.
TaxaFKPL-1KPL-2KPL-3KPL-4KPL-5VKLKRDLKVLBDLAL-1AL-2MLTSL-1TSL-2AP
Achnanthes sp.VR000000000010000
Achnanthidium minutissimum (Kützing) Czarnecki R000000101001100
Amphora ovalis (Kützing) Kützing C100011101011011
Aulacoseira ambigua (Grunow) Simonsen VR100000000000000
Aulacoseira valida (Grunow) Krammer VR010000010000010
Caloneis silicula (Ehrenberg) CleveVF111111101111011
Campylodiscus bicostatus W. Smith ex Roper VR001000000000000
Chamaepinnularia hassiaca (Krasske) Cantonati and Lange-Bertalot VR000000000011000
Cocconeis lineata Ehrenberg VR000000100000000
Craticula cuspidata (Kutzing) D.G. Mann VR000001000000000
Cyclotella bodanica var. lemanica (O. Müller ex Schroter) Bachmann VR000000001000000
Cyclotella distinguenda Hustedt VR100000000000100
Cyclotella meneghiniana Kützing VR100010000000010
Cymbella aspera (Ehrenberg) Cleve VR000000000000011
Cymbella cistula (Ehrenberg) O. Kirchner C111001101001110
Cymbella cymbiformis C. Agardh VR100000000000000
Cymbopleura naviculiformis (Auerswald ex Heiberg) Krammer F111111101001111
Diatoma vulgaris Bory C010011100101110
Didymosphenia geminata (Lyngbye) Mart.Schmidt VF111111101111111
Diploneis elliptica (Kützing) Cleve F001111101110110
Diploneis oblongella (Nägeli ex Kützing) A. Cleve VR000000000000100
Diploneis petersenii Hustedt VR000000000001000
Discostella stelligera (Cleve and Grunow) Houk and Klee R110000001100000
Encyonema minutum (Hilse) D.G. Mann VF111111101111111
Encyonema silesiacum (Bleisch) D.G. Mann R100000010011100
Epithemia adnata (Kützing) Brébisson VR000001000000000
Eunotia arcus Ehrenberg VR000000010000000
*Eunotia cristagalli CleveVR000000000000010
Eunotia mucophila (Lange-Bertalot, Nörpel-Schempp and Alles) Lange-Bertalot C111110010000011
Eunotia paludosa Grunow VR000000000000100
Eunotia praerupta Ehrenberg F100001110111111
Fragilaria gracilis Østrup VR000000010000010
Fragilaria rumpens (Kützing) G.W.F. Carlson VR000000000001000
Frustulia crassinervia (Brébisson ex W. Smith) Lange-Bertalot and Krammer R100001011000000
Frustulia saxonica Rabenhorst VR010000000000000
Frustulia vulgaris (Thwaites) De Toni VR000000000000001
Frustulia sp.VR000000000001000
Gomphonella olivacea (Hornemann) Rabenhorst F110011101010111
Gomphonema parvulum (Kützing) Kützing R100000100100111
Gomphonema truncatum Ehrenberg R110001001000110
Gyrosigma acuminatum (Kützing) Rabenhorst F101111111100010
Hannaea arcus (Ehrenberg) R.M. Patrick C010001101110110
Hantzschia amphioxys (Ehrenberg) Grunow R010000001001001
Iconella capronii (Brébisson and Kitton) Ruck and Nakov VF111111111111111
Iconella spiralis (Kützing) E.C. Ruck and T. Nakov VR000000000000010
Iconella tenera (W. Gregory) Ruck and Nakov VR000000000010000
Meridion circulare (Greville) C. Agardh VR000000100001000
Navicula cryptocephala Kützing VF111111111110110
Navicula cryptotenella Lange-Bertalot VR000001000001000
Navicula phyllepta Kützing VR000001000000000
Navicula radiosa Kützing F001001101111111
Navicula rhynchocephala Kützing VR000000100000010
Neidium ampliatum (Ehrenberg) Krammer R100010110000010
Neidium bisulcatum (Lagerstedt) Cleve VR100000000000000
Neidium iridis (Ehrenberg) Cleve VR000000100001000
Odontidium mesodon (Kützing) Kützing R010000100001010
Orthoseira dendroteres (Ehrenberg) Genkal and Kulikovskiy C010011100010110
Orthoseira roeseana (Rabenhorst) PfitzerVR000000000000001
Pinnularia aestuarii Cleve VR110000010000000
Pinnularia appendiculata (C. Agardh) Schaarschmidt VR000000000010000
Pinnularia balatonis (Pantocsek) F.W. Mills VR000000100000000
Pinnularia borealis Ehrenberg C010101110000011
Pinnularia brebissonii (Kützing) Rabenhorst VR000000010001001
Pinnularia interrupta W. Smith VF111111110111011
Pinnularia lata (Brébisson) W. Smith VR100000000000000
Pinnularia major (Kützing) Rabenhorst VF111110101111111
Pinnularia mesogongyla Ehrenberg VR010000000000000
Pinnularia microstauron (Ehrenberg) CleveVR110000000000000
Pinnularia microstauron var. nonfasciata Krammer VR001000110000000
Pinnularia rupestris Hantzsch VR000000000000100
Pinnularia viridis (Nitzsch) Ehrenberg C101111110001001
Planothidium distinctum (Messikommer) Lange-Bertalot VR000000000101000
Psammothidium helveticum (Hustedt) Bukhtiyarova and Round R110000100001000
Rhopalodia gibba (Ehrenberg) O. Müller R000000011010101
Stauroneis anceps Ehrenberg F011101111001011
Stauroneis phoenicenteron (Nitzsch) Ehrenberg VR100000000000000
Stauroneis smithii Grunow VR010000100001000
Staurosira construens Ehrenberg VR000000100000100
Staurosirella pinnata (Ehrenberg) D.M. Williams VR000000100000000
Surirella angusta Kützing F111001100011111
Surirella minuta Brébisson ex KützingVR000000100000000
Surirella roba LeclercqVR000000001000000
Tabellaria flocculosa (Roth) Kützing R000101001001000
Ulnaria ulna (Nitzsch) Compère R100001001000110
Note: “1”, present, “0“, not found. Frequencies of algal taxa were determined according to the following scale based on the number of lakes studied in the Kaçkar Mountains Natural Park. Very rare (VR): taxa recorded in 1–20% of investigated lakes; rare (R): taxa recorded in 21–40% of investigated lakes; common (C): taxa recorded in 41–60% of investigated lakes; frequent (F): taxa recorded in 61–80% of investigated lakes; very frequent (VF): taxa recorded in 81–100% of investigated lakes [37].
Table A2. Indicator properties of diatom species in the lakes of the Kaçkar Mountains National Park, in summer and autumun of 2020.
Table A2. Indicator properties of diatom species in the lakes of the Kaçkar Mountains National Park, in summer and autumun of 2020.
TaxaHabTOxySalpHDSAut-HetTro
Achnanthes sp.---------
Achnanthidium minutissimum (Kützing) Czarnecki P-Betermst-striindes0.95atee
Amphora ovalis (Kützing) Kützing Btempst-strialfsx1.50atee
Aulacoseira ambigua (Grunow) Simonsen Ptempst-strialfsp1.70ateom
Aulacoseira valida (Grunow) Krammer P-B--ialfes1.30ateom
Caloneis silicula (Ehrenberg) CleveBwarmstiindsp1.30atsom
Campylodiscus bicostatus W. Smith ex Roper B--mhalb--atse
Chamaepinnularia hassiaca (Krasske) Cantonati and Lange-Bertalot Btempst-strhbacfes1.00atsot
Cocconeis lineata Ehrenberg P-Btempst-strialfsx1.20atee
Craticula cuspidata (Kutzing) D.G. Mann Btempst-strialfes2.45-me
Cyclotella bodanica var. lemanica (O. Müller ex Schroter) Bachmann P--iind----
Cyclotella distinguenda Hustedt P-strhlalf-1.30-om
Cyclotella meneghiniana Kützing P-Btempst-strhlalfsp2.80hnee
Cymbella aspera (Ehrenberg) Cleve B-st-strineues0.30atse
Cymbella cistula (Ehrenberg) O. Kirchner B-st-strialfsx1.20atse
Cymbella cymbiformis C. Agardh Btempst-strialfsx2.00atsom
Cymbopleura naviculiformis (Auerswald ex Heiberg) Krammer Btempst-striind----
Diatoma vulgaris Bory P-Btempst-strialf-2.40--
Didymosphenia geminata (Lyngbye) Mart.Schmidt B-st-striind-2.00--
Diploneis elliptica (Kützing) Cleve Btempstrialfes---
Diploneis oblongella (Nägeli ex Kützing) A. Cleve B-st-striind----
Diploneis petersenii Hustedt B-striind----
Discostella stelligera (Cleve and Grunow) Houk and Klee P-Btempst-striind----
Encyonema minutum (Hilse) D.G. Mann Btempst-striindsx1.50ats-
Encyonema silesiacum (Bleisch) D.G. Mann Btempst-striind----
Epithemia adnata (Kützing) Brébisson Btempst-strialb-1.20--
Eunotia arcus Ehrenberg Btempst-striacfsx0.40atsot
*Eunotia cristagalli CleveP-B-st-striacf-1.00-ot
Eunotia mucophila (Lange-Bertalot, Nörpel-Schempp and Alles) Lange-Bertalot P-Btempst-strhbacf----
Eunotia paludosa Grunow B-strhbacfsx0.50atsot
Eunotia praerupta Ehrenberg P-Bcoolst-strhbacf-0.30--
Fragilaria gracilis Østrup P-Btempstriindes1.55hne-
Fragilaria rumpens (Kützing) G.W.F. Carlson P-Betermst-striind-2.00atse
Frustulia crassinervia (Brébisson ex W. Smith) Lange-Bertalot and Krammer B-strhbacfsx0.50atsot
Frustulia saxonica Rabenhorst Btempst-strhbacf--ate-
Frustulia vulgaris (Thwaites) De Toni P-Btempst-strialf-1.00--
Frustulia sp.---------
Gomphonella olivacea (Hornemann) Rabenhorst Btempst-strialf-2.30ateom
Gomphonema parvulum (Kützing) Kützing Btempst-striind-0.70atsot
Gomphonema truncatum Ehrenberg Btempst-striind-2.00--
Gyrosigma acuminatum (Kützing) Rabenhorst Btempst-strialf----
Hannaea arcus (Ehrenberg) R.M. Patrick Btempstrialf----
Hantzschia amphioxys (Ehrenberg) Grunow B,aertempst-striind-3.00-me
Iconella capronii (Brébisson and Kitton) Ruck and Nakov P-B,S-stiindsx1.00atse
Iconella spiralis (Kützing) E.C. Ruck and T. Nakov B-strialf-1.10--
Iconella tenera (W. Gregory) Ruck and Nakov P-Btempstialf-0.20atsot
Meridion circulare (Greville) C. Agardh P-Btempst-striind----
Navicula cryptocephala Kützing P-Btempst-striind-2.40--
Navicula cryptotenella Lange-Bertalot P-Btempst-striind----
Navicula phyllepta Kützing B--hl-----
Navicula radiosa Kützing Btempst-striindsx---
Navicula rhynchocephala Kützing Btempst-strhlalf-1.30--
Neidium ampliatum (Ehrenberg) Krammer Btempstiind----
Neidium bisulcatum (Lagerstedt) Cleve B-st-striind-1.00--
Neidium iridis (Ehrenberg) Cleve Btempst-strhbind----
Odontidium mesodon (Kützing) Kützing Bcoolst-strhbind-0.90--
Orthoseira dendroteres (Ehrenberg) Genkal and Kulikovskiy B,aer--i-es1.80--
Orthoseira roeseana (Rabenhorst) PfitzerP-Bwarm-iind---om
Pinnularia aestuarii Cleve B--mhalf----
Pinnularia appendiculata (C. Agardh) Schaarschmidt B-st-striind-1.00-ot
Pinnularia balatonis (Pantocsek) F.W. Mills ------0.80--
Pinnularia borealis Ehrenberg B,aer-st-str,aeriind-1.00-ot
Pinnularia brebissonii (Kützing) Rabenhorst Btempst-striind-1.00--
Pinnularia interrupta W. Smith B-st-striind----
Pinnularia lata (Brébisson) W. Smith P-B-striacf-0.30--
Pinnularia major (Kützing) Rabenhorst Btempst-striind-1.00atsm
Pinnularia mesogongyla Ehrenberg B-stiindsx0.20atsot
Pinnularia microstauron (Ehrenberg) CleveP-Btempst-striind-0.30atsot
Pinnularia microstauron var. nonfasciata Krammer B-------ot
Pinnularia rupestris Hantzsch Btempstriacf----
Pinnularia viridis (Nitzsch) Ehrenberg P-Btempst-striind-0.90-ot
Planothidium distinctum (Messikommer) Lange-Bertalot B-----2.00-o-e
Psammothidium helveticum (Hustedt) Bukhtiyarova and Round Btempst-strhbalfes2.40atem
Rhopalodia gibba (Ehrenberg) O. Müller P-Btempst-strialfes1.40ateom
Stauroneis anceps Ehrenberg P-Btempst-striindsx1.30atsom
Stauroneis phoenicenteron (Nitzsch) Ehrenberg P-Btempst-striind----
Stauroneis smithii Grunow P-B-st-strialf-1.00-om
Staurosira construens Ehrenberg P-Btempst-strialf-1.00--
Staurosirella pinnata (Ehrenberg) D.M. Williams P-Btempst-strhlalfes1.10atsom
Surirella angusta Kützing P-Btempst-strialf----
Surirella minuta Brébisson ex KützingBtempst-strialf----
Surirella roba LeclercqB-striacf----
Tabellaria flocculosa (Roth) Kützing P-Betermst-striacf-0.30--
Ulnaria ulna (Nitzsch) Compère P-Btempst-strialfes2.40atee
Note: “-“, not found. Abbreviations: habitat (Hab) (P-B—plankto-benthic, B—benthic); temperature (T) preferences (cool—cool water, temp—temperate, eterm—eurythermic, warm—warm water); oxygenation and streaming (Oxy) (str—streaming water, st-str—low streaming water); pH preference groups (pH) according to [57] (alb—alkalibiontes; alf—alkaliphiles, ind—indifferent; neu—neutrophiles as a part of indifferent group; acf—acidophiles); salinity ecological groups (Sal) according to [58] (hb—oligohalobes/halophobes, i—oligohalobes/indifferent, hl—halophiles; mh—mesohalobes); Index S, species-specific index saprobity according to [44]; organic pollution indicators according to [45] (D): sx—saproxenes; es—eurysaprobes; sp—saprophiles; nitrogen uptake metabolism (Aut-Het) [46]: ats—nitrogen-autotrophic taxa, tolerating very small concentrations of organically bound nitrogen; ate—nitrogen-autotrophic taxa, tolerating elevated concentrations of organically bound nitrogen; trophic state indicators (Tro) [46]: (ot—oligotraphentic; om—oligomesotraphentic; m—mesotraphentic; me—mesoeutraphentic; e—eutraphentic).
Table A3. Number of bioindicator taxa in the ecological groups in the diatom communities of the lakes in the Kaçkar Mountains National Park, in summer and autumun of 2020.
Table A3. Number of bioindicator taxa in the ecological groups in the diatom communities of the lakes in the Kaçkar Mountains National Park, in summer and autumun of 2020.
Indicator Group AL-1KPL-3KPL-4KPL-1TSL-1KPL-2MLTSL-2KPL-5BDLKVLAL-2VKLKRDLAP
Habitat
B11129191618182212161014192314
P-B566129101212689610139
P000210000100000
Temperature
cool100111220011121
temp10119221716172113161113182415
eterm001010300200110
warm111101111101112
Oxygen
st222313233223232
st-str111312261921262513181214222920
str211351141422320
Salinity
hb111424531132242
i141514262323242916241418262921
hl000210021000120
mh010101000010000
pH groups
acf112432331342312
ind101111171216201710141010131816
alf44212109613684710155
alb010000000000100
Watanabe
sx353655663744775
es111253362434452
sp111301122101111
Autotrophy–Heterotrophy
ats575968884746687
ate000544342523353
hne000100021010000
Trophic state
ot122423231153343
om122535342433355
m111212211101121
me000001100100001
e131542563512453
o-e100000100000000
Class of Water Quality
Class 1000100000010000
Class 244610910111339789175
Class 3432877585524762
Class 4000101111100141
No. of Species161815332628313418251921293723
Sum of Scores171815352630313419251921293823
Index S1.461.401.271.431.451.551.381.451.721.531.091.341.491.341.26
Note: “0“, not found. Abbreviations: habitat (P-B—plankto-benthic, B—benthic); temperature preferences (cool—cool water, temp—temperate, eterm—eurythermic, warm—warm water); oxygenation and streaming (str—streaming water, st-str—low streaming water, st—standing water); pH preference groups according to [57] (alb—alkalibiontes; alf—alkaliphiles, ind—indifferent; acf—acidophiles); salinity ecological groups according to [58] (hb—oligohalobes/halophobes, i—oligohalobes/indifferent, hl—halophiles; mh—mesohalobes); Index S, species-specific index saprobity according to [41]; organic pollution indicators according to [40]: sx—saproxenes; es—eurysaprobes; sp—saprophiles; nitrogen uptake metabolism (Aut-Het) [46]: ats—nitrogen-autotrophic taxa, tolerating very small concentrations of organically bound nitrogen; ate—nitrogen-autotrophic taxa, tolerating elevated concentrations of organically bound nitrogen, hne—facultatively nitrogen-heterotrophic taxa, needing periodically elevated concentrations of organically bound nitrogen; trophic state indicators [46]: (ot—oligotraphentic; om—oligomesotraphentic; m—mesotraphentic; me—mesoeutraphentic; e—eutraphentic; o-e—oligo- to eutraphentic). The water quality class is determined as the sum of indicators whose species-specific index saprobity S from Appendix A Table A2 is within the range of each class.
Table A4. RDA correlation matrix for biological and environmental variable relationships of diatom communities in 14 lakes of the Kaçkar Mountains National Park.
Table A4. RDA correlation matrix for biological and environmental variable relationships of diatom communities in 14 lakes of the Kaçkar Mountains National Park.
SPEC AX11
SPEC AX2−0.17811
SPEC AX30.3150.02591
SPEC AX40.12730.02210.3161
ENVI AX10.71530001
ENVI AX200.9290001
ENVI AX3000.69110001
ENVI AX40000.79890001
Cond−0.3171−0.42830.2503−0.0255−0.4433−0.4610.3622−0.032
DO−0.43330.08850.0443−0.2701−0.60580.09520.064−0.338
pH0.22820.08140.338−0.4450.3190.08760.4891−0.557
TDS−0.1979−0.35480.34950.1693−0.2767−0.38190.50570.2119
NH40.3260.03810.2189−0.01780.45580.0410.3167−0.0223
Cl−0.45060.0902−0.1177−0.2943−0.62990.0971−0.1703−0.3683
Temp0.05930.1180.1559−0.04540.08290.1270.2255−0.0569
SPEC AX1SPEC AX2SPEC AX3SPEC AX4ENVI AX1ENVI AX2ENVI AX3ENVI AX4
Cond1
DO0.63781
pH−0.3399−0.15071
TDS0.93130.4196−0.38141
NH40.1539−0.29010.01660.29381
Cl0.36830.8533−0.14260.1453−0.66281
Temp−0.5696−0.60780.5679−0.52590.1558−0.57291
CondDOpHTDSNH4ClTemp

References

  1. Cantonati, M.; Lange-Bertalot, H. Diatom monitors of close-to-pristine, very-low alkalinity habitats: Three new Eunotia species from springs in Nature Parks of the southeastern Alps. J. Limnol. 2011, 70, 209–221. [Google Scholar] [CrossRef]
  2. Feret, L.; Bouchez, A.; Rimet, F. Benthic diatom communities in high altitude lakes: A large scale study in the French Alps. Ann. Limnol.-Int. J. Limnol. 2017, 53, 411–423. [Google Scholar] [CrossRef]
  3. Biskaborn, B.K.; Nazarova, L.; Pestryakova, L.A.; Syrykh, L.; Funck, K.; Meyer, H.; Chapligin, B.; Vyse, S.; Gorodnichev, R.; Zakharov, E.; et al. Spatial distribution of environmental indicators in surface sediments of Lake Bolshoe Toko, Yakutia, Russia. Biogeosciences 2019, 16, 4023–4049. [Google Scholar] [CrossRef]
  4. Moser, K.A.; Baron, J.S.; Brahney, J.; Oleksy, I.A.; Saros, J.E.; Hundey, E.J.; Sadro, S.; Kopáček, J.; Sommaruga, R.; Kainz, M.J.; et al. Mountain lakes: Eyes on global environmental change. Glob. Planet. Chang. 2019, 178, 77–95. [Google Scholar] [CrossRef]
  5. Falasco, E.; Ector, L.; Ciaccio, E.; Hoffmann, L.; Bona, F. Alpine freshwater ecosystems in a protected area: A source of diatom diversity. Hydrobiologia 2012, 695, 233–251. [Google Scholar] [CrossRef]
  6. Wang, Q.; Yang, X.; Anderson, N.J.; Ji, J. Diatom Seasonality and Sedimentation in a Subtropical Alpine Lake (Lugu Hu, Yunnan-Sichuan, Southwest China). Arct. Antarct. Alp. Res. 2018, 47, 461–472. [Google Scholar] [CrossRef]
  7. Vinna, L.R.; Medhaug, I.; Schmid, M.; Bouffard, D. The vulnerability of lakes to climate change along an altitudinal gradient. Commun. Earth Environ. 2021, 2, 35. [Google Scholar] [CrossRef]
  8. Cantonati, M.; Lange-Bertalot, H. Achnanthidium dolomiticum sp. nov. (Bacillariophyta) from oligotrophic mountain springs and lakes fed by dolomite aquifers. J. Phycol. 2006, 42, 1184–1188. [Google Scholar] [CrossRef]
  9. Bere, T.; Tundısı, J.G. Biological monitoring of lotic ecosystems: The role of diatoms. Braz. J. Biol. 2010, 70, 493–502. [Google Scholar] [CrossRef]
  10. Borics, G.; Görgényi, J.; Grigorszky, I.; László-Nagy, Z.S.; Tóthmérész, B.; Krasznai, E.; Várbíró, G. The role of phytoplankton diversity metrics in shallow lake and river quality assessment. Ecol. Indic. 2014, 45, 28–36. [Google Scholar] [CrossRef]
  11. Field, C.B.; Behrenfeld, M.J.; Randerson, J.T.; Falkowski, P.G. Primary production of the biosphere: Integrating terrestrial and oceanic components. Science 1998, 281, 237–240. [Google Scholar] [CrossRef] [PubMed]
  12. Sarthou, G.; Timmermans, K.R.; Blain, S.; Tréguer, P. Growth physiology and fate of diatoms in the ocean: A review. J. Sea Res. 2005, 53, 25–42. [Google Scholar] [CrossRef]
  13. Armbrust, E.V. The life of diatoms in the world’s oceans. Nature 2009, 459, 185–192. [Google Scholar] [CrossRef]
  14. Gnjato, S.; Narancic, B.; Antoniades, D.; Pienitz, R.; Biskaborn, B.K.; Gnjato, R.; Dekić, R. Surface sediment diatom assemblages from four alpine lakes in the Zelengora Mountains (Bosnia and Herzegovina): A Pilot Study. Bot. Serbica 2022, 46, 61–70. [Google Scholar] [CrossRef]
  15. Şahin, B.; Barinova, S. Role of altitude in formation of diatom diversity of high-mountain protected glacier lakes in the Kaçkar Mountains National Park, Rize, Turkey. Environments 2022, 9, 127. [Google Scholar] [CrossRef]
  16. Anonymous. Kaçkar Dağları Milli Parkı Uzun Devreli Gelişme Planı Analitik Etüt ve Sentez Raporu; Doğa Koruma ve Milli Parklar Genel Müdürlüğü: Ankara, Turkey, 2006. [Google Scholar]
  17. Eyüpoğlu, Y.; Dudas, F.O.; Zhu, D.; Liu, Z.; Chatterjee, N. Late Cretaceous I- and A-type magmas in eastern Turkey: Magmatic response to double-sided subduction of Paleo- and Neo-Tethyan lithospheres. Lithos 2019, 326, 39–70. [Google Scholar] [CrossRef]
  18. Kurdoğlu, O. Kaçkar Dağları Milli Parkı ve Yakın Çevresinin Doğal Kaynak Yönetimi Açısından İncelenmesi. Ph.D. Thesis, KTÜ Fen Bilimleri Enstitüsü, Orman Mühendisliği Ana Bilim Dalı, Trabzon, Turkey, 2002. [Google Scholar]
  19. Erinç, S. Klimatoloji ve Metodları; Istanbul University Faculty of Geography Publications: İstanbul, Turkey, 1969. (In Turkish) [Google Scholar]
  20. Davis, P.H. Flora of Turkey and the Aegean Islands; Edinburgh University Press: Edinburgh, UK, 1970; Volume 1–10. [Google Scholar]
  21. Gürpınar, T. Kuş Göçü Açısından Türkiye’nin Önemi, Türkiye ve Balkan Ülkelerinde Yaban Hayatı; Uluslararası Sempozyumu Bildiriler Kitabı, Eylül: İstanbul, Turkey, 1987; pp. 16–20. [Google Scholar]
  22. Round, F.E. An investigation of two benthic algal communities in Malharm Tarn, Yorkshire. J. Ecol. 1953, 41, 174–197. [Google Scholar] [CrossRef]
  23. Sládečková, A. Limnological investigation methods for the periphyton (“Aufwuchs”) community. Bot. Rev. 1962, 28, 286–350. [Google Scholar] [CrossRef]
  24. Huber-Pestalozzi, G. Das Phytoplankton des Süßwassers Systematic und Biologie (Die Binnengewässer, Band XVI), 2, 2, Diatomeen; Stuttgart, E., Ed.; Schweizerbart’sche Verlagsbuchhandlung (Nagele u. Obermiller): Welling, Germany, 1942; p. 549, (In German). Available online: https://www.abebooks.co.uk/Binnengew%C3%A4sser-BAND-XVI-TEIL-Phytoplankton-S%C3%BC%C3%9Fwassers/31729819445/bd (accessed on 12 April 2024).
  25. Hustedt, F. Bacillariophyta (Diatomeae) Zweite Auflage. In Die Süsswasser-Flora Mitteleuropas. Heft 10; Pascher, A., Ed.; Verlag von Gustav Fischer: Jena, Germany, 1930; p. 466. (In German) [Google Scholar]
  26. Joh, G. Algal Flora of Korea: Chrysophyta: Bacillariophyceae: Centrales. Freshwater Diatoms I. pp. [1,2,3,4,5,6], 1–161, figs 1–105; National Institute of Biological Resources: Incheon, Republic of Korea, 2010; Volume 3, Number 1. [Google Scholar]
  27. Krammer, K.; Lange Bertalot, H. Bacillariophyceae 1. Naviculaceae. In Sǘßwasserflora von Mittelflora, 2/1; G. Fischer: Jena, Germany; Stuttgart, Germany; Lubeck, Germany; Ulm, Germany, 1986; p. 876. [Google Scholar]
  28. Krammer, K.; Lange-Bertalot, H. Bacillariophyceae 2. Bacillariaceae, Epithemiaceae, Surirellaceae. In Süsswasserflora von Mitteleuropa, 2/2; Ettl, H., Gerloff, J., Heynig, H., Mollenhauer, D., Eds.; G. Fischer: Jena, Germany, 1988; p. 596. [Google Scholar]
  29. Krammer, K.; Lange-Bertalot, H. Bacillariophyceae 3. Centrales, Fragilariaceae, Eunotiaceae. In Susswasserflora von Mitteleuropa, 2/3; Ettl, H., Gerloff, J., Heynig, H., Mollenhauer, D., Eds.; Gustav Fisher Verlag: Stuttgart, Germany, 1991; p. 576. [Google Scholar]
  30. Krammer, K.; Lange-Bertalot, H. Bacillariophyceae 4. Achnanthaceae, Kritische Erganzungen zu Navicula (Lineolatae) und Gomphonema. In Die Süsswasserflora von Mitteleuropa; Gustav Fisher Verlag: Stuttgart, Germany, 1991; bd. 2/4; p. 437. [Google Scholar]
  31. Lange-Bertalot, H.; Hofmann, G.; Werum, M.; Cantonati, M. Freshwater Benthic Diatoms of Central Europe; Koeltz Botanical Books: Schmitten-Oberreifenberg, Germany, 2017; 942p. [Google Scholar]
  32. Lee, J.H. Algal Flora of Korea: Chrysophyta: Bacillariophyceae: Pennales: Raphidineae: Naviculaceae. Freshwater diatoms VI. pp. [1,2,3,4,5,6] 1–56, figs 1–10; National Institute of Biological Resources: Incheon, Republic of Korea, 2012; Volume 3, Number 8. [Google Scholar]
  33. Lee, J.H. Algal Flora of Korea: Chrysophyta: Bacillariophyceae: Pennales: Raphidineae: Naviculaceae. Freshwater diatoms VII; National Institute of Biological Resources Ministry of Environment: Incheon, Republic of Korea, 2012; Volume 3, Number 9. [Google Scholar]
  34. Patrick, R.; Reimer, C.W. The Diatoms of the United States, Exclusive of Alaska and Hawaii: Fragilariaceae, Eunotiaceae, Achnanthaceae, Naviculacae; Academy of Natural Sciences: Philadelphia, PA, USA, 1966. [Google Scholar]
  35. Patrick, R.; Reimer, C.W. The Diatoms of the United States Vol 2. Entomoneigaceae, Cymbellaceae, Gomphonemaceae, Epithemiaceae; Academy of Natural Science: Philadelphia, PA, USA, 1975. [Google Scholar]
  36. Guiry, M.D.; Guiry, G.M.; AlgaeBase World-Wide Electronic Publication. National University of Ireland, Galway. Available online: http://www.algaebase.org (accessed on 15 June 2023).
  37. Kocataş, A. Ekoloji (Çevre Biyolojisi); Ege Üniversitesi Matbaası: İzmir, Türkiye, 1992. [Google Scholar]
  38. Barinova, S.S.; Bilous, O.P.; Tsarenko, P.M. Algal Indication of Water Bodies in Ukraine: Methods and Prospects; Publishing House of Haifa University: Haifa, Israel; Kyiv, Ukraine, 2019; 367p. (In Russian) [Google Scholar]
  39. Barinova, S. Essential and practical bioindication methods and systems for the water quality assessment. Int. J. Environ. Sci. Nat. Resour. 2017, 2, 555588. [Google Scholar] [CrossRef]
  40. Watanabe, T.; Asai, K.; Houki, A. Numerical estimation of organic pollution of flowing water by using the epilithic diatom assemblage—Diatom Assemblage Index (DAIpo). Sci. Total Environ. 1986, 55, 209–218. [Google Scholar] [CrossRef]
  41. Sládeček, V. Diatoms as indicators of organic pollution. Acta Hydrochim. Hydrobiol. 1986, 14, 555–566. [Google Scholar] [CrossRef]
  42. McAleece, N.; Gage, J.D.G.; Lambshead, P.J.D.; Paterson, G.L.J. BioDiversity Professional statistics analysis software. Jointly developed by the Scottish Association for Marine Science and the Natural History Museum London. 1997. Available online: https://www.sams.ac.uk/science/outputs/ (accessed on 15 June 2023).
  43. Wessa, P. Pearson Correlation (v1.0.13) in Free Statistics Software (v1.2.1), Office for Research Development and Education. Available online: https://www.wessa.net/rwasp_correlation.wasp/ (accessed on 3 January 2024).
  44. Love, J.; Selker, R.; Marsman, M.; Jamil, T.; Dropmann, D.; Verhagen, J.A.; Ly, A.; Gronau, F.Q.; Smira, M.; Epskamp, S.; et al. JASP: Graphical statistical software for common statistical designs. J. Stat. Softw. 2019, 88, 1–17. [Google Scholar] [CrossRef]
  45. Ter Braak, C.J.F.; Šmilauer, P. CANOCO Reference Manual and CanoDraw for Windows User’s Guide: Software for Canonical Community Ordination (Version 4.5); Microcomputer Power Press: Ithaca, NY, USA, 2002; 500p. [Google Scholar]
  46. Van Dam, H.; Mertens, A.; Sinkeldam, J. A coded checklist and ecological indicator values of freshwater diatoms from the Netherlands. Neth. J. Aquat. Ecol. 1994, 28, 117–133. [Google Scholar] [CrossRef]
  47. Șahin, B.; Akar, B.; Barinova, S. Bioindication of water quality by diatom algae in high mountain lakes of the Natural Park of Artabel Lakes (Gümüşhane, Turkey. Transylvanian Review of Systematical and Ecological Research. Wetl. Divers. 2020, 22, 1–28. [Google Scholar] [CrossRef]
  48. Barinova, S.; Sivaci, R. Experimental approach to a lake ecosystem assessment in the Great Lota, Turkey. Experiment 2013, 9, 566–586. [Google Scholar]
  49. Barinova, S.; Gabyshev, V.; Genkal, S. Diversity of Diatom Algae in the Lena Delta Nature Reserve and the Adjacent Territory in the Specific Ecological Factors of the Arctic. Diversity 2023, 15, 802. [Google Scholar] [CrossRef]
  50. Wehr, J.D.; Sheath, R.G. Freshwater Algae of North America Ecology and Classification; Academic Press: Cambridge, MA, USA, 2003. [Google Scholar]
  51. Odum, E.P. Fundamentals of Ecology, 3rd ed.; W.B. Saunders Co.: Philadelphia, PA, USA, 1971; pp. 1–574. [Google Scholar]
  52. Bjork, S. Redevelopment of lake system—A case study approach. Ambio 1988, 17, 90–98. [Google Scholar]
  53. Lotter, A.F.; Pienitz, R.; Schmidt, R. Diatoms as indicators of environmental change near arctic and alpine treeline. In The Diatoms: Application for the Environmental and Earth Sciences, 1st ed.; Stoermer, E.F., Smol, J.P., Eds.; Cambridge University Press: Cambridge, UK, 1999. [Google Scholar]
  54. Niyatbekov, T.; Barinova, S. Bioindication of aquatic habitats with diatom algae in the Pamir Mountains, Tajikistan. MOJ Ecol. Environ. Sci. 2018, 3, 117–120. [Google Scholar]
  55. Barinova, S.; Niyatbekov, T. Comparative analysis of diatom algae diversity in the Pamir Protected Lakes, Tajikistan. Int. J. Adv. Res. Bot. 2019, 5, 1–17. [Google Scholar]
  56. Protasov, A.; Barinova, S.; Novoselova, T.; Sylaieva, A. The Aquatic Organisms Diversity, Community Structure, and Environmental Conditions. Diversity 2019, 11, 190. [Google Scholar] [CrossRef]
  57. Hustedt, F. Die Diatomeen flora des Flußsystems der Weser im Gebiet der Hansestadt Bremen. Abh. Naturwiss. Ver. Brem. 1957, 34, 181–440. [Google Scholar]
  58. Hustedt, F. Systematische und Ökologische Untersuchungen über die Diatomeenflora von Java, Bali und Sumatra. Archiv. Hydrobiol. Suppl. 1938, 15, 131–177, 393–506, 638–790, Erratum in Archiv. Hydrobiol. Suppl. 1939, 16, 1–155, 274–394. [Google Scholar]
Figure 1. Geographical location of Kaçkar Mountains National Park, green colored (https://en.wikipedia.org/wiki/List_of_national_parks_of_Turkey (accessed on 10 January 2024)) and the studied lakes as blue dots.
Figure 1. Geographical location of Kaçkar Mountains National Park, green colored (https://en.wikipedia.org/wiki/List_of_national_parks_of_Turkey (accessed on 10 January 2024)) and the studied lakes as blue dots.
Ecologies 05 00020 g001
Figure 2. View of the studied lakes in the Kaçkar Mountains National Park in 2020. North group: (a) Karadeniz Lake, (b) Büyük Deniz Lake; central group: (c) Moçar Lake, (d) Tatos Sulak Lakes 1–2; south group: (e) Kapılı Lakes 1–4, (f) Vercenik Kumlu Lake. Photo by Bülent Şahin.
Figure 2. View of the studied lakes in the Kaçkar Mountains National Park in 2020. North group: (a) Karadeniz Lake, (b) Büyük Deniz Lake; central group: (c) Moçar Lake, (d) Tatos Sulak Lakes 1–2; south group: (e) Kapılı Lakes 1–4, (f) Vercenik Kumlu Lake. Photo by Bülent Şahin.
Ecologies 05 00020 g002
Figure 3. Distribution of diatom species richness, abundance sum of scores, and Index of Saprobity S value over studied lakes in the Kaçkar Mountains National Park, 2022. The order of studied lakes is according to increasing lake altitude. Trend lines are dashed lines.
Figure 3. Distribution of diatom species richness, abundance sum of scores, and Index of Saprobity S value over studied lakes in the Kaçkar Mountains National Park, 2022. The order of studied lakes is according to increasing lake altitude. Trend lines are dashed lines.
Ecologies 05 00020 g003
Figure 4. Distribution of indicator species by water temperature, oxygen, pH, and habitat preferences for benthic communities in the Kaçkar Mountains National Park. Habitat (a): P-B—plankto-benthic, B—benthic; temperature preferences (b): cool—cool water, temp—temperate, eterm—eurythermic, warm—warm water; oxygenation and water moving (c): str—streaming water, st-str—low streaming water; pH preference groups (d): alb—alkalibiontes; alf—alkaliphiles, ind—indifferent; acf—acidophiles. The lakes order is by increasing altitude. The indicator group order is according to increase in the indicated variable value.
Figure 4. Distribution of indicator species by water temperature, oxygen, pH, and habitat preferences for benthic communities in the Kaçkar Mountains National Park. Habitat (a): P-B—plankto-benthic, B—benthic; temperature preferences (b): cool—cool water, temp—temperate, eterm—eurythermic, warm—warm water; oxygenation and water moving (c): str—streaming water, st-str—low streaming water; pH preference groups (d): alb—alkalibiontes; alf—alkaliphiles, ind—indifferent; acf—acidophiles. The lakes order is by increasing altitude. The indicator group order is according to increase in the indicated variable value.
Ecologies 05 00020 g004
Figure 5. Distribution of indicators of salinity, nutrition type, class of water quality, and trophic state for benthic communities in the Kaçkar Mountains National Park. Abbreviations of ecological groups are given in Appendix A Table A2. Salinity ecological groups (a): hb—oligohalobes/halophobes, i—oligohalobes/indifferent, hl—halophiles; mh—mesohalobes, oh—oligohalobes of wide spectrum with optimum as indifferent. Nitrogen uptake metabolism (autotrophy–heterotrophy) (b): ats—nitrogen-autotrophic taxa, tolerating very small concentrations of organically bound nitrogen; ate—nitrogen-autotrophic taxa, tolerating elevated concentrations of organically bound nitrogen. The water quality class is determined as the sum of indicators whose species-specific index saprobity S from Appendix A Table A2 is within the range of each class. Classes of water quality colored in EU color code (c). Trophic state indicators (d): ot—oligotraphentic; om—oligomesotraphentic; m—mesotraphentic; me—mesoeutraphentic; e—eutraphentic; o-e—hypereutraphentic. The lakes are ordered by increasing altitude, and the indicator groups are arranged in increasing order of the indicated variable value.
Figure 5. Distribution of indicators of salinity, nutrition type, class of water quality, and trophic state for benthic communities in the Kaçkar Mountains National Park. Abbreviations of ecological groups are given in Appendix A Table A2. Salinity ecological groups (a): hb—oligohalobes/halophobes, i—oligohalobes/indifferent, hl—halophiles; mh—mesohalobes, oh—oligohalobes of wide spectrum with optimum as indifferent. Nitrogen uptake metabolism (autotrophy–heterotrophy) (b): ats—nitrogen-autotrophic taxa, tolerating very small concentrations of organically bound nitrogen; ate—nitrogen-autotrophic taxa, tolerating elevated concentrations of organically bound nitrogen. The water quality class is determined as the sum of indicators whose species-specific index saprobity S from Appendix A Table A2 is within the range of each class. Classes of water quality colored in EU color code (c). Trophic state indicators (d): ot—oligotraphentic; om—oligomesotraphentic; m—mesotraphentic; me—mesoeutraphentic; e—eutraphentic; o-e—hypereutraphentic. The lakes are ordered by increasing altitude, and the indicator groups are arranged in increasing order of the indicated variable value.
Ecologies 05 00020 g005
Figure 6. JASP Network plot of diatom bioindicator correlation (a) in the communities of the lakes of the Kaçkar Mountains National Park, p < 0.5, calculated based on Appendix A Table A3, and plot of comparison of the studied lake communities (Kachkar-15), previous studied diatom communities in Kaçkar Mountains National Park (Kachkar-2) [15] and in Artabel [47] (b). Major groups of the lakes abbreviated and colored in the legend. Blue lines are positive correlations, while red lines are negative correlations. The line thickness reflects the value of correlation. Dashed line outlined different clusters with numbers of 1-4 on Figure (a) and 1-2 on Figure (b).
Figure 6. JASP Network plot of diatom bioindicator correlation (a) in the communities of the lakes of the Kaçkar Mountains National Park, p < 0.5, calculated based on Appendix A Table A3, and plot of comparison of the studied lake communities (Kachkar-15), previous studied diatom communities in Kaçkar Mountains National Park (Kachkar-2) [15] and in Artabel [47] (b). Major groups of the lakes abbreviated and colored in the legend. Blue lines are positive correlations, while red lines are negative correlations. The line thickness reflects the value of correlation. Dashed line outlined different clusters with numbers of 1-4 on Figure (a) and 1-2 on Figure (b).
Ecologies 05 00020 g006
Figure 7. Tree of Bray–Curtis similarity analysis of diatom species composition in communities of the Kaçkar Mountains National Park, 2020. Clusters are outlined by dashed lines and represented by different colors.
Figure 7. Tree of Bray–Curtis similarity analysis of diatom species composition in communities of the Kaçkar Mountains National Park, 2020. Clusters are outlined by dashed lines and represented by different colors.
Ecologies 05 00020 g007
Figure 8. RDA plots for dominated groups of species indicators and environmental variables in 11 studied lakes based on data from Table 1 and Table 2, and Appendix A Table A1 and Table A4 in the Kaçkar Mountains National Park. RDA plot for species richness, sum of scores and environmental variables (a). RDA plot for environmental variables in the studied lakes (b).
Figure 8. RDA plots for dominated groups of species indicators and environmental variables in 11 studied lakes based on data from Table 1 and Table 2, and Appendix A Table A1 and Table A4 in the Kaçkar Mountains National Park. RDA plot for species richness, sum of scores and environmental variables (a). RDA plot for environmental variables in the studied lakes (b).
Ecologies 05 00020 g008
Figure 9. Three-dimensional surface plots of species richness in diatom community in relation to lake altitude and water conductivity (a), and lake altitude and dissolved oxygen (DO) (b) in the protected lakes in the Kaçkar Mountains National Park, 2020.
Figure 9. Three-dimensional surface plots of species richness in diatom community in relation to lake altitude and water conductivity (a), and lake altitude and dissolved oxygen (DO) (b) in the protected lakes in the Kaçkar Mountains National Park, 2020.
Ecologies 05 00020 g009
Figure 10. Three-dimensional surface plots of species richness in diatom community in relation to lake altitude and water pH (a), species richness in diatom community in relation to lake altitude and temperature (b) in the protected lakes in the Kaçkar Mountains National Park, 2020.
Figure 10. Three-dimensional surface plots of species richness in diatom community in relation to lake altitude and water pH (a), species richness in diatom community in relation to lake altitude and temperature (b) in the protected lakes in the Kaçkar Mountains National Park, 2020.
Ecologies 05 00020 g010
Figure 11. Three-dimesional surface plots of species richness in diatom community in relation to lake altitude and Index Saprobity S (a), and lake altitude and ammonium (b) in the protected lakes in the Kaçkar Mountains National Park, 2020.
Figure 11. Three-dimesional surface plots of species richness in diatom community in relation to lake altitude and Index Saprobity S (a), and lake altitude and ammonium (b) in the protected lakes in the Kaçkar Mountains National Park, 2020.
Ecologies 05 00020 g011
Figure 12. Three-dimensional surface plots of species richness in diatom community in relation to lake altitude and water area (a), and lake altitude and Index of Species per Area (b) in the protected lakes in the Kaçkar Mountains National Park, 2020.
Figure 12. Three-dimensional surface plots of species richness in diatom community in relation to lake altitude and water area (a), and lake altitude and Index of Species per Area (b) in the protected lakes in the Kaçkar Mountains National Park, 2020.
Ecologies 05 00020 g012
Table 1. Geographic coordinates, altitude, and surface area information of the studied lakes in Kaçkar Mountains National Park, 2020.
Table 1. Geographic coordinates, altitude, and surface area information of the studied lakes in Kaçkar Mountains National Park, 2020.
Lake with AbbreviationGeographic CoordinatesAltitude (m)Area, km2
Kapılı Lake-1 (KPL-1)40°42′56″.59 N; 40°54′51″.71 E29800.71
Kapılı Lake-2 (KPL-2)40°43′08″.70 N; 40°54′55″.30 E29730.15
Kapılı Lake-3 (KPL-3)40°42′34″.73 N; 40°54′49″.02 E30740.36
Kapılı Lake-4 (KPL-4)40°42′43″.97 N; 40°54′47″.24 E30280.05
Kapılı Lake-5 (KPL-5)40°42′59″.03 N; 40°54′20″.06 E29260.07
Vercenik Kumlu Lake (VKL)40°43′17″.91 N; 40°54′16″.58 E28640.03
Karadeniz Lake (KRDL)40°52′39″.19 N; 41°10′ 02″.06 E27820.24
Kavron Lake (KVL)40°52′24″.39 N; 41°09′45″.73 E29110.09
Büyük Deniz Lake (BDL)40°52′04″.60 N; 41°09′38″.54 E29220.68
Adsız Lake-1 (AL-1)40°42′39″.75 N; 40°54′57″.65 E30751.62
Adsız Lake-2 (AL-2)40°52′21″.18 N; 41°10′06″.94 E28680.04
Moçar Lake (ML)40°44′11″.63 N; 40°56′05″.36 E29580.22
Tatos Sulak Lake-1 (TSL-1)40°44′16″.11 N; 40°56′42″.25 E29760.46
Tatos Sulak Lake-2 (TSL-2)40°44′25″.50 N; 40°56′51″.18 E29400.17
AP pond (AP)40°42′48″.06 N; 40°54′48″.01 E30080.01
Table 2. Averaged physical and chemical data of the 14 high mountain lakes in the Kaçkar Mountains National Park, 2020.
Table 2. Averaged physical and chemical data of the 14 high mountain lakes in the Kaçkar Mountains National Park, 2020.
ParametersKPL-1KPL-2KPL-3KPL-4KPL-5VKLKRDLKVLBDLAL-1AL-2MLTSL-1TSL-2
Temperature (°C)14.214.014.514.014.822.512.514.711.217.67.112.21313
DO (mg L−1)8.038.338.148.028.208.188.898.558.697.988.979.039.178.90
pH6.306.306.556.328.217.886.337.186.107.306.547.136.96.9
Conductivity (μSm cm−1)23.423.227.126.029.3022.936.819.971.414.138.9464040
TDS (mg L−1)17.7315.9318.7218.2320.4617.8622.8212.3444.279.9227.3421.8920.3419.84
Potassium (mg L−1)0.370.370.500.400.47--0.380.440.35----
Total hardness CaCO3 (mg L−1)17.9617.6419.9419.7023.60---38.84--17.59--
Calcium (mg L−1)5.135.005.925.827.17--4.0212.69-7.254.525.305.33
Magnesium (mg L−1)----1.38---1.73--1.53--
Ammonium (mg L−1)0.310.280.340.230.400.350.170.760.820.310.130.110.080.12
Chlorine (mg L−1)2.111.772.202.701.981.517.512.441.702.027.487.267.037.74
Nitrate (mg L−1)-0.2140.2070.2320.330-0.575-0.2330.2250.5150.3610.2790.218
Nitrite (mg L−1)-----------0.0200.020-
Phosphate (P2O5) (mg L−1)----0.113---------
Note: (-): Could not be detected as below the determination level. Variables in AP pond were not tested because water sample was lost.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Şahin, B.; Barinova, S. Environmental Factors Structuring Diatom Diversity of the Protected High Mountain Lakes in the Kaçkar Mountains National Park (Rize, Turkey). Ecologies 2024, 5, 312-341. https://doi.org/10.3390/ecologies5020020

AMA Style

Şahin B, Barinova S. Environmental Factors Structuring Diatom Diversity of the Protected High Mountain Lakes in the Kaçkar Mountains National Park (Rize, Turkey). Ecologies. 2024; 5(2):312-341. https://doi.org/10.3390/ecologies5020020

Chicago/Turabian Style

Şahin, Bülent, and Sophia Barinova. 2024. "Environmental Factors Structuring Diatom Diversity of the Protected High Mountain Lakes in the Kaçkar Mountains National Park (Rize, Turkey)" Ecologies 5, no. 2: 312-341. https://doi.org/10.3390/ecologies5020020

Article Metrics

Back to TopTop
