Perspective for the Safe and High-Efficiency Storage of Liquid Hydrogen: Thermal Behaviors and Insulation

Abstract

Liquid hydrogen is a promising energy carrier in the global hydrogen value chain with the advantages of high volumetric energy density/purity, low operating pressure, and high flexibility in delivery. Safe and high-efficiency storage and transportation are essential in the large-scale utilization of liquid hydrogen. Aiming at the two indicators of the hold time and normal evaporation rate (NER) required in standards, this paper focuses on the thermal behaviors of fluid during the no-vented storage of liquid hydrogen and thermal insulations applied for the liquid hydrogen tanks, respectively. After presenting an overview of experimental/theoretical investigations on thermal behaviors, as well as typical forms/testing methods of performance of thermal insulations for liquid hydrogen tanks, seven perspectives are proposed on the key challenges and recommendations for future work. This work can benefit the design and improvement of high-performance LH₂ tanks.

1. Introduction

Large-scale utilization of hydrogen energy is recognized as one of the optimal solutions to achieving net-zero emissions by the major economies. According to the report published by the International Energy Agency (IEA) [1], global hydrogen use reached a historical high of 95 million tons (Mt) in 2022 with a nearly 3% increase year-on-year. As a promising energy carrier, hydrogen can be paired with energy storage systems to overcome the limitations of intermittency of renewable energy, playing an increasing role in the transition from fossil-fuel-dominated energy to renewable energy for the global energy structure [2,3].

Such a transition to hydrogen energy requires the development of sustainable and substantial hydrogen value chains [4]. Storage and transportation of hydrogen are vital for the hydrogen value chain. The storage and transportation of hydrogen in the form of liquid hydrogen (LH₂) have the advantages of large volumetric energy density, low operating pressure, as well as high purity, among the current methods [5,6,7]. The LH₂ has flexible delivery methods, including tanks, transport trailers, and ships, as shown in Figure 1 [8,9,10,11], to meet the demand for different distances and scales. As the capacity and efficiency of hydrogen liquefaction around the world are improving, LH₂ becomes the most economical selection, with a transport distance from 4000 km to 8000 km and a transport capacity of hydrogen above 0.8 Mt/yr [12], making LH₂ a prospective energy carrier in the large-scale utilization of hydrogen energy [13].

LH₂ is a cryogen with a normal boiling point of 20.3 K at 101,325 Pa and can be regarded as well-approximated pure para-hydrogen, since the concentration of para-hydrogen takes up more than 99.8% [14]. The temperature difference between LH₂ and the ambient surroundings (300 K) is as high as 280 K, bringing about an inevitable heat leak into the LH₂ tank [15] to generate boil-off gas. Due to the fact that hydrogen has a wide flammability range from 4.1% to 74.8% when exposed to the air [16], the LH₂ has to be stored in a no-vented process to prevent the flammable boil-off gas from venting out of the tank. During the no-vented storage process, the heat leak is the main cause of pressure continuously building up (i.e., self-pressurization). The thermal behaviors [17] caused by the heat leak, such as temperature stratification and buoyancy flows, can accelerate the pressure rise, leading to a reduction in hold time 18. To guarantee large-scale safe storage of LH₂, some standards [18,19,20] make the requirements of the total heat leak into the tank and the hold time of the tank.

The thermal insulation performance of LH₂ tanks is described by the normal evaporation rate (NER) 18 with the following expression [21]:

$$\mathrm{N}\mathrm{E}\mathrm{R}={\displaystyle \frac{\dot{Q}}{\phi {\rho }_{\mathrm{l}}{V}_{\mathrm{t}\mathrm{a}\mathrm{n}\mathrm{k}}\gamma }}$$

(1)

where $\phi$ is the liquid fill ratio, ${\rho }_{\mathrm{l}}$ is the liquid density, $V_{\mathrm{t}\mathrm{a}\mathrm{n}\mathrm{k}}$ is the volume of the tank, $\gamma$ is the latent heat of vaporization, and $\dot{Q}$ is the total heat leak into the LH₂ tank. When the geometric structure of the tank is fixed, the total heat leak $\dot{Q}$ as well as the NER can be determined by measuring the steady boil-off rate. Therefore, the NER in Equation (1) can be used to describe the relative boil-off losses per day in the tank. Besides, the hold time can be reflected by the self-pressurization rate. Typical values of NER and self-pressurization rate for LH₂ tanks with different volumes are summarized in Figure 2a.

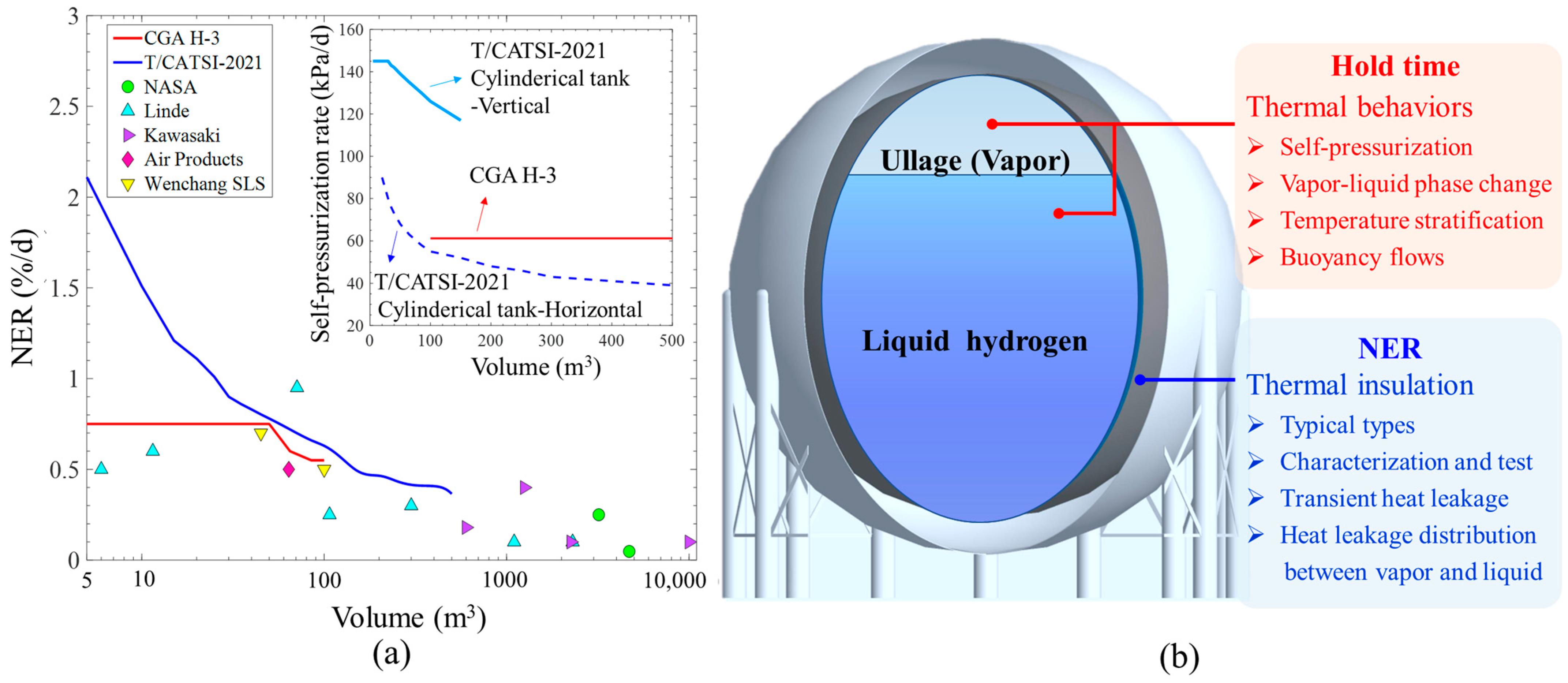

Both standardized and tested NERs continue to reduce as the volume of tanks increases in Figure 2a [8,10,18,19,22,23,24,25,26]. For tanks with a volume smaller than 500 m³, the NER is normally less than 0.5%/d. When the tank volume is in the range of 5 m³ to 500 m³, the NER not only changes with the volume but also relates to the shape of the tanks. For example, a spherical tank and a cylindrical tank will have different NERs and will have different self-pressurization rates as a matter of course. In addition, even if two cylindrical tanks have the same NER [27], a significant difference occurs in the self-pressurization rate between a vertical tank and a horizontal tank. Hence, the standards have requirements for both NER and self-pressurization rate indicators for a specific LH₂ tank.

It should be noted that the standardized values of NER and self-pressurization rate show a difference among these standards [18,20] in Figure 2a, which demonstrates that more efforts should be made to reveal the mechanism during the no-vented storage of LH₂. In light of this, this paper presents an overview of the research status and proposes perspectives for future work on thermal behaviors and thermal insulation structures of LH₂ storage based on an analysis of two indicators, which are the hold time and NER required by the standards. This work can be of benefit in the design of high-performance LH₂ tanks.

2. Thermal Behaviors during the No-Vented Storage of Liquid Hydrogen

A series of complex thermal behaviors in the LH₂ tank, including self-pressurization, vapor-liquid phase change, temperature stratification, temperature evolution, and buoyancy flows, are caused by heat leaks [17]. Because the hold time is dependent on the self-pressurization rate, the clarification of self-pressurization has priority in investigating the thermal behaviors during the no-vented storage of LH₂ [28]. These thermal behaviors can be correlated by the real gas equation of state in the vapor shown, as follows: [29]:

$${\displaystyle \frac{{\mathrm{d}p}_{\mathrm{v}}}{\mathrm{d}t}}={\displaystyle \frac{\dot{m}{p}_{\mathrm{v}}\mathsf{\Omega }}{{\rho }_{\mathrm{v}}}}+{\displaystyle \frac{p_{\mathrm{v}}}{T_{\mathrm{v}}}}{\displaystyle \frac{\partial T_{\mathrm{v}}}{\partial t}}+{\displaystyle \frac{p_{\mathrm{v}}}{z_{\mathrm{v}}}}{\displaystyle \frac{\mathrm{D}{z}_{\mathrm{v}}}{\mathrm{D}t}}+{\displaystyle \frac{p_{\mathrm{v}}}{T_{\mathrm{v}}}}\left({\mathit{v}}_{\mathrm{v}}·\nabla T_{\mathrm{v}}\right)-p_{\mathrm{v}}\nabla ·{\mathit{v}}_{\mathrm{v}}$$

(2)

where $p_{\mathrm{v}}$, ${\rho }_{\mathrm{v}}$, $T_{\mathrm{v}}$, $z_{\mathrm{v}}$, and ${\mathit{v}}_{\mathrm{v}}$ denote the pressure, density, temperature, compressibility factor, and velocity vector of the vapor, $\dot{m}$ denotes the interfacial mass transfer flux by vapor-liquid phase change, and $\mathsf{\Omega }$ denotes the interfacial area density [30]. It is noted that Equation (2) is valid for describing the no-vented storage of LH₂ with fixed initial conditions (i.e., initial liquid fill ratio, pressure, and temperature distribution) but needs to be modified when describing the chill-down, filling/venting processes or with sloshing. The terms on the right side of Equation (2) as well as the velocity vector (${\mathit{v}}_{\mathbf{v}}$) can describe the effect of vapor–liquid phase change, temperature evolution of vapor, nonideality of vapor, temperature stratification, compressibility, and buoyancy flows on the self-pressurization rate, respectively. This section first presents an overview of experimental/theoretical studies on the thermal behaviors during the no-vented storage of LH₂ and then proposes perspectives and outlooks for future work.

2.1. Overview of Experimental Investigation

Despite that hydrogen has been successfully liquefied over a century [31], the mechanism of the self-pressurization process in LH₂ tanks has not been revealed, since the pressure evolution is not only correlated with other thermal behaviors caused by the heat leak [32], but also affected by the shape/size of the tanks [33], initial pressure, temperature, and liquid fill ratios [34]. Unlike other cryogens, such as liquid nitrogen or liquid helium [35,36,37,38], the published tests conducted in LH₂ no-vented storage (summarized in Table 1) are very limited due to the high cost and safety risks. More detailed information can be found in reference [17].

Table 1. Summary of the experimental investigations on the self-pressurization process in LH₂ tanks.

Exp.	Tank Shape	Volume (m3)	Time (s, h)	Liquid Fill Ratio (%)/Heat Flux (W/m2) (a)	Measurement Content	Accuracies
[39]	Spherical	208	38 h	54.2%, 84.7%/1.9	- Pressure build-up; - Temperature evolution of fluid;	±1.38 kPa ±0.83 K
[33,40]	Spherical	0.00637; 0.09195	222–2720 s	31.6–79.8%/53–202	- Pressure build-up; - Temperature evolution of fluid; - Temperature distribution of fluid.	±13.8 kPa ±0.5 K
[34,41]	Spherical	4.95	12–20 h	29–83%/0.35–3.5	- Pressure build-up; - Temperature distribution of fluid; - Temperature evolution of the fluid and solid wall;	±0.01 kPa ±0.3 K
[42,43]	Cylindrical	18.09	6.9–18.37 h	25–90%/0.526–1.514 (b)	- Pressure build-up; - Temperature evolution of fluid;	±0.13 kPa
[44,45]	Cylindrical	0.02	1.75 h	14%/14.8	- Pressure build-up of the tank transported by sea; - Temperature evolution of fluid; - Liquid level variation.	−
[46]	Cylindrical	31.1	0.53–2.28 h	25–70%/63.52–164.76 (c)	- Pressure build-up; - Temperature distribution of fluid with various insulation forms; - Liquid fill ratio changes with time.	±0.69 kPa ±1 K

^(a) Heat flux is estimated from the ratio between the total heat leakage and surface area. ^(b) Converted by measured heat leakage and geometric structure in reference [42,43]. ^(c) Converted by measured heat leakage and geometric structure in reference [46].

Table 1. Summary of the experimental investigations on the self-pressurization process in LH₂ tanks.

Exp.	Tank Shape	Volume (m3)	Time (s, h)	Liquid Fill Ratio (%)/Heat Flux (W/m2) (a)	Measurement Content	Accuracies
[39]	Spherical	208	38 h	54.2%, 84.7%/1.9	- Pressure build-up; - Temperature evolution of fluid;	±1.38 kPa ±0.83 K
[33,40]	Spherical	0.00637; 0.09195	222–2720 s	31.6–79.8%/53–202	- Pressure build-up; - Temperature evolution of fluid; - Temperature distribution of fluid.	±13.8 kPa ±0.5 K
[34,41]	Spherical	4.95	12–20 h	29–83%/0.35–3.5	- Pressure build-up; - Temperature distribution of fluid; - Temperature evolution of the fluid and solid wall;	±0.01 kPa ±0.3 K
[42,43]	Cylindrical	18.09	6.9–18.37 h	25–90%/0.526–1.514 (b)	- Pressure build-up; - Temperature evolution of fluid;	±0.13 kPa
[44,45]	Cylindrical	0.02	1.75 h	14%/14.8	- Pressure build-up of the tank transported by sea; - Temperature evolution of fluid; - Liquid level variation.	−
[46]	Cylindrical	31.1	0.53–2.28 h	25–70%/63.52–164.76 (c)	- Pressure build-up; - Temperature distribution of fluid with various insulation forms; - Liquid fill ratio changes with time.	±0.69 kPa ±1 K

^(a) Heat flux is estimated from the ratio between the total heat leakage and surface area. ^(b) Converted by measured heat leakage and geometric structure in reference [42,43]. ^(c) Converted by measured heat leakage and geometric structure in reference [46].

2.2. Status of Theoretical Investigation

Experiments can provide reliable measurements of the pressure, temperature distribution, and liquid level changes with time under fixed geometry and heat leak boundary; however, it is not easy to directly observe the flow fields and interfacial mass transfer between vapor and liquid phases. Given this, theoretical studies become an effective complement to experimental studies in revealing the mechanism and achieving accurate prediction of thermal behaviors during the no-vented storage process of LH₂.

Theoretical investigations have focused on establishing analytical equations among several discretized nodes (cells) and developing numerical models for describing the transient thermal behaviors for the LH₂ no-vented storage process. According to the modeling comprehensiveness of thermal behaviors [29], models can be classified into three categories: thermal equilibrium model (TEM), non-thermal equilibrium model (NTEM), and computational fluid dynamics model (CFD model), as summarized in Table 2.

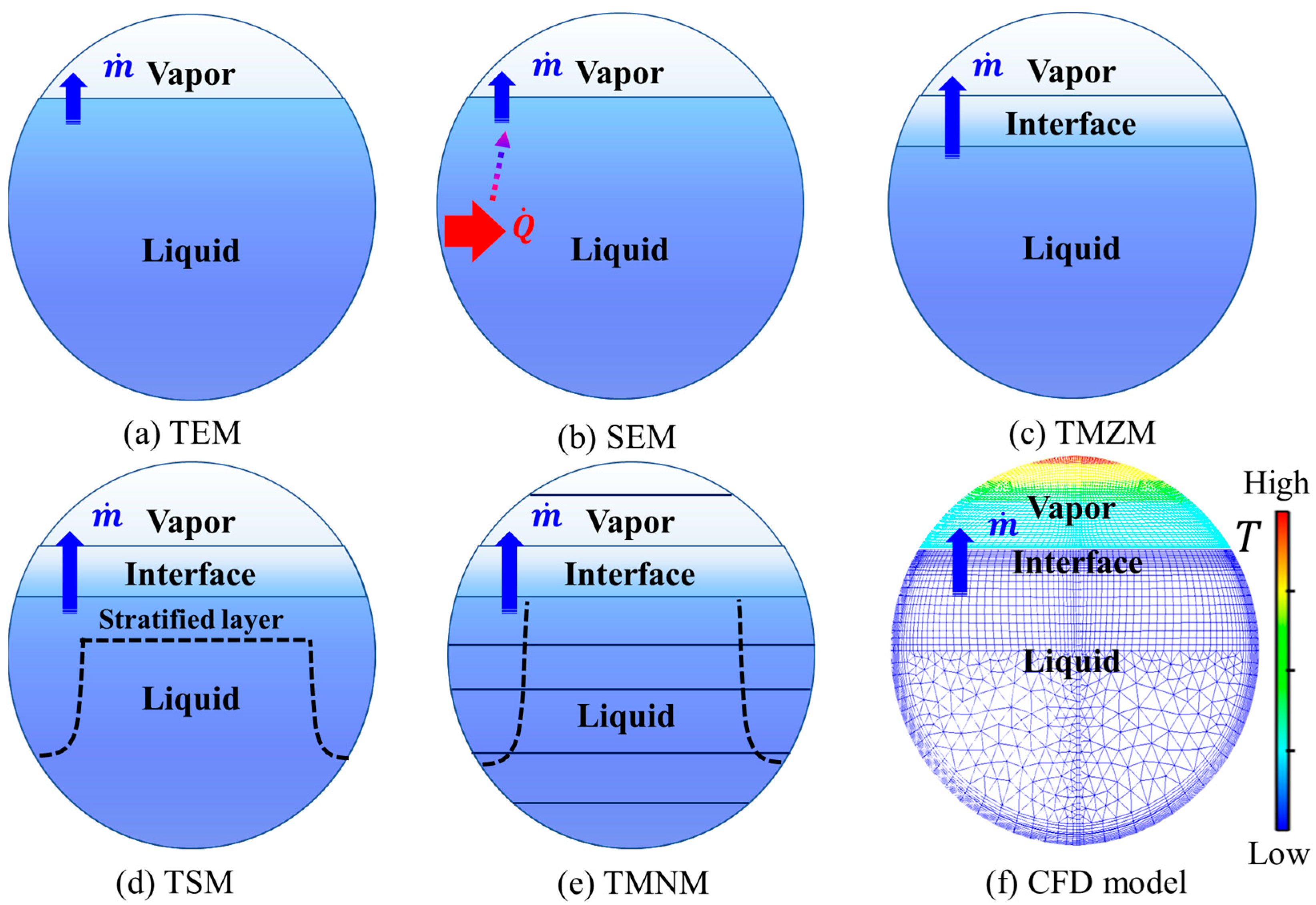

Figure 3 displays the schematics of six thermal models listed in Table 2 for describing the thermal behaviors of the LH₂ no-vented storage process. As a single-node model, TEM [47] formulates the mass and energy conservation equations in the fluid region by assuming the vapor and liquid phases to be in a saturation and equilibrium state. Due to not considering the existence of temperature stratification in the LH₂ tank [48], the prediction of pressure build-up from TEM showed a large deviation from tested data [49]. Therefore, more attention has been paid to developing the NTEM that takes the non-equilibrium mass and energy exchange between the vapor and liquid into account.

Table 2. Models for describing the thermal behaviors of LH₂ during its no-vented storage process.

Model	Classification	Node (Cell) Number	Advantages	Limitations
TEM	-	1	A clear description of the no-vented storage process in thermodynamics	Assuming no temperature difference existed between vapor and liquid phases
NTEM	SEM [48]	2	Estimation of the maximum self-pressurization rate	The temperature of the liquid phase is regarded as a constant
	TMZM [27,49,50,51]	3	Incorporating the temperature difference between vapor and liquid phases and interfacial mass transfer	Lack of consideration of temperature stratification in the vapor and liquid
	TSM [52,53]	3~5	Incorporating the boundary layer zone and thermal stratification in the liquid	Lack of consideration of temperature stratification in the vapor
	TMNM [54,55]	≥4	Discretization of vapor, liquid, and boundary layer zone with more nodes	Simplification of modeling flow fields
CFD model [56,57]		≥5000	Multi-scale and multi-dimensional description of thermal behaviors for no-vented storage of LH2	Time-consuming for thermal design and prediction; The selection of some sub-models remains a disagreement

TEM: Thermal equilibrium model; NTEM: Non-thermal equilibrium model; SEM: Surface evaporated model; TMZM: Thermal multi-zone model; TSM: Thermal stratified model; TMNM: Thermal multi-node model; CFD model: Computational fluid dynamics model.

Table 2. Models for describing the thermal behaviors of LH₂ during its no-vented storage process.

Model	Classification	Node (Cell) Number	Advantages	Limitations
TEM	-	1	A clear description of the no-vented storage process in thermodynamics	Assuming no temperature difference existed between vapor and liquid phases
NTEM	SEM [48]	2	Estimation of the maximum self-pressurization rate	The temperature of the liquid phase is regarded as a constant
	TMZM [27,49,50,51]	3	Incorporating the temperature difference between vapor and liquid phases and interfacial mass transfer	Lack of consideration of temperature stratification in the vapor and liquid
	TSM [52,53]	3~5	Incorporating the boundary layer zone and thermal stratification in the liquid	Lack of consideration of temperature stratification in the vapor
	TMNM [54,55]	≥4	Discretization of vapor, liquid, and boundary layer zone with more nodes	Simplification of modeling flow fields
CFD model [56,57]		≥5000	Multi-scale and multi-dimensional description of thermal behaviors for no-vented storage of LH2	Time-consuming for thermal design and prediction; The selection of some sub-models remains a disagreement

TEM: Thermal equilibrium model; NTEM: Non-thermal equilibrium model; SEM: Surface evaporated model; TMZM: Thermal multi-zone model; TSM: Thermal stratified model; TMNM: Thermal multi-node model; CFD model: Computational fluid dynamics model.

As listed in Table 2, the NTEMs include the surface evaporation model (SEM) [48], thermal multi-zone model (TMZM) [27,49,50,51], thermal stratified model (TSM) [52,53], and thermal multi-node model (TMNM) [54,55] with the increasing number of nodes discretized. Compared to the other three NTEMs, TMNM contains the calculation of temperature, pressure, density, and even one-dimensional velocity in each node and thus can cover all the terms on the right side of Equation (2) in predicting the self-pressurization rates. Although the model faces the limitation of a one-dimensional description of physical fields, it still has the potential to be a promising thermal model for the design and optimization of high-performance LH₂ tanks [29].

Compared with NTEMs, the CFD model extends the modeling to more than two dimensions with the integration of the continuity, momentum, and energy equations in each cell grid, and can provide a holistic spatial and temporal distribution of physical fields, achieving the numerical visualization of thermal behaviors of LH₂ in multi-scales and multi-dimensions [17]. However, the CFD model faces a limitation in calculation speed which takes a duration of weeks to months to obtain transient behavior information from several hours to one day [54].

The development of the aforementioned models has promoted the clarification of the evolution mechanism of thermal behaviors inside LH₂ tanks; however, the predictions of self-pressurization rate, temperature distribution, and liquid level changes from current models still have a big gap to substitute the experimental observations. More quantitative information needs to be captured in multi-physical fields calculated by thermal models.

2.3. Perspectives and Recommendations for Thermal Behaviors

Combining the current statutes of experimental/theoretical investigation on thermal behaviors during the no-vented storage process of LH₂, this section proposes four perspectives on the key challenges and future recommended works in this field.

2.3.1. Long-Term Tests to Observe Transient Thermal Behaviors

Normally, the maximum allowable working pressure of an LH₂ tank is designed to be around 1 MPa. For a 100 m³ tank, the maximum hold time can reach 8 d with the help of the self-pressurization rate indicator (120 kPa/d) shown in Figure 2a. However, the tested periods for most experiments are less than 24 h according to the published experimental studies on thermal behaviors of LH₂ no-vented storage summarized in Table 1. Conducting the long-term test of transient thermal behaviors of LH₂ is of great significance in future work for providing valuable experimental data on developing reliable thermal models and upgrading the requirements in standards.

2.3.2. Mechanism of Vapor–Liquid Phase Change in Liquid Hydrogen Tanks

As indicated in Equation (2), the phase change term ($\dot{m}{p}_{\mathrm{v}}\mathsf{\Omega }/{\rho }_{\mathrm{v}}$) is dependent on the self-pressurization rate, thus figuring out the mechanism of vapor-liquid phase change is vital for the safe storage and transportation of LH₂. The current vapor-liquid phase change models include the Schrage model [59], Tanasawa model [60], Lee model [61], and energy jump model [62]. Different selections of coefficients in these models will have an impact on the prediction of the self-pressurization process (Figure 4a) in cryogenic tanks. However, the selection of coefficients in these models remains in disagreement due to the lack of a unified theory and testing results 30. Future works are recommended to focus on the long-term observation of vapor-liquid phase change behaviors in LH₂ to calibrate these models.

2.3.3. Effect of Temperature Stratification on Self-Pressurization Rate

The temperature stratification in the fluid is formed by the buoyancy flows [32], and a more conspicuous temperature stratification phenomenon occurs in the vapor region than in the liquid [41]. The existence of this phenomenon makes the thermal equilibrium assumptions of vapor and liquid phases no longer valid and explains why the practical pressure builds up much faster than the pressure calculated by the TEM [26].

Nevertheless, some studies [34,41] indicated that the initialized temperature stratification helped to extend the hold time of no-vented storage of LH₂. As shown in Figure 4b, when the LH₂ tank is initialized with temperature stratification (i.e., steady boil-off mode), the hold time is 1.57 h longer than that is initialized without temperature stratification (i.e., isothermal mode) at the same initial liquid fill ratio and heat leak. Therefore, much effort should be made to reveal whether temperature stratification accelerates the pressure build-up or not in future research.

2.3.4. Effect of Free Convection Flows Driven by Buoyancy Force on Self-Pressurization Rate

As heat leaks into the tank, the fluid in the boundary layer is heated and moves upward to go through the vapor-liquid interface due to buoyancy force, and the fluid away from the wall keeps moving downward with vapor-liquid condensation, forming the free convection circulating flows among the vapor, liquid, and their boundary layers [17,63]. The intensity of free convection is described by the modified Rayleigh number (${\mathrm{R}\mathrm{a}}^{\mathrm{*}}={\mathrm{G}\mathrm{r}}^{\mathrm{*}}\mathrm{P}\mathrm{r}$) [64] to judge whether the flow is laminar or turbulent. As shown in Figure 4c, the temperature distributes more uniformly in the turbulent flows than in the laminar flows.

Normally, the modified Rayleigh number is in the turbulent region for the no-vented storage of LH₂ [17]. However, according to the results in Figure 4d, the laminar model presents a better prediction of pressure build-up than the turbulent model. In addition, some studies [65,66] pointed out that the turbulent model was also capable of performing good predictions compared to experimental results in the LH₂ self-pressurization process. Therefore, the numerical results still need to be validated by better and more targeted experiments. To investigate the effect of flows on the self-pressurization rate, three-dimensional modeling of turbulent flows with high-resolution flow fields is recommended for future work.

3. Thermal Insulation for the No-Vented Liquid Hydrogen Storage

When the volume and initial liquid fill ratio are fixed, the NER can directly evaluate the total heat leak into the LH₂ tank. To keep the heat leak into the LH₂ tank at a low level, it is vital to develop high-performance thermal insulations at LH₂ temperatures. This section summarizes the state-of-the-art thermal insulation forms applied in LH₂ storage, introduces the widely adopted testing method of thermal insulation, and proposes perspectives on challenges to be addressed and outlooks for future work.

3.1. Typical Thermal Insulation Forms and Testing Method for LH₂ Storage

Table 3 summarizes the characteristics and performance of typical thermal insulation forms applied in LH₂ storage. As shown in Table 3, the hollow glass microsphere and multilayer insulation (MLI) are two forms with excellent thermal insulation performance and will help to improve the thermal insulation performance in the future design of LH₂ tanks.

Table 3. Characteristics and performance of typical thermal insulations for LH₂ storage [4,67,68].

Insulation Forms	Advantages	Disadvantages	Performance
Foam-outside	- Lightweight - Low cost - Easy to implement	- High thermal conductivity - Easy to degrade in the environment	>0.01 W/(m·K)
Foam-inside	- Low cost - Reduce microcracking - Decrease heat ingress when the vacuum losses	- Larger structural tank wall required - Increased thermal conductivity due to cryogenic fluid infiltration	-
Aerogel	- Low density - Excellent thermal insulation under non-vacuum conditions	- High cost - Limited mechanical properties - Not well-established for larger tanks	2 × 10−3~1.4 × 10−2 W/(m·K) at 185 K [69]
Perlite	- Low cost - Low density - Moderate thermal insulation under non-vacuum conditions	- High demand for the vacuum to reach high thermal insulation performance - Compaction can happen with certain tank geometries under thermal cycling and/or dynamic loads	1 × 10−3~5 × 10−2 W/(m·K)
Glass bubbles/Hollow glass microspheres	- Very low density - Simplified insulation due to flowability - Good thermal insulation under non-vacuum conditions	- High demand for vacuum to reach high thermal insulation performance - Not well-established for larger tanks	2 × 10−4~1 × 10−3 W/(m·K)
Multi-layer insulation	- Low density - Low radiation heat transfer - Superior thermal resistance under high vacuum - Well-established	- Demand for high vacuum - Costly to implement and maintain - Near catastrophic failure upon vacuum loss - Difficult to execute for certain tank geometries or very large tanks	1 × 10−5~5 × 10−4 W/(m·K) [70]

Table 3. Characteristics and performance of typical thermal insulations for LH₂ storage [4,67,68].

Insulation Forms	Advantages	Disadvantages	Performance
Foam-outside	- Lightweight - Low cost - Easy to implement	- High thermal conductivity - Easy to degrade in the environment	>0.01 W/(m·K)
Foam-inside	- Low cost - Reduce microcracking - Decrease heat ingress when the vacuum losses	- Larger structural tank wall required - Increased thermal conductivity due to cryogenic fluid infiltration	-
Aerogel	- Low density - Excellent thermal insulation under non-vacuum conditions	- High cost - Limited mechanical properties - Not well-established for larger tanks	2 × 10−3~1.4 × 10−2 W/(m·K) at 185 K [69]
Perlite	- Low cost - Low density - Moderate thermal insulation under non-vacuum conditions	- High demand for the vacuum to reach high thermal insulation performance - Compaction can happen with certain tank geometries under thermal cycling and/or dynamic loads	1 × 10−3~5 × 10−2 W/(m·K)
Glass bubbles/Hollow glass microspheres	- Very low density - Simplified insulation due to flowability - Good thermal insulation under non-vacuum conditions	- High demand for vacuum to reach high thermal insulation performance - Not well-established for larger tanks	2 × 10−4~1 × 10−3 W/(m·K)
Multi-layer insulation	- Low density - Low radiation heat transfer - Superior thermal resistance under high vacuum - Well-established	- Demand for high vacuum - Costly to implement and maintain - Near catastrophic failure upon vacuum loss - Difficult to execute for certain tank geometries or very large tanks	1 × 10−5~5 × 10−4 W/(m·K) [70]

Testing the performance is essential for the improvement and optimization of thermal insulation structures at LH₂ temperatures. Take the MLI for instance; since the insulation performance is dependent on the layer density, number of layers, vacuum pressure, and temperatures of cold/warm boundaries, it is difficult to achieve an accurate prediction for it. Thus, reliable thermal insulation performance is obtained through testing [70]. The steady boil-off test is a widely adopted testing method for monitoring heat leaks into thermal insulation structures with the following expression [43]:

$$\dot{Q}={\dot{m}}_{\mathrm{v}\mathrm{t}}\gamma \left({\displaystyle \frac{{\rho }_{\mathrm{l},\mathrm{s}}}{{\rho }_{\mathrm{l},\mathrm{s}}-{\rho }_{\mathrm{v},\mathrm{s}}}}\right)+{\dot{m}}_{\mathrm{v}\mathrm{t}}\left(h_{\mathrm{v}\mathrm{t}}-h_{\mathrm{v},\mathrm{s}}\right)-\sum {\displaystyle \frac{A_{\mathrm{i}}}{L_{\mathrm{i}}}}\underset{T_{\mathrm{c}}}{\overset{T_{\mathrm{h}}}{\int }}k\left(T\right)\mathrm{d}T$$

(3)

where ${\dot{m}}_{\mathrm{v}\mathrm{t}}$ is the steady boil-off rate (mass flow rate), $k$ is the thermal conductivity of pipelines and thermal struts, $A$ and $L$ are the section area and length of the pipelines/thermal structs, ${\rho }_{\mathrm{l},\mathrm{s}}$ and ${\rho }_{\mathrm{v},\mathrm{s}}$ are the saturation density of liquid and vapor, $h_{\mathrm{v}\mathrm{t}}$ and $h_{\mathrm{v},\mathrm{s}}$ are the enthalpy of the vented boil-off gas and saturation vapor, and $T_{\mathrm{c}}$ and $T_{\mathrm{h}}$ are the temperatures of cold and ambient boundaries, respectively.

Equation (3) is valid under the assumption of a quasi-steady state. As indicated in Equation (3), the heat leak through the thermal insulation structure equals the difference between the enthalpy of the vented boil-off gas and solid heat conduction in the pipelines and thermal structs under the steady boil-off testing conditions [43]. This method was widely used in testing the thermal insulation performance at liquid nitrogen temperatures [71]. However, using LH₂ in steady boil-off tests is costly and may bring about safety risks, making the published experimental data very limited. Thus, methods with an alternative heat sink at 20.3 K should be developed to test the thermal insulation performance without LH₂.

In addition, the thermal performance tested on insulation structures provides a critical boundary condition for the prediction of thermal behaviors during the no-vented storage of LH₂. For the sake of simplifying the modeling and calculation, the heat leak through the thermal insulation structure is treated as a uniformly distributed and constant heat flux in some studies, thus more attention is encouraged to be paid to the transient behaviors (spatial and temporal) of heat leak during the self-pressurization process.

3.2. Perspectives and Recommendations for Thermal Insulations

According to the aforementioned status in forms and testing methods applied in thermal insulation structures for LH₂ storage, some perspectives on challenges and prospects are proposed and discussed as follows.

3.2.1. Alternative Testing Methods for Thermal Insulations at Liquid Hydrogen Temperatures

As shown in Figure 5, using cryocoolers or cold gaseous helium as the heat sink are two promising methods to alternate the LH₂ in measuring the performance of thermal insulation structures at LH₂ temperatures [70]. In the method coupled with the cryocoolers, as demonstrated in Figure 5a [72], a metal rod is installed to connect the cold head of the cryocoolers to the test chamber. The heat leak into the test chamber can be obtained from the temperature difference between the two ends of the rod after calibrating the thermal conductivity of the rod. Although a deviation of nearly 100% of heat leak occurred when compared to the measured results from the steady boil-off tests at liquid nitrogen temperatures [73], the incorporation of cryocoolers as the heat sink is still one of the potential solutions for alternating the use of LH₂ in measuring the performance of thermal insulations [70,71,72,73]. More efforts should be made in this method to further increase the measurement accuracy of thermal insulation performance. In the method coupled with cold gaseous helium, as shown in Figure 5b [74], the design of the experimental facility and testing results at liquid nitrogen temperatures were provided, but no further discussion about the testing results at LH₂ temperatures [75,76].

3.2.2. Measurement of Transient Heat Leak at Liquid Hydrogen Temperatures

The heat leak through the thermal insulation structure is normally obtained by the steady boil-off testing and is input to the thermal models as a constant for the prediction of thermal behaviors inside the LH₂ tank. However, the heat leak will have a spatial and temporal distribution due to the temperature stratification 38. As indicated in Figure 6a, the temperature stratification leads to a uniformly distributed temperature from the bottom to the top of the LH₂ tank. The maximum temperature inside the fluid rises with time, making the temperature difference between the ambient surroundings and the fluid continuously reduced. When the ambient temperature is fixed, the heat leak will reduce during the no-vented storage of LH₂. Moreover, the temperature of vapor is higher than that of liquid, causing the heat leakage distributed between the vapor and liquid phases [77]. For the sake of achieving an accurate description of the heat leak, conducting measurements of the transient heat leak under temperature stratification is recommended in future research.

3.2.3. Development of High-Performance Thermal Insulation for Protecting LH₂ Tanks

According to the American standard CGA H-3 [18] and NASA report [43], the MLI under high vacuum is a widely used form of thermal insulation in the LH₂ tank with a volume of less than 100 m³, and the form of variable-density MLI (VDMLI) can help to improve the insulation performance of MLI at LH₂ temperatures. Figure 6b presents the schematic of VDMLI with foam [78]. The combination of VDMLI with foam can provide thermal protection for the cryogenic tank in the event of a vacuum breakdown or a sudden increase in heat leak [79]. In this case, the rapid increase in pressure and discharge of the tank contents can be limited by the safety valves of the tank.

Since the hollow glass microsphere has a higher thermal resistance than the foam, the composite MLI coupling the hollow glass microsphere (Figure 6c) with VDMLI becomes a potential form of thermal insulation according to reference [80]. However, few studies have been carried out to test the thermal insulation performance of the MLI coupled with the hollow glass microsphere due to some limitations. First, an additional wall is required between the hollow glass microsphere and MLI layers. Despite the existence of the hollow glass microsphere helping to slow down the pressure rise inside the tank in the event of a vacuum breakdown, more efforts need to be made for evacuation, and more space is required for thermal insulation. Therefore, the feasibility of applying the thermal insulation on the LH₂ tanks by coupling the MLI with the hollow glass microsphere remains to be revealed in future studies.

To reduce the heat leak into the tank by making use of the sensible heat from the evaporated hydrogen from 20.3 K to 300 K, the vapor-cooled shield [35] (VCS, in Figure 6d,e) has attracted much interest in the demand for improving thermal insulation performance at LH₂ temperatures [28]. It is noted that using the para-ortho hydrogen conversion can improve the performance of the VCS [81,82,83]. However, the performance of VCS coupled with para-ortho hydrogen conversion is limited by a high-pressure drop that existed in a catalyst and a reasonable position of VCS at the MLI layers. Moreover, due to the lack of systematical experimental tests, the improvement in the performance of VCS coupled with para-ortho hydrogen conversion remains unclear. Therefore, more experimental testing of MLI coupled with MLI at LH₂ temperatures needs to be carried out.

4. Conclusions

Safe and efficient storage/transportation is essential for large-scale utilization and operation of LH₂. This paper presents an overview of thermal behaviors during the no-vented storage of LH₂ and thermal insulations applied to LH₂ tanks for the two key indicators of hold time and normal evaporation rate (NER) required in the standard.

Thermal behaviors of the fluid inside the tank can directly affect the hold time, so the clarification of thermal behaviors is vital for the safe operation of LH₂. Based on a summary of experimental/theoretical investigation on the thermal behaviors of LH₂, four perspectives are proposed and discussed in this paper to encourage conducting long-term observations and revealing the mechanism of vapor-liquid phase change, temperature stratification, and buoyancy flows.

Thermal insulation with high performance can realize a low NER as well as a small heat leak into the tank, which provides substantial support for the long-term storage of LH₂. Herein, the forms, performance, and testing method of forms of thermal insulation at LH₂ temperatures are introduced. Accordingly, three perspectives and recommendations for future work are presented, including the alternative methods of using cryocoolers or cold gaseous helium to test the performance of thermal insulations, measurement of transient behaviors of heat leak due to thermal stratification, as well as the development of performance-improved thermal insulation structures. This work can provide guidance for the design and improvement of high-performance LH₂ tanks.
