Synthesis, Characterization, and Hydrogen Gas Sensing of ZnO/g-C₃N₄ Nanocomposite ^†

Abstract

In this paper, the preparation of the ZnO/g-C₃N₄ nanocomposite is discussed. The synthesis of nanocomposite is performed by the direct pyrolysis of the precursor (zinc acetate hexahydrate). The material synthesis is validated by different characterization tools, such as X-ray Diffraction (XRD), Scanning electron microscopy (SEM), Transmission electron microscopy (TEM). The SEM and TEM analysis revealed the formation of nanorods on g-C₃N₄ support. The gas sensing property of the ZnO/g-C₃N₄ was studied for various concentrations of hydrogen gas. Response and recovery times were recorded by the sensor.

1. Introduction

Hydrogen is increasingly important as a clean energy source due to its relatively easy availability and eco-friendliness. Moreover, hydrogen is efficient and renewable, and its common by-product is water [1]. For these features, hydrogen is the most promising green energy source for automotive and other industries and technologies, such as fuel cells, defence, petroleum, etc. Hydrogen gas is very explosive and fatal above its lower explosion limit (1–4%). The g-C₃N₄ is a 2D conjugated polymer semiconductor [2]. It is an n-type semiconductor, which has nitrogen in abundance. It is a thermally stable, non-poisonous, metal-free, and low-cost material [3]. The g-C₃N₄ has suitable band structures that are highly thermal; have chemical stabilities; have excellent electronic properties; and are abundant in nature [2,3]. The g-C₃N₄ has been applied in photosynthesis, energy conversion and storage, carbon dioxide storage and reduction, solar cells, sensing, and imaging [4]. The g-C₃N₄ comprises excellent properties as a gas sensing material. It possesses an indirect bandgap of 2.7–2.8 eV, consisting of carbon (C) and nitrogen (N) atoms that are organized in the graphite-like layered structure; each layer has tri-s-triazine, which is connected to the amino group [5].

2. Preparation of ZnO/g-C₃N₄ Nanorods

To synthesize the ZnO/g-C₃N₄ nanocomposite, melamine was taken as a precursor material for g-C₃N₄ and zinc acetate dehydrates for ZnO. Melamine and zinc acetate dehydrates were purchased from Merck India Pvt. Ltd., Mumbai, India. Pure DI water was generated using Milli-Q Advantage A10 (Merck Millipore, Burlington, VT, USA).

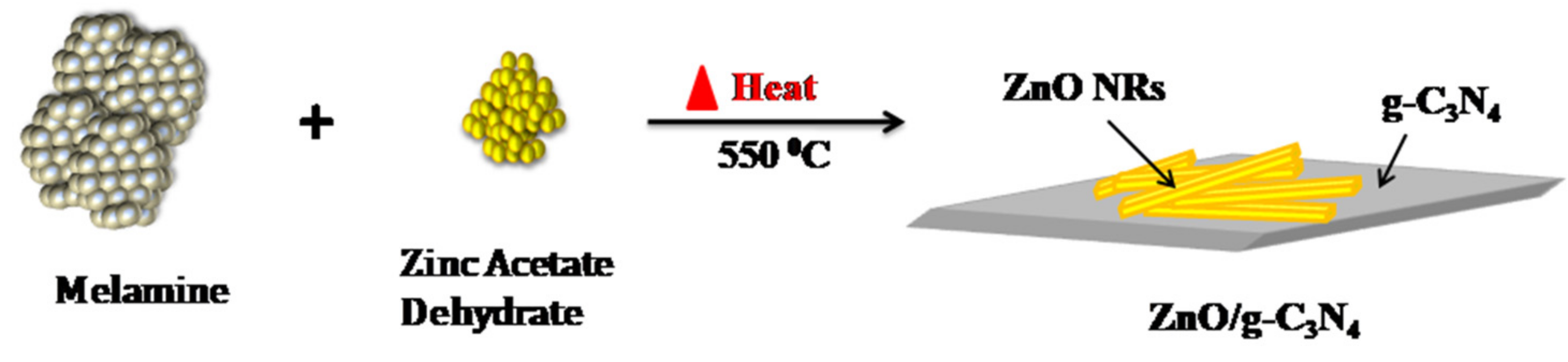

All the materials taken for the synthesis were used as-received (i.e., without any further purification). For the synthesis, a very simple and cost-effective pyrolysis process was adopted. The ZnO and g-C₃N₄ precursor materials were transferred to the alumina crucible and closely packed using aluminum foil. To make ZnO/g-C₃N₄ nanocomposite, 1:1 (wt%) of each precursor material were taken. Thereafter, the obtained powder was heated up in a muffle furnace at 550 °C for 5–6 h at a 3 °C/min ramp rate. As a result of the calcination, brown to dark brown powder was obtained. The ZnO nanorods on g-C₃N₄ sheets were formed after the completion of the process, which was established by various morphological and microstructural characterizations. The schematic representation of the synthesis process is shown in Figure 1.

3. Material Characterizations

3.1. X-ray Diffraction

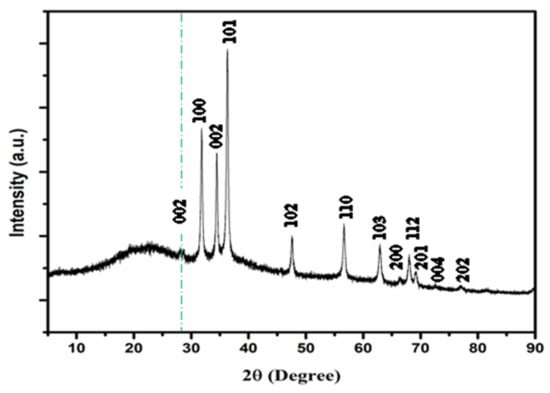

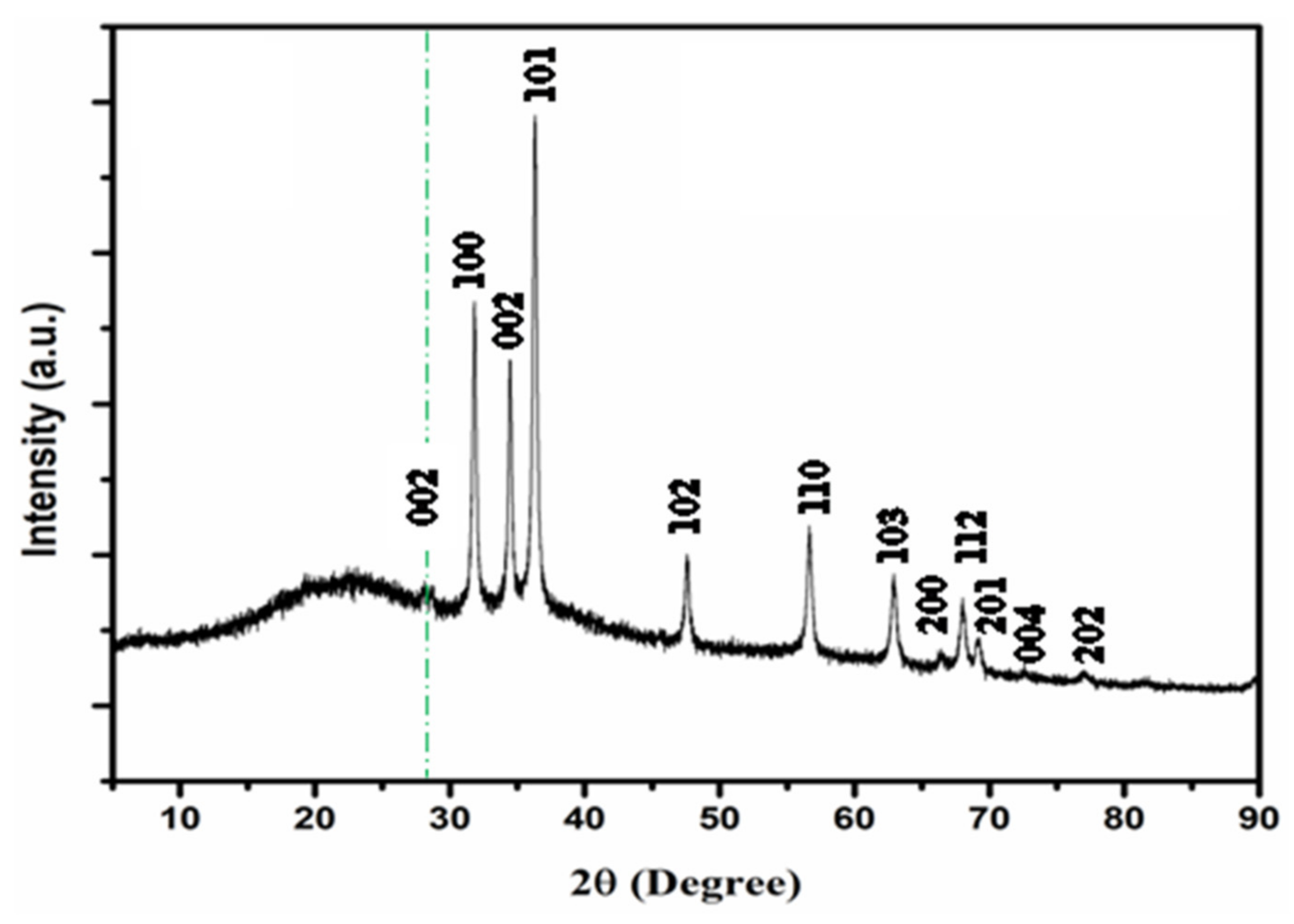

The XRD spectrum for ZnO/g-C₃N₄ was performed by Rigaku Smart Lab X-ray diffractometer with Cu Kα radiation (λ = 1.5405 Å) and shown in Figure 2. g-C₃N₄ gives two peaks at 12.9 and 27.5 that correspond to 100 and 002 lattices [6,7]. The peak at 27.5 corresponds to interplanar stacking peaks of aromatic rings, and that at 12.9 corresponds to interlayer structure [6,7]. The interplanar spacing of the two peaks was obtained as 0.685 nm and 0.323 nm, respectively. The ZnO peaks are recorded at 31.8, 34.5, 36.3, 47.6, 56.7, 62.9, and 69.2, which correspond to 100, 002, 101, 102, 110, 103, 112 lattices, respectively (JCPDS 36-1451). No other peaks were recorded, which confirmed the very high purity of the material.

3.2. FESEM and TEM

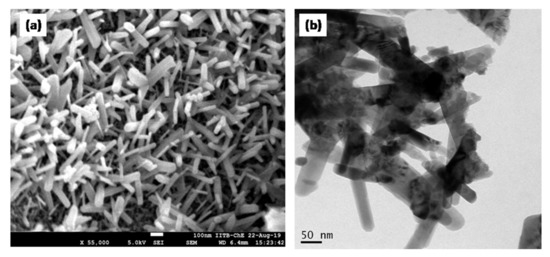

SEM and TEM analyses were performed to investigate the surface morphology and microstructure of the prepared sample. JSM-7600F (FEG) and Philips CM 200 were used for SEM and TEM analysis. SEM image reveals the irregular sheets of g-C₃N₄ with variation in size, as shown in Figure 3a. The ZnO/g-C₃N₄ show the excellent formation of ZnO nanorods on the g-C₃N₄ sheets. The size of the rods is about 400–500 nm. TEM images of the GCN and ZnO/g-C₃N₄ are shown in Figure 3b. The g-C₃N₄ has 2D sheets with irregularity in shape and size, as also depicted in SEM. The ZnO/g-C₃N₄TEM analysis shows the formation of nanorods. ZnO nanorods are anchored to the g-C₃N₄ sheet. This confirms the presence of ZnO in the composites.

3.3. Energy Dispersive X-ray (EDX) Analysis

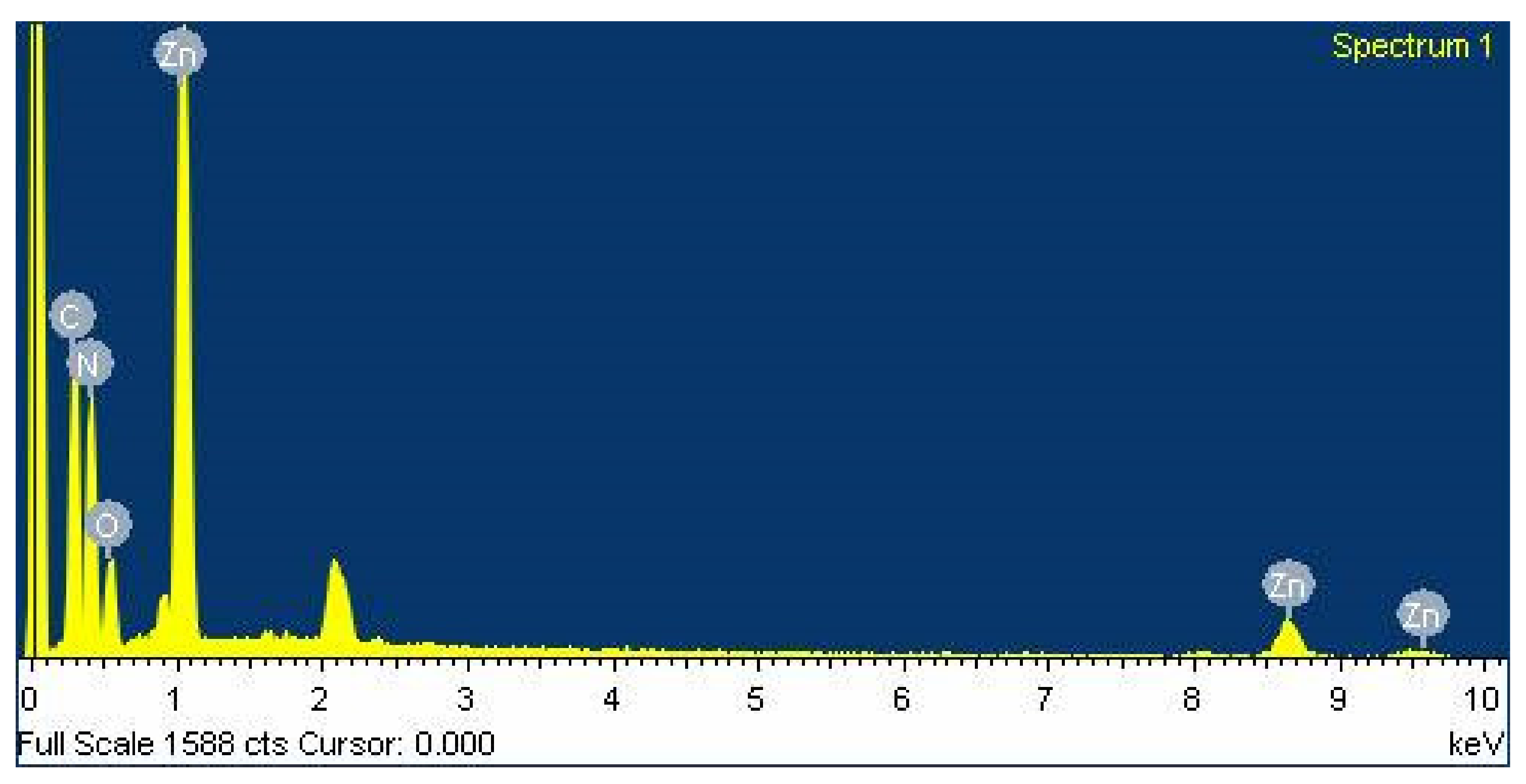

EDX analysis for the synthesized ZnO/g-C₃N₄ composite was conducted to confirm the presence of elements. As shown in Figure 4, EDX was performed in the selected area of the ZnO/g-C₃N₄ composite. The peaks for C, N, O, and Zn can easily be seen in the EDX spectrum. Apart from these elements, some other element peaks were also observed (which are attributed thin coating required for improving the conductivity and imaging). The elemental area mapping for the selected area and the presence of all the expected elements are clearly evident. Therefore, it is confirmed that the ZnO/g-C₃N₄ nanocomposite has all the expected elements present. As there are no other peaks (except for those corresponding to coating), the synthesized ZnO/g-C₃N₄composite was concluded to be of high purity.

4. Gas Sensing Measurement

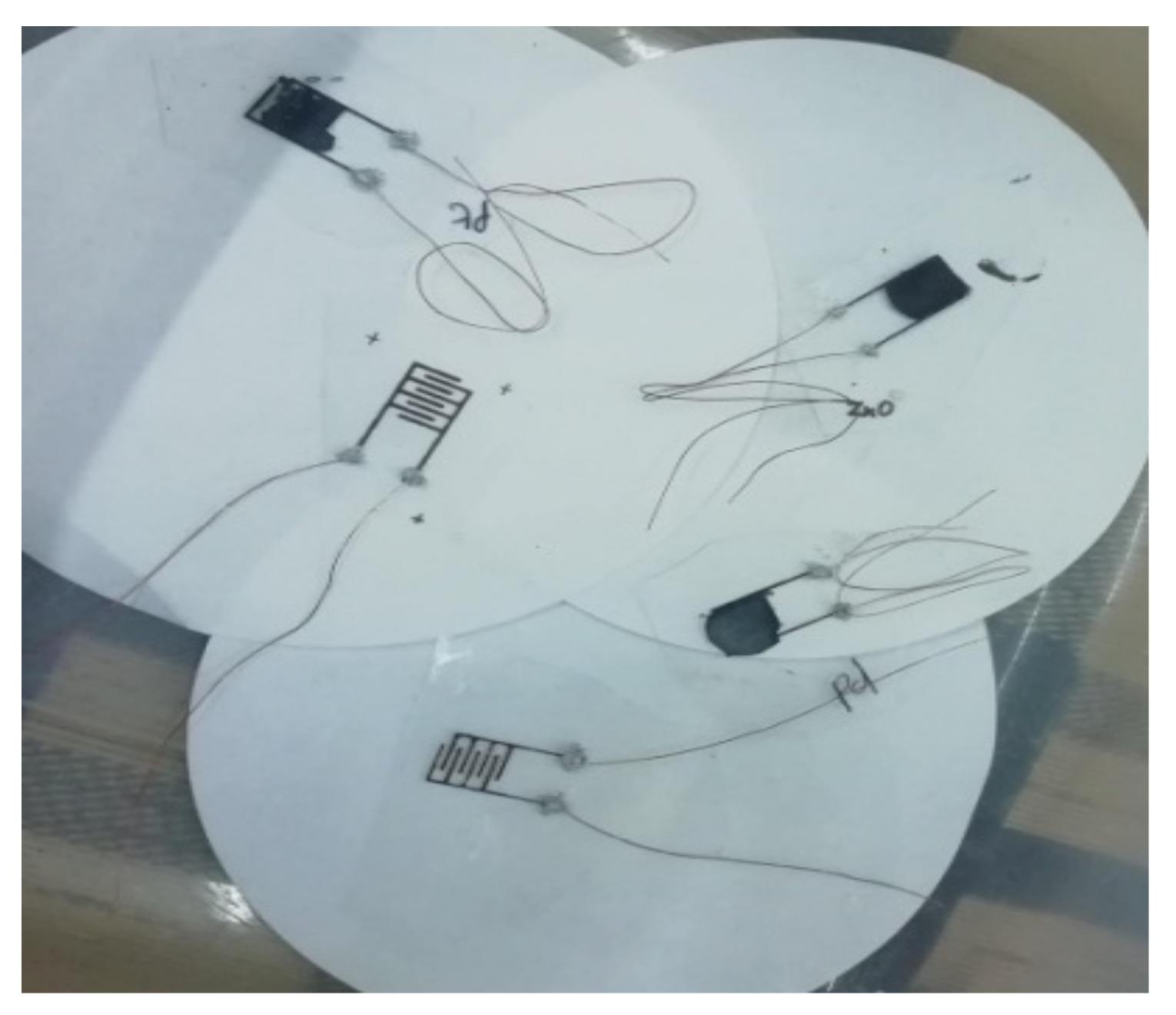

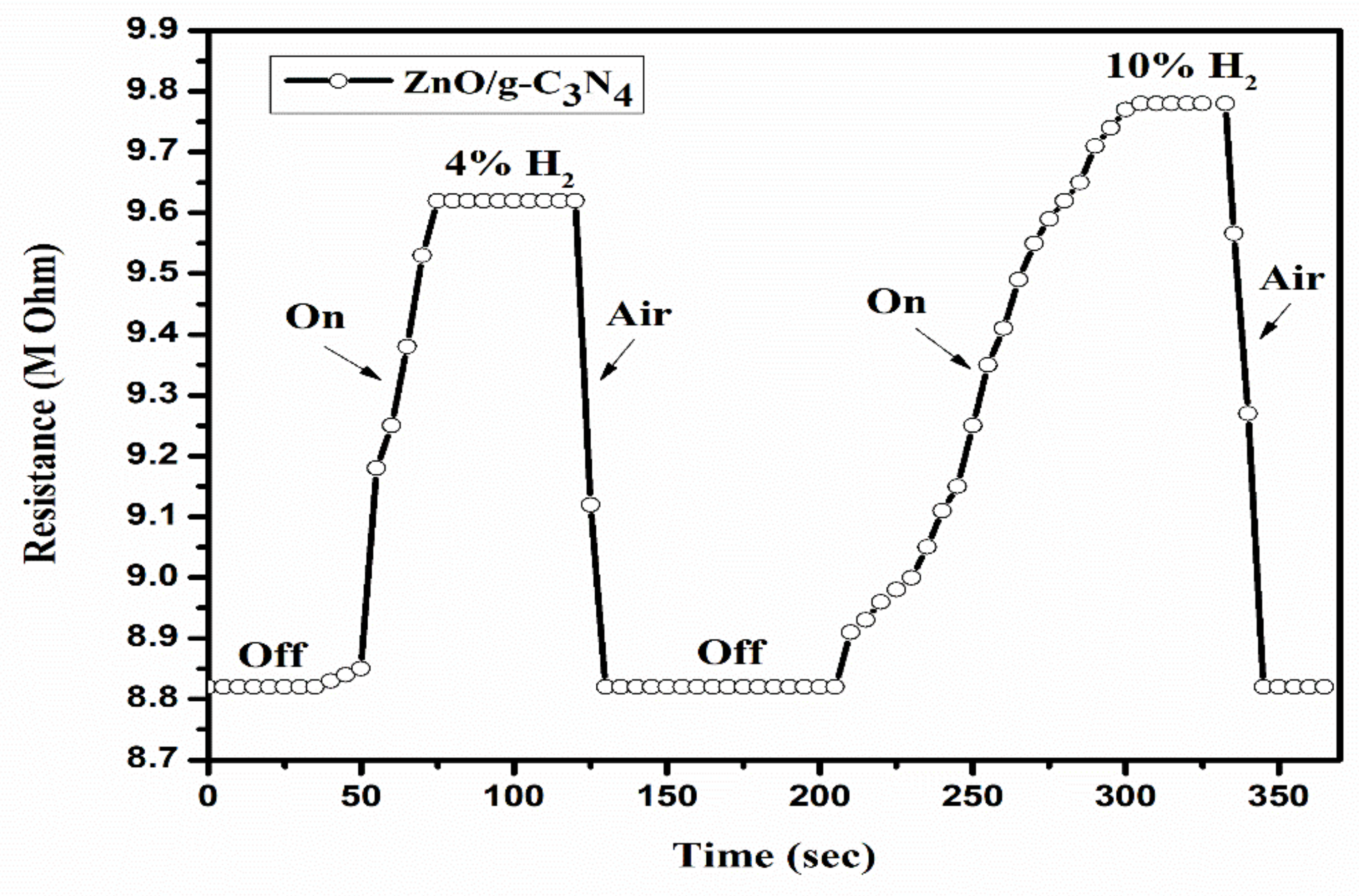

Gas sensing measurement has been performed on a fabricated sensor, as shown in Figure 5. Carbon interdigitated electrodes were fabricated on top of pre-cleaned glass substrates. Sensing material was deposited by using drop-casting. The home-based sensing chamber was made, which consisted of inlet, outlet, and connection ports for digital multimeter. Pre-calibrated canisters with a flowmeter were used for a controlled and accurate concentration of the analyte gas. Figure 6 shows the change in resistance with respect to various concentrations of gas. The response and recovery time of the sensor were measured for 4% and 10% hydrogen gas. The response time for the 4% hydrogen concentration was observed to be 65 s, and it was 90 s for 10% hydrogen concentration, respectively. The temperature was kept at room temperature.

The sensitivity of the ZnO/g-C₃N₄ sensor for 4% and 10% were evaluated to be 12% and 15%, respectively. The formula used to calculate the % sensitivity is given as. Sensitivity of the sensor,

$$Sensitivity \left(\%\right)=\frac{R_{Air}-R_{Analyte}}{R_{Analyte}}\times 100$$

(1)

where:

$R_{Air}$ = Resistance in the absence of hydrogen gas (100% air);

$R_{Analyte}$ = Resistance in the presence of hydrogen gas.

The sensing mechanism of the sensor is based on the reversible chemisorption process. When the sensor is in off condition, the oxygen atom gets adsorbed on the surface of the sensor by taking electrons from the material. Hence, the overall resistance of the senor increases. Conversely, when we introduce analyte gas (H₂ gas), the hydrogen atom converts into H⁺ and H^- molecules. These molecules then react with adsorbed oxygen, make H₂O, and release electron to the interstitial site. As a result, the resistance of the sensor reduces.

5. Conclusions

The ZnO/g-C₃N₄ nanocomposite was synthesized, followed by various characterizations to explore its properties. XRD showed the presence of all phases and purity of the material. The nanorods were more than 500 nm in length. ZnO nanorods were successfully impregnated on top of the graphitic carbon nitride matrix. The hydrogen gas sensing was studied, and promising data was recorded.
