Micro-Oscillator as Integrable Sensor for Structure-Borne Ultrasound ^†

Abstract

Motivated by their functional conformity, micro-cantilever-based MEMS oscillators are investigated in this study as structure-integrable transducers for the acquisition of guided ultrasonic waves in fiber–metal laminates. While acceleration-sensitive oscillators are limited in their maximum frequency, the presented displacement-sensitive oscillator is operated quasi-free in the fashion of a seismometer, making it particularly sensitive for high-frequency displacements above the sensor’s resonance frequency. The potential of this non-traditional application of a seismometer for the acquisition of structure-borne ultrasound is demonstrated experimentally. Therefore, MEMS oscillators are formed from the membrane of established pressure sensors by femtosecond laser micro-machining and mounted onto a setup for stimulation by structure-borne ultrasound. Experimental results indicate the targeted proportionality of the high-frequency stimulus and the sensor response. In conclusion, MEMS oscillators enable acquisition of high-frequency displacements and could therefore serve as structure-integrable sensors for guided ultrasonic waves.

1. Introduction

For Structural Health Monitoring (SHM) of composite materials such as Carbon Fiber Reinforced Plastic (CFRP), the propagation of Guided Ultrasonic Waves (GUW) can be monitored using a network of surface-mounted piezoelectric transducers recording the local surface bending state as a function of time [1]. Any defects—presenting as cracks or delaminations in the monitored structure—result in a local change of the acoustic impedance, which causes reflections and mode-conversion of the acoustic signal, finally resulting in a change of the acoustic footprint in the sensor recordings. From this digital footprint, damages can be localized, quantified, and classified.

Modern aircraft use Fiber Metal Laminates (FML), e.g., GLARE (Glass Laminate Aluminum Reinforced Epoxy), as construction materials because they combine the favorable ductile properties of metals with the high tensile strength of composite materials [2]. A further benefit of FML is that material degradation occurs as a steady process, so that the material’s condition can be monitored and quantified until service is required.

Elastic waves in plates propagate in the form of GUW. They are characterized by velocity dispersion—which describes the dependence of the phase velocity from the signal frequency—and the material’s elasticity and density. Lamb waves occur in symmetric modes and antisymmetric modes of increasing order.

In contrast to homogenous materials such as metals or CFRP, the high difference in acoustic impedance between the layers of FML, e.g., glass fiber and aluminum layers for GLARE, is expected to have an impact on the wave propagation [3].

To gain a better understanding of this complex wave propagation within FML, its inner layers need to be monitored individually. Therefore, an SHM approach for FML requires embedded sensors, which should only interfere minimally with the propagating waves.

The typical ceramic piezoelectric transducers are inappropriate because their dimensions are inevitably large and the material is poorly adapted to the acoustic impedance of the surrounding material. Suitable sensors should therefore be made of materials with better-matched acoustic impedance. Sensors that are smaller than the wavelength of the propagating ultrasound waves should interfere even less [4]. To address these requirements on the sensor, structure-integrable and impedance-matched sensors for GUW are presented in this study using MEMS oscillators.

2. Micro-Oscillator Concept

The acoustic impedance for GUW is calculated as follows: $Z_f=\rho · c_g$, with density $\rho$ and group velocity $c_g$. Investigations for a frequency–thickness product of 48 kHz mm show that the acoustic impedance of typical MEMS materials such as silicon ($Z_f=20.2\times {10}^6 \mathrm{kg}·{\mathrm{m}}^{-2}·{\mathrm{s}}^{-1}$) or borosilicate glass ($Z_f=11.8\times {10}^6 \mathrm{kg}·{\mathrm{m}}^{-2}·{\mathrm{s}}^{-1}$) is much better adapted to glass fiber laminate ($Z_f=10.1\times {10}^6 \mathrm{kg}·{\mathrm{m}}^{-2}·{\mathrm{s}}^{-1}$) than typical piezo ceramics, e.g., PZT ($Z_f=35.8\times {10}^6 \mathrm{kg}·{\mathrm{m}}^{-2}·{\mathrm{s}}^{-1})$. Further, the shape and size of MEMS devices can be adapted.

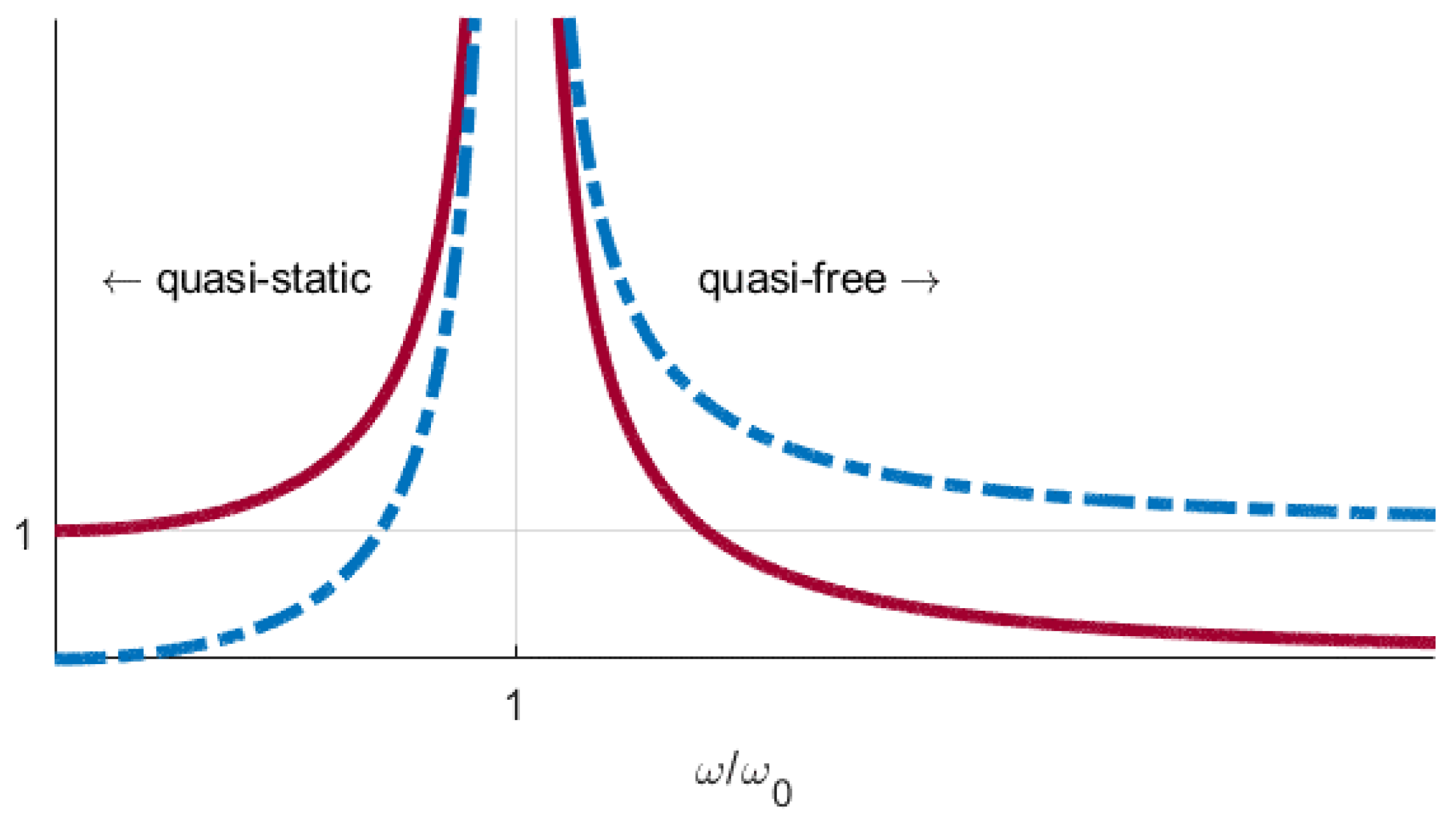

A micro-mechanical oscillator consists of a spring-loaded mass that, when subjected to a force by an external acceleration, displaces relative to its frame. The displacement can be transduced (typically by capacitive or piezoresistive schemes) into an electrical sensor signal [5]. Considering the dynamics of a spring-loaded mass, a second-order model must be used to calculate the complex amplitude. The real part of this complex amplitude is given in Figure 1, where a weakly damped system is assumed as an example. As long as the excitation frequency is well below the resonance frequency, a quasi-static response with a signal amplitude proportional to the acceleration amplitude is obtained. A forced quasi-free oscillation is obtained if the excitation frequency is far above the resonance of the spring-mass system, as known for a seismograph [6]. In this regime, the sensor signal only weakly depends on the acceleration amplitude, making it unsuitable for acceleration sensing applications. However, if the displacement of the sensor frame is considered instead of acceleration, a strong and practically frequency-independent relation is obtained. For this reason, structure-borne ultrasound can be picked up as a quasi-free oscillation of a micro-cantilever or of other MEMS accelerometers.

3. Materials and Methods

3.1. Sensor Manufacturing

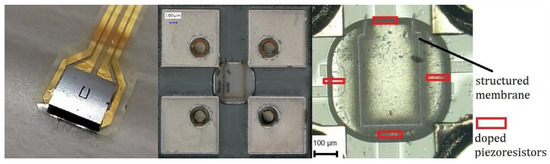

For the proof of the quasi-free oscillation concept for structure-borne ultrasound recording, a recently developed structure-integrable pressure sensor [7] was modified to form a micro-cantilever oscillator. The unsupported silicon membrane of the pressure sensor is released from three sides, using femtosecond laser micro-machining. This yields a single crystalline micro-cantilever with piezoresistive read-out with a well-defined spring constant, which is presented in Figure 2. The signal for cantilever displacement is read out through a quarter-bridge circuit, which consists of piezoresistive paths defined by local boron doping. Four pads on the sensor’s bottom side provide the terminals of the circuitry, allowing flip-chip bonding to a PCB substrate via soldering.

3.2. Test Setup

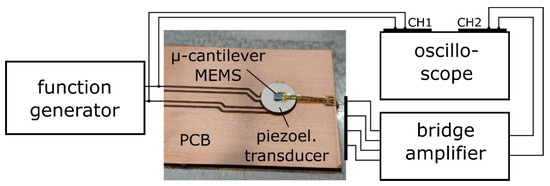

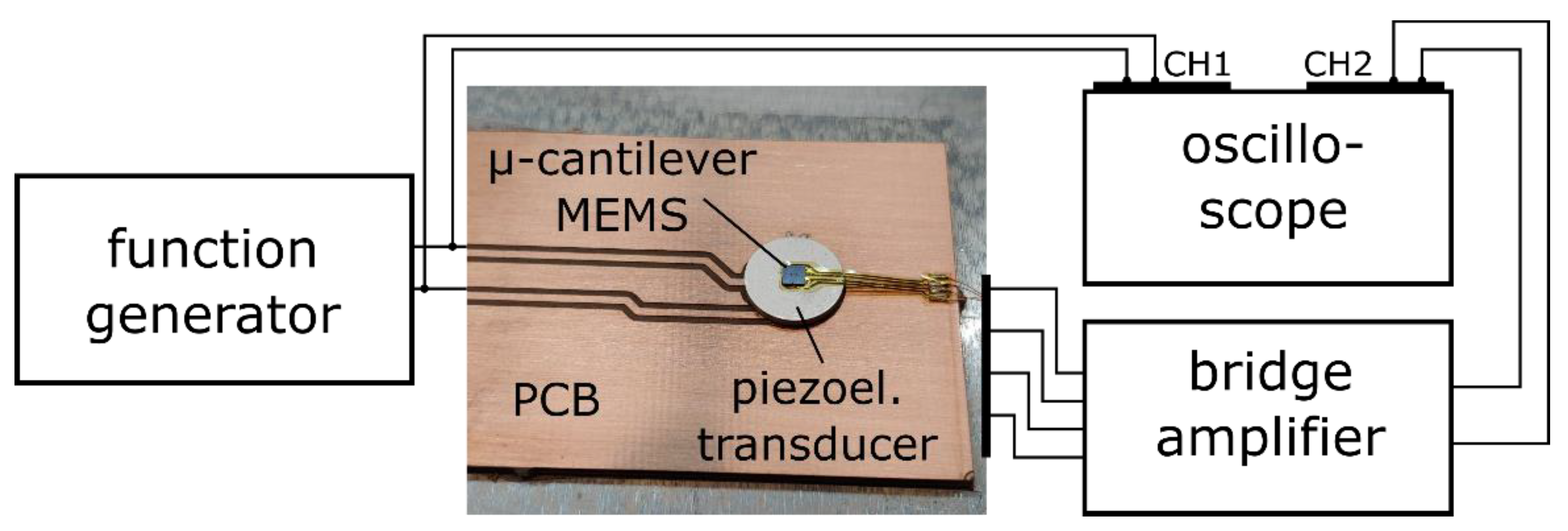

To generate an environment for ultrasonic excitation and recording, a test bed as illustrated in Figure 3 was used. For ultrasound excitation, a piezoelectric transducer was soldered onto a FR4 PCB substrate, which was adhesively bonded to a metal plate as a socket. The micro-cantilever chip was flip-chip bonded (soldered) onto a thin polyimide PCB for signal transport. This PCB was then bonded to the piezoelectric ultrasound source driven by a signal generator using a thin layer of superglue. The sensor’s Wheatstone circuit was evaluated using a high-frequency bridge amplifier (DEWETRON, DAQP-BRIDGE-B) without filtering and with the amplification set to 10×. The amplifier’s output was recorded using one channel of a digital oscilloscope, while the excitation signal was simultaneously recorded on the second channel.

4. Results

Bursts of eight sine waves with an amplitude of 10 V_pp and different frequencies were used for the out-of-plane excitation.

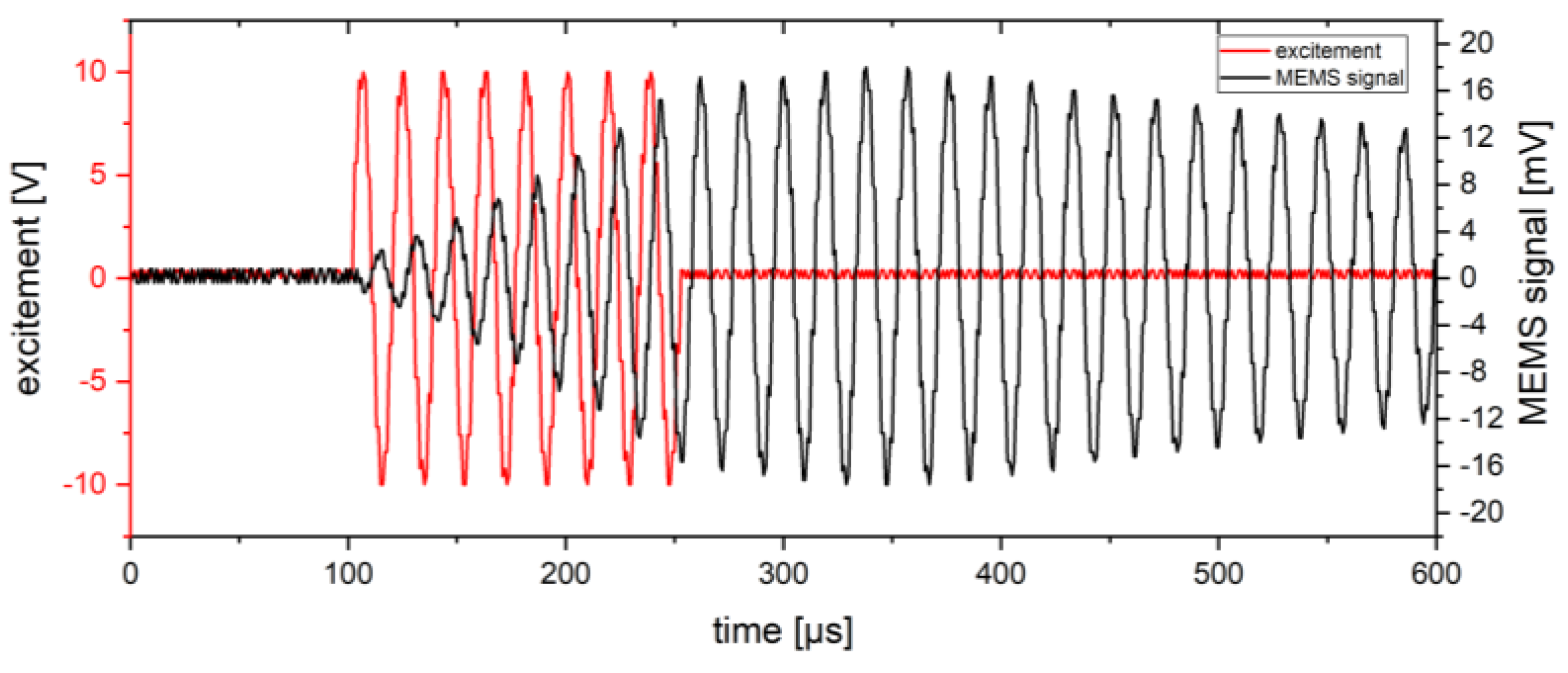

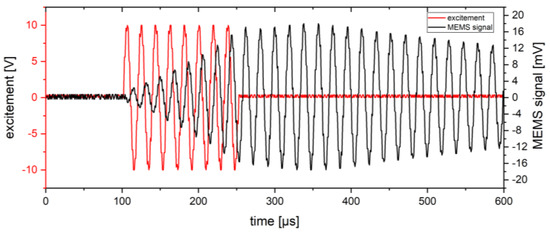

First, the frequency was set to 42 kHz, which is the first bending mode resonance frequency of the micro-cantilever. The transfer behavior is presented in Figure 4. In resonance, more energy is transferred into the oscillatory system than is dissipated by damping. The stored energy accumulates and the cantilever’s deflection amplitude increases with each excitation cycle. In resonance, the structure-borne ultrasound waveform cannot be reconstructed easily.

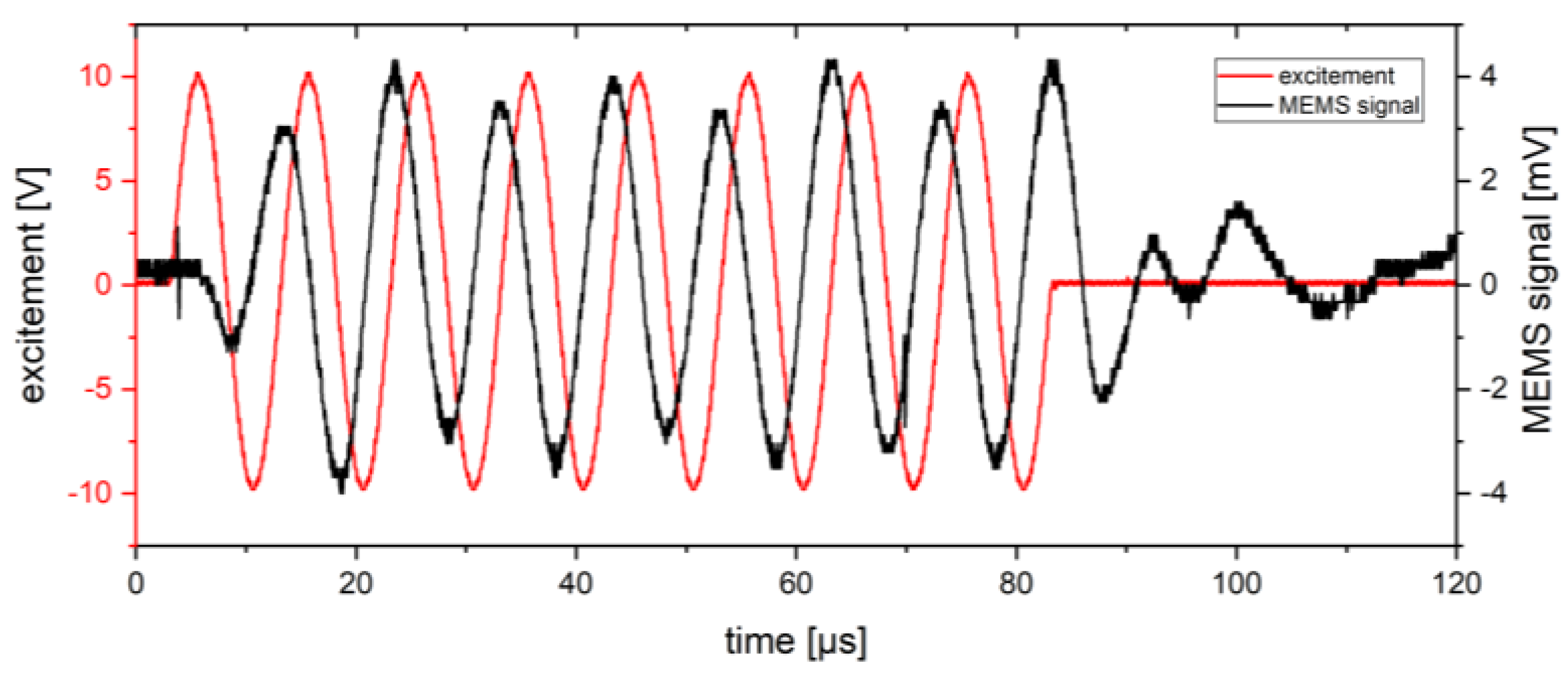

Next, a frequency was chosen, lying between the first (≈42 kHz) and second (≈280 kHz) bending mode resonance frequencies of the micro-cantilever. Figure 5 shows the time response of the cantilever to a burst of 100 kHz. The obtained signal waveform is, after a short transient, proportional to that of the ultrasound.

At frequencies below the first bending mode (resonance) frequency, the local periodic displacement was not sufficient to be extracted from the sensor signal.

5. Discussion and Outlook

The presented experiment has proven the validity of the concept of structure-borne ultrasound recording using a MEMS oscillator in quasi-free excitation. The obtained sensor signal is almost proportional to the waveform of structure-borne ultrasound excitation. However, the sensor signal contains small non-linear contributions, which are probably a result of the cantilever harmonic modes, which are weakly excited by the signal’s bandwidth.
