Perfluoro(7-methylbicyclo[4.3.0]nonane) Purification from Close-Boiling Impurities by Heteroazeotropic Distillation Method ^†

Abstract

The purification of perfluoro(7-methylbicyclo[4.3.0]nonane) industrial fractions with a component content above 0.950 in mass fraction is not effective and requires the use of special separation methods. According to experimental data, the separation factor of the initial mixture during distillation with no additional substances is close to 1. At the same time, the addition of acetone (Ac) makes it possible to significantly intensify the process. Ac allowed for obtaining MBCN with a purity higher than 0.998 in mass fraction in one separation cycle, and the degree of recovery was more than 0.85 by weight. The paper presents data on the distribution of components (target product, identified and unidentified impurities of electrochemical fluorination of decalin) between the distillate and bottom product fractions, separation factor, liquid–liquid phase equilibrium in the MBCN-Ac system, and characteristics of the MBCN-Ac heteroazeotrope.

1. Introduction

The manufacture of perfluorodecalin (PFD) in industry occurs in two stages [1]. The first stage is “mild” fluorination, which allows for protecting the carbon chain. The second stage is where the mixture is treated by molecular fluorine to remove the residual partially fluorinated molecules, the content of which is strictly regulated. At the same time, there is a partial destruction of the carbon chain in the molecules of the target component. As part of this process, a number of studies have been published on the structure and nature of impurity components [2,3,4] and the properties of reaction mixture constituents [5,6,7,8]. However, the question of the mechanism of the side reactions and the structure of their products is still open, since the identification of the components required spectral analysis of the samples, which has not yet been obtained in pure form. That is, the reference samples are not available in practice, and data on the spectral and physicochemical properties are not available in the literature, which makes the direct physical and chemical search for intensification methods of the production and purification of these compounds deeply problematic.

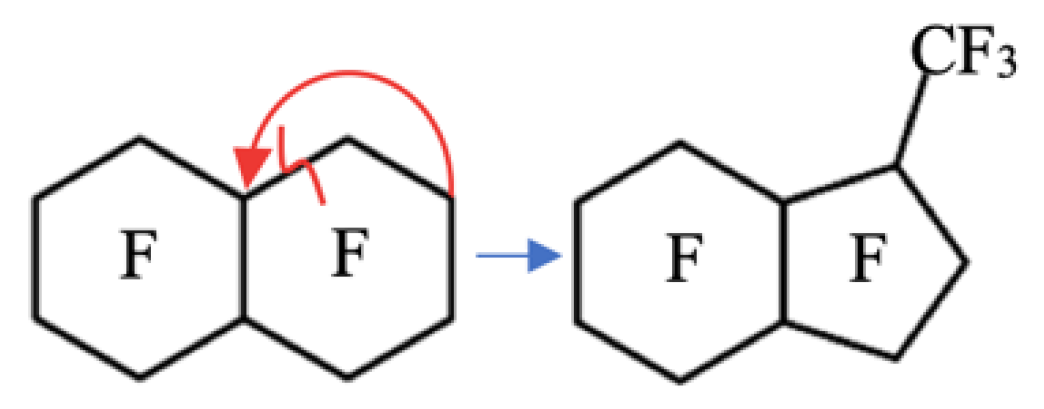

Perfluoro(7-methylbicyclo[4.3.0]nonane) (MBCN) is one of the identified impurities of a closely boiling industrial mixture of products of the configurational and structural isomeric reaction of the electrochemical fluorination of decalin and naphthalene [9]. During the target component production, PFD, there is a partial destruction of the carbon chain followed by a partial radical cycle-closing reaction to form MBCN (Figure 1).

It should be noted that the side perfluorinated alicyclic impurities have their own commercial value. They are used as monomers in the production of lyophobic polymer films, tracers to assess leakage from the sequestration of CO₂ in a depleted oil reservoir, and optical elements including lenses where the focal length can be controlled using an electric field [10,11,12,13].

The purpose of this work is the process of distillation purification of the constituent of an industrial mixture of products of electrochemical fluorination of decalin and naphthalene—perfluoro(7-methylbicyclo[4.3.0]nonane).

2. Materials and Methods

As an investigation object, in the present work, the fraction of MBCN with a main component content ranging from 0.950 to 0.975 in mass fraction was considered. The mixture itself with an initial content of the target product of about 0.80 in mass fraction was taken directly from industry. Further, the mixture can be purified by distillation to 0.950 ÷ 0.975 in mass fraction of MBCN. Subsequent separation of the resulting mixture by distillation does not lead to a change in the fractional composition. The impurity content can be divided into the following subsections: identified—PFD (≈0.004 ÷ 0.025 in mass fraction); not identified—main impurity (main imp. ≈ 0.012 ÷ 0.028 in mass fraction); and sum of other impurities (∑ other imp. ≈ 0.0001 ÷ 0.008 in mass fraction; up to 10 compounds).

The heteroazeotropic distillation was used to intensify the separation process. Acetone (Ac) (CAS No 67-64-1, ≥0.995 in mass fraction) and dimethylformamide (DMFA) (CAS No 68-12-2, ≥0.990 in mass fraction) were considered as heteroazeotrope-forming agents (SA). All distillation experiments were performed at atmospheric pressure (P) on a semicommercial batch distillation column with an efficiency of 85 theoretical separation stages. The flow diagram of the unit and its structure are fully described in [14]. During the experiment, distillate was sampled every two hours, with every 8 samples being a fraction of the distillate (Fr). Gas chromatography (GC) and nuclear magnetic resonance (NMR) methods were used for analytical determination of the phase compositions. The initial mixture (F), the distillate fractions (Fr), the total distillate (∑D), and the bottom (W) were analyzed. In the case of heteroazeotropic distillation, the dissolved separating agent was removed from the samples by extraction with water.

Liquid–liquid equilibrium data were obtained by the cloud point method. The composition of each cloud point was determined gravimetrically. All quantities were weighted in an analytical balance (±5 × 10⁻⁴ g). The heteroazeotrope characteristic was determined by continuous distillate flow sampling at a 0 reflux ratio value. The obtained fraction was thermostated in a separating flask, and after that, the phases were separated and weighed. The composition of the phases was determined from the data on the liquid–liquid phase equilibrium. For the experiments, a fraction with a content of MBCN ≥0.998 in mass fraction was used.

3. Experimental Results

Experimental data on MBCN distillation, including in the presence of heteroazeotrope-forming agents, are shown in

Table 1. Experimental data on MBCN purification by distillation at atmospheric pressure.

P = 99.0 ± 3 kPa	Fraction	Components Content Xi, Mass % (u(X) = 0.05 Mass %)				Sampling Ratio, Mass Fraction
		Identified		Not Identified
		MBCN	PFD	Main Imp.	∑ Other Imp.
	Experiment No 1. Distillation without additional substances (I)
	∑D	96.791	1.051	1.375	0.783	0.80
	F	95.359	2.493	1.305	0.843	-
	W	89.557	7.720	1.114	1.609	0.20
	Experiment No 2. Distillation without additional substances (II)
	∑D	97.412	0.631	1.645	0.313	0.79
	F	96.925	1.058	1.659	0.358	-
	W	95.066	2.690	1.712	0.532	0.21
	Experiment No 3. Distillation without additional substances (III)
	∑D	97.411	1.180	1.210	0.199	0.78
	F	97.512	0.990	1.311	0.187	-
	W	97.516	0.555	1.739	0.190	0.22
	Experiment No 4. Heteroazeotropic distillation in the presence of DMFA
	∑D	97.835	0.583	1.249	0.333	0.89
	F	97.410	0.894	1.505	0.191	-
	W	92.616	3.353	3.306	0.725	0.11
	Experiment No 5. Heteroazeotropic distillation in the presence of Ac (I)
	∑D	99.912	0	0	0.088	0.87
	F	96.400	0.689	2.846	0.066	-
	W	80.537	3.782	15.681	0	0.13
	Experiment No 6. Heteroazeotropic distillation in the presence of Ac (II)
	∑D	99.835	0	0	0.165	0.87
	F	98.379	0.399	1.207	0.016	-
	W	87.344	2.167	10.489	0	0.13

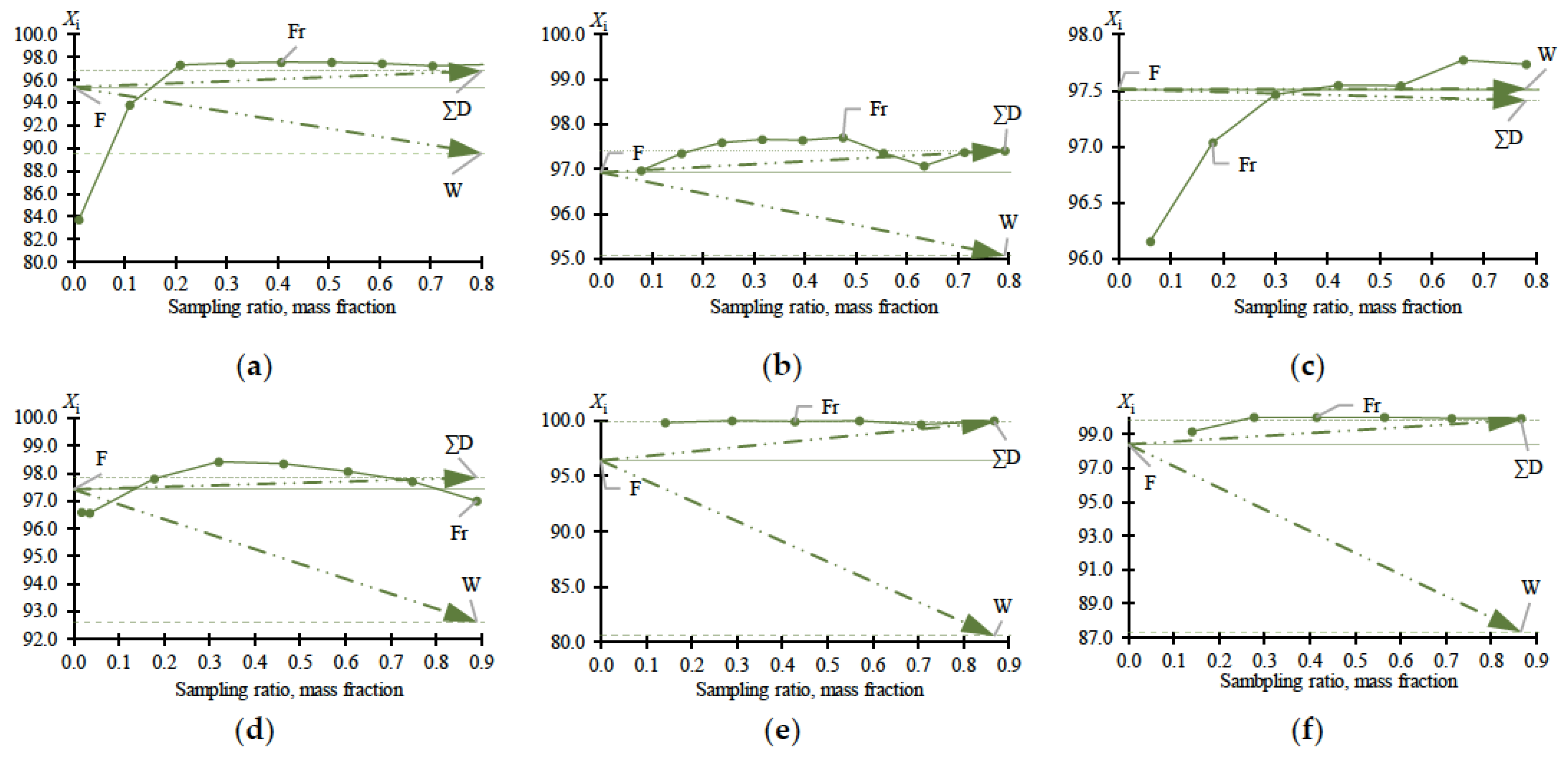

. The data in Table 1 plot the dependences (Figure 2) of distillate fractions (Fr), total distillate (∑D), and bottom (W) compositions versus sampling ratio (Equation (1)):

$$Sampling ratio=\sum m_{Fr}/m_F,$$

(1)

where $m_F$—feed weight, g; $\sum m_{Fr}$—the total amount of sampled distillate, g.

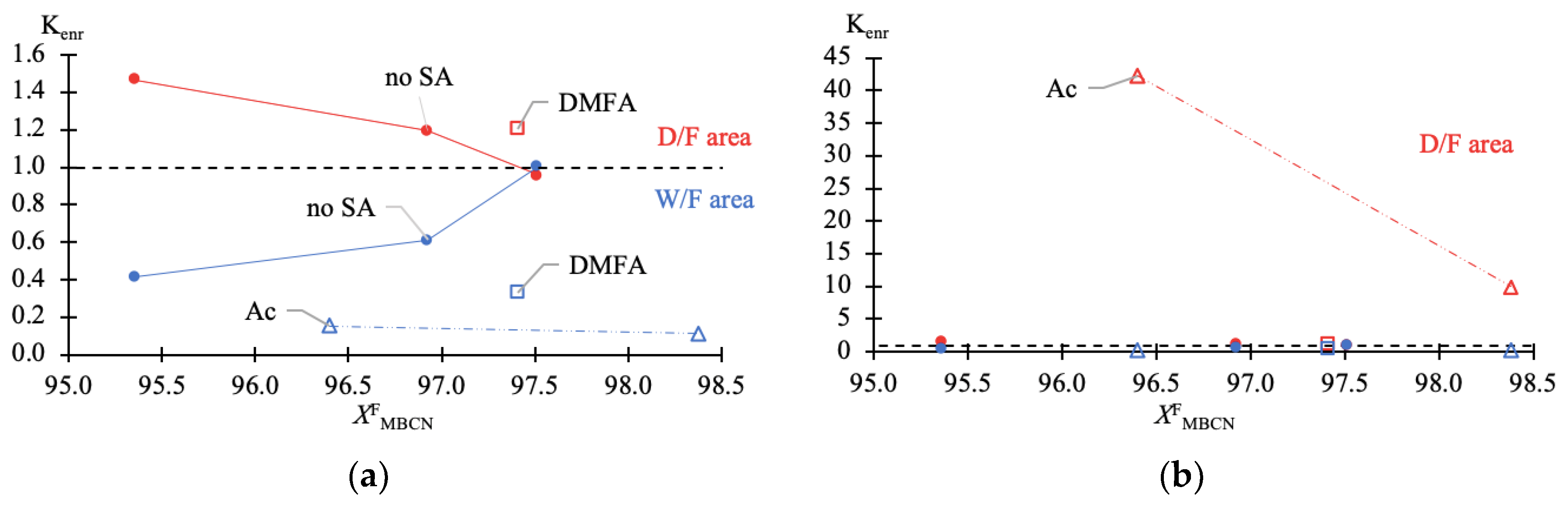

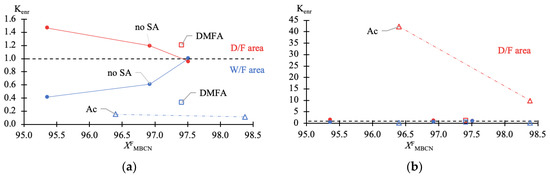

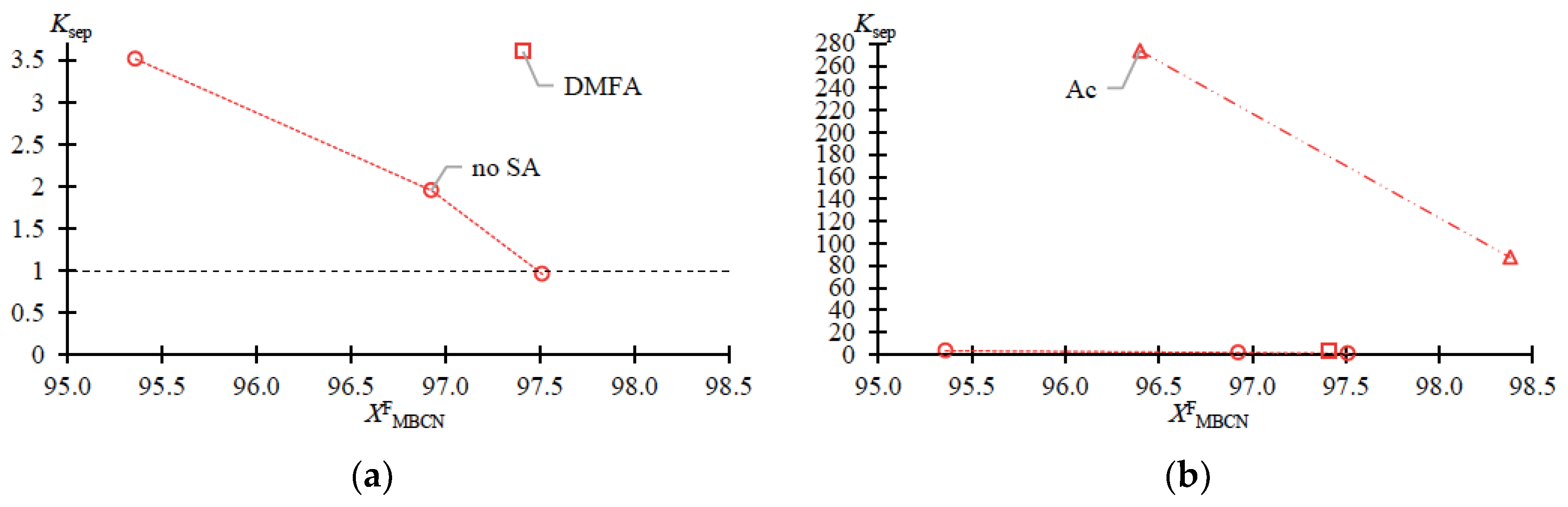

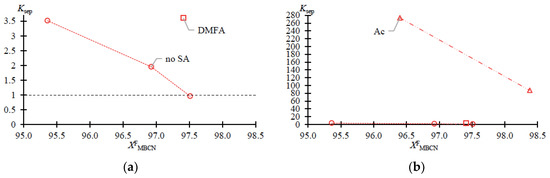

The dependences of the separation ratio ($K_{sep}$) and ratio of enrichment ($K_{enr}$) of MBCN versus the target component content in the feed fraction are shown in Figure 3 and Figure 4, accordingly. $K_{sep}$ (Equation (2)) and $K_{enr}$ (Equation (3)) are calculated according to Table 1:

$$K_{sep}=\frac{\left(X_{\sum D}^{MBCN}/\left(1-X_{\sum D}^{MBCN}\right)\right)}{\left(X_W^{MBCN}/\left(1-X_W^{MBCN}\right)\right)}$$

(2)

$$K_{enr}^{\sum D/F}=\frac{\left(X_{\sum D}^{MBCN}/\left(1-X_{\sum D}^{MBCN}\right)\right)}{\left(X_F^{MBCN}/\left(1-X_F^{MBCN}\right)\right)} or K_{enr}^{W/F}=\frac{\left(X_W^{MBCN}/\left(1-X_W^{MBCN}\right)\right)}{\left(X_F^{MBCN}/\left(1-X_F^{MBCN}\right)\right)}$$

(3)

where $X_i^{MBCN}$—MBCN content, mass %; F—feed; W—bottom; ∑D—total distillate.

Experimental data on liquid–liquid equilibrium in the MBCN-Ac system for the temperature range (T) from 25 to 50 °C are given in

Table 2. Liquid–liquid equilibrium data in MBCN-Ac system at atmospheric pressure, 100.0 kPa.

T	Ac in MBCN			MBCN in Ac
°C	Mass fr.	Mole fr.	Δ Mole fr.	Mass fr.	Mole fr.	Δ Mole fr.
26.2 ± 0.1	0.0105	0.0778	±0.0028	-	-	-
28.0 ± 0.1	-	-	-	0.9659	0.9956	±0.0002
30.0 ± 0.1	0.0116	0.0852	±0.0008	-	-	-
35.0 ± 0.1	0.0129	0.0939	±0.0013	0.9419	0.9923	±0.0002
40.0 ± 0.1	0.0138	0.1004	±0.0006	0.9309	0.9908	±0.0002
45.0 ± 0.1	0.0150	0.1081	±0.0008	0.9193	0.9891	±0.0001
50.0 ± 0.1	0.0166	0.1183	±0.0006	0.9090	0.9876	±0.0002

; the characteristics of the MBCN-Ac heteroazeotrope at atmospheric pressure are given in

Table 3. MBCN-Ac heteroazeotrope composition.

P	T	Mass fr.		Mole fr.
kPa	°C	Ac	MBCN	Ac	MBCN	Δ Mole fr.
99.7 ± 0.3	54.2 ± 0.5	0.7085	0.2915	0.9508	0.0492	±0.0003

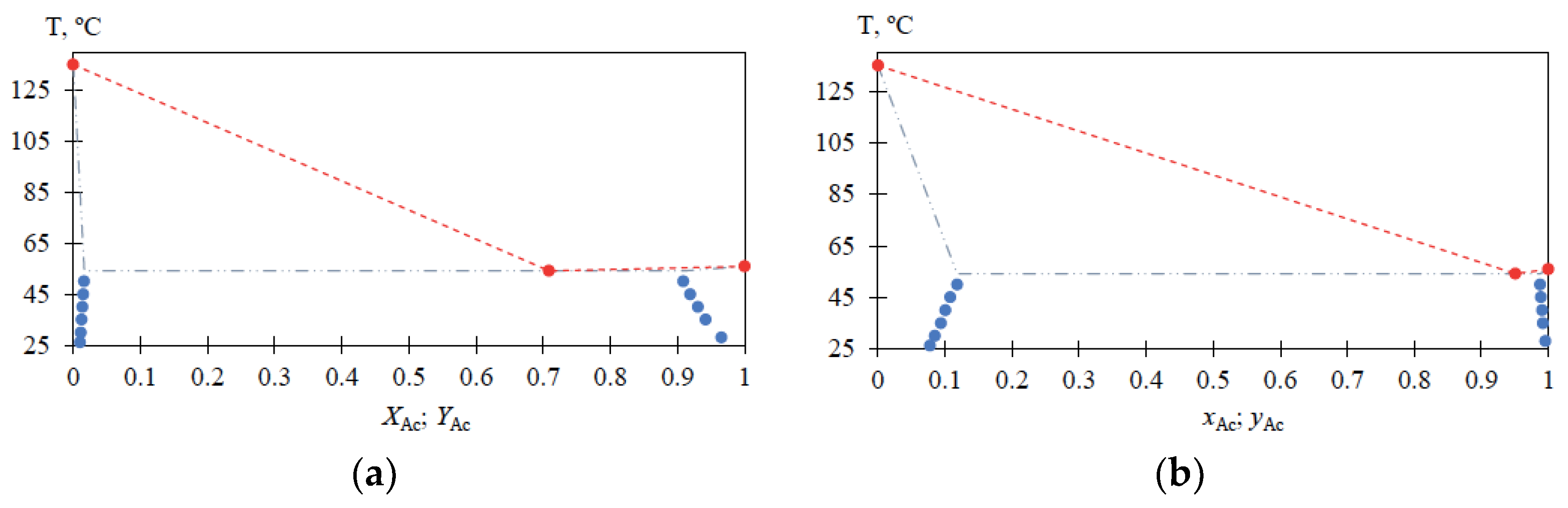

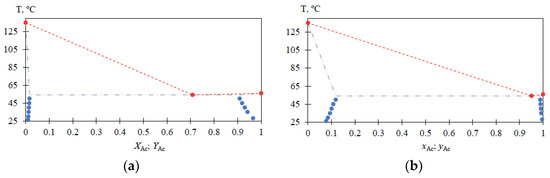

; a view of the MBCN-Ac mixture phase diagram according to Table 2 and Table 3 is shown in Figure 5.

4. Discussion

The data given in Table 1 fully reflect the complex of thermodynamic constraints on the distillation process. The main problem is the withdrawal of PFD and the so-called “main impurity” (still not identified, due to the difficulty of its concentration and purification). From the data in Table 1 and Figure 2a–c, it follows that at relatively low MBCN concentrations in the feed solution, the distillation method allows the fractionation of the mixture and concentration of the target component in distillate. However, when approaching 0.975 in mass fraction of MBCN in the feed solution, this method becomes useless (K_sep → 1; K_enr → 1). The addition of DMFA allows a minor but intensified separation process (Figure 2d): K_sep ≈ 1 → 3.6 (Figure 3); $K_{enr}^{W/F}$ ≈ 1 → 0.33; and $K_{enr}^{\sum D/F}$ ≈ 1 → 1.2 (Figure 4).

Ac is more efficient not only when compared to DMFA (Figure 2f) but also when separating a mixture with a lower (0.964 in mass fraction) concentration of the target component in the feed solution (Figure 2e). Thus, adding Ac makes it possible to obtain an MBCN fraction with a purity higher than 0.998 in mass fraction, and the degree of recovery is quite high, ≥0.85 in mass fraction, in just one process cycle. At $X_{MBCN}^F$= 0.964 ÷ 0.984 in mass fraction, the separation process intensifies by an order of magnitude: K_sep ≈ 1 → 273.46 ÷ 87.55 (Figure 3); $K_{enr}^{W/F }$ ≈ 1 → 0.15 ÷ 0.11; and $K_{enr}^{\sum D/F}$ ≈ 1 → 42.26 ÷ 9.96 (Figure 4).

For the MBCN-Ac system, the liquid–liquid phase equilibrium data are also obtained in the temperature range from 25 to 50 °C (Table 2) and heteroazeotrope characteristics are determined (Table 3). The solubilities of Ac in MBCN (xAc = 0.0778 → 0.1183 mole fraction) and MBCN in Ac (xAc = 0.9956 → 0.9876 mole fraction) increase with increasing temperature from 25 to 50 °C; the heteroazeotrope composition at atmospheric pressure is greatly shifted toward Ac. The presented data (Figure 5) allow for estimating the loss of Ac in the distillate flow and calculating the amount of heteroazeotrope-forming agent required for the process, as well as being essential for the process flowsheet design.

5. Conclusions

This work presents only a part of a large data set on the purification of MBCN from close-boiling impurities and on the separation of the mixture of configurational and structural isomeric reaction products of the electrochemical fluorination of decalin and naphthalene. The major difficulties faced in intensifying the process are the insufficient reference data on the composition of the mixture, the properties of the components present in it, and the topology of the phase diagram of the reaction system. Nevertheless, despite the absence of impurity nomenclature in the present work, it was possible to significantly (by an order of magnitude) increase the efficiency of the MBCN purification process. The effect was achieved by adding a heteroazeotrope-forming agent, Ac. Experimental data on liquid–liquid phase equilibrium were also obtained for the MBCN-Ac binary mixture and the characteristics of the heteroazeotrope at atmospheric pressure were determined.

First, the new experimental data reported in the present work are reference data, the technological solution, and the entry point for further research in terms of the intensification of the process of production and the purification of perfluorinated cycloalkanes.
