Aluminum Beams with Composite Thermal Barriers: Recent Developments in Analysis (Part 1) †
Abstract
:1. Introduction
2. Two Symmetric Concentrated Loads
2.1. Summary of Governing Equations

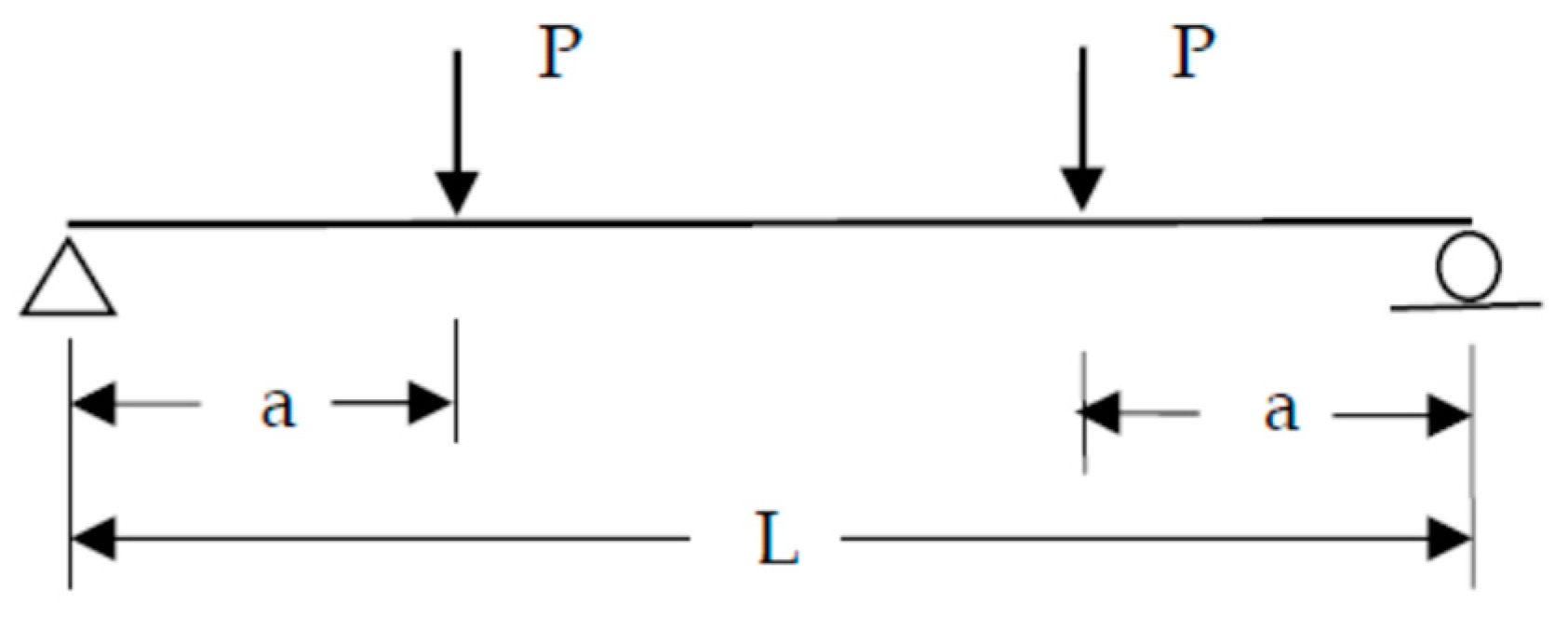

2.2. New Loading Type (Two Equal Concentrated Loads, Symmetrical)

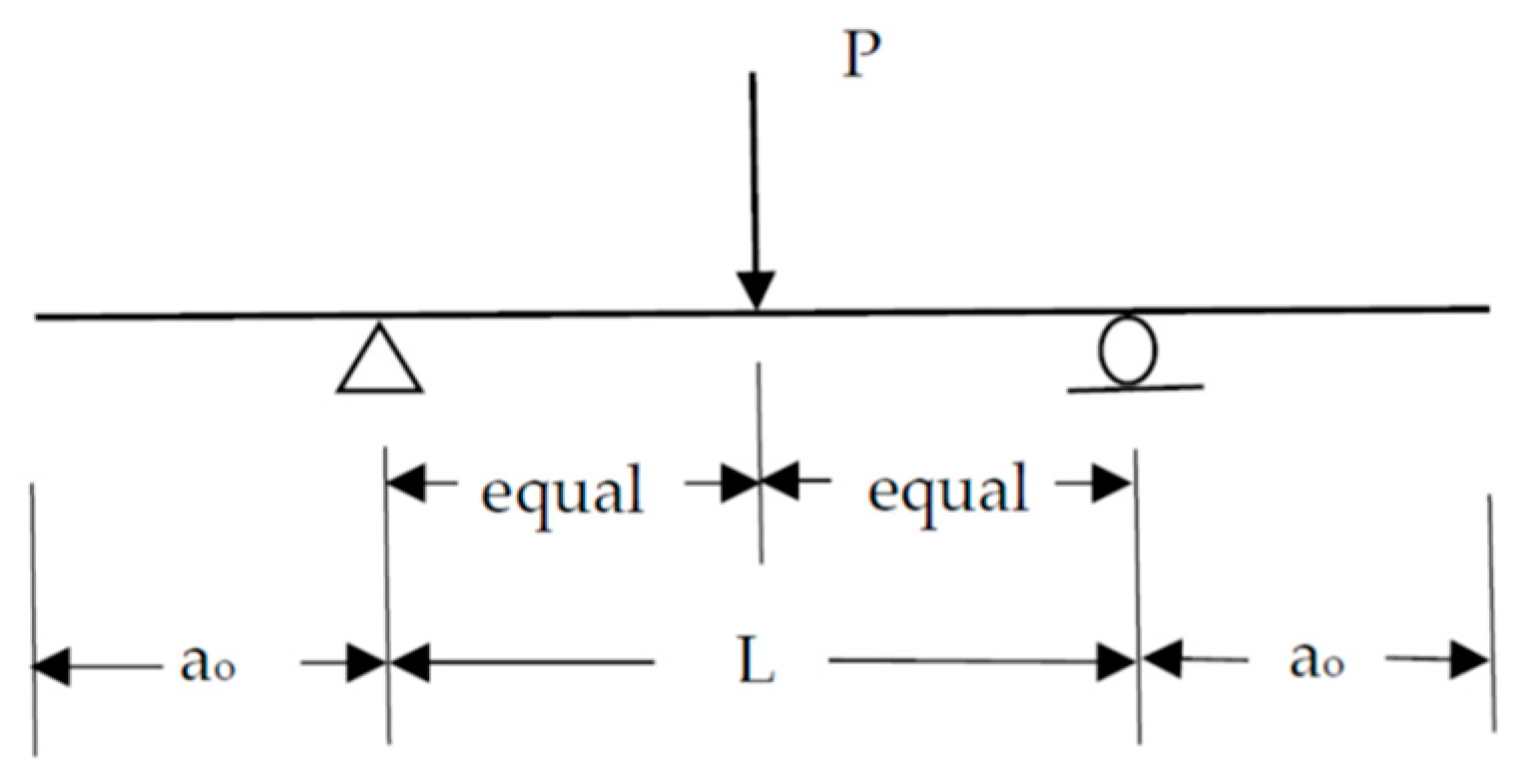

3. Overhang Study Using FEA

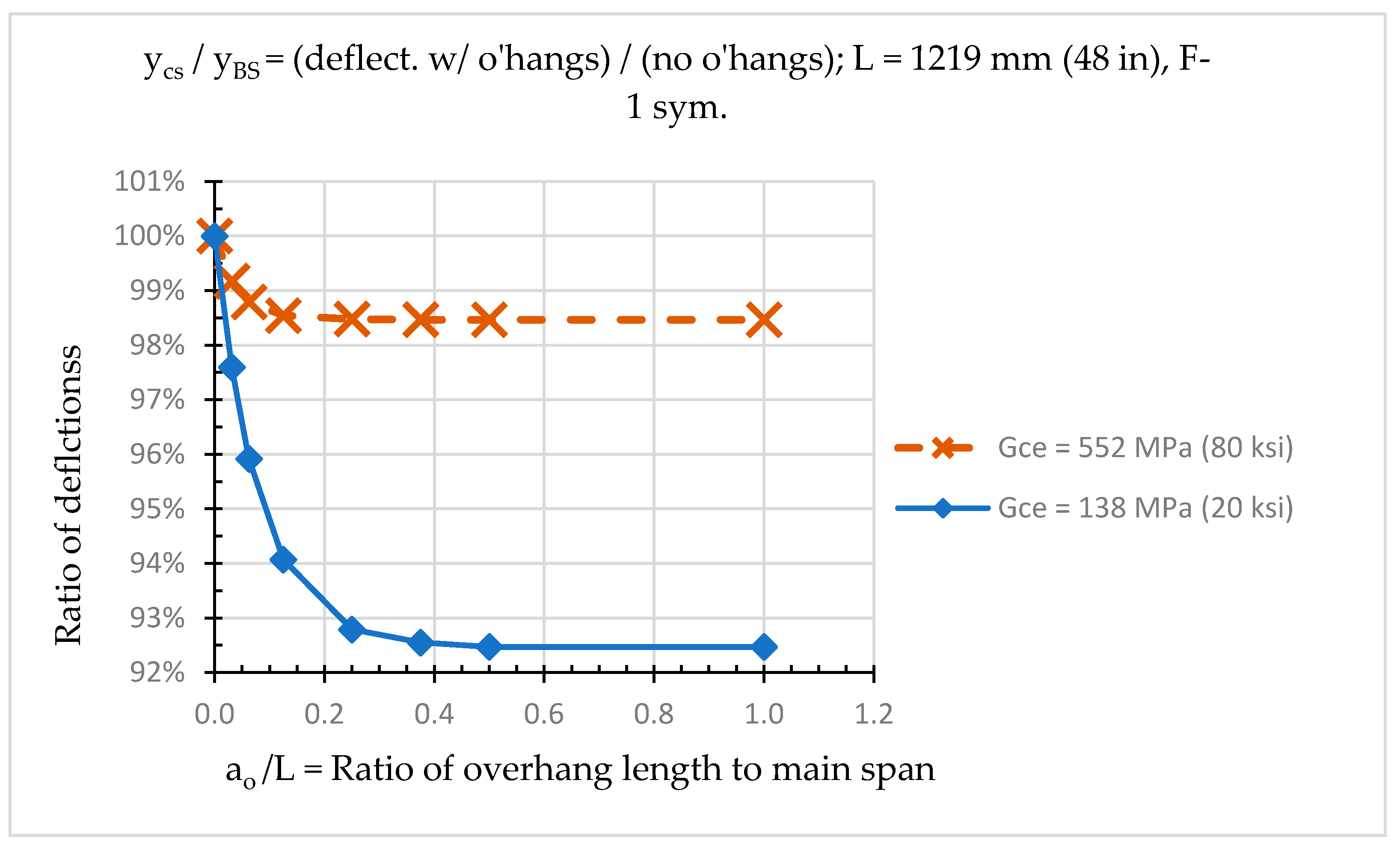

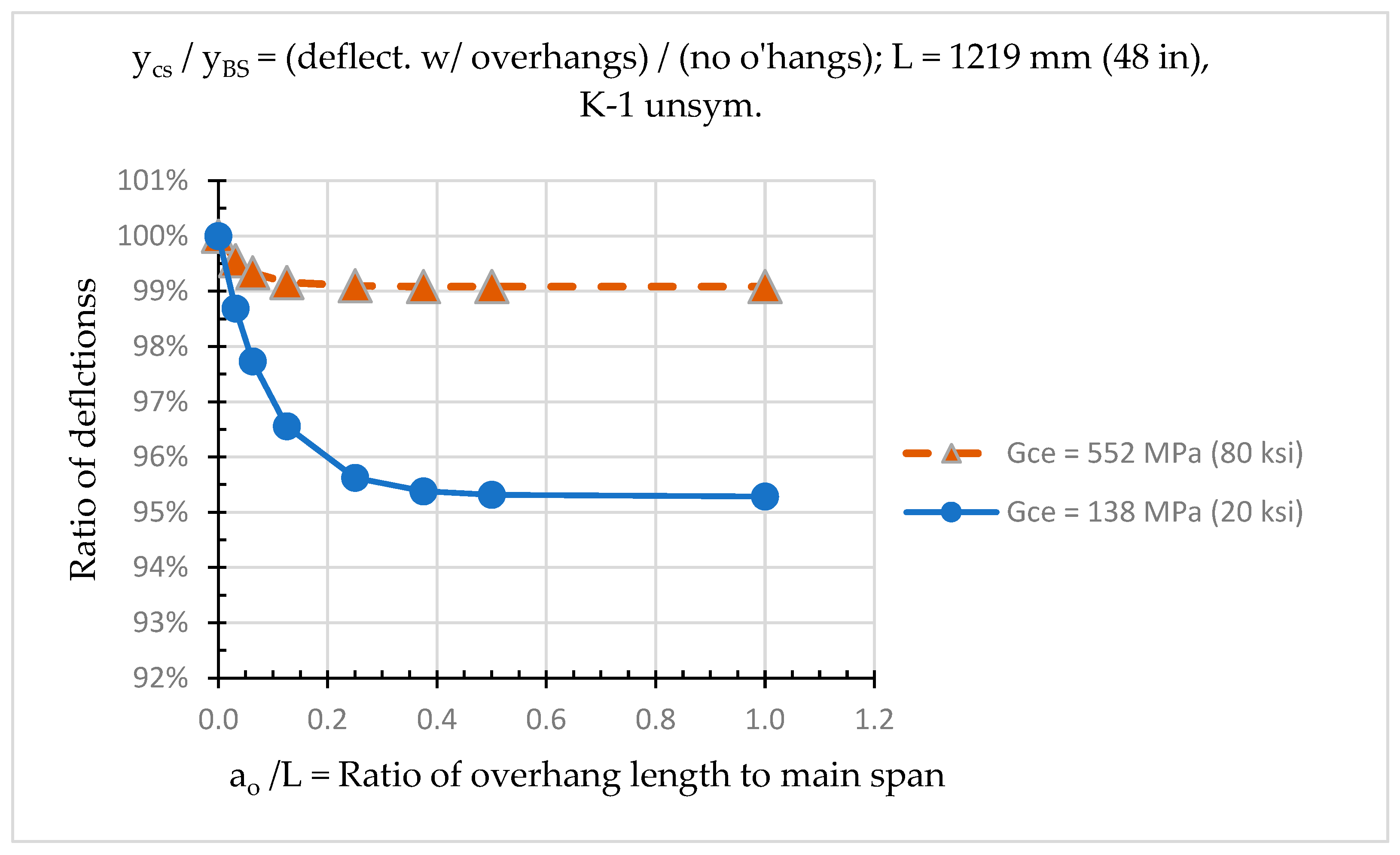

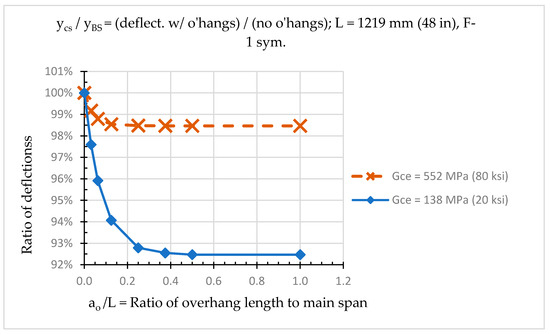

3.1. Analyses
3.2. Comments
4. Conclusions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Abbreviations

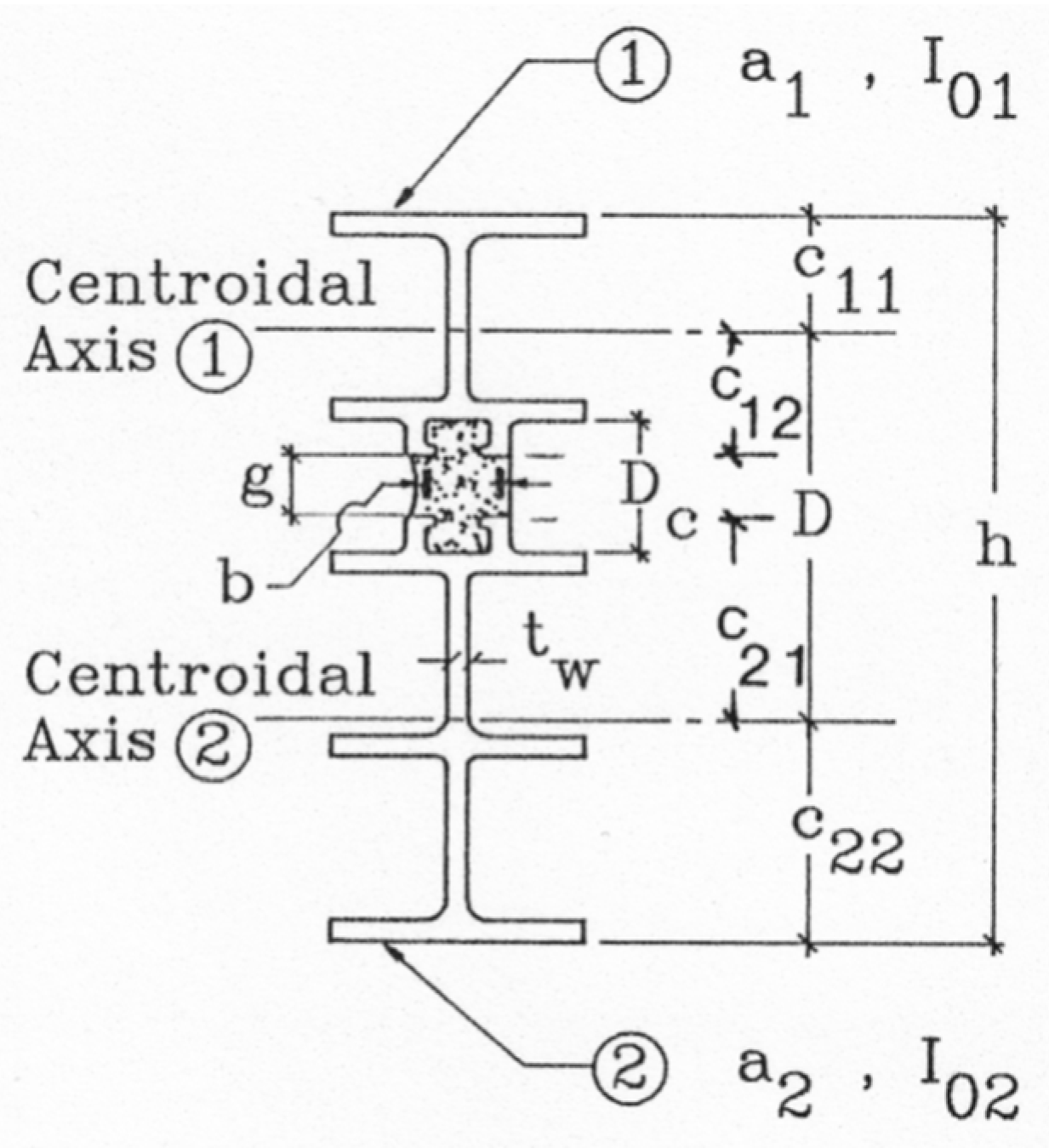

Notation | |
A | shear area of aluminum “web”; |
Ac | cross-sectional area of core; |
a1, a2 | area of Face 1 and 2, respectively; |
b | =Ac/Dc = average core width; |
c | =Gp/(EIo); |
c11, c22 | distance between face centroid and air-side surface of Faces 1 and 2, respectively; |
D | distance between centroids of facing sections; |
Dc | core depth (maximum); |
E | Young’s modulus of aluminum faces; |
Gce | effective shear modulus of installed core material; |
Gp | =IbD2Gce/(IcDc); |
I | moment of inertia of composite cross-section (no core or face shear effects) = Io + Ic; |
Ic | =a1a2D2/(a1 + a2); |
Ie | effective moment of inertia, including core shear effects; |
I’e | effective moment of inertia, including core and faces’ shear effects; |
Io | =Io1 + Io2; |
Io1, Io2 | moments of inertia of Faces 1 and 2, respectively; |
L | span length; |
M | bending moment at distance x from left support; |
V | shear at distance x from left support; |
x | coordinate, starting at the left end of the beam. |
