Analysis of the Fallback Values of Digital Control Systems in Nuclear Power Plants †
Abstract
:1. Background
2. DCS Description

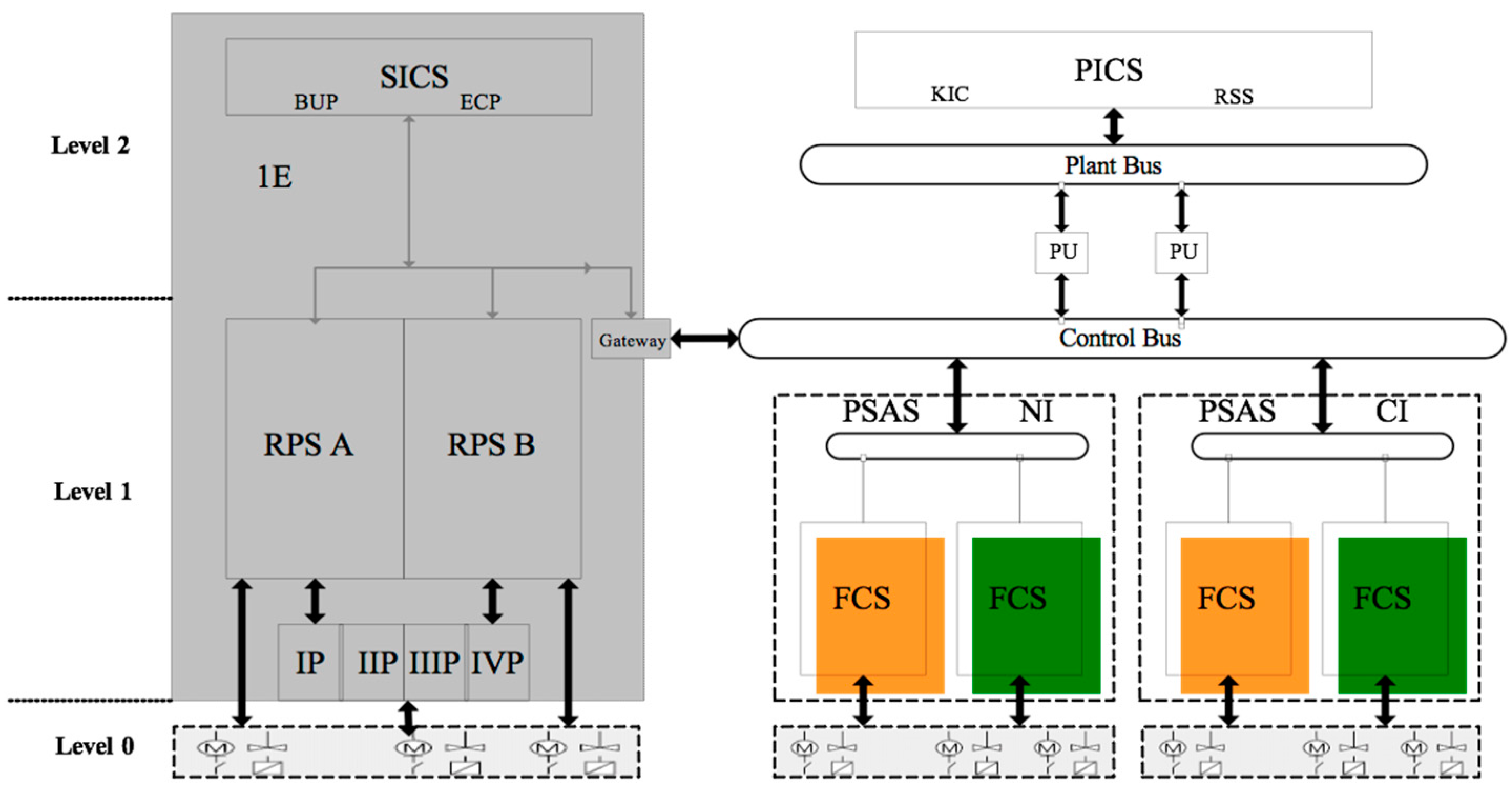

2.1. Structure

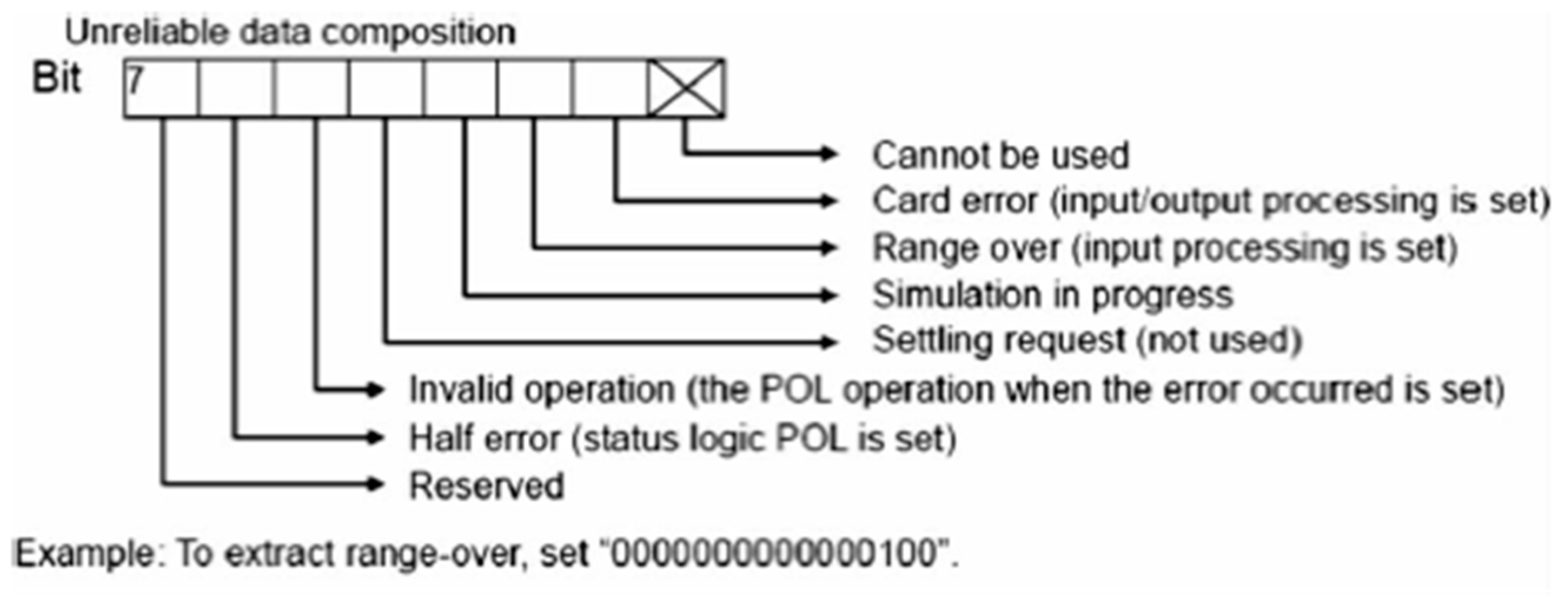

2.2. Invalidity Management

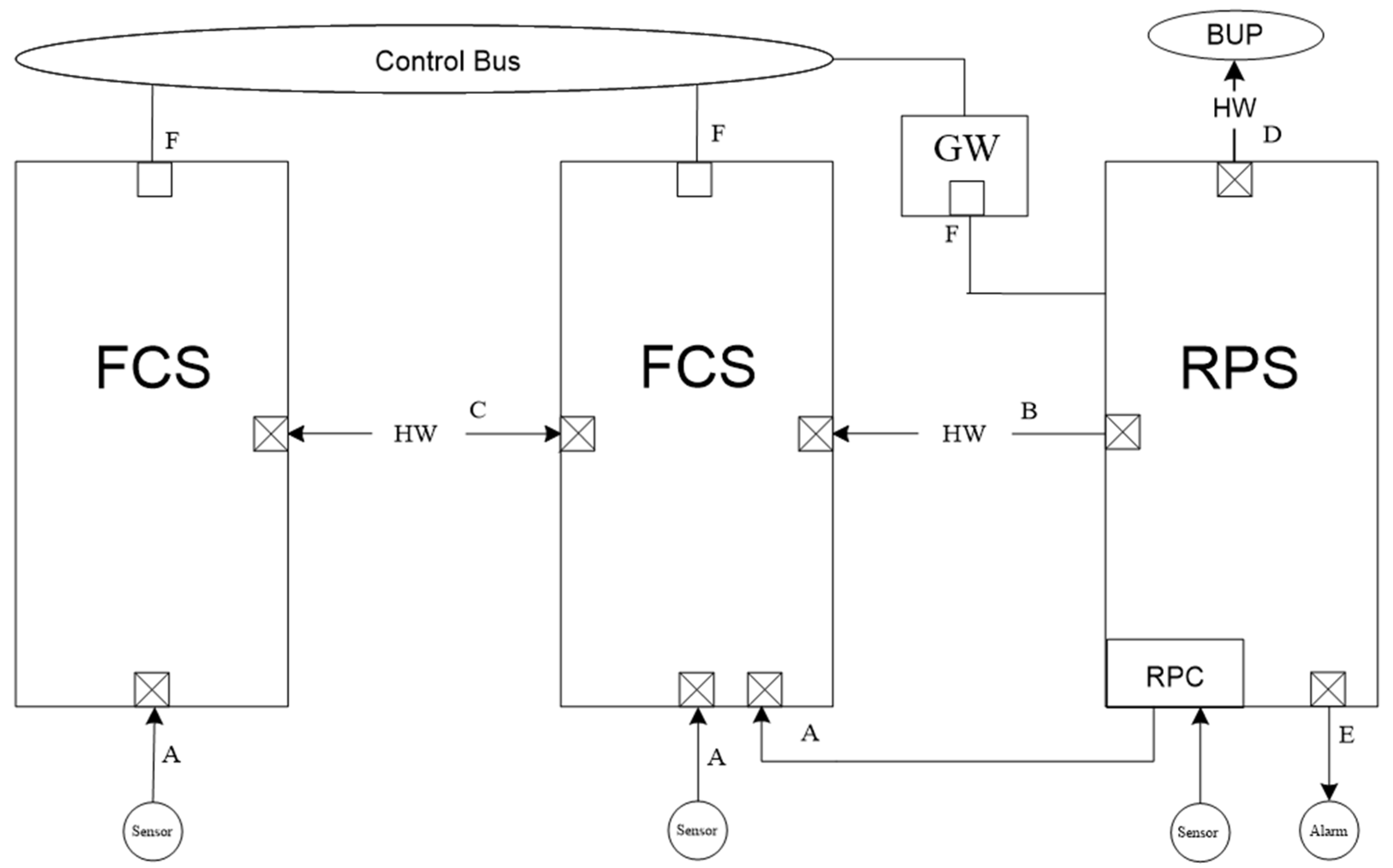

2.3. Failure Mode of Signals
- (1)
- Failure in level 0, which includes sensor failure, disconnection, signal shaking, etc.; this kind of failure is detected by input modules. After a failure, the corresponding input module detects an abnormal change in input electrical signals and then informs CPUs to set the quality state of the signal as “invalid”.
- (2)
- Failure in the level 1 component, which includes failure of input modules, power loss in the level 1 component, and so on. A CPU periodically monitors the working state of the level 1 component; after detecting a failure, the CPU sets the corresponding signal quality state as “invalid”, and the physical value of the signal in the CPU is not refreshed any more. Typical functions of a level 1 failure diagnosis include an input and output (IO) module watchdog timer diagnosis, IO module and CPU communication failure mode diagnosis, etc.
- (3)
- Communication failure within the level 1 cabinet, which includes network failure, gateway failure, etc. After a communication failure, the receiving cabinet detects the signal transmission failure and sets the network signal quality state as “invalid”, and the physical value of the signal is not refreshed any more.
3. Analysis of Fallback Values
3.1. Scope
3.2. Analysis Method for Fallback Values
- (1)
- The monitoring of signal failure, whether the failure can be monitored by operators in the main control room, and how difficult it is;
- (2)
- The consequence of signal failure, the influence on process systems and plant operation, if it will lead to automatic actions, and what the behavior of the systems involved is;
- (3)
- The functional redundancy of the signal; if there is any substitution of functions relative to the signal;
- (4)
- The safe position of the actuators, which mainly considers whether the fallback value setting is consistent with the safe position of the actuators, as long as the actuators are involved in the control logic the signal participates in.

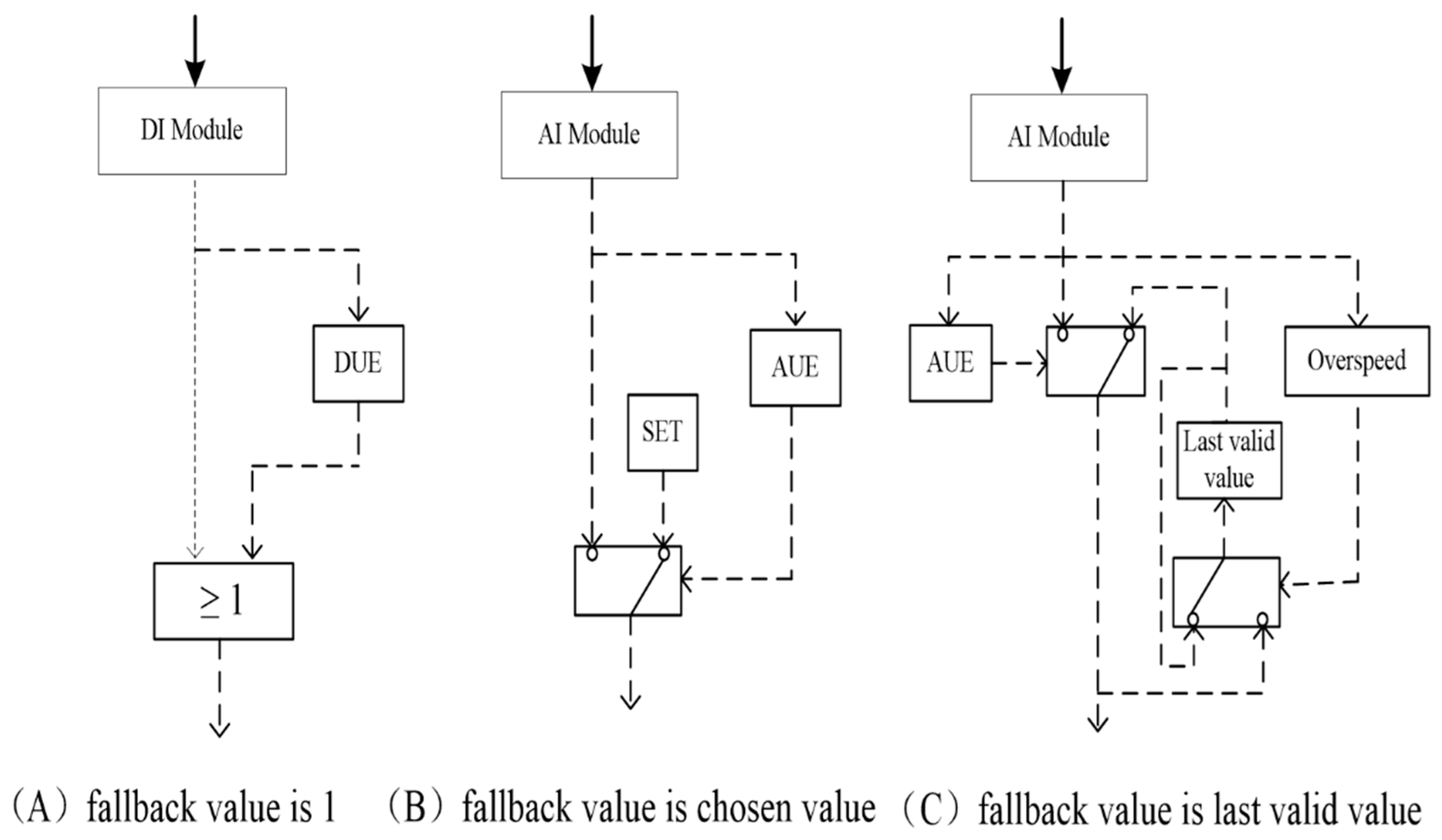

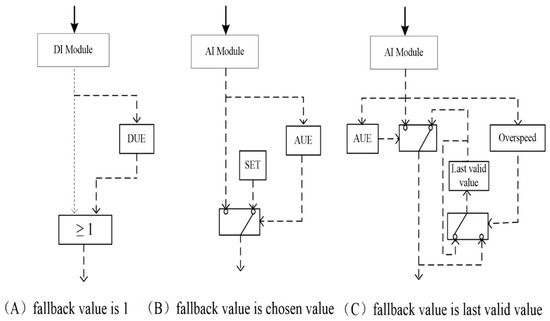

3.3. Implementation of Fallback Values
3.4. Engineering Application
3.5. Verification and Validation
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Yang, Q. Application status and development trend of digital I&C system in nuclear power plant. Nucl. Power Eng. 1998, 19, 124–129. [Google Scholar]
- Liu, W.R. The developing status of the instrument and control systems in nuclear power stations. Process Autom. Instrum. 1997, 18, 1–5. [Google Scholar]
- Zhou, H.X. Data communication of TXP/TXS system in Tianwan nuclear power plant. Nucl. Power Eng. 2006, 27, 67–70. [Google Scholar]
- Zhang, Y.; Han, B. Research on application of fieldbus in power plant unit control. Process Autom. Instrum. 2008, 29, 18–21. [Google Scholar]
- Meng, L. Application of fieldbus technology in power plant. Process Autom. Instrum. 2005, 26, 33–35. [Google Scholar]
- IAEA Safety Standards SSG-39; Design of Instrumentation and Control Systems for Nuclear Power Plants. IAEA: Vienna, Austria, 2016.
- Zhou, H.X. Failure mode and effect analysis for digital reactor protection system in Tianwan nuclear power plant. At. Energy Sci. Technol. 2007, 41, 702–706. [Google Scholar]
- Wang, Z.Y.; Li, H.L.; Zheng, W.B. Analysis research on the fallback values of digital instrument and control system in NPP. Process Autom. Instrum. 2011, 32, 24–27. [Google Scholar]
- Liu, Z.Y.; Wang, Z.Y.; Zhang, X.C.; Li, M. Analysis research of fallback value related to RPC loss of power in NPPs. Nucl. Electron. Detect. Technol. 2012, 32, 416–420. [Google Scholar]
- Zhao, H.B.; Gong, A.C.; Wang, Z.G. Based on DCS system failure analysis of the nuclear island fast maintenance strategy. Instrumentation 2015, 22, 84–87. [Google Scholar]
- Zhao, Y.F.; Zhou, L. Fault diagnosis and management of analog input signal for the safety class DCS in nuclear power plant. Instrumentation 2020, 21, 70–73. [Google Scholar]
- Wang, S.W.; Li, G.J.; Sun, W.; Tian, Y. Default value realization research of CPR1000 safety classified DCS platform. J. Mech. Electr. Eng. 2017, 34, 100–104. [Google Scholar]
- Su, Z.K.; Zhao, H.B.; Zhang, H.X. Study on the setting and validation methods for CPR1000 DCS default value. Chin. J. Nucl. Sci. Eng. 2010, 30, 9–13. [Google Scholar]
- Choi, J.H.; Lee, S.J. Consistency index-based sensor fault detection system for nuclear power plant emergency situations using an LSTM network. Sensors 2020, 20, 1651. [Google Scholar] [CrossRef] [PubMed]
- Choi, J.H.; Lee, S.J. A sensor fault-tolerant accident diagnosis system. Sensors 2020, 20, 5839. [Google Scholar] [CrossRef] [PubMed]
- Liu, H.C.; Wang, T.T.; Wang, H.J.; Zhou, J.X.; Liu, G.M.; Xu, D.F. Design of digital reactor protection system of Ling’ao phase II NPP. Nucl. Power Eng. 2008, 29, 1–4. [Google Scholar]
- He, Z.X.; Yu, J.H.; Li, X.F. Design of cooling monitoring system based on SOP. Nucl. Power Eng. 2012, 33, 107–110. [Google Scholar]
- Sun, Y.B.; Jiang, X.H. Layout design of advanced control room of pressurized water reactor NPP. Nucl. Power Eng. 2008, 29, 73–77. [Google Scholar]
- Wang, Z.Y.; Zheng, W.B.; Li, H.L.; Li, S.; Li, M. Review on loss of power supply incident analysis for Ling’ao phase II NPP. Npp. Nucl. Power Eng. 2011, 32, 51–57. [Google Scholar]
- Wang, Z.Y.; Shi, Y.M.; Liu, L. Fire safety design of CPR1000 nuclear power plants. In Proceedings of the IEEE 2nd International Conference on Power, Electronics and Computer Applications, Shenyang, China, 21–23 January 2022. [Google Scholar]
